COMPLIANCE INFORMATION
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user’s own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes
Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für entsprechende Gegenmaßnahmen
werantwortlich ist.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l’utilsateur de prende les measures spécifiques
appropriées
VCCI Class 1 Compliance
This equipment is in the 1st Class category (information equipment to be used in commercial and/or
industrial areas) and conforms to the standards set by the Voluntary Control Council For Interference by
Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in
commercial and/or industrial areas. When used in a residential area or in an adjacent area thereto,
interference may be caused to radio and TV receivers, etc. Read the instructions for correct handling.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
Copyright Restrictions
© 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Printed in the U.S.A. 33120.A
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
The LANart rack-mountable FXC1x15T series multi-port media converters,
FXC1115T and FXC1215T, allow the network administrator of a large and
complex network to extend the distances between multiple 100BASE-TX
devices and multiple 100BASE-FX devices.
FXC1115T
Provides six (6) independent media converter connections between 100BASETX signals over twisted pair copper (RJ-45 connectors) and 100BASE-FX
signals over fiber-optic cable (RX receive and TX transmit ST connectors).
FXC1215T
Provides twelve (12) independent media converter connections between
100BASE-TX signals over twisted pair copper (RJ-45 connectors) and 100BASEFX signals over fiber-optic cable (RX receive and TX transmit ST connectors).
NOTE: The multi-port media converter AutoCross™ feature allows either
straight-through or crossover twisted-pair copper cable to be used when
connecting to 100BASE-TX devices. AutoCross™ determines the
characteristics of cable connections to the media converter port and then
automatically configures the port to
link up.
Minneapolis, MN 55344 USA
100BASE-TX/100BASE-FX
Multi-Port Media Converter
FXC1115T, FXC1215T
USER’S GUIDE
FXC1x15T in the Network . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . . .6
Fault Isolation and Correction . . . . .8
Cable Specifications . . . . . . . . . . . .10
Technical Specifications . . . . . . . . .11
Compliance Information . . . . . . . . .12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
FXC1X15T IN THE NETWORK
Each media converter port in the FXC1x15T multi-port media converter
operates independently over one isolated twisted-pair copper/fiber-optic
cable link. The media converter port receives and transmits network
signals in either full-duplex or half-duplex, depending upon the network
devices to which the media converter port is attached, and is designed
to work effectively with 10/100 autonegotiating ports to provide reliable
100 Mbps fiber links.
TECHNICAL SPECIFICATIONS
Standards IEEE 802.3
Case Dimensions 1.7" x 17.4" x 7.0" (43.6 cm x 440 cm x 178 cm)
Weight
FXC1115T 5.0 pounds (2.27 kilograms)
FXC1215T 6.0 pounds (2.72 kilograms)
Shipping Weight
FXC1115T 6.25 pounds (2.84 kilograms)
FXC1215T 7.25 pounds (3.29 kilograms)
Environment Temperature: 0-50°C (32° to 122° F )
Humidity 10-95%, non condensing
Altitude 0-10,000 feet
Power 100-240 VAC, 50/60 Hz., 1 Amp (maximum)
FXC1115T 16 Watts, 54.6 BTU-HR
FXC1215T 32 Watts, 109.2 BTU-HR
Warranty Lifetime
DECLARATION OF CONFORMITY
Name of Mfg: LANart Corporation
6475 City West Parkway, Minneapolis MN 55344 USA
Model: FXC1x15T Series Multi-Port Media Converter
Part Number: FXC1115T, FXC1215T
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the FXC1115T and FXC1215T to which this declaration
refers is in conformity with the following standards.
EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;
EN 60950 A4:1997; IEC 801.2, IEC 801.3, and IEC 801.4; IEC 950
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
_August 3, 1999_____
Stephen Anderson, Vice-President of Engineering Date
7
8
9
10
11
12
1
2
3
4
5
6
Switch
Hub
Hub
Hub
Hub
Server
Server
Half-Duplex
Half-Duplex
Full-Duplex
Full-Duplex
CABLE SPECIFICATIONS
The physical characteristics of the media cable must meet or exceed IEEE 802.3
specifications.
FIBER CABLE
MULTIMODE
Fiber Optic Cable Recommended: 62.5 / 125 µm multimode fiber
Optional: 100 / 140 µm multimode fiber
85 / 125 µm multimode fiber
50 / 125 µm multimode fiber
Wavelength : 1300 nM
Attenuation: 1.5 dB/ 1 kilometer @ 1300 nM
Maximum Number of Nodes: 2 nodes
Maximum Cable Distance: Half-duplex: See page 3
Full-duplex: 2 kilometers (6562 feet)
Media Standards: IEC 793-2, Type A1b, category 3.5 dB/km
COPPER CABLE AND CONNECTOR
Category 5 twisted-pair copper wire is required. Either shielded twistedpair (STP) or unshielded twisted-pair (UTP) can be used. DO NOT USE
FLAT OR SILVER SATIN WIRE.
CATEGORY 5:
Gauge 24 to 22 AWG
Attenuation 22.0 dB /100m @ 100 MHz
Maximum Number of Nodes: 2 nodes
Maximum Cable Distance: 100 meters
RJ-45 Pin-out:: Pin 1=TD+, Pin 2=TD-,
Pin 3=RD+, Pin 6=RD-
Twisted pair connection requires two active pairs configured as straight
through and/or crossover. The two active pairs in an Ethernet™ network
are pins 1 & 2 and pins 3 & 6. Use only dedicated wire pairs (such as
blue/white & white/blue, orange/white & white/orange) for the active pins.
Media Converter Port in Full-Duplex Network
In a full-duplex network, maximum cable lengths are determined by the
cables used. See page 10 for cable specifications.
NOTE: The 512-Bit Rule described below does NOT apply in a full-duplex
network.
Media Converter Port in Half-Duplex Network
The 512-Bit Rule applies separately to each collision domain.
USING THE 512-BIT RULE
In a half-duplex network, maximum cable lengths are determined by the
round trip delay limitations of each Fast Ethernet
™ collision domain.
(Switches and routers divide the network into separate Ethernet™ collision
domains.) The 512-Bit Rule determines maximum distances by calculating
the collision domain round-trip delay in bit-times.
To calculate a collision domain round-trip delay in bit-times, find the longest
path between any two terminal devices in the collision domain. Calculate the
round trip delay by multiplying the
length of the cable (in meters) by the
delay per meter (in bit-times (BT)),
then take the sum of all cable delays
plus station (DTE), repeater, and
multi-port media converter port
delays. If the result is less than or
equal to 512 bit-times, the path is
good.
Twisted
Pair #1
Twisted
Pair #2
Crossover Cable
Connectors for like devices
Twisted
Pair #1
Twisted
Pair #2
Straight Through Cable
Connectors for unlike devices
Class I repeater 140 BT
Class II repeater 92 BT
Class I TX/FX media converter 130 BT
Class II TX/FX media converter 92 BT
DTE (PC, switch, router) 50 BT
FXC1x15T port 25 BT
1 meter CAT.5 TP cable 1.11 BT
1 meter fiber cable 1 BT
Fast Ethernet switch 50 BT
10 meters TP
@ 1.11BT/meter
= 11.1BT
DTE= 50BT
Class II
Hub
= 92BT
10 meters TP
@ 1.11BT/meter
= 11.1BT
10 meters TP
@ 1.11BT/meter
= 11.1BT
FXC1x1
Port
= 25BT
FXC1x1
Port
= 25BT
FXC1x1
Port
= 25BT
DTE= 50BT
150 meters fiber
@ 1.0 BT/meter
= 150BT
10 meters TP
@ 1.11BT/meter
= 11.1BT
Class I
Hub
= 140BT
Half-Duplex Collision Domain
50.00BT
+11.10BT
+140.00BT
+150.00BT
+25.00BT
+11.10BT
+50.00BT
__________
_
= 437.20BT
Half-Duplex Collision Domain
200 meters fiber
@ 1.0 BT/meter
= 200BT
DTE= 50BT
50.00BT
+11.10BT
+25.00BT
+200.00BT
+92.00BT
+11.10BT
+50.00BT
__________
_
= 439.20BT
Full-Duplex - NO Collision Domain
Switch/
Router
= 50BT
INSTALLA TION
Install FXC1x15T at Site
WARNING: During the site installation, handle the FXC1x15T in such a way
that the FXC1x15T does not fall. Failure to observe this warning could result
in injury to personnel and/or equipment damage.
To install the FXC1x15T in 19-inch rack cabinet:
NOTE: Brackets and screws are provided.
1. Install right and left front brackets on FXC1x15T by installing two (2)
screws through each bracket into FXC1x15T chassis.
2. Carefully align the FXC1x15T between 19-inch rack mounting rails.
3. Install FXC1x15T by installing two (2) screws through right front
bracket into rack and two (2) screws through left front bracket into
rack, using clip nuts (NOT provided) to secure if necessary.
To install the FXC1x15T on table or other flat surface:
NOTE: Rubber feet are provided.
1. Carefully turn FXC1x15T to side.
2. Install four (4) rubber feet:
• Separate rubber feet.
• Remove protective paper from adhesive surface on rubber foot.
• Position and secure each rubber foot as shown.
3. Return FXC1x15T to upright position.
5. Is one of the yellow 100BASE-TX Activity LEDs illuminated?
NO
• Disconnect and reconnect the 100BASE-TX cable to restart the
initialization process.
• Restart the workstation to restart the initialization process.
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
YES
• Proceed to step 6.
6. Is one of the yellow 100BASE-FX Activity LEDs illuminated?
NO
• Disconnect and reconnect the 100BASE-FX cable to restart the
initialization process.
• Restart the workstation to restart the initialization process.
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
YES
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
7
8
9
10
11
12
1
2
3
4
5
6
1
3
2
FAULT ISOLATION and CORRECTION
If the media converter fails, isolate and correct the fault by determining the
answers to the following questions and then taking the indicated action:
1. Is the P(o)W(e)RLED on the media converter illuminated?
NO
• Is the power cord properly installed in the media converter and in
the grounded AC outlet?
• Does the grounded AC outlet provide power?
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
YES
• Proceed to step 2.
2. Does one of the green 100BASE-TX Status LEDs blink once* and
go off?
YES
• Check twisted pair cables for proper connection.
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
NO
• Proceed to step 3.
3. Does one of the green 100BASE-FX Status LEDs blink once and
go off?
YES
• Check fiber cables for proper connection.
• Verify that TX and RX cables on media converter are connected to
RX and TX ports, respectively, on other device.
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
NO
• Proceed to step 4.
4. Does one of the green 100BASE-FX Status LEDs blink twice and
go off?
YES
• Determine cause of Far End Fault and then repair or replace faulty
cable or equipment in copper link.
• Contact Technical Support: (800) 260-1312/(800) LAN-WANS.
NO
• Proceed to step 5.
*If one of the 100BASE-TX Status LEDs blinks twice, the 100BASE-TX
link is Auto-Negotiating. If the media converter port is connected to a
100BASE-TX device, no action is necessary. If the media converter port
is connected to a 10BASE-T device, the multi-port media converter will
not operate properly.
Install Cable
COPPER
NOTE: KEEP TWISTED PAIR RUNS AS SHORT AS POSSIBLE.
NOTE: AutoCross™ allows the use of either straight-through or crossover
configuration cables.
1. Locate or build 100BASE-TX compliant cables with male RJ-45
plug connectors at both ends.
2. Connect male RJ-45 plug connector at one end of cable to media
converter port RJ-45 jack connector.
3. Connect male RJ-45 plug connector at other end of cable to
100BASE-TX device RJ-45 jack connector.
FIBER
1. Locate or build 100BASE-FX compliant fiber cable with male two-
stranded TX to RX connectors at both ends.
2. Connect male TX and RX cable connectors at one end of cable to
TX and RX female connectors, respectively, on media converter
port.
3. Connect male TX and RX cable connectors at other end of cable to
RX and TX connectors, respectively, on 802.3 compliant fiber
device.

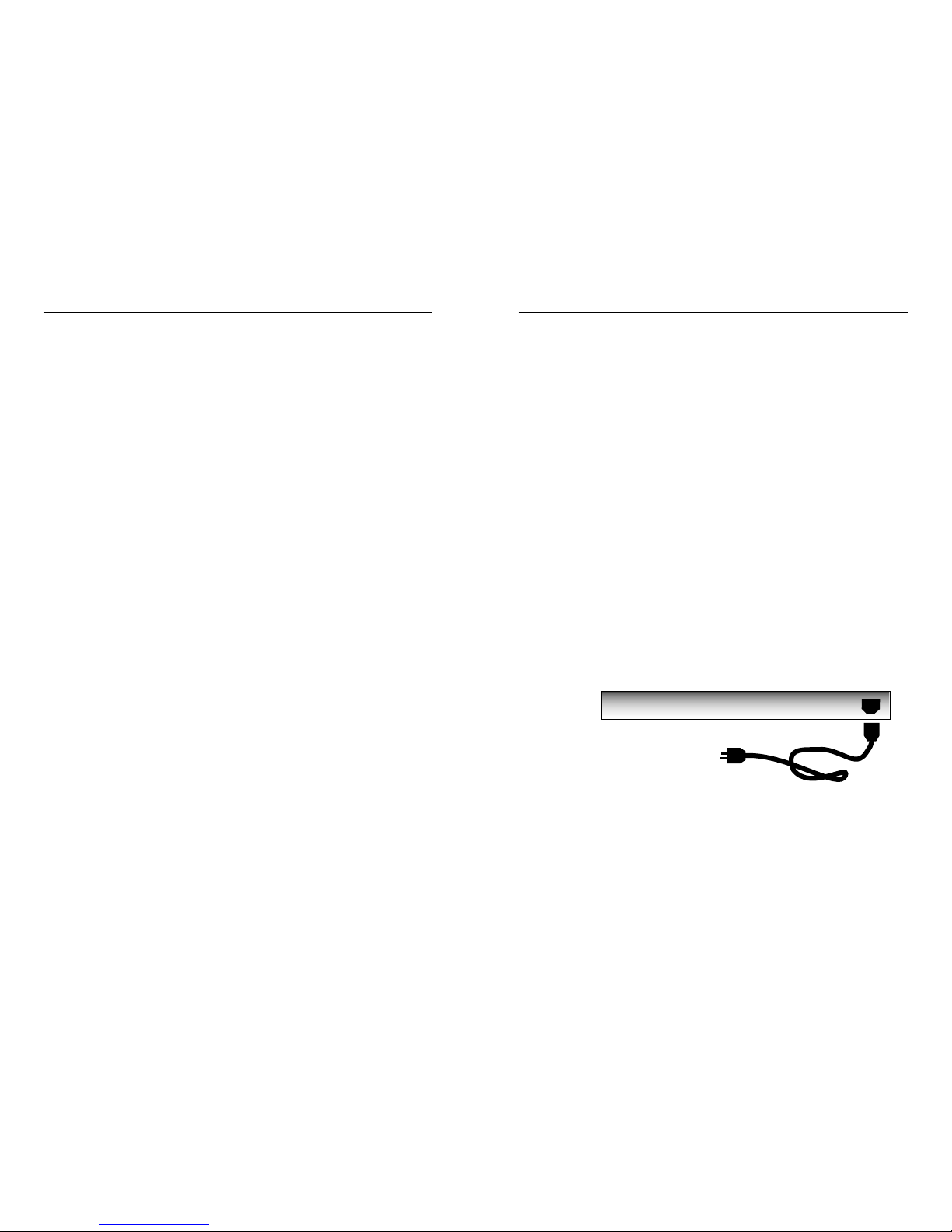

Connect to Power
1. At multi-port media converter back, locate male power receptacle.
2. Plug female media converter end of power cord into multi-port
media converter power receptacle.
3. Plug male outlet end of power cord into correct voltage, properly
grounded, AC rack or wall power source.
4. Verify that multi-port media converter is powered by observing
illuminated power and status LED(s).
OPERA TION
Use the status LEDs to monitor multi-port media converter operation in the
network.
NOTE: Each 100BASE-TX/ 100BASE-FX port, when facing the multi-port
media converter, is numbered consecutively at the left of the 100BASE-TX
connector for that port. The LEDs that apply to each 100BASE-TX or
100BASE-FX connection in the port are located, when facing the multi-port
media converter, at the right of the connector(s) for that 100BASE-TX or
100BASE-FX port connection.
Green LED = Status Yellow LED = Activity
STATUS (100BASE-TX) Steady green LED indicates normal
operation.
One (1) continuous, flashing blink indicates
Link Down.
Two (2) continuous, flashing blinks indicates
100BASE-TX link is Auto-Negotiating.
ACTIVITY (100BASE-TX) Flashing yellow LED indicates 100BASE-TX
activity.
STATUS (100BASE-FX) Steady green LED indicates normal
operation.
One (1) continuous, flashing blink indicates
Link Down.
Two (2) continuous, flashing blinks indicates
reception of Far End Fault on 100BASE-TX
link.
ACTIVITY (100BASE-FX) Flashing yellow LED indicates
100BASE-FX
activity.
POWER Steady green LED indicates power.
Using LinkAlert™
The FXC1x15T series multi-port media converter LinkAlert™ feature allows
each media converter port to pass 100BASE-TX-side link faults over the port link
to the 100BASE-FX side and to pass 100BASE-FX-side link faults over the port
link to the 100BASE-TX side.
If the port does not detect a good link on the 100BASE-TX side, the port disables
all transmission (including active-idle) on the 100BASE-FX side AND the green
100BASE-FX STATUS LED on the multi-port media converter blinks twice.
* The 100BASE-FX STATUS LED
continuously blinks twice until the far end
100BASE-TX fault is corrected.
NOTE: No similar LED display exists for faults on the 100BASE-FX link, but if
the port does not detect a good link on the 100BASE-FX side, the port DOES
disable all transmission (including link-integrity) on the 100BASE-TX side until
the far end 100BASE-FX fault is corrected.
Link
1
2
100BASE-TX
Device
Media Converter
Port
FAR END FAULT INDICATION*
LINK FAULT INDICATION
100BASE-FX
Device
Loading...
