Page 1

User’s Guide

E-100BTX-FX-05

Stand-Alone Media Converter

• Fast Ethernet

• Copper to Fiber

• 100Base-TX to 100Base-FX

• Extended Temperature

Transition Networks E-100BTX-FX-05 Fast Ethernet media converter connects 100BaseTX shielded or unshielded twisted-pair copper

cable to 100Base-FX fiber-optic cable. The E100BTX-FX-05 series of media converters include both standard temperature models (listed below) and extended temperature model.

Standard Temperature Models: 0°C to 50°C (32°F to 122°F)

* Typical maximum cable distance. Actual

distance is dependent upon the physical characteristics of the network installation.

Installation . . . . . . . . . . . . . . . . . . . . .3

Operation . . . . . . . . . . . . . . . . . . . . .6

Cable Specifications . . . . . . . . . . . . . .8

Technical Specifications . . . . . . . . . .11

Troubleshooting . . . . . . . . . . . . . . .12

Compliance Information . . . . . . . . .15

Part Number Port One - Copper

100Base-TX

Port Two - Duplex Fiber100Base-FX

E-100BTX-FX-05 RJ-45

100 m (328 ft)*

ST, 1300 nm multimode 2 km (1.2 miles)*

E-100BTX-FX-05(SC) RJ-45

100 m (328 ft)*

SC, 1300 nm multimode 2 km (1.2 miles)*

E-100BTX-FX-05(LC) RJ-45

100 m (328 ft)*

LC, 1300 nm multimode 2 km (1.2 miles)*

E-100BTX-FX-05(MT) RJ-45

100 m (328 ft)*

MT-RJ, 1300 nm multimode 2 km (1.2 miles)*

E-100BTX-FX-05(SM) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode 20 km (12.4 miles)*

E-100BTX-FX-05(SMLC) RJ-45

100 m (328 ft)*

LC, 1310 nm single mode 20 km (12.4 miles)*

E-100BTX-FX-05(LH) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode 40 km (24.9 miles)*

E-100BTX-FX-05(XL) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode 60 km (37.3 miles)*

E-100BTX-FX-05(LW) RJ-45

100 m (328 ft)*

SC, 1550 nm single mode 80 km (49.7 miles)*

E-100BTX-FX-05(XLW) RJ-45

100 m (328 ft)*

SC, 1550 nm single mode 120 km (74.56 miles)*

Page 2

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

The media converters with the “HT” extension in the part number can be used in an extended temperature environment from -25°C to 65°C (-13°F to 149°F).

Part Number Description

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Wide-Input;

Output: 12.6VDC, 1.0 A

SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-Back Wide-Input;

Output: 12.6VDC, 1.0 A

E-MCR-04 12-Slot Media Converter Rack (includes universal internal power supply)

17 x 15 x 5 in. (432 x 381 x 127 mm)

WMBL Optional Wall Mount Brackets; 4.0 in. (102 mm) WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm) WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)

WMBD-FS Optional DIN Rail Mount Bracket (flat, small); 3.1in. (79 mm)

Part Number Port One - Copper

100Base-TX

Port Two - Duplex Fiber100Base-FX

E-100BTX-FX-05(HT) RJ-45

100 m (328 ft)*

ST, 1300 nm multimode 2 km (1.2 miles)*

E-100BTX-FX-05(SCHT) RJ-45

100 m (328 ft)*

SC, 1300 nm multimode 2 km (1.2 miles)*

E-100BTX-FX-05(SMHT) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode 20 km (12.4 miles)*

E-100BTX-FX-05(LHHT) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode 40 km (24.9 miles)*

E-100BTX-FX-05(XLHT) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode 60 km (37.3 miles)*

E-100BTX-FX-05(LWHT) RJ-45

100 m (328 ft)*

SC, 1550 nm single mode 80 km (49.7 miles)*

E-100BTX-FX-05(100HT)** RJ-45

100 m (328 ft)*

SC, 1310Tx/1550Rx nm single mode 20 km (12.4 miles)*

E-100BTX-FX-05(101HT)** RJ-45

100 m (328 ft)*

SC, 1550Tx/1310Rx nm single mode 20 km (12.4 miles)*

Accessories sold separately

**E-100BTX-FX-05(100/101HT) are installed in pairs.

techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 4-position switch and jumper. Failure to observe this caution could result in damage or failure of the media converter.

4-position switch

• The 4-position switch is located on the side of the media converter. Use a small flat-blade screwdriver or a similar device to set the recessed switches.

1. Auto-Negotiation

up Enables Auto-

Negotiation for the copper connection.

down Disables Auto-Negotiation for the copper connection.

2. Pause Control

up Enabled down Disabled

3. Link Pass-Through

up Enabled down Disabled

4. Far-End Fault

up Enabled down Disabled

Link Pass-Through (up=Enabl

Pause (up=Enable)

Auto-Negotiation (up=Enable)

Far End Fault

(up=Enable)

1234

Page 3

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation -- Continued

AutoCross Jumpers

The AutoCross feature allows either straight-through (MDI) or crossover (MDI-X) cables to be used when connecting to devices such as hubs, transceivers, or network interface cards (NICs). AutoCross determines the characteristics of the cable connection and automatically configures the unit

to link up, regardless of the cable configuration.

High-temperature board, J3, 3-Pin header settings:

1. Orient the board as shown in the photo.

2. Position the jumper as illustrated below.

SW1 (4-Position )

AutoCross 3-Pin Header

set to En abled

J3 AutoCross 3-Pin Header

Enable AutoCross

Disable AutoCross

High Temperature Device

Standard board, J1, 3-Pin header settings:

1. Orient the board as shown in the photo.

2. Position the jumper as illustrated below.

J1 AutoCross 3-PinHeader

AC = AutoCross

Enabled

AC = AutoCross

Disabled

techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.

Installation -- Continued

Installing the fiber cable

1. Locate a 100Base-FX compliant fiber cable with male, two-stranded TX to

RX connectors installed at both ends.

2. Connect the fiber cables to the media converter as described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter, hub,

etc.) as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Installing the copper cable

1. Locate or build 100Base-TX compliant copper cables with male, RJ-45

connectors installed at both ends.

2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on

the media converter.

3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port

on the other device (switch, workstation, etc.).

Connect fiber cable to media converter as shown.

Connect fiber cable

to other device

(media converter,

hub, etc.) as shown

RJ-45 port

on the other device

(switch, work station, etc

RJ-45 port

on the media

converter

Page 4

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation -- Continued

Power the media converter

1. Install the power cord barrel connector into the back of the media converter.

2. Connect the power adapter plug into AC power.

3. Verify that the media converter is powered by observing the illuminated LED power indicator light.

Consult user guide 33266 for information on the SPS-1872-xx DC external power supply.

Operation

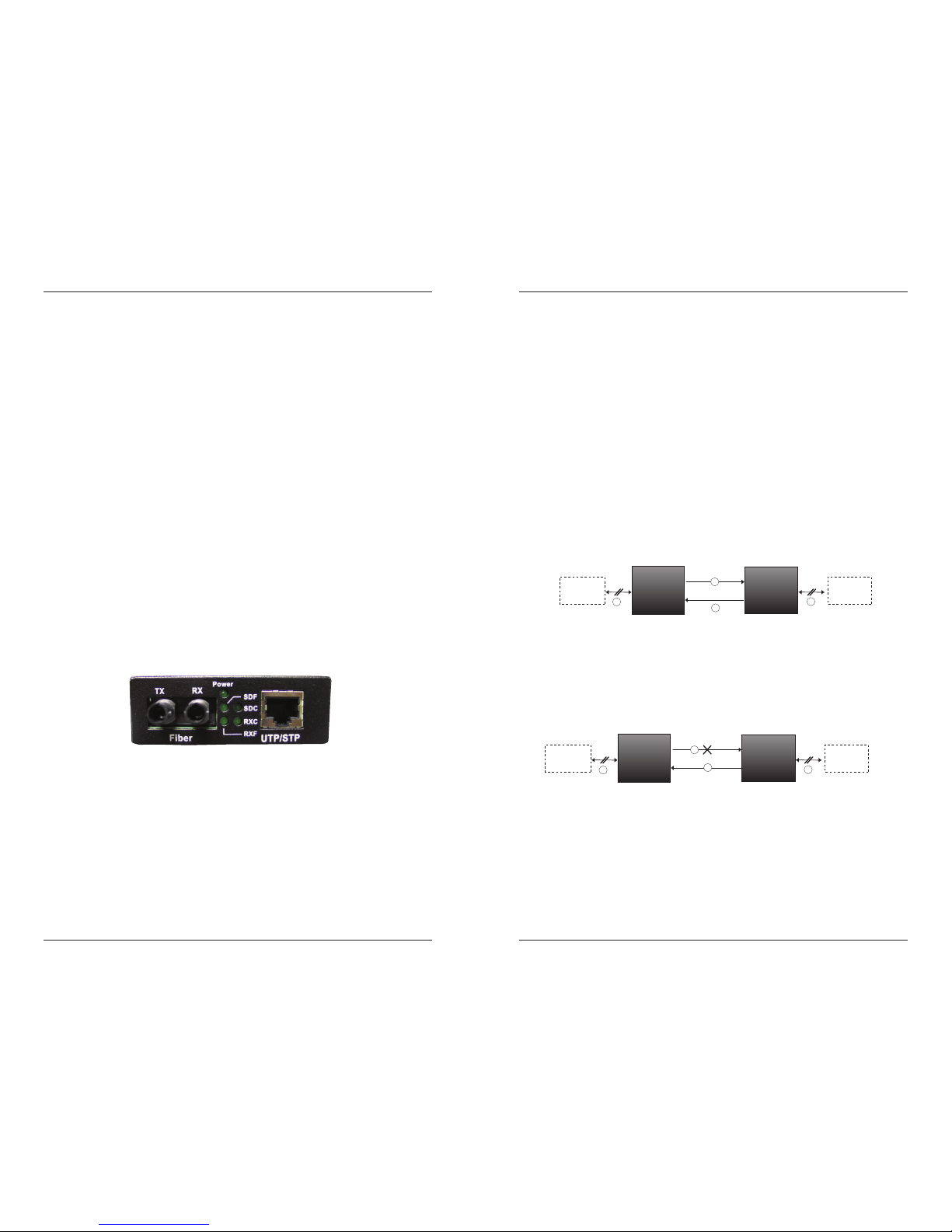

Status LEDs

Use the status LEDs to monitor the E-100BTX-FX-05 media converter operation in the network. Power (Power) On = Connection to external AC power.

SDF (Signal Detect/Fiber) On = Fiber link is detected.

SDC (Signal Detect/Copper) On = Copper link is detected.

RXC (Receive/Copper) Flashing = A signal is being received on the

copper link.

RXF (Receive/Fiber) Flashing = A signal is being received on the

fiber link.

Auto-Negotiation

When the Auto-Negotiation feature is activated, the media converter configures

itself to achieve the best possible mode of operation over a link automatically. The media converter broadcasts its speed (100 Mb/s) and duplex capabilities (either full- or half-duplex) and negotiates the best mode of operation between the two devices.

techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.

Operation -- Continued

Pause Control

The Pause feature can improve network performance by allowing one end of the link to signal the other to discontinue frame transmission for a set period of time to relieve buffer congestion.

Note: If the Pause feature is present on ALL network devices attached to the media converter(s), enable the Pause feature on the media converter(s). Otherwise, disable the Pause feature.

Link Pass-Through

The Link Pass-Through feature allows the media converter to monitor both the fiber and copper RX (receive) ports for loss of signal. In the event of a loss of an RX signal (1), the media converter will automatically disable the TX (transmit) signal (2), thus, “passing through” the link loss (3). The far-end device is automatically notified of the link loss (4), which prevents the loss of valuable data unknowingly transmitted over an invalid link.

Far-End Fault

When a fault occurs on an incoming fiber link (1), the media converter transmits a Far-End Fault signal on the outgoing fiber link (2). In addition the Far-End Fault signal also activates the Link Pass-Through, which, in turn, disables the link on the copper portion of the network (3) and (4).

Local

Media

Converter

Remote

Media

Converter

Near-End

Device

Far-End Device

original fault on the

thernet copper link

remote converter disabl

the Ethernet copper lin

local converter sends a

loss signal over the fiber link

fiber link is still valid

Far-End Fault

signal is sent

Media

Converter A

Media

Converter B

Near-End

Device

Far-End Device

original fault

on the fiber link

media converter B

disables the copper link

media converter A

disables the copper link

Page 5

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber cable

Bit Error Rate: <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm

Extended temperature models

E-100BTX-FX-05(HT) 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm Link Budget: 11.0 dB

E-100BTX-FX-05(SCHT) 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm Link Budget: 11.0 dB

E-100BTX-FX-05(SMHT) 1310 nm single mode Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm Link Budget: 16.0 dB

E-100BTX-FX-05(LHHT) 1310 nm single mode Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm Link Budget: 26.0 dB

E-100BTX-FX-05(XLHT) 1310 nm single mode Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm Fiber-optic Receiver Sensitivity: min: -38.0 dBm max: -8.0 dBm Link Budget: 33.0 dB

E-100BTX-FX-05(LWHT) 1550 nm single mode Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm Link Budget: 29.0 dB

E-100BTX-FX-05(100HT) 1310Tx/1550Rx nm single mode E100BTX-FX-05(101HT) 1550Tx/1310Rx nm single mode Fiber-optic Transmitter Power: min: -14.0 dBm max:-8.0 dBm Fiber-optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm Link Budget: 19.0 dB

techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.

Cable Specifications -- continued

Standard models

E-100BTX-FX-05 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm Link Budget: 11.0 dB

E-100BTX-FX-05(SC) &(LC) 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm Link Budget: 11.0 dB

E-100BTX-FX-05(MT) 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm Fiber Optic Receiver Sensitivity: min: -33.5 dBm max: -14.0 dBm Link Budget: 14.5 dB

E-100BTX-FX-05(SM) 1310 nm single mode Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm Link Budget: 16.0 dB

E-100BTX-FX-05(SMLC) 1310 nm single mode Fiber-optic Transmitter Power: min: -15.2 dBm max: -8.0 dBm Fiber-optic Receiver Sensitivity: min: -32.5 dBm max: -3.0 dBm Link Budget: 17.3 dB

E-100BTX-FX-05(LH) 1310 nm single mode Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm Link Budget: 26.0 dB

E-100BTX-FX-05(XL) 1310 nm single mode E-100BTX-FX-05(LW) 1550 nm single mode Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm Link Budget: 29.0 dB

E-100BTX-FX-05(XLW) 1550 nm single mode Fiber-optic Transmitter Power: min: 0.0 dBm max: 5.0 dBm Fiber-optic Receiver Sensitivity: min: -36.0 dBm max: -3.0 dBm Link Budget: 36.0 dB

The fiber optic transmitters on this device meet Class I Laser safety requirements per IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11.

Page 6

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Cable Specifications -- Continued

Copper cable

Category 5: (minimum requirement) Gauge: 24 to 22 AWG Attenuation: 22.0 dB /100m @ 100 MHz Maximum Cable Distance: 100 meters

• Straight-through OR crossover cable may be used.

• Shielded twisted-pair (STP) OR unshielded twisted-pair (UTP) may be used

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .

• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

• Do not use flat or silver satin wire.

Straight-Through Cable Crossover Cable

Twisted Pair #1

Twisted Pair #2

Twisted Pair #1

techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.

Technical Specifications

For use with Transition Networks Model E-100BTX-FX-05(xxxx) or equivalent

Standards: IEEE 802.3

Data rate: 100 Mb/s

Dimensions: 4.75" x 3.0" x 1.0" (119mm x 76mm x 25mm)

Weight: 6 oz. (181 g) approximate

MTBF 46,768 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

123,821 hours (Bellcore7 V5.0)

Power supply: (standard temperature) 12 VDC, 0.5 A (minimum) DC output: (extended temperature) 9 VDC, 1.0 A (minimum)

minimum output regulation: 5%

Environment: Tmra* (standard temp): 0°C to 50°C (32 to 122°F)

Storage Temperature: -15°C to 65°C (5 to 149°F)

Tmra* (extended temp): -25°C to 65°C (-13 to 149°F) Storage Temperature: -25°C to 65°C (5 to 149°F)

Humidity: 10% – 90%, non-condensing

Altitude: 0 to 10,000 feet

Warranty: Lifetime

*Manufacturer’s rated ambient temperature.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR, Subchapter J applicable at the date of manufacture.

CAUTION:

Visible and invisible laser radiation when open. Do not stare into beam or view

directly with optical instruments.

CAUTION:

Use of controls, adjustments or the performance of procedures other than those

specified herein may result in hazardous radiation exposure.

Page 7

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Troubleshooting

If the media converter fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action: Note: Dip switch positions 3 and 4 must be DOWN before strarting the

troubleshooting process.

1. Is the Power LED illuminated? NO

• Is the power adapter the correct model (check I/O voltage and Hz)?

• Verify the voltage and frequency of the AC outlet?

• Is the power adapter properly installed in the media converter and in the

outlet?

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600. YES

• Proceed to step 2.

2. Is the SDC (signal detect/copper) LED illuminated? NO

• Check the twisted-pair cables for proper connection.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600. YES

• Proceed to step 3.

3. Is the SDF LED (signal detect/fiber) illuminated? NO

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are connected to

the RX and TX ports, respectively, on the other device.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600. YES

• Proceed to step 4.

4. Is the RXC (receive/copper) LED flashing? NO

• If there is no activity on the UTP/STP port, proceed to step 5.

• If there is activity on the UTP/STP port, disconnect and reconnect the

twisted-pair cable to restart the initialization process.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600. YES

• Proceed to step 5.

5. Is the RXF (receive/fiber) LED flashing? NO

• If there is no activity on the fiber port, contact Tech Support.

• If there is activity on the fiber port, disconnect and reconnect the fiber cable

to restart the initialization process.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600. YES

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.

Declaration of Conformity

Name of Mfg: Transition Networks

10900 Red Circle Drive, Minnetonka MN 55343, U.S.A. Model: E-100BTX-FX-05(xxxx) Series Media Converters Part Number(s): E-100BTX-FX-05, E-100BTX-FX-05(SC),

E-100BTX-FX-05(LC), E-100BTX-FX-05(MT),

E-100BTX-FX-05(SM), E-100BTX-FX-05(SMLC),

E-100BTX-FX-05(LH), E-100BTX-FX-05(XL),

E-100BTX-FX-05(LW), E-100BTX-FX-05(XLW)

E-100BTX-FX-05(SMHT), E-100BTX-FX-05(HT),

E-100BTX-FX-05(LHHT), E-100BTX-FX-05(XLHT),

E-100BTX-FX-05(LWHT), E-100BTX-FX-05(SCHT)

E-100BTX-FX-05(100HT), E-100BTX-FX-05(101HT) Regulation: EMC Directive 89/336/EEC Purpose: To declare that the E-100BTX-FX-05 to which this declaration refers is in

conformity with the following standards. EN 55022:1994 + A1:1995 + A2:1997 Class A; FCC Part 15 Subpart B; EN 55024:1998;

21CFR subpart J; EN61000-3-2:1995; EN61000-3-3:1995

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

August, 2008_____

Stephen Anderson, Vice-President of Engineering Date

Page 8

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Technical support

Technical support is available 24 hours a day. US and Canada: 1-800-260-1312 International: 00-1-952-941-7600

Transition now

Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link.

Web-based seminars

Transition Networks provides seminars via live web-based training. Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff. techsupport@transition.com

Address

Transition Networks 10900 Red Circle Drive, Minnetonka, MN 55343, U.S.A. telephone: 952-941-7600 toll free: 800-526-9267 fax: 952-941-2322

techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.

Compliance Information

UL Listed C-UL Listed CISPR22/EN55022 Class A + EN55024 CE Mark

FCC regulations

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at the user's own expense.

Canadian regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the radio interference regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

European regulations Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen verantwortlich.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques appropriées.

In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EGMitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer Konformität.

Page 9

Trademark notice

All trademarks and registered trademarks are the property of their respective owners.

- graphic, electronic, or mechanical - without written permission from Transition Networks. Printed in the U.S.A.

33210.N
