User’s Guide
E-100BTX-FX-05
Stand-Alone Media Converter
• Fast Ethernet
• Copper to Fiber
• 100Base-TX to 100Base-FX
• Extended Temperature
Transition Networks E-100BTX-FX-05 Fast
Ethernet media converter connects 100BaseTX shielded or unshielded twisted-pair copper
cable to 100Base-FX fiber-optic cable. The E100BTX-FX-05 series of media converters include both standard temperature models
(listed below) and extended temperature model.
Standard Temperature Models: 0°C to 50°C (32°F to 122°F)
Part Number Port One - Copper
100Base-TX
E-100BTX-FX-05 RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SC) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LC) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(MT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SM) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SMLC) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LH) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(XL) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LW) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(XLW) RJ-45
100 m (328 ft)*
Port Two - Duplex Fiber100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
LC, 1300 nm multimode
2 km (1.2 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
LC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.9 miles)*
SC, 1310 nm single mode
60 km (37.3 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
SC, 1550 nm single mode
120 km (74.56 miles)*
* Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network installation.
Installation . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . .11
Troubleshooting . . . . . . . . . . . . . . .12
Contact Us . . . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . . . .15
E-100BTX-FX-05
e)
Auto-Negotiation (up=Enable)
1234
The media converters with the “HT” extension in the part number can be used in an
extended temperature environment from -25°C to 65°C (-13°F to 149°F).
Part Number Port One - Copper
100Base-TX
E-100BTX-FX-05(HT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SCHT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SMHT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LHHT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(XLHT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LWHT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(100HT)** RJ-45
100 m (328 ft)*
E-100BTX-FX-05(101HT)** RJ-45
100 m (328 ft)*
**E-100BTX-FX-05(100/101HT) are installed in pairs.
Accessories sold separately
Port Two - Duplex Fiber100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.9 miles)*
SC, 1310 nm single mode
60 km (37.3 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
SC, 1310Tx/1550Rx nm single
mode
20 km (12.4 miles)*
SC, 1550Tx/1310Rx nm single
mode
20 km (12.4 miles)*
Installation
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when setting the 4-position switch and jumper. Failure to observe this
caution could result in damage or failure of the media converter.
4-position switch
• The 4-position switch is
located on the side of the
media converter. Use a small
flat-blade screwdriver or a
similar device to set the
recessed switches.
1. Auto-Negotiation
up Enables Auto-
Negotiation for the copper connection.
down Disables Auto-Negotiation for the copper connection.
2. Pause Control
up Enabled
down Disabled
3. Link Pass-Through
up Enabled
down Disabled
4. Far-End Fault
up Enabled
down Disabled
Pause (up=Enable)
Link Pass-Through (up=Enabl
Far End Fault
(up=Enable)
Part Number Description
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Wide-Input;
SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-Back Wide-Input;
E-MCR-04 12-Slot Media Converter Rack (includes universal internal power supply)
WMBL Optional Wall Mount Brackets; 4.0 in. (102 mm)
WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm)
WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)
WMBD-FS Optional DIN Rail Mount Bracket (flat, small); 3.1in. (79 mm)
2
Output: 12.6VDC, 1.0 A
Output: 12.6VDC, 1.0 A
17 x 15 x 5 in. (432 x 381 x 127 mm)
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
3
E-100BTX-FX-05
.)
Installation -- Continued
AutoCross Jumpers
The AutoCross feature allows either straight-through (MDI) or crossover
(MDI-X) cables to be used when connecting to devices such as hubs,
transceivers, or network interface cards (NICs). AutoCross determines the
characteristics of the cable connection and automatically configures the unit
to link up, regardless of the cable configuration.
High-temperature board, J3, 3-Pin header settings:
1. Orient the board as shown in the photo.
2. Position the jumper as illustrated below.
High Temperature Device
SW1 (4-Posi tion)
J3 AutoCross 3-Pin
AutoCross 3-Pin Header
set to Enable d
Enable AutoCross
Disable AutoCross
Standard board, J1, 3-Pin header settings:
1. Orient the board as shown in the photo.
2. Position the jumper as illustrated below.
AC = AutoCross
J1 AutoCross 3-PinHeader
Enabled
Header
J3
J3
J1
Installation -- Continued
Installing the fiber cable
1. Locate a 100Base-FX compliant fiber cable with male, two-stranded TX to
RX connectors installed at both ends.
2. Connect the fiber cables to the media converter as described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other device (another media converter, hub,
etc.) as described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
Connect fiber cable
to media converter
as shown.
RX
TX
Installing the copper cable
1. Locate or build 100Base-TX compliant copper cables with male, RJ-45
connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port
on the other device (switch, workstation, etc.).
Connect fiber cable
to other device
(media converter,
hub, etc.) as shown
RX
TX
J1
AC = AutoCross
Disabled
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
4
RJ-45 port
on the media
converter
techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
RJ-45 port
on the other device
(switch, work station, etc
5
E-100BTX-FX-05
E
es
k
fiber link is still valid
signal is sent
original fault
disables the copper link
disables the copper link
Installation -- Continued
Power the media converter
AC
1. Install the power cord barrel connector into the back of the media converter.
2. Connect the power adapter plug into AC power.
3. Verify that the media converter is powered by observing the illuminated LED
power indicator light.
DC
Consult user guide 33266 for information on the SPS-1872-xx DC external power
supply.
Operation
Status LEDs
Use the status LEDs to monitor the E-100BTX-FX-05 media converter operation
in the network.
Power (Power) On = Connection to external AC power.
SDF (Signal Detect/Fiber) On = Fiber link is detected.
SDC (Signal Detect/Copper) On = Copper link is detected.
RXC (Receive/Copper) Flashing = A signal is being received on the
copper link.
RXF (Receive/Fiber) Flashing = A signal is being received on the
fiber link.
Auto-Negotiation
When the Auto-Negotiation feature is activated, the media converter configures
Operation -- Continued
Pause Control
The Pause feature can improve network performance by allowing one end of the
link to signal the other to discontinue frame transmission for a set period of time
to relieve buffer congestion.
Note: If the Pause feature is present on ALL network devices attached to the
media converter(s), enable the Pause feature on the media converter(s).
Otherwise, disable the Pause feature.
Link Pass-Through
The Link Pass-Through feature allows the media converter to monitor both the
fiber and copper RX (receive) ports for loss of signal. In the event of a loss of an RX
signal (1), the media converter will automatically disable the TX (transmit) signal
(2), thus, “passing through” the link loss (3). The far-end device is automatically
notified of the link loss (4), which prevents the loss of valuable data unknowingly
transmitted over an invalid link.
local converter sends a
loss signal over the fiber link
Near-End
Device
original fault on the
thernet copper link
1
Local
Media
Converter
2
4
Far-End Fault
When a fault occurs on an incoming fiber link (1), the media converter transmits a
Far-End Fault signal on the outgoing fiber link (2). In addition the Far-End Fault
signal also activates the Link Pass-Through, which, in turn, disables the link on the
copper portion of the network (3) and (4).
Remote
Media
Converter
Far-End
Device
3
remote converter disabl
the Ethernet copper lin
itself to achieve the best possible mode of operation over a link automatically. The
media converter broadcasts its speed (100 Mb/s) and duplex capabilities (either full-
or half-duplex) and negotiates the best mode of operation between the two devices.
6
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
on the fiber link
1
2
Far-End Fault
Media
Converter B
Far-End
Device
3
media converter B
4
Media
Converter A
Near-End
Device
media converter A
techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
7
E-100BTX-FX-05
Cable Specifications
The physical characteristics must meet or exceed IEEE 802.3™ specifications.
Fiber cable
Bit Error Rate: <10-9
Single mode fiber (recommended): 9 µm
Multimode fiber (recommended): 62.5/125 µm
Multimode fiber (optional): 100/140, 85/140, 50/125 µm
Extended temperature models
E-100BTX-FX-05(HT) 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm
Link Budget: 11.0 dB
E-100BTX-FX-05(SCHT) 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm
Link Budget: 11.0 dB
E-100BTX-FX-05(SMHT) 1310 nm single mode
Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm
Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm
Link Budget: 16.0 dB
E-100BTX-FX-05(LHHT) 1310 nm single mode
Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm
Link Budget: 26.0 dB
E-100BTX-FX-05(XLHT) 1310 nm single mode
Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm
Fiber-optic Receiver Sensitivity: min: -38.0 dBm max: -8.0 dBm
Link Budget: 33.0 dB
E-100BTX-FX-05(LWHT) 1550 nm single mode
Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm
Link Budget: 29.0 dB
E-100BTX-FX-05(100HT) 1310Tx/1550Rx nm single mode E100BTX-FX-05(101HT) 1550Tx/1310Rx nm single mode
Fiber-optic Transmitter Power: min: -14.0 dBm max:-8.0 dBm
Fiber-optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm
Link Budget: 19.0 dB
Cable Specifications -- continued
Standard models
E-100BTX-FX-05 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm
Link Budget: 11.0 dB
E-100BTX-FX-05(SC) &(LC) 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm
Link Budget: 11.0 dB
E-100BTX-FX-05(MT) 1300 nm multimode
Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm
Fiber Optic Receiver Sensitivity: min: -33.5 dBm max: -14.0 dBm
Link Budget: 14.5 dB
E-100BTX-FX-05(SM) 1310 nm single mode
Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm
Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm
Link Budget: 16.0 dB
E-100BTX-FX-05(SMLC) 1310 nm single mode
Fiber-optic Transmitter Power: min: -15.2 dBm max: -8.0 dBm
Fiber-optic Receiver Sensitivity: min: -32.5 dBm max: -3.0 dBm
Link Budget: 17.3 dB
E-100BTX-FX-05(LH) 1310 nm single mode
Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm
Link Budget: 26.0 dB
E-100BTX-FX-05(XL) 1310 nm single mode
E-100BTX-FX-05(LW) 1550 nm single mode
Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm
Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm
Link Budget: 29.0 dB
E-100BTX-FX-05(XLW) 1550 nm single mode
Fiber-optic Transmitter Power: min: 0.0 dBm max: 5.0 dBm
Fiber-optic Receiver Sensitivity: min: -36.0 dBm max: -3.0 dBm
Link Budget: 36.0 dB
The fiber optic transmitters on this device meet Class I Laser safety requirements per
IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11.
8
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
9
E-100BTX-FX-05
Cable Specifications -- Continued
Copper cable
Category 5: (minimum requirement)
Gauge: 24 to 22 AWG
Attenuation: 22.0 dB /100m @ 100 MHz
Maximum Cable Distance: 100 meters
• Straight-through OR crossover cable may be used.
• Shielded twisted-pair (STP) OR unshielded twisted-pair (UTP) may be used
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .
• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.

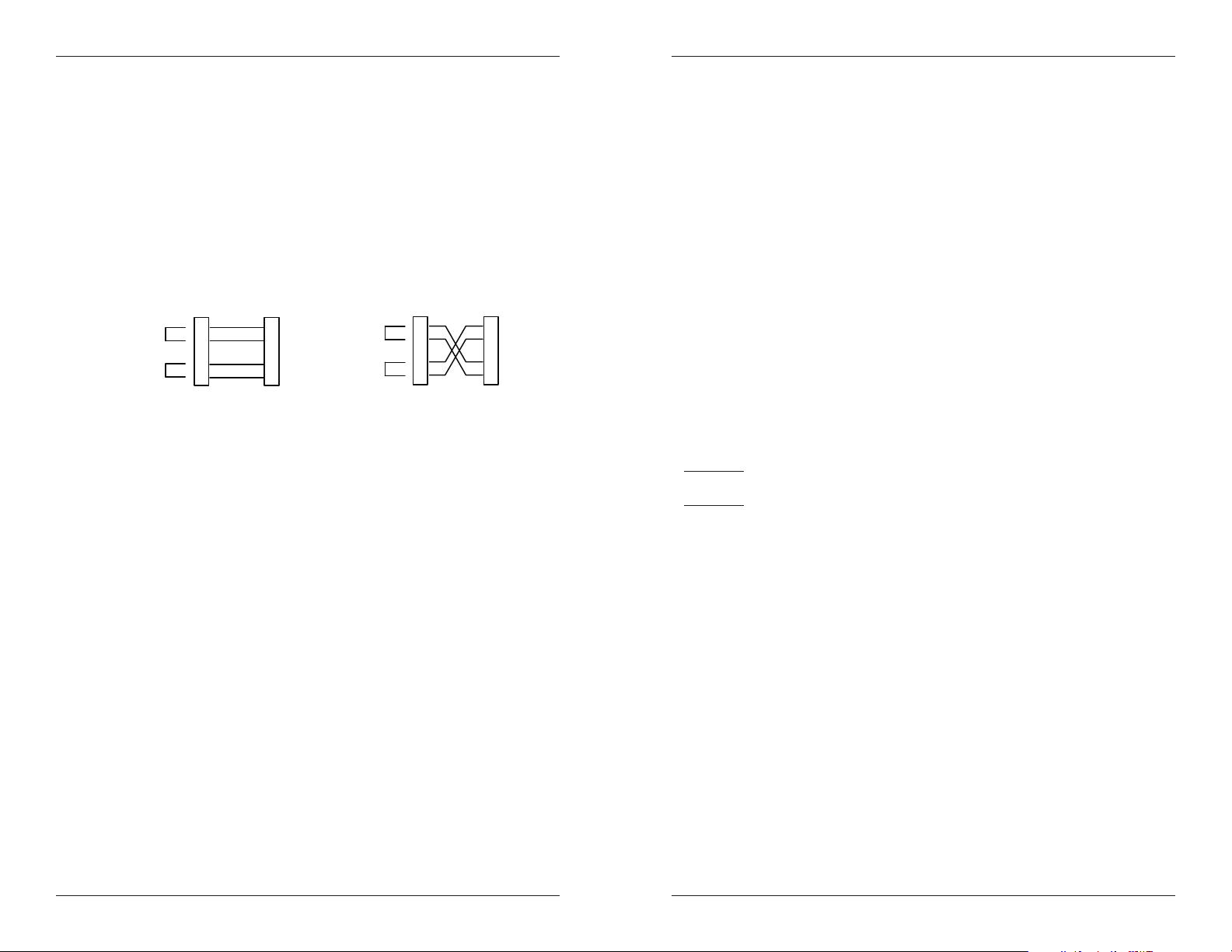

Straight-Through Cable Crossover Cable
Twisted Pair #1
Twisted Pair #2
Twisted Pair #1
Twisted Pair #2
Technical Specifications
For use with Transition Networks Model E-100BTX-FX-05(xxxx) or equivalent
Standards: IEEE 802.3
Data rate: 100 Mb/s
Dimensions: 4.75" x 3.0" x 1.0" (119mm x 76mm x 25mm)
Weight: 6 oz. (181 g) approximate
MTBF 46,768 hours (MIL217F2 V5.0) (MIL-HDBK-217F)
Power supply: (standard temperature) 12 VDC, 0.5 A (minimum)
DC output: (extended temperature) 9 VDC, 1.0 A (minimum)
Environment: Tmra* (standard temp): 0°C to 50°C (32 to 122°F)
Warranty: Lifetime
*Manufacturer’s rated ambient temperature.
Product is certified by the manufacturer to comply with DHHS Rule 21/CFR, Subchapter J
applicable at the date of manufacture.
CAUTION:
directly with optical instruments.
CAUTION:
specified herein may result in hazardous radiation exposure.
Visible and invisible laser radiation when open. Do not stare into beam or view
Use of controls, adjustments or the performance of procedures other than those
123,821 hours (Bellcore7 V5.0)
minimum output regulation: 5%
Storage Temperature: -15°C to 65°C (5 to 149°F)
Tmra* (extended temp): -25°C to 65°C (-13 to 149°F)
Storage Temperature: -25°C to 65°C (5 to 149°F)
Humidity: 10% – 90%, non-condensing
Altitude: 0 to 10,000 feet
10
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
11
E-100BTX-FX-05
Troubleshooting
If the media converter fails, isolate and correct the fault by determining the answers
to the following questions and then taking the indicated action:
Note: Dip switch positions 3 and 4 must be DOWN before strarting the
troubleshooting process.
1. Is the Power LED illuminated?
NO
• Is the power adapter the correct model (check I/O voltage and Hz)?
• Verify the voltage and frequency of the AC outlet?
• Is the power adapter properly installed in the media converter and in the
outlet?
• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.
YES
• Proceed to step 2.
2. Is the SDC (signal detect/copper) LED illuminated?
NO
• Check the twisted-pair cables for proper connection.
• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.
YES
• Proceed to step 3.
3. Is the SDF LED (signal detect/fiber) illuminated?
NO
• Check the fiber cables for proper connection.
• Verify that the TX and RX cables on the media converter are connected to
the RX and TX ports, respectively, on the other device.
• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.
YES
• Proceed to step 4.
Declaration of Conformity
Name of Mfg: Transition Networks
Model: E-100BTX-FX-05(xxxx) Series Media Converters
Part Number(s): E-100BTX-FX-05, E-100BTX-FX-05(SC),
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the E-100BTX-FX-05 to which this declaration refers is in
conformity with the following standards.
EN 55022:1994 + A1:1995 + A2:1997 Class A; FCC Part 15 Subpart B; EN 55024:1998;
21CFR subpart J; EN61000-3-2:1995; EN61000-3-3:1995
I, the undersigned, hereby declare that the equipment specified above conforms to the above
Directive(s) and Standard(s).
Stephen Anderson, Vice-President of Engineering Date
10900 Red Circle Drive, Minnetonka MN 55343, U.S.A.
E-100BTX-FX-05(LC), E-100BTX-FX-05(MT),
E-100BTX-FX-05(SM), E-100BTX-FX-05(SMLC),
E-100BTX-FX-05(LH), E-100BTX-FX-05(XL),
E-100BTX-FX-05(LW), E-100BTX-FX-05(XLW)
E-100BTX-FX-05(SMHT), E-100BTX-FX-05(HT),
E-100BTX-FX-05(LHHT), E-100BTX-FX-05(XLHT),
E-100BTX-FX-05(LWHT), E-100BTX-FX-05(SCHT)
E-100BTX-FX-05(100HT), E-100BTX-FX-05(101HT)
August, 2008_____
4. Is the RXC (receive/copper) LED flashing?
NO
• If there is no activity on the UTP/STP port, proceed to step 5.
• If there is activity on the UTP/STP port, disconnect and reconnect the
twisted-pair cable to restart the initialization process.
• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.
YES
• Proceed to step 5.
5. Is the RXF (receive/fiber) LED flashing?
NO
• If there is no activity on the fiber port, contact Tech Support.
• If there is activity on the fiber port, disconnect and reconnect the fiber cable
to restart the initialization process.
• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.
YES
• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.
12
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
13
E-100BTX-FX-05
Contact Us
Technical support
Technical support is available 24 hours a day.
US and Canada: 1-800-260-1312
International: 00-1-952-941-7600
Transition now
Chat live via the Web with Transition Networks Technical Support.
Log onto www.transition.com and click the Transition Now link.
Web-based seminars
Transition Networks provides seminars via live web-based training.
Log onto www.transition.com and click the Learning Center link.
E-Mail
Ask a question anytime by sending an e-mail to our technical support staff.
techsupport@transition.com
Address
Transition Networks
10900 Red Circle Drive, Minnetonka, MN 55343, U.S.A.
telephone: 952-941-7600
toll free: 800-526-9267
fax: 952-941-2322
Compliance Information
UL Listed
C-UL Listed
CISPR22/EN55022 Class A + EN55024
CE Mark
FCC regulations
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at the user's own expense.
Canadian regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set
out on the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage
radioélectrique édicté par le ministère des Communications du Canada.
European regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses
Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen
verantwortlich.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures
spécifiques appropriées.
In accordance with European Union Directive 2002/96/EC of the European Parliament
and of the Council of 27 January 2003, Transition Networks will accept post usage
returns of this product for proper disposal. The contact information for this activity can
be found in the 'Contact Us' portion of this document.
14
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EGMitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der
Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über
Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer
Konformität.
techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
15
Trademark notice
All trademarks and registered trademarks are the property of their respective owners.
Copyright restrictions
© 2003-2004 Transition Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means
- graphic, electronic, or mechanical - without written permission from Transition Networks.
Printed in the U.S.A.
16
33210.N
Loading...
