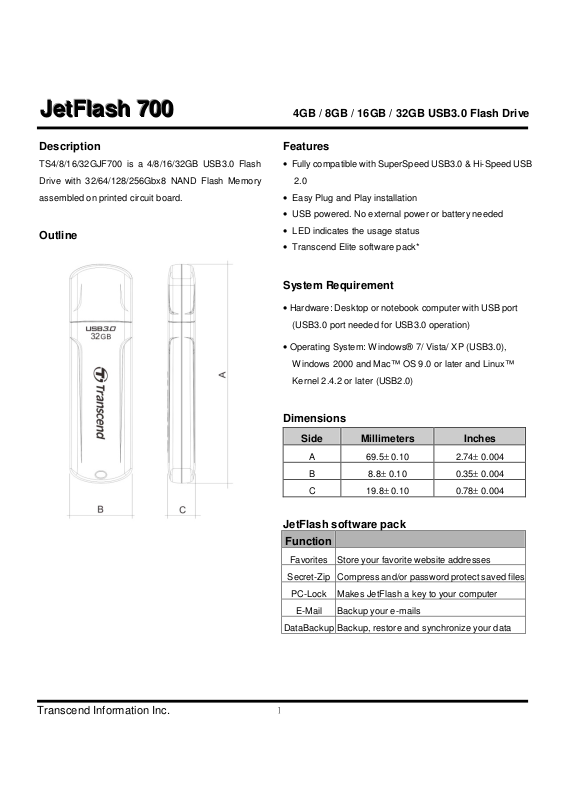

J
J
J
e
e
e
t
t
t
F
F
F
l
l
l
a
a
a
s
s
s
h
h
h
7
7
7
0
0
0
0
0
0
4GB / 8GB / 16GB / 32G
B
USB3.0 Flash Drive
A 69.5± 0.10 2.74±
0.004
B 8.8± 0.10 0.35±
0.004
Favorites
Store your favorite website addresses
Secret
-
Zip C
ompress and/or password protect saved files
PC-Lock
Makes JetFlash a key to your computer
E-Mail Backup your
e-mails
DataBackup
Backup,
restore and synchronize your data
Description
TS4/8/16/32GJF700 is a 4/8/16/32GB USB3.0 Flash
Drive with 32/64/128/256Gbx8 NAND Flash Memory
assembled on printed circuit board.
Outline
Features
• Fully compatible with SuperSpeed USB3.0 & Hi-Speed USB
2.0
• Easy Plug and Play installation
• USB powered. No external power or battery needed
• LED indicates the usage status
• Transcend Elite software pack*
System Requirement
• Hardware: Desktop or notebook computer with USB port
(USB3.0 port needed for USB3.0 operation)
• Operating System: Windows® 7/ Vista/ XP (USB3.0),
Windows 2000 and Mac™ OS 9.0 or later and Linux™
Kernel 2.4.2 or later (USB2.0)
Dimensions
Transcend Information Inc.
Side Millimeters Inches
C 19.8± 0.10 0.78± 0.004
JetFlash software pack
Function
1
J
J
J
e
e
e
t
t
t
F
F
F
l
l
l
a
a
a
s
s
s
h
h
h
7
7
7
0
0
0
0
0
0
4GB / 8GB / 16GB / 32G
B
USB3.0 Flash Drive
Pinouts
Pin No. Pin Name
01 VCC Power
02 D03 D+
04 GND Ground for power return
05 SSTX06 SSTX+
07 GND Ground for signal return
08 SSRX09 SSRX+
Specifications
Storage Capacity
Connector Durability
System Performance (USB3.0)
USB2.0 differential pair
Superspeed transmitter
Function
differential pair
Superspeed receiver
differential pair
4GB / 8GB / 16GB / 32GB*
10,000 times
4GB: Read: 52MB/sec, Write: 12MB/sec (max.)
8GB: Read: 52MB/sec, Write: 12MB/sec (max.)
16GB: Read: 70MB/sec, Write: 20MB/sec (max.)
32GB: Read: 70MB/sec, Write: 30MB/sec (max.)**
Wear-leveling
Power Supply
Temperature Range
Certificates
Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes no
warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product.
Transcend reserves the right to make changes in specifications at any time without prior notice.
* 1GB = 1 billion bytes. A certain portion of the storage capacity may be reserved for firmware and maintenance use.
** The R/W performance is USB3.0 tested speed
Transcend Information Inc.
Dynamic
DC 5V±10%,
Operation: 0-70oC, Non-Operating: -20oC-75oC
CE, FCC, BSMI
Max current : 500 mA
