UniTrane® Fan-Coil

Air Terminal Devices Horizontal, Vertical, and Low Vertical Sizes 02-12 Basic Series Fan-Coil, Sizes 04-08

December 2000

UNT-PRC001-EN

It isn’t just a fan and a coil…

The Trane Company has redesigned the traditional fan-coil to lead the industry in:

• indoor air quality (IAQ) features

• easy installation and maintenance

• high quality and durability

• advanced controls

Factory installed and tested controls

Removable, noncorrosive, positively-sloped drain pan that’s easy to clean

Easy to remove fan assembly

16-gauge steel construction

Smaller unit footprint

Easy filter access without front panel removal

Quiet operation

Two, three or four-row coils

Cleanable closedcell insulation (nonfiberglass)

Damper allows up to 100% fresh air

Factory assembled, installed and tested piping package with IAQ drain pan to collect condensate

©American Standard Inc. 2000 UNT-PRC001-EN

Basic UniTrane

Introduction 2

Features and Benefits 64 4

Selection Procedure 65 5

Model Number Description 65 5

General Data 66 12

Performance Data 67 18

Two-Pipe Coils 67 19 Four-Pipe Coils 68 22 Hot Water Reheat Coils 25 Steam Reheat Coils 28

Controls 69 31

Electrical Data 70 39

Dimensions and Weights 72 42

Mechanical Specifications 76 58

Options 60

UNT-PRC001-EN 3

Features and Benefits

The UniTrane® fan-coil meets the standards of today’s market, as well as the anticipated needs of tomorrow’s market. The tradition that company founder Reuben Trane began 60 years ago continues with the latest generation of fan-coils from The Trane Company.

The UniTrane

fan-coil is the leader in

these key areas:

• Indoor Air Quality (IAQ)

• Controls

• Flexibility

• Quality

• Serviceability

Today’s HVAC market is concerned with issues such as indoor air quality (IAQ) and CFCs that demand a change in HVAC products. In addition, renovation has overtaken new construction in the fan-coil market—demanding a design that caters to renovation issues. Trane is concerned with these issues, too. That’s why we designed the UniTrane fan-coil as an integral part of the company’s system solutions with standard IAQ-related features that fully comply with ASHRAE 62.

IAQ Design

• Closed-cell insulation is standard on all units to help prevent fiberglass in the airstream.

• The main and auxiliary drain pans are constructed of a noncorrosive engineered plastic (ABS and CyColac T).

• The main and auxiliary drain pans are positively sloped in every plane to assure proper drainage and help maximize protection from microbial growth.

• The drain pans are removable for cleaning.

• Easy filter access encourages frequent changing.

• The auto-economizer damper option allows free cooling and ventilation to help comply with ASHRAE 62—and save energy and operating costs.

• UniTrane fan-coils have a blow-thru design. Low vertical units are drawthru.

Controls

• All controls are factory-mounted and tested to minimize field setup.

• Controls are wired with a 24 VAC transformer to keep only a single source power connection requirement to the unit.

• All wall-mounted zone sensors require only low voltage control wiring from the device to the unit control box. (No line voltage.)

• The Tracer

controls family introduces the latest in control technology with the ZN.010, ZN.510, and ZN.520 controllers.

• The controller automatically determines the unit’s correct operating mode (heat/ cool) by utilizing a proportional/integral (PI) control algorithm to maintain the space temperature at the active setpoint, allowing total comfort control.

• Entering water temperature sampling eliminates the need for inefficient bleedlines to sense automatic changeover on two-pipe changeover units.

• The random start-up feature helps reduce electrical demand peaks by randomly staggering multiple units at start-up.

• Occupied/unoccupied operation allows the controller to utilize unoccupied temperature setpoints for energy savings.

• Warm-up and cool-down energy features are standard with Trane controls.

• Continuous fan or fan cycling is available with ZN.010 or ZN.510.

• Monitor unit operation using Tracer

Summit building management system with ZN.510 or ZN.520.

• To customize unit control, Tracer Summit or Rover

™

software will allow field modification of ZN.510 and ZN.520 default settings. For ZN.010, use Rover to field modify default settings.

• Maximize fan-coil system efficiency with free cooling economizers and modulating valves on units with ZN.520.

Flexibility

• Two, three, and four-row coils allow greater design flexibility in two and four-pipe systems.

• One-row steam or hot water reheat coils for dehudification on units with ZN.520 controls.

• Fan motors are available for either high static (0.4-inch external static pressure) or free discharge applications.

• Piping is factory assembled, mounted and tested. Units are also available without piping. Reheat coil piping is available on 2-pipe units with hot water reheat coils and either a fan speed switch or Tracer ZN.520.

• Factory piping options include interconnecting piping, control valves, and end valves. Deluxe piping also has unions and a strainer.

• Control options range from a simple fan speed switch to a DDC controller that can tie into a Tracer Summit

building

automation system.

• An 8-inch (20 cm) extended end pocket is an available option on the piping end of cabinet style units.

• Slope-top vertical cabinet units are also available for school and dormitory applications to prevent items from being placed on top of the units.

Quality

• Coils and piping packages are air and leak-tested before mounting on the fancoil.

• Coil piping connections are also air and leak-tested after mounting on the unit.

• All control end devices and moving components (fans and motors) are computer-tested after units are complete.

Serviceability

• Filters are easily removable and changed without removing the front panel on vertical cabinet units.

• Motors are easy to disconnect from the fan board, allowing easy service.

• The main and auxiliary drain pans are easily removable and wipe clean with a wet cloth.

• The manual output test function is an invaluable troubleshooting tool. By simply pressing the test button on the

ZN.510, ZN.520, or ZN.010;

Tracer service personnel can manually exercise outputs in a pre-defined sequence.

UNT-PRC001-EN4

Selection

Model Number

Procedure

Description

UniTrane Fan-Coil Model Number Description

Following is a complete description of the fan-coil model number. Each digit in the model number has a corresponding code that identifies specific unit options.

FC B B 020 1 C M0 A 0 G 1 0 A A 2 M 000 0 0 1 0 0 0 A A 000 000 0 0 0 0 A 0 0

1 5 10 15 20 25 30 35 40 44

Digits 1, 2 — Unit Type

FC = Fan-Coil

Digit 3 — Cabinet Type

A = Vertical Concealed B = Vertical Cabinet C = Horizontal Concealed D = Horizontal Cabinet E = Horizontal Recessed H = Vertical Recessed J = Vertical Cabinet Slope Top K = Low Vertical Concealed L = Low Vertical Cabinet

Digit 4 — Development Sequence “B”

Digits 5, 6, 7 — Unit Size

020 040 080 030 060 100

120

Digit 8 — Unit Voltage

1 = 115/60/1 8 = 110-120/50/1 2 = 208/60/1 9 = 220-240/50/1 3 = 277/60/1 4 = 230/60/1

Digit 9 — Piping System/Placement

A = No piping, RH, No Auxiliary Drain

Pan B = No piping, LH, No Auxiliary Drain Pan C = No piping, RH, with Auxiliary Drain

Pan D = No piping, LH, with Auxiliary Drain

Pan E = No piping, RH, No Auxiliary Drain

Pan, Extended End Pocket F = No piping, LH, No Auxiliary Drain

Pan, Extended End Pocket G = No piping, RH, with Auxiliary Drain

Pan, Extended End Pocket H = No piping, LH, with Auxiliary Drain

Pan, Extended End Pocket J = With piping package, RH K = With piping package, LH L = With piping package, RH, Extended

End Pocket M = With piping package, LH, Extended

End Pocket

Digits 10, 11 — Design Sequence “M0”

Digit 12 — Inlets

A = Front Toe Space B = Front Bar Grille C = Front Stamped Louver D = Bottom Stamped Louver E = Bottom Toe Space F = Back Duct Collar G = Back Open Return H = Back Stamped Louver

Digit 13 — Fresh Air Damper

0 = None A = Manual, Bottom Opening B = Manual, Back Opening C = Manual, Top Opening D = Auto, 2-Position, Bottom Opening E = Auto, 2-Position, Back Opening F = Auto, 2-Position, Top Opening G = Auto, Economizer, Bottom Opening H = Auto, Economizer, Back Opening J = Auto, Economizer, Top Opening K = No Damper, Bottom Opening L = No Damper, Back Opening M= No Damper, Top Opening

Digit 14 — Outlets

A = Front Duct Collar B = Front Bar Grille C = Front Stamped Louver D = Front Quad Grille G = Top Quad Grille H = Top Bar Grille J = Top Duct Collar

Digit 15 — Color

0 = No Paint (Concealed Units Only) 1 = Deluxe Beige 4 = Driftwood Grey 2 = Soft Dove 5 = Stone Grey 3 = Cameo White 6 = Rose Mauve

Digit 16 —

0 = None B = Keylock Access Door C = Keylock Panel and Access Door D = Leveling Feet F=

G = Keylock Panel and Access Door with

Digit 17 — Motor

A = Free Discharge B = High Static

Tamperproof Locks/Leveling

Feet

Keylock Access Door with Leveling Feet

Leveling Feet

Digit 18 — Coil

A = 2 Row Cooling/Heating B = 3 Row Cooling/Heating C = 4 Row Cooling/Heating D = 2 Row Cooling/1 Row Heating E = 2 Row Cooling/2 Row Heating F = 3 Row Cooling/1 Row Heating G = 2 Row Cooling Only H = 3 Row Cooling Only J = 4 Row Cooling Only K = 2 Row Cooling/Heating with

Electric Heat

L = 3 Row Cooling/Heating with

Electric Heat

M= 4 Row Cooling/Heating with

Electric Heat

P = 2 Row Cooling/Heating with

1 Row Heating

Q = 2 Row Cooling/Heating with

2 Row Heating

R = 3 Row Cooling/Heating with

1 Row Heating

Digit 19 — Coil Series

2 = 144 FPF

Digit 20 — Coil Air Vent

A = Automatic Air Vent M= Manual Air Vent

Digits 21, 22, 23 — Electric Heat kW — ( ) = 208V Derate

000 = No Electric Heat 010 = 1.0 kW (0.75 kW) 015 = 1.5 kW (1.1 kW) 020 = 2.0 kW (1.5 kW) 025 = 2.5 kW (1.9 kW) 030 = 3.0 kW (2.3 kW) 040 = 4.0 kW (3.0 kW) 050 = 5.0 kW (3.8 kW) 060 = 6.0 kW (4.5 kW) 070 = 7.0 kW (5.3 kW) 08 0= 8.0 kW (6.0 kW) 100 = 10.0 kW

Digit 24 — Reheat Coil

0 = None B = Hot Water Coil A = Steam Coil

Digit 25 — Disconnect Switch

0 = None D = Disconnect Switch

UNT-PRC001-EN 5

Selection

Model Number

Digit 26 — Filter

0 = None 1 = 1” Throwaway Filter 2 = 1” Throwaway Pleated Media Filter 3 = 1” Throwaway + (1) Extra 4=

1” Throwaway Pleated Media + (1)

Extra 5 = 1” Throwaway + (2) Extras 6 = 1” Throwaway Pleated Media +

(2) Extras 7 = 1” Throwaway + (3) Extras 8 = 1” Throwaway Pleated Media +

(3) Extras

Digit 27 — Main Control Valve

0 = None A = 2-Way, 2-Position, NO (25 psig) B = 3-Way, 2-Position, NO (30 psig) C = 2-Way, 2-Position, NC (25 psig) D = 3-Way, 2-Position, NC (15 psig) E = 2-Way, 2-Position, NO (50 psig) F = 3-Way, 2-Position, NO (50 psig) G = 2-Way, 2-Position, NC (50 psig) H = 3-Way, 2-Position, NC (50 psig) J = 2-Way, Modulating, 0.7 Cv (50 psig)* K = 3-Way, Modulating, 0.7 Cv (50 psig)* L = 2-Way, Modulating, 1.5 Cv (50 psig)* M= 3-Way, Modulating, 1.5 Cv (50 psig)* N = 2-Way, Modulating, 2.5 Cv (50 psig)* P = 3-Way, Modulating, 2.5 Cv (50 psig)* Q = 2-Way, Modulating, 4.0 Cv (50 psig)* R = 3-Way, Modulating, 4.0 Cv (50 psig)* X = Field-supplied, NO Y = Field-supplied, NC

Digit 28 — Auxiliary Control Valve

0 = None A = 2-Way, 2-Position, NO (25 psig) B = 3-Way, 2-Position, NC (30 psig) C = 2-Way, 2-Position, NC (25 psig) D = 3-Way, 2-Position, NC (15 psig) E = 2-Way, 2-Position, NO (50 psig) F = 3-Way, 2-Position, NO (50 psig) G = 2-Way, 2-Position, NC (50 psig) H = 3-Way, 2-Position, NC (50 psig) J = 2-Way, Modulating, 0.7 Cv (50 psig) K = 3-Way, Modulating, 0.7 Cv (50 psig) L = 2-Way, Modulating, 1.5 Cv (50 psig) M= 3-Way, Modulating, 1.5 Cv (50 psig) N = 2-Way, Modulating, 2.5 Cv (50 psig) P = 3-Way, Modulating, 2.5 Cv (50 psig) Q = 2-Way, Modulating, 4.0 Cv (50 psig) R = 3-Way, Modulating, 4.0 Cv (50 psig) X = Field-supplied, NO Y = Field-supplied, NC

Procedure

Digit 29 — Piping Packages

0 = None A = Basic Ball Valve Supply and Return B = Basic Ball Valve Supply/Manual

Circuit Setter

C = Basic Ball Valve Supply and Return

with Auto Circuit Setter D = Deluxe Ball Valve Supply and Return E = Deluxe Ball Valve Supply/Manual

Circuit Setter

F = Deluxe Ball Valve Supply and Return

with Auto Circuit Setter

Digit 30 — Control Type

A = Fan Mode Switch E = Tracer ZN.010 F = Tracer ZN.510 G = Tracer ZN.520

Digit 31 — Control Option

D = Unit Mounted Fan Mode Switch K = Wall Mounted Fan Mode Switch V = Unit Mounted Fan Speed Switch w/ Setpoint Dial Zone Sensor W = Wall Mounted Fan Speed Switch w/ Setpoint Dial Zone Sensor X = Unit Mounted Fan Speed Switch w/ Wall Mounted Setpoint Dial Zone Sensor Y = Unit Mounted Fan Speed Switch & Wall Mounted Setpoint Dial W/ Comm. Z = Unit Mounted Fan Speed Switch, On/Cancel, Setpoint Dial W/ Comm. 1 = Wall Mounted On/Cancel W/ Comm. 2 = Wall Mounted Fan Speed Switch, Setpoint Dial, On/Cancel W/ Comm.

Digits 32, 33, 34 —Future Control Functions

Digit 35 — Control Function #3

0 = None 1 = Occ/Unocc Control 2 = Condensate Overflow Detection 3 = Occ/Unocc & Condensate Overflow

Digit 36 — Control Function #4

0 = None

Description

1 = Smoke Input 2 = Low Temperature Detection 3 = Smoke Input & Low Limit Sensor

Digits 37, 38 — Future Control Functions

Digit 39 — Falsebacks

0 = None A=5/8” Standard Recessed Panel

(Vertical Recessed Units Only) B = 2” Projection Panel C = 2.5” Projection Panel D = 3” Projection Panel L = 2”Falseback E = 3.5” Projection Panel M = 3” Falseback F = 4” Projection Panel N = 4” Falseback G= 4.5” Projection Panel P = 5” Falseback H = 5” Projection Panel Q = 6” Falseback J = 5.5” Projection Panel R = 7” Falseback K = 6” Projection Panel T =8” Falseback

Digit 40 — Main Autoflow GPM

A = 0.5 G = 3.0 N = 7.0 B = 0.75 H = 3.5 P = 8.0 C = 1.0 J = 4.0 Q = 9.0 D = 1.5 K = 4.5 R = 10.0 E = 2.0 L = 5.0 T = 11.0 F = 2.5 M= 6.0 U = 12.0

Digit 41 — Auxiliary Autoflow GPM

A = 0.5 F = 2.5 L = 5.0 B = 0.75 G = 3.0 M= 6.0 C = 1.0 H = 3.5 N = 7.0 D = 1.5 J = 4.0 P = 8.0 E = 2.0 K = 4.5

Digit 42 — Subbases

0 = None A = 2” Subbase D = 5” Subbase B = 3” Subbase E =6” Subbase C = 4” Subbase F =7” Subbase

Digit 43 — Recessed Flange

0 = None A = Recessed Flange

Digit 44 — Wall Boxes

0 = None A = Anodized Wall Box

Projection Panels and

Note: Please contact your local Trane sales representative for buildable digit combinations.

UNT-PRC001-EN6

Unit

Model A Vertical Concealed

General Data

Inlet

Front Toe Space

Configurations

Outlet

Top Duct Collar

Fresh Air Bottom or Back

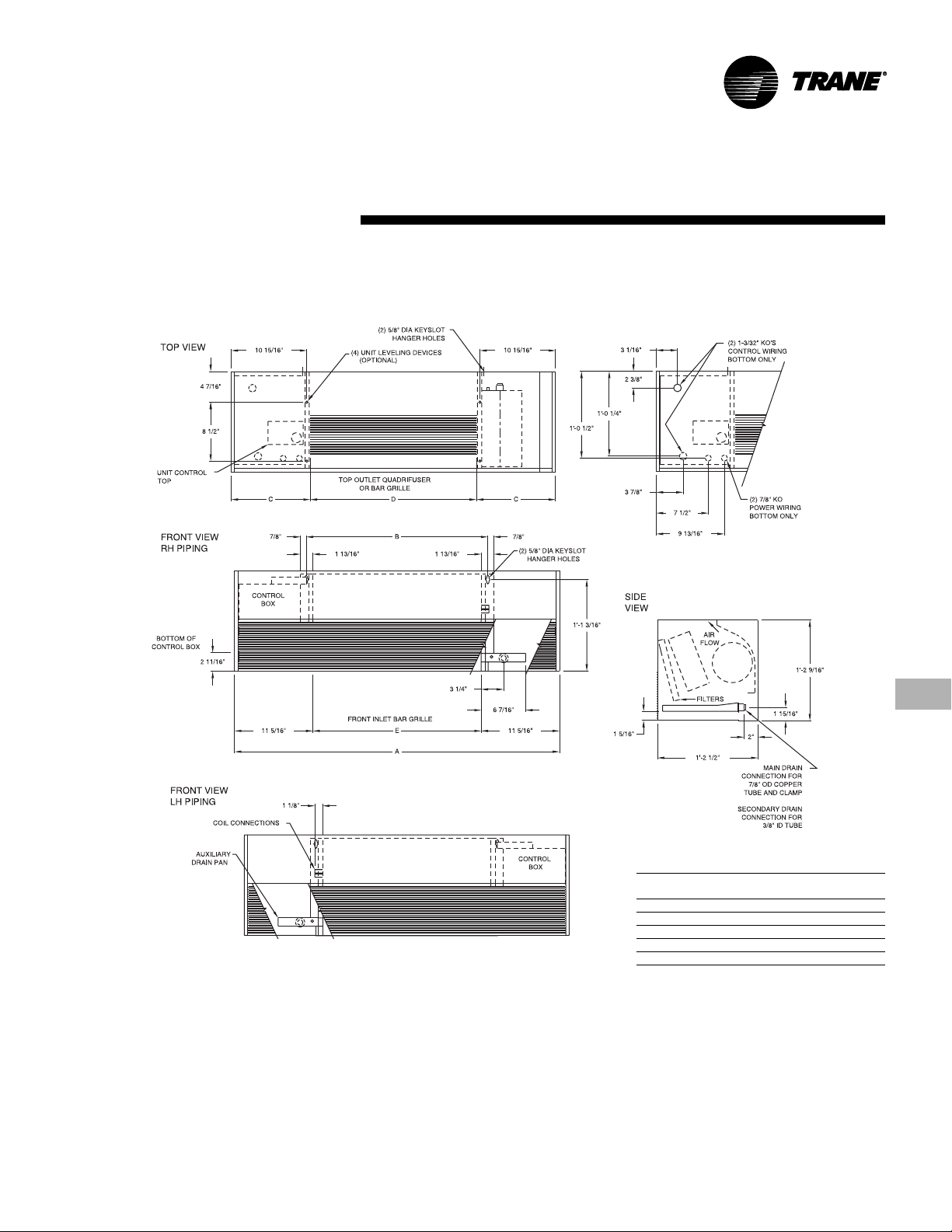

Model B Vertical Cabinet

Inlet

Front Toe Space, Front Bar Grille

UNT-PRC001-EN 7

Outlet

Top Quad Grille, Top Bar Grille

Fresh Air Bottom or Back

Unit

Model C Horizontal Concealed

General Data

Outlet

Front Duct Collar

Configurations

Inlet

Back Duct Collar

Fresh Air

N/A

Fresh Air Top or Back

Outlet

Front Duct Collar

Inlet

Bottom Toe Space

Inlet

Open Return

Outlet

Front Duct Collar

Fresh Air

N/A

No Filter

UNT-PRC001-EN

Unit

Model D Horizontal Cabinet

General Data

Fresh Air Top or Back

Configurations

Fresh Air

N/A

Outlet

Front Quad Grille, Front Bar Grille

Outlet

Front Duct Collar

Outlet

Front Quad Grille, Front Bar Grille

Fresh Air

N/A

Inlet

Bottom Stamped Louver

Fresh Air Top or Back

Inlet

Bottom Stamped Louver

Inlet

Back Stamped Louver

Inlet

Back Stamped Louver

Outlet

Front Duct Collar

Fresh Air

N/A

Inlet

Back Duct Collar

Outlet

Front Quad Grille, Front Bar Grille

Fresh Air

N/A

Inlet

Back Duct Collar

Outlet

Front Duct Collar

UNT-PRC001-EN 9

Unit

Model E Horizontal Recessed

General Data

Outlet

Front Duct Collar

Configurations

Outlet

Front Duct Collar

Fresh Air Top or Back

Inlet

Bottom Stamped Louver

Fresh Air

N/A

Inlet

Back Duct Collar

Model H Vertical Recessed

Outlet

Top Duct Collar

Fresh Air Bottom or Back

Inlet

Front Stamped Louver

Outlet

Front Stamped Louver

Fresh Air Bottom or Back

Inlet

Front Stamped Louver

UNT-PRC001-EN

Unit

Model J Vertical Cabinet Slope Top

General Data

Inlet

Front Toe Space, Front Bar Grille

Configurations

Outlet

Top Quad Grille, Top Bar Grille

Fresh Air

Bottom or Back

Model K Low Vertical Concealed

Model L Low Vertical Cabinet

Outlet

Top Duct Collar

Fresh Air

Back

Inlet

Front Toe Space

Outlet

Top Quad Grille, Top Bar Grille

Fresh Air

Back

Inlet

Front Bar Grille

UNT-PRC001-EN 11

General Data

Table GD-1. UniTrane® Fan-Coil General Data

Unit Size 02 03 04 06 08 10 12

Coil Data

Face Area — Ft LxDxH — In. (cm)

2-Row 15x1.7x8 15x1.7x8 20x1.7x8 29.5x1.7x8 38x1.7x8 57x1.7x8 57x1.7x8

3-Row 15x2.6x8 15x2.6x8 20x2.6x8 29.5x2.6x8 38x2.6x8 57x2.6x8 57x2.6x8

4-Row 15x3.5x8 15x3.5x8 20x3.5x8 29.5x3.5x8 38x3.5x8 57x3.5x8 57x3.5x8

Volume — Gal. (Liters)

1-Row (Heat) .06 (.23) .06 (.23) .08 (.30) .11 (.42) .14 (.53) .21 (.79) .21 (.79) 2-Row .12 (.45) .12 (.45) .15 (.57) .22 (.83) .28 (1.06) .42 (1.59) .42 (1.59) 3-Row .18 (.68) .18 (.68) .23 (.87) .33 (1.25) .42 (1.59) .62 (2.35) .62 (2.35) 4-Row .24 (.91) .24 (.91) .30 (1.14) .44 (1.67) .56 (2.12) .83 (3.14) .83 (3.14)

Fins/Ft (cm)

2-Row 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 3-Row 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 4-Row 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7) 144 (4.7)

Reheat Coil Data (1-Row) Hot Water or Steam

Face Area — Ft

LxDxH — In. (cm) 15x1.5x6 15x1.5x6 20x1.5x6 29.5x1.5x6 38x1.5x6 57x1.5x6 57x1.5x6

Volume — Gal. (Liters) .12 (.45) .12 (.45) .15 (.57) .22 (.83) .28 (1.06) .42 (1.59) .42 (1.59) Fins/Ft (cm) 48 (1.6) 48 (1.6) 48 (1.6) 48 (1.6) 48 (1.6) 48 (1.6) 48 (1.6)

Fan/Motor Data

Fan Quantity 1 1 1 2 2 3 3 Size — Dia” x Width” (cm) 6.31x4 6.31x6.5 6.31x7.5 6.31x6.5 6.31x7.5 (1) 6.31x7.5 6.31x7.5

Size — Dia” x Width” (cm) (2) 6.31x6.5

Motor Quantity 1 1 1 1 1 2 2

Filter Data 1” (cm) TA and Pl. Media

Quantity 1 1 1 1 1 1 1 Size — In. (cm) 8

1” Fresh Air Filter (only on cabinet styles D, E, and H with bottom return and fresh air opening)

Quantity 1 1 1 1 1 1 1 Size — In. (cm) 5 (14 x 49) (14 x 49) (14 x 61) (14 x 85) (14 x 107) (14 x 156) (14 x 156)

(cm2) 0.8 (743) 0.8 (743) 1.1 (1020) 1.6 (1490) 2.1 (1950) 3.2 (2970) 3.2 (2970)

(38x4x20) (38x4x20) (51x4x20) (75x4x20) (97x4x20) (145x4x20) (145x4x20)

(38x7x20) (38x7x20) (51x7x20) (75x7x20) (97x7x20) (145x7x20) (145x7x20)

(38x9x20) (38x9x20) (51x9x20) (75x9x20) (97x9x20) (145x9x20) (145x9x20)

(cm2) 0.6 0.6 0.8 1.2 1.6 2.4 2.4

(557) (557) (743) (1120) (1490) (2230) (2230)

(38x4x15) (38x4x15) (51x4x15) (75x4x15) (97x4x15) (145x4x15) (145x4x15)

(16x10) (16x17) (16x19) (16x17) (16x19) (16x19) (16x19)

(16x6.5)

/8 x 191/8 87/8 x 191/8 87/8 x 241/8 87/8 x 335/8 87/8 x 421/8 87/8 x 611/8 87/8 x 611/8

(23x49) (23x49) (23x61) (23x85) (23x107) (23x155) (23x155)

/2 x 191/8 51/2 x 191/8 51/2 x 241/8 51/2 x 335/8 51/2 x 421/8 51/2 x 611/8 51/2 x 611/8

Table GD-2. Low Vertical Fan-Coil General Data

Unit Size 03 04 06

Coil Data

Face Area — Ft2 (cm2) 1.1 (1020) 1.6 (1490) 2.1 (1950) LxDxH — In. (cm)

2-Row 20x1.7x8 (51x4x20) 29.5x1.7x8 (75x4x20) 38x1.7x8 (97x4x20) 3-Row 20x2.6x8 (51x7x20) 29.5x2.6x8 (75x7x20) 38x2.6x8 (97x7x20)

Volume — Gal. (Liters)

1-Row (Heat) .08 (.30) .11 (.42) .14 (.53) 2-Row .15 (.57) .22 (.83) .28 (1.06) 3-Row .23 (.87) .33 (1.25) .42 (1.59)

Fins/Ft

2-Row 144 (4.7) 144 (4.7) 144 (4.7) 3-Row 144 (4.7) 144 (4.7) 144 (4.7)

Fan/Motor Data

Fan Quantity 1 1 1 Size — Dia”x Width” (cm) 5x23 (13x59) 5x32 (13x83) 5x41 (13x105) Motor Quantity 1 1 1

Filter Data

1” (2.5 cm) TA Quantity 1 1 1 Size — In. (cm) 8

/8x241/8 (23x61) 87/8x335/8 (23x85) 87/8 x 421/8 (23x107)

UNT-PRC001-EN

General Data

Table GD-3. Fan-Coil Air Flow

FC Coil 0.05 0.1 0.2 0.3 0.4

02 3R144 230 330 300 270 240

03 3R144 310 400 360 330 290

04 3R144 370 550 510 470 430

06 3R144 610 890 830 770 710

08 3R144 730 1000 930 870 800

10 3R144 1000 1400 1310 1210 1120

12 3R144 1080 1520 1420 1330 1220

Note: This is data is based on horizontal concealed model only, with duct inlet, duct outlet and no filter, dry coil, all voltages except 208 V.

Motor FD High Static

2R144 240 330 300 280 250

4R144 200 300 270 250 220 2R144 320 410 390 350 320

4R144 280 370 340 300 270 2R144 390 450 410 380 340

4R144 340 510 480 440 400 2R144 610 760 700 650 590

4R144 560 820 760 710 660 2R144 800 1020 960 890 820

4R144 680 940 870 810 750 2R144 980 1260 1180 1090 1010

4R144 930 1300 1220 1130 1040 2R144 1110 1430 1330 1240 1140

4R144 1000 1430 1340 1240 1150

ESP

UNT-PRC001-EN 13

General Data

Piping Packages

Factory-Installed Piping Packages

UniTrane® fan-coils have standard piping packages available as a factory built and installed option, for the main coil. Piping package options are also available for the hot water reheat coil on two-pipe units equipped with either a fan speed switch or Tracer assures all piping packages are fully tested under water for leaks and are built within strict tolerances. Factory-installed means that chilled and hot water pipes are the only field connections required. The installer doesn’t have to sweat connect piping packages onto coil connections in a tight end pocket. Field connections are brought to a point near the exterior of the unit for easy access. All piping and components are located to allow condensate to drain into the auxiliary drain pan. Insulation of the factory piping package is not required. However, all field connections should be insulated to prevent condensation from missing the auxiliary drain pan.

Piping Package Components

UniTrane piping packages consist of a variety of components for each applica-

ZN.520 controller. Factory built

tion. The following section provides a detailed description of each of the piping components. Following this section are additional illustrations and specifications.

Piping System/Placement

Factory piping systems are available for either two or four-pipe systems with right or left hand connections. Four-pipe systems have both the heating and cooling connections on the same side of the unit. A simple coil connection (a unit without a piping package) is also available in either a right or left hand configuration for those applications requiring field piping.

Interconnecting Piping

Interconnecting piping refers to the copper piping which is attached to the coil connections and to which all other components (control valves, end valves, etc.) are attached. Piping is OD copper. Two-pipe piping extends near the unit exterior to one inlet and one outlet connection.Four-pipe units have two sets of piping that extend near the unit’s exterior—one inlet and one outlet

/2” nominal

each for both chilled and hot water. A label identifying connection points clearly marks both chilled and hot water on every unit.

Deluxe or Basic Piping Package

The basic piping package includes only the main components of the piping package: interconnecting piping, control valves, and end valves.

The deluxe piping package also includes a strainer on the entering water pipe and unions at the coil connections along with the basic components. The strainer body is cast brass construction, with a stainless steel mesh strainer that is easily removed for cleaning. The unions are forged brass construction and close with a minimum amount of effort.

End Valves

Each piping package includes a ball valve for the entering water pipe and one of the following end valves on the leaving water pipe: ball valve, manual circuit setter, or an auto circuit setter. These valves serve as the field connection points on all UniTrane piping packages.

• Ball Valves

Ball valves, also known as stop or end valves, allow the unit to be cut off for service purposes. These valves have a two-inch handle that rotates 90 degrees to a fully open position. The valve body is cast brass, and the ball is polished brass with a Teflon seat. Ball valves are available as end valves on both the entering and leaving water pipes.

Factory-installed and tested piping package. Two-pipe deluxe package with manual circuit setter is shown on a horizontal concealed unit.

UNT-PRC001-EN

General Data

Piping Packages

Manual Circuit Setter

In lieu of a ball valve on the leaving water pipe, a manual circuit setter, also known as a manual flow control valve, acts as both a flow setting device and a stop valve. This valve allows water flow through the fan-coil unit to be set quickly and accurately.

The manual circuit setter includes Schrader ports in the valve body. These ports are used to measure the pressure drop across the valve. This pressure drop can be compared to factory supplied curves that relate the pressure drop to a specific flow rate. This valve also has a memory stop so the correct setting can be found quickly.

Auto Circuit Setter

An auto circuit setter is an automatic flow control device available on the leaving water pipe. The auto circuit setter includes a cartridge within the valve body that is sized to allow a specific flow rate through the coil. This valve sets flow through the coil without any action required by a system piping balancer. The auto circuit setter is available on the leaving water pipe with a ball valve.

The auto circuit setter also includes two P/T’s plugs in the valve body to allow

measurement of the pressure drop temperature through the valve.

Control Valves

Piping packages are available with or without control valves. All control valve options are factory mounted and wired to the UniTrane

• Two-Way/Two-Position Valves

These valves will either fully open or close in response to a 24VAC signal from the Trane controller. Main control valves are direct-acting valves, while the auxiliary valves are reverse-acting. All control valves are factory mounted in the leaving water pipe downstream of the coil. Some means of relieving pump head pressure should be accounted for when two-way valves are selected. Normally open or normally closed valves are available.

• Three-Way/Two-Position Valves

These valves will either allow full water flow through the coil or divert the flow through a bypass line. The valves respond to a 24VAC signal from the Trane controller. Main control valves are direct acting valves, while the auxiliary valves are reverse-acting. All three-way valve packages include a balance fitting

fan-coil controls.

in the bypass line to allow flow balancing in the bypass position. Three-way valves are factory mounted in the leaving water pipe downstream of the coil. Normally open or normally closed valves are available.

• Two-Way Modulating Valves

These valves modulate the water flow through the coil in response to a signal from the Trane controller. All modulating valves are three-wire floating point equal percentage valves. The modulating valves are factory mounted in the leaving water pipe downstream of the coil.

• Three-Way Modulating Valves

These valves modulate the water flow through the coil in response to a signal. Three-way valves allow water that is directed through the coil to mix with water that is directed through the bypass line. This mixture exits through the leaving water pipe. All modulating valves are three-wire floating point equal percentage valves. The modulating valves are factory mounted in the leaving water pipe downstream of the coil.

UNT-PRC001-EN 15

General Data

Piping Packages

Automatic Circuit Setter (C)

UNT-PRC001-EN

General Data

Selecting the Correct Modulating Valve Size

Modulating valves are available in any of four port sizes. These four port sizes relate to a Cv of 0.7, 1.5, 2.5 or 4.0, which is the coefficient of flow. The coefficient of flow is defined as the volume of water flow through a control valve in the fully open position with a 1 psig (6.895 kPa) differential across the valve. It is calculated using the following formula: Cv = Q/Square root ∆P where: Cv = flow coefficient Q = flow rate (GPM) ∆P = pressure drop across the valve or coil (psig).

For good control, the valve Cv should be approximately equal to the Cv of the water coil.

Modulating Valve Selection Example

Assume a size 06 fan-coil is selected to operate at the following conditions: Vertical Cabinet Fan-Coil Entering water temperature = 45 F (7 C) Leaving water temperature = 55 F (13 C) EAT conditions = 80/67. The coil is selected as a four-row coil. Select the best modulating valve size for this unit.

1 Find the ∆P across the water coil. Refer to the ARI performance table to determine the ∆P across the water coil (or use TOPSS™ selection program). The water pressure drop is found to be 7.0’ (20.9 kPa) of water at a flow rate of 3.74 gpm. This converts to a pressure drop of 3.03 psig (1.0 feet of water = 0.4328 psig.)

2 Calculate the Cv of the water coil. Cv = GPM/Square root ∆P. Cv = 3.74/Square root 3.03

Table GD-1. Modulating Valve Selections for Horizontal Concealed Units

Unit Coil Coil Valve Size Coil GPM (L/s) WPD (kPa) Cv Cv

02 3-Row 1.80 (0.11) 23.9 (71.3) 0.56 0.7

03 3-Row 1.86 (0.12) 5.4 (16.1) 1.22 1.5

04 3-Row 2.94 (0.19) 13.9 (41.5) 1.20 1.5

06 3-Row 4.24 (0.27) 7.5 (22.3) 2.35 2.5

08 3-Row 5.13 (0.32) 11.8 (35.2) 2.27 2.5

10 3-Row 7.14 (0.45) 24.2 (72.3) 2.21 2.5

12 3-Row 7.98 (0.50) 18.5 (55.3) 2.82 2.5

Table GD-2. Modulating Valve Selections for Vertical Cabinet Units

Unit Coil Coil Valve Size Coil GPM (L/s) WPD (kPa) Cv Cv

02 3-Row 1.40 (.09) 15.4 (46.0) 0.54 0.7

03 3-Row 1.57 (.10) 4.0 (11.8) 1.19 1.5

04 3-Row 2.25 (.14) 8.6 (25.8) 1.17 1.5

06 3-Row 3.19 (.20) 4.4 (13.1) 2.31 2.5

08 3-Row 4.01 (.25) 7.5 (22.3) 2.23 2.5

10 3-Row 5.60 (.35) 15.4 (46.1) 2.17 2.5

12 3-Row 6.14 (.39) 11.2 (33.6) 2.79 2.5

2-Row 1.29 (0.08) 8.8 (26.3) 0.66 0.7

4-Row 1.84 (0.12) 6.1 (18.3) 1.13 1.5 2-Row 1.58 (0.10) 14.1 (42.2) 0.64 0.7

4-Row 2.26 (0.14) 9.7 (28.9) 1.10 1.5 2-Row 1.90 (0.12) 4.6 (13.7) 1.35 1.5

4-Row 3.35 (0.21) 22.3 (66.7) 1.08 0.7 2-Row 3.32 (0.21) 15.3 (45.6) 1.29 1.5

4-Row 4.99 (0.31) 11.9 (35.6) 2.20 2.5 2-Row 3.90 (0.25) 5.7 (16.9) 2.48 2.5

4-Row 5.68 (0.36) 16.9 (50.6) 2.10 2.5 2-Row 5.23 (0.33) 10.8 (32.2) 2.42 2.5

4-Row 7.63 (0.48) 32.8 (98.1) 2.03 2.5 2-Row 6.35 (0.40) 16.6 (49.5) 2.37 2.5

4-Row 9.47 (0.60) 25.2 (75.4) 2.87 2.5

2-Row 1.04 (.07) 6.1 (18.2) 0.64 0.7

4-Row 1.40 (.09) 3.7 (11.1) 1.11 1.5 2-Row 1.32 (.08) 10.3 (30.7) 0.63 0.7

4-Row 1.88 (.12) 7.0 (20.8) 1.08 0.7 2-Row 1.68 (.11) 3.7 (11.0) 1.33 1.5

4-Row 2.54 (.16) 13.6 (40.7) 1.05 0.7 2-Row 2.86 (.18) 11.7 (34.9) 1.27 1.5

4-Row 3.74 (.24) 7.0 (20.9) 2.15 2.5 2-Row 3.14 (.20) 3.8 (11.3) 2.45 2.5

4-Row 4.44 (.28) 10.8 (32.2) 2.05 2.5 2-Row 4.39 (.28) 7.8 (23.2) 2.39 2.5

4-Row 5.88 (.37) 20.4 (61.0) 1.98 1.5 2-Row 5.28 (.33) 11.8 (35.1) 2.34 2.5

4-Row 7.23 (.46) 15.4 (46.0) 2.80 2.5

Horizontal Concealed (High Static Motor)

Vertical Cabinet (Free Discharge Motor)

Cv = 2.15 Therefore, the valve with the Cv of 2.5 should be selected since it has the Cv which is closest to the Cv of the water coil. The following tables illustrate possible valve selections at ARI conditions for horizontal concealed units with a high static motor and vertical cabinet units with a free discharge motor.

Note: Do not use these tables for any applications other than vertical cabinet or horizontal concealed units at ARI conditions.

UNT-PRC001-EN 17

Performance

Two-Pipe

Data

Coils

UniTrane® fan-coil performance data is submitted to ARI with units grouped based on performance. Unit performance is impacted by the unit model and the airflow inlet and outlet configuration. Below is a table which summarizes the performance groups.

Table PD-1. Fan-Coil Performance Groupings

Group Unit Inlet Outlet Description Model Style Style

Group 1 Open Return Front Duct Collar

Group 2 Front Bar Grille Top Bar Grille

Group 3 Front Toe Space Top Bar Grille

Group 4 Front Bar Grille Top Bar Grille

Note: For performance conditions other than ARI, please use TOPSS™ (Trane Official Product Selection System) for fan-coils.

Horizontal Concealed (C) Back Duct Collar Front Duct Collar

Bottom Toe Space Front Duct Collar

Horizontal Cabinet (D) Back Duct Collar Front Quad Grille

Back Duct Collar Front Duct Collar Horizontal Recessed (E) Back Duct Collar Front Duct Collar Vertical Cabinet (B) Front Toe Space Top Quad Grille

Front Toe Space Top Bar Grille

Front Bar Grille Top Quad Grille

Vertical Concealed (A) Front Toe Space Top Duct Collar

Back Duct Collar Front Bar Grille Horizontal Cabinet (D) Bottom Stamped Louver Front Qua d Grille

Bottom Stamped Louver Front Bar Grille

Bottom Stamped Louver Front Duct Collar

Back Stamped Louver Front Quad Grille

Back Stamped Louver Front Bar Grille

Back Stamped Louver Front Duct Collar Horizontal Recessed (E) Bottom Stamped Louver Front Duct Collar Vertical Recessed (H) Front Stamped Louver Front Stamped Louver

Front Stamped Louver Top Duct Collar Vertical Slope Top (J) Front Toe Space Top Quad Grille

Front Bar Grille Top Quad Grille

Front Bar Grille Top Bar Grille Low Vertical Cabinet (L) Front Bar Grille Top Quad Grille

Low Vertical Concealed (K) Front Toe Space Top Duct Collar

UNT-PRC001-EN18

Performance

Two-Pipe

Data

Coils

ARI cooling performance is based on 80/67 F (27/19 C) entering air temperature, 45 F (7 C) entering chilled water temperature with a 10 F (5.5 C) DT. Heating performance is based on 70 F (21 C) entering air temperature, 180 F (82 C) entering hot water temperature with a 30 F (17 C) DT. All performance measured on high speed tap, 115 V, zero ESP, with a throwaway filter. See page 18 for performance groupings.

Table PD-2. Free Discharge Motor, Two-Pipe, Group 1

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2CH 240 (113) 5.4 (1.6) 4.2 (1.2) 1.11 (.07) 6.8 (20.4) 15.9 (4.7) 0.14 1.06 (.07) 4.8 (14.4) 60 95 65

3CH 230 (108) 7.3 (2.1) 5.1 (1.5) 1.50 (.09) 17.4 (51.9) 19.6 (5.7) 0.18 1.31 (.08) 10.5 (31.4) 60 95 65 4CH 210 (99) 7.3 (2.1) 5.1 (1.5) 1.49 (.09) 4.2 (12.6) 20.1 (6.0) 0.18 1.34 (.08) 2.8 (8.4) 60 95 65

3 2CH 318 (150) 6.7 (2.0) 5.1 (1.5) 1.39 (.09) 11.3 (33.9) 21.0 (6.2) 0.19 1.40 (.09) 8.8 (26.3) 70 80 83

3CH 314 (148) 8.1 (2.4) 6.0 (1.8) 1.67 (.11) 4.4 (13.2) 25.6 (7.5) 0.23 1.70 (.11) 3.8 (11.3) 85 89 101 4CH 284 (134) 9.7 (2.8) 6.7 (2.0) 1.99 (.13) 7.7 (23.0) 27.1 (7.9) 0.25 1.81 (.11) 5.3 (15.7) 85 89 101

4 2CH 388 (183) 8.6 (2.5) 6.8 (2.0) 1.78 (.11) 4.1 (12.2) 25.6 (7.5) 0.23 1.71 (.11) 3.2 (9.5) 95 96 104

3CH 374 (177) 11.5 (3.4) 8.1 (2.4) 2.37 (.15) 9.5 (28.3) 31.8 (9.3) 0.29 2.12 (.13) 6.4 (19.0) 100 107 106 4CH 350 (165) 13.0 (3.8) 8.7 (2.5) 2.66 (.17) 14.8 (44.4) 34.2 (10.0) 0.31 2.28 (.14) 9.1 (27.3) 100 107 106

6 2CH 611 (289) 14.7 (4.3) 11.1 (3.3) 3.02 (.19) 12.9 (38.6) 40.6 (11.9) 0.37 2.70 (.17) 8.9 (26.5) 110 154 165

3CH 608 (287) 16.6 (4.9) 12.4 (3.6) 3.40 (.21) 4.9 (14.8) 49.7 (14.6) 0.45 3.31 (.21) 4.2 (12.6) 125 130 124 4CH 565 (267) 19.4 (5.7) 13.3 (3.9) 3.96 (.25) 7.8 (23.2) 53.8 (15.8) 0.49 3.59 (.23) 5.7 (17.0) 125 130 124

8 2CH 790 (373) 16.2 (4.7) 13.1 (3.9) 3.32 (.21) 4.2 (12.5) 50.9 (14.9) 0.46 3.39 (.21) 4.0 (11.9) 135 150 159

3CH 731 (345) 20.6 (6.1) 14.7 (4.3) 4.21 (.27) 8.2 (24.4) 61.6 (18.1) 0.56 4.11 (.26) 6.9 (20.7) 120 123 133 4CH 688 (325) 22.8 (6.7) 15.5 (4.5) 4.65 (.29) 11.7 (35.0) 66.8 (19.6) 0.61 4.45 (.28) 9.4 (28.1) 120 123 133

10 2CH 980 (463) 22.5 (6.6) 17.5 (5.1) 4.64 (.29) 8.6 (25.8) 64.8 (19.0) 0.59 4.32 (.27) 6.8 (20.4) 205 250 269

3CH 992 (468) 28.7 (8.4) 20.2 (5.9) 5.89 (.37) 17.0 (50.7) 83.3 (24.4) 0.76 5.55 (.35) 13.4 (40.2) 225 237 230 4CH 930 (439) 29.9 (8.8) 20.1 (5.9) 6.14 (.39) 22.1 (66.0) 90.1 (26.4) 0.82 6.00 (.38) 18.3 (54.8) 225 237 230

12 2CH 1110 (524) 27.0 (7.9) 20.2 (5.9) 5.55 (.35) 12.9 (38.6) 75.0 (22.0) 0.68 4.99 (.32) 9.6 (28.6) 230 246 263

3CH 1082 (511) 31.6 (9.3) 22.5 (6.6) 6.46 (.41) 12.4 (37.0) 91.5 (26.8) 0.83 6.10 (.38) 10.5 (31.4) 220 230 239 4CH 1010 (477) 37.0 (10.8) 24.3 (7.1) 7.55 (.48) 16.7 (49.8) 99.3 (29.1) 0.90 6.62 (.42) 11.8 (35.2) 220 230 239

CFM TMBH SMBH GPM WPD TMBH GPM WPD 11 5V 23 0V 27 7V

Cooling Heating

Table PD-3. Free Discharge Motor, Two-Pipe, Group 2

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2CH 211 (100) 5.0 (1.5) 3.8 (1.1) 1.04 (.07) 6.1 (18.2) 14.5 (4.3) 0.13 0.97 (.06) 4.1 (12.3) 60 95 65

3CH 201 (95) 6.8 (2.0) 4.7 (1.4) 1.40 (.09) 15.4 (46.0) 17.7 (5.2) 0.16 1.18 (.07) 8.8 (26.2) 60 95 65 4CH 188 (89) 6.8 (2.0) 4.7 (1.4) 1.40 (.09) 3.7 (11.1) 18.3 (5.4) 0.17 1.22 (.08) 2.4 (7.1) 60 95 65

3 2CH 280 (132) 6.4 (1.9) 4.8 (1.4) 1.32 (.08) 10.3 (30.7) 19.2 (5.6) 0.17 1.28 (.08) 7.5 (22.4) 70 80 83

3CH 277 (131) 7.6 (2.2) 5.6 (1.7) 1.57 (.10) 4.0 (11.8) 23.3 (6.8) 0.21 1.55 (.10) 3.2 (9.5) 85 89 101 4CH 256 (121) 9.1 (2.7) 6.3 (1.8) 1.88 (.12) 7.0 (20.8) 24.8 (7.3) 0.23 1.65 (.10) 4.5 (13.4) 85 89 101

4 2CH 349 (165) 8.1 (2.4) 6.4 (1.9) 1.68 (.11) 3.7 (11.0) 23.8 (7.0) 0.22 1.58 (.10) 2.8 (8.3) 95 96 104

3CH 338 (159) 10.9 (3.2) 7.7 (2.3) 2.25 (.14) 8.6 (25.8) 29.4 (8.6) 0.27 1.96 (.12) 5.5 (16.5) 100 107 106 4CH 320 (151) 12.4 (3.6) 8.2 (2.4) 2.54 (.16) 13.6 (40.7) 31.7 (9.3) 0.29 2.11 (.13) 7.9 (23.7) 100 107 106

6 2CH 544 (257) 13.9 (4.1) 10.4 (3.1) 2.86 (.18) 11.7 (34.9) 37.4 (11.0) 0.34 2.49 (.16) 7.6 (22.8) 110 154 165

3CH 541 (255) 15.5 (4.6) 11.6 (3.4) 3.19 (.20) 4.4 (13.1) 45.4 (13.3) 0.41 3.03 (.19) 3.6 (10.6) 125 130 124 4CH 510 (241) 18.3 (5.4) 12.5 (3.7) 3.74 (.24) 7.0 (20.9) 49.4 (14.5) 0.45 3.29 (.21) 4.8 (14.5) 125 130 124

8 2CH 706 (331) 15.3 (4.5) 12.3 (3.6) 3.14 (.20) 3.8 (11.3) 47.0 (13.8) 0.43 3.13 (.20) 3.4 (10.2) 135 150 159

3CH 659 (311) 19.7 (5.8) 14.0 (4.1) 4.01 (.25) 7.5 (22.3) 56.8 (16.8) 0.52 3.79 (.24) 5.9 (17.8) 120 123 133 4CH 627 (296) 21.8 (6.4) 14.7 (4.3) 4.44 (.28) 10.8 (32.2) 61.8 (18.1) 0.56 4.12 (.26) 8.1 (24.3) 120 123 133

10 2CH 879 (415) 21.2 (6.2) 16.3 (4.8) 4.39 (.28) 7.8 (23.2) 60.0 (17.6) 0.55 4.00 (.25) 5.9 (17.7) 205 250 269

3CH 886 (418) 27.2 (8.0) 19.0 (5.6) 5.60 (.35) 15.4 (46.1) 76.4 (22.4) 0.69 5.09 (.32) 11.4 (34.1) 225 237 230 4CH 840 (397) 28.6 (8.4) 19.1 (5.6) 5.88 (.37) 20.4 (61.0) 82.8 (24.3) 0.75 5.52 (.35) 15.7 (46.8) 225 237 230

12 2CH 996 (470) 25.6 (7.5) 19.0 (5.6) 5.28 (.33) 11.8 (35.1) 69.4 (20.3) 0.63 4.62 (.29) 8.3 (24.7) 230 246 263

3CH 976 (461) 30.0 (8.8) 21.3 (6.2) 6.14 (.39) 11.2 (33.6) 84.3 (24.8) 0.77 5.62 (.35) 9.0 (26.8) 220 230 239 4CH 921 (435) 35.4 (10.4) 23.2 (6.8) 7.23 (.46) 15.4 (46.0) 91.8 (26.9) 0.83 6.12 (.39) 10.2 (30.5) 220 230 239

Note:

1. CFM = Cubic feet per minute

2. TMBH = Total capacity (MBH)

3. GPM = Gallons per minute

4. WPD = Water pressure drop (feet of water)

5. Q/ITD = MBH (kW)/(Entering water temperature - Entering air temperature) when ∆T and GPM (L/s) remain constant. To determine heating capacities at a different entering water temperature or entering air temp, compute the new ITD and multiply it by the Q/ITD shown.

6. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

CFM TMBH SMBH GPM WPD TMBH GPM WPD 115 V 2 30 V 2 77 V

Cooling Heating

UNT-PRC001-EN 19

Performance

Two-Pipe

Data

Coils

Table PD-4. Free Discharge Motor, Two-Pipe, Group 3

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2CH 198 (93) 4.8 (1.4) 3.7 (1.1) 1.00 (0.06) 5.7 (17.1) 13.8 (4.1) .13 0.92 (0.06) 3.8 (11.3) 60 95 65

3CH 188 (90) 6.5 (1.9) 4.5 (1.3) 1.34 (0.08) 14.4 (43.1) 16.7 (4.9) .15 1.11 (0.07) 8.0 (23.8) 60 95 65 4CH 177 (84) 6.5 (1.9) 4.5 (1.3) 1.34 (0.08) 3.5 (10.4) 17.3 (5.1) .16 1.16 (0.07) 2.2 (6.4) 60 95 65

3 2CH 262 (124) 6.1 (1.8) 4.6 (1.3) 1.28 (0.08) 9.7 (29.1) 18.3 (5.4) .17 1.22 (0.08) 6.9 (20.6) 70 80 83

3CH 260 (123) 7.3 (2.1) 5.4 (1.6) 1.51 (0.10) 3.7 (11.1) 22.1 (6.5) .20 1.47 (0.09) 2.9 (8.7) 85 89 101 4CH 242 (114) 8.8 (2.6) 6.0 (1.8) 1.82 (0.11) 6.6 (19.6) 23.7 (6.9) .22 1.58 (0.10) 4.1 (12.3) 85 89 101

4 2CH 330 (156) 7.8 (2.3) 6.2 (1.8) 1.63 (0.10) 3.5 (10.4) 22.8 (6.7) .21 1.52 (0.10) 2.6 (7.7) 95 96 104

3CH 320 (151) 10.6 (3.1) 7.4 (2.2) 2.19 (0.14) 8.2 (24.5) 28.1 (8.2) .26 1.87 (0.12) 5.1 (15.2) 100 107 106 4CH 304 (144) 12.0 (3.5) 8.0 (2.3) 2.47 (0.16) 12.9 (38.7) 30.3 (8.9) .28 2.02 (0.13) 7.3 (21.9) 100 107 106

6 2CH 512 (242) 13.5 (4.0) 10.0 (2.9) 2.77 (0.17) 11.0 (32.9) 35.8 (10.5) .33 2.38 (0.15) 7.0 (21.0) 110 154 165

3CH 508 (240) 14.9 (4.4) 11.1 (3.3) 3.07 (0.19) 4.1 (12.3) 43.3 (12.7) .39 2.88 (0.18) 3.3 (9.7) 125 130 124 4CH 483 (228) 17.7 (5.2) 12.1 (3.5) 3.62 (0.23) 6.6 (19.7) 47.2 (13.8) .43 3.14 (0.20) 4.4 (13.3) 125 130 124

8 2CH 665 (314) 14.7 (4.3) 11.9 (3.5) 3.04 (0.19) 3.6 (10.6) 45.0 (13.2) .41 3.00 (0.19) 3.2 (9.4) 135 150 159

3CH 623 (294) 19.1 (5.6) 13.5 (4.0) 3.90 (0.25) 7.1 (21.2) 54.3 (15.9) .49 3.62 (0.23) 5.5 (16.3) 120 123 133 4CH 596 (282) 21.2 (6.2) 14.3 (4.2) 4.32 (0.27) 10.3 (30.7) 59.2 (17.3) .54 3.94 (0.25) 7.5 (22.4) 120 123 133

10 2CH 829 (391) 20.5 (6.0) 15.7 (4.6) 4.25 (0.27) 7.3 (21.8) 57.5 (16.9) .52 3.83 (0.24) 5.5 (16.3) 205 250 269

3CH 835 (394) 26.4 (7.7) 18.4 (5.4) 5.43 (0.34) 14.6 (43.7) 72.9 (21.3) .66 4.86 (0.31) 10.5 (31.2) 225 237 230 4CH 796 (376) 27.9 (8.2) 18.6 (5.4) 5.73 (0.36) 19.5 (58.3) 79.0 (23.1) .72 5.26 (0.33) 14.4 (42.9) 225 237 230

12 2CH 940 (444) 24.9 (7.3) 18.4 (5.4) 5.13 (0.32) 11.1 (33.3) 66.5 (19.5) .60 4.43 (0.28) 7.6 (22.8) 230 246 263

3CH 923 (436) 29.1 (8.5) 20.6 (6.0) 5.96 (0.38) 10.6 (31.7) 80.6 (23.6) .73 5.37 (0.34) 8.2 (24.6) 220 230 239 4CH 876 (413) 34.5 (10.1) 22.5 (6.6) 7.04 (0.44) 14.7 (44.0) 87.9 (25.8) .80 5.86 (0.37) 9.4 (28.2) 220 230 239

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

Table PD-5. Free Discharge Motor, Two-Pipe, Group 4

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt

3 2CH 300 (142) 6.8 (2.0) 5.4 (1.6) 1.36 (0.09) 2.5 (7.5) 21.2 (6.2) .19 1.41 (0.09) 2.3 (6.7) 86

3CH 270 (128) 7.8 (2.3) 5.5 (1.6) 1.56 (0.10) 4.5 (13.4) 24.4 (7.1) .22 1.62 (0.10) 3.9 (11.7) 86

4 2CH 380 (179) 10.7 (3.1) 7.7 (2.3) 2.14 (0.13) 6.9 (20.7) 28.3 (8.3) .26 1.89 (0.12) 4.6 (13.7) 98

3CH 350 (165) 10.0 (3.0) 7.4 (2.2) 2.00 (0.13) 1.9 (5.5) 31.5 (9.2) .29 2.10 (0.13) 1.8 (5.4) 98

6 2CH 620 (293) 13.6 (4.0) 11.1 (3.3) 2.71 (0.17) 2.9 (8.6) 42.8 (12.5) .39 2.85 (0.18) 2.9 (8.6) 105

Note:

1. CFM = Cubic feet per minute

2. TMBH = Total capacity (MBH)

3. GPM = Gallons per minute

4. WPD = Water pressure drop (feet of water)

6. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

3CH 570 (269) 16.4 (4.8) 11.7 (3.4) 3.28 (0.21) 5.2 (15.4) 50.5 (14.8) .46 3.36 (0.21) 4.8 (14.2) 105

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V

Cooling Heating

UNT-PRC001-EN20

Performance

Two-Pipe

Data

Coils

ARI cooling performance is based on 80/67 F (27/19 C) entering air temperature, 45 F (7 C) entering chilled water temperature with a 10 F (5.5 C) DT. Heating performance is based on 70 F (21 C) entering air temperature, 180 F (82 C) entering hot water temperature with a 30 F (17 C) DT. All performance measured on high speed tap, 115 V, 0.2” (0.05 kPA) ESP, with a throwaway filter. See page 18 for performance groupings.

Table PD-6. High Static Motor, Two-Pipe, Group 1

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2CH 287 (135) 5.9 (1.7) 4.7(1.4) 1.29 (0.08) 8.8 (26.3) 17.9 (5.3) .16 1.19 (0.08) 6.0 (17.8) 145 145 145

3CH 282 (133) 8.5 (2.5) 6.1 (1.8) 1.80 (0.11) 23.9 (71.3) 22.9 (6.7) .21 1.52 (0.10) 13.8 (41.2) 145 145 145 4CH 260 (123) 8.7 (2.6) 6.2 (1.8) 1.84 (0.12) 6.1 (18.3) 23.9 (7.0) .22 1.59 (0.10) 3.8 (11.5) 145 145 145

3 2CH 365 (172) 7.4 (2.2) 5.7 (1.7) 1.58 (0.10) 14.1 (42.2) 23.0 (6.7) .21 1.53 (0.10) 10.3 (30.8) 140 140 140

3CH 343 (162) 8.8 (2.6) 6.7 (2.0) 1.86 (0.12) 5.4 (16.1) 27.3 (8.0) .25 1.82 (0.11) 4.3 (12.8) 145 140 135 4CH 318 (150) 10.8 (3.2) 7.6 (2.2) 2.26 (0.14) 9.7 (28.9) 29.7 (8.7) .27 1.98 (0.12) 6.2 (18.6) 145 140 135

4 2CH 396 (187) 8.9 (2.6) 7.1 (2.1) 1.90 (0.12) 4.6 (13.7) 26.0 (7.6) .24 1.73 (0.11) 3.3 (9.8) 170 180 170

3CH 484 (228) 14.0 (4.1) 10.2 (3.0) 2.94 (0.19) 13.9 (41.5) 38.6 (11.3) .35 2.57 (0.16) 9.1 (27.0) 210 210 210 4CH 453 (214) 16.0 (4.7) 11.0 (3.2) 3.35 (0.21) 22.3 (66.7) 42.2 (12.4) .38 2.81 (0.18) 13.4 (39.9) 210 210 210

6 2CH 668 (315) 15.8 (4.6) 12.1 (3.5) 3.32 (0.21) 15.3 (45.6) 43.1 (12.6) .39 2.87 (0.18) 9.9 (29.5) 245 240 240

3CH 780 (368) 20.1 (5.9) 15.5 (4.5) 4.24 (0.27) 7.5 (22.3) 59.5 (17.4) .54 3.96 (0.25) 5.9 (17.7) 320 320 320 4CH 725 (342) 23.9 (7.0) 16.8 (4.9) 4.99 (0.31) 11.9 (35.6) 65.6 (19.2) .60 4.37 (0.28) 8.2 (24.6) 320 320 320

8 2CH 907 (428) 18.4 (5.4) 15.2 (4.5) 3.90 (0.25) 5.7 (16.9) 55.7 (16.3) .51 3.71 (0.23) 4.7 (14.2) 320 320 320

3CH 886 (418) 24.6 (7.2) 17.9 (5.3) 5.13 (0.32) 11.8 (35.2) 71.2 (20.9) .65 4.74 (0.30) 9.1 (27.1) 320 320 320 4CH 835 (394) 27.3 (8.0) 18.9 (5.5) 5.68 (0.36) 16.9 (50.6) 78.3 (22.9) .71 5.22 (0.33) 12.7 (37.8) 320 320 320

10 2CH 1117 (527) 24.7 (7.3) 19.5 (5.7) 5.23 (0.33) 10.8 (32.2) 70.8 (20.7) .65 4.71 (0.30) 8.1 (24.1) 415 420 410

3CH 1230 (580) 33.9 (9.9) 24.5 (7.2) 7.14 (0.45) 24.2 (72.3) 97.6 (28.6) .89 6.50 (0.41) 18.1 (54.0) 530 530 530 4CH 1152 (544) 36.2(10.6) 24.8 (7.3) 7.63 (0.48) 32.8 (98.1) 107.1 (31.4) .97 7.13 (0.45) 25.3 (75.6) 530 530 530

12 2CH 1270 (600) 30.1 (8.8) 23.0 (6.8) 6.35 (0.40) 16.6 (49.5) 82.2 (24.1) .75 5.48 (0.35) 11.4 (34.0) 490 500 490

3CH 1350 (637) 38.1 (11.2) 27.9 (8.2) 7.98 (0.50) 18.5 (55.3) 108.0 (31.6) .98 7.19 (0.45) 14.5 ( 43.2) 530 530 530 4CH 1274 (601) 45.6 (13.4) 30.6 (9.0) 9.47 (0.60) 25.2 (75.4) 120.0 (35.2) 1.09 8.00 (0.50) 16.7 (50.0) 530 530 530

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

Table PD-7. High Static Motor, Two-Pipe, Group 2

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2CH 256 (121) 5.6 (1.6) 4.4 (1.3) 1.22 (0.08) 8.0 (23.9) 16.6 (4.9) .15 1.11 (0.07) 5.2 (15.5) 145 145 145

3CH 250 (118) 8.0 (2.3) 5.7 (1.7) 1.69 (0.11) 21.5 (64.1) 20.9 (6.1) .19 1.39 (0.09) 11.8 (35.3) 145 145 145 4CH 234 (111) 8.2 (2.4) 5.8 (1.7) 1.74 (0.11) 5.5 (16.4) 22.0 (6.5) .20 1.47 (0.09) 3.3 (9.9) 145 145 145

3 2CH 330 (156) 7.1 (2.1) 5.4 (1.6) 1.51 (0.10) 13.1 (39.0) 21.5 (6.3) .20 1.43 (0.09) 9.2 (27.4) 140 140 140

3CH 309 (146) 8.3 (2.4) 6.3 (1.9) 1.76 (0.11) 4.9 (14.6) 25.3 (7.4) .23 1.68 (0.11) 3.7 (11.1) 145 140 135 4CH 290 (137) 10.3 (3.0) 7.1 (2.1) 2.15 (0.14) 8.8 (26.4) 27.6 (8.1) .25 1.84 (0.12) 5.4 (16.3) 145 140 135

4 2CH 367 (173) 8.5 (2.5) 6.8 (2.0) 1.82 (0.11) 4.3 (12.7) 24.6 (7.2) .22 1.64 (0.10) 3.0 (8.9) 170 180 170

3CH 440 (208) 13.3 (3.9) 9.6 (2.8) 2.80 (0.18) 12.8 (38.1) 36.0 (10.5) .33 2.40 (0.15) 8.0 (23.8) 210 210 210 4CH 416 (196) 15.3 (4.5) 10.4 (3.1) 3.20 (0.20) 20.6 (61.6) 39.5 (11.6) .36 2.63 (0.17) 11.8 (35.3) 210 210 210

6 2CH 610 (288) 15.0 (4.4) 11.4 (3.4) 3.17 (0.20) 14.1 (42.1) 40.5 (11.9) .37 2.70 (0.17) 8.8 (26.4) 245 240 240

3CH 704 (332) 19.0 (5.6) 14.5 (4.2) 4.02 (0.25) 6.8 (20.2) 55.3 (16.2) .50 3.68 (0.23) 5.2 (15.4) 320 320 320 4CH 662 (312) 22.7 (6.6) 15.9 (4.7) 4.75 (0.30) 10.9 (32.5) 61.1 (17.9) .56 4.07 (0.26) 7.2 (21.5) 320 320 320

8 2CH 834 (394) 17.6 (5.2) 14.5 (4.2) 3.74 (0.24) 5.3 (15.7) 52.7 (15.5) .48 3.51 (0.22) 4.3 (12.7) 320 320 320

3CH 815 (385) 23.6 (6.9) 17.1 (5.0) 4.94 (0.31) 10.9 (32.7) 66.9 (19.6) .61 4.46 (0.28) 8.1 (24.1) 320 320 320 4CH 775 (366) 26.2 (7.7) 18.1 (5.3) 5.47 (0.34) 15.8 (47.1) 73.7 (21.6) .67 4.91 (0.31) 11.3 (33.8) 320 320 320

10 2CH 1029 (486) 23.7 (6.9) 18.5 (5.4) 5.02 (0.32) 10.0 (29.8) 67.0 (19.6) .61 4.46 (0.28) 7.3 (21.8) 415 420 410

3CH 1117 (527) 32.3 (9.5) 23.2 (6.8) 6.83 (0.43) 22.3 (66.6) 91.0 (26.7) .83 6.06 (0.38) 15.9 (47.4) 530 530 530 4CH 1057 (499) 34.9 (10.2) 23.7 (7.0) 7.34 (0.46) 30.6 (91.4) 100.0 (29.3) .91 6.66 (0.42) 22.3 (66.6) 530 530 530

12 2CH 1175 (554) 28.9 (8.5) 22.0 (6.4) 6.12 (0.39) 15.5 (46.2) 78.0 (22.8) .71 5.19 (0.33) 10.3 (30.8) 490 500 490

3CH 1242 (586) 36.5 (10.7) 26.5 (7.8) 7.66 (0.48) 17.1 (51.2) 101.5 (29.8) .92 6.77 (0.43) 12.8 (38.4) 530 530 530 4CH 1181 (557) 43.8 (12.8) 29.3 (8.6) 9.12 (0.58) 23.5 (70.3) 113.0 (33.1) 1.03 7.53 (0.47) 14.9 (44.6) 530 530 530

Note:

1. CFM = Cubic feet per minute

2. TMBH = Total capacity (MBH)

3. GPM = Gallons per minute

4. WPD = Water pressure drop (feet of water)

5. Q/ITD = MBH (kW)/(Entering water temperature - Entering air temperature) when ∆T and GPM (L/s) remain constant. To determine heating capacities at a different entering water

temperature or entering air temp, compute the new ITD and multiply it by the Q/ITD shown.

6. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

7. High static motors need the appropriate length of duct to prevent poor acoustical applications.

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

UNT-PRC001-EN 21

Performance

Four-Pipe

Data

Coils

Table PD-8. Free Discharge Motor, Four-Pipe, Group 1

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2C1H 230 (108) 5.2 (1.5) 4.0 (1.2) 1.08 (0.07) 6.5 (19.4) 8.7 (2.5) .08 0.58 (0.04) 0.8 (2.4) 60 95 65

2C2H 210 (99) 4.9 (1.5) 3.8 (1.1) 1.03 (0.06) 6.0 (17.8) 14.5 (4.2) .13 0.96 (0.06) 4.1 (12.2) 60 95 65 3C1H 210 (99) 6.9 (2.0) 4.8 (1.4) 1.42 (0.09) 15.9 (47.6) 8.2 (2.4) .07 0.54 (0.03) 0.7 (2.2) 60 95 65

3 2C1H 314 (148) 6.7 (2.0) 5.0 (1.5) 1.39 (0.09) 11.3 (33.8) 11.7 (3.4) .11 0.78 (0.05) 1.5 (4.6) 85 89 101

2C2H 284 (134) 6.3 (1.9) 4.7 (1.4) 1.33 (0.08) 10.4 (31.1) 19.4 (5.7) .18 1.29 (0.08) 7.6 (22.8) 85 89 101 3C1H 284 (134) 7.6 (2.2) 5.7 (1.7) 1.58 (0.10) 4.0 (12.0) 11.0 (3.2) .10 0.74 (0.05) 1.4 (4.1) 85 89 101

4 2C1H 374 (177) 8.4 (2.5) 6.6 (2.0) 1.74 (0.11) 3.9 (11.7) 15.0 (4.4) .14 1.00 (0.06) 2.8 (8.4) 100 107 106

2C2H 350 (165) 8.0 (2.4) 6.4 (1.9) 1.67 (0.11) 3.7 (11.0) 23.8 (7.0) .22 1.59 (0.10) 2.8 (8.3) 100 107 106 3C1H 350 (165) 11.1 (3.3) 7.8 (2.3) 2.28 (0.14) 8.9 (26.5) 14.4 (4.2) .13 0.96 (0.06) 2.6 (7.8) 100 107 106

6 2C1H 608 (287) 14.7 (4.3) 11.1 (3.2) 3.01 (0.19) 12.8 (38.4) 24.2 (7.1) .22 1.61 (0.10) 8.4 (25.2) 125 130 124

2C2H 565 (267) 14.1 (4.1) 10.6 (3.1) 2.91 (0.18) 12.0 (36.0) 38.4 (11.3) .35 2.56 (0.16) 8.0 (23.9) 125 130 124 3C1H 565 (267) 15.9 (4.7) 11.8 (3.5) 3.26 (0.21) 4.6 (13.7) 23.1 (6.8) .21 1.54 (0.10) 7.8 (23.3) 125 130 124

8 2C1H 731 (345) 15.4 (4.5) 12.5 (3.7) 3.16 (0.20) 3.8 (11.4) 30.2 (8.9) .27 2.01 (0.13) 15.1 (45.1) 120 123 133

2C2H 688 (325) 14.8 (4.4) 12.0 (3.5) 3.05 (0.19) 3.6 (10.7) 46.2 (13.5) .42 3.08 (0.19) 3.3 (9.9) 120 123 133 3C1H 688 (325) 20.0 (5.9) 14.2 (4.2) 4.08 (0.26) 7.7 (23.0) 29.1 (8.5) .26 1.94 (0.12) 14.1 (42.1) 120 123 133

10 2C1H 992 (468) 22.6 (6.6) 17.5 (5.1) 4.67 (0.29) 8.7 (26.1) 40.5 (11.9) .37 2.70 (0.17) 30.7 (91.7) 225 237 230

2C2H 930 (439) 21.8 (6.4) 16.8 (4.9) 4.51 (0.28) 8.2 (24.4) 62.5 (18.3) .57 4.16 (0.26) 6.4 (19.1) 225 237 230 3C1H 930 (439) 27.7 (8.1) 19.4 (5.7) 5.70 (0.36) 16.0 (47.7) 38.9 (11.4) .35 2.59 (0.16) 28.5 (85.3) 225 237 230

12 2C1H 1082 (511) 26.6 (7.8) 19.9 (5.8) 5.47 (0.35) 12.6 (37.6) 45.7 (13.4) .42 3.04 (0.19) 43.3 (129.5) 220 230 239

2C2H 1010 (477) 25.6 (7.5) 19.1 (5.6) 5.28 (0.33) 11.8 (35.1) 70.1 (20.5) .64 4.67 (0.29) 8.4 (25.2) 220 230 239 3C1H 1010 (477) 30.4 (8.9) 21.6 (6.3) 6.22 (0.39) 11.5 (34.4) 43.7 (12.8) .40 2.91 (0.18) 40.0 (119.5) 220 230 239

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

Table PD-9. Free Discharge Motor, Four-Pipe, Group 2

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2C1H 201 (95) 4.8 (1.4) 3.7 (1.1) 1.01 (0.06) 5.8 (17.2) 8.0 (2.3) .07 0.53 (0.03) 0.7 (2.1) 60 95 65

2C2H 188 (89) 4.6 (1.4) 3.5 (1.0) 0.97 (0.06) 5.4 (16.0) 13.3 (3.9) .12 0.89 (0.06) 3.5 (10.5) 60 95 65 3C1H 188 (89) 6.5 (1.9) 4.5 (1.3) 1.34 (0.08) 14.3 (42.7) 7.6 (2.2) .07 0.50 (0.03) 0.6 (1.9) 60 95 65

3 2C1H 277 (131) 6.3 (1.9) 4.7 (1.4) 1.32 (0.08) 10.3 (30.8) 10.9 (3.2) .10 0.72 (0.05) 1.4 (4.0) 85 89 101

2C2H 256 (121) 6.0 (1.8) 4.5 (1.3) 1.26 (0.08) 9.6 (28.6) 18.0 (5.3) .16 1.20 (0.08) 6.7 (20.0) 85 89 101 3C1H 256 (121) 7.2 (2.1) 5.3 (1.6) 1.49 (0.09) 3.6 (10.8) 10.3 (3.0) .09 0.69 (0.04) 1.2 (3.7) 85 89 101

4 2C1H 338 (159) 7.9 (2.3) 6.2 (1.8) 1.65 (0.10) 3.6 (10.6) 14.0 (4.1) .13 0.94 (0.06) 2.5 (7.5) 100 107 106

2C2H 320 (151) 7.6 (2.2) 6.0 (1.8) 1.59 (0.10) 3.4 (10.0) 22.3 (6.5) .20 1.48 (0.09) 2.5 (7.4) 100 107 106 3C1H 320 (151) 10.6 (3.1) 7.4 (2.2) 2.18 (0.14) 8.1 (24.3) 13.5 (4.0) .12 0.90 (0.06) 2.3 (7.0) 100 107 106

6 2C1H 541 (255) 13.8 (4.1) 10.3 (3.0) 2.85 (0.18) 11.6 (34.7) 22.4 (6.6) .20 1.50 (0.09) 7.4 (22.1) 125 130 124

2C2H 510 (241) 13.4 (3.9) 9.9 (2.9) 2.76 (0.17) 11.0 (32.8) 35.7 (10.5) .32 2.38 (0.15) 7.0 (20.9) 125 130 124 3C1H 510 (241) 14.9 (4.4) 11.1 (3.3) 3.07 (0.19) 4.1 (12.2) 21.6 (6.3) .20 1.44 (0.09) 6.9 (20.7) 125 130 124

8 2C1H 659 (311) 14.6 (4.3) 11.7 (3.4) 2.99 (0.19) 3.4 (10.3) 28.3 (8.3) .26 1.88 (0.12) 13.4 (40.1) 120 123 133

2C2H 627 (296) 14.1 (4.1) 11.3 (3.3) 2.90 (0.18) 3.3 (9.7) 43.2 (12.7) .39 2.88 (0.18) 2.9 (8.7) 120 123 133 3C1H 627 (296) 19.1 (5.6) 13.5 (4.0) 3.90 (0.25) 7.1 (21.2) 27.3 (8.0) .25 1.82 (0.11) 12.6 (37.7) 120 123 133

10 2C1H 886 (418) 21.3 (6.2) 16.4 (4.8) 4.41 (0.28) 7.8 (23.4) 37.7 (11.0) .34 2.51 (0.16) 27.0 (80.8) 225 237 230

2C2H 840 (397) 20.6 (6.0) 15.8 (4.6) 4.27 (0.27) 7.4 (22.1) 58.1 (17.0) .53 3.87 (0.24) 5.6 (16.6) 225 237 230 3C1H 840 (397) 26.4 (7.7) 18.4 (5.4) 5.43 (0.34) 14.6 (43.6) 36.4 (10.7) .33 2.42 (0.15) 25.4 (75.9) 225 237 230

12 2C1H 976 (461) 25.3 (7.4) 18.8 (5.5) 5.21 (0.33) 11.5 (34.3) 42.7 (12.5) .39 2.84 (0.18) 38.4 (114.7) 220 230 239

2C2H 921 (435) 24.5 (7.2) 18.0 (5.3) 5.04 (0.32) 10.8 (32.2) 65.4 (19.2) .59 4.36 (0.28) 7.4 (22.1) 220 230 239 3C1H 921 (435) 28.9 (8.5) 20.4 (6.0) 5.93 (0.37) 10.5 (31.4) 41.0 (12.0) .37 2.73 (0.17) 35.8 (106.9) 220 230 239

Note:

1. CFM = Cubic feet per minute

2. TMBH = Total capacity (MBH)

3. GPM = Gallons per minute

4. WPD = Water pressure drop (feet of water)

6. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

UNT-PRC001-EN22

Performance

Four-Pipe

Data

Coils

Table PD-10. Free Discharge Motor, Four-Pipe, Group 3

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2C1H 188 (89) 4.7 (1.4) 3.5 (1.0) 0.97 (0.06) 5.4 (16.2) 7.6 (2.2) .07 0.51 (0.03) 0.6 (1.9) 60 95 65

2C2H 177 (84) 4.5 (1.3) 3.4 (1.0) 0.93 (0.06) 5.1 (15.1) 12.7 (3.7) .12 0.85 (0.05) 3.2 (9.7) 60 95 65 3C1H 177 (84) 6.3 (1.8) 4.3 (1.3) 1.29 (0.08) 13.4 (40.1) 7.3 (2.1) .07 0.48 (0.03) 0.6 (1.8) 60 95 65

3 2C1H 260 (123) 6.1 (1.8) 4.5 (1.3) 1.28 (0.08) 9.8 (29.2) 10.4 (3.1) .09 0.69 (0.04) 1.3 (3.8) 85 89 101

2C2H 242 (114) 5.9 (1.7) 4.3 (1.3) 1.23 (0.08) 9.1 (27.2) 17.2 (5.1) .16 1.15 (0.07) 6.2 (18.6) 85 89 101 3C1H 242 (114) 6.9 (2.0) 5.1 (1.5) 1.45 (0.09) 3.4 (10.2) 9.9 (2.9) .09 0.66 (0.04) 1.2 (3.4) 85 89 101

4 2C1H 320 (151) 7.7 (2.2) 6.0 (1.8) 1.60 (0.10) 3.4 (10.1) 13.5 (4.0) .12 0.90 (0.06) 2.3 (7.0) 100 107 106

2C2H 304 (144) 7.4 (2.2) 5.8 (1.7) 1.55 (0.10) 3.2 (9.5) 21.4 (6.3) .19 1.43 (0.09) 2.3 (6.9) 100 107 106 3C1H 304 (144) 10.3 (3.0) 7.2 (2.1) 2.12 (0.13) 7.7 (23.1) 13.1 (3.8) .12 0.87 (0.05) 2.2 (6.6) 100 107 106

6 2C1H 508 (240) 13.4 (3.9) 9.9 (2.9) 2.76 (0.17) 11.0 (32.8) 21.6 (6.3) .20 1.44 (0.09) 6.9 (20.6) 125 130 124

2C2H 483 (228) 13.0 (3.8) 9.6 (2.8) 2.68 (0.17) 10.4 (31.1) 34.3 (10.0) .31 2.28 (0.14) 6.5 (19.4) 125 130 124 3C1H 483 (228) 14.4 (4.2) 10.7 (3.1) 2.97 (0.19) 3.8 (11.5) 20.8 (6.1) .19 1.39 (0.09) 6.5 (19.4) 125 130 124

8 2C1H 623 (294) 14.1 (4.1) 11.3 (3.3) 2.90 (0.18) 3.2 (9.7) 27.2 (8.0) .25 1.81 (0.11) 12.5 (37.5) 120 123 133

2C2H 596 (282) 13.7 (4.0) 11.0 (3.2) 2.81 (0.18) 3.1 (9.2) 41.6 (12.2) .38 2.77 (0.17) 2.7 (8.1) 120 123 133 3C1H 596 (282) 18.6 (5.5) 13.1 (3.8) 3.80 (0.24) 6.8 (20.2) 26.4 (7.7) .24 1.76 (0.11) 11.9 (35.5) 120 123 133

10 2C1H 835 (394) 20.6 (6.0) 15.8 (4.6) 4.27 (0.27) 7.4 (22.1) 36.2 (10.6) .33 2.41 (0.15) 25.2 (75.3) 225 237 230

2C2H 796 (376) 20.0 (5.9) 15.2 (4.5) 4.15 (0.26) 7.0 (20.9) 55.8 (16.3) .51 3.72 (0.23) 5.2 (15.4) 225 237 230 3C1H 796 (376) 25.6 (7.5) 17.8 (5.2) 5.28 (0.33) 13.9 (41.4) 35.1 (10.3) .32 2.34 (0.15) 23.8 (71.0) 225 237 230

12 2C1H 923 (436) 24.6 (7.2) 18.1 (5.3) 5.06 (0.32) 10.9 (32.5) 41.1 (12.0) .37 2.74 (0.17) 35.9 (107.2) 220 230 239

2C2H 876 (413) 23.8 (7.0) 17.5 (5.1) 4.91 (0.31) 10.3 (30.7) 63.0 (18.5) .57 4.20 (0.26) 6.9 (20.6) 220 230 239 3C1H 876 (413) 28.1 (8.2) 19.8 (5.8) 5.76 (0.36) 10.0 (29.7) 39.6 (11.6) .36 2.64 (0.17) 33.6 (100.4) 220 230 239

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

Table PD-11. Free Discharge Motor, Four-Pipe, Group 4

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt

3 2C1H 270 (128) 6.3 (1.9) 5.0 (1.5) 1.26 (0.08) 2.2 (6.6) 12.0 (3.5) .11 0.80 (0.05) 1.9 (5.7) 86

2C2H 250 (118) 5.9 (1.7) 4.7 (1.4) 1.18 (0.07) 2.0 (5.8) 18.3 (5.4) .17 1.22 (0.08) 1.7 (5.1) 86 3C1H 250 (118) 7.3 (2.1) 5.1 (1.5) 1.46 (0.09) 4.0 (11.9) 11.3 (3.3) .10 0.75 (0.05) 1.7 (5.1) 86

4 2C1H 350 (165) 10.0 (2.9) 7.1 (2.1) 1.99 (0.13) 6.1 (18.2) 16.3 (4.8) .15 1.09 (0.07) 4.2 (12.6) 98

2C2H 320 (151) 9.2 (2.7) 6.5 (2.0) 1.83 (0.12) 5.2 (15.7) 24.4 (7.2) .22 1.63 (0.10) 3.5 (10.5) 98 3C1H 320 (151) 8.9 (2.6) 6.6 (1.9) 1.79 (0.11) 1.5 (4.5) 15.1 (4.4) .14 1.01 (0.06) 3.7 (11.1) 98

6 2C1H 570 (270) 12.6 (3.7) 10.3 (3.0) 2.52 (0.16) 2.5 (7.5) 25.6 (7.5) .23 1.70 (0.11) 11.2 (33.5) 105

2C2H 530 (250) 11.7 (3.4) 9.6 (2.8) 2.35 (0.22) 2.2 (6.6) 37.9 (11.1) .34 2.53 (0.160) 2.3 (6.8) 105

Note:

1. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

2. Q/ITD = MBH (kW)/(Entering water temperature - Entering air temperature) when ∆T and GPM (L/s) remain constant. To determine heating capacities at a different entering water

UNT-PRC001-EN 23

3C1H 530 (250) 15.3 (4.5) 10.8 (3.2) 3.07 (0.19) 4.5 (13.6) 24.2 (7.1) .22 1.61 (0.10) 10.2 (30.5) 105

temperature or entering air temperature, compute the new ITD and multiply it by the Q/ITD shown.

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V

Cooling Heating

Performance

Four-Pipe

Data

Coils

ARI cooling performance is based on 80/67 F (27/19 C) entering air temperature, 45 F (7 C) entering chilled water temperature with a 10 F (5.5 C) DT. Heating performance is based on 70 F (21 C) entering air temperature, 180 F (82 C) entering hot water temperature with a 30 F (17 C) DT. All performance measured on high speed tap, 115V, 0.2” (0.05 kPA) ESP with a throwaway filter. See page 18 for performance groupings.

Table PD-12. High Static Motor, Four-Pipe, Group 1

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2C1H 282 (133) 5.9 (1.7) 4.7 (1.4) 1.27 (0.08) 8.6 (25.8) 9.8 (2.9) .09 0.65 (0.04) 1.0 (3.0) 145 145 145

2C2H 260 (123) 5.6 (1.7) 4.4 (1.3) 1.22 (0.08) 8.1 (24.1) 16.8 (4.9) .15 1.12 (0.07) 5.3 (15.8) 145 145 145 3C1H 260 (123) 8.1 (2.4) 5.8 (1.7) 1.72 (0.11) 22.1 (66.1) 9.3 (2.8) .08 0.62 (0.04) 0.9 (2.7) 145 145 145

3 2C1H 343 (162) 7.2 (2.1) 5.5 (1.6) 1.53 (0.10) 13.3 (39.9) 12.4 (3.6) .11 0.82 (0.05) 1.7 (5.1) 145 140 135

2C2H 318 (150) 6.9 (2.0) 5.2 (1.5) 1.48 (0.09) 12.5 (37.5) 21.0 (6.2) .19 1.40 (0.09) 8.8 (26.3) 145 140 135 3C1H 318 (150) 8.4 (2.5) 6.4 (1.9) 1.79 (0.11) 5.0 (14.9) 11.8 (3.5) .11 0.79 (0.05) 1.6 (4.7) 145 140 135

4 2C1H 484 (228) 9.9 (2.9) 8.1 (2.4) 2.13 (0.13) 5.6 (16.9) 17.5 (5.1) .16 1.17 (0.07) 3.7 (11.1) 210 210 210

2C2H 453 (214) 9.6 (2.8) 7.8 (2.3) 2.06 (0.13) 5.3 (15.9) 28.4 (8.3) .26 1.90 (0.12) 3.9 (11.6) 210 210 210 3C1H 453 (214) 13.5 (4.0) 9.7 (2.9) 2.84 (0.18) 13.0 (39.9) 16.9 (4.9) .15 1.12 (0.07) 3.5 (10.3) 210 210 210

6 2C1H 780 (368) 17.0 (5.0) 13.3 (4.0) 3.62 (0.23) 17.9 (53.4) 27.9 (8.2) .25 1.86 (0.12) 10.9 (32.6) 320 320 320

2C2H 725 (342) 16.4 (4.8) 12.7 (3.7) 3.50 (0.22) 16.8 (50.1) 45.4 (13.3) .41 3.03 (0.19) 10.9 (32.6) 320 320 320 3C1H 725 (342) 19.3 (5.7) 14.7 (4.3) 4.08 (0.26) 6.9 (20.7) 26.8 (7.9) .24 1.79 (0.11) 10.1 (30.3) 320 320 320

8 2C1H 886 (418) 18.1 (5.3) 15.0 (4.4) 3.85 (0.24) 5.5 (16.5) 34.0 (10.0) .31 2.26 (0.14) 18.6 (55.5) 320 320 320

2C2H 835 (394) 17.6 (5.1) 14.4 (4.2) 3.73 (0.24) 5.2 (15.5) 52.8 (15.5) .48 3.52 (0.22) 4.3 (12.8) 320 320 320 3C1H 835 (394) 23.8 (7.0) 17.3 (5.1) 4.98 (0.31) 11.1 (33.3) 32.8 (9.6) .30 2.19 (0.14) 17.5 (52.2) 320 320 320

10 2C1H 1230 (580) 25.9 (7.6) 20.6 (6.0) 5.53 (0.35) 12.0 (35.8) 46.0 (13.5) .42 3.06 (0.19) 38.4 (114.9) 530 530 530

2C2H 1152 (544) 25.0 (7.3) 19.8 (5.8) 5.36 (0.34) 11.3 (33.7) 72.2 (21.2) .66 4.81 (0.30) 8.4 (25.1) 530 530 530 3C1H 1152 (544) 32.8 (9.6) 23.5 (6.9) 6.91 (0.44) 22.8 (68.1) 44.3 (13.0) .40 2.95 (0.19) 36.0 (107.5) 530 530 530

12 2C1H 1315 (621) 30.6 (9.0) 23.5 (6.9) 6.48 (0.41) 17.2 (51.4) 51.4 (15.1) .47 3.43 (0.22) 53.5 (160.0) 530 530 530

2C2H 1274 (601) 30.1 (8.8) 23.0 (6.8) 6.37 (0.40) 16.7 (49.9) 82.3 (24.1) .75 5.49 (0.35) 11.4 (34.1) 530 530 530 3C1H 1274 (601) 36.9 (10.8) 26.9 (7.9) 7.74 (0.49) 17.5 (52.2) 50.5 (14.8) .46 3.36 (0.21) 51.8 (154.8) 530 530 530

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

Table PD-13. High Static Motor, Four-Pipe, Group 2

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

2 2C1H 250 (118) 5.5 (1.6) 4.3 (1.3) 1.20 (0.08) 7.8 (23.4) 9.1 (2.7) .08 0.61 (0.04) 0.9 (2.6) 145 145 145

2C2H 234 (111) 5.3 (1.6) 4.1 (1.2) 1.16 (0.07) 7.4 (22.0) 15.6 (4.6) .14 1.04 (0.07) 4.7 (14.0) 145 145 145 3C1H 234 (111) 7.6 (2.2) 5.4 (1.6) 1.63 (0.10) 20.1 (60.0) 8.8 (2.6) .08 0.58 (0.04) 0.8 (2.5) 145 145 145

3 2C1H 309 (146) 6.8 (2.0) 5.2 (1.5) 1.46 (0.09) 12.3 (36.8) 11.6 (3.4) .11 0.78 (0.05) 1.5 (4.5) 145 140 135

2C2H 290 (137) 6.6 (1.9) 5.0 (1.5) 1.42 (0.09) 11.7 (34.8) 19.7 (5.8) .18 1.31 (0.08) 7.9 (23.5) 145 140 135 3C1H 290 (137) 8.0 (2.4) 6.0 (1.8) 1.70 (0.11) 4.6 (13.7) 11.2 (3.3) .10 0.75 (0.05) 1.4 (4.3) 145 140 135

4 2C1H 440 (208) 9.5 (2.8) 7.7 (2.3) 2.03 (0.13) 5.2 (15.5) 16.6 (4.9) .15 1.10 (0.07) 3.4 (10.0) 210 210 210

2C2H 416 (196) 9.2 (2.7) 7.4 (2.2) 1.97 (0.12) 4.9 (14.7) 26.9 (7.9) .24 1.79 (0.11) 3.5 (10.4) 210 210 210 3C1H 416 (196) 12.9 (3.8) 9.2 (2.7) 2.72 (0.17) 12.1 (36.1) 16.0 (4.7) .15 1.07 (0.07) 3.2 (9.4) 210 210 210

6 2C1H 704 (332) 16.2 (4.7) 12.5 (3.7) 3.45 (0.22) 16.4 (49.0) 26.4 (7.7) .24 1.76 (0.11) 9.8 (29.4) 320 320 320

2C2H 662 (312) 15.7 (4.6) 12.0 (3.5) 3.35 (0.21) 15.5 (46.4) 42.8 (12.5) .40 2.85 (0.18) 9.8 (29.2) 320 320 320 3C1H 662 (312) 18.3 (5.4) 13.9 (4.1) 3.88 (0.24) 6.3 (18.9) 25.4 (7.5) .23 1.69 (0.11) 9.2 (27.6) 320 320 320

8 2C1H 815 (385) 17.4 (5.1) 14.2 (4.2) 3.69 (0.23) 5.1 (15.2) 32.3 (9.5) .29 2.15 (0.14) 17.0 (50.8) 320 320 320

2C2H 775 (366) 16.8 (4.9) 13.7 (4.0) 3.59 (0.23) 4.8 (14.5) 50.2 (14.7) .46 3.34 (0.21) 3.9 (11.6) 320 320 320 3C1H 775 (366) 22.9 (6.7) 16.5 (4.9) 4.80 (0.30) 10.4 (31.1) 31.3 (9.2) .28 2.09 (0.13) 16.1 (48.1) 320 320 320

10 2C1H 1117 (527) 24.6 (7.2) 19.4 (5.7) 5.29 (0.33) 11.0 (32.9) 43.5 (12.7) .40 2.90 (0.18) 34.8 (104.0) 530 530 530

2C2H 1057 (499) 23.9 (7.0) 18.8 (5.5) 5.14 (0.32) 10.4 (31.2) 68.2 (20.0) .62 4.55 (0.29) 7.5 (22.5) 530 530 530 3C1H 1057 (499) 31.4 (9.2) 22.4 (6.7) 6.64 (0.42) 21.1 (63.2) 42.1 (12.3) .38 2.80 (0.18) 32.9 (98.2) 530 530 530

12 2C1H 1242 (586) 29.7 (8.7) 22.7 (6.6) 6.31 (0.40) 16.4 (49.0) 49.7 (14.6) .45 3.31 (0.21) 50.4 (150.7) 530 530 530

2C2H 1181 (557) 29.0 (8.5) 22.0 (6.5) 6.15 (0.39) 15.6 (46.7) 78.2 (22.9) .71 5.21 (0.33) 10.4 (31.0) 530 530 530 3C1H 1181 (557) 35.5 (10.4) 25.6 (7.5) 7.45 (0.47) 16.2 (48.5) 48.2 (14.1) .44 3.21 (0.20) 47.7 (142.7) 530 530 530

Note:

1. CFM= Cubic feet per minute

2. TMBH = Total capacity (MBH)

3. GPM = Gallons per minute

4. WPD = Water pressure drop (feet of water)

6. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

7. High static motors need the appropriate length of duct to prevent poor acoustical applications.

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

UNT-PRC001-EN24

Performance

Hot Water

Data

Reheat Coils

The following performance data represents the 1-row hot water and steam reheat coils that are available on fan-coil units in conjunction with a 2, 3 or 4-row cooling coil. Heating performance is based on 70 F (21 C) entering air temperature, 180 F (82 C) entering hot water temperature with a 20 F (-7 C) DT. All performance measured on high speed tap, 115 V, zero ESP, with a throwaway filter. See page 18 for performance groupings.

Table PD-14. Hot Water Reheat Coil With Free Discharge Motor, Group 1

Main

Coil TMBH GPM WPD

FC Rows (TkW) Q/ITD (L/s) (Pa)

2 2.9 (.8) 0.03 0.3 (.02) 0.01 (30)

02 3 2.8 (.8) 0.03 0.3 (.02) 0.01 (30)

4 2.7 (.8) 0.02 0.3 (.02) 0.01 (30) 2 4.1 (1.2) 0.04 0.4 (.03) 0.02 (60)

03 3 4.0 (1.2) 0.04 0.4 (.03) 0.02 (60)

4 3.8 (1.1) 0.04 0.4 (.03) 0.02 (60) 2 5.6 (1.6) 0.05 0.6 (.04) 0.04 (120)

04 3 5.6 (1.6) 0.05 0.6 (.04) 0.04 (120)

4 5.3 (1.6) 0.05 0.5 (.03) 0.03 (90) 2 9.3 (2.7) 0.09 0.9 (.06) 0.10 (299)

06 3 9.3 (2.7) 0.09 0.9 (.06) 0.10 (299)

4 8.9 (2.6) 0.08 0.9 (.06) 0.09 (269) 2 12.5 (3.7) 0.11 1.2 (.08) 0.18 (538)

08 3 11.9 (3.5) 0.11 1.2 (.08) 0.17 (508)

4 11.4 (3.3) 0.10 1.1 (.07) 0.16 (478) 2 16.1 (4.7) 0.15 1.6 (.10) 0.32 (957)

10 3 16.2 (4.7) 0.15 1.6 (.10) 0.32 (957)

4 15.6 (4.6) 0.14 1.6 (.10) 0.30 (897) 2 18.8 (5.5) 0.17 1.9 (.12) 0.45 (1350)

12 3 18.5 (5.4) 0.17 1.8 (.11) 0.44 (1320)

4 17.8 (5.2) 0.16 1.8 (.11) 0.40 (1200)

Table PD-15. Hot Water Reheat Coil With Free Discharge Motor, Group 2

Main

Coil TMBH GPM WP D

FC Rows (TkW) Q/ITD (L/s) (Pa)

2 2.7 (.8) 0.03 0.3 (.02) 0.01 (30)

02 3 2.6 (.8) 0.02 0.3 (.02) 0.01 (30)

4 2.5 (.7) 0.02 0.3 (.02) 0.01 (30) 2 3.8 (1.1) 0.03 0.4 (.03) 0.02 (60)

03 3 3.7 (1.1) 0.03 0.4 (.03) 0.02 (60)

4 3.6 (1.1) 0.03 0.4 (.03) 0.02 (60) 2 5.3 (1.6) 0.05 0.5 (.03) 0.03 (90)

04 3 5.2 (1.5) 0.05 0.5 (.03) 0.03 (90)

4 5.0 (1.5) 0.05 0.5 (.03) 0.03 (90) 2 8.8 (2.6) 0.08 0.9 (.06) 0.09 (269)

06 3 8.7 (2.5) 0.08 0.9 (.06) 0.09 (269)

4 8.5 (2.5) 0.08 0.8 (.05) 0.08 (239) 2 11.7 (3.4) 0.11 1.2 (.08) 0.17 (508)

08 3 11.2 (3.3) 0.10 1.1 (.07) 0.15 (448)

4 10.9 (3.2) 0.10 1.1 (.07) 0.15 (448) 2 15.2 (4.5) 0.14 1.5 (.09) 0.29 (867)

10 3 15.2 (4.5) 0.14 1.5 (.09) 0.29 (867)

4 14.8 (4.3) 0.13 1.5 (.09) 0.27 (807) 2 17.7 (5.2) 0.16 1.8 (.11) 0.40 (1200)

12 3 17.4 (5.1) 0.16 1.7 (.11) 0.39 (1170)

4 16.9 (5.0) 0.15 1.7 (.11) 0.37 (1110)

Note:

1. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

2. Q/ITD = MBH (kW)/(Entering water temperature - Entering air temperature) when ∆T and GPM (L/s) remain constant. To determine heating capacities at a different entering water temperature or entering air temperature, compute the new ITD and multiply it by the Q/ITD shown.

UNT-PRC001-EN 25

Performance

Hot Water

Data

Reheat Coils

Table PD-16. Hot Water Reheat Coil With Free Discharge Motor, Group 3

Main

Coil TMBH GPM W PD

FC Rows (TkW) Q/ITD (L/s) (Pa)

2 2.6 (.8) 0.02 0.3 (.02) 0.01 (30)

02 3 2.5 (.7) 0.02 0.3 (.02) 0.01 (30)

4 2.4 (.7) 0.02 0.3 (.02) 0.01 (30) 2 3.6 (1.1) 0.03 0.4 (.03) 0.02 (60)

03 3 3.6 (1.1) 0.03 0.4 (.03) 0.02 (60)

4 3.5 (1.0) 0.03 0.4 (.03) 0.01 (30) 2 5.1 (1.5) 0.05 0.5 (.03) 0.03 (90)

04 3 5.0 (1.5) 0.05 0.5 (.03) 0.03 (90)

4 4.9 (1.4) 0.04 0.5 (.03) 0.03 (90) 2 8.4 (2.5) 0.08 0.8 (.05) 0.08 (239)

06 3 8.3 (2.4) 0.08 0.8 (.05) 0.08 (239)

4 8.1 (2.4) 0.07 0.8 (.05) 0.08 (239) 2 11.2 (3.3) 0.10 1.1 (.07) 0.15 (448)

08 3 10.8 (3.2) 0.10 1.1 (.07) 0.15 (448)

4 10.5 (3.1) 0.10 1.1 (.07) 0.14 (419) 2 14.5 (4.2) 0.13 1.5 (.09) 0.26 (777)

10 3 14.6 (4.3) 0.13 1.5 (.09) 0.27 (807)

4 14.2 (4.2) 0.13 1.4 (.09) 0.25 (748) 2 17.0 (5.0) 0.15 1.7 (.11) 0.37 (1110)

12 3 16.7 (4.9) 0.15 1.7 (.11) 0.36 (108)

4 16.3 (4.8) 0.15 1.6 (.10) 0.34 (1020)

Table PD-17. Hot Water Reheat Coil With High Static Motor, Group 1

Main

Coil TMBH GPM W PD

FC Rows (TkW) Q/ITD (L/s) (Pa)

2 3.2 (.9) 0.03 0.3 (.02) 0.01 (30)

02 3 3.2 (.9) 0.03 0.3 (.02) 0.01 (30)

4 3.0 (.9) 0.03 0.3 (.02) 0.01 (30) 2 4.5 (1.3) 0.04 0.5 (.03) 0.02 (60)

03 3 4.3 (1.3) 0.04 0.4 (.03) 0.02 (60)

4 4.1 (1.2) 0.04 0.4 (.03) 0.02 (60) 2 5.9 (1.7) 0.05 0.6 (.04) 0.04 (120)

04 3 6.5 (1.9) 0.06 0.7 (.04) 0.05 (150)

4 6.3 (1.8) 0.06 0.6 (.04) 0.04 (120) 2 10.1 (3.0) 0.09 1.0 (.06) 0.12 (359)

06 3 11.0 (3.2) 0.10 1.1 (.07) 0.14 (419)

4 10.6 (3.1) 0.10 1.1 (.07) 0.13 (389) 2 13.8 (4.0) 0.13 1.4 (.09) 0.22 (658)

08 3 13.6 (4.0) 0.12 1.4 (.09) 0.22 (658)

4 13.2 (3.9) 0.12 1.3 (.08) 0.21 (628) 2 17.8 (5.2) 0.16 1.8 (.11) 0.38 (1140)

10 3 18.8 (5.5) 0.17 1.9 (.12) 0.42 (1260)

4 18.1 (5.3) 0.17 1.8 (.11) 0.40 (1200) 2 20.8 (6.1) 0.19 2.1 (.13) 0.54 (1620)

12 3 21.3 (6.2) 0.19 2.1 (.13) 0.57 (1700)

4 20.8 (6.1) 0.19 2.1 (.13) 0.54 (1620)

Note:

1. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

3. High static motors need the appropriate length of duct to prevent poor acoustical applications.

UNT-PRC001-EN26

Performance

Hot Water

Data

Reheat Coils

Heating performance is based on 70 F (21 C) entering air temperature, 180 F (82 C) entering hot water temperature with a 20 F (-7 C) DT. All performance measured on high speed tap, 115 V, 0.2” (.5 cm) ESP, with no filter. See page 18 for performance groupings.

Table PD-18. Hot Water Reheat Coil With High Static Motor, Group 2

Main

Coil TMBH GPM WPD

FC Rows (TkW) Q/ITD (L/s) (Pa)

2 3.1 (.9) 0.03 0.3 (.02) 0.01 (30)

02 3 3.0 (.9) 0.03 0.3 (.02) 0.01 (30)

4 2.9 (.8) 0.03 0.3 (.02) 0.01 (30) 2 4.3 (1.3) 0.04 0.4 (.03) 0.02 (60)

03 3 4.0 (1.2) 0.04 0.4 (.03) 0.02 (60)

4 3.9 (1.1) 0.04 0.4 (.03) 0.02 (60) 2 5.6 (1.6) 0.05 0.6 (.04) 0.04 (120)

04 3 6.1 (1.8) 0.06 0.6 (.04) 0.04 (120)

4 6.0 (1.8) 0.05 0.6 (.04) 0.04 (120) 2 9.6 (2.8) 0.09 1.0 (.06) 0.11 (329)

06 3 10.3 (3.0) 0.09 1.0 (.06) 0.11 (329)

4 10.0 (2.9) 0.09 1.0 (.06) 0.12 (359) 2 13.2 (3.9) 0.12 1.3 (.08) 0.20 (598)

08 3 13.0 (3.8) 0.12 1.3 (.08) 0.20 (598)

4 12.7 (3.7) 0.12 1.3 (.08) 0.19 (568) 2 17.0 (5.0) 0.16 1.7 (.11) 0.35 (1050)

10 3 17.7 (5.2) 0.16 1.8 (.11) 0.38 (1140)

4 17.2 (5.0) 0.16 1.7 (.11) 0.36 (108) 2 19.9 (5.8) 0.18 2.0 (.13) 0.50 (1500)

12 3 20.4 (6.0) 0.19 2.0 (.13) 0.52 (1560)

4 19.9 (5.8) 0.18 2.0 (.13) 0.50 (1500)

Table PD-19. Hot Water Reheat Coil With High Static Motor, Group 3

Main

Coil TMBH GPM WP D

FC Rows (TkW) Q/ITD (L/s) (Pa)

2 2.9 (.8) 0.03 0.3 (.02) 0.01 (30)

02 3 2.8 (.8) 0.03 0.3 (.02) 0.01 (30)

4 2.7 (.8) 0.03 0.3 (.02) 0.01 (30) 2 4.1 (1.2) 0.04 0.4 (.03) 0.02 (60)

03 3 3.9 (1.1) 0.04 0.4 (.03) 0.02 (60)

4 3.8 (1.1) 0.03 0.4 (.03) 0.02 (60) 2 5.5 (1.6) 0.05 0.6 (.04) 0.03 (90)

04 3 5.9 (1.7) 0.05 0.6 (.04) 0.04 (120)

4 5.8 (1.7) 0.05 0.6 (.04) 0.04 (120) 2 9.2 (2.7) 0.08 1.0 (.06) 0.10 (299)

06 3 9.9 (2.9) 0.09 1.0 (.06) 0.11 (329)

4 9.7 (2.8) 0.09 1.0 (.06) 0.11 (329) 2 12.7 (3.7) 0.12 1.3 (.08) 0.19 (568)

08 3 12.5 (3.7) 0.11 1.3 (.08) 0.19 (568)

4 12.3 (3.6) 0.11 1.2 (.08) 0.18 (538) 2 16.4 (4.8) 0.15 1.6 (.10) 0.33 (987)

10 3 17.0 (5.0) 0.15 1.7 (.11) 0.35 (1050)

4 16.6 (4.9) 0.15 1.7 (.11) 0.34 (1020) 2 19.2 (5.6) 0.18 1.9 (.12) 0.47 (1400)

12 3 19.6 (5.7) 0.18 2.0 (.13) 0.49 (1460)

4 19.2 (5.6) 0.17 1.9 (.12) 0.47 (1400)

Note:

1. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

2. Q/ITD =MBH (kW)/(Entering water temperature - Entering air temperature) when ∆T and GPM (L/s) remain constant. To determine heating capacities at a different entering water temperature or entering air temperature, compute the new ITD and multiply it by the Q/ITD shown.

3. High static motors need the appropriate length of duct to prevent poor acoustical applications.

UNT-PRC001-EN 27

Performance

Steam

Data

Reheat Coils

Table PD-20. Steam Properties

Steam Pressure PSIG (kPa) 2 (14) 5 (34) 10 (69) 15 (103) Sat. Steam Temp. F (C) 219 (104) 227 (108) 239 (115) 250 (121) Latent Heat — BTU/LB. (kJ/kg) 965 (2240) 960 (2230) 952 (2210) 945 (2200)

Heating performance is based on 70 F (21 C) entering air temperature, 2 psig (14 kPa) and 5 psig (103 kPa) entering steam pressure. All performance measured on high speed tap, 115 V, zero ESP, with a throwaway filter.

Table PD-21. Steam Reheat Coil With Free Discharge Motor, Group 1

Main (14 kPa) (103 kPa)

Coil TMBH TMBH

FC Rows (TkW) (TkW) Q/ITD

2 5.3 (2) 5.6 (2) 0.04

02 3 5.5 (2) 5.9 (2) 0.04

4 5.0 (1) 5.3 (2) 0.03 2 6.8 (2) 7.2 (2) 0.05

03 3 6.7 (2) 7.1 (2) 0.05

4 6.4 (2) 6.8 (2) 0.04 2 8.7 (3) 9.2 (3) 0.06

04 3 8.6 (3) 9.1 (3) 0.06

4 8.2 (2) 8.7 (3) 0.06 2 13.4 (4) 14.2 (4) 0.09

06 3 13.4 (4) 14.2 (4) 0.09

4 12.8 (4) 13.6 (4) 0.09 2 17.4 (5) 18.5 (5) 0.12

08 3 16.7 (5) 17.7 (5) 0.11

4 16.0 (5) 16.9 (5) 0.11 2 21.7 (6) 23.0 (7) 0.15

10 3 21.8 (6) 23.1 (7) 0.15

4 21.0 (6) 22.2 (7) 0.14 2 25.1 (7) 26.6 (8) 0.17

12 3 24.7 (7) 26.2 (8) 0.17

4 23.8 (7) 25.2 (7) 0.16

2 psig 5 psig

Table PD-22. Steam Reheat Coil With Free Discharge Motor, Group 2

Main (14 kPa) (103 kPa)

Coil TMBH TMBH

FC Rows (TkW) (TkW) Q/ITD

2 5.0 (1) 5.3 (2) 0.03

02 3 4.8 (1) 5.1 (1) 0.03

4 4.6 (1) 4.9 (1) 0.03 2 6.4 (2) 6.8 (2) 0.04

03 3 6.3 (2) 6.6 (2) 0.04

4 6.1 (2) 6.5 (2) 0.04 2 8.2 (2) 8.7 (3) 0.06

04 3 8.1 (2) 8.5 (2) 0.05

4 7.8 (2) 8.3 (2) 0.05 2 12.6 (4) 13.4 (4) 0.09

06 3 12.6 (4) 13.3 (4) 0.09

4 12.2 (4) 12.9 (4) 0.08 2 16.5 (5) 17.4 (5) 0.11

08 3 15.8 (5) 16.7 (5) 0.11

4 15.3 (4) 16.2 (5) 0.10 2 20.6 (6) 21.8 (6) 0.14

10 3 20.6 (6) 21.8 (6) 0.14

4 20.0 (6) 21.1 (6) 0.14 2 23.7 (7) 25.1 (7) 0.16

12 3 23.4 (7) 24.7 (7) 0.16

Note:

1. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

2. Q/ITD = MBH (kW)/(Saturated steam temperature - Entering air temperature). To determine heating capacities at different

4 22.7 (7) 24.0 (7) 0.15

entering steam pressure or entering air temperature, compute the new ITD and multiply it by the Q/ITD shown. (See the Steam Properties table at the end of this section to determine the saturated steam temperatures at various entering steam pressures.)

2 psig 5 psig

UNT-PRC001-EN28

Performance

Steam

Data

Reheat Coils

Table PD-23. Steam Reheat Coil With Free Discharge Motor, Group 3

Main (14 kPa) (103 kPa)

Coil TMBH TMBH

FC Rows (TkW) (TkW) Q/ITD

2 4.7 (1) 5.0 (1) 0.03

02 3 4.6 (1) 4.8 (1) 0.03

4 4.4 (1) 4.7 (1) 0.03 2 6.1 (2) 6.5 (2) 0.04

03 3 6.0 (2) 6.4 (2) 0.04

4 5.8 (2) 6.2 (2) 0.04 2 7.9 (2) 8.3 (2) 0.05

04 3 7.7 (2) 8.2 (2) 0.05

4 7.6 (2) 8.0 (2) 0.05 2 12.1 (4) 12.8 (4) 0.08

06 3 12.0 (4) 12.7 (4) 0.08

4 11.7 (3) 12.4 (4) 0.08 2 15.7 (5) 16.6 (5) 0.11

08 3 15.2 (4) 16.1 (5) 0.10

4 14.8 (4) 15.7 (5) 0.10 2 19.7 (6) 20.8 (6) 0.13

10 3 19.7 (6) 20.9 (6) 0.13

4 19.2 (6) 20.3 (6) 0.13 2 22.7 (7) 24.1 (7) 0.15

12 3 22.4 (7) 23.8 (7) 0.15

4 21.8 (6) 23.1 (7) 0.15

2 psig 5 psig

Table PD-24. Steam Reheat Coil With High Static Motor, Group 1

Main (14 kPa) (103 kPa)

Coil TMBH TMBH

FC Rows (TkW) (TkW) Q/ITD

2 6.0 (2) 6.3 (2) 0.04

02 3 5.9 (2) 6.2 (2) 0.04

4 5.6 (2) 5.9 (2) 0.04 2 7.6 (2) 8.0 (2) 0.05

03 3 7.2 (2) 7.7 (2) 0.05

4 7.0 (2) 7.4 (2) 0.05 2 9.1 (3) 9.6 (3) 0.06

04 3 10.1 (3) 10.7 (3) 0.07

4 9.7 (3) 10.3 (3) 0.07 2 14.6 (4) 15.4 (5) 0.10

06 3 15.8 (5) 16.7 (5) 0.11

4 15.2 (4) 16.1 (5) 0.10 2 19.3 (6) 20.5 (6) 0.13

08 3 19.0 (6) 20.1 (6) 0.13

4 18.5 (5) 19.6 (6) 0.13 2 24.0 (7) 25.4 (7) 0.16

10 3 25.3 (7) 26.8 (8) 0.17

4 24.4 (7) 25.9 (8) 0.17 2 27.8 (8) 29.5 (9) 0.19

12 3 28.5 (8) 30.2 (9) 0.19

Note:

1. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

2. Q/ITD = MBH (kW)/(Saturated steam temperature - Entering air temperature). To determine heating capacities at different

4 27.8 (8) 29.4 (9) 0.19

2 psig 5 psig

UNT-PRC001-EN 29

Performance

Steam

Data

Reheat Coils

Table PD-25. Steam Reheat Coil With High Static Motor, Group 2

Main (14 kPa) (103 kPa)

Coil TMBH TMBH

FC Rows (TkW) (TkW) Q/ITD

2 5.6 (2) 6.0 (2) 0.04

02 3 5.5 (2) 5.8 (2) 0.04

4 5.3 (2) 5.6 (2) 0.04 2 7.2 (2) 7.6 (2) 0.05

03 3 6.8 (2) 7.2 (2) 0.05

4 6.6 (2) 7.0 (2) 0.05 2 8.7 (3) 9.2 (3) 0.06

04 3 9.5 (3) 10.1 (3) 0.06

4 9.3 (3) 9.8 (3) 0.06 2 13.8 (4) 14.6 (4) 0.09

06 3 14.9 (4) 15.7 (5) 0.10

4 14.4 (4) 15.3 (4) 0.10 2 18.4 (5) 19.5 (6) 0.12

08 3 18.2 (5) 19.2 (6) 0.12

4 17.7 (5) 18.8 (6) 0.12 2 23.0 (7) 24.3 (7) 0.16

10 3 23.9 (7) 25.3 (7) 0.16

4 23.2 (7) 24.6 (7) 0.16 2 26.6 (8) 28.2 (8) 0.18

12 3 27.3 (8) 28.9 (8) 0.18

4 26.6 (8) 28.2 (8) 0.18

2 psig 5 psig

Table PD-26. Steam Reheat Coil With High Static Motor, Group 3

Main (14 kPa) (103 kPa)

Coil TMBH TMBH

FC Rows (TkW) (TkW) Q/ITD

2 5.4 (2) 5.7 (2) 0.04

02 3 5.2 (2) 5.5 (2) 0.04

4 5.1 (1) 5.4 (2) 0.03 2 6.9 (2) 7.3 (2) 0.05

03 3 6.6 (2) 6.9 (2) 0.04

4 6.4 (2) 6.8 (2) 0.04 2 8.5 (2) 8.9 (3) 0.06

04 3 9.2 (3) 9.7 (3) 0.06

4 9.0 (3) 9.5 (3) 0.06 2 13.3 (4) 14.1 (4) 0.09

06 3 14.2 (4) 15.1 (4) 0.10

4 13.9 (4) 14.7 (4) 0.09 2 17.8 (5) 18.8 (6) 0.12

08 3 17.5 (5) 18.5 (5) 0.12

4 17.2 (5) 18.2 (5) 0.12 2 22.2 (7) 23.5 (7) 0.15

10 3 22.9 (7) 24.2 (7) 0.15

4 22.4 (7) 23.7 (7) 0.15 2 25.7 (8) 27.2 (8) 0.17

12 3 26.2 (8) 27.8 (8) 0.18

Note:

1. Medium and low speed capacities are approximately 80 percent and 60 percent respectively of the high speed capacity.

2. Q/ITD = MBH (kW)/(Saturated steam temperature - Entering air temperature). To determine heating capacities at different

3. High static motors need the appropriate length of duct to prevent poor acoustical applications.

4 25.7 (8) 27.2 (8) 0.17

2 psig 5 psig

UNT-PRC001-EN30

Fan Speed Switch

ZN.010 Control Board

ZN.510 Control Board

Controls

Control Options

UniTrane® fan-coils are available with four different control options:

• Manual three-speed fan switch

• Tracer ZN.010

• Tracer ZN.510

• Tracer ZN.520

Manual Fan Mode Switch

Model Number Digit 30 = A and Digit 31 = D or K

The manual fan mode switch is available for fan-coil units that do not have Trane factory-mounted control packages. This four-position switch (off, high, medium,low) allows manual fan mode selection and is available unit or wall mounted. The unitmounted option (Digit 31 = D) operates on line voltage. The wall-mounted option (Digit 31 = K) is low-voltage and has three 24 volt relays using a factory-wired transformer and relays to control the fan motor.

Tracer® Controls

The Tracer family of controllers, ZN.010; ZN.510; and ZN.520, offer the combined advantages of simple and dependable operation with the latest Trane-designed controller. Standard control features include options normally available on more elaborate control systems. All control options are available factory-configured or can be field-configured using Rover to the Trane publication,

Tracer ZN.010 Model Number Digit 30 = E

Tracer ZN.010 is a stand-alone microprocessor controller.

Tracer ZN.510 Model Number Digit 30 = F

ZN.510 can be used as either a stand-alone or communicating microprocessor controller.

Tracer ZN.520 Model Number Digit 30 = G

The ZN.520 controller can be used in a stand-alone application or as part of a Trane Integrated Comfort

In the stand-alone configuration, ZN.520 receives operation commands from the zone sensor and/or the auto changeover sensor (on auto changeover units). The entering water temperature is read from the auto changeover sensor and determines if the unit is capable of cooling or heating. The zone sensor module is capable of transmitting the following information to the controller:

• Timed override on/cancel request

• Zone setpoint

• Current zone temperature

• Fan mode selection (off-auto-high-med-low)

For optimal system performance, fan-coil units can operate as part of an Integrated Comfort™ System (ICS) building automation system controlled by Tracer Summit The controller is linked directly to the Summit control panel via a twisted pair communication wire, requiring no additional interface device (i.e., a command unit). The Trane ICS system can monitor or override ZN.520 control points. This includes such points as temperature and output positions.

™

Service Software

Rover

This windows-based software package option allows field service personnel to easily monitor, save, download, and configure Tracer controllers through a communication link from a portable computer. When connected to the communication link, Rover can view any Tracer controller that is on the same communication link.

™

System (ICS).

™

service software. For more detailed information, refer

CNT-IOP-1 or CNT-IOP-2

UNT-PRC001-EN 31

Sequence of

Controls

Sequence of Operation

Fan Speed Switch

Off: Fan is turned off, two-position damper option spring-returns closed.

High, Medium, Low: Fan runs continuously at the selected speed. The twoposition damper option opens to an adjustable mechanical stop-position.

ZN.010 and ZN.510

Off: Fan is off; control valves and fresh air damper option close. Low air temperature detection option is still active.

Auto (Fan Cycling): Fan and fresh air damper cycle with control valve option to maintain setpoint temperature. In cooling mode, the fan cycles from off to medium and in heating mode it cycles from off to low (factory default that can be fieldadjusted using Rover service software). When no heating or cooling is required, the fan is off and the fresh air damper option closes. The fan can also be fieldconfigured (using Rover) to run at a defined speed when the fan speed switch is in the auto position.

Low, Medium, High (Continuous Fan): Fan operates continuously while control valve

Operation

option cycles to maintain setpoint temperature. Fresh air damper option is open.

ZN.520

Off: Fan is off; control valve options and fresh air damper options close. The low air temperature detection option is still active.

Fan speed control in the auto

Auto setting allows the modulating (three-wire floating point) control valve option and three-speed fan to work cooperatively to meet precise capacity requirements, while minimizing fan speed (motor/ energy/acoustics) and valve position (pump energy/chilled water reset). As the capacity requirement increases at low fan speed, the water valve opens. When the low fan speed capacity switch point is reached, the fan switches to medium speed and the water valve repositions to maintain an equivalent capacity. The reverse sequence takes place with a decrease in required capacity.

Low, Medium, High: The fan will run continuously at the selected speed and the valve option will cycle to meet setpoint.

UNT-PRC001-EN32

General

Controls

Information

Table C-1. Controller Input/Output Summary

Binary Outputs

3-Speed Fan === 2-Position Hydronic Valve === 2-Position Fresh Air Damper ==

1-Stage Electric Heat ===

3-Wire Economizer Damper = 3-Wire Hydronic Valve = 2-Stage Electric Heat = Reheat (hydronic or electric) = Generic ===

Binary Inputs

Condensate Overflow Detection === Low Temperature Detection === Occupancy === Generic Input ===

Analog Inputs

Zone Temperature === Setpoint === Fan Mode: Auto, High, Medium, Low === Entering Water === Discharge Air === Outside Air = Generic =

Note: The generic input and output are for use with a Tracer Summit system only.

ZN.010 ZN.510 ZN.520

Table C-2. Controller Function Summary

Control Functions

Entering Water Temp. Sampling (Purge) === Timed Override === Auto Changeover === Fan Cycling == Warm-Up === Pre-Cool === Data Sharing (Master/Slave) == Random Start === Dehumidification = Staged Capacity (2-Stage Electric Supplementary) =

Other Functions

Manual Test === Maintenance Timer === Setpoint Limits ===

ZN.010 ZN.510 ZN.520

UNT-PRC001-EN 33

Zone Sensor

Zone Sensor Options

Zone sensors are available as either unit, wall, or split-mounted options for design flexibility. Fan-coils with the unit-mounted zone sensor option include a thermistor in the unit’s return air path. Wall-mounted zone sensor options have an internal thermistor. Zone sensors operate on 24 VAC.

ZN.010

Controls

Options

Unit-mounted zone sensor: Digit 30 = E and Digit 31 = V

ZN.510 and ZN.520

Unit-mounted zone sensor: Digit 30 = E and Digit 31 = Z

Wall-mounted zone sensor: Digit 30 = E and Digit 31 = W

Wall-mounted zone sensor: Digit 30 = E and Digit 31 = 2

Split-mounted zone sensor, unit-mounted fan mode and wall-mounted setpoint dial: Digit 30 = E and Digit 31 = X

Split-mounted zone sensor, unit-mounted fan mode and wall-mounted setpoint dial: Digit 30 = E and Digit 31 = Y

UNT-PRC001-EN34

Controls

Features

Control Features

The following control functions are standard features on units with Tracer ZN.010, ZN.510, or ZN.520.

Entering Water Temperature Sampling Function

A system that uses a two-way control valve option might not sense the correct entering water temperature during long periods when the control valve is closed. If the demand for heating or cooling does not exist for a long period, the entering water will eventually approach ambient temperature.

Using the entering water temperature sampling function, the controller provides accurate two-pipe system changeover—without sacrificing the benefits of two-way control valves. Also, it eliminates inefficient bleed or bypass lines that can allow unnecessary waterflow through the system.

This function periodically samples the entering water temperature by opening the hydronic valve. The valve opens for 20 seconds to allow the water temperature to stabilize. Then the controller reads the entering water temperature for up to three minutes to see if the correct water temperature is available for the selected operating mode.

The entering water temperature must be five degrees or more above the space temperature to allow hydronic heating and five degrees or more below the space temperature to allow hydronic cooling. If the correct water temperature for the operating mode is available, the unit begins normal heating or cooling operation. If the correct water temperature is not available, the controller closes the control valve and waits 60 minutes before attempting to sample the entering water temperature again.

A factory-mounted thermistor senses the entering water temperature on changeover cooling/heating coil units. If the fan-coil has a factory-mounted piping package, the sensor is strapped to the entering water pipe. If the fan-coil does not have a piping package, the sensor is coiled in the end pocket for mounting on customer-supplied piping. This sensor must detect accurate water temperature for proper changeover.

Automatic Heat/Cool Mode Determination

The controller automatically determines whether heating or cooling is needed— based on space and system conditions. Utilizing a proportional/integral (PI) control algorithm to maintain the space temperature at the active heating or cooling setpoint. The controller measures the space temperature and active setpoint temperature to determine the unit’s heating or cooling capacity (zero to 100%).

Occupied/Unoccupied Operation

The occupancy input utilizes a binary switch (i.e. motion sensor, timeclock, etc.) that allows the zone sensor to utilize it’s unoccupied internal setpoints.

Random Start

This feature randomly staggers multiple unit start-up to reduce electrical demand spikes.

Warm-up

The two-position fresh air damper option closes during the occupied mode when the space temperature is three degrees or more below the heating setpoint temperature. The damper remains closed during warm-up until the space temperature is within two degrees of the heating setpoint temperature.

Cool-down

The two-position fresh air damper option closes during the occupied mode when the space temperature is three degrees or more above the cooling setpoint temperature. The damper remains closed during cool-down until the space temperature is within two degrees of the cooling setpoint temperature.

Manual Output Test Function

This feature is an invaluable tool for troubleshooting a unit. By simply pressing the controller’s test button, service personnel can manually exercise outputs in a pre-defined sequence.

Peer to Peer Communication (ZN.510 and ZN.520)

Peer to peer communication allows multiple units in one space to share the same zone sensor and provide simultaneous heating and cooling. The ZN.510 or ZN.520 controller can share information between units on the same communica-

tion link using a twisted pair wire in the field. Unit configuration must be modified with Rover service tool.

Economizing Control (ZN.520)

With the controller configured for economizing control, it will calculate the required cooling capacity every ten seconds and modulate the damper option open to the calculated position. If the setpoint is not satisfied, the damper will continue to open until the setpoint condition has been met or the damper is 100 percent open. If this still does not satisfy the setpoint, the cooling valve option will begin to open and try to satisfy the load requirements. Once capacity exceeds the load requirements, the valve will begin to close until the setpoint has been reached or the damper reaches its minimum position, which is field-adjustable. This option uses a three-wire, floating point damper actuator.

A thermistor to sense discharge air is factory mounted near the discharge surface of the last coil for use in economizing and cascade temperature control. Summit value as a read-only point. Cascade temperature control uses both the zone and discharge air temperatures to more accurately calculate the required unit capacity.

A thermistor to sense fresh air is factory mounted at the unit’s fresh air opening for use in economizer applications or as a read-only point for Summit. If the fresh air temperature is a read-only value, it will not impact the control algorithm. In an economizer application, a fresh air temperature signal must be provided either by this thermistor or Summit.

can also utilize this temperature

UNT-PRC001-EN 35

Controls

Features

ZN.520 Additional Features

Automatic Ventilation Reset

To ensure proper ventilation rates, the controller is configured with two fresh air damper minimum position setpoints for occupied operation. As the fan speed changes to low or high, the damper modulates to maintain the correct ventilation rate for the space. The damper position does not change when the fan speed changes to medium.

Fan Status

The ZN.520 controller monitors the fan output status to determine if the fan is operating.

Filter Maintenance Status

The controller has an adjustable timer that indicates through Summit or Rover when filter maintenance is necessary. Filter maintenance status is based on cumulative fan run hours.

Dehumidification

When the fan-coil unit is equipped with a reheat coil and humidity sensor, the controller will keep humidity levels within an acceptable range. This feature helps reduce the risk of microbial growth and damage to building interiors.

Water Valve Override

Using Summit or Rover, the water valve override function drives all water valves in every unit fully open simultaneously. This helps reduce the time required for waterside balancing.

Cascade Control

The controller maintains discharge air temperature using a cascade control algorithm. The discharge air temperature is based on the difference between the space temperature and setpoint. Unit capacity modulates to achieve the discharge air temperature.

Interoperability

The ZN.520 controller can be used with a Tracer Summit system or on other control systems that suport LonTalk and the SCC profile. For more information on specific inputs and outputs, see the

Installation, Owner, and Maintenance Manual, UNT-IOM-6

UNT-PRC001-EN36

End Device

Controls

End Device Options

All end device options are factoryinstalled and tested.

Two-Position Control Valves Model Number Digits 27 and 28 = A - H

Two-position valve options are available with either Tracer ZN.010, ZN.510, or ZN.520. Valves are spring-return type, sweat connections, and available as normally open or closed. The valves respond to a 24V signal and have sweat connections. The two-way valve option will either fully open or close. The three-way valve option allows either full water flow through the coil or diverts waterflow through the bypass. If the control valve loses power, the valve returns to its de-energized position. All control valve options are factory installed in the leaving water piping downstream of the hydronic coil. The valve actuator is easily removable for service without removing the valve body from piping.

Modulating Control Valves (ZN.520) Model Number Digits 27 and 28 = J - R

/2-inch sweat connect valves are

These three-wire floating point valves, equal percentage type. Modulating valves are available in four Cv sizes: 0.7, 1.5, 2.5, and

4.0. The valve responds to a 24V triac signal from the controller, which determines the valve position by a control algorithm. If the valve loses power, it remains in the position that it was in

/2-inch

Options

when the power loss occurred. All control valves are factory installed in the leaving water piping downstream of the hydronic coil.

Field-Supplied Valves Model Number Digits 27 and 28 = X or Y

When using field-supplied valves, this option allows the controller to be factoryconfigured for the normal position of the field-supplied valve.

Note: The Trane Company does not recommend wild coil applications.

Two-Position Fresh Air Damper Actuator Model Number Digit 13 = D, E, or F (Available with all control options except ZN.520)

This damper actuator uses a 24V signal and is factory-wired and mounted to the damper assembly. It allows zero to 50% fresh air. The damper will drive open to an adjustable mechanical stop-position whenever the fan is running during occupied mode and will spring-return closed when the fan turns off.

Note: The Trane Company recommends using the low temperature detection option with fresh air dampers to detect possible freeze conditions.

UNT-PRC001-EN 37

Controls

Control Valve

Two-Position Fresh Air Damper Actuator

Economizer Fresh Air Damper Actuator

Economizer Fresh Air Damper Actuator (ZN.520) Model Number Digit 13 = G, H, or J

This option is a three-wire floating point, spring-return damper actuator and is factory-wired and mounted to the damper assembly. When the controller enables the economizer and the unit is in occupied mode, the fresh air damper modulates between its minimum position (editable) and the full open position to maintain setpoint temperature. If economizer operation stops or if the unit is in the heating mode, the fresh air damper adjusts to its minimum position.

Note: The Trane Company highly recommends using the low temperature detection option with a fresh air damper to detect possible freeze conditions.

Low Temperature Detection Model Number Digit 36 = 2

When the low temperature detection device senses an entering air temperature of 36 F to the hydronic coil, the normally-closed switch opens a corresponding set of binary input terminals. The fan disables, control valves open, and the fresh air damper closes.

Thirty minutes after the diagnostic, Tracer ZN.010, ZN.510, or ZN.520 uses an automatic reset function to attempt to reset the unit. If the diagnostic occurs again within 24 hours after an automatic

diagnostic reset, the unit will require a manual reset. This function attempts to resolve the infrequent nuisance alarm.

The low temperature detection device is an averaging type capillary tube and will reset when it detects an entering air temperature of at least 44 F.

Condensate Overflow Detection Model Number Digit 35 = 2

A float switch is factory-supplied for field installation in the auxiliary drain pan to detect a high condensate water level. When the float switch rises, the normally closed input opens a corresponding set of binary input terminals. This also causes the fan to disable, and the control valve and fresh air damper options to close. Although the float switch will close when the high condensate level recedes, the controller must be manually reset before normal unit operation can occur. If using a ZN.510 or ZN.520 controller you can reset using Summit. Use Rover service software to reset units with ZN.010, ZN.510, or ZN.520.

Low Temperature Detection Device

Condensate Overflow Detection Device

UNT-PRC001-EN38

Electrical Data

Electric Heat

Table ED-1. Electric Heat kW

Unit Size Unit Voltage kW kW kW kW kW kW kW kW kW kW kW

02 115 1.0 1.5 2.0

03 115 1.0 1.5 2.0 2.5

04 115 2.0 2.5 3.0

06 115 2 .0 3.0

08 115 2 .0 3.0

10 115 3.0

12 115 3.0

230 1.0 1.5 2.0 277 1.0 1.5 2.0 208 0.8 1.1 1.5 1.9

230 1.0 1.5 2.0 2.5 277 1.0 1.5 2.0 2.5 208 0.8 1.1 1.5 1.9 2.3

230 2.0 2.5 3.0 277 2.0 2.5 3.0 208 1.5 1.9 2.3 3.0

230 2.0 3.0 4.0 5.0 6.0 277 2.0 3.0 4.0 5.0 6.0 208 1.5 2.3 3.0 3.8 4.5 5.3

230 2.0 3.0 4.0 5.0 6.0 7.0 277 2.0 3.0 4.0 5.0 6.0 7.0 208 1.5 2.3 3.0 3.8 4.5 5.3 6.0

230 3.0 4.0 5.0 6.0 7.0 8.0 277 3.0 4.0 5.0 6.0 7.0 8.0 208 2.3 3.0 3.8 4.5 5.3 6.0

230 3.0 4.0 5.0 6.0 7.0 8.0 10.0 277 3.0 4.0 5.0 6.0 7.0 8.0 10.0 208 2.3 3.0 3.8 4.5 5.3 6.0

Table ED-2. Electric Heat kW — Low Vertical Units

Unit Size Unit Voltage kW kW kW kW 03 115 1.0 1.5 2.0 04 115 1.0 1.5 2.0 2.5 06 115 1.0 1.5 2.0 2.5

Low vertical units are only available with electric heat in combination with the two-row cooling coil.

Minimum Circuit Ampacity (MCA) and Maximum Fuse Size (MFS) Calculations for Fan-Coils with Electric Heat

Heater Amps = (Heater kW x 1000)/Heater Voltage

Note: Use 120V heater voltage for 115V units. Use 240V heater voltage for 230V units.

MCA = 1.25 x (heater amps + all motor FLA’s) MFS or HACR Type Circuit Breaker = (2.25 x Largest Motor FLA) + Second Motor FLA

+ Heater Amps (If Applicable)

HACR (Heating, Air-Conditioning and Refrigeration) type circuit breakers are required in the branch circuit wiring for all fan-coils with electric heat.

SeeTables ED- 3 through ED-6 for motor FLA’s

Select a standard fuse size or HACR type circuit breaker equal to the MCA. Use the next larger standard size if the MCA does not equal a standard size.

Standard Fuse Sizes are: 15, 20, 25, 30, 35, 40, 45, 50, 60 amps

Fan-coil electric heat MBH = (Heater kW) (3.413)

UNT-PRC001-EN 39

Electrical Data

Table ED-3. Free Discharge Motors on Units with Two-Row Coils

FC FLA HP (kW) FLA HP (kW) FLA HP (kW) H M L 02 0.6 .03 (.02) 0.3 .03 (.02) 0.2 .03 (.02) 980 840 655 03 0.7 .04 (.02) 0.4 .04 (.02) 0.3 .04 (.02) 980 780 580 04 0.9 .05 (.04) 0.5 .05 (.04) 0.4 .05 (.04) 1050 780 580 06 1.2 .07 (.05) 0.6 .07 (.05) 0.5 .07 (.05) 1030 780 580 08 1.4 .12 (.09) 0.9 .12 (.09) 0.6 .12 (.09) 1080 800 600 10 0.9 1.2 .05 (.04) .07 (.05) 0.5 0.6 .05 (.04) .07 (.05) 0.4 0.5 .05 (.04) .07 (.05) 1050 780 580

12 0.9 1.4 .05 (.04) .12 (.09) 0.5 0.9 .05 (.04) .12 (.09) 0.4 0.6 .05 (.04) .12 (.09) 1050 780 580

Table ED-4. High Static Motors on Units with Two-Row Coils

FC FLA HP (kW) FLA HP (kW) FLA HP (kW) H M L 02 1.1 .07 (.05) 0.6 .07 (.05) 0.5 .07 (.05) 1480 1110 86 5 03 1.4 .08 (.06) 0.7 .08 (.06) 0.6 .08 (.06) 1400 1175 86 0 04 1.6 .10 (.07) 0.8 .10 (.07) 0.7 .10 (.07) 1475 1315 1070 06 2.6 .16 (.12) 1.2 .16 (.12) 1.0 .16 (.12) 1400 1070 855 08 3.4 .24 (.18) 1.4 .24 (.18) 1.1 .24 (.18) 1475 1285 975 10 1.6 2.6 .10 (.07) .16 (.12) 0.8 1.2 .10 (.07) .16 (.12) 0.7 1.0 .10 (.07) .16 (.12) 1475 1315 1070

12 1.6 3.4 .10 (.07) .24 (.18) 0.5 0.9 .10 (.07) .24 (.18) 0.7 1.1 .10 (.12) .24 (.18) 1475 1315 1240

Note: Actual rpm will vary with application and configuration

115 Volt 208-230 Volt 277 Volt RPM

1030 780 580

108 800 600

115 Volt 208-230 Volt 277 Volt RPM

1400 1070 855

1475 1285 975

Table ED-5. Free Discharge Motors on Units with Three and Four-Row Coils

FC FLA HP (kW) FLA HP (kW) FLA HP (kW) H M L 02 0.6 .03 (.02) 0.3 .03 (.02) 0.2 .03 (.02) 980 840 655 03 0.8 .05 (.04) 0.5 .05 (.04) 0.4 .05 (.04) 1080 800 600 04 1.0 .06 (.04) 0.6 .06 (.04) 0.5 .06 (.04) 1080 800 600 06 1.4 .12 (.09) 0.9 .12 (.09) 0.6 .12 (.09) 1080 800 600 08 1.7 .13 (.10) 1.0 .13 (.10) 0.8 .13 (.10) 1080 800 600 10 1.0 1.4 .06 (.04) .12 (.09) 0.6 0.9 .06 (.04) .12 (.09) 0.5 0.6 .06 (.04) .12 (.09) 1080 800 600

12 1.0 1.7 .06 (.04) .13 (.10) 0.6 1.0 .06 (.04) .13 (.10) 0.5 0.8 .06 (.04) .13 (.10) 1080 800 600

115 Volt 208-230 Volt 277 Volt RPM

1080 800 600

Table ED-6. High Static Motors on Units with Three and Four-Row Coils

FC FLA HP (kW) FLA HP (kW) FLA HP (kW) H M L 02 1.1 .07 (.05) 0.6 .07 (.05) 0.5 .07 (.05) 1480 1110 86 5 03 1.3 .08 (.06) 0.7 .08 (.06) 0.5 .08 (.06) 1500 1355 1110 04 2.1 .13 (.10) 0.9 .13 (.10) 0.7 .13 (.10) 1580 1375 1240 06 3.4 .24 (.18) 1.4 .24 (.18) 1.1 .24 (.18) 1475 1285 975 08 3.4 .24 (.18) 1.4 .24 (.18) 1.1 .24 (.18) 1475 1285 975 10 2.1 3.4 .13 (.10) .24 (.18) 0.9 1.4 .13 (.10) .24 (.18) 0.7 1.1 .13 (.10) .24 (.18) 1580 1375 1240

12 2.1 3.4 .13 (.10) .24 (.18) 0.9 1.4 .13 (.10) .24 (.18) 0.7 1.1 .13 (.10 ) .24 (.18) 1580 1375 1240

Note: Actual rpm will vary with application and configuration.

115 Volt 208-230 Volt 277 Volt RPM

1475 1285 975

UNT-PRC001-EN

Electrical Data

Table ED-7. Low Vertical Free Discharge Motors (115 Volt)

FC FLA HP (kW) RPM 03 0.7 .03 (0) H 1090

04 0.8 .03 (0) H 1090

06 1.1 .03 (0) H 1115

Note: Actual rpm will vary with application and configuration.

Table ED-8. Decimal to Fractional HP (kW) Conversion

FC Decimal Fraction 02 .03 1/30

03 .04 1/25

04 .05 1/20

06 .07 1/15

08 .12 1/8

10 .05 .07 1/20 1/15

12 .05 .12 1/20 1/8

Low Vertical .03 1/30 03, 04, 06

Note: Values for fractional HP’s (kW’s) are approximate values and not necessarily the actual HP (kW).

.07 1/15

.05 1/20 .08 1/12

.06 1/16 .10 1/10 .13 1/8

.12 1/8 .16 1/6 .24 1/4

.13 1/8 .24 1/4

.06 .12 1/16 1/8 .10 .16 1/10 1/6 .13 .24 1/8 1/4

.06 .13 1/16 1/8 .10 .24 1/10 1/4 .13 .24 1/8 1/4

M 770 L 560

M 750 L 560

M 760 L 560

Minimum Circuit Ampacity (MCA) and Maximum Fuse Size (MFS) Calculations for Fan-Coils: (Motors only, No Electric Heat)

MCA = (1.25) x [Largest Motor Amperes (FLA)] + Second Motor Amperes (FLA)

(Size 10 and 12 only)

MFS or HACR* Type Circuit Breaker = 15 Amps for all Fan-Coils without

Electric Heat

(See previous Electrical Data for units with Electric Heat.)

*HACR (Heating, Air-Conditioning and Refrigeration) type circuit breakers are

required in the branch circuit wiring for all size 10 and 12 fan-coils.

UNT-PRC001-EN 41

Dimensions and Weights

Unit Weights

Table DW-1. Operating Weights — lbs. (kg)

Low Vertical Low Vertical Unit Cabinet Concealed Recessed Cabinet Concealed Size Models Models Models Models Models

02 97 (44) 81 (37) 78 (35) NA NA 03 97 (44) 81 (37) 78 (35) 125 (57) 109 (49) 04 125 (57) 109 (49) 88 (40) 155 (70) 139 (63) 06 155 (70) 139 (63) 128 (58) 164 (74) 147 (67) 08 164 (74) 147 (67) 139 (63) NA NA 10 218 (99) 200 (91) 253 (115) NA NA 12 218 (99) 200 (91) 253 (115) NA NA

Table DW-2. Shipping Weights — lbs. (kg)

Low Vertical Low Vertical Unit Cabinet Concealed Recessed Cabinet Concealed Size Models Models Models Models Models

02 84 (38) 68 (31) 68 (31) NA NA 03 84 (38) 68 (31) 68 (31) 112 (51) 96 (44) 04 112 (51) 96 (44) 78 (35) 139 (63) 123 (56) 06 139 (63) 123 (56) 118 (54) 148 (67) 131 (59) 08 148 (67) 131 (59) 129 (59) NA NA 10 200 (91) 182 (83) 243 (110) NA NA 12 200 (91) 182 (83) 243 (110) NA NA

UNT-PRC001-EN42

Dimensions

Vertical

Vertical Concealed, Model A

and Weights

Concealed

Vertical Concealed Unit Dimensions

Unit Size 02-03 04 06 08 10-12

A2’-8 11/16” 3’-1 11/16” 3’-11 3/16” 4’-7 11/16” 6’-2 11/16” B1’-9 5/16” 2’-2 5/16” 2’-11 13/16” 3’-8 5/16” 5’-3 5/16” C1’-10 13/16” 2’-3 13/16” 3’-1 5/16” 3’-9 13/16” 5’-4 13/16” D1’-5 5/16” 1’-10 5/16” 2’-7 13/16” 3’-4 5/16” 4’-11 5/16” E1’-7 5/16” 2’-0 5/16” 2’-9 13/16” 3’-6 5/16” 5’-1 5/16”

NOTE:1. Coil connections are always on the drain pan side and opposite the control box.

2. Coil connections are 5/8” O.D. sweat. See page 53 for locations.

3. All duct collar dimensions are to the outside of the collar.

4. See page 54 for fresh air opening dimensions.

UNT-PRC001-EN 43

Dimensions

Vertical Cabinet, Model B

and Weights

Vertical Cabinet

Vertical Cabinet Unit Dimensions

Unit Size 02-03 04 06 08 10-12

A2’-9 5/16” 3’-2 5/16” 3’-11 3/16” 4’-8 5/16” 6’-3 5/16” B1’-9 5/16” 2’-2 5/16” 2’-11 3/16” 3’-8 5/16” 5’-3 5/16” C7 5/8” 7 1/8” 8 7/8” 7 1/8” 7 5/8” D1’-6” 2’-0” 2’-6” 3’-6” 5’-0”

E1’-7 5/16” 2’-0 5/16” 2’-9 13/16” 3’-6 5/16” 5’-1 5/16” F3’-5 5/16” 3’-10 5/16” 4’-7 3/16” 5’-4 5/16” 6’-11 5/16”

NOTE:1. Coil connections are always on the drain pan side and opposite the control box.

2. Coil connections are 5/8” O.D. sweat. See page 52 for locations.

3. All duct collar dimensions are to the outside of the collar.

4. See page 54 for fresh air opening dimensions.

UNT-PRC001-EN44

Dimensions

Horizontal

Horizontal Concealed, Model C

and Weights

Concealed

Horizontal Concealed Unit Dimensions

Unit Size 02-03 04 06 08 10-12

A2’-8 11/16” 3’-1 11/16” 3’-11 3/16” 4’-7 11/16” 6’-2 11/16” B1’-9 5/16” 2’-2 5/16” 2’-11 13/16” 3’-8 5/16” 5’-3 5/16” C1’-10 13/16” 2’-3 13/16” 3’-1 5/16” 3’-9 13/16” 5’-4 13/16” D1’-7 3/8” 2’-0 3/8” 2’-9 7/8” 3’-6 3/8” 5’-1 3/8”

E1’-6 1/8” 1’-11 1/8” 2’-8 5/8” 3’-5 1/8” 5’-0 1/8” F1’-7 5/16” 2’-0 5/16” 2’-9 13/16” 3’-6 5/16” 5’-1 5/16”

NOTE:1. Coil connections are always on the drain pan side and opposite the control box.

2. Coil connections are 5/8” O.D. sweat. See page 52 for locations.

3. All duct collar dimensions are to the outside of the collar.

4. See page 53 for fresh air opening dimensions.

UNT-PRC001-EN 45

Dimensions

Horizontal

Horizontal Cabinet, Model D

and Weights

Cabinet

Horizontal Cabinet Unit Dimensions

Unit Size 02-03 04 06 08 10-12

A2’-9 5/16” 3’-2 5/16” 3’-11 3/16” 4’-8 5/16” 6’-3 5/16” B1’-9 5/16” 2’-2 5/16” 2’-11 13/16”3’-8 5/16” 5’-3 5/16” C7 5/8” 7 1/8” 8 7/8” 7 1/8” 7 5/8” D1’-6” 2’-0” 2’-6” 3’-6” 5’-0” E1’-5 1/4” 1’-10 1/4” 2’-7 3/4” 3’-4 1/4” 4’-11 1/4” F3’-5 5/16” 3’-10 5/16” 4’-7 3/16” 5’-4 5/16” 6’-11 5/16” G8 5/8” 8 1/8” 9 7/8” 8 1/8” 8 5/8” H1’ -4” 1’-10” 2’-4” 3’-4” 4’-10” J1’-7 3/4” 1’-11 3/4” 2’-7 3/4” 3’-3 3/4” 4’-11 3/4”

NOTE:1. Coil connections are always on the drain pan side and opposite the control box.

2. Coil connections are 5/8” O.D. sweat. See page 52 for locations.

3. All duct collar dimensions are to the outside of the collar.

4. See page 53 for fresh air opening dimensions.

UNT-PRC001-EN46

Dimensions

Horizontal

Horizontal Recessed, Model E

and Weights

Recessed

Horizontal Recessed Unit Dimensions

Unit

Size 02-03 04 06 08 10-12

A2’-11 13/16” 3’-4 13/16” 4’-2 5/16” 4’-10 13/16” 6’-5 13/16” B1’-9 5/16” 2’-2 5/16” 2’-11 13/16” 3’-8 5/16” 5’-3 5/16” C1’-10 13/16” 2’-3 13/16” 3’-1 5/16” 3’-9 13/16” 5’-4 13/16” D1’-7 3/8” 2’-0 3/8” 2’-9 7/8” 3’-6 3/8” 5’-1 3/8” E1’-6 1/8” 1’-11 1/8” 2’-8 5/8” 3’-5 1/8” 5’-0 1/8” F2’-8 7/16” 3’-1 7/16” 3’-10 15/16” 4’-7 7/16” 6’-2 7/16”

G2’-10 5/16” 3’-3 5/16” 4’-0 13/16” 4’-9 5/16” 6’-4 5/16”

H1’-7 3/4” 1’-11 3/4” 2’-7 3/4” 3’-3 3/4” 4’-11 3/4”

NOTE:1. Coil connections are always on the drain pan side and opposite the control box.

2. Coil connections are 5/8” O.D. sweat. See page 52 for locations.

3. All duct collar dimensions are to the outside of the collar.

4. See page 53 for fresh air opening dimensions.

UNT-PRC001-EN 47

Dimensions

Vertical

Vertical Recessed, Model H

and Weights

Recessed

Vertical Recessed Unit Dimensions

Unit Size 02-03 04 06 08 10-12

A2’-8 11/16” 3’-1 11/16” 3’-11 3/16” 4’-7 11/16” 6’-2 11/16” B1’-9 5/16” 2’-2 5/16” 2’-11 13/16” 3’-8 5/16” 5’-3 5/16” C1’-10 13/16” 2’-3 13/16” 3’-1 5/16” 3’-9 13/16” 5’-4 13/16” D1’-5 5/16” 1’-10 5/16” 2’-7 13/16” 3’-4 5/16” 4’-11 5/16” E3’-11” 4’-3” 5’-3” 5’-5 1/2” 7’-5 1/2”

F2’-6” 2’-6” 2’-6” 2’-9 1/2” 2’-9 1/2” G2 3/8” 2 3/8” 2 3/8” 4 1/8” 4 1/8” H3’-6” 4’-0” 4’-9” 5’-3” 7’-3”

J2’-2 1/2” 2’-2 1/2” 2’-2 1/2” 2’-3 1/2” 2’-3 1/2”

NOTE:1. Coil connections are always on the drain pan side and opposite the control box.

2. Coil connections are 5/8” O.D. sweat. See page 52 for locations.

3. All duct collar dimensions are to the outside of the collar.

4. See page 54 for fresh air opening dimensions.

UNT-PRC001-EN48

Dimensions

Vertical

Vertical Slope Top, Model J

and Weights

Slope Top

Vertical Slope Top Unit Dimensions

Unit

Size 02-03 04 06 08 10-12

A2’-9 5/16” 3’-2 5/16” 3’-11 13/16” 4’-8 5/16” 6’-3 5/16” B1’-9 5/16” 2’-2 5/16” 2’-11 13/16” 3’-8 5/16” 5’-3 5/16” C7 5/8” 7 1/8” 8 7/8” 7 1/8” 7 5/8” D1’-6” 2’-0” 2’-6” 3’-6” 5’-0” E1’-7 5/16” 2’-0 5/16” 2’-9 13/16” 3’-6 5/16” 5’-1 5/16” F3’-5 5/16” 3’-10 5/16” 4’-7 13/16” 5’-4 5/16” 6’-11 5/16”

NOTE:1. Coil connections are always on the drain pan side and opposite the control box.

2. Coil connections are 5/8” O.D. sweat. See page 52 for locations.

3. All duct collar dimensions are to the outside of the collar.

4. See page 54 for fresh air opening dimensions.

UNT-PRC001-EN 49

Dimensions

Low Vertical

Low Vertical Concealed, Model K

and Weights

Concealed

Low Vertical Concealed Unit Dimensions

Unit Size 03 04 06

A3’-5 7/16” 4’-2 15/16” 4’-11 7/16” B2’-2 1/4” 2’-11 3/4” 3’-8 1/4” C2’-3 15/16” 3’-0 13/16” 3’-9 15/16” D1’-10 5/16” 2’-7 13/16” 3’-4 5/16”

E2’-0 1/4” 2’-9 3/4” 3’-6 1/4”

NOTE: 1. Coil connections are always on the drain pan side and opposite the control box.

2. Coil connections are 5/8” O.D. sweat.

3. All duct collar dimensions are to the outside of the collar.

4. See page 55 for fresh air opening dimensions.

UNT-PRC001-EN50

Dimensions

Low Vertical

Low Vertical Cabinet, Model L

and Weights

Cabinet

Low Vertical Cabinet Unit Dimensions

Unit

Size 03 04 06

A3’-10 15/16” 4’-8 7/16” 5’-4 15/16” B2’-2 1/4” 2’-11 3/4” 3’-8 1/4” C 11 7/16” 1’-1 5/16” 11 7/16” D2’-0” 2’-6” 3’-6”

E2’-0 1/4” 2’-9 3/4” 3’-6 1/4”

NOTE: 1. Coil connections are always on the drain pan side and opposite the control box.

2. Coil connections are 5/8” O.D. sweat.

3. All duct collar dimensions are to the outside of the collar.

4. See page 55 for fresh air opening dimensions.

UNT-PRC001-EN 51

Dimensions

Coil

Coil Connections, Vertical Units

and Weights

Connections

Coil Connections, Horizontal Units

RHR - Reheat Return HR - Hot Water Return CR - Chilled Return RMS - Reheat Supply HS - Hot Water Supply CS - Chilled Water Supply

Note: Reheat coils are available with 2-pipe main coils only on units with either a fan speed switch or Tracer ZN.520 control.

UNT-PRC001-EN52

Dimensions

Fresh Air

Fresh Air Opening Locations Horizontal Units Models C, D, and E

and Weights

HORIZONTAL

CONCEALED AND RECESSED

Opening

HORIZONTAL

CABINET

Fresh Air Opening Dimensions, Horizontal Units

Unit Size 02-03 04 06 08 10-12

A1’-6” 1’-11” 2’-8 1/2” 3’-5” 5’-0” B1’-9 5/16” 2’-2 5/16” 2’-11 13/16” 3’-8 5/16” 5’-3 5/16”

UNT-PRC001-EN 53

Dimensions

Fresh Air

Fresh Air Opening Locations Vertical Units Models A, B, and J

and Weights

VERTICAL

CONCEALED AND RECESSED

Opening

VERTICAL

CABINET AND SLOPE TOP

Fresh Air Opening Dimensions, Vertical Units

Unit Size 02-03 04 06 08 10-12

A1’-6” 1’-11” 2’-8 1/2” 3’-5” 5’-0” B1’-9 5/16” 2’-2 5/16” 2’-11 13/16” 3’-8 5/16” 5’-3 5/16”

UNT-PRC001-EN54

Dimensions

Fresh Air

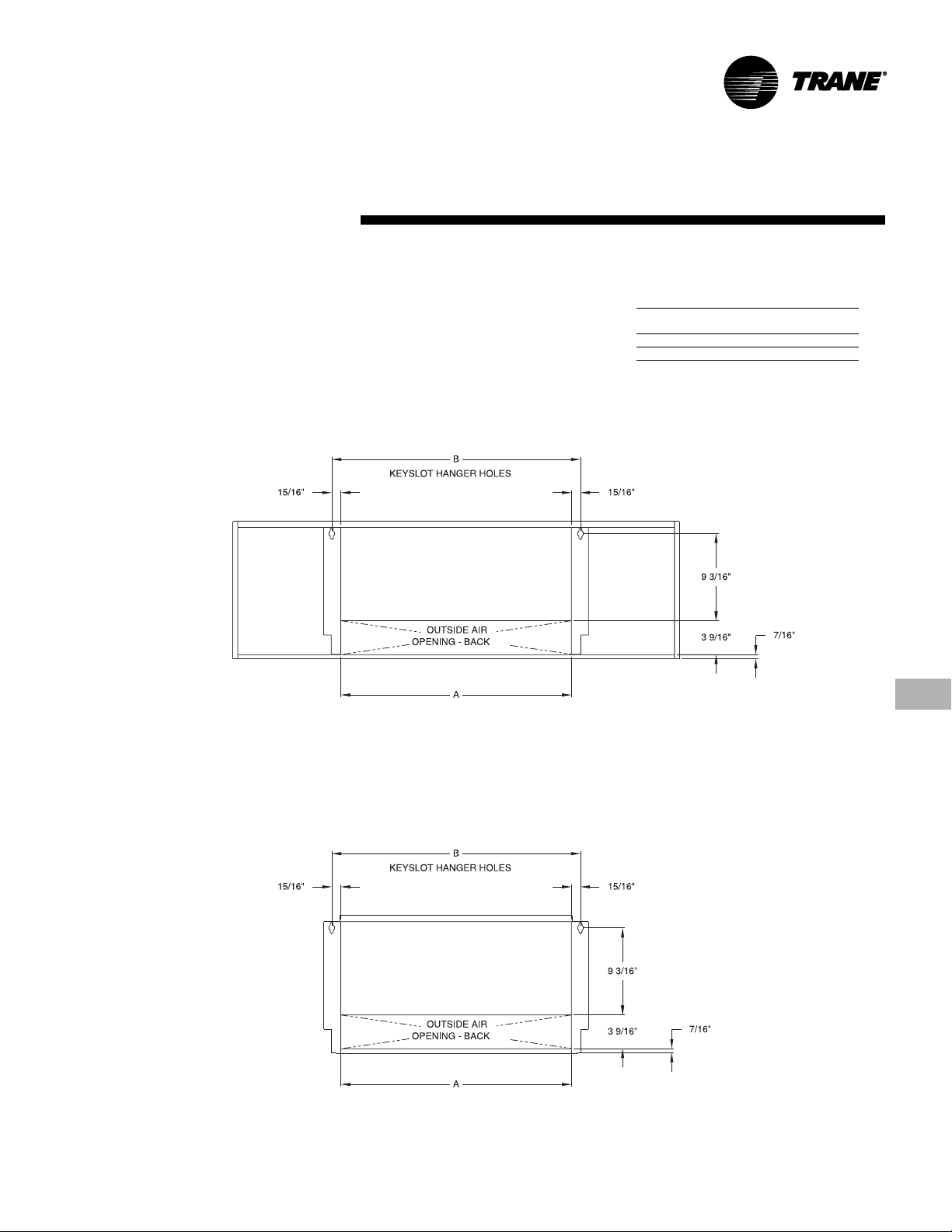

Fresh Air Opening Locations Low Vertical Units Models K and L

and Weights

LOW VERTICAL CABINET

REAR VIEW

Opening

Fresh Air Opening Dimensions, Low Vertical Units

Unit Size 03 04 06

A2’-0 1/4” 2’-9 3/4” 3’-6 1/4” B2’-2 1/4” 2’-11 3/4” 3’-8 1/4”

LOW VERTICAL CONCEALED

REAR VIEW

UNT-PRC001-EN 55

Dimensions

Wall Box

Wall Box Dimensions

Unit Size Dimensions Internal

Ref. Only A x B Supports

02 - 03 24 3/8 x 4 3/

04 24 3/8 x 7 1/ 06 33 1/8 x 7 1/ 08 37 1/2 x 7 1/

10 -12 58 1/4 x 7 1/

and Weights

Wall Box

CONTINUOUS MORTAR RIBS TOP AND BOTTOM

”

1 1 2 3 4

”

1 3/

CLEARANCE FOR DRAINAGE

”

WOVEN ALUMINUM INSECT SCREEN

CONTINUOUS DRIP LIP TOP AND BOTTOM

ADDITIONAL INTERNAL SUPPORTS EQUALLY SPACED. NOT TO EXCEED 12” O.C.

”

UNT-PRC001-EN56

Dimensions

Projection

and Weights

Projection Panel

Projection Panel Dimensions

Unit Size 02 - 03 04 06 08 10 - 12

A3’-11” 4’-3” 5’-3” 5’-5 1/2” 7’-5 1/2” B2’-6” 2’-6” 2’-6” 2’-9 1/2” 2’-9 1/2”

Projection Panel, All Unit Sizes

C2” 2 1/2” 3” 3 1/2” 4” 4 1/2” 5” 5 1/2” 6” D1 1/8“ 1 5/8“ 2 1/8“ 2 5/8“ 3 1/8“ 3 5/8“ 4 1/8“ 4 5/8“ 5 1/8“ E8 5/8“ 8 1/8“ 7 5/8“ 7 1/8“ 6 5/8“ 6 1/8“ 5 5/8“ 5 1/8“ 4 5/8“

Panel

UNIT TO WALL — TOP VIEW

FRONT VIEW ISO

REAR VIEW ISO

UNT-PRC001-EN 57

Mechanical Specifications

UniTrane® Fan-Coil Mechanical Specifications

Performance Data

Capacity: Unit capacities are certified under Industry Room Fan-Coil Air Conditioner Certification Program in accordance with ARI Standard 440-97. Safety: All standard units are UL listed in the United States and Canada and comply with NFPA 90A requirements.

Construction

All Units

The unit includes a chassis, coil(s), fan wheel(s), fan casing(s), fan board and motor(s). Units also include a noncorrosive, ABS main drain pan, positively sloped in every plane and insulated with closed-cell insulation. Horizontal units and all units with standard piping packages also include a thermoplastic auxiliary drain pan. Steel parts exposed to moisture are galvanized. The fan board assembly and both drain pans are easily removable. The fan board assembly includes a quick-disconnect motor plug. The chassis construction is 18-gauge galvanized steel, and continuous throughout the unit. The unit is acoustically and thermally insulated with closedcell insulation. All panels are made rigid by channel forming.

Vertical Cabinet and Slope Top Units

Front panel fabrication is 16-gauge galvanized steel. All other panels are 18gauge galvanized steel. The discharge grille is recessed to resist condensate formation. Hinged access door construction is 20-gauge steel and is flush with top panel.

Horizontal Cabinet Units

All panels are 18-gauge galvanized steel, including the bottom panel. Discharge grille is recessed to resist condensate formation. The hinged access door is flush with front panel. Bottom panels ship with tamperproof screw fasteners and a safety chain.

Concealed/Recessed Units

Exposed panels on recessed units are 18gauge steel construction and ship separate from the unit. Bottom panels on horizontal recessed models ship standard with tamperproof screw fasteners and a safety chain.

Low Vertical Unit

Front panels are of 16-gauge galvanized steel. All cabinet parts are made rigid by channel forming. End panel is removable for piping access. Hinged access door construction is 20-gauge steel and flush with top panel.

Unit Finish

All cabinet parts and exposed recessed panels are cleaned, bonderized, phosphatized, and painted with a baked powder finish available in six decorator colors. Standard finish meets ASTM B117 specifications (salt spray test).

Fans

The aluminum fan wheels are centrifugal forward-curved and double-width. Fan wheels and housings are corrosion resistant. Fan housing construction is formed sheet metal. Low vertical units utilize a tangential wheel design.

Motors

All permanent split capacitor motors are run tested in assembled units. All motors have integral thermal overload protection with a maximum ambient operating temperature of 104 F and are permanently lubricated. Motors are capable of starting at 78 percent of rated voltage and operating at 90 percent of rated voltage on all speed settings. Motors can operate up to 10 percent over voltage.

Coils

All water coils are burst tested at 450 psig (3,103 kPa) (air) and leak tested at 100 psig (690 kPa) (air under water). Maximum main coil working pressure is 300 psig (2,069 kPa). Maximum entering water temperature is 200 F (93 C). Tubes and u-bends are (10 mm) OD copper. Fins are aluminum and are mechanically bonded to the copper tubes. Coil stubouts are (16 mm) OD copper tubing.

Reheat Coils

Reheat coils are available for use with both hot water and steam. Hot water maximum working pressure is 300 psig (2,069 kPa), and the maximum entering water temperature is 200 F (93 C). The steam coil maximum working pressure is 15 psig (103 kPa). The reheat coils are constructed of single circuit copper tubes with aluminum fins. Piping connections are expanded to accept standard copper tubing

/8”

/8”(16 mm)

/8” (16 mm) OD.

Piping Packages

All piping packages are burst tested at 450 psig (3,103 kPa) (air) and leak tested at 100 psig (690 kPa) (air under water). The maximum working pressure of the interconnecting piping is 300 psig (2,069 kPa).

Piping packages are available in either basic or deluxe configurations. The deluxe package includes unions at the coil connections and a 20 mesh strainer on the supply side with a pressure rating on the strainer of up to 400 psig (2,758 kPa). The basic package does not include either unions or the strainer. A choice of end valves are available on both the basic and deluxe piping packages.

Ball Valve Supply and Return

A ball-type stop valve is available on both the supply and return of the piping package. The ball valve is a shutoff valve only with a maximum working pressure of 400 psig (2,758 kPa).

Ball Valve Supply, Manual Circuit Setter Return

A ball valve is provided on the supply with a manual circuit setter on the return. The manual circuit setter is a combination flow-setting device and shutoff valve that includes two Schrader ports. The maximum working pressure of the valve is 300 psig (2,069 kPa).

Ball Valve S & R, Auto Circuit Setter Return

Ball type end valves are mounted on the supply and return, with an additional auto circuit setter mounted on the return. The auto circuit setter is an automatic flow control valve that is sized to allow a specific GPM through the coil. Auto circuit setters also include two P/T plugs and have a maximum working pressure of 400 psig (2,758 kPa). The piping package is designed so that any condensation is directed into the UniTrane of piping package is not required.

Two-Way, Two-Position Control Valves

Two-way, two-position valves are rated for a maximum pressure differential across the valves of 25 psig (172 kPa). The valves are also available with a close-off pressure of 50 psig (345 kPa). The valve actuator is easily removable for service without removing the valve

auxiliary drain pan. Insulation

UNT-PRC001-EN58

Mechanical Specifications

body from piping. Use some means, such as a pump and chiller bypass, to ensure the maximum closed off DP rating of the two-way valves is not exceeded.

Three-Way, Two-Position Control Valves

Normally open three-way, two-position valves are rated for a maximum 25 psig (207 kPa) pressure differential across the valves. Normally closed three-way twoposition valves are rated for a maximum pressure differential across the valves of 15 psig (103 kPa). A bypass line is piped on all three-way piping packages with a balance fitting to set flow through the bypass line. The balance fitting has a maximum working pressure of 150 psig (1,034 kPa). The valves are also available with a maximum close-off pressure of 50 psig (345 kPa). The valve actuator is easily removable for service without removing the valve body from piping.

Modulating Control Valves

Two-way and three-way modulating valves are rated for a maximum pressure differential across the valves of 50 psig (345 kPa). The modulating valves are available in Cv values of 0.7, 1.5, 2.5 and

4.0.

All two-position and modulating control valves have a maximum working pressure of 300 psig (2,069 kPa). The maximum entering water temperature of the valve is 200 F (93 C).

Electric Heat Coil

All standard electric heat coils are UL listed and interlocked with the fan motor switch. Therefore, electric heat operation is possible only when the fan is running. A transformer is supplied on any voltage unit, eliminating the need for field

installation of a step-down transformer. A unit-mounted magnetic contactor is supplied on all voltages. A high temperature cutout with automatic reset is provided as an integral part of the elements to de-energize the electric heat in the event of an overheat condition.

Filters

Filters are concealed from sight and easily removable. Filters are located behind an integral access door on horizontal type units. Filters are either 1” (25 mm) throwaway or 1”(25 mm) pleated media throwaway. Pleated media filters are Farr 30/30.

Fresh Air Damper

A fresh air opening with a damper is a factory-installed option. Dampers are constructed of 18-gauge steel. Fresh air is sealed off with gasket material when the damper is set in the closed position. Return and fresh air mixes when the damper is open.

• Manual Damper

The manual damper is field-adjust able to allow zero to 100 percent fresh air. The automatic two-position damper is accompanied by a factory-installed and wired two-position (spring-return) actuator.

• Auto Two-Position Damper

The auto two-position damper is factory set at 25 percent when open. The damper can be set in the field to allow from zero to 50 percent fresh air.

• Economizer Damper

The economizer damper is accompanied by a factory-installed and wired modulating actuator. The damper is factory set at 25 percent default minimum and 100 percent maximum opening. The damper is field adjustable using Tracer Summit or Rover™ to allow from zero to 100 percent fresh air

UNT-PRC001-EN 59

Mechanical

Disconnect Switch

A unit mounted disconnect switch is available as a standard option on all units.

Colors

Six decorator colors are available in a baked powder finish. For a color chart, contact your local Trane office for a copy of UNT-S-10.

Extended End Pockets

On vertical or horizontal cabinet units, an 8” (20 cm) extended end pocket is available on the piping end.

Tamperproof Locks

Key-operated locking access doors and/ or panels will help prevent nuisance tampering with unit and/or controls. Tamper proof locks are available on vertical cabinet, horizontal cabinet, vertical recessed, vertical slope top, and low vertical units.

Leveling Feet

Refrigerator type screw-in bolts to level the unit are available on vertical and low vertical cabinet units.

Specifications

Quad Grille Outlet

Quad grilles are square multi-directional grilles that allow four different discharge directions by rotating the grilles 90 degrees. The quad grille is constructed of a black plastic material (NORYL-SE 1-731) with a 15 degree angle on the discharge louvers. Quad grilles are recessed into the discharge panel to prevent condensation from forming on the grille exterior. Quad grilles are available on all cabinet style units.

Bar Grille Inlet/Outlet

Bar grilles are formed steel grille options available on the discharge of all cabinet units, the return of vertical cabinet, vertical slope tops and low vertical cabinet units. The grilles have a black paint finish with 18-gauge steel construction. The louvers are formed at a 15 degree angle, and the discharge grilles are recessed to prevent condensate formation on the surface of the grille. The bar grilles are fixed in one discharge direction.

Sub-bases

Sub-bases elevate vertical cabinet or slope top cabinet units to a specified height; for example, to reach the bottom of a window sill. The sub-base also provides a cavity through which to run piping underneath the fan-coil unit. Subbases are 16-gauge steel construction and have the same black paint finish as the unit’s base. The sub-base is available in heights between 2 - 7” (5 -18 cm) in

/2” (1 cm) increments. The sub-base depth and width is identical to the unit’s dimensions.

Options

Quad Grille Outlet

Bar Grille Inlet and Outlet

Sub-base (shown turned on its side)

UNT-PRC001-EN60

Mechanical Specifications

False Backs

False backs increase the depth of a vertical cabinet unit and provide a cavity through which to run piping behind the fan-coil unit. False backs are also an excellent application when installing a unit beneath a window sill that extends out past the front of the unit.

False backs are 18-gauge steel construction and have the same paint finish as the unit. The false back is available in depths between 2”- 8” (5 - 20 cm) in 1” (2.54 cm) increments, with height and width identical to the unit’s dimensions.

Recessing Flanges

Recessing flanges have 18-gauge steel construction and are painted the same finish as the unit. Recessing flanges provide an aesthetic architectural border or frame around vertical and horizontal cabinet fan-coil units.

Aluminum Wall Boxes

Wall boxes have a clear anodized finish and include a single core wire mesh insect screen. The frame is 10-gauge extruded aluminum alloy 6063-T5 construction. Horizontal louvers have 16gauge extruded aluminum alloy 6063-T5 construction.

Wall boxes ship separate for field installation. A field supplied duct or sleeve from the wall box to the unit fresh air opening is required to provide fresh air.

Wall boxes are sized to handle up to 100% of nominal air flow.

Projection Panels

Projection panels allow semi-recessing of vertical recessed units.

Panels are 16-gauge steel construction, painted with a baked powder finish. They are available in projection depths ranging from 2”- 6” (5 - 15 cm) in increments. There is a distance of (2.2 cm) between the projection panel and the front of the unit.

/2”(1 cm)

/8”

Options

False Back

Recessing Flange

Wall Box

Projection Panel

UNT-PRC001-EN 61

Mechanical Specifications

Ball Valve

Manual Circuit Setter

Options

Piping Components Ball Valve

Part Material Spec ASTM

Lever Steel, zinc plated Seat Teflon VTFE Packing Teflon RTFE Stem Rod Brass B16 G-Nut Hex Brass B16 Ball Brass, B16

chrome plated Retainer Brass B16 Body Cast Brass B584-C84400

Working Pressure

400 psi (2,758 kPa)

Manual Circuit Setter

Material

Body — Forged Brass Alloy Trim — Forged Brass Alloy All Wetted Parts Brass

Temperature

250 F MAX (121 C)

Working Pressure

300 psi (2,069 kPa)

Auto Circuit Setter

Material

Body — Forged Brass Flow Cartridge — Electroless Nickel and Stainless Steel

Temperature

250 F MAX (121 C)

Working Pressure

400 psi (2,758 kPa)

Pressure Drop

0.5 - 9.0 GPM = 2 psi ∆P (14 kPa)

10.0 - 12.0 GPM = 5 psi ∆P (34 kPa)

UNT-PRC001-EN62

Mechanical

Control Valve

Specifications

Options

Control Valve

Material

Body — Forged Brass Stem — Chrome-Plated Brass (Modulating) Nickel Plated (2-Position) Seat — Brass (2-Position) Stainless Steel (Modulating) Paddle — Buna N (2-Position) Plug — High Temperature Thermoplastic (Modulating) Actuator — Stainless Steel Base Plate, Aluminum Cover

Temperature

200 F MAX (93 C)

Working Pressure

300 psi (2,069 kPa)

Pressure Drop (Close-Off

2-Way, Two-Position, N.O. = 25 psig (172 kPa) 2-Way, Two-Position, N.C. = 25 psig (172 kPa) 3-Way, Two-Position, N.O. = 25 psig (207 kPa) 3-Way, Two-Position, N.C. = 15 psig (103 kPa) 2-Way Modulating = 50 psig (345 kPa) 3-Way Modulating = 50 psig (345 kPa) *All valves are available with optional 50 psig (345 kPa).

∆∆

∆P)*

∆∆

Balance Fitting

Material

Packing Washer — 11 Ga. Brass O-Ring — EPDM Rubber Stem — Rod Brass Gland Screw — Hex Brass Valve Body — Cast Brass

Union

Material

Nut — Forged Brass Body — Copper Tail — Copper

Strainer

Material

Body — Cast Bronze (85-5-5-5) Cover — Cast Bronze (85-5-5-5) Screen — Stainless Steel (20 Mesh) Gasket — Teflon

Pressure and Temperature

400 psi (2,758 kPa) at 150 F (66 C)

Strainer

UNT-PRC001-EN 63

Features and Benefits

Basic Series Fan-Coil Sizes 04-08

The basic series fan-coil design is for the market that requires only the features of our standard UniTrane® fancoil. Basic series units are horizontal concealed and are available with an exposed fan, plenum, or ceiling access panel.

The basic series unit features include:

• Quality

• Three or four-row coils

• Ship loose ball valves

• Ship loose fan mode switch

Quality

Built with the same high quality as the UniTrane

, coils and control end devices

basic

Basic Series

are tested thoroughly before units are shipped. Coils are air and leak-tested before being mounted in the unit. All control end devices, fans, and motors are tested on assembled units.

Three or four-row coils

Three or four-row coils allow design of two and four-pipe systems.

Ship-loose ball valves

Ball valves are ship-loose accessories for field piping.

Ship-loose fan mode switch

Control options are simple. Units can be built with either no controls or a wallmounted fan mode switch.

UNT-PRC001-EN64

Selection

Basic Series

Procedure

Model Number

Model Number Description

Following is a complete description of the basic series fan-coil model number. Each digit in the model number has a corresponding alphanumeric code to identify the specific option.

FC X C 04 B 1 L A0 A F 0 1

1 5 10 15

Digits 1, 2 — Unit Type

FC = Fan-coil

Digit 3 — Model

X = Exposed fan P = With plenum R = With ceiling access panel, ship

separate

Digit 4 — Development Sequence “C”

Digits 5, 6 — Unit Size

04 06 08

Digit 7 — Coil

B = 3 row cooling/heating C = 4 row cooling/heating D = 2 row cooling/1 row heating E = 2 row cooling/2 row heating F = 3 row cooling/1 row heating L = 3 row cooling; aux. electric heat M = 4 row cooling; aux. electric heat

Digit 8 — Unit Voltage

1 = 115/60/1 2 = 208/60/1 4 = 230/60/1 5 = 110-120/50/1 6 = 220-240/50/1

Digit 9 — Piping Connections

L = Left hand connections R = Right hand connections

Digits 10, 11 — Design Sequence

“A0”

Digit 12 — Motor

A = Free discharge B = High static

Digit 13 — Control

0 = None F = Fan speed switch

Digit 14 — Auxilliary Electric Heat

0 = None A = 1.0 kW (.75 kW at 208V) B = 1.5 kW (1.1 kW at 208V) C = 2.0 kW (1.5 kW at 208V) D = 2.5 kW (1.9 kW at 208V) E = 3.0 kW (2.2 kW at 208V) F = 4.0 kW (3.0 kW at 208V) G = 5.0 kW (3.8 kW at 208V) H = 6.0 kW (4.4 kW at 208V)

Digit 15 — End Valve

0 = None 1 = Ball valve

Digit 16 — Main Control Valve

(Line Voltage Only)

0 = None A = 2 way, 2 pos. NO B = 3 way, 2 pos. NO C = 2 way, 2 pos. NC D = 3 way, 2 pos. NC

UNT-PRC001-EN 65

General Data

Basic Series

Table B-GD-1. Coil Data

Unit Size 04 06 08 Face Area — Ft . 1.1 1.6 2. 1

LxDxH—In. (cm)

3-Row 20x2.6x8 29.5x2.6x8 38x2.6x8

4-Row 20x3.5x8 29.5x3.5x8 38x3.5x8

Volume — Gal. (Liters)

1-Row (4-pipe only) .08 .11 .14

2-Row (4-pipe only) .15 .22 .28

3-Row .23 .3 3 .42

4-Row .30 .4 4 .56

Fins per Ft. (cm)

All coils 144 144 144

(cm) (1020) (1490) (1950)

(51x7x20) (75x7x20) (97x7x20)

(51x9x20) (75x9x20) (97x9x20)

(.30) (.42) (.53)

(.57) (.83) (1.06)

(.87) (1.25) (1.59)

(1.14) (1.67) (2.12)

(4.7) (4.7) (4.7)

Table B-GD-2. Fan/Motor Data

Fan Quantity 1 2 2 Size — Dia’’ x Width’’ (cm) 6.31x7.5 6.31x6.5 6.31x7.5

Motor Quantity 1 1 1

(16x19) (16x17) (16x19)

Table B-GD-3. Air Flow

Unit Size Coil 0.05 0.1 0.2 0.3 0.4

04 3R144 370 550 510 470 430

06 3R144 610 890 830 770 710

08 3R144 730 1000 930 870 800

Motor FD High Static

4R144 340 510 480 440 400

4R144 560 820 760 710 660

4R144 680 940 870 810 750

ESP

UNT-PRC001-EN

Performance

Basic Series

Data

Sizes 04-08

ARI cooling performance is based on 80/67 F (27/19 C) entering air temperature, 45 F (7 C) entering chilled water temperature with a 10 F (5.5 C) ∆T. Heating performance is based on 70 F (21 C) entering air temperature, 180 F (82 C) entering hot water temperature with a 30 F (17 C) ∆T. All performance measured on high speed tap, free discharge motor at zero ESP, high static motor at 0.2 ESP, with throwaway filter, and is valid for all voltages except 208.

Table B-PD-1. Free Discharge Motor, Two-Pipe

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

4 3CH 374 (177) 11.5 (3.4) 8.1 (2.4) 2.37 (.15) 9.5 (28.3) 31.8 (9.3) 0.29 2.12 (.13) 6.4 (19.0) 100 107 106

4CH 350 (165) 13.0 (3.8) 8.7 (2.5) 2.66 (.17) 14.8 (44.4) 34.2 (10.0) 0.31 2.28 (.14) 9.1 (27.3) 100 107 106

6 3CH 608 (287) 16.6 (4.9) 12.4 (3.6) 3.40 (.21) 4.9 (14.8) 49.7 (14.6) 0.45 3.31 (.21) 4.2 (12.6) 125 130 124

4CH 565 (267) 19.4 (5.7) 13.3 (3.9) 3.96 (.25) 7.8 (23.2) 53.8 (15.8) 0.49 3.59 (.23) 5.7 (17.0) 125 130 124

8 3CH 731 (345) 20.6 (6.1) 14.7 (4.3) 4.21 (.27) 8.2 (24.4) 61.6 (18.1) 0.56 4.11 (.26) 6.9 (20.7) 120 123 133

4CH 688 (325) 22.8 (6.7) 15.5 (4.5) 4.65 (.29) 11.7 (35.0) 66.8 (19.6) 0.61 4.45 (.28) 9.4 (28.1) 120 123 133

Table B-PD-2. High Static Motor, Two-Pipe

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

4 3CH 484 (228) 14.0 (4.1) 10.2 (3.0) 2.94 (0.19) 13.9 (41.5) 38.6 (11.3) .35 2.57 (0.16) 9.1 (27.0) 210 210 210

4CH 453 (214) 16.0 (4.7) 11.0 (3.2) 3.35 (0.21) 22.3 (66.7) 42.2 (12.4) .38 2.81 (0.18) 13.4 (39.9) 210 210 210

6 3CH 780 (368) 20.1 (5.9) 15.5 (4.5) 4.24 (0.27) 7.5 (22.3) 59.5 (17.4) .54 3.96 (0.25) 5.9 (17.7) 320 320 320

4CH 725 (342) 23.9 (7.0) 16.8 (4.9) 4.99 (0.31) 11.9 (35.6) 65.6 (19.2) .60 4.37 (0.28) 8.2 (24.6) 320 320 320

8 3CH 886 (418) 24.6 (7.2) 17.9 (5.3) 5.13 (0.32) 11.8 (35.2) 71.2 (20.9) .65 4.74 (0.30) 9.1 (27.1) 320 320 320

4CH 835 (394) 27.3 (8.0) 18.9 (5.5) 5.68 (0.36) 16.9 (50.6) 78.3 (22.9) .71 5.22 (0.33) 12.7 (37.8) 320 320 320

Note:

1. CFM = Cubic feet per minute

2. TMBH = Total capacity (MBH)

3. GPM =Gallons per minute

4. WPD = Water pressure drop (feet of water)

5. Q/ITD = MBH (kW)/(entering water temperature - entering air temperature) when ∆T and GPM (L/s) remain constant. To determine heating capacities at a different entering water temperature or entering air temp, compute the new ITD and multiply it by the Q/ITD shown.

6. Medium and low speed capacities are approximately 80% and 60% respectively of the high speed capacity.

CFM TMBH SMBH GPM WPD TMBH GPM WPD 11 5V 23 0V 27 7V

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

UNT-PRC001-EN 67

Performance

Basic Series

Data

Sizes 04-08

Table B-PD-3. Free Discharge Motor, Four-Pipe

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

4 2C1H 374 (177) 8.4 (2.5) 6.6 (2.0) 1.74 (0.11) 3.9 (11.7) 15.0 (4.4) .14 1.00 (0.06) 2.8 (8.4) 100 107 106

6 2C1H 608 (287) 14.7 (4.3) 11.1 (3.2) 3.01 (0.19) 12.8 (38.4) 24.2 (7.1) .22 1.61 (0.10) 8.4 (25.2) 125 130 124

8 2C1H 731 (345) 15.4 (4.5) 12.5 (3.7) 3.16 (0.20) 3.8 (11.4) 30.2 (8.9) .27 2.01 (0.13) 15.1 (45.1) 120 123 133

Table B-PD-4. High Static Motor, Four-Pipe

FC Coil (L/s) (TkW) (SkW) (L/s) (kPa) (TkW) Q/ITD (L/s) (kPa) Watt Watt Watt

4 2C1H 484 (228) 9.9 (2.9) 8.1 (2.4) 2.13 (0.13) 5.6 (16.9) 17.5 (5.1) .16 1.17 (0.07) 3.7 (11.1) 210 210 210

6 2C1H 780 (368) 17.0 (5.0) 13.3 (4.0) 3.62 (0.23) 17.9 (53.4) 27.9 (8.2) .25 1.86 (0.12) 10.9 (32.6) 320 320 320

8 2C1H 886 (418) 18.1 (5.3) 15.0 (4.4) 3.85 (0.24) 5.5 (16.5) 34.0 (10.0) .31 2.26 (0.14) 18.6 (55.5) 320 320 320

Note:

1. CFM = Cubic feet per minute

2. TMBH = Total capacity (MBH)

3. GPM =Gallons per minute

4. WPD = Water pressure drop (feet of water)

6. Medium and low speed capacities are approximately 80% and 60% respectively of the high speed capacity.

CFM TMBH SMBH GPM WPD TMBH GPM WPD 1 15V 2 30V 2 77V

Cooling Heating

UNT-PRC001-EN68

Basic Series

Wall-mounted fan mode switch

Ball valves are a ship-loose accessory.

Controls

Accessories

Manual Three-Speed Fan Switch

The manual three-speed fan switch is a simple four-position switch (OFF-HI-MED-LO) which allows fan mode selection.

The fan switch is wall-mounted and controls the fan motor by line voltage.

Off: Fan is turned off. Hi, Med, Lo: Fan runs continuously at the selected speed setting.

Ball Valves

Ball valves are available as ship-loose components with each unit:

Ball valves, also known as stop or end valves, allow waterflow into the unit to be cut off for service purposes. These valves have a two-inch handle that rotates 90 degrees to a fully open position. The valve body is cast brass, the ball is chrome plated brass, and the seat is Teflon leaving water pipe of field-installed piping. Working pressure is 400 psi (2,758 kPa).

Ball Valve Material

Part Material Spec ASTM

Lever Steel, zinc plated w/vinyl Seat Teflon VTFE Stem Packing Teflon RTFE Stem Rod Brass B16 G-Nut Hex Brass B16 Ball Brass, chrome plated B16 Retainer Brass B16 Body Cast Brass B584-C84

™

. Ball valves are available as end valves for both the entering and

UNT-PRC001-EN 69

Electrical Data

Basic Series

Electric Heat

Basic series fan-coils with inlet plenums are available with electric heating coils.

Coil Construction and Location

Electric heat coils are open wire type with a nickel chrominum element design. All coils are located in the preheat position.

Power Supply

Units have single-point power since the electric heating elements operate on line voltage.

Table B-ED-1. Electric Heat kW

Unit Size Unit Voltage kW kW kW k W kW k W kW kW

04 115 1.0 1.5 2.0 2.5

06 115 2.0 3.0

08 115 2.0 3.0

230 1.0 1.5 2.0 2.5 208 0.75 1.1 1.5 1.9

230 2.0 3.0 4.0 5.0 208 1.5 2.2 3.0 3.8

230 2.0 3.0 4.0 5.0 6.0 208 1.5 2.2 3.0 3.8 4.4

Electric Heat Features

• All basic series fan-coil units are UL approved.

• Units require only a single-point electrical connection.

• A unit mounted magnetic contactor(s) is (are) supplied on all unit voltages.

• A high temperature cutout with automatic reset de-energizes the electric heat in the event of an overheat condition.

• When hydronic heating is active, a lockout sensor will disable the electric heat.

Minimum Circuit Ampacity (MCA) and Maximum Fuse Size (MFS) Calculations for Fan-Coils with Electric Heat:

Heater Amps = (Heater kW x 1000)/Heater Voltage

Note: Use 120V heater voltage for 115V units. Use 240V heater voltage for 230V units.

MCA = 1.25 x (heater amps + all motor FLA’s)

MFS or HACR Type Circuit Breaker =

HACR (Heating, Air-Conditioning and Refrigeration) type circuit breakers are required in the branch circuit wiring for all fan-coils with electric heat. See the Electrical Data section for motor FLA’s.

(2.25 x Largest Motor FLA) + Second Motor FLA + Heater Amps

Note: Select a standard fuse size or HACR type circuit breaker equal to the MCA. Use the next larger standard size if the MCA does not equal a standard size. Standard fuse sizes are: 15, 20, 25, 30, 35, 40, 45, 50, and 60 amps

Fan-coil electric heat MBH = (heater kW) (3.413)

UNT-PRC001-EN

Electrical Data

Basic Series

Table B-ED-2. Three and Four-Row Coils — Free Discharge Motors

FC FLA HP (kW) FLA HP (kW) H M L 04 1.0 . 06 0.6 .0 6 108 800 600

06 1.4 . 12 0.9 .1 2 108 800 600

08 1.7 . 13 1.0 .1 3 108 800 600

115 Volt 208 Volt RPM

(.04) (.04)

(.09) (.09)

(.10) (.10)

Table B-ED-3. Three and Four-Row Coils — High Static Motors

FC FLA HP (kW) FLA HP (kW) H M L 04 2.1 .13 0.9 .13 1580 1375 1240

06 3.4 .24 1.4 .24 1475 1285 97 5

08 3.4 .24 1.4 .24 1475 1285 97 5

Note: Actual RPM will vary with application and configuration.

115 Volt 208 Volt RPM

(.10) (.10)

(.18) (.18)

Table B-ED.4. Decimal to Fractional HP (kW) Conversion

Unit Size Decimal Fraction

04 .04 1/25

06 .09 1/11

08 .10 1/10

.06 1/16 .10 1/10 .13 1/8

.12 1/8 .18 1/6 .24 1/4

.13 1/8 .18 1/6 .24 1/4

Minimum Circuit Ampacity (MCA) and Maximum Fuse Size (MFS) Calculations for fancoils: (Motors only)

MCA = (1.25) x [Largest Motor Amperes (FLA)] MFS or Heating, Air-Conditioning, and Refrigeration (HACR) Type Circuit Breaker = 15 amps for all fan-coils without electric heat

UNT-PRC001-EN 71

Dimensions and Weights

Table B-DW-1. Weights

Shipping Weights — lbs. (kg) Operating Weights — lbs. (kg)

Unit Size Model X Model P Model R Model X Model P Model R

04 9 6 107 114 109 120 127

(44) (49) (52) (49) (54) (58)

06 123 138 145 139 154 161

(56) (63) (66) (63) (70) (73)

08 131 149 165 147 165 181

(59) (68) (75) (67) (75) (82)

Basic Series

UNT-PRC001-EN72

Dimensions

Basic Series

Basic Unit With Exposed Fan, Model X

and Weights

Exposed Fan

Unit Size 04 06 08

A 1 15/16” 1 3/4” 5” B1’-5 1/16” 2’-4 3/16” 2’-6 3/16” C1’-8 5/16” 2’-5 13/16” 3’-2 5/16” D1’-10 3/16” 2’-7 11/16” 3’-4 3/16” E2’-4 3/16” 3’-1 11/16” 3’-10 3/16”

UNT-PRC001-EN 73

Note:

1. The condensate drain connection is always on the right hand side of the unit as shown.

2. Coil connections are 5/8" OD sweat. CS - Cooling coil supply CR - Cooling coil return HS - Heating coil supply HR - Heating coil return

3. All duct collar dimensions are to the outside of the collar.

Dimensions

Basic Series

Basic Unit With Plenum, Model P

and Weights

With Plenum

Unit Size 04 06 08

A 1’-8 11/16” 2’-6 3/16” 3’-2 11/16” B1’-8 1/2” 2’-6” 3’-2 1/2” C1’-8 5/16” 2’-5 13/16” 3’-2 5/16” D1’-10 3/16” 2’-7 11/16” 3’-4 3/16” E2’-4 1/4” 3’-1 3/4” 3’-10 1/4”

Note:

1. The condensate drain connection is always on the right hand side of the unit as shown.

2. Coil connections are 5/8" OD sweat. CS - Cooling coil supply CR - Cooling coil return HS - Heating coil supply HR - Heating coil return

3. All duct collar dimensions are to the outside of the collar.

UNT-PRC001-EN74

Dimensions

Basic Series With

Basic Unit With Ceiling Access Panel, Model R

Unit Size 04 06 08

A 3’-1 7/16” 3’-10 15/16” 4’-7 7/16” B3’-3 5/16” 4’-0 13/16” 4’-9 5/16” C3’-4 13/16” 4’-2 5/16” 4’-10 13/16”

and Weights

Ceiling Panel

UNT-PRC001-EN 75

Mechanical Specifications

Basic Series

Basic Series Fan-Coil Mechanical Specifications

Capacity

Unit capacities are certified under Industry Room Fan-Coil Air Conditioner Certification Program in accordance with ARI Standard 440-97.

Safety

All basic series units are UL listed.

Construction

The basic series unit includes a chassis, coil, fan wheel(s), fan board, and motor. Units also include a sloped, galvanized main drain pan. Steel parts exposed to moisture are galvanized. The chassis construction is 18-gauge galvanized steel, and is continuous throughout the unit. The unit is insulated with closed-cell insulation.

Ceiling Access Panel

The ceiling access panel fabrication is 18gauge steel and ships separate from the unit. Also, the ceiling access panel includes tamperproof screw fasteners and a safety chain. Panels are made rigid by channel forming. All ceiling access panels are cleaned, bonderized, and painted with deluxe beige baked powder finish. Standard finish meets ASTM B117 specifications (salt spray test).

Inlet Plenum

The inlet plenum construction is 18-gauge galvanized steel. It includes a 1" (25 mm) throwaway filter.

Fan

The aluminum fan wheels are centrifugal forward-curved and double-width. Fan wheels and housings are corrosion resistant. Fan housings construction is formed sheet metal.

Motor

The motor has a permanent split capacitor, integral thermal overload protection,

and is permanently lubricated. It is capable of starting at 78 percent of rated voltage and operating at 90 percent of rated voltage on all speed settings. The motor is run tested in assembled units.

Coil

All water coils are burst tested at 450 psig (3,103 kPA) (air) and leak tested at 100 psig (690 kPa) (air under water). Maximum main coil working pressure is 300 psig (2,069 kPa). Maximum entering water temperature is 200 F (93 C). Tubes and u-bends are Fins are aluminum and are mechanically bonded to the copper tubes. Coil stubouts

/8" (16 mm) OD copper tubing. All

are coils include a manual air vent.

Ball Valve

A ball-type stop valve is available for field-installation on both the entering and leaving water pipe. The ball valve is a shutoff valve with a maximum working pressure of 400 psig (2,758 kPa).

Electric Heat Coil

The auxiliary electric heating coil is provided as either the total source of heat or auxiliary intermediate season heating. The electric heat coils are located in the preheat position, and are the open-wire type. The coils are a nickel chromium element design. The electric heat operates at the same voltage as the unit, and only a single power connection is necessary. All standard electric heat coils are UL listed. A unit-mounted magnetic contactor is supplied on all voltages. A high temperature cutout with automatic reset is provided as an integral part of the elements to de-energize the electric heat in the event of an overheat condition.

/8" (10 mm) OD copper.

UNT-PRC001-EN76

The Trane Company A Division of American Standard Inc. www.trane.com

For more information contact your local Trane office or e-mail us at comfort@trane.com

Literature Order Number

File Number

Supersedes

Stocking Location

Since The Trane Company has a policy of continuous product improvement, it reserves the right to change design and specifications without notice.

PL-TD-UNT-PRC001-EN-1200

La Crosse - Inland Printing

UNT-PRC001-EN

UNT-PRC001-EN 7/00

Trane UNTPRC001-EN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Features and Benefits

General Data

Controls

Electrical Data

Dimensions and Weights

Mechanical Specifications

Features and Benefits

General Data

Controls

Electrical Data

Dimensions and Weights

Mechanical Specifications
