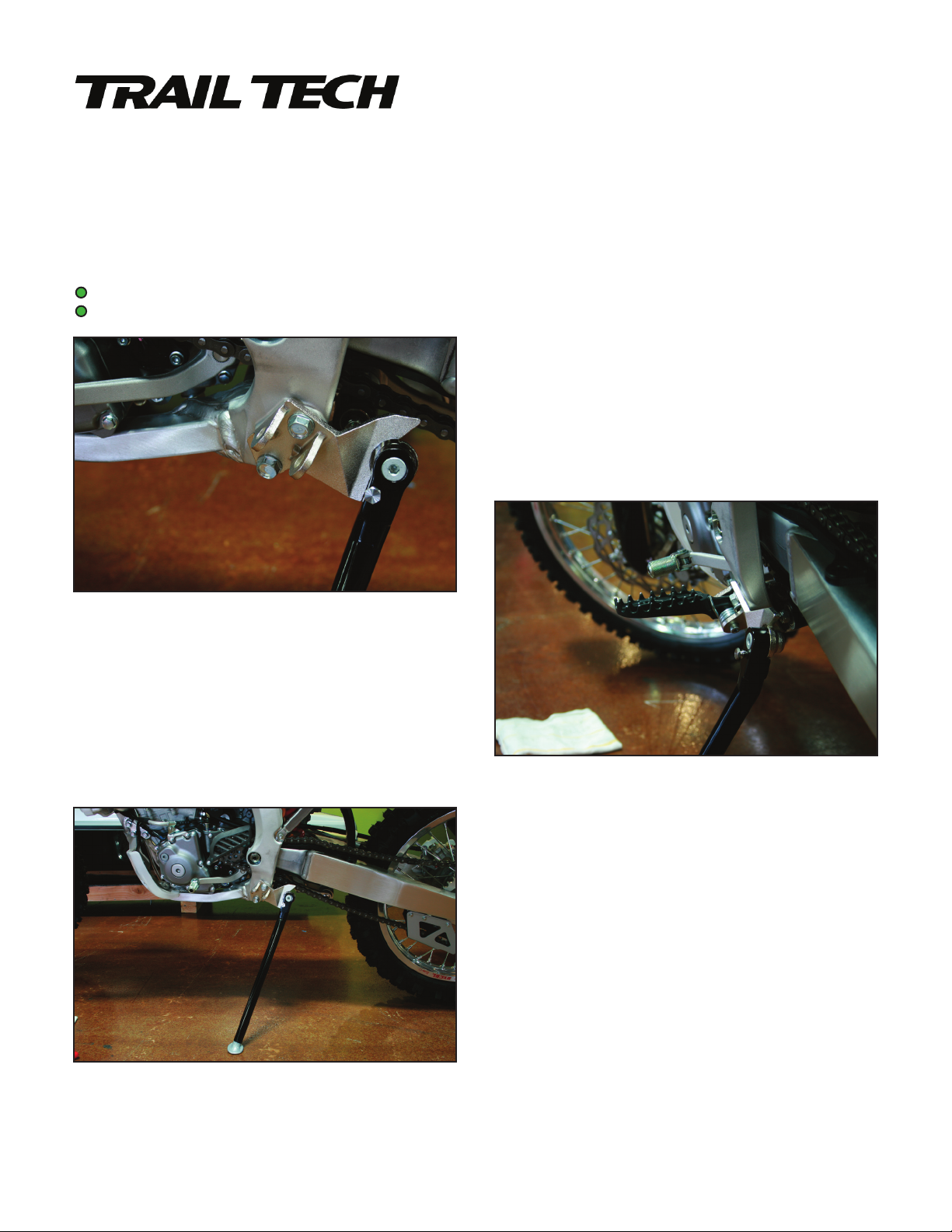

5501-00/5501-10 KICKSTAND INSTALLATION
5501-00/5501-10
07-08 SUZUKI RMZ250
06-07 SUZUKI RMZ450
TRAIL TECH KICKSTANDS
010-ELV-151
Tech Support: 360-687-4530
tech_support@trailtech.net
07-08 SUZUKI RMZ250
06-07 SUZUKI RMZ450
10-12 SUZUKI RMZ250
08-12 SUZUKI RMZ450
5. Re-install the side panel fastener, and tighten down
hand tight to start.
Note: Do not tighten down to manufacturers torque
specification until spring is hung. Failure to do so may
cause your spring to bind or break during use!
6. Hook spring into spring hanger mounting tab shown
in (Fig. 2)
7. Using safety glasses & a spring puller stretch the
spring and latch it onto the stand arm mounting point.
(Fig. 2)
8. Tighten sub-frame fastener to manufacturers torque
specification.
FIG. 1
2007 Suzuki RMZ450 Kickstand Installed
1. Remove stock foot-peg, foot-peg hardware, &
foot-peg hanger from frame.
2. Install provided Trail Tech foot-peg bracket, using
the OEM fasteners. (Use thread locking compound on
the pivot bolt to ensure it does not back out.)
3. Re install foot peg & foot-peg hardware following
manufacturers recommended installation procedure.
4. Remove the stock side panel fastener and insert
through the provided spring hanger tab. (Fig 1)
FIG. 3
IMPORTANT: WEAR EYE
PROTECTION WHEN HANGING
SPRINGS!
Note: After every ride it is important to check your kickstand
thoroughly for the following:
• Loose or damaged bolts • Bent or damaged kickstand leg or
bracket • Damaged spring
Damaged or broken parts can result in serious injury! If any part of
your stand has become
damaged do not ride the machine! Contact a factory trained
technician or Trail Tech directly for service or repairs.
FIG. 2
Continued on other side >>
TRAIL TECH INC. WARRANTS TRAIL TECH KICKSTAND PRODUCTS TO BE FREE
FROM DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USE AND IF
PROPERLY INSTALLED FOR A PERIOD OF SIX MONTHS FROM DATE OF PURCHASE.
IF FOUND TO BE DEFECTIVE AS MENTIONED ABOVE, IT WILL BE REPLACED OR
REPAIRED. THIS SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER
AND THE SOLE LIABILITY OF TRAIL TECH INC. TO THE EXTENT PERMITTED BY
LAW, THE FOREGOING IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR
REPRESENTATIONS WHETHER EXPRESSED OR IMPLIED, INCLUDED ANY LIMITED
WARRANTY OF MERCHANTABILITY OR FITNESS. IN NO EVENT SHALL TRAIL TECH
INC. BE LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES.
LIMITED WARRANTY
5502-00/5502-10 KICKSTAND INSTALLATION
5502-00/ 5502-10
10-12 SUZUKI RMZ250
08-12 SUZUKI RMZ450
TRAIL TECH KICKSTANDS
010-ELV-151
Tech Support: 360-687-4530
tech_support@trailtech.net
07-08 SUZUKI RMZ250
06-07 SUZUKI RMZ450
10-12 SUZUKI RMZ250
08-12 SUZUKI RMZ450
5. Re-install the side panel fastener, and tighten down
hand tight to start.
Note: Do not tighten down to manufacturers torque
specification until spring is hung. Failure to do so may
cause your spring to bind or break during use!
6. Hook spring into spring hanger mounting tab.
7. Using safety glasses & a spring puller stretch the
spring and latch it onto the stand arm mounting point.
8. Tighten sub-frame fastener to manufacturers torque
specification.
2010 Suzuki RMZ250 Kickstand Installed
1. Remove stock foot-peg, foot-peg hardware, &
foot-peg hanger from frame.
2. Install provided Trail Tech foot-peg bracket, using
the OEM fasteners. (Use thread locking compound on
the pivot bolt to ensure it does not back out.)
3. Re install foot peg & foot-peg hardware following
manufacturers recommended installation procedure.
4. Remove the stock side panel fastener and insert
through the provided spring hanger tab.
Continued on other side >>
IMPORTANT: WEAR EYE
PROTECTION WHEN HANGING
SPRINGS!
Note: After every ride it is important to check your kickstand
• Loose or damaged bolts • Bent or damaged kickstand leg or
Damaged or broken parts can result in serious injury! If any part of
damaged do not ride the machine! Contact a factory trained
technician or Trail Tech directly for service or repairs.
TRAIL TECH INC. WARRANTS TRAIL TECH KICKSTAND PRODUCTS TO BE FREE
FROM DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USE AND IF
PROPERLY INSTALLED FOR A PERIOD OF SIX MONTHS FROM DATE OF PURCHASE.
IF FOUND TO BE DEFECTIVE AS MENTIONED ABOVE, IT WILL BE REPLACED OR
REPAIRED. THIS SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER
AND THE SOLE LIABILITY OF TRAIL TECH INC. TO THE EXTENT PERMITTED BY
LAW, THE FOREGOING IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR
REPRESENTATIONS WHETHER EXPRESSED OR IMPLIED, INCLUDED ANY LIMITED
WARRANTY OF MERCHANTABILITY OR FITNESS. IN NO EVENT SHALL TRAIL TECH
INC. BE LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES.
thoroughly for the following:
bracket • Damaged spring
your stand has become
LIMITED WARRANTY
