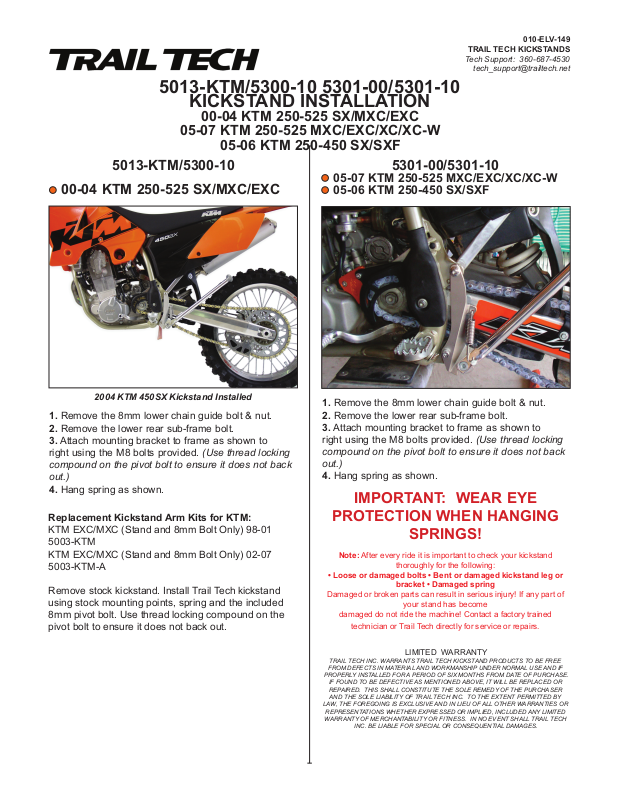

Trail Tech 5013-KTM User Manual

5013-KTM/5300-10 5301-00/5301-10

KICKSTAND INSTALLATION

00-04 KTM 250-525 SX/MXC/EXC

05-07 KTM 250-525 MXC/EXC/XC/XC-W

05-06 KTM 250-450 SX/SXF

5013-KTM/5300-10 5301-00/5301-10

00-04 KTM 250-525 SX/MXC/EXC

TRAIL TECH KICKSTANDS

010-ELV-149

Tech Support: 360-687-4530

[e-mail]

05-07 KTM 250-525 MXC/EXC/XC/XC-W
05-06 KTM 250-450 SX/SXF

2004 KTM 450SX Kickstand Installed

1. Remove the 8mm lower chain guide bolt & nut.

2. Remove the lower rear sub-frame bolt.

3. Attach mounting bracket to frame as shown to

right using the M8 bolts provided. (Use thread locking
compound on the pivot bolt to ensure it does not back
out.)

4. Hang spring as shown.

Replacement Kickstand Arm Kits for KTM:

KTM EXC/MXC (Stand and 8mm Bolt Only) 98-01
5003-KTM
KTM EXC/MXC (Stand and 8mm Bolt Only) 02-07
5003-KTM-A

Remove stock kickstand. Install Trail Tech kickstand
using stock mounting points, spring and the included
8mm pivot bolt. Use thread locking compound on the
pivot bolt to ensure it does not back out.

1. Remove the 8mm lower chain guide bolt & nut.

2. Remove the lower rear sub-frame bolt.

3. Attach mounting bracket to frame as shown to

right using the M8 bolts provided. (Use thread locking
compound on the pivot bolt to ensure it does not back
out.)

4. Hang spring as shown.

IMPORTANT: WEAR EYE

PROTECTION WHEN HANGING

SPRINGS!

Note: After every ride it is important to check your kickstand

• Loose or damaged bolts • Bent or damaged kickstand leg or

Damaged or broken parts can result in serious injury! If any part of

damaged do not ride the machine! Contact a factory trained

technician or Trail Tech directly for service or repairs.

TRAIL TECH INC. WARRANTS TRAIL TECH KICKSTAND PRODUCTS TO BE FREE

FROM DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USE AND IF

PROPERLY INSTALLED FOR A PERIOD OF SIX MONTHS FROM DATE OF PURCHASE.

IF FOUND TO BE DEFECTIVE AS MENTIONED ABOVE, IT WILL BE REPLACED OR
REPAIRED. THIS SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER
AND THE SOLE LIABILITY OF TRAIL TECH INC. TO THE EXTENT PERMITTED BY

LAW, THE FOREGOING IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR

REPRESENTATIONS WHETHER EXPRESSED OR IMPLIED, INCLUDED ANY LIMITED

WARRANTY OF MERCHANTABILITY OR FITNESS. IN NO EVENT SHALL TRAIL TECH

INC. BE LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES.

thoroughly for the following:

bracket • Damaged spring

your stand has become

LIMITED WARRANTY
