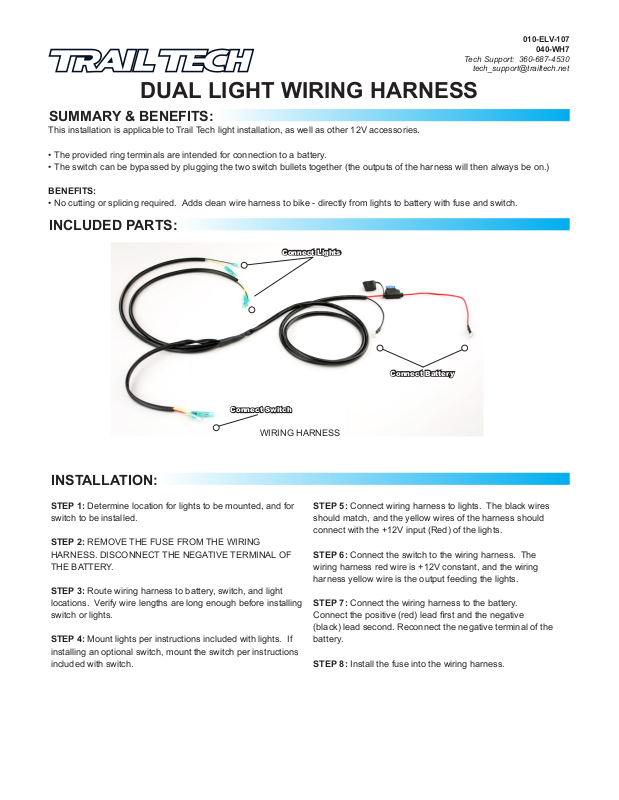

Trail Tech 040-WH7A User Manual
010-ELV-107
Tech Support: 360-687-4530
tech_support@trailtech.net
040-WH7
DUAL LIGHT WIRING HARNESS
SUMMARY & BENEFITS:
This installation is applicable to Trail Tech light installation, as well as other 12V accessories.
• The provided ring terminals are intended for connection to a battery.
• The switch can be bypassed by plugging the two switch bullets together (the outputs of the harness will then always be on.)
BENEFITS:
• No cutting or splicing required. Adds clean wire harness to bike - directly from lights to battery with fuse and switch.
INCLUDED PARTS:
Connect Lights
Connect Switch
WIRING HARNESS
INSTALLATION:
STEP 1: Determine location for lights to be mounted, and for
switch to be installed.
STEP 2: REMOVE THE FUSE FROM THE WIRING
HARNESS. DISCONNECT THE NEGATIVE TERMINAL OF
THE BATTERY.
STEP 3: Route wiring harness to battery, switch, and light
locations. Verify wire lengths are long enough before installing
switch or lights.
STEP 4: Mount lights per instructions included with lights. If
installing an optional switch, mount the switch per instructions
included with switch.
Connect Battery
STEP 5: Connect wiring harness to lights. The black wires
should match, and the yellow wires of the harness should
connect with the +12V input (Red) of the lights.
STEP 6: Connect the switch to the wiring harness. The
wiring harness red wire is +12V constant, and the wiring
harness yellow wire is the output feeding the lights.
STEP 7: Connect the wiring harness to the battery.
Connect the positive (red) lead rst and the negative
(black) lead second. Reconnect the negative terminal of the
battery.
STEP 8: Install the fuse into the wiring harness.
LIGHT WIRE HARNESS INSTALLATION
SWITCH WIRING OPTIONS :
PUSH BUTTON SWITCH: 040-LS-B1
CONNECT FEMALE TERMINAL OF SWITCH INTO YELLOW
WIRE WITH MALE TERMINAL. CONNECT MALE TERMINAL
OF SWITCH INTO FEMALE TERMINAL OF RED WIRE.
Handlebar Mounted Rocker Switch: 040-HBS-01
ON/OFF HANDLEBAR SWITCH:
CONNECT RED WIRE TO
HARNESS RED,
CONNECT BLACK WIRE TO
HARNESS YELLOW.
010-ELV-107
040-WH7
Tech Support: 360-687-4530
tech_support@trailtech.net
RELAY SWITCH: 040-LS-01
Wire Harness Extension with Bullet Connectors: 040-WH9
Used to add length to switch or lights.
(Except 70mm LED)
Lit Rocker Switches
Lit Rocker Switch (600mm/23.5” lead): 040-LS-02
Lit Rocker Switch (1800mm/70” lead): 040-LS-03
Wire Ground (Pin 3/Black) directly to the negative terminal of
the battery or vehicle. Wire Power Out (Pin 2/Yellow) to the
yellow wire on harness. Wire Power in (Pin 1/Red) to the red
wire on harness.. (Drilling required)
Wire Harness Extension with 3 Pin Connector: 040-WH14
(For 70mm LED only)
