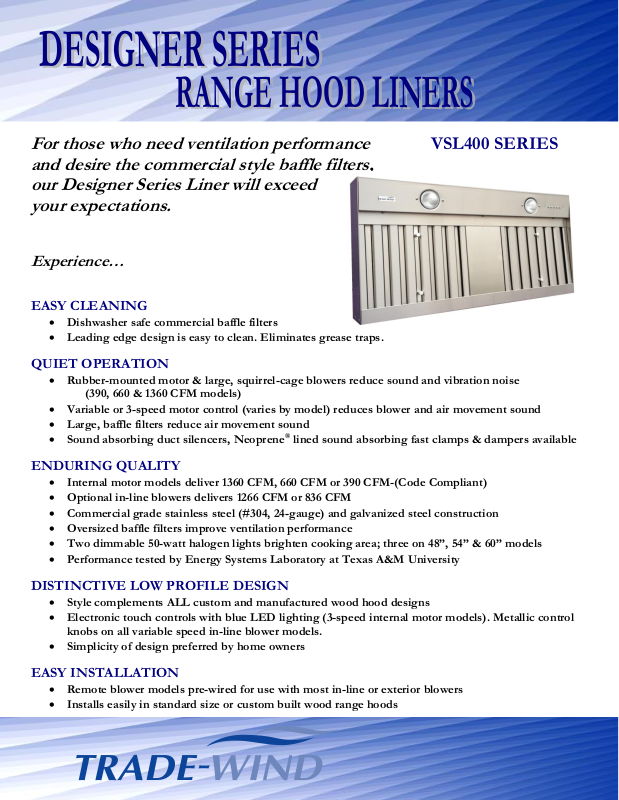

For those who need ventilation performance
and desire the commercial style baffle filters,
our Designer Series Liner will exceed
your expectations.
Experience…
EASY CLEANING
Dishwasher safe commercial baffle filters
Leading edge design is easy to clean. Eliminates grease traps.
QUIET OPERATION
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration noise
(390, 660 & 1360 CFM models)
Variable or 3-speed motor control (varies by model) reduces blower and air movement sound
Large, baffle filters reduce air movement sound
Sound absorbing duct silencers, Neoprene
ENDURING QUALITY
Internal motor models deliver 1360 CFM, 660 CFM or 390 CFM-(Code Compliant)
Optional in-line blowers delivers 1266 CFM or 836 CFM
Commercial grade stainless steel (#304, 24-gauge) and galvanized steel construction
Oversized baffle filters improve ventilation performance
Two dimmable 50-watt halogen lights brighten cooking area; three on 48”, 54” & 60” models
Performance tested by Energy Systems Laboratory at Texas A&M University
DISTINCTIVE LOW PROFILE DESIGN
Style complements ALL custom and manufactured wood hood designs
Electronic touch controls with blue LED lighting (3-speed internal motor models). Metallic control
knobs on all variable speed in-line blower models.
Simplicity of design preferred by home owners
EASY INSTALLATION
Remote blower models pre-wired for use with most in-line or exterior blowers
Installs easily in standard size or custom built wood range hoods
®
lined sound absorbing fast clamps & dampers available
VSL400 SERIES
Page 2
Models Available (by Width)
Pic
CFM
28.5”
34.5”
40.5”
46.5”
52.5”
58.5”
Sones
Control
Blower
A
-
VSL430BF
VSL436BF
VSL442BF
VSL448BF
VSL454BF
VSL460BF
N/A
Variable
In-Line or Remote
Mount Blower
B
390
VSL430-4BF
VSL436-4BF
VSL442-4BF - - - 7
3-Speed
Internal Motor
C
660
VSL430-6BF
VSL436-6BF
VSL442-6BF
VSL448-6BF
- - 7.5
3-Speed
Internal Motor
D
1360 - -
VSL442-12BF
VSL448-12BF
VSL454-12BF
VSL460-12BF
8.5
(2), 3-Speed
Two Internal
Motors
Notes:
1. Center of electrical access is 2-1/2” from front & 4” from side of liner. Connection
access is behind filters.
2. Vent is 8” (30 & 36” widths) or 10” (42” & 48” widths). Damper not included.
3. Length & width cutouts should be 1/8” larger than above dimensions.
Notes:
1. Center of electrical access is 2-1/2” from front & 4” from side of liner. Connection
access is behind filters.
2. Vent is centered left to right. Damper is included.
3. Length & width cutouts should be 1/8” larger than above dimensions.
Notes:
1. Center of electrical access is 2-1/2” from front & 4” from side of liner. Connection
access is behind filters.
2. Damper not included.
3. Length & width cutouts should be 1/8” larger than above dimensions.
Notes:
1. Center of electrical access is 2-1/2” from front & 4” from side of liner. Connection
access is behind filters.
2. Order Vent Transition accessory (Part # 3BL-35-481). Damper not included.
3. Length & width cutouts should be 1/8” larger than above dimensions.
C D B
A
** Drawings A, C & D are also available in 22” depth. Specify when ordering.
