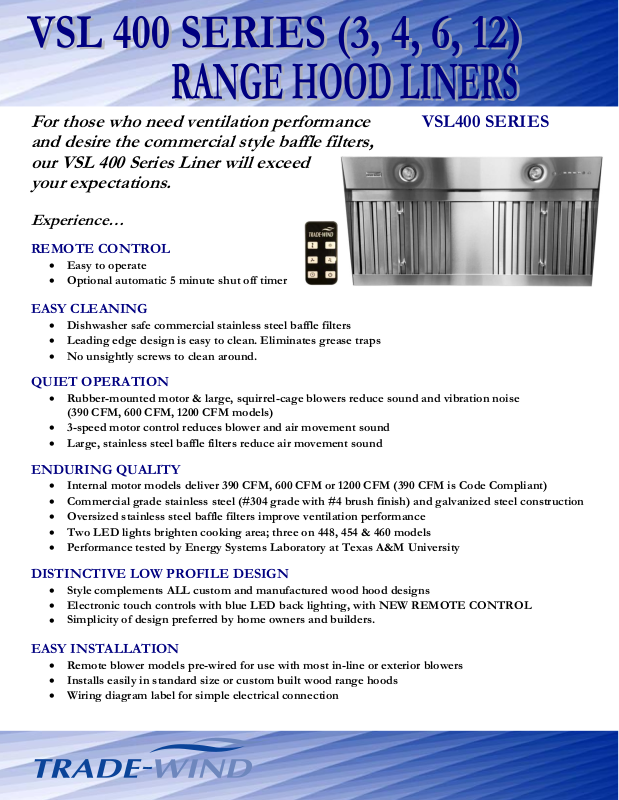

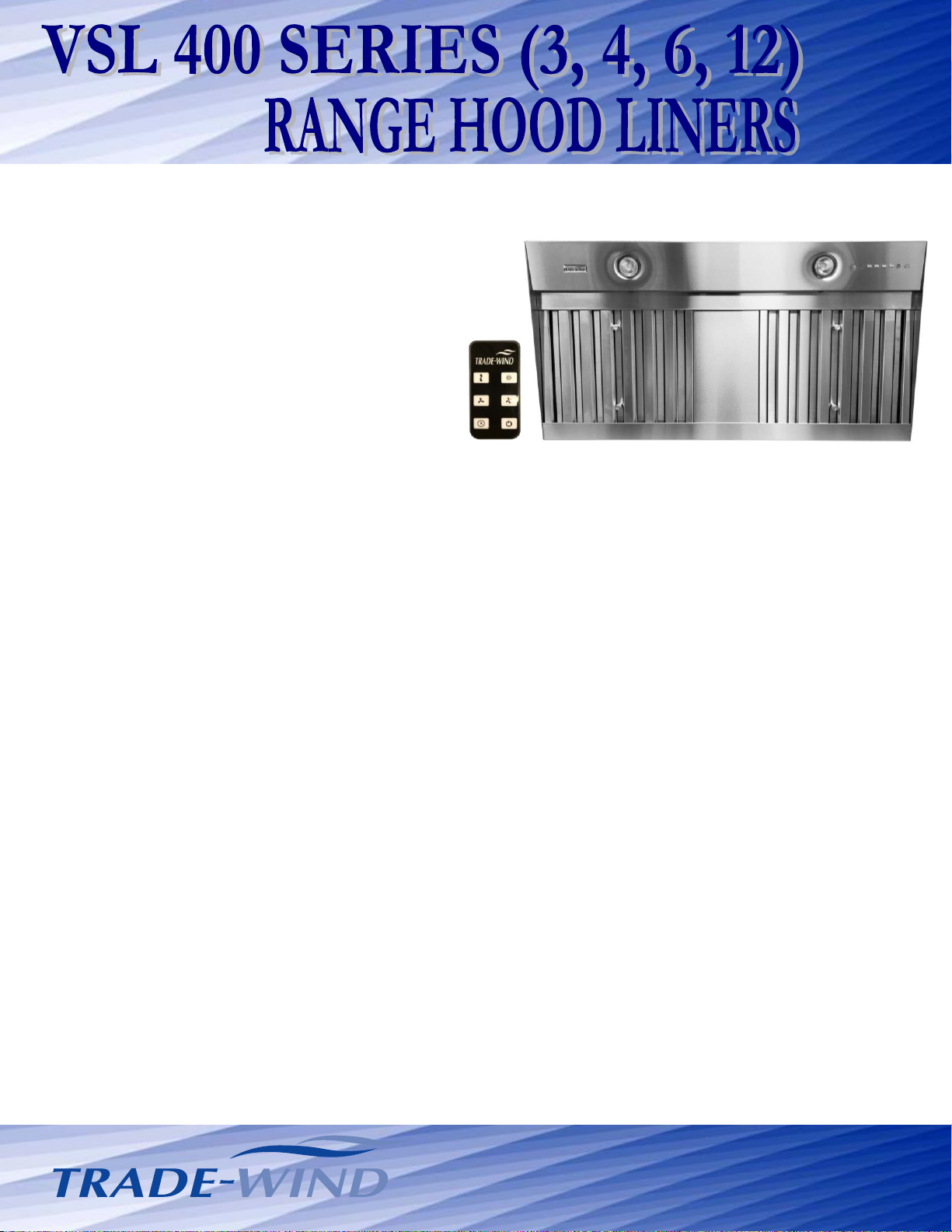

For those who need ventilation performance
and desire the commercial style baffle filters,
our VSL 400 Series Liner will exceed
your expectations.
Experience…
REMOTE CONTROL
Easy to operate
Optional automatic 5 minute shut off timer
EASY CLEANING
Dishwasher safe commercial stainless steel baffle filters
Leading edge design is easy to clean. Eliminates grease traps
No unsightly screws to clean around.
QUIET OPERATION
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration noise
(390 CFM, 600 CFM, 1200 CFM models)
3-speed motor control reduces blower and air movement sound
Large, stainless steel baffle filters reduce air movement sound
ENDURING QUALITY
Internal motor models deliver 390 CFM, 600 CFM or 1200 CFM (390 CFM is Code Compliant)
Commercial grade stainless steel (#304 grade with #4 brush finish) and galvanized steel construction
Oversized stainless steel baffle filters improve ventilation performance
Two LED lights brighten cooking area; three on 448, 454 & 460 models
Performance tested by Energy Systems Laboratory at Texas A&M University
DISTINCTIVE LOW PROFILE DESIGN
Style complements ALL custom and manufactured wood hood designs
Electronic touch controls with blue LED back lighting, with NEW REMOTE CONTROL
Simplicity of design preferred by home owners and builders.
EASY INSTALLATION
Remote blower models pre-wired for use with most in-line or exterior blowers
Installs easily in standard size or custom built wood range hoods
Wiring diagram label for simple electrical connection
VSL400 SERIES
Page 2
Notes:
Models Available (by Width)
Pic
CFM
28 3/8”
34 3/8”
40 3/8”
46 3/8”
52 3/8”
58 3/8”
Sones
Control
Blower
A
390
VSL4303RC
VSL4363RC
VSL4423RC
- - -
5
3-Speed
Internal Motor
B
390
VSL4304RC
VSL4364RC
VSL4424RC
- - -
7
3-Speed
Internal Motor
C
600
VSL4306RC
VSL4366RC
VSL4426RC
VSL4486RC
- - 7.5
3-Speed
Internal Motor
D
1200 - -
VSL44212RC
VSL44812RC
VSL45412RC
VSL46012RC
8.5
3-Speed
Two Internal
Motors
Notes:

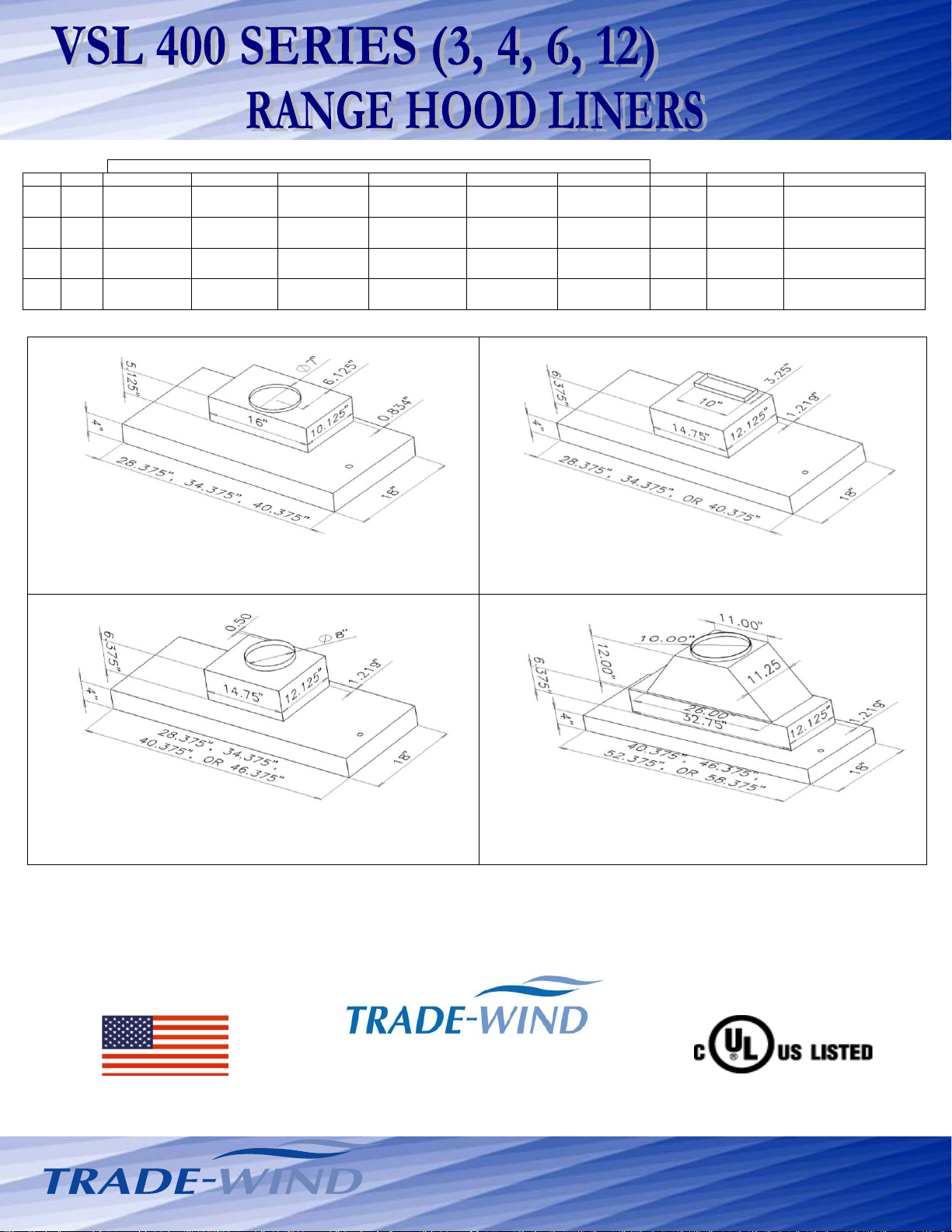

1. Center of electrical access is 7” from front & 2 1/2” from side of liner. Connection
access is behind filters.
2. Vent is centered left to right. Damper is not included.
3. Length & width cutouts should be 1/8” larger than above dimensions.
Notes:
1. Center of electrical access is 7” from front & 2 1/2” from side of liner. Connection
access is behind filters.
2. Vent is centered left to right. Damper is included.
3. Length & width cutouts should be 1/8” larger than above dimensions.
Notes:
1. Center of electrical access is 7” from front & 2 1/2” from side of liner. Connection
access is behind filters.
2. Damper not included.
3. Length & width cutouts should be 1/8” larger than above dimensions.
1. Center of electrical access is 7” from front & 2 1/2” from side of liner. Connection
access is behind filters.
2. Damper not included.
3. Length & width cutouts should be 1/8” larger than above dimensions.
C D B
A
MADE IN PHOENIX, AZ USA
** Drawings C and D are also available in 22” depth. Specify when ordering.
