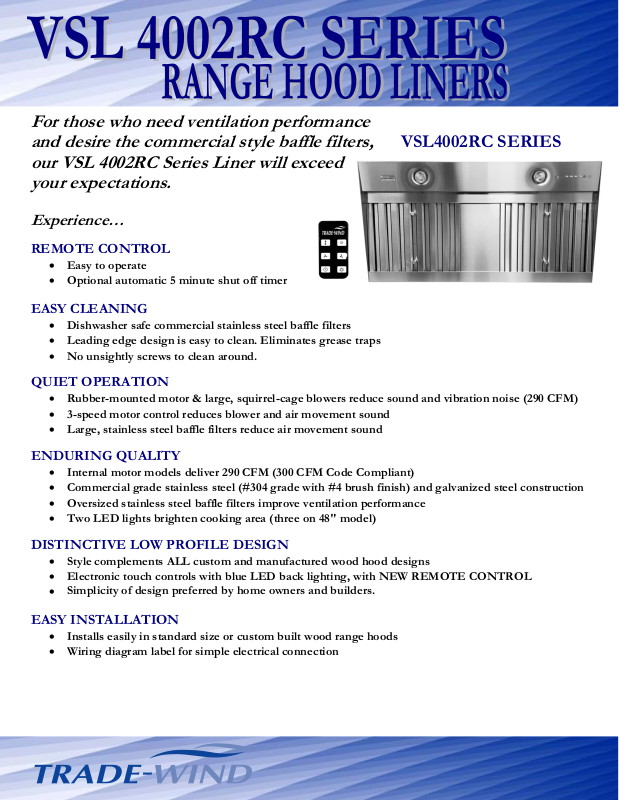

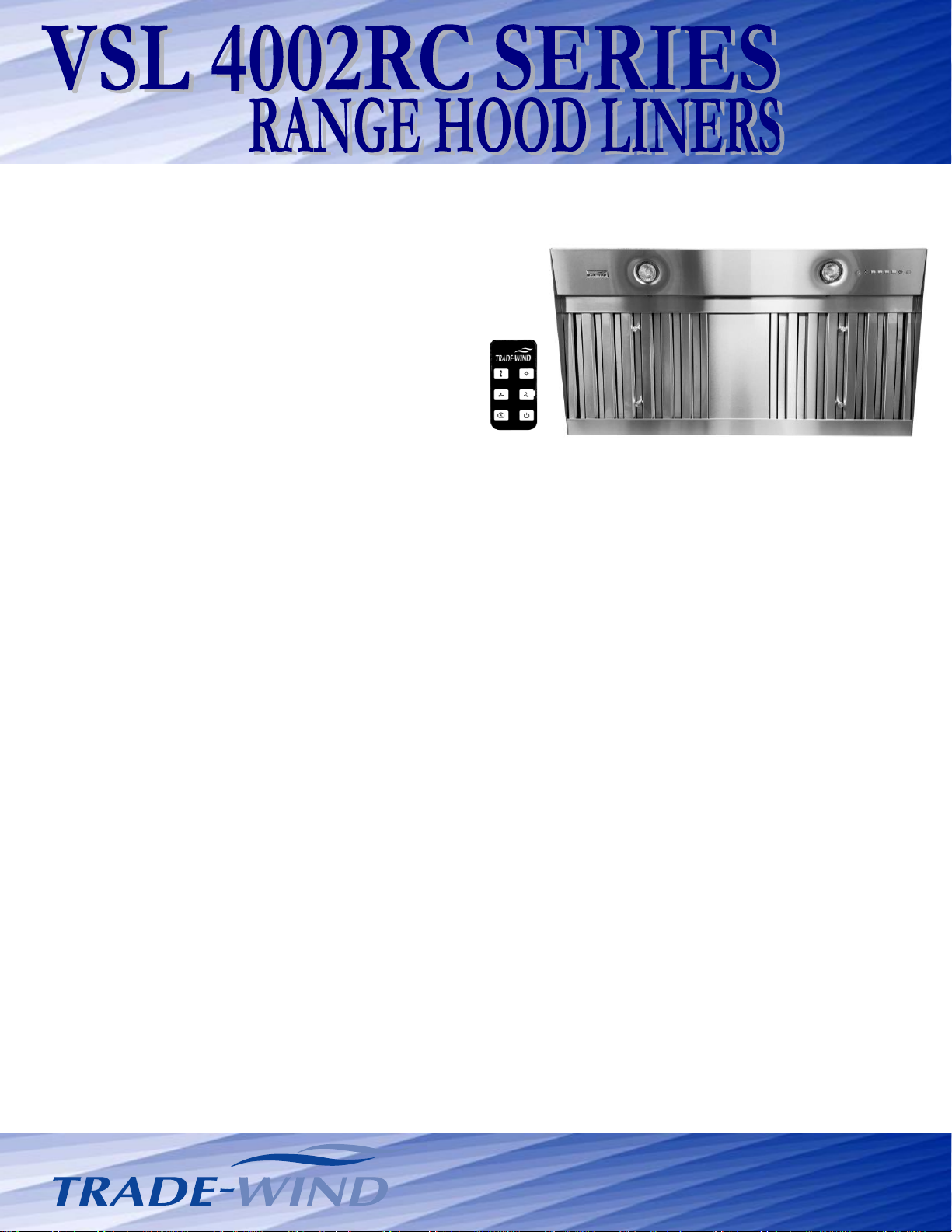

For those who need ventilation performance
and desire the commercial style baffle filters,
our VSL 4002RC Series Liner will exceed
your expectations.
Experience…
REMOTE CONTROL
Easy to operate
Optional automatic 5 minute shut off timer
EASY CLEANING
Dishwasher safe commercial stainless steel baffle filters
Leading edge design is easy to clean. Eliminates grease traps
No unsightly screws to clean around.
QUIET OPERATION
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration noise (290 CFM)
3-speed motor control reduces blower and air movement sound
Large, stainless steel baffle filters reduce air movement sound
ENDURING QUALITY
Internal motor models deliver 290 CFM (300 CFM Code Compliant)
Commercial grade stainless steel (#304 grade with #4 brush finish) and galvanized steel construction
Oversized stainless steel baffle filters improve ventilation performance
Two LED lights brighten cooking area (three on 48" model)
DISTINCTIVE LOW PROFILE DESIGN
Style complements ALL custom and manufactured wood hood designs
Electronic touch controls with blue LED back lighting, with NEW REMOTE CONTROL
Simplicity of design preferred by home owners and builders.
EASY INSTALLATION
Installs easily in standard size or custom built wood range hoods
Wiring diagram label for simple electrical connection
VSL4002RC SERIES
Page 2
Models Available (by Width)
Pic
CFM
28 3/8”
34 3/8”
40 3/8”
46 3/8”
Sones
Control
Blower
A
290
VSL4302RC
VSL4362RC
VSL4422RC
VSL4482RC
5
3-Speed
Internal Motor
MADE IN PHOENIX, AZ USA
A.
Notes:

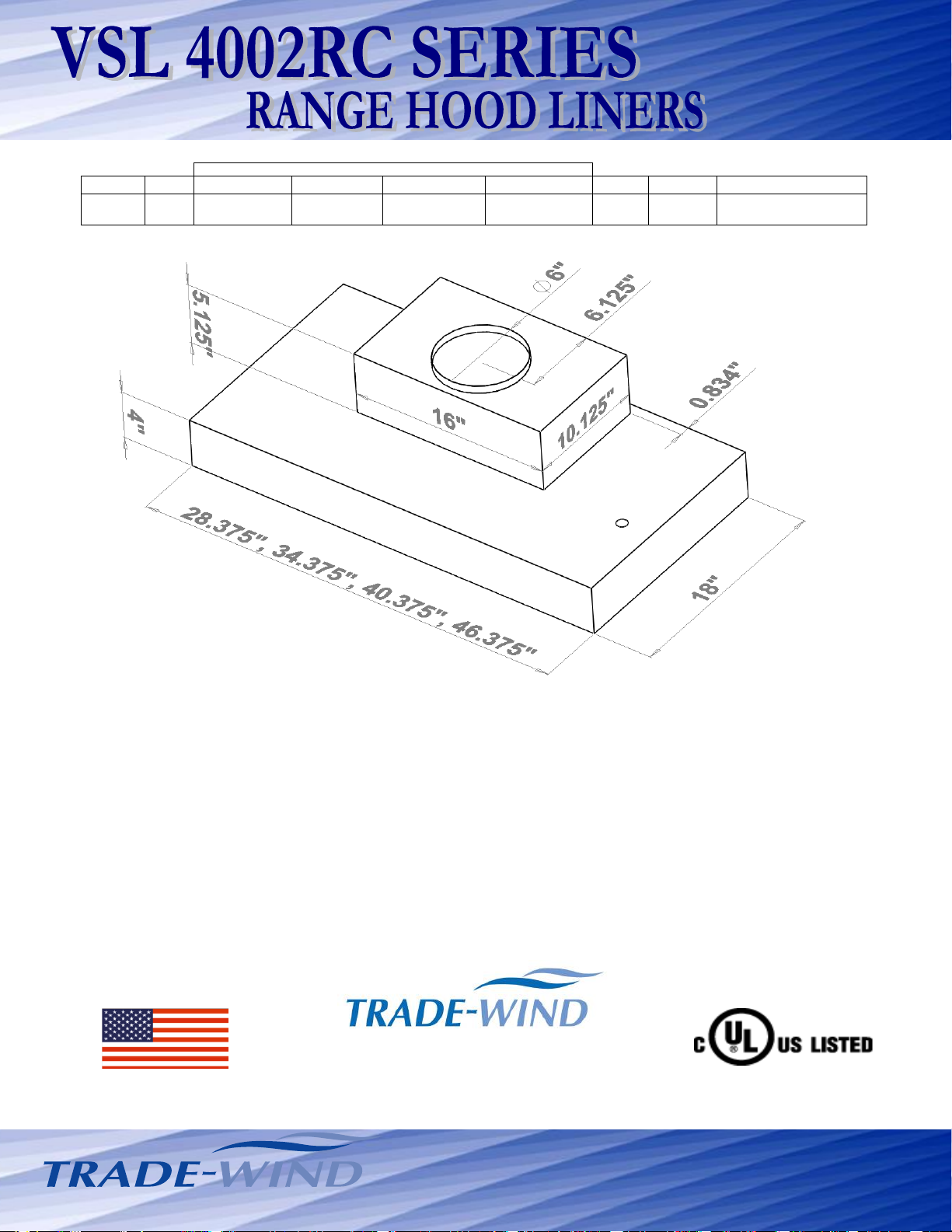

1. Center of electrical access is 7” from front & 2 1/2” from side of liner. Connection access is behind filters.
2. Vent is centered left to right. Damper is not included.
All dimensions are nominal +/- 1/8”
All models exhaust vertically through a 6” round duct
(For rear discharge use a 90° elbow, not provided)
Trade-Wind Manufacturing, LLC® has a policy of continuous improvements and reserves the right to modify (at any time without notice) any or all of its products,
features, designs, components and specifications. For further information on installation and wiring, see the installation instructions included with the product or
visit us on the web.
For more information please contact your dealer or your Trade-Wind® representative.
800 West Grant Street Phoenix, AZ 85007
1-800-955-5737
602-900-8500
t-wusa.com
Revised 08/01/2018 © Copyright 2018 Trade-Wind Manufacturing, LLC. Proverbs 22:29
