Tracker P200 User Manual

Tracker P200

GPS/ GSM/Indoor

User Guide

Content

USER GUIDE ……………………………………………………………………………1

1 INTRODUCTION………………………...………………………………………………..3

2 FEATURE …………………………………………………………………………………4

3 GET STARTED……………………………………………………………………….……5

(3.1)Accessories…………………………………………………………………………..6

(3.2) Charge Battery………………………………………………………………………6

(3.3) Buy SIM Card……………………………………………………………….……… 6

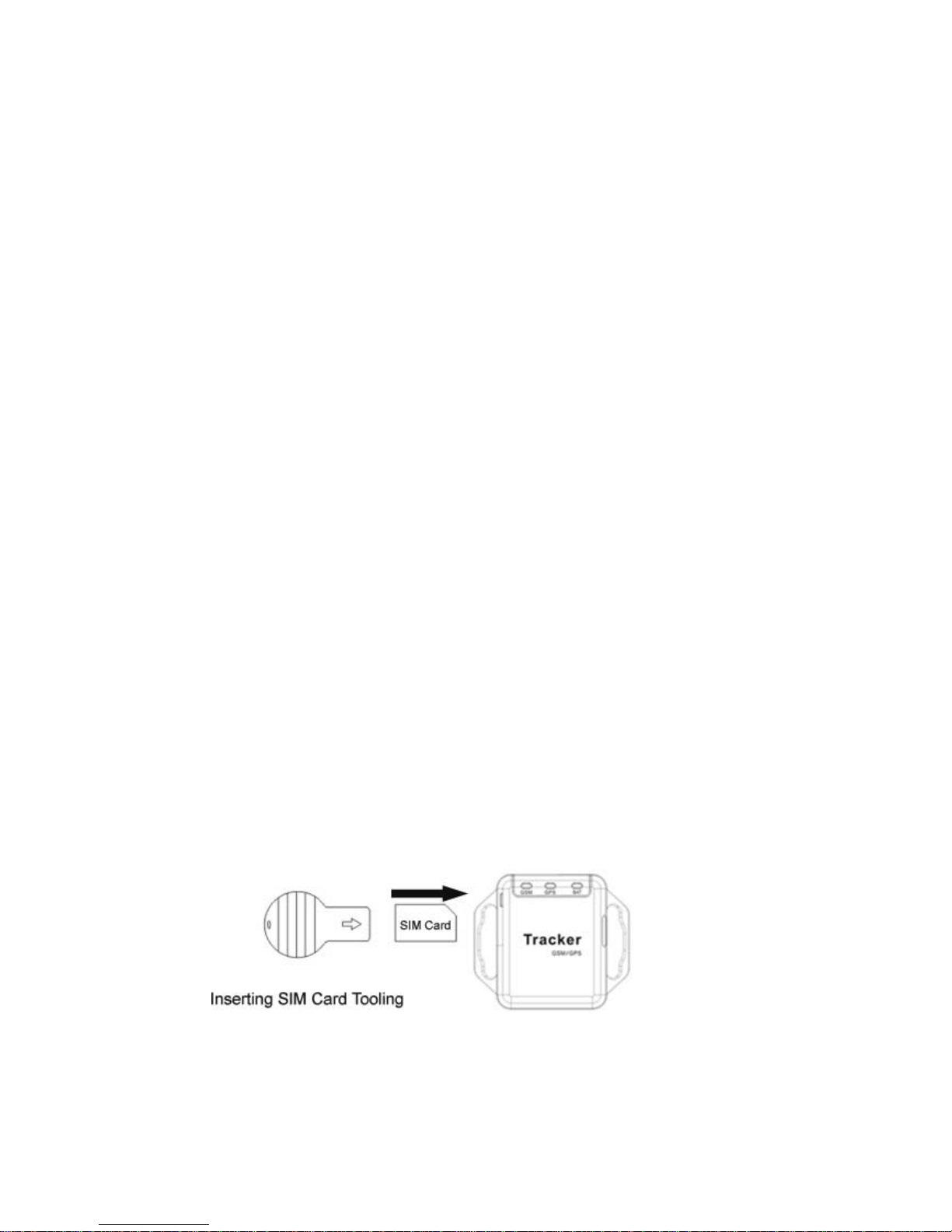

(3.4) Install SIM Card……………………………………………………………………...6

4 OPERATION………………………………………………………………………………..7

(4.1)Fast Startup operation……………………………………………………….……..7

(4.2)Authorized User/s setting……………………………………………...…………..7

(4.3) Usage…………………………………………………………………...……...…..8

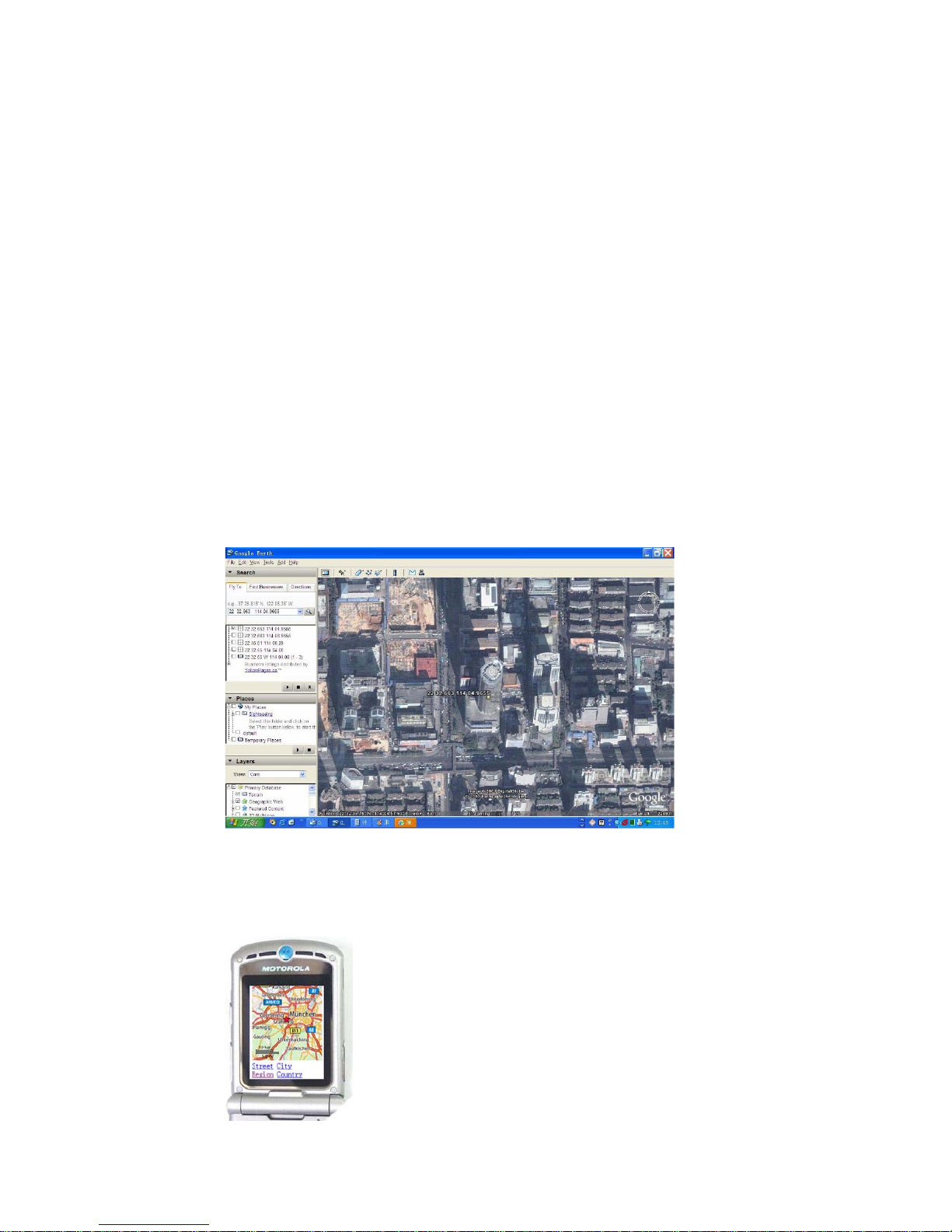

5 DISPLAYING LOCATION……………………………………………………..…………10

6 SPECIFICATION………………………………………………………………………....11

7 FREQUENTLY ASKED QUESTIONS……………………………………………..…..12

1 Application & Introduction:

Transportation : Locating the trucks

Car : Locating the missing car

Child care: Tracking the lost child

Elderly care : Dementia sufferers’ and senior safety

Animal Tracking: Finding the missing pets location

Outdoor activities: Bike riding and hiking

P200 is a personal remote position device with build-in GPS and GSM/GPRS

modules. It is a small size, high accuracy remote location tracking device. Based on

GPS satellite , it provides accurate position information under dynamic conditions .

Personal remote position device transmit the longitude and latitude coordinate to

authorized cell phone.

You can use these features for protecting and searching car, boat, Pet ,children and

old persons. Further , you can use it as a security purpose and other purpose which

needs remote positioning such as asset protection and animal tracking.

2 Feature.

♦ Build-in GPS personal locator.

♦ GSM /SMS communication or GPRS TCP/UDP connection.

Support 850/900/1800/1900 MHZ.(Optional)

♦ 20 channels high sensitivity GPS Module

♦ Compact size, and smaller than one name card. Easy to hide

♦ Very Low power consumption, Standby time is more than 12 hours

♦ Fast Signal Acquisition

♦ Support single location tracking

♦ Support location triggered by tracker

♦ Support location triggered by authorized cell phone

♦ Support alarm and remote monitor

♦ Support quick dialing buttons for 4 preset phone numbers

♦ Support check location by SMS and Internet

♦ Locate the locator holder by the mobile phone via SMS

♦ Geo-fencing to restrict movement to a defined radius.
