Tracker MD411-IR User Manual
Tracker Gold
Camera Mini Dome IP
User’s Manual
Ver. 1.1
MD411-IR
1
Table of Contents
1. Overview ................................................................................................................................ 2
1.1 Features ...................................................................................................................... 2
1.2 Package Contents ....................................................................................................... 3
1.3 Dimensions .................................................................................................................. 5

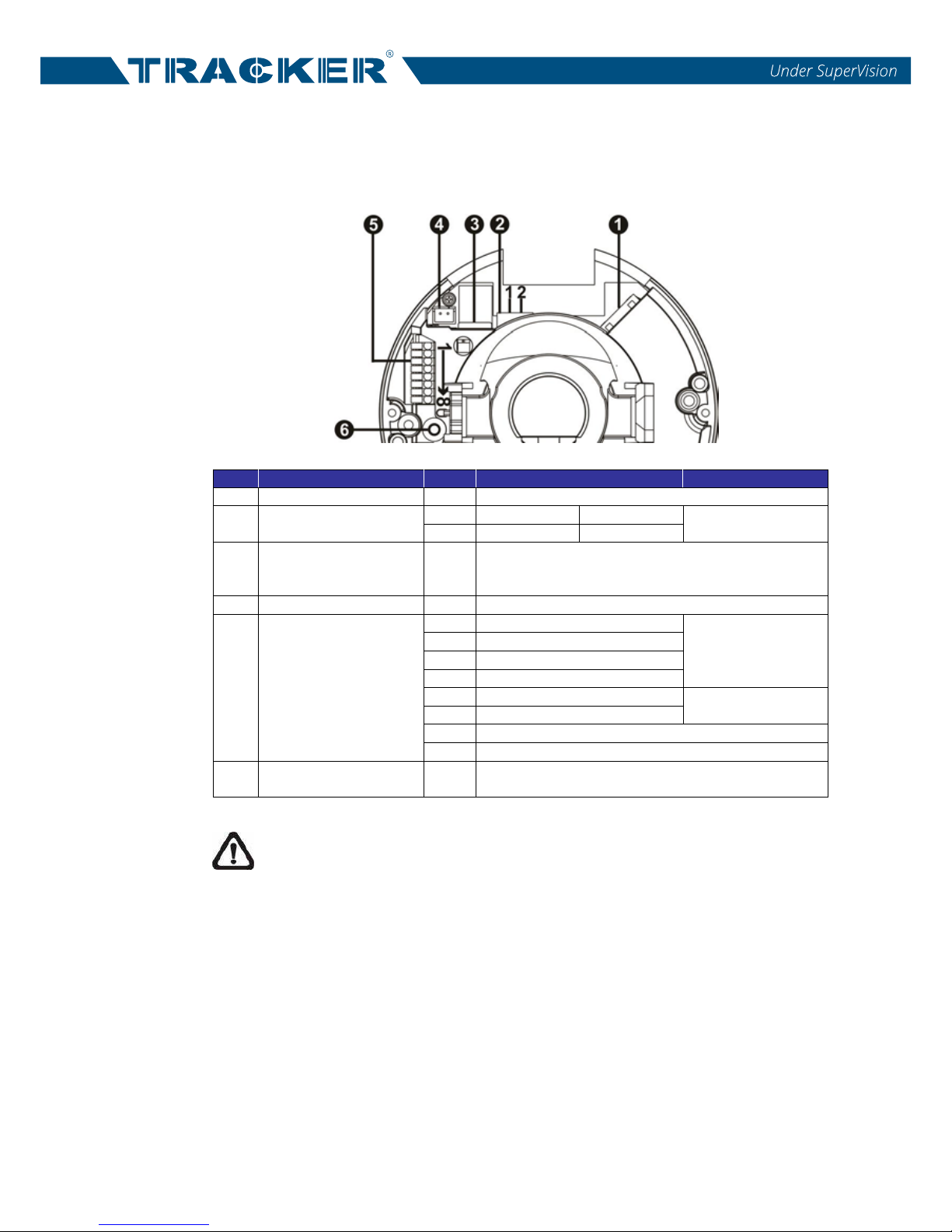

1.4 Connectors (Indoor Only)............................................................................................. 6

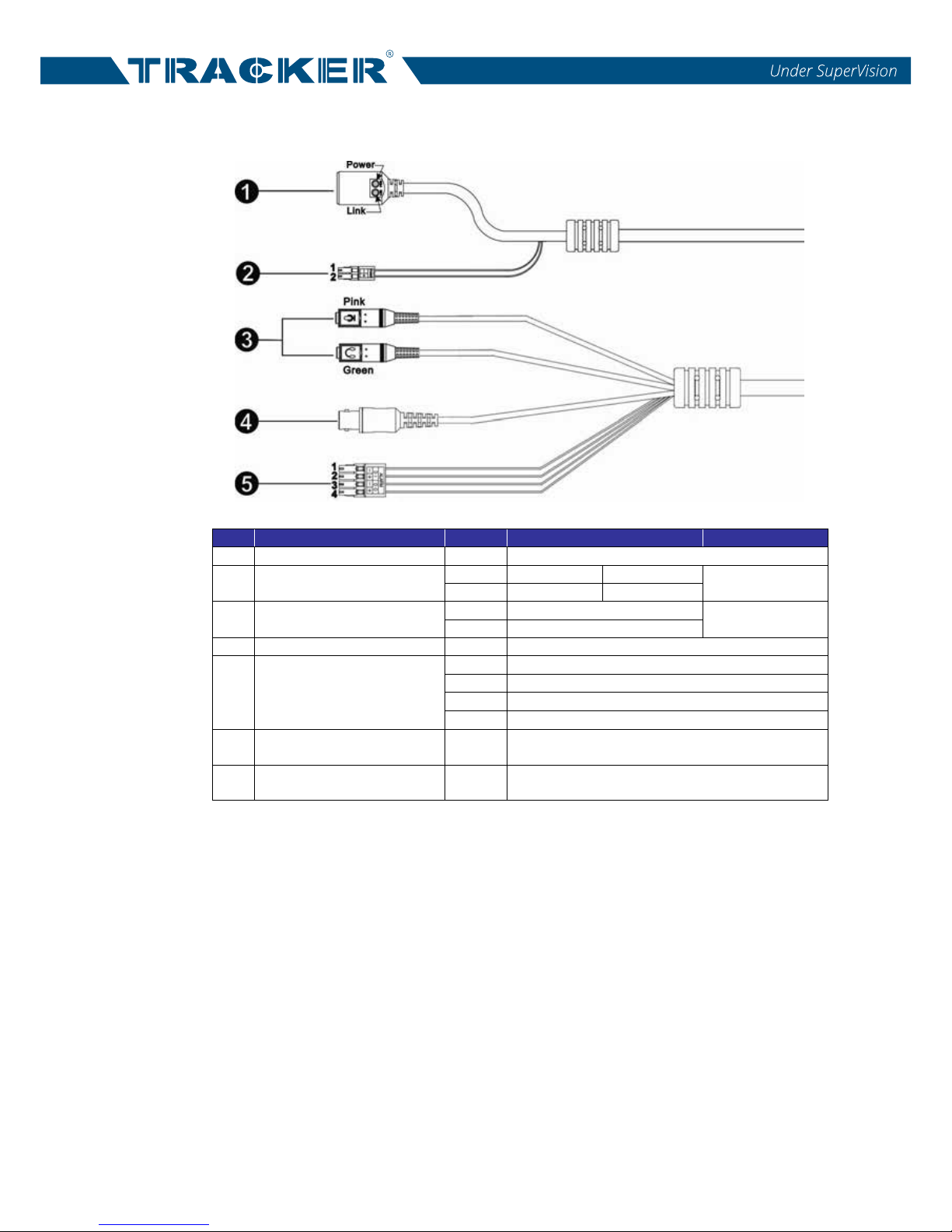

1.5 Function Cables (Outdoor Only) .................................................................................. 7
2. Camera Cabling ..................................................................................................................... 8
2.1 Power Connection ....................................................................................................... 8
2.2 Ethernet Cable Connection .......................................................................................... 8

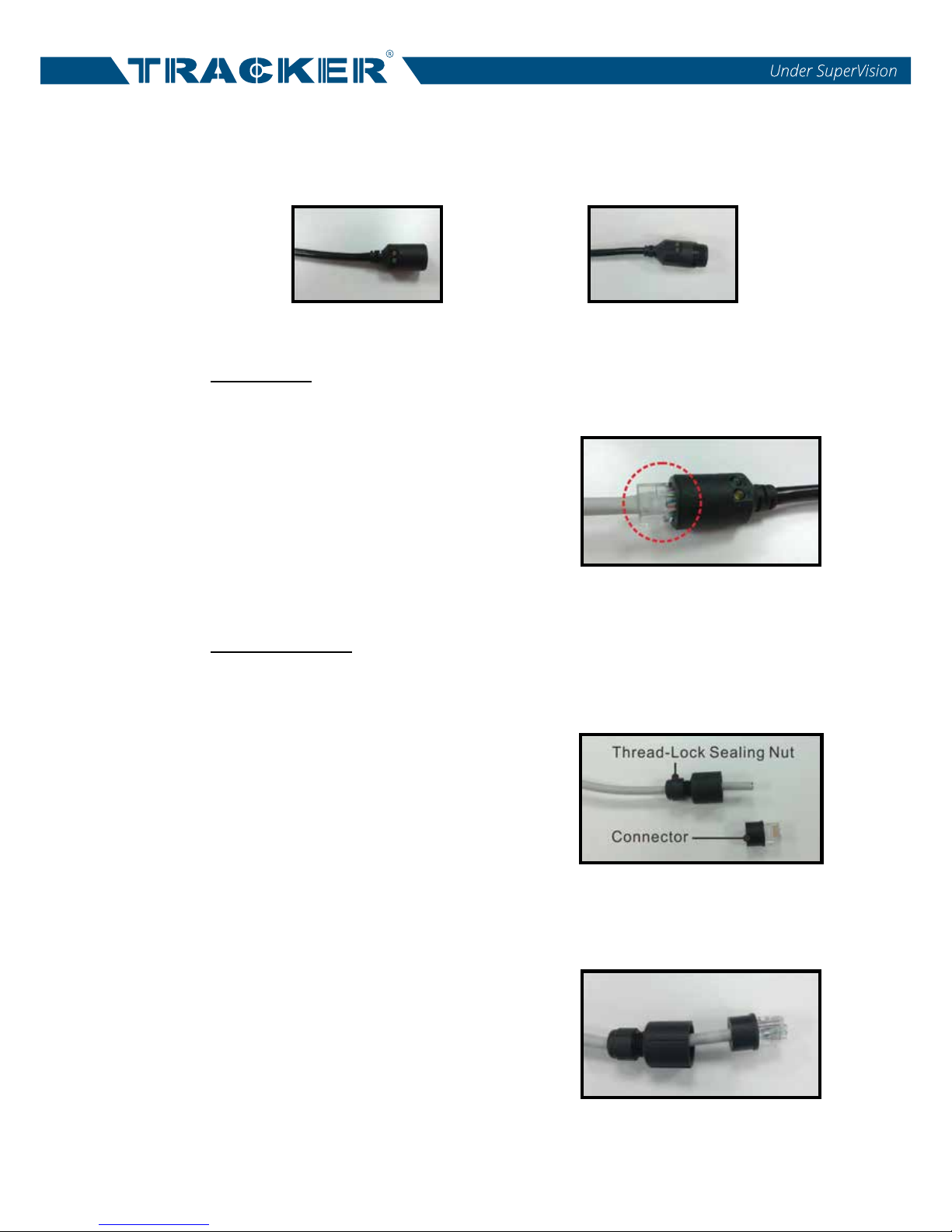

2.3 Waterproof Cable Connector (Outdoor Only) ............................................................... 9
3. System Requirements ........................................................................................................ 10
4. Access Camera ................................................................................................................... 12
5. Setup Video Resolution ...................................................................................................... 15
6. Configuration Files Export / Import ................................................................................... 16
7. Tech Support Information .................................................................................................. 17
7.1 Delete the Existing Viewer ......................................................................................... 17
7.2 Setup Internet Security .............................................................................................. 18
Appendix: Technical Specifications
2
1. Overview
The Superior HDR Mini Dome IP Camera is a high-end surveillance solution
with easy set up design. Supporting up to 4M real-time video and Quad Streams
Codec (H.264 Baseline / Main / High Profile + MJPEG), the camera offers
supreme image quality while keeping efficient bandwidth for storage
management. Also, the camera is equipped with HDR function, and provides up
to 4M real-time stream with 2 shutter WDR image, which is suitable for
scenarios under extreme light contrast or environments with changing lighting.
1.1 Features
Multiple Progressive Scan CMOS Sensor Support 4M Resolution
Multi-exposure HDR
Low Latency Streaming
Low Power Consumption on Encoding
Quad Codec Support (H.264 Baseline / Main Profile / High Profile / MJPEG)
Quad Streams Support
Smart Event Function-
Motion Detection / Network Failure Detection / Tampering Alarm / Periodical
Event / Manual Trigger / Audio Detection
Text Overlay and Privacy Masks
3D Motion Compens
ated Noise Reduction (MCTF)
True Day / Night Function (ICR)
Smart IR Mode
IR LED Module Support (Working Distance up to 30m)*
BNC Analog Output (Installation Purpose)*
Weatherproof (IP66 International)*
64GB SDXC SD Card Support
ONVIF Profile S Support
(*) Optional
3
1.2 Package Contents
Please check the package containing the following items listed below.
Indoor
Superior HDR
Mini Dome IP Camera
2-Pin Power Terminal Block
Self-Tapping Screw (x3)
Plastic Screw Anchor (x3)
Quick Guide
CD
(bundled software and documentation)
NOTE: The supplied self-tapping screws are for soft substances /
materials such as wood. For other installation environments such as
cement wall, it is required to pre-drill and use plastic anchors before
fastening the supplied self-tapping screws on the wall.
4
Outdoor
Superior HDR
Mini Dome IP Camera
Rubber Washer (x2)
Security Torx
Self-Tapping Screw (x3)
Plastic Screw Anchor (x3)
2-Pin Power Terminal Block
4-Pin Alarm I/O Terminal Block
Quick Guide
CD
(bundled software and documentation)
NOTE: The supplied self-tapping screws are for soft substances /
materials such as wood. For other installation environments such as
cement wall, it is required to pre-drill and use plastic anchors before
fastening the supplied self-tapping screws on the wall.
5
1.3 Dimensions
The dimensions of the camera are shown below.
Indoor
Outdoor
