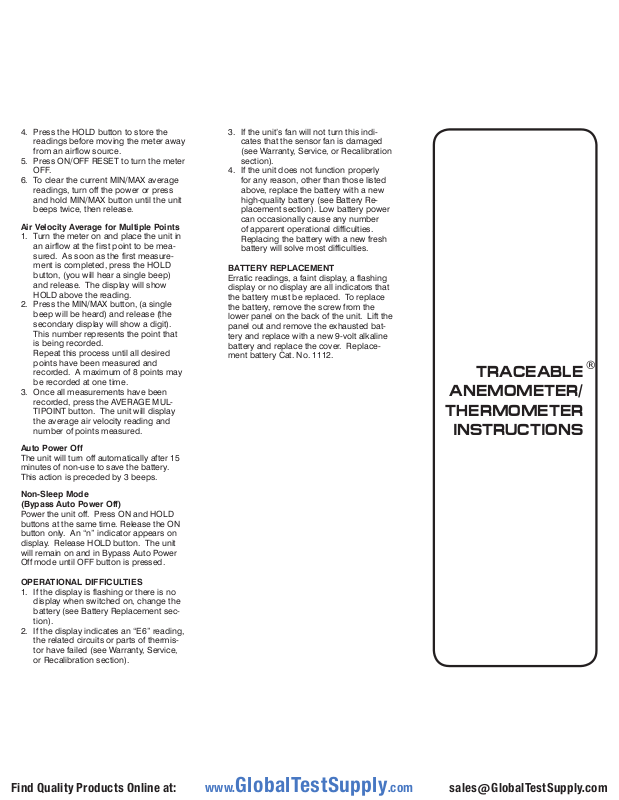

4. Press the HOLD button to store the
readings before moving the meter away
from an airflow source.
5. Press ON/OFF RESET to turn the meter
OFF.
6. To clear the current MIN/MAX average
readings, turn off the power or press
and hold MIN/MAX button until the unit
beeps twice, then release.
Air Velocity Average for Multiple Points
1. Turn the meter on and place the unit in
an airflow at the first point to be measured. As soon as the first measurement is completed, press the HOLD
button, (you will hear a single beep)
and release. The display will show
HOLD above the reading.
2. Press the MIN/MAX button, (a single
beep will be heard) and release (the
secondary display will show a digit).
This number represents the point that
is being recorded.
Repeat this process until all desired
points have been measured and
recorded. A maximum of 8 points may
be recorded at one time.
3. Once all measurements have been
recorded, press the AVERAGE MULTIPOINT button. The unit will display
the average air velocity reading and
number of points measured.
Auto Power Off
The unit will turn off automatically after 15
minutes of non-use to save the battery.
This action is preceded by 3 beeps.
Non-Sleep Mode
(Bypass Auto Power Off)
Power the unit off. Press ON and HOLD
buttons at the same time. Release the ON
button only. An “n” indicator appears on
display. Release HOLD button. The unit
will remain on and in Bypass Auto Power
Off mode until OFF button is pressed.
3. If the unit’s fan will not turn this indicates that the sensor fan is damaged
(see Warranty, Service, or Recalibration
section).
4. If the unit does not function properly
for any reason, other than those listed
above, replace the battery with a new
high-quality battery (see Battery Replacement section). Low battery power
can occasionally cause any number
of apparent operational difficulties.
Replacing the battery with a new fresh
battery will solve most difficulties.
BATTERY REPLACEMENT
Erratic readings, a faint display, a flashing
display or no display are all indicators that
the battery must be replaced. To replace
the battery, remove the screw from the
lower panel on the back of the unit. Lift the
panel out and remove the exhausted battery and replace with a new 9-volt alkaline
battery and replace the cover. Replacement battery Cat. No. 1112.
®
TRACEABLE
ANEMOMETER/
THERMOMETER
INSTRUCTIONS
OPERATIONAL DIFFICULTIES
1. If the display is flashing or there is no
display when switched on, change the
battery (see Battery Replacement section).
2. If the display indicates an “E6” reading,
the related circuits or parts of thermistor have failed (see Warranty, Service,
or Recalibration section).
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
SPECIFICATIONS
Display: ½s 4-digit, 2-line LCD
Range:
Air Velocity
Meters - 0.40 to 30.00 per sec.
Kilometers - 1.4 to 108.0 per hour.
Feet - 80 to 5900 per minute.
Miles - 0.9 to 67.0 per hour.
Knots - 0.8 to 58.0
Temperature
14.0° to 122°F and 10.0° to 50.0°C
Resolution:
Air Velocity
Meters - 0.01 meter
Kilometers - 0.1 km
Feet - 1 foot
Miles - 0.1 mile
Knots - 0.1 knot
Temperature - 0.1° (for both °F and °C)
Accuracy:
Anemometer - ±3% of full scale
Thermometer - ±1°C
Size: 7¼ x 3 x 1¾s (fan diameter 2¾s
Weight: 7.3 oz
FEATURES
x ABS plastic case, chemical and
shock resistant
x Extra-large digits for easy readings in dif-
ficult locations
x Single hand operation
x Display updates instantaneously
x Memory button permits recalling highest
and lowest readings
x HOLD button freezes the display at the
current reading
x AVERAGE button allows from 2 to 8 read-
ings to be averaged automatically
x Single point air velocity measurement for
minimum, maximum and average read-
ings
x Continuous moving average air velocity
measurement
x Auto power off function
x Non-sleep mode (bypass auto power off)
x Unit selectable (Imperial/Metric): ft/min,
mph, knots / m/s, km/hr, knots
x Supplied with RS-232 serial output jack to
connect directly to a computer
x Computer interface setting
BUTTONS/DISPLAY/INDICATORS
1. ON-OFF/RESET button
2. HOLD button - Freezes the display
3. AVERAGE MULTI-POINT button - com-
putes average for multi-point readings
4. SEL: MIL/H KNOT button - Selects re-
quired air velocity units
5. MN/MX REC SINGLE-POINT button - Se-
lects minimum, maximum and average air
velocity for a single point reading.
6
. Primary display - Air velocity
7. Secondary display - Temperature display
or indicator for number of multipoint readings in Multi-Point mode
8. “vel” Indicator - always on for air velocity
measurement
9. “Hold” - Indicates display is frozen
10. “knots” - Nautical miles per hour= 1850
meters per hour = 1.15 miles per hour
11.
“ft/m” or “m/s” - Feet per minute or meters
per second
12. “mil/h” or “km/h” - Miles per hour or
kilometers per hour
13. “qC” - degrees Celsius
14. “qF” - degrees Fahrenheit
15. “REC” - Indicates reading is recorded and
saved
16. “MIN” - Minimum reading indicator
17. “MAX” - Maximum reading indicator
18. “AVG” - Average reading indicator
19. ““ - Minus temperature reading indicator
OPERATION
Measurement Default (Imperial /Metric)
1. Make sure the unit is OFF by pressing the
ON-OFF/RESET button.
2. Press and hold the AVERAGE button.
Then press the ON/OFF button once to
turn the unit on. When the “ft/m, m/s” and
“qC, qF” indicators appear, release the
AVERAGE button.
3. To select metric units, press the HOLD
button. “m/s and “qC” will show on the
display. To select imperial units, press the
AVERAGE button. “ft/m” and “qF” will appear on display.
4. Press the MIN/MAX REC button. A “5”
will show on the display. Press the HOLD
button. A pre-setting of “1200” or “2400”
baud will display.
5. Press the MIN/MAX REC button again.
The “5” indicator will display again. Press
the HOLD button; the unit will revert to the
normal measurement display. The default
setting is now complete.
6. Press the HOLD button to measure the
current air velocity and temperature with
the selected units. The “HOLD” indicator
should disappear.
NOTE: Not pressing the HOLD button
retains the display in freeze mode.
Air Velocity Measurements
ft/min, mph or knots - Set the unit to Impe-
rial measures. Each press of the “SEL: MIL/H
KNOT” button will change the reading to ft/
min, mil/h or knots.
Km/hr or m/s or knots - Set the unit to metric measures. Each press of the “SEL: MIL/H
KNOT” button will change the reading to Km/
hr, m/s or knots.
Typical Air Velocity
and Temperature Measurement
Place the meter in an air stream. Make
sure that the air stream and the sensor are
aligned. Allow three seconds for the reading
to stabilize.
Measuring Air Velocity (Single Point)
1. Press ON/OFF button to turn on unit. The
display will appear after 5 seconds.
2. Unit is ready for use when the “vel” indicator appears at upper left hand corner and
“qC” or “qF” appears at the lower right
hand corner.
Continuous Moving Average
The unit can display a continuous moving
average for up to 2 hours.
1. Power the unit ON.
2. Place the unit in an airflow.
3.
Press MIN/MAX REC SINGLE-POINT
button once. “REC” and “AVG” appearing in the lower left corner of the display
confirms that the meter is in continuous
moving average measurement mode.
The display will update once per second.
Minimum/Maximum/
Average Reading On a Single Point
1. Power the unit ON.
2. Place the unit in an airflow.
3. Press the MIN/MAX REC SINGLE-POINT
button. The unit will begin to record the
readings. The meter displays the average
air velocity by default. Each press of
the MIN/MAX button cycles the display
through the following readings:
x No indicator - Real-time readings
x REC - Unit is recording the reading
x AVG REC - Unit is recording the aver-
age velocity
x MIN REC - Unit is recording the mini-
mum velocity
x MAX REC - Unit is recording the maxi-
mum velocity
