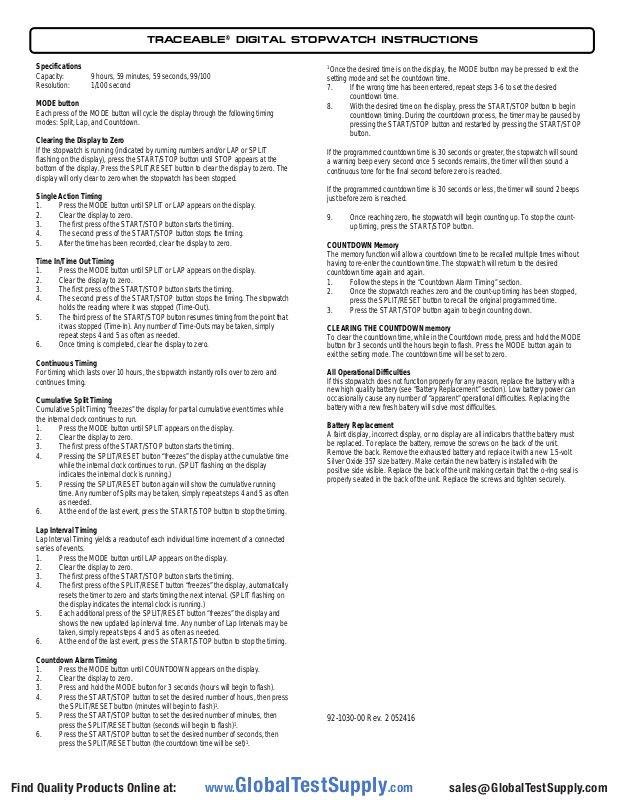

TRACEABLE® DIGITAL STOPWATCH INSTRUCTIONS
Specifications
Capacity: 9 hours, 59 minutes, 59 seconds, 99/100
Resolution: 1/100 secon d
MODE bu
tton
Each press of the MODE button will cycle the display through the following timing
modes: Split, Lap, and Countdown.
ng the Display to Zero
Cleari
If the stopwatch is running (indicated by running numbers and/or LAP or S PLIT
flashing on t he display), pr ess the STAR T/STOP butto n until STOP ap pears at the
bottom of th e display. Pres s the SPLIT/R ESET button to clear the dis play to zero. Th e
display will only clear to zero wh en the stopwatch has been stopped.
Singl
e Action Timing
1. Press the MODE button unti l SPLIT or LAP appears on th e display.
2. Clear the display to zero.
3. The first pr ess of the START/STOP button starts the timing.
4. The second pr ess of the START/STOP button stops the timing.
5. After the tim e has been recor ded, clear th e display to zer o.
/Time Out Ti m ing
Time In
1. Press the MODE button unti l SPLIT or LAP appears on th e display.
2. Clear the display to zero.
3. The first press of the START/STOP button starts the timing.
4. The second pr ess of the START/STOP button stops the t iming. The stopwatch
holds the reading where it was stopped (Time-Out).
5. The third press of the START/STOP butto n resumes timing from the point that
it was stopped (Time-In). Any number of Time-Outs may be taken, simply
repeat steps 4 and 5 as ofte n as needed.
6. Once timing is completed, clear the display to zero.
Conti
nuous Timing
For timing which lasts over 10 hours, the stopwatch inst antly rolls over to zero and
continues ti m ing.
ative Split Timing
Cumul
Cumulative Split Timing “ freezes” the display for part ial cumulative event times while
the internal clock continu es to run.
1. Press the MODE button unti l SPLIT appear s on the display.
2. Clear the display to zero.
3. The first pr ess of the START/STOP button starts the timing.
4. Pressing the SPLIT/RESET button “freezes” the displ ay at the cumulative time
while the int ernal clock c ontinues to ru n. (SPLIT flashing on the display
indicates t he internal clock is running.)
5. Pressing the SPLI T/ RE SE T button again will show the cumulative running
time. Any number of Splits may be taken, simply repeat steps 4 and 5 as often
as needed.
6. At the end of the last event, press the START/STOP button to stop the timing.
1
Once the desired time is on the display, the MODE butto n may be pressed to exit the
setting mode and set the co untdown time.
7. If the wrong time has been entered, repeat steps 3-6 to set the desired
countdown t ime.
8. With the desired time on the display, press the ST ART/STOP button to begin
countdown t iming. During the countdown process, the timer may be paused by
pressing the START/STOP button and restarted by pres sing the START/STOP
button.
If the pro
grammed countdown time is 30 seconds or greater, the stopwatch will sound
a warning be ep every second once 5 seconds remains, the timer will then sound a
continuous tone for the fi nal second before zero is reac hed.
grammed countdown time is 30 seconds or l ess, the timer will sound 2 beeps
If the pro
just before z ero is reached.
9. Once reac
hing zero, the stopwatch wi ll begin counting up. To s top the count-
up timing, pr ess the START/STOP button.
COUNTDO
WN Memory
The memory function will al low a countdo wn time to be recalled multiple times without
having to re-enter the countdown time. T he stopwatch will return to the desired
countdown t ime again and a gain.
1. Follow the steps in the “Countdown Alarm Timing” sect ion.
2. Once the sto pwatch reaches zero and the count-up timing has been stopped,
press the SP LIT/RESET button to recall the original programmed ti me.
3. Press the STA RT/STOP button again to begin counting d own.
CLEARING THE COUNTDOWN memory
To clear the countdown time, while in the Countdown mode, press and hol d the MODE
button for 3 seconds until the hours begin to flash. Press the MODE button again to
exit the setting mode. The c ountdown time w ill be set to zero.
All Operational Difficulties
If this stopwatch does not function pro perly for any reason, replace the battery with a
new high qualit y battery (see “Battery Replacement” section). Low battery power can
occasionall y c ause any number of “apparent” operatio nal difficulties. Replacing the
battery with a new fresh battery wi ll solve most difficulties.
Battery Replacement
A faint display, i ncorrect display, or no di splay are all indicators that the battery must
be replaced. To replace the battery, remove the screws on the back of th e unit.
Remove the back. Remove the exhausted battery and replace it with a ne w 1.5-volt
Silver Oxide 357 size battery. Make certain the ne w battery is instal led with the
positive side visible. Replace the back of the unit m ak ing certain th at t he o-ring seal is
properly seated in the back of the unit. Replace the screws and tighten securely.
Lap Interval Timi n g
Lap Interval Timing yields a readout of each individual time increment of a connected
series of events.
1. Press the MODE button unti l LAP appears on the display.
2. Clear the display to zero.
3. The first pr ess of the START/STOP button starts the timing.
4. The first pr ess of the SPLIT/RESET butto n “freezes” the dis play, automati cally
resets the tim er to zero and starts timing the next interval. (SPLIT f lashing on
the display indicates the internal cloc k is running.)
5. Each additional press of t he SPLIT/RESET button “fre ezes” the display and
shows the new updated lap i nterval time. Any number of Lap Intervals may be
taken, simply repeat steps 4 and 5 as often as needed.
6. At the end of the last event, press the START/STOP button to stop the timing.
Count
down Alarm Timin g
1. Press the MODE button unti l COUNTDOWN appears on the display.
2. Clear the display to zero.
3. Press and hold the MODE button for 3 seconds (hours will begin to flash) .
4. Press the STA RT/STOP button to set the des ired number of hours, the n press
the SPLIT/R ESET button (minutes will begin to flash)
5. Press the STA RT/STOP button to set the des ired number of minutes, t hen
press the SP LIT/RESET button (seconds will begin to fl ash)
6. Press the STA RT/STOP button to set the des ired number of seconds, then
press the SP LIT/RESET button (the countdown time will be set)
