Traceable 6482, 6470, 6486, 6484, 6485 User manual

...
NOTICE: To maintain IP67 waterproof rating
Start Datalogger Stop Datalogger
5 SEC
2X
1X
Set Mark Mark Limit FULL Status Request
Not Started Recording OK Recording Alarm
Stopped OK Stopped Alarm
• DO NOT TEAR OPEN POUCH • before data download
SPECIFICATIONS Range: –30.0 to 70.0°C (–22.0 to 158.0°F) Resolution: 0.1°C Accuracy: ±0.5°C/±0.9°F (–20 to 40°C);
±1°C/±1.8°F for remainder
Start Delay: 30 minutes Alarm Delay: 5 minutes Memory capacity: 16,000 points (max) Alarm: LED alarm Power Supply: 3.0V CR2450 lithium battery IP Rating: IP67 Storage: Store logger at room temperature before use.
TECHNICAL PARAMETERS
Datalogger is supplied with pre-programmed parameters.
DESCRIPTION
Traceable® Single-Use Datalogger is a single-use, elec-
tronic temperature data recorder specically designed
for measuring environmental temperatures during trans­portation of refrigerated vaccines, biological material, chemicals, pharmaceuticals, and for documenting the transportation of perishable commodities.
WARNING: Do not immerse datalogger in ethanol, oleic acid and other corrosive liquids.
START
STOP
Log Cycle: 120 days Log Interval: 12 min Start Delay: 30 min
H:> 8°C 30m (sin) L:< 2°C 30m (sin)
5 SEC
Recording OK Recording Alarm
2X
1X
Start Datalogger Stop Datalogger
Set Mark Mark Limit FULL Status Request Not Started
Stopped OK Stopped Alarm
FRONT BACK
FEATURES START/STOP BUTTON – Starts/Stops Datalogger. LOG CYCLE – Indicates preset number of days logger
will record once it has been initialized. LOG INTERVAL – Indicates how often preset logger will record a reading. START DELAY – Indicates preset time delay before data begins recording after user presses START button. RECORD LED – Indicates logger has begun recording data, (see RECORD LED for more information). STATUS LED – Indicates logger has stopped recording data, (see STATUS LED for more information).
H:>: Indicates the preset HIGH alarm limit threshold. L:<: Indicates the preset LOW alarm limit threshold. S/N: Unique serial number, also featured on a remov
-
able, adhesive label located on back.
OPERATION
1. START LOGGING Press and hold START/STOP button for
5 seconds to start logging. Green LED will ash 5 times. Place logger with materials to be monitored.
NOTE: Adhesive on back of unit is designed to conveniently place logger on any surface.
2. Once Logger has arrived at its nal destination. STOP LOGGING. Press and hold START/STOP button for 5
seconds to stop logging. Red LED will ash 5 times.
3. T o download and view PDF report, tear open protective plastic sleeve at perforation to expose USB.
4. Insert logger into a computer’s USB port to view PDF report.
LOGGER STATUS INDICATOR
PRESS DESCRIPTION LED INDICATOR
Green LED Flashes
Hold for
TO START LOGGER
while logging
(ashes once per min)
5 seconds
Red LED Flashes while NOT logging
(ashes once per min)
Red and Green LED Flash simultaneously
Red and Green LED Flash
Red and Green LED Flash simultaneously
2 Times
1 Time
TO STOP LOGGER
SET MARK
(see description below)
MARK LIMIT FULL
STATUS REQUEST NOT STARTED
SET MARK
Press START/STOP button 2 times in rapid succession to place a mark in the data report.
NOTE: Use SET MARK to mark a specic event, such as,
arrival, or departure, or to acknowledge some other factor needing digital reporting. When logger is full or reaches full capacity of Marks, both Red and Green LED will ash simulta­neously 3 times.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
DATA LOGFile Created At:
Device Information
Device Code : Serial Number : Mode Code :
Trip Information Mark Event
Trip Id : Description :
Configuration Information
Start Mode : Start Delay : Time Base : Stop Mode :
Alarm Zone Allow Time Alarm Type Total Time Violations Status
H3: 25.0 °C 30m 6h 36m 4 Alarmover Sin H2: 15.0 °C 30m 2d 2h 24m 2 Alarmover Sin H1: 8.0 °C 30m 2d 3h 2 Alarmover Sin
Ideal Region unlimited 48m L1: 2.0 °C 30m 0s 0 Okbelow Sin L2: 0.0 °C 30m 0s 0 Okbelow Sin
Logging Summary
Highest : Lowest : Average : MKT : Alarm At(Te):
RC-19 Temperature(internal) EF2175200007 TLCC0A389C0
0000001
Temperature recording.
Manual 12m 30m Disable UTC +00:00 Manual + Software
31.7 °C 2017/09/19 14:20:55
6.9 °C 2017/09/21 18:08:55(temporary)
23.5 °C 2d 3h 48m
24.1 °C 260 2017/09/19 14:56:55
[°C]
35.0
28.0
25.0
21.0
15.0
14.0
8.0
7.0
2.0
0.0
0.0
2017/09/19
2017/09/19 19:32:55
2017/09/20 00:44:55
14:20:55
2017/09/20 05:56:55
2017/09/21 18:08:55
Probe Type : Firmware Version :
N/A
Log Interval : Ring Buffer:
Start Time : Stop Time : Elapsed Time : Data Points :
Normal Over(Te) Below(Te) Error(Te)
2017/09/20
2017/09/20 16:20:55
1/2
2017/09/20 21:32:55
11:08:55
V1.0
2017/09/21 02:44:55
File Name:
2017/09/21
2017/09/21
07:56:55
13:08:55
EF2175200007-0000001
ALARM
Time
From To File Created At:
2017/09/19 14:20:55 2017/09/21 18:08:55
2017/09/19 26.5 °C
14:32:55 23.8 °C 14:44:55 23.5 °C 14:56:55 23.5 °C 15:08:55 23.5 °C 15:20:55 23.5 °C 15:32:55 23.5 °C 15:44:55 23.5 °C 15:56:55 23.6 °C 16:08:55 25.7 °C 16:20:55 29.0 °C 16:32:55 29.2 °C 16:44:55 29.3 °C 16:56:55 29.2 °C 17:08:55 26.9 °C 17:20:55 17.8 °C 17:32:55 16.7 °C 17:44:55 16.6 °C 17:56:55 18.5 °C 18:08:55 19.5 °C 18:20:55 19.7 °C 18:32:55 20.0 °C 18:44:55 20.3 °C 18:56:55 20.4 °C 19:08:55 20.7 °C 19:20:55 20.9 °C 19:32:55 21.0 °C 19:44:55 21.2 °C 19:56:55 21.4 °C 20:08:55 21.6 °C 20:20:55 21.6 °C 20:32:55 21.8 °C 20:44:55 22.0 °C 20:56:55 22.1 °C 21:08:55 22.3 °C 21:20:55 22.3 °C 21:32:55 22.3 °C 21:44:55 22.4 °C 21:56:55 23.4 °C 22:08:55 23.6 °C 22:20:55 23.6 °C 22:32:55 23.5 °C 22:44:55 23.4 °C 22:56:55 23.3 °C 23:08:55 23.2 °C 23:20:55 23.1 °C 23:32:55 23.1 °C 23:44:55 23.0 °C 23:56:55 23.0 °C
2017/09/20 22.9 °C
00:20:55 22.9 °C 00:32:55 22.9 °C 00:44:55 22.9 °C 00:56:55 22.9 °C 01:08:55 22.9 °C 01:20:55 23.0 °C 01:32:55 23.0 °C 01:44:55 23.1 °C 01:56:55 23.2 °C 02:08:55 23.3 °C 02:20:55 23.3 °C 02:32:55 23.4 °C 02:44:55 23.4 °C 02:56:55 23.4 °C 03:08:55 23.4 °C 03:20:55 23.4 °C 03:32:55 23.4 °C 03:44:55 23.4 °C 03:56:55 23.4 °C 04:08:55 23.4 °C 04:20:55 23.4 °C 04:32:55 23.4 °C 04:44:55 23.4 °C 04:56:55 23.4 °C 05:08:55 23.4 °C 05:20:55 23.3 °C 05:32:55 23.3 °C 05:44:55 23.3 °C 05:56:55 23.3 °C 06:08:55 23.3 °C 06:20:55 23.3 °C 06:32:55 23.3 °C 06:44:55 23.3 °C 06:56:55 23.3 °C 07:08:55 23.3 °C 07:20:55 23.2 °C 07:32:55 23.2 °C 07:44:55 23.2 °C 07:56:55 23.2 °C 08:08:55 23.2 °C 08:20:55 23.2 °C 08:32:55 23.2 °C 08:44:55 23.2 °C 08:56:55 23.2 °C 09:08:55 23.2 °C 09:20:55 23.2 °C 09:32:55 23.2 °C 09:44:55 23.2 °C 09:56:55 23.1 °C 10:08:55 23.1 °C
www.e-elitech.com
10:20:55 23.1 °C 10:32:55 23.1 °C 10:44:55 23.0 °C 10:56:55 22.9 °C 11:08:55 22.9 °C 11:20:55 22.8 °C 11:32:55 22.7 °C 11:44:55 22.6 °C 11:56:55 22.5 °C 12:08:55 22.5 °C 12:20:55 22.6 °C 12:32:55 22.9 °C 12:44:55 27.5 °C 12:56:55 29.1 °C 13:08:55 29.6 °C 13:20:55 30.5 °C 13:32:55 30.3 °C 13:44:55 30.3 °C 13:56:55 30.6 °C 14:08:55 30.7 °C 14:20:55 31.2 °C 14:32:55 31.0 °C 14:44:55 30.9 °C 14:56:55 30.9 °C 15:08:55 30.8 °C 15:20:55 31.1 °C 15:32:55 31.0 °C 15:44:55 30.9 °C 15:56:55 31.2 °C 16:08:55 30.8 °C 16:20:55 30.6 °C 16:32:55 30.5 °C 16:44:55 30.9 °C 16:56:55 31.0 °C 17:08:55 31.0 °C 17:20:55 31.7 °C 17:32:55 26.1 °C 17:44:55 23.9 °C 17:56:55 23.5 °C 18:08:55 23.4 °C 18:20:55 23.4 °C 18:32:55 23.2 °C 18:44:55 23.1 °C 18:56:55 23.1 °C 19:08:55 23.2 °C 19:20:55 23.2 °C 19:32:55 23.2 °C 19:44:55 23.3 °C 19:56:55 23.3 °C 20:08:55 23.1 °C 20:20:55 23.0 °C 20:32:55 23.0 °C 20:44:55 23.0 °C 20:56:55 22.9 °C 21:08:55 22.9 °C 21:20:55 22.9 °C 21:32:55 22.9 °C 21:44:55 22.9 °C 21:56:55 23.2 °C 22:08:55 23.3 °C 22:20:55 23.2 °C 22:32:55 23.1 °C 22:44:55 23.0 °C 22:56:55 22.9 °C 23:08:55 22.9 °C 23:20:55 22.9 °C 23:32:55 22.9 °C 23:44:55 22.8 °C 23:56:55 22.8 °C
2017/09/21 22.7 °C
00:20:55 22.7 °C 00:32:55 22.7 °C 00:44:55 22.6 °C 00:56:55 22.6 °C 01:08:55 22.7 °C 01:20:55 22.9 °C 01:32:55 23.0 °C 01:44:55 23.1 °C 01:56:55 23.3 °C 02:08:55 23.4 °C 02:20:55 23.5 °C 02:32:55 23.6 °C 02:44:55 23.6 °C 02:56:55 23.6 °C 03:08:55 23.6 °C 03:20:55 23.7 °C 03:32:55 23.7 °C 03:44:55 23.7 °C 03:56:55 23.7 °C 04:08:55 23.7 °C 04:20:55 23.7 °C 04:32:55 23.7 °C 04:44:55 23.7 °C 04:56:55 23.8 °C 05:08:55 23.8 °C 05:20:55 23.8 °C 05:32:55 23.8 °C 05:44:55 23.8 °C 05:56:55 23.8 °C 06:08:55 23.8 °C
06:20:55 23.8 °C 06:32:55 23.8 °C 06:44:55 23.8 °C 06:56:55 23.8 °C 07:08:55 23.8 °C 07:20:55 23.8 °C 07:32:55 23.8 °C 07:44:55 23.8 °C 07:56:55 23.8 °C 08:08:55 23.8 °C 08:20:55 23.8 °C 08:32:55 23.9 °C 08:44:55 23.9 °C 08:56:55 23.9 °C 09:08:55 23.9 °C 09:20:55 23.9 °C 09:32:55 23.9 °C 09:44:55 23.9 °C 09:56:55 23.9 °C 10:08:55 23.9 °C 10:20:55 23.9 °C 10:32:55 23.9 °C 10:44:55 23.9 °C 10:56:55 23.9 °C 11:08:55 23.9 °C 11:20:55 23.7 °C 11:32:55 23.6 °C 11:44:55 23.4 °C 11:56:55 23.3 °C 12:08:55 23.3 °C 12:20:55 23.2 °C 12:32:55 23.2 °C 12:44:55 23.2 °C 12:56:55 23.3 °C 13:08:55 23.4 °C 13:20:55 23.4 °C 13:32:55 23.4 °C 13:44:55 23.5 °C 13:56:55 23.6 °C 14:08:55 23.5 °C 14:20:55 23.6 °C 14:32:55 23.6 °C 14:44:55 23.6 °C 14:56:55 23.6 °C 15:08:55 23.6 °C 15:20:55 23.5 °C 15:32:55 23.5 °C 15:44:55 20.8 °C 15:56:55 11.5 °C 16:08:55 8.8 °C
16:20:55 7.7 °C 16:32:55 7.5 °C 16:44:55 7.2 °C 16:56:55 6.9 °C
17:08:55 11.6 °C 17:20:55 24.0 °C 17:32:55 25.1 °C 17:44:55 25.4 °C 17:56:55 24.1 °C 18:08:55 24.1 °C
File Name:2/2
EF2175200007-0000001
2017/09/21 18:08:55
TRACEABLEONE
SINGLE-USE
USB
DATALOGGING
THERMOMETER
INSTRUCTIONS
NOTICE:
To maintain IP67 waterproof rating
DO NOT TEAR OPEN POUCH
before data download

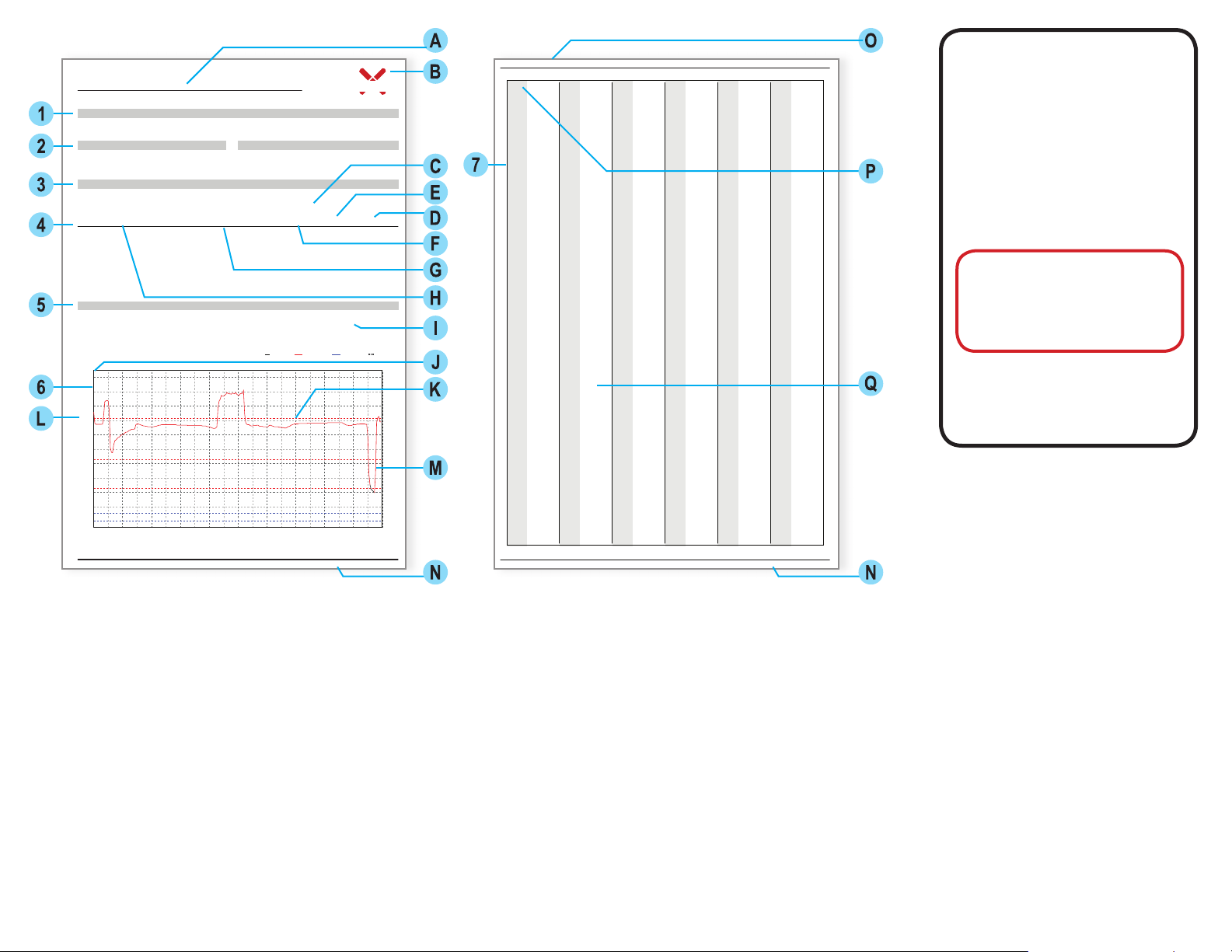

REPORT
1. Basic Device Information
2. Trip Information—Description of the usage
3. Con guration Information
4. Alarm Threshold and related statistics
5. Logging Summary—Statistics
6. Temperature Data Chart
7. Temperature Data Details A. Document creation time (record stop time)
B. Alarm (Alarm status as shown in the  gure)
C. The set stop mode D. Alarm status of the alarm zone E. Total times of exceeding alarm thresholds F . Total time of exceeding alarm thresholds
G. Alarm delay and alarm type H. Alarm thresholds and alarm zones I. Actual stop mode (different from the item C) J. Vertical coordinate unit of the data graph K. Alarm threshold line (corresponding to the item L) L. Alarm threshold M. Data curve Note: Red indicates ultra-high temperature; blue indicates
ultra-low temperature; black indicates others. N. Document Name (Serial number & Usage ID) O. Record time range in the current page P. Records when date changes (date & temperature) Q Records when the date does not change (time &
temperature)
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Cat. No. 6470, 6471, 6472, 6473, 6474, 6475, 6476, 6477, 6478, 6479, 6480, 6481, 6482, 6483, 6484, 6485, 6486, 6487, 6488, 6489, 6490, 6491, 6492, 6493 Traceable ©2018 Traceable
®
is a registered trademark of Cole-Parmer.
®
Products. 92-6470-00 Rev. 0 071018
