TP-Link TL-ANT5823B Quick Installation Guide

Quick Installation Guide

5GHz 23dBi Outdoor Panel Antenna

TL-ANT5823B

7106503928

Re v. 1 .0.0

I. Introduction

TL-ANT5823B, the TP-Link 5GHz 23dBi Outdoor Panel Antenna, is

applicable for outdoor point-to-point or point-to-multi-point directional

signal transmission.

It is usually mounted on such high-level outdoor locations as towers,

roofs, etc.

The easy way to mount TL-ANT5823B is to bind it to a mast, as

illustrated above.

* TL-ANT5823B is only compatible with 5GHz Access Points.

Please do not connect it with 2.4GHz AP.

1

II. Specifications

Electrical Specifications

Model TL-ANT5823B

Frequency Rang-MHz 5150-5850

Gain-dBi 23

VSWR ≤1.5

Horizontal Beamwidth-° 12

Vertical Beamwidth-° 12

Polarization Vertical or Horizontal

F/B Ratio-dB ＞28

Impedance-Ω 50

Maximum Input Power-W 100

Connector N Female

Mechanical Specifications

Antenna Dimension-mm 320×320×20

Weight-Kg 1,8

Mounting Mast Diameter-mm Ø30～Ø50

Radome Material ABS

Rated Wind Velocity-Km/h 241

2

III. Radiation Patterns

Vertical Pattern

Horizontal Pattern

3

IV. Installation

Please find the necessary accessories in the attachment, and take

the following steps to install your antenna TL-ANT5823B.

1. Mount the antenna on the “L” type brackets according to the

mounting diagram.

Make sure the antenna polarization is parallel to the direction

you need. When the antenna polarization is vertical to the

ground, the antenna is vertically polarized. When the antenna

polarization is horizontal to the ground, the antenna is

horizontally polarized.

4

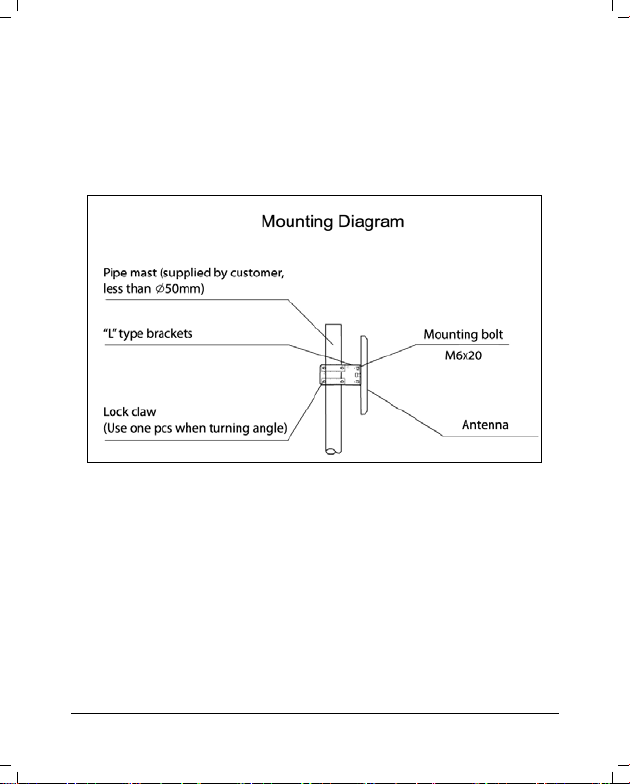

2. Mount the antenna on the pipe mast according to the mounting

diagram.

3. Test the antenna with equipment to make sure the antenna

receive the best signal by turning the azimuth and pitching angle,

then lock all the screws and seal the connector between

antenna and cable.

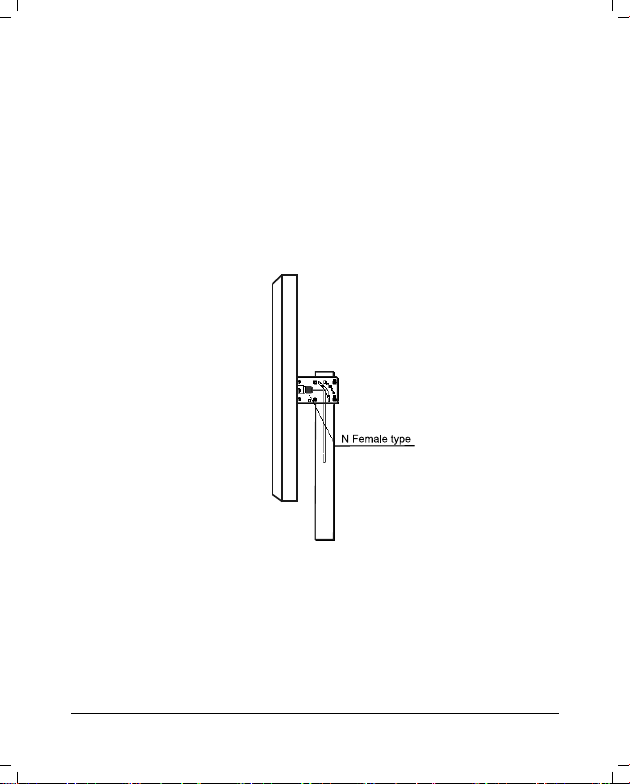

4. Connect TL-ANT5823B to 5GHz AP (Access Point) interface

with cables. It’s recommended to use radio frequency cables

with high quality and low loss. Besides, the shorter the cable is,

the better it will be to avoid unnecessary loss.

5

Warning:

 Mount the antenna at a safe location, far away from power

lines, lamps, and other cables.

 Do not mount the antenna in the rain or thunder storm.

 Do not mount the antenna alone.
