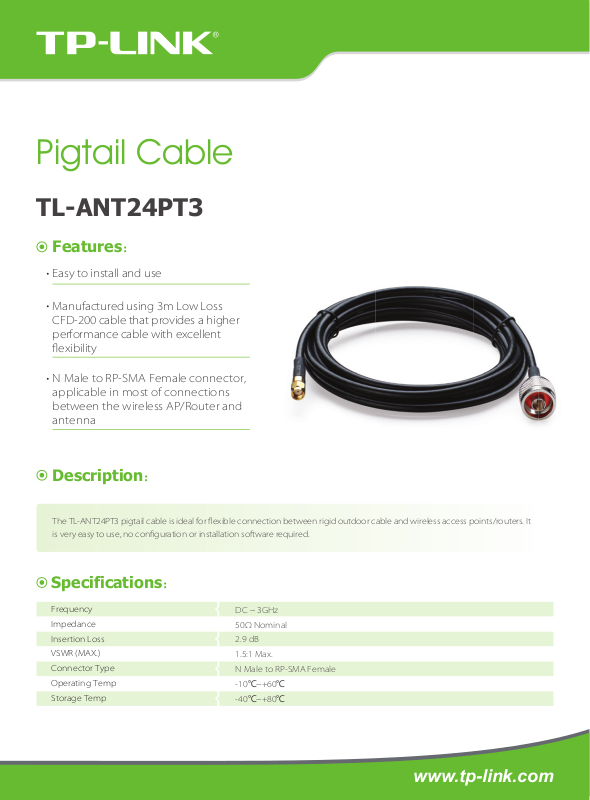

TP-Link TL-ANT24PT3 Data Sheet
Pigtail Cable
TL-ANT24PT3
Features：
Easy to install and use
Manufactured using 3m Low Loss
CFD-200 cable that provides a higher
performance cable with excellent
exibility
N Male to RP-SMA Female connector,
applicable in most of connections
between the wireless AP/Router and
antenna
Description：
The TL-ANT24PT3 pigtail cable is ideal for exible connection between rigid outdoor cable and wireless access points/routers. It
is very easy to use, no conguration or installation software required.
Specifications：
Frequency
Impedance
Insertion Loss
VSWR (MAX.)
Connector Type
Operating Temp
Storage Temp
DC ~ 3GHz
50Ω Nominal
2.9 dB
1.5:1 Max.
N Male to RP-SMA Female
-10℃~+60
-40℃~+80
℃
℃
www.tp-link.com
Pigtail Cable
Diagram:
Outdoor Point to Point Application
Simple and Convenient Installation with Excellent Transmission Range
+
N-type
Male
N-type
Female
1
Building 2
TL-ANT24PT3
N-type
Female
RP-SMA
Male
+
+
N-type
Male
RP-SMA
Female
3
PC
2
4
Switch
Building 1
Access Point
TL-ANT2424B1
Antenna
TL-ANT24SP2
Surge Protector
TL-ANT24EC6N3
Extension Cable
TL-ANT24PT34
Pigtail Cable
Package:
- Pigtail Cable
TL-ANT24PT3
