TD-8840 External ADSL2+ Router User Guide
Package contents
The following contents should be found in your box:
¾ One TD-8840 External ADSL2+ ROUTER
¾ One AC power Adapter for TD-8840 External ADSL2+ ROUTER
¾ One Resource CD for TD-8840 External ADSL2+ ROUTER, including:
• This Guide
• Other Helpful Information
• Quick installation Guide Program
¾ Quick installation Guide
¾ One RJ45 cable
¾ Two RJ11 cable
¾ One ADSL splitter
Note: If any of the above items are damaged or missing, please contact the retailer from
whom you purchased the TD-8840 External ADSL2+ ROUTER for assistance.
- 2 -
TD-8840 External ADSL2+ Router User Guide
Chapter 1: Product Overview
TP-LINK® TD-8840 External ADSL2+ ROUTER is the latest product designed and
manufactured by TP-LINK Technologies Co., Ltd. With TP-LINK’s excellent circuit design
and high quality production, we guarantee the ADSL2+ ROUTER’s high performance,
great stability and easy to use.
The TD-8840 uses integrated ADSL2+ transceiver and a 256-MHz MIPS32 CPU. The
AFE supports full-rate ADSL connectivity conforming to the ITU and ANSI specifications;
MIPS32 CPU with MMU and 16-KB I-cache/8-KB D-cache is integrated into the device.
In addition to the basic DMT physical layer functions, the ADSL PHY supports dual latency
ADSL framing (fast and interleaved) and the I.432 ATM Physical Layer.
The TD-8840 is a complete plug-and-play solution. With standard Ethernet interface, it
can be directly connected to any 10M/100M Ethernet devices, support Auto-MDIX.

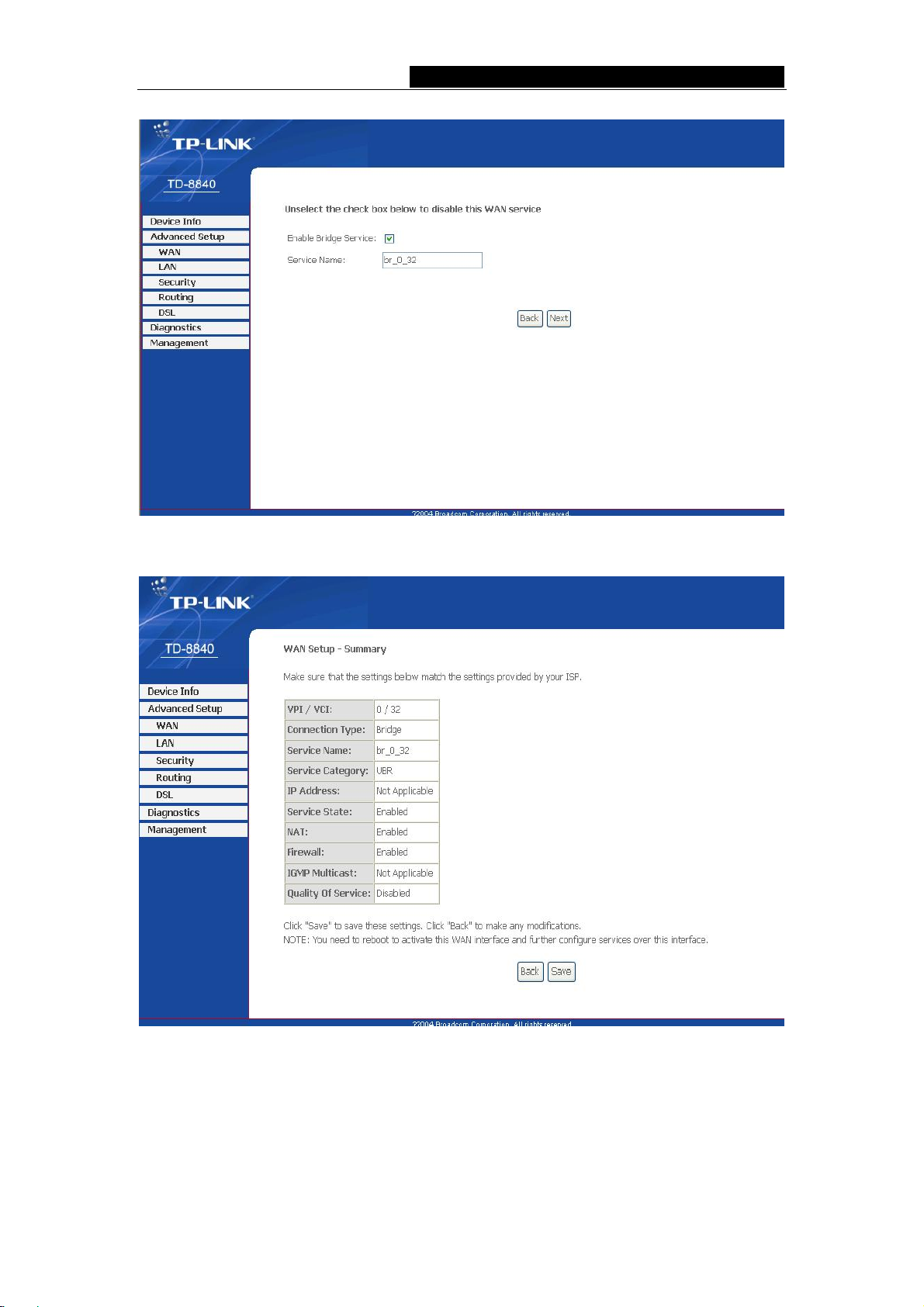

The TD-8840 not only uses html (web mode through Ethernet port) to configure the
ROUTER but also uses external utility software. You can download it from our website
(http://www.tp-link.com).
1.1 Product main specification
¾ Adopt the high performance IC which integrate the AFE transceiver and the 256
MHZ MIPS32 CPU, guarantee that this product is efficient and steady.
¾ High speed and asymmetry data transmit mode, built-in 4-port switch realize
multi-user to share wide-band internet access
¾ Support All ADSL2+ industrial standards
¾ Compatible with all mainstream DSLAM (CO)
¾ Firmware upgradeable
¾ Provide integrated access of internet and route function which face to SOHO user
¾ Advanced DMT modulation and demodulation
¾ Real-time Configuration and device monitoring
¾ Quick response semi-conductive surge protect circuit, provides reliable ESD and
surge-protect function
1.2 Supporting protocol
- G.992.1 (G.dmt) - Annex A/B/C
- G.992.2 (G.lite) - Annex A/B/C
- ANSI T1.413
- G.992.3 (ADSL2) - Annex A/B/C/M and Annex L (RE-DSL) compliant
- G.992.5 (ADSL2+) Annex A/B/C and Annex L (RE-DSL) compliant
- ADSL dual latency (fast path and interleaved path)
- I.432 ATM physical layer compliant
- 3 -
TD-8840 External ADSL2+ Router User Guide
- Supports RFC2364 (PPPoA)
- Supports RFC2516 (PPPoE)
- Supports RFC1483 (EoA)(Bridged *and Router)
- Supports RFC1577 (IPoA)
NOTE. “*” Needs the third-party software.
1.3 Transmit data-rate
¾ Max download data-rate: 24Mbps
¾ Max upload data-rate: 1Mbps
¾ Max line length: 6Km
1.4 A TM property
¾ AAL0, AAL5, OAM, RM, and raw cell types supported
¾ Direct hardware support for 4 Receive VCs, with additional RX VCs and TX VCs
supported in software
¾ Full 24-bit Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI)
1.5 System support
¾ Support PVC
¾ Support NAT、DHCP and so on
¾ Support IEEE 802.3、IEEE 802.3u
¾ Support 10Base-T/100BASE-TX full-duplex or half duplex Ethernet
¾ Support Auto-MDIX
1.6 Working environment
¾ Operating temperature: 0 ~40 ℃℃
¾ Storage temperature: -40 ~70 ℃℃
¾ Humidity: 10%~90% (non-condensing)
1.7 Electric parameter
¾ Adaptor power Output: 9VAC/0.8A，50Hz or 60 Hz
¾ Power consumption: 6W Maximum
- 4 -
TD-8840 External ADSL2+ Router User Guide
Chapter 2: Hardware Installation Guide
The TD-8840 maintains five separate interfaces, four Ethernet and one ADSL interface.
The Router should not be located where it will be exposed to moisture or excessive heat.
Place the Router in a location where it can be safely connected to the various devices as
well as to a power source.
2.1 System requirement
Confirm your computer has been installed with networking interface card (NIC) before
connecting ADSL2+ ROUTER to your computer, with operating system supporting the
TCP/IP protocol.
2.2 LED explanation
The front panel of ADSL2+ ROUTER includes one power indicator (RED) and seven
function indicators (GREEN), as explained in chart 1-1:
Indicator Description Status Function Details
PWR Power
ADSL ADSL status
ALARM Mistake
ACT Data
On
Off
Slow flash
Quick flash
On
On
Off
On
Off
Power OK
Power fail
Self-detecting when power up
Connecting to the telecom network
Connection to telecom network OK
There is mistake when ADSL transmitting data or
receiving data
ADSL normal
There is data transmitting or receiving on WAN
port
No data transmitting or receiving on WAN port
LAN
1~4
Ethernet
On
Off
Flash
1~4(LAN) port normal
Connection on 1~4(LAN) port abnormal
Data transmitting or receiving on 1~4(LAN) port
Chart 1-1
2.3 Rear-panel
¾ ON/OFF: Turn on/off the ADSL2+ ROUTER’s power.
¾ Power (9VAC/0.8A input): please do not use any unknown power adaptor,
otherwise your ADSL2+ ROUTER may be damaged.
¾ RESET(reset default): First press the reset button of ROUTER, then turn on the
ROUTER’s power for at least three seconds. It will resume the default
- 5 -
TD-8840 External ADSL2+ Router User Guide
manufacturer’s setup.
¾ 1~4(LAN): Connect with your computer’s NIC.
¾ LINE(WAN): Connect to the MODEM Port of Splitter or Connecting the telephone
line.
2.4 Hardware installation procedures（figure2-1）
The procedure to install the Router can be described in general terms in the
following steps:
First Step: Connecting the MODEM port of Splitter with the TD-8840 ADSL2+ ROUTER
LINE port by telephone line. While you need to use a telephone, please attach telephone
line into the phone of Splitter.
Second Step: Connect category 5 cable with RJ45 jacks to the ADSL2+ ROUTER’s
LAN port and your computer’s NIC.
Third Step: Plug one end of the AC Power Adapter into the Power jack on the Ethernet
ADSL2+ ROUTER and the other end to a standard electrical outlet.
Last Step: Check the line connection to see if everything is ready. Power up finally.
（Figure2-1）
