TP Link SR20 Users Manual
USER GUIDE
AC1900 Smart Home Router with Touch Screen
Model No. SR20
REV1.0.0 1910011853
|
|
|
CONTENT |
Chapter 1. |
Introduction...................................................................................................................................................... |
1 |
|
1.1 |
Product Overview ................................................................................................................................................................................. |
1 |
|
1.2 |
Panel Layout............................................................................................................................................................................................. |
1 |
|
1.3 |
Positioning................................................................................................................................................................................................ |
1 |
|
Chapter 2. |
Easy Setup.......................................................................................................................................................... |
2 |
|
2.1 |
Connection............................................................................................................................................................................................... |
2 |
|
2.2 |
Quick Setup .............................................................................................................................................................................................. |
2 |
|
Chapter 3. |
Management Tools ....................................................................................................................................... |
4 |
|

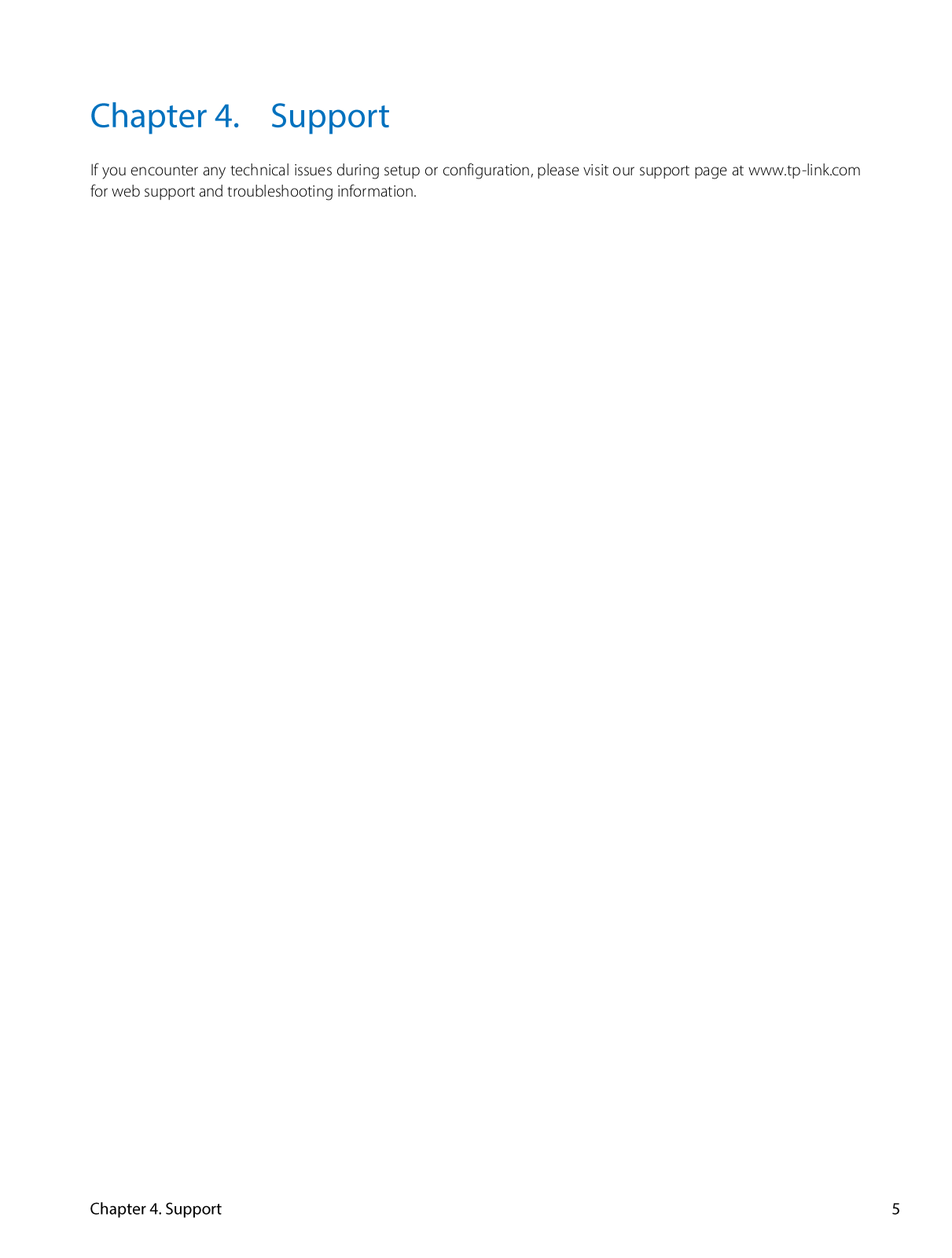

Chapter 4. |
Support................................................................................................................................................................ |
5 |
|
1.1
The SR20 lets you control all your smart devices from one spot, making it easy to create rules and set schedules. Have your lights automatically turn off at night and set fans and air conditioners to only turn on when the temperature and time of day match your preferences. If you need to change your settings, you can adjust them from anywhere with your smartphone.
1.2
1.3
•“Place the SR20 in a well-ventilated place far from any heater or heating vent •“Avoid direct irradiation of any strong light (such as sunlight)
•“Keep“at“least“2“inches“(5“cm)“of“clear“space“around“the“SR20 •“Operating“Temperature:“0 ~40 “(32 ~104 ) •“Operating“Humidity:“20%~85%RH,“Non-condensing
2.1
1.Power off your modem by removing its power adapter and/or backup battery.
2.Connect the provided blue Ethernet cable to the Internet port on the modem and the router.
3.Re-insert the power adapter into your modem.
4.Plug in and connect the router's power adapter.
5.Press the Power ON Button on the back of the router and wait for the LCD splash screen to appear.
2.2
1. Time Zone
•“Customize“Region“and“Time“Zone. •“Tap NEXT
2. Setup SSID and Password
•“Enter SSID and Password for both 2.4GHz & 5GHz
•“Tap NEXT to continue
•“Tap SAVE and Review
