User’s Manual

HS200

Smart Wi-Fi Light Switch

1910012304 REV 2.0.1

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.

Contents

4Introduction

5Product Requirements

5 Smart Wi-Fi Light Switch Installation

7 Using Kasa with Smart Switches

7Kasa Account

7Kasa Settings

8Customizing Smart Switches

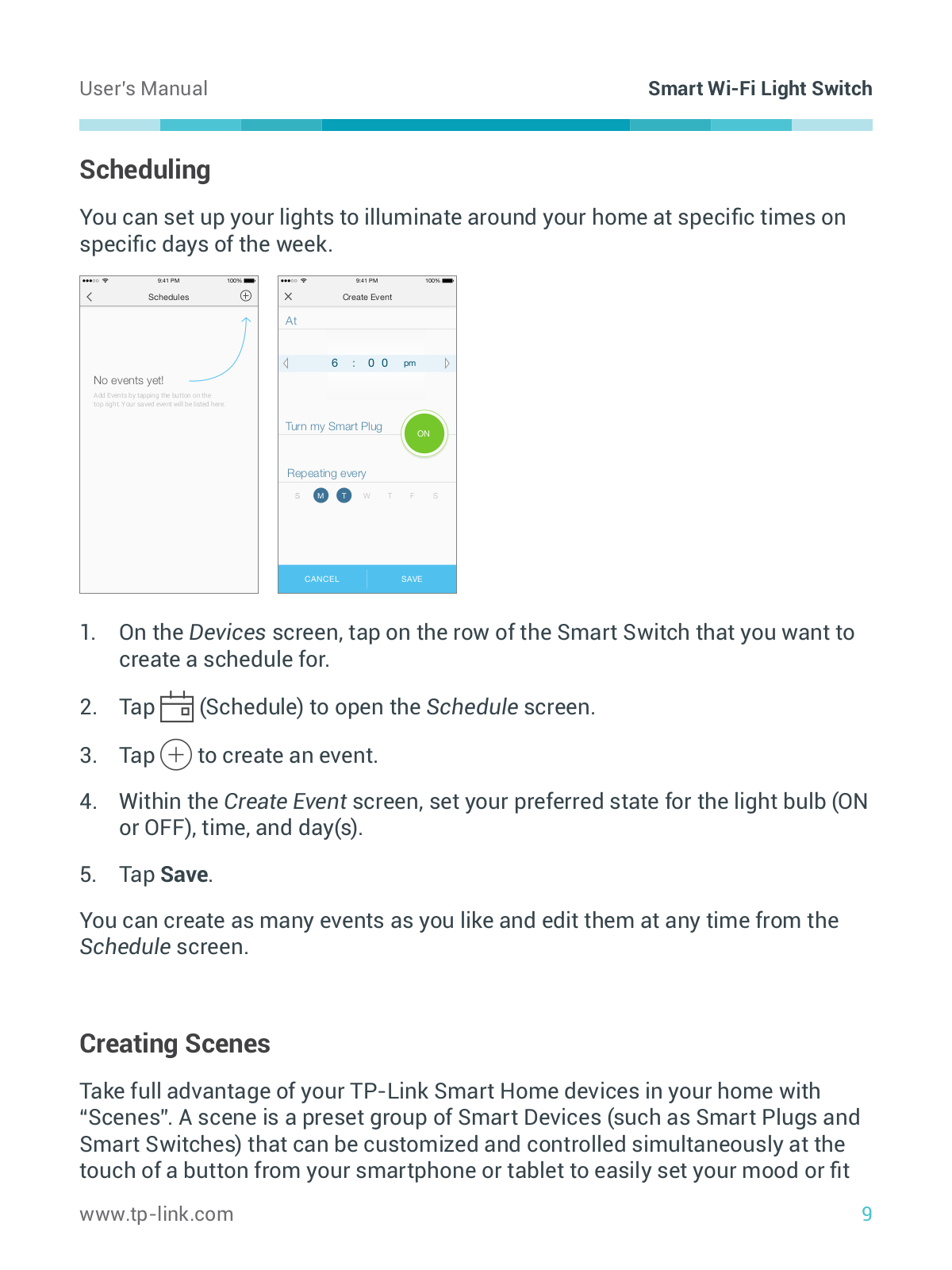

9Scheduling

9Creating Scenes 11 Away Mode

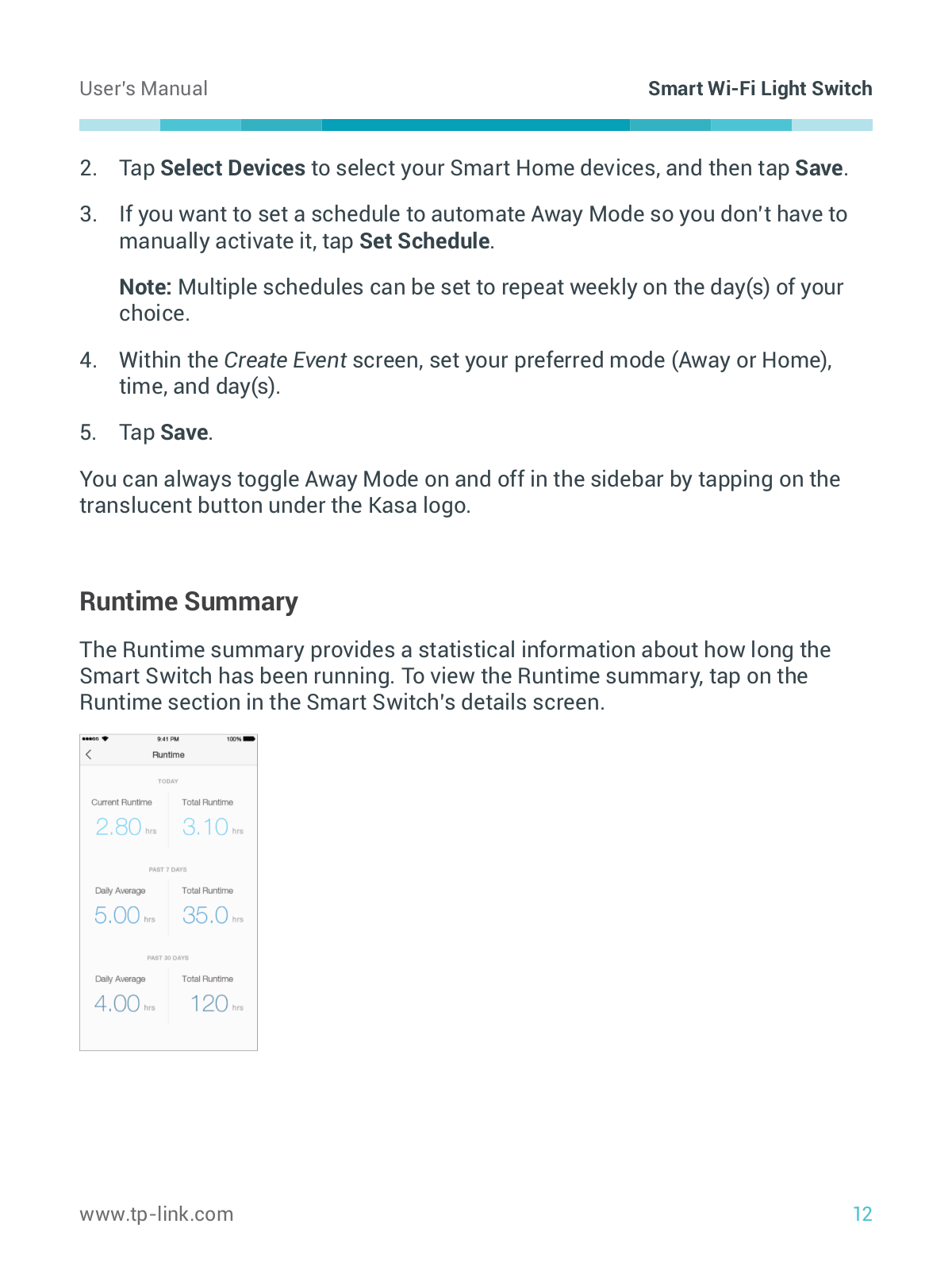

12 Runtime Summary

13 Maintaining the Smart Switches

13Firmware Update

14Resetting

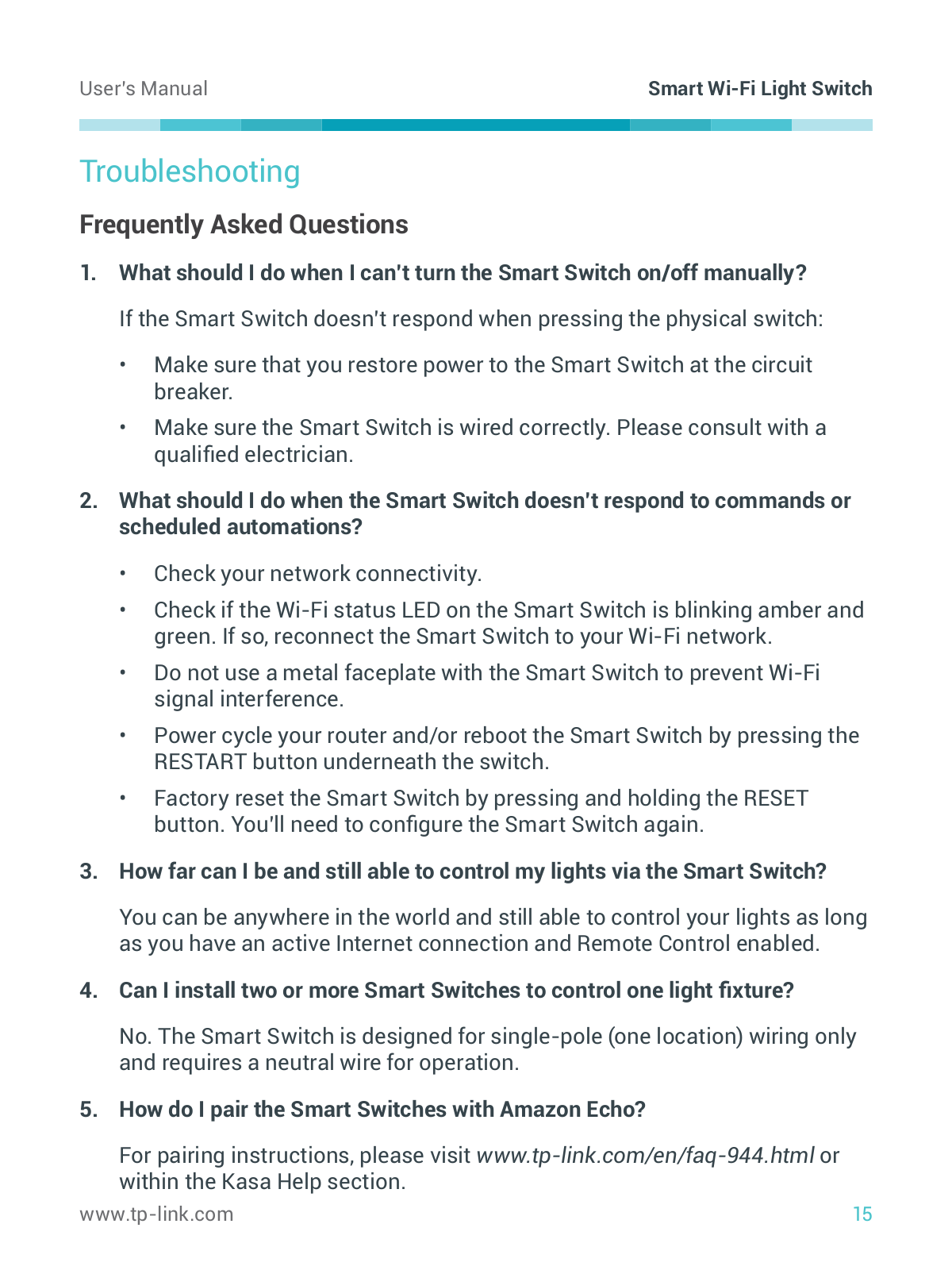

15 Troubleshooting

15Frequently Asked Questions

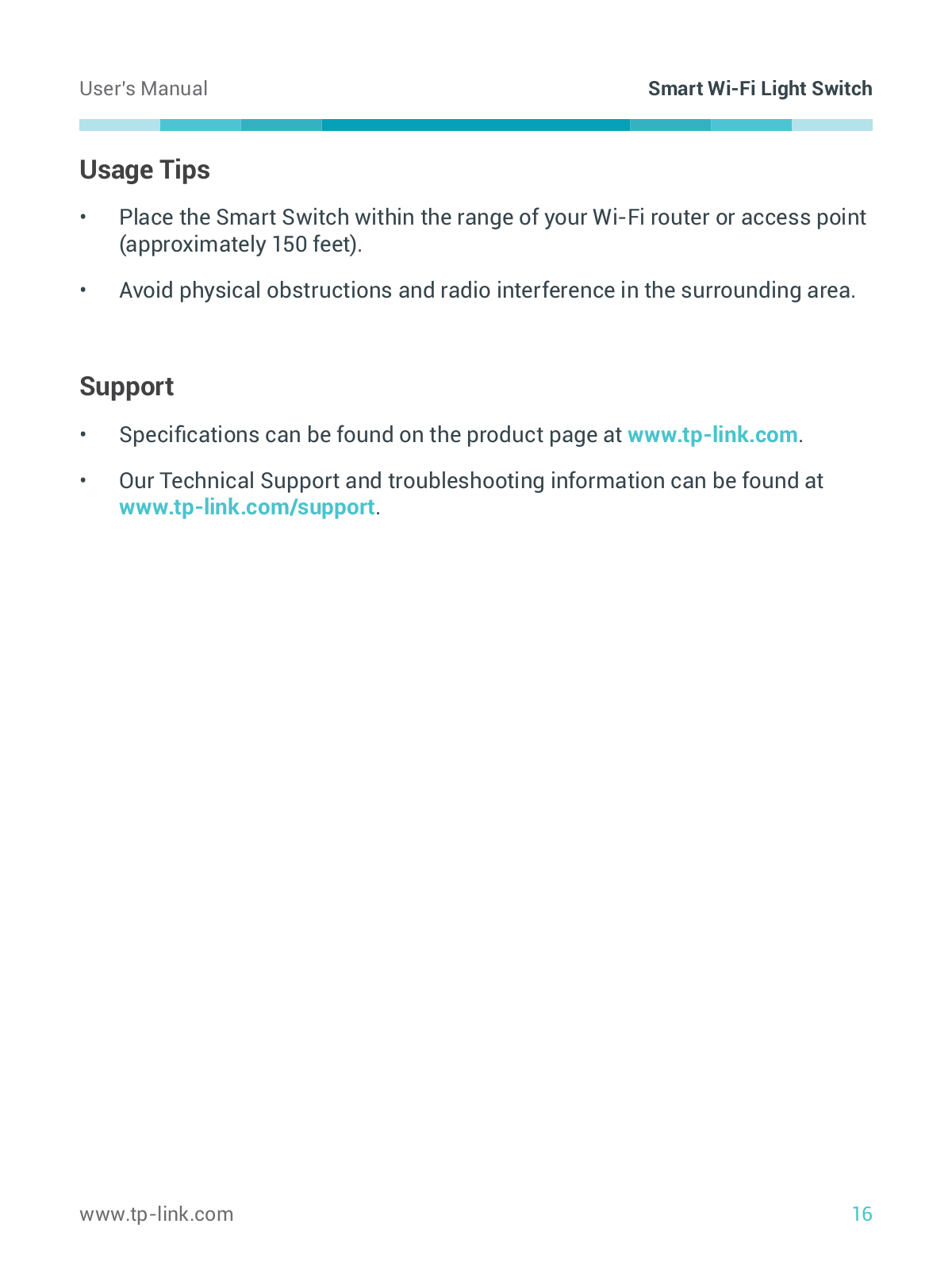

16Usage Tips

16 Support

User’s Manual				Smart Wi-Fi Light Switch

Introduction

TP-Link Smart Wi-Fi Light Switch, also referred to as “Smart Switch”, is a standard, single-pole, wall light switch that can be controlled via your iOS or Android devices. Along with the TP-Link Kasa mobile app, you can follow an intuitive wiring instructions provided to replace your standard in-wall switch, connect the Smart Switch to your home network, then control your lights and create custom lighting automations from anywhere, at anytime with an Internet connection.

The Smart Switch is compatible with incandescent, LED, Halogen, and compact fluorescent light bulbs. The switch also includes a white backlight LED indicator to easily locate the switch at night.

Blinking Amber and Green: App-Config mode initiated.

Green: Lit up for about 30 seconds when successfully connected to the Wi-Fi network, then turns off.

Blinking Amber: Resetting.

Red: No Wi-Fi connection.

White: Lit up when the light is switched OFF to show the Smart Switch location in the dark.

RESTART

RESET

Press to reboot the Smart Switch.

Press and hold for about 5 seconds until the Wi-Fi status LED blinks amber and green alternately to initiate App-Config mode.

Press and hold for about 10 seconds until the Wi-Fi status LED blinks amber rapidly to factory reset the Smart Switch.

www.tp-link.com

User’s Manual				Smart Wi-Fi Light Switch

Product Requirements

•In-wall installation with hardwired connections.

•Neutral wire required.

•Single-pole light switch. The electrical box should be more than 2 inches deep.

•A smartphone or tablet running iOS 9 or higher; Android 4.1x or higher.

•A Wi-Fi connection (supports 802.11b/g/n standard).

Smart Wi-Fi Light Switch Installation

Important Safety Information

Before installing, servicing, or removing the Smart Switch, read and follow all safety precautions, including the following:

•WARNING: RISK OF ELECTRIC SHOCK OR FIRE. Turn OFF power supply at the circuit breaker or fuse. Use a noncontact voltage tester to ensure the power is off.

•CAUTION: RISK OF ELECTRIC SHOCK. More than one disconnect switch may be required to de-energize the equipment before servicing.

•Install only in a suitable UL Listed outlet box.

•The Smart Switch must be installed and used in accordance with the National Electric Code (NEC) or your local electrical code. If you are unfamiliar with these codes and requirements, or are uncomfortable performing the installation, consult a qualified electrician.

•The Smart Switch is an indoor single-pole switch thatrequires a neutral connection.

•Do not install the Smart Switch with wet hands or when standing on wet or damp surfaces.

Load Information

100~120V ac, 15A max, Res 100~120V ac, 5A, Tungsten

100~120V ac, 5A, Electronic Fluorescent Ballast

www.tp-link.com

User’s Manual				Smart Wi-Fi Light Switch

1	Download Kasa for Mobile from the App Store or Google Play.
	OR
	scan QR
	code
2	Connect your mobile device to a 2.4GHz Wi-Fi network.

Note: The Smart Switch only supports 2.4GHz networks.

3Remove the faceplate from the Smart Switch. LaunchKasa and follow the wiring steps provided to instal and connect the Smart Switch to your home network.

Sketch 9:41 AM 100% Sketch 9:41 AM 100%

Add Device Let’s get started

Kasa will guide you through the wiring process. If you are not comfortable with basic wiring work, please call an electrician.

Smart Bulb

Smart Plug

Smart Switch

Range Extender

START

RE350k

Sketch

9:41 AM

100%

Great!

Your Smart Switch is all set up. It is now saved in your Device List.

DONE

ATTENTION: A neutral wire is required to install the Smart Switch.

www.tp-link.com

User’s Manual				Smart Wi-Fi Light Switch

Using Kasa with Smart Switches

Kasa Account

While you don’t have to have a Kasa account to use TP-Link Smart Home devices, signing up for an account provides added functionality such as:

•Synchronization of settings and configurations to all your mobile devices.

•Ability to control and configure the devices from outside your home.

•Use of third-party services and products such as Amazon Echo.

Devices can only be associated with one Kasa account. To remove the association, turn off Remote Control in the Kasa’s settings, or factory reset the device.

After creating your Kasa account, you will need to verify the email associated with your account by clicking a link in an email that Kasa sends you. Until you verify the email, much of the above functionality will not work.

Kasa Settings

Kasa Settings allows you to set your global preferences such as:

•Remote Control to control your Smart Home devices outside of your home. You need to sign in to your Kasa account first to turn on this function.

•Location and Time to set the location and time of where the Smart Home devices are located so that the Away Mode and Schedules can run on time. You can set your home’s location using your smart device’s GPS function, or manually enter the latitude and longitude coordinates.

•Firmware Update to update your Smart Home devices when there is an update available. Refer to Firmware Update for instructions.

www.tp-link.com
