User’s Manual
HS200
1910012025 REV 2.0.0
Smart Wi-Fi Light Switch
Copyright & Trademarks
Specications are subject to change without notice. TP-Link is a registered trademark
of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specications may be reproduced in any form or by any means or used
to make any derivative such as translation, transformation, or adaptation without
permission from TP-Link Technologies Co., Ltd.
App Store is a trademark of Apple Inc., registered in the U.S. and other countries.
IOS is a trademark or registered trademark of Cisco.
Android and the Google Play logo are trademarks of Google Inc.
© 2017 TP-Link. All rights reser ved.
www.tp-link.com
Contents
4 Introduction
5 Product Requirements
5 Smart Wi-Fi Light Switch Installation
7 Using Kasa with Smart Switches
7 Kasa Account
7 Kasa Settings
8 Customizing Smart Switches
9 Scheduling
9 Creating Scenes
11 Away Mode
12 Runtime Summary
13 Maintaining the Smart Switches
13 Firmware Update
14 Resetting
15 Tro ub les ho oti ng
15 Frequently Asked Questions
16 Usage Tips
16 Support
17 Specications
17 Limited Warranty
4www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
Introduction
TP-Link Smart Wi-Fi Light Switch, also referred to as “Smart Switch”, is a
standard, single-pole, wall light switch that can be controlled via your iOS or
Android devices. Along with the TP-Link Kasa mobile app, you can follow an
intuitive wiring instructions provided to replace your standard in-wall switch,
connect the Smart Switch to your home network, then control your lights and
create custom lighting automations from anywhere, at anytime with an Internet
connection.
The Smart Switch is compatible with incandescent, LED, Halogen, and compact
uorescent light bulbs. The switch also includes a white backlight LED indicator
to easily locate the switch at night.
RESET
RES TART
Blinking Amber and Green: App-Cong mode
initiated.
Green: Lit up for about 30 seconds when
successfully connected to the Wi-Fi network,
then turns o.
Blinking Amber: Resetting.
Red: No Wi-Fi connection.
White: Lit up when the light is switched OFF to
show the Smart Switch location in the dark.
Press to reboot the Smart Switch.
Press and hold for about 5 seconds until the
Wi-Fi status LED blinks amber and green
alternately to initiate App-Cong mode.
Press and hold for about 10 seconds until the
Wi-Fi status LED blinks amber rapidly to factory
reset the Smart Switch.
User’s Manual Smart Wi-Fi Light Switch
Product Requirements
• In-wall installation with hardwired connections.
• Neutral wire required.
• Single-pole light switch. The electrical box should be more than 2 inches
deep.
• A smartphone or tablet running iOS 9 or higher; Android 4.1x or higher.
• A Wi-Fi connection (supports 802.11b/g/n standard).
Smart Wi-Fi Light Switch Installation
Important Safety Information
Before installing, servicing, or removing the Smart Switch, read and follow all
safety precautions, including the following:
• WARNING: RISK OF ELECTRIC SH OCK OR FIRE. Turn OFF power supply at
the circuit breaker or fuse. Use a noncontact voltage tester to ensure the
power is o.
• The Smart Switch must be installed and used in accordance with the
National Electric Code (NEC) or your local electrical code. If you are
unfamiliar with these codes and requirements, or are uncomfortable
performing the installation, consult a qualied electrician.
• The Smart Switch is an indoor single-pole switch that requires a neutral
connection.
• Do not install the Smart Switch with wet hands or when standing on wet or
damp surfaces.
1
Download Kasa for Mobile from the App Store or Google Play.
OR
scan QR
code
2
Connect your mobile device to a 2.4GHz Wi-Fi network.
5www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
Sketch 9:41 AM 100%
Note: The Smart Switch only supports 2.4GHz networks.
3
Remove the faceplate from the Smart Switch. Lauch Kasa and follow the
wiring steps provided to instal and connect the Smart Switch to your home
network.
Great!
Your Smart Switch is all set up. It is
now saved in your Device List.
DONE
AT TE NT IO N: A neutral wire is required to install the Smart Switch.
6www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
Using Kasa with Smart Switches
Kasa Account
While you don’t have to have a Kasa account to use TP-Link Smart Home
devices, signing up for an account provides added functionality such as:
• Synchronization of settings and congurations to all your mobile devices.
• Ability to control and congure the devices from outside your home.
• Use of third-party services and products such as Amazon Echo.
Devices can only be associated with one Kasa account. To remove the
association, turn o Remote Control in the Kasa’s settings, or factory reset the
device.
After creating your Kasa account, you will need to verify the email associated
with your account by clicking a link in an email that Kasa sends you. Until you
verify the email, much of the above functionality will not work.
Kasa Settings
Kasa Settings allows you to set your global preferences such as:
• Remote Control to control your Smart Home devices outside of your home.
You n eed to sign in to you r Ka sa a cco unt rs t to t urn o n t his fun ct io n.
• Location and Time to set the location and time of where the Smart Home
devices are located so that the Away Mode and Schedules can run on time.
You can set your home’s location using your smart device’s GPS function, or
manually enter the latitude and longitude coordinates.
• Firmware Update to update your Smart Home devices when there is an
update available. Refer to Firmware Update for instructions.
7www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
Sept 15, 2015 12:00 PM
1.0.0
1.0.0
00:01:02:03:04:05
HS0
Customizing Smart Switches
You can personalize your Smart Switches with a descriptive name, icon, and
other information from the switch’s details screen.
9:41 PM 100%
Device Settings
DEVICE CONTROLS
Remote Control
Device Name
Device Icon
DEVICE TIME
Time Zone
Location
Device Time
DEVICE INFO
Model
MAC Address
Hardware Version
Firmware Version
Delete Device

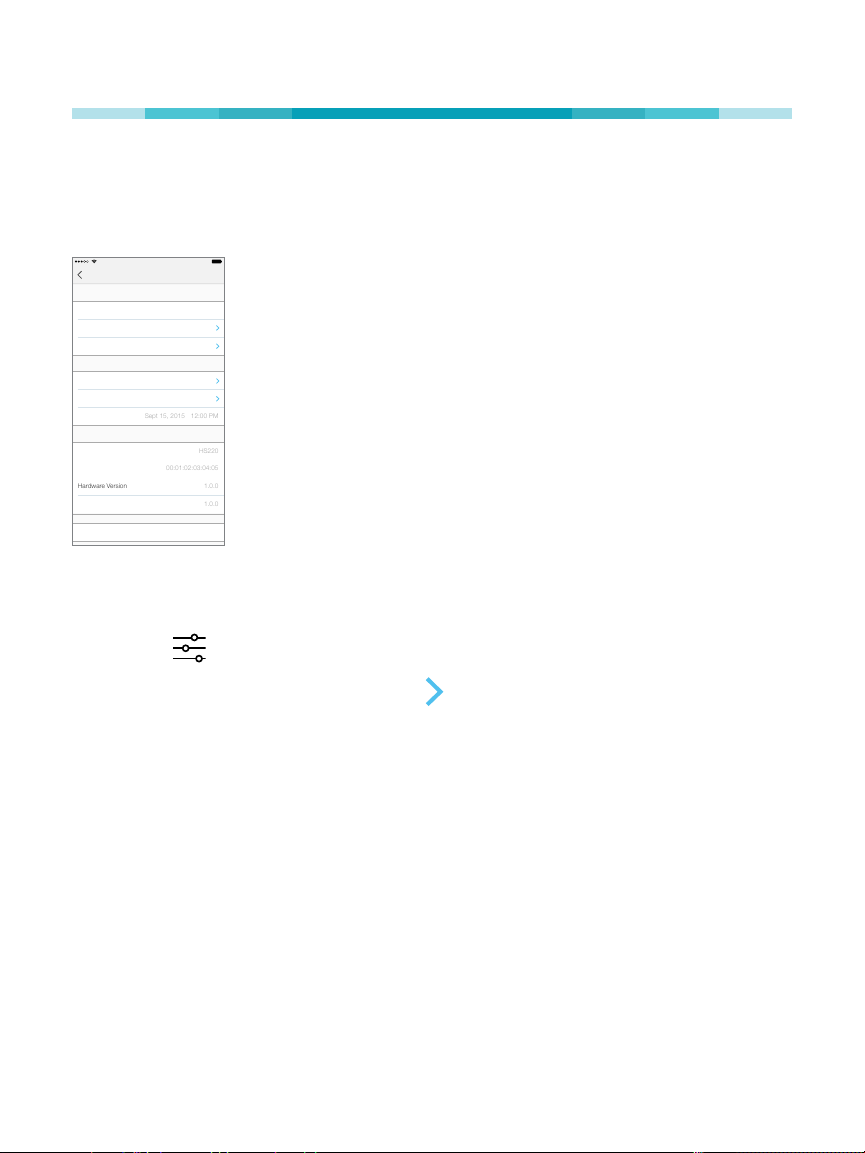

1. On the Devices screen, tap on the row of the Smart Switch to go to its
controls.
2. Tap t he (Settings) icon at the top-right corner.
Disabled
'SPOU1PSDI4XJUDI
San Francisco
3. On the Device Settings screen, tap the icon for each setting you want to
personalize.
• Device Name – Create a unique name for your Smart Switch.
• Device Icon – Choose one of the available icons or use your own custom
icon.
8www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
Scheduling
You can set up your lights to illuminate around your home at specic times on
specic days of the week.
9:41 PM 100%
Schedules
No events yet!
Add Events by tapping the button on the
top right. Your saved event will be listed here.
At
Turn my Smart Plug
Repeating every
9:41 PM 100%
Create Event
4 5 8
5 5 9
6 0 0
7 0 1
8 0 2
S M T W T F S
am
pm
:
ON
SAVECANCEL
1. On the Devices screen, tap on the row of the Smart Switch that you want to
create a schedule for.
2. Tap (Schedule) to open the Schedule screen.
3. Ta p to create an event.
4. Within the Create Event screen, set your preferred state for the light bulb (ON
or OFF), time, and day(s).
5. Ta p Save.
You can create as many events as you like and edit them at any time from the
Schedule screen.
Creating Scenes
Take full advantage of your TP-Link Smart Home devices in your home with
“Scenes”. A scene is a preset group of Smart Devices (such as Smart Plugs and
Smart Switches) that can be customized and controlled simultaneously at the
touch of a button from your smartphone or tablet to easily set your mood or t
9www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
Devices
Scenes
Scenes let you set the mood of your
home in one tap.
Good Morning
Get ready for the day by
turning on your devices
Movie Night
Dim the lights for
showtime
Good Night
Turn everything off
before bedtime
Custom
Create your own scene
9:41 PM 100%
Scenes
any special occasion. For example, set a customized “Movie Time” to turn on
the home theater system plugged into a Smart Plug and dim down the lights in
your Entertainment Room to 10% at the same time.
Please keep in mind that SCENES can only be set and controlled once you’re
signed in to your Kasa account.
1. On the main Home screen, tap the (Scenes) tab to switch to the Scenes
view.
2. Choose one of the preset scenes to start, or choose Custom to set up your
own scene that is personalized to suit your liking. To set a scene, you will
need to select one or more devices to be controlled, and then dene their
actions and/or states.
10www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
Bedroom Lamp
BULBS
PREVIEW
Main Kitchen Lights
Side Kitchen Lights
Christmas Gnome
SWITCHES
PLUGS
60%
Party Bulb
ON
OFF
Next
9:41 PM 100%
Set Scene
!
2
3
When you’re Away, your devices will turn
on and off to simulate that someone is
home.
Christmas Gnome
Garage Light
Living Room
Bedroom Lamp

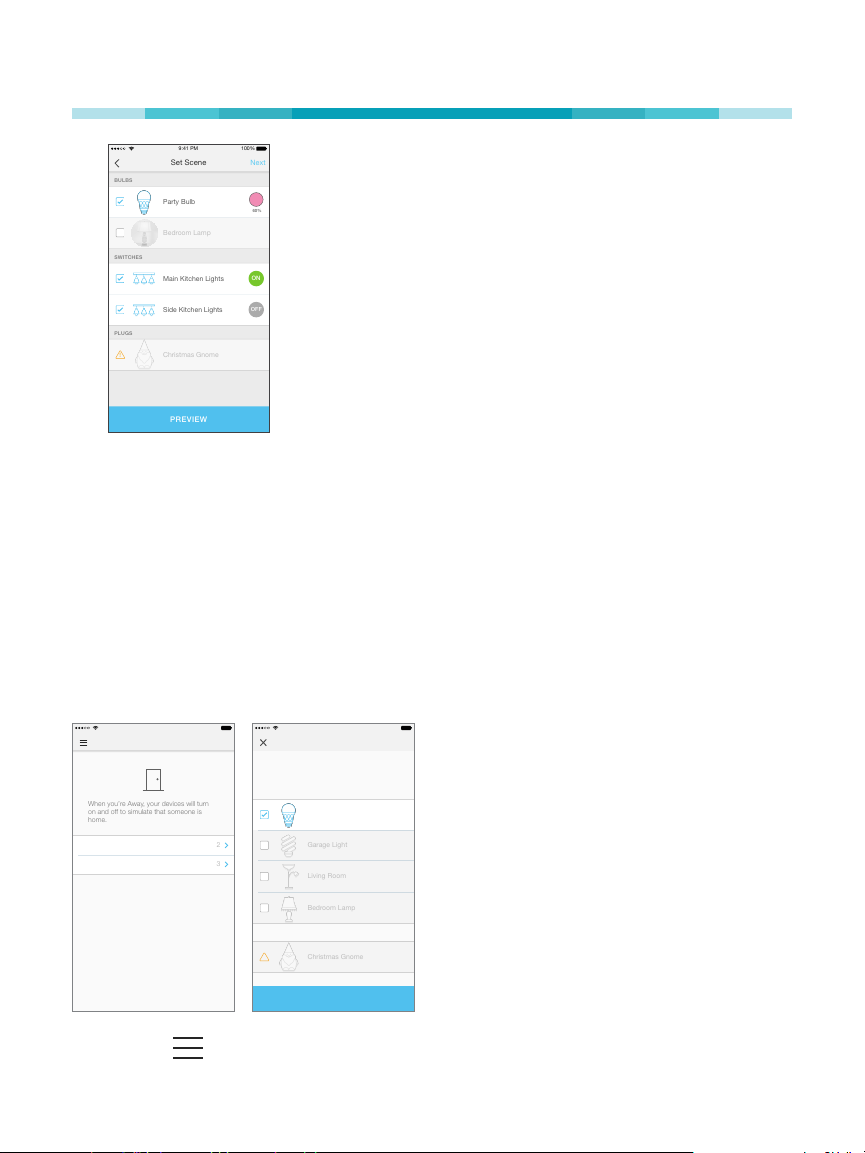

Note that you must have at least one Smart Device in order to create a
scene.
Away Mode
Away Mode allows you to automate your Smart Switches in combination with
other Smart Home products to respond to your specic schedules. For example,
turn on and o Smart Devices at certain intervals to simulate occupancy when
you’re away from home.
9:41 PM 100%
Select Devices
How about picking one light from each
room?
Party Bulb
Schedules
Devices
9:41 PM 100%
Away Mode
BULBS
1. Tap t he (navigation drawer) and then Away Mode.
PLUGS
!
SAVE
11www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
2. Tap Select Devices to select your Smart Home devices, and then tap Save.
3. If you want to set a schedule to automate Away Mode so you don’t have to
manually activate it, tap Set Schedule.
Note: Multiple schedules can be set to repeat weekly on the day(s) of your
choice.
4. Within the Create Event screen, set your preferred mode (Away or Home),
time, and day(s).
5. Ta p Save.
You can always toggle Away Mode on and o in the sidebar by tapping on the
translucent button under the Kasa logo.
Runtime Summary
The Runtime summary provides a statistical information about how long the
Smart Switch has been running. To view the Runtime summary, tap on the
Runtime section in the Smart Switch’s details screen.
12www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
9:41 PM 100%
9:41 PM 100%
Maintaining the Smart Switches
Firmware Update
To keep the Smart Switches happy and up-to-date with all the latest
improvement and xes, we recommend that you update the rmware when
updates are available.
Firmware Update
New Updates Available
We found available rmware updates for your
reachable devices.
Smart Plugs
Latest Version: 1.2.0
4 Available Updates
Smart Bulb HS100
Latest Version: 1.2.0
2 Available Updates
Smart Bulb HS120
Latest Version: 1.2.0
0 Available Updates
UPDATE
UPDATE
Updating rmware
Please do not unplug your devices during
the update.
25%
This process may take a few minutes.
1. Launch Kasa.
2. Tap t he (navigation drawer) and then Settings.
3. Ta p Firmware Update.
4. Within the Firmware Update screen, tap Update.
Remember: Only the Smart Switches that are currently reachable and have an
available update will be shown in the Firmware Update screen.
It is important to leave the Kasa app running while it nishes updating the Smart
Switches. Try not to minimize the app, close the app, or interrupt the update to
prevent problems.
13www.tp-link.com
14www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
Resetting
Resetting the Smart Switch can help you troubleshoot any issues you may have.
Please keep in mind that factory resetting a device will erase all of your custom
settings and restore them to factory default settings.
RESET
The RESET button located underneath the Smart Switch has two functions:
• Press and hold for about 5 seconds until the Wi-Fi status LED blinks amber
and green alternately to initiate App-Cong mode.
• Press and hold for about 10 seconds until the Wi-Fi status LED blinks amber
rapidly to reset the Smart Switch to factory defaults. Note that factory setting
the Smart Switch will erase all of your custom settings, and you’ll have to set
it up again.
User’s Manual Smart Wi-Fi Light Switch
Trou bl eshoot ing
Frequently Asked Questions
1. What should I do when I can’t turn the Smart Switch on/o manually?
If the Smart Switch doesn’t respond when pressing the physical switch:
• Make sure that you restore power to the Smart Switch at the circuit
breaker.
• Make sure the Smart Switch is wired correctly. Please consult with a
qualied electrician.
2. What should I do when the Smart Switch doesn’t respond to commands or
scheduled automations?
• Check your network connectivity.
• Check if the Wi-Fi status LED on the Smart Switch is blinking amber and
green. If so, reconnect the Smart Switch to your Wi-Fi network.
• Do not use a metal faceplate with the Smart Switch to prevent Wi-Fi
signal interference.
• Power cycle your router and/or reboot the Smart Switch by pressing the
RESTART button underneath the switch.
• Factory reset the Smart Switch by pressing and holding the RESET
button. You’ll need to congure the Smart Switch again.
3. How far can I be and still able to control my lights via the Smart Switch?
You can be anywhere in the world and still able to control your lights as long
as you have an active Internet connection and Remote Control enabled.
4. Can I install two or more Smart Switches to control one light xture?
No. The Smart Switch is designed for single-pole (one location) wiring only
and requires a neutral wire for operation.
5. How do I pair the Smart Switches with Amazon Echo?
For pairing instructions, please visit www.tp-link.com/en/faq-944.html or
15www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
within the Kasa Help section.
Usage Tips
• Place the Smart Switch within the range of your Wi-Fi router or access point
(approximately 150 feet).
• Avoid physical obstructions and radio interference in the surrounding area.
Support
Should you encounter any issues with the Smart Wi-Fi Light Switch, please
visit our support page at www.tp-link.com/support for web support and
troubleshooting information.
16www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
Specications
Height 4.13 in (10.5 cm)
Width 1.75 in (4.45 cm)
Depth 1.75 in (4.45 cm)
Color White
3-Way No
4-Way No
Locator Light Yes
Number of Poles 1
Wall Plate Included
Power 100-120 V ~ 50/60 Hz.
Maximum Loads 600W incandescent.
Operating Temp. 32o-10 4o F (0o-40o C)
For indoor use only
Limited Warranty
To learn more about the Limited Warranty for TP-Link products, please visit
www.tp-link.us/support/rma.
17www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee tha
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
and on, the user is encouraged to try to correct the interference by one or more of the following
o
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di
connected.
• Consult the dealer or an experienced radio / TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
erent from that to which the receiver is
t
Any changes or modi
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
cations to this equipment. Such modi cations could void the user’s authority to operate the
modi
equipment.
cations not expressly approved by the party responsible for compliance
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile
Con
gurations. The antennas used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
CE Mark Warning
18www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
RF Exposure Information
This device meets the EU requirements (1999/5/EC Article 3.1a) on the limitation of exposure of the
general public to electromagnetic elds by way of health protection.
The device complies with RF specications when the device used at 20 cm from your body.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the
following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le
brouillage est susceptible d’en compromettre le fonctionnement.
Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
Déclaration d’exposition aux radiations
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20
cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
19www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
NCC Notice
注意！ 依據 低功率電波輻射性電機管理辦法
第十二條 經 型式認證 合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功
率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不 得影響飛航安全及干擾合 法通行；經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射頻電機需忍受
合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
減少電磁波影響，請妥適使用。
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
When product has a power button, the power button is one of the ways to shut o the product;
when there is no power button, the only way to completely shut o the power is to disconnect the
product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and
voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations .
20www.tp-link.com
User’s Manual Smart Wi-Fi Light Switch
AC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic
equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize
its impact on the environment.
User has the choice to give his product to a competent recycling organization or
to the retailer when he buys a new electrical or electronic equipment.
21www.tp-link.com
Loading...
