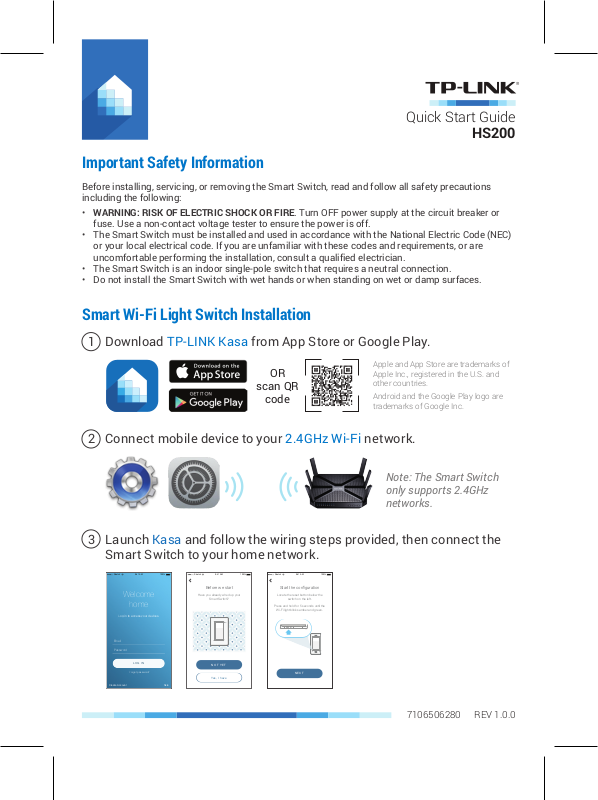

TP-Link HS200 Quick Start Guide

Quick Start Guide

Create Account

Skip

Forgot password?

LOG IN

Password

Email

Log in to access your devices.

Welcome

home

RESET

HS200

Important Safety Information

Before installing, servicing, or removing the Smart Switch, read and follow all safety precautions
including the following:

• WARNING: RISK OF ELECTRIC SHOCK OR FIRE. Turn OFF power supply at the circuit breaker or
fuse. Use a non-contact voltage tester to ensure the power is off.

• The Smart Switch must be installed and used in accordance with the National Electric Code (NEC)
or your local electrical code. If you are unfamiliar with these codes and requirements, or are
uncomfortable performing the installation, consult a qualified electrician.

• The Smart Switch is an indoor single-pole switch that requires a neutral connection.

• Do not install the Smart Switch with wet hands or when standing on wet or damp surfaces.

Smart Wi-Fi Light Switch Installation

1 Download TP-LINK Kasa from App Store or Google Play.

Apple and App Store are trademarks of

OR

scan QR

code

2 Connect mobile device to your 2.4GHz Wi-Fi network.

3 Launch Kasa and follow the wiring steps provided, then connect the

Smart Switch to your home network.

Sketch 9:41 AM 100%

Sketch 9:41 AM 100%

Before we start

Have you already wired up your

Smart Switch?

Sketch 9:41 AM 100%

Start the con guration

Locate the reset button below the

switch on the left.

Press and hold for 5 seconds until the

Wi-Fi light blinks amber and green.

Apple Inc., registered in the U.S. and
other countries.

Android and the Google Play logo are
trademarks of Google Inc.

Note: The Smart Switch
only supports 2.4GHz
networks.

NOT YET

Yes, I have

NEXT

7106506280 REV 1.0.0

Smart Wi-Fi Light Switch

Blinking Amber and Green: App-Config mode initiated.
Green: Successfully connected to the Wi- Fi network.
Blinking Amber: Resetting or during firmware update.
Red: No Wi-Fi connection.

White: Lit up when the light is switched OFF to show the

Smart Switch location in the dark.

RESTART

Press to reboot the Smart Switch.

RESET

Press and hold (about 5 seconds) until the Wi-Fi status LED
blinks amber and green alternately to initiate App-Config
mode.

Press and hold (about 10 seconds) until the Wi-Fi status LED
blinks green rapidly to factor y reset the Smart Switch.

Troubleshooting

1. What should I do when I can’t turn the Smart Switch on/off manually?

If the Smart Switch doesn’t respond when pressing the physical switch:

• Make sure that you restore power to the Smart Switch at the circuit breaker.

• Make sure the Smart Switch is wired correctly. Please consult with a
qualified electrician.

2. What should I do when the Smart Switch won’t respond to commands or
scheduled automations?

• Check your network connectivity.

• Check if the Wi-Fi status LED on the Smart Switch is lit green. If it is amber or

blinking amber and green, reconnect the Smart Switch to your Wi-Fi network.

• Do not use a metal faceplate with the Smar t Switch to prevent Wi-Fi signal

interference.

• Power cycle your router and/or reboot the Smart Switch by pressing the

RESTART button underneath the switch.

• Factory reset the Smart Switch by pressing and holding the RESET button.

You’ll need to reconfigure the Smart Switch again.

Support

If you encounter any issues during installation or configuration, please visit
www.tp-link.com/support for web support and troubleshooting information.

© 2016 TP-LINK. All rights reserved.
