User’s Manual
HS105/HS105 V3
Smart Wi-Fi Plug Mini
1910012216 REV 2.0.1
Copyright & Trademarks
Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.
© 2017 TP-Link. All rights reserved.
www.tp-link.com
Contents
|
|
|
|
|
|
|
|
4 |
|
Introduction |
|||||
4 |
|
Features |
4Product Requirements
4Smart Wi-Fi Plug Mini
5Smart Wi-Fi Plug Mini Installation
6Using Kasa with Smart Wi-Fi Plug Mini
6Kasa Account
6Kasa Settings
7Customizing Smart Wi-Fi Plug Mini
7Timer
8Scheduling
9Creating Scenes
10Away Mode
11Runtime Summary
12 |
Maintaining the Smart Wi-Fi Plug Mini |
12 |
Firmware Update |
12 |
Resetting |
14 |

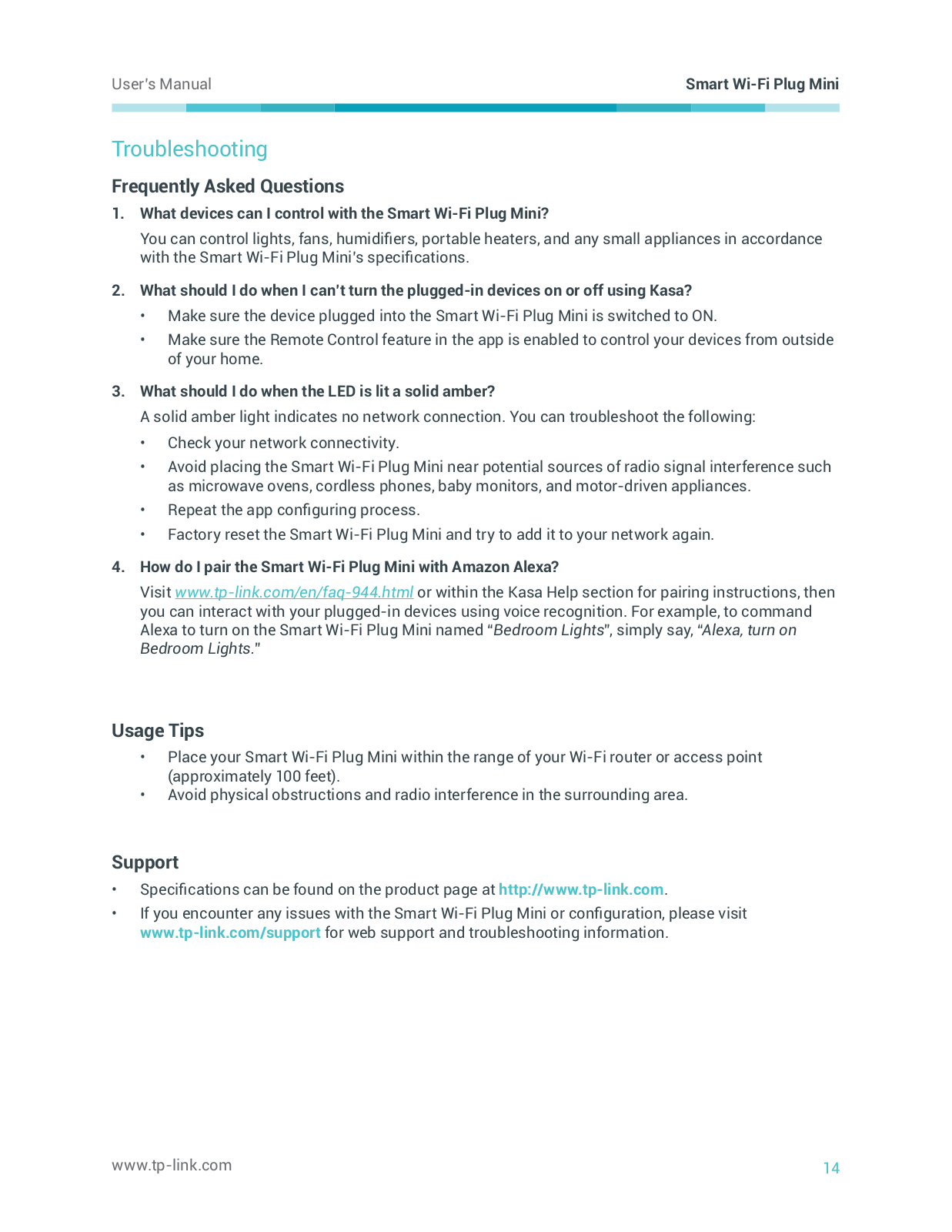

Troubleshooting |
14 |
Frequently Asked Questions |
14 |
Usage Tips |
14 |
Support |
User’s Manual |
Smart Wi-Fi Plug Mini |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TP-Link’s Smart Wi-Fi Plug Mini is a compact home device that turns your typical electrical wall outlet into a controllable, customizable and multi-functional outlet, enabling you to easily control your lights and household electronic devices via TP-Link’s Kasa for Mobile app on your iOS or Android devices, no matter where you find yourself.
•Control the plugged-in devices whenever you are connected to the internet using the Kasa app on your smartphones and tablets.
•Automate your lights and small household appliances with Schedule and Timer.
•Discourage potential intruders with Away Mode that automatically turns the plugged-in devices on and off at different times.
•Compatible with Amazon Echo (sold separately) that lets you interact with the Smart Wi-Fi Plug Mini using your voice.
•A smartphone or tablet running iOS 9 or higher; Android 4.1x or higher.
•A Wi-Fi connection (supports 802.11n standard).
Smart Wi-Fi Plug Mini
LED
Press to turn the socket ON or OFF.
Press and hold (for 5 seconds) until the LED flashes amber and blue alternately to initiate the app configuring process (SoftAP).
Press and hold (for 10 seconds) until the LED flashes amber rapidly to factory reset the Smart Plug Mini.
Flashing amber and blue: App configuring process (SoftAP) initiated.
Flashing blue rapidly: Connecting to the network. Solid blue: Connected to the network.
Flashing amber rapidly: Factory reset.
Solid amber: Initializing, rebooting, or no network connection. Off: The Smart Plug Mini is switched OFF.
* Image may differ from actual product due to different regional power specifications. We use the U.S. version as an example.
www.tp-link.com |
4 |
User’s Manual |
Smart Wi-Fi Plug Mini |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
Download Kasa for Mobile from the App Store or Google Play. |
|
|
|
OR |
|
scan QR |
|
code |
2 |
Connect your mobile device to a 2.4GHz Wi-Fi network. |
|
Note: The Smart Plug Mini only supports the 2.4GHz networks.
3 |
Launch Kasa and follow the in-app instructions to connect the Smart Plug Mini to your network. |
|||||||||||||||||||||||
|
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sketch |
|
9:41 AM |
100% |
|
|
|
|
Sketch |
|
9:41 AM |
100% |
|
|
|
|
|
Sketch |
|
9:41 AM |
100% |
|
|
|
|
|
|
Add Device |
|
|
|
|
Power up your Smart Plug Mini |
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Plug in your Smart Plug Mini. If you |
|
|
|
|
|
|
|
Great! |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
don’t see the LED light, press the |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
power button once. |
Smart Plug |
Smart Plug Mini |
Your Smart Plug Mini is all set up.
It is now saved in your Device List.
DONE
|
|
|
|
|
|
|
|
Smart Switch |
Smart Bulb |
|
|||||
NEXT |
|||||||
|
|
|
|
|
|
||
|
|
|
|
|
|
|
Note: The U.S. plug version is used throughout the Kasa app.
