Bluetooth Music Receiver
REV: 1.0.0 1910011317
HA100
User Guide
Contents
Chapter 1. Introduction ...................................................................................................................................................... 1
Chapter 2. Quick Setup ....................................................................................................................................................... 3
Appendix: FAQ ............................................................................................................................................................................. 5
1.1 Product Overview ................................................................................................................................................................................. 1
1.2 Main Features .......................................................................................................................................................................................... 1
1.3 Panel Layout ............................................................................................................................................................................................. 2
1.3.1 Top Panel ................................................................................................................................................................................................................... 2
1.3.2 Back Panel ................................................................................................................................................................................................................. 2
Chapter 1. Introduction
1.1 Product Overview
What This Product Does
The Bluetooth Music Receiver provides your stereo with Bluetooth connectivity, enabling you to stream music wirelessly
from your smartphone or tablet. You can just sit back and relax as you listen to and control your favorite playlists away
from your stereo.
Easy Pair
If your device has NFC functionality, you can simply 'tap' it with the music receiver or the NFC Tag to connect instantly.
Alternatively, you can activate your device’s Bluetooth and pair it with the music receiver manually. What’s more, the
receiver remembers up to 8 devices for automatic pairing.
Long Distance
Streams music from up to 20 meters (66 feet) away from the speaker, within direct line of sight.
Broad Compatibility
Bluetooth 4.1, compatible with all A2DP stereo Bluetooth devices. Works with any stereo supporting 3.5mm or RCA jacks.
1.2 Main Features
Stream music wirelessly from your smartphone/tablet to any stereo/stand-alone speaker via Bluetooth
Connect with your Bluetooth or NFC-enabled device, using the music receiver or NFC Tag
Connects to any stereo supporting 3.5mm or RCA jacks
Transmits up to 20 meters (66 feet) away, within direct line of sight
Bluetooth 4.1, compatible with all A2DP stereo Bluetooth devices
Chapter 1 Introduction 1
White: The music receiver is powered on and ready to be paired.
1.3 Panel Layout
1.3.1 Top Panel
The music receiver’s LED is located on the top panel.
Name Status Indication
On
Status LED
Off
Blue: A smart device is connected.
The music receiver is powered off.
1.3.2 Back Panel
The music receiver’s ports are located on the back panel.
Item Description
Used to connect the music receiver to a power socket via the provided power cable.
Used to connect the music receiver to your music system via a provided audio cable.
Chapter 1 Introduction 2
TP-LINK_Music
Usage Tips:
Chapter 2. Quick Setup
1. Connect

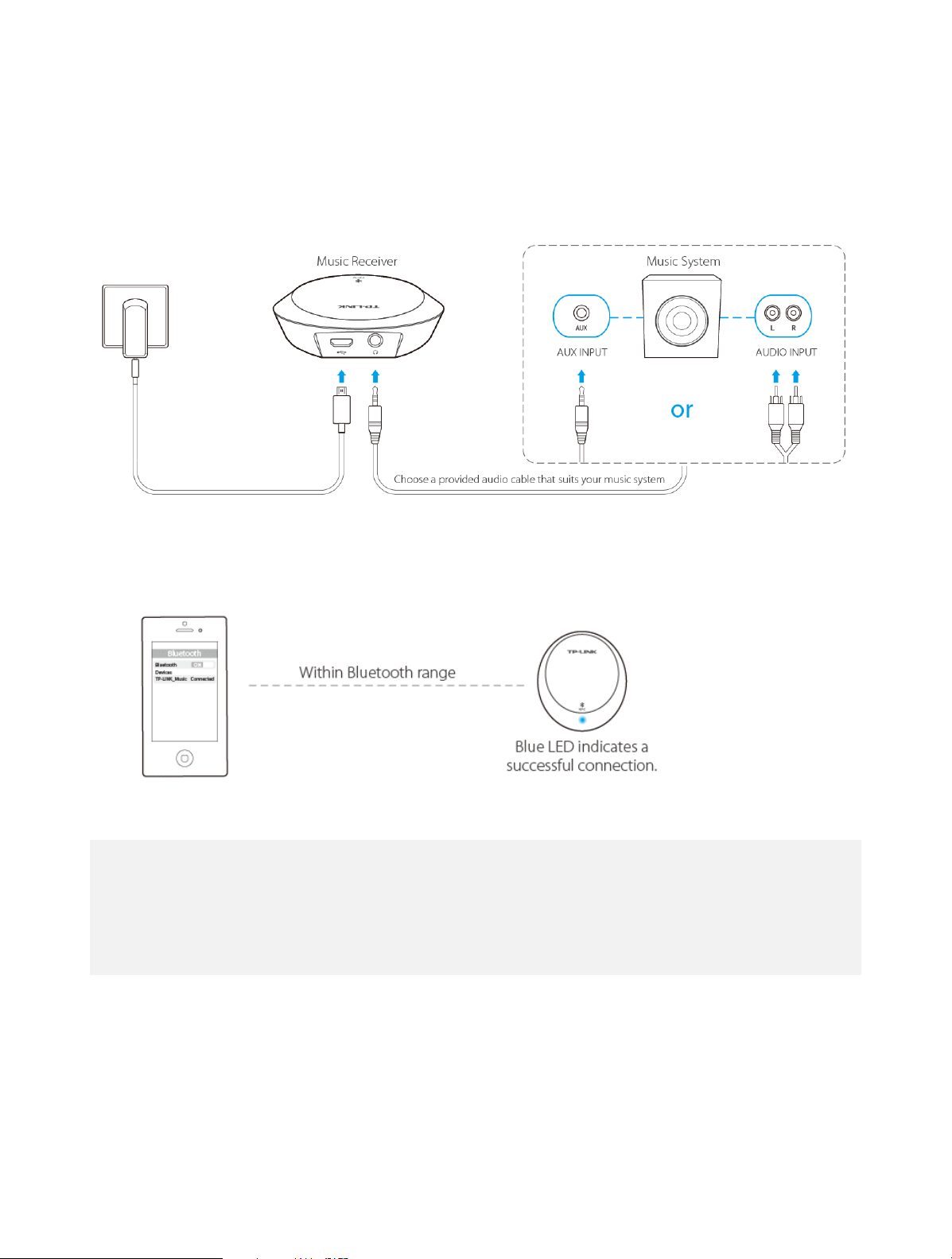

Connect your music receiver as shown in the figure below.
2. Pair
On your smart device, turn on Bluetooth and pair
.
Now you can play and enjoy music!
1. Tapping the paired music receiver will disconnect or reconnect it.
2. To pair a new smart device, disconnect the current one first.
3. You can connect the music receiver to two previously paired devices, but it can only play music from one device at a time.
4. The music receiver will be disconnected if your device's Bluetooth signal has been blocked or out of range (66 feet/20 meters) for
more than 5 minutes.
Chapter 2 Quick Setup 3
Usage Tips:
NFC (Near Field Communication) Pairing
If you have an NFC-equipped device, you can quickly pair the music receiver
with a simple tap.
1. Disconnect the existing paired device.
2. With NFC enabled on your device, tap the music receiver or NFC Tag until
a pairing request pops up.
3. Confirm the pairing request.
NFC Tag: Used for NFC-pairing. You can stick it on an object within Bluetooth range of the music receiver.
1. Tapping the paired music receiver will disconnect or reconnect it.
2. For an NFC-equipped device (such as iPhone 6) that does not support NFC-pairing, you can pair it via Bluetooth.
Chapter 2 Quick Setup 4
What can I do if my music is not coming out from my music system?
Appendix: FAQ
1） Make sure your smart device and the music receiver are successfully connected and within Bluetooth range of each
other.
2） Make sure your music system and the music receiver are correctly connected via a provided audio cable, and both
are powered on.
3） Make sure the volume on your music player and music system are at an audible level.
