TP-Link ARCHERC59 Installation Guide

Quick Installation Guide

WPS

AC1350 Wireless Dual Band Router

C59

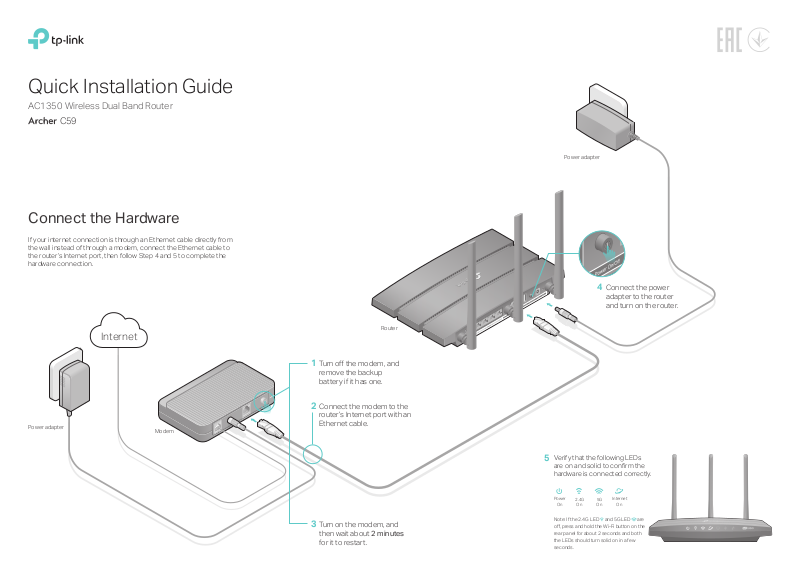

Connect the Hardware

If your internet connection is through an Ethernet cable directly from the wall instead of through a modem, connect the Ethernet cable to the router’s Internet port, then follow Step 4 and 5 to complete the hardware connection.

Power adapter

Internet

Modem

Router

Turn o the modem, and

remove the backup battery if it has one.

Connect the modem to the

router’s Internet port with an Ethernet cable.

Connect the power

adapter to the router and turn on the router.

Verify that the following LEDs

are on and solid to confirm the hardware is connected correctly.

Turn on the modem, and then wait about 2 minutes for it to restart.

Power

Note: If the 2.4G LED and 5G LED are

o, press and hold the Wi-Fi button on the

rear panel for about 2 seconds and both the LEDs should turn solid on in a few seconds.

2.4G On

5G On

Internet

Connections are available

Wireless Network Connection

Configure the Cloud Router

iPhone

Click the network icon of your computer or go to Wi-Fi settings of your

smart device, and then select the SSID to join the network.

TP-Link Cloud Service

Method ONE: Via TP-Link Tether App

1. Download the Tether app.

Scan for Tether Tether

2. Connect your smartphone to the router.

The default wireless network names (SSIDs) and password are printed on the label at the

SSID:TP-Link_XXXX SSID:TP-Link_XXXX_5G

3. Connect the router to the internet.

A Launch the Tether app. Select Archer C59

from the local device list.

B Create a login password and follow the

steps to connect to the internet.

Local Device

Archer C59

50-C7-BF-02-EA-DC

Device

4. Register the TP-Link Cloud service.

To enjoy a more complete service from TP-Link, tap Bind Now when prompted and follow the instructions to register and bind a

ArcherC9

This device is not bound to any

TP-Link ID. Please bind for remote

management and more functions.

Bind NowLater

StatusDevices

TP-Link ID to your cloud router.

With TP-Link ID, you can conveniently manage your

home network from your smartphone or tablet via the Tether app, no matter where you find yourself.

bottom of the router.

Computer Smart Device

Wi-Fi

TP-Link_XXXX

TP-Link_XXXX_5G

√

Connect automatically Connect

< Settings

Wi-Fi

CHOOSE A NETWORK...

TP-Link_XXXX

TP-Link_XXXX_5G

Other...

2. Connect the router to the internet.

Launch a web browser, and enter http://tplinkwifi.net or http://192.168.0.1 in the address bar. Create a login password and then click Let’s Get Started.

Note: If the login window does not appear, please refer to Q1 of Need Help? in this guide.

http://tplinkwifi.net

Password

Confirm Password

Let’s Get Started

Follow the step-by-step instructions to set up the internet connection and register the TP-Link Cloud service.

Time Zone

Internet Connection Type

Wireless Settings

Summary

TP-Link Cloud Service

TP-Link Cloud service provides a better way to manage your cloud devices. For

example:

Remote Management

Easily manage your home network when you are out and about via the Tether app on your smartphone or tablet.

Timely Upgrade Notifications

Keep informed of the latest rmware updates, ensuring

your router stays at its best.

One for All

Manage multiple TP-Link Cloud devices, all from a single TP-Link ID.

You can set up and enjoy cloud functions via the Tether app or through the web management page at http://tplinkwi.net.

To learn more about TP-Link Cloud service and other useful features supported by the router

(including Guest Network, Parental Controls, Access Control and more), please refer to the

User Manual at www.tp-link.com.

Need Help?

Q1. What should I do if I cannot access the web management page?

If the computer is set to a static IP address, change its settings to obtain an IP address automatically.

Verify that http://tplinkwifi.net is correctly entered in the web browser. Alternatively, enter http://192.168.0.1 or http://192.168.1.1 in the web browser and press Enter.

Use another web browser and try again. Reboot your router and try again. Disable and enable the network adapter being used.

Q2. What should I do if I cannot access the internet?

Check if the internet is working normally by connecting a computer directly to the modem using an Ethernet cable. If it is not, contact your internet service provider.

Log in to the web management page of the router, and go to the Basic > Network Map page to check whether the internet IP address is valid or not. If it is, please run the Quick Setup again; otherwise, check the hardware connection.

Reboot your router and try again.

For cable modem users, log in to the web management page of the router. Go to Advanced > Network > Internet > MAC Clone, click Use Current Computer MAC Address and click Save. Then reboot both the modem and the router.

Method TWO: Via Web Browser

1. Connect your device to the router (wired or wireless).

Wired

Turn off the Wi-Fi on your computer and connect the devices as shown

below.

Ethernet cable

Wireless

Find the SSID and wireless password printed on the label of the router.

USB Applications

With the USB port, it’s easy to share printers, files and media with multiple devices.

USB Port for Sharing

Local Storage Sharing

Share les from the USB drive with

devices on your home network

Remote Access

Access the USB drive when you are away from home

To learn more about the USB applications, visit

http://www.tp-link.com/app/usb, or simply scan the QR code.

Printer Sharing

Share a printer with multiple computers connected to the router

Media Server

Play media from the USB drive on your computer and smart devices

Q3. How do I restore the router to its factory default settings?

With the router powered on, use a pin to press and hold the Reset button on the back until the Power LED blinks.

Log in to the web management page of the router, go to Advanced > System Tools > Backup & Restore, and click Factory Restore. The router will restore and reboot automatically.

Q4. What should I do if I forget my web management page password?

If you are using a TP-Link ID to log in, click Forgot password on the login page and then follow the instructions to reset it.

Alternatively, press and hold the Reset button on the back of the router until the Power LED blinks to reset it, then visit http://tplinkwi.net to create a new login password.

Q5. What should I do if I forget my wireless network password?

If you have not changed the default wireless password, you can find it on the label at the bottom of the router.

Connect a computer directly to the router using an Ethernet cable. Log in to the router’s web management page at http://tplinkwi.net, and go to Basic > Wireless to retrieve or reset your wireless password.

For technical support and other information, please visit

http://www.tp-link.com/support
