SIENNA

2011

QUICK REFERENCE

GUIDE

Page 2

2011

Sienna

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle’s main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner’s Manual located in the vehicle’s glove box. We strongly encourage you to review the Owner’s Manual and supplementary manuals so you will have a better understanding of the vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Sienna.

A word about safe vehicle operations

This Quick Reference Guide is not a full description of Sienna operations. Every Sienna owner should review the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout the Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

Page 3

INDEX

OVERVIEW

FEATURES/OPERATIONS

Engine maintenance 9 Fuel tank door release and cap 8 Hood release 8 Indicator symbols 4-5

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Instrument cluster 4 Instrument panel 2-3

Keyless entry

Light control-Instrument panel 9

Smart Key system

1,2

Air Conditioning/Heating 24-26 Audio 22-23

Auto lock functions

Automatic Transmission 10 Bottle holders 31 Clock 19 Cruise control 20 Cup holders 31 Door-Power back 18 Doors-Sliding 17 Dynamic radar cruise control 20-21 Enhanced VSC OFF button 28

Garage door opener

(HomeLink®)

2,3

Hill-start Assist Control (HAC) 29

Lights1& turn signals 11-12

Moonroof 19 Parking brake 10 Power outlets-12V DC 30 Power outlets-120V AC 30 Rear seat entertainment system 28 Seat adjustments-Front 14 Seat adjustments-Rear 14 Seat heaters 26 Seats-Head restraints 13 Seats-Removing second row center seat 15 Seats-Removing second row outside seats 15 Seats-Stowing third row seats 16 Sunshade-Side 19 Telephone controls (Bluetooth®)27 Tilt and telescopic steering wheel 11 Windows 18 Windows-Power quarter 18 Windshield wipers & washers 13

SAFETY AND

EMERGENCY FEATURES

Door locks 32 Doors-Child safety locks 32 Seat belts 32 Seat belts-Shoulder belt anchor 32 Spare tire & tools 33 Tire Pressure Monitoring (warning) System 33

Visit your Toyota dealer for information on customizing this feature.

Programmable by customer. Refer to the Owner’s Manual for instructions and more information.

HomeLink®is a registered trademark of Johnson Controls, Inc.

Page 4

OVERVIEW

Instrument panel

Steering wheel controls

Automatic Air Conditioning system

Steering wheel audio controls Telephone controls

1,2

Voice command button Distance switch

Ignition switch (standard key) Cruise control

1,2

Headlight, turn signal and front fog light1 controls Gauges and meters Wiper and washer controls Emergency flasher button Multi-information display

Clock Audio system/Navigation system “ENGINE START STOP” switch (Smart Key)

1,2

Air Conditioning controls Outside rearview mirrors wiper de-icer Auxiliary box

/Rear window defogger button/Windshield

Page 5

Manual Air Conditioning system

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Multi-information display switches

Cup holder Power outlet (12V) AUX adapter Seat heater switches DVD player USB adapter

Power rearview mirror controls Power quarter window switch

Enhanced VSC/TRAC OFF switch Intuitive parking assist switch Headlight beam level control dial Power sliding door/power back door main switch

If equipped

For vehicles with navigation system, refer to the “Navigation System

Owner’s Manual.”

Page 6

OVERVIEW

Instrument cluster

Tachometer Speedometer Fuel gauge Engine coolant temperature Odometer and two trip meters display Odometer/trip meter display change button

Indicator symbols

For details, refer to “Indicators and warning lights,” Section 2-2, 2011 Owner’s Manual.

Brake system warning

Driver seat belt reminder (alarm will sound if speed is over 12 mph)

Front passenger seat belt reminder (alarm will sound if speed is over 12 mph)

Charging system warning

Malfunction/Check Engine indicator

Low engine oil pressure warning

Open door warning

Airbag SRS warning

1,2

SRS AIR BAG ON-OFF indicator

Vehicle Stability Control OFF indicator

If indicator does not turn off within a few seconds of starting engine, there may be a malfunction. Have vehicle inspected by your Toyota dealer.

For details, refer to “If a warning light turns on or a warning buzzer sounds...,” Section 5-2, 2011 Owner’s Manual.

If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.

1,6

Page 7

Low Tire Pressure Warning

Low windshield washer fluid level warning

Engine oil replacement reminder

Third seat fold incomplete warning

Anti-lock Brake System warning

1,2

Electric power steering system warning light

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

1,2

Master warning light

Low fuel level warning light

1,2

Active Torque Control 4WD system warning light

Headlight low/high beam indicator

Automatic high beam indicator

Fog light indicator

Turn signal indicator

Shift position indicators

Slip indicator/Hill-start Assist Control indicator

Traction Control OFF indicator

Cruise control indicator

3,5

Cruise control SET indicator

Radar cruise control indicator

4,5

Radar cruise READY indicator

Pre-Collision System indicator

1,7

1,2

1,6

ECO driving indicator light

Security indicator

If this light flashes, refer to “Dynamic radar cruise control,” Section 2-4, 2011 Owner’s Manual.

The indicator flashes to indicate a malfunction.

The indicator flashes to indicate that the system is operating.

The indicator flashes faster than usual to indicate that the system is operating.

Page 8

OVERVIEW

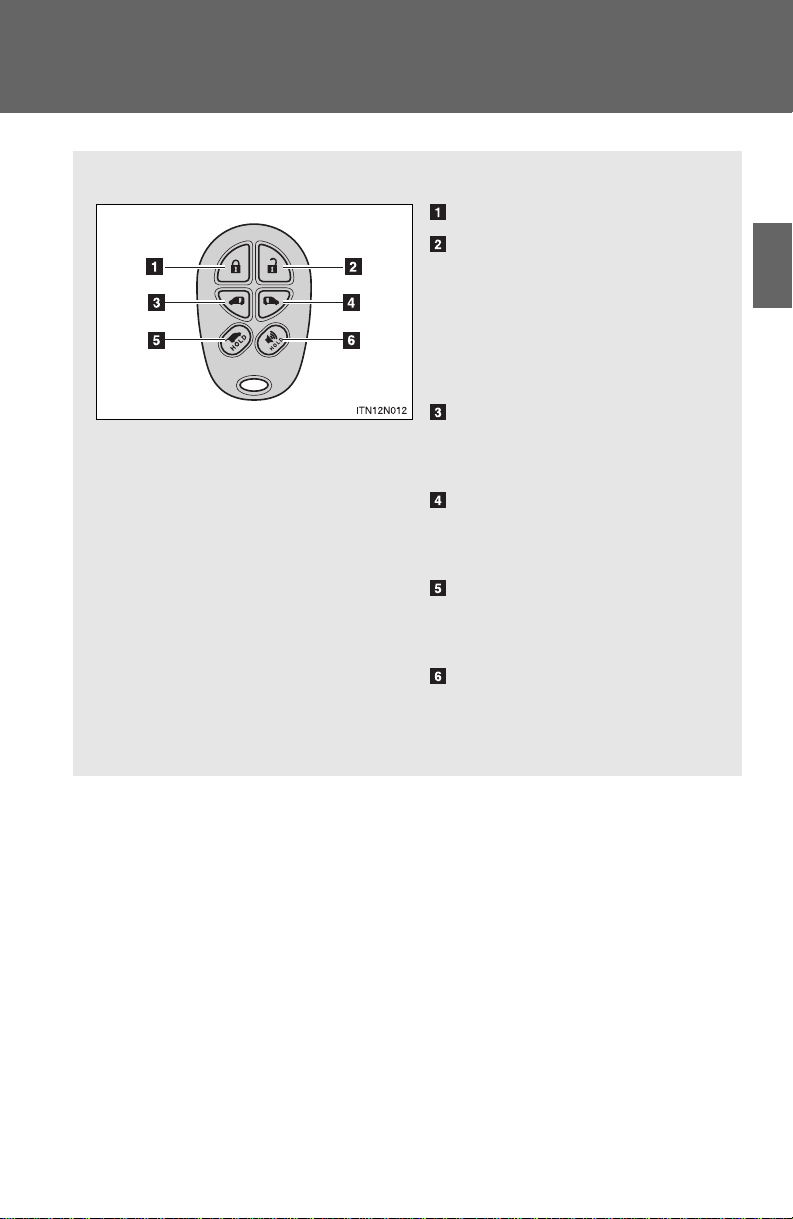

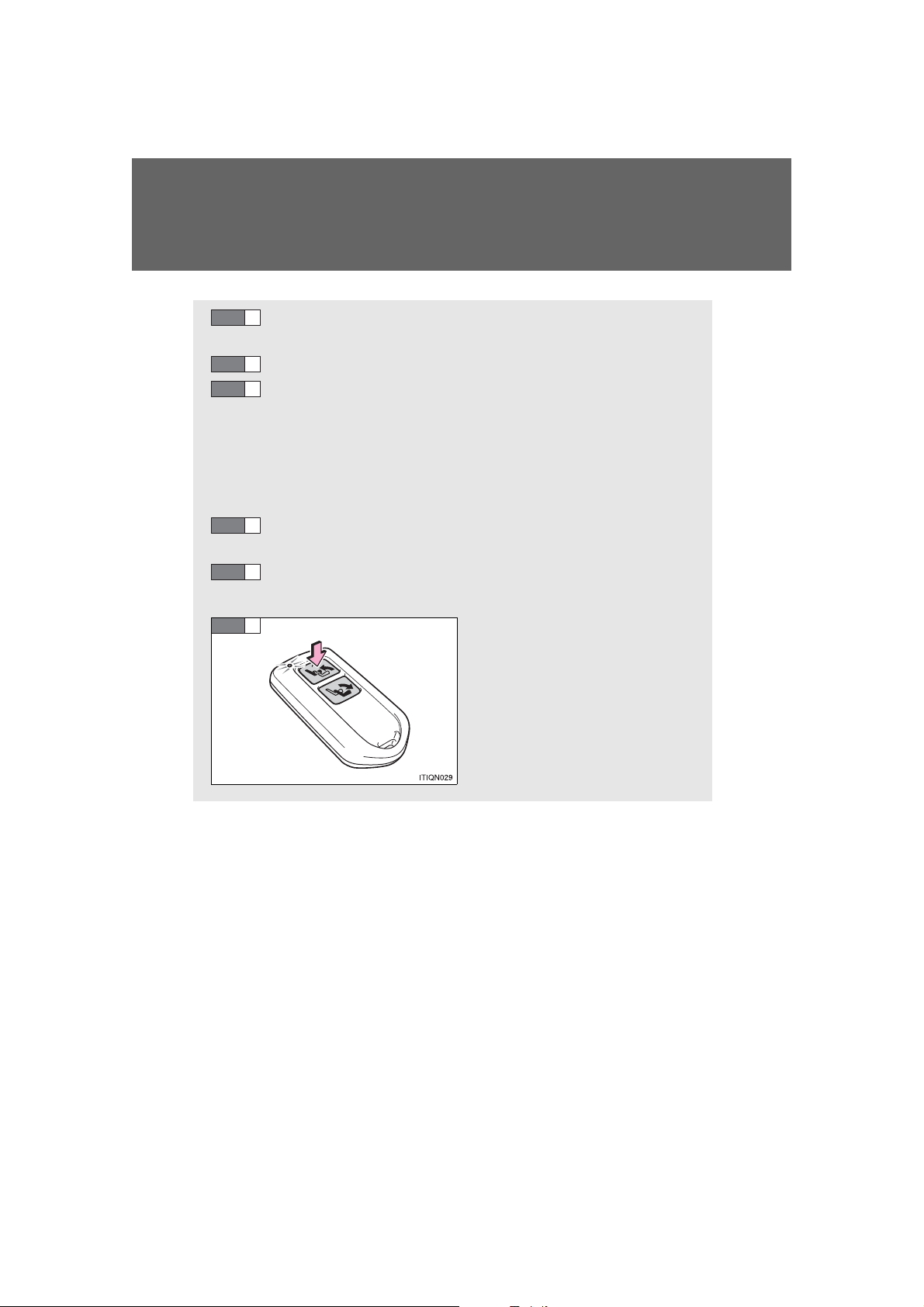

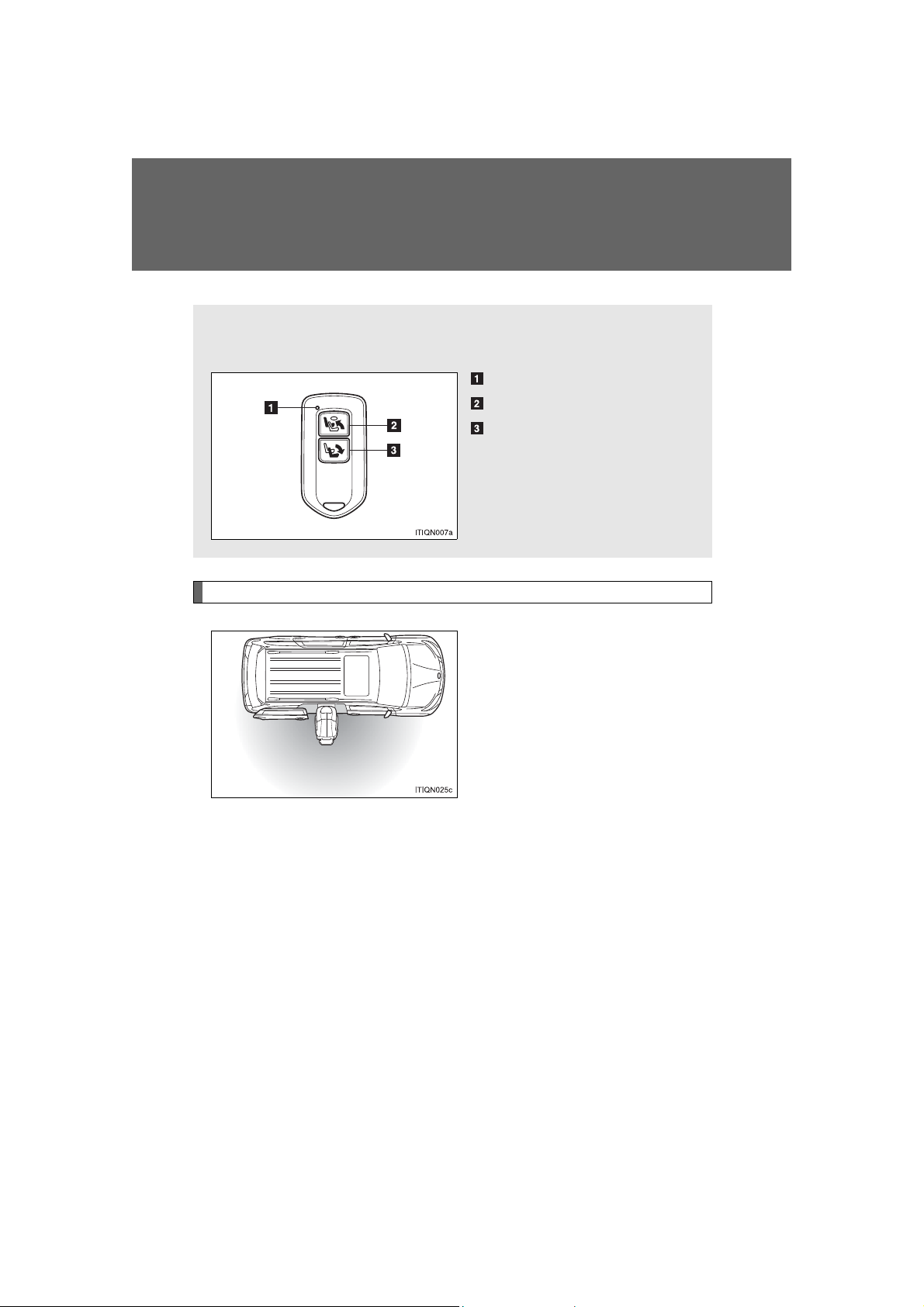

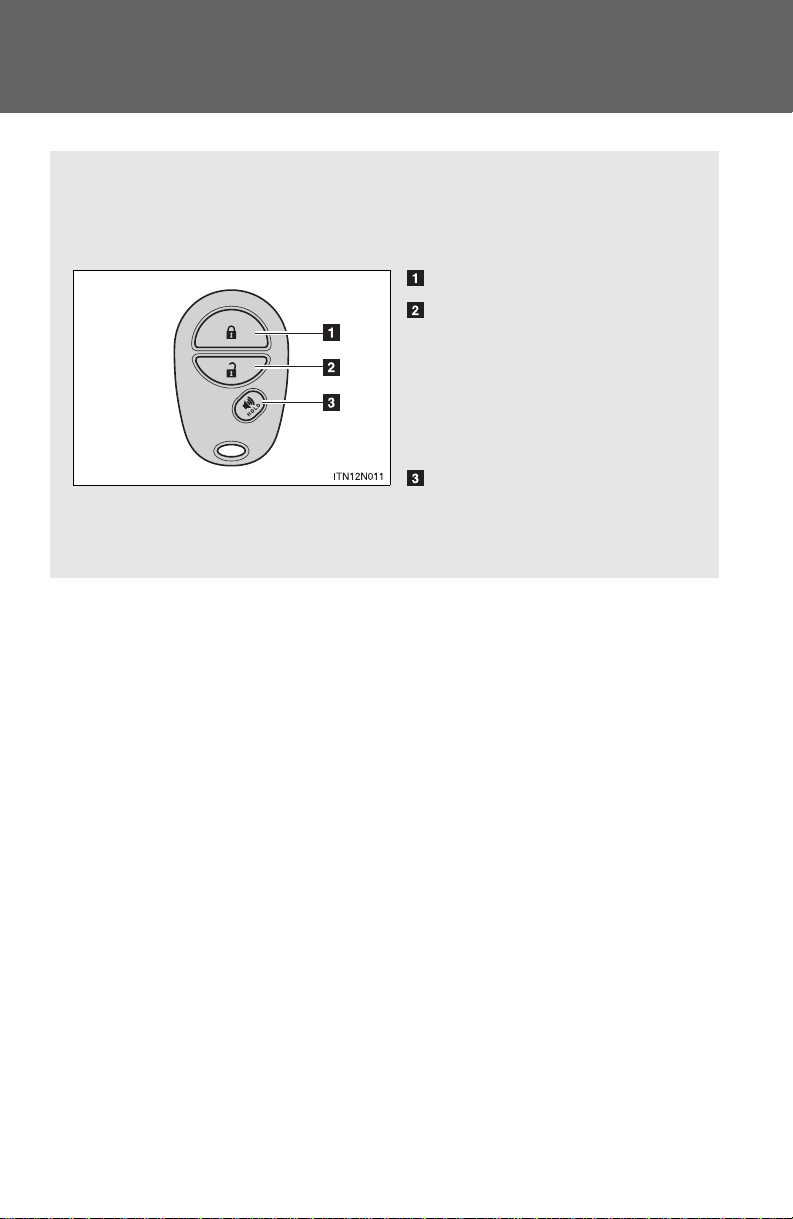

Keyless entry

Locking operation

Type A Type B Type C

Push

Unlocking operation

Type A Type B Type C

Push ONCE: Driver door

TWICE: ALL doors

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety.

Power sliding door operation (if equipped)

Left side power sliding door Right side power sliding door

Type A Type B

Power back door operation (if equipped)

Type A Type B

Push and hold

Push and holdPush and hold

Panic button

Push and hold

Page 9

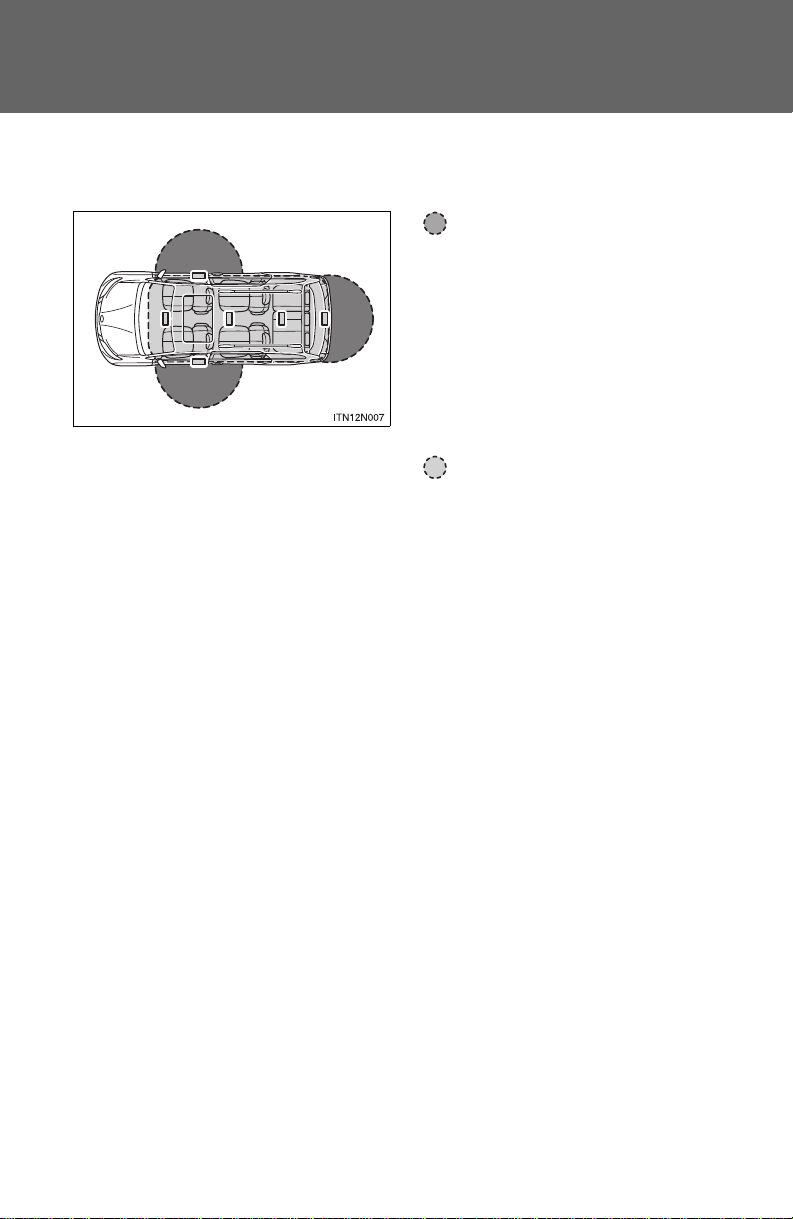

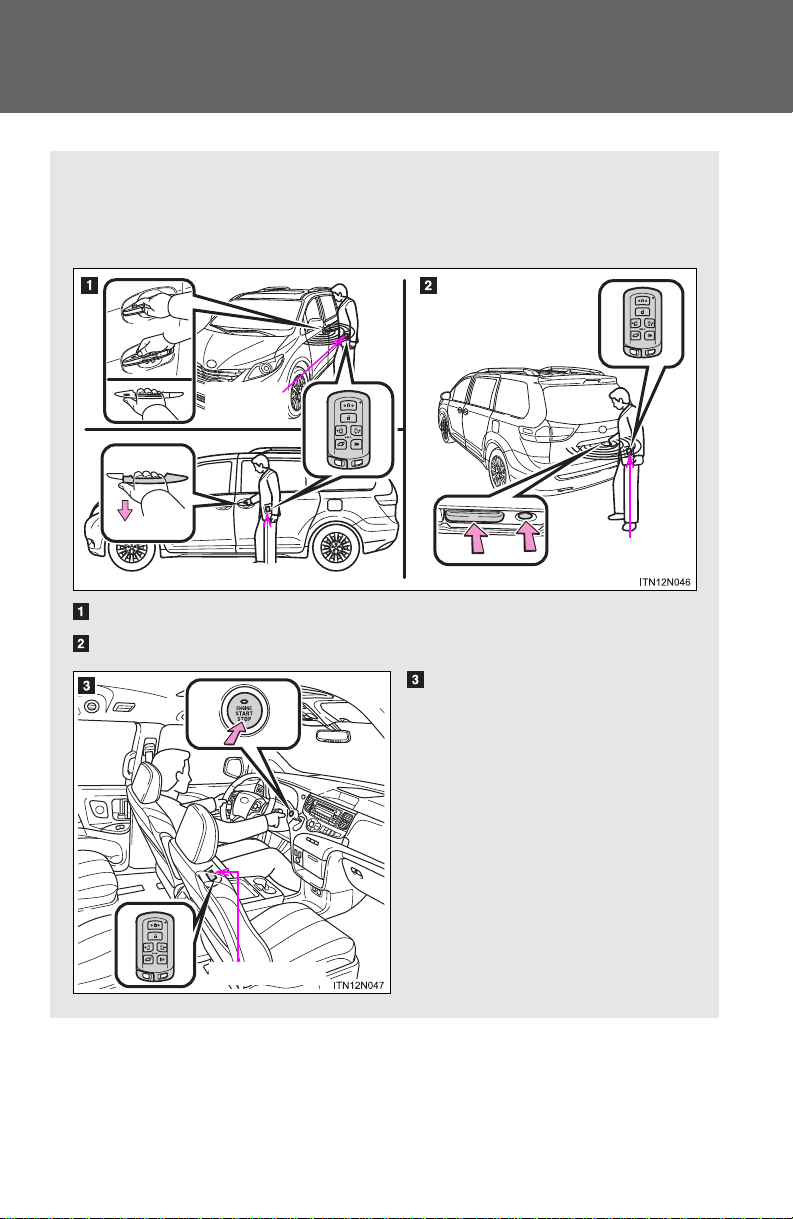

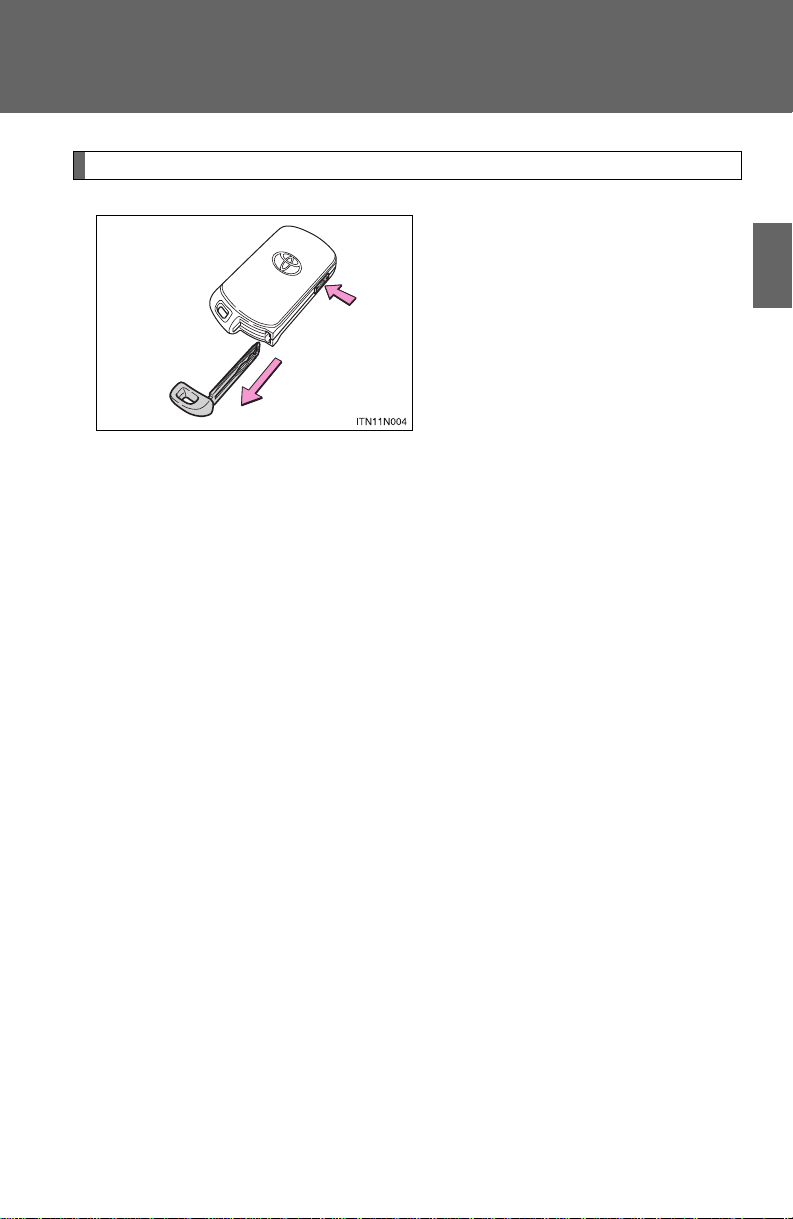

Smart Key system (if equipped)

Start function

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Green indicator ON

Carrying

Depress brake pedal

Push

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Power (without starting engine)

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from:

ACCESSORY

OFF

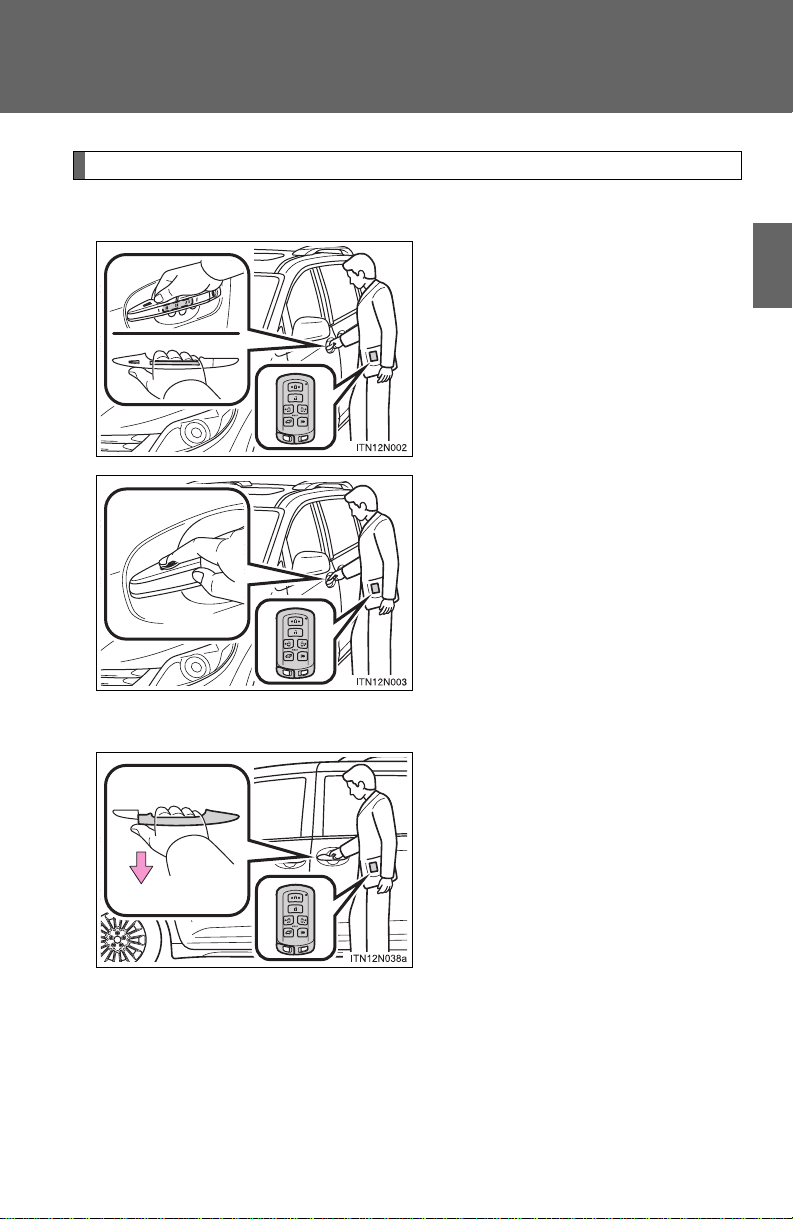

Locking operation

Power ON; the engine not running.

All systems OFF.

Accessories such as the radio will operate.

Unlocking operation

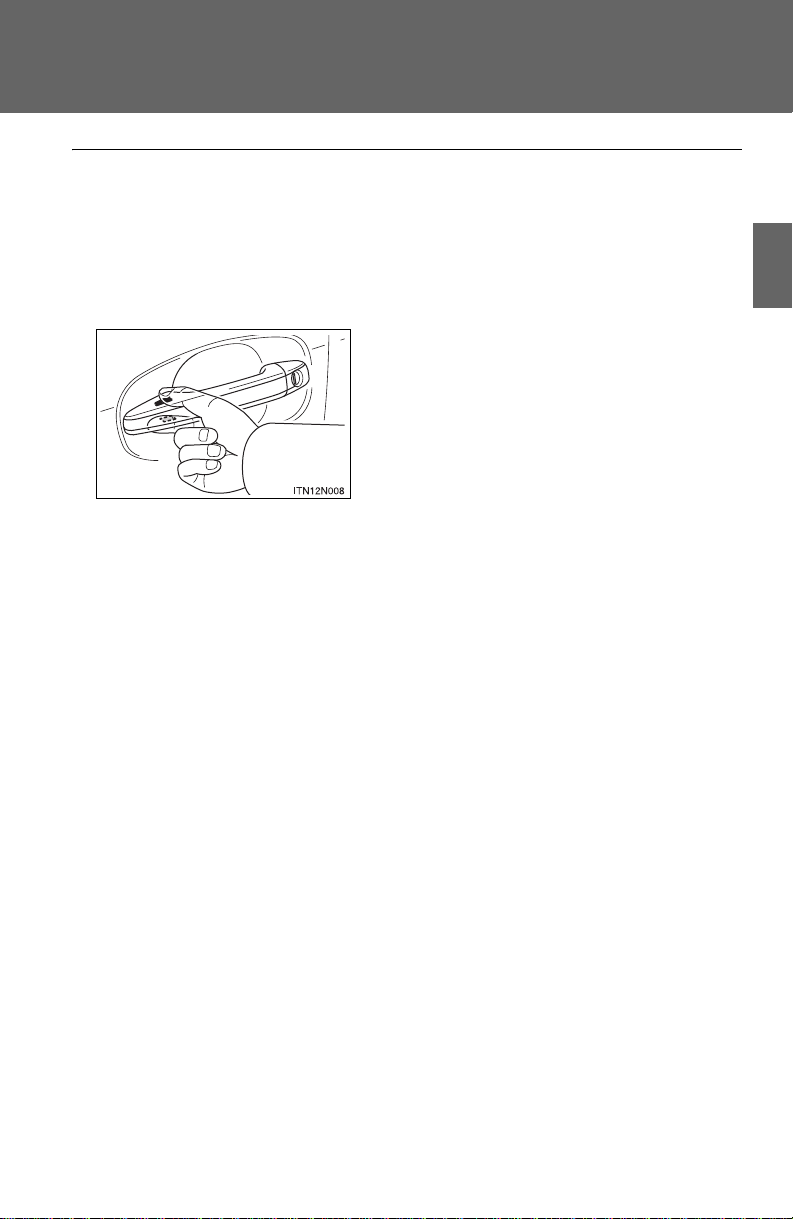

Front door lock

To uc h

Carry remote to lock

Front door unlock*

Carry remote to unlock

Grasp

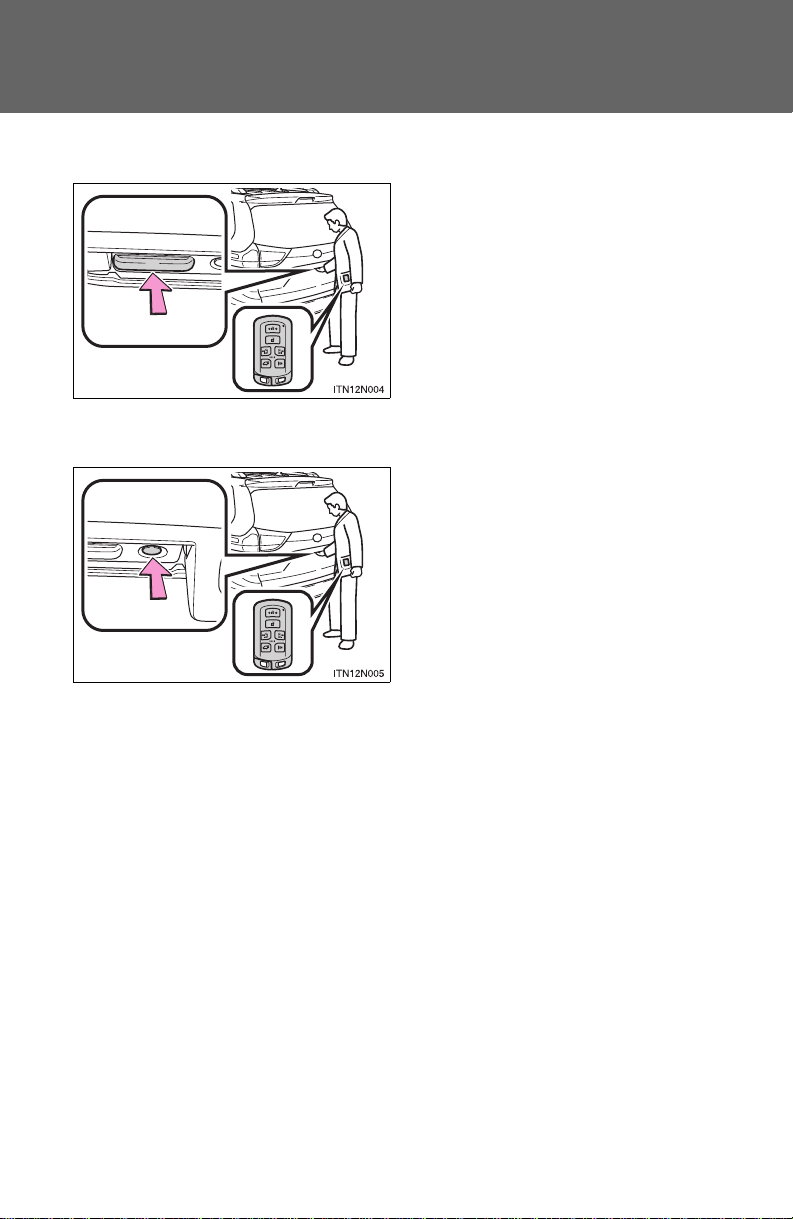

Back door lock/unlock

Unlock

Push

Lock

Push

Carry remote to lock/unlock

* Driver door unlocking function can be programmed to unlock driver side

doors only, or all doors. Grasping any passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

Page 10

OVERVIEW

Fuel tank door release and cap

Pull up

NOTE: Tighten until one click is heard. If the cap is not tightened

Store

enough, Check Engine “ ” indicator may illuminate.

Hood release

Tu rn

Pull

Insert rod to hold hood open

Pull up latch and raise hood

Page 11

Engine maintenance

Windshield and rear window washer fluid tank Engine oil filler cap Engine oil level dipstick Engine coolant reservoir

NOTE: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance. Please refer to the “Warranty Maintenance Guide.”

Light control-Instrument panel

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Bright

Dark

Page 12

FEATURES/OPERATIONS

Auto lock functions

Automatic door locks can be programmed to operate in four different modes, or turned OFF.

-Doors lock when shifting from Park.

-Doors lock when the vehicle speed goes above approximately 12 mph.

-Doors unlock when shifting into Park.

-Doors unlock when the driver’s door is opened within 10 seconds after

turning the “ENGINE START STOP” switch or engine switch OFF.

Refer to the Owner’s Manual for more details.

Automatic Transmission

+(“S” mode)

Park*

Reverse

Neutral

Drive

“S” mode

“S”

* The “ENGINE START STOP” switch/engine switch must be “ON” and the

brake pedal depressed to shift from Park.

“D”

“S” (Sequential) mode

(“S” mode)

Shift the shift lever to “S” position from “D” position.

+ : Upshift (push and release)

- : Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the “D” position.

Parking brake

Set: Depress Release: Depress again

Page 13

Tilt and telescopic steering wheel

Lock release lever

Angle

Hold wheel, push lever down, set angle and length, and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.

Lights & turn signals

Headlights

Parking lights

Auto or OFF

DRL OFF

Without automatic high beam

Length

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Low beam

High beam

High beam flasher

-Daytime Running Light system (DRL) Automatically turns on the

headlights at a reduced intensity.

-Automatic light cut off system (if equipped) Automatically turns lights

off after a delay of 30 seconds, or the lock switch on remote may be pushed after locking.

Page 14

FEATURES/OPERATIONS

Automatic high beam (if equipped)

Activate*

* Refer to the Owner’s Manual for details on activating the automatic high

beams.

Manual high beam

Deactivate

Turn signalsFront fog lights (if equipped)

Right turn

Lane change

Tu rn

Lane change

Left turn

Front fog lights come on only when the headlights are on low beam.

Headlight beam level control (if equipped)

Down

Rotating the dial downward will lower the angle of the beam.

Down

Page 15

Windshield wipers & washers

Front

Adjust frequency*

Single wipe

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

* Intermittent windshield

wiper frequency adjustment

Rotate to increase/decrease wipe frequency.

Adjust sensor sensitivity*

* Rain-sensing windshield wiper

Rotate to increase/decrease sensor sensitivity.

Rear

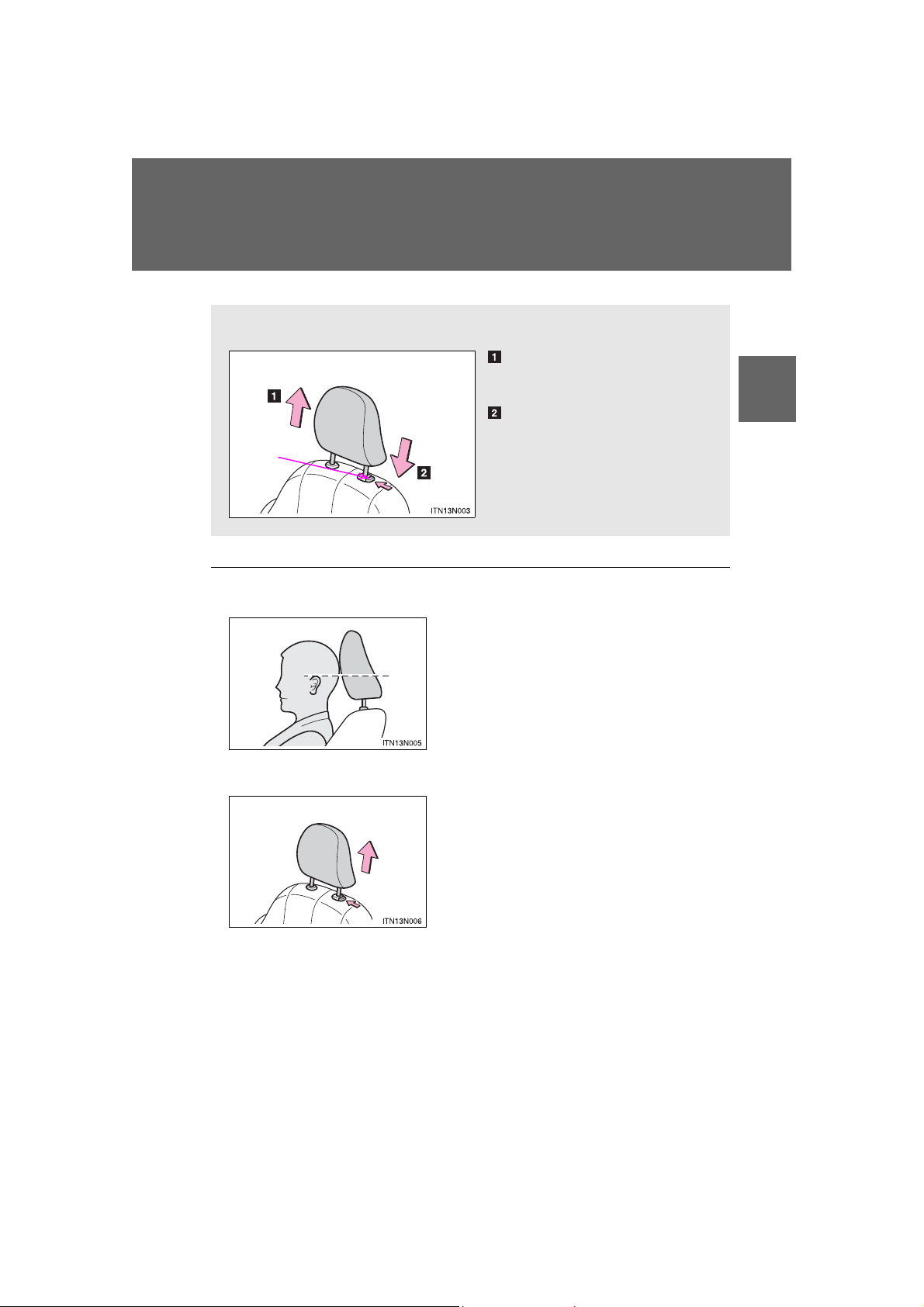

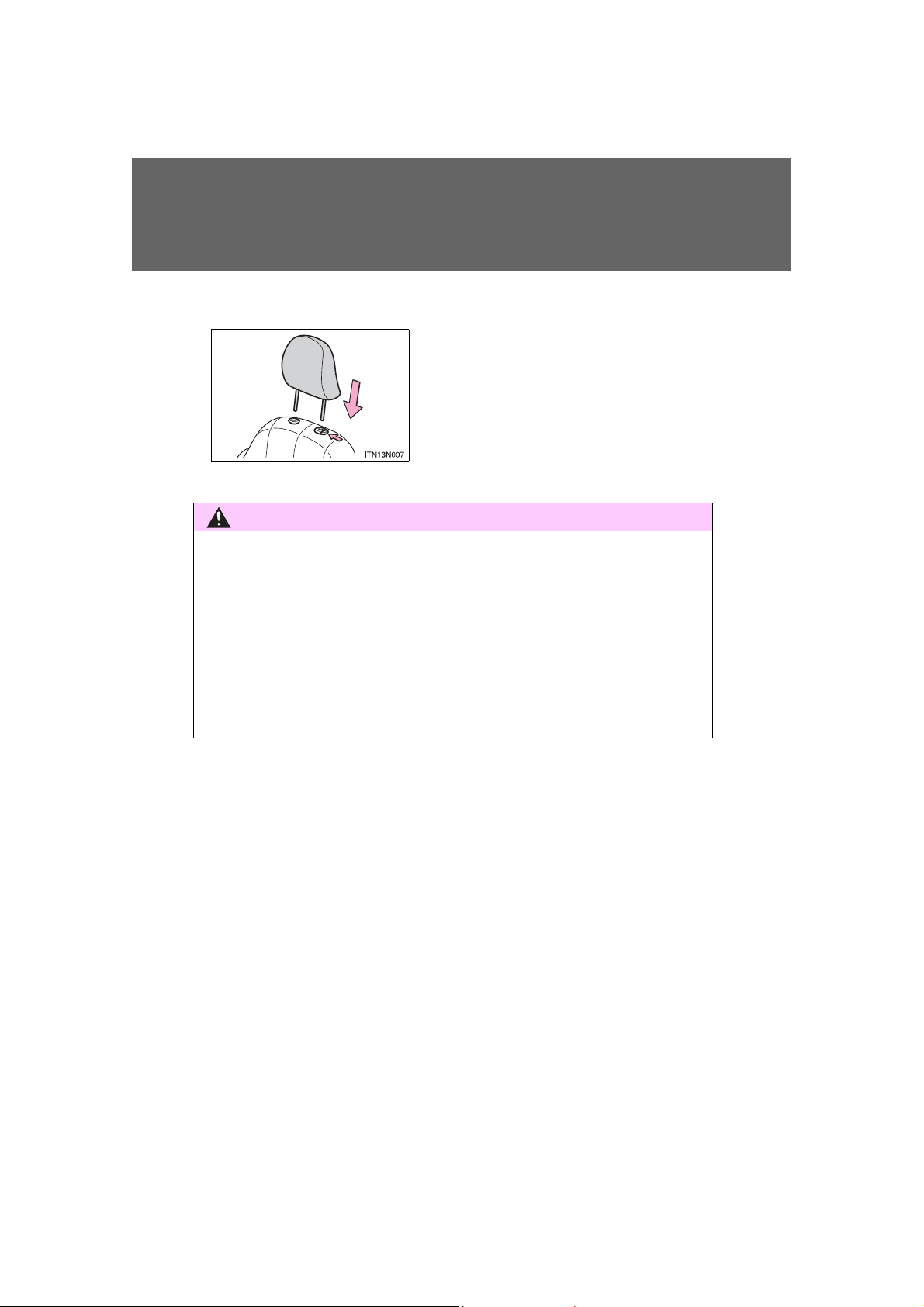

Seats-Head restraints

Front and second row outside seats

Second row center (8-passenger models) and third row center seats

Pull to wash and wipe

Wash and wipe

Wipe

Interval wipe

Wash and wipe

Interval wipe

Slow

Fast

Single wipe

Rain-sensing

Slow

Fast

Third row outside seats

Lock release button

Page 16

FEATURES/OPERATIONS

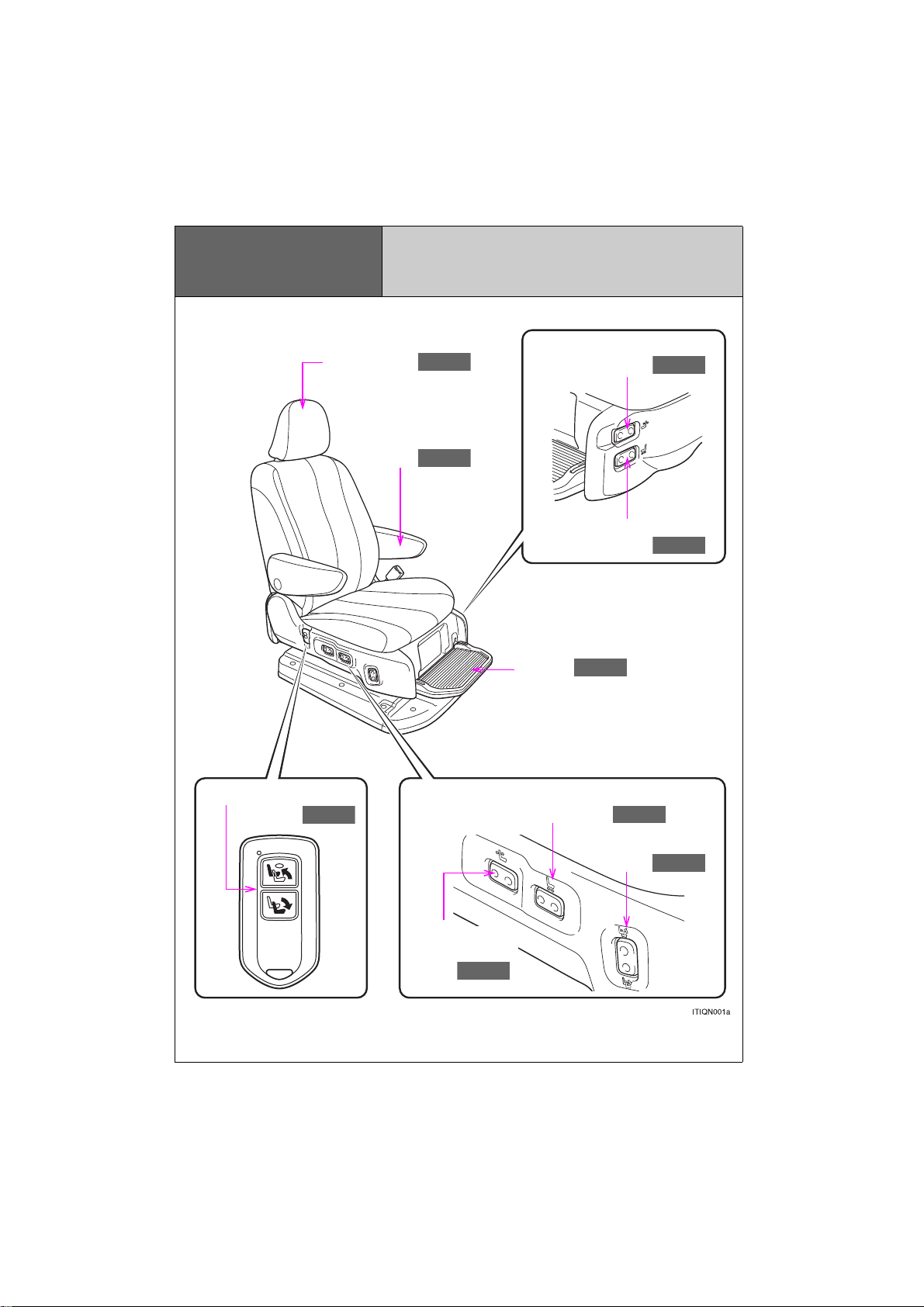

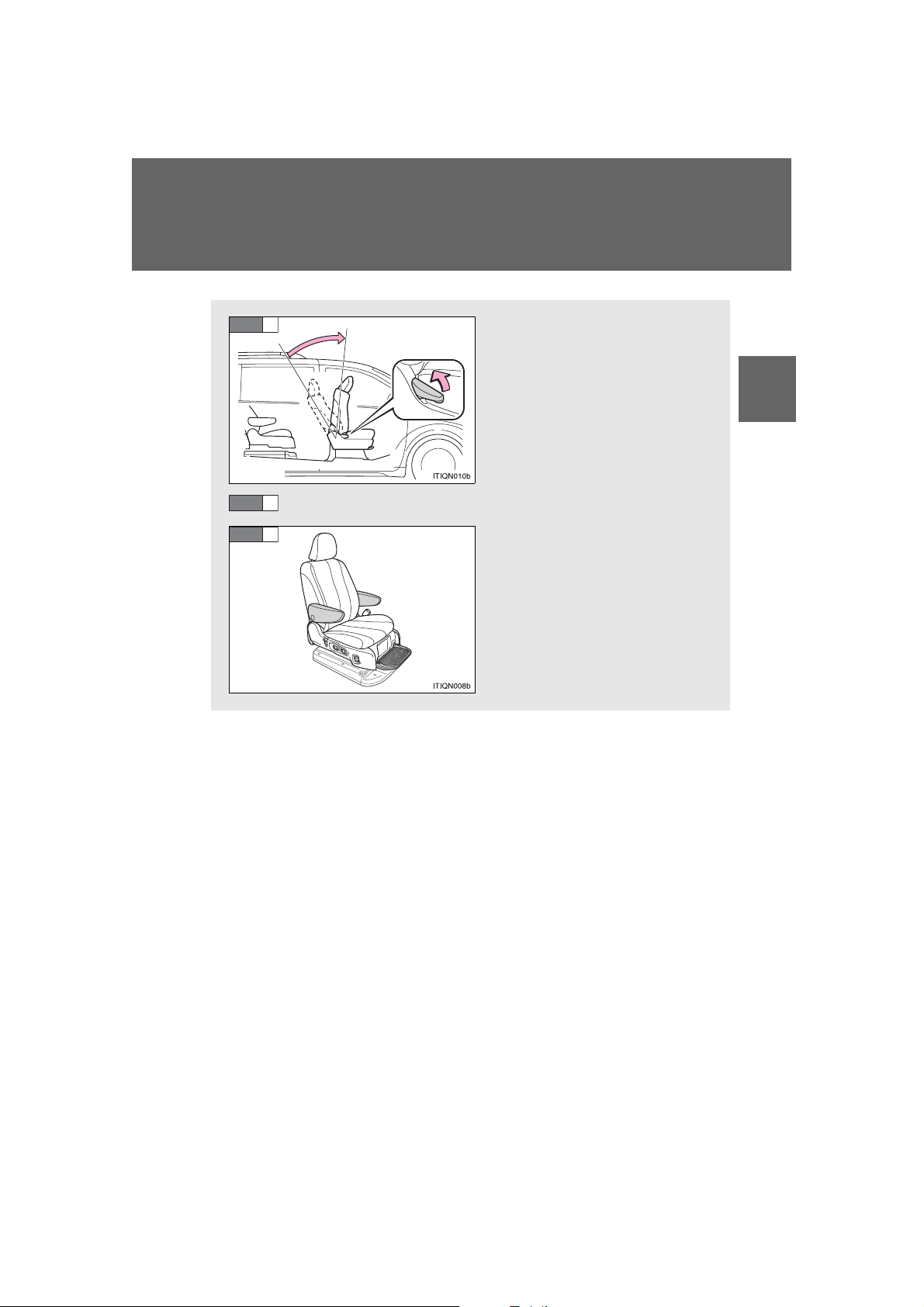

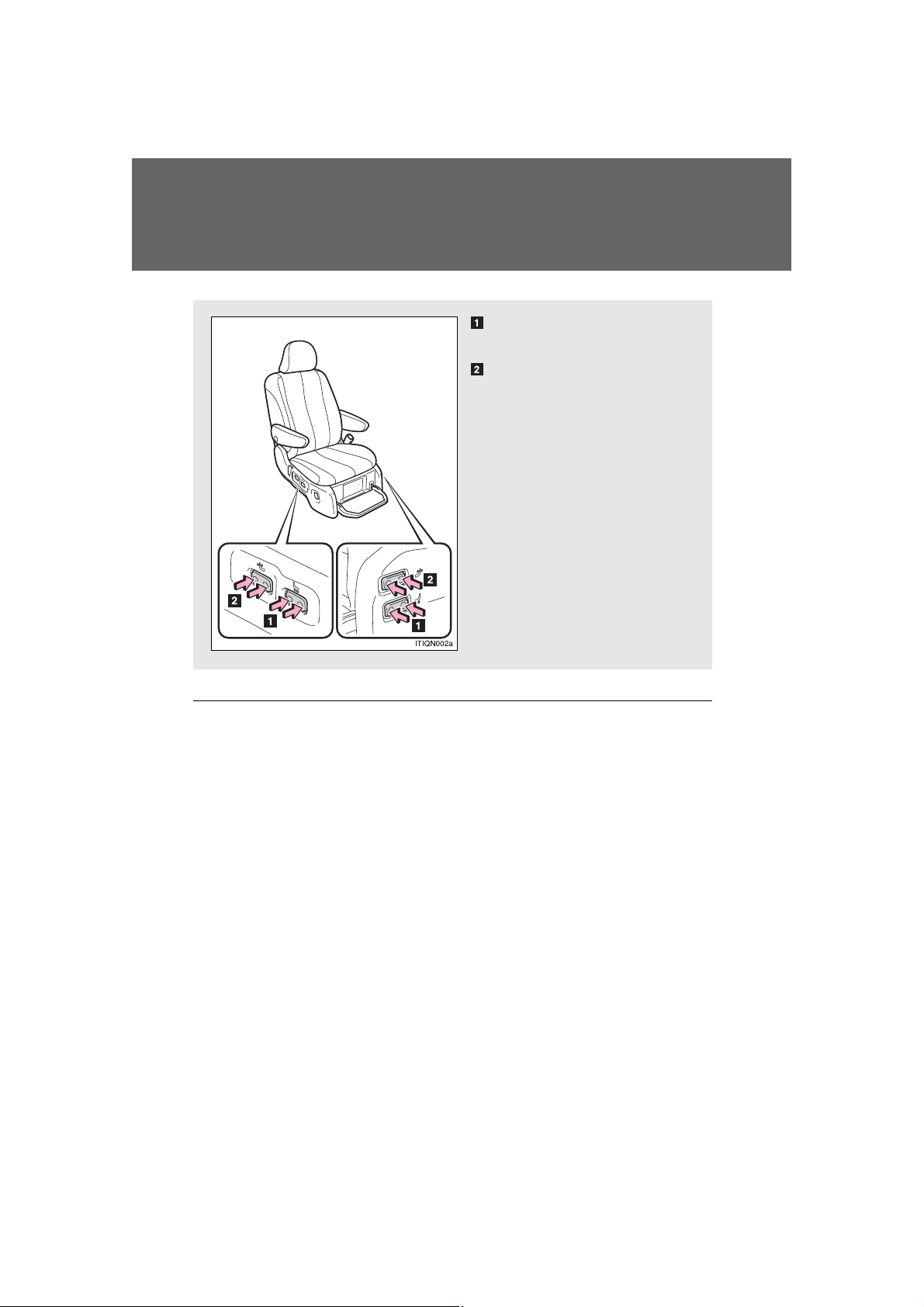

Seat adjustments-Front

Manual seat

Seat position (forward/backward) Height crank (driver side only) Seatback angle Lumbar support (driver side only) Seat position, cushion angle and height

Seat adjustments-Rear

Second row seat

Tip-up seat

Power seat

Ottoman seat

Third row seat

Manual

Pull strap

Seat position (forward/backward) Seatback angle Ottoman angle

Refer to the Owner’s Manual for more details.

Power

Page 17

Seats-Removing second row outside seats

Tip-up seats

(1)

Pull

Fold

(2)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Lift

Tip- up

Ottoman seats

(1)

Fold

Pull

(2)

Seats-Removing second row center seat (if equipped)

(1)

(3)

Pull

Fold

(2)

Remo ve

Pull

Lift

Pull

Page 18

FEATURES/OPERATIONS

Seats-Stowing third row seats (manual)

Lower

(2)(1)

Stow the seat belt buckles

(3)

Seats-Stowing third row seats (power) (if equipped)

Lower

Stow the seat belt buckles

(3)

Push down

(2)(1)

Pull

Third seat fold incomplete warning light

Push and hold

An alarm will sound for 10 seconds and the indicator will light up on the instrument panel if the seat is not fully open or stowed when vehicle is shifted out of Park.

Refer to the Owner’s Manual for more details.

Page 19

Doors-Sliding

ON/OFF switch

Instrument panel

Opening/Closing

Front overhead console

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Off

Push

Center pillar

Open: Push Close: Push again

Power

• Sliding doors will not fully open if the sliding door window is open.

• Power sliding doors will open only when gear selector is in the “P” (Park) position, and doors are unlocked. Refer to the Owner’s Manual for more details.

• An alarm will sound if a sliding door is open and the vehicle is shifted

out of Park.

• Left sliding door will not open if gas door is open.

• If battery is disconnected, the power sliding doors need to be reinitialized. Refer to the Owner’s Manual for more details.

Manual

• Sliding doors will not lock into the open position if the sliding door window is open.

Page 20

FEATURES/OPERATIONS

Door-Power back (if equipped)

Opening/ClosingON/OFF switch

Instrument panel

Off

Push

NOTE: If battery is disconnected, the power back door needs to be reinitialized. Refer to the Owner’s Manual for more details.

Front overhead console

Push

Open: Push Close: Push again

Windows

Down

Window lock switch

Automatic operation Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction.

Window lock switch Deactivates all passenger windows. Driver’s window remains operable.

Windows-Power quarter (if equipped)

Open

Page 21

Moonroof (if equipped)

Rear moonroof (if equipped)Front moonroof

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Open*

* Tilt: Push

Open: Push again

Open*

Sunshade-Side (if equipped)

Rear side window

Pull

Hook

Clock (if equipped)

Open

Push once to open partway; again to open completely.

Rear quarter window

Pull

Hook

Open

H- Hour set M- Minute set

Page 22

FEATURES/OPERATIONS

Cruise control (if equipped)

Turning system ON/OFF

Functions

Cancel

System ON/OFF

Resu me2/Increase speed

Set/Decrease speed

The set speed may also be cancelled by depressing the brake pedal.

The set speed may be resumed once vehicle speed reaches 25 mph.

Dynamic radar cruise control (if equipped)

Refer to the Owner’s Manual for more details and complete safety precautions before attempting to use “Dynamic radar cruise control.”

Fixed speed mode

(2) Push and hold

(1) Push

System ON/OFF

To set, cancel and resume a speed Refer to “Functions” in the Cruise Control section, and to the Owner’s Manual for more details.

Page 23

Distance control mode

Push System ON/OFF

The distance control mode will cruise at a set speed, decelerate to maintain a selected distance from a slower vehicle traveling in front of you, and accelerate back up to the selected speed if the vehicle in front changes lanes or speeds up.

To set, cancel and resume a speed Refer to “Functions” in the Cruise Control section, and your Owner’s Manual for more details.

NOTE: Once vehicle speed is set, pushing lever up toward “+ RES” will increase speed to the nearest 5 mph, and then in 5 mph increments. Pushing lever down toward “- SET” will reduce speed in the same way.

LONG

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

MIDDLE

Push

SHORT

To change the vehicle-to-vehicle distance

Push the distance button to cycle through the settings, which will change progressively from LONG to MIDDLE to SHORT.

Page 24

FEATURES/OPERATIONS

Audio

Typ e 1

Seek station/ CD track select

Push to turn ON/OFF

Station/CD track scan

Mute/pause

Eject CD

Preset buttons - functions in other modes indicated above number

Push to skip up/down folder

Push to adjust tone & balance

View CD information

Mode

Type 2 additional functions

Typ e 3

Seek station/ CD track select

Push to turn ON/OFF

Station/CD track scan

Eject CD

Preset buttons - functions in other modes indicated above number

Mode

Load CD(s)

Push to skip up/down folder

Push to adjust tone & balance

View CD information

CD PLAYER

To scan tracks on a disc Push and hold “SCAN.” Push again to hold

selection.

CD changer (Type 2 only)

-To load one disc Push “LOAD” and insert one disc.

-To load multiple discs Push and hold “LOAD” until you hear a beep.

Insert one disc. Shutter will close and then re-open for next disc.

To select a file (MP3/WMA only) Tu rn “T U NE.FILE,” “TUNE.SCROLL” or either side of “SEEK TRACK.” To select a folder (MP3/WMA only) Push either side of “TYPE FLDR.”

Page 25

RADIO

To preset stations Tune in the desired station and hold down a preset

button ( or from to ) until you hear a beep. To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold selection.

AUX or USB/AUX audio jack

By inserting a mini plug into the AUX or USB/AUX audio jack, you can listen to music from a portable audio device through the vehicle’s speaker system while in AUX or USB/AUX mode.

Steering wheel switches (if equipped)

Volume control

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

“MODE”

Push to turn audio ON and select an audio mode. Push and hold to turn the audio system OFF.

“ ”

Use to search within the selected audio medium (radio, CD, iPod, etc.).

Page 26

FEATURES/OPERATIONS

Air Conditioning/Heating

Front

automatic Air Conditioning

Control panel

Display

Automatic climate control ON Adjusting the temperature setting will cause the airflow vents, air intake and fan to adjust automatically. Temperature selector (driver side) Airflow vent In “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce window fogging. “ ” mode uses fresh air only. Air Conditioning ON/OFF Rear fan speed Rear Airflow vent Temperature selector (rear passenger area*) Synchronizes driver, front passenger and rear temperature settings Temperature selector (front passenger side) Rear Air Conditioning ON/OFF Fresh or recirculated cabin air Outside rearview mirror/Rear window defogger and windshield wiper de-icer (if equipped) Climate control OFF Windshield defogger Front fan speed

* To change the rear seat setting, press the “PWR” button.

Page 27

Front

manual Air Conditioning

Temperature selector (driver side) Airflow vent In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only. Front fan speed Temperature selector (rear passenger area) Rear fan speed Temperature selector (front passenger side) Climate control OFF Windshield defogger Outside rearview mirror/Rear window defogger and windshield wiper de-icer (if equipped) Fresh or recirculated cabin air Air Conditioning ON/OFF Use for quick cooling. MAX A/C changes air intake to recirculate. It is not possible to change intake to fresh.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Rear automatic Air Conditioning

Fan speed Temperature selector Automatic climate control ON Airflow vent Climate control OFF

Page 28

FEATURES/OPERATIONS

Rear manual

Fan speed Airflow vent Temperature selector

Air Conditioning

Seat heaters (if equipped)

Driver’s seat

Front passenger’s seat

Page 29

Telephone controls (Bluetooth®) (if equipped)

Audio unit

Steering wheel telephone switches

Microphone

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Start call

Vol ume

End call

Voice command button

Bluetooth®technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the telephone and the system.

Refer to “Using the hands-free phone system (for cellular phone),” Section 3-5 in the Owner’s Manual for more details, or go to Toyota.com and enter “Bluetooth” in the keyword search.

Page 30

FEATURES/OPERATIONS

Rear seat entertainment system (if equipped)

Front audio DVD player Display Headphone jacks and headphone volume control 120V AC Power outlets Remote control AV input adapter

Enhanced VSC OFF button

The Enhanced VSC OFF button is used to switch between modes related to the TRAC and Enhanced VSC functions.

Refer to Section 2-4 of the Owner’s Manual for more information.

Page 31

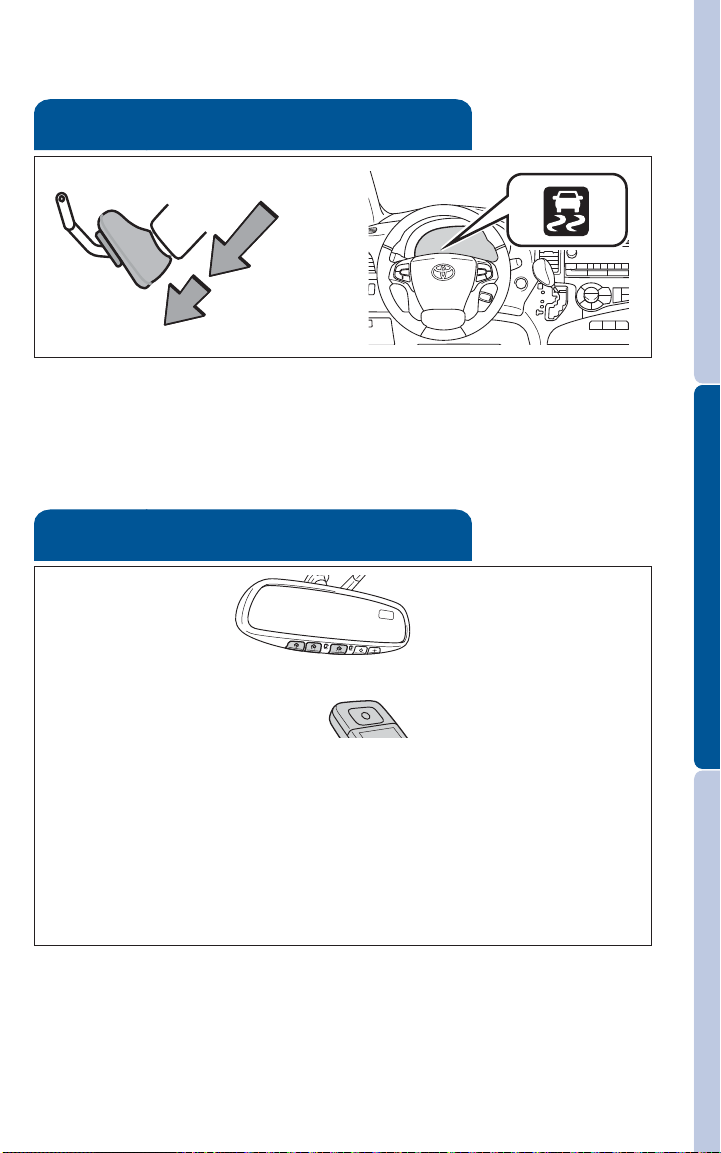

Hill-start Assist Control (HAC) (if equipped)

Brake pedal

HAC helps prevent rolling backwards on an incline. To engage, push further down on brake pedal while at a complete stop until a beep sounds and slip indicator illuminates. HAC holds for approximately 2 seconds after releasing brake pedal.

Refer to the Owner’s Manual for more details.

Garage door opener (HomeLink®)* (if equipped)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Garage door openers manufactured under license from HomeLink®* can be programmed to operate garage doors, estate gates, security lighting, etc.

Refer to “Garage door opener,” Section 3-8 in the Owner’s Manual for more details.

For programming assistance, contact HomeLink visit http://www.homelink.com.

HomeLink®is a registered trademark of Johnson Controls, Inc.

at 1-800-355-3515, or

Page 32

FEATURES/OPERATIONS

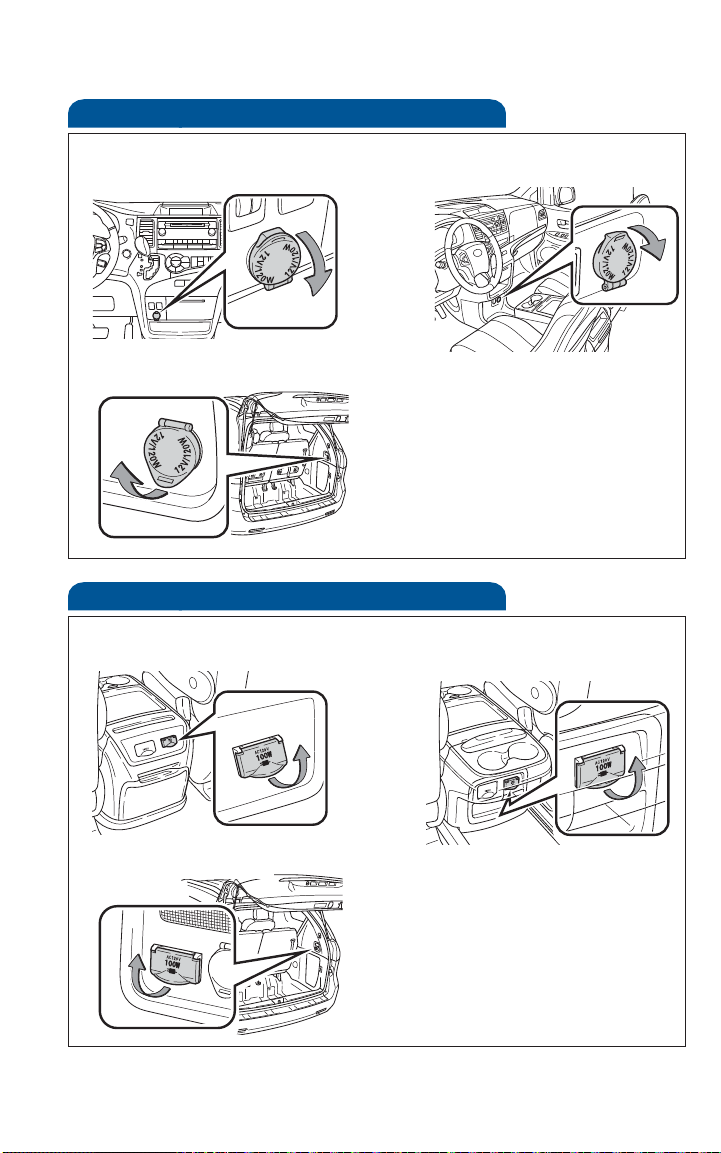

Power outlets-12V DC

Instrument panel

Typ e A

Luggage compartment

Typ e B

Power outlets-120V AC (if equipped)

Console box

Typ e A

Luggage compartment

Typ e B

Designed for car accessories. Engine switch/“ENGINE START STOP” switch must be in the “ACC” or “ON” position to be used.

Page 33

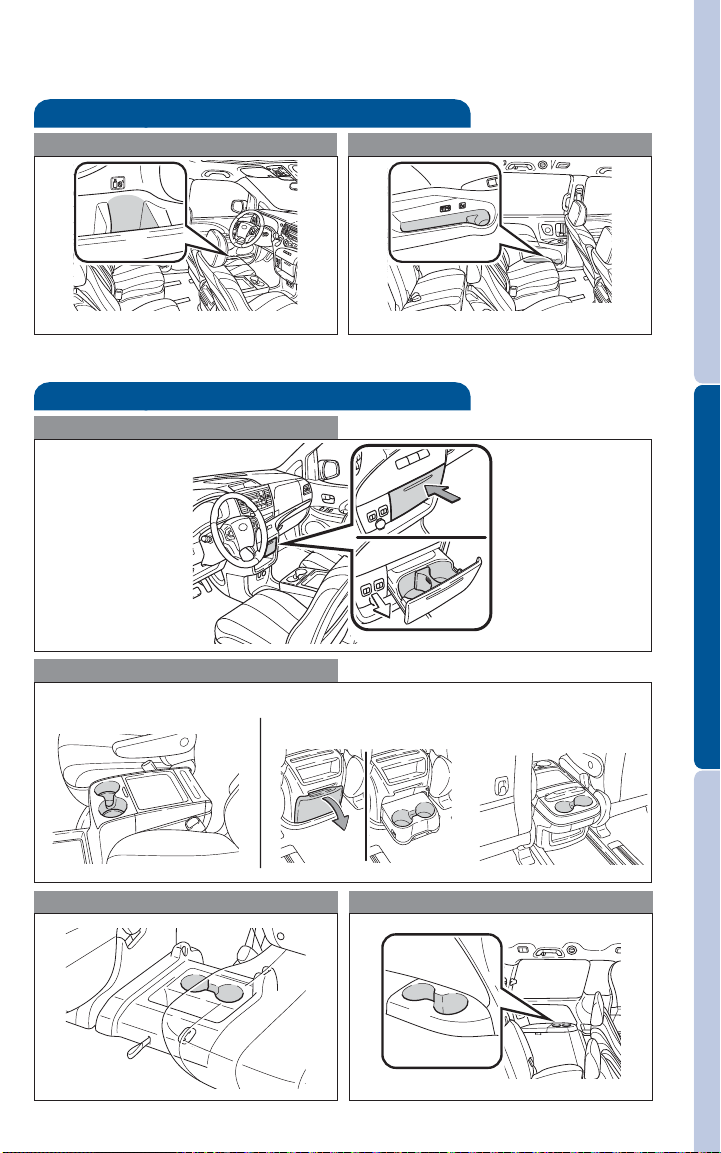

Bottle holders

Front doors

NOTE: Do not place open containers in the bottle holders.

Sliding doors

Cup holders

Instrument panel

Console box

Front side

Typ e A

Rear side

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Typ e B

Second center seat Third row area

Page 34

SAFETY AND EMERGENCY FEATURES

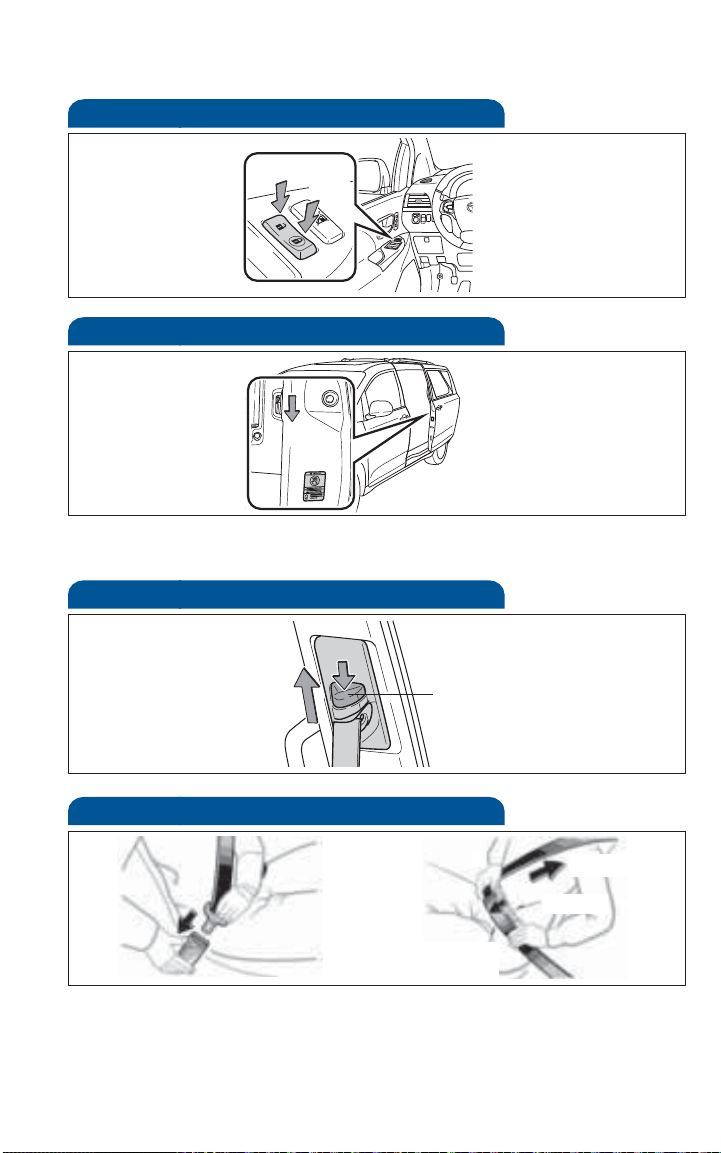

Door locks

Unlock

Lock

Doors-Child safety locks

Rear door

Moving the lever to “LOCK” will allow the door to be opened only from the outside.

Seat belts-Shoulder belt anchor

Push up, or squeeze lock release to lower

Seat belts

Take up slack

Too high

Keep as low on hips as possible

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.

Page 35

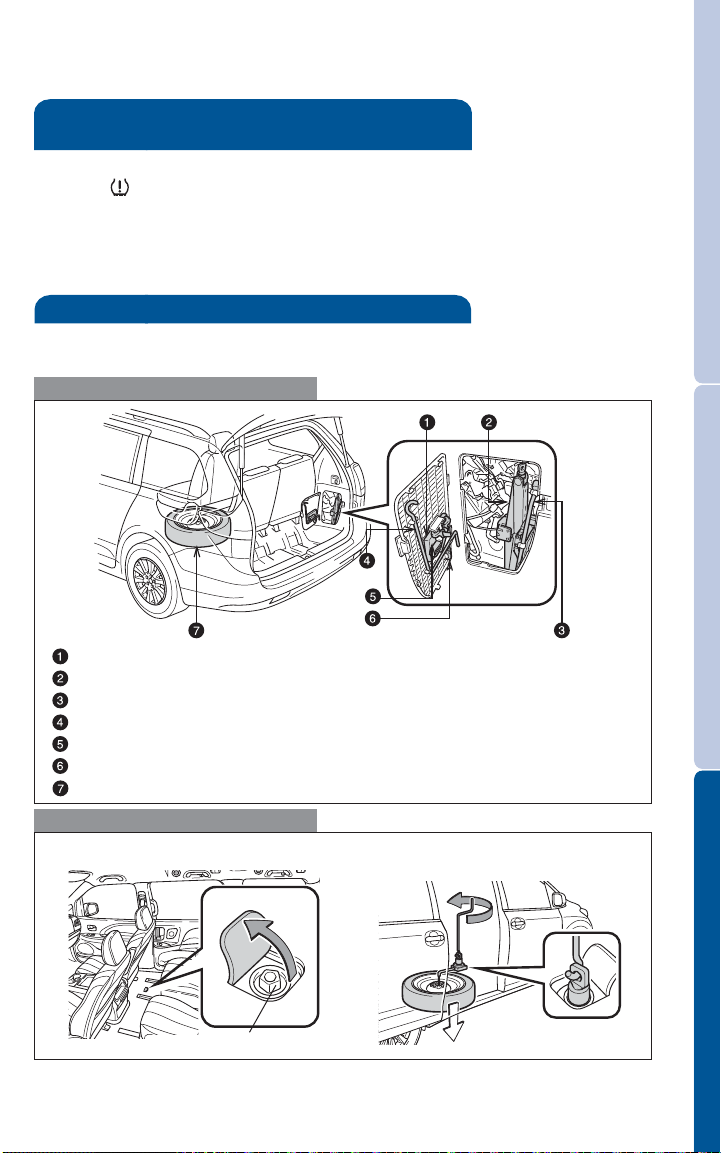

Tire Pressure Monitoring (warning) System

If tire pressure becomes critically low on any of the tires (excluding the spare), “ ” indicator will illuminate. Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer.

Refer to the Owner’s Manual for more details.

Spare tire & tools

All-wheel drive models are equipped with run-flat tires. Refer to the Owner’s Manual for more details.

Tool and spare tire location

Tire bag Jack Wheel nut wrench Jack handle Tire strap Socket adapter Spare tire

Removing the spare tire

Two-wheel drive models

Tu rn

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Spare tire clamp bolt

Refer to the Owner’s Manual for jack positioning and tire changing procedures.

Socket adapter

Page 36

CUSTOMER EXPERIENCE CENTER

1- 800 -331- 4331

Printed in U.S. A. 1/10

09-TCS-03783

Cert no. SGS-COC-005612

10%

00505-QRG11-SIE

Page 37

Abbreviation list

Abbreviation/Acronym list

ABBREVIATIONS MEANING

2WD 2 Wheel Drive

A/C Air Conditioning

ABS Anti-lock Brake System

ACC Accessory

AI-SHIFT Artificial Intelligence Shift control

ALR Automatic Locking Retractor

AVG Average

AWD All Wheel Drive

CRS Child Restraint System

ECO Economy/Ecology

ECU Electronic Control Unit

EDR Event Data Recorder

ELR Emergency Locking Retractor

774

EPS Electronic Power Steering

E/M English/U.S. customary system/Metric

GAWR Gross Axle Weight Rating

GCWR Gross Combination Weight Rating

GVWR Gross Vehicle Weight Rating

I/M Emission inspection and maintenance

LATCH Lower Anchors and Tethers for Children

LED Light Emitting Diode

MAX Maximum

MIN Minimum

MMT Methylcyclopentadienyl Manganese Tricarbonyl

M + S Mud and Snow

MTBE Methyl Tertiary Butyl Ether

Page 38

ABBREVIATIONS MEANING

OBD On Board Diagnostics

PCS Pre-Collision System

RFT Run-Flat Tire

SRS Supplemental Restraint System

TIN Tire Identification Number

TPMS Tire Pressure Warning System

TRAC Traction Control

VAR Variation

VDIM Vehicle Dynamics Integrated Management

VIN Vehicle Identification Number

VSC Vehicle Stability Control

Abbreviation list

775

Page 39

For your information

Main Owner’s Manual

Please note that this manual applies to all models and all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing. However, because of the Toyota policy of continual product improvement, we reserve the right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of equipment.

Noise from under vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Toyota

A wide variety of non-genuine spare parts and accessories for Toyota vehicles are currently available on the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non-genuine Toyota products. Modification with non-genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

Page 40

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle may affect electronic systems such as the multi-port fuel injection system/sequential multi-port fuel injection system, cruise control system, anti-lock brake system, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Toyota dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These components may include airbags, seat belt pretensioners, and wireless remote control batteries.

Page 41

CAUTION

■ General precautions while driving

Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

■ General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

Page 42

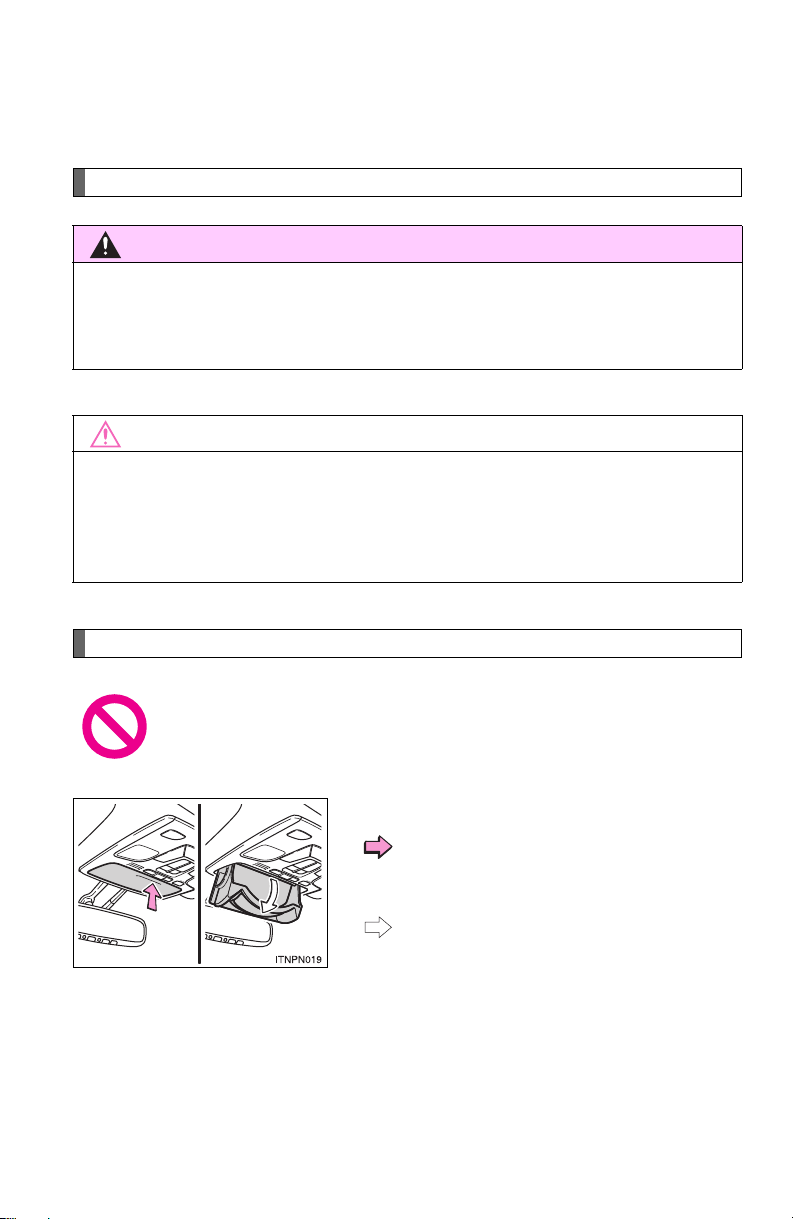

Symbols used throughout this manual

CAUTION

NOTICE

Cautions & Notices

This is a warning against anything which may cause death or injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.

Symbols used in illustrations

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning, etc.) used to operate switches and other devices.

Indicates the outcome of an operation (e.g. a lid opens).

Page 43

Page 44

This manual contains information about the AUTO ACCESS SEAT. Refer to the “Owner’s Manual” for other information regarding your vehicle.

AUTO

ACCESS SEAT

Maintenance

When trouble

arises

Index

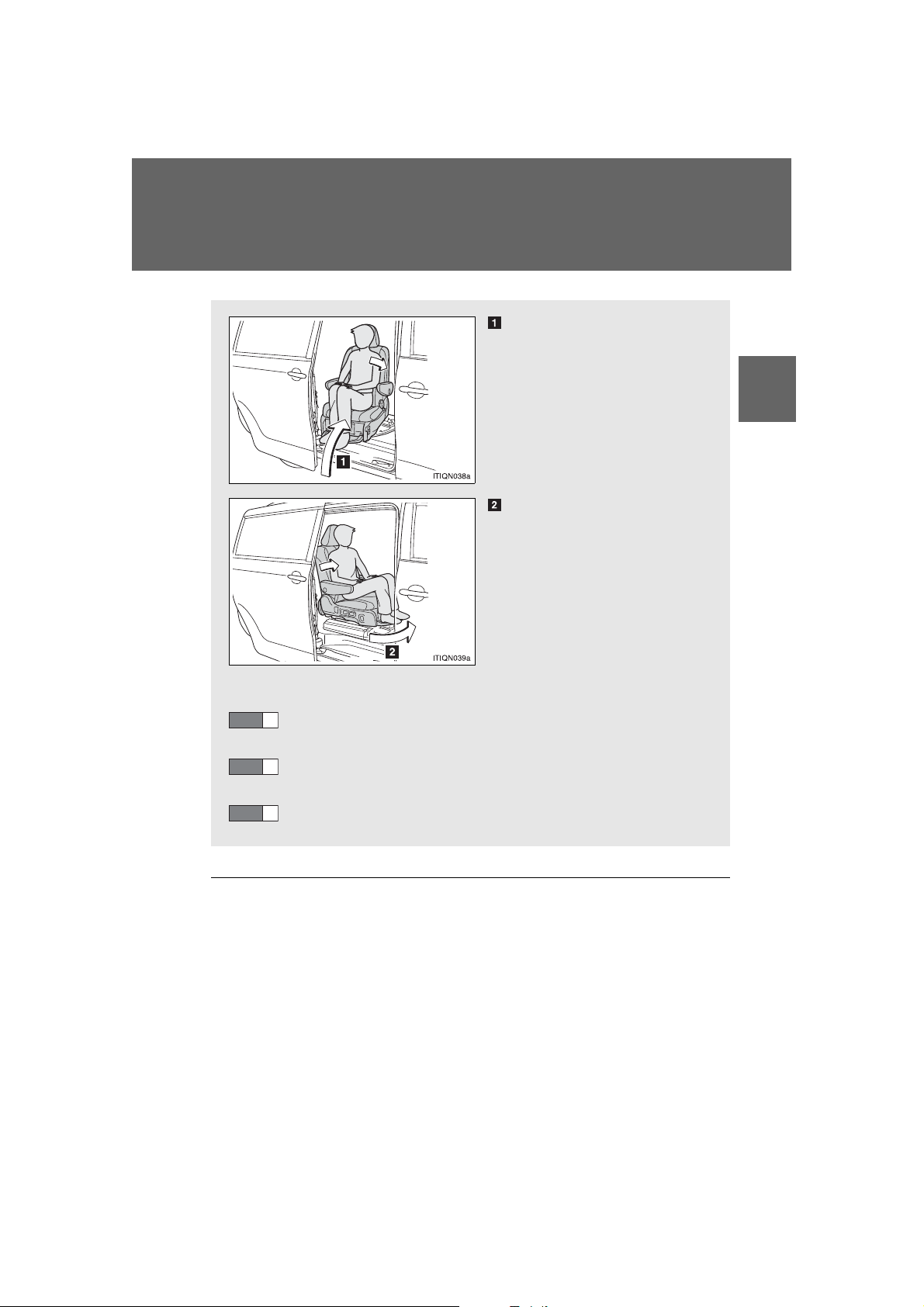

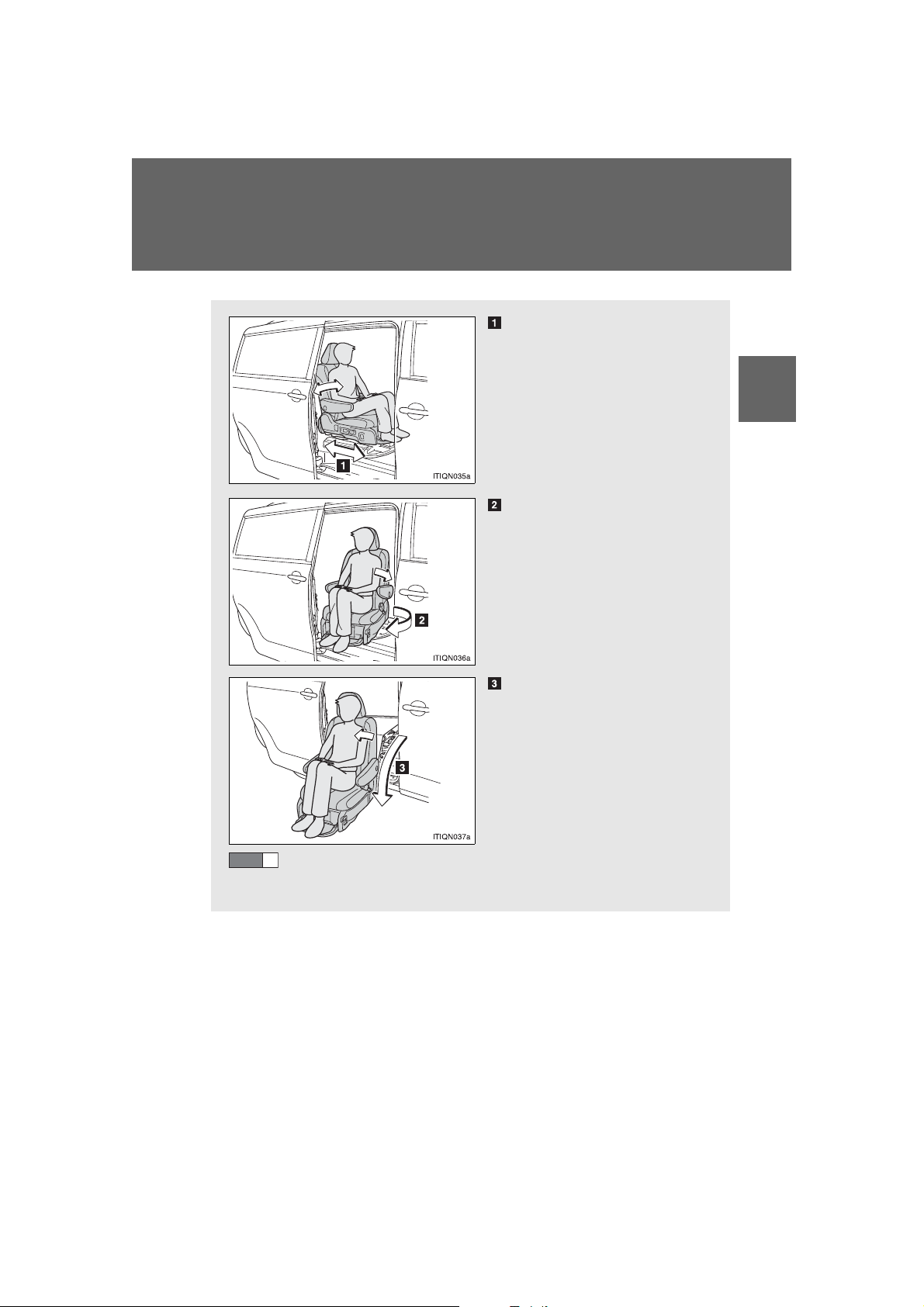

Information regarding the AUTO ACCESS SEAT, including usage procedure

Checking fuses and replacing the battery of the wireless remote control

Points to check when you think a malfunction has occurred

Alphabetical listing of information contained in this manual

SIENNA AAS_U (OM45460U)

Page 45

Pictorial index

P. 16

P. 9

P. 6

P. 11

P. 35

P. 13

Head restraint

AUTO ACCESS SEAT

Seatback angle adjustment switch

Armrests

Seat position adjustment switch

Footrest

Wireless remote control

SIENNA AAS_U (OM45460U)

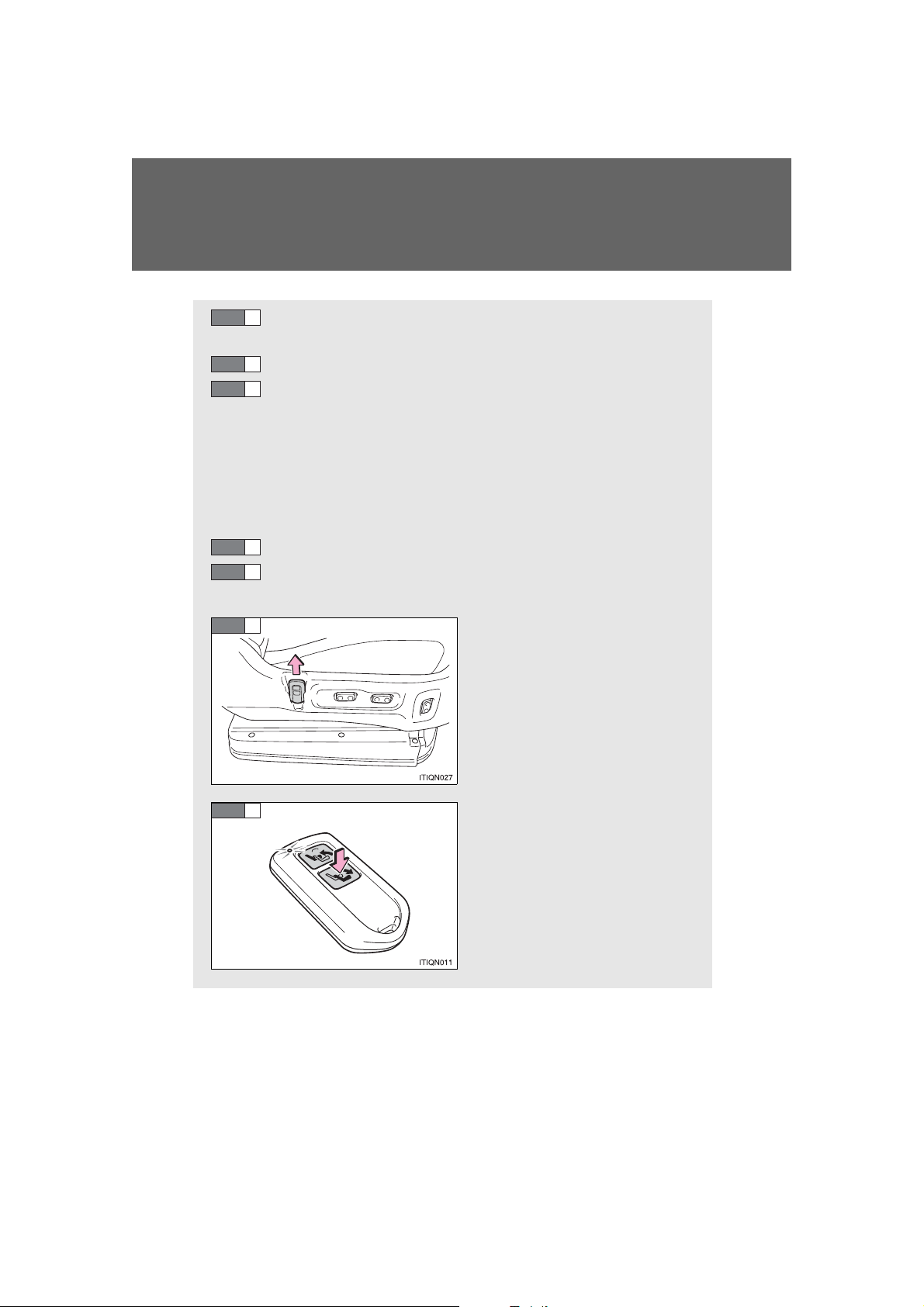

Seat position adjustment switch

Seat raise/lower switch

Seatback angle adjustment switch

Page 46

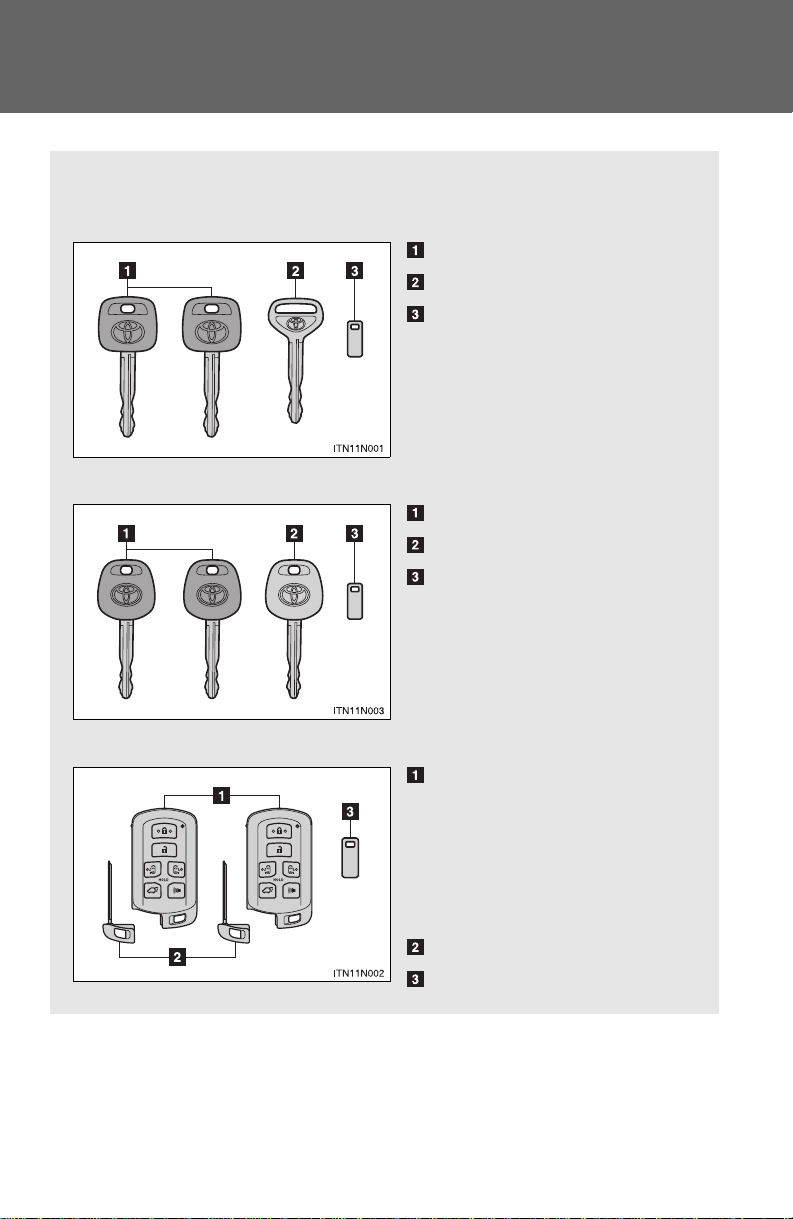

1-1. Key information

The following keys are provided with the vehicle.

Vehicles without a smart key system (type A)

Master keys

Valet key

Key number plate

Vehicles without a smart key system (type B)

Master keys (black)

Valet key (gray)

Key number plate

Vehicles with a smart key system

Electronic keys

• Operating the smart key

system (→P. 34)

• Operating the wireless remote control function (→P. 52)

Mechanical keys

Key number plate

Keys

Page 47

1-1. Key information

Using the mechanical key (vehicles with a smart key system)

To take out the mechanical key, push the release button and take the key out.

The mechanical key can only be inserted in one direction, as the key only has grooves on one side. If the key cannot be inserted in a lock cylinder, turn it over and re-attempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the mechanical key together with the electronic key. If the electronic key battery is depleted or the entry function does not operate properly, you will need the mechanical key. (→P. 717)

Before driving

Page 48

1-1. Key information

■ When required to leave the vehicle’s key with a parking attendant

Lock the glove box as circumstances demand. (→P. 532)

On vehicles without the smart key system, provide the attendant with the valet key.

On vehicles with the smart key system, remove the mechanical key for your own use and provide the attendant with the electronic key only.

■ Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key (without a smart key system) or mechanical key (with a smart key system) is lost, a new key can be made by your Toyota dealer using the key number plate. (→P. 716)

■ When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft, make sure you do not press any buttons on the key while inside the aircraft cabin. If you are carrying the key in your bag etc., ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the key to emit radio waves that could interfere with the operation of the aircraft.

Page 49

1-1. Key information

NOTICE

■ To prevent key damage

Observe the following:

● Do not drop the keys, subject them to strong shocks or bend them.

● Do not expose the keys to high temperatures for a long periods of time.

● Do not get the keys wet or wash them in an ultrasonic washer etc.

● Do not attach metallic or magnetic materials to the keys or place the keys

close to such materials.

● Do not disassemble the keys.

● Do not attach a sticker or anything else to the surface of the electronic key.

● Do not place the keys near objects that produce magnetic fields, such as

TVs, audio systems, glass top ranges, or medical electrical equipment, such as low-frequency therapy equipment.

■ Carrying the electronic key on your person (vehicles with a smart key

system)

Carry the electronic key 3.9 in. (10 cm) or more away from electric appliances that are turned on.

■ In case of a smart key system malfunction or other key-related prob-

lems (vehicles with a smart key system)

Take your vehicle with all the electronic keys provided with your vehicle to your Toyota dealer.

■ When a vehicle key is lost (vehicles with a smart key system)

If the key remains lost, the risk of vehicle theft increases significantly. Visit your Toyota dealer immediately with all remaining electronic keys that were provided with your vehicle.

Before driving

Page 50

1-1. AUTO ACCESS SEAT

Seat position adjustment switch

Seatback angle adjustment switch

AUTO ACCESS SEAT

n Operating condition

The seat position and seatback angle cannot be adjusted if the AUTO ACCESS SEAT is not stowed correctly inside the vehicle.

n Seat movement amount

The AUTO ACCESS SEAT can be moved 3.1 in. (80 mm) forward and

1.2 in. (30 mm) backward from the starting position.

SIENNA AAS_U (OM45460U)

Page 51

1-1. AUTO ACCESS SEAT

CAUTION

n Disconnecting the battery

Do not disconnect the battery while operating the AUTO ACCESS SEAT. The AUTO ACCESS SEAT will become inoperable. If the battery is disconnected during operation and the AUTO ACCESS SEAT becomes inoperable, reconnect the battery and refer to P. 47.

n Wearing a seat belt

Read and follow the explanations and precautions under the “Seat belts” headings in Section 1-3 of the “Owner’s Manual”. Failing to do so may cause death or serious injury in the event of sudden braking, sudden swerving or an accident.

n Child restraint lock function belt precaution

n When installing a child restraint system to the AUTO ACCESS SEAT

Read and follow the explanations and precautions under the “Installing child restraints” headings in Section 1-7 of the “Owner’s Manual”. Failing to do so may cause death or serious injury in the event of sudden braking, sudden swerving or an accident.

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 52

1-1. AUTO ACCESS SEAT

CAUTION

NOTICE

n Seatback angle adjustment

Do not recline the seat more than necessary when the vehicle is in motion to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.

n To prevent seat damage

Release the switch once the adjustment operation has been completed. If you continue to press the switch once the operation has been completed, a fault may occur.

SIENNA AAS_U (OM45460U)

Page 53

1-1. AUTO ACCESS SEAT

Head restraint is provided for the AUTO ACCESS SEAT.

Pull the head restraint up.

Down

Push the head restraint down while pressing the lock release button.

Lock release button

Make sure that the head restraint is adjusted so that the center of the head restraint is closest to the top of your ears.

Pull the head restraint up while pressing the lock release button.

Head restraint

n Adjusting the height of the head restraint

AUTO ACCESS SEAT

n Removing the head restraint

SIENNA AAS_U (OM45460U)

Page 54

1-1. AUTO ACCESS SEAT

CAUTION

Align the head restraint with the installation holes and push it down to the lock position.

Press and hold the lock release button when lowering the head restraint.

n Installing the head restraint

n Head restraint precautions

Observe the following precautions regarding the head restraint. Failure to do so may result in death or serious injury.

l Use the head restraint designed for AUTO ACCESS SEAT. l Adjust the head restraint to the correct position at all times. l After adjusting the head restraint, push down on it and make sure it is

locked in position.

l Do not drive with the head restraint removed.

SIENNA AAS_U (OM45460U)

Page 55

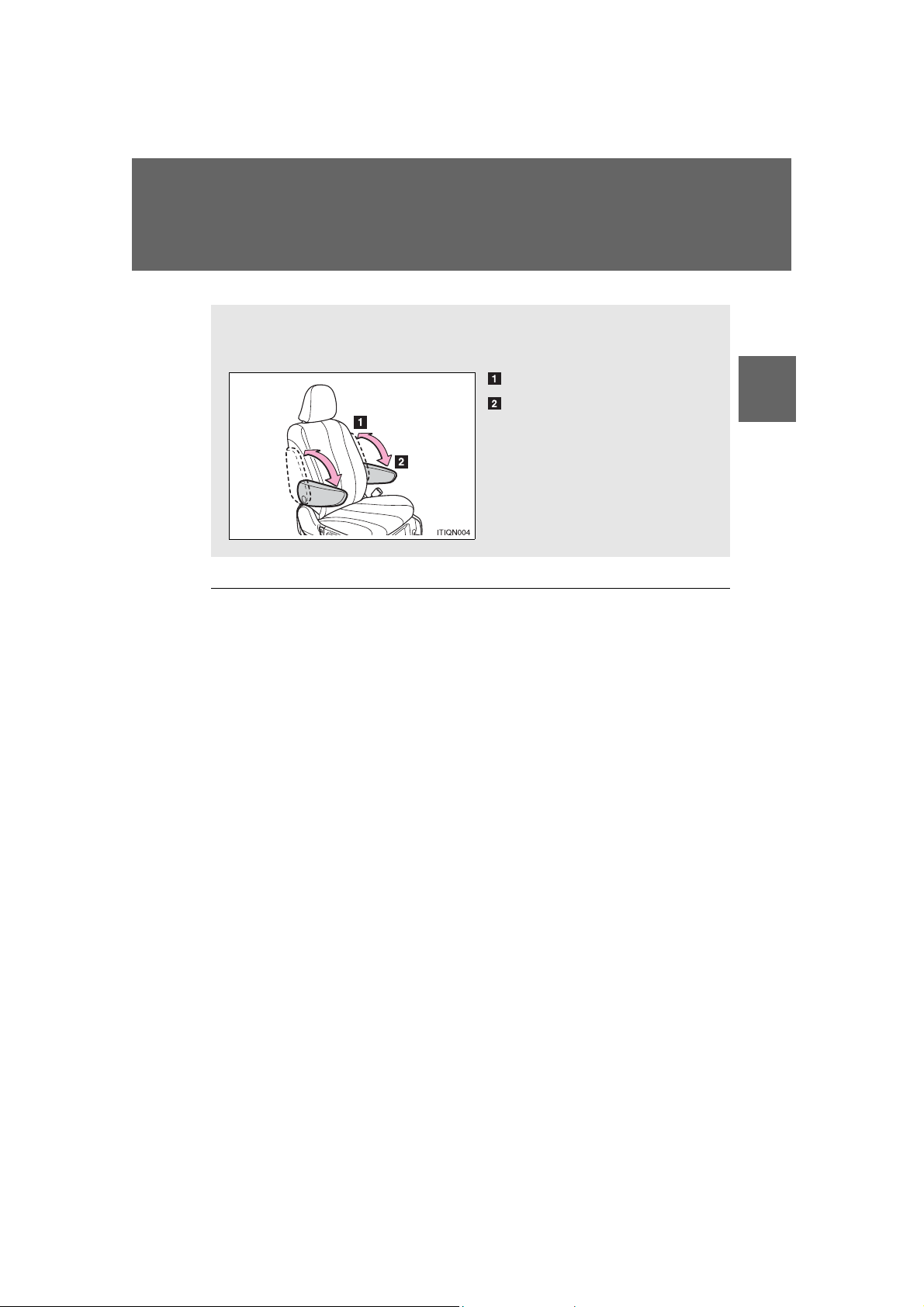

1-1. AUTO ACCESS SEAT

Lower the armrests as far as they will go when rotating or raising/ lowering the AUTO ACCESS SEAT.

Raise Lower

Armrests

n Wearing the seat belt

Wearing the seat belt is easier with the armrest raised.

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 56

1-1. AUTO ACCESS SEAT

CAUTION

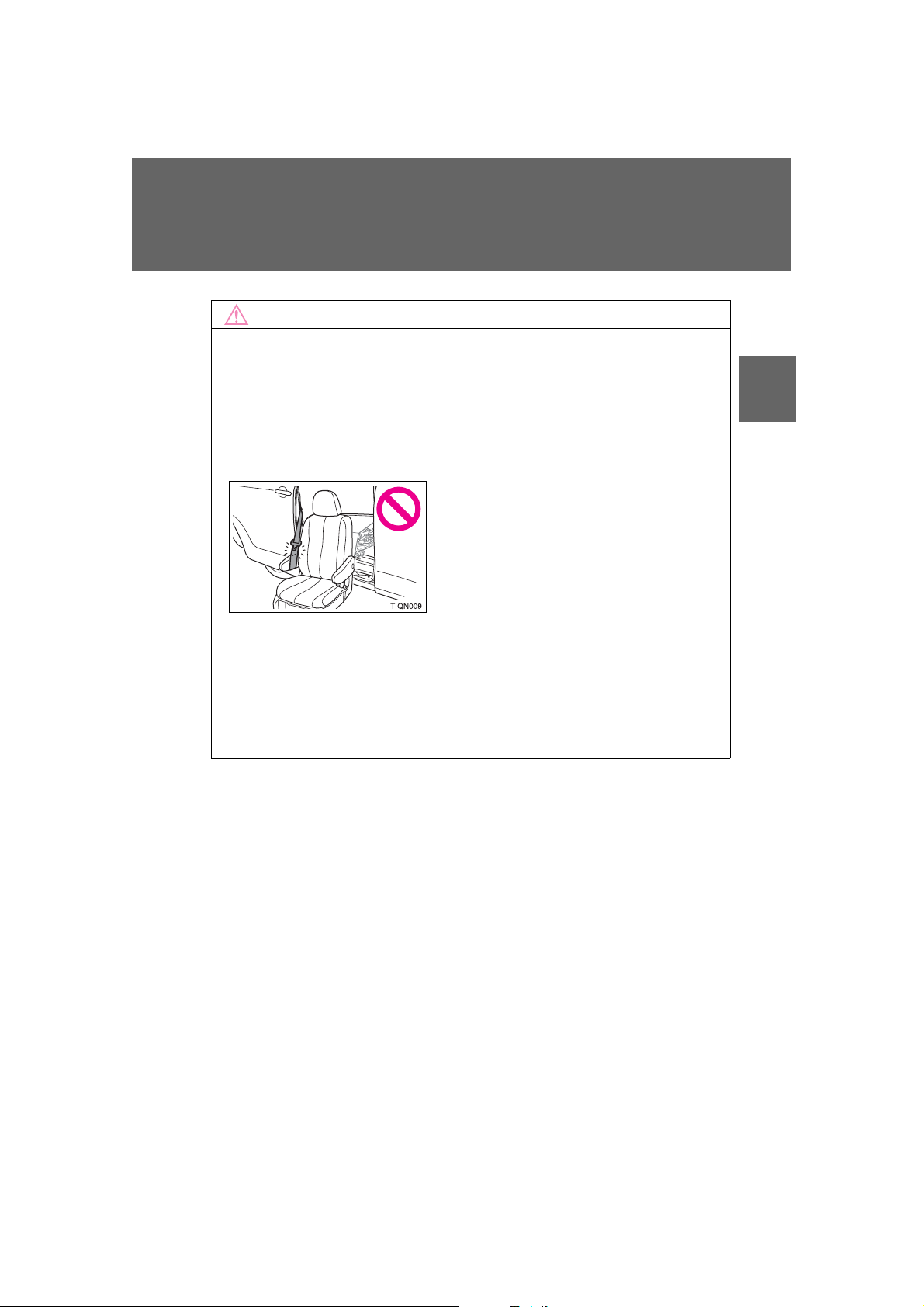

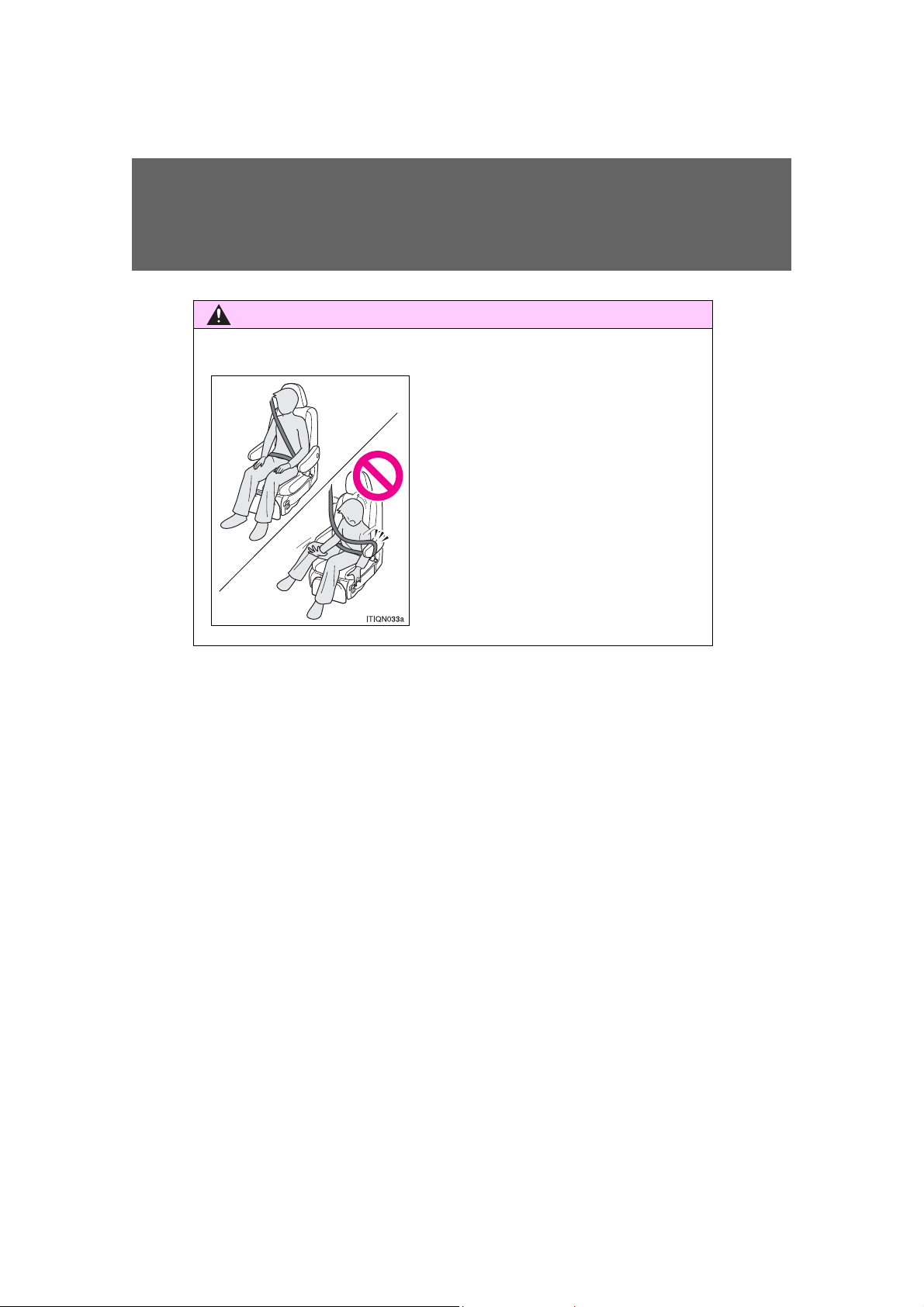

Wear the seat belt correctly, passing it underneath the armrest. If the seat belt is caught on the armrest, it may not be fully effective, which could cause death or serious injury in the event of a sudden braking, sudden swerving or an accident.

n When wearing the seat belt

SIENNA AAS_U (OM45460U)

Page 57

1-1. AUTO ACCESS SEAT

CAUTION

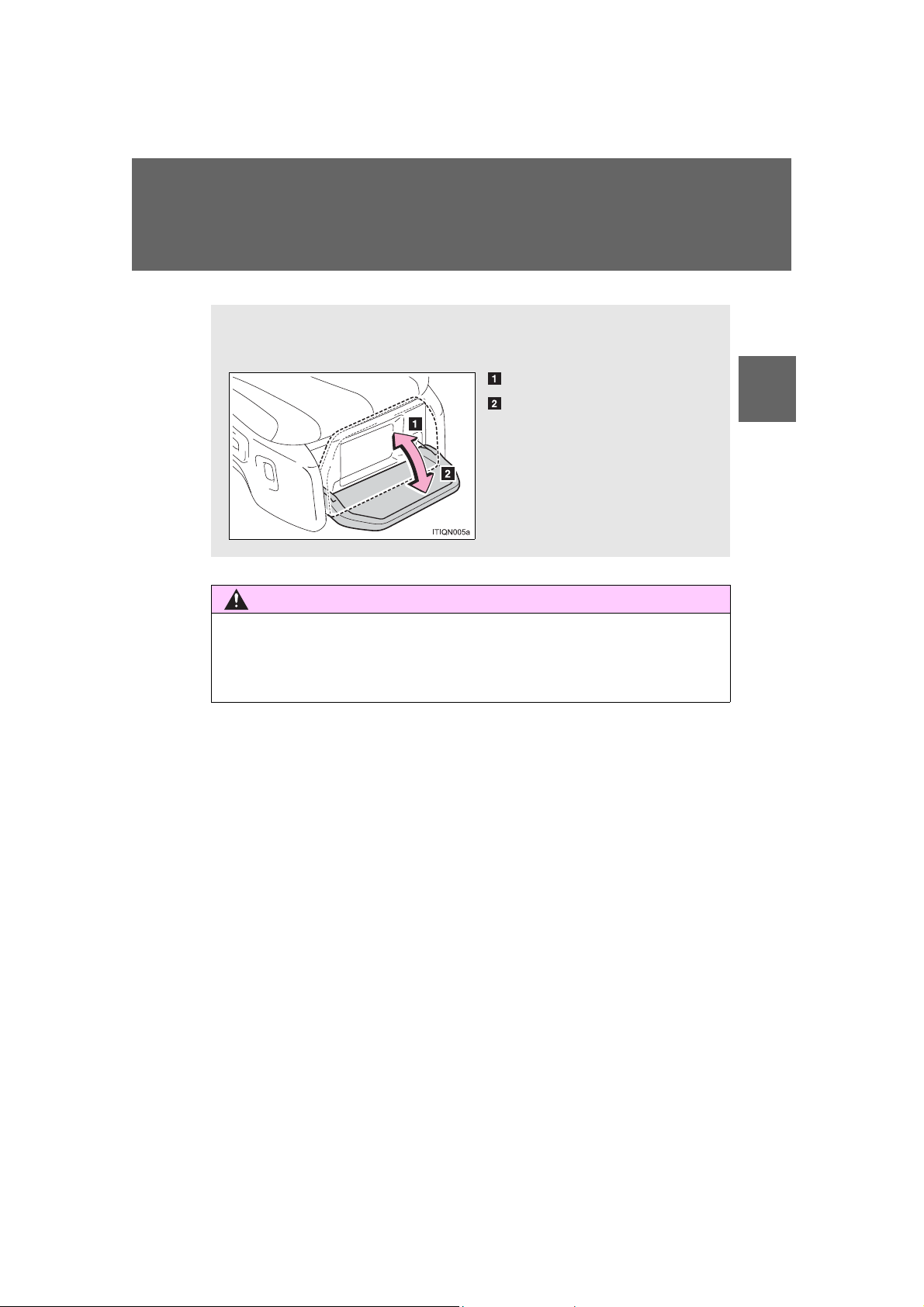

Lower the footrest as far as it will go when rotating or raising/lowering the AUTO ACCESS SEAT.

Raise Lower

Footrest

n When operating the footrest

Operate the footrest by holding the front edge. You may be injured if your fingers get caught in the rotating parts.

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 58

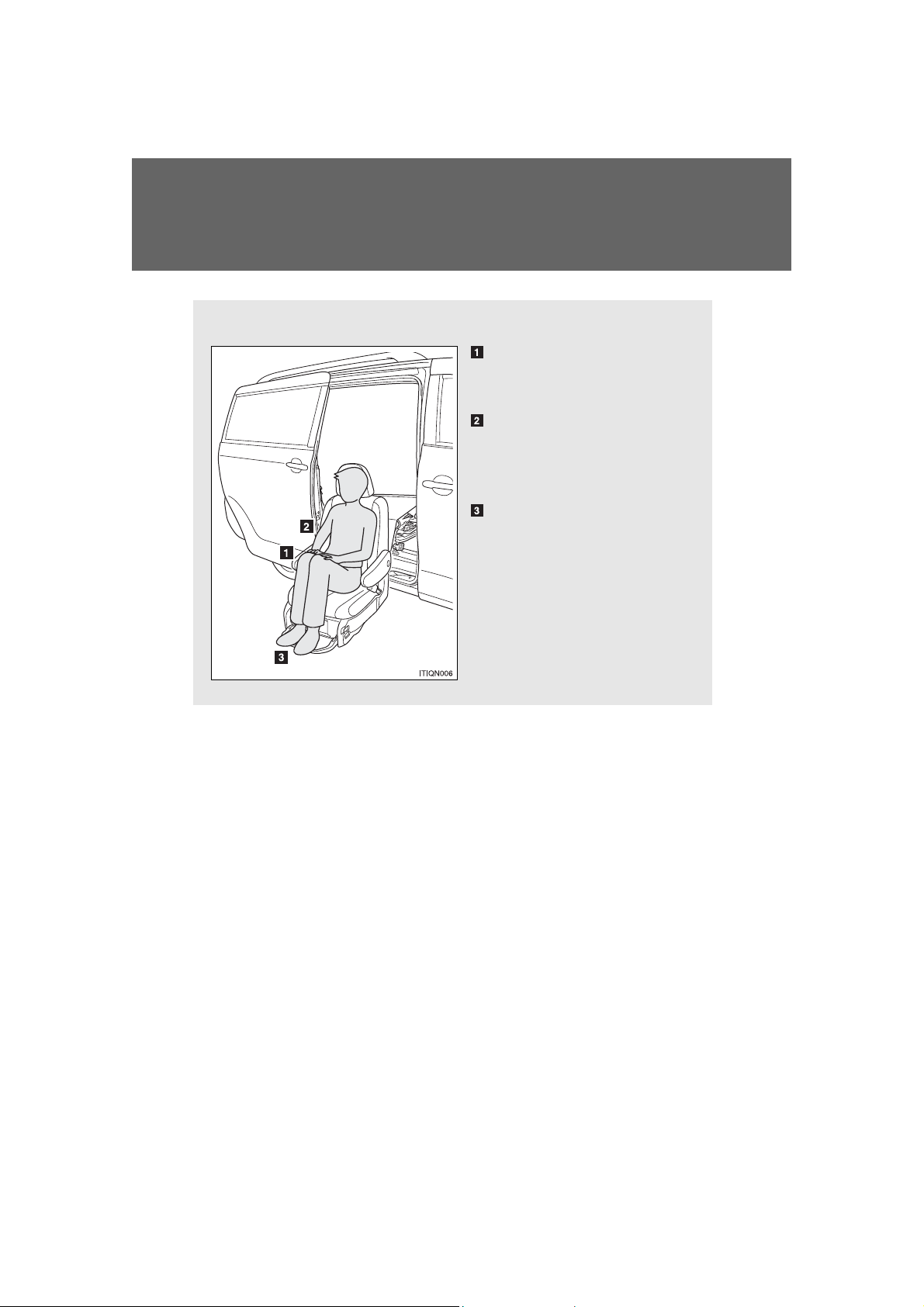

1-1. AUTO ACCESS SEAT

Maintain the correct posture while sitting in the seat, as follows:

Sit while keeping both knees aligned and inside the AUTO ACCESS SEAT.

Lower the armrests and keep both arms inside the armrests and inside the AUTO ACCESS SEAT.

Lower the footrest and place both feet on the footrest.

If you cannot place your feet on the footrest, have someone help you, so as not to get your feet caught between the AUTO ACCESS SEAT and the vehicle body.

Correct riding posture

SIENNA AAS_U (OM45460U)

Page 59

1-1. AUTO ACCESS SEAT

CAUTION

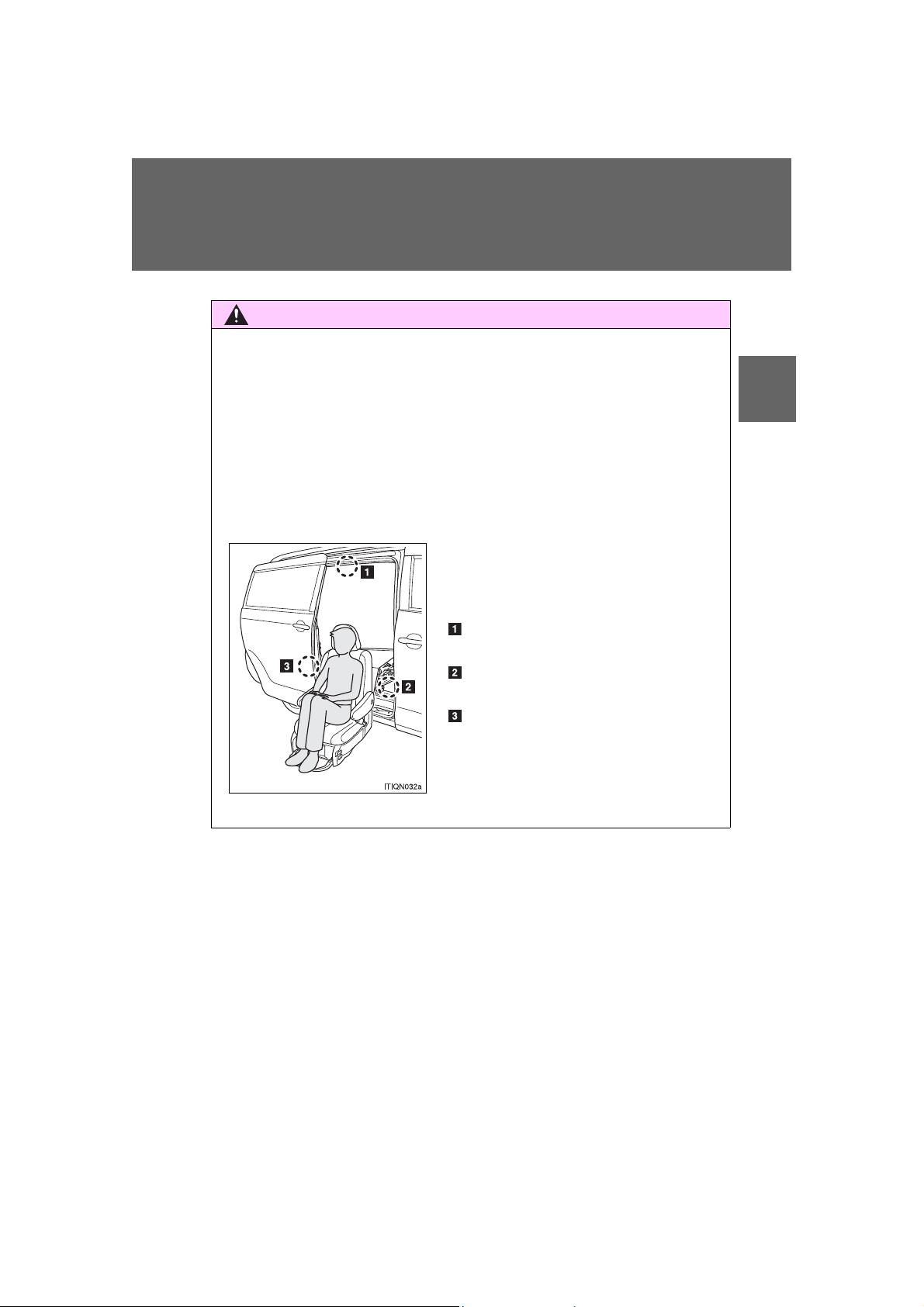

When operating the AUTO ACCESS SEAT, make sure that the occupant’s head, arms and legs do not hit the door opening.

Collision between door opening and head

Caught between door opening and AUTO ACCESS SEAT

Collision between door opening and legs

n When sitting in the seat

l When the seat is being used by a person who is unable to bend his/her

knees or neck, or by a person that is unable to sit far back in the seat, be careful as their head, feet etc. may hit the vehicle body, and rotation of the AUTO ACCESS SEAT may become difficult while the seat is occupied.

l Do not stand on the footrest.

Doing so may damage the footrest or cause you to fall from the footrest, which may cause an injury.

n When operating

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 60

1-1. AUTO ACCESS SEAT

The wireless remote control can be used to rotate and raise or lower the AUTO ACCESS SEAT.

Indicator light Seat raise switch Seat lower switch

Wireless remote control

Effective range

Approximately 3.3 ft. (1 m) from the AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 61

1-1. AUTO ACCESS SEAT

n Operating conditions

l The effective range of the wireless remote control changes in accor-

dance with surroundings.

l Interference from other radio waves may cause the AUTO ACCESS

SEAT to stop moving temporarily even when pressing the wireless remote control switches. In this event, do the following:

• Stand in a different place and press the switch. Press the switch once again after moving. The AUTO ACCESS SEAT will not operate if you hold the switch down while changing position.

• Operate the seat raise/lower switch (→P. 35)

n Battery

l The lifespan of the battery is about 6 months, but this may change in

accordance with usage.

l If the battery is discharged, the AUTO ACCESS SEAT may not operate

even if the wireless remote control is operated or the indicator light will stop flashing. In these events, replace the battery with a new one. (→P. 40)

n When riding in an aircraft

When bringing a wireless remote control onto an aircraft, make sure you do not press any buttons on the wireless remote control while inside the aircraft cabin. If you are carrying the wireless remote control in your bag etc., ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the wireless remote control to emit radio waves that could interfere with the operation of the aircraft.

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 62

1-1. AUTO ACCESS SEAT

n Conditions affecting operation

If you use the wireless remote control to operate the AUTO ACCESS SEAT at the same time as doing any of the following, the AUTO ACCESS SEAT may not operate properly:

l Operating the AUTO ACCESS SEAT using another wireless remote con-

trol

l Operating the AUTO ACCESS SEAT using the seat raise/lower switch l Using the smart key system l Unlocking and locking the doors using the wireless remote control

n When replacing either the transmitter or the receiver of the wireless

remote control

It is necessary to replace both the transmitter and the receiver. Contact your Toyota dealer.

n Certification for the wireless remote control

U.S.A.

FCC ID: HYQ12BDF FCC ID: HYQ13BDH

NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Canada

NOTE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

SIENNA AAS_U (OM45460U)

Page 63

1-1. AUTO ACCESS SEAT

CAUTION

NOTICE

n Wireless remote control precautions

Observe the following precautions to reduce the risk of injury.

l Operate the AUTO ACCESS SEAT from a position from which you can

see the occupant of the seat.

l Make sure that the occupant’s head, arms and legs will not get caught

between the seat and the body of the vehicle.

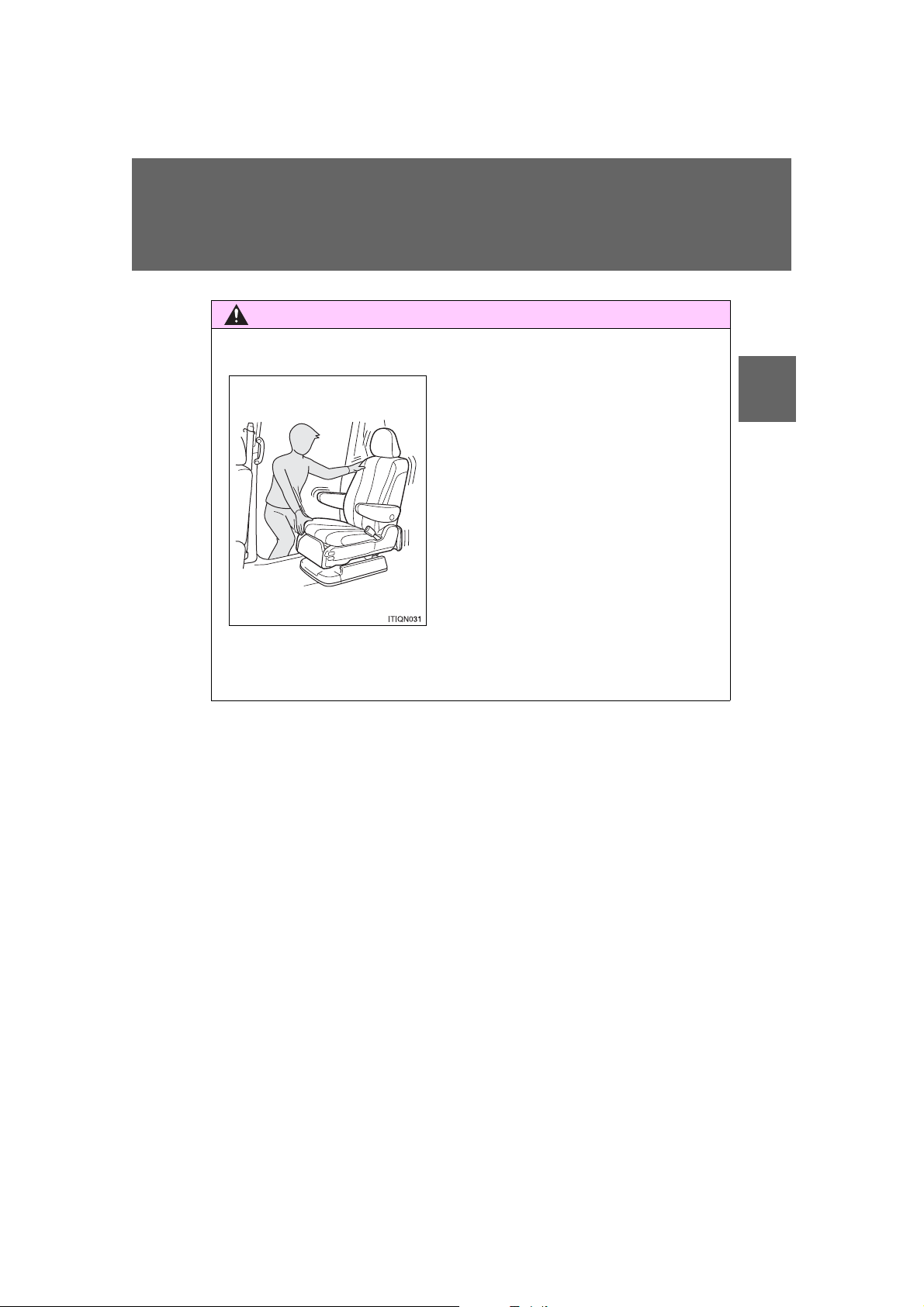

l Steady the AUTO ACCESS SEAT and the occupant with your hand while

operating.

n To prevent wireless remote control damage

l Observe the following:

• Do not expose the wireless remote control to high temperatures by placing it in direct sunlight.

• Do not disassemble the wireless remote control.

• Do not drop the wireless remote control, subject it to strong shocks or bend it.

• Do not get the wireless remote control wet.

l Do not wipe the wireless remote control with thinner, gasoline or benzene.

The surface of it may be damaged. When cleaning the wireless remote control, wipe it using a wrung cloth soaked in water or lukewarm water.

l Do not attach metallic or magnetic materials to the wireless remote control

or place the wireless remote control close to such materials.

l Do not attach metallic window tinting or other metallic objects such as non-

genuine antenna to the windows.

l Do not attach accessories to the wireless remote control. These could get

caught in the AUTO ACCESS SEAT during operation.

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 64

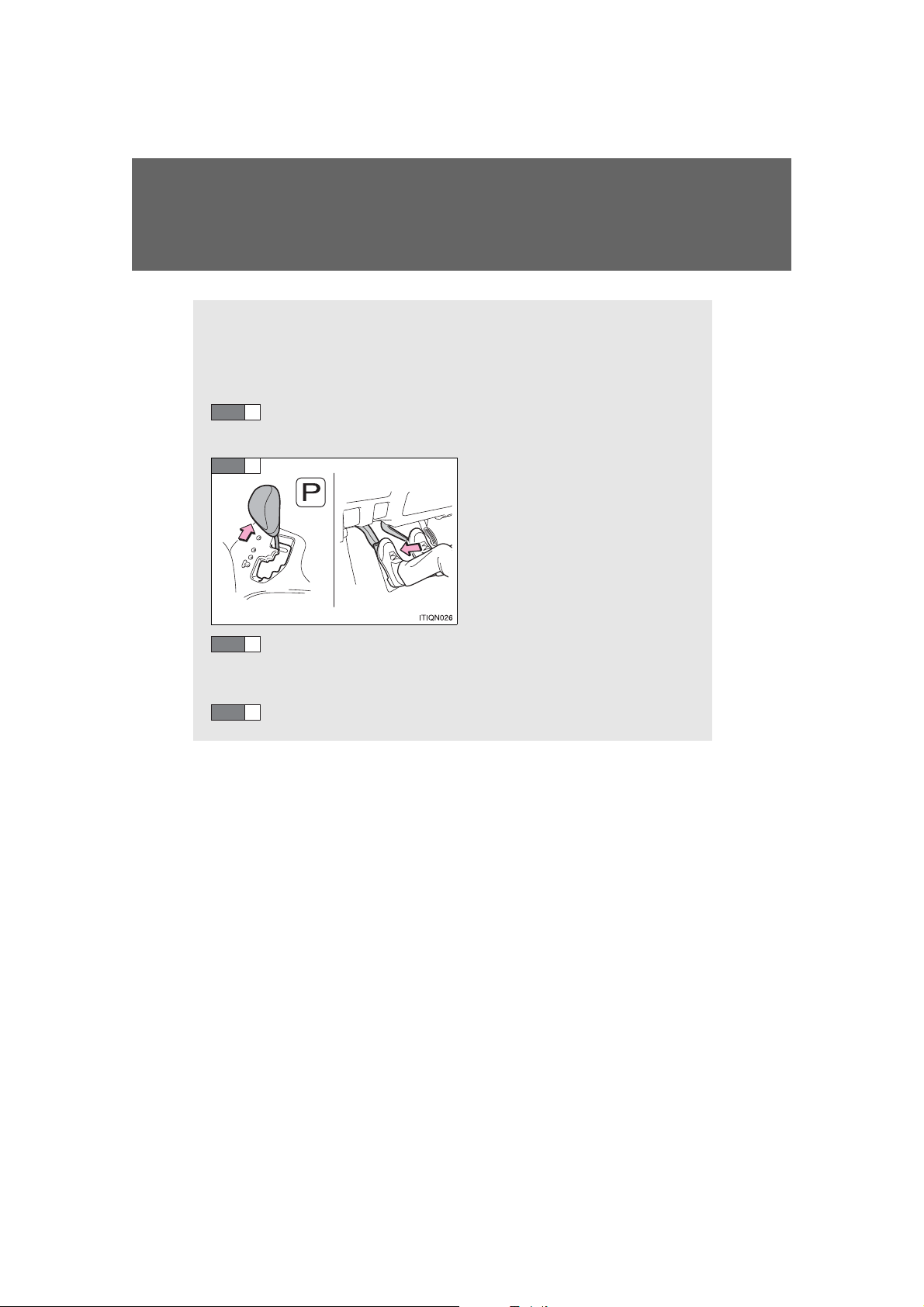

1-2. Operating the AUTO ACCESS SEAT

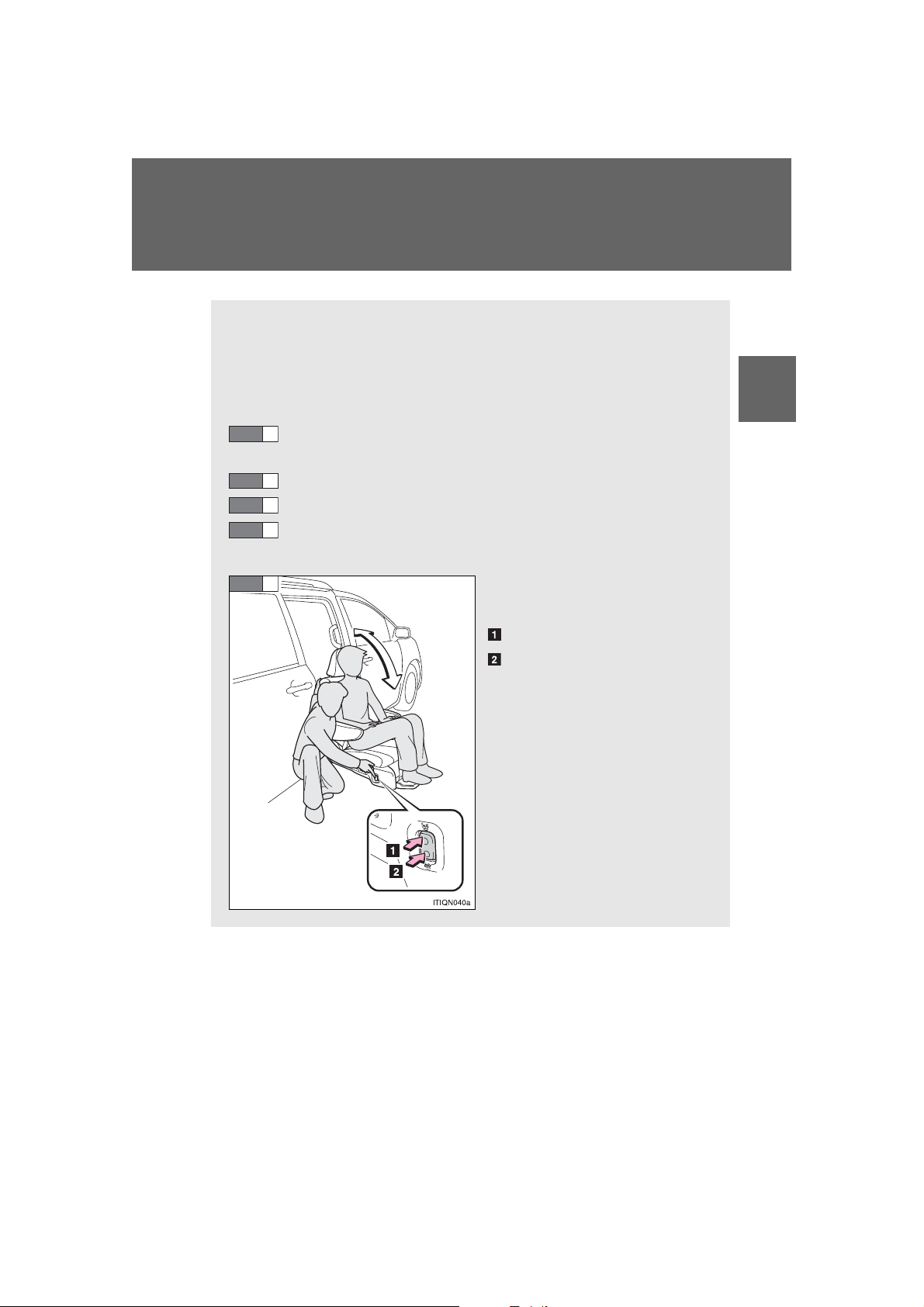

The AUTO ACCESS SEAT (right-hand second seat) can be rotated, raised and lowered electrically to help the seat occupant easily enter and exit the vehicle. Have all operations carried out by an assistant.

Park the vehicle on a flat surface and leave the engine running.

Shift the shift lever to P and set the parking brake.

Check that there are no people or items of luggage around the AUTO ACCESS SEAT, and that there are no people around the vehicle.

Open the right-hand sliding door fully.

STEP

Before operating the AUTO ACCESS SEAT

STEP

SIENNA AAS_U (OM45460U)

Page 65

Fold the front passenger seatback while pulling the seatback angle lever.

Unfasten the seat belt on the AUTO ACCESS SEAT.

Adjust the armrest and foot restraint on the AUTO ACCESS SEAT to the downmost position.

STEP

1-2. Operating the AUTO ACCESS SEAT

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 66

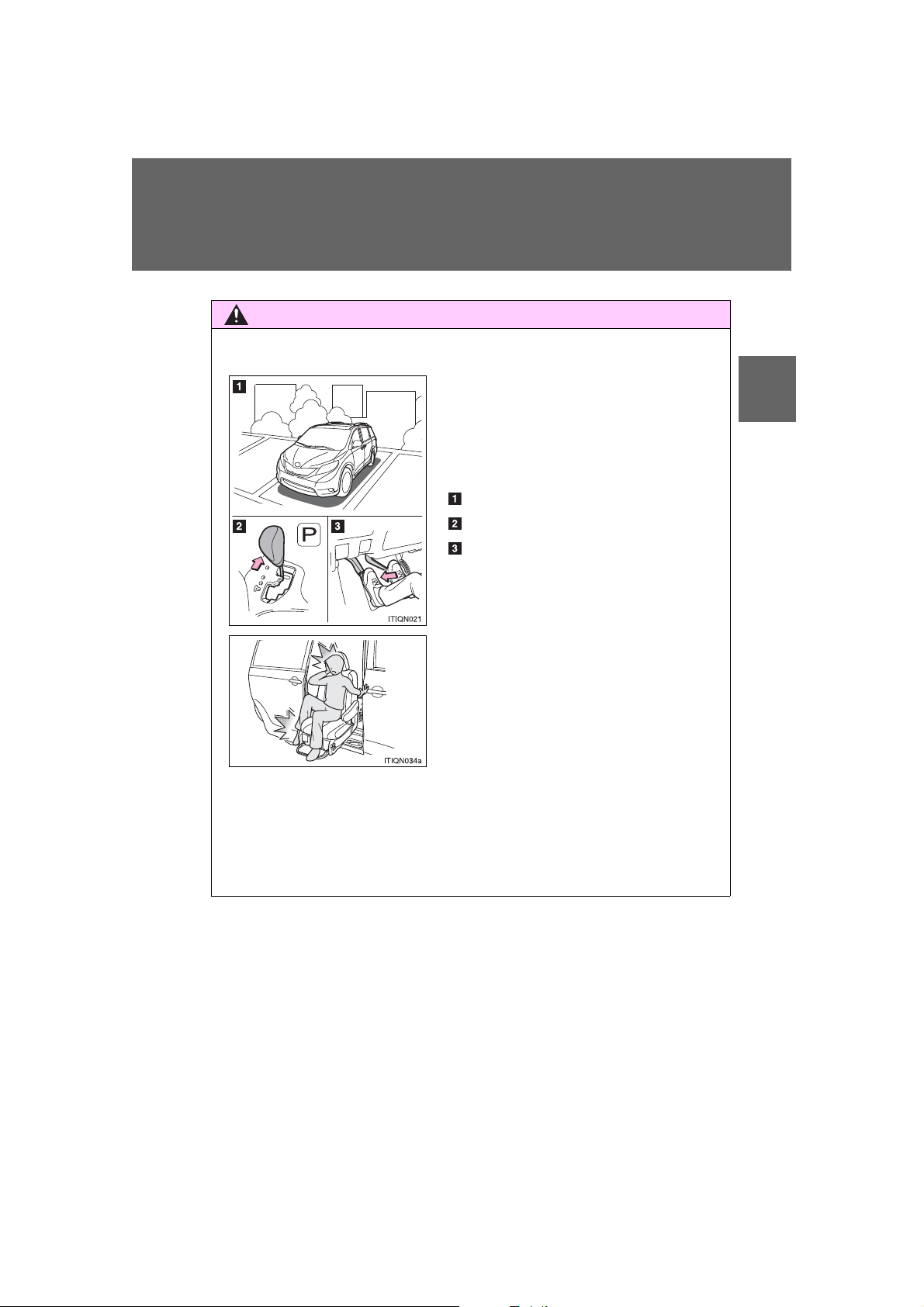

1-2. Operating the AUTO ACCESS SEAT

CAUTION

Beep Operation/Condition

Once

(normal

operation)

When the wireless remote control switches or the seat raise/lower switch is pressed and the AUTO ACCESS SEAT operates.

When the seat raise switch is pressed and the AUTO ACCESS SEAT has finished stowing.

Twice

(malfunc-

tion)

When the seat lower switch is pressed while the right-hand sliding door is closed.

When the seat lower switch is pressed while the seat belt of the AUTO ACCESS SEAT is still buckled.

When the right-hand sliding door is shut before the AUTO ACCESS SEAT has been properly stowed.

If the AUTO ACCESS SEAT hits an obstacle while rotating, or operation is otherwise obstructed.

Continu-

ously

When the AUTO ACCESS SEAT is operated while the shift lever is not in P.

n Beep sounds

The beep makes the following sounds in response to operating procedures and conditions.

n Before operating the AUTO ACCESS SEAT

When the seat is being used by a person who is unable to bend his/her knees or neck, or by a person that is unable to sit far back in the seat, be careful as their head, feet etc. may hit the vehicle body, and rotation of the AUTO ACCESS SEAT may become difficult while the seat is occupied.

SIENNA AAS_U (OM45460U)

Page 67

1-2. Operating the AUTO ACCESS SEAT

CAUTION

l Do not operate while parked on an

incline or on uneven ground. The occupant may fall from the seat or from their wheelchair, or you may be hit by the wheelchair while putting it away, possibly causing an injury.

Park the vehicle on a flat surface. Shift the shift lever to P. Set the parking brake securely.

l Operate the AUTO ACCESS SEAT

while being careful of the occupant’s head, feet and hands. Injury may result if they hit the vehicle body.

n When operating the AUTO ACCESS SEAT

AUTO ACCESS SEAT

l Check the surroundings for safety, making sure that there are no pedestri-

ans, bicycles, etc. Failure to do so may result in an accident.

l Do not allow children to play in or operate the AUTO ACCESS SEAT, as it

may be damaged.

SIENNA AAS_U (OM45460U)

Page 68

1-2. Operating the AUTO ACCESS SEAT

CAUTION

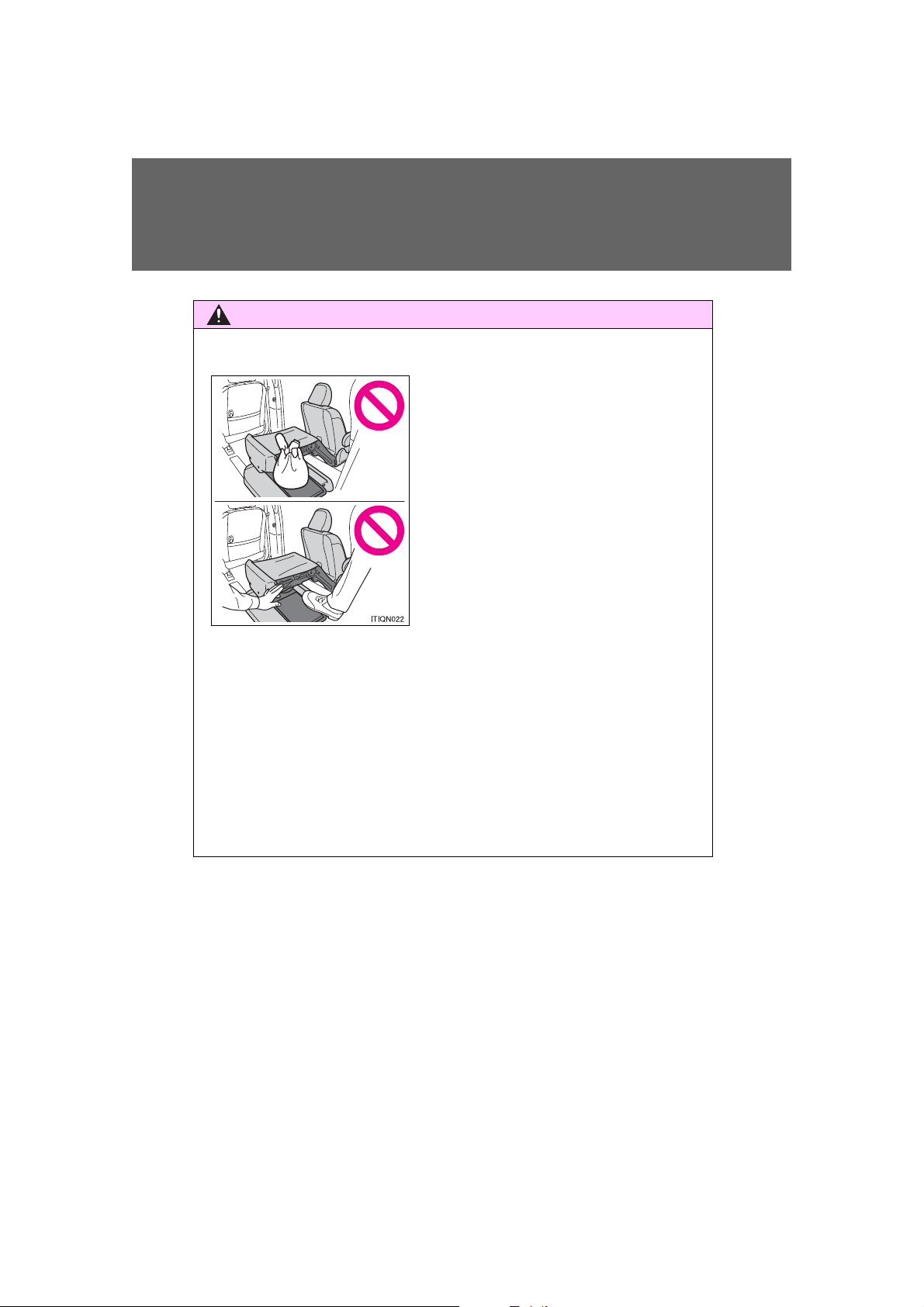

l Do not place luggage or hands and feet

underneath or around the AUTO ACCESS SEAT. Hands and feet could get caught, possibly resulting in an injury.

n When operating the AUTO ACCESS SEAT

l Make sure that the seat belt is unbuckled.

There is a risk that the occupant of the AUTO ACCESS SEAT could be injured.

l Do not stand on the footrest.

Doing so may damage the footrest, or cause the occupant to fall from the footrest, possibly causing injury.

l Make sure to use the armrests and that they are lowered as far as possi-

ble. If the armrests are not used, the occupants may lose stability and could fall from the seat, possibly causing an injury.

SIENNA AAS_U (OM45460U)

Page 69

1-2. Operating the AUTO ACCESS SEAT

NOTICE

l Before operating the AUTO ACCESS

SEAT, make sure that the seat belt is unbuckled and that the seat belt is not tangled up with the seat. If the AUTO ACCESS SEAT is operated while the seat belt is tangled, the AUTO ACCESS SEAT may be damaged.

n To prevent seat damage

l Before operating the AUTO ACCESS SEAT, make sure that there are no

luggage items or other obstacles around the moving parts of the seat. The AUTO ACCESS SEAT may be damaged if it hits an obstacle.

l The load capacity of the AUTO ACCESS SEAT is 330 lb. (150 kg).

Do not overload the seat.

n To prevent battery discharge

Use the AUTO ACCESS SEAT while the engine is running. If the engine is started while the AUTO ACCESS SEAT is being used, the AUTO ACCESS SEAT may stop during operation, and the seat will need to be initialized for re-operation. (→P. 47)

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 70

1-2. Operating the AUTO ACCESS SEAT

Park the vehicle on a flat surface and leave the engine running.

Shift the shift lever to P and set the parking brake. Confirm the following:

• The occupant is sitting correctly in the AUTO ACCESS SEAT. (→P. 14)

• The seat belt is not caught up in the AUTO ACCESS SEAT.

• The occupant of the right-hand third seat is safe.

• The condition of the AUTO ACCESS SEAT (→P. 20)

Open the right-hand sliding door fully. Fold the front passenger seatback while pulling the seat-

back angle lever. (→P. 20)

Remove the wireless remote control from the AUTO ACCESS SEAT.

Press and hold the seat lower switch on the wireless remote control to rotate and lower the AUTO ACCESS SEAT.

Operation can also be carried out by the seat raise/lower switch. (→P. 35)

STEP

Moving the AUTO ACCESS SEAT outside the vehicle

STEP

SIENNA AAS_U (OM45460U)

Page 71

1-2. Operating the AUTO ACCESS SEAT

The beep will sound once, and the AUTO ACCESS SEAT will begin to move automatically.

The indicator light on the wireless remote control will flash.

The AUTO ACCESS SEAT will rotate while the seatback reclines and while moving towards the front of the vehicle.

The AUTO ACCESS SEAT will slide out of the vehicle and will lower while the seatback raises.

Release the switch once the seat has lowered fully and has stopped automatically.

Return the wireless remote control to the AUTO ACCESS SEAT.

AUTO ACCESS SEAT

STEP

SIENNA AAS_U (OM45460U)

Page 72

1-2. Operating the AUTO ACCESS SEAT

n Operating conditions

Under the following conditions, the seat will not rotate or lower even if the seat lower switch is pressed.

l The right-hand sliding door is not opened completely. l The seat belt is caught up in the AUTO ACCESS SEAT. l The shift lever is not in P.

n Wireless remote control

l The AUTO ACCESS SEAT will operate when the seat lower switch has

been pressed and the beep has sounded once.

l The AUTO ACCESS SEAT will stop if the seat lower switch is released

during operation.

n Jam protection function

If the operation of the AUTO ACCESS SEAT is interrupted by collision with an obstacle etc., the beep will sound twice and the seat will retreat slightly and then stop. If this happens, make sure that the hands, feet etc. of the occupant will not hit the body of the vehicle, and operate the seat once again after removing the obstacle.

n Conditions which will halt operation

If another wireless remote control or the seat raise/lower switch are operated while the AUTO ACCESS SEAT is being operated by wireless remote control, the AUTO ACCESS SEAT will stop operating.

SIENNA AAS_U (OM45460U)

Page 73

1-2. Operating the AUTO ACCESS SEAT

CAUTION

NOTICE

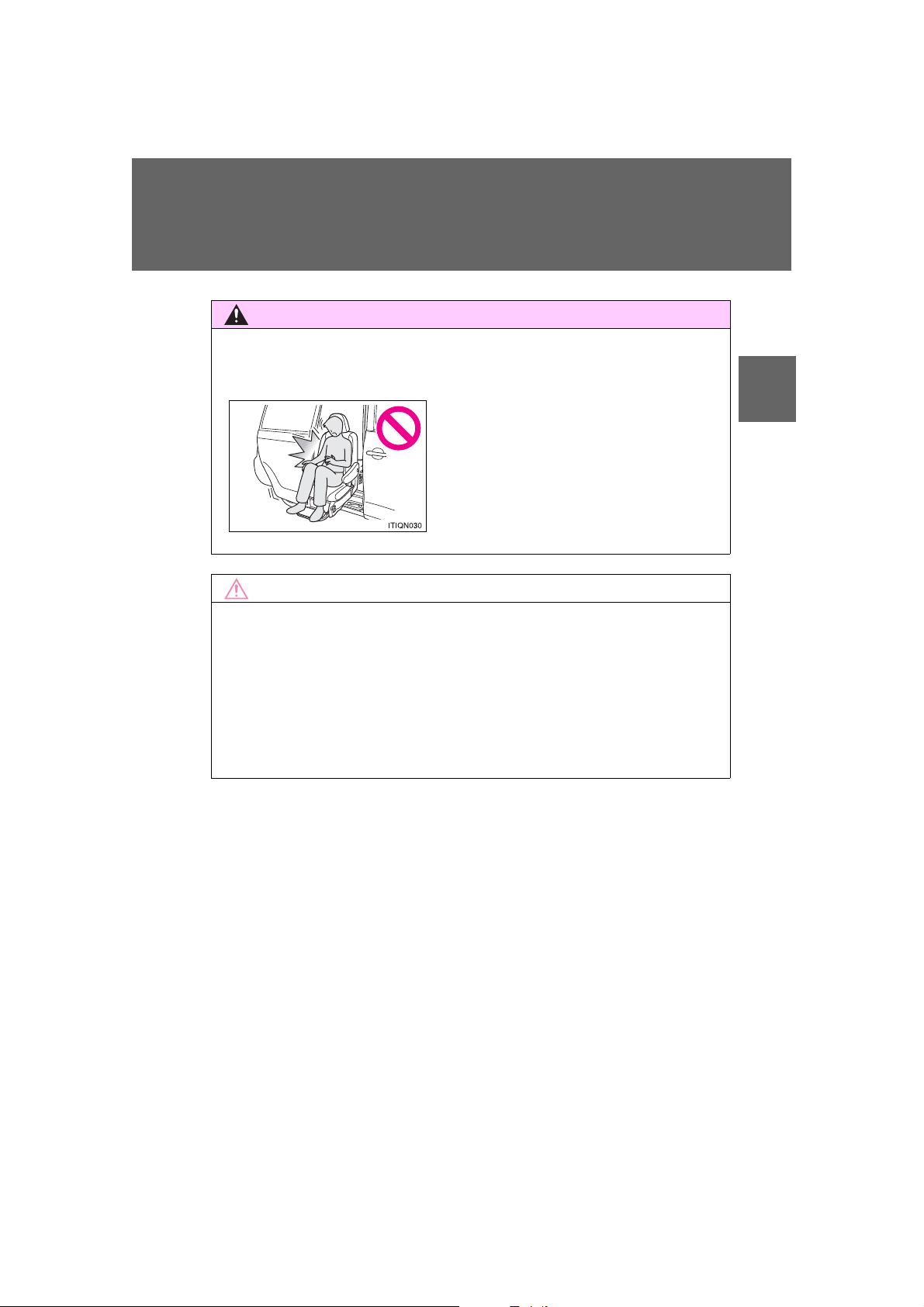

l Do not try to close the right-hand sliding

door while operating the AUTO ACCESS SEAT. Otherwise, the hands or feet of the occupant may hit the door, possibly causing injuries.

n Before moving the AUTO ACCESS SEAT outside the vehicle

l Check that the right-hand third seat occupant is safe.

n To prevent AUTO ACCESS SEAT damage

l Press and hold the wireless remote control switches, instead of pressing

them repeatedly.

l Wait for approximately 1 second before changing to another switch. l Do not leave the AUTO ACCESS SEAT outside the vehicle.

The seat may deform, freeze or rust, especially if left out in the sun, rain or cold.

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 74

1-2. Operating the AUTO ACCESS SEAT

Park the vehicle on a flat surface and leave the engine running.

Shift the shift lever to P and set the parking brake. Confirm the following:

• The right-hand sliding door is fully open.

• The occupant is sitting correctly in the AUTO ACCESS SEAT. (→P. 14)

• The occupant of the right-hand third seat is safe.

• The condition of the AUTO ACCESS SEAT (→P. 20)

Fold the front passenger seatback while pulling the seatback angle lever. (→P. 20)

Remove the wireless remote control from the AUTO ACCESS SEAT. (→P. 26)

Press and hold the seat raise switch on the wireless remote control to rotate and raise the AUTO ACCESS SEAT.

Operation can also be carried out by pressing the seat raise/ lower switch. (→P. 35)

STEP

Returning the AUTO A CCESS SEAT to the vehicle

STEP

SIENNA AAS_U (OM45460U)

Page 75

1-2. Operating the AUTO ACCESS SEAT

The beep will sound once, and the AUTO ACCESS SEAT will begin to move automatically while the seatback reclines.

The indicator light on the wireless remote control will flash.

The AUTO ACCESS SEAT will rotate while the seatback raises and while moving towards the rear of the vehicle.

Once the seat has rotated fully, the beep will sound once and the seat will stop moving automatically. Release the switch at this time.

Return the wireless remote control to the AUTO ACCESS SEAT. (→P. 26)

Adjust the AUTO ACCESS SEAT as necessary (→P. 6 ), and buckle the seat belt before driving.

Close the right-hand sliding door.

STEP

AUTO ACCESS SEAT

n Wireless remote control

l When the seat raise switch is pressed, the beep will sound once and the

AUTO ACCESS SEAT will begin to operate. The s eat will not operate if the switch is pressed repeatedly.

l The AUTO ACCESS SEAT will stop operating if the seat raise switch is

released during operation.

SIENNA AAS_U (OM45460U)

Page 76

1-2. Operating the AUTO ACCESS SEAT

CAUTION

n Jam protection function

n Conditions which will halt operation

If another wireless remote control or the seat raise/lower switch are operated while the AUTO ACCESS SEAT is being operated by wireless remote control, the AUTO ACCESS SEAT will stop operating.

n If the AUTO ACCESS SEAT has not been stowed properly

The following operations cannot be carried out.

l Power sliding door function (right-hand sliding door only) l Shifting l Adjustment of the seat position and seatback angle of the AUTO

ACCESS SEAT

n Before returning the AUTO ACCESS SEAT to the vehicle

l Check that the right-hand third seat occupant is safe.

Their feet etc. may get caught between the AUTO ACCESS SEAT and the vehicle body, possibly causing an injury.

l Make sure that the right-hand sliding door is fully open. Otherwise, the

hands or feet of the occupant may hit the door when the AUTO ACCESS SEAT is operated, possibly causing an injury.

SIENNA AAS_U (OM45460U)

Page 77

1-2. Operating the AUTO ACCESS SEAT

CAUTION

l Shake the AUTO ACCESS SEAT gen-

tly to check that the seat is stowed properly. If not stowed properly, the seat may move unexpectedly, and could cause injuries.

n When the AUTO ACCESS SEAT has been returned to the vehicle

l When moving the front passenger seat backward or when tilting down the

seatback, make sure that you do not hit the occupant of the AUTO ACCESS SEAT, as this may result in an injury.

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 78

1-2. Operating the AUTO ACCESS SEAT

NOTICE

n To prevent AUTO ACCESS SEAT damage

l Press and hold the wireless remote control switches, instead of pressing

them repeatedly.

l Wait for approximately 1 second before changing to another switch. l Open the right-hand sliding door fully before returning the AUTO ACCESS

SEAT inside the vehicle. The seat may hit the vehicle body, possibly causing damage.

n To prevent battery discharge

Do not leave the right-hand sliding door open.

SIENNA AAS_U (OM45460U)

Page 79

1-2. Operating the AUTO ACCESS SEAT

If the battery of the wireless remote control has discharged or another malfunction has occurred, the seat raise/lower switch can be used to operate the AUTO ACCESS SEAT. (The AUTO ACCESS SEAT will operate in the same way as when operated using the wireless remote control).

Park the vehicle on a flat surface and leave the engine running.

Shift the shift lever to P and set the parking brake. Open the right-hand sliding door fully. Fold the front passenger seatback while pulling the seat-

back angle lever. (→P. 20)

Press and hold the seat raise/ lower switch.

Raise Lower

The beep will sound once, and the AUTO ACCESS SEAT will operate.

The AUTO ACCESS SEAT will operate while the switch is being pressed. If the switch is released, the seat will stop in that position.

STEP

Operating with the seat raise/lower switch

STEP

AUTO ACCESS SEAT

SIENNA AAS_U (OM45460U)

Page 80

1-2. Operating the AUTO ACCESS SEAT

NOTICE

When the AUTO ACCESS SEAT stops automatically, release the switch.

When returning the AUTO ACCESS SEAT to the vehicle, release the switch after the seat has stopped automatically and the beep has sounded once.

STEP

n Seat raise/lower switch

When the seat raise/lower switch is pressed, the beep will sound once and the AUTO ACCESS SEAT will begin to operate. The seat will not operate if the switch is pressed repeatedly.

n To prevent AUTO ACCESS SEAT damage

l Press and hold the seat raise/lower switch, instead of pressing them

repeatedly.

l Open the right-hand sliding door fully before returning the AUTO ACCESS

SEAT inside the vehicle. The footrest may hit the vehicle body, possibly causing damage.

SIENNA AAS_U (OM45460U)

Page 81

1-2. Opening, closing and locking the doors

The following operations can be performed simply by carrying the

electronic key on your person, for example in your pocket.

(The driver should always carry the electronic key.)

Locks and unlocks the doors (→P. 35 ) Locks and unlocks the doors (→P. 35 )

Starts and stops the engine (→P. 215)

Electronic key

Smart key system

∗

∗: If equipped

Page 82

1-2. Opening, closing and locking the doors

Unlocking and locking the doors

Front door handles

Grip the handle to unlock all the doors.

Make sure to touch the sensor on the back of the handle.

The doors cannot be unlocked for 3 seconds after the doors are locked.

Touch the lock sensor (the indentation on the upper part of the door handle) to lock all the doors.

Sliding door handles (vehicles with power sliding door)

Pull the handle to unlock all the doors.

There is no touch type sensor in slide door handle. You must pull the handle to activate the operation.

Before driving

Page 83

1-2. Opening, closing and locking the doors

Back door

Press the unlock button to unlock all the doors.

The door cannot be unlocked for 3 seconds after the door is locked.

Lock the back door again when you leave the vehicle. The back door will not lock automatically after it has been opened and then closed.

Press the lock button to lock all the doors.

Page 84

1-2. Opening, closing and locking the doors

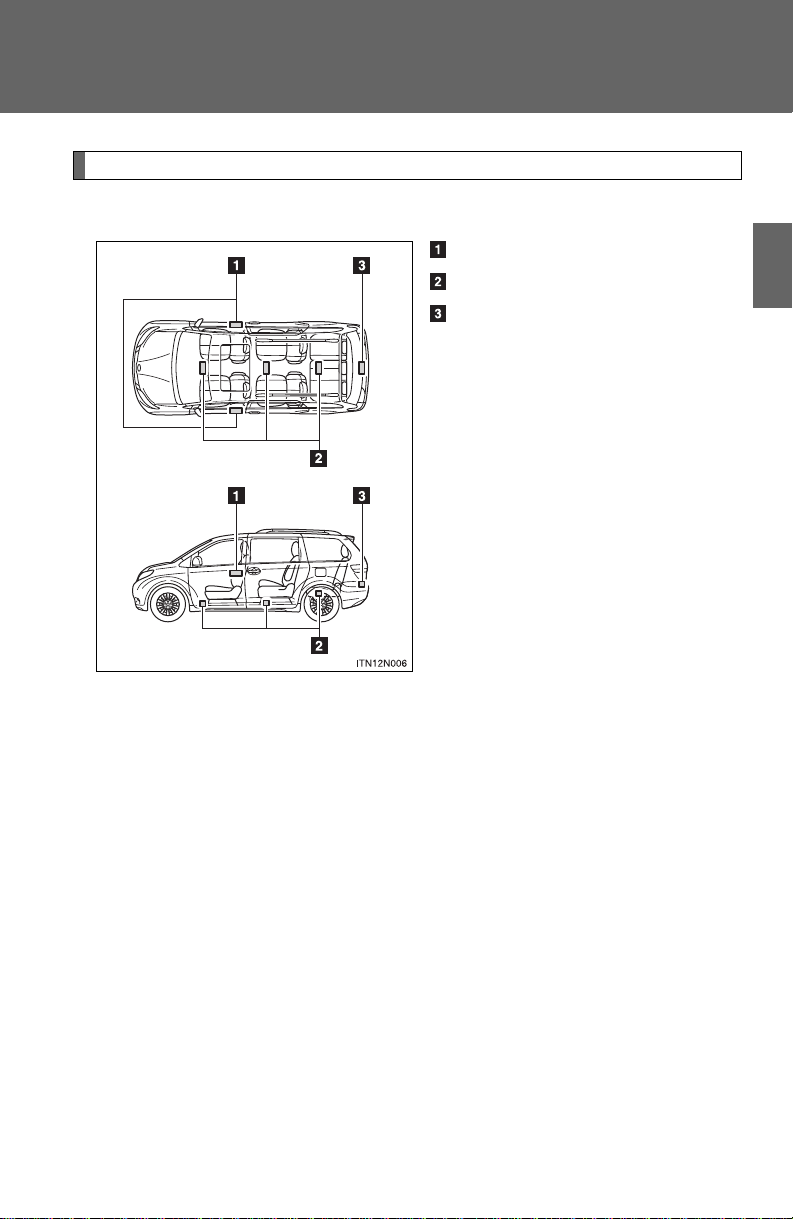

Antenna location and effective range

■ Antenna location

Antennas outside cabin

Antennas inside cabin

Antenna outside luggage compartment

Before driving

Page 85

1-2. Opening, closing and locking the doors

■ Effective range (areas within which the electronic key is

detected)

When locking or unlocking the doors

The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of either of the front outside door handles. (Only the doors detecting the key can be operated.)

When starting the engine or changing “ENGINE START STOP” switch modes

The system can be operated when the electronic key is inside the vehicle.

Page 86

1-2. Opening, closing and locking the doors

Touch both lock sensors on the upper and lower part of the front door handle simultaneously.

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

■ When the door cannot be locked by the lock sensor on the upper part

of the front door handle

Before driving

Page 87

1-2. Opening, closing and locking the doors

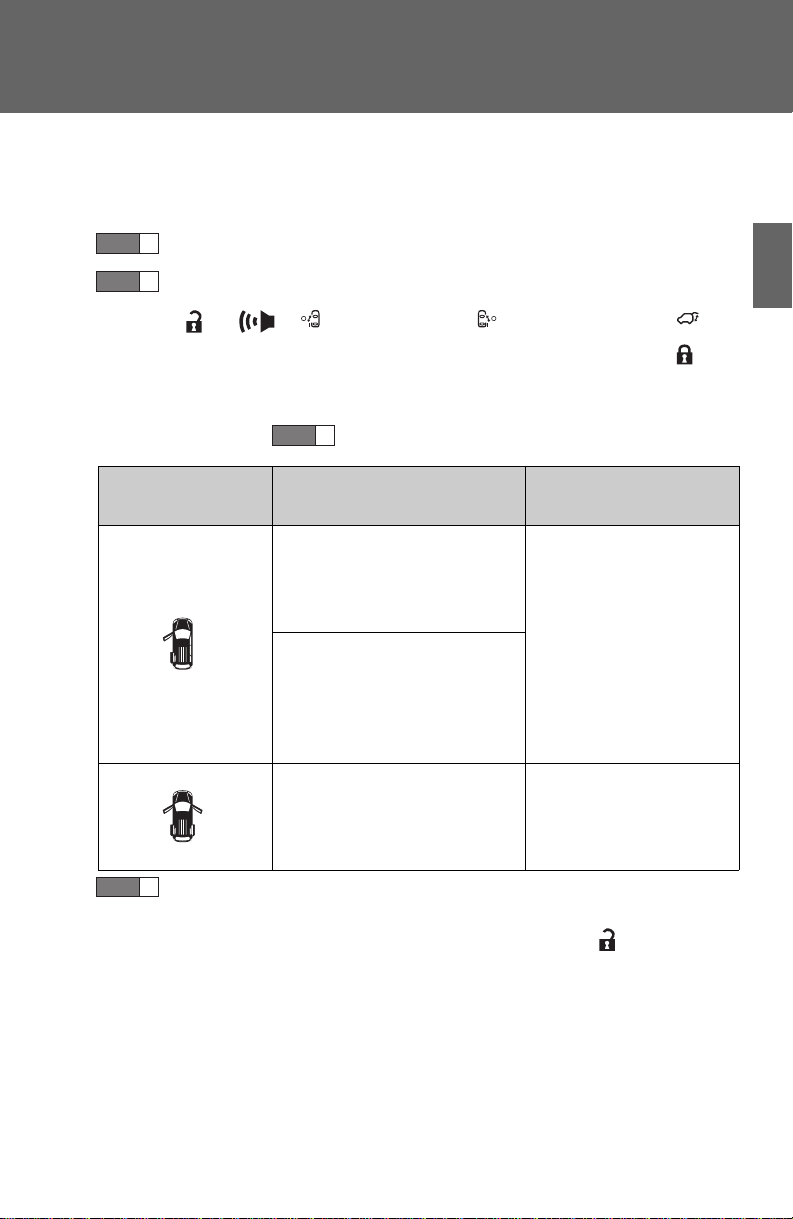

Alarm Situation Correction procedure

Interior alarm pings once and exterior alarm sounds once for 10 seconds

An attempt was made to lock the doors using the entry function while the electronic key was still inside the passenger compartment

Retrieve the electronic key from the passenger compartment and lock the doors again

An attempt was made to exit the vehicle and lock the doors without first turning the “ENGINE START STOP” switch off

Turn the “ENGINE START STOP” switch off and lock the doors again

Exterior alarm sounds once for 10 seconds

An attempt was made to lock the vehicle while a door is open

Close all of the doors and lock the doors again

■ Alarms and warning indicators

A combination of exterior and interior alarms as well as warnings shown on the multi-information display are used to prevent theft of the vehicle and unforeseeable accidents resulting from erroneous operation. Perform the appropriate correction procedure described in the following table.

Page 88

1-2. Opening, closing and locking the doors

Alarm Situation Correction procedure

Interior alarm pings continuously

The “ENGINE START STOP” switch was turned to ACCESSORY mode while the driver’s door was open (or the driver’s door was opened while the “ENGINE START STOP” switch was in ACCESSORY mode)

Turn the “ENGINE START STOP” switch OFF and close the driver’s door

Interior alarm sounds continuously

When the “ENGINE START STOP” switch is in IGNITION ON or ACCESSORY mode, an attempt was made to open the door and exit the vehicle, and the shift lever was not in “P”

Shift the shift lever to “P” and turn the “ENGINE START STOP” switch OFF

Interior and exterior alarms sound continuously

When the “ENGINE START STOP” switch is in IGNITION ON or ACCESSORY mode, the driver’s door was closed after the key was carried outside the vehicle, and the shift lever was not in “P”

Shift the shift lever to “P”, turn the “ENGINE START STOP” switch OFF and close the driver’s door again

Before driving

Page 89

1-2. Opening, closing and locking the doors

Alarm Situation Correction procedure

Interior alarm pings once

The electronic key has a low battery

Replace the electronic key battery

An attempt was made to start the engine without the electronic key being present, or the electronic key was not functioning normally

Start the engine with the electronic key present

Interior alarm pings once and exterior alarm sounds 3 times

The driver’s door was closed after the key was carried outside the vehicle, and the “ENGINE START STOP” switch was not turned off

Turn the “ENGINE START STOP” switch OFF and close the driver’s door again

An occupant carried the electronic key outside the vehicle and closed the door while the “ENGINE START STOP” switch was not off

Bring the electronic key back into the vehicle

: A message will be shown on the multi-information display in the instru-

ment cluster.

: If the engine does not start when the electronic key is inside the vehicle,

the electronic key battery may be depleted or there may be difficulties receiving signal from the key. (→P. 645)

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

Page 90

1-2. Opening, closing and locking the doors

STEP

Multi-information

display

Unlocking function Beep

Holding the driver’s door handle unlocks only the driver’s door and driver side power sliding door.

Exterior: Beeps three times Interior: Pings once

Holding the front passenger’s door handle or pulling either power sliding door handle unlocks all doors.

Holding either front door handle or pulling either power sliding door handle unlocks all doors.

Exterior: Beeps twice Interior: Pings once

STEP

■ Switching the door unlock function

It is possible to set which doors the entry function unlocks using the wireless remote control.

Turn the “ENGINE START STOP” switch off.

When the indicator on the key surface is not on, press and hold

, , (if equipped), (if equipped) or (if

equipped) for about 5 seconds while pressing and holding .

The setting changes each time an operation is performed, as shown below. (When changing the setting continuously, release the buttons, wait for at least 5 seconds, and repeat .)

STEP

Before driving

For vehicles equipped with an alarm, unlock the doors using the wireless remote control and open one of the doors. If a door is not opened within 60 seconds after is pressed, the doors will be locked again and the alarm will automatically be set. In case that the alarm is triggered, immediately stop the alarm. (→P. 154)

Page 91

1-2. Opening, closing and locking the doors

■ Battery-saving function

In the following circumstances, the entry function is disabled in order to prevent the vehicle battery from discharging and the electronic key battery from discharging.

● When the entry function has not been used for 5 days or more

● When the electronic key has been left within approximately 6 ft. (2 m) of

the vehicle for 10 minutes or more

● If the entry function has not been used for 14 days or more, the vehicle

cannot be unlocked by a door other than the driver’s door. To unlock the vehicle, grip the driver’s door handle or use the wireless remote control or the mechanical key.

The system will resume operation when...

● The vehicle is locked using the lock sensor when carrying the electronic

key on your person.

● The vehicle is locked/unlocked using the wireless remote control.

(→P. 5 2)

● The vehicle is locked/unlocked using the mechanical key. (→P. 717)

Page 92

1-2. Opening, closing and locking the doors

■ Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system and wireless remote control from operating properly. (Way of coping →P. 717)

● When the electronic key battery is depleted

● Near a TV tower, electric power plant, gas station, radio station, large dis-

play, airport or other facility that generates strong radio waves or electrical noise

● When carrying a portable radio, cellular phone, cordless phone or other

wireless communication devices

● When the electronic key is in contact with, or is covered by the following

objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

● When multiple electronic keys are in the vicinity

● When another wireless key (that emits radio waves) is being used nearby

● When carrying or using the electronic key together with the following

devices that emit radio waves

• Another vehicle’s electronic key

• A wireless key that emits radio waves

• Personal computers or personal digital assistants (PDAs)

• Digital audio players

• Portable game systems

● If window tint with a metallic content or metallic objects are attached to

the rear window

● Vehicles with AUTO ACCESS SEAT: If the wireless remote control of the

AUTO ACCESS SEAT is operated simultaneously, the AUTO ACCESS SEAT may not operate properly. For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.

Before driving

Page 93

1-2. Opening, closing and locking the doors

■ Notes for the entry function

● Even when the electronic key is within the effective range (detection

areas), the system may not operate properly in the following cases.

• The electronic key is too close to the window or outside door handle,

near the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is on the instrument panel, floor or in the glove box

when the engine is started or “ENGINE START STOP” switch modes are changed.

● As long as the electronic key is within the effective range, the doors may

be locked or unlocked by anyone. However, only the doors detecting the electronic key can be used to unlock the vehicle.

● The doors may unlock or lock if a large amount of water splashes on the

door handle, such as in the rain or in a car wash when the electronic key is within the effective range. (The doors will automatically be locked after approximately 60 seconds if the doors are not opened and closed.)

● If the wireless remote control is used to lock the doors when the elec-

tronic key is near the vehicle, there is a possibility that the door may not be unlocked by the smart key system. (Use the wireless remote control to unlock the doors.)

● If power slide door is unable to operate due to prohibition by the power

sliding door main switch, the door unlock and open operation will not be performed. (→P. 67)

Page 94

1-2. Opening, closing and locking the doors

■ Note for locking the doors

● Touching the door lock sensor while wearing gloves may delay or prevent

lock operation. Remove the gloves and touch the lock sensor again.

● When the lock operation is performed using the lock sensor, recognition

signals will be shown up to two consecutive times. After this, no recognition signals will be given.

● If the door handle becomes wet while the electronic key is within the

effective range, the door may lock and unlock repeatedly. Place the key in a position 6 ft. (2 m) or more separate from the vehicle while the vehicle is being washed. (Take care to ensure that the key is not stolen.)

● If the electronic key is inside the vehicle and a door handle becomes wet

during a car wash, a message may be shown on the multi-information display and a buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.

● The lock sensor may not work properly if it comes into contact with ice,

snow, mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock sensor on the lower part of the door handle.

● Fingernails may scrape against the door during operation of the door

handle. Be careful not to injure fingernails or damage the surface of the door.

Before driving

Page 95

1-2. Opening, closing and locking the doors

■ Notes for the unlocking function

● Gripping the front door handle when wearing a glove may not unlock or

lock the door.

● A sudden approach to the effective range or door handle operation may

prevent the doors from being unlocked. In this case, return the door handle to the original position and check that the doors have unlocked before pulling the door handle.

● If there is another electronic key in the detection area, it may take slightly

longer to unlock the doors after one of the front door handles is gripped or one of sliding door handles is pulled.

■ When the vehicle is not driven for extended periods

● To prevent theft of the vehicle, do not leave the electronic key within 6 ft.

(2 m) of the vehicle.

● The smart key system can be deactivated in advance. (→P. 761)

■ To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from outside of the vehicle.

Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention may not operate.)

■ If the smart key system does not operate properly

● Locking and unlocking the doors: Use the mechanical key. (→P. 717)

● Starting the engine (→P. 717)

Page 96

1-2. Opening, closing and locking the doors

■ Electronic key battery depletion

● The standard battery life is 1 to 2 years.

● If the battery becomes low, an alarm will sound in the cabin when the

engine stops. (→P. 40)

● As the electronic key always transmits radio waves, the battery will

become depleted even if the electronic key is not used. The following symptoms indicate that the electronic key battery may be depleted. Replace the battery when necessary. (→P. 645)

• The smart key system or the wireless remote control does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface does not turn on.

● To avoid serious deterioration, do not leave the electronic key within 3 ft.

(1 m) of the following electrical appliances that produce a magnetic field.

•TVs

• Personal computers

• Recharging cellular phones or cordless phones

• Cellular phones, cordless phones and battery chargers

• Glass top ranges

• Table lamps

■ When the electronic key battery is fully depleted

→P. 645

■ Customization that can be configured at Toyota dealer

Settings (e.g. smart key system) can be changed. (Customizable features →P. 761)

Before driving

Page 97

1-2. Opening, closing and locking the doors

■ Certification for the smart key system

U.S.A.

FCC ID: HYQ14ADR FCC ID: HYQ14AEH FCC ID: HYQ13CZM FCC ID: HYQ13CZN FCC ID: NI4TMLF8-20

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Canada

Page 98

1-2. Opening, closing and locking the doors

CAUTION

■ Caution regarding interference with electronic devices

● People with implanted pacemakers or cardiac defibrillators should keep

away from the smart key system antennas. (→P. 38) The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Toyota dealer for details, such as the frequency of radio waves and timing of emitting the radio waves. Then, consult your doctor to see if you should disable the entry function.

● Users of any electrical medical device other than implanted pacemakers

and implanted cardiac defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medical devices.

Ask your Toyota dealer for details for disabling the entry function.

Before driving

Page 99

1-2. Opening, closing and locking the doors

The wireless remote control can be used to lock and unlock the vehi-

cle.

Vehicles without a smart key system (type A)

Locks all doors

Unlocks all doors

Pressing the button unlocks the driver’s side doors. Pressing the button again within 3 seconds unlocks the other doors.

Sounds the alarm (press and hold)

: If equipped

Wireless remote control

Page 100

1-2. Opening, closing and locking the doors

Vehicles without a smart key system (type B)

Locks all doors

Unlocks all doors

Pressing the button unlocks the driver’s side doors. Pressing the button again within 3 seconds unlocks the other doors.

Opens and closes the left side power sliding door (press and hold)

Opens and closes the right side power sliding door (press and hold)

Opens and closes the power back door (press and hold)

Sounds alarm (press and hold)

: If equipped

Before driving

TOYOTA Sienna 2011 User Manual

Abbreviation list

TABLE OF CONTENTS

1-1. Key information

1-2. Opening, closing and locking the doors
