Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrum ent panel 7. . . . . . . . . . . . . . . . . . . . . . .
1
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
1
Instrument panel overview
’04 4Runner_U (L/O 0409)
1. Side vents
2. Side defroster o utlets
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Glove box
10. Automatic transmission selector lever
11. Power door lock switches
12. Power window switches
13. Seat heater switches
14. “HEIGHT CONTROL OFF” switch
15. Rear vents
16. Trash holder
17. Height select switch
18. “DAC” switch
19. Front cup holders
20. Tilt steering lock release lever
2
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
21. Telescopic steering lock release lever
22. Parking b rake pedal
23. Window lock switch
24. Power rear view mirror control switches
’04 4Runner_U (L/O 0409)
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
3
’04 4Runner_U (L/O 0409)
1. Instrument panel light control dial
2. Headlight, turn signal and front fog
light switches
3. Audio remote control switches
4. Wiper and washer switches
5. Power back window switch
6. Car audio
7. Front passenger’s seat belt reminder
light
8. Engine immobilizer/theft deterrent
system indicator light
9. Multi- information display
10. Emergency flasher switch
11. Air conditioning controls
12. Auxiliary box
13. Back window and rear view mirror
defogger switch
14. Four- wheel drive control switch knob
(full- time four- wheel drive models) or
multi- mode control switch knob
(multi- mode four- wheel drive models)
15. Ignition switch
16. Cruise control switch
17. Hood lock release lever
4
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
18. Fuel filler door opener
19. Roll s ensing of curt ain shield air bags
off switch
20. “TRAC OFF” switch
21. Center differential lock switch
22. Power outlet main switch
’04 4Runner_U (L/O 0409)
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
5
Instrument cluster overview
’04 4Runner_U (L/O 0409)
1. Trip meter reset button
2. Tachometer
3. Service reminder indicators and
indicator lights
6
4. Speedometer
5. Fuel gauge
6. Low fuel level warning light
7. Engine coolant temperature gauge
8. Odometer and two trip meters
9. Odometer/two trip meter changeover
button
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
Indicator symbols on the instrument panel
∗
Brake system warning light
Driver’s seat belt reminder light
Front passenger’s seat belt reminder light
Dischar ge warning light
1
∗
1
∗
1
’04 4Runner_U (L/O 0409)
Vehicle stability control system warning
∗
1
light
∗
Traction control system warning light
(two- wheel drive models)
Active traction control system warning light
∗
1
(four- wheel drive models)
Downhill assist control system warning
∗
1
(four- wheel drive models)
light
Hill- start assist control system warning
∗
1
light
1
∗
1
∗
Low engine oil press ure warning light
∗
Malfunction indicator lamp
1
Engine oil replacement reminder light
(for vehicles sold in U.S.A.)
1
Open door warni ng light
SRS war ning light
∗
1
Automatic transmission fluid temperature
warning light
∗
1
Low tire pressure warning light
∗
or
Anti- lock brake system warning light
1
Low windshield washer fluid level warning
∗
1
light
(for vehicles sold in Canada)
∗
1
∗
1
∗
1
7
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
Engine immobilizer/theft deterrent system
indicator light
Roll sensing of curtain shi eld airbags off
indicator light
∗
2
’04 4Runner_U (L/O 0409)
Low speed four- wheel drive indicator light
(four- wheel drive models)
Center differential lock indicator light
(four- wheel drive models)
∗
3
∗
3
Headlight low beam indicator light
Tail light indicator light
Headlight high beam indicator light
Turn signal indicator lights
Automatic transmission indicator lights
(5- speed)
Automatic transmission indicator lights
(4- speed)
∗
Four- wheel drive indicator light
3
(multi- mode four- wheel drive models)
Slip indicator light
Traction control system off indicator light
(two- wheel drive models)
Vehicle stability control system off indicator light
(four- wheel drive models)
Downhill assist control system indicator light
(four- wheel drive models)
Height control indicator lights
∗
Height control “OFF” indicator light
Cruise control indicator light
4
∗
5
8
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
∗
1
: For details, see “Service reminder indicators and warning
buzzers” on page 139 in Section 1- 6.
∗
2
: For details, see “Roll sensing of curtain shield airbags off
switch” on page 87 in Section 1- 3.
∗
3
: If this light flashes, see “Four- wheel drive system” on page
160 in Section 1- 7.
∗
4
: If this light flashes, see “Rear height control air suspension”
on page 180 in Section 1- 7.
∗
5
: If this light flashes, see “Cruise control” on page 190 in
Section 1- 7.
’04 4Runner_U (L/O 0409)
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
9
’04 4Runner_U (L/O 0409)
10
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
’04 4Runner_U (L/O 0409)
SECTION 1-
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power back window 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
11
Keys
’04 4Runner_U (L/O 0409)
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked without a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
Your vehicle is supplied with the two
kinds of keys.
1. Master keys (black)—These keys work
in every lock. Your Toyota dealer will
need one of them to make a new key
with a built- in transponder chip.
2. Sub key (gray)—This key does not
work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
12
NOTICE
When using a key containing a transponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
When starting the engine, do not
use the key with other transponder
keys around (including keys of other vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after removing other transponder keys (including keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
’04 4Runner_U (L/O 0409)
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnetic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromagnetic materials.
13
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
’04 4Runner_U (L/O 0409)
Engine immobilizer system
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key number and storing it in a safe place.
14
The engine immobilizer system is a
theft prevention system. When you insert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the vehicle. The engine will start only when
the electronic code in the chip corresponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is setting or activating. (See “Theft deterrent
system” on page 33 in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the system or start the engine.
NOTICE
Do not modify, remove or disassemble the engine immobilizer system. If any unauthorized changes or
modifications are made, proper operation of the system cannot be guaranteed.
’04 4Runner_U (L/O 0409)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful
interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) this device may not cause interference, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Side doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with the driver’s
door. In the driver’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock all the side
doors and back door simultaneously.
15
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
’04 4Runner_U (L/O 0409)
This double key turning operation to unlock all the side doors and back door can
be changed to a single key turning operation. For details, contact your Toyota dealer.
When any of the side doors and back
door is unlocked with a key, the interior
light, luggage compartment light, ignition
switch light and running board lights (on
some models) will come on and remain on
for about 15 seconds before fading out.
(For details, see “Interior light” on page
128, “Luggage compartment light” on page
129, “Ignition switch light” on page 130
and “Running board lights” on page 131
in Section 1-5.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handles even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the vehicle.
The front doors cannot be locked if you
leave the key in the ignition switch.
16
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
’04 4Runner_U (L/O 0409)
Driver’s side
Front passenger ’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the side doors and back
door.
If you do either of the following, no side
door or back door can be unlocked with
the power door lock switch.
Lock all the side doors and back door
with the key or wireless remote control
transmitter when all the side doors and
back door are closed.
Open the driver’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the side doors and back
door with the key or wireless remote
control transmitter.
Unlock the driver’s door or front pas-
senger’s door with the inside lock
knob, and then unlock all the doors
and back door with the power door
lock switch.
This unlocking protection with the power
door lock switch can be disabled. For details, contact your Toyota dealer.
17
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
REAR DOOR CHILD- PROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child-protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
’04 4Runner_U (L/O 0409)
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the vehicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the vehicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
—Automatic door locking and
unlocking functions
You can set the following automatic
door locking and unlocking functions.
(a) Locking linked with the shift posi-
tion
All the side doors and back door are
locked automatically when the automatic
transmission selector lever is moved out
of the “P” position with the engine running
and all the side doors and back door are
closed. This function is the default setting
for new vehicles.
(b) Unlocking linked with the shift posi-
tion
All the side doors and back door are unlocked automatically when the automatic
transmission selector lever is moved to
the “P” position with the ignition switch in
the “ON” position.
(c) Locking linked with the vehicle
speed
All the side doors and back door are
locked automatically when the vehicle
speed reaches 20 km/h (12 mph) or higher. However, if any of the side doors and
back door is unlocked during driving, this
auto locking function will not operate until
the unlocked door is opened once.
18
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
(d) Unlocking linked with opening the
driver’s door
All the side doors and back door are unlocked automatically when the driver’s
door is opened within 10 seconds after
the ignition switch is turned from “ON” to
the “ACC” or “LOCK” position.
SETTING THE FUNCTIONS
1. Close all the side doors and back door.
2. Turn the ignition switch to the “ON”
position.
3. Within 10 seconds after the ignition
switch is turned to the “ON” position;
To set function (a)
Push and hold the front of the power
door lock switch for 5 seconds with the
automatic transmission selector lever in
the “P” position.
To set function (b)
Push and hold the rear of the power
door lock switch for 5 seconds with the
automatic transmission selector lever in
the “P” position.
’04 4Runner_U (L/O 0409)
To set function (c)
Push and hold the front of the power
door lock switch for 5 seconds with the
automatic transmission selector lever in
any position except “P”.
To set function (d)
Push and hold the rear of the power
door lock switch for 5 seconds with the
automatic transmission selector lever in
any position except “P”.
All the side doors and back door are automatically lock and unlock when you release the power door lock switch. This
indicates that the function is set. If all the
side doors and back door do not lock and
unlock, the time the switch was held may
have been too short or too long. Perform
the procedure over again starting from
step 1.
If you want to cancel a function, repeat
the procedure. Each time you perform the
procedure, the function is set or cancelled.
—Wireless remote control
Locking operation
Unlocking operation
19
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
’04 4Runner_U (L/O 0409)
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, open the back
window or activate the “PANIC” mode
from a distance within approximately 1
m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches of
the transmitter slowly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked simultaneously. At this time one beep will
be heard, and the turn signal lights flash
once.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or the back door
is not securely closed, locking cannot be
performed by the “LOCK” switch and a
beep will sound continuously for 10 seconds. However, if the key is in the ignition
switch, a beep will not sound.
To stop the buzzer, close all the side
doors and back door securely or push the
“UNLOCK” switch.
The buzzer can be disabled. For details,
contact your Toyota dealer.
To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. Each time the “UNLOCK”
switch is pushed, two beeps will be heard,
and the turn signal lights flash twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When the “UNLOCK” switch is pressed,
the interior light, luggage compartment
light, ignition switch light and running
board lights (on some models) will come
on and remain on for about 15 seconds
before fading out. (For details, see “Interior light” on page 128, “Luggage compartment light” on page 129, “Ignition switch
light” on page 130 and “Running board
lights” on page 131 in Section 1- 5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automatically locked again.
The timing for the automatic door lock
function can be changed. For details, contact your Toyota dealer.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking operation is not repeated. Release the switch
and then push again.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the wireless door locking or
unlocking function
Cancelling the flash of the turn signal
lights
Changing the volume of beep sound
20
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
OPENING THE BACK WINDOW
To open the back window, push the
back window open switch of the transmitter for about 1 second. The window
will fully open.
At this time, you can hear a beep.
If the ignition switch is in the “ON” posi-
tion, the back window cannot be opened
by the back window open switch.
To open the back window with the key,
see “Power back window” on page 28 in
this Section.
The back window opening program by
wireless remote control can be changed or
disabled. For details, contact your Toyota
dealer.
’04 4Runner_U (L/O 0409)
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights, tail lights and turn signal
lights, and turns on the interior and
luggage compartment lights.
The “PANIC” switch is used to deter vehicle theft when you witness anyone attempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, push any of the switch on
the wireless remote control transmitter.
You can also stop the alarm by turning
the ignition key from “LOCK” to the “ON”
position.
The “PANIC” mode does not work when
the ignition key is in the “ON” position.
This alarm function can be disabled. For
details, contact your Toyota dealer.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the following instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote control transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
21
2004 4RUNNER from Sep. ’04 Prod. (OM35847U)
’04 4Runner_U (L/O 0409)
If the wireless remote control transmitter
does not actuate the doors, back window
or alarm, operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see following
“REPLACING THE BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an accident. (See “If you lose your wireless remote control transmitter” on page 338 in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
22
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio / TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interference, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
REPLACING THE BATTERY
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken to prevent small children from swallowing
the removed transmitter battery or
components.
NOTICE
When replacing the transmitter battery, be careful not to lose the components.
Replace only with the same or
equivalent type recommended by a
Toyota dealer.
Dispose of used batteries according
to the local laws.
Replace the transmitter battery by following these procedures:
23
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
1. Using a coin or equivalent, open the
transmitter case.
24
2. Remove the discharged transmitter battery.
NOTICE
Do not bend the terminals.
3. Put in a new transmitter battery with
positive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and
negative side of the transmitter battery are faced correctly.
Do not replace the battery with wet
hands. Water may cause unexpected
rust.
Do not touch or move any components inside the transmitter, or it
may interfere with proper operation.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Be careful not to bend the electrode
when inserting the transmitter battery and that dust or oils do not
adhere to the transmitter case.
Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the transmitter still does not operate properly, contact your Toyota dealer.
’04 4Runner_U (L/O 0409)
Power windows
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, all the power windows work for 43
seconds even after the ignition switch is
turned off. It stops working when either
front door is opened.
The indicator light (“AUTO”) on the switch
tells you the switch can be operated.
25
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window partway, lightly move the switch in the opposite direction and then release it.
Jam protection function: During automatic closing operation or key off closing operation, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
’04 4Runner_U (L/O 0409)
If the battery is disconnected or run
down, the power window may not operate
automatically and the jam protection function will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normalize the power window.
To normalize the power window:
1. Push down the power window switch
and lower the window halfway.
2. Pull up the switch until the window
closes and hold the switch for a second.
Make sure that the window opens and
closes automatically. If the power window
cannot be operated properly, have it
checked by your Toyota dealer.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Window
lock
switch
26
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger’s
door or the switches on the driver’s
door that control each passenger’s window.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver’s door, the passengers’ windows
cannot be operated.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power windows, make sure he or she operates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervision. Use the window lock switch to
prevent them from making unexpected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
27
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unattended person (particularly a small
child) can be involved in a serious
accident.
’04 4Runner_U (L/O 0409)
Power back window
The back window can be operated with
the switch on the instrument panel or
the key operation in the back door keyhole.
You can open the back window when the
back window wiper is working. At that
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer and defogger
will not work. (See “Back window wiper
and washer” on page 132 and “Back window and outside rear view mirror defoggers” on page 133 in Section 1- 5.)
If the battery is disconnected or run
down, the power back window may not
operate automatically and the jam protection function will not function correctly after you reconnect, replace or recharge the
battery. In any of these cases, you should
normalize the power back window with the
power back window switch.
To normalize the power back window:
1. Push the “” (down) switch and lower
the window halfway.
2. Push the “” (up) switch until the window closes and hold the switch for a
second.
Make sure that the window opens and
closes automatically. If the power back
window cannot be operated properly, have
it checked by your Toyota dealer.
OPERATING FROM INSIDE
The ignition key must be in the “ON” position.
Normal operation: To open or close the
back window, quickly push and release the
“” (down) or “” (up) switch.
28
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Automatic operation: To open or close
the back window, push and hold the “ ”
(down) or “” (up) switch. The window
will fully open or close. To stop the window partway, push the switch on either
the “” (down) or “” (up) side briefly.
Key off operation: If both front doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when either front door is opened.
Jam protection function: During automatic closing operation or key off closing operation, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
’04 4Runner_U (L/O 0409)
If you push in the window lock switch on
the driver’s door, the back window cannot
be operated.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
29
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
OPERATING FROM OUTSIDE
The back window can be opened and
closed with the key operation in the back
door keyhole.
To open: Turn the key fully counterclockwise and hold it.
After the door is unlocked, the window
begins to open. To stop the window partway, release the key.
To close: Turn the key fully clockwise and
hold it.
After the door is locked, the window begins to close. To stop the window partway,
release the key.
This door key linked function can be disabled. For details, contact your Toyota
dealer.
Jam protection function: During closing
operation, the window stops and opens
half way if something gets caught between
the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power back
window, always make sure there is
nobody around the power back window. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power
back window, make sure he or she
operates the window safely.
When small children are in the ve-
hicle, never let them use the power
back window switch without supervision. Use the window lock switch
to prevent them from making unexpected use of the switch.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power back window switch
and get trapped in a window. Unattended person (particularly a small
child) can be involved in a serious
accident.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
To open the back window with the wireless remote control transmitter, see
“—Wireless remote control” on page 19 in
this Section.
30
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Back door
To open the back door, push up the
back door opener.
The back door can be opened when the
vehicle is stopped.
If the back door opener does not operate
except when the battery is disconnected
or run down, contact your Toyota dealer.
If the battery is disconnected or run
down, the back door does not open after
you reconnect, replace or recharge the
battery. In any of these cases, you should
normalize the back door.
To normalize the back door, unlock it with
the key, remote control transmitter or power door lock switch, see “Side doors” on
page 15 in this Section.
’04 4Runner_U (L/O 0409)
Make sure that the back door opens. If
the back door cannot be opened properly,
have it checked by your Toyota dealer.
The back door can be locked or unlocked
in the following ways.
All the side doors and back door lock
and unlock simultaneously with the
back door. Insert the key into the keyhole, turn it clockwise to lock and turn
it counterclockwise to unlock.
Operate the power door lock switch.
(See “Side doors” on page 15 in this
Section.)
Operate the wireless remote control.
(See “—Wireless remote control” on
page 19 in this Section.)
All the side doors and back door are
locked and unlocked simultaneously
with the driver’s door. (See “Side
doors” on page 15 in this Section.)
If the battery terminal is disconnected and
reconnected, the back door will be automatically locked. Be careful not to lock
your keys in the vehicle.
When all the side doors and back door
are unlocked simultaneously with a key,
the interior light, luggage compartment
light, ignition switch light and running
board lights (on some models) will come
on and remain on for about 15 seconds
before fading out. (For details, see “Interior light” on page 128, “Luggage compartment light” on page 129, “Ignition switch
light” on page 130 and “Running board
lights” on page 131 in Section 1- 5.)
The back window can be opened and
closed with the key operation in the back
door keyhole. (For details, see “Power
back window” on page 28 in this Section.)
31
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is securely closed.
Back door closer: When the back door
has not been fully closed, it is automatically closed completely.
See “—Stowage precautions” on page 295
in Section 2 for precautions when loading
luggage.
’04 4Runner_U (L/O 0409)
CAUTION
Keep the back window and back
door closed while driving. This not
only keeps the luggage from being
thrown out but also prevents exhaust gases from entering the vehicle.
Careful attention is needed so as
not to get your fingers trapped as
the back door automatically closes
when it has not been fully closed.
Never allow a child to operate the
back door.
NOTICE
To avoid damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
Do not apply excessive force when
the back door closer is operating.
Otherwise, the back door closer
may become defective.
Hood
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Otherwise, the hood may open unexpectedly while driving and an accident may
occur.
32
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Theft deterrent system
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the battery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
turn signal lights, and turns on the interior
and luggage compartment lights.
SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK”
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 14 in this Section for details.)
2. Have all passengers get out of the
vehicle.
3. Close and lock all the side doors, back
door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked.
33
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light
starts flashing, you may leave the vehicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
CANCELING THE SYSTEM
The system will cancel under the any of
the following conditions:
Any of the side doors, back door or
hood is opened.
Any of the side doors or the back door
is unlocked.
The key is inserted into the ignition.
The battery terminal is reconnected.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the side doors is unlocked or
opened without the key or wireless remote control transmitter, or if the back
door or hood is forcibly opened.
34
If the battery terminal is disconnected
and then reconnected.
If the ignition is hotwired.
The indicator light will come on when the
system is activated.
If the alarm has been activated and the
key is not in the ignition switch, all the
side doors and back door will re-lock automatically.
After one minute, the alarm will automatically stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
these ways:
Unlock any of the side doors or the
back door with the key or wireless remote control transmitter.
Turn the ignition key from the “LOCK”
to “ON” position.
These ways cancel the system at the
same time.
If the battery becomes discharged due to
the vehicle being unused for a long time,
etc., when the battery is recharged or replaced, the system will give the alarm. If
this happens, immediately unlock any of
the side doors or the back door with the
key or the wireless remote control transmitter, and the alarm will stop.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The side doors and back door should
be locked with the key or wireless remote control transmitter. Be sure to
wait until the indicator light goes off or
starts flashing.
3. Unlock any side door from the inside.
The system should activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other
doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)

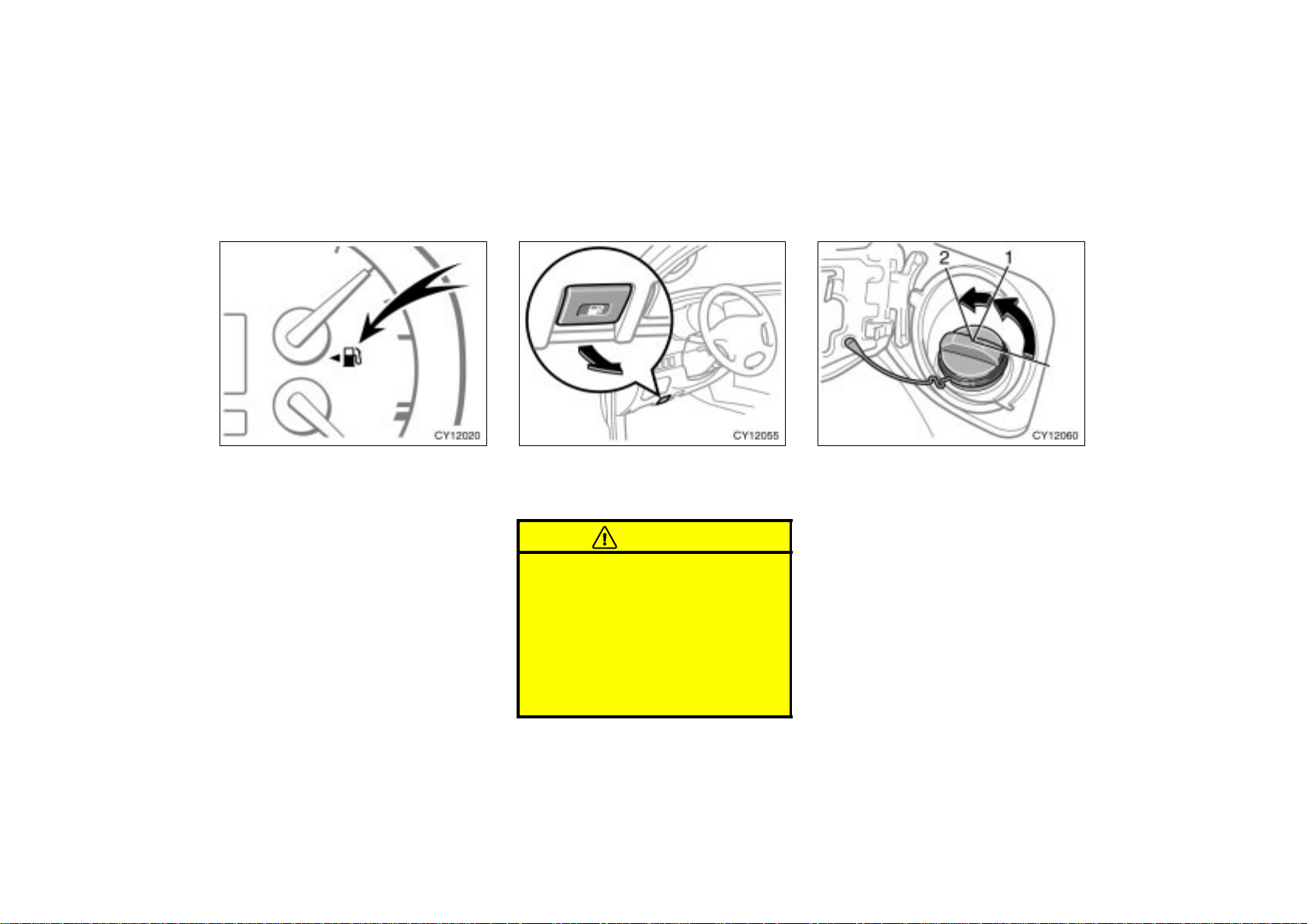

Fuel tank cap
’04 4Runner_U (L/O 0409)
This indicates that the fuel filler door
is on the left side of your vehicle.
1. To open the fuel filler door, pull the
lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weather, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly removed.
2. To remove the fuel tank cap, turn
the cap counterclockwise by 90 degrees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.
35
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
3. The removed cap can be stored on
the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right or up and down, and
set it in the receptacle on the back side
of the door.
When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.
36
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Electric moon roof
Sliding operation
Tilting operation
’04 4Runner_U (L/O 0409)
To operate the moon roof, use the
switch beside the personal lights.
The moon roof works when the ignition
switch is in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “SLIDE
OPEN” side.
The roof will fully open automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side quickly.
When you quickly push and release the
switch, the moon roof will open while the
switch is being pushed and stop when
released.
The sun shade will be opened together
with the roof.
When the moon roof is opened fully, the
deflector will raise to reduce the entering
of the strong wind. The angle of the deflector will be adjusted according to the
vehicle speed.
To close: Push the switch on the “TILT
UP” side.
The roof will fully close automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side quickly.
When you quickly push and release the
switch, the moon roof will close while the
switch is being pushed and stop when
released.
Tilting operation—
To tilt up: Push the switch on the “TILT
UP” side.
The roof will fully tilt up automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side quickly.
When you quickly push and release the
switch, the moon roof will tilt up while the
switch is being pushed and stop when
released.
To tilt down: Push the switch on the
“SLIDE OPEN” side.
The roof will fully tilt down automatically.
To stop the roof partway, push the switch
on either the “SLIDE OPEN” or “TILT UP”
side quickly.
When you quickly push and release the
switch, the moon roof will tilt down while
the switch is being pushed and stop when
released.
37
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Key off operation: If both front doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when either front door is opened.
Jam protection function:
If something gets caught between the
moon roof and frame during slide closing operation, the moon roof stops and
opens half way, and the deflector stops
and raises fully.
If something gets caught between the
moon roof and frame during tilting
down operation, the moon roof stops
and opens fully.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.
If the battery is disconnected or run
down, the moon roof may not operate
automatically and the jam protection function will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normalize the moon roof.
To normalize the moon roof, push and
hold the switch on the “TILT UP” side until
the moon roof tilts all the way up and
then tilts down a little automatically.
Make sure that the moon roof opens and
closes automatically. If the moon roof cannot be operated properly, have it checked
by your Toyota dealer.
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Otherwise, they could be seriously injured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in a serious injury. When
anyone closes the moon roof, first
make sure it is safe to do so.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the moon roof switch and get
trapped in the roof opening. Unattended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.
38
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
SECTION 1-
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seat s 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seats 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head rest raints 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Armrest 59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater s 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS dri ver airbag and front passenger airbag 70. . . . . . . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 77. . . . . . . . . . . . . . . . . . . .
Roll sensi ng of curtain shield airbags off switch 87. . . . . . . . . . . . . . . . .
Child restraint 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
39
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Seats
While the vehicle is being driven, all vehicle occupants should have the seatback
upright, sit well back in the seat and properly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a folded- down seatback, or
in the luggage compartment or cargo area. Persons not properly
seated and/or not properly restrained by seat belts can be severely injured in the event of emergency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
’04 4Runner_U (L/O 0409)
Front seats—
—Front seat precautions
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in several ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, simply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, non- slippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the airbag toward your chest instead of
your head and neck.
The seat should be adjusted as recommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
40
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
’04 4Runner_U (L/O 0409)
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with considerable speed and force. Otherwise,
you may be killed or seriously injured.
Do not use seat accessories which
cover the area where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such change may prevent
the side airbag system from activating correctly, disable the system or
cause the side airbags to inflate accidentally, resulting in death or serious injury.
—Seat adjustment precau tio ns
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seat- lock mechanism or
unexpectedly push up the seat position adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
41
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and
injured.
’04 4Runner_U (L/O 0409)
—Adjusting front seats
(manual seat)
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING
KNOB
To change the angle of the seat cushion on the front side, turn the knob
either way.
3. SEAT HEIGHT ADJUSTING LEVER
To change the height of the seat, pull
up or push down the lever.
4. SEATBACK ANGLE ADJUSTING
LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
42
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts provide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply restraint forces directly to the abdomen
or your neck may contact the shoulder belt. In the event of a frontal
collision, the more the seat is reclined, the greater the risk of death
or personal injury.
5. SEAT LUMBAR SUPPORT
ADJUSTING SWITCH
Push the control switch on either side.
The amount of lumber support will change
while the switch is pushed.
’04 4Runner_U (L/O 0409)
—Adjusting front seats (power
seat)
1. DRIVER’S SEAT: SEAT POSITION,
SEAT CUSHION ANGLE AND SEAT
HEIGHT ADJUSTING SWITCH
PASSENGER’S SEAT: SEAT POSITION
ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement.
2. SEATBACK ANGLE ADJUSTING
SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seatback at that position.
43
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts provide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply restraint forces directly to the abdomen
or your neck may contact the shoulder belt. In the event of a frontal
collision, the more the seat is reclined, the greater the risk of death
or personal injury.
3. SEAT LUMBAR SUPPORT
ADJUSTING SWITCH
Push the control switch on either side.
The amount of lumber support will change
while the switch is pushed.
’04 4Runner_U (L/O 0409)
—Flattening seatbacks
(manual seat)
1. Remove the head restraint. Hold the
center of the lever and pull it up.
Then slide the seat further forward
than the front-most lock position.
2. Pull the seatback angle adjusting lever to unlock and push down the
seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with considerable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
44
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback forward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
’04 4Runner_U (L/O 0409)

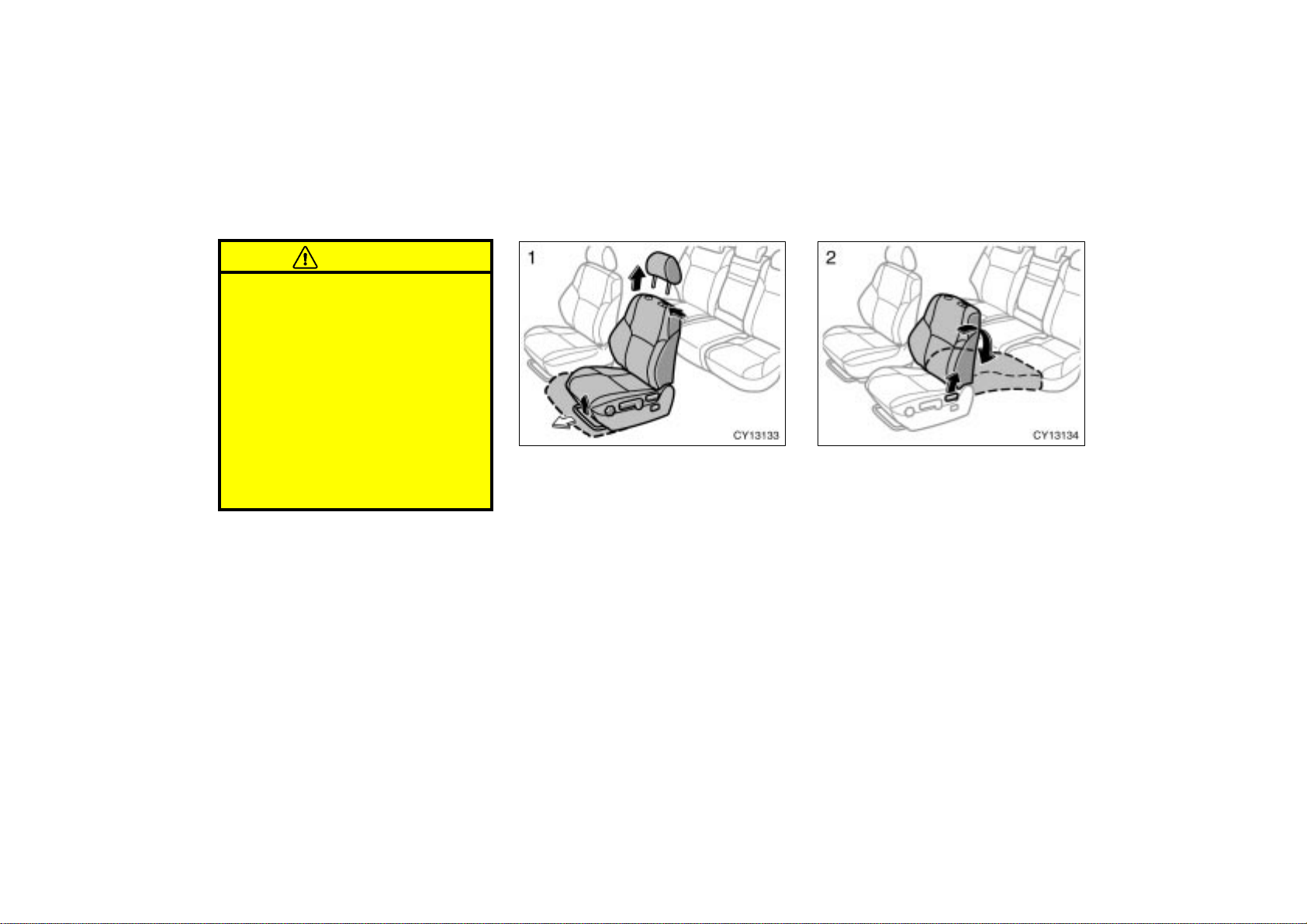

—Flattening seatbacks
(power seat)
1. Remove the head restraint. Push the
seat position adjusting switch forward to slide the seat further forward than the front- most position.
2. Move the seatback angle adjusting
switch backward to flatten the seatback.
After returning the seat to its original
position, be certain to replace the head
restraint.
45
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback forward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
’04 4Runner_U (L/O 0409)
Rear seats (vehicles without
third seats)—
—Folding down rear seats
46
BEFORE FOLDING DOWN REAR SEAT
Stow the rear center seat belt buckle as
shown in the illustration.
This prevents the seat belt buckle from
falling out when you fold the seatback.
NOTICE
The seat belt buckle must be stowed
before you fold the seatback.
If you are using a trash holder, lower
it.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
1. Lower the head restraint to the lowest position.
2. Swing the bottom cushion up by
pulling the lock release strap.
Each bottom cushion can be swung up
separately.
3. Push the lock release button and
fold down the seatback.
This will enlarge the luggage compartment
as far as the raised seat cushion. See
“—Stowage precautions” on page 295 in
Section 2 for precautions when loading
luggage.
Each seatback can be folded separately.
47
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Rear seats
(vehicles with third seats)—
—Rear seat precautions
WHEN RETURNING THE SEATBACK
If you cannot raise the seatback because
of the locked seat belt, do not try to force
it. Release the lock of the seat belt in the
following way.
1. Push in the lower front edge of the
seatback cushion to slacken the seat
belt.
2. Let the seat belt retract a little.
CAUTION
When returning seats to their original
position, observe the following precautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rearward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the cushion near the
lock release straps.
Make sure to arrange the buckles of
the seat belts in their proper position and be ready to use.
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
not to hit the seat against a passenger or luggage.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent personal injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
48
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
The third seats have a maximum
capacity of two belted occupants
who do not exceed 150 cm (59 in.)
in height. Exceeding these limits
can result in increased risk of serious personal injuries or death.
Folding the seats up will enlarge the luggage compartment. See “—Stowage precautions” on page 295 in Section 2 for
precautions when loading luggage.
’04 4Runner_U (L/O 0409)
—Adjusting rear seats
Second seats
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lock release
lever. Then lean back to the desired
angle and release the lever.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts provide maximum protection in a frontal
or rear collision when the passengers
are sitting up straight and well back
in the seats. If you are reclined, the
lap belt may slide past your hips and
apply restraint forces directly to the
abdomen or your neck may contact
the shoulder belt. In the event of a
frontal collision, the more the seat is
reclined, the greater the risk of death
or personal injury.
Third seats
49
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
—Tumbling second seats (for third
seat entry and enlargement of
luggage compartment)
’04 4Runner_U (L/O 0409)
BEFORE TUMBLING SECOND SEATS
Stow the second seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you tumble the second seat.
NOTICE
The seat belt buckles must be stowed
before you tumble the second seat.
50
TUMBLING SECOND SEATS
Lower the head restraints to the lowest
position. Fold down the seatback while
pulling the seatback angle adjusting lever, then swing the whole seat up and
forward until they are locked.
Tumbling the second seats will enlarge the
floor space for third seat entry. It will also
enlarge the luggage compartment when
the third seats are not used. See “—Stowage precautions” on page 295 in Section
2 for precautions when loading luggage.

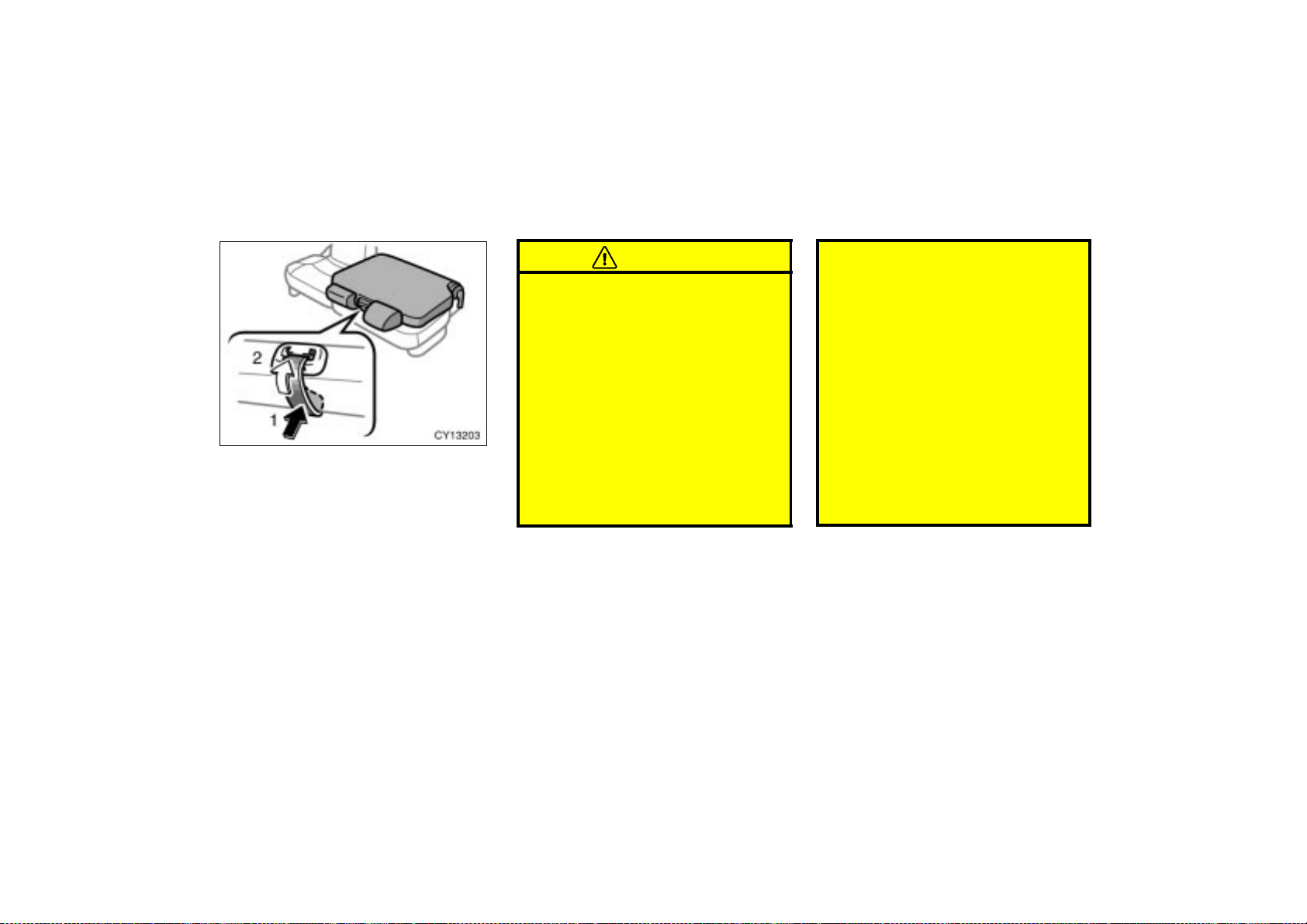

WHEN RETURNING SECOND SEATS
Push the knob to unlock the seat,
swing the whole seat down and swing
the seatback up.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
If you cannot raise the seatback because
of the locked seat belt, do not try to force
it. Release the lock of the seat belt in the
following way.
1. Push in the lower front edge of the
seatback cushion to slacken the seat
belt.
2. Let the seat belt retract a little.
CAUTION
When tumbling seats or returning
seats to their original positions, observe the following to prevent personal injury:
Do not tumble or return the seat
while the vehicle is moving.
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
Be careful not to get your hands or
feet pinched in the seat.
To prevent personal injury in a collision or sudden stop:
Do not sit on or place anything on
the folded seatback or tumbled seat
while driving.
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
51
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
—Folding up third seats
’04 4Runner_U (L/O 0409)

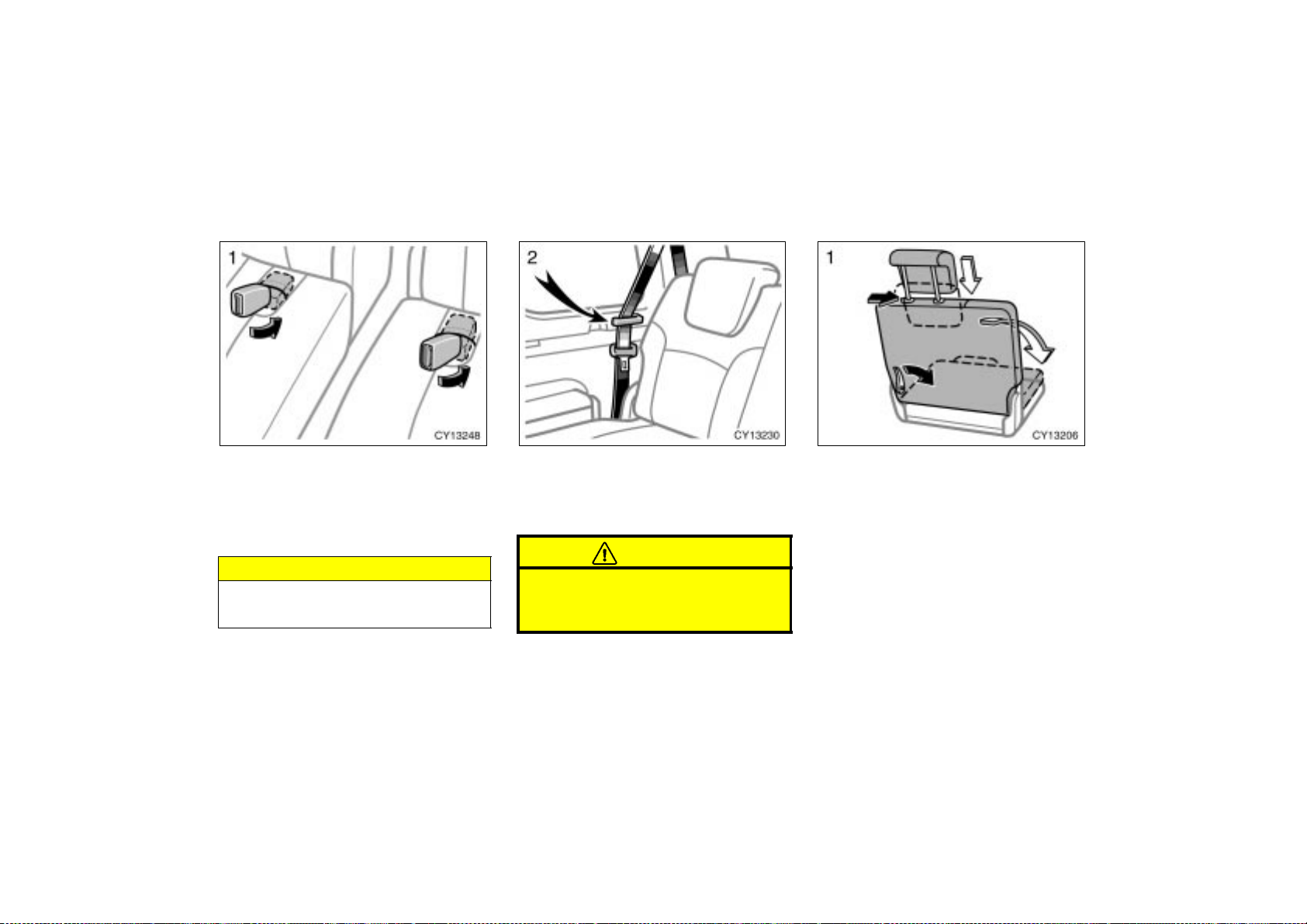

BEFORE FOLDING UP THIRD SEATS
1. Stow the third seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you fold up the third seats.
NOTICE
The seat belt buckles must be stowed
before you fold up the third seats.
52
2. Make sure the shoulder belt passes
through the hanger.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
FOLDING UP THIRD SEATS
1. Lower the head restraint to the lowest position. Fold down the seatback
while pushing the seatback angle adjusting lever.
Folding up the third seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 295 in Section 2 for
precautions when loading luggage.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
2. Unlock the seat leg by pulling the
handle behind the seat, and swing
the whole seat up and sideward.
3. Stow the seat leg in the back of the
seat cushion. Take the holding strap
out of its holder, and attach the
strap to the assist grip. Tighten the
strap by pulling the end and fix it
with Velcro.
CAUTION
When folding up the third seats, fix
the seats securely by adjusting the
length of the holding strap. Failure to
do so may cause an unexpected injury in the event of emergency braking
or collision.
4. Remove the seat anchor covers from
the back of the seat cushion, and
install them over the seat anchors.
CAUTION
Be sure to apply the covers on the
seat anchors, or you may get burned
when they become hot.
53
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
When returning the third seat to its original position, stow the holding strap in the
holder in the direction shown above. Then
do the above procedures in the reverse
order.
’04 4Runner_U (L/O 0409)
CAUTION
When folding up seats or returning
seats to their original positions, observe the following to prevent personal injury:
Do not fold up or return the seat
while the vehicle is moving.
Be careful not to hit the seat
against a person or drop it on yourself.
To prevent personal injury in a collision or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
—Removing third seats
BEFORE REMOVING THIRD SEATS
1. Stow the third seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you remove the third seats.
NOTICE
The seat belt buckles must be stowed
before you remove the third seats.
54
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
2. Make sure the shoulder belt passes
through the hanger.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
REMOVING THIRD SEATS
1. Lower the head restraint to the lowest position. Fold down the seatback
while pushing the seatback angle adjusting lever.
2. Unlock the seat leg by pulling the
handle behind the seat, and lift the
whole seat up. Retract the seat leg
into the back of the seat cushion.
Then, place the seat on the floor.
55
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
3. Remove the cover and push the seat
lock release lever outward to unlock
the seat lock, then pull up the whole
seat and remove it. After removing
the seat, reinstall the cover.
Removing the third seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 295 in Section 2 for
precautions when loading luggage.
NOTICE
Avoid putting heavy loads on the removed seat. The metallic tips of the
seat leg may be damaged and the
seat cannot be reinstalled.
56
4. Remove the seat anchor covers from
the back of the seat cushion, and
install them over the seat anchors.
CAUTION
Be sure to apply the covers on the
seat anchors, or you may get burned
when they become hot.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
REINSTALLING THIRD SEATS
1. Remove the seat anchor covers from
the floor and install them in the
back of the seat cushion. Hold the
seat and engage the seat striker to
the seat lock, then place the seat on
the floor. Press down the seatback
to securely lock the seat to the
body.
’04 4Runner_U (L/O 0409)
2. Pull out the seat leg from the back
of the seat cushion and lock it on
the anchor. Reinstall the cover.
3. Raise the seatback while pushing
down the seatback angle adjusting
lever.
CAUTION
When removing or reinstalling the
seat, observe the following to prevent
personal injury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.
Be careful not to hit the removed
seat against a person or drop it on
yourself.
57
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
When reinstalling the seat, be care-
ful not to hit the seat against yourself or the vehicle.
To prevent personal injury in a collision or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat un-
secured in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
Reinstall each seat in its original
position. Failure to do so will prevent third seat occupants from using seat belts properly.
Make sure the seat is securely
locked by pushing forward and rearward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from operating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
’04 4Runner_U (L/O 0409)
Head restraints
Front seats
Rear seats—vehicles without third seats
Second seats—vehicles with third seats
Third seats
58
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Front head restraints—You can also move
the head restraint forward or backward. If
such adjustment is desired, pull or push
the base of the head restraint.
Rear head restraints (vehicles without
third seats) and a second center head
restraint (vehicles with third seats)—When
an occupant sits on the rear seat (vehicles without third seats) or second center seat (vehicles with third seats), always
pull up the rear head restraint to the lock
position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recommended.
’04 4Runner_U (L/O 0409)
Armrest
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
To use the armrest, pull it out as
shown above.
This armrest is equipped with a cup holder and tray. (For details, see “Rear cup
holders and tray” on page 262 or “Rear
cup holders” on page 263 in Section
1- 10.)
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
59
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Seat heaters
’04 4Runner_U (L/O 0409)
To turn on the seat heater, move the
dial forward (“L” dial for the left front
seat and “R” dial for the right front
seat). At this time, the indicator light
will illuminate to indicate the seat heater is operating.
To turn off the seat heater, move the
dial backward until it stops.
Move the dial forward or backward to adjust to the desired temperature. When the
seat heater is not in use, move the dial
fully backward.
The key must be in the “ON” position.
CAUTION
Occupants must use caution when operating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have delicate skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blanket, cushion, or other insulating objects which cover the seat.
NOTICE
Do not put unevenly weighed objects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
When cleaning the seats, do not
use organic substances (paint thinner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
To prevent the battery from being
discharged, turn the system off
when the engine is not running.
60
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Seat belts—
—Seat belt precautions
Toyota strongly urges that the driver and
passengers in the vehicle be properly restrained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system appropriate for the child until the child becomes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 88 in this Section for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid inflation of the airbag may cause death or
serious injury to the child.
’04 4Runner_U (L/O 0409)
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious injury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the injury, first check with your doctor for specific
recommendation.
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the greater the risk of death or personal injury.
61
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be replaced. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive cleaners, or allow them to come into
contact with the belt—they may severely weaken the belts. (See
“Cleaning the interior” on page 343
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
’04 4Runner_U (L/O 0409)
—Fastening front and rear
seat belts
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the retractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
When a passenger’s shoulder belt is completely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This feature is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 88 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
62
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Keep as low on
hips as possible
To o h i g h
Ta k e u p
slack
’04 4Runner_U (L/O 0409)
CAUTION
Both high- positioned lap belts and
loose- fitting belts could cause serious injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.
Do not place the shoulder belt un-
der your arm.
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then adjust it to a snug fit by pulling the shoulder
portion upward through the latch plate.
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
63
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.
’04 4Runner_U (L/O 0409)

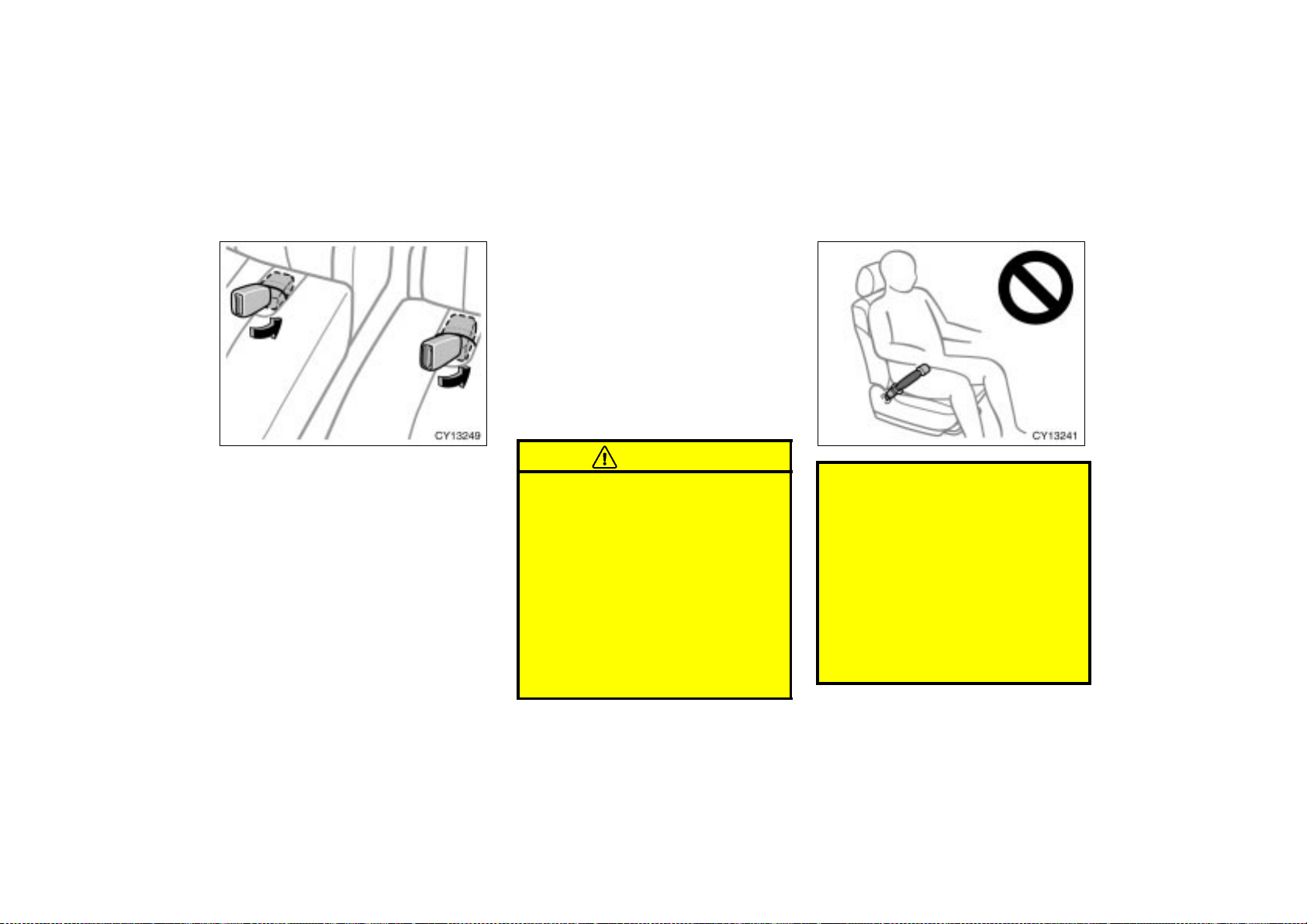

—Stowing rear seat belt
buckles
64
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it retracts.
Rear center seat—vehicles without third
seats
Second seats—vehicles with third seats
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
—Seat belt extender
If your seat belts cannot be fastened securely because they are not long enough,
a personalized seat belt extender is available from your Toyota dealer free of
charge.
Please contact your local Toyota dealer to
order the proper required length for the
extender. Bring the heaviest coat you expect to wear for proper measurement and
selection of length. Additional ordering information is available at your Toyota dealer.
Third seats
The rear seat belt buckles can be
stowed when not in use.
Seat belt buckle must be stowed before
you fold the seatback. (See “—Folding
down rear seats” on page 46, “—Tumbling
second seats” on page 50, “—Folding up
third seats” on page 52 or “—Removing
third seats” on page 54 in this Section.)
CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
an accident, increasing the chance of
personal injury.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one originally intended.
If the seat belt extender has been
connected to the driver’s seat belt
buckle without wearing the seat belt
when using the extender in the
driver’s seat, the SRS driver’s airbag system will judge that the driver wears the seat belt even if not
wearing it. In this case, the driver’s
airbag may not activate correctly,
causing death or serious injury in
the event of collision. Be sure to
wear the seat belt with the seat belt
extender.
65
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Be sure to wear the seat belt with-
out the seat belt extender if you
can fasten the seat belt without the
extender.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the “PRESS” signs on
the buckle release buttons of the extender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt and the seat belt extender are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
66
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
—Seat belt pretensioners
’04 4Runner_U (L/O 0409)
The seat belt pretensioners will not operate in a vehicle rollover if the “RSCA
OFF” indicator light is on. For details, see
“Roll sensing of curtain shield airbags off
switch” on page 87 in this Section.
The driver and front passenger seat
belt pretensioners are designed to be
activated in response to a severe frontal impact or a vehicle rollover.
When the sensor detects a severe frontal
impact or a vehicle rollover, the front seat
belts are quickly drawn back by the retractors so that the belts snugly restrain
the occupants.
The seat belt pretensioners are activated
even with no passenger in the front seat.
The seat belt pretensioners and SRS airbags may not operate together in all collisions.
Type A
Type B
67
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
The seat belt pretensioner system consists mainly of the following components
and their locations are shown in the illustration.
1. Front airbag sensors
2. SRS warning light
3. Seat belt pretensioner assemblies
4. Airbag sensor assembly
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sensor and airbag sensor.
When the seat belt pretensioners are activated, an operating noise may be heard
and a small amount of non- toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or
open the seat belt pretensioner assemblies, airbag sensor or surrounding area or wiring. Failure to
follow these instructions may prevent the seat belt pretensioners
from activating correctly, cause sudden operation of the system or disable the system, which could result
in death or serious injury. Consult
your Toyota dealer about any repair
and modification.
Do not modify or change the sus-
pension system. Such changes may
cause the curtain shield airbags to
inflate accidentally, which could result in death or serious injury. Consult your Toyota dealer about any
repair and modification.
Do not use tires or wheels other
than the manufacture’s recommended size. Such a use may cause
the curtain shield airbags and seat
belt pretensioners to inflate accidentally, which could result in death
or serious injury. For details, see
“Checking and replacing tires” on
page 372 in Section 7-2.
Do not place luggage heavier than
specified on the roof luggage carrier. Such luggage may cause the
curtain shield airbags and seat belt
pretensioners to inflate accidentally,
which could result in death or serious injury. For details, see “Roof
luggage carrier” on page 268 in
Section 1- 10.
68
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
Installation of electronic devices
such as a mobile two- way radio,
cassette tape player or compact
disc player
Repairs on or near the front seat
belt retractor assemblies
Modification of the front end structure
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure or console

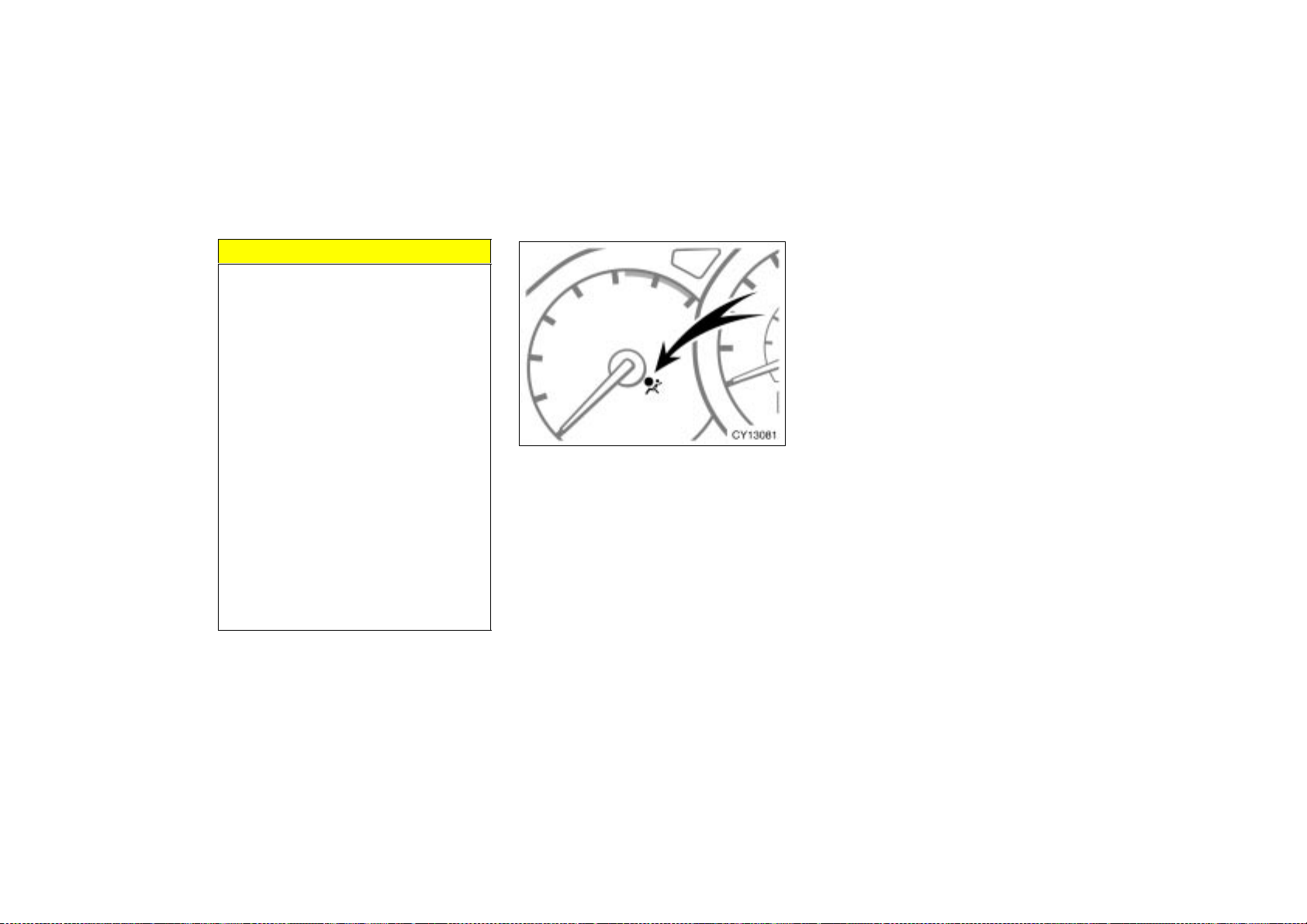

This indicator comes on when the ignition key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the seat belt pretensioners are
operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, side and curtain shield airbag sensors, curtain shield airbag sensors, driver’s seat position sensor, driver’s seat belt
buckle switch, seat belt pretensioner assemblies, inflators, warning light, “RSCA
OFF” indicator light, interconnecting wiring
and power sources. (For details, see “Service reminder indicators and warning buzzers” on page 139 in Section 1- 6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” position or remains on for more than 6
seconds or flashes.
The light comes on or starts flashing
while driving.
If any seat belt does not retract or can
not be pulled out due to a malfunction
or activation of the relevant seat belt
pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.
69
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
SRS driver airbag and front
passenger airbag
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and front passenger
when the SRS front airbags are inflated.
In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.
70
The SRS (Supplemental Restraint System) front airbags are designed to provide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe frontal impact,
the SRS front airbags work together with
the seat belts to help reduce injury by
inflating. The SRS front airbags help reduce injuries mainly to the driver’s or front
passenger’s head or chest caused by hitting the vehicle interior.
The SRS front passenger airbag is activated even with no passenger in the front
seat.
Always wear your seat belt properly.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
CAUTION
The SRS front airbag system is de-
signed only as a supplement to the
primary protection of the driver and
front passenger seat belt systems.
The driver and front passenger can
be killed or seriously injured by the
inflating airbags if they do not wear
the available seat belts properly.
During sudden braking just before
a collision, an unrestrained driver
or front passenger can move forward into direct contact with or
close proximity to the airbag which
may then deploy during the collision. To ensure maximum protection
in an accident, the driver and all
passengers in the vehicle must
wear their seat belts properly. Wearing a seat belt properly during an
accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For instructions and precautions concerning the seat belt system, see “Seat
belts” on page 61 in this Section.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploying airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all infants and children be placed in the
rear seat of the vehicle and properly restrained. The rear seat is the
safest for infants and children. For
instructions concerning the installation of a child restraint system, see
“Child restraint” on page 88 in this
Section.
The SRS front airbags are designed to
deploy in severe (usually frontal) collisions where the magnitude and duration
of the forward deceleration of the vehicle exceeds the designed threshold
level.
The SRS front airbags will deploy if the
severity of the impact is above the designed threshold level, comparable to an
approximate 25 km/h (15 mph) collision
when the vehicle has the impact straight
into a fixed barrier that does not move or
deform.
However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or
sign pole, which can move or deform on
impact, or if the vehicle is involved in an
underride collision (e.g. a collision in
which the front of the vehicle “underrides”,
or goes under, the bed of a truck, etc.).
It is possible that in some collisions
where the forward deceleration of the vehicle is very close to the designed threshold level, the SRS front airbags and the
seat belt pretensioners may not activate
together.
Always wear your seat belts properly.
71
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Collision from the rear
Collision from the side
Vehicle rollover
The SRS front airbags are generally not
designed to inflate if the vehicle is involved in a side or rear collision, if it
rolls over, or if it is involved in a lowspeed frontal collision. But, whenever a
collision of any type causes sufficient
forward deceleration of the vehicle, deployment of the SRS front airbags may
occur.
72
Hitting a curb, edge
of pavement or
hard surface
Landing hard or vehicle falling
Falling into or
jumping over
a deep hole
The SRS front airbags may also deploy
if a serious impact occurs to the underside of your vehicle. Some examples
are shown in the illustration.
The SRS front airbag system consists
mainly of the following components, and
their locations are shown in the illustration.
1. Front airbag sensors
2. SRS warning light
3. Airbag module for front passenger
(airbag and inflator)
4. Driver’s seat belt buckle switch
5. Driver’s seat position sensor
6. Airbag sensor assembly
7. Airbag module for driver
(airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
The front airbag sensors constantly monitor the forward deceleration of the vehicle.
If an impact results in a forward deceleration beyond the designed threshold level,
the system triggers the airbag inflators. At
this time a chemical reaction in the inflators very quickly fills the airbags with
non- toxic gas to help restrain the forward
motion of the occupants. The front airbags
then quickly deflate, so that there is no
obstruction of the driver’s vision should it
be necessary to continue driving.
When the airbags inflate, they produce a
loud noise and release some smoke and
residue along with non- toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so immediately.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious injuries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more serious injuries, especially if an occupant’s
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the vehicle.
Parts of the airbag module (steering wheel
hub, airbag cover and inflator) may be hot
for several minutes after deployment, so
do not touch! The airbags inflate only
once. The windshield may be damaged by
absorbing some of the force of the inflating airbag.
CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the vehicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
For instructions and precautions concerning the seating position, see
“—Front seat precautions” on page
40 in this Section.
73
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instructions concerning the installation of
a child restraint system, see “Child
restraint” on page 88 in this Section.
Do not sit on the edge of the seat
or lean against the dashboard when
the vehicle is in use, since the
front passenger airbag could inflate
with considerable speed and force.
Anyone who is up against, or very
close to, an airbag when it inflates,
can be killed or seriously injured.
Sit up straight and well back in the
seat, and always use your seat belt
properly.
74
Toyota strongly recommends that all
infants and children be placed in
the rear seat of the vehicle and be
properly restrained.
Do not allow a child to stand up or
kneel on the front passenger seat,
since the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously injured.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the front airbag system. They might restrict inflation or
cause death or serious injury as
they are projected rearward by the
force of the deploying airbags. Likewise, the driver and front passenger
should not hold objects in their
arms or on their knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden activation
of the system or disable the system, which could result in death or
serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile two- way radio,
cassette tape player or compact
disc player
Modification of the suspension system
Modification of the front end structure
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure, console, steering column, steering
wheel or dashboard near the front
passenger airbag
75
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” position or remains on for more than 6
seconds or flashes.
The light comes on or starts flashing
while driving.
This indicator comes on when the ignition key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, side and curtain shield airbag sensors, curtain shield airbag sensors, driver’s seat position sensor, driver’s seat belt
buckle switch, seat belt pretensioner assemblies, inflators, warning light, “RSCA
OFF” indicator light, interconnecting wiring
and power sources. (For details, see “Service reminder indicators and warning buzzers” on page 139 in Section 1- 6.)
76
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or dashboard (shaded in the illustration) is scratched, cracked, or otherwise damaged.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
’04 4Runner_U (L/O 0409)
SRS side airbags and curtain
shield airbags
The SRS (Supplemental Restraint System) side airbags and curtain shield airbags are designed to provide further
protection for the driver, front passenger and rear passengers
sengers
∗
2
in addition to the primary
safety protection provided by the seat
belts.
∗
1
: Without third seats
∗
2
: With third seats
∗
1
/second pas-
In response to a severe side impact, the
SRS side airbag and curtain shield airbags
in the impacted side work with the seat
belts to help reduce injury by inflating.
The SRS side airbags help reduce injuries
mainly to the driver’s or front passenger’s
chest. The SRS curtain shield airbags
help reduce injuries mainly to the driver’s,
front passenger’s or rear/second passenger’s head and help prevent them from
being thrown out of the vehicle.
The SRS side airbag and curtain shield
airbag on the passenger side are activated
even with no passenger in the front seat
or rear/second seat.
Roll sensing function:
In response to a vehicle rollover, the curtain shield airbags on both sides work
with the seat belts to help reduce injury
by inflating. The curtain shield airbags
help reduce injuries mainly to the driver’s,
front passenger’s or rear/second passenger’s head and help prevent them from
being thrown out of the vehicle. (This
function can be turned off if inflation is
not desired. See “Roll sensing of curtain
shield airbags off switch” on page 87 in
this Section.)
The SRS curtain shield airbags may activate even when the side airbags are not
activated.
77
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Always wear your seat belt properly.
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and front passenger
when the SRS side airbags and curtain
shield airbags are inflated.
CAUTION
The SRS side airbag and curtain
shield airbag system is designed
only as a supplement to the
primary protection of the driver,
front passenger and rear /second
passenger seat belt systems. To
ensure maximum protection in an
accident, the driver and all passengers in the vehicle must wear their
seat belts properly. Wearing a seat
belt properly during an accident
reduces the chances of death or
serious injury or being thrown out
of the vehicle. For instructions and
precautions concerning the seat
belt system, see “Seat belts” on
page 61 in this Section.
Do not allow anyone to lean his/her
head or any part of his/her body
against the door or the area of the
seat, front pillar, rear pillar or roof
side rail from which the SRS side
airbag and curtain shield airbag
deploy even if he/she is a child
seated in the child restraint system.
It is dangerous if the SRS side airbag and curtain shield airbag inflate, and the impact of the deploying airbag could cause death or serious injury to the occupant.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploying airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all infants and children be placed in the
rear seats of the vehicle and properly restrained. The rear seats are
the safest for infants and children.
For instructions concerning the
installation of a child restraint system, see “Child restraint” on page
88 in this Section.
78
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Collision from the rear
Collision from the front
’04 4Runner_U (L/O 0409)
Vehicle rollover
The SRS side airbags may not activate
if the vehicle is subjected to a collision
from the side at certain angles, or a
collision to the side of the vehicle body
other than the passenger compartment
as shown in the illustration.
The SRS side airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side.
Always wear your seat belts properly.
The SRS side airbags are not generally
designed to inflate if the vehicle is involved in a front or rear collision, if it
rolls over, or if it is involved in a lowspeed side collision.
The curtain shield airbags may not activate if the vehicle is subjected to a
collision from the side at certain
angles, or a collision to the side of the
vehicle body other than the passenger
compartment as shown in the illustration.
The curtain shield airbags are designed to
inflate when the passenger compartment
area suffers a severe impact from the
side or vehicle rollover.
Always wear your seat belts properly.
79
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
The angle of
vehicle tip- up
is marginal
Skidding vehicle
hitting a curb
stone
The curtain shield airbags may inflate
if the angle of vehicle tip- up is marginal or if the skidding vehicle’s tires hit
a curb stone laterally as shown in the
illustration.
80
Collision from
the front
Pitch end over end
Collision from
the rear
The curtain shield airbags are not generally designed to inflate if the vehicle
is involved in a front or rear collision,
if it pitches end over end, or if it is
involved in a low-speed side collision.
Hitting a curb, edge
of pavement or
hard surface
Landing hard or vehicle falling
Falling into or
jumping over
a deep hole
The SRS side and curtain shield airbags
may deploy if a serious impact occurs
to the underside of your vehicle. Some
examples are shown in the illustration.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
The SRS side airbag and curtain shield
airbag system consists mainly of the following components, and their locations are
shown in the illustration.
1. SRS warning light
2. Curtain shield airbag modules
(airbag and inflator)
3. Side airbag modules
(airbag and inflator)
4. Curtain shield airbag sensors
5. Side and curtain shield airbag sensors
6. Airbag sensor assembly
The SRS side airbag and curtain shield
airbag system is controlled by the airbag
sensor assembly. The airbag sensor assembly consists of a safing sensor and
airbag sensor.
In a severe side impact, the side and
curtain shield airbag sensor and/or the
curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain
shield airbag inflators. At this time a
chemical reaction in the inflators quickly
fills the airbags with non- toxic gas to help
restrain the lateral motion of the occupants.
In a vehicle rollover, the airbag sensor
assembly triggers the curtain shield airbag
inflator. At this time, a chemical reaction
in the inflators quickly fills the airbags
with non- toxic gas to help restrain the
lateral motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non- toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so immediately.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious injuries, it may also cause minor burns or
abrasions and swelling.
Front seats as well as parts of the front
and rear pillars, front, center and rear
garnish and roof interior may be hot for
several minutes, but the airbags themselves will not be hot. The airbags are
designed to inflate only once.
81
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
CAUTION
SRS side airbags and curtain shield
airbags inflate with considerable
force. To reduce the possibility of
death or serious injury when they inflate, the driver, front passenger and
rear/second passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.
Improper sitting and wearing of the
seat belts may not retain you inside
the vehicle.
’04 4Runner_U (L/O 0409)
Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbag and curtain
shield airbag could inflate with considerable speed and force. Otherwise, he/she may be killed or seriously injured. Special care should
be taken especially when you have
a small child in the vehicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the
seats with a side airbag, and to the
front pillar, rear pillar and roof side
rail with a curtain shield airbag.
Type A
Type B
82
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Make sure the “RSCA OFF” indica-
tor light is off. The curtain shield
airbags will not inflate in a vehicle
rollover if this indicator light is on
and you may be killed or seriously
injured. For details, see “Roll sensing of curtain shield airbags off
switch” on page 87 in this Section.
’04 4Runner_U (L/O 0409)
Do not allow anyone to get his/her
head closer to the area where the
side airbag and curtain shield airbag inflate, since these airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken especially when you have a small child
in the vehicle.
Do not allow anyone to kneel on
the passenger seat, facing the passenger’s side door, since the side
airbag and curtain shield airbag
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken especially when you have a small child
in the vehicle.
83
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Do not allow anyone to get his/her
head or hands out of windows
since the curtain shield airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken especially when you have a small child
in the vehicle.
84
Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag inflates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.
Do not attach a microphone or any
other device or object near the area
where the curtain shield airbags activate such as on the windshield
glass, side door glass, front, center
and roof side garnish, roof interior
or assist grips. When the curtain
shield airbags inflate, the microphone or other device or object will
be hurled with great force or the
curtain shield airbags may not activate correctly, which could result in
death or serious injury.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate correctly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook directly.
Do not use seat accessories which
cover the parts where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activating correctly, disable the system or
cause the side airbags to inflate accidentally, resulting in death or serious injury.
Do not disassemble or repair the
front pillars and roof side rails containing the curtain shield airbags.
Such changes may disable the system or cause the curtain shield airbags to inflate accidentally, resulting in death or serious injury.
Do not modify or change the sus-
pension system. Such changes may
cause the curtain shield airbags to
inflate accidentally, which could result in death or serious injury.
Do not use tires or wheels other
than the manufacturer’s recommended size. Such a use may cause
the curtain shield airbags to inflate
accidentally, which could result in
death or serious injury. For details,
see “Checking and replacing tires”
on page 372 in Section 7- 2.
Do not place luggage heavier than
specified on the roof luggage carrier. Such luggage may cause the
curtain shield airbags to inflate accidentally, which could result in
death or serious injury. For details,
see “Roof luggage carrier” on page
268 in Section 1- 10.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
Installation of electronic devices
such as a mobile two- way radio,
cassette tape player or compact
disc player
Modification of the side structure of
the passenger compartment
Repairs made on or near the console or front seat
85
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
This indicator comes on when the ignition key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sensors, side and curtain shield airbag sensors, curtain shield airbag sensors, driver’s seat position sensor, driver’s seat belt
buckle switch, seat belt pretensioner assemblies, inflators, warning light, “RSCA
OFF” indicator light, interconnecting wiring
and power sources. (For details, see “Service reminder indicators and warning buzzers” on page 139 in Section 1- 6.)
’04 4Runner_U (L/O 0409)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” position or remains on for more than 6
seconds or flashes.
The light comes on or starts flashing
while driving.
86
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise damaged.
The portion of the front, center and
rear garnish, and roof interior containing the curtain shield airbags inside
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
’04 4Runner_U (L/O 0409)
Roll sensing of curtain shield
airbags off switch
The roll sensing of curtain shield airbags off switch (“RSCA OFF” switch)
can turn off the curtain shield airbags
and seat belt pretensioners in a vehicle
rollover. This switch should only be
used if inflation is not desired (such as
extreme off- road driving).
When you push the “RSCA OFF” switch
for a few seconds with the ignition switch
on, the “RSCA OFF” indicator light comes
on and the roll sensing function is turned
off. When you push the switch again, the
indicator light goes off and the roll sensing function is turned on. (For details
about the roll sensing function, see “SRS
side airbags and curtain shield airbags” on
page 77 in this Section.)
In a severe side impact, the curtain shield
airbags on impacted side will inflate even
if the roll sensing function is turned off.
(For details about the curtain shield airbags, see “SRS side airbags and curtain
shield airbags” on page 77 in this Section.)
In a severe frontal impact, the seat belt
pretensioners will work even if the roll
sensing function is turned off. (For details
about the seat belt pretensioners, see
“—Seat belt pretensioners” on page 67 in
this Section.)
If the ignition switch is turned to “ACC” or
“LOCK” with the roll sensing function off
and then the ignition switch is turned back
to “ON”, the roll sensing function will turn
back on automatically.
87
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
CAUTION
Before normal driving, make sure
the “RSCA OFF” indicator light is
off.
When the roll sensing function is
turned off (and the “RSCA OFF”
indicator light is on), the curtain
shield airbags and seat belt pretensioners will not work in a vehicle
rollover. Turning off the curtain
shield airbags and seat belt pretensioners reduces occupant protection
which your vehicle safety systems
can provide in accidents and increase the likelihood of death or
serious injuries.
’04 4Runner_U (L/O 0409)
Child restraint—
—Child restraint precautions
Toyota strongly urges the use of appropriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 61 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
and is put on the rear seat. According to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rear- facing child re-
straint system on the front passenger seat. In the event of an accident, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child if the rear-facing child restraint system is installed on the
front passenger seat.
88
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
A forward- facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front passenger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag inflate, and the impact could cause
death or serious injury to the child.
’04 4Runner_U (L/O 0409)
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure you have complied with
all installation instructions provided
by the child restraint manufacturer
and that the system is properly secured. If it is not secured properly,
it may cause death or serious injury
to the child in the event of a sudden stop or accident.
—Child restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt. You must
carefully consult the manufacturer’s
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufacturer’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from injuring passengers in the event of a sudden stop or accident.
89
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
—Types of child restraint
system
Child restraint systems are classified into
the following 3 types depending on the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufacturer.
Your vehicle has anchor brackets for securing the top strap of a child restraint
system.
For instructions about how to use the anchor bracket, see “—Using a top strap” on
page 100 in this Section.
The child restraint lower anchorages approved for your vehicle may also be used.
See “—Installation with child restraint lower anchorages” on page 104 in this Section.
(A) Infant seat
’04 4Runner_U (L/O 0409)
(C) Booster seat
90
(B) Convertible seat
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
—Installation with seat belt
’04 4Runner_U (L/O 0409)
(A) INFANT SEAT INSTALLATI ON
An infant seat must be used in rear-
facing position only.
CAUTION
Never install a rear- facing child re-
straint system on the front passenger seat. In the event of an accident, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child if the rear-facing child restraint system is installed on the
front passenger seat.
Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mechanism of the front (or second) seats.
Otherwise, the child or front (or
second) seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.
If the driver’s seat position does
not allow sufficient space for safe
installation, install the child restraint system on the rear right
seat.
91
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufacturer and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
’04 4Runner_U (L/O 0409)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.
92
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat securely.
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufacturer.
4. To remove the infant seat, press the
buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passenger.
93
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
Move seat
fully back
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
ward- facing or rear- facing position depending on the age and size of the
child. When installing, follow the
manufacturer’s instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.
94
CAUTION
Never install a rear- facing child re-
straint system on the front passenger seat. In the event of an accident, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child if the rear-facing child restraint system is installed on the
front passenger seat.
A forward- facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front passenger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag inflate, and the impact could cause
death or serious injury to the child.
’04 4Runner_U (L/O 0409)
Do not install a child restraint sys-
tem on the second (or third) seat if
it interferes with the lock mechanism of the front (or second) seats.
Otherwise, the child or front (or
second) seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.
If the driver’s seat position does
not allow sufficient space for safe
installation, install the child restraint system on the rear right
seat.
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
95
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
’04 4Runner_U (L/O 0409)
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convertible seat securely.
96
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
CAUTION
Push and pull the child restraint system in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufacturer.
4. To remove the convertible seat, press
the buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passenger.
(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
ward- facing position only.
97
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Move seat
fully back
CAUTION
A forward- facing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front passenger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
’04 4Runner_U (L/O 0409)
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or rear pillar or roof side rail from
which the side airbags or curtain
shield airbags deploy even if the
child is seated in the child restraint
system. It is dangerous if the side
airbag and curtain shield airbag inflate, and the impact could cause
death or serious injury to the child.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 61 in this Section for details.
98
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
’04 4Runner_U (L/O 0409)
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sudden braking or a collision.
Both high- positioned lap belts and
loose- fitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immediately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. To remove the child restraint system,
press the buckle release button and
allow the belt to retract.
99
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
—Using a top strap
(vehicles without third seats)
’04 4Runner_U (L/O 0409)
Anchor brack ets
Symbol
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
100
Use the anchor brackets behind the rear
seatbacks to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the location of the
anchor brackets.
TO USE THE ANCHOR BRACKET:
1. Remove the head restraint.
2004 4RUNNER from Sep. ’04 Prod . (OM35847U)
Loading...
