Toshiba W-412 User Manual

Download

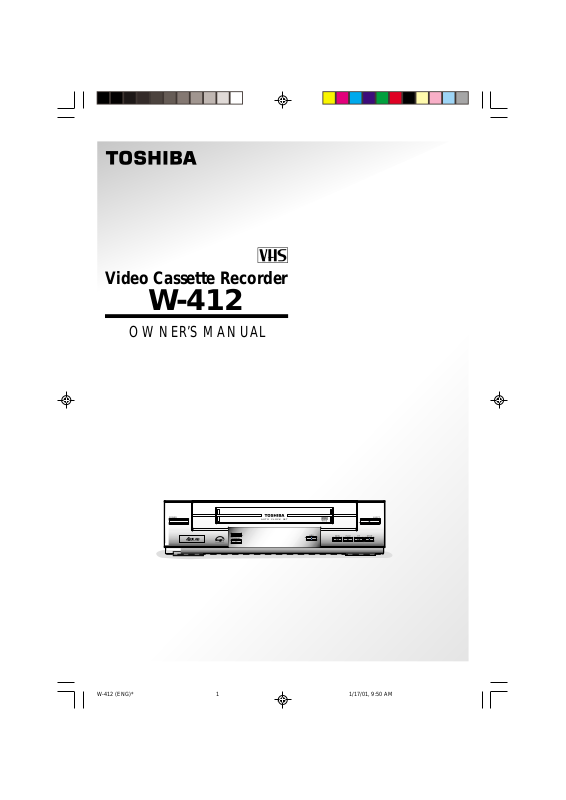

Page 1
Video Cassette Recorder
W-412
OWNER’S MANUAL
AUTO CLOCK SET
HEAD
VIDEO SYSTEM
4
Page 2

SAFETY PRECAUTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s en­closure that may be of sufficient magnitude to constitute a risk of electric shock to per­sons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and mainte­nance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
Product Name: Video Cassette Recorder Model Number: W-412
FCC Notice: “Declaration of Corformity”. This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful Interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Contact: Toshiba America Consumer Products, Inc. Address: 1420 Toshiba Drive, Lebanon, TN 37087 Telephone: 615-449-2360
User Installer Caution: Changes or modification made to this equipment not expressly approved by Toshiba Corporation or parties authorized by Toshiba Corporation could void the user’s authority to operate the equipment.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALI­FIED PERSONNEL ONLY.
SLOT, FULLY INSERT.
Copyright It is permissible to record television programs, film, video tapes and other material only in the event that third party copyrights and other rights are not violated.
Model No. Serial No. Retain this information for future reference.
Page 3
IMPORTANT PRECAUTIONS
Save Original Packing Materials
The original shipping carton and packing materials will come in handy if you ever have to ship your VCR. For maximum protection, repack the set as it was originally packed at the factory.
Avoid Volatile Liquid
Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or plastic products touching the unit for a long time. They will mar the finish.
Moisture Condensation
Never operate this unit immediately after moving it from a cold location to a warm location. When the VCR is exposed to such a change in temperature, moisture may condense on the cylinder inside, one of its most crucial internal parts. To prevent the VCR from possible damage, do not use the unit for at least 2 hours when there is an extreme or sudden change in temperature.
Compatibility
This video cassette recorder (VCR) is compatible with any other VCR bearing the mark. HQ VHS equipment is also compatible with existing, non-HQ VHS equipment.
INTRODUCTION
As an ENERGY STAR Partner, TOSHIBA has determined that this product or product model meets the E
®
NERGY STAR guidelines for energy efficiency.
®
Page 4
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS
GIVEN IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
1. Read owner’s manual
After unpacking this product, read the owner’s manual carefully, and follow all the operating and other instructions.
2. Power Sources This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
3. Grounding or Polarization This product may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
4. Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
5. Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
Page 5
6. Water and Moisture Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and the like.
7. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
8. Power-Cord Protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
9. Overloading Do not overload wall outlets; extension cords, or integral convenience recep­tacles as this can result in a risk of fire or electric shock.
10. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
S2898A
ELECTRIC SERVICE EQUIPMENT
NEC – NATIONAL ELECTRICAL CODE
INTRODUCTION
11. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
Page 6
IMPORTANT SAFETY INSTRUCTIONS
12. Lightning
For added protection for this product during storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
13. Object and Liquid Entry Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
14. Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards.
15. Accessories Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
16. Damage Requiring Service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged. b) If liquid has been spilled, or objects have fallen into the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the
product to its normal operation. e) If the product has been dropped or damaged in any way. f) When the product exhibits a distinct change in performance - this indicates a need for service.
S3125A
17. Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
18. Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
19. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
Page 7
Contents
INTRODUCTION
Provides important notes and general explanation of the VCR, including names of the buttons, jacks, etc.
SAFETY PRECAUTIONS .................... 2
IMPORTANT PRECAUTIONS ............. 3
IMPORT ANT SAFETY
INSTRUCTIONS................................... 4
Contents .............................................. 7
Identification of Controls ................... 8
• Front Panel
• Remote Control
• VCR Display
• Rear Panel
PREPARATION
Explains what you need to do before operating the VCR.
How to Use the Remote Control...... 10
Connections ...................................... 11
Auto Set Up ....................................... 13
Initial Settings Using On-screen
Display ............................................... 14
• Setting the Language
• Optional settings on the SET UP
screen
• Setting the Clock
Storing Channels on the VCR.......... 16
Video Cassette Use .......................... 18
Variable Speed Playback ................. 20
• Picture Search
• Still Picture
• Frame Advance
• Slow-motion Picture
Useful Functions in Tape
Operation........................................... 22
• Counter Function
• Tape Remaining Time
• Memory Stop Feature
RECORDING
Explains recording functions.
Recording a TV Program.................. 24
• Basic Recording
• Watching a TV program while
recording another
• Skipping unnecessary scenes while recording
• Recording off time setting
Timer Program Recording ............... 25
ADDITIONAL INFORMATION
Remote Control
for TOSHIBA TV’s............................... 28
Before Calling Service Personnel ... 29
Specifications ................................... 30
Accessories ...................................... 30
Memo ................................................. 31
LIMITED WARRANTY ....... Back cover
PLAYBACK
Explains variable functions concerning playback.
Playback ............................................ 19
• Basic Playback
• Double Speed Playback
Page 8
T

INTRODUCTION

Identification of Controls
See the page in for details. This manual shows the names of buttons in italics.
Front Panel
POWER
14
Remote Control
To operate your TV
To operate this VCR.
Number buttons
REMAIN/COUNTER
TV
VCR
EJECT
REW
SLOW
DISPLAY
I.SELECT
REC
TV VOL
Remote Sensor
28
14 17
18
*
19 21
22
22 24
24 28
CHANNEL
24
VCR Display
VCR
1 4
EJECT
REW
SLOW
REMAIN/ COUNTER
DISPLAY
I.SELECT
TV VOL
TV
POWER
2
3 6
5
9
87
100
0
VC-413
PLAY
FF
ENTER
STOP
COUNT
RESET
SP/SLP
REC TIMER
PROG.
CANCEL
Cassette compartment
18
24
REW
REC
POWER
14
CH/TRK
19
100
17
14
ENTER
PLAY
19 24
TV/VCR
FF
*
19
PAUSE/STILL
20
COUNT RESE
PAUSE/STILL
22
SP/SLP
24
TIMER
26
CANCEL
27 14
PROG.
STOP
19
19
19
PLAY FF
*
*
EJECT
19
18
19
STOP
* These buttons are used to control the cursor on the screen.
Page 9
VCR Display
Cassette indicator
VCR
VCR
Timer recording indicator
TIMER
TIMER
INTRODUCTION
VCR indicator
Rear Panel
To wall outlet
Multifunctional indicator
LINE OUT AUDIO jack
LINE OUT VIDEO jack
RF IN (FROM ANT.) terminal
LINE IN AUDIO jack
AUDIO
OUT IN
VIDEO
LINE IN VIDEO jack
CH selector (3/4)
RF OUT (TO TV) terminal
IN
(FROM ANT.)
RF
OUT
(TO TV)
CH
34
Page 10

PREPARATION

How to Use the Remote Control
This section explains how to get ready for remote control operation.
Setting up the Remote Control
Open the battery compartment lid on the
1
rear panel.
Install 2 batteries (“AA” size) following
2
the polarity diagrams.
Close the battery compartment lid.
3
+
+
Point the remote control at the VCR and press the buttons within the operating range.
4
Distance: within about 7 m from the front of the remote sensor Angles: within about 30˚ in every direction
Notes on batteries
• The life of the batteries is about 1 year depending on the conditions of use.
• If the remote control does not operate correctly, replace all batteries with new ones.
• If the remote control is not to be used for a long period of time, remove the batteries to avoid possible damage from battery corrosion.
10
Caring for the remote control
• Do not expose the remote sensor of the VCR to a strong light source such as direct sunlight or illumination (especially high-frequency lighting) when using the remote control.
• Be careful not to spill water on the remote control or to place it on anything wet, and avoid sharp impacts.
Page 11
PREPARATION
Connections
Before you use this VCR, it is necessary to connect it to your TV. Several ways of connecting are available depending on your use of TV or cable box. Select one which is applicable to your equipment.
Antenna/VCR/TV Connection
Disconnect the antenna cable from your TV and connect it to the RF IN terminal on the
1
VCR. Connect the RF OUT terminal to the TV.
2
VHF/UHF combination antenna
VHF antenna only
IN
(
FROM ANT.)
IN
(
FROM ANT.)
AUDIO
OUT IN
RF
OUT
(TO TV)
CH
34
VIDEO
OUT
(
TO TV)
1
RF
2
UHF antenna only
VHF/UHF
PREPARATION
Setting the VCR Output Channel
When the VCR is connected in this way, the VCR sends the output signals to channel 3 or 4 on your TV. Set the output channel selector (CH selector) of the VCR to “3” or “4”, whichever is vacant in your area.
Antenna splitter (not supplied)
AUDIO/VIDEO Connections
The AUDIO/VIDEO jacks are also available to connect your TV.
When connected your TV using the
IN
(
FROM ANT.)
AUDIO
OUT IN
RF
OUT
(
TO TV)
CH
34
VIDEO
LINE OUT VIDEO
VIDEO IN
AUDIO INLINE OUT AUDIO
AUDIO/VIDEO OUT jacks
To watch video pictures, set the video input mode on your TV. For the video input mode, refer to the manual of your TV.
Cable Connection
Choose one of the below according to your usage of the cable box.
This set-up will enable you to:
– record an unscrambled channel. – watch an unscrambled channel while recording it. – record an unscrambled channel while watching
another (only when you connect a cable­compatible TV).
You will need to:
• select TV channel 3 or 4 to receive video signals.
• to record a channel while watching another, press
TV/VCR
on the remote control to turn off the “VCR” indicator in the VCR display and select a desired channel on the TV (only when you connect a cable-compatible TV).
Incoming cable
IN
(FROM ANT.)
AUDIO
OUT IN
RF
OUT
(TO TV)
CH
34
VIDEO
VHF UHF
11
Page 12
Connections (continued)
IN
(
FROM ANT.)
AUDIO
OUT IN
RF
OUT
(
TO TV)
CH
34
VIDEO
Cable box
Incoming cable
Cable box
IN
Incoming cable
IN
OUT
A/B switch
Cable box
IN
(
FROM ANT.)
AUDIO
OUT IN
RF
OUT
(
TO TV)
CH
34
VIDEO
A
A
A
B
B
B
IN
(
FROM ANT.)
AUDIO
OUT IN
RF
OUT
(
TO TV)
CH
34
VIDEO
OUT
This set-up will enable you to:
– record an unscrambled channel. – watch an unscrambled channel while recording it. – record an unscrambled channel while watching
another (scrambled or unscrambled).
You will need to:
• set TV channel to the output channel of the cable box.
• turn on the cable box and select cable channel 3 or 4 according to the output channel of the VCR.
• to record a channel while watching another, press
TV/VCR
on the remote control to turn off the “VCR” indicator in the VCR display and select a desired cable channel on the cable box.
This set-up will enable you to:
– watch an unscrambled or scrambled channel
while recording it.
– record any channels through the cable box.
You will need to:
• set TV channel 3 or 4 to receive video signals. (See page 11.)
• set VCR channel to the output channel of the cable box, and select a desired cable channel on the cable box.
• while the VCR is turned off or the “VCR” indicator is not lit in the VCR display, set TV channel to the output channel of the cable box.
This set-up will enable you to:
– watch an unscrambled or scrambled channel
while recording it.
– record an unscrambled channel while watching
another unscrambled channel (only when you connect a cable-compatible TV).
• A/B switch “A”:record and watch an
• A/B switch “B”:record and watch a scrambled
unscrambled channel which comes bypassing the cable box.
or unscrambled channel coming through the cable box.
12
Cable box
This set-up will enable you to:
– watch or record a channel through the cable
box via the LINE IN (AUDIO/VIDEO) jacks.
IN
(FROM ANT.)
AUDIO
OUT IN
RF
OUT
(TO TV)
CH
34
VIDEO
You will need to:
• press
I.SELECT
shows “L”.
so that the VCR display
Page 13
PREPARATION
L
Auto Set Up
The VCR’s clock and tuner channels are set automatically when the VCR is plugged into the AC outlet.
Auto Set up
VCR
TV
POWER
2
3
1
6
4
5
9
87
100
0
VC-413
EJECT
PLAY
REW
FF
ENTER
STOP
SLOW
PAUSE/STILL
REMAIN/
COUNT
RESET
COUNTER
DISPLAY
SP/SLP
I.SELECT
REC
TIMER
PROG.
CANCEL
TV VOL
CANCE
Plug the VCR into the AC outlet
1
“Auto” blink while the VCR automatically sets the clock using
2
the data broadcast by the local TV stations. While “Auto” is blinking, channel memory is also set automatically.
When Auto set up has been completed, the VCR is on
3
standby mode.
Notes
• It may takes several minutes during the Auto set-up
• Press
CANCEL
on the remote control to cancel the auto set-up.
PREPARATION
13
Page 14
PREPARATION
MEnU
EnD : PROG
ENTER
P
Initial Settings Using On-screen Display
The language selection and clock setting must be set first when VCR is first plugged in or after it encounters a power failure.
Preparation
• Turn on the TV, and select the video channel (3 or 4), or the video input mode if you made the Audio/Video connection (page 11).
• Press
VCR
to set the remote control operating the VCR.
VCR
TV
2
1 4
5 8
7
0
EJECT
PLAY
PLAY
REW
REW
ENTER
STOP
STOP
SLOW
REMAIN/ COUNTER
DISPLAY
I.SELECT
REC
TV VOL
VCR
POWER
POWER
3 6 9
100
VC-413
REW FF
FF
FF
PLAY, STO ENTER
PAUSE/STILL
COUNT
RESET
SP/SLP
TIMER
PROG.
CANCEL
Setting the Language
Press
1 2
POWER
Press
PROG.
The following screen appears on the TV.
PROG.
Select the language using
3
STOP
and press
The screen turns to the MENU screen.
Press
4
PROG.
Optional settings on the SET UP screen
Other optional settings can be made. Press The screen turns to the SET UP screen.
ENTER
to turn on the VCR.
.
PLAY
or
PROG.
.
to return to the normal TV screen.
while “SET UP” is selected on the MENU screen.
14
TAPE LEnGTH
120 160 180
COUnTER MEM
LAnGUAGE EnG FRA ESP
E n D : PROG
To exit, press
on off
PROG.
Page 22
Page 23
To change the language, move down here and set to the desired one.
once
.
Page 15
Setting the Clock
E n D : PROG
ENTER
CLOCK SET
SUMMER TIME
TIME ZOnE CH
2
SCAnnInG
nO
W
Example: To set the clock to 2:30 p.m. on August 25 (summer time) 2001.
Press
PROG.
ENTER
ENTER
.
FF
.
CLOCK SET CH MEMORY
EnD : PROG
to select “CLOCK SET”.
CLOCK SET
SUMMER TIME
TIME ZOnE CH
P R E S S E n T E R
T O S T A R T S E T T I n G
E n D : PROG
FF
REW
.)
1 2
3
4
5
6
7
The MENU screen appears on the TV.
Select “PRESET” using and press
Press
Select “AUTO” or “MANU” using
STOP
.
AUTO
: The VCR automatically sets or
adjusts the clock. If you select “AUTO” mode, proceed to step 8.
MANU
: You can set the clock manually.
If you select “MANU” mode, proceed to next step.
Vary the digits to set the hour.
PLAY
: To increase.
STOP
: To decrease.
Move to the next using
(To move back, press
Repeat step 5 and 6 to set the minutes, month, day, and the year (by the last two digits).
Proceed to step 10 to start the clock.
Press
ENTER
8
to start the “AUTO” clock
set feature.
After the VCR is turned off, it automatically updates the clock using the data broadcast by the local TV stations.
*
The clock is
or
REW
,
ENTER
revised by broadcasting signal at 8:00 A.M every morning.
Select the options using FF or
9
Change the data using
1) Set “SUMMER TIME
PLAY
REW
or
.
STOP
PREPARATION
.
(Daylight-Saving Time)”.
DST start: Daylight-saving time begins on the first Sunday in April. Because the clock automatically changes from 2:00 AM to 3:00 AM (forward one hour).
DST end: Daylight-saving time ends on the last Sunday in October. The VCR clock automatically changes from 2:00 AM
ENTER
PLAY
or
to 1:00 AM (back one hour). remember that any part of a scheduled Timer Recording that falls between these two times will not be recorded. AUTO: the VCR is using the clock data
Broadcast by the local TV stations. IN: You want to use the DST function, and you are leaving in the area that apply Daylight-saving time. OUT: Y ou are not leaving in the area that apply Daylight-saving time and you do not
want to use DST function.
2) Set “TIME ZONE”.
If you select “AUTO” for your time zone,
the VCR sets the clock using the first
Coordinated Universal Time information it
finds. If the time is not correct, select
another time zone or use the “MANU”
option.
3) Set “CLOCK DATA CH”.
If you don't know the clock data channel,
select “AUTO”. The VCR will scan
automatically to tune the channel carrying
the clock data. If AUTO CLOCK SET is unsuccessful, set the time and date through the “MANU” clock set menu selection.
Press
PROG.
10
Now the clock starts.
.
15
Page 16
PREPARATION
E n D : PROG
TV/CATV TV CATV
AUTO SCAn OFF O
n
ADD CH - - CH
ERASE CH - - CH
E n D : PROG
AUTO SCAn 2 CH on
EnD : PROG
ENTER
CLOCK SET CH MEMORY
Storing Channels on the VCR
This section is required if you receive only normal TV or unscrambled cable channels.
Incoming Antenna/Cable(CATV) Signals
The VCR scans through all receivable TV and CATV channels and stores only the active ones in your area into the memory. Once the storing is finished, you can select a desired channel using
Preparation
• Turn on the TV, and select the video channel (3 or 4), or the video input mode if you made the Audio/Video connection (page 11).
I.SELECT
• Press
VCR
TV
2
3
1
6
4
5
9
8
7
100
0
EJECT
PLAY
PLAY
REW
REW
ENTER
STOP
STOP
SLOW
REMAIN/
COUNT
RESET
COUNTER
DISPLAY
I.SELECT
REC
PROG.
TV VOL
VC-413
CANCEL
POWER
FF
FF
SP/SLP
TIMER
PAUSE/STILL
CH/TRK
.
so that the channel number will appear if “L” is displayed in the VCR display.
Incoming Antenna/Cable(CATV) Signals
Press
PROG
. to display the MENU screen.
FF
or
REW
ENTER
.
PLAY
, and press
ENTER
.
,
Number buttons
100 REW
FF
PLAY,STOP
ENTER
I.SELECT
1
Select “PRESET” using
2
and press
Select “CH MEMORY” using
3
or
STOP
1,6
16
Set “TV/CATV“ to “TV” or “CATV” using FF or
4
REW
.
TV: To store channels received via the antenna. CATV: To store channels received via the incoming cable.
Select “AUTO SCAN” using
5
STOP
, and press FF to set to “ON”.
PLAY
or
The VCR starts scanning and the channels are stored in the VCR in ascending order. When the scanning is finished, the screen automatically returns.
Press
6
PROG.
twice to exit.
Page 17
Adding or erasing channels
Adding channels
If a desired channel cannot be scanned automatically because of a weak signal, it can be added to the memory.
Erasing channels
You can erase a stored channel from the memory if it is unnecessary.
1)Follow steps 1 to 3 of “Incoming Antenna/ CATV Signals”.
2)Select “ADD CH” or “ERASE CH” using or
STOP
.
To add channels
TV/CATV TV CATV AUTO SCAn OFF O
ADD CH - - CH ERASE CH - - CH
TO SET CH PUSH 0~9 KEYS
E n D : PROG
To erase channels
TV/CATV TV CATV AUTO SCAn OFF O
ADD CH - - CH ERASE CH - - CH
TO SET CH PUSH 0~9 KEYS
E n D : PROG
PLAY
n
n
3)Enter a channel number of 1 to 125 using
number buttons
For more than 100 number, first press
.
100
.
For CATV channels, refer to the chart below. (For other orders, check with your cable company.)
4)Repeat steps 2) and 3) to add or erase channels as necessary.
5)Press
PROG
. two times to exit.
Selecting stored channels
Once the active channels have been stored, you can select the channels in two ways below.
Number buttons
To enter digits of the channel number.
• For one-digit number, enter 0 before.
• For more than 100 number, first press
• Each
number button
needs to be pressed
within 2 seconds.
CH/TRK buttons
To shift up or down the stored channel numbers.
100
.
PREPARATION
Channel reference chart
Number on the VCR Corresponding channel number
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 10 11 12 13 A B C D E F G H I J K L M N O P Q
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
R S T U V W AA BB CC DD EE FF GG HH II JJ KK LL MM NN OO
52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 ––
PP QQ RR SS TT UU VV WW XX YY ZZ AAA BBB 65 66 67 68 69 70 71
93 94 95 96 97 98 99 100 101 102 103
–––––––––––…–––––
93 94 A-5 A-4 A-3 A-2 A-1 100 101 102 103
CATV signals
• STD (standard) cable TV signals
• HRC (Harmonic Related Carriers) cable TV signals
• IRC (Incremental Related Carriers) cable TV signals
IRC is also called ICC (Incremental Coherent Carriers)
CH NUMBER 123456789
TV CATV STD (HRC/IRC)
– 23456789
1(A-8)
234
…
121 122 123 124 125
…
121 122 123 124 125
5(A-7) 6(A-6)
7
89
… … …
17
Page 18
PREPARATION
Video Cassette Use
Video Cassette Use
Loading a cassette
Push the cassette into the cassette compartment with the window side facing up and the label side towards the front. The VCR is automatically turned on. The indicator will appear in the VCR display.
Ejecting a cassette
Press
EJECT.
Warning
Do not insert your hands or any foreign objects into the compartment. This may result in injury or damage. Take special care with children to avoid accidents.
The cassette is ejected from the cassette compartment.
Precautions when using video cassettes
Video cassettes have a safety tab to prevent accidental erasure. If the tab has already been removed, recording cannot be performed.
To prevent accidental erasure
Remove this safety tab with a screwdriver.
• Avoid exposing cassettes to direct sunlight. Keep them away from heaters. Avoid extreme humidity, vibrations or shock, strong magnetic fields (near a motor, transformer or magnet) and dusty place.
18
To record again
Cover the tab hole with adhesive tape.
Page 19
S
SLP
VCR
REC
L
TIMER
S
VCR
REC
L
TIMER

PLAYBACK

T
K
Playback
This section explains the basic playback operation.
Preparation
• Select the video channel (3 or 4) or video input mode on the TV.
• Press VCR to set the remote control operating the VCR.
Basic Playback
VCR
TV
POWER
2
3
1 4
5 8
7
0
EJECT
PLAY
PLAY
REW
REW
ENTER
STOP
STOP
SLOW
REMAIN/ COUNTER
DISPLAY
I.SELECT
REC
PROG.
TV VOL
CH/TR
6 9
100
VC-413
2
FF
FF
FF
REW
PAUSE/STILL
COUNT
3
RESET
SP/SLP
TIMER
CANCEL
Load a recorded cassette.
1
Power is turned on. If the cassette has no safety tab, playback starts automatically.
Press
PLAY
2
To stop playback, press
3
to start playback.
Double Speed Playback
Press
PLAY
1
A tape runs at double speed playback.
during playback.
STOP
PLAYBACK
S
VCR
L
.
To resume normal playback Press
PLAY
Rewinding / Fast-forwarding
Press
REW
or FF in the stop mode.
Adjusting the tracking
When playback starts, the VCR automatically adjusts the tracking for clear pictures and sound (Digital Auto Tracking).
If the VCR cannot locate the best possible tracking point, hold down one of tracking manually.
Notes
• During the adjusting, the playback picture and sound may be distorted.
• The digital auto tracking is activated only in the playback mode.
• The noise on the screen may not be completely eliminated depending on the tape used, especially when the
tape was recorded on another VCR.
CH/TRK
to adjust the
19
Page 20
PLAYBACK
Variable Speed Playback
You can play back a tape at various tape speeds.
Picture Search
VCR
TV
POWER
2
3
1
6
4
5
9
8
7
100
0
VC-413
FF
FF
SP/SLP
TIMER
CANCEL
PAUSE/STILL
PLAY FF
REW
PAUSE/STILL
SLOW
EJECT
PLAY
PLAY
REW
REW
ENTER
STOP
SLOW
REMAIN/
COUNT
RESET
COUNTER
DISPLAY
I.SELECT
REC
PROG.
TV VOL
A tape runs at 5 times or 7 times the normal playback speed so that you can quickly locate a particular scene.
Press FF or
1
The tape runs at 5 times the normal playback speed.
To change the tape speed to 7 times the normal playback
2
REW
speed, press and hold
If you release it, the tape speed returns to 5 times.
Note
FF
or
If you press
REW
forwarding or rewinding.
To resume normal playback
PLA Y
Press
.
Still Picture
A picture freezes so that you can watch closer.
Press
1
PAUSE/STILL
The picture freezes.
during playback.
FF
or
REW
.
during picture search, the mode changes to fast-
during playback.
20
To resume normal playback
PAUSE/STILL
Press
Notes
• The still mode is automatically cancelled after about 5 minutes and returns to normal playback.
• The still picture may shake if a picture of a fast-moving object or scene is frozen. This is not a defect in the unit.
again.
Adjusting Still Picture Stability
If the still picture is distorted or flickers, hold down one of the picture becomes stable.
Note
The distortion of the still picture may not be eliminated completely.
CH/TRK
until
Page 21
Frame Advance
A picture advances frame by frame.
Press
PLAY
1
Each time you press
To resume normal playback
PAUSE/STILL
Press
during still playback.
PLAY
, the picture advances one frame.
.
Slow-motion Picture
The tape runs at 1/7th or 1/15th the normal playback speed.
Press
SLOW
1
The tape runs at about 1/7th the normal playback speed. Each time you press
1/15th.
To resume normal playback
PLAY
Press
Notes
• The slow-motion picture mode is automatically cancelled after about 5 minutes and returns to normal playback.
• The slow-motion picture may flicker up and down. This is not a defect in the unit.
Adjusting the Tracking Manually
If the slow-motion picture is noisy, hold down one of best picture is obtained.
Note
The noise in the slow-motion picture may not be eliminated completely.
during playback.
SLOW
.
, the speed alternates between 1/7th and
CH/TRK
until the
PLAYBACK
21
Page 22
PLAYBACK
T
Useful Functions in Tape Operation
These functions will help your playback.
Counter Function
VCR
TV
POWER
2
3
1
6
4
5
9
87
100
0
VC-413
COUNT
RESET
PROG.
TIMER
CANCEL
FF
FF
PAUSE/STILL
SP/SLP
ENTER PLAY
FF
REW STOP
COUNT RESE REMAIN/ COUNTER
PROG. DISPLAY
EJECT
PLAY
PLAY
REW
REW
ENTER
STOP
STOP
SLOW
REMAIN/ COUNTER
DISPLAY
I.SELECT
REC
TV VOL
You can view the clock, linear time counter or tape remaining time in the VCR display or on the TV screen.
Each time you press
REMAIN/COUNTER
changes in sequence as follows:
→ Linear time counter → Tape remaining time (RT) → Clock
The indication above will also appear on the TV screen by pressing
DISPLAY
. They are switchable with
REMAIN/COUNTER
To reset the linear time counter to “0:00:00”
The counter is automatically reset to “0:00:00” when a cassette is ejected. If you want to reset at another point, such as the beginning of a new recording, just press
Notes
• The linear time counter does not work on non-recorded portions on the tape.
• When the tape is ejected or the VCR is turned off, the display changes to
clock.
• If the tape rewinds back over “00:00”, “–” appears in the VCR display.
• The displayed time of the linear time counter is only an approximation.
COUNT RESET
.
, the VCR display
.
22
Tape Remaining Time
To view the tape remaining time in the VCR display, select the tape length beforehand.
Turn on the VCR and load a cassette.
1
Press
PROG.
2
Select “SET UP” using FF or
3
Select the length of the tape, using
4
FF
or
REW
T120: for a T-120 tape or shorter T160: for a T-140 or T-160 tape T180: for a T-180 tape
Press
5
Press
6
The remaining time (“RT - : - -”) appears in the VCR display.
Notes
• The displayed remaining time is an approximation.
• The remaining time is calculated according to the tape speed (SP or SLP)
and the cassette type.
to display the MENU screen.
.
PROG
. to exit.
REMAIN/COUNTER
REW
.
, and press
ENTER
TAPE LEnGTH
COUnTER MEM
LAnGUAGE EnG FRA ESP
E n D : PROG
.
120 160 180
on off
Page 23
Memory Stop Feature (Zero Return)
T
VCR
TV
POWER
2
3
1
6
4
5
9
87
100
0
VC-413
COUNT
RESET
PROG.
TIMER
CANCEL
FF
FF
PAUSE/STILL
SP/SLP
ENTER PLAY FF
REW STOP
COUNT RESE REMAIN/ COUNTER
PROG.
DISPLAY
EJECT
PLAY
PLAY
REW
REW
ENTER
STOP
STOP
SLOW
REMAIN/ COUNTER
DISPLAY
I.SELECT
REC
TV VOL
On the SET UP screen, select
1
“COUNTER MEM.” using
STOP
, and set to “ON” using
REW
or FF.
Press
PROG.
2
to exit.
PLAY
or
TAPE LEnGTH
120 160 180
COUnTER MEM
LAnGUAGE EnG FRA ESP
E n D : PROG
on off
The memory-stop feature allows you to quickly return to a
counter reading of “0H00M00S” from any point on the tape. Memory stop is automatically turned on whenever the time
PLAYBACK
counter with memory is displayed on the TV screen. This is convenient when you want to watch a segment of the tape repeatedly. You may also discover other useful application for this feature.
Notes: If you are rewinding the tape and the VCR stops at
“0H00M00S M”, press
REW
again to continue
rewinding.
If you press the
FF
(fast-forward) button and the time counter never reaches “0H00M00S M” between that point and the end of the tape, the VCR will continue to fastforward to the end of the tape.
23
Page 24
VCR
H
ST
S
VCR
L
S
VCR
REC
L
TIMER
S
VCR
L
TIMER
Hi-Fi
STEREO
SAP
VCR
L R
TIMER

RECORDING

T
Recording a TV Program
This section explains the basic recording operation.
Preparation
• Select the video channel (3 or 4) or video input mode on the TV.
VCR
TV
POWER
2
3
1
6
4
5 8
7
100
0
EJECT
PLAY
REW
ENTER
STOP
STOP
SLOW
REMAIN/
COUNT
RESET
COUNTER
DISPLAY
I.SELECT
REC
PROG.
TV VOL
3
9
VC-413
2
FF
PAUSE/STILL
6
SP/SLP
TIMER
4
CANCEL
5
I.SELEC
To record from other connected equipment In step 3, press
I.SELECT
to switch the display as follows: L: To record via the LINE IN jacks on the rear panel. .
Basic Recording
Load a cassette with the safety tab attached.
1
Press
2
TV/VCR
indicator appears in the VCR display.
Select a channel to record with
3
CHANNEL
or
number buttons
control.
If you see “L” in the VCR display, press number appears.
• If you record cable channels via the cable box, make the output channel number of the cable box or “L” appear, depending on your connection. (See pages 11 – 12.)
Press
4
SP/SLP
recording tape speed.
SP: Suitable for general recording with better picture and sound quality.
SLP: Suitable for tripling recording time, but with less picture and sound quality than using the SP tape speed.
Press
5
REC
simultaneously press both the remote control.
Recording starts.
Press
6
STOP
so that the “VCR”
on the VCR, or
on the remote
to select the
on the VCR, or
to stop recording.
CH/TRK
REC
on
I.SELECT
so that the channel
REC
TIMER
Watching a TV program while recording another
1)While recording, press
“VCR” indicator.
2) Choose another channel using the channel selector on the TV.
TV/VCR
Skipping unnecessary scenes while recording
Press
PAUSE/STILL
momentarily. To resume recording, press
PAUSE/STILL
Note
The VCR automatically shifts to the stop mode if the recording pause mode continues for 10 minutes.
24
to stop recording
again.
to turn off
Recording off time setting
By setting the recording off time, the recording stops and the VCR is turned off automatically.
While recording, press simultaneously both on the remote repeatedly to set the desired off time.
Each time you press
REC
, each half-hour up to
about 4 hours appear cyclically.
Notes
• To cancel the recording in progress, press
POWER
on the VCR
.
REC
Page 25
RECORDING
Timer Program Recording
The programmable timer allows you to record up to 6 different programs over one month.
Preparation
• Select the video channel (3 or 4) or video input mode on the TV.
• Make sure that the clock is set correctly (page 15).
• Store the channels on the VCR (pages 16 and 17).
Timer Programming Procedure
VCR
TV
POWER
Number
VC-413
TIMER
CANCEL
FF
FF
PAUSE/STILL
SP/SLP
buttons
PLAY ENTER
REW FF
STOP
10
2
3
1
6
4
5
9
8
7
100
0
EJECT
PLAY
PLAY
REW
REW
ENTER
STOP
STOP
SLOW
REMAIN/
COUNT
RESET
COUNTER
DISPLAY
I.SELECT
REC
PROG.
TV VOL
Example: To record cable channel 25 in the SP tape speed from
9:20 p.m. until 10:00 p.m. on August 30. Today is August 25.
Load a cassette with the safety tab attached.
1
Press
PROG
2
Select “PROGRAM” using FF or
3
REW
. to display the MENU screen.
, and press
ENTER
.
RECORDING
2,9
Move to the next using FF, and
4
select the channel number 25 by pressing
PLAY
• You can make “L” appear on the channel number position by (See pages 12 ).
To make corrections:
Press
number buttons
or
STOP.
pressing
I.SELECT
REW
to move back to the item, or FF to forward.
2 and 5,
depending on your connection.
(Continued)
25
Page 26
O
Timer Program Recording (continued)
REC
TIMER
P M
Move to the next using FF, and set
5
the recording date using
STOP.
The date changes as follows:
→ 8/25 → 9/25 → … → 7/25 → MO~FR ←
[WKLYSU]…[WKLYSA]: You can record TV programs on the same channel on the day and time every week.
[MO~FR]: You can record TV programs on the same channel on the day and time Monday through Friday.
Move to the next using FF, and set
6
the hour and minutes of the recording start time.
Move to the next, and set the
7
recording off time.
WKLY
PLAY
SA ←
WKLY
or
SU →
…
8
9 10
Auto Speed Select
If you are not sure the tape is long enough for timer program recording in the SP tape speed, set the recording tape speed to “AUTO”.
Recording starts in the SP tape speed and the VCR automatically selects the tape speed to record the program to the end. If the tape length is not long enough, the tape speed automatically changes from SP to SLP.
Move to the next, and select the tape speed (SP) using
STOP
.
For the tape speed “AUTO (Auto Speed Select)”, see below.
To set another program, press select the next line pressing
Repeat steps 4 to 8.
Press
PROG.
.
Now programming is completed.
Press both
The power turns off and the VCR enters the timer standby mode.
TIMER
PLAY
or
FF
, and
STOP.
simultaneously.
Notes
• Make sure that the tape length is selected correctly according to the tape used on the SET UP screen (page 22).
• When the SLP tape speed is selected and the tape length is not sufficient to record the program to the end, the program cannot be recorded to the end.
• The picture will be distorted when playing the part where the recording tape speed is switched from SP to SLP with the Auto Speed Select feature.
TIMER
STERE
L
Hi-Fi
SAP
Page 27
Confirming the timer programs Press
PROG.
during timer recording mode.
The screen for confirming will appear.
P
P
M
M
Press.
PROG.
again to exit from confirmation
page.
Changing/cancelling the timer programs
1)If the
TIMER
indicator is lit, press both
TIMER
to turn it off, and then turn the VCR on by pressing VCR
POWER
.
2)With steps 2 to 9, change the items.
To cancel a program, select the program you want to cancel in step 4, and press
CANCEL.
The line is then cleared.
TIMER
3)Press both
to return to the timer
standby mode.
Error indication
The “--E--” ( Error ) indicator appears in the VCR display if you press both
–– a cassette is not loaded. –– the loaded cassette has no safety tab.
–– timer recording is in progress . In these cases, a recording can not be made.
TIMER
when:
If the power failure occurs during the timer program recording
• When a power failure has occurred, “--:--” appears in the VCR display. Since the programmed contents have been cleared, reset the clock and timer programming.
• When power has failed for a short time, the
color of the current time display blinks. The programmed contents are not affected. Reset the clock.
Overlaps of the programs
If two timer programs overlap, the recording start time of program 1 has priority over the recording off time of program 2.
Program 1 (Start time)
Program 2 (Start time)
Overlapped portion (not recorded)
RECORDING
To Cancel the Timer Recording
By pressing the panel of the VCR, it will cancel the timer recording and go to standby.
POWER
button on the front
27
Page 28
T

ADDITIONAL INFORMATION

Remote Control for TOSHIBA TV’s
The remote control can control TOSHIBA TV’s.
TOSHIBA TV’s control
Press TV to set the remote control operating your TV.
1
Point the remote control at your TV and use each button
2
listed below to make sure that your TV is operate correctly.
POWER CH/TRK TV VOL I.SELECT Number buttons
100 DISPLAY ENTER
To turn the TV on or off To select TV channels in the upper or lower direction. To adjust the sound level. To select an external source such as a VCR. To select TV channels. When selecting channels 1 to 9, enter 0 and then the desired number. To substitute for 100 channel key To turn on or off TV’s screen display. To use for the TV’s ENTER key.
POWER
VC-413
FF
SP/SLP
TIMER
CANCEL
PAUSE/STILL
1
POWER CH/TRK
100
Number buttons
ENTER
DISPLAY I.SELEC
VCR
TV
2
3
1
6
4
5
9
87
100
0
EJECT
PLAY
REW
ENTER
STOP
SLOW
REMAIN/
COUNT
RESET
COUNTER
DISPLAY
I.SELECT
REC
PROG.
TV VOL
TV VOL
Important
Some TV’s may not respond to all the operations above, or may not be operated at all with this remote control. In this case, operate your TV’s with it’s own remote control.
Page 29
ADDITIONAL INFORMATION
Before Calling Service Personnel
Check the following symptoms before requesting servicing.
No power.
• The power cord is not plugged in.
– Plug the power cord into the outlet firmly.
Although the power is on, the VCR will not work.
• There is no cassette.
– Load a cassette. (page 18)
The clock does not work.
• There has been a power failure.
– Reset the clock. (page 15)
The timer does not work properly.
• The time is incorrect.
– Set the clock correctly. (page 15)
The picture does not appear on the TV screen.
• The video channel or video input mode is not set correctly.
– Set the TV channel to the video channel (3 or
4) or set the video input mode on the TV. (page 11)
• The TV signal is weak.
– Adjust the antenna direction or use an
optional antenna booster.
• The power cord is not plugged in.
– Plug the power cord into the outlet firmly.
The picture does not appear on the TV screen during recording and playback.
• The video channel or VCR mode is not set correctly.
– Press
TV/VCR
set the TV channel to 3 or 4. (pages 11, 24)
to select the VCR mode and
The VCR does not record.
• The loaded cassette has no safety tab.
– Use a cassette with a safety tab or cover the
hole with adhesive tape. (page 18)
The playback picture is poor.
• Tracking is not set appropriately.
– Adjust the tracking manually. (page 19)
• The video heads are dirty.
– Clean the video heads with a commercially
available cleaning tape.
The timer recording function does not work.
• There is an error in programming.
– Reset the timer recording program. (page 27)
• There is no cassette in the VCR.
– Load a cassette with the safety tab attached.
(page 18)
• The cassette does not have the safety tab.
– Use another cassette with a safety tab or
cover the hole with adhesive tape. (page 18)
• The timer indicator is not displayed.
– Press both
• There has been a power failure.
– Reset the clock. (page 15)
TIMER
simultaneously. (page 26)
The remote control does not work properly.
• The batteries are exhausted.
– Replace all batteries. (page 10)
• The remote control is operated beyond the operating range.
– Make sure the remote control is within 30
the remote sensor on the VCR. (page 10)
• Too far from the VCR.
– Use the remote control within 7 m from the
front of the VCR. (page 10)
• An obstacle may be in the way of the operation.
– Remove the obstacle.
• The operating mode of the remote control is not set correctly.
– Press
VCR
equipment you want to operate. (pages 14)
or TV depending on the
° of
The cassette is ejected immediately after it is loaded.
• The cassette was inserted with the label side not paralleling the compartment.
– Reload it carefully. (page 18)
The cassette does not go into the cassette compartment.
• There is already a cassette in the VCR.
– Eject the cassette and reload the new one.
(page 18)
RECORDING
29
Page 30
Specifications
Power Supply: 120 V AC, 60 Hz Power consumption: 16 W External dimensions: 360 x 94 x 252mm (W.H.D.) Mass: 3.0 kg Channels received: VHF: Channels 2–13
UHF: Channels 14–69 CATV: Channels A7-A1,A-CCC, 66-125
Antenna input/output terminals: UHF/VHF: 75 Ω F type connector Signal system: Standard NTSC Recording/Playback system: Recording: VHS format (SP, SLP)
Playback: VHS format (SP, LP, SLP)
Cassette: Video cassette with Tape speed: SLP: 11.1 mm/s, SP: 33.4 mm/s Video recording/playback time: SLP: 480 minutes, SP: 160 minutes (When T-160
video cassette is used.)
Fast forward/rewind time: Within approx. 60 Video input: 1 V (p-p), 75 Ω, unbalanced, negative sync., pin
jack
Video output: 1 V (p-p), 75 Ω, unbalanced, negative sync., pin
jack
Audio input: Line input: 308 mV (rms), more than 47 kΩ, pin
jack
Audio output: Line output: 308 mV (rms), less than 4.7 kΩ, pin
jack
Utilization conditions: Temperature: 5°C to 40°C
Humidity: less than RH 80%
mark
s (When T-120 video cassette is used.)
Accessories
Antenna cable ....................................... 1
Remote control..................................... 1
Batteries (AA)....................................... 2
Designs and specifications are subject to change without notice.
Page 31

LIMITED WARRANTY

TOSHIBA VIDEO CASSETTE RECORDER
Toshiba America Consumer Products, Inc. (“TACP”) and Toshiba Hawaii Inc. (“THI”) make the following limited warranties. These limited warranties extend to the original consumer purchaser or any person receiving this set as a gift from the original consumer purchaser and to no other purchaser or transferee.
Limited Ninety (90) Day Warranty
TACP/THI warrant this product against defects in materials or workmanship for a period of ninety days after the date of original retail purchase. During this period, TACP/THI will repair a defective product or part, without charge to you. You must deliver the entire product to a TACP/THI Authorized Service Station. You are responsible for all transportation and insurance charges for the set to and from the Authorized Service Station.
Limited One (1) Year Warranty
TACP/THI further warrant the parts in this product against defects in materials or workmanship for a period of one (1) year after the date of original retail purchase. During this period, TACP/THI will replace a defective part without charge to you, except that if a defective part is replaced after ninety (90) days from the date of the original retail purchase, you pay labor charges involved in the replacement. You must also deliver the entire product to a TACP/THI Authorized Service Station. You are responsible for all transportation and insurance charges for the set to and from the Authorized Service Station.
Rental Units
The warranty for rental units begin with the first rental or thirty (30) days from the date of shipment to the rental firm, whichever comes first.
Commercial Units
Products sold and used for commercial use have a limited ninety (90) day warranty for all parts and labor.
Owner’s Manual and Demographic Card
You should read the owner’s manual thoroughly before operating this product. You should complete and mail the enclosed Demographic card within ten (10) days after you, or the person who has given you this product as a gift, purchased this product. This is one way to enable TACP/THI to provide you with better customer service and improved products. Failure to return the card will not affect your rights under this warranty.
Your Responsibility
The above warranties are subject to the following conditions: (1) You must retain your bill of sale or provide other
proof of purchase.
(2) You must notify an Authorized TACP/THI Service
Station within thirty (30) days after you discover a defective product or part.
(3) All warranty servicing of this product must be
made by an Authorized TACP/THI Service Station.
(4) These warranties are effective only if the product is
purchased and operated in the U.S.A or Puerto Rico.
(5) Labor service charges for set installation. Set up,
adjustment of customer controls and installation of repair or antenna systems are not covered by this warranty. Reception problems caused by inadequate antenna systems are your responsibility.
(6) Warranties extend only to defects in materials or
workmanship as limited above and do not extend to any product or parts which have been lost or discarded by you or to damage to products or parts caused by misuse, accident, damage caused by Acts of God, such as lightning or fluctuations in electric power, improper installation, improper maintenance or use in violation of instructions furnished by us; or to units which have been altered or modified without authorization of TACP/ THI or to damage to products or parts there of which have had the serial number removed, altered, defaced or rendered illegible.
(7) At you option, after the warranty period has expired
in the U.S.A. Call (800)-631-3811 to receive information concerning an exchange price. Payment must be enclosed with the product in the form of a certified check or money order and forward your product to: Toshiba America Consumer Products Inc. Returns Center 1420C Toshiba Dr. Lebanon, TN 37087
(8) Upon receipt we will, at our option, replace your
unit with a new or refurbished unit of equal value. Features may not be identical to your original product.
(9) Physically damaged units are not acceptable for
repair or exchange in or out of warranty and will be returned as received.
Page 32
LIMITED W ARRANTY (continued)
How to Obtain Warranty Service
(1)Refer to the troubleshooting guide in your owner's manual. This check list may solve your problem. (2)Call the TACP toll free number 800-631-3811 within (30) days after you find a defective product or part. (3)Arrange for the delivery of the product to the Authorized TACP/THI Service Station. Products shipped to the Service Station must be insured and safely and securely packed, preferably in the original shipping carton, and a letter explaining the defect and also a copy of the bill of sale or other proof of purchase must be enclosed.
In the Continental United States contact:
Toll Free 800-631-3811
All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall TACP/THI be liable for consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner whatsoever. The time within action must be commenced to enforce any obligation of TACP/THI arising under the warranty or under any statute, or law of the United States or any state thereof, is hereby limit ed to n ine ty (90) days from the date you discover or should have discovered the defect. This limitation does not apply to implied warranties arising under state law. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state. Some states do not allow limitation on how long an implied warranty lasts, when an action may be brought or the exclusion or limitation of incidental or consequential damages, so the above provisions may not apply to you.
In Hawaii contact Toshiba Hawaii 327 Kamakee Street, Honolulu, HA 96814 (808)-591-8377
ATTENTION CANADIAN CONSUMERS:
Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed and forward this completed form with a copy of bill of sale to TOSHIBA OF CANADA to “Register and Validate” their warranty. Product must be purchased from an Authorized Canadian Dealer.
Products purchased in the U.S.A and used in Canada are not covered by these warranties.
IMPORTANT: PACKING AND SHIPPING INSTRUCTION
When you send the product to a Service Station, you should use the original carton box and packing material, then insert the original carton box containing the unite into another carton, using more packing material.
Printed in Indonesia
AC68-01085A
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
