TOSHIBA
Database Assistant is a companion package to Voice Assistant. Database Assistant provides an interface
between any Open Database Connectivity (ODBC) compliant database and Voice Assistant. This
increases the power and flexibility of Interactive Voice Response (IVR) systems by giving them real-time
access to databases.
Installation
Database Assistant must be installed on a PC running Windows NT, Windows 2000, Windows XP, or
Windows 2003 server . Voice Assistant 4.1 or higher is a lso required. The Microsoft ODBC Drivers must be
installed prior to installing Database Assistant.
Technical Bulletin
Database Assistant
Strata® CIX
March 2008
™
Follow these steps in order:
1. Install Voice Assistant.
2. Install the Microsoft ODBC Drivers which are included. Even if you are using a different ODBC Driver
for a different database, these drivers need to be installed for Database Assistant to run properly.
3. Reboot the system.
4. Install Database Assistant.
5. Reboot the system.
Getting Started
Once Database Assistant is installed you must login to gain access to the database.
1. Click on Log In from the Access tab in Database
Assistant. The Login to Program box displays
(shown right).
2. Enter your password to gain access to the
database, then click on Okay.
The default password is 3333 for access level 1 and
9999 for access level 15.
3. Set up Database Assistant. To do this, click on the
Debug tab.
Toshiba America Information Systems, Inc.
© Copyright 2009
Telecommunication Systems Division
9740 Irvine Blvd., Irvine, CA 92618-1697 (949) 583-3700
www.telecom.toshiba.com
Access
Access
Make sure the Host Connection light is green and indicates the st atus is Operational. ( If it is not green or it
does not say Operational, see the section on T rou ble Sh oo tin g ). This scr een is us ed to view curre nt user
login and access level information. This screen is also used to change user passwords.
Log In / Log Out This button is used to log in or log out of Database Assistant.
Access Level This displays the access level for the current user.
Normal
Super User
Changing Passwords
To change the password for the Normal user, delete the current passwo rd located in the field labeled
Normal. Enter a new password. Then, click on Save.
To change the password for the Super User, delete the current p assword lo cated in the field lab eled Super
User. Enter a new password. Then, click on Save.
2 of 7
This field displays the current password for the Normal user. This field
is only displayed for Super User.
This field displays the current password for the Super User. This field is
only displayed for Super User.
Database Assistant
ODBC Setup
Upon using Database Assistant for the first time, the sections in this screen should appear blank. This
screen is used to set up an installed ODBC Driver for use with Database Assistant. If the driver you plan to
use is not yet installed, it should be prior to running this setup.
ODBC Setup
Create an ODBC Connection
1. Click on the Create button under the ODBC Connection Controls section under the ODBC Setup tab.
2. The Select Cursor Driver screen will appear. Select the Cursor Driver to use for the ODBC connection.
Then click on Ok to bring up the Select Data Source window.
3. Click on Machine Data Source and then click on New.
4. Enable the System Data Source radio button, then click on Next.
5. Choose the appropriate database driver and click on Next.
6. Ve rify the driver choice and click on Finish.

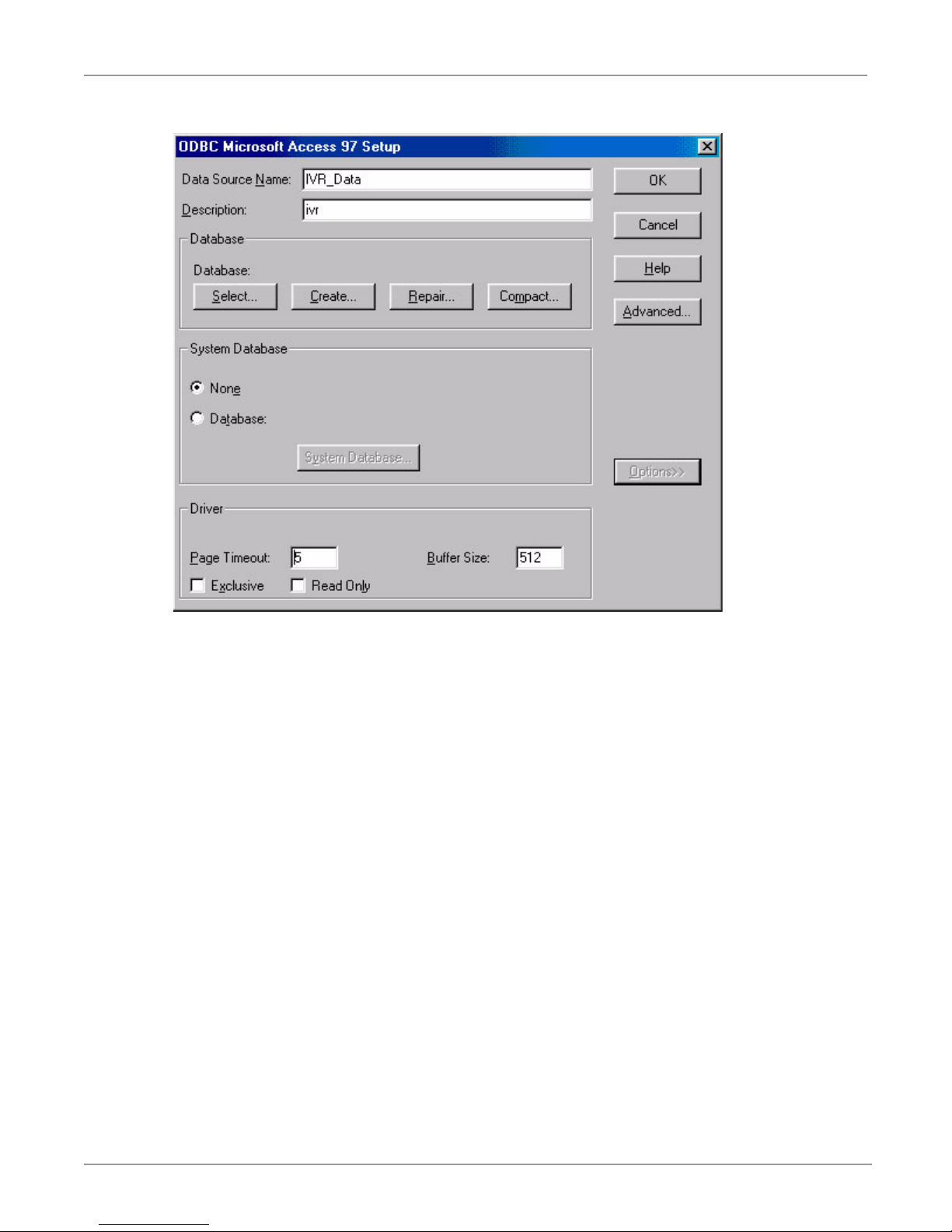

7. Type in a Data Source Name, for example IVR_Data.
Database Assistant
3 of 7
ODBC Setup
8. The other fields are dependent on the ODBC Driver. Fill these fields as needed.
9. Click on OK when finished
10. Click on OK again to take you back to the main ODBC Setup screen.
11. The Data Source Name you entered should now appear in the ODBC Connections section.
Delete an ODBC Connection
Highlight the ODBC Connection you wish to delete in the ODBC Connection section and click on the
Delete button.
SQL Statements
This section is used to add, edit, delete, and test SQL statements. For more detailed information about
SQL Statements, see the section labeled SQL Statements .
4 of 7
Database Assistant

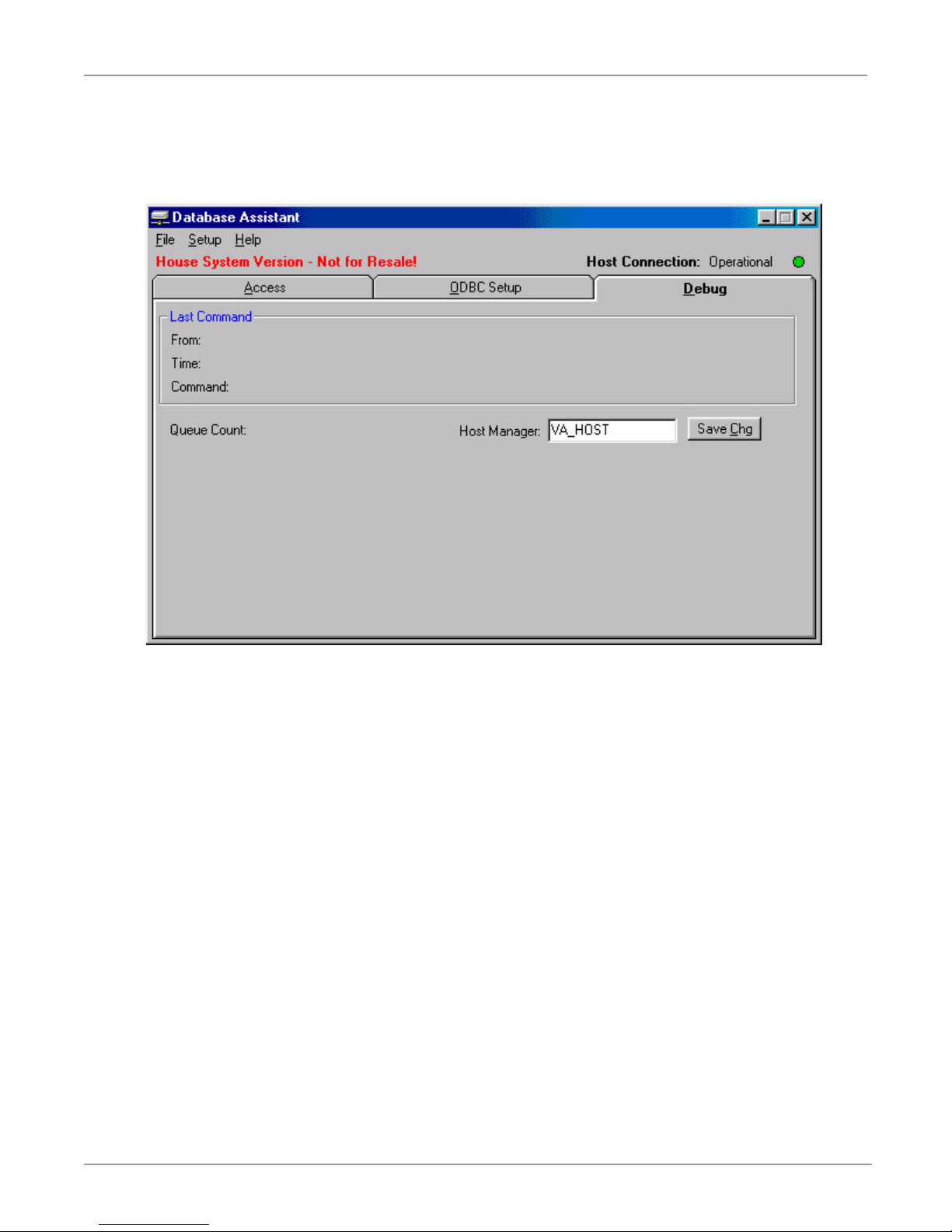

Debug
This screen is used to set up the Host Manager for Database Assistant. Upon entering this screen for the
first time, enter VA_HOST in the Host Manager box. Click Save Chg. The upper right corner light should
switch to green and Host Connection should be Operational.
Debug
Database Assistant
5 of 7
Trouble Shooting
Trouble Shooting
If the status light is not green, or if the Host Connection does not indicate ‘Operational’, click on the Debug
tab. Make sure VA_HOST is entered in the Host Manager box. If this box does not say VA_HOST, then
enter this in the field and click on Save Chg.
SQL Statements
This section can be used to add, edit, delete, and test SQL Statements.
Add an SQL St atement
To add an SQL Statement, make sure your database is highlighted in the ODBC Connections box located
next to the SQL Statements box in the ODBC Setup screen. Then, click on Add SQL to bring up the Add
SQL Statement screen.
This screen allows us to create an SQL Statement that can be used by V oice Assistant.
Name Enter the name you wish to give your SQL Statement.
Timeout Enter the maximum time allowed for the query to run in seconds.
Register Enter a checkmark if you want your SQL Statement to be registered.
SQL Statement Type in your valid SQL Statement here.
6 of 7
Database Assistant
SQL Statements
This box lists all of the tables found in your selected database.
If you highlight a table, the Fields box will populate. (To enter a
Tables
This box lists all of the fields found in the ta ble you selected in the Tables
Fields
An example of a simple SQL Statement using the Pagers table: select * from Pagers
Click on OK when you are done entering your SQL Statement. This will take you back to the main ODBC
Setup screen. Your SQL Statemen t will be in the SQL Statement box. To execute your statement,
highlight the statement and click on Test SQL. Next, click on Execute. This will bring up the SQL Test
Results screen that displays your results.
box. (To enter a field name into an SQL Statement you can double click
on the field name and it will automatically populate in the SQL Statement
box.)
table name into an SQL Statement you can double click on the
table name and it will automatically populate in the SQL
Statement box.)
Delete an SQL Statement
To delete an SQL Statement, highlight the statement and click on the Delete SQL button.
Edit an SQL Statement
To edit an existing SQL Statement, highlight the statement you wish to edit and click on the Edit SQL
button. This will bring up the Add SQL Statement box where you can make the desired changes.
Using SQL Queries
The queries are activated using the REQ_DBACT command in V oice Assist ant scripts (see the Oper ations
Manual for more details).
- End of Document -
