Page 1

Introduction

DIGITAL VIDEO

PORT ABLE DVD PLA YER

SD-P1500

OWNER’S MANUAL

Basic playback

Advanced

playback

Function setup

Connections

Others

XZ2029P009

Page 2

Introduction

SAFETY PRECAUTIONS

CAUTION: This equipment employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location see service procedure.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible and invisible laser radiation when open and interlocks defeated. DO NOT STARE INTO BEAM.

FCC NOTICE “Declaration of Conformity Information”

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help. WARNING: Only peripherals complying with the FCC class B limits may be attached to this equipment.

Operation with non-compliant peripherals or peripherals not recommended by Toshiba is likely to result in interference to radio and TV reception. Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

In the spaces provided below, record the Model and Serial No. located on the bottom of your DVD player. Model No. Serial No. Retain this information for future reference.

Page 3

Location of the required label

Introduction

Page 4

Introduction

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS

OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read owner’s manual After unpacking this product, read the owner’s manual carefully, and follow all the operating and other instructions.

2. Power Sources This product should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

3. Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instr uctions have been adhered to.

4. Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

5. Water and Moisture Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and the like.

6. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Page 5

7. Power-Cord Protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

8. Overloading Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

12.Accessories Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table

S3125A

recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

Introduction

9. Lightning For added protection for this product during an electrical storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.

10.Object and Liquid Entry Never insert objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

11.Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards.

13.Lid Be careful not to catch your fingers in the disc holder when closing the lid. It may cause personal injury.

14.Headphones When you use headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.

15.Disc Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.

16.Disc Spin Do not touch a spinning disc. When you open the disc holder, the disc may have not stopped spinning. Touching a spinning disc may cause personal injury or damage to the product.

Page 6

Introduction

IMPORTANT SAFETY INSTRUCTIONS

17.Heating up Do not use the product on your lap or other parts of body, as it may become heated. Even low temperature may cause inflaming or blistering, if touched for a prolonged period.

18.Supplied AC Adapter Use the supplied AC adapter to operate the product. Substitute devices not specified by the manufacturer may result in fire or product malfunction.

19.Airline Passengers When you use this product in an airplane, follow the instructions of the airline. Disregarding them may cause harmful interference to radio communication.

20.Pick-up Lens and Laser Beam Do not look close the pick-up lens or stare into laser beam. Doing so may cause damage to eyesight.

21.Traffic Do not use this product while walking or driving. Neglecting this may cause a traffic accident.

22.LCD Should the LCD panel be broken and liquid leaks out, do not inhale or swallow it. Doing so may cause poisoning. If you have got it into your mouth, wash it out and consult your doctor. If your hands or clothes have touched it, wipe them with alcohol and a cleaning cloth and then wash them well.

23.Battery Pack a) Never throw the battery pack

into a fire, as that could cause the battery pack to explode. Never heat the battery pack, as that could cause leakage of alkaline solution or other electrolytic substance.

b) Never disassemble the

battery pack, as that could cause leakage of alkaline solution or other electrolytic substance.

c) Never short-circuit the

battery pack by either accidentally or intentionally bringing the terminals in contact with another metal object. This could cause personal injury or a fire, and could also damage the battery pack.

d) Never hammer a nail into

the battery pack. Never strike the battery pack with a hammer. Never step or tread on the battery pack.

e) If you ever detect the

emission of an extraordinary odor, excessive heat, discoloration, or deformation of the battery pack, remove it from the player or the battery charger immediately, and discontinue use of the battery pack.

f) If you ever detect rust, the

emission of an extraordinary odor, excessive heat or anything unusual of the battery pack prior to use, do not use it. Take it to an authorized Toshiba service provider.

Page 7

g) Keep the battery pack

away from heat or fire, if you detect the emission of an extraordinary odor or leakage of alkaline solution or other electrolytic substance.

m) Never expose the battery

pack to direct sunlight. Never store or use the battery pack in a locked and unventilated v ehicle . (where excessive internal temperatures may be encountered.)

Introduction

h) Never dispose of used

battery packs with other ordinary solid wastes, since they contain toxic substances. Always dispose of used battery packs in accordance with the prevailing community regulations that apply to the disposal of batteries. Cover the metal terminals with insulating tape, in order to prevent accidental short-circuiting.

i) Always confirm that the

battery pack is compatible with your player, before attaching the battery pack to the player.

j) Never expose the

terminals of the battery pack to any other metal object. Wrap the batter y or place it in a protective plastic bag, whenever transporting it.

k) Always confirm that the

temperature is 5-35˚C before you charge the battery. Leakage, excessive heat, or deterioration of the battery pack may occur if this warning is not heeded.

n) Always keep the battery

pack out of reach of infants or small children.

o) Never shock the battery

pack by dropping or throwing it.

p) If the liquid contained

within the battery pack leaks, use a large amount of water and immediately wash off any liquid which may accidentally contact any part of the body. Remove any liquid that has contacted your clothes by washing them immediately with a detergent.

q) Always confirm that a “click”

sound has resulted, when attaching the battery pack to the player. This sound confirms that the battery pack has been properly attached.

l) Never expose the battery

pack to any liquid.

Page 8

Introduction

IMPORTANT SAFETY INSTRUCTIONS

24.Coin-shaped Battery a) Keep coin-shaped batteries

out of children’s reach. Be careful not to ingest internally, especially by children, as doing so may cause poisoning.

b) Do not load a battery into the

remote control with the wrong side out.

c) Do not charge, heat, open, or short-circuit the

batteries. Do not throw the batteries into a fire.

d) Do not leave a dead or exhausted batter y in

the remote control.

e) If you do not use the remote control for a long

period of time, remove the battery to avoid possible damage from battery corrosion.

25.Keeping of Coin-shaped Batteries After unpacking coinshaped batteries, store them in poly bags, etc. separately one by one when unused. If y ou leav e them unwrapped, they may be short-circuited by contact with metal objects, resulting in battery leakage, heat or bursting. These may cause burns or injury. The batteries must be completely discharged when they are deposited in collection containers for old batteries in shops and at public collection sites. If a charge remains, countermeasures to prevent short circuits must be taken.

27.Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

28.Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitution may result in fire, electric shock, or other hazards.

29.Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

26.Damage Requiring Service Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions: a) When the power-supply cord or plug is

damaged.

b) If liquid has been spilled, or objects have

fallen into the product.

c) If the product has been exposed to rain or

water.

d) If the product does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e) If the product has been dropped or damaged

in any way.

f) When the product exhibits a distinct change

in performance - this indicates a need for service.

Page 9

Precautions

Notes on handling

Do not shock the LCD panel. It may cause unit damage and malfunction. When shipping the player, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packaged at the factory. Do not use volatile liquids, such as insect spray, near the player. Do not leave rubber or plastic products in contact with the player for a long time. They will leave marks on the finish. The top and rear panels of the player may become warm after a long period of use. This is not a malfunction. When the player is not in use, be sure to remove the disc and turn off the power. If you do not use the player for a long period, the unit may not function properly in the future. Turn on and use the player occasionally.

Notes on locating

When you place this player near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, move the player away from the TV, radio, or VCR.

Notes on cleaning

Use a soft, dry cloth for cleaning. For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry. Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the player. If you use a chemical saturated cloth to clean the unit, follow that product’s instructions. When cleaning the LCD panel, use a soft, dry cloth.

To obtain a clear picture

The player is a high technology, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.

Notes on moisture condensation

Moisture condensation damages the player. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the player.

Moisture condensation occurs during the following cases.

When you bring the player directly from a cold place to a warm place. When you use the player in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit. In summer, when you use the player in a hot and humid place just after you move the unit from an air conditioned room. When you use the player in a humid place.

Do not use the player when moisture condensation may occur.

If you use the player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the player to the wall outlet, turn on the player, and leave it for two or three hours. After two or three hours, the player will have warmed up and evaporated any moisture. Keep the player connected to the wall outlet and moisture condensation will seldom occur.

Wait!

Optical pick-up

lens

It’s too

warm!

Wall outlet

Introduction

Page 10

Introduction

Notes and Information

On handling discs

Do not touch the playback side of the disc.

Playback side

Do not attach paper or tape to discs.

On cleaning discs

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.

Structure of disc contents

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs are divided into tracks.

DVD video disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

VIDEO CD/audio CD

Tr ack 1 Track 2 Track 3 Track 4 Track 5

Each title, chapter or track is assigned a number, which is called “title number”, “chapter number” or “track number” respectively. There may be discs that do not hav e these n umbers.

If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth. Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl LPs. It may damage the disc.

On storing discs

Do not store discs in a place subject to direct sunlight or near heat sources. Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier. Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

Notes on copyright

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission.

DVD video discs are copy protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Page 11

About this owner’s manual

Playable discs

Introduction

This owner’s manual explains the basic instructions of this player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the player may not respond to all operating commands. This is not a defect in the player. Refer to instruction notes of discs.

” may appear on the screen during oper ation.

“

” means that the operation is not permitted by the

A “ player or the disc.

Notes on region numbers

The region number of this player is 1. If region numbers, which stand for their playable area, are printed on your

ALL

DVD video disc and you do not find

, disc playback will not be allowed by the player. (In this case, the player will display a message on-screen.)

On VIDEO CDs

This player supports VIDEO CDs equipped with the PBC (Version 2.0) function. (PBC is the abbreviation of Playback Control.) You can enjoy two playback variations depending on types of discs.

• VIDEO CD not equipped with PBC function

(Version 1.1) Sound and movie can be played on this player in the same way as an audio CD.

• VIDEO CD equipped with PBC function

(Version 2.0) In addition to operation of a VIDEO CD not equipped with the PBC function, you can enjoy playback of interactive software with search function by using the menu displayed on the screen (Menu Playback). Some functions described in this owner’s manual may not work with all discs.

This player can play the following discs.

Maximum

playback time

Approx. 4 hours

(single sided disc)

Approx. 8 hours

(double sided disc)

Approx. 80 minutes

(single sided disc)

Approx. 160 minutes

(double sided disc)

Approx. 74 minutes

Approx. 20 minutes

Approx. 74 minutes

Approx. 20 minutes

Audio

video

Audio

video

Audio

Disc Size

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm

(CD

single)

Disc Mark

DVD video discs

VIDEO CDs

Audio CDs

The following discs are also available.

CD-R/RW discs recorded by CD-DA method can be played. Some CD-R/RW discs may be incompatible.

DIGITAL VIDEO

CD-R CD-RW

Contents

(moving

pictures)

(moving

pictures)

• You cannot play discs other than those listed above.

• You cannot play discs of DVD-RAM, DVD-RW, etc. or non-standardized discs, even if they may be labeled as ab ove.

• This player uses the NTSC color system, and cannot play DVD video discs recorded in any other color system (PAL, SECAM, etc.).

Page 12

Introduction

Notes and Information (continued)

Exemptions

Toshiba Corporation is not liable for any damage caused by fire, earthquake, uses by a third person, accidents, owner’s intentional or unintentional misuse, or uses in other improper conditions. Toshiba Corporation is not liable for incidental damages (such as profit loss or interruption in business, etc.) caused by use or misuse of this player. Toshiba Corporation is not liable for any damage caused by neglect of the instructions described in the owner’s manual. Toshiba Corporation is not liable for any damage caused by misuse or malfunction through joint use of this player and the connected equipment or software that Toshiba Corporation is not concerned.

On disposal

This product contains mercury. Disposal of this material may be regulated due to environmental considerations . For disposal or recycling information, please contact your local government or the Electronic Industries Alliance.

Page 13

Introduction

SAFETY PRECAUTIONS ..........................2

IMPORTANT SAFETY INSTRUCTIONS ...4

Precautions ...............................................9

Notes and Information ...........................10

Notes on region numbers ............................... 11

Table of Contents ...................................13

Identification of Controls .......................14

Main unit.........................................................14

Side view ........................................................ 15

Rear side ........................................................ 15

Remote control ............................................... 16

Loading a battery............................................ 17

Operating with the remote control .................. 17

Power Connection ..................................18

Basic playback

Playing a Disc .........................................20

Basic playback................................................20

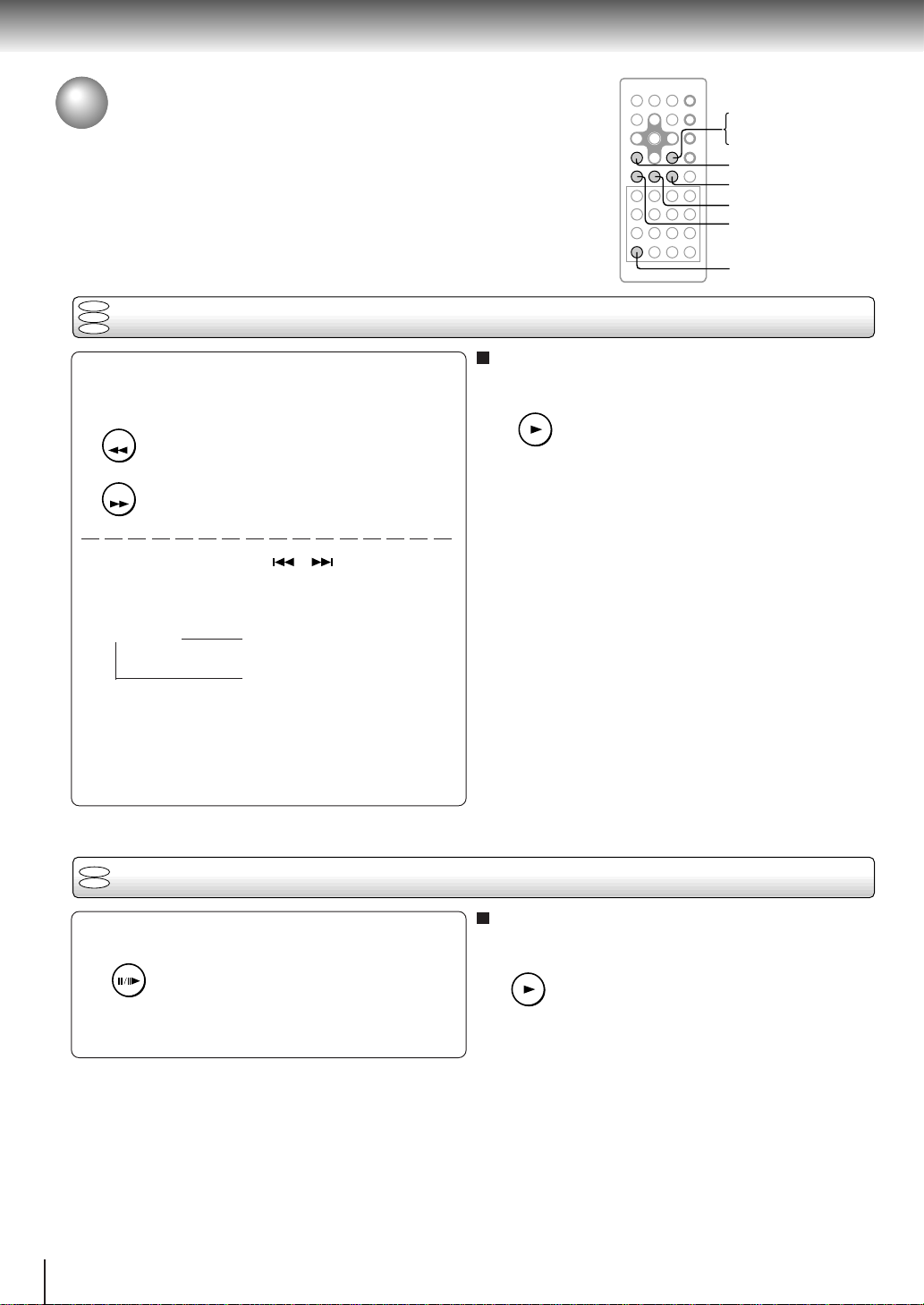

Variable Speed Playback .......................24

Playing in fast reverse or fast forward

directions......................................................24

Playing frame by frame...................................24

Playing in slow-motion.................................... 25

Resuming playback from the same location... 25

Locating a Specific Title, Chapter, or

Track ........................................................26

Locating a title using the top menu................. 26

Locating a title by entering the title number.... 26

Locating a specific chapter or track directly.... 27

Locating a specific chapter or track................ 27

Advanced playback

Accessing a Specific Location Directly ..

Entering the time counter of the desired location ...

Playing Repeatedly.................................31

Repeating a title, chapter, or track .................. 31

Repeating a specific segment ........................ 31

Playing in a Favorite Order....................32

Setting titles, chapters, or tracks in a favorite

order.............................................................32

Playing in Random Order ......................33

Playing titles, chapters or tracks in random

order.............................................................33

Zooming a Picture ..................................34

Zooming a picture........................................... 34

Selecting the Picture Enhancement

(E.P.M.) .....................................................35

Selecting the picture enhancement ................ 35

Selecting the Sound Enhancement

(E.A.M.) ....................................................36

Selecting the sound enhancement ................. 36

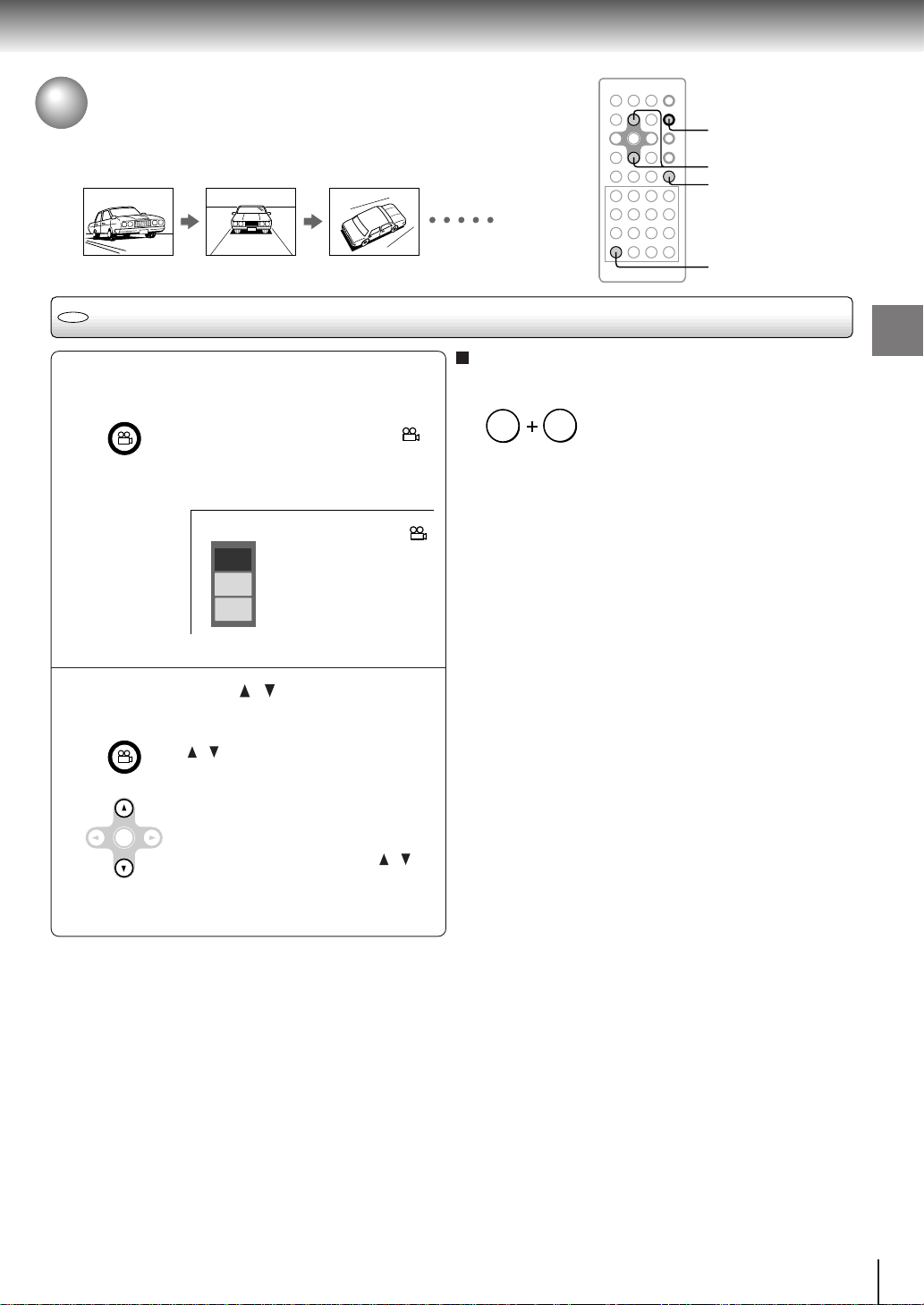

Selecting a Camera Angle......................37

Changing the camera angle ........................... 37

Selecting Subtitles .................................38

Selecting a subtitle language ......................... 38

Selecting a Language.............................39

Selecting a playback audio setting ................. 39

Operating in the On-screen Display

Mode ........................................................40

On-screen display operation...........................40

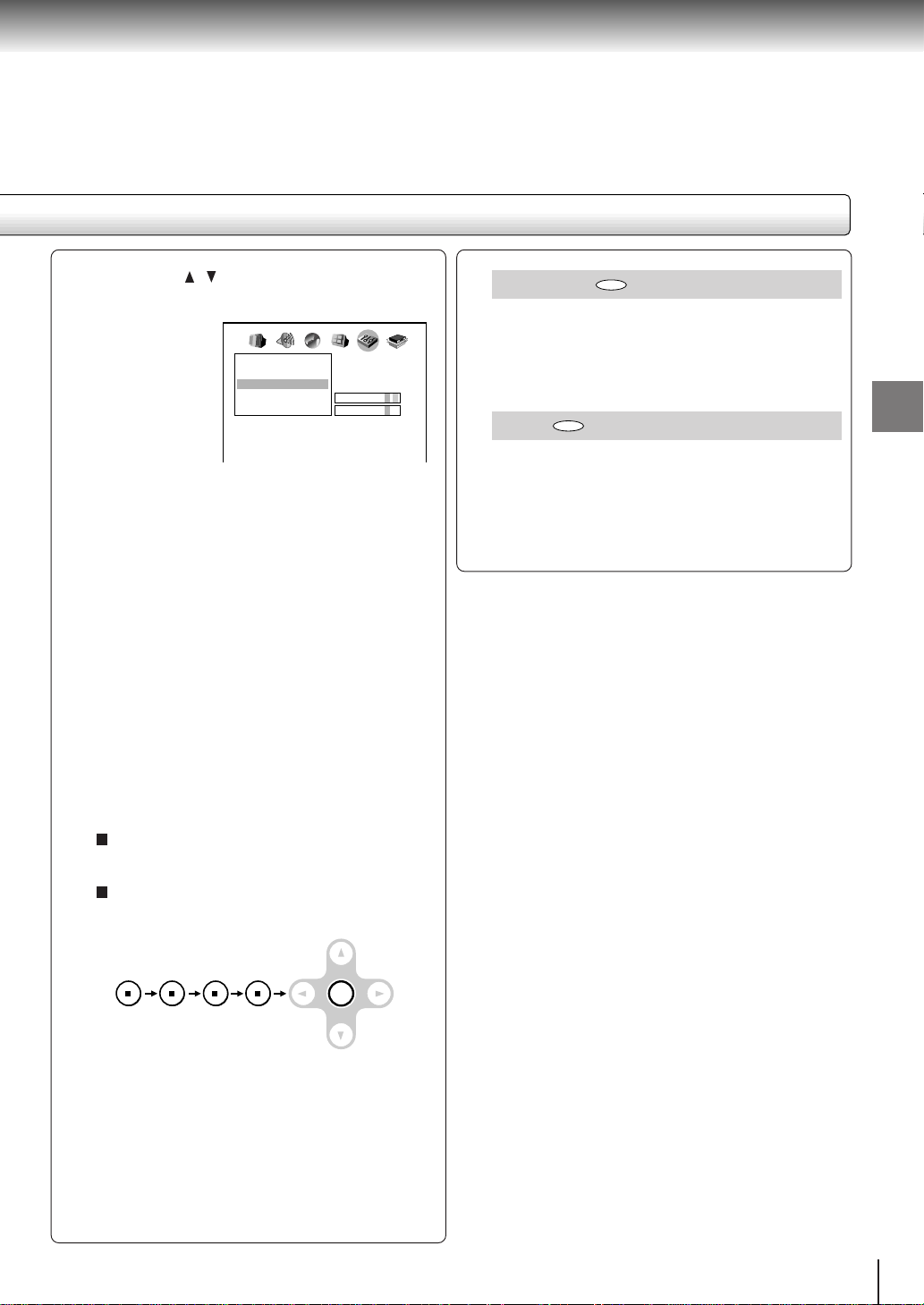

Function setup

Customizing the Function Settings ......44

Setting procedure ........................................... 44

Setting details................................................. 46

Table of Languages ................................53

Table of languages and their abbreviations .... 53

Connections

Connecting to a TV.................................56

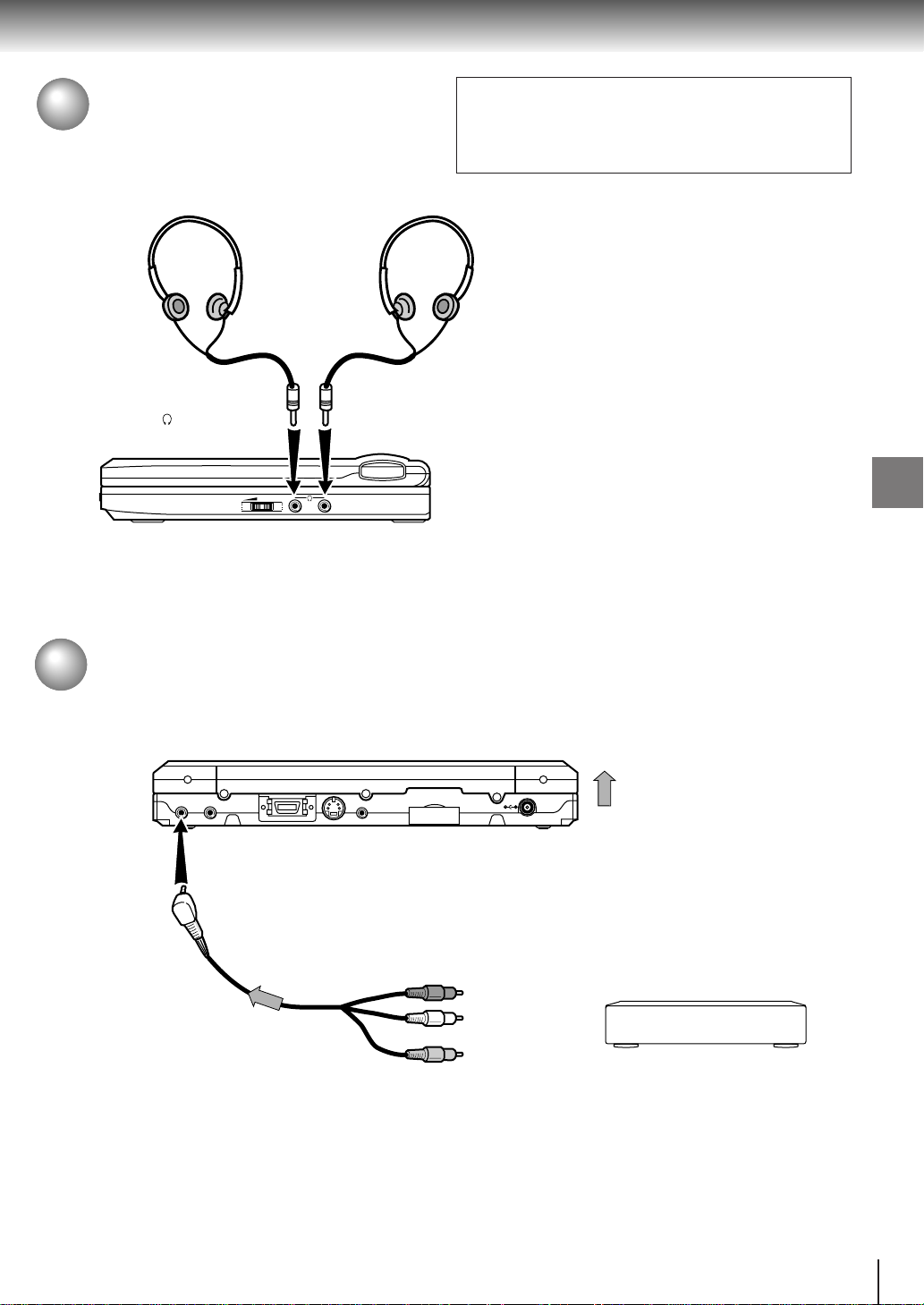

Connect to Headphones ........................57

Viewing Pictures from Connected

Video Equipment ....................................57

Connecting to Optional Equipment ......58

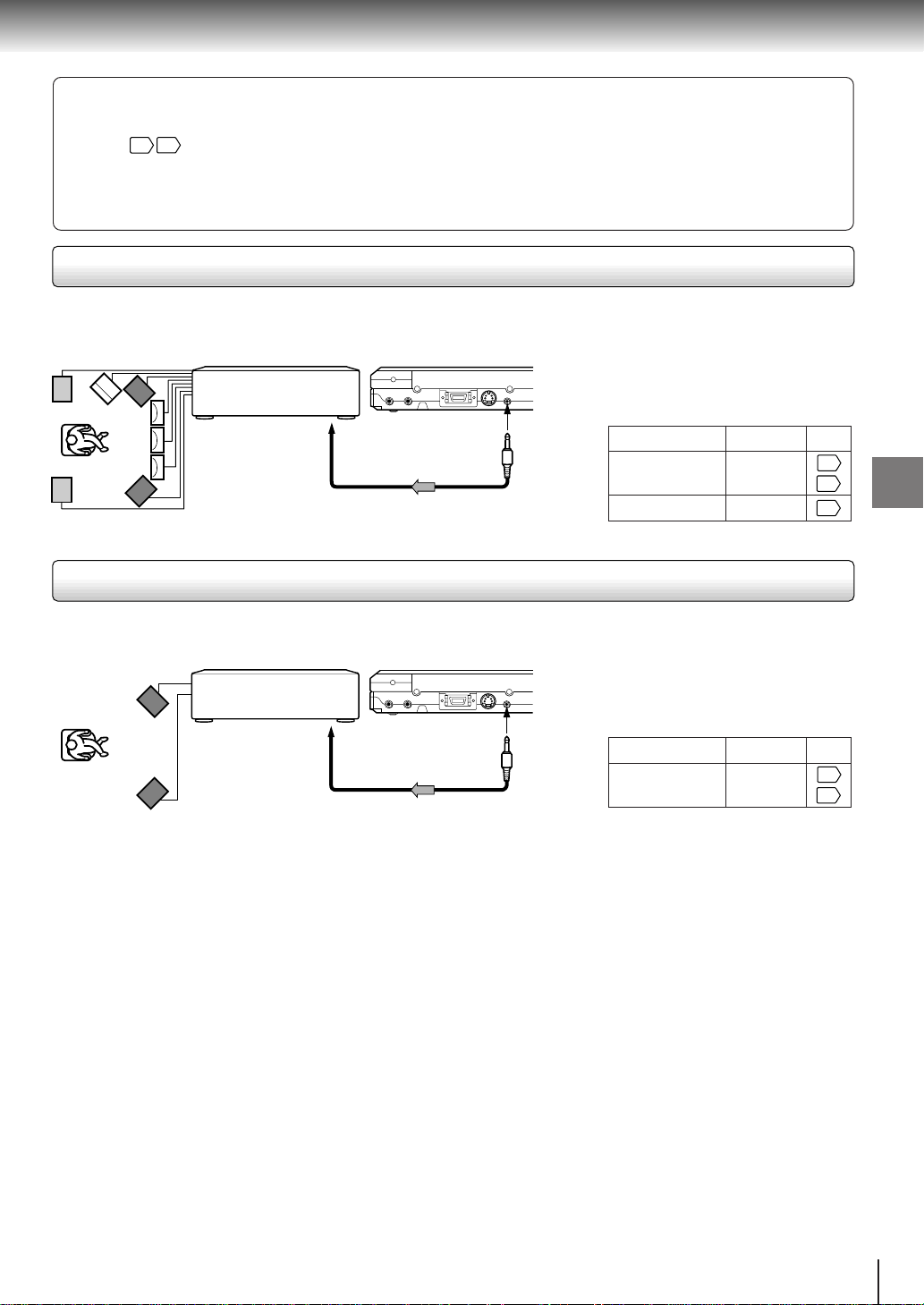

Connecting to an amplifier equipped with a

Dolby Digital decoder ................................... 58

Connecting to an amplifier equipped with

Dolby Pro Logic Surround ............................ 58

Connecting to an amplifier equipped with a

DTS decoder ................................................ 58

Connecting to an amplifier equipped with an

MPEG2 audio decoder.................................59

Connecting to an amplifier equipped with a

digital audio input ......................................... 59

Using the battery pack ...........................60

Others

Before Calling Service Personnel ......... 64

Specifications .........................................65

LIMITED WARRANTY PORTABLE DVD

PLAYER ...................................................66

Introduction

Page 14

Introduction

Identification of Controls

See the page in for details.

Main unit

Press this button to open the top cover.

LCD

Speakers

Disc cover

Disc cover open button

Top cover open switch Remote sensor

POWER/CHG (Power/Charge) indicator

E.A.M. button SETUP button

DISPLAY button TOP MENU button

MENU button

RETURN button

SETUP E.A.M. POWER

PAUSE/STEP button

STOP button

OPEN

DISPLAY

LCD MODE

TOP MENU

MENU ENTER

RETURN

PAUSE SKIP

STOP PLAY

POWER button LCD MODE button

ENTER button

Direction buttons

( / / / )

SKIP buttons

( / )

PLAY button

Page 15

Identification of Controls (continued)

See the page in for details.

Side view

Rear Side

Volume control

VOLUME

Headphone jack 1

Headphone jack 2

Introduction

AV IN AV OUT

AV OUT jack

AV IN jack

COMPONENT

VIDEO

COMPONENT VIDEO connector

S VIDEO

BITSTREAM/PCM jack

S VIDEO jack

BITSTREAM/PCM

Battery pack connector cover

BATTERY

585659

DC IN 12V

DC IN jack

Page 16

Introduction

Identification of Controls (continued)

The instructions in this manual describe the functions of remote control. See the page in for details.

Remote control

MENU button (see below) TOP MENU button

SKIP button

ENTER button Direction buttons

( / / / ) REV button

PAUSE/STEP button STOP button

Number buttons

SHIFT button REPEAT button

RANDOM button

SETUP

TOP MENU

SKIP SKIP

REV

PAUSE/STEP

123

456

ENTER

DISPLAY

SLOW

FWD

PLAYSTOP

POWER

ANGLE

SUBTITLE

AUDIO

CLEAR RETURN

E.P.M. E.A.M.

ZOOM DIMMER

7890

RANDOM MEMORY

SHIFT

REPEAT

A-B

RPT

+10

DISPLAY button

SETUP button

POWER button SKIP button

ANGLE button

SUBTITLE button FWD button SLOW button

AUDIO button RETURN button

CLEAR button PLAY button

E.A.M. button

E.P.M. button

DIMMER button

ZOOM button

T button

A-B RPT button

MEMORY button

“ * ” buttons Operate these buttons while simultaneously pressing the SHIFT button.

MENU button Use the MENU button to display the menu included on many DVD video discs. To operate a menu, follow the instructions in “Locating a title using the top menu.”

Page 17

Loading a battery

Operating with the remote control

Introduction

While pushing the holder in direction

, simultaneously slide it out in

direction

Backside

Set a coin-shaped battery (CR2025) with the side up on the holder.

CR2025

Keep the holder horizontal so that the battery does not fall through.

Push the holder back into its receptacle.

Point the remote control at the remote sensor and press the buttons.

30°

Within about 7 m (23 feet)

SETUP

TOP MENU

POWER

DISPLAY

ANGLE

SKIP SKIP

SUBTITLE

ENTER

AUDIO

SLOW FWD

REV

CLEAR

PAUSE/STEP

PLAYSTOP

RETURN

Distance: About 7 m (23 feet) from the front of the

remote sensor

Angle: About 30° in each direction of the front of

the remote sensor

* Do not expose the remote sensor of the player to a

strong light source such as direct sunlight or other illumination. If you do so, you may not be able to operate the player via the remote control.

Backside

Notes on coin-shaped batteries

• If the remote control does not function correctly or if the operating range becomes reduced, replace the battery with new one.

• See 8 for safety use of coin-shaped batteries.

Notes on the remote control

• Direct the remote control at the remote sensor of the player.

• Do not drop or give the remote control a shock.

• Do not leave the remote control near an extremely hot or humid place.

• Do not spill water or put anything wet on the remote control.

• Do not open the remote control.

Page 18

Introduction

Power Connection

Connect the supplied AC adapter to power the player. For outdoor use, the battery pack (supplied) is also available. When using the battery pack, follow the instructions on page 60.

Caution

• Do not connect the power plug to a power outlet other than that indicated on the label, as this can result in a risk of fire or electric shock.

• Do not connect or disconnect the power plug with wet hands. Doing so may cause electric shock.

• Do not use an AC adapter other than one specified, as it can cause a fire or damage to the player.

AV IN AV OUT

To wall outlet

COMPONENT

VIDEO

S VIDEO

BITSTREAM/PCM

Follow steps 1 to 3 to connect. When disconnecting, reverse the order.

Connect the supplied AC adapter and the power cord firmly.

Power plug

Power cord

BATTERY

AC adapter

DC IN 12V

To the DC inlet

Page 19

Basic playback

Begin your operation.

Playing a Disc Variable Speed Playback Locating a Specific Title,

Chapter, or Track

About this manual

• The numbers indicated with lines on the illustrations correspond to the numbers of the steps in the operations.

• Aside from the section “Playing a Disc” (pages 20 to

23), explanations of operations only include illustrations of the buttons on the remote control, but the buttons with the same names on the main unit can be used in the same way.

Page 20

Basic playback

OPEN

Playing a Disc

This section shows you the basics on how to play a disc.

indicates a reference page of this manual.

See the page in for details.

DVD VCD

Basic playback

CAUTION

• Keep your fingers well clear of the disc as it is spinning. Neglecting to may cause serious personal injury.

• Be careful not to catch your fingers in the disc holder.

• Do not use a cracked, deformed, or repaired disc.

Preparations

• Connect the AC adapter 18 or the battery pack 60 to the player.

• When you want to view a disc on a connected TV or monitor, turn on the equipment and select the video input connected to the player.

• When you want to enjoy the sound of discs from an audio system, turn the audio system on and select the input connected to the player.

• If you use the supplied remote control, make sure that batteries are loaded in it.

• If you use the headphones, see “Connect to headphones”.

• Slide the top cover open button rightwards to open the top cover .

Slide this switch rightwards to open the top cover.

Turn on the power.

POWER

The player turns on and the POWER/CHG indicator on the player illuminates in green.

When the player is turned on for the first time, an initial set-up display appears. See “Initial Setup” and make the proper settings before proceeding to step 2.

Press POWER.

Open the disc cover.

The cover is designed to stop at 2 positions. Do not force the cover open further, as it may cause damage to the player.

Press OPEN on the main unit. The disc cover opens.

Set a disc.

TOP MENU

STOP

POWER/CHG indicator

SETUP

ENTER

/ / /

Place a disc with the playback side down, and push gently on the center of the disc to affix it to the spindle.

Close the disc cover.

Press CLOSE on the right corner.

Page 21

TOP MENU

Initial Setup

TV Shape Audio Out Select

On-Screen Language

ENG 16:9 Bitstream

MENU SETUP

/ / /

ENTER

STOP

SHIFT

To obtain a higher quality picture

Occasionally, some picture noise not usually visible during a normal broadcast may appear on the TV screen while playing a DVD video disc because the high resolution pictures on these discs include a lot of information. While the amount of noise depends on the TV you use with this player, you should generally reduce the sharpness adjustment on your TV when viewing DVD video discs.

VCD CD

DVD

VCD CD

icons on the heading bar show the playable discs relevant to the

About

The function described under each heading.

DVD

: You can use this function with DVD video discs.

VCD

: You can use this function with VIDEO CDs.

: You can use this function with audio CDs.

Basic playback

Start playback.

To start playback in the stop mode.

Press PLAY.

Notes

• Do not put an unplayable disc or any objects other than discs in the disc holder.

• Do not tilt, shake or move the main unit while playing. It may damage the disc.

• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press the STOP button once the movie is completed.

PLAY

Press PLAY.

If you select a DVD video disc that contains a top menu, or select a PBC (Playback Control)-

featured VIDEO CD ( See “Locating a title using the top menu”.

), a menu may appear.

• You may need to press the TOP MENU or MENU button to display disc menu (depending on the actual DVD video disc.)

PLAY

Initial set-up

Make the following settings on the display. On-Screen Language: Select the appropriate

on-screen language. TV Shape: Select a picture size according to the aspect ratio of your TV. When you use the LCD of this player,

select “16:9 Widescreen.” (See

for details.) Audio Out Select: Select the output sound format corresponding to your audio system connection. (See

for details.)

1 Press

/ to select “On-Screen Language,” and

press ENTER. 2 Select a language using 3 Press

to select “TV Shape,” and press ENTER. 4 Select a picture size using 5 Press

to select “Audio Out Select,” and press

/ , and press ENTER.

ENTER.

6 Select an output sound using

/ , and press

ENTER.

7 Finally press SETUP. (If you use the remote control,

press SETUP while pressing SHIFT.)

All your selections are entered and the display disappears. To change your settings, see “Customizing the Function Settings.”

Page 22

Basic playback

PLAY

DIMMER

STOP PAUSE/STEP

POWER

STOP

OPEN

Playing a Disc (continued)

Basic playback (continued)

To pause playback (still mode)

Press PAUSE/STEP during playback.

PAUSE

To resume normal playback, press PLA Y.

• Sound is muted during still mode.

PAUSE/STEP

To stop playback

Press STOP.

Volume control

Disc cover open button

STOP

PAUSE/STEP

To change LCD brightness

Press DIMMER on the remote control.

ZOOM DIMMER

4 pre-selected brightness levels are provided.

To adjust the volume of the speakers or the connected headphones

Turn volume control.

VOLUME

POWER

LCD MODE

STOP

To turn off the power

Press POWER.

POWER

To remove the disc

Press the disc cover open button on the main unit to open the disc cover.

Remove the disc from under the rim while gently pressing down on its center.

CAUTION

Do not touch the spindle immediately after prolonged play, as it may have become hot. Be careful in loading/removing a disc.

Page 23

Basic playback

To change LCD mode

Press LCD MODE on the main unit

LCD MODE

Each time you press LCD MODE, the LCD mode (picture size) changes as follows.

Picture for playing

4:3 picture size

16:9 (widescreen) picture size

(Masking bars appear on both sides of the picture)

LCD MODE

Normal Cinema

Off

Normal

(Enlarged to fit the screen and eliminate/reduce letterbox bands on video)

Wide

(Streched horizontally)

Off

Note

In the cinema mode, the picture will be streched when displayed on the LCD monitor. Comparing with the original one, the picture may be viewed vague. It is not abnormal.

About the screen saver

If you pause a picture of a DVD video disc and leave it still for a long while, the screen saver of the player automatically appears (when “Screen Saver” is set to “On”

). To turn off the screen saver, press the PLAY

button on the main unit or remote control.

Automatic Power Off function

If the player is stopped, or the screen saver is engaged for approximately 20 minutes, the player will automatically turn itself off.

About the LCD

• The color LCD is manufactured using extremely high

precision technology, but even so may include certain pixels that do not operate properly (that do not light, that remain lit constantly, etc.). We do our best to keep the number of these defective pixels to a minimum, but please understand that they cannot be completely eliminated even with the most advanced manufacturing technologies available today.

• The fluorescent tube which illuminates the panel

from the inside will deteriorate with use. (The standard life length is about 10,000 hours of continuous use at normal temperature.) When the LCD becomes dim, flickers, or does not illuminate, contact your dealer for replacement.

4:3LB (letterbox) picture size

Normal

(Masking bars appear around the picture.)

Off

Cinema

(Full display)

Wide

(Streched horizontally)

When you view pictures on the LCD of this player, set the “TV Shape” to “16:9 Widescreen”.

Page 24

Basic playback

PLAY

SHIFT

SLOW FWD

REV

STOP PAUSE/STEP

Variable Speed Playback

You can play discs at various speeds, and resume playback from the location where you stopped playback.

DVD VCD

Playing in fast reverse or fast forward directions

Press REV or FWD on the remote control during playback.

REV

SLOW

FWD

REV: Fast reverse playback FWD: Fast forward playback

Each time you press the REV or FWD button, the playback speed changes.

Press and hold SKIP ( / ) on the main unit during playback.

Fast forward playback

Fast reverse playback

During the fast forward or fast reverse playback, you can vary the speed by pressing the button repeatedly.

DVD

Playing frame by frame

VCD

To resume normal playback

Press PLAY.

PLAY

Notes

• The player mutes sound and omits subtitles during reverse

and forward scan of DVD video discs. However, the player plays sound during fast forward or fast reverse play of audio CDs.

• The speed of the fast forward or fast reverse playback may

vary depending on the disc.

Press PAUSE/STEP during still playback.

PAUSE/STEP

Each time you press the PAUSE/ STEP button, the picture advances one frame.

To resume normal playback

Press PLAY.

PLAY

Note

The sound is muted during frame by frame playback.

Page 25

SKIP ( / )

PLAY

STOP

DVD

Playing in slow-motion

VCD

PAUSE/STEP

Basic playback

Press SLOW while pressing SHIFT during playback.

SHIFT

SLOW

FWD

DVD VCD

Resuming playback from the same location

Each time you press the SLOW button, the slow-motion speed changes.

Press STOP at the location where you want to interrupt playback.

STOP

The player memorizes the location where playback is stopped.

Press PLAY.

PLAY

The player resumes playback from the location where you stopped playback.

Press PLAY.

Note

The sound is muted during slow-motion playback.

To start playback from the beginning regardless of the location where you stopped playback

1 Press STOP twice.

2 Press PLAY.

• If you want to return to the beginning of a DVD video

To resume normal playback

PLAY

STOP

PLAY

disc, turn the power off and on by pressing the POWER button, and then start playback.

The player’s memory is cleared.

Playback starts from the

DVD

beginning of the current title.

VCD

Playback starts from the

beginning of the disc.

Notes

• The player’s memory is also cleared when: –you change the parental lock setting 50 or select a disc

menu language 48.

–you use a PBC-featured VIDEO CD while “PBC” is set to

“On” 51.

• There may be a difference in the location where playback resumes depending on the disc.

• Settings you changed using the on-screen displays while the player keeps a location in the memory may function only after the memory is cleared.

Page 26

Basic playback

Locating a Specific Title, Chapter, or Track

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs are divided into tracks. You can quickly locate any specific title, chapter, or track.

DVD video disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

DVD

Locating a title using the top menu

Track 1

VIDEO CD/Audio CD

Track 2 Track 3 Track 4 Track 5

Press TOP MENU.

TOP MENU

The top menu appears. e.g.

TITLE 1

TITLE 3

TITLE 2

TITLE 4

Press / / / to select the title you want.

If the titles in the top menu are

ENTER

DVD

Locating a title by entering the title number

assigned a number, you can directly locate a specific title by pressing its designated number with the number buttons.

Notes

• The instructions above describe basic procedures which may vary depending on the contents of the DVD video disc. If different instructions appear on the screen, follow those instructions.

• If you display the top menu during playback and press the TOP MENU button again without selecting any title, the player may resume playback from the point where you first pressed the TOP MENU button (depending on the actual DVD video disc.)

• This method of locating a title is available only on a disc that contains a top menu.

• Instruction notes of discs may refer to the button that displays the top menu as TITLE button.

Press T.

Make sure that the space of “T (Title)” is highlighted. (You can shift the highlight using the

/ buttons.)

e.g.

–:––:––

Enter the number for the title you want, using / or the number buttons.

Notes

• Pressing the CLEAR button while pressing the SHIFT button resets the title and chapter numbers. To clear the “T (Title)” and “C (Chapter)” display, press the T button several times.

• This method of locating a title is available only on a disc that contains title numbers.

Press ENTER.

Playback starts from chapter 1 of the

ENTER

selected title.

Press PLAY.

PLAY

Playback starts from chapter 1 of the selected title.

e.g. To select title 2

To select title 12

1 2

Page 27

TOP MENU SKIP

/ / /

ENTER PLAY CLEAR

Number buttons T

SHIFT

DVD VCD

Locating a specific chapter or track directly

TOP MENU

SKIP ( / )

Press T.

e.g.

Press to highlight the space of “C (Chapter).”

e.g.

ENTER

Enter the number for the chapter or track you want, using / or the

number buttons.

You can use the +10 button to select numbers from 10 through 99.

e.g. To select chapter or track 25

–:––:––

To select a title and chapter number at the same time

Perform step 1, and enter a title number you want in the space next to “T (Title)” using buttons, then perform steps 2 to 4.

Notes

• Pressing the CLEAR button while pressing the SHIFT button resets the title and chapter numbers. To clear the “T (Title)” and “C (Chapter)” display, press the T button several times.

• If you are using a VIDEO CD/audio CD, skip steps 1 and 2, then at step 3, enter the number for the track you want using the number buttons, and go to step 4.

/ / /

Press PLAY.

PLAY

Basic playback

Playback starts from the selected chapter or track.

/ or the number

2 5

+10

DVD VCD

Locating a specific chapter or track

SHIFT

+10

0 5

Press SKIP ( / ) repeatedly to display the chapter or track number you want.

Playback starts from the selected chapter or track.

SKIP

To locate succeeding chapters or tracks.

Playback starts from the beginning of the current chapter or track. When you press twice, playback starts from the beginning of the preceding chapter or track.

Notes

• Some titles may not display chapter numbers.

• When you set “Title Stop” to “Off” 51, you can access chapters in another title. If you go back to the preceding title by pressing the SKIP button, the player locates the first chapter of the title. When “Title Stop” is set to “On,” you can access chapters only within the current title.

Page 28

Page 29

Advanced playback

Customizing the performance of your player.

Accessing a Specific Location Directly

Playing Repeatedly Playing in a Favorite Order Playing in Random Order Zooming a Picture Selecting the Picture

Enhancement (E.P.M.) Selecting the Sound

Enhancement (E.A.M.) Selecting a Camera Angle Selecting Subtitles Selecting a Language Operating in the On-screen

Display mode

Page 30

Advanced playback

Accessing a Specific Location Directly

You can access a specific location by entering its corresponding time (hours, minutes, seconds).

DVD VCD

Entering the time counter of the desired location

2 1

Press T.

You may have to press further depending on the disc. Press the button repeatedly until the clock icon is highlighted.

e.g.

–:––:––

Press the number buttons to enter the time.

e.g.

1 2 5 3 0

1:25:30

Press PLAY.

Notes

• Some discs may not respond to this process.

• Some scenes may not be located precisely as you specified.

• This method for accessing specific locations is available only within the current title of the DVD video disc or within the current track of the VIDEO CD/audio CD.

PLAY

Playback starts from the desired location.

Page 31

Playing Repeatedly

PLAY

CLEAR

A-B RPT

SHIFT

REPEAT

DVD

DVD VCD

VCD

You can play a specific title, chapter, track, or segment repeatedly. (Title repeat, chapter/track repeat, A-B repeat)

DVD VCD

Repeating a title, chapter , or track

Press REPEAT.

RANDOM

REPEAT

DVD VCD

Repeating a specific segment

Each time you press the REPEAT button, the repeat mode changes as follows.

Chapter Repeat

Title Repeat Track Repeat

All Repeat

Repeat Off

Repeats the same chapter.

Repeats the same title. Repeats the same track.

Repeats the entire disc.

Resumes normal playback.

Press PLAY.

PLAY

To resume normal playback

Press CLEAR while pressing SHIFT.

SHIFT

Note

Some discs may not permit repeat operation.

The player starts repeat playback. Press the PLAY button within about 5 seconds after you press the REPEAT button.

CLEAR RETURN

Advanced playback

Press A-B RPT at the beginning of the segment (point A) you want to play

repeatedly.

MEMORY

A-B

RPT

A–

Press A-B RPT again at the end of the segment (point B).

MEMORY

A-B

RPT

The player automatically returns to point A and starts repeat playback of the selected segment (A-B).

A–B

Press CLEAR while pressing SHIFT.

CLEAR

SHIFT

Notes

• Some discs may not permit A-B repeat operation.

• You can specify a segment only within the current title or track.

• You cannot set the A-B repeat function for a segment that includes multiple camera angles 37.

• There may be a slight difference between point A and the location where playback actually resumes depending on the disc.

RETURN

To resume normal playback

Page 32

Advanced playback

PLAY

SHIFT

MEMORY

CLEAR

/ / /

ENTER

Number buttons

---

Playing in a Favorite Order

You can combine your favorite titles, chapters, or tracks and play them in the order you determine. You can program up to 30 selections into the memory. (Memory playback)

DVD VCD

Setting titles, chapters, or tracks in a favorite order

Set a disc and press MEMORY while pressing SHIFT during stop.

SHIFT

MEMORY

A-B

RPT

T : Title number CT: Chapter number or

track number

The following display appears.

---

Select the items in the order you want by pressing the number buttons, then

ENTER for each item.

Each time you press the / button, the space of “T” and “CT” is highlighted in turn. Highlight where you want to enter, then press the corresponding number buttons.

To select another chapter in the same title, you do not need to select the title number.

To select tracks from a VIDEO CD/audio CD in order, press the number buttons for the track, then press the ENTER button for each selection you want.

Note

The space of “T (Title)” may be showing a number. Neglect this number when using a VIDEO CD/audio CD.

Press PLAY while the display appears on the screen.

PLAY

The player starts memory playback.

T o change the programmed selections

1 While the display appears on the screen, press /

to move the highlighted bar to the item you want to change.

2 Change the selection following the instructions in

step 2.

T o cancel the programmed selections

1 While the display appears on the screen, press /

to move the highlighted bar to the item you want to cancel.

2 Press CLEAR while pressing SHIFT.

T o resume normal playback from memory playback

Press CLEAR while pressing SHIFT.

CLEAR

SHIFT

RETURN

To program during playback

If you press the MEMORY button while pressing the SHIFT button during playback, a programming display

appears. Follow steps 2 and 3.

Notes

• Some discs may not permit memory playback operation.

• If you press the REPEAT button during memory playback, the player repeats the current memory playback.

• When the display appears on the screen, if you press the RETURN button or press the MEMORY button while pressing the SHIFT button, the display disappears.

• The programmed selections will be cleared when you turn off the player.

Page 33

Playing in Random Order

You can play titles, chapters within a title, or tracks in random order. (Random playback)

DVD VCD

Playing titles, chapters or tracks in random order

CLEAR PLAY

RANDOM SHIFT

Press RANDOM while pressing SHIFT.

SHIFT

RANDOM

REPEAT

DVD

VCD

Each time you press the RANDOM button, the random mode changes as follows.

Chapter Random

Title Random

Track Random

Random Off

If you press the RANDOM button during playback, the player automatically starts random playback after finishing the current title, chapter or track.

Plays chapters in the same title in random order.

Plays titles in random order.

Plays tracks in random order.

Resumes normal playback.

To resume normal playback

Press CLEAR while pressing SHIFT.

CLEAR

SHIFT

Notes

• Some discs may not permit random playback operation.

• You cannot use the random playback function in conjunction with the memory playback feature.

RETURN

Advanced playback

Press PLAY.

PLAY

The player starts random playback. Press the PLAY button within about 5 seconds after you press the RANDOM button.

Page 34

Advanced playback

SHIFT

CLEAR ZOOM

/ / /

Zooming a Picture

You can magnify areas within a picture.

DVD

Zooming a picture

Press ZOOM, while pressing SHIFT during normal, slow or still playback.

SHIFT

ZOOM DIMMER

ENTER

The DVD video player enters the zoom playback mode and displays the icon.

e.g.

: As you repeatedly press the ENTER

(or ZOOM while pressing SHIFT) button while “ZOOM” is selected, the magnification level changes. Variation of the levels includes image reduction.

: If you press the ENTER button while

“EXIT” is highlighted, you can turn off the icon, keeping the current magnification level.

You can shift the highlight within the icon by the

If you press and hold the

/ / / buttons.

/ / /

buttons, the zoom point shifts.

To resume normal playback

While “ZOOM” is selected, press ENTER repeatedly to turn off the icon. Picture restores the size when the icon disappears.

ZOOM DIMMER

• The ENTER button cannot cancel zoom playback if you have turned off the icon by selecting “EXIT.” To restore normal picture size, press the ZOOM button to display the icon, then press the ENTER button until the icon turns off.

Notes

• Some discs may not respond to zoom feature.

• During some scenes, the buttons may not work as described.

• Zooming does not work on subtitles or menus included on DVD video discs.

• While the icon is displayed, the / / / buttons cannot work on menus included on the DVD video discs. If you want to view the menus, turn off the icon.

• The magnification level varies depending on the picture size you select.

SHIFT

Pressing the CLEAR button while pressing the SHIFT button restores the zoom point to the center of the

CLEAR RETURN

picture.

Page 35

Selecting the Picture Enhancement

SHIFT

ENTER

2 1, 2

(E.P.M.*)

You can easily select a preferred picture enhancement.

*E.P.M.: Enhanced Picture Mode

DVD VCD

Selecting the picture enhancement

Press E.P.M. while pressing SHIFT.

SHIFT

E.P.M. E.A.M.

The picture enhancement menu appears.

Select the picture enhancement by pressing E.P.M. while pressing SHIFT or

by pressing / .

Each time you press the button, the picture enhancement changes.

Normal: Standard black level (7.5 IRE).

To exit the picture enhancement selection

Press ENTER.

Alternatively leave the DVD video

ENTER

Note

Actual effects to picture may vary depending on the TV. Make selection according to your preference.

player unattended for about 5 seconds after having made a selection.

Advanced playback

Enhanced Black Level: Enhanced Black Level (0 IRE).

Movie 1: Brightness levels raised for enhanced picture quality.

Movie 2: For deeper, richer color reproduction.

Animation: For enhanced color contrast.

Page 36

Advanced playback

ENTER

2 1, 2

Selecting the Sound Enhancement (E.A.M.*)

You can easily select a preferred audio enhancement.

*E.A.M.: Enhanced Audio Mode

DVD VCD

Selecting the sound enhancement

Press E.A.M.

E.P.M. E.A.M.

The sound enhancement menu appears. You can also use the E.A.M. button on the main unit.

Select the sound enhancement by pressing E.A.M. or / .

Each time you press the button, the sound enhancement changes.

Normal: Normal sound.

3D (N-2-2): To obtain expansive virtual surround sound effects from just two speakers.

To exit the audio enhancement selection

Press ENTER.

Alternatively leave the DVD video

ENTER

Notes

• Actual effects to sounds may vary depending on the speaker system. Make the selection to your preference.

• Actual effects to sounds may vary depending on the disc.

• When the DVD video player is connected to an amplifier equipped with Dolby Pro Logic Surround, select “Normal”. Otherwise, Dolby Pro Logic Surround may function differently than usual.

• Selecting “Dialogue” disables the “Dynamic Range Control” function 47.

* Spatializer® 3-Dimensional Sound Processing provided by

Desper Products. Inc. Certain audio features of this product manufactured under a license from Desper Products, Inc., Spatializer® and the circle-in-square device are trademarks owned by Desper Products, Inc.

player unattended for about 5 seconds after having made a selection.

3D headphone (N-2-2): To obtain expansive virtual surround sound effects when using headphone.

Dialogue: To control critical center channel information to make dialogue more intelligible (only when playing a DVD video disc recorded on the Dolby Digital recording system).

• To use this enhancement on sounds output from the BITSTREAM/PCM jack, be sure to set “Audio Out Select” to “PCM.”

Page 37

Selecting a Camera Angle

SHIFT

CLEAR

1, 2

If a scene was recorded with multiple angles, you can easily change the camera angle of the scene you are viewing.

DVD

Changing the camera angle

Press ANGLE while playing a scene recorded with multiple angles.

ANGLE

While playing a scene recorded with multiple angles, the angle icon ( appears on the screen. Press the ANGLE button while the angle icon is displayed.

e.g.

1 2 3

Press ANGLE or / while the angle number is displayed on the screen.

ANGLE

ENTER

Each time you press the ANGLE or

/ buttons, the camera angle

changes. You can change the camera angle

directly by pressing the number buttons corresponding to an angle number instead of using the buttons.

To turn off the angle number display

Press CLEAR while pressing SHIFT.

CLEAR

)

SHIFT

Notes

• After selecting angle, it will take a few minutes to change the camera angle of the scene you are viewing.

• You can change the camera angle during still playback. The camera angle changes to the new setting when you resume normal playback.

• If you pause a picture immediately after changing a camera angle, the resumed playback picture may not display the new camera angle.

RETURN

Advanced playback

Page 38

Advanced playback

Selecting Subtitles

You can display subtitles on the screen and select a subtitle language from those included on the DVD video disc.

Good evening!

DVD

Selecting a subtitle language

Press SUBTITLE during playback.

SUBTITLE

The abbreviation of the language appears instead of the language name. Refer to the list of languages and their abbreviations.

Press SUBTITLE or / while the subtitle setting is displayed on the

screen.

SUBTITLE

Bonsoir!

The current subtitle setting is displayed.

e.g.

¡Buenas tardes!

Off

JPN 1

FRE 1

SPA 1

Each time you press the SUBTITLE

/ button, the subtitle

or languages included on the DVD video disc change.

Notes

• Some DVD video discs display subtitles automatically, and

• During some scenes, subtitles may not appear immediately

• Some DVD video discs will allow you to make subtitle

/ / / SUBTITLE ENTER

CLEAR

SHIFT

To turn subtitles on or off

1 Press SUBTITLE during playback.

SUBTITLE

2 Press

the screen, to select “On” or “Off.”

you cannot turn them off even if you set the subtitle function to off.

after you select “On.” selections and turn subtitles on or off only via the disc menu.

/ while the subtitle setting is displayed on

ENTER

Notes

• When you turn on the player or replace a disc, the player returns to the initial default setting 48. When you select a subtitle language which is not included on the disc, the player plays a prior language programmed on the disc.

• During some scenes, the subtitles may not appear immediately after you change the subtitle language by pressing the / buttons.

To turn off the subtitle setting display, press the ENTER button, or press the CLEAR button while pressing the SHIFT button.

Page 39

Selecting a Language

SHIFT

2 1,2

CLEAR

You can select a preferred language and sound recording system from those included on the DVD video disc.

Good morning!

DVD

Selecting a playback audio setting

VCD

Bonjour!

Press AUDIO during playback.

AUDIO

The current audio setting is displayed.

e.g.

¡Buenos días!

Press AUDIO or / while the audio setting is displayed on the screen.

AUDIO

Each time you press the AUDIO or

/ button, the audio settings included on the DVD video disc change.

ENG1 PCM 2CH ENG2 D 2CH

The abbreviation of the language appears instead of the language name. Refer to the list of languages and their abbreviations.

Selecting sound channels of VIDEO CDs

During playback, press AUDIO repeatedly to select the sound channel.

AUDIO

Notes

• Some discs allow you to change audio selections only via the disc menu. If this is the case, press the MENU button and choose the appropriate language from the selections on the disc menu.

• When you turn on the player or replace a disc, the player returns to the initial default setting 48. If you select a sound track which is not included on the disc, the player plays a prior sound track programmed on the disc.

ENTER

If you press the

/ buttons, you

can select output sound format.

To turn off the audio setting display, press the CLEAR button while pressing the SHIFT button or press the ENTER button.

Advanced playback

Output sound conversion table (sampling frequency/quantization bit)

Audio selection from the menu

Discs

DVD video

discs

VIDEO CDs

Audio CDs

Recording system

Dolby Digital

Linear PCM

DTS MPEG2 MPEG1

Linear PCM

DTS

BITSTREAM/PCM

48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit 96 kHz/16 bit 96 kHz/20 bit 96 kHz/24 bit

44.1 kHz/16 bit

“Bitstream” “Analog 2ch”

jack

Bitstream 48 kHz/16 bit 48 kHz/20 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

Bitstream

44.1 kHz/16 bit

AV OUT jack AV OUT jack AV OUT jack

48 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit

44.1 kHz/16 bit

BITSTREAM/PCM

jack

Bitstream 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

Bitstream

44.1 kHz/16 bit

and output jacks on the rear panel

4744

BITSTREAM/PCM

48 kHz/20 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit 96 kHz/16 bit 96 kHz/20 bit 96 kHz/24 bit

48 kHz/16 bit48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

44.1 kHz/16 bit

: 3-D (N-2-2) sound enhancement can function.

48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

“PCM”

jack

48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit

44.1 kHz/16 bit44.1 kHz/16 bit44.1 kHz/16 bit

44.1 kHz/16 bit44.1 kHz/16 bit (Noise)Bitstream(Noise)Bitstream(Noise)Bitstream

Page 40

Advanced playback

DISPLAY

ENTER

Operating in the On-screen Display Mode

When you turn on the on-screen display, you can view information on operational status and access features and settings.

DVD VCD

On-Screen Display Operation

Press DISPLAY.

SETUP DISPLAY

The following display appears. You can also use the DISPLAY button on the main unit. Each time you press the DISPLAY button, the on-screen display changes as follows. If you press the

/ buttons to select an icon, then press the ENTER button, you can access the specific feature. When you select an icon ( See the pages in

), there is no need to press the ENTER button.

for details on the features.

e.g. When playing a DVD video disc

3 0:08:162

Press DISPLAY again.

-0:21:28

: Title number (Track number)

Locate a title or track using the number buttons.

: Chapter number

Locate a chapter using the number buttons.

: Elapsed time of the current title

To enter the time to locate a desired location.

: Audio setting

: Subtitle setting

: Angle setting

: To turn off the display.

: Title number (Track number)

Locate a title or track using the number buttons.

: Chapter number

Locate a chapter using the number buttons.

: Remaining time of the current title

To enter the time to locate a desired location.

: E.A.M. (Enhanced Audio Mode) setting

26 27

Press DISPLAY again.

: E.P.M. (Enhanced Picture Mode) setting

: To zoom a picture.

: “Audio Out Select” setting

BST: Bitstream 2CH: Analog 2ch PCM: PCM

: To turn off the display.

(continued)

Page 41

Title number (Track number)

Locate a title or track using the number buttons. 26

: Chapter number

Locate a chapter using the number buttons.

Advanced playback

Press DISPLAY again.

2 3

0:08:16

9.6

: To stop playback.

: Playback starts from the beginning of the current

chapter or track.

: Fast reverse playback

: To start playback.

: Fast forward playback

: To locate succeeding chapters or tracks.

: To begin slow motion playback.

: To pause playback.

: To turn off the display.

The on-screen display will vary depending on the disc.

DVD

: Data transfer rate (Mbit/s)

= Amount of picture, sound and subtitle data in the

DVD video disc transferred per second.

The larger the value is, the more data processed,

but this does not necessarily insure better picture quality.

: CD-Text

Displays CD-Text data if included on the audio CDs.

Press DISPLAY again.

(Some letters may not be displayed properly depending on the disc.)

VCD

: The on-screen display turns off.

The on-screen display disappears.

Page 42

Page 43

Function Setup

You can change the default settings to customize performance to your preference.

Customizing the Function Settings

Table of Languages

Page 44

Function setup

Customizing the Function Settings

You can change the default settings to customize performance to your preference.

DVD VCD

Setting procedure

1, 6 3, 4

RETURN

1, 6

Press SETUP while pressing SHIFT during stop. (For the main unit, only press SETUP.)

SHIFT

SETUP DISPLAY

The following on-screen display appears.


TV Shape

16:9 Normal

LCD Picture

Press / to select a symbol for the setting you want to change.

(See the next page.)

ENTER

Picture performance settings

Output sound settings

Press / to select the setting you want to change, then press ENTER.

ENTER ENTER

Change the selection by / or other buttons, by referring to the

corresponding pages 46, then press ENTER.

ENTER ENTER

Repeat steps 3 and 4 to change other settings.

To select another operation, go back to step 2.

Press SETUP while pressing SHIFT. (For the main unit, only press SETUP.)

SHIFT

SETUP DISPLAY

The on-screen display disappears.

Language settings

To return to the previous display

Display settings

Operational settings

Initial settings

Press RETURN.

CLEAR RETURN

Notes

• The on-screen display disappears when you press the SETUP button while pressing the SHIFT button. (For the main unit, only press SETUP.)

• The SETUP button can function even during normal playback, however some operations may be inaccessible, and a message will appear. In this case, try again after playback is stopped.

Page 45

1, 6 2

3, 4

RETURN

Setting Details Page

TV Shape

DVD

To select a picture size according to the aspect

ratio of your TV.

LCD Picture

Audio Out Select

Dynamic Range Control

DVD VCD

DVD

To select the picture quality of the LCD.

To select an output sound format corresponding to your system connection.

To turn on or off a function that makes faint

Function setup

sounds easier to hear even if you lower the volume during late hours playback.

Karaoke Vocal

DVD

To turn on or off the vocal output during DVD

KARAOKE disc playback.

On-Screen Language

Disc Menu Language

Audio Language

DVD VCD

DVD

To select a preferred language for on-screen displays.

To select a preferred language for disc menus.

To select a preferred language for the sound

track.

Subtitle Language

On-Screen Displays

Background

Screen Saver

DVD

DVD VCD

DVD

To select a preferred language for subtitles.

To turn on or de-activate the operational status display on the screen.

To select the background color for on-screen displays.

To turn the screen saver on or off.

Pause/Still

Parental Lock

Title Stop

PBC

On-Screen Language TV Shape Audio Out Select

DVD

VCD

DVD VCD

To select the resolution of still pictures. (Field/Frame)

To turn the parental lock function on or off.

To turn on or off a feature that automatically stops playback after a title has been viewed.

To use the menu when playing a PBC-featured VIDEO CD.

To install the initial system setting.

Page 46

Function setup

Customizing the Function Settings (continued)

Setting details


TV Shape

16:9 Fine

LCD Picture

TV Shape

DVD

4:3 Letterbox: Select when a standard 4:3 TV is

connected. Displays theatrical images with masking bars above and below the picture.

LCD Picture

Select the picture quality of LCD. Fine: Picture resolution is enhanced.

Normal: Picture resolution is normal.

Notes

• When you select “Fine”, picture will not be output from the video output. When you connect the player to a TV set, close up the LCD or press the LCD MODE button on the main unit to turn the LCD monitor off.

• Always select “Normal” when connecting the player to an external display via the video output(s).

DVD

VCD

4:3 Normal: Select when a standard 4:3 TV is

connected. Displays pictures cropped to fill your TV screen. Either or both sides of the picture are cut off.

16:9 Widescreen: Select when a 16:9 wide TV is

connected.

Notes

• The displayable picture size is preset on the DVD video disc. Therefore, the playback picture of some DVD video discs may not conform to the picture size you select.

• When you play DVD video discs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture area regardless of the TV shape setting.

• If you select “16:9 Widescreen” and you own a 4:3 TV set, the DVD playback picture will be horizontally distorted during playback. Images will appear to be horizontally compressed. Always be sure that your TV shape conforms to the actual TV in use.

• When you view pictures on the LCD of this player, select “16:9 Widescreen”.

Page 47

Audio

Audio Out Select

Audio Out Select Dynamic Range Control Karaoke Vocal

DVD

VCD CD

Bitstream On Off

Select the output sound format corresponding to your system connection. For details of sound recording systems, see 39.

Karaoke Vocal

DVD

Off: The primary vocal is not output. On: The primary vocal is output when it is recorded

on the disc.

Notes

• The vocal output feature is used during playback of Dolby Digital (multi-channel) recorded DVD KARAOKE discs. This feature allows you to turn off vocal audio tracks, or restore them for background accompaniment.

• When playing KARAOKE, connect appropriate audio equipment such as an amplifier to the player.

Function setup

Bitstream: Select when connected to an amplifier

equipped with a Dolby Digital, DTS,

MPEG1 or MPEG2 decoder.

The player outputs digital audio information in the bitstream format when you play a DVD video disc recorded on the Dolby Digital, DTS, MPEG1 or MPEG2 recording system.

Analog 2ch: Select when connected to a TV, or

Dolby Pro Logic or stereo system via

the analog audio jacks.

PCM: Select when connected to a 2 channel

digital stereo amplifier.

The player outputs sounds in the PCM 2ch format when you play a DVD video disc recorded on the Dolby Digital, MPEG1 or MPEG2 recording system.

Dynamic Range Control

DVD

Turn on or off a function that makes faint sounds easier to hear. Especially beneficial, if you lower the volume during late hours playback.

Off: Full dynamic range is maintained. On: Dynamic range is reduced.

Notes

• This function works only during playback of Dolby Digital recorded discs.

• The level of Dynamic Range Reduction may differ depending on the DVD video disc.

Page 48

Function setup

Language

Disc Menu Language Audio Language Subtitle Language

On-Screen Language

ENG English

French

Spanish

Others

Code

ENG ENG – – –

Customizing the Function Settings (continued)

Setting details

On-Screen Language

Language On-Screen Language Disc Menu Language Audio Language Subtitle Language

DVD

ENG ENG ENG – – –

VCD CD

English: To view on-screen displays in English. Français:To view on-screen displays in French. Español: To view on-screen displays in Spanish.

Disc Menu Language

DVD

English: To display disc menus in English. French: To display disc menus in French. Spanish: To display disc menus in Spanish. Others: To make a further choice.

After pressing the ENTER button, follow steps 1) - 4) below.

1) Obtain the abbreviation of the preferred

language from the list

2) Select the first character by pressing the

buttons.

3) Press the second character by pressing the

/ buttons to shift and select the

/ buttons.

Language On-Screen Language Disc Menu Language Audio Language Subtitle Language

ENG English ENG

French Spanish

ENG

Others

– – –

Code

4) Press the ENTER button.

Note

Some DVD video discs may not include your preselected language. In this case, the player automatically displays disc menus consistent with the disc’s initial language setting.

Audio Language

DVD

English: To play sound tracks in English. French: To play sound tracks in French. Spanish: To play sound tracks in Spanish. Others: To make a further choice.

After pressing the ENTER button, follow steps 1) - 4) below.

1) Obtain the abbreviation of the preferred

language from the list

2) Select the first character by pressing the buttons.

3) Press the second character by pressing the

/ buttons to shift and select the

buttons.

4) Press the ENTER button.

Note

Some DVD video discs may be played in a different language than you selected. A prior language may be programmed on the disc.

Subtitle Language

DVD

English: To display subtitles in English. French: To display subtitles in French. Spanish: To display subtitles in Spanish. No Subtitle: To disable subtitles. Others: To make a further choice.

After pressing the ENTER button, follow steps 1) - 4) below.

1) Obtain the abbreviation of the preferred

language from the list

2) Select the first character by pressing the buttons.

Page 49

Display

Background Screen Saver

On-Screen Displays

On Gray On

3) Press the / buttons to shift and select the second character by pressing the

buttons.

Language On-Screen Language Disc Menu Language Audio Language Subtitle Language

ENG English ENG

French Spanish

ENG

No Subtitle

– – –

Others Code

4) Press the ENTER button.

Notes

• Some DVD video discs may be set to display subtitles in a different language than you selected. A prior subtitle language may be programmed on the disc.

• Some DVD video discs allow you to change subtitle selections only via the disc menu. If this is the case, press the MENU button and choose the appropriate subtitle language from the selection on the disc menu.

VCD CD

On-Screen Displays

DVD

Off: Operational modes (e.g. “ ”, “ ”) are not

displayed.

On: Operational modes (e.g. “ ”, “ ”) are

displayed on-screen.

VCD CD

Background

DVD

Blue: Blue background. Gray: Gray background. Picture: To use the picture which appears when you

turn on the player as a background.

Jacket: To use the jacket picture included on some

discs as a background. If it is not included, a gray background will be substituted.

Function setup

Screen Saver

DVD

Off: The screen saver is disengaged. On: The screen saver operates.

Page 50

Function setup

Customizing the Function Settings (continued)

Setting details

Operation

Pause/Still

DVD

Pause/Still Parental Lock Title Stop PBC

Auto Off Off On

Auto: For normal use. Still and fast motion images

can be paused.

Frame: The resolution of still pictures is improved,

so that you can make a motionless picture sharper when you pause it.

Parental Lock

DVD

DVD video discs equipped with the parental lock function are rated according to their content. The contents allowed by a parental lock level and the way a DVD video disc can be controlled may vary from disc to disc. For example, if the disc allowed you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or lock out playback of the disc altogether.

• DVD video discs may or may not respond to the parental lock settings. This is not a defect in the player. Make sure this function works with your DVD video discs.

Off: The parental lock feature does not function.

After pressing the ENTER button, follow step 1) below.

On: To activate the parental lock feature or change

the settings. After pressing the ENTER button, follow steps

1) - 3) below.

Operation Pause/Still Parental Lock Title Stop PBC

Auto Off

Off Off

Security Code

– – – –

1) Press the number buttons to create a personal 4-digit security code, then press ENTER. If you make a mistake, before pressing the ENTER button, press the CLEAR button while pressing the SHIFT button and enter your 4digit security code again.

2) Enter the code of a country/area whose standards were used to rate the DVD video disc, referring to the list below.

Country/Area AUSTRALIA BELGIUM CANADA CHINA CHINA HONG KONG DENMARK FINLAND FRANCE GERMANY INDONESIA ITALY JAP AN MALA YSIA NETHERLANDS NORW AY PHILIPPINES RUSSIAN FEDERATION SINGAPORE SPAIN SWEDEN SWITZERLAND TAIWAN THAILAND UNITED KINGDOM UNITED STATES

Code

AU BE CA CN HK DK

FI FR DE

JP MY NL NO PH RU SG ES SE CH

a) Select the first character by pressing the

/ buttons.

b) Press the

/ buttons to shift and select

the second character by pressing the

/ buttons.

c) Press the ENTER button.

Page 51

3) Press the / button to select the parental lock level, then press the ENTER button.

Operation Pause/Still Parental Lock Title Stop PBC

Auto Off Off On

Area Code Level

U 7

You cannot play DVD video discs rated higher than the level you selected unless you cancel the parental lock function. For example, when you select level 7, discs rated higher than level 7 are locked out and cannot be played.

The parental lock level is equivalent to the following USA movie ratings.

Level 7: NC-17 Level 6: R Level 4: PG 13 Level 3: PG Level 1: G

The parental lock levels for other countries/areas than U.S. are included for future use. Check the appropriate parental lock level when you buy a DVD video disc equipped with the parental lock feature in the future.

Title Stop

DVD

Off: The player continues after playback of a title is

completed.

On: The player stops after playback of a title is

completed.

PBC

VCD

Off: When playing a VIDEO CD without using the

menu.

On: To use the menu when playing a PBC-featured

VIDEO CD.

Function setup

To change the parental lock level

Follow steps 1) - 3).

To change your 4-digit security code

1) After selecting “On” or “Off,” press the STOP button four times, then press the ENTER button.

STOP STOP

ENTER

The 4-digit security code is cleared.

2) Press the number buttons to create a new 4-digit security code.

3) Press the ENTER button.

Page 52

Function setup

Customizing the Function Settings (continued)

Setting details

Initial Setup On-Screen Language TV Shape Audio Out Select

VCD CD

Initial Setup

DVD

1) Press the / buttons to select “On-Screen Language,” and press the ENTER button.

ENTER ENTER

ENG 16:9 Bitstream

2) Select a language pressing the

/ buttons,

and press the ENTER button. See page

, “On-Screen Language. ”

ENTER ENTER

3) Make your selection in the same manner as step 1) then step 2).

See page See page

, “TV Shape.”

, “Audio Out Select.”

Page 53

Table of Languages

Table of languages and their abbreviations

Abbreviation

– – –

CHI (ZH) DUT (NL) ENG (EN) FRE (FR) GER (DE) ITA (IT) JPN (JA) KOR (KO) MAY (MS) SPA (ES)

AA AB AF AM AR AS AY AZ BA BE BG BH BI BN BO BR CA CO CS CY DA DZ EL EO ET EU FA FI FJ FO FY GA GD GL

Language

No alternate language Chinese Dutch English French German Italian Japanese Korean Malay Spanish Afar Abkhazian Afrikaans Amharic Arabic Assamese Aymara Azerbaijani Bashkir Belorussian Bulgarian Bihari Bislama Bengali, Bangla Tibetan Breton Catalan Corsican Czech Welsh Danish Bhutani Greek Esperanto Estonian Basque Persian Finnish Fiji Faroese Frisian Irish Scottish Gaelic Galician

Abbreviation

GN GU HA HI HR HU HY IA IE IK IN IS IW JI JW KA KK KL KM KN KS KU KY LA LN LO LT LV MG MI MK ML MN MO MR MT MY NA NE NO OC OM OR PA PL PS

Language

Guarani Gujarati Hausa Hindi Croatian Hungarian Armenian Interlingua Interlingue Inupiak Indonesian Icelandic Hebrew Yiddish Javanese Georgian Kazakh Greenlandic Cambodian Kannada Kashmiri Kurdish Kirghiz Latin Lingala Laotian Lithuanian Latvian, Lettish Malagasy Maori Macedonian Malayalam Mongolian Moldavian Marathi Maltese Burmese Nauru Nepali Norwegian Occitan (Afan) Oromo Oriya Panjabi Polish Pashto, Pushto

Abbreviation

PT QU RM RN RO RU RW SA SD SG SH SI SK SL SM SN SO SQ SR SS ST SU SV SW TA TE TG TH TI TK TL TN TO TR TS TT TW UK UR UZ VI VO WO XH YO ZU

Language

Portuguese Quechua Rhaeto-Romance Kirundi Rumanian Russian Kinyarwanda Sanskrit Sindhi Sango Serbo-Croatian Singhalese Slovak Slovenian Samoan Shona Somali Albanian Serbian Siswati Sesotho Sundanese Swedish Swahili Tamil Telugu Tajik Thai Tigrinya Turkmen Tagalog Setswana Tongan Turkish Tsonga Tatar Twi Ukrainian Urdu Uzbek Vietnamese Volapük Wolof Xhosa Yoruba Zulu

Function setup

Page 54

Page 55

Connections

You can connect the player to a TV or audio system. Also, you can connect a battery pack to power the player.

Connecting to a TV Connecting to Headphones View Pictures of Video

Equipment Connecting to Optional

Equipment Using the battery pack

Page 56

Connections

Connecting to a TV

Connect the player to a TV to view playback pictures. For details of output sound, see 39.

S video cable (supplied)

To S VIDEO

AV IN AV OUT

COMPONENT

VIDEO

To AV OUT

Audio/video cable (supplied)

To S video input

(yellow)

To video input

(white) (red) To audio input

When using an S video cable, do not connect the yellow (composite) video cable.

S VIDEO

BITSTREAM/PCM

BATTERY

To COMPONENT VIDEO

Component video cable (supplied)

TV equipped with component video inputs

• To obtain sound output from the AV OUT connector, as in the left figure, connect the red and white plugs of the supplied audio/video cable to your TV’s audio inputs.

• Pictures cannot be viewed if you are using the player with the battery pack. Use the AC adapter.

DC IN 12V

Signal flow

To CBTo CR

To Y

On the setting

• Set the “TV Shape” according to the aspect ratio of your TV.

• Set the “Audio Out Select” to “Analog 2ch”.

• When you set the “LCD Picture” to “Fine”, close the LCD or press the LCD MODE button on the main unit to turn the LCD

monitor off.

INTERLACED outputs/inputs (ColorStream®)

Some TVs or monitors are equipped with component video inputs. Connecting to these inputs allows you to enjoy higher quality picture playback. Actual labels for component video inputs may vary depending on the TV manufacturer. (ex. Y, R-Y, B-Y or Y, CB, CR) In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the TV or monitor for optimum performance.

Notes

• Refer to the owner’s manual of the connected TV (or other equipment) as well.

• When you connect the player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

• Connect the player directly to your TV. If you connect the player to a VCR, TV/VCR combination or video selector, the playback picture may be distorted as DVD video discs are copy protected.

• If you place the player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the player away from the tuner and radio.

• The output sound of the player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

Page 57

Connect to Headphones

You can enjoy sounds by connecting headphones.

To (headphone) jack

VOLUME

Caution

When you use headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.

Connecting headphones

Connect headphones to the headphone jack using a stereo mini plug. Before connecting, temporarily turn down the volume with the headphone volume control. Readjust to your preference when playback starts.

• Turn off the player before you connect or disconnect the headphone cable. Neglecting this may cause abnormal performance of the player.

• You can connect up to 2 headphones.

Connections

Viewing Pictures From Connected Video Equipment

You can use the LCD of this player to monitor pictures of video equipment connected via the AV IN jack.

AV IN AV OUT

To AV IN

COMPONENT

VIDEO

Audio/video cable

S VIDEO

BITSTREAM/PCM

BATTERY

DC IN 12V

To audio output (red) To audio output (white)

To video output (yellow)

Signal flow

Video equipment

Page 58

Connections

Connecting to Optional Equipment

You can enjoy high quality dynamic sounds by connecting the player to optional audio equipment.

For connection to your TV, see “Connecting to a TV” 56. For details of output sound, see 39.

Connecting to an amplifier equipped with a Dolby Digital decoder

: Front speaker : Rear speaker : Sub woofer

: Center speaker : Signal flow

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the player to a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby Digital processor. If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark.

Amplifier equipped with a Dolby Digital decoder

To digital audio input (optical/coaxial)

AV IN AV OUT

COMPONENT

VIDEO

To BITSTREAM/PCM

Digital cable (supplied)

S VIDEO

BITSTREAM/PCM

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. ©1992-1997 Dolby Laboratories. All rights reserved.

• Use DVD video discs encoded via the Dolby Digital recording system.

• Make the following setting.

On-screen display Select:

“Bitstream”“Audio Out Select”

Recording system

Page

44 47

Connecting to an amplifier equipped with Dolby Pro Logic Surround

Dolby Pro Logic Surround

You can enjoy the dynamic realistic sound of Dolby Pro Logic Surround by connecting an amplifier and speaker system (right and left front speakers, a center speaker, and one or two rear speakers).

With an amplifier equipped with Dolby Digital

Connect the equipment the same way as described in “Connecting to an amplifier equipped with a Dolby Digital decoder.” Refer to that amplifier’s owner’s manual and set the amplifier so you can enjoy Dolby Pro Logic Surround sound.

With an amplifier not equipped with Dolby Digital

Connect the equipment as follows.

Amplifier equipped with Dolby Pro Logic Surround

To analog audio input

(yellow)

Audio/video cable (supplied)

AV IN AV OUT

COMPONENT

VIDEO

To AV OUT

S VIDEO

BITSTREAM/PCM

* Connect one or two rear speakers. The output sound from the rear speakers will be monaural even if you connect two rear speakers.

• Make the following setting.

On-screen display

“Audio Out Select”

Select:

“Analog 2ch”

Page

Be sure to set “Audio Out Select” to “Analog 2ch” when you enjoy sounds of Dolby Pro Logic Surround using this connection.

Connecting to an amplifier equipped with a DTS decoder

Digital Theater Systems (DTS)

DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs. If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 channel DTS encoded sound tracks on DVD video discs or audio CDs.

Amplifier equipped with a DTS decoder

To digital audio input (optical/coaxial)

AV IN AV OUT

COMPONENT

VIDEO

To BITSTREAM/PCM

Digital cable (supplied)

S VIDEO

BITSTREAM/PCM

“DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.

• Use DVD video discs or audio CDs encoded via the DTS recording system.

• Make the following setting.

On-screen display

“Audio Out Select”

Recording system DTS

Select:

“Bitstream”

Page

47 39

Page 59

Warning

• When you are connecting (via the BITSTREAM/PCM jack) an AV decoder that does not have the Dolby Digital, Digital Theater Systems (DTS) or MPEG2 decoding function, be sure to set “Audio Out Select” to “PCM” from the on-screen

displays

. Otherwise, high volume sound may damage your hearing as well as the speakers.

• When playing DTS-encoded discs (DVD video discs and audio CDs), excessive noise may be output from the analog stereo jacks. To avoid possible damage to the audio system, you should take proper precautions when the AV OUT jack of the player is connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the BITSTREAM/PCM jack of the player.

Connecting to an amplifier equipped with an MPEG2 audio decoder

MPEG2 sound

You can enjoy motion picture and live concert DVD video discs with dynamic realistic sound by connecting an amplifier equipped with an MPEG2 audio decoder or MPEG2 audio processor.

Amplifier equipped with an MPEG2 audio decoder

To digital audio input (optical/coaxial)

AV IN AV OUT

COMPONENT

VIDEO

To BITSTREAM/PCM

S VIDEO

BITSTREAM/PCM

• Use DVD video discs encoded via the MPEG2 recording system.

• Make the following setting.

On-screen display Select:

“Bitstream”“Audio Out Select”

Digital cable (supplied)

Recording system

MPEG

Connecting to an amplifier equipped with a digital audio input

2 channel digital stereo

You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier equipped with a digital audio input and speaker system (right and left front speakers).

Page

44 47

Connections

Amplifier equipped with a digital audio input

To digital audio input (optical/coaxial)

AV IN AV OUT

COMPONENT

VIDEO

To BITSTREAM/PCM

Digital cable (supplied)

S VIDEO

BITSTREAM/PCM

• Make the following setting.

On-screen display

“Audio Out Select”

Select:

“PCM”

Page

44 47

Notes

• DO NOT connect the BITSTREAM/PCM jack of the player to the AC-3 RF input of a Dolby Digital Receiver. This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the BITSTREAM/PCM jack of the player.

• Connect the BITSTREAM/PCM jack of the player to the “COAXIAL” input of a Receiver or Processor.

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before making any connections.

• Turn off the amplifier before you connect or disconnect the player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

Page 60

Connections

Using the battery pack

Warning

• Do not use a battery pack other than one specified as it can result in a fire or damage to the unit.

• Do not heat, open, or short-circuit the battery pack. Do not throw the battery pack into a fire. Doing so may cause an explosion or a fire.

• Attach the battery pack properly following the explanation below. Make sure that the battery pack is attached firmly to the player when using it. Otherwise, the battery pack may be off its attachment and drop and cause personal injury.

Use a battery pack MEDB02SX (supplied) or MEDB02LX (not supplied). Charge it before using.

Attaching the battery pack

First disconnect the AC adapter and the power cord from the player, then attach the battery pack.

1 Turn the player off. 2 Turn the player upside down. 3 Open the connector cover on the rear of the

player by pressing it.

Open the connector cover

4 Place the battery pack turned over by matching it

to line

, insert the hooks of the battery pack

into the corresponding holes on the rear of the player. Then, slide the battery pack in the direction of the arrow

Match to line

Note

Remove the battery pack from the player after being used.

until a “click” is heard.

Battery pack

Charging the battery pack

1 Attach the battery pack to the player. 2 Connect the supplied AC adapter and the power

cord to the player.

Charging starts, and the POWER/CHG indicator illuminates in orange. When the charging is completed, the POWER/CHG indicator turns off.

Notes

• The attached battery pack may get warm when you are charging it or operating the player. This is not a defect.

• The POWER/CHG indicator flashes in green when the power in the battery pack is running out.

• Charge the battery with a surrounding temperature of +10°C to +30°C.

Charging time of a battery pack

MEDB02SX (supplied) approximately 4 hours MEDB02LX (not supplied) approximately 5.5 hours

The charging time of a battery pack may vary depending on environment conditions and operational status.

LCD brightness while using the battery pack

Since the player operates in a power saving mode when the battery pack is attached, LCD brightness may be reduced. It can be restored by pressing the DIMMER button on the remote control. A brighter LCD display will shorten battery pack life.

Time of continuing playback while using the battery pack

MEDB02SX (supplied) approximately 3 hours MEDB02LX (not supplied) approximately 5 hours

(Conditions: 25°C, earphone in use, LCD brightness minimized, new battery pack in use.)

• The time of continuing playback may vary depending on battery pack status, operational status and environment conditions.

• Low temperature will shorten the time of continuing playback.

Page 61

Detaching the battery pack

1 Turn the player off. 2 Disconnect the AC adapter and the power cord

from the player.

3 Slide the battery pack’s lock switch in the open

direction, then slide the player in the direction of the arrow to remove it.

Lock switch

3 Close the connector cover on rear of the player.

Note

Do not detach the battery pack while you are operating the player (while the POWER/CHG indicator illuminates in green).

About battery pack life

Battery pack has a duration life. When the playback time become short remarkably even if the battery pack is fully charged, change to a new battery pack.

Connections

Page 62

Page 63

Others

Before Calling Service Personnel

Specifications LIMITED WARRANTY

PORTABLE DVD PLAYER

Page 64

Others

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before contacting service.

Symptoms and correction

Symptom

No power.

The player turned off by itself.

No picture.

No sound.

The playback picture has occasional distortion.

Brightness is unstable or noises are present in the playback pictures.

The player does not start playback.

Cause

• The AC adapter or power plug is disconnected.

• Dead batteries.

• The automatic power off function turned the unit off.

• The connected TV is not set to receive DVD signal output.

• The audio/video cable is not connected securely.

• The “LCD Picture” is set to “Fine”.

• The equipment connected via the audio/ video cable is not set to receive DVD signal output.

• The audio/video cable is not connected securely.

• The audio receiver or TV is turned off.

• The setting of output sound format is incorrect.

• The disc is dirty.

• Player is in fast forward or fast reverse mode.

• The main unit was moved or given a shock.

• The disc is not set firmly.

• The effect of copy protection.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is inserted upside down.

• The disc is not inserted securely.

Correction

• Connect the AC adapter or power plug securely.

• Re-charge the battery .

• Press the PLAY button.

• Select the appropriate video input mode on the TV so the picture from the player appears on the TV screen.

• Connect the audio/video cable securely into the appropriate jacks.

• Close up the LCD or press the LCD MODE button to turn the LCD monitor off.

• Select the correct input mode of the audio receiver so you can listen to the sound from the player.

• Connect the audio/video cable securely into the appropriate jacks.

• Turn on the equipment connected with the audio/video cable.

• Select the proper audio setting.

• Eject the disc and clean it.

• Sometimes a small amount of picture distortion may appear. This is not a malfunction.

• Vibrating or shaking the unit during playback may produce distortion. This is not a malfunction. If not restored to usual status, stop the playback and start again.

• Remove the disc and set it again.

• Connect the player directly to the TV. Avoid connecting the player to a VCR or TV/VCR combination.

• Insert a disc.

• Insert a playable disc. (Check the disc type and color system.)

• Insert the disc with the playback side down.

• Insert the disc securely in the disc holder.

Page

–

58, 59

58, 59 39, 44

47 13

–

20 56

Playback does not follow the course of the disc’s program.

Buttons do not work.

The remote control does not work properly.

• The disc is dirty.

• The parental lock function is set.

• It is in the repeat playback mode, memory playback, etc.

• Power supply fluctuations or other abnormalities such as static electricity may interrupt correct operation.

• The remote control is not pointed at the remote sensor of the player.

• The remote control is too far from the player.

• The batteries in the remote control are exhausted.

• Clean the disc.

• Cancel the parental lock function or change the parental lock level.

• These operations may prevent a proper progression of the contents.

• Turn the power on or off with the POWER button. Or disconnect the power plug and insert it into the wall outlet again.

• Point the remote control at the remote sensor of the player.

• Operate the remote control within about 7 m.

• Replace the batteries with new ones.

13 50

–

Page 65

Specifications

Player / Connectors / Liquid crystal display / Supplied accessories

Player

Power supply DC 12 V (Rated current : 2 A)

120 V AC, 60 Hz (with the supplied AC adapter) Mass 880 g External dimensions 210 × 31.9 × 160 mm (W/H/D) Signal system Standard NTSC Laser Semiconductor laser, wavelength 650 nm / 795 nm Frequency range DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz

Operating conditions Temperature: 5 °C to 35 °C, Operation status: Horizontal

Connectors

Video output (AV OUT) 1.0 V (p-p), 75 Ω, negative sync., Ø3.5mm mini jack × 1 S video output (S VIDEO) (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin × 1

(COMPONENT VIDEO) (Y): 1.0 V (p-p), 75 Ω, (C Audio output (BITSTREAM/PCM) Optical/coaxial connector (Ø3.5mm) × 1 Audio output (AV OUT) 1.5 V (rms), 220 Ω, Ø3.5mm mini jack × 1 Video input (AV IN) 1.0 V (p-p), 75 Ω, negative sync., Ø3.5mm mini jack × 1 Audio input (AV IN) 2.0 V (rms), Ø3.5mm mini jack × 1 Headphone terminal Ø3.5mm stereo mini jack × 2

B • CR): 0.7 V (p-p), 75 Ω

Others

Liquid crystal display

Panel size 8 inches (99.216 mm × 176.4 mm) Projection system TN color transmission Driving system TFT active matrix Resolution 234 × 480 (effective pixel rate : more than 99.99%)

Supplied accessories

Audio/video cable ................................................. 1

Remote control (MEDR03UX) .............................. 1

Coin-shaped battery (CR2025)............................. 1

AC adapter (UA2035) ........................................... 1

Battery pack (MEDB02SX) ................................... 1

Component video cable........................................ 1

Power cord ........................................................... 1

• Designs and specifications are subject to change without notice.

Page 66

Others

LIMITED W ARRANTY PORTABLE DVD PLA YER

Toshiba America Consumer Products, Inc. (“TACP”) and Toshiba Hawaii, Inc. (“THI”) make the following limited warranties. These limited warranties extend to original consumer purchaser or any person receiving this set as a gift from the original consumer purchaser and to no other purchaser or transferee.

Limited Ninety (90) Day Warranty

TACP/THI warrant this product against defects in materials or workmanship for a period of ninety (90) days after the date of original retail purchase. During this period, TACP/ THI will repair a defective product or part, without charge to you. You must deliver the entire product to a TACP/THI Authorized Service Station. You are responsible for all transportation and insurance charges for the unit to and from the Authorized Service Station.

Limited One (1) Y ear Warranty

TACP/THI further warrant the parts in this product against defects in materials or workmanship for a period of one (1) year after the date of original retail purchase. During this period, TACP/THI will repair or replace a defective part, without charge to you, except that if a defective part is replaced after ninety (90) days from the date of the original retail purchase you pay labor charges involved in the replacement. You must also deliver the entire product to a TACP/THI Authorized Service Station. You are responsible for all transportation and insurance charges for the unit to and from the Authorized Service Station.

Rental Units

The warranty for rental units begin with the first rental or thirty (30) days from the date of shipment to the rental firm, whichever comes first.

Commercial Units

Products sold and used for commercial use have a limited ninety (90) day warranty for all parts and labor.

Owner’s Manual

You should read the owner’s manual thoroughly before operating this product. You should complete and mail the enclosed Demographic card within ten (10) days after you, or the person who has given you this product as a gift, purchased this product. This is one way to enable TACP to provide you with better customer service and improved products. Failure to return the card will not affect your rights under this warranty.

Your Responsibility

The above warranties are subject to the following conditions: (1) You must retain your bill of sale or provide other proof of

purchase.

(2) You must notify a TACP/THI/TCL Authorized Service

Station within thirty (30) days after you discover a defective product or part.

(3) All warranty servicing of this product must be made by a

TACP/THI/TCL Authorized Service Station.

(4) U.S.A. warranties are effective only if the product is

purchased and operated in the Continental U.S.A. or Puerto Rico.

(5) Labor service charges for set installation. Set up,

adjustment of customer controls and installation or repair of antenna systems are not covered by this warranty. Reception problems caused by inadequate antenna systems are your responsibility.

(6) Warranties extend only to defects in materials or

workmanship as limited above and do not extend to any product or parts which have been lost or discarded by you or to damage to products or parts caused by misuse, accident, damage caused by Acts of God, such as lighting or fluctuations in electric power, improper installation, improper maintenance or use in violation of instructions furnished by us; or to units which have been altered or modified without authorization of TACP/ THI/TCL or to damage to products or part thereof which have had the serial number removed, altered, defaced or rendered illegible.

(7) Physically damaged DVD Units are not acceptable for

repair or exchange whether in or out of warranty and will be returned as received.

Page 67

How to Obtain Service

(1) Refer to the troubleshooting guide in your owner’s manual. This checklist may solve your problem or check our web

site at WWW.TOSHIBA.COM/T ACP.

(2) Products shipped to the Service Station must be insured and safely and securely packed, preferably in the original

shipping carton, and a letter explaining the defect and also a copy of the bill of sale or other proof of purchase must be enclosed.

In United States contact:

Toshiba America Consumer Products Inc.

(800)-631-3811

In Hawaii contact:

Toshiba Hawaii, Inc. 327 Kamakee St Honolulu, HI 96814 (808)-521-5377

In Canada contact:

Consumer Electronics Group 191 McNabb St Markham, Ontario L3R 8H2 (905)-470-5400

Consumer Electronics Group 1643 North Service Rd Dorval, QC H9P 1J1 (514)-856-4100

Consumer Electronics Group 22171 Fraserwood Way Richmond, B.C. V6W 1J5 (604)-303-2500

All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall TACP/THI be liable for consequential or incidental damages. No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner whatsoever. The time within which an action must be commenced to enforce any obligation of TACP/THI arising under the warranty or under any statute, or law of the United States or any state thereof, is hereby limited to ninety (90) days from the date you discover or should have discovered the defect. This limitation does not apply to implied warranties arising under state law. This warranty gives you specific legal rights and you may also have other rights, which may vary from state to state. Some states do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the exclusion or limitation of incidental or consequential damages, so the above provisions may not apply to you.

ATTENTION CANADIAN CONSUMERS: (Toshiba Canada “TCL”) Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed, and forward this completed form with a copy of bill of sale to TOSHIBA OF CANADA to “Register and Validate” their warranty. Product must be purchased from an Authorized Canadian Dealer.

IMPORTANT: P ACKING AND SHIPPING INSTRUCTION

When you send the product to a Service Station, you must use the original carton box and packing material, then insert the original carton box containing the unit into another carton, using more packing material.

Others

Products purchased in the U.S.A. and used in Canada are not covered by these warranties.

Products purchased in Canada and used in the U.S.A. are not covered by these warranties.

Page 68
