Toshiba SD-P1400 User Manual

Introduction

2

DIGITAL VIDEO

PORTABLE DVD PLAYER

SD-P1400

OWNER’S MANUAL

Basic playback

Advanced

playback

Function setup

Connections

Others

17

31

45

53

65

© 2003 TOSHIBA CORPORATION

Introduction

SAFETY PRECAUTIONS

CAUTION: This equipment employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for
future reference. Should the unit require maintenance, contact an authorized service location ­see service procedure.

Use of controls or adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible and invisible laser radiation when open and interlocks defeated.
DO NOT STARE INTO BEAM.

CLASS 1 LASER PRODUCT

FCC NOTICE “Declaration of Conformity Information”

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

WARNING: Only peripherals complying with the FCC class B limits may be attached to this equipment.

Operation with non-compliant peripherals or peripherals not recommended by Toshiba is likely to
result in interference to radio and TV reception.
Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties
authorized by Toshiba, could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired

operation.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of

electric shock do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.

WARNING: Handling the cord on this product or cords associated with accessories sold with this product,

will expose you to lead, a chemical known to the State of California to cause birth defects or
other reproductive harm.

This product contains mercury. Disposal of mercury may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance:
www.eiae.org.

Wash hands after handling

.

2

In the spaces provided below, record the Model and Serial No. located on the bottom of your DVD player.

Model No. Serial No.

Retain this information for future reference.

Location of the required label

3A

Introduction

3

Introduction

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS

OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR
FUTURE REFERENCE.

This set has been designed and manufactured to assure personal safety. Improper use can result in electric
shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following
procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that
can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.

8. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.

9. Only use attachments/accessories specified by

10.Unplug this apparatus during lightning storms

11.Refer all servicing to qualified service

ADDITIONAL SAFETY INSTRUCTIONS

12.When you use headphones, keep the volume
at a moderate level. If you use the headphones
continuously with high volume sound, it may
cause hearing damaged.

17.Do not use a cracked, deformed, or repaired

the manufacturer.

or when unused for long periods of time.
However, while it is thundering or lightning, do
not touch the apparatus and any connected
cable and/or equipment. This will prevent you
from receiving the electric shock by an electric
surge.

personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.

disc. These discs are easily broken and may
cause serious personal injury and apparatus
malfunction.

13.Do not overload wall outlets; extension cords,
or integral convenience receptacles as this can
result in a risk of fire or electric shock.

14.Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids,
such as vases, shall be placed on the
apparatus and/or around it.

15.Be careful not to catch your fingers in the disc
holder when closing the lid. It may cause
personal injury.

16.Do not put a vessel containing liquid such as a
vase, or a metal object on the apparatus. If
liquid or a foreign metal object is let into the
apparatus, it may cause fires or electric shock.

4

18.Do not touch a spinning disc. When you open
the disc holder, the disc may have not stopped
spinning. Touching a spinning disc may cause
personal injury or damage to the product.

19.Do not rest the product on your lap or other
parts of body, as it may become heated. Even
low temperature may cause inflaming or
blistering, if touched for a prolonged period.

20.Use the supplied AC adapter to operate the
product. Substitute devices not specified by the
manufacturer may result in fire or product
malfunction. Do not cover the AC adapter with
a blanket or place it near heating or on electric
carpet when it is in use.

21.When you use this product in an airplane,
follow the instructions of the airline.
Disregarding them may cause harmful
interference to radio communication.

22.Do not look close the pick-up lens or stare into
laser beam. Doing so may cause damage to
eyesight.

g) Never dispose of used battery packs with other

ordinary solid wastes, since they contain toxic
substances. Always dispose of used battery
packs in accordance with community
regulations that apply to the disposal of
batteries. Cover the metal terminals with
insulating tape, in order to prevent accidental
short-circuiting.

Introduction

23.Do not use this product while walking or
driving. Neglecting this may cause a traffic
accident.

24.Should the LCD monitor be broken and liquid
leaks out, do not inhale or swallow it. Doing so
may cause poisoning.
If you have got it into your mouth, wash it out
and consult your doctor. If your hands or
clothes have touched it, wipe them with
alcohol and a cleaning cloth and then wash
them well.

25.Battery Pack

a) Never throw the battery pack into a fire, as that

could cause the battery pack to explode.
Never heat the battery pack, as that could
cause leakage of alkaline solution or other
electrolytic substance.

b) Never disassemble the battery pack, as that

could cause leakage of alkaline solution or
other electrolytic substance.

c) Never short-circuit the battery pack by either

accidentally or intentionally bringing the
terminals in contact with another metal object.
This could cause personal injury or a fire, and
could also damage the battery pack.

d) Never drive a nail into the battery pack.

Never strike the battery pack with a hammer.
Never step or tread on the battery pack.

e) If you ever detect the emission of an

extraordinary odor, excessive heat,
discoloration, or deformation of the battery
pack, remove it from the player after confirming
safety and discontinue use of it. Take the
battery pack to an authorized Toshiba service
provider.

h) Always confirm that the battery pack is

compatible with your player, before attaching
the battery pack to the player.

i) Never expose the terminals of the battery pack

to any other metal object. Wrap the battery or
place it in a protective plastic bag, whenever
transporting it.

j) Always confirm that the temperature is

between 5 and 35˚C (41°F and 95°F) before
you charge the battery. Leakage, excessive
heat, or deterioration of the battery pack may
occur if this warning is not heeded.

k) Never immerse the battery pack in any liquid.

l) Never expose the battery pack to direct

sunlight. Never store or use the battery pack in
a locked and unventilated vehicle. (where
excessive internal temperatures may be
encountered.)

m) Always keep the battery pack out of reach of

infants or small children.

n) Never shock the battery pack by dropping or

throwing it.

o) If the liquid contained within the battery pack

leaks, use a large amount of water and
immediately wash off any liquid which may
accidentally contact any part of the body.
Remove any liquid that has contacted your
clothing by washing it immediately with a
detergent.

p) Always confirm that a “click” sound has

resulted, when attaching the battery pack to
the player. This sound confirms that the
battery pack has been properly attached.

f) Keep the battery pack away from heat or fire, if

you detect the emission of an extraordinary
odor or leakage of alkaline solution or other
electrolytic substance.

26.Coin-shaped Battery
a) Keep coin-shaped batteries out of children’s

reach. Be careful not to ingest internally,
especially by children, as doing so may cause
poisoning.

b) Do not load a battery into the remote control

with the wrong side out.

5

Introduction

IMPORTANT SAFETY INSTRUCTIONS

c) Do not charge, heat, open, or short-circuit the

batteries. Do not throw the batteries into a
fire.

d) Do not leave a dead or exhausted battery in

the remote control.

e) If you do not use the remote control for a long

period of time, remove the battery to avoid
possible damage from battery corrosion.

27.After unpacking coin-shaped batteries, store them
in poly bags, etc. separately one by one when
unused. If you leave them unwrapped, they may
be short-circuited by contact with metal objects,
resulting in battery leakage, heat or bursting. This
may cause burns or injury.
The batteries must be completely discharged when
they are deposited in collection containers for old
batteries. If a charge remains, countermeasures to
prevent short circuits must be taken.

28.To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.

29.Following mark means “CAUTION - RISK OF
FIRE - DO NOT OPEN”.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

30. Vehicle adapter and operation in a car
a) NEVER operate the apparatus or view a DVD

Video while operating an automobile or other
vehicle. Note: doing so is illegal in many
jurisdictions.
NEVER place a apparatus within the eyesight
of a driver while he/she is driving an
automobile/vehicle. Note: an apparatus
located in the front seating section of a vehicle
is illegal in many jurisdictions.
Failure to observe the above instructions
could result in the driver’s inattention to and/
or distraction from road hazards.

b) NEVER place an apparatus in a location

where it could interfere with the proper
deployment and/or performance of an air bag.
Failure to observe this instruction could result
in the prevention of an air bag to properly and/
or effectively deploy.

c) Do not use a vehicle adapter other than the

model supplied, to power the apparatus. Do
not use the supplied vehicle adapter to power
an apparatus other than this apparatus.
Neglecting these may cause smoke, fire or
electrical shock to human body.

NEVER use this adapter with a DC 24V
configured automobile/vehicle.
Consult your vehicle owner’s manual before
using this adapter.

e) When handling, using or storing the adapter

power cord NEVER:

- Place or locate near any apparatus that
produces heat.

- Disassemble, splice or extend the cord.

- Pull, force or place any heavy objects on the
cord.

- Bend, twist or bind the cord.

f) Keep away from the driving device (such as

brake pedal, etc.) and the moving equipment
(such as a seat rail, car windows, door, etc.).

g) NEVER disassemble or alter this adapter in any

manner.

h) ALWAYS use caution when touching the

adapter, cigarette lighter socket or power port.
The adapter, lighter socket and power port may
become heated after prolonged use.

i) ALWAYS remove the adapter from the cigarette

lighter socket or power port when not in use.

j) Do not charge the battery pack which is

attached to the apparatus by the adapter. Doing
so may cause smoke, fire or electrical shock to
human body. Whenever you use the adapter,
be sure to remove the battery pack from the
apparatus to prevent it from being charged by
the adapter.

k) Some cars may not have a compatible socket.

NEVER modify this adapter to fit an
incompatible cigarette lighter socket and/or
power port. NEVER modify an incompatible
cigarette lighter socket and/or power port to
accept this adapter.
Failure to observe the above warnings could
cause smoke, fire, burns and/or electric shock.

l) ALWAYS locate the apparatus on a level and

secure surface. If placed on an uneven, shaky,
unsecured or unstable surface, apparatus may
fall.
Failure to observe the above warning could
result in the apparatus striking a person.

m) When using the adapter, insert the plug of the

adapter into the cigarette lighter socket or power
port fully.
The incomplete insertion will cause smoke or
fire.

d) This adapter is intended for exclusive use in

automobiles/vehicles with a DC 12V negative
ground electrical system.

6

n) Do not touch the adapter with wet hands. Do

not liquid over the adapter.

Precautions

Notes on handling

Do not shock the LCD monitor. It may cause unit
damage and malfunction.
Do not use the player in a place subject to vibration.
Neglecting this may cause malfunction of the player
or damage to the disc.
Do not leave the player in a vehicle. Rise or drop in
temperature may result in malfunction of the player.
When transporting the player, the original shipping
carton and packing materials come in handy. For
maximum protection, repack the unit as it was
originally packaged at the factory.
Do not use volatile liquids, such as insect spray, near
the player. Do not leave rubber or plastic products in
contact with the player for a long time. They will leave
marks on the finish.
The player may become warm after a long period of
use. This is not a malfunction.
When the player is not in use, be sure to remove the
disc and turn off the power.
If you do not use the player for a long period, the unit
may not function properly in the future. Turn on and
use the player occasionally.

Notes on locating

When you place this player near a TV, radio, or VCR,
the playback picture may become poor and the sound
may be distorted. In this case, move the player away
from the TV, radio, or VCR.

Notes on moisture condensation

Moisture condensation damages the player. Please
read the following carefully.

Moisture condensation occurs, for example, when you
pour a cold drink into a glass on a warm day. Drops of
water form on the outside of the glass. In the same way,
moisture may condense on the optical pick-up lens
inside this unit, one of the most crucial internal parts of
the player.

E

Moisture condensation occurs during the
following cases.

When you transport the player directly from a cold
place to a warm place.
When you use the player in a room where you just
turned on the heater, or a place where the cold air
from the air conditioner directly hits the unit.
In summer, when you use the player in a hot and
humid place just after you move the unit from an air
conditioned room.
When you use the player in a humid place.

f

o

m

e

o

l

p

i

s

m

a

x

n

o

c

t

u

r

e

s

n

a

e

t

i

d

o

n

!

Optical pick-up

lens

It’s too

warm!

Introduction

Notes on cleaning

Use a soft, dry cloth for cleaning.
For stubborn dirt, soak the cloth in a weak detergent
solution, wring well and wipe. Use a dry cloth to wipe
it dry.
Do not use any type of solvent, such as thinner and
benzine, as they may damage the surface of the
player.
If you use a chemical saturated cloth to clean the unit,
follow that product’s instructions.
When cleaning the LCD monitor, use a soft, dry cloth.

To obtain a clear picture

The player is a high technology, precision device. If the
optical pick-up lens and disc drive parts are dirty or worn
down, the picture quality becomes poor. To obtain a
clear picture, we recommend regular inspection and
maintenance (cleaning or parts replacement) every
1,000 hours of use depending on the operating
environment. For details, contact your nearest dealer.

Do not use the player when moisture
condensation may occur.

If you use the player in such a situation, it may
damage discs and internal parts. Remove the disc,
connect the AC adapter, turn on the player, and leave
it for two or three hours. After two or three hours, the
player will have warmed up and evaporated any
moisture.

Wait!

Wall outlet

7

Introduction

Notes and Information

Structure of disc contents

Normally, DVD video discs are divided into titles, and the
titles are sub-divided into chapters. VIDEO CDs/audio
CDs are divided into tracks.

DVD video disc

Title 1

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

VIDEO CD/Audio CD

Track 1 Track 2 Track 3 Track 4 Track 5

Each title, chapter, or track is assigned a number, which
is called “title number”, “chapter number” or “track
number” respectively.
There may be discs that do not have these numbers.

Title 2

On handling discs

Do not touch the playback side of the disc.

On cleaning discs

Fingerprints and dust on the disc may cause picture
and sound deterioration. Wipe the disc from the
center outwards with a soft cloth. Always keep the
disc clean.

Yes No

If you cannot wipe off the dust with a soft cloth, wipe
the disc lightly with a slightly moistened soft cloth and
finish with a dry cloth.
Do not use any type of solvent such as thinner,
benzine, commercially available cleaners or antistatic
spray for vinyl LPs. It may damage the disc.

On storing discs

Do not store discs in a place subject to direct sunlight
or near heat sources.
Do not store discs in places subject to moisture and
dust such as a bathroom or near a humidifier.
Store discs vertically in a case. Stacking or placing
objects on discs outside of their case may cause
warping.

Yes

Do not attach paper or tape to discs.

NoNo

No

8

Playback side

Notes on copyright

It is forbidden by law to copy, broadcast, show,
broadcast on cable, play in public, and rent copyrighted
material without permission.

DVD video discs are copy protected, and any recordings
made from these discs will be distorted.

This product incorporates copyright protection
technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.

About this owner’s manual

Playable discs

Introduction

This owner’s manual explains the basic instructions of
this player. Some DVD video discs are produced in a
manner that allows specific or limited operation during
playback. As such, the player may not respond to all
operating commands. This is not a defect in the player.
Refer to instruction notes of discs.

” may appear on the screen during operation.

“

” means that the operation is not permitted by the

A “
player or the disc.

Notes on region numbers

The region number of this player is 1. Region numbers,
corresponding to specific geographical playback area,
are printed on your DVD video disc. If you do not find

ALL

1

or

, disc playback will not be allowed by the
player. (In this case, the player will display a message
on-screen.)

On VIDEO CDs

This player supports VIDEO CDs equipped with the PBC
(Version 2.0) function. (PBC is an abbreviation for
Playback Control.)
You can enjoy two playback variations depending on
types of discs.

• VIDEO CD not equipped with PBC function

(Version 1.1)
Sound and movie can be played on this player in the
same way as an audio CD.

• VIDEO CD equipped with PBC function

(Version 2.0)
In addition to operation of a VIDEO CD not equipped
with the PBC function, you can enjoy playback of
interactive software with search function by using the
menu displayed on the screen (Menu Playback). Some
functions described in this owner’s manual may not
work with all discs.

This player can play the following discs.

Disc Mark Contents

DVD
video
discs

VIDEO
CDs

Audio
CDs

The following discs are also available.

DVD-R discs of DVD video format
CD-R/CD-RW discs of CD-DA or VIDEO CD format

Some of these discs may be incompatible.

DIGITAL VIDEO

Video

(moving

pictures)

+

Audio

Video

(moving

pictures)

+

Audio

Audio

Disc
Size

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm

(CD single)

• You cannot play discs other than those listed above.

• You cannot play discs of DVD-RAM or

non-standardized discs, etc., even if they may be
labeled as above.

• This player uses the NTSC color system.

Because of problems and errors that can occur during
the creation of DVD software and/or the manufacture of
DVD discs, Toshiba America Consumer Products, L.L.C.
and Toshiba of Canada, Ltd. cannot guarantee that this
player will play every feature of every DVD bearing the
DVD logo. As one of the creators of DVD technology,
Toshiba DVD players are manufactured to the highest
standards of quality and, as a result, such
incompatibilities are very rare. If you happen to
experience and difficulty playing a DVD on a Toshiba
DVD player, please feel free to call our Contact listed in
“How to Obtain Service”

.

70

9

Introduction

Notes and Information (continued)

Exemptions

Toshiba Corporation is not liable for any damage
caused by fire, natural disaster (such as thunder,
earthquake), acts by third parties, accidents, owner’s
intentional or unintentional misuse, or uses in other
improper conditions.
Toshiba Corporation is not liable for incidental
damages (such as profit loss or interruption in
business, etc.) caused by use or inability to use of this
player.
Toshiba Corporation is not liable for any damage
caused by neglect of the instructions described in the
owner’s manual.
Toshiba Corporation is not liable for any damage
caused by misuse or malfunction through joint use of
this player and connected equipment or software.

On disposal

This product contains mercury. Disposal of this material
may be regulated due to environmental considerations.
For disposal or recycling information, please contact
your local government or the Consumer Electronics
Association.

10

Table of Contents

Introduction

SAFETY PRECAUTIONS .......................... 2

IMPORTANT SAFETY INSTRUCTIONS ...4

Precautions ...............................................7

Notes and Information ............................. 8

Notes on region numbers ................................. 9

Table of Contents ................................... 11

Identification of Controls .......................12

Main unit ......................................................... 12

Side view ........................................................ 13

Rear view ....................................................... 13

Remote control ............................................... 14

Loading the remote control battery ................ 15

Operating with the remote control .................. 15

Power Connection ..................................16

Basic playback

Playing a Disc ......................................... 18

Basic playback................................................ 18

Variable Speed Playback ....................... 22

Playing in fast reverse or fast forward

directions ...................................................... 22

Playing frame by frame................................... 22

Playing in slow-motion .................................... 23

Resuming playback from the stopped location ..

Locating a Specific Title, Chapter, or

Track ........................................................24

Locating a title using the top menu ................. 24

Locating a desired section by entering its

corresponding number ................................. 25

Locating a specific chapter or track ................ 26

Playing MP3/WMA Files .........................27

Playing MP3/WMA files .................................. 27

Viewing JPEG Files ................................ 28

Viewing JPEG Files ........................................ 28

Advanced playback

Directly Accessing a Specific Location...

Entering the time counter of the desired location ...

Repeat Play ............................................. 33

Repeating a title, chapter, or track .................. 33

Repeating a specific segment ........................ 33

Playing in a Favorite Order ....................34

Setting titles, chapters, or tracks in a favorite

order ............................................................. 34

Playing in Random Order ...................... 35

Playing, chapters or tracks in random order ... 35

23

32

32

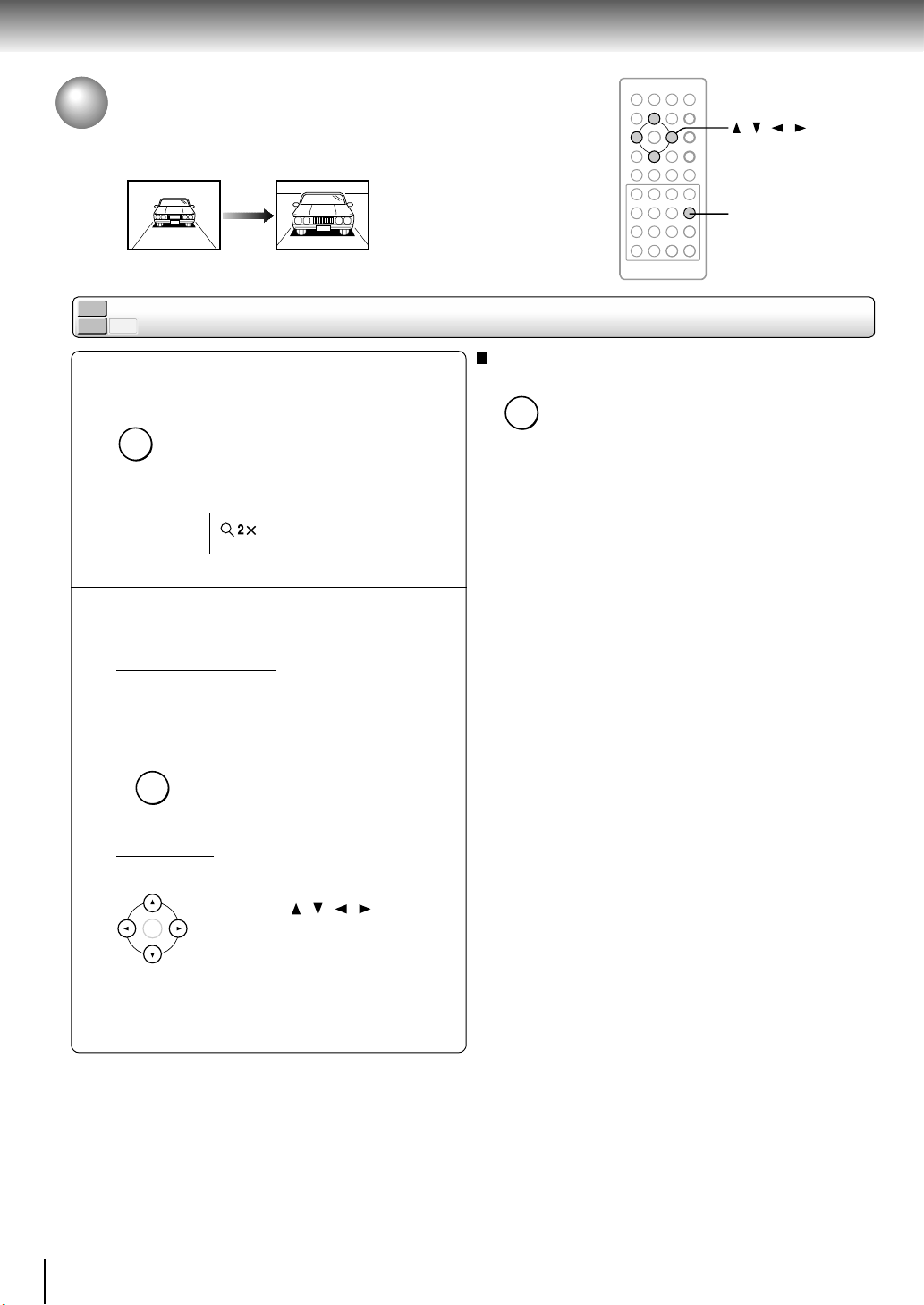

Zooming a Picture .................................. 36

Zooming a picture ........................................... 36

Selecting the Sound Enhancement (E.A.M.*) ..

Selecting the sound enhancement ................. 37

Selecting a Camera Angle...................... 38

Changing the camera angle ........................... 38

Selecting Subtitles ................................. 39

Selecting a subtitle language ......................... 39

Selecting a Language............................. 40

Selecting a playback audio setting ................. 40

Operating in the On-screen Display Mode ..

On-Screen Display Operation......................... 42

Adjusting the Picture ............................. 44

Adjusting the picture ....................................... 44

Function setup

Customizing the Function Settings ...... 46

Setting procedure ........................................... 46

Setting details ................................................. 48

Connections

Connecting to a TV or audio system .... 54

Connecting to a TV ......................................... 54

Connecting to an audio system ...................... 55

Connecting to Headphones ...................56

Connecting to Audio Equipment........... 57

Connecting to an amplifier equipped with

a Dolby Digital decoder ................................ 58

Connecting to an amplifier equipped with

Dolby Surround Pro Logic ............................ 58

Connecting to an amplifier equipped with

a DTS decoder ............................................. 59

Connecting to an amplifier equipped with

an MPEG2 audio decoder ............................ 59

Connecting to an amplifier equipped with

a digital audio input ...................................... 60

Using the Battery Pack........................... 61

Using the automobile/vehicle adapter

or power port .......................................... 63

Others

Before Calling Service Personnel ......... 66

Specifications ......................................... 68

LIMITED WARRANTY PORTABLE DVD

PLAYER ...................................................69

Introduction

37

42

11

Introduction

Identification of Controls

See the page in for details.

Main unit

Press the open
switch to open the
LCD monitor.

LCD monitor

Disc cover

Open switch

POWER/CHG (Power/Charge) indicator

18 61

DISPLAY button

TOP MENU button

MENU button

Remote sensor

42

24

19

15

Speakers

Disc cover OPEN button

PICTURE button

SETUP button

RETURN button

ENTER button

Direction buttons

( / / / )

44

46

46

46

18

12

PAUSE/STEP button

20 22

SKIP buttons

( / )

PLAY button

STOP button

22 26

19

20

Side view

Introduction

Rear view

LCD/AV OUT SELECT switch

• Normally place it in the “LCD” position.

Volume control

Headphone jack 1

Headphone jack 2

20

DC IN jack

56

54

16

AV OUT jack

BITSTREAM/PCM jack

56

S VIDEO jack

54

Power switch

54

58 59 60

2018

13

Introduction

Identification of Controls (continued)

The instructions in this manual describe the functions of the remote control. See the page in for details.

Remote control

MENU button (see below)

TOP MENU button

SKIP button

ENTER button

Direction buttons
( / / / )

REV button
SLOW button

PAUSE/STEP button

STOP button

Number buttons /
+10

*

SHIFT button

22

25

26

*

24

46

46

/

23

20

20

25

22

DISPLAY button

SETUP button

SKIP button

ANGLE button

SUBTITLE button

FWD button
SLOW button

AUDIO button

RETURN button /
CLEAR button

PLAY button

E.A.M. button
PICTURE button

ZOOM button

T button

A-B RPT button
MEMORY button

REPEAT button
RANDOM button

26

22

*

*

19

37

36

25

40

46

38

23

25

*

*

33

*

/

33

42

39

/

44

/

34

/

35

“ * ” buttons

Operate these buttons while simultaneously pressing

the SHIFT button.

14

MENU button
Use the MENU button to display the menu included on
many DVD video discs. To operate a menu, follow the
instructions in “Locating a title using the top menu.”

24

Loading the remote control battery

C

R

2

0

2

5

3V

Operating with the remote control

Introduction

While pushing the holder in direction

1

1

, simultaneously slide it out in

direction 2.

Backside

1

2

Place a coin-shaped battery (CR2025)
with the side up on the holder.

2

3V

CR2025

Keep the holder horizontal so that the battery
does not fall through.

Push the holder back into its
receptacle.

3

Point the remote control at the remote
sensor on the player and press the
buttons.

Within about 3 m (9.9 feet)

Distance: About 3 m (9.9 feet) from the front of the

remote sensor

Angle: About 30° in each direction of the front of

the remote sensor

* Do not expose the remote sensor of the player to a

strong light source such as direct sunlight or other
illumination. If you do so, you may not be able to
operate the player via the remote control.

Backside

Notes on coin-shaped batteries

• If the remote control does not function correctly or if the
operating range becomes reduced, replace the battery
with new one.

• See 6 for safety use of coin-shaped batteries.

• Inserting a battery other than the specified one or an

object may damage the remote control.

Notes on the remote control

• Aim the remote control at the remote sensor of the player.

• Do not drop or give the remote control a shock.

• Do not leave the remote control near an extremely hot or

humid place.

• Do not spill water or put anything wet on the remote
control.

• Do not disassemble the remote control.

15

Introduction

Power Connection

Connect the supplied AC adapter to power the player.
For mobile use, the battery pack (supplied) is also available.
When using the battery pack, follow the instructions on page 61.

Caution

• Do not connect the power plug to a power outlet other than that indicated on the label, as this can result in a risk of fire
or electric shock.

• Do not connect or disconnect the power plug with wet hands. Doing so may cause electric shock.

• Do not use an AC adapter other than one specified, as it can cause a fire or damage to the player.

• When the AC adapter is in use, its temperature may increase. However, it is not a malfunction. Make sure that the

power cord is disconnected and the temperature decreases before carrying it.

Follow steps 1 to 3 to connect.
When disconnecting, reverse this order.

To wall outlet

3

Power plug

2

To the DC IN jack

1

AC adapter

Connect the supplied AC adapter
and the power cord firmly.

Power cord

16

Basic playback

Begin your operation.

Playing a Disc

Variable Speed Playback

Locating a Specific Title,
Chapter, or Track

Playing MP3/WMA Files

Viewing JPEG Files

About this manual

• The numbers indicated by lines on the illustrations
correspond to the associated steps of the operation.

• Aside from the section “Playing a Disc”, explanations
of operations only include illustrations of the
corresponding buttons on the remote control. The
buttons sharing the same name on the main unit can
also be used in an identical manner.

Basic playback

Playing a Disc

This section shows you the basics on how to play a disc.

indicates a reference page of this manual.

See the page in for details.

CAUTION

• Keep your fingers clear of the disc as it is spinning.
Neglecting to may cause serious personal injury.

• Be careful not to catch your fingers in the disc holder.

• Do not use a cracked, deformed, or repaired disc.

• Do not tilt, shake or move the main unit while playing. It

may damage the disc.

DVD-V

VCD CD

Preparations

• Connect the AC adapter 16 or the battery pack 61 to the
player.

• When you want to view a disc on a connected TV or monitor,
turn on the equipment and select the video input connected
to the player.

• When you want to enjoy the sound of discs from an audio
system, turn the audio system on and select the input
connected to the player.

• If you use the supplied remote control, make sure that
batteries are loaded in it.

• If you use the headphones, see “Connecting to
Headphones”.

• Press the open switch to open the LCD monitor.

Press the open
switch to open the
LCD monitor.

Basic playback

56

Do not forcibly open the
LCD monitor to avoid
damaging this panel.

15

Turn on the power.

1

The player turns on and the POWER/CHG
indicator on the player illuminates in green.

Slide the power switch to “ON”.

Open the disc cover.

2

The disc cover will not open over a certain range.
Do not force the cover open further, as it may
cause damage to the player.

Press OPEN on the main unit.
The disc cover opens.

Set a disc.

3

18

1

TOP MENU

MENU

Place a disc with the playback side down, and
push gently on the center of the disc to affix it to
the spindle.

Close the disc cover.

4

Press CLOSE on the right corner.

/ / /

STOP

4

2

5

ENTER

SETUP MENU

TV Shape

Language
Audio
Operation
Equalizer Mode

TOP MENU
MENU

SETUP

/ / /

ENTER

5

STOP

To obtain a higher quality picture (When connected to a TV)

Occasionally, some picture noise not usually visible during a normal broadcast may
appear on the TV screen while playing a DVD video disc because the high
resolution pictures on these discs include a lot of information. While the amount of
noise depends on the TV you use with this player, you should generally reduce the
sharpness adjustment on the connected TV when viewing DVD video discs.

About

DVD-V VCD CD

The
function described under each heading.

DVD-V

: DVD video discs.

VCD

: VIDEO CDs.

Start playback.

5

PLAY

PLAY

If you select a DVD video disc that contains a top
menu, or select a PBC (Playback Control)­featured VIDEO CD (
See “Locating a title using the top menu”.

• You may need to press the TOP MENU or MENU
button to display the disc menu (depending on the
actual DVD video disc.)

Press PLAY.

9

), a menu may appear.

DVD-V VCD CD

icons on the heading bar show the playable discs relevant to the

24

: Audio CDs.

CD

To change an on-screen language.

1 Press SETUP.

SETUP

2 Press

The following on-screen display appears.

/ to select “Language”, then press ENTER.

ENTER ENTER

Basic playback

To start playback in the stop mode.

Press PLAY.

PLAY

PLAY

Notes

• Do not put an unplayable disc or any objects other than
discs in the disc holder.

• In many instances, a menu screen will appear after playback
of a movie is completed. Prolonged display of an on-screen
menu may damage your television set, permanently etching
that image onto its screen. To avoid this, be sure to press the
STOP button once the movie is completed.

CAUTION

Never operate the player in a moving vehicle.
Vibration may prevent proper playback of the player or
cause damage to the disc.

3 Press

/ to select “On-screen”, then press .

ENTER ENTER

4 Select a language using

ENTER ENTER

5 Press SETUP.

SETUP

The on-screen display disappears.

/ , then press ENTER.

19

Basic playback

STOP

Playing a Disc (continued)

Basic playback (continued)

Power switch

To stop playback

Press STOP.

The player memorizes the location where
playback is stopped. To clear the
memory, press the STOP button once

23

again.

STOP

To turn off the power

Slide the power switch to “OFF”.

PLAY
STOP

PAUSE/STEP

PLAY

OPEN button

Volume control

To adjust the volume of the speakers or the
connected headphones

Turn volume control.

Right : Increase volume.
Left : Decrease volume.

To pause playback (still mode)

Press PAUSE/STEP during playback.

PAUSE

PAUSE/STEP

To resume normal playback, press PLAY.

• Sound is muted during still mode.

STOP

To remove the disc

Press the OPEN button on the main unit to open the
disc cover.

Remove the disc from under the rim
while gently pressing down on its
center.
Close the disc cover after removing
the disc.

CAUTION

Do not touch the spindle immediately after prolonged play,
as it may have become hot.
Be careful in loading/removing a disc.

20

About the screen saver

If you pause a picture of a DVD video disc and leave it
still for approximately 20 minutes, the screen saver of
the player automatically appears (when “Screen Saver”
is set to “On”
any button on the main unit or remote control.

51

). To turn off the screen saver, press

Automatic LCD Off function

If the player is stopped or the screen saver is engaged
for approximately 20 minutes, the LCD power
automatically turned off. To turn on the LCD monitor,
press any button on the main unit or remote control.

About the LCD

• The color LCD is manufactured using extremely high
precision technology, but even so may include
certain pixels that do not operate properly (that do
not light, that remain lit constantly, etc.). We do our
best to keep the number of these defective pixels to
a minimum, but please understand that they cannot
be completely eliminated even with the most
advanced manufacturing technologies available
today.

• The fluorescent tube which illuminates the panel
from the inside will deteriorate with use. (The
standard life length is about 10,000 hours of
continuous use at normal temperature. This is
referential information only and is not warranted.)
When the LCD becomes dim, flickers, or does not
illuminate, contact your dealer for replacement.

• The brightness of the LCD monitor differs slightly
depending on the viewing angles. Adjust the LCD
monitor angle to obtain the best viewing. (The
recommended viewing angle is 90 degrees to the
monitor.)

Basic playback

21

Basic playback

PLAY

REV

PAUSE/STEP

FWD

Variable Speed Playback

You can play discs at various speeds, and
resume playback from the location where
you stopped playback.

SKIP ( / )

PLAY

PAUSE/STEP

DVD-V

VCD CD

Playing in fast reverse or fast forward directions

Press REV or FWD on the remote control
during playback.

SLOW

REV

SLOW

FWD

REV: Fast reverse playback
FWD: Fast forward playback

Each time you press the REV or FWD
button, the playback speed changes.

Press and hold SKIP ( / ) on the main
unit during playback.

SKIP

During the fast forward or fast reverse playback, you
can vary the speed by holding down the button.

Fast forward playback

Fast reverse playback

To resume normal playback

Press PLAY.

PLAY

Notes

• The player mutes sound and omits subtitles during reverse
and forward scan of DVD video discs.

• The playback speed may differ depending on the disc.

DVD-V

VCD CD

Playing frame by frame

Press PAUSE/STEP during still playback.

PAUSE/STEP

Each time you press the PAUSE/STEP
button, the picture advances one frame.

22

To resume normal playback

Press PLAY.

PLAY

Note

The sound is muted during frame by frame playback.

DVD-V

VCD CD

Playing in slow-motion

STOP

SLOW

PLAY
STOP

PLAY

SHIFT

Basic playback

Press SLOW while pressing SHIFT during
playback.

SHIFT

SLOW

REV

DVD-V

VCD CD

Resuming playback from the stopped location

Each time you press the SLOW
button, the slow-motion speed

SHIFT

changes.

If you press the SLOW

SLOW

during playback, you can view the

FWD

picture in reverse slow-motion.
(Only when using a DVD video
disc.)

Each time you press the SLOW
button, the slow-motion speed
changes.

button

Press STOP at the location where you
want to interrupt playback.

1

STOP

The player memorizes the location
where playback is stopped.

Press PLAY.

2

PLAY

The player resumes playback from the
location where you stopped playback.

To resume normal playback

Press PLAY.

PLAY

Notes

• The sound is muted during slow-motion playback.

• The playback speed may differ depending on the disc.

2 Press PLAY.

PLAY

• If you want to return to the beginning of a DVD video
disc, turn the power off and on by sliding the power
switch to the ON position, and then start playback.

Notes

• The player’s memory is also cleared when:
– you use a PBC-featured VIDEO CD while “PBC” is set to

“On” 51.

• There may be a difference in the location where playback

resumes depending on the disc.

Playback starts from the

DVD-V

beginning of the titles.

VCD

Playback starts from the

CD

beginning of the disc.

To start playback from the beginning regardless
of the location where you stopped playback

1 Press STOP twice.

STOP

The player’s memory is cleared.

23

Basic playback

1
2

3

Locating a Specific Title,
Chapter, or Track

1

2

3

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. Contents of VIDEO CDs and
audio CDs are divided into tracks. You can quickly locate any specific title, chapter, or track.

DVD video disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

Track 1 Track 2

VIDEO CD/Audio CD

Track 3

Track 4

Track 5

DVD-V

VCD CD

Locating a title using the top menu

Press TOP MENU.

TOP MENU

1

The top menu appears.

e.g.

TITLE 1

TITLE 3

TITLE 2

TITLE 4

Press / / / to select the title you
want.

2

If the titles in the top menu are
assigned a number, you can directly

ENTER

locate a specific title by pressing its
designated number with the number
buttons.

Press ENTER.

3

Notes

• The instructions above describe basic procedures which
may vary depending on the contents of the DVD video disc.
If different instructions appear on the screen, follow those
instructions.

• If you display the top menu during playback and press the
TOP MENU button again without selecting any title, the
player may resume playback from the point where you first
pressed the TOP MENU button (depending on the actual
DVD video disc.)

• This method of locating a title is available only on a disc that
contains a top menu.

• Instruction notes of discs may refer to the button that
displays the top menu as TITLE button.

Playback starts from chapter 1 of the
selected title.

ENTER

24

DVD-V

SHIFT

/

1

2

ENTER
PLAY
CLEAR

VCD CD

Basic playback

Locating a desired section by entering its corresponding number

Press T several times.

1

The display changes each time this button is pressed.
If you want to locate a title, chapter or track, display
“Title,” “Chapter,” or “Track” respectively. You can also
enter the time counter of the desired location.

e.g.

DVD-V

T

Title 01/03 Chapter -- /40

e.g.

Track -- /12

VCD

CD

Press the number buttons to enter a
number of the section.

2

e.g. To enter 25

2 5

+10

SHIFT

or

Playback starts from the selected section.
With a DVD video disc, you can use
select either title or chapter for entry.

SHIFT

0

+10

0 5

/ to

Notes

• Pressing the CLEAR button while pressing the SHIFT button
resets the numbers.

• This location display will disappear in a few seconds if no
further operation is made.

32

• This method of locating a title is available only on a disc that
contains title numbers.

• You can also use an on-screen display to change a title,
chapter or track.

42

Press PLAY or ENTER.

3

PLAY

ENTER

Playback starts from the selected
section.

25

Basic playback

Locating a Specific Title,
Chapter, or Track
(continued)

DVD-V

VCD CD

Press SKIP ( / ) repeatedly to locate the
chapter or track you want.

Playback starts from the selected chapter or track.

Locating a specific chapter or track

SKIP

SKIP

To locate succeeding chapters or tracks.

Playback starts from the beginning of the
current chapter or track.
When you press twice, playback starts
from the beginning of the preceding
chapter or track.

SKIP

SKIP ( / )

26

Playing MP3/WMA Files

/ / /

ENTER

PLAY

PAUSE/STEP

SKIP

3

You can play MP3/WMA files on this player.

Playing MP3/WMA files

Playable files

MP3/WMA disc compatibility with this player is limited as follows:

• Playable discs: CD-ROM, CD-R, CD-RW

• Sampling Frequency: 32 kHz, 44.1 kHz, 48 kHz

• Bit rate: WMA: 48 kbps - 192 kbps(CBR)

MP3: 32 kbps - 320 kbps (CBR)

• CD physical format: Mode 1

• File system: ISO9660, UDF without interleave

• File name: File names are limited to eight characters or less and must incorporate “MP3” or “WMA”

extension.
e.g.“********.MP3”, “********.WMA”
File names cannot contain special characters such as “?!><+*}{`[@]:;\ /.,” etc.
Less than 50 bytes

• Total number of files: Less than 650

• WMA codec version: V2, V7, V8, V9 (Stereo sound only)

Basic playback

Set a CD that contains MP3/WMA files
and close the disc cover.

1

A menu appears.

Press / / / to select a file name
you want to play.

2

ENTER

Press PLAY or ENTER.

3

PLAY

To stop the playback

Press STOP.

STOP

To pause playback

Press PAUSE/STEP during playback.

PAUSE/STEP

Playback starts.

To resume normal playback, press the
PLAY button.

Notes

• Some discs may not permit this operation.

• WMA tracks copy-protected cannot be played.

• The BITSTREAM/PCM jack outputs MP3/WMA sounds in

the linear PCM format regardless of the current “Audio Out
Select” selection.

• If you stop playback by pressing the STOP button, and then
press the PLAY button, playback will start from the beginning
of the track.

• The SKIP, REPEAT and RANDOM functions are also
available.

This player requires discs/recordings to meet certain
technical standards in order to achieve optimal playback
quality. Pre-recorded DVDs are automatically set to
these standards. There are many different types of
recordable disc formats (including CD-R containing
MP3/WMA files). Given the fact that technology in this
area is still maturing, Toshiba cannot guarantee that all
genre of recordable discs will produce optimal playback
quality. The technical criteria set out in this owner’s
manual are meant as a guide only.

Customers should also note that permission is required
in order to download MP3 files and music from the
internet. Toshiba has no right to grant such permission.
Permission should always be sought from the copyright
owner.

Microsoft, Windows Media, and the Windows
Logo are trademarks or registered trademarks
of Microsoft Corporation in both the United
States and other countries.

49

27

Basic playback

/ / /

SKIP

PLAY

PAUSE/STEP

STOP

ENTER

FWD

REV

ZOOM

ENTER

Viewing JPEG Files

You can play JPEG files that have been recorded
on a CD-R on this player.

PAUSE/STEP

Viewing JPEG Files

Preparation

Prepare a disc that contains JPEG files you want to view 30.

ENTER
/ / /

SKIP ( / )

PLAY

STOP

Set a disc contains JPEG files and
close the disc cover.

1

A menu appears.
If you insert a KODAK Picture CD, automatically
starts the slide show. With a KODAK Picture CD, the
menu is not displayed. (See the next page.)

e.g.

Press / to select a folder, then press
ENTER.

2

ENTER

ENTER

e.g.

Press , then select a file by pressing

/ .

3

Press PLAY or ENTER.

PLAY

4

To stop the slide show

Press STOP.

STOP

To pause the slide show

Press PAUSE/STEP during playback.

PAUSE/STEP

To switch pictures

Press SKIP ( / ) during playback.

SKIP

SKIP

A slide show begins from the selected
picture. Upon reaching the end, it will
be back to the top menu.

Thumbnail mode (9-picture display) will
be entered.

To resume the slide show, press the
PLAY button.

: Switch to the previous picture
: Switch to the next picture

28

ENTER

Notes

• You may not be able to load a JPEG file exceeding 2MB.

• If you press the MENU button when no menu is displayed, a

menu is displayed.

Basic playback

To rotate a picture

Press / / / during playback.

: A picture is vertically reversed.

ENTER

: A picture is horizontally reversed.
: Rotate counterclockwise (by 90°).
: Rotate clockwise (by 90°).

To zoom in a picture

1 Press ZOOM during playback.

ZOOM

You will enter the zoom mode.

2 Press FWD or REV.

SLOW

FWD

SLOW

REV

If you press

FWD: Magnification
REV: Image reduction
Each time you press the FWD or REV
button, the magnification level changes.

/ / / in the zoom in mode, the zoom
point will be shifted.
Pressing the ZOOM button again exits the zoom mode.

To play in random order or repeatedly

1 Press to move highlight to play mode position on

the menu.

e.g.

Thumbnail mode

e.g.

Slide Show Menu Prev Next

Press PLAY.
A slide show begins from the selected picture.
A picture is selected by pressing

/ / / .

Select [Slide Show] and press ENTER or PLAY.
A slide show will begin again.

Select [Menu] and press ENTER or PLAY.
A list of functions keys (buttons) at the time of JPEG
files playback will be displayed.

Select [

Prev] and press ENTER or PLAY.

The previous nine pictures will be displayed.

Select [Next

] and press ENTER or PLAY.

The next nine pictures will be displayed.

2 Press

/ to change the play mode.

Random : Plays the files in the selected folder

in random order.

Repeat Folder : Plays the files in the selected folder

repeatedly.

Repeat File : Plays a selected file repeatedly.

3 Press

4 Press

.

/ to select the file, then press PLAY or

ENTER.

Press STOP.
The menu mode will be entered.

To play a Kodak Picture CD

Insert a Kodak Picture CD.
Automatically starts the slide show.

Upon reaching the end, it will enter the thumbnail mode.
Pressing the STOP button will enter the thumbnail
mode.

29

Basic playback

Viewing JPEG Files (continued)

JPEG files compatibility

Discs and pixels whose compatibility with this player has been confirmed by TOSHIBA are as follows.

Kodak Picture CD

JPEG disc compatibility with this player is limited as follows:

• Playable discs: CD-ROM, CD-R, CD-RW

• File system: ISO9660, UDF without interleave

• File name: File names are limited to eight characters or less and must incorporate “JPG” extension.

• File size: Less than 10M bytes

• File format: BASELINE, PROGRESSIVE

• Resolution: Baseline JPG: 3072x2048

e.g.“********.JPG”
File names cannot contain special characters such as “?!><+*}{`[@]:;\ /.,” etc.

Progressive JPG: width *(height + 128) < 3300000
Files with size < 20M bytes are tested.

30

Advanced playback

Customizing the performance of your player.

Directly Accessing a Specific
Location

Repeat Play

Playing in a Favorite Order

Playing in Random Order

Zooming a Picture

Selecting the Sound
Enhancement (E.A.M.)

Selecting a Camera Angle

Selecting Subtitles

Selecting a Language

Operating in the On-screen
Display Mode

Adjusting the Picture

Advanced playback

1

2

SHIFT

PLAY
CLEAR

ENTER

Directly Accessing a Specific Location

You can access a specific location by entering its corresponding time (hours,
minutes, seconds).

DVD-V

VCD CD

Entering the time counter of the desired location

Press T several times.

1

The display changes each time this button is
pressed.
With DVD video disc, press this button until “Time”
is displayed. With Video CD/audio CD, press this
button until “Disc goto” or “Track goto” is displayed.

DVD-V

e.g.

T

Title 01/03 Time –:– –:– –

Chapter 01/40 Time –:– –:– –

e.g.

Disc goto :– –:– –

Track goto :– –:– –

VCD

CD

Press the number buttons to enter the
time.

2

e.g.

1 2 5 3 0

Notes

• Pressing the CLEAR button while pressing the SHIFT button
resets the numbers.

• This location display will disappear in a few seconds if no
further operation is made.

• Some discs may not respond to this process.

• Some scenes may not be located precisely as you specified.

32

Title 01/03 Time 1:25:30

Playback starts from the desired location.

Press PLAY or ENTER.

3

PLAY

ENTER

Playback starts from the selected
section.

DVD-V

DVD-V

DVD-V

VCD

VCD

CD

CD

Repeat Play

STOP

A-B RPT

REPEAT

You can play a specific title, chapter, track, or segment repeatedly.
(Title repeat, chapter/track repeat, A-B repeat)

DVD-V

VCD CD

Repeating a title, chapter, or track

Press REPEAT.

RANDOM

REPEAT

No display

Each time you press the REPEAT
button, the repeat mode changes as
follows.

Chapter

Chapter

Title

Track

Disc

Repeats the same
chapter.

Repeats the same title.

Repeats the same track.

Repeats the entire disc.

Resumes normal
playback.

To resume normal playback

Press REPEAT repeatedly until the repeat icon
disappear.

RANDOM

REPEAT

You can also use STOP to exit repeat playback.

Notes

• Some discs may not permit repeat operation.

• You can also use an on-screen display to perform a repeat

playback.

42

Advanced playback

DVD-V

VCD CD

Repeating a specific segment

Press A-B RPT at the beginning of the
segment (point A) you want to play

1

repeatedly.

MEMORY

A-B RPT

A

Press A-B RPT again at the end of the
segment (point B).

2

MEMORY

A-B RPT

The player automatically returns to
point A and starts repeat playback of
the selected segment (A-B).

AB

To resume normal playback

Press A-B RPT again.

MEMORY

A-B RPT

You can also use STOP to exit A-B repeat function.

Notes

• Some discs may not permit A-B repeat operation.

• You can specify a segment only within the current title or

track.

• You cannot set the A-B repeat function for a segment that
includes multiple camera angles 38.

•

There may be a slight difference between point A and the
location where playback actually resumes depending on the disc.

33

Advanced playback

PLAY

SHIFT

MEMORY

CLEAR

STOP

Number buttons

/ / /

ENTER

Playing in a Favorite Order

You can combine your favorite titles, chapters, or tracks and play them in the
order you determine. You can program up to 20 selections into the memory.
(Memory playback)

DVD-V

VCD CD

Setting titles, chapters, or tracks in a favorite order

Press MEMORY while pressing SHIFT
during stop.

1

SHIFT

MEMORY

A-B RPT

TT: Title number
CH: Chapter number

The programming display appears.

DVD-V

e.g.

:

:

-­:
:
:
:

VCD CD

--

--

--

--

--

05

--

CH

:

--

--

CH

:

--

--

CH

:

--

--

CH

:

--

--

CH

Exit

01 TT
02 TT
03 TT
04 TT
05 TT

e.g.

01
02
03
04

Enter the number in the order wish to
playback, then press ENTER.

2

Pressing the ENTER button causes the highlight
to move to the next item.

Pressing

will allow you to access the next

programming display.

Select “Start” using and press
ENTER or PLAY.

3

The player starts memory playback.

ENTER

06 TT
07 TT
08 TT
09 TT
10 TT

06
07
08
09
10

To change the programmed selections

1 While the display appears on the screen, press

/ / / to move the highlighted bar to the item

you want to change.

2 Change the selection following the instructions in

:

:

--

--

CH

:

:

--

--

CH

:

:

--

--

CH

:

:

--

--

CH

:

:

--

--

CH

step 2.

To cancel the programmed selections

1 While the display appears on the screen, press

/ / / to move the highlighted bar to the item

you want to cancel.

2 Press CLEAR while pressing SHIFT.

--

--

--

--

--

To resume normal playback from memory
playback

1 Press MEMORY while pressing SHIFT to display the

programming display.

2 Since “Stop” is selected, press ENTER.

You can also exit memory playback by pressing STOP.

Notes

• Pressing the CLEAR button while pressing the SHIFT button
resets the numbers.

• Some discs may not permit memory playback operation.

• When the display appears on the screen, either selecting
“Exit” and pressing the ENTER button or pressing the

MEMORY button while holding down the SHIFT button
causes the display to be disappeared.

• The programmed selections will be cleared when you turn
off the player.

34

ENTER

Playing in Random Order

STOP

SHIFT

RANDOM

SHIFT

RANDOM

REPEAT

You can play chapters or tracks in random order.
(Random playback)

DVD-V

VCD CD

Playing chapters or tracks in random order

Press RANDOM while pressing SHIFT.

SHIFT

RANDOM

REPEAT

Each time you press the RANDOM
button, the random mode changes as
follows.

Shuffle

Shuffle

Random

No display

Plays chapters once on a
disc in random order.

Plays chapters or tracks
in random order.

Resumes normal
playback.

If you press the RANDOM button
during playback, the player
automatically starts random
playback after finishing the current
chapter or track.

To resume normal playback

Press RANDOM while pressing SHIFT repeatedly until
the random display disappear.

You can also exit random playback by pressing STOP.

Note

Some discs may not permit random playback operation.

Advanced playback

35

Advanced playback

/ / /

ZOOM

Zooming a Picture

You can magnify areas within a picture.

DVD-V

VCD CD

Zooming a picture

During normal, slow, still, fast reverse
or fast forward playback, press ZOOM.

1

ZOOM

The player enters the zoom
playback mode, and the zoom icon
appears.

e.g.

Select the zoom point and
magnification level.

2

Magnification level

You can select from the following.

– Magnification
– Image reduction
– Normal playback

ZOOM

Press the ZOOM button
repeatedly.

To exit zoom playback

Press ZOOM repeatedly until the zoom icon disappear.

ZOOM

You can also use STOP to exit zoom playback.

Notes

• Some discs may not respond to zoom feature.

• During some scenes, the buttons may not work as

described.

• Zooming does not work on characters selected on menus.

36

Zoom point

To shift:

ENTER

Press

/ / / in the zoom

in mode.

Selecting the Sound Enhancement (E.A.M.*)

1, 2

You can easily select a preferred audio enhancement.

*E.A.M.: Enhanced Audio Mode

DVD-V

VCD CD

Selecting the sound enhancement

Press E.A.M.


1

E.A.M.

The sound enhancement menu
appears.

E.A.M. : Normal

Select the sound enhancement by
pressing E.A.M.

2


E.A.M.

Normal: Normal sound.
3D: To obtain expansive virtual surround

3D (Headphone):

Dialog: To control critical center channel

Each time you press the button, the
sound enhancement changes.

sound effects from just two speakers.

To obtain expansive virtual surround
sound effects when using headphone.

information to make dialogue more
intelligible (only when playing a DVD
video disc recorded on the Dolby Digital
recording system).

• To use this enhancement on sounds
output from the BITSTREAM/PCM jack,
be sure to set “Audio Out Select” to
“PCM.”

49

Notes

• Actual effects to sounds may vary depending on the speaker
system. Make the selection to your preference.

• Actual effects to sounds may vary depending on the disc.

• When the player is connected to an amplifier equipped with

Dolby Surround Pro Logic, select “Normal”. Otherwise, Dolby
Surround Pro Logic may function differently than usual.

Advanced playback

37

Advanced playback

Selecting a Camera Angle

If a scene was recorded with multiple angles, you can easily change the
camera angle of the scene you are viewing.

DVD-V

VCD CD

1

Changing the camera angle

Press ANGLE while playing a scene
recorded with multiple angles.

ANGLE

While playing a scene recorded with
multiple angles, the angle icon (
appears on the screen.
Press the ANGLE button while the
angle icon is displayed.

e.g.

1/5

Notes

• After selecting angle, it will take a few moments to change
the camera angle of the scene you are viewing.

• If you pause a picture immediately after changing a camera
angle, the resumed playback picture may not display the

)

new camera angle.

• You can also use an on-screen display to change a camera
angle.

1, 2

42

Selecting the camera angle by pressing
ANGLE.

2

ANGLE

Each time you press the ANGLE
button, the camera angle changes.

38

Selecting Subtitles

You can display subtitles on the screen and select a subtitle language
from those included on the DVD video disc.

SUBTITLE

DVD-V

VCD CD

Good evening!

Selecting a subtitle language

Bonsoir!

¡Buenas tardes!

Press SUBTITLE during playback.

SUBTITLE

1

The current subtitle setting is
displayed.

e.g.

Subtitle 01/02 : English

Press SUBTITLE while the subtitle
setting is displayed on the screen.

2

SUBTITLE

Each time you press the SUBTITLE
button, the subtitle languages
included on the DVD video disc
change.

To turn subtitles on or off

Press SUBTITLE several times during playback until
“Turn off subtitles” is displayed.

SUBTITLE

Notes

• Some DVD video discs display subtitles automatically, and
you cannot turn them off even if you set the subtitle function
to off.

• Some DVD video discs will allow you to make subtitle
selections and turn subtitles on or off only via the disc menu.

• You can also use an on-screen display to change a
subtitle.

42

Advanced playback

Notes

• When you select a subtitle language which is not included on the disc, the player plays a prior language programmed on the
disc.

• During some scenes, the subtitles may not appear immediately after you change the subtitle language.

39

Advanced playback

Selecting a Language

You can select a preferred language and sound recording system from those
included on the disc.

AUDIO

DVD-V

VCD CD

Good morning!

Bonjour!

Selecting a playback audio setting

¡Buenos días!

Press AUDIO during playback.

1

AUDIO

The current audio setting is
displayed.

e.g.

Audio 1/3 : Dolby D 3/2.1 Channels English

Press AUDIO while the audio setting is
displayed on the screen.

2

AUDIO

Each time you press the AUDIO
button, the audio settings included
on the DVD video disc change.

Selecting sound channels of VIDEO CDs

During playback, press AUDIO repeatedly to select the
sound channel.

AUDIO

Notes

• Some discs allow you to change audio selections only via
the disc menu. If this is the case, press the MENU button
and choose the appropriate language from the selections on
the disc menu.

• If you select a sound track which is not included on the disc,
the player plays a prior sound track programmed on the disc.

• You can also use an on-screen display to change audio
settings.

42

40

Output sound conversion table (sampling frequency/quantization bit)

Advanced playback

Discs

DVD

video discs

VIDEO CDs

Audio CDs

Sound recording system

Dolby Digital Bitstream

48 kHz/16 bit

Linear

PCM

Linear PCM 44.1 kHz/16 bit

48 kHz/20 bit
48 kHz/24 bit
96 kHz/16 bit
96 kHz/20 bit
96 kHz/24 bit

DTS

MPEG1, MPEG2

MPEG1

DTS

Audio selection from the menu

BITSTREAM/PCM

44.1 kHz/16 bit

44.1 kHz/16 bit

“Bitstream”

jack

48 kHz/16 bit
48 kHz/20 bit
48 kHz/24 bit
96 kHz/16 bit
96 kHz/20 bit
96 kHz/24 bit

Bitstream
Bitstream

Bitstream Bitstream (Noise)

Speakers/AV OUT jack/

Headphone jacks

48 kHz/20 bit
48 kHz/16 bit
48 kHz/20 bit
48 kHz/24 bit
96 kHz/16 bit
96 kHz/20 bit
96 kHz/24 bit

48 kHz/16 bit

44.1 kHz/16 bit

44.1 kHz/16 bit
(Noise)

BITSTREAM/PCM

–

“Analog 2ch”“PCM”

jack

Bitstream 48 kHz/20 bit

48 kHz/16 bit
48 kHz/16 bit
48 kHz/16 bit

–
–
–

Bitstream
Bitstream

44.1 kHz/16 bit 44.1 kHz/16 bit

44.1 kHz/16 bit 44.1 kHz/16 bit
Bitstream (Noise)

and outputs

46 49

Speakers/AV OUT jack/

Headphone jacks

48 kHz/16 bit
48 kHz/20 bit
48 kHz/24 bit
96 kHz/16 bit
96 kHz/20 bit
96 kHz/24 bit

–

48 kHz/16 bit

BITSTREAM/PCM

jack

48 kHz/20 bit 48 kHz/20 bit
48 kHz/16 bit
48 kHz/20 bit
48 kHz/24 bit
96 kHz/16 bit
96 kHz/20 bit
96 kHz/24 bit

48 kHz/16 bit 48 kHz/16 bit

44.1 kHz/16 bit 44.1 kHz/16 bit

44.1 kHz/16 bit 44.1 kHz/16 bit

: 3D sound enhancement can function.

(Signals are depressed by down
sampling process.)

• Signals of 88.2kHz or higher from the BITSTREAM/PCM jack are down converted to 44.1 kHz or 48 kHz when:
– “3D” is selected.

37

– a copyright protected disc is played.

• Quantization will be limited to 16 bits in a copyright protected disc.

Speakers/AV OUT jack/

Headphone jacks

48 kHz/16 bit
48 kHz/20 bit
48 kHz/24 bit
96 kHz/16 bit
96 kHz/20 bit
96 kHz/24 bit

––

41

Advanced playback

DVD-V

VCD CD

DISPLAY

/ / /

SHIFT

CLEAR

Operating in the On-screen
Display Mode

When you turn on the on-screen display, you can
view information on operational status and access
features and settings.

On-Screen Display Operation

Press DISPLAY during playback.

1

DISPLAY

The following display appears.

e.g.

DISPLAY

/ / /

When playing a DVD video disc

To select a title.

To select a chapter.

To select a playback audio setting.

To select a subtitle language.

To change the camera angle.

Press / to select item.

2

ENTER

Change the selection by / .

3

ENTER

To turn off the display

Press DISPLAY or CLEAR while pressing SHIFT.

Note

Doing nothing for approx. 10 seconds will eliminate the
display.

To repeat a title, chapter
or entire disc.

e.g.

Current title
number

Note

Some discs may not be compatible with a set of these
operations.

Current chapter
number

Elapsed time of
the current title

42

When playing a VIDEO CD or audio CD

To select a track.

To select the audio channel (Stereo, Mono L&R, Left, Right).

To select a playback audio setting.

To repeat a track or entire disc.

e.g.

Advanced playback

Current track
number

Note

Some discs may not be compatible with a set of these
operations.

Elapsed time of
the current track

43

Advanced playback

Adjusting the Picture

You can easily select a preferred picture.

2



2

SHIFT

DVD-V

VCD CD

Adjusting the picture

Press PICTURE while pressing SHIFT.
Alternatively press PICTURE on the

1

main unit.

SHIFT


E.A.M.


The picture setting display appears.

Brightness ||||||||........ 08

Each time you press the button, the
setup items changes as follows.

Brightness

Color

Screen

No display

44

Press / to adjust the value.

2

ENTER

Brightness : 0 (Darker) to 16 (Brighter)
Color : 0 (Paler) to 16 (Deeper)
Screen : Enhanced

Normal

Function setup

You can change the default settings to customize
performance to your preference.

Customizing the Function
Settings

Function setup

ENTER

1, 6

/ / /

ENTER ENTER

ENTER ENTER

AUDIO MENU

E.A.M.
D.R.C.

Audio Out Select

Analog 2ch

PCM

»

Bitstream

Customizing the Function
Settings

You can change the default settings to
customize performance to your preference.

1, 6

/ / /

ENTER

DVD-V

VCD CD

Setting procedure

Press SETUP during stop.

1

SETUP

The following on-screen display
appears.

SETUP MENU

TV Shape

Language
Audio
Operation
Equalizer Mode

Press ENTER to select

Press / to select the setting you
want to change, then press ENTER.

2

(See the next page.)

e.g.

AUDIO MENU

E.A.M.

D.R.C.
Audio Out Select

Setup Menu

Normal

»

3D
3D (Headphone)
Dialog

Change the selection by / , by
referring to the corresponding pages

4

47

, then press ENTER.

e.g.

ENTER ENTER

Press , then repeat steps 3 and 4 to
change other settings.

5

To return to the first menu for the SETUP, press
to select “Setup Menu” and press ENTER.

Press SETUP.

6

SETUP

The on-screen display disappears.

3

46

Press / to select the setting you
want to change, then press .

e.g.

AUDIO MENU

E.A.M.
D.R.C.

Audio Out Select

»

Bitstream

Analog 2ch
PCM

Note

The SETUP button is functional even during the playback or
during the stop time (STOP button pressed once) for resuming
the playback. Some operations, however, are not accessible.
In this case, press the STOP button twice to disable the
playback to be resumed for further setup.

Setting Details PageSetting Details

Page

TV Shape

Language

Audio

Operation

TV Shape

On-screen

Audio

Subtitle

Disc Menu

E.A.M.

D.R.C.

Audio Out Select

Parental

PBC

Screen Saver

DVD-V

DVD-V

VCD

DVD-V

DVD-V

DVD-V

DVD-V

VCD

DVD-V

DVD-V

VCD

DVD-V

VCD

DVD-V

CD

CD

CD

To select a picture size according to the aspect
ratio of your TV.

To select a preferred language for on-screen
displays.

To select a preferred language for the sound
track.

To select a preferred language for subtitles.

To select a preferred language for disc menus.

You can easily switch to a preferred audio
enhancement.

To turn on or off a function that makes faint
sounds easier to hear even if you lower the
volume during late hours playback.

To select an output sound format corresponding
to your system connection.

To turn the parental lock function on or off.

To use the menu screen when playing a PBC­controllable VIDEO CD.

To turn the screen saver on or off.

48

48

48

48

48

49

49

49

50

51

51

Function setup

Equalizer
Mode

Menu Style

Default

EQ Mode

DVD-V

VCD

DVD-V

VCD

DVD-V

VCD

CD

CD

CD

You can change setup menu configuration.

To restore all settings to the factory set.

You can select a preferred equalizer mode.

51

51

51

47

Function setup

LANGUAGE MENU

On-screen

Audio
Subtitle
Disc Menu

Setup Menu

English

French
Spanish

»

Customizing the Function Settings (continued)

Setting details

TV MENU

TV Shape

Setup Menu

4:3 Normal

»

4:3 Letterbox

16:9 Widescreen

TV Shape

DVD-V

4:3 Normal: Select when a standard 4:3 TV is

connected.
Displays pictures cropped to fill
your TV screen. Either or both
sides of the picture are cut off.

4:3 Letterbox: Select when a standard 4:3 TV is

connected.
Displays theatrical images with
masking bars above and below the
picture. When playing a source of
16:9 picture size.

16:9 Widescreen: Select when a 16:9 wide TV is

connected.
Use this setting when using the
player’s LCD monitor.

Notes

• The displayable picture size is preset on the DVD video
disc. Therefore, the playback picture of some DVD
video discs may not conform to the picture size you
select.

• When you play DVD video discs recorded in the 4:3
picture size only, the playback picture always appears
in the 4:3 picture size regardless of the TV shape
setting.

• If you select “16:9 Widescreen” and you own a 4:3 TV
set, the DVD playback picture will be horizontally
distorted during playback. Images will appear to be
horizontally compressed. Always be sure that your TV
shape conforms to the actual TV in use.

On-Screen

VCDDVD-V CD

English: To view on-screen displays in English.
French: To view on-screen displays in French.
Spanish: To view on-screen displays in Spanish.

Audio

DVD-V

English: To play sound tracks in English.
French: To play sound tracks in French.
Spanish: To play sound tracks in Spanish.

Note

Some DVD video discs may be played in a different
language than you selected. A prior language may be
programmed on the disc.

Subtitle

DVD-V

English: To display subtitles in English.
French: To display subtitles in French.
Spanish: To display subtitles in Spanish.

Notes

• Some DVD video discs may be set to display subtitles
in a different language than you selected. A prior
subtitle language may be programmed on the disc.

• Some DVD video discs allow you to change subtitle
selections only via the disc menu. If this is the case,
press the MENU button and choose the appropriate
subtitle language from the selection on the disc menu.

Disc Menu

DVD-V

English: To display disc menus in English.
French: To display disc menus in French.
Spanish: To display disc menus in Spanish.

48

Note

Some DVD video discs may not include your pre­selected language. In this case, the player automatically
displays disc menus consistent with the disc’s initial
language setting.

E.A.M.

D.R.C.
Audio Out Select

Setup Menu

AUDIO MENU

»

Normal

3D
3D (Headphone)
Dialog

Audio Out Select

VCDDVD-V CD

Select the output sound format corresponding to your
system connection.
For details of sound recording systems, see 41.

E.A.M.

VCDDVD-V CD

You can obtain expansive virtual surround sound
effects from just two speakers.

Normal: Normal sound.

3D: To obtain expansive virtual surround sound

effects from just two speakers.

3D (Headphone):

To obtain expansive virtual surround sound
effects when using headphone.

Dialog: To control critical center channel information

to make dialogue more intelligible (only
when playing a DVD video disc recorded on
the Dolby Digital recording system).

• To use this enhancement on sounds output
from the BITSTREAM/PCM jack, be sure
to set “Audio Out Select” to “PCM.”

Note

Pressing the E.A.M. button on the remote control also
allows you to achieve the same setup.

D.R.C.

DVD-V

37

Turn on or off a function that makes faint sounds
easier to hear even if you lower the volume during
late hours playback.

Bitstream: Select when connected to an amplifier

equipped with a Dolby Digital, DTS,
MPEG1 or MPEG2 decoder. 58

59

The player outputs digital audio
information in the bitstream format
when you play a DVD video disc
recorded in the Dolby Digital, DTS,
MPEG1 or MPEG2 recording system.

Analog 2ch: Select when connected to a TV, or

Dolby Pro Logic or stereo system via

54

the analog audio jacks.

58

PCM: Select when connected to a 2 channel

digital stereo amplifier.

60

The player outputs sounds in the PCM
2ch format when you play a DVD video
disc recorded on the Dolby Digital,
MPEG1 or MPEG2 recording system.

Function setup

D.R.C. = Dynamic Range Control

ON : Dynamic range is reduced.
OFF : Full dynamic range is maintained.

Notes

• This function works only during playback of Dolby
Digital recorded discs.

• The level of Dynamic Range Reduction may differ
depending on the DVD disc.

49

Function setup

Customizing the Function Settings (continued)

Setting details

OPERATION MENU

Parental

DVD-V

Parental

PBC
Screen Saver
Menu Style
Default

Setup Menu

ON

»

OFF

DVD video discs equipped with the parental lock
function are rated according to their content. The
contents allowed by a parental lock level and the way
a DVD video disc can be controlled may vary from
disc to disc. For example, if the disc allowed you
could edit out violent scenes unsuitable for children
and replace them with more suitable scenes, or lock
out playback of the disc altogether.

• DVD video discs may or may not respond to the
parental lock settings. This is not a defect in the player.
Make sure this function works with your DVD video
discs.

ON : To activate the parental lock feature or change

the settings.
After pressing the ENTER button, follow steps

1) - 4) below.

OFF : The parental lock feature does not function.

After pressing the ENTER button, follow step

1) below.

PASSWORD CHECK

Security Code

Parental Level

»

3) Press .

4) Press

to select “Operation”, then press the

ENTER button.

You cannot play DVD video discs rated higher than
the level you selected unless you cancel the parental
lock function.
For example, when you select level 7, discs rated
higher than level 7 are locked out and cannot be
played.

The parental lock level is equivalent to the following
USA movie ratings.
Level 7: NC-17
Level 6: R
Level 4: PG 13
Level 3: PG
Level 1: G

The parental lock levels for other countries/areas
than U.S. are included for future use. Check the
appropriate parental lock level when you buy a DVD
video disc equipped with the parental lock feature in
the future.

To change the parental lock level

Follow steps 1) - 4).

To change your 5-digit security code

1) After selecting “ON” or “OFF,” press the 9
button five times.

9 9 9 9 9

The 5-digit security code is cleared.

2) Press the number buttons to create a new
5-digit security code.

50

1) Press the number buttons to create a personal
5-digit security code.

2) Press

/ to select the parental lock level,

then press the ENTER button.

PASSWORD CHECK

Security Code

Parental Level

1

»

2
3
4
5
6
7

8

EQUALIZER MENU

EQ Mode

Setup Menu

Rock
Pop
Live
Dance
Techno
Classic
Soft

»

None

PBC

VCD

ON : To use the menu when playing a PBC-featured

VIDEO CD.

OFF : When playing a VIDEO CD without using the

menu.

Screen Saver

DVD-V

ON : The screen saver operates.
OFF : The screen saver is disengaged.

Menu Style

VCDDVD-V CD

You can change setup menu configuration.

Type1 : Setup menu is displayed in type1

configuration.

Type2 : Setup menu is displayed in type2

configuration.

Default

VCDDVD-V CD

Reset : To restore settings to the factory set.

EQ Mode

VCDDVD-V CD

You can select a preferred equalizer mode.

None : Equalizer is not used.
Rock : Equalizer mode for Rock.
Pop : Equalizer mode for Pop.
Live : Equalizer mode for Live.
Dance : Equalizer mode for Dance.
Techno : Equalizer mode for Techno.
Classic : Equalizer mode for Classic.
Soft : Equalizer mode for Soft.

Function setup

51

Connections

You can connect the player to a TV or audio system.
Also, you can connect a battery pack to power the
player.

Connecting to a TV or audio
system

Connecting to Headphones

Connecting to Audio Equipment

Using the Battery Pack

Using the automobile/vehicle
adapter or power port

Connections

Connecting to a TV or audio system

Connect the player to your TV or audio system.

For details of output sound, see 41.

Connecting to a TV

To AV OUT To S VIDEO OUT

Audio/video
cable (supplied)

• Make the following setting.

On-screen display Select:

“Audio Out Select”

“Analog 2ch”

Page

46

49

To audio inputs

If the TV has an S video input, connect the
player with an S video cable. When using an
S video cable, do not connect the yellow
video cable.

S video cable (supplied)

To S video input

(red)

(white)

Signal flow

TV or monitor with
audio/video inputs

To video input

Notes

• Refer to the owner’s manual of the connected TV as well.

• When you connect the player to your TV, be sure to turn off the power and unplug both units from the wall outlet before

making any connections.

• Connect the player directly to your TV. If you connect the player to a VCR, TV/VCR combination or video selector, the
playback picture may be distorted as DVD video discs are copy protected.

(yellow)

Selecting a monitor to view

Rear view

Slide the SELECT switch.

AV OUT: To use a connected TV or monitor.

LCD: To use the LCD of this player.

Note

If you switch the monitor using the SELECT switch during playback, a theme image
momentarily appears, then the playback resumes. Depending on the disc or the contents,
playback may start from another scene.

54

Connecting to an audio system

To AV OUT

Signal flow

Connections

Audio/video
cable (supplied)

To audio inputs
of the amplifier

(red)

(white)

(yellow)

Audio system

When the AV OUT or BITSTREAM/PCM jacks are
connected to the audio input terminals of an audio
system, sounds of discs can be heard on the connected
audio system. For instructions on connections to audio

57

systems, see also page

.

• Make the following setting.

On-screen display Select:

“Audio Out Select”

Notes

• Refer to the owner’s manual of the connected equipment as well.

• When you connect the player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall

outlet before making any connections.

• If you place the player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the player away
from the tuner and radio.

• The output sound of the player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening
level. Otherwise, the speakers may be damaged by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect the player’s power cord. If you leave the amplifier power on, the
speakers may be damaged.

“Analog 2ch”

Page

46

49

55

Connections

Connecting to Headphones

You can listen to movies and music privately by
connecting headphones.

Headphones
(not supplied)

To (headphone) jack

Caution

When you use headphones, keep the volume at a
moderate level. If you use the headphones continuously
with high volume sound, it may cause hearing damage.

Connecting headphones

Connect headphones to the headphone jack using
a stereo mini plug.
Before connecting, temporarily turn down the
volume with the headphone volume control.
Readjust to your preference when playback starts.

• Turn off the player before you connect or
disconnect the headphone cable. Possible shakes
produced by plug connecting/disconnecting may
cause damage to the disc.

• You can connect up to 2 headphones.

56

Connecting to Audio Equipment

You can enjoy high quality dynamic sounds by connecting the player to audio
equipment.

• For connection to your TV, see “Connecting to a TV”

54

.

• For details of output sound, see

41

.

• This section uses the following reference marks.

: Front speaker

: Rear speaker

: Sub woofer

: Center speaker

: Signal flow

Notes

• DO NOT connect the BITSTREAM/PCM (DIGITAL)
AUDIO OUT jack of the player to the AC-3 RF input of a
Dolby Digital Receiver. This input on your A/V Receiver is
reserved for Laserdisc use only and is incompatible with
the BITSTREAM/PCM (DIGITAL) AUDIO OUT jack of the
player.

• Connect the BITSTREAM/PCM (DIGITAL) AUDIO OUT
jack of the player to the “DIGITAL (OPTICAL)” or “DIGITAL
(COAXIAL)” input of a Receiver or Processor.

• Refer to the owner’s manual of the connected equipment
as well.

• When you connect the player to other equipment, be sure
to turn off the power and unplug all of the equipment from
the wall outlet before making any connections.

• The output sound of the player has a wide dynamic range.
Be sure to adjust the receiver’s volume to a moderate
listening level. Otherwise, the speakers may be damaged
by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect the
player’s power cord. If you leave the amplifier power on,
the speakers may be damaged.

Warning

• When you are connecting (via the BITSTREAM/PCM
(DIGITAL) AUDIO OUT jack) an AV decoder that does
not have Dolby Digital, Digital Theater Systems (DTS) or
MPEG2 decoding function, be sure to set “Audio Out
Select” to “PCM” from the on-screen displays
Otherwise, high volume sound may damage your
hearing as well as the speakers.

• When playing DTS-encoded discs (audio CDs),
excessive noise may be output from the analog audio
output jacks. To avoid possible damage to the audio
system, you should take proper precautions when the
analog audio output jacks of the player are connected to
an amplification system. To enjoy DTS Digital
Surround™ playback, an external 5.1 channel DTS
Digital Surround™ decoder system must be connected
to the BITSTREAM/PCM (DIGITAL) AUDIO OUT jack of
the player.

46

49

.

Connections

57

Connections

Connecting to Audio Equipment (continued)

Connecting to an amplifier equipped with a Dolby Digital decoder

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the
latest movies, and is now available to reproduce this realistic effect in the home.
You can enjoy motion picture and live concert DVD video discs with this dynamic

Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the double-D symbol are trademarks of
Dolby Laboratories.

realistic sound by connecting the player to a 6 channel amplifier equipped with a
Dolby Digital decoder or Dolby Digital processor. If you have a Dolby Surround
Pro Logic decoder, you will obtain the full benefit of Pro Logic from the same DVD
movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from
titles with the Dolby Surround mark.

• Use DVD video discs encoded via
the Dolby Digital recording
system.

• Make the following setting.

Amplifier equipped with a
Dolby Digital decoder

To digital audio input
(optical/coaxial)

To BITSTREAM/PCM

Coaxial cable or optical
digital cable (not supplied)

On-screen display

“Audio Out Select”

Recording system

Select:

“Bitstream”

Dolby Digital

Connecting to an amplifier equipped with Dolby Surround Pro Logic

Dolby Surround Pro Logic

You can enjoy the dynamic realistic sound of Dolby Surround Pro Logic by connecting an
amplifier and speaker system (right and left front speakers, a center speaker, and one or two

rear speakers).

With an amplifier equipped with Dolby Digital

Connect the equipment the same way as described in “Connecting to an
amplifier equipped with a Dolby Digital decoder.” Refer to that amplifier’s
owner’s manual and set the amplifier so you can enjoy Dolby Surround Pro
Logic sound.

With an amplifier not equipped with Dolby Digital

Connect the equipment as follows.

*

Amplifier equipped with
Dolby Surround Pro Logic

• Make the following setting.

On-screen display

“Audio Out Select”

Select:

“Analog 2ch”

Be sure to set “Audio Out Select”
to “Analog 2ch” when you enjoy
sounds of Dolby Surround Pro
Logic using this connection.

* Connect one or two rear speakers.
The output sound from the rear speakers
will be monaural even if you connect two
rear speakers.

Page

46

49

41

Page

46

49

58

To analog audio input

(yellow)

To AV OUT

Audio/video cable (supplied)

Connecting to an amplifier equipped with a DTS decoder

Digital Theater Systems (DTS)

DTS is a high quality surround technology used in theaters and now available for
home use, on DVD video discs or audio CDs.
If you have a DTS decoder or processor, you can obtain the full benefit of 5.1
channel DTS encoded sound tracks on DVD video discs or audio CDs.

“DTS” and “DTS Digital Surround” are
trademarks of Digital Theater Systems,
Inc.

• Use DVD video discs or audio
CDs encoded via the DTS
recording system.

• Make the following setting.

Amplifier equipped with a
DTS decoder

To digital audio input
(optical/coaxial)

Coaxial cable or optical
digital cable (not supplied)

To BITSTREAM/PCM

On-screen display Select:

“Bitstream”“Audio Out Select”

Recording system DTS

Connecting to an amplifier equipped with an MPEG2 audio decoder

MPEG2 sound

You can enjoy motion picture and live concert DVD video discs with dynamic
realistic sound by connecting an amplifier equipped with an MPEG2 audio
decoder or MPEG2 audio processor.

Amplifier equipped with an
MPEG2 audio decoder

To digital audio input
(optical/coaxial)

To BITSTREAM/PCM

• Use DVD video discs encoded via
the MPEG2 recording system.

• Make the following setting.

On-screen display

“Audio Out Select”

Recording system MPEG2

Select:

“Bitstream”

Page

46

49

41

Page

46

49

41

Connections

Coaxial cable or optical
digital cable (not supplied)

59

Connections

Connecting to Audio Equipment (continued)

Connecting to an amplifier equipped with a digital audio input

2 channel digital stereo

You can enjoy the dynamic sound of 2 channel digital stereo by connecting
an amplifier equipped with a digital audio input and speaker system (right
and left front speakers).

Amplifier equipped with a
digital audio input

To digital audio input
(optical/coaxial)

Coaxial cable or optical
digital cable (not supplied)

To BITSTREAM/PCM

• Make the following setting.

On-screen display Select:

“PCM”“Audio Out Select”

Page

46

49

60

Using the Battery Pack

Warning

• Do not use a battery pack other than one specified as it can result in a fire or damage to the unit.

• Do not heat, open, or short-circuit the battery pack. Do not throw the battery pack into a fire. Doing so may cause an

explosion or a fire.

• Attach the battery pack properly following the explanation below. Make sure that the battery pack is attached firmly to
the player when using it. Otherwise, the battery pack may become detached and cause personal injury.

Charge it before using.

Attaching the battery pack

First disconnect the AC adapter and the power cord
from the player, then attach the battery pack.

1 Turn the player off.

2 Turn the player upside down.

3 Remove the connector cover on the bottom of

the player.

Holes

Remove the connector
cover
(Be sure to replace it whenever
the battery pack is not attached.)

4 Turn the battery pack over and insert four

catches into the player’s corresponding holes.
Then, slide the battery pack in the direction of
the arrow

until a “click” is heard.

2

1

2

Charging the battery pack

1 Turn the player off.

The battery pack will be charged only when the
POWER to the player is turned OFF.

2 Attach the battery pack to the player.

3 Connect the specified AC adapter and the power

cord to the player.

Charging starts, and the POWER/CHG indicator
illuminates in orange.
When the charging is completed, the POWER/CHG
indicator turns off.

Notes

• While the charge is in progress, do not disconnect the AC
adapter and the power cord until the POWER/CHG indicator
turns off.

• The attached battery pack may get warm when you are
charging it or operating the player. This is not a defect.

• The battery indicator is shown in the upper left corner of the
screen when the power in the battery pack is running low.

• Charge the battery pack with a surrounding temperature of
+10°C to +30°C.

16

Charging time of a battery pack

Approximately 4 hours

The battery pack can be charged only when the DVD
player is switched OFF. Charging time depends on
environmental conditions.

Continuous playback time while using the
battery pack

Connections

Notes

• Remove the battery pack from the player after being used.

• Attaching the battery pack disable the LCD/AV OUT

SELECT switch. Before attaching the battery pack,
confirm the setting of the switch.

Up to approximately 3 hours

(Conditions: 25°C, output from the speakers, new
battery pack in use.)

• Continuous playback time may vary depending on
battery pack status, operational status and
environment conditions.

• Low temperature will shorten the playback time.

61

Connections

Using the Battery Pack (continued)

Detaching the battery pack

1 Turn the player off.

2 Disconnect the AC adapter and the power cord

from the player.

3 Turn the player upside down.

4 Slide the battery pack’s lock switch in the

direction of the arrow
pack in the direction of the arrow

, then slide the battery

1

2

2

Lock switch

to remove it.

1

5 Replace the connector cover on the bottom of

the player.

Note

Do not detach the battery pack while the POWER/CHG
indicator illuminates in green or orange.

About battery pack life

Battery pack has a duration life. When the playback time
becomes remarkably shorter, even if the battery pack is
fully charged, change to a new battery pack (SD­PBP14).

62

Using the automobile/vehicle adapter or power port

For use of the DVD player in a car, this adapter can power the DVD player from the cigarette lighter socket.

Warning

• NEVER operate the DVD player or view a DVD Video while operating an automobile or other vehicle. Note: doing
so is illegal in many jurisdictions.
NEVER place a DVD player within the eyesight of a driver while he/she is driving an automobile/vehicle. Note: A
DVD player located in the front seating section of a vehicle is illegal in many jurisdictions.
Failure to observe the above instructions could result in the driver’s inattention to and/or distraction from road
hazards.

• NEVER place a DVD player in a location where it could interfere with the proper deployment and/or performance
of an air bag.
Failure to observe this instruction could result in the prevention of an air bag to properly and/or effectively deploy.

• Do not use an adapter other than the model supplied, to power the player. Do not use the supplied vehicle adapter
to power an apparatus other than this player. Neglecting these may cause smoke, fire or electrical shock to human
body.

• This adapter is intended for exclusive use in automobiles/vehicles with a DC 12V negative ground electrical
system. NEVER use this adapter with a DC 24V configured automobile/vehicle.
Consult your vehicle owner’s manual before using this adapter.

• ALWAYS use caution when touching the adapter, cigarette lighter socket or power port. The adapter, lighter socket
and power port may become heated after prolonged use.

• Do not charge the battery pack which is attached to the DVD player by the adapter. Doing so may cause smoke,
fire or electrical shock to human body. Whenever you use the adapter, be sure to remove the battery pack from the
DVD player to prevent it being charged by the adapter.

• Do not touch the adapter with wet hands. Do not liquid over the adapter.

Connections

Notes

• Never operate the player in a moving vehicle.
Vibration may prevent proper playback of the player or cause damage to the disc.

• Do not leave the adapter in an unoccupied vehicle to avoid exposing it to unusually high ambient temperatures.

• Remove the adapter power plug from the cigarette lighter socket or power port before turning the engine off.

• When the DVD player is not in use be sure to remove the adapter power plug from the cigarette lighter socket or

power port and the pin plug from the DVD player.

• Do not force the adapter into an incompatible lighter socket or power port.

• Avoid dropping the adapter or placing heavy objects on it.

• Do not pull the adapter power cord when removing it from a socket or power port.

Always grasp and pull the body.
Failure to do so could cause damage to and malfunction of the adapter.

• Do not operate the DVD player using the adapter for a prolonged period with the car engine off. The car battery
may be too exhausted to turn the engine on.

• Depending on the vehicle model or the location of the cigarette lighter socket, this adapter may not be applied.

63

Connections

Instructions for Use

1 Turn off the DVD player.

2 Insert the pin plug of the adapter into the DC IN

12V jack of the DVD player.

OFF

43

The LED illuminates
when powered.

2

3 Insert the plug of the adapter into the cigarette

lighter socket or power port fully.

4 Turn on the vehicle engine so that the cigarette

lighter socket or power port is powered. In some
vehicles the cigarette lighter socket or power
port is powered even when the vehicle’s engine
is not running. It is important that the vehicle
owner’s manual be consulted.

5 When disconnecting the DVD player, first remove

the adapter pin plug from the DVD player and
then the power plug from the cigarette lighter
socket or power port.

Specification

Operating temperature: 5 – 35°C
Operating humidity: 30 – 80%
Storage temperature: -10 – 60°C
Storage humidity: 20 – 80%

64

Others

Before Calling Service
Personnel

Specifications

LIMITED WARRANTY
PORTABLE DVD PLAYER

Others

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before contacting service.

Symptoms and correction

Symptom

No power.

The LCD turned off by itself.

No picture. (Other than built­in LCD monitor)

No sound.

The playback picture has
occasional distortion.

Brightness is unstable or
noises are present in the
playback pictures. (Other
than built-in LCD monitor)

The player does not start
playback.

Cause

• The AC adapter or power plug is
disconnected.

• The battery pack has been removed.

• Battery empty.

• The automatic LCD off function turned the

LCD off.

• The connected TV is not set to receive
DVD signal output.

• The equipment connected via the audio/
video cable is not set to receive DVD
signal output.

• The volume is too low.

• The audio receiver or TV is turned off.

• The setting of output sound format is

incorrect.

• The disc is dirty.

• Player is in fast forward or fast reverse

mode.

• The main unit was moved or given a
shock.

• The disc is not set firmly.

• The effect of copy protection.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is inserted upside down.

• The disc is not inserted securely.

Correction

• Connect the AC adapter or power plug
securely.

• Install the battery pack.

• Re-charge the battery.

• Press any button.

• Select the appropriate video input mode

on the TV so the picture from the player
appears on the TV screen.

• Select the correct input mode of the
audio receiver so you can listen to the
sound from the player.

• Adjust the volume by turning the volume
control.

• Turn on the equipment connected with
the audio/video cable.

• Select the proper audio setting.

• Eject the disc and clean it.

• Sometimes a small amount of picture

distortion may appear. This is not a
malfunction.

• Vibrating or shaking the unit during
playback may produce distortion. This is
not a malfunction. If not restored to usual
status, stop playback and start again.

• Remove the disc and set it again.

• Connect the player directly to the TV.

Avoid connecting the player to a VCR or
TV/VCR combination.

• Insert a disc.

• Insert a playable disc. (Check the disc

type, color system and region number.)

• Insert the disc with the playback side
down.

• Insert the disc securely in the disc holder.

Page

16

61

61

21

18

54 , 55

20

54 – 60

40, 46

49

8

–

–

18

54

18

9

18

18

Playback does not follow the
course of the disc’s program.

Buttons do not work.

66

• The disc is dirty.

• The parental lock function is set.

• It is in the repeat playback mode, memory

playback, etc.

• Power supply fluctuations or other
abnormalities such as static electricity may
interrupt correct operation.

• Clean the disc.

• Cancel the parental lock function or

change the parental lock level.

• These operations may prevent a proper
progression of the contents.

• Turn the power on or off with the POWER
switch. Or disconnect the power plug and
insert it into the wall outlet again.

8

50

–

–

Symptom

The remote control does not
work properly.

Cause

• The remote control is not pointed at the
remote sensor of the player.

• The remote control is too far from the
player.

• The batteries in the remote control are
exhausted.

• The player’s remote sensor is exposed to
a strong light source such as direct
sunlight or other illumination.

Correction

• Point the remote control at the remote
sensor of the player.

• Operate the remote control within about
3 m.

• Replace the batteries with new ones.

• Avoid the player from being exposed to a

strong light source.

Page

15

15

15

15

Others

67

Others

Specifications

Player / Connectors / Liquid crystal display / Supplied accessories

Player

Power supply DC 12 V (Rated current : 3 A (Maximum: during battery pack charging))

120 V AC, 60 Hz (with the supplied AC adapter)

Mass 830 g

External dimensions 200 × 33 × 160 mm (W/H/D)

Signal system Standard NTSC

Laser Semiconductor laser, wavelength 650 nm / 795 nm

Frequency range DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz

Operating conditions Temperature: 5 °C to 35 °C, Operation status: Horizontal

Connectors

Video output (AV OUT) 1.0 V (p-p), 75 Ω, negative sync., Ø3.5mm mini jack × 1

Audio output (AV OUT) 2.0 V (rms), 100 Ω, Ø3.5mm mini jack × 1

S video output (S VIDEO) (Y) 1.0 V (p-p), 75 Ω, negative sync., Ø3.5mm mini jack × 1

(C) 0.286 V (p-p), 75 Ω

Audio output (BITSTREAM/PCM) Optical/coaxial connector (Ø3.5mm) × 1

Headphone terminal Ø3.5mm stereo mini jack × 2

Liquid crystal display

Panel size 7 inches

Projection system TN color transmission

Driving system Amorphous silicon TFT active matrix

Resolution 480 (H) × 234 (V) pixels (effective pixel rate : more than 99.99%)

Supplied accessories

Audio/video cable ................................................. 1

Remote control ..................................................... 1

Coin-shaped battery (CR2025) ............................. 1

AC adapter (ADP-36CH A) ................................... 1

Power cord............................................................ 1

Battery pack .......................................................... 1

S video cable ........................................................ 1

Vehicle adapter ..................................................... 1

• Designs and specifications are subject to change without notice.

68

LIMITED WARRANTY PORTABLE DVD PLAYER

Toshiba America Consumer Products, L.L.C. (“TAC P ”) and Toshiba Canada Limited (“TCL”) make the following limited
warranties. These limited warranties extend to original consumer purchaser or any person receiving this set as a gift from the
original consumer purchaser and to no other purchaser or transferee.

Limited Ninety (90) Day Warranty

TACP/TCL warrant this product against defects in materials
or workmanship for a period of ninety (90) days after the
date of original retail purchase. During this period, TACP/
TCL will repair a defective product or part, without charge to
you. You must deliver the entire product to a TACP/TCL
Authorized Service Station. You are responsible for all
transportation and insurance charges for the unit to and
from the Authorized Service Station.

Limited One (1) Year Warranty

TACP/TCL further warrant the parts in this product against
defects in materials or workmanship for a period of one (1)
year after the date of original retail purchase. During this
period, TACP/TCL will repair or replace a defective part,
without charge to you, except that if a defective part is
replaced after ninety (90) days from the date of the original
retail purchase you pay labor charges involved in the
replacement. You must also deliver the entire product to a
TACP/TCL Authorized Service Station. You are responsible
for all transportation and insurance charges for the unit to
and from the Authorized Service Station.

Rental Units

The warranty for rental units begin with the first rental or
thirty (30) days from the date of shipment to the rental firm,
whichever comes first.

Commercial Units

Products sold and used for commercial use have a limited
ninety (90) day warranty for all parts and labor.

Owner’s Manual

You should read the owner’s manual thoroughly before
operating this product. You should complete and mail the
enclosed Demographic card within ten (10) days after you,
or the person who has given you this product as a gift,
purchased this product. This is one way to enable TACP/
TCL to provide you with better customer service and
improved products. Failure to return the card will not affect
your rights under this warranty.

Your Responsibility

The above warranties are subject to the following
conditions:
(1) You must retain your bill of sale or provide other proof of

purchase.

(2) You must notify a TACP/TCL Authorized Service Station

within thirty (30) days after you discover a defective
product or part.

(3) All warranty servicing of this product must be made by a

TACP/TCL Authorized Service Station.

(4) U.S.A. warranties are effective only if the product is

purchased and operated in the Continental U.S.A. or
Puerto Rico.

(5) Labor service charges for set installation. Set up,

adjustment of customer controls and installation or
repair of antenna systems are not covered by this
warranty. Reception problems caused by inadequate
antenna systems are your responsibility.

(6) Warranties extend only to defects in materials or

workmanship as limited above and do not extend to any
product or parts which have been lost or discarded by
you or to damage to products or parts caused by
misuse, accident, damage caused by Acts of God, such
as lighting or fluctuations in electric power, improper
installation, improper maintenance or use in violation of
instructions furnished by us; or to units which have
been altered or modified without authorization of TACP/
TCL or to damage to products or part thereof which
have had the serial number removed, altered, defaced
or rendered illegible.

(7) Physically damaged DVD Units are not acceptable for

repair or exchange whether in or out of warranty and
will be returned as received.

Others

69

Others

LIMITED WARRANTY PORTABLE DVD PLAYER (Continued)

How to Obtain Service

(1) Refer to the troubleshooting guide in your owner’s manual. This checklist may solve your problem or check our web

site at WWW.TOSHIBA.COM/TACP.

(2) Products shipped to the Service Station must be insured and safely and securely packed, preferably in the original

shipping carton, and a letter explaining the defect and also a copy of the bill of sale or other proof of purchase must be
enclosed.

In United States contact:

Toshiba America Consumer Products L.L.C.

(800)-631-3811

In Canada contact:

Consumer Electronics Group
191 McNabb St
Markham, Ontario L3R 8H2
(905)-470-5400

Toshiba of Canada Limited
18050 Trans Canada Highway
Kirkland, Quebec
H9J 4A1
(514)-390-7766

Consumer Electronics Group
22171 Fraserwood Way
Richmond, B.C. V6W 1J5
(604)-303-2500

All warranties implied by state law, including the implied warranties of merchantability and fitness for a particular purpose, are
expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state
law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and
similar obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall TACP be
liable for consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in
any manner whatsoever. The time within which an action must be commenced to enforce any obligation of TACP arising under
the warranty or under any statute, or law of the United States or any state thereof, is hereby limited to ninety (90) days from the
date you discover or should have discovered the defect. This limitation does not apply to implied warranties arising under state
law.
This warranty gives you specific legal rights and you may also have other rights, which may vary from state to state. Some
states do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the exclusion or
limitation of incidental or consequential damages, so the above provisions may not apply to you.

ATTENTION CANADIAN CONSUMERS: (Toshiba Canada “TCL”)
Canadian consumers are requested to complete the special Canadian “Warranty Registration Form” enclosed, and forward
this completed form with a copy of bill of sale to TOSHIBA OF CANADA to “Register and Validate” their warranty. Product
must be purchased from an Authorized Canadian Dealer.

IMPORTANT: PACKING AND SHIPPING INSTRUCTION

When you send the product to a Service Station, you must use the original carton box and packing material, then insert the
original carton box containing the unit into another carton, using more packing material.

Products purchased in the U.S.A. and used in Canada are not covered by these warranties.

Products purchased in Canada and used in the U.S.A. are not covered by these warranties.

70

Memo

Others

71

Printed in China
