SD-38VBKB

OWNER’S MANUAL

DIGITAL VIDEO

DVD PLAYER

Hi-Fi VIDEO

CASSETTE

RECORDER

J2K20101A SH

SAFETY PRECAUTIONS

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

CAUTION: This Digital Video Disc Player employs a Laser System.

CAUTION: Servicing instructions are for use by qualified service personnel only. To reduce the risk of

In the spaces provided below, record the Model and Serial No. located on the rear panel of your DVD video player.

Model No. Serial No.

Retain this information for future reference.

The following information applies only to the model for U.K.

Location of the required label

The rating plate and the safety caution are on the rear of the unit.

APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location

-see service procedure.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible and invisible laser radiation when open and interlocks defeated. DO NOT STARE INTO BEAM.

CLASS 1 LASER PRODUCT

electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

If the socket outlets in your home are not suitable for the plug supplied with this unit, the plug must be cut off and an appropriate one fitted.

The plug severed from this mains lead must be destroyed as it is hazardous if inserted into a live socket.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: BLUE: NEUTRAL BROWN: LIVE As the colours of the wires in the mains lead of this unit may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire that is coloured blue must be connected to the terminal in the plug which is marked with the letter N or coloured black. The wire that is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Do not connect either wire to the earth terminal which is marked by the letter E or by the safety earth symbol

or coloured green or green-and-yellow.

Use a 5A fuse which is approved by ASTA or BSI to BS1362. Always replace the fuse cover after changing the fuse.

General Information

SAFETY PRECAUTIONS

SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment. DO ensure that all electrical connections (including the mains plug, extension leads and inter- connections between

the pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or doors on equipment. DO place the unit close to the AC outlet, and keep the mains plug within reach.

DON’T remove any fixed cover as this may expose dangerous voltages. DON’T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc.

Overheating will cause damage and shorten the life of the equipment. DON’T allow electrical equipment to be exposed to dripping or splashing, or objects filled with liquids, such as vases, to be placed on the equipment. DON’T place hot objects or naked flame sources such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires. DON’T use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions.

DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for

unattended operation or has a stand-by mode. Switch off using the switch on the equipment and make sure that your family know how to do this. Special arrangements may need to be made for infirm or handicapped people. DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way -switch off, withdraw the mains plug and consult your dealer.

ABOVE ALL —NEVER let anyone especially children push anything into holes, slots or any other opening in the case this could result in a fatal electrical shock;

—NEVER guess or take chances with electrical equipment of any kind —it is better to be safe than sorry!

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by: i) fire; ii) earthquake; iii) accidental damage; iv) intentional misuse of the product; v) use of the product in improper conditions; vi) loss and/or damage caused to the product whilst in the possession of a third party; vii) any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out

in the owner’s manual;

viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultane-

ously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

**************

*************

EXCLUSION CLAUSE

Precautions

Notes on handling

When shipping the DVD/VCR, the original shipping carton and packing materials come in handy. For fully protection, repack the unit as it was originally packed at the factory. Do not use volatile liquids, such as insect spray, near the DVD/VCR. Do not leave rubber or plastic products in contact with the DVD/VCR for a long time. They will leave marks on the finish. The top and rear panels of the DVD/VCR may become warm after a long period of use. This is not a malfunction. When the DVD/VCR is not in use, be sure to remove the disc and turn off the power. If you do not use the DVD/VCR for a long period, the unit may not function properly in the future. Turn on and use the DVD/VCR occasionally.

Notes on locating

Place the DVD/VCR on a level surface. Do not use it on a shaky or unstable surface such as a wobbling table or inclined stand. The loaded disc or video tape may become dis-aligned and damage the DVD/VCR. When you place this DVD/VCR near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, place the DVD/ VCR away from the TV, radio, or VCR.

Notes on cleaning

Use a soft, dry cloth for cleaning.

Use a dry cloth to wipe. Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the DVD/ VCR.

Notes on moisture condensation

Moisture condensation damages the DVD/VCR. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the head drum or the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD/VCR.

Moisture condensation occurs during the following cases:

When you bring the DVD/VCR directly from a cold place to a warm place. When you use the DVD/VCR in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit. In summer, when you use the DVD/VCR in a hot and humid place just after you move the unit from an air conditioned room. When you use the DVD/VCR in a humid place.

Do not use the DVD/VCR when moisture condensation may occur.

If you use the DVD/VCR in such a situation, it may damage discs and internal parts. Remove the disc or the video tape, connect the power cord of the DVD/VCR to the wall outlet, turn on the DVD/VCR, and leave it for two or three hours. After two or three hours, the DVD/VCR will have warmed up and evaporated any moisture. Keep the DVD/VCR connected to the wall outlet and moisture condensation will seldom occur.

Wait!

It’s too

warm!

Tape

Head drum

Wall outlet

On handling discs

Do not touch the playback side of the disc.

Playback side

Do not attach paper or tape to discs.

On cleaning discs

Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl LPs. It may damage the disc.

On storing discs

Do not store discs in a place subject to direct sunlight or near heat sources. Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier. Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

Notes on discs

Structure of disc contents

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. Video CDs and Audio CDs are divided into tracks.

DVD video disc

Chapter 1 Chapter 2 Chapter 1

Video CD/Audio CD

Track 1 Track 2 Track 3 Track 4 Track 5

Each title, chapter or track is assigned a number, which is called “title number”, “chapter number” or “track number” respectively. There may be discs that do not have these numbers.

Notes on copyright

The unauthorized recording, use, distribution, or revision of copyrighted materials including, without limitation, television programs, videotapes, and DVDs is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and criminal liability.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 or 625 progressive scan picture problems, it is recommended that the user switch the connection to the “STANDARD DEFINITION” output. If there are questions regarding your TV set compatibility with this model 525p and 625p DVD player, please contact our customer service center.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are registered trademarks of DTS, Inc.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

DVD video disc

Title 1 Title 2

Video CD/Audio CD

Chapter 2

Chapter 3

Notes on discs

About this owner’s manual

This owner’s manual explains the basic instructions of this DVD/VCR. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD/VCR may not respond to all operating commands. This is not a defect in the DVD/ VCR. Refer to instruction notes of discs.

The following symbol may appear on the TV screen during operation.

It means that the operation is not permitted by the DVD/ VCR or the disc. For example, sometimes it is unable to stop the playback of copyright message of the disc when the STOP ( button is pressed. Alternatively, this symbol may also indicate that the feature is not available for the disc.

)

Notes on region numbers

The region number of this DVD/VCR is 2. If region numbers, which stand for their playable area, are printed on your DVD video disc and you do not find disc playback will not be allowed by the player. (In this case, the DVD/VCR will display a message on-screen.)

ALL

On Video CDs

This DVD/VCR supports Video CDs equipped with the PBC (Version 2.0) function. (PBC is the abbreviation of Playback Control.) You can enjoy two playback variations depending on types of discs.

• Video CD not equipped with PBC function (Version 1.1)

Sound and movie can be played on this DVD/VCR in the same way as a DVD.

• Video CD equipped with PBC function (Version 2.0)

In addition to operation of a Video CD not equipped with the PBC function, you can enjoy playback of interactive software with search function by using the menu displayed on the TV screen (Menu Playback). Some of the functions described in this owner’s manual may not work with some discs.

Playable discs

This DVD/VCR can play the following discs.

Disc Mark

DVD video discs

Video CDs

DIGITAL VIDEO

Audio CDs

DivX

The following discs are also available.

DVD-R/RW discs of DVD video format CD-R/CD-RW discs of CD-DA, Video CD, SVCD, MP3,

JPEG or DivX

format

Kodak Picture CD, FUJICOLOR CD format

Some of these discs may be incompatible.

• You cannot play discs other than those listed above.

• You cannot play discs of DVD-RAM, DVD-ROM, CDROM, Photo CD, etc., or non standardized discs even if they may be labeled as above.

• Some CD-R/RWs cannot be played back depending on the recording conditions.

• This DVD/VCR output the PAL/NTSC colour system, depending on the discs, and cannot output other colour system (SECAM, etc.).

• NTSC DVD or VCD discs will be playback in black and white if only PAL TV is used. In this case, if your TV is RGB compatible, select “RGB” in the “Output” menu (see page 53). Alternatively, use a multi-system TV.

• For MP3/JPEG/DivX

Because of problems and errors that can occur during the creation of DVD and CD Software and/or the manufacture of DVD and CD discs, Toshiba cannot assure that the DVD player will successfully play every disc bearing DVD and CD logos. If you happen to experience any difficulty playing a DVD and/or CD disc on this DVD player, please contact Toshiba Customer Service.

is a trademark of DVD Format/Logo Licensing

Corporation.

Disc

Contents

Size

12 cm

Audio

Video (moving pictures)

8 cm

Audio

12 cm

Video (moving

8 cm

pictures)

12 cm

Audio

8 cm

Audio

12 cm

Video (moving

8 cm

pictures)

CD, see page 43.

Maximum

playback time

Approx. 4 hours

(single sided disc)

Approx. 8 hours

(double sided disc)

Approx. 80 minutes

(single sided disc)

Approx. 160 minutes (double sided disc)

Approx. 74 minutes

(single sided disc)

Approx. 20 minutes

(single sided disc)

Approx. 74 minutes

(single sided disc)

Approx. 20 minutes

(single sided disc)

It depends on

quality

DivX

Before using your unit

SAFETY PRECAUTIONS ................................ 2

Precautions ...................................................... 4

Notes on discs.................................................. 5

Contents ...........................................................7

Parts and functions .......................................... 8

Display ............................................................. 9

Remote control ...............................................10

Basic connection ............................................12

Playback connection ...................................... 13

Setting up the VCR section

Tuning the TV stations and setting the time and

date automatically .......................................... 15

Setting the on-screen language ..................... 16

Setting the time and date manually ................ 17

Tuning the TV stations manually .................... 18

Tape playback operation

Loading and unloading a cassette tape ......... 19

Cassette tape playback .................................. 20

Special playback ............................................ 21

Repeat playback ............................................ 22

Counter display .............................................. 23

Video Index Search System ........................... 24

Recording

Recording a TV program ................................ 25

One-touch Timer Recording (OTR) ................ 27

Timer recording .............................................. 28

Advanced function of VCR section

Stereo recording and playback ...................... 30

Duplicating a video tape ................................. 32

Contents

Disc playback operation

Playing a disc ................................................. 33

Zooming/Locating desired scene ................... 36

Marking desired scenes ................................. 37

Repeat playback/A-B Repeat playback.......... 38

Program playback/Random playback ............ 39

Changing angles/Title selection/DVD menu... 40 Changing soundtrack language/Setting

surround sound .............................................. 41

Subtitles/To turn off the PBC/Disc status ....... 42

MP3/JPEG/DivX® and Audio CD operation.... 43

Repeat and program playback using file

browser .......................................................... 47

Advanced function of DVD section

Customizing the function settings .................. 49

Temporary cancel the rating level by

DVD disc ........................................................ 54

Language code list ......................................... 55

Additional information

Problems and troubleshooting ....................... 56

Video head cleaning....................................... 57

Specifications ................................................. 58

Parts and functions

Front

CHANNEL

REC button

/ buttons

ON/STANDBY button

Cassette loading slot

EJECT button

AUDIO (L/R)/VIDEO IN (LINE IN 3) jacks

Rear

AC mains lead

SCART-socket (for VCR/DECODER) (L2)

SCART-socket (for RGB OUT, Composite IN/OUT) (L1)

Remote sensor

DVD mode indicator

VCR mode indicator

Display window

VCR/DVD mode selector button

FWD button

Disc tray

PLAY button

STOP button

OPEN/CLOSE button

REV button

RF IN jack

RF OUT jack

Display

Display window

1 2

No. Display

Note:

Some discs may not playback correctly, or chapter number, playback time, etc. may not be displayed.

VCR mode of TV/VCR switch

VCR

Playback (lights) / Auto resume (flashes)

Still picture

DVD disc is inserted.

DVD

VCD/CD is inserted.

Clock display (colon[ : ] flashes)

10 : 00

01 : 00

Counter display by hour/minute at VCR/DVD / by minute/second at CD

Track number display for CD

TV channel position display

CH 2

External input display

L1/L2/L3

Progressive indicator

Timer recording display

Video tape is in the unit

Track display for CD

TRK

Normal recording display (flashes during One-touch Timer Recording - OTR)

REC

Description

Remote control

COMPONENT VIDEO OUT(Y/PB/PR) jacks

AUDIO (L/R) OUT jacks

COAXIAL DIGITAL AUDIO OUT jack

OPEN/CLOSE Open or Close the disc tray 33 POWER Power on/off 16 TV/VCR Switch to TV only at Scart connection 26 VCR Select to operate VCR 16 DVD Select to operate DVD 33 CLOCK/COUNTER PROGRAM Confirmation of Timer-Recording 29 ONE TOUCH REPEAT INSTANT SKIP Skip the unwanted short material of a tape 21 VCR MENU/SETUP ZOOM Zoom 36 SLOW Slow motion playback 21,35 TOP MENU Select title of a DVD disc/

DVD MENU Select menu of a DVD disc/

/ / / Cursor buttons 17 CH +/– Select channel of the VCR 25 ENTER Enter information in the menu

SET –/+ Manual tracking 21 CANCEL/CLEAR Delete Timer program 29

RETURN Exit setup menu 49,54 STOP Stop 20,33 PAUSE/STEP Still picture/Recording pause on/off 21,25,34,35 PLAY Playback 20,33 INDEX –/+ Search for the INDEX mark of a tape 24 SKIP REV Rewind/Review playback 20,21,35 FWD REC/OTR Recording/OTR 25,27 TIMER REC Timer recording On/Off 27,29 SP/LP Sets the tape speed for recording 25 PLAY MODE Select playback mode 38,39 A-B RPT 0-9 Direct channel selection of TV 15,25

CALL/DISPLAY Display VCR or DVD operation status 23,26,42 ZERO RETURN JUMP Jump to desired scene 36 AUX Scart Input or AV-Front input 13,32 COUNTER RESET Reset the counter to 00:00 23 ANGLE Change playback angle of a DVD disc 40

ATR Auto tracking 21 SUBTITLE Set Subtitle of a DVD disc 42 AUDIO SELECT Switches sound between mono and stereo 31 AUDIO Change soundtrack language of DVD 41 MARKER Mark/Resume from the desired scenes

Change the front Display mode 23

Skip back about 10 seconds of DVD/VCD/CD playback

Display menu of setup 16,49

View JPEG files in a file browser 40,45

View JPEG files in a thumbnail list 40,45

Select option in the menu 16,29

Skip channel/Cancel input data in the setting mode 15,36,37

Skip chapter/track to forward or reverse direction

Fast Forward/Forward search playback

Repeat playback between A and B (DVD/VCD/CD)

Input setting 36 Enter a security code 52,53

Stop the tape when the counter reaches 00:00

Rotate JPEG CD image 45

(DVD/VCD) 37

Page

20,21,35

Remote control

How to install the batteries

Use micro batteries type UM-4 (R03/AAA-Size). These batteries are offered as carbon / zinc-type or as alkaline-type. You may use both, but do not mix types. The alkaline type lasts longer compared to the carbon / zinc type but is more expensive. Note: Flat, weak batteries will leak. Corrosive electrolyte will damage the remote control.

Leak proof batteries will not leak immediately when they are flat. As long as the remote control is still working, there is no danger of leakage. To prevent damage, remove the batteries if you do not use the remote control for a long period of time.

Damage because of leakage is not covered by the guarantee.

Open the battery compart-

ment cover in the direction of the arrow.

Distance of Remote Control Operation

approx.

The remote control will not work properly in the following cases:

If bright sunlight directly beams onto the unit front.

If the batteries have not been installed according to their polarities.

Install two "R03/AAA" batteries

paying attention to the

(supplied), polarity diagram in the battery compartment.

Effective angle: approx. 60°

Point the remote control directly at the remote sensor.

If an obstacle is placed between the unit and the remote control.

If the batteries are weak.

Replace the compartment cover.

Basic connection

Connect your DVD/VCR to your home's aerial and to your TV-set as shown in the illustration. When you have finished these connections, connect your DVD/VCR to the 230 V / 50 Hz mains.

Aerial-Input

To Scart socket

DVD/VCR

AC mains lead 230V/50 Hz

Connect a TV with the Scart socket

In addition to the coaxial cable connection, you should also connect the SCART cable from the DVD/VCR to your TV as shown. As well as transferring the high quality pictures and sound to your TV, the SCART connection can automatically switch the TV to its AV channel for playback.

If your TV-set does not switch to video-playback operation automatically, please turn your TV's video switch to VIDEO position manually.

Note:

Make sure that both the television and the DVD/VCR are switched off before connecting the cables.

VCR/DECODER Scart Socket (L2)

RGB OUT, Composite IN/

Scart cable (not supplied)

OUT Scart Socket (L1)

Supplied Coaxial cable

Aerial

RF-Input (from house aerial)

RF-Output (to TV)

Playback connection

The exact arrangement you use to interconnect various video and audio components to the DVD/VCR is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of SCART socket.

Connection to a Satellite Receiver

If a Satellite Receiver is used, we recommend the following configuration:

Satellite

Aerial

Satellite Receiver

SCART-cable (not

supplied)

To view TV-program from Satellite Receiver, press AUX on the remote control of DVD/VCR repeatedly until "L1" appears on the front display. To record TV-program from Satellite Receiver, press VCR/DVD to select the VCR mode. Then load a blank cassette tape with the erase prevention tab intact and select the desired TV-program. And follow steps 3~4 on page 25.

DVD/VCR

SCART-cable (not supplied)

Playback connection

Component video outputs/inputs

PROGRESSIVE outputs/inputs

Some TVs or monitors are equipped with component video inputs that are capable of reproducing a progressively scanned video signal. Connecting to these inputs allows you to view the highest quality pictures with less flicker.

INTERLACED outputs/inputs

Some TVs or monitors are equipped with component video inputs. Connecting to these inputs allows you to enjoy the highest quality DVD picture playback.

Connecting to an audio system and TV equipped with component video inputs

Component video cables (not supplied)

Component (Y) Output

B) Output

Component (P

R) Output

DVD/VCR

Audio (L) Output

Interlaced inputs Progressive inputs

Audio (R) Output

On-screen display

See ÒOutputÓ selection (page 53).

DVD/VCR

• Make the following setting

Notes:

• Actual labels for component video inputs may vary depending on the TV manufacturer. (ex. Y, R-Y, B-Y or Y, CB, CR)

• In some TVs or monitors, the colour levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the TV or monitor for optimum performance.

Note: In connecting to TV’s that are not capable of reproducing a progressively scanned video signal using the component sockets, do not select “Progressive” in “Output” menu. If you do, the component video outputs do not feed the correct signals and you cannot see any picture (see page 53).

Connect to an AV Amplifier with built-in digital surround

If you are using an Amplifier with a built-in digital surround as follows, you can enjoy the various audio systems such as Dolby Digital and DTS by using the Coaxial Digital Output.

Use this connection to connect an:

• AV amplifier with built-in Dolby Digital decoder

• AV amplifier with built-in DTS decoder

Component (P

Stereo Amplifier

Audio cables (not supplied)

ÒComponentÓ

ÒProgressiveÓ

Coaxial digital cable (not supplied)

To Audio (L) Input To Audio (R) Input

AV Amplifier with built-in various decoder as above

Component

video input

Tuning the TV stations and setting the time and

date automatically

Plug your DVD/VCR into the mains supply and it will start automatically tune itself in and set the correct date and time.

Notes:

• The DVD/VCR automatically corrects the clock setting every hour and automatically adjusts the clock setting for Daylight Saving Time (see page 17).

• Your DVD/VCR will tune the TV stations as follows.

CH 1 BBC 1 CH 2 BBC 2 CH 3 ITV CH 4 Channel 4 CH 5 Channel 5 CH 6 Satellite CH 7 etc.

•

Skipped channels still may be selected

directly through the Number buttons

(0-9).

• To cancel skipping, select the skipped channel using the Number buttons (0-9), then press CANCEL. The channel No. does not blink any longer, and the channel No. now can be selected again using

CHANNEL +/–.

Preparation

•

Make sure that your DVD/VCR is connected properly to the TV.

•

Turn on the TV and switch the TV to it’s AV channel.

Plug your DVD/VCR's plug into the mains supply. "Auto"

will start to flash in the display. Your DVD/VCR will automatically tune itself in and set the correct time and date (This may take approx. 4 minutes).

Press POWER

The broadcast stations received will be turn on your unit.

To skip a channel position

Unwanted channels can be skipped so that they cannot be called up by pressing

CHANNEL +/–. Select the

channel to be skipped, then press CANCEL. This channel number will be flashing and you can cancel further channels one after the other.

to turn OFF the DVD/VCR.

VCR

CH 29

SCART-Socket (for RGB OUT,

Composite IN/OUT)

Notes:

• The COAXIAL jack is useful only for DVD section.

• DTS audio will output only from the coaxial output. To hear DTS audio, DTS-Decoder is necessary. When playing DTS-encoded CDs, only noise will be heard from the speakers or analogue stereo outputs.

• Some DTS decoders which do not support DVD-DTS interface may not work properly with the unit.

Coaxial digital Audio Output

SCART-cable (not supplied)

To SCART input

Setting the on-screen language

Turn on your TV and select the AV input mode. So you can follow the setting on TV screen.

Notes:

• If the unit does not operate properly,

or No key operation (by the unit and/ or the remote control): Static electricity, etc., may affect the player's operation. Disconnect the AC mains lead once, then connect it again.

• If no buttons are pressed for more than

60 seconds, the VCR menu screen will return to normal TV-operation automatically.

Preparation:

• Press POWER

• Press VCR to select the VCR mode. (The VCR indicator will light.)

You can choose from five different languages for the on-screen displays.

Press VCR MENU. Press

to select the SYSTEM SETUP menu, then press ENTER. If you use the unit for the first time and press VCR MENU, instead of the main menu screen on the right, the LANGUAGE setup menu screen in step 3 may appear.

Press

or to select the

LANGUAGE option, then press ENTER.

Press

or to select the

desired language: English (ENGLISH), German (DEUTSCH), French (FRANCAIS), Italian (ITALIANO), Spanish (ESPANOL), then press ENTER.

Press VCR MENU repeatedly until the TV picture appears on

the screen.

button to turn on the DVD/VCR.

TIMER REC SET AUTO REPEAT OFF NICAM CH TUNING SYSTEM SETUP

SELECT :

ENTER

: ENTER

EXIT

: MENU

SYSTEM SETUP

CLOCK SET LANGUAGE/SPRACHE/LANGUE

LINGUA/LENGUA

SELECT : ENTER

: ENTER

EXIT

: MENU

LANGUAGE/SPRACHE/LANGUE

LINGUA/LENGUA

ENGLISH DEUTSCH FRANCAIS ITALIANO ESPANOL

SELECT : OK : ENTER

AUTO

You must set the date and time manually for timer recordings if Auto setup process did not set them correctly.

Notes:

• In case of a power failure, the clock will continue to operate for another 30 minutes with quartz-controlled precision. To indicate that the power failure has lasted for an excessive period of time "--:--" will appear on the display. In this case, readjust time and date.

• The AUTO TIME function adjusts the clock only if the error is within 5 minutes.

• The VCR automatically adjusts the clock setting for Daylight Saving Time once you set AUTO TIME to ON.

Setting the time and date manually

Preparation:

• Turn ON the TV and set to the AV input mode.

Press VCR to select the VCR mode. (The VCR indicator will light.)

•

Example: Setting the clock to "11:30" March, 31 (SAT), 2007.

Press VCR MENU. The VCR menu screen will appear.

Press

or to select SYS-

TEM SETUP, then press EN- TER.

Press

or to select CLOCK

SET, then press ENTER.

Press

or repeatedly until

“31” appears. Then press

Set the month, year, hour and

minute as in step 4. Then press ENTER.

• In case of an erroneous input, press to go back to previous step and enter again.

Press or to select AUTO TIME ON or OFF.

The VCR automatically corrects the clock setting every hour once you set AUTO TIME to ON.

Press VCR MENU repeatedly until the TV picture appears on

the screen.

The clock will begin operation.

TIMER REC SET AUTO REPEAT NICAM CH TUNING SYSTEM SETUP

SELECT : ENTER : ENTER EXIT

LANGUAGE/SPRACHE/LANGUE

LINGUA/LENGUA

CLOCK SET

DAY WED MONTH YEAR TIME AUTO TIME ON

SELECT : SET : OK

: ENTER

CLOCK SET

DAY SAT MONTH YEAR TIME AUTO TIME ON

SELECT : SET : OK

: ENTER

VCR

2007

0:00

31 3 2007 11:30

EXIT

[OFF]

[AUTO]

: MENU

Tuning the TV stations manually

The Auto setup function (see page 15) memorizes all broadcasts to the suitable CH positions. However, some broadcasts may not be memorized due to weak signal. In this case, use manual tuning function.

CH 01

CH 02

CH 03

CH 04

CH 05

CH 06

Note:

Occasionally, the auto search might catch a weak signal and stop. If the TV station signal is weak, you shouldn't store this station.

In that case, restart the auto search using

or .

BBC 1

BBC 2

ITV

CH4

CH5

SATELLITE

Preparation

• Turn ON the TV and set to the AV input mode.

• Press VCR to select the VCR mode. (The VCR indicator will

light)

Example: Preset the BBC 2 on programme position 2.

Press VCR MENU.

Press

or to select the CH

TUNING. Then press ENTER.

Press (falling frequency) or

(rising frequency) once to start the search. It stops at each broadcast automatically (" changes to " repeatedly until BBC 2 appears. Only in case of receiving of the weak search does not stop. If you want to stop, press

Press ENTER to preset. The search menu screen will disappear if the next mode is not activated in less than 50 seconds.

Press or repeatedly until 2

is displayed. (Or enter 0 2 with the Number buttons (0-9)). Then press ENTER.

Repeat the steps 2 and 3 to preset other TV stations.

Press VCR MENU repeatedly until the TV picture

appears on the screen.

"). Press or

broadcast (drifting picture),

or .

TIMER REC SET AUTO REPEAT NICAM CH TUNING SYSTEM SETUP

SELECT : ENTER : ENTER

EXIT

SEARCH :

EXIT :

SEARCH : OK : ENTER

CH : / 0–9

ENTER

OK :

[OFF]

[AUTO]

CH 1

EXIT : MENU

CH 2

EXIT : MENU

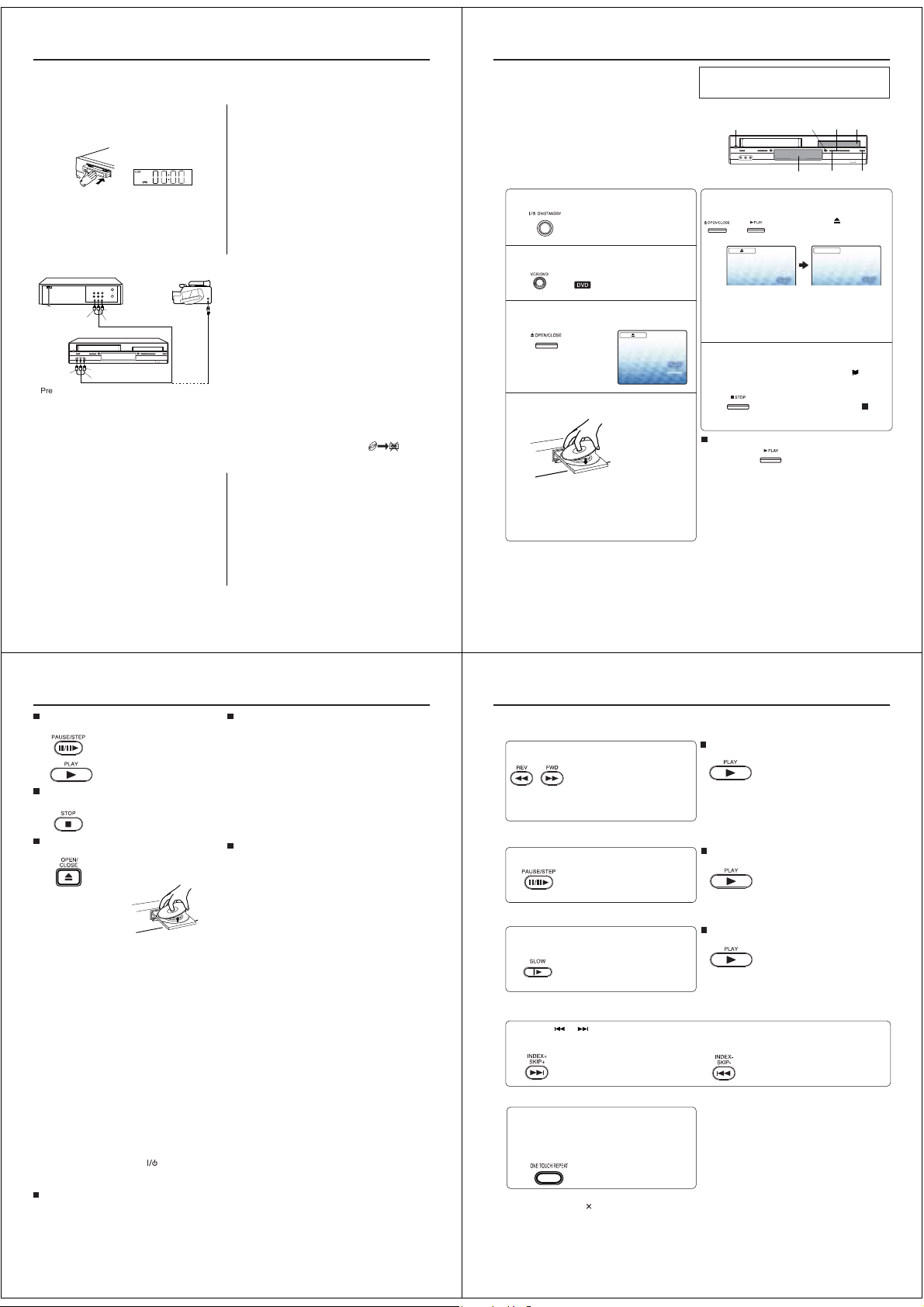

Loading and unloading a cassette tape

Use only video cassette tapes marked .

Push the centre of the tape until it is automatically inserted.

VCR

Automatic power ON

When you insert a cassette tape, the DVD/VCR power will turn ON automatically.

Automatic playback

When loading a cassette tape without an erase prevention tab, playback will start automatically.

Unloading

Press EJECT on the DVD/VCR. Even if a tape

is being played, press this button only once.

VCR

Automatic tape eject

This VCR will automatically rewind the tape when the tape has ended and when the tape has rewound to it’s beginning, the cassette tape will be ejected automatically.

To prevent accidental erasure

Remove the erase prevention tab with a screwdriver.

Erase prevention tab

Screwdriver

Tape speed and maximum recording/playback time

TAPE SPEED

SP (Standard Play )

LP (Long Play)

E-300

5 hours

10 hours

E-240

4 hours

8 hours

Insert the cassette tape with its labeled side facing up and the erase prevention tab positioned at your left. An inverted cassette tape cannot be inserted.

Erase prevention tab

Remove the cassette tape.

VCR

To record again

Cover the hole with a piece of adhesive tape.

Adhesive tape

VIDEO CASSETTE TAPE

E-180

3 hours

6 hours

E-90

1-1/2 hours

3 hours

E-60

1 hour

2 hours

E-30

30 minutes

1 hour

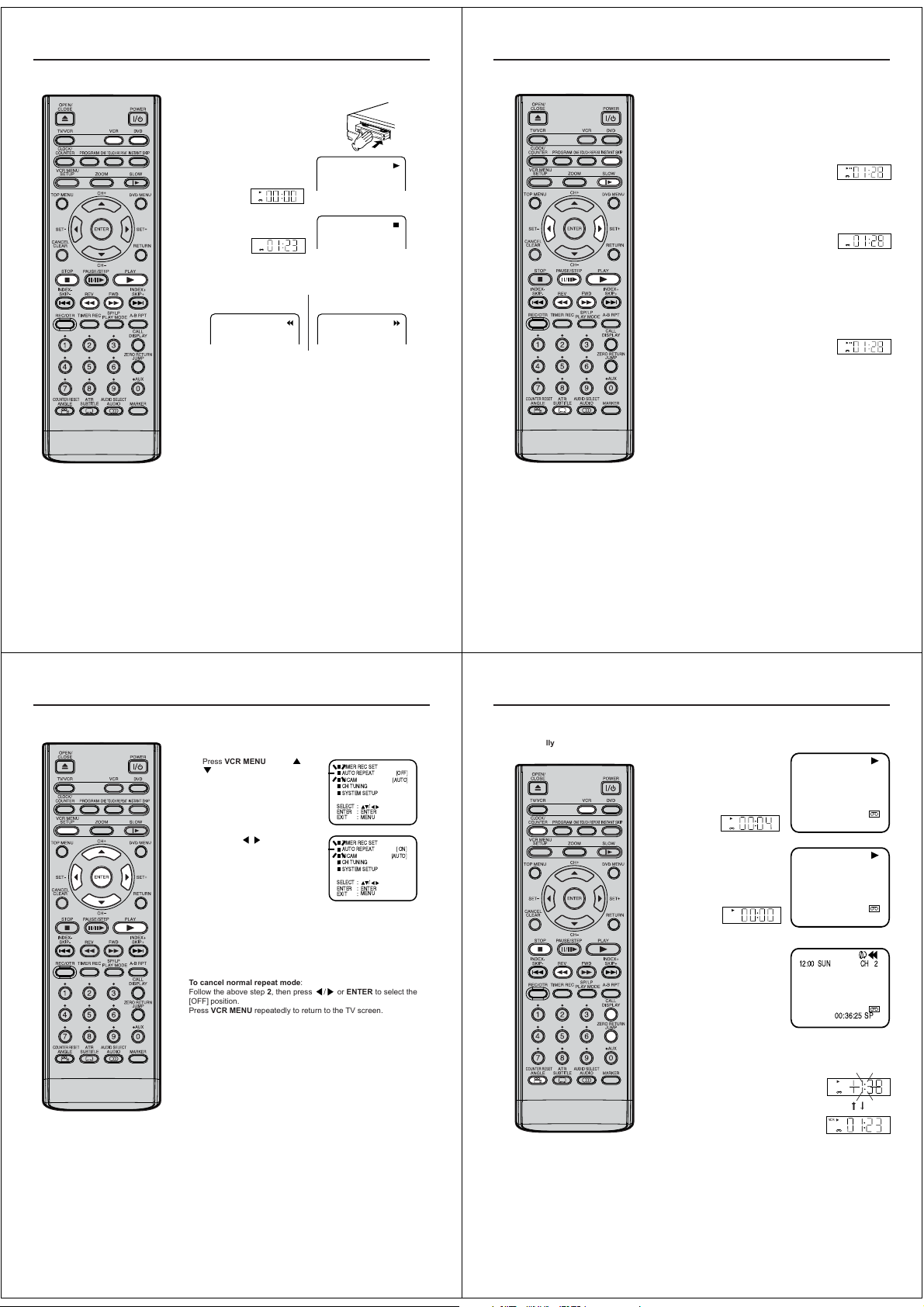

Cassette tape playback

Preparation:

• Turn ON the TV and set to the AV input mode.

• Press VCR to select the VCR mode. (The VCR indicator will light.)

To stop playback

To rewind the tape or forward it rapidly

To stop the tape-winding, press STOP. To switch to playback directly (without STOP), press PLAY.

Forward/Reverse picture search mode

When the tape is being wound, you can switch to picture search mode (see page 21). To do this, press REV or FWD and hold it down. The unit will resume the tape winding as soon as the button is released.

NTSC video cassette playback

When using a pre-recorded NTSC video cassette tape, the connected TV must operate with a 60 Hz vertical frequency. Otherwise, the onscreen picture will be affected by vertical rolling. Even if your VCR is capable of processing NTSC video signals, the picture may be

Notes:

• This VCR selects the playback tape speed SP or LP automatically.

• The cassette tape and DVD disc can be played back simultaneously. If you press VCR or DVD, the tape playback and DVD playback alternate with each other on the screen.

shortened vertically (appearance of black bars at the top and at the bottom of the TV screen). The dubbing of a NTSC video cassette tape to a standard PAL VCR is impossible.

Load a pre-recorded tape (When loading a cassette tape without the erase prevention tab, playback will start automatically).

To start playback

Press PLAY. Playback will start.

Press STOP.

Stop the playback or recording with STOP.

To rewind the tape: Press REV.

VCR

To forward the tape: Press FWD.

Notes:

•

The audio output is muted during special playback.

• During picture search mode, there will be noise bars which are caused by the system.

• The Special Playback will automatically change to normal playback after approx. 5 minutes to protect the video tape against excessive wear.

Special playback

Picture Search

Reverse picture search function

Press REV once or twice during the playback. To resume normal playback: Press PLAY.

Forward picture search function

Press FWD once or twice during the playback. To resume normal playback: Press PLAY.

Still Picture

Press PAUSE/STEP during playback. To resume normal playback: Press PLAY.

Slow Motion

During playback, press SLOW. You can change the slow speed by pressing SLOW several times. To resume normal playback: Press PLAY.

Slow tracking and vertical lock adjustment If noise bars appear in the picture during slow motion, press SET + or – to reduce the noise bars.

If the still picture jitters excessively, press SET + or – to stabilize the still picture.

Frame by Frame picture

During playback, press PAUSE/STEP repeatedly: The picture advances frame by frame. To resume normal playback: Press PLAY.

Adjusting tracking condition

Automatic tracking adjustment

Whenever you insert a tape and start playback, automatic tracking starts working and continuously analyzes the signal to enable optimum picture quality during playback.

Manual tracking adjustment

If automatic tracking cannot eliminate noises well during playback, press SET + or SET – to eliminate the noises. “MANUAL TR.” will appear. Press it briefly for a fine adjustment, or press and hold for a coarse adjustment.

To return to automatic tracking, press ATR.

Instant skip

Press INSTANT SKIP during playback. The DVD/VCR will search forward through approximately 30 seconds of the tape (e.g. unwanted commercial time) for each press of INSTANT SKIP (maximum six presses) and then resume normal playback.

For example: 1 press: 30 seconds of tape

2 press: 60 seconds of tape 3 press: 90 seconds of tape

VCR

Repeat playback

Normal repeat playback

The entire video tape will be played until its end. The tape will then automatically rewind to the beginning and the playback will be repeated.

Press VCR MENU. Press

to select AUTO REPEAT.

Then press

lect [ON] or [OFF]. If [ON] is selected, the playback will be repeated endlessly.

Press VCR MENU repeatedly until the menu screen is

cleared.

To start the playback, press PLAY.

The playback will be repeated endlessly.

To cancel normal repeat mode: Follow the above step 2, then press [OFF] position. Press VCR MENU repeatedly to return to the TV screen.

/ or ENTERto se-

TIMER REC SET AUTO REPEAT NICAM CH TUNING SYSTEM SETUP

SELECT : ENTER : ENTER EXIT

TIMER REC SET AUTO REPEAT NICAM CH TUNING SYSTEM SETUP

SELECT : ENTER : ENTER EXIT

/ or ENTER to select the

[OFF]

[AUTO]

[ ON]

[AUTO]

ZERO RETURN function

This function makes tape-rewinding stop at the counter 00:00:00 position automatically.

Counter display

Preparation

• Turn ON the TV and set to the video input mode.

• Press VCR to select the VCR mode. (The VCR indicator will light.)

Press CALL.

The counter display shows tape running time during playback or recording. The Recorder will indicate REC during recording.

Press COUNTER RESET the desired tape position. counter display will be reset to the “00:00:00” position (e.g. the beginning of recording).

Press STOP when playback or

recording is finished. Press ZERO RETURN. The tape will be rewinded or fast forwarded and automatically stop at the “00:00:00” position.

The CLOCK/COUNTER button

the tape

Press CLOCK/COUNTER during the playback. The clock and tape counter alternate with each other on the display.

the

12:00 SUN

VCR

The

VCR

00:04:38 SP

12:00 SUN

00:00:00 SP

12:00 SUN

00:36:25 SP

rewound over the point of 00:00:00, the minus mar

VCR

CH 2

Note:

If the unit is turned off or starts recording, the repeat mode is cancelled.

Notes:

• When you load a video cassette, the

display indication changes to "00:00".

• The counter display does not function

on non-recorded (blank) sections of the tape. When you rewind, fast forward or play tapes through blank sections, the counter display stops.

8+4

Note:

You can set the tape counter to 00:00:00 with COUNTER RESET anytime. Therefore, the counter display can also indicate 00:00:00, even when the tape counter does not reach its beginning yet. Even if the tape counter indicates 00:00:00, it can be rewound. If was in the counter display. Although the tape counter seems to forward when you press REV, the tape is in fact being rewound. When the tape reaches the beginning, the tape-rewinding stops automatically.

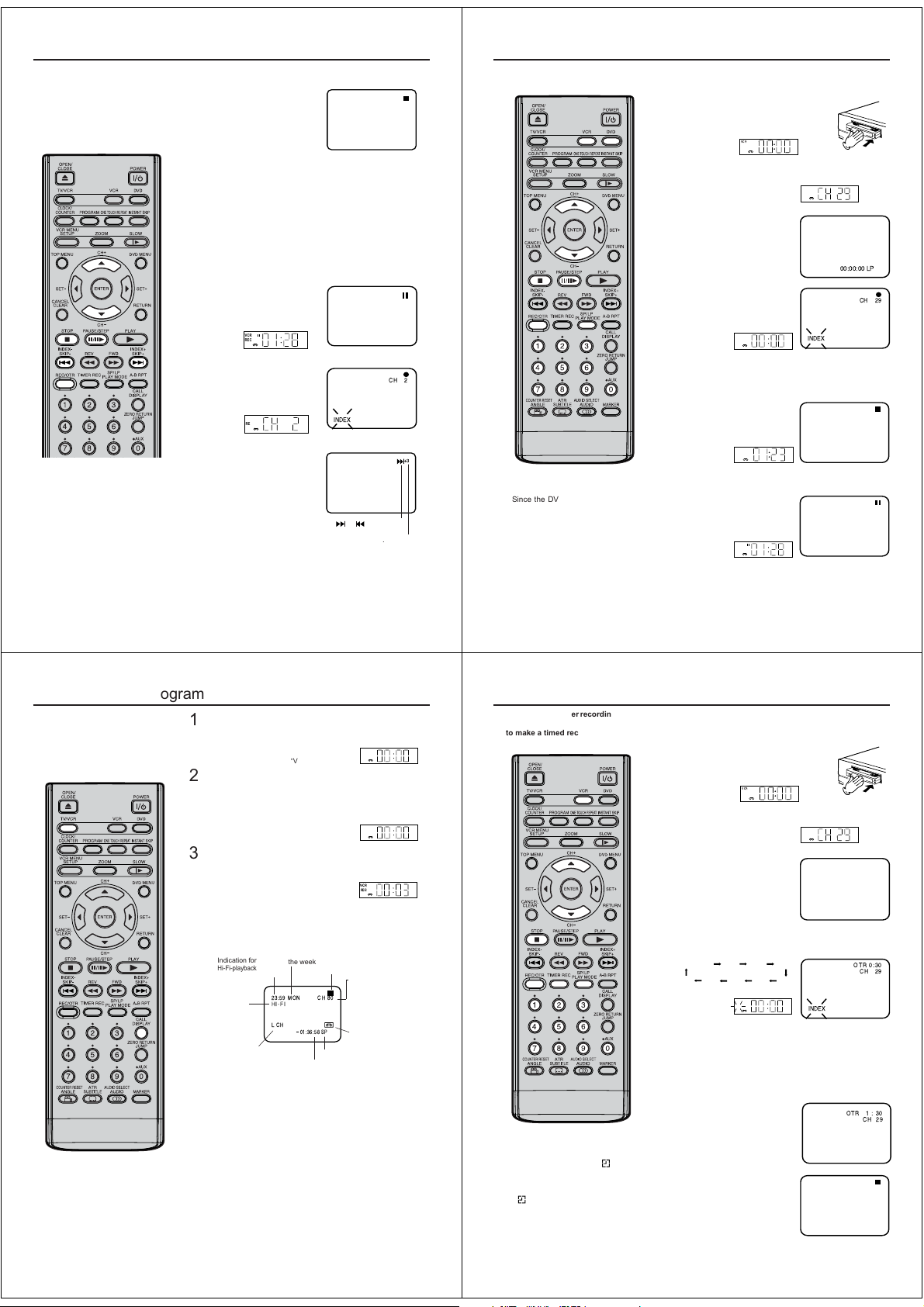

Video Index Search System

Whenever a recording is begun, an invisible index mark is recorded on the

tape. These index marks are all

identical,

and each mark means: "Here starts a new recording". Every DVD/ VCR equipped with the Video Index Search System (VISS) can locate these marks at the beginning of any recording.

Example: Indexing of TV commercials.

Start playback and wait until the

end of the TV commercial is reached, then press STOP.

Press REC/OTR once. When the “INDEX” on-screen indication

goes off, STOP may be pressed. This short recording process will be sufficient to set an index mark. This will result in about 10 seconds of the TV commercials to be overwritten by another recording. Due to the system, the end of this recording will be followed by a recording gap (noise signal) of approx. 5 seconds.

Recording several Index marks

Due to the system, only one index mark will be recorded at the beginning of a recording. If you intend to set several index marks during a single recording, follow the procedure below:

At the point of the recording

where an index mark is to be set, press PAUSE/STEP. The unit will switch to the recording pause mode.

Recording a TV program

Preparation

• Turn ON the TV and set to the AV input mode.

• Press VCR to select the VCR mode. (The VCR indicator will light.)

Load a blank cassette tape with the erase

prevention tab intact. (The DVD/VCR will automatically turn on.)

Select the program(e.g.29) you want to record with CH +/– or

Number buttons (0-9). 1~9 : e.g. 5 = press “5” 10~80 : e.g. 29 = press “2” and “9”.

If a recording in Long Play mode is

intended, press SP/LP to display “LP”.

Press REC/OTR to start recording.

VCR REC

8+4

VCR

00:00:00 LP

CH 29

VCR REC

INDEX

Notes:

• When you record an INDEX mark at the very beginning of the tape, the mark may not be found.

• During INDEX search, the tape may stop and begin to play at a slightly different location.

• INDEX may not function properly with old or worn out video tapes.

• INDEX marks may not be found if it is extremely close to the point where the search began.

• In recording, if you stop recording temporarily, the INDEX mark is not recorded on the tape.

Recording a TV Program

You can record a program using the TV receiver of the DVD/VCR and at the same time watch another program on the TV set using its receiver. As the DVD/VCR automatically switches the TV set the following points should be observed:

Auto Rewind Feature

The DVD/VCR will automatically rewind when the tape has ended (except during OTR and TIMER REC). It will also eject the cassette tape.

Press CH +/– repeatedly to

switch back to the original TV program. Press PAUSE/STEP to resume recording.

VCR REC

Index Search

Press INDEX + or – during stop or playback mode. For Succeeding programs: Press INDEX +. For Preceding programs: Press INDEX –. (Additional press increases the INDEX NO. up to 9.) When the INDEX + or – is pressed, the unit starts searching the INDEX NO. selected and finds the portion, then playback starts automatically. To stop the Index Search, press STOP.

Press TV/VCR until “VCR” appears on the display. Select the

program on the DVD/VCR you want to record. This program can be watched on the screen and recorded by the DVD/VCR.

While the VCR is recording, press TV/VCR until the “VCR”

indicator on the display goes off. The TV set now displays the program of its built-in receiving module. Select the TV channel you want to watch on the TV set. Although the TV set now shows another program, the DVD/VCR will continue recording the previously selected program.

Using TV/VCR you can switch the TV screen between the DVD/

VCR picture and the TV picture. If the “VCR” indicator is lit on the display, you will watch the DVD/VCR picture. This will not affect on the recording.

To Display VCR operation Status

Press CALL. The clock, the day of the week and more information will be indicated.

To cancel the indicating: Press CALLuntil all indicators disappear.

Indication for Hi-Fi-playback or stereoreception (displayed only for approx. 4 seconds.)

Indication for the selected playback sound (e.g.: L CH = Left Channel) only for approx. 4 seconds.)

“VCR” indicator goes off.

Day of the week

Time

23:59 MON HI-FI

LCH

(displayed

INDEX

“VCR” indicator lights.

Deck-status here: Stop

CH 80

01:36:58 SP

Tape speed

Real time counter

CH 2

or is displayed

INDEX NO. (up to 9)

VCR

REC

8+4 4-+

Program number or Scart input (AV1,AV2 or AV3)

Cassette inside the unit

Notes:

• Since the DVD/VCR has a built-in TV tuner, the TV set may be turned off when recording. The TV set may only be used to check for accurate program adjustments or to monitor recordings.

• If you wish to watch the DVD playback during the recording on VCR, press DVD to change to DVD mode and perform the DVD playback (see page 33).

The one-touch timer recording feature provides a simple and convenient way to make a timed recording.

Note:

If the tape supply has not sufficed for OTR recording, the clock symbol ( at the tape-end and then VCR mode will change to DVD mode. In this case, press TIMER REC to cancel

blink or press EJECT on the DVD/

the VCR to remove the cassette tape.

) will blink

If the erase prevention tab is removed, the tape will eject when REC/

OTR is pressed for recording. (see page 19)

To Stop Recording

Press STOP.

VCR

To Stop Recording Temporarily

To stop a recording for a short period of time, press PAUSE/ STEP. Press this button again if you want to resume the recording.

VCR REC

Attention:

A safety circuit turns the pause mode off automatically after 5 minutes, and the DVD/VCR will stop the recording mode.

One-touch Timer Recording (OTR)

Preparation

• Turn ON the TV and set to the AV input mode.

• Press VCR to select the VCR mode. (The VCR indicator will light.)

Load a blank cassette tape with the erase

prevention tab intact. (The DVD/VCR will automatically turn on.)

Select the program(e.g.29) you want to record with CH +/– or

number buttons. 1~9 : e.g. 5 = press “5” 10~80 : e.g. 29 = press “2” and “9”.

If a recording in Long Play mode

is intended, press SP/LP to display "LP".

Press REC/OTR twice. The recording will start and stop after 30

minutes. Each additional press of REC/OTR will increase the recording time to a maximum of 6 hours .

Recording 0:30

6:00

“REC” will keep blinking on the display.

If REC/OTR is pressed once during the recording, the remaining time appears on the screen. When pressed again, the recording time is extended to the nearest 30-minute or 1-hour interval.

To Extend the Recording Time

Press REC/OTR repeatedly until the desired time appears on the screen.

To stop the OTR

Press STOP.

5:00

4:00

8+4

VCR

00:00:00 LP

1:30

1:00

3:00

2:00

VCR REC

INDEX

OTR 0:30

CH 29

OTR 1 : 30

CH 29

Timer recording

Timer recording can be programmed on the TV-screen with the remote control. The built-in timer allows automatic unattended recording of up to 8 programs within 1 month.

Notes:

• In the event of a power failure, the data of the automatic recording will be maintained in the built-in memory for about 30 minutes. Also, the clock will continue to run for this period of time. Thereafter the data will be deleted. When the power resumes, the time display will change to “

--:--

will have to be set.

• Not all TV Stations transmit PDC signal all of the time, therefore it is advisable to check before setting PDC to ON, if you do set PDC to ON and no signal is received your recording might not take place at all. To check PDC status, change to the channel on your DVD/ VCR you wish to record from, if the word "PDC" appears on the screen for a few seconds then that channel is broadcasting PDC and you can set the feature to ON.

” and the timer setting

Preparation

• Turn ON the TV and set to the AV input mode.

• Press VCR to select the VCR mode. (The VCR indicator will light.)

• Load a video cassette with the erase prevention tab intact. Make sure with CALL that the time and date are correct.(see page 26).

Example: Timer recording for channel 1, 13:00 to 14:30 with Tape speed LP on timer program number 1.

or . Then

to go back to

TIMER REC SET AUTO REPEAT NICAM CH TUNING SYSTEM SETUP

SELECT : ENTER : ENTER EXIT

------

SELECT : EXIT : MENU

TIMER REC SET

DATE 23 M ON START END CH SPEED

PDC SELECT : SET : EXIT : MENU

TIMER REC SET

DATE

START

END

SPEED

PDC

SELECT : SET : EXIT : MENU

TIMER REC SET

DATE

START

END

SPEED

PDC

SELECT : SET : EXIT : MENU

--:-- --

--:--

--:-- --

--:--

--:-- --

--:--

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

/ ENTER

11:30

--:--

3 SP OFF

23 MON 13:00 14:30

LP OFF

OK : ENTER

23 MON 13:00 14:30

LP ON

OK : ENTER

[OFF]

[AUTO]

Press VCR MENU. Press

to select TIMER REC SET.

Then press ENTER.

Each line stands for one pro-

gram of the 8 memories. Select one line with press ENTER.

Set the desired date with

. Then press to accept it.

Set the Starting time (13:00),

ending time (14:30), channel (1) and Tape speed (LP) in the

same way as the step 3.

• In case of an erroneous input, press previous step and enter again.

To record with the PDC (Programme Delivery Control) system

The PDC system starts recording when it picks up a special signal transmitted by the broadcaster with the TV programme – even if the TV programme starts early, late or runs on longer than scheduled. In step 4, press ▼ repeatedly until PDC OFF flashes, then press

or to display "ON" for recording with PDC.

Timer recording

Press ENTER to accept them.

To enter other programs, repeat steps

2 through 5.

• To return to the

normal screen, press VCR MENU twice.

Press TIMER REC. The clock symbol ( ) will

appear on the display and the DVD/VCR stands by for recording. At the same time, VCR mode will change to DVD mode automatically. You can use DVD even if the VCR is in the Timer recording mode. If you do not use the DVD, turn the power off.

• If the clock symbol (

spite of the pressing of TIMER REC, the cassette may not have been loaded yet. (see page 19)

• If the cassette is ejected in spite of the pressing of TIMER REC, the erase prevention tab of the cassette may have been removed. (see page 19)

Notes:

• In case of the timer recording from the scart socket, proceed as follows: In step 4, press until the "CH" line blinks. Then press edly until “AV1” or “AV2” or “AV3” appears.

• If the clock symbol ( ended, the TV program has not been completely recorded because of an insufficient tape supply. Press

TIMER REC to cancel the timer program or press EJECT on the DVD/VCR to remove the cassette tape.

• During timer recording standby mode, the VCR mode cannot be selected. To use the VCR, press TIMER REC at first, then press VCR to change to VCR mode. Press TIMER REC again to set the VCR into timer recording standby mode.

13:00 14:30 1

MON

------ --:-- --:-- --

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

/ ENTER

SELECT :

: MENU

EXIT

) blinks on the display in

or repeatedly

or repeat-

) blinks when the timer recording

Timer Recording Special Case

Weekly (e.g. WKL-TUE: each Tuesday) or daily (e.g. MON-SAT: Monday to Saturday) Timer recording

Follow the procedure for timer recording on page 28. At picture 3, press setting appears. Then press

repeatedly, the indicator at DATE will change as

follows, in case today is Friday.

SUN-SAT 25 FRI ..... 24 SUN WKL-FRI

or repeatedly until the desired

. When you press or

One month later

minus one day

MON-SAT MON-FRI WKL-THU.....WKL-SAT

TIMER REC SET

WKL-WED

DATE START

11:30

--:--

MON-SAT = everyday from Monday to Saturday WKL-SAT = each Saturday

END CH SPEED

PDC SELECT : SET : EXIT

: MENU

2 SP OFF

In case of Timer programs-overlapping

Do not overlap timer programs as portions of the conflicting programs will be lost. The first recording

time has priority over the next recording time as

shown in the diagram below.

If you set up many timer recording programs at the

same start time, the priority will be the top program in the timer recording list.

Recording Control Settings

Notes:

• The daily/weekly recording can be made continuously until the recording is cancelled or the tape reaches the end.

• During timer recording, the automatic rewinding mechanism does not function.

Confirmation / Cancellation of the Timer Recording

8 : 00

Prog.1

9 : 00

Deleted Parts

Non Recorded Portion Parts

Prog.2 Prog.3

TUE 23 MON 25 WED

SELECT : CLEAR

23 MON 25 WED

SELECT : / ENTER EXIT : MENU

Program 1

Program 2

Program 3

If the Timer has been activated, press TIMER REC to deactivate the Timer. The clock symbol ( disappear. Then press VCR to change to VCR mode.

Press PROGRAM. All the 8 Timer memories will appear.

To cancel Timer program: Press the written line. Then press CANCEL. This line is now cancelled.

Press VCR MENU (or PROGRAM) repeatedly until the TV-picture appears.

10 : 00

11 : 00

17:30 18:00 7 13:00 14:30 1 12:15 13:00 4

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

/ ENTER

: CANCEL EXIT : MENU

or to select

--:-------- --

--:--

13:00 14:30 1 12:15 13:00 4

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

--:-------- --

--:--

) will

SP LP SP

LP SP

Stereo recording and playback

This DVD/VCR is capable of recording sound in Hi-Fi system. The recording will be performed automatically. NICAM STEREO broadcasts are recorded in its original sound system regardless of the setting. If you wish to record NICAM programmes, select NICAM

“

AUTO” as follows.

Note:

When listening to a stereo broadcast or playing back a Hi-Fi tape recorded in stereo, you have to connect the DVD/ VCR with the stereo audio system or the stereo TV.

Preparation:

• Turn ON the TV and set to the video input mode.

• Press VCR to select the VCR mode. (The VCR indicator will light.)

NICAM stereo sound reception:

Press VCR MENU. Press or

to select NICAM. Then press / or ENTER to select [AUTO].

Press VCR MENU repeatedly until the TV picture appears.

NICAM programmes are divided into 4 types as shown below.

NICAM STEREO broadcast

“NICAM ST” illuminates when a NICAM STEREO broadcast signal is received.

NICAM MONO A broadcast

“NICAM M1” illuminates when a NICAM MONO A broadcast signal is received.

NICAM MONO A B broadcast

“NICAM M1/2” illuminates when a NICAM MONO A and MONO B broadcast signal is received.

NICAM OFF

It will be displayed for the NICAM signal when the “NICAM [OFF]” is selected in menu screen.

TIMER REC SET AUTO REPEAT NICAM CH TUNING SYSTEM SETUP

SELECT : ENTER : ENTER

EXIT

NICAM ST

NICAM M1

NICAM M1/2

NICAM OFF

[OFF]

[AUTO]

Note:

When playing Hi-Fi cassette tapes recorded on another VCR, the sound output may be distorted. This is normal and no indication of a unit malfunction. Try to minimize sound distortions by using

SET +/– or change to MONO by pressing AUDIO SELECT.

Stereo recording and playback

Playback

Use AUDIO SELECT to select under stereo/mono or bilingual playback. See the table below for more information.

On-screen indications (for 4 sec.)

Stereo playback performed in:

Stereo

STEREO

Left channel signal output from both

L CH

R CH

loudspeakers

Right channel signal output from both loudspeakers

Mono

MONO

HiFi signal indication

It displays for approx. 4 seconds when playing HiFi video cassette tapes.

Bilingual playback performed as follows:

Simultaneously both languages from Hi-Fi track (Mixed sounds)

One language dubbing (Main sound)

Original sound track (Sub sound)

One language dubbing (Main sound)

HI-FI

Duplicating a video tape

When you try to connect video recorder or Video camera to the recording DVD/VCR with audio/video cables, make sure the power of both units have been turned off. Connect the recording DVD/VCR with the TV. Therefore, you can watch what the recording DVD/VCR is recording.

Load a blank cassette tape with the erase prevention

tab intact into the recording DVD/VCR. Load the previously recorded cassette tape into the playback VCR or a video camera.

8+4

Use AUX or CH +/– of the recording DVD/VCR to select the “L1”, “L2” or “L3” instead of the preset channel.

L1 = TV-RGB/Composite Scart Socket L2 = VCR/DECODER Scart Socket L3 = Front AV jacks

Connection with second Video recorder or Video camera

Playback unit To Video Output To Audio (L) Output

To Video Input To Audio (L) Input

Press AUX on the recording DVD/VCR repeatedly until “L3” appears.

Duplicating a disc material onto a video tape

You can record disc material in DVD, Video CD, Audio CD, etc. onto a video tape with this DVD/VCR only. If the DVD disc has a Copy-guard feature, the duplicating is not possible. A symbol mark “ appear on the screen for approx. 4 seconds. See page 33 for more information about the DVD playback.

Preparation:

• Load a cassette tape with the erase prevention tab intact.

• Select the tape speed in the VCR mode. (see page

25)

• Load a disc you wish to duplicate.

Press DVD to select the DVD mode. (The DVD indi-

cator will light)

Press PLAY to start the disc playback.

* Unauthorized recording of copyrighted television programs, films, video cassettes and other materials may

infringe the rights of copyright owners and be contrary to copyright laws.

To Audio (R) Output

Recording DVD/VCR

To Audio (R) Input

Press REC/OTR and then PAUSE/STEP on the

Recording DVD/VCR.

Press PLAY-button and then PAUSE/STEP-button on the Playback unit. Now you can see the still picture of the scene that you wish to duplicate.

Press PLAY-button on the Playback unit and REC/ OTR on the Recording DVD/VCR simultaneously to start the duplicating.

Note:

Before starting the duplicating process, select the proper tape speed using SP/LP. For a pre-recorded tape, the correct tape speed will be set automatically during playback.

Playback on camera

To AV jack

Audio/Video cables (not supplied)

During disc playback, press REC/OTR.

Notes:

• You can set the duplicating time using the OTRfunction. At step 3 above, press REC/OTR repeatedly until the desired duplicating time appears on the screen. (see page 27)

• Only non-protected PAL discs can be dubbed to video tape.

” will

This section shows you the basics on how to play a disc.

Basic playback (DVD/VCD/CD)

Preparations:

• When you want to view a disc, turn on the TV and select the corresponding video input connected to the DVD/VCR. This may include component video inputs which is exclusive to DVD playback.

• When you want to enjoy the sound of discs from the audio system, turn on the audio system and select the input connected to the DVD/VCR.

Press ON/STANDBY.

The DVD/VCR turns on.

Press VCR/DVD to select the DVD mode.

The DVD indicator will light.

Press OPEN/CLOSE.

The disc tray opens.

Place a disc on the disc tray.

With the playback side down

• There are two different disc sizes. Place the disc in the correct guide on the disc tray. If the disc is out of the guide, it may damage the disc and cause the DVD/VCR to malfunction.

• Do not place a disc which is unplayable in this DVD/VCR.

Playing a disc

CAUTION

Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so may cause serious personal injury.

ON/STANDBY

Display window

Press OPEN/CLOSE or PLAY on the unit.

To start playback in the stop mode

Press PLAY.

Note: If the unit does not operate property:

Static electricity, etc., may affect the player’s operation. Disconnect the AC power cord once, then connect it again.

The disc tray closes automatically. On the TV-screen, “ “Reading” and then playback

commences.

• A menu screen will appear on the TV screen if the disc has a menu feature.

• Press

ENTER.

Title is selected and play commences.

Press STOP to end playback.

• The unit records the stopped point, depending on the disc. “ appears on the screen. Press

PLAY

the scene point).

• If you press STOP again (“

appears on the screen.), the unit will clear the stopped point.

STOP Disc trayVCR/DVD

OPEN/CLOSE

PLAY

” changes to

Reading

to select title, then press

to resume playback (from

”

Playing a disc

To pause playback (still mode) Press PAUSE/STEP during playback.

To stop playback Press STOP.

To remove the disc

Press OPEN/CLOSE.

Be sure to press OPEN/CLOSE to close the disc tray after you remove the disc.

Notes:

• If a non-compatible disc is loaded, “Incorrect Disc”, “Region Code Error” or “Parental Error” will appear on the TV screen according to the type of loaded disc. In this case, check your disc again (see pages 6 and 52).

• Some discs may take a minute or so to start playback.

• When you set a single-faced disc label downwards (i.e. the wrong way up) and press OPEN/CLOSE or PLAY on the unit, “Reading” will appear on the display for a few minutes and then “Incorrect Disc” will continue to be displayed.

• Some discs may not work the resuming facility.

• Resuming cannot function when you play a PBC-featured Video CD while the PBC is on. To turn off the PBC, see page 42.

• Some playback operations of DVDs may be intentionally fixed by software producers. Since this unit plays DVDs according to the disc contents the software producers designed, some playback features may not be available. Also refer to the instructions supplied with the DVDs.

• Do not move the unit during playback. Doing so may damage the disc.

• Use the OPEN/CLOSE to open and close the disc tray. Do not push the disc tray while it is moving. Doing so may cause the unit to malfunction.

• Do not push up on the disc tray or put any objects other than discs on the disc tray. Doing so may cause the unit to malfunction.

• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press POWER

• There may be a slight delay between the button is pressed and the function activates.

To obtain a higher quality picture

Occasionally, some picture noise not usually visible on the TV screen during a normal broadcast may appear while playing a DVD video disc. It is due to high resolution pictures on these discs which include a lot of information. The amount of noise depends on the TV you use with this unit. You should generally reduce the sharpness adjustment on your TV when viewing DVD video discs.

To resume normal playback, press PLAY.

• The sound is muted during still mode.

Remove the disc after the disc tray opens completely.

on your remote control once the movie is completed.

Playing a Disc while the VCR section is recording or standing by for timer recording

1) Start to record. Follow steps 1~4 on page 25.

• If the DVD/VCR is standing by for recording, turn

on the DVD/VCR.

2) Press VCR/DVD to select DVD mode.

3) Play a disc. Follow steps 3 ~ 5 on page 33.

• Press PLAY if the DVD/VCR does not start to play

a disc automatically.

4) Stop playback. Press STOP to stop playing a disc.

Screen saver function

The screen saver operates when you leave the unit in DVD stop mode for approx. five minutes. The DVD VIDEO logo moves randomly on the screen. Please press any button when you want to return to an usual screen. To turn on or off the screen saver, see page 51.

Playing a disc

You can play discs at various speeds.

Playing in fast reverse or fast forward directions (DVD/VCD/CD)

Press REV or FWD during playback.

REV: Fast reverse playback FWD:Fast forward playback

Each time you press REV or FWD, the playback speed changes.

Playing frame by frame (DVD/VCD)

Press PAUSE/STEP during still playback.

Each time you press PAUSE/ STEP, the picture advances one

frame.

Playing in slow-motion (DVD/VCD)

Press SLOW during playback.

Each time you press SLOW, the slow-motion speed changes.

Locating a chapter or track (DVD/VCD/CD)

Press SKIP

Playback starts from the selected chapter or track.

or repeatedly to display the chapter or track number you want.

To locate succeeding chapters or tracks.

One touch repeat (DVD/VCD/CD)

Press ONE TOUCH REPEAT during playback.

The playback skips back about 10 seconds and starts playing again. If you press ONE TOUCH REPEAT again after the skipping back, it skips back a further 10 seconds.

Notes:

• A prohibition symbol “ you tried is not available on the disc, or the DVD/VCR cannot access the feature at this time. This does not indicate a problem with the DVD/VCR.

• The unit is capable of holding a still video image or On screen display image on your television screen indefinitely. If you leave the still video image or On screen display image displayed on your TV for an extended period of time, you risk permanent damage to your television screen. Projection televisions are very susceptible.

” may appear at the upper right of the screen. This symbol means either the feature

To resume normal playback

Press PLAY.

Notes:

• The DVD/VCR mutes sound during reverse and forward scan of DVD/VCD/Audio CD discs.

• The playback speed may differ depending on the disc.

To resume normal playback Press PLAY.

Note:

The sound is muted during frame by frame playback.

To resume normal playback Press PLAY.

Notes:

• The sound is muted during slow-motion playback.

• You can use slow motion playback for DivX

Playback starts from the beginning of the current chapter or track. When you press twice in quick successions, playback starts from the beginning of the preceding chapter or track.

Notes:

• Some discs may not work with the one touch repeat function.

• Some functions may be unavailable due to the disc configuration.

• Depending on the playback status, one touch repeat may not skip back as intended.

• In case of Video CD with PBC, one touch repeat function is prohibited.

CD.

Zooming/Locating desired scene

Zooming (DVD/VCD)

This unit will allow you to zoom in on the frame image. You can then make selections by switching the position of the frame.

Press ZOOM during playback.

Notes:

• You can select the Pause or Slow in the zoom mode.

• Some discs may not respond to zoom feature.

The centre part of the image will be zoomed in. Each press of ZOOM will change the ZOOM

and

Press

frame.

In the zoom mode, press ZOOM repeatedly to return to a 1:1 view ( Off).

1 (x 1.3), 2 (x 1.5)

3 (x 2.0).

A A

A to view a different part of the

A A

You may move the frame from the centre position to UP, DOWN, LEFT or RIGHT direction.

Locating desired scene (DVD/VCD/CD)

Use the title, chapter and time recorded on the DVD disc to locate the desired point to playback. In the case of VCD/Audio CD discs, time and track are used to locate the desired point to playback. To check the title, chapter/track and time, press DISPLAY.

Press JUMP during playback or resume stop mode.

Press “Chapter” or “Time”.

Press Number buttons (0–9) to input the number.

Press ENTER. Playback starts.

Notes:

• In case of the Audio CD and Video-CD, only Track and Time can be selected.

• In case of the Video-CD playback with PBC, the JUMP does not work. Turn off the PBC (see page 42).

Jump

Title Chapter Time

C C

C or

D to select the “Title/Track”,

C C

Jump

Title Chapter Time

Jump

Title Chapter 12 Time

• If you input a wrong number, press CLEAR.

• Refer to the package supplied with the disc to check the numbers.

• When you change the title, playback starts from Chapter 1 of the selected title.

• Some discs may not work in the above operation.

Marking desired scenes

The unit stores the points that you want to watch again up to 3 points. You can resume playback from each scene.

Marking the scenes (DVD/VCD) Returning to the scenes (DVD/VCD)

Press MARKER during playback.

Marker 1 Marker 2 Marker 3

Select the blank Marker using C or D. Then press ENTER at the desired scene.

• Repeat this procedure to set the other 2 scenes.

Marker 1 Marker 2 Marker 3

Press MARKER to clear this display.

Notes:

• Some discs may not work with the marking operation.

• The marking is cancelled when you open the disc tray or turn the power off.

• Some subtitles recorded around the marker may fail to appear.

• In case of Video CD with PBC, Marker function is prohibited.

2700 54

Press MARKER during playback or stop mode.

Marker 1 Marker 2 Marker 3

Press C or D to select the Marker 1-3.

Marker 1 Marker 2 Marker 3

Press ENTER.

To cancel the Marker

Follow the above steps 1~2, then press CLEAR.

Playback starts from the marked scene.

2700 54

160825

00 01

54 25 31

Repeat playback/A-B Repeat playback

Repeat playback (DVD/VCD)

Press PLAY MODE during playback or stop mode.

[DVD] Press ENTER repeatedly to select “Chapter”

or “Title”.

Play Mode

Repeat : Off

The unit automatically starts repeat playback after finishing the current title or chapter.

[Video CD]

Press

D to select “Repeat”.

Press ENTER repeatedly to select “Track” or “All”.

The unit automatically starts repeat playback after finishing the current track.

• If you set the repeat mode during stop mode, press PLAY to start Repeat playback.

[Audio CD and MP3 CD]

Please see “Repeat playback (CD)” (see page

47).

Press PLAY MODE again to clear the screen.

To resume normal playback

Select Repeat : “Off” in step 2.

Notes:

• Some discs may not work with the repeat operation.

• In case of Video CD with PBC, Repeat function is prohibited during playback.

• Chapter/Track repeat function is cancelled whenever

SKIP

or is pressed.

Play Mode

Mode : Off

Repeat : Off

A-B Repeat playback (DVD/VCD/CD)

A-B repeat playback allows you to repeat selection between two selected points.

Press A-B RPT during playback.

Press A-B RPT again.

To resume normal playback Press A-B RPT again.

Notes:

• In A-B Repeat mode, subtitles near the A or B locations may not be displayed.

• You may not be able to set A-B Repeat for the scenes that include multiple angles.

• A-B Repeat playback does not work when Repeat playback is activated.

• You may not be able to set A-B Repeat during certain scenes of the DVD.

• A-B Repeat does not work with an interactive DVD, MP3/JPEG.

• In case of Video CD with PBC A-B Repeat is prohibited.

The start point is selected.

The end point is selected. Playback starts at the point that you selected. Playback stops at the end point and returns to Point A automatically, then starts again.

“

” appears on the screen.

Off

Program playback/Random playback

You can arrange the playback order of tracks on the disc and the unit can also select tracks at random and play them back. These features work for Video CD.

For Audio CD and MP3/JPEG/DivX playback (CD)” on page 48.

Program playback (VCD)

Press PLAY MODE during stop mode.

Press

D to select “Mode”, then press

ENTER repeatedly to select “Program”.

Press position. Use Number buttons (0–9) to input

the track numbers.

A to select the programming

• If you input a wrong number, press CLEAR.

Random playback (VCD)

Press PLAY MODE during playback or stop mode.

Press

D to select “Mode”, then press

ENTER repeatedly to select “Random”.

CD, please see “Random playback (CD)” on page 47 and “Program

Press

A to return to the left column, then

D D

press

D to select the “Program Playback”

Play Mode

Mode : Off

Repeat : Off

Program Playback

Play Mode

Mode : Program

Repeat : Off

Program Playback

Play Mode

Mode : Program

Repeat : Off

Program Playback

Play Mode

Mode : Random

Repeat : Off

Program Playback

1 — — —

2 — — —

3 — — —

1 – – –

2 – – –

3 – – –

■ To change the program

■ To clear the program one by one

1 9

2 – – –

3 – – –

■ To clear all the programs

Notes:

• In case of Video CD with PBC, you cannot set Program playback.

• The program is cancelled when you open the disc tray or turn the power off.

1 – – –

2 – – –

3 – – –

Note:

In case of Video CD with PBC, you cannot set Random function during playback.

D D

and press ENTER.

The programs you selected will start to playback in order.

• To resume normal playback, select Mode: “Off” in step 2.

1.Select Mode to “Program” (as step 2), press B / A/C/D to select the track number you want to change, then press CLEAR.

2.Press Number buttons (0–9) to input the new track number.

Select Mode to “Program”, press B/A/C/D to select the track number. Then press CLEAR.

At the left column, press C/D to select “Clear Program”. Then press ENTER.

Press PLAY.

The Random Playback will start.

• If you set “Random” during playback mode, Random playback will begin after the track that is currently being played has ended.

• To resume normal playback, select Mode: “Off” in step 2.

Play Mode

Mode : Program

Repeat : Off

Program Playback

1 9

2 3

3 11

Changing angles/Title selection/DVD menu

Changing angles (DVD)

When playing back a disc recorded with multi-angle facility, you can change the angle that you are viewing the scene from.

Press ANGLE during playback.

The current angle will appear.

1/2

Title selection (DVD)

Two or more titles are recorded on some discs. If the title menu is recorded on the disc, you can select the desired title.

Press TOP MENU during playback.

Title menu appears on the screen.

Press

A to select the desired title.

DVD menu (DVD)

Some DVDs allow you to select the disc contents using the menu. When you playback these DVDs, you can select the subtitle language and soundtrack language, etc. using the menu.

Press DVD MENU during playback.

The DVD menu appears on the screen.

• Press DVD MENU again to resume playback at the scene when you pressed DVD MENU.

Press

A to select the desired item.

Press ANGLE repeatedly until the desired angle is selected.

Note:

Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

Press ENTER or PLAY.

Note:

Depending on the DVD, you may not be able to select the title. Depending on the DVD, a “title menu” may simply be called a “menu” or “title” in the instructions supplied with the disc.

Note:

Depending on the DVD, you may not be able to resume playback from the scene point when you press DVD MENU.

The playback of the selected title will start.

Press ENTER.

The menu continues to another screen. Repeat steps 2 and 3 to set the item completely.

Changing soundtrack language/Setting surround sound

Changing soundtrack language (DVD/VCD)

You can select the language when you play a multilingual disc.

Press AUDIO during playback.

The current soundtrack language will appear.

Press AUDIO repeatedly until the desired language is selected.

• The on screen display will disappear after a few seconds.

1/2 Eng Dolby Digital

2/2 Fre Dolby Digital

Setting surround sound (DVD)

This DVD player is equipped with a “QSound”. It can produce the effect of being in a cinema or a concert hall.

Press AUDIO during playback.

Press B or A to select “On”.

• The on screen display will disappear after a few seconds.

QSound Off

QSound On

In case of Video CD playback

Audio type changes as follows each time you press AUDIO.

Notes:

• If the desired language is not heard after pressing the button several times, the language is not recorded on the disc.

• The selected soundtrack language is cancelled when you open the disc tray. The initial default language or available language will be heard if the disc is played back again.

• If you select DTS in playing DTS-encoded disc, no sound will be heard.

To cancel Surround mode: Follow steps 1~2 on the left, then press B or A to select the “Off” position.

Notes:

• The “QSound” is effective only for the sound of disc.

• The QSound setting can also be changed in the function setting (see page 52).

• This function works only when the disc recorded with Dolby Digital is played back.

• When this function works, the volume might change.

• When the voice is distorted, turn off QSound.

Manufactured under license from QSound Labs, Inc. U.S. patent Nos. 5,105,462, 5,208,860 and 5,440,638 and various foreign counterpart. Copyright QSound Labs, Inc. 1998-2002. QSound All rights reserved.

L R

is a trademark of QSound Labs, Inc.

Subtitles/To turn off the PBC/Disc status

Subtitles (DVD)

When playing back a disc recorded with subtitles, you can select the subtitle language or turn the subtitle off.

Press SUBTITLE repeatedly during playback until the desired language is selected.

To turn off the subtitle, press SUBTITLE until “Off” appears.

• The on screen display will disappear after a few seconds.

Notes:

• Depending on the DVD, you may not be able to change subtitles, or to turn subtitles on or off.

• While playing a DVD, the subtitle may change when you open or close the disc tray.

• In some cases, a selected subtitle language may not be changed immediately.

1/5 Eng

Off

To turn off the PBC (VCD) (see page 6)

Press PLAY MODE in the stop mode.

/ to select “Mode”, then press

Press

ENTER repeatedly until “Off” appear.

Play Mode

Mode : Off

Repeat : Off

Program Playback

Press PLAY MODE again to clear the screen.

To turn on the PBC

Follow the above steps 1~2, then press ENTER repeatedly until “PBC” appear.

Disc status (DVD/VCD)

With press of DISPLAY, the status of the disc will appear on the screen. To cancel the display, press DISPLAY again.

[DVD]

TITLE NO.

ANGLE NO.

AUDIO LANGUAGE

[Video CD]

1 — — —

2 — — —

3 — — —

DISC OPERATION

DVD 00:15:25 01:41:39

Title 1/3 Chapter2/24

1/1 Eng Dolby Digital 1/2 Eng

1/1

A KIND OF AUDIO

DISC OPERATION

VCD 00:08:32 00:51:03

Track 3/15

TRACK NO.

ELAPSED

TOTAL

TIME

SUBTITLE LANGUAGE

TOTAL

ELAPSED

TIME

CHAPTER NO.

MP3/JPEG/DivX® and Audio CD operation

This player can play back the MP3/JPEG/DivX®-data which has been recorded on CD-R or CD-RW. Audio CD also can be played back. To produce the MP3/JPEG/DivX and a MP3/JPEG/DivX

Note:

This unit requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 files). Given the fact that technology in this area is still maturing, Toshiba cannot guarantee that all genre of recordable discs will produce optimal playback quality. The technical criteria set out in this owner’s manual are meant as a guide only. Please be advised that you must obtain permission from the applicable copyright owners to download copyrighted content, including music files, in any format, including the MP3 format, prior to the downloading thereof. Toshiba has no right to grant and does not grant permission to download any copyrighted content.

-encoding Software (not supplied). The Apple-HFS-System cannot be played.

MP3/JPEG/DivX® CD data information

Limitations on MP3/JPEG/DivX® CD playback

• MP3/JPEG/DivX extension letters, “.mp3”, “.jpg”, “.div”, “.divx”, “.avi”.

• MP3/JPEG/DivX

• This unit can read 2000 files per directory. If one disc has more than 2000 files, it reads up to 2000 files, the remaining files will be omitted.

• MP3/JPEG/DivX

• If the CD has both audio tracks and MP3/JPEG/DivX

• It may take more than one minute for this unit to read MP3/JPEG/DivX

• Music recorded by “Joliet Recording Specification” can be played back, the file name is displayed (within 15 letters) on the screen. Long file names will be condensed.

• The music files recorded by “Hierarchical File System” (HFS) cannot be played.

Limitations on display

• The maximum number for display is 15 letters. Available letters for display are the following: capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).

• Other letters than those above are replaced in hyphen.

To playback MP3/JPEG/DivX

1. Use MP3/JPEG/DivX

2. Name each file including two-digit or three-digit number (ex. “01” “02” or “001” “002”).

3. Refrain from making too many sub-folders.

CAUTION:

• Some MP3/JPEG/DivX

• The CD-R/RW that has no music data or non MP3/JPEG/DivX

Standard, sampling frequency and the bit rate:

MP3

MPEG-1 Audio 32kHz, 44.1kHz, 48kHz 32kbps ~ 320kbps (constant bit rate or variable bit rate) The recommend recording setting for a high-quality sound is 44.1kHz of sampling frequency and 128kbps of constant bit rate.

DivX® video

DivX® version: DivX® 3, 4, 5, and 6 (specifically 3.1.1, 4.1.2, 5.0.2, 5.0.5, 5.1.1, 5.2.1, 6.0 at Home

Theater profile).

Audio format: MPEG1 Layer2 (MP2), MPEG1 Layer3 (MP3) Sampling frequencies: 32kHz, 44.1kHz, 48kHz Bit rate: 32kbps ~ 320kbps Resolution: Max 720 x 576 (at 25fps), Max 720 x 480 (at 30fps)

CD is the disc that is standardized by ISO9660, its file name must include 3-digits

CD must be corresponded to the ISO standardized files.

CDs cannot be used for the purpose of recording.

CD in the recorded order

software that records data alphabetically or numerically.

CDs cannot be played back depending on the recording conditions.

-data, you need a Windows-PC with CD-RW drive

files, only audio tracks are played.

files depending on its structure.

files cannot be played back.

MP3/JPEG/DivX® and Audio CD operation

MP3 CD and Audio CD playback

Place an Audio CD or a disc on which MP3 files have been recorded onto the disc tray.

A file browser screen will appear on the screen.

Press / to select file.

• In case the current directory includes more than 8 files, press

• To see contents in folder, select the folder and then press ENTER. To return to the parent directory, select “

• When PLAY is pressed after the file browser displayed, playback begins automatically starting from the first file. In this case, if the first file is an MP3 file, only MP3 files are played back in order. If the first file is a JPEG file, the first JPEG file is played back. If the first file is a DivX DivX root directry, playback does not begin automatically.

• The unit records the stopped point. “

the screen. Press PLAY to resume playback (from the scene point).

• If you press STOP again or unload the disc, the unit will clear the stopped point.

or to scroll in the file list.

Go Up ...” then press ENTER.

file is played back. If there is no file at a

Press ENTER.

The selected file starts playing back.

Press STOP to end playback.

Folder-1

Folder-2 MP3-1 MP3-2 MP3-3 MP3-4 MP3-3 MP3-6

/MP3-2.MP3

Folder-1 Folder-2 MP3-1

MP3-2

MP3-3 MP3-4 MP3-3 MP3-6

file, the first

” appears on

About file browser

3/15 00:00:00

/Folder-1/MP3-7.MP3

SelectFiles Repeat :Off Mode :Off

JPEGPreview

SelectFiles Repeat :Off Mode :Off

JPEGPreview

Notes:

• In case of Audio CD, the function of A-B Repeat can

• During MP3/JPEG Playback, you cannot use JUMP

• You can use Repeat (Track or All), Random and

The file type to make it display in the file browser can be chosen.

1. Press B or A to select “Select Files” at right column

2. Press ENTER, then press

3. Press ENTER to add/remove check mark. Checked

4. Press RETURN to save the setting.

MP3-5

MP3-6

MP3-7

MP3-8

Picture-1

Picture-2

Movie-1

Movie-2

Notes:

• In the case of a CD containing a mixture of MP3,JPEG and DivX back by selecting them from the file browser.

• MP3 or file on the Kodak Picture CD is not recognized on this unit.

be used. See “A-B Repeat playback” (see page 38).

and A-B Repeat functions.

Program playback for MP3/JPEG/DivX (see “Repeat and program playback using file browser” on pages 47 and 48 ).

Select Files

in the file browser.

from the list (Music, Picture or Movie).

file type will be displayed in the file browser.

Select Files

Repeat :Off

Mode :Off

Music Playing

files, the files are played

CD Playback

or to select file type

MP3/JPEG/DivX® and Audio CD operation

JPEG CD playback

Place a disc on which JPEG files have been recorded onto the disc tray.

A file browser screen will appear on the screen.

Press C/D to select the file. To display a thumbnail list, press DVD MENU.

Press B/A/C/D to select the desired file. (To return to the file browser, press TOP MENU.)

• When PLAY is pressed after the file browser displayed, playback begins automatically starting from the first file. In this case, if the first file is a JPEG file, the first JPEG file is played back. If the first file is a DivX

first DivX

file is played back. If the first file is an MP3 file, only MP3 files are played back in order. If there is no file at a root directory, playback does not begin automatically.

Press ENTER or PLAY. The selected picture appears on the screen.

Rotating an image

You can rotate an image by 90 degrees. Press ANGLE during playback of the image.

“

”, “ ”, “ ” or “ ” appears on the

screen.

Zooming an image

Zoom function also can be used in viewing JPEG files. Press ZOOM (see “Zooming (DVD/ VCD)” on page 36)

Press STOP to end playback.

The file browser appears on the screen. If you want to watch the other file, repeat steps 3 ~ 4.

/Picture-01.JPG

Picture-01

Picture-02

Picture-03

Picture-04

Picture-05

Picture-06

Picture-07

Picture-08

Slide show playback

The slide show enables you to view pictures (files) one after another automatically.

Preparation:

Set “JPEG Interval” setting to “5 Seconds”, “10 Seconds” or “15 Seconds” (see page 51).

Select Files

Repeat :Off

Mode :Off

JPEG Preview

W: 2048 H: 1536

file, the

Select your desired starting file for the slide show at step 3 on the left.

Press ENTER or PLAY to start slide show from the selected file.

• If you press PAUSE/STEP during the slide show,

the slide show stops temporary. “ 4 ” appears briefly on the screen. Press PLAY or SKIP

show.

• If the picture appears upside down or sideways, press ANGLE repeatedly until it’s right side up.

”, “ ”, “ ” or “ ” appears on the screen.

“

• When the slide show playback finished, the file list appears.

• To stop the slide show, press STOP. The file list appears.

Notes:

• During JPEG playback, you cannot use Jump and A-B Repeat functions.

• When an image exceeds 5760 x 3840 pixels, the entire image (preview window or thumbnail list) may not be displayed on a screen.

• It may have a longer interval due to a size of data.

again to resume the slide

MP3/JPEG/DivX® and Audio CD operation

DivX® CD playback Playing DivX® VOD content

Place a disc on which DivX® files have been recorded onto the disc tray.

A file browser screen will appear on the screen.

Press C/D to select file.

• When PLAY has been pressed after the file browser displayed, playback begins automatically starting from the first file. In this case, if the first file is a JPEG file, the first JPEG file is played back. If the first file is a

DivX

file, the first DivX® file is played back. If the first file is an MP3 file, only MP3 files are played back in order. If there is no file at a root directory, playback does not begin automatically.

Press ENTER or PLAY. The selected DivX movie will be played back on the screen.

/Movie-01.DIVX

Movie-01

Movie-02 Movie-03 Movie-04 Movie-05 Movie-06 Movie-07 Movie-08

DivX® VOD content is protected by DRM (Digital Rights Management) system. This restricts playback of content to specific registered devices.

If the incorrect DRM file is loaded, “Authorization

SelectFiles Repeat :Off Mode :Off

Error This player is not authorized to play this video.” will appear on the

JPEG Preview

screen. When you attempt to play

DivX

VOD, the number of plays is limited and the right message will appear on the screen. If you wish to play it, select “Yes”.

• If the number of plays goes over the limit, then

“Rental Expired” will be displayed. In this case, the file will not be played.

Note:

In order to play DivX first need to register the unit with registration code. See page 53.

VOD content on this unit, you

View DivX (R) VOD Rental This rental has 5 views left.

Do you want to use one

of your 5 views now?

Repeat and program playback using file browser

Repeat playback (CD)

In the file browser, press B/A/C/D to select “Repeat” in stop mode.

Folder-1

Folder-2

MP3-1

MP3-2

NoYes

Press ENTER repeatedly to select “Track” or “All”.

Folder-1

Folder-2

MP3-1

MP3-2

Press PLAY.

To resume normal playback

Select Repeat : “Off” in step 2.

Notes:

• The repeat or random function is cancelled when you open the disc tray or turn the power off.

• Track repeat function is cancelled whenever SKIP

or is pressed.

The unit automatically starts repeat playback after finishing the current track.

Select Files

Repeat :Off

Mode :Off

Select Files

Repeat :Track

Mode :Off

Random playback (CD)

In the file browser, press B/A/C/D to select “Mode” in stop mode.

Folder-1 Folder-2 MP3-1 MP3-2

Press ENTER to select “Random”.

Folder-1 Folder-2 MP3-1 MP3-2

Press PLAY.

To resume normal playback

Select Mode : “Off” in step 2.

The Random playback will start.

Select Files Repeat :Off Mode :Off

Select Files Repeat :Off Mode :Random

Press STOP to end playback.

Note:

This unit cannot playback DivX

The file browser appears on the screen. If you want to watch the other file, repeat steps 3 ~ 4.

file with WMA sound.

Repeat and program playback using file browser

Program playback (CD)

In the file browser, press B/A/C/D to select “Edit Mode”, then press ENTER.

Folder-1

Folder-2

MP3-1

MP3-2

When “Edit Mode” is in black colour, you can mark the files which you want to add into Program list.

Press B/A/C/D to select the file you want to add into the program list.

Press B/A/C/D to select “Add To Program”. Then press ENTER. All marked files are

added into the program list.

Folder-1 Folder-2

MP3-1

MP3-2 MP3-3 MP3-4

Press ENTER. Selected file was marked. Repeat this procedure to select the other files.

Folder-1 Folder-2 MP3-1 MP3-2 MP3-3 MP3-4

• When you finish storing the files you want into the Program list, select “Edit Mode” again and press ENTER to release edit mode.

Repeat :Off

Mode :Off

Edit Mode

Repeat :Off Mode :Off

JPEG Previe

Edit Mode

Program View

Add To Program

JPEG Preview

Edit Mode

Press C/D to select “Program View”, then press ENTER. Program View shows only the

programed files that you have added at step

MP3-1

MP3-2

MP3-3

MP3-4

Program View

Folder-1

Folder-2

MP3-1

MP3-2

MP3-3

MP3-4

MP3-5

Browser View

In the Program View, press PLAY. The files start to playback in programmed order that

were added by you.

MP3-6

To remove file from program list in stop mode

In the Edit Mode, switch to Program View. Select the files you want to remove in stop mode, then press ENTER. Select “Clear Program” and press ENTER. Marked file is removed from program list.

Note:

The program function is cancelled when you eject the disc or turn the power off.

Edit Mode

Browser View

Clear Program

JPEG Preview

Edit Mode

Program View

Add To Program

JPEG Preview

Customizing the function settings

You can change the default settings to customize performance to your preference.

Setting procedure

Press SETUP in stop mode.

The following on-screen display appears.

Press C or D to select the desired section, then press A or ENTER.

First option will be highlighted. Press C or D to select the desired option.

Parental : Off

DRC : Off

E.B.L. : Off

Menu : English

Set Password

QSound : On

TV Screen : 4:3

Subtitle : English

Output : Interlace

Display : On

Audio : English

DivX(R) VOD

Picture Mode : Auto

JPEG Interval : 5 Seconds

Screen Saver : On

Parental : Off

DRC : Off

Menu : English

E.B.L. : On

Set Password

QSound : On

Subtitle : English

TV Screen : 4:3

Output : Interlace

Audio : English

Display : On

DivX(R) VOD

Picture Mode : Auto

JPEG Interval : Off

Screen Saver : On

Parental : Off

DRC : Off

Menu : English

E.B.L. : On

Set Password

QSound : On

Subtitle : English

TV Screen : 4:3

Output : Interlace

Audio : English

Display : On

DivX(R) VOD

Picture Mode : Auto

JPEG Interval : Off

Screen Saver : On

Setting details

Section

Option

Menu Subtitle Audio

E.B.L.

TV Screen

Display

Picture Mode

JPEG Interval

Screen Saver

Night Mode

QSound

Digital Out

Parental

Password

Output

DivX(R) VOD

Details

To select the language of “Menu”, “Subtitle” and “Audio” if more than one languages are available on the disc.

To select On or Off for E.B.L. (Enhanced Black Level).

To select a picture size according to the aspect ratio of your TV.

To turn On or Off the operational status display on the screen.

To select a preferred picture mode from “Video”, “Film” or “Auto”.

To select a preferred setting for the slide show playback.

To select On or Off for Screen Saver function.

To select On or Off for Night Mode.

To select On or Off for QSound.

To select a digital output sound format corresponding to your system connection.

To select a preferred parental level for the parental setting.

To change the password.

To select a preferred video output signal of “RGB”, “Component” or “Progressive”.

To display your 8-character registration code.

Then press A or ENTER. The selectable settings will appear.

Change the selection using Cor D, by referring to the corresponding pages 50 ~ 53.

Press ENTER to save the setting.

• Repeat steps 3 and 5 to change

• To select another section, go

To clear SETUP screen, press SETUP or RETURN.

Parental : Off

DRC : Off

Menu : English

E.B.L. Off

Set Password

QSound : On

Subtitle : English

TV Screen On

Output : Interlace

Audio : English

Display : On

DivX(R) VOD

Picture Mode : Auto

JPEG Interval : Off

Screen Saver : On

other option.

back to step 2 by pressing B repeatedly.

Page

Customizing the function settings

Setting details

Parental : Off

DRC : Off

E.B.L. : Off

Menu : English

Set Password

QSound : On

TV Screen : 4:3

Subtitle : English

Output : Interlace

Display : On

Audio : English

DivX(R) VOD

Picture Mode : Auto

JPEG Interval : 5 Seconds

Screen Saver : On

Menu, Subtitle, Audio

You can select the language of “Menu”, “Subtitle” and “Audio” if more than one language is recorded onto the disc.

English, Francais, Espanol, Deutsch, Italiano:

The selected language will be heard or seen.

Other:

Other languages can be selected (see “Language code list” on page 55).

Off (Subtitle):

Subtitles do not appear.

Original (Audio):

The unit will select the first priority language of each disc.

Notes:

• If the selected language is not recorded on the disc, the first-priority language is selected.

• If you want to change the OSD language, you can perform it by VCR MENU (see page 16).

E.B.L.

To select the black level of playback pictures, set your preference and monitor’s ability.

TV Screen

You have the following screen sizes to choose from:

Note:

If the DVD disc is not formatted in the pan & scan style, it displays 4:3 style.

Parental : Off

DRC : Off

Menu : English

E.B.L. : On

Set Password

QSound : On

Subtitle : English

TV Screen : 4:3

Output : Interlace

Audio : English

Display : On

DivX(R) VOD

Picture Mode : Auto

JPEG Interval : Off

Screen Saver : On

On: Enhanced grey scale (0 IRE cut off)

Off: Standard grey scale (7.5 IRE cut off)

(Letter box):

4:3

Select this mode when connecting to a conventional TV. When playing back a wide screen-DVD disc, it displays the wide picture with black bands at the top and bottom of screen.

(Pan scan):

4:3

It displays the wide picture on the whole screen with left and right edges automatically cut off.

(Wide):

16:9

Select this mode when connecting to a widescreen TV. A wide screen picture is displayed full size.

Customizing the function settings

Display

On screen display can be switched on or off when you press any buttons.

On: On screen displays appear when you press

the buttons (factory setting).

Off: On screen displays do not appear when you

press any buttons.

Picture Mode

There are two types of source content in pictures recorded in DVD video discs: film content (pictures recorded from films at 24 frames per second) and video content (video signals recorded at 30 frames per second). Make this selection according to the type of content being viewed.

Auto: Select this selection normally.

The DVD player automatically detects source content, film or video of playback source, and converts that signal in an appropriate method.

Film: The DVD player converts film content

pictures appropriately. Suitable for playback of film content pictures.

Video: The DVD player filters video signal,

and converts it appropriately. Suitable for playback of video content pictures.

Note:

Depending on the disc, pictures may be cut off or doubled. In this case, select “Video”.

JPEG Interval

You can continuously playback all JPEG files automatically. After the selection below, the disc will start playback on JPEG files which have been recorded.

Off:

Plays back one file at a time.

5 Seconds:

Plays back images in the form of a slide show at 5 second intervals.

10 Seconds:

Plays back images in the form of a slide show at 10 second intervals.

15 Seconds:

Plays back images in the form of a slide show at 15 second intervals.

Screen Saver

The screen saver operates when you leave the unit in DVD stop mode for approx. five minutes. The DVD VIDEO logo moves randomly on the screen.

On:

Screen Saver function is made effective.

Off:

Screen Saver function is invalidated.

Customizing the function settings

Setting details

Parental : Off

Menu : English

E.B.L. : Off

Night Mode : Off

Set Password

Subtitle : English

TV Screen : 4:3

QSound : Off

Output : Interlace

Audio : English

Display : On

Digital Out : PCM

DivX(R) VOD

Picture Mode : Auto

JPEG Interval : 5 Seconds

Screen Saver : On

Night Mode

Night Mode enables you to control the dynamic range so as to achieve a suitable sound for your equipment.

Off: It plays back at the recording level on the

disc.

On: Loud sound such as explosion is toned

down slightly when played back. This is suitable when it is connected to a stereo.

Notes:

•

This function works only when the disc recorded with Dolby Digital is played back.

• The level of Night Mode may differ depending on DVD

video disc.

QSound

This DVD player is equipped with “QSound”. It can produce the effect of being in a cinema or a concert hall.

Off: The QSound is disengaged.

On: The QSound operates.

Notes:

• The QSound setting can also be changed with AUDIO on the remote control (see page 41).

• This function works only when the disc recorded with Dolby Digital is played back.

• When this function works, the volume might change.

• When the voice is distorted, turn off QSound.

Digital Out

You can select the digital output sound format corresponding to your system connection.

PCM:

Change Dolby Digital to PCM for the output. Select when connected to a 2 channel digital stereo amplifier.

Bitstream:

Disc audio bitstream data will be output.

Off:

There is no sound output from DIGITAL AUDIO OUT jack.

Note:

Even if you select “Bitstream”, MPEG Audio will be output in PCM format.

Parental control setting

Some discs are specified as not suitable for children. Such discs can be limited not to playback with the unit.

1) Press C or D to select “Parental”, then press

2) Press “0000” using Number buttons (0–9).

3) Press C or D to select from the level 1 to level 8.

4) Press OPEN/CLOSE to activate Parental control

Notes:

• Depending on the discs, the unit cannot limit

• Some discs may not be encoded with specific

• The password is required every time when you

• If you input a wrong number, press CLEAR.

DRC : Off

Menu : English

E.B.L. : Off

Parental : Off

QSound : On

Subtitle : English

TV Screen : 4:3

Password : Change

Audio : English

Display : On

Output : RGB

Picture Mode : Auto

DivX(R) VOD : Display

JPEG Interval : 5 Seconds

Screen Saver : On

ENTER. “Enter Password” screen will appear.

(Please note, this is pre-setting password of this unit). Then press ENTER. The parental level list will appear.

• Level Off: The parental control setting does not

function.

• Level 8: Virtually all DVD software can be

played back.

• Level 1: DVD software for adults cannot be

played back.

The limitation will be more severe as the level number is lower. Then press ENTER.

setting.

playback.

rating level information though its disc jacket says “adult.” For those discs, the age restriction will not work.

change the parental level.

Customizing the function settings

Set the new password

1) Press C or D to select “Password”, then press

ENTER. “Enter Current Password” screen will appear.

2) Press Number buttons (0–9) to input the current password (If the password has not been set yet after you purchase this unit, it is “0000”).

3) Then press ENTER. “Enter New Password” screen will appear. Press Number buttons (0–9) to input the new password.

4) Press ENTER. Now your new password has been set. Be sure to remember this number!

If you forget the password.

1) Press OPEN/CLOSE to open the disc tray.

2) Remove the disc.

3) Press OPEN/CLOSE again to close the disc tray.

“No Disc” appears on the screen.

4) While holding 7 down on the remote control and at

the same time press STOP on the front panel. “Password Clear” appears on the screen. Now the password has been returned to the initial value (“0000”).

Output

You can select the video output signal of the DVD video player to the TV from “RGB”, “Component” or “Progressive”.

RGB:

Select when connecting to a composite TV.

Component:

Select when connecting to a TV equipped with component video inputs but progressive scan is not compatible.

Progressive:

Select when connecting to a TV equipped with component video inputs and progressive scan compatible.

Warning:

Once “Progressive” is selected when connecting to a TV progressive scan incompatible, no image will be seen on the video display. In this case, you must reset the unit by pressing STOP on the front panel for five seconds. The video output will be restored to “RGB” setting, and a picture will once again be seen on a conventional analogue display.

Notes:

• Some discs may not be played back with the progressive

scanning mode correctly because of the disc characteristics or recording condition.

• Once Progressive scan on, RGB output is disabled.

DivX(R) VOD

In order to play DivX content on this unit, you first need to register the unit with your DivX generating a DivX submit to your provider.

Press C or D to select “DivX(R) VOD”. Then press ENTER. Your 8-character registration code is displayed. Make a note of the code as you will need it when you register with a DivX Then press ENTER.

Note: If each setup (pages 50 ~ 53) has been completed, the unit can always work under the same condition (especially with DVD discs). Each setup will be retained in the memory even if you turn the power off.

VOD (Video On Demand)

VOD content provider. You do this by

VOD registration code, which you

VOD provider.

Temporary cancel the rating level by DVD disc

Depending on the DVD disc, the disc may try to temporarily cancel the rating level that you have set. It is up to you to decide whether to cancel the rating level or not.

Load a DVD disc and press PLAY or OPEN/ CLOSE on the unit (see page 33).

If the DVD disc has been designed to temporarily cancel the Rating level, the

screen which follows the “Reading” screen will change, depending on which disc is played. If you select “YES” with the ENTER key, password input screen will then appear.

Enter the password with Number buttons (0–

9). Then press ENTER.

To exit from the entry, press RETURN.

Enter Password

Playback will commence if the entered password was correct.

Note:

This temporary cancellation of rating level will be kept until the disc is ejected. When the disc is ejected, the original rating level will be set again automatically.

Language code list

Enter the appropriate code number for the initial settings “Menu”, “Subtitle” and/or “Audio” (see page 50).

Language Name Code Language Name Code Language Name Code Language Name Code

Abkhazian 1112 Fiji 1620 Lingala 2224 Singhalese 2919

Afar 1111 Finnish 1619 Lithuanian 2230 Slovak 2921

Afrikaans 1116 French 1628 Macedonian 2321 Slovenian 2922

Albanian 2927 Frisian 1635 Malagasy 2317 Somali 2925

Amharic 1123 Galician 1722 Malay 2329 Spanish 1529

Arabic 1128 Georgian 2111 Malayalam 2322 Sundanese 2931

Armenian 1835 German 1415 Maltese 2330 Swahili 2933

Persian 1611 Turkish 3028

Assamese 1129 Greek 1522 Maori 2319 Swedish 2932

Aymara 1135 Greenlandic 2122 Marathi 2328 Tagalog 3022

Azerbaijani 1136 Guarani 1724 Moldavian 2325 Tajik 3017

Polish 2622 Turkmen 3021

Bashkir 1211 Gujarati 1731 Mongolian 2324 Tamil 3011

Basque 1531 Hausa 1811 Nauru 2411 Tatar 3030

Bengali; Bangla 1224 Hebrew 1933 Nepali 2415 Telugu 3015

Bhutani 1436 Hindi 1819 Norwegian 2425 Thai 3018

Bihari 1218 Hungarian 1831 Oriya 2528 Tibetan 1225

Breton 1228 Icelandic 1929 Panjabi 2611 Tigrinya 3019

Bulgarian 1217 Indonesian 1924 Pashto, Pushto 2629 Tonga 3025

Burmese 2335 Interlingua 1911

Byelorussian 1215 Irish 1711

Cambodian 2123 Italian 1930 Portuguese 2630 Twi 3033

Catalan 1311 Japanese 2011 Quechua 2731 Ukrainian 3121

Chinese 3618 Javanese 2033

Corsican 1325 Kannada 2124 Romanian 2825 Uzbek 3136

Croatian 1828 Kashmiri 2129 Russian 2831 Vietnamese 3219

Czech 1329 Kazakh 2121 Samoan 2923 Volapük 3225

Danish 1411 Kirghiz 2135 Sanskrit 2911 Welsh 1335

Dutch 2422 Korean 2125 Scots Gaelic 1714 Wolof 3325

English 1524 Kurdish 2131 Serbian 2928 Xhosa 3418

Esperanto 1525 Laothian 2225 Serbo-Croatian 2918 Yiddish 2019

Estonian 1530 Latin 2211 Shona 2924 Yoruba 3525

Faroese 1625 Latvian, Lettish 2232 Sindhi 2914 Zulu 3631

Rhaeto-Romance

2823 Urdu 3128

Problems and troubleshooting

Use the following check list for troubleshooting when you have problems with your unit. Be sure all connections are properly made when using with other units.

SYMPTOMS POSSIBLE SOLUTIONS

DVD/VCR

DVD/VCR does not operate.

No picture.

No sound.

The remote control does not function.

VCR

TV recording does not work.

Timer recording does not work.

Noise bars on screen.

DVD

Display is not shown in your language.

Playback doesn’t start.

Stopping playback, slow-motion play, repeat play, or memory play, etc. cannot be performed.

•Make sure the AC mains lead is plugged in.

•Try another AC outlet.

•Power is off, check fuse or circuit breaker.

•Unplug unit, then plug it back in.

•Select the DVD or VCR mode before operating.

• Aerial connection is not correct or aerial cable is disconnected.

• The video channel is not in the correct position or the TV is not set to the video channel.

• Check the unit is connected correctly.

• The video input selector of the TV is not set to VIDEO. Set to VIDEO (or equivalent).

• Channel is set to the external mode.

• Check the unit is connected correctly.

• Check the input selector of the amplifier is set properly.

• The unit is in the Special playback mode.

• Aim the remote control at the remote sensor.

• Operate within approx. 7 meters or reduce the light in the room.

• Clear the path of the beam.

• The batteries are weak. Replace the batteries.

• Check the batteries are inserted correctly.

•The erase prevention tab of the video cassette is broken off.

•The unit is in the external input mode.

• The time is not set correctly.

• The recording start/end time is not set correctly.

• The TIMER REC has not been pressed (

• Tracking adjustment beyond range of automatic tracking circuit.

Try Manual tracking adjustment.

• Video heads are dirty.

• The tape is worn or damaged.

•Select proper language in the menu options.

• No disc is inserted.

• The disc may be dirty. Clean up the disc.

• The unit cannot play DVD-ROMs, etc.

• Some discs may not do some of the functions.

is not lit).

PAGE

– – – –

16,33

12 15

12~14

–

12~14

–

21,35

17 28 29

–

5 6

–

Problems and troubleshooting/Video head cleaning

SYMPTOMS POSSIBLE SOLUTIONS PAGE

No 4:3 (16:9) picture. • The setup does not match your TV.

No on-screen display. • Set Display to On.

No surround sound. • The setup does not match your stereo system.

The unit or remote operation key is not functioning.

Playback does not start when the title is selected.

Audio soundtrack and/or subtitle language is not changed when you playback a DVD.

No subtitle.

Angle cannot be changed. • Multi-angles are not recorded on the DVD disc.

“

” appears on the screen.

• Turn off the unit and unplug the AC mains lead for several minutes, then replug it.

• Check the Parental control setting.

• Multilingual language is not recorded on the DVD disc.

• Some discs have no subtitles.

• Subtitles are cleared. Press SUBTITLE.

• The function is prohibited with the unit or the disc.

Video head cleaning

Video head clogging

The video heads are the means by which the DVD/VCR reads the picture from the tape during playback. In the unlikely event that the heads become dirty enough to be clogged, no picture will be played back. This can easily be determined if, during playback of a known good tape, there is good sound, but no picture (picture is extremely snowy). If this is the case, have the DVD/VCR checked by qualified service personnel.

NOTES:•DO NOT ATTEMPT TO CLEAN THE VIDEO HEADS OR SERVICE THE UNIT BY REMOVING THE

REAR COVER. Video heads may eventually wear out and should be replaced when they fail to produce clear pictures.

• To help prevent video head clogging, use only good quality VHS tapes. Discard worn out tapes.

•

Good Picture Snowy Picture

–

Specifications

GENERAL

Power supply: Power consumption:

Weight: Dimensions:

Input Level:

Output Level:

Hi-Fi Frequency Response: Hi-Fi Dynamic Range:

VCR section

Video system: Video Head: Audio Track: Channel coverage: FWD/REV

Time at 25˚C:

DVD section

Signal system: Applicable disc: Audio characteristics Frequency response:

S/N Ratio: Harmonic distortion: Wow and flutter: Output:

Pickup:

ACCESSORIES:

AC 230V 50Hz Operation: 21W Stand by: 5W

3.6 kg Width : 430.6 mm Height: 89.7 mm Depth : 254.7 mm SCART-socket: VIDEO: 1 Vp-p, 75 Ω

Audio IN jack: –3.8 dBm, 50 k Ω Video IN jack: 1 Vp-p, 75 Ω SCART-socket: VIDEO: 1 Vp-p, 75 Ω

Audio OUT jack: –3.8 dBm, 1 k Ω 20Hz to 20kHz More than 75dB

PAL 4 Rotary Heads Hi-Fi Sound - 2 Tracks / MONO Sound - 1 Track IreE2-E12, X-Z+2, S1-S41, E21-E69 Approx. 1minute and 48 seconds (with E-180 Cassette Tape)

PAL, NTSC DVD (12cm, 8cm), CD (12cm, 8cm)

DVD: 4Hz - 22KHz CD: 4Hz - 20KHz 85dB

0.06% Below Measurable Level Audio : (RCA) –12dB, 1 k Ω Digital Audio : 0.5Vp-p, 75 Ω Component video:

CD : Wavelength: 775 - 805 nm

DVD : Wavelength: 640 - 660 nm

Remote control x 1 75 Ω Coaxial Cable x 1 Battery (UM-4) x 2

AUDIO: –3.8 dBm, 50 k Ω

AUDIO: –3.8 dBm, 1 k Ω

: 1 Vp-p, 75 Ω

R: 0.7 Vp-p, 75 Ω

B: 0.7 Vp-p, 75 Ω

Maximum output power: 0.5 mW

Maximum output power: 1.0 mW

• This model complies with the above specifications.

• Design and specifications are subject to change without notice.

• This model may not be compatible with feature and/or specifications that may be added in the future.

Toshiba SD-38VBKB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
