AIR CONDITIONER (SPLIT TYPE)
CLIMATISEUR (TYPE SPLIT)
INSTALLATION MANUAL
MANUEL D’INSTALLATION
G-INSTALLATIONS-HANDBUCH
MANUALE DI INSTALLAZIONE
MANUAL DE INSTALACIÓN
ЕГЧЕЙСЙДЙП ЕГКБФБУФБУЗУ
MANUAL DE INSTALAÇÃO
INSTALLATIONSHANDBO
Not accessible to the general public
Vente interdite au grand public
Kein öffentlicher Zugang
Non accessibile a clienti generici
No destinado al público en general
Мз рспувЬуймп брь фп генйкь кпйнь
Não acessível ao público em geral
KLIMAGERÄT (SPLIT-TYP)
Inte tillgänglig för allmänheten
CONDIZIONATORE D'ARIA (TIPO SPLIT)
AIRE ACONDICIONADO (TIPO SPLIT)
КЛЙМБФЙУФЙКП (ДЙБЙСПХМЕНПХ ФХРПХ)
AR CONDICIONADO (TIPO SPLIT)
LUFTKONDITIONERINGSAPPARAT (SPLIT TYP)
<4-Way Air Discharge Cassette Type>
<Type cassette à 4 voies de soufflage>
<4-Wege-Belüftungskassette>
<Tipo a cassetta con scarico d'aria a 4 vie>
<Modelo de casete de distribución de aire de 4 vías>
<ЕкспЮ бЭсб 4-Дйехиэнуещн Фэрпх КбуЭфбт>
<Descarga de ar tipo cassete de 4 vias>
<Apparat med 4-vägars luftutsläpp>
Indoor Unit
Unité intérieure/Raumeinheit/Unità interna/Unidad interior
ЕущфесйкЮ МпнЬдб/Unidade interior/
/Inomhusenhet
Heat Pump Model Cooling Only Model
Modèle à thermopompe Modèle à froid seul
Geräte mit Heizung Geräte nur zur Kühlung
Modello con pompa di riscaldamento Modello solo per raffreddamento
Modelo con bomba de calor Modelo de refrigeración únicamente
МпнфЭлп ме БнфлЯб Иесмьфзфбт МпнфЭлп Шэозт брпклейуфйкЬ
Modelo de bomba térmica Modelo Apenas para Refrigeração
Värmepumpsmodell Modell endast för avkylning
RAS-M10SMUV-E RAS-M10SMUCV-E RB-B11MC(W)E
RAS-M13SMUV-E RAS-M13SMUCV-E
RAS-M16SMUV-E RAS-M16SMUCV-E
ADOPTION OF NEW REFRIGERANT
This Air Conditioner is a new type which adopts the
new refrigerant HFC (R410A) instead of the conventional refrigerant R22. R410A is an ozone friendly
refrigerant.
Please read this Installation Manual carefully before installing
the Air Conditioner.
• This Manual describes the installation method of the indoor
unit.
• For installation of the outdoor unit, follow the Installation
Manual attached to the outdoor unit.
UTILISATION DU NOUVEAU REFRIGERANT
Ce nouveau type de climatiseur utilise le nouveau
réfrigérant HFC (R410A) au lieu du traditionnel R22.
Le R410A est un réfrigérant qui respecte la couche
d’ozone.
EINFÜHRUNG EINES NEUEN KÜHLMITTELS
Dies ist ein neuartiges Klimagerät. Anstatt des
herkömmlichen Kältemittels R22 verwendet es das
neue HFC Kältemittel R410A. R410A schont die
Ozonschicht.
ADOZIONE DI UN NUOVO REFRIGERANTE
Questo condizionatore d’aria è di dipo nuovo e
impiega il nuovo refrigerante HFC (R410A) invece del
R22, tradizionalmente usato. R410A è un refrigerante
ecologicamente rispettoso dello strato d’ozono.
ADOPCIÓN DE NUEVO REFRIGERANTE
Este acondicionador de aire es un tipo Nuevo que
adopta el refrigerante nuevo HFC (R410A) en vez
del refrigerante convencional R22. El R410A es un
refrigerante que no daña la capa de ozono.
Veuillez lire attentivement ce Manuel d’installation avant
d’installer le climatiseur.
• Ce manuel décrit la procédure d’installation de l’unité
intérieure.
• Pour installer l’unité extérieure, reportez-vous au Manuel
d’installation fourni avec l’unité extérieure.
Bitte lesen Sie dieses Handbuch sorgfältig, bevor Sie mit der
Installation des Klimagerätes beginnen.
• In diesem Handbuch wird die Installation der Inneneinheit
beschrieben.
• Um die Außeneinheit zu installieren, folgen Sie den
Anweisungen des Handbuchs, das der Außeneinheit beiliegt.
Prima di eseguire l’installazione del condizionatore d’aria,
leggere attentamente il Manuale d’installazione.
• Questo manaule il metodo d’installazione dell’unità interna.
• Per l’installazione dell’unità esterna, fare riferimento al
Manuale d’installazione fornito con l’unità esterna.
Lea atentamente este Manual de instalación antes de proceder
a la instalación del aparato de aire acondicionado.
• Este manual describe el método de instalación de la unidad
interior.
• Para la instalación de la unidad exterior, consulte el Manual
de instalación que acompaña a la unidad exterior.
ХЙПИЕФЗУЗ НЕПХ ШХКФЙКПХ
Фп рбсьн Клймбфйуфйкь еЯнбй нЭпх фэрпх кбй хйпиефеЯ
фп нЭп шхкфйкь HFC (R410A) бнфЯ гйб фп ухмвбфйкь
шхкфйкь R22. Фп R410A еЯнбй Энб шхкфйкь цйлйкь щт
рспт фп ьжпн.
ADOPÇÃO DO NOVO REFRIGERANTE
O presente aparelho de ar condicionado é um novo
tipo que adopta o novo refrigerante HFC (R410A)
em vez do refrigerante convencional R22. O R410A
é um refrigerante que não prejudica o ozono.
ANVÄNDANDE AV NY KYLVÄTSKA
Denna luftkonditioneringsapparat är en ny typ som
använder den nya kylvätskan HFC (R410A) i stället
för den vanliga kylvätskan R22. R410A är en
kylvätska som inte är skadlig för ozonskiktet.
Рбсбкблю дйбвЬуфе рспуечфйкЬ фп ЕгчейсЯдйп ЕгкбфЬуфбузт
рсйн брь фзн егкбфЬуфбуз фпх Клймбфйуфйкпэ.
• Фп рбсьн ЕгчейсЯдйп ресйгсЬцей фз мЭипдп егкбфЬуфбузт фзт
еущфесйкЮт мпнЬдбт.
•
Гйб фзн егкбфЬуфбуз фзт еощфесйкЮт мпнЬдбт, ухмвпхлехфеЯфе фп
ЕгчейсЯдйп ЕгкбфЬуфбузт рпх ухнпдеэей фзн еощфесйкЮ мпнЬдб.
Leia atentamente o presente Manual de Instalação antes de
instalar o Ar Condicionado.
• O presente manual descreve o método de instalar a unidade
interior.
• Para a instalação de uma unidade exterior, siga o Manual de
Instalação que acompanha a unidade exterior.
Vänligen läs denna Installationshandbok noga innan du
installerar luftkonditioneringsapparaten.
• Denna handbok beskriver hur inomhusenheten ska
installeras.
• För installation av utomhusenheten, följ
Installationshandboken som är ansluten till utomhusenheten.
CONTENTS
Accessory parts and Parts to be procured locally ......................1
1
PRECAUTIONS FOR SAFETY ...............................................2
2
SELECTION OF INSTALLATION PLACE .............................. 4
3
INSTALLATION OF INDOOR UNIT ........................................6
4
DRAIN PIPING WORK .......................................................... 10
5
REFRIGERANT PIPING AND EVACUATING .......................13
SOMMAIRE
Pièces accessoires et pièces non fournies ............................... 22
1
MESURES DE SECURITE ....................................................23
2
SELECTION DU LIEU D’INSTALLATION ............................ 25
3
INSTALLATION DE L’UNITE INTERIEURE .......................... 27
4
INSTALLATION DES TUYAUX D’EVACUATION ...................31
5
TUYAUTERIE DE FRIGORIGÈNE ET ÉVACUATION ........... 34
INHALT
Zubehör und bauseits bereitzustellende Teile ........................... 43
1
SICHERHEITSVORKEHRUNGEN........................................44
2
AUSWAHL DES AUFSTELLUNGSORTES ..........................46
3
INSTALLATION DER RAUMEINHEIT................................... 48
4
INSTALLATION DES KONDENSWASSER-ABLAUFS ........52
5
KÜHLMITTELLEITUNGSSYSTEM UND ENTLÜFTUNG .... 55
Accessori e parti da acquistare sul posto ................................. 64
1
PRECAUZIONI PER LA SICUREZZA .................................. 65
2
SCELTA DEL POSTO D’INSTALLAZIONE .......................... 67
3
INSTALLAZIONE DELL’UNITÀ INTERNA ........................... 69
4
LAVORO PER TUBAZIONE DI SCARICO............................ 73
5
TUBAZIONI DEL REFRIGERANTE E SCARICO ................76
INDICE
6
EVACUATING ........................................................................ 14
7
ELECTRICAL WORK ............................................................ 15
8
APPLICABLE CONTROLS ................................................... 18
9
TEST OPERATION................................................................ 20
10
INSTALLATION / SERVICING TOOLS ..................................20
11
MAINTENANCE .................................................................... 21
6
EVACUATION DE L’AIR ........................................................ 35
7
INSTALLATION ELECTRIQUE .............................................36
8
COMMANDES APPLICABLES ............................................ 39
9
ESSAI DE FONCTIONNEMENT ...........................................41
10
OUTILS D’INSTALLATION/D’ENTRETIEN .......................... 41
11
ENTRETIEN .......................................................................... 42
6
ENTLÜFTEN DER ROHRLEITUNGEN ................................ 56
7
ELEKTROINSTALLATION ....................................................57
8
STEUERUNGSMÖGLICHKEITEN........................................60
9
TESTLAUF ............................................................................ 62
10
INSTALLATIONS / WARTUNGSWERKZEUGE ....................62
11
WARTUNG ............................................................................ 63
6
SPURGO ............................................................................... 77
7
ESECUZIONE DEI COLLEGAMENTI ELETTRICI ...............78
8
COMANDI UTILIZZABILI ......................................................81
9
FUNZIONAMENTO DI PROVA.............................................. 83
10
ATTREZZI PER L'INSTALLAZIONE/PER LA MANUTENZIONE ...
11
MANUTENZIONE ..................................................................84
ENGLISHFRANCAISDEUTSCHITALIANOESPAÑOLЕЛЛЗНЙКБPORTUGUÊSSVENSKA
83
CONTENIDO
Componentes accesorios y componentes de suministro local .....85
1
PRECAUCIONES PARA SU SEGURIDAD........................... 86
2
SELECCIÓN DEL LUGAR DE INSTALACIÓN .....................88
3
INSTALACIÓN DE LA UNIDAD INTERIOR ..........................90
4
CANALIZACIÓN DE DRENAJE ........................................... 94
5
TUBOS DE REFRIGERANTE Y EVACUACIÓN ................... 97
РЕСЙЕЧПМЕНБ
Рбселкьменб бнфбллбкфйкЬ кбй ЕобсфЮмбфб брь фзн фпрйкЮ бгпсЬ ... 106
1 РСПЦХЛБОЕЙУ БУЦБЛЕЙБУ ............................................. 107
2 ЕРЙЛПГЗ ФПХ ЧЩСПХ ЕГКБФБУФБУЗУ ......................... 109
3 ЕГКБФБУФБУЗ ФЗУ ЕУЩФЕСЙКЗУ МПНБДБУ ............... 111
4 ЕГКБФБУФБУЗ УЩЛЗНЩУЕЩН БРПУФСБГГЙУЗУ ......... 115
5 УЩЛЗНЩУЕЙУ ШХОЗУ КБЙ БРПУФСБГГЙУЗУ .................. 118
Acessórios e peças adquiridas localmente .............................127
1
PRECAUÇÕES DE SEGURANÇA .....................................128
2
SELECÇÃO DO LOCAL DE INSTALAÇÃO....................... 130
3
INSTALAÇÃO DA UNIDADE INTERIOR ............................132
4
INSTALAÇÃO DA TUBAGEM DE DRENAGEM ................. 136
5
TUBAGEM DE REFRIGERANTE E EVACUAÇÃO ............ 139
6
EVACUACIÓN........................................................................98
7
TRABAJOS EN EL SISTEMA ELÉCTRICO ........................99
8
CONTROLES APLICABLES .............................................. 102
9
FUNCIONAMIENTO DE PRUEBA ...................................... 104
10
HERRAMIENTAS DE INSTALACIÓN/REPARACIÓN ........104
11
MANTENIMIENTO...............................................................105
6 ЕККЕНЩУЗ .........................................................................119
7 ЗЛЕКФСПЛПГЙКБ .............................................................. 120
8 ЕЦБСМПУЙМПЙ ЕЛЕГЧПЙ .................................................. 123
9 ДПКЙМБУФЙКЗ ЛЕЙФПХСГЙБ ............................................ 125
10 ЕСГБЛЕЙБ ЕГКБФБУФБУЗУ/ ЕРЙУКЕХЗУ ....................... 125
11 УХНФЗСЗУЗ ....................................................................... 126
ÍNDICE
6
EXPURGO ...........................................................................140
7
LIGAÇÕES ELÉCTRICAS ..................................................141
8
CONTROLOS APLICÁVEIS ...............................................144
9
OPERAÇÃO DE TESTE......................................................146
10
FERRAMENTAS DE INSTALAÇÃO/REPARO ................... 146
11
MANUTENÇÃO ...................................................................147
INNEHÅLL
Tillbehör och delar som anförskaffas lokalt ............................ 169
1
FÖRSIKTIGHETSÅTGÄRDER ...........................................170
2
VAL AV INSTALLATIONSPLATS........................................172
3
INOMHUSENHETENS INSTALLATION .............................174
4
ARBETE MED TÖMNINGSRÖREN .................................... 178
5
KYLVÄTSKANS RÖRLEDNING OCH TÖMNING .............. 181
6
TÖMNING ............................................................................182
7
ELEKTRISKT ARBETE ......................................................183
8
TILLÄMPBARA KONTROLLER .........................................186
9
TESTFUNKTION .................................................................188
10
INSTALLATION / SERVICEVERKTYG ...............................188
11
UNDERHÅLL ...................................................................... 189
Accessory parts and Parts to be procured locally
H Accessory parts
Part name
Installation Manual
Wireless remote controller
Remote controller holder
Mounting screws for remote
controller holder
3.1 mm (diam.) × 16 mm
Batteries (Manganese)
Heat insulating pipe
Installation pattern
Installation gauge
Pattern fixing screw
Heat insulator
Washer
Hose band
Flexible hose
Heat insulator A
Q’ty
1
1
1
1
2
2
1
2
4
1
8
1
1
1
Shape
This manual
——
M5 × 16L
Usage
(Be sure to hand over to customers)
—
—
—
—
For heat insulation of pipe connecting section
For confirmation of ceiling opening and main unit position
For positioning of ceiling position
(united with installation pattern)
For attach the installation pattern
For heat insulation of drain connecting section
For hanging-down unit
For connecting drain pipe
For adjusting core-out of drain pipe
For sealing of wire connecting port
Heat insulator B
Owner’s Manual
1
1
<Separate sold parts>
Part name
Ceiling panel
Q’ty
1
Shape
H Parts to be procured locally
Connecting pipe (Liquid side)
(6.4 mm (diam.), Nominal (diam.) 1/4” thick 0.8 mm)
Connecting pipe (Gas side)
(9.5 mm (diam.), Nominal (diam.) 3/8” thick 0.8 mm)
RAS-M10SMUV-E, RAS-M10SMUCV-E,
RAS-M13SMUV-E, RAS-M13SMUCV-E
(12.7 mm (diam.), Nominal (diam.) 1/2” thick 0.8 mm)
RAS-M16SMUV-E, RAS-M16SMUCV-E
Power supply cord
2.5 mm² (H07RN-F or 60245IEC66)
For sealing of wire connecting port
(Be sure to hand over to customers)
Usage
Model : RB-B11MC(W)E
Connecting wire
H07RN-F or 60245IEC66 (1.0 mm²)
Thermal insulation for refrigerant pipe
(10 mm or more, thermal insulating foam polyethylene)
Thermal insulation for drain pipe
(10 mm or more, foam polyethylene)
Drain pipe (Outer 26 mm (diam.))
Tapes
Grounding wire (1.6 mm (diam.) or more)
1
1 PRECAUTIONS FOR SAFETY
• Ensure that all Local, National and International regulations are satisfied.
• Read this “PRECAUTIONS FOR SAFETY” carefully before Installation.
• The precautions described below include the important items regarding safety. Observe them without fail.
• After the installation work, perform a trial operation to check for any problem.
Follow the Owner’s Manual to explain how to use and maintain the unit to the customer.
• Turn off the main power supply switch (or breaker) before the unit maintenance.
• Ask the customer to keep the Installation Manual together with the Owner’s Manual.
CAUTION New Refrigerant Air Conditioner Installation
• THIS AIR CONDITIONER FEATURES A NEW HFC REFRIGERANT (R410A) WHICH DOES NOT
DEPLETE OZONE LAYER.
The pressure of R410A is 1.6 times higher than that of former refrigerant R22.
The refrigerating oil has also been changed. Therefore be sure that any former refrigerant, refrigerant oil or any
other contaminants do not enter the refrigerating cycle of the air conditioner, during either installation or service
work. If incorrect tools or operating procedures are used, there is a possibility of a serious accident.
Use only tools and materials that have been designed to operate with R410A.
To prevent the risk of charging with an incorrect refrigerant, the dimensions of the charging port connections
are different to those used for conventional refrigerant.
Therefore only tools designed to operate with R410A can be used.
For connecting pipes, use piping specifically designed for R410A.
During installation, ensure pipes are clean and ensure contaminants do not enter the pipes as the system is
affected by impurities such as water, oxide scales, dirt, oil, etc. Do not use existing pipe work from previous
installation as this will cause problems due to pressure resistances and impurities within the pipe.
ENGLISH
CAUTION To Disconnect the Appliance from Main Power Supply.
A switch or circuit breaker that can disconnect all poles must be included in the fixed wiring.
Be sure to use an approved circuit breaker or switch.
The installation fuse must be used for the power supply line of this conditioner.
WARNING
• Ask an authorized dealer or qualified installation professional to install/maintain the air
conditioner.
Inappropriate installation may result in water leakage, electric shock or fire.
• Turn off the main power supply switch or breaker before attempting any electrical work.
Make sure all power switches are off. Failure to do so may cause an electric shock.
• Connect all of the installation wiring correctly.
If the installation wiring is incorrect electrical parts may be damaged.
• During the transportation and installation of the air conditioning unit, ensure that gaseous matter
other than the specified refrigerant does not enter into the refrigeration cycle.
If a refrigerant becomes contaminated with foreign gases, the gas pressure within the refrigerant cycle will
become abnormally high and may result in the fracture of pipework and possible human injury.
• Do not modify this unit by removing any of the safety guards or by overriding any of the safety
interlock switches.
• Exposure of the unit to water or other forms of moisture before installation may cause a short-
circuit of the electrical parts.
Do not store it in a wet basement or expose to rain or water.
2
1 PRECAUTIONS FOR SAFETY
• After unpacking the unit, examine for possible damage.
• Do not install in a place that might increase the vibration of the unit.
• To avoid personal injury (with sharp edges), be careful when handling parts.
• Perform installation work properly according to the Installation Manual.
Incorrect installation may result in water leakage, electric shock or a fire.
• When the air conditioner is installed in a small room, provide appropriate measures to ensure
that in the event of a refrigerant leak the rooms does not exceed the critical level.
• Install the air conditioner securely in a location where the base can sustain the weight of the unit
adequately.
• Perform the specified installation work to guard against an earthquake.
If the air conditioner is not installed appropriately, accidents may occur due to the unit falling.
• If refrigerant gas has leaked during the installation work, ventilate the room immediately.
If the leaked refrigerant gas comes in contact with fire, noxious gases may be generated.
• After the installation work, confirm that refrigerant gas does not leak.
If refrigerant gas leaks into the room and flows near a fire source, such as a cooking range, noxious gases
maybe generated.
• Electrical work must be performed by a qualified electrician in accordance with the Installation
Manual. Ensure the power supply to the air conditioner is exclusive to that unit only.
An insufficient power supply capacity or inappropriate installation may cause fire.
• Use only the specified wiring during the unit installation. Ensure that all terminals are securely
fixed, so preventing any external forces having a negative effect on the terminals.
• Be sure to provide grounding.
Do not connect ground wires to gas pipes, water pipes, lightning rods or ground wires for telephone cables.
• Conform to the regulations of the local electric authority when wiring the power supply.
Inappropriate grounding may cause an electric shock.
• Do not install the air conditioner in a location that maybe subjected to a risk of exposure to a
combustible gas.
If a combustible gas leaks and becomes concentrated around the unit, a fire may occur.
3
2 SELECTION OF INSTALLATION PLACE
WARNING
• The air conditioner must be installed in a location that can support the weight of the unit
effectively.
If the unit is not installed on a foundation that can support its weight effectively, the unit may fall down,
resulting in possible human injury.
• Where required ensure that the units installation is sufficient enough to withstand against an
earthquake.
An insufficient installation could result in the unit falling, causing possible human injury.
• Install the air conditioner at a minimum height of 2.5 m from the floor.
Do not insert your hands or others into the unit while the air conditioner is operating.
CAUTION
Do not install the air conditioner in a location subject to a risk of exposure to a combustible gas.
• If a combustible gas leaks and stays around the unit, a fire may occur.
Upon approval of the customer, install the air conditioner in a place that satisfies the following
conditions.
• Place where the unit can be installed horizontally.
• Place where a sufficient servicing space can be ensured for safety maintenance and check.
• Place where drained water will not cause any problem.
Avoid installing in the following places.
• Place exposed to air with high salt content (seaside area), or place exposed to large quantities of sulfide gas
(hot spring). (Should the unit be used in these places, special protective measures are needed.)
• Place exposed to oil, vapor, oil smoke or corrosive gas.
• Place where organic solvent is used nearby.
• Place close to a machine generating high frequency.
• Place where the discharged air blows directly into the window of the neighboring house. (For outdoor unit)
• Place where noise of the outdoor unit is easily transmitted. (When installing the air conditioner on the
boundary with the neighbor, pay due attention to the level of noise.)
• Place with poor ventilation.
(Before air ducting work, check whether value of air volume, static pressure and duct resistance are correct.)
Installation space
Secure the specified space in the figure for installation and servicing.
Ensure there is sufficient space to install the unit and to perform maintenance work as and when required.
Keep 15 mm or more for clearance between top plate of the indoor unit and the ceiling surface.
Installation space
1000
or more
283
or more
15 or more
1000 or more
Obstacle
15 or more
283
or more
4
1000 or more
2 SELECTION OF INSTALLATION PLACE
Selection of installation place
In case of continued operation of the indoor unit under
high-humidity conditions as described below, dew
may condense and water may drop.
Especially, high-humidity atmosphere (dew point
temperature : 23°C or more) may generate dew inside
the ceiling.
1. Unit is installed inside the ceiling with slated roof.
2. Unit is installed at a location using inside of the
ceiling as fresh air intake path.
3. Kitchen
When installing a unit at such place, put insulating
material (glass wool, etc.) additionally on all the
positions of the indoor unit, which contact with highhumidity atmosphere.
Advice
Set a service check opening panel at right side of the
unit (size: 450 × 450 mm or more) for piping,
maintenance, and servicing.
Ceiling height
Model
RAS-
M10SMUV-E, M10SMUCV-E,
M13SMUV-E, M13SMUCV-E
M16SMUV-E, M16SMUCV-E
Possible installed
ceiling height
Up to 2.7 m
Up to 3.5 m
When the height of the ceiling exceeds the distance of
the item Standard in Table below, the hot air is difficult
to reach the floor.
Therefore, it is necessary to change the setup value
of the high ceiling switch.
(RAS-M16SMUV-E and M16SMUCV-E only)
When changing the setting of the ceiling height in the
models, RAS-M10SMUV-E, M10SMUCV-E,
M13SMUV-E and M13SMUCV-E, if it is set over
2.7 m, the hot air is difficult to reach the floor.
How to set the High ceiling switch
• Remove the cover of the electric parts box by taking
off the mounting screws (3 positions) and pushing
the hooking section. (The cover of the electric parts
box remains hanged to the hinge.)
• There are the selector switches (SW02) on the P.C.
board of the electric parts box.
No.1 and No.2 of the selector switches (SW02) are
provided to select the height of the ceiling.
According to the ceiling height in the following table,
select No.1 or No.2 of the selector switches (SW02).
REMARKS
• When using the high ceiling (1) or (2), cold air
may be felt due to the temperature drop of
discharge air.
Height list of ceiling possible to be installed
Model
RAS-
Standard (Factory setting)
High ceiling (1)
High ceiling (2)
M10SMUV-E M13SMUV-E M16SMUV-E
M10SMUCV-E M13SMUCV-E M16SMUCV-E
2.5 to 2.7 m 2.5 to 2.7 m 2.5 to 2.9 m
——2.9 to 3.2 m
——3.2 to 3.5 m
SW02
No.1 No.2
OFF OFF
ON OFF
ON ON
ON
ON
1
1
FAN 1
2 3 4
ON
OFF
2 3 4
FAN 2
RE-
START
6H
TS ADJUST
6H
A B
RC A/B
SW01
ON
SW02
5
WARNING
Install the air conditioner certainly to sufficiently withstand the weight.
If the strength is insufficient, the unit may fall down resulting in human injury.
Perform a specified installation work to guard against an earthquake.
An incomplete installation can cause accidents by the units falling and dropping.
Remote controller
• Should be placed where there are no obstacles,
such as curtains, that may block the signal
• Do not install the remote controller in a place exposed to direct sunlight or close to a heating source
such as a stove.
• Keep the remote controller at least 1m away from
the nearest TV set or stereo equipment.
(This is necessary to prevent image disturbance or
noise interference.)
• The location of the remote controller should be
determined as shown below.
Ceiling panel
Signal-receiving range
Sensor part
60˚
60˚
3 INSTALLATION OF INDOOR UNIT
5 m
or less
Ceiling panel
base
Remote
controller
WARNING
The installation of the air conditioning unit must be positioned in a location that can sufficiently support its
weight and give protection against adverse environmental conditions.
Failure to do so may result in unit damage and possible human injury.
Any incomplete installation may also cause possible risk of human injury.
• Unpack the package, take out the product and then place it on the floor so that the same surface directs
underneath as it is placed in the package.
• Never put the products in a pile or put weight on them, which are taken out from the packing box;
otherwise there is a possibility to damage electric parts, fan parts, draining mechanism, and etc.
If the both sides are turned over, a deformation of
mounting metal of the ceiling panel which is sold
separately, etc. may be caused.
Accordingly the product may be damaged and the
installation becomes impossible in some cases.
REQUIREMENT
Strictly comply to the following rules to prevent damage of the indoor units and human injury.
• Do not place heavy objects on the indoor unit. (Even when units are still packaged)
• Always carry the unit as packaged from the factory wherever possible.
If carrying in the indoor unit unpacked by necessity, be sure to use buffering cloth, etc. to prevent damaging
the unit.
• To move the indoor unit, hold the hanging brackets (4 positions) only.
Do not apply force to other parts (refrigerant pipe, drain pan, foamed parts, or resin parts etc.).
• To be carried by two or more people. Do not strap the unit in positions other than stated.
OK NO GOOD
6
3 INSTALLATION OF INDOOR UNIT
Dimensional view
1000 or more
15 or more
1000 or more
Obstacle
1000 or more
15 or more
Space required for
installation and servicing
149
175
207
64
Knockout for fresh
air intake 100 (diam.)
145.5
93
105
Bottom face
of ceiling
70
595 to 660 Ceiling open dimension
142 64 368.5
29
700 Panel external dimension
595 to 660 Ceiling open dimension
525 Hanging bolt pitch
Sensor part
200
Check port
( 450)
Check port
(o 450)
200
Check port
( 450)
Drain-up standing-up size
595 to 660 Ceiling open dimension
Indoor unit
627.5
or less
Stand-up
Bottom face
of ceiling
Stand-up
850 or less
Note)
As ABS is used for the drain discharge port of the main unit,
the vinyl chlor paste cannot be used.
Use the flexible hose (Band fix) included in the package.
268 27
Drain discharge port
Hanging bolt
M10 or W3/8
local arrange
220.5
145.5
134
63
Bottom face
of ceiling
Ceiling panel
200
105235 235
162 (diam.)
For branch duct knockout
square hole 150 (diam.)
Bottom face of ceiling
575 Unit external dimension
Electric parts box
320.5
575 Unit external dimension
162
(diam.)
256
177
510 Hanging bolt pitch
700 Panel external dimension
595 to 660 Ceiling open dimension
Refrigerant pipe
(Liquid) 6.4 (diam.)
For branch duct
knockout square
hole 150 (diam.)
Refrigerant pipe
(Gas) 9.5 (diam.) (RAS-M10SMUV-E, M13SMUV-E,
(Gas) 12.7 (diam.) (RAS-M16SMUV-E, M16SMUCV-E)
42 148
214 105
97.5
9310570
139.5
190.5
M10SMUCV-E, M13SMUCV-E)
120
21
Wiring connection
port
55
142
158
7
Ceiling opening and installation of hanging bolts
• Evaluate and determine the piping and wiring requirements inside the ceiling prior to the hanging of the unit.
• After installation place of the indoor unit has been determined, create opening in ceiling and install the hanging
bolts.
• For the ceiling opening size and pitch for hanging bolts refer to the dimensional drawing and the supplied
installation pattern.
• Once the ceiling void has been created, ensure that the drain pipe, refrigerant pipes, inter-connecting wires and all
control wires are in place prior to installing the actual indoor unit.
Please procure the hanging bolts and nuts for
installation of the indoor unit at local site.
Hanging bolt
Nut
M10 or W3/8
M10 or W3/8
4 pieces
12 pieces
How to use the supplied installation pattern
The installation pattern is enclosed within the packaging of the air conditioner.
Existing ceiling void
Indoor unit
Use the pattern to determine the position and size of the opening and
location of the hanging bolts.
New ceiling void
Use the pattern to determine the position of the new ceiling opening.
Cut off slit section of the main unit of the installation pattern.
Cut off the outside of the pattern according to size of the ceiling
opening. (There is a slit on the standard opening size section.)
• Install the indoor unit after installation of the hanging bolts.
• Using the supplied pattern attach it to the indoor unit using the
supplied fixing screws (M5 × 16L 4 off). (Screw pattern to the
ceiling panel hanging brackets of the indoor unit)
• When creating the opening ensure it is as per the outer dimensions
of the supplied pattern.
Installation pattern
(Attached)
M5 × 16L screws (Attached)
These screws are exclusive to the
installation pattern. When installing
the ceiling panel, the other exclusive
screws attached to the ceiling panel
(sold separately) are used.
Cut off the installation
pattern along slit of
the main unit.
Opening a ceiling and installation of hanging bolts
Treatment of ceiling
The ceiling differs according to the structure of the building. For details, consult your architect.
In the process after the ceiling panels have been removed, it is important to reinforce the ceiling construction and
ensure the ceiling remains in a horizontal position. This is to prevent possible vibration of the ceiling panels.
1. Cut and remove the ceiling material.
2. Reinforce the cut surface of the ceiling construction and add support for fixing the end of ceiling panel.
Installation of hanging bolt
Use M10 hanging bolts (4 off, locally procured).
When mounting the unit, set the pitch of the hanging bolts according to the size of the unit as detailed on the
dimensional drawing.
New concrete slab
Install the bolts with insert brackets or anchor
bolts.
Reinforcing
steel
(Blade type
bracket)
(Slide type
bracket)
Anchor bolt
(Pipe hanging
anchor bolt)
Steel flame structure
Use existing angles or install new
support angles.
Hanging bolt
Hanging bolt Support angle
8
Existing concrete slab
Use a hole-in anchors, hole-in
plugs, or a hole-in bolts.
3 INSTALLATION OF INDOOR UNIT

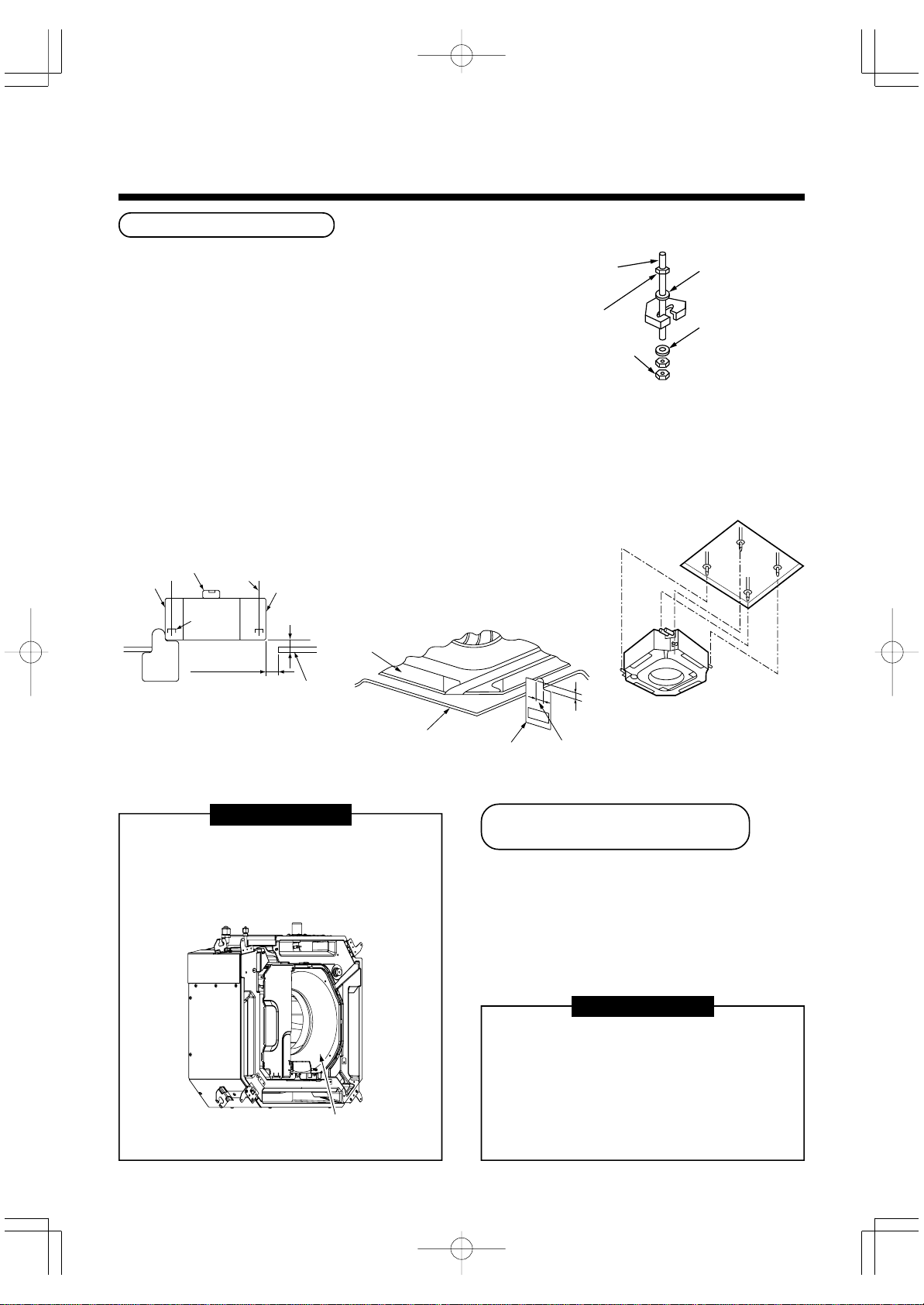

Installation of indoor unit
• Attach the nut (M10 or W3/8: Procured locally) and washer
(34 mm (diam.)) to the hanging bolt.
• Put washers at either side of the T-groove on the hanging
bracket of the indoor unit in order to hang the unit.
• Using a spirit level, check that all four sides are horizontal.
(Horizontal positioned within 5 mm)
• Cut off the installation gauge from the installation pattern.
• Using the installation gauge check and adjust clearance
between the indoor unit and the ceiling opening (1)
(10 to 42 mm on each side).
Ensure that the unit is level to the ceiling and within a
distance of (2) 23 mm to 28 mm below.
The installation gauge has details of how to use printed on it.
Note) Install the indoor unit so that the end part of opening
does not come into contact with the drain socket piping.
Level vial (Horizontal: within 5 mm)
Indoor unit
Hanging bolt
Hanging bolt
(W3/8 or M10)
Nut
(W3/8 or M10)
Nut
(W3/8 or M10)
(1) M10 washer supplied, all other material
must be procured locally.
(2) To ensure that the unit is mounted safely, the
hanging bolt must be positioned just below
the hanging bracket as shown in the diagram.
(1)
M10 flat washer
(Accessory)
(2)
M10 flat washer
(Accessory)
Installation gauge
Hanging
metal
10 to 42
mm (2)
23 to 28
mm (1)
Ceiling board
Indoor unit
Ceiling board
REQUIREMENT
Before installation of the indoor unit be sure to
remove the transportation cushion found between
the fan and the bell mouth.
Running the unit without removing the cushion
may damage the fan motor.
Be sure to remove the cushion for transportation
between the fan and the bell mouth.
1) 23 to 28
Installation gauge 2) 10 to
mm
42 mm
Installation of ceiling panel
(Sold separately)
Install the ceiling panel after completion of the
installation of the indoor unit, including all piping and
wiring.
Install the ceiling panel as per the supplied Installation
Manual.
Check the installation dimensions of the indoor unit
and the ceiling opening are correct and then install.
REQUIREMENT
Ensure the ceiling panel is mated to the ceiling
surface or the indoor unit.
If the panel and unit are not mated together this
may result in the formation of dew condensation
causing a possible water leak.
First remove the 4 corner caps from the ceiling
panel and fit to the indoor unit.
9
4 DRAIN PIPING WORK
As long as possible (10 cm)
VP30 or more
Downward slope
1/100 or more
VP25
VP25
VP25
(Collective pipes)
CAUTION
• Install the drain piping so that the water
drains effectively.
• Apply heat insulation to prevent dew
condensation from forming.
• Incorrectly installed pipework may result
in a water leak.
Pipe material / Insulator and size
The following materials for piping work and insulation
are to be procured locally.
Hard vinyl chloride pipe socket for VP25
Pipe material
Insulator
Hard vinyl chloride pipe VP25
(Outer diameter 32 mm (diam.))
Foamed polyethylene foam, thickness:
10 mm or more
REQUIREMENT
• Ensure insulating of the drain pipes and connecting parts on the indoor units.
• The drain pipe should have a downward slope of at least 1/100 and ensure
there are no swells or blockages as this will cause abnormal sounds.
• The maximum traverse length of drain pipe is 20 m. Provide support
brackets at intervals of 1.5 to 2 m where necessary to prevent movement.
• Install the combined piping as shown in the illustration.
• Do not create an air purge in the pipework,
as the water would leak from this point.
• The hard vinyl-chloride pipe cannot be connected
directly to the drain pipe connecting port of the indoor unit.
For connection with the drain pipe connecting port,
ensure that the supplied flexible hose is fitted.
• Adhesive agent cannot be used for the pipe
connecting port (hard socket) on the indoor unit.
Be sure to use the supplied hose band for fixing,
otherwise there is a risk of damage or water
leakage from the drain pipe connecting port.
Drain pipe connecting port
(Hard socket)
Attached hose band
Soft socket Hard socket
Adhesive agent prohibited
1.5 m to 2 m
Heat
insulator
1/100 or more
downward
Arched
shape
Trap
VP25 vinyl chloride pipe
(Procured locally)
Attached flexible hose
Socket for VP25
(Procured locally)
Support
bracket
NO
GOOD
Connection of flexible hose
• Insert the soft socket of the supplied flexible hose
into the connecting port of the drain pipe.
• Align the supplied hose band to the pipe connecting
port end, and tighten.
REQUIREMENT
• Fix the soft socket with the supplied hose
band, tighten at the upper position of the
unit.
• The supplied flexible hose can bend up to
a maximum of 45°
10
Drain pipe
connecting port
(Transparent)
Indoor unit body
max
45˚
NO GOOD
OK
max
45˚
Align the attached hose band to the
end of hose, set the tightening
position upward, and then tighten it.
Flexible hose
(Accessory)
Socket for VP25 vinyl chloride pipe
(Local procure)
VP25 vinyl chloride pipe
(Local procure)
Riser (Trap)
90˚ Bend
4 DRAIN PIPING WORK
Connection of drain pipe
• Connect the hard socket (Procured locally) to the
hard socket side of the supplied flexible hose which
has been installed.
• Connect the drain pipes (Procured locally) in turn to
the connected hard sockets.
REQUIREMENT
• Using a adhesive agent for vinyl chloride,
connect the hard vinyl chloride pipes so that
water does not leak.
• Allow sufficient time for the adhesive to set and
harden.
(Refer to the instructions of the adhesive.)
Drain up
When it is not possible to achieve a natural downward
slope on the drain pipe, you can create a vertical lift
(Drain up) on the pipe.
• Set the height of the drain pipe within 850 mm from
the bottom surface of the ceiling.
• The drain pipe should be piped from the drain pipe
connecting port horizontally for a maximum of
300 mm and then piped vertically.
• After piping the vertical lift, ensure the pipework is
set to a downward gradient.
Check the draining
After completion of drain piping,
Check water drains away and that no water leaks
from any of the connecting parts. At the same time
check for any abnormal sounds from the drain pump.
Ensure drainage is checked during cooling mode.
When the electric work has finished:
• Before installing the ceiling panel, pour water as
shown in the following figure, check water drains
from the drain pipe connecting port (Transparent) in
COOL mode and then check there are no water
leaks from the drain pipes.
When the electric work has not finished:
• Pull out the float switch connector (3P: Red) from
P.C. board connector (CN34: Red) of the electric
parts box. (Ensure the power is turned off.)
• Connect the single-phase 220-240V, 1N, 50 Hz
power to the terminal blocks (1) and (2).
• Pour water referring to the figure.
(Amount: 1500 cc to 2000 cc)
• When the power is turned on, the drain pump motor
drives automatically.
Check water is drained from the drain pipe
connecting port (Transparent), and then check there
is no water leak from the drain pipes.
• After checking for water leaks on the drain, turn off
the power supply, and re-attach the float switch
connector to the original position (CN34) on the P.C.
board and refit the electric parts box.
Indoor unit
300mm
or less
Rising up
627.5mm or less
Rising up 850mm or less
Underneath of ceiling
11
CN34
(RED)
220–240V, 1N ~, 50Hz
White
Power supply
terminal block
123
Black
Black
Pull out connector CN34 (Red) from P.C. board.
Black
Thermal insulating process
• After checking the draining, wrap the supplied thermal insulation material for the drain connecting part around the
flexible hose leaving no clearance from the root of the drain pipe connecting port of the indoor unit.
• Wrap the thermal insulation material (procured locally) around the drain pipe so that it piles up on the supplied
the thermal insulation material for the drain connecting part, leaving no clearance.
Flexible hose
Attached heat insulator
Heat insulator to be
procured locally
Hard vinyl chloride pipe
Check panel
Hose band
CAUTION
Ensure water is poured slowly.
If water is poured vigorously, it is scattered inside of
the indoor unit resulting in a cause of unit trouble.
Air
discharge area
Drain pan
Insert the leading part of the
hose between the heat
exchanger and the drain pan,
and then bend it downward.
Polyethylene hand pump for
pouring water in drain pan
Vessel
Water (1500cc to 2000cc)
12
5 REFRIGERANT PIPING AND EVACUATING
Refrigerant piping
1. If the outdoor units are to be mounted on a wall,
make sure that the supporting platform is
sufficiently strong. The platform should be
designed and manufactured to maintain its
strength over a long period of time, and sufficient
consideration should be given to ensuring that the
outdoor unit will not fall.
2. Use copper pipe with 0.8 mm or more
thickness.
3. Flare nut and flare works are different from those
of the conventional refrigerant.
Take out the flare nut attached to the main unit of
the air conditioner, and use it.
CAUTION
IMPORTANT 4 POINTS FOR PIPING WORK
1. Remove dust and moisture from the inside of
the connecting pipes.
2. Tight connection (between pipes and unit)
3. Evacuate the air in the connecting pipes using
VACUUM PUMP.
4. Check the gas leakage. (Connected points)
Permissible piping length and heat
They vary according to the outdoor unit.
For details, refer to the Installation Manual attached to
the outdoor unit.
Flaring
Insert a flare nut into the pipe, and flare the pipe.
As the flaring sizes of R410A differ from those of
refrigerant R22, the flare tools newly manufactured for
R410A are recommended.
However, the conventional tools can be used by
adjusting projection margin of the copper pipe.
• Projection margin in flaring :
B (Unit : mm)
Rigid (Clutch type)
Outer diam. of
copper pipe
6.4
9.5
12.7
R410A tool used
R410A R22
0 to 0.5
0 to 0.5
0 to 0.5
(Same as left)
(Same as left)
(Same as left)
Conventional tool used
R410A R22
1.0 to 1.5 0.5 to 1.0
1.0 to 1.5 0.5 to 1.0
1.0 to 1.5 0.5 to 1.0
• Flaring diam. meter size :
A (Unit : mm)
Outer diam. of copper pipe
6.4
9.5
12.7
* In case of flaring for R410A with the conventional
flare tool, pull it out approx. 0.5 mm more than that
for R22 to adjust to the specified flare size.
The copper pipe gauge is useful for adjusting
projection margin size.
R410A R22
9.1 9.0
13.2 13.0
16.6 16.2
Tightening connection
CAUTION
• Do not apply excessive torque. Otherwise, the
nut may crack depending on the conditions.
Outer diam. of copper pipe
6.4 mm (diam.)
9.5 mm (diam.)
12.7 mm (diam.)
• Tightening torque of flare pipe connections
Pressure of R410A is higher than that of R22.
(Approx. 1.6 times)
Therefore, using a torque wrench, tighten the flare
pipe connecting sections which connect the indoor
and outdoor units of the
specified tightening torque.
Incorrect connections may
cause not only a gas
B
leak, but also a trouble
of the refrigeration cycle.
Align the centers of the connecting pipes and tighten
the flare nut as far as possible with your fingers.
Then tighten the nut with a spanner and torque
wrench as shown in the figure.
Tightening torque
14 to 18 (1.4 to 1.8 kgf•m)
33 to 42 (3.3 to 4.2 kgf•m)
50 to 62 (5.0 to 6.2 kgf•m)
A
+0
A
- 0.4
(Unit : N•m)
Flare at
indoor
unit side
Flare at
outdoor
unit side
Imperial (Wing nut type)
Outer diam. of copper pipe
6.4
9.5
12.7
R410A R22
1.5 to 2.0 1.0 to 1.5
1.5 to 2.0 1.0 to 1.5
2.0 to 2.5 1.5 to 2.0
Externally
threaded side
Use a wrench to secure.
13
Half union
Flare nut
Internally
threaded side
Use a torque wrench to tighten.
6 EVACUATING
AIR PURGE
Evacuate the air in the connecting pipes and in
the indoor unit using vacuum pump.
Do not use the refrigerant in the outdoor unit.
For details, see the manual of vacuum pump.
Use a vacuum pump
Be sure to use a vacuum pump with counter-flow
prevention function so that inside oil of the pump does
not flow backward into pipes of the air conditioner
when the pump stops.
1. Connect the charge hose from the manifold valve
to the service port of the gas side packed valve.
2. Connect the charge hose to the port of vacuum
pump.
3. Open fully the low pressure side handle of the
gauge manifold valve.
4. Operate the vacuum pump to start for evacuating.
Perform evacuating for about 35 minutes if the
piping length is total 70 meters.
(25 minutes for total 50 meters)
(assuming a pump capacity of 27 liters per
minute.)
Then confirm that the compound pressure gauge
reading is –101 kPa ( –76 cmHg).
5. Close the low pressure side valve handle of gauge
manifold.
6. Open fully the valve stem of the packed valves
(both sides of Gas and Liquid).
7. Remove the charging hose from the service port.
8. Securely tighten the caps on the packed valves.
Packed valve handling precautions
• Open the valve stem until it touches the stopper.
Once it is in contact with the stopper, refrain from
applying any more force than is necessary.
• Securely tighten the valve stem cap in torque as
follows:
Gas side (12.7 mm (diam.))
Gas side (9.5 mm (diam.))
Liquid side (6.4 mm (diam.))
Service port
Compound
pressure gauge
–101kPa
(–76cmHg)
Handle Lo
Charge hose
Packed valve
at liquid side
50 to 62 N•m (5.0 to 6.2 kgf•m)
33 to 42 N•m (3.3 to 4.2 kgf•m)
14 to 18 N•m (1.4 to 1.8 kgf•m)
14 to 18 N•m (1.4 to 1.8 kgf•m)
Hexagonal wrench is required.
Pressure gauge
Manifold valve
Handle Hi
(Keep full closed)
Charge hose
Vacuum pump
adapter for
counter-flow
prevention
14
Vacuum
pump
Service port
(Valve core (Setting pin))
Packed valve at gas side
7 ELECTRICAL WORK
WARNING
1. Using the specified wires, ensure to connect the wires, and fix wires securely so that the
external tension to the wires do not affect the connecting part of the terminals.
Incomplete connection or fixation may cause a fire, etc.
2. Be sure to connect earth wire. (Grounding work)
Do not connect the earth wire to gas pipe, city water pipe, lightning rod, or the earth wire of telephone.
Incomplete grounding causes an electric shock.
3. For electric work, strictly follow the Local Regulation in each country and the Installation
Manual, and use an exclusive circuit.
Capacity shortage of power circuit or incomplete installation may cause an electric shock or a fire.
CAUTIONS
• This indoor unit has no power cord.
• If incorrect/incomplete wiring is carried out, it will cause an electrical fire or smoke.
• Be sure to install an earth leakage breaker that is not tripped by shock waves.
If an earth leakage breaker is not installed, an electric shock may be caused.
• Be sure to use the cord clamps attached to the product.
• Do not damage or scratch the conductive core and inner insulator of power and inter-connecting wires when
peeling them.
• Be sure to comply with local regulations on running the wire from outdoor unit to indoor unit (size of wire and
wiring method etc.)
• Use the power cord and Inter-connecting cable of specified thickness, type, and protective devices required.
REQUIREMENT
• Appliance shall be installed in accordance with national wiring regulations.
• For wiring of power supply of the outdoor units, follow the Installation Manual of each outdoor unit.
• Perform the electric wiring so that it does not come to contact with the high-temperature part of the pipe.
The coating may melt resulting in an accident.
• After connecting wires to the terminal blocks, provide a trap and fix wires with the cord clamp.
• Run the refrigerant piping line and control wiring line in the same line.
• Do not turn on the power of the indoor unit until vacuuming of the refrigerant pipes completes.
How to wire
1. Connect the connecting wire to the terminal as identified with their respective numbers on the terminal block of
indoor and outdoor unit. H07 RN-F or 60245 IEC 66 (1.0 mm
2. Insulate the unsheathed redundant cords (conductors) with electrical insulation tape.
Process them so that they do not touch any electrical or metal parts.
3. For inter-unit wiring, do not use a wire jointed to another on the way.
2
)
15
Wire connection
REQUIREMENT
• Be sure to connect the wires matching the terminal numbers. Incorrect connection causes a trouble.
• Be sure to pass the cables through the bushing of wiring connection port of the indoor unit.
• Keep a margin (Approx. 100mm) on a wire to hang down the electric parts box at servicing, etc.
• Remove the cover of the electric parts box by taking off the mounting screws (3 positions) and pushing the
hooking section. (The cover of the electric parts box remains hanged to the hinge.)
• Connect the indoor/outdoor connection wires to the terminal block of the electric parts box.
(Do not apply tension to the connecting section of the terminal block.)
• Tighten the screws of the terminal block, and fix the wires with cord clamp attached to the electric parts box.
(Do not apply tension to the connecting section of the terminal block.)
• Using the attached thermal insulation material, seal the pipe connecting port. Otherwise, dewing may be caused.
• Mount the cover of the electric parts box without pinching wires.
(Mount the cover after cabling on the ceiling panel.)
Screws
Electric parts box
P.C. board
Earth screw
Push
Power supply
terminal block
21 3
Screw
Hooking
section
Cover of electric
parts box
Thermal insulation to
wiring connecting port
Adhered surface
Heat
insulator A
213
Cord clamp
Heat insulator B
Wiring on the ceiling panel
According to the Installation Manual for the ceiling
panel, connect the connectors to the P.C. board in the
electric parts box.
Connect the sensor connector to CN201 (Blue), and
the louver motor wiring connector to CN33 (White) on
the P.C. board, respectively.
Notched section
Infrared signal receiver wiring
(From ceiling panel)
Louver motor wiring
(From ceiling panel)
Cord clamp
CN201
CN33
Draw and pass the sensor lead wire upper the louver
motor wiring, and then close cover of the electric parts
box. Perform the wiring work so that the electric parts
box does not pinch the sensor lead wire.
16
7 ELECTRICAL WORK
Wiring
1. Remove a screw and then remove cover of the
electric parts box.
2. Strip wire ends (10 mm).
3. Match wire colors with terminal numbers on indoor
and outdoor units’ terminal blocks and firmly screw
wires to the corresponding terminals.
4. Connect the ground wires to the corresponding
terminals.
5. Fix the wires with cord clamp.
6. Fix cover of the parts box and the terminal block
surely with the fixing screws.
Make a loop on the wire for margin of the
length so that the electric parts box can be
taken out during servicing.
10
123
10
70
50
Wiring diagram
Indoor side
Indoor/Outdoor
connecting wires
Outdoor side
1
1
L N
223
3
Earth line
Connecting wire
3
2
1
NOTE
Wire type: H07RN-F or 60245IEC66 (1.0 mm²)
17
8 APPLICABLE CONTROLS
Remote controller selector switch setting
• If two indoor units are installed in the same room or adjoining rooms, when the user tries to operate only one unit,
both units may receive the same remote controller signal and operate. This can be prevented by changing one of
the indoor units and remote controllers to setting “B” (The default setting for both units is “A”).
• If the indoor unit and remote controller settings are different, the remote controller signal will not be accepted.
1. Setting the remote controller
• Remove the cover, and insert the batteries.
• Push the “CHECK” point and “MODE” button at once, for changing remote controller setting from “A” to “B”.
(Priority is given to “A” setting.)
2. Setting the unit
• Remove the cover of the electric parts box by taking off the mounting screws (3 positions) and pushing the
hooking section. (The cover of the electric parts box remains hanged to the hinge.)
• There are the selector switches (SW02) on the P.C. board of the electric parts box.
No.4 of the selector switches (SW02) is provided to select the switch of the remote controller.
Select ON of No.4 of the selector switches (SW02). (OFF: A setting, ON: B setting)
ON
ON
1
1
FAN 1
2 3 4
2 3 4
FAN 2
RE-
START
6H
SW01
TS ADJUST
ON
6H
A B
RC A/B
“B” setting
SW02
“A” setting
• Check whether the changed remote controller can operate the indoor unit or not.
Auto restart setting
This product is designed so that, after a power failure, it can restart automatically in the same operating mode as
before the power failure.
INFORMATION
The product was shipped with Auto Restart function in the OFF position. Turn it ON as required.
How to set the Auto Restart
• Remove the cover of the electric parts box by taking off the mounting screws (3 positions) and pushing the
hooking section. (The cover of the electric parts box remains hanged to the hinge.)
• There are the selector switches (SW02) on the P.C. board of the electric parts box.
No.3 of the selector switches (SW02) is provided for the selector switch. Select ON of No.3 of the selector
switches (SW02). (OFF: setting without Auto Restart, ON: setting with Auto Restart)
18
ON
ON
1
1
FAN 1
6H
2 3 4
6H
2 3 4
FAN 2
RE-
START
SW01
TS ADJUST
ON
ON
SW02
OFF
A B
RC A/B
8 APPLICABLE CONTROLS
To improve Cooling/Heating effect
When only poor cooling/heating effect is obtained due to installation place of the indoor unit or construction of the
room, the detection temperature of cooling/heating can be changed.
• Remove the cover of the electric parts box by taking off the mounting screws (3 positions) and pushing the
hooking section. (The cover of the electric parts box remains hanged to the hinge.)
• There are the selector switches (SW01) on the P.C. board of the electric parts box.
The setting of the detection temperature can be changed by combining No.1 to No.4 switches of the selector
switches (SW01). Adjust the setting of the detection temperature according to the right table.
Setting at shipment
No.1 No.2 No.3 No.4
OFF OFF OFF OFF –2 –2
ON OFF OFF OFF –2+4
OFF ON OFF OFF –2+2
ON ON OFF OFF –20
OFF OFF ON OFF +4 –2
ON OFF ON OFF +4 +4
OFF ON ON OFF +4 +2
ON ON ON OFF +4 0
OFF OFF OFF ON +2 –2
ON OFF OFF ON +2 +4
OFF ON OFF ON +2 +2
ON ON OFF ON +2 0
OFF OFF ON ON 0 –2
ON OFF ON ON 0 +4
OFF ON ON ON 0 +2
ON ON ON ON 0 0
COOL/DRY HEAT
(°C) (°C)
ON
6H
← Factory setting
19
1
ON
2 3 4
6H
SW01
TS ADJUST
ON
B
SW02
9 TEST OPERATION
Check and Test operation
Be sure to test the piping connections for gas leak.
• Check the flare nut connections, valve stem cap
connections and service port cap connections for
gas leak with a leak detector or soap water.
Flare nut
connections
• Service port
cap connection
• Valve stem
cap connection
(Indoor unit)
Flare nut
connections
(Outdoor unit)
Test operation
• To test the system, push and hold RESET button for
10 sec. (There will be one short beep.)
10 INSTALLATION / SERVICING TOOLS
Tools
Tools
Gauge manifold
Charge hose
Electronic balance for
refrigerant charging
Torque wrench
(nominal diam. 1/2, 5/8)
: Newly prepared (They are special requirements for R410A, separated from those for R22.)
¡
: Existing tools are available.
o
For the details of the tools, refer to the Installation manual of the outdoor unit.
Applicable to R22 model
o
o
¡
o
Flare tool (clutch type)
Gauge for projection
adjustment
Vacuum pump adapter
Gas leakage detector
20
Tools
Applicable to R22 model
¡
__ ____
¡
o
11 MAINTENANCE
Prior to maintenance, ensure the power supply is turned off.
WARNING
Cleaning of the air filter and other parts of the air filter
involves dangerous work in high places, so be sure to
have a qualified service person do it.
Do not attempt it yourself.
Cleaning of air filter
Clean the air filters every 3 months.
The performance of the air conditioner will degrade if the air filters are covered
with dust.
Clean the air filters as often as possible.
Do not handle the buttons with wet hands
as this will cause the risk of electric shock.
1 Open the air inlet grille.
• Slide the air inlet grille buttons to detach the air inlet grille from the
main ceiling panel. Lower the grille slowly whilst holding.
2 Take out the air filter.
• Push the extrusion of the air filter away from the grille and remove.
3 Cleaning with water or vacuum cleaner
• If dirt is heavy, clean the air filter using tepid water with a neutral
detergent or just water.
• After cleaning with water, dry the air filter sufficiently in a shaded place.
4 Mount the air filter.
5 Close the air inlet grille.
• Close the air inlet grille, slide the button to locate into the
ceiling panel fixing securely.
CAUTION
Strap to
prevent falling
3
1
Air inlet grille
Button
2
Push
Air filter
5
Air inlet grille
Cleaning of air outlet louver
The air outlet louver can be removed to clean if necessary.
1 Remove the air outlet louver.
• Holding both ends of the air outlet louver, remove it by sagging the
center downwards.
2 Clean the air outlet louver with water.
• If dirt is heavy, clean the air outlet louver using tepid water with
neutral detergent or just water.
3 Mount the air outlet louver.
• First push in the one side, and insert the opposite side by sagging
the center downwards.
Be careful to insert the louver in the correct direction.
Insert the louver with the printed mark facing upwards, and
the arrow on the louver pointing in the outward direction.
21
2
Insert in the louver sagging
down the center downward.
1
Insert
Button
1
2
3
Loading...
