Toshiba MW20FN1R, mw20fn1, MW27FN1CR, MW27FN1R, MW24FN1R Service Manual

FILE NO. 140-200322

SERVICE MANUAL

COLOR TELEVISION/
VIDEO CASSETTE RECORDER/
DVD VIDEO PLAYER

MW20FN1R

CAUTION

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS SERVICE MANUAL CARE-

FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE,
CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MA Y RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY T O OPEN THE ENCLOSURE.
VISIBLE LASER RADIA TION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT
ST ARE INT O BEAM.

Location of the required Marking

The rating sheet and the safety caution are on the rear of the unit.

CERTIFICATION: COMPLIES WITH FDA
RADIA TION PERFORMANCE STANDARDS,
21 CFR SUBCHAPTER J.

VIDEO

L

(MONO)

L

AUDIO

R

A1-1

SERVICING NOTICES ON CHECKING

As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.

2. AVOID AN ELECTRIC SHOCK

There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.

3. USE THE DESIGNATED PARTS

The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.

4. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING

There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.

5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE

In the condition that an explosion-proof cathode­ray tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.

6. AVOID AN X-RAY1. KEEP THE NOTICES

Safety is secured against an X-ray by consider­ing about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage pe­ripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathode­ray tube.

PERFORM A SAFETY CHECK AFTER

7.
SERVICING

Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.

(INSULATION CHECK PROCEDURE)

1.

Unplug the plug from the AC outlet.

2.

Remove the antenna terminal on TV and turn
on the TV.

3.

Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].

4.

If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.

[Note 1]

If you have not the 500V insulation
resistance meter, use a Tester.

[Note 2]

External exposure metal: Antenna terminal

Earphone jack

Please include the following informations when you order parts. (Particularly the VERSION LETTER.)

1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be

found at the end of the SERIAL NUMBER.

2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.

HOW TO ORDER PARTS

A1-2

IMPORTANT SAFEGUARDS

1.

READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2.

RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3.

HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4.

FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5.

CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6.

A TTACHMENTS

Do not use attachments not recommended by the unit’s manufacturer as they may cause hazards.

7.

WATER AND MOISTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool.

8.

ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall,
causing serious injury, and serious damage to the unit. Use only with a cart, stand, tripod,
bracket, or table recommended by the manufacturer.

8A.

An appliance and cart combination should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance and cart combination to overturn.

9.

VENTILATION

Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the unit, and
to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing
the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This
unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufac­turer’s instructions have been adhered to.

10.

POWER SOURCES

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of
power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery
power, or other sources, refer to the operating instructions.

11.

GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit
into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
polarized plug. If your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin, this plug will only fit
into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

12.

POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.

LIGHTNING

To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

14.

POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or
where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits, as contact with them might be fatal.

15.

OVERLOADING

Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

16.

OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could
result in fire or electric shock. Never spill or spray any type of liquid into the unit.

17.

OUTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide
some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA 70,
provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.

18.

SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.

PORT ABLE CAR T WARNING

(symbol provided by RETAC)

S3126A

A1-3

IMPORTANT SAFEGUARDS (CONTINUED)

DAMAGE REQUIRING SERVICE

19.

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.

When the power-supply cord or plug is damaged.

b.

If liquid has been spilled, or objects have fallen into the unit.

c.

If the unit has been exposed to rain or water.

d.

If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the
operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the unit to its normal operation.

e.

If the unit has been dropped or the cabinet has been damaged.

f.

When the unit exhibits a distinct change in performance, this indicates a need for service.

REPLACEMENT P ARTS

20.

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or
those that have the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric shock or other hazards.

SAFETY CHECK

21.

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit
is in proper operating condition.

WALL OR CEILING MOUNTING

22.

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

HEAT

23.

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.

DISC TRA Y

24.

Keep your fingers well clear of the disc tray as it is closing. It may cause serious personal injury .

CONNECTING

25.

When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure
to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and
follow the instructions when making any connections.

SOUND VOLUME

26.

Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume sound may cause hearing
or speaker damage.

SOUND DISTORTION

27.

Do not allow the product output distorted sound for a longtime. It may cause speaker overheating and fire.

HEADPHONES

28.

When you use the headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume
sound, it may cause hearing damage.

LASER BEAM

29.

Do not look into the opening of the disc tray or ventilation opening of the product to see the source of the laser beam. It may cause sight damage.

DISC

30.

Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and
product malfunction.

NOTE TO CATV SYSTEM INSTALLER

31.

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as
close to the point of cable entry as practical.

EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE

GROUND CLAMP

ELECTRIC SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

S2898A

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250, PART H)

A1-4

TAPE REMOVAL METHOD AT NO POWER SUPPLY

1.

Remove the TV/DVD/VCR block from the main unit and the Fig. 1 below can be seen.

(Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.)

2.

Remove one screw of the Loading Motor from the insert hole for screw driver and remove the Loading
Motor.

3.

Rotate the Pinch Roller Cam in the direction of the arrow by hand to slacken the Video Tape.

(Refer to Fig. 2)

4.

Rotate the Clutch Ass'y either of the directions to wind the Video Tape in the Cassette Case.

5.

Repeat the above step 3~4. Then take out the Video Cassette from the Deck Chassis. Be careful not to
scratch on the tape.

Loading Motor

Screw

Capstan DD Unit

Pinch Roller Cam

Fig. 1

Main Cam

Main Chassis (Front Side)

Clutch Ass'y

Fig. 2

DISC REMOVAL METHOD AT NO POWER SUPPLY

1.

Remove the Back Cabinet, TV//DVD/VCR Block and DVD TOP. (Refer to item 1 of the DISASSEMBLY

INSTRUCTIONS.)

2.

Slide the Rack Loading (White) toward the arrow direction by using a minus driver to release the lock.

(Refer to Fig. 1)

3.

Draw the Tray.

Rack Loading
(White)

DVD Deck

Fig. 1

A1-5

PARENTAL CONTROL - RATING LEVEL

4 DIGIT PASSWORD CANCELLATION

If the stored 4 digit password in the Rating Level menu needs to be cancelled, please follow the steps
below.

Turn Unit ON.

1.
Press and hold the 'STOP' key on the front panel.

2.
Simultaneously press and hold the '7' key on the remote control unit.

3.
Hold both keys for more than 3 seconds.

4.
The On Screen Display message 'PASSWORD CLEAR' will appear.

5.
The 4 digit password has now been cleared.

6.

TRAY LOCK

Tray cannot be opened by setting the Tray Lock, please follow the steps below.

Turn Unit ON.

1.
Set the DVD to the Stop Mode.

2.
Press and hold the '9' key on the remote control unit.

3.
Simultaneously press and hold the 'STOP' key on the front panel.

4.
Hold both keys for more than 3 seconds.

5.
Press the OPEN/CLOSE key on the front panel to check the Tray Lock setting.

6.

NB: No indications on the screen when the Tray Lock is setting.
To unlock the Tray Lock, please follow the steps below.

Turn Unit ON.

1.
Set the DVD to the Stop Mode.

2.
Set the VOLUME to minimum.

3.
Press and hold the 'REC/OTR' button on the front panel.

4.
Simultaneously press and hold the '4' key on the remote control unit.

5.
Hold both keys for more than 2 second.

6.
The On Screen Display message 'INITIALIZE5 COMPLETE' will appear.

7.
The Tray Lock has now been cleared.

8.

NB: The above procedure will reset ALL of the player's settings to the default factory state.

A1-6

TABLE OF CONTENTS

CAUTION .................................................................................................................................

SERVICING NOTICES ON CHECKING..................................................................................

HOW TO ORDER PARTS .......................................................................................................

IMPORTANT WARNING .........................................................................................................

TAPE REMOVAL METHODATNO POWER SUPPLY ...........................................................

DISC REMOVAL METHODATNO POWER SUPPLY ............................................................

PARENTAL CONTROL - RATING LEVEL .............................................................................

TRAY LOCK.............................................................................................................................

TABLE OF CONTENTS...........................................................................................................

GENERAL SPECIFICATIONS ................................................................................................

DISASSEMBLY INSTRUCTIONS

1. REMOVAL OF MECHANICAL PARTS AND P. C. BOARDS.........................................

2. REMOVAL OF VCR DECK PARTS ................................................................................

3. REMOVAL OF DVD DECK PARTS ................................................................................

4. REMOVAL OF ANODE CAP...........................................................................................

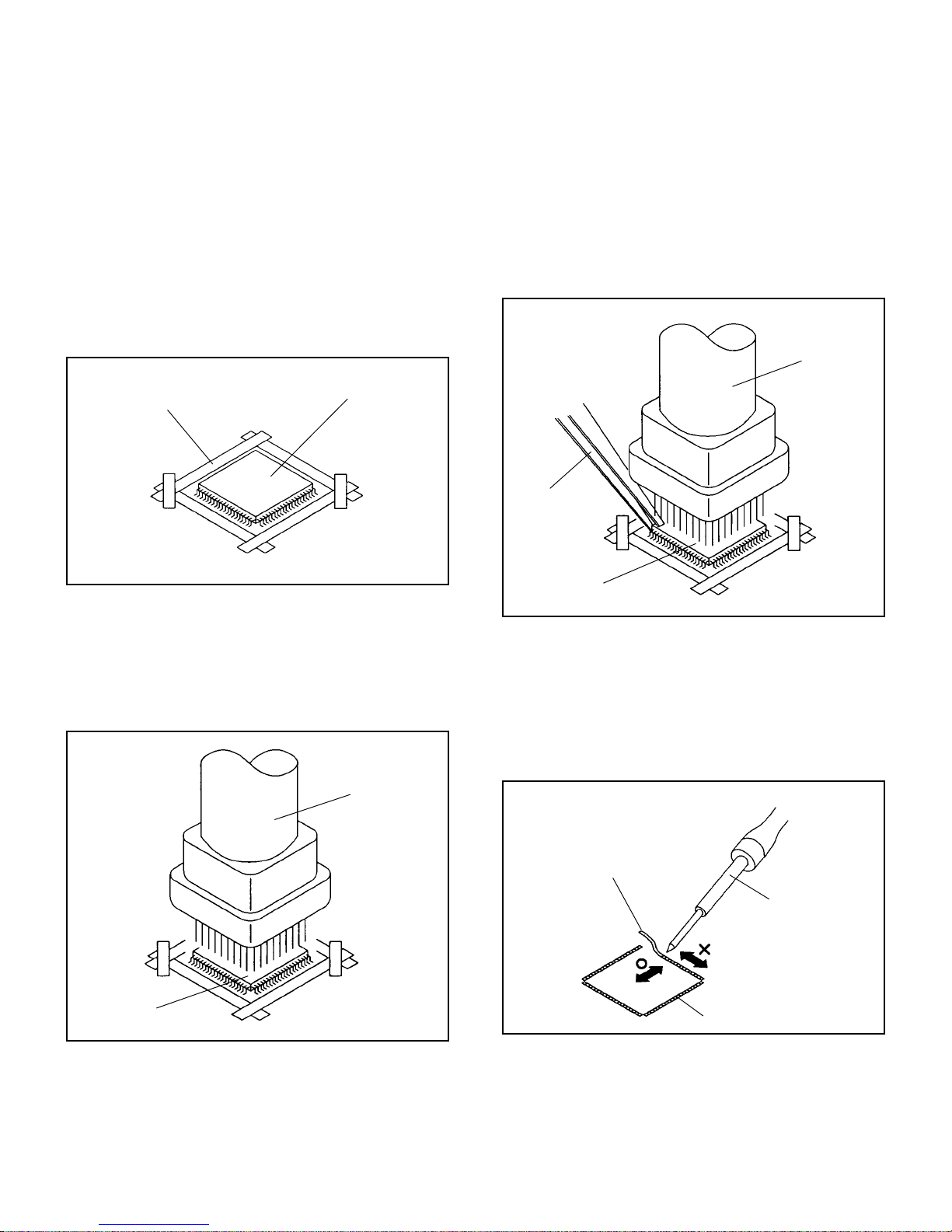

5. REMOVAL AND INSTALLATION OF FLAT PACKAGE IC ............................................

KEY TO ABBREVIATIONS .....................................................................................................

SERVICE MODE LIST .............................................................................................................

PREVENTIVE CHECKS AND SERVICE INTERVALS...........................................................

WHEN REPLACING EEPROM (MEMORY) IC ......................................................................

SERVICING FIXTURES AND TOOLS ....................................................................................

PREPARATION FOR SERVICING..........................................................................................

MECHANICAL ADJUSTMENTS .............................................................................................

ELECTRICAL ADJUSTMENTS...............................................................................................

BLOCK DIAGRAMS

DVD ST SOLUTION .............................................................................................................

Y/C/AUDIO/CCD/HEAD AMP ..............................................................................................

MICON ..................................................................................................................................

IN/OUT ..................................................................................................................................

CHROMA/IF..........................................................................................................................

SOUND AMP ........................................................................................................................

Hi-Fi/DEMODULATOR .........................................................................................................

COMB FILTER......................................................................................................................

DVD IN/OUT .........................................................................................................................

REGULATOR........................................................................................................................

TV .........................................................................................................................................

PRINTED CIRCUIT BOARDS

DVD.......................................................................................................................................

VCR.......................................................................................................................................

DEFLECTION/CRT/OPERATION/RELAY/SW ....................................................................

SCHEMATIC DIAGRAMS

RF_AMP/DSP .......................................................................................................................

MOTOR DRIVE ....................................................................................................................

MPEG....................................................................................................................................

MEMORY..............................................................................................................................

AUDIO/VIDEO ......................................................................................................................

REGULATOR2......................................................................................................................

Y/C/AUDIO/HEAD AMP .......................................................................................................

MICON ..................................................................................................................................

IN/OUT ..................................................................................................................................

CHROMA/IF..........................................................................................................................

SOUND AMP/SURROUND ..................................................................................................

Hi-Fi/DEMODULATOR .........................................................................................................

DIGITAL COMB FILTER ......................................................................................................

DVD IN/OUT .........................................................................................................................

REGULATOR1......................................................................................................................

TV POWER...........................................................................................................................

DEFLECTION .......................................................................................................................

CRT/OPERATION ................................................................................................................

RELAY/SW/FG .....................................................................................................................

INTERCONNECTION DIAGRAM ............................................................................................

WAVEFORMS ..........................................................................................................................

MECHANICAL EXPLODED VIEWS........................................................................................

CHASSIS EXPLODED VIEWS ................................................................................................

DVD DECK EXPLODED VIEWS .............................................................................................

MECHANICAL REPLACEMENT PARTS LIST ......................................................................

CHASSIS REPLACEMENT PARTS LIST...............................................................................

DVD DECK REPLACEMENT PARTS LIST............................................................................

ELECTRICAL REPLACEMENT PARTS LIST........................................................................

A2-1

A1-1
A1-2
A1-2
A1-3, A1-4
A1-5
A1-5
A1-6
A1-6
A2-1
A3-1~A3-7

B1-1, B1-2
B2-1~B2-6
B3-1~B3-4
B4-1
B5-1, B5-2
C1-1, C1-2
C2-1
C3-1, C3-2
C4-1
D1-1
D1-1
D2-1~D2-4
D3-1~D3-6

E-1, E-2
E-3, E-4
E-5, E-6
E-7, E-8
E-9, E-10
E-11, E-12
E-13, E-14
E-15, E-16
E-17, E-18
E-19, E-20
E-21, E-22

F-1, F-2
F-3~F-6
F-7, F-8

G-1, G-2
G-3, G-4
G-5, G-6
G-7, G-8
G-9, G-10
G-11, G-12
G-13, G-14
G-15, G-16
G-17, G-18
G-19, G-20
G-21, G-22
G-23, G-24
G-25, G-26
G-27, G-28
G-29, G-30
G-31, G-32
G-33, G-34
G-35, G-36
G-37, G-38
G-39, G-40
H-1~H-3
I1-1, I1-2
I2-1, I2-2
I3-1
J1-1, J1-2
J2-1
J3-1
J4-1~J4-7

GENERAL SPECIFICATIONS

J~W,

G-1 TV CRT CRT Size / Visual Size 20 inch / 508.0mmV

G-2 VCR System VHS Player / Recorder

G-3 DVD Color System NTSC

G-4 Tuning Broadcasting System US System M

System CRT Type Flat

Color System NTSC
Speaker 2 Speaker

Sound Output MAX 1.5W + 1.5W

System Video System NTSC

Hi-Fi STEREO Yes
NTSC PB ­Deck DECK OVD-7

Heads Video Head 4 Heads

FM Audio Head 2 Heads

Audio /Control Mono /Yes

Erase(Full Track Erase) Yes
Tape Rec PAL ­Speed NTSC SP/SLP(EP)

Play PAL -

Fast Forward / Rewind Time (Approx.) at 25oC FF:1'48"/REW:1'48"

Forward/Reverse NTSC or PAL-M SP/SLP(EP)=3x,5x / 9x,15x
Picture Search
Frame Advance Yes
Slow Speed 1/10

System Disc DVD, CD-DA, CD-R/RW, Video CD

Disc Diameter 120 mm , 80 mm
Deck Disc Loading System Front Loading

Pick up 1-Lens 2-Beams System
Playback time(Max) DVD 1-Layer 135min (4.7GB)

Search speed Fwd 2-15 times / 4 step (DVD,VIDEO CD)

Slow speed Fwd 1/8-1/2 times(DVD,VIDEO CD)

System Tuner and System 1 Tuner

Receive CH Destination US(w/CATV)

Intermediate Picture(FP) 45.75MHz
Frequency Sound(FS) 41.25MHz

Preset CH
Stereo/Dual TV Sound US-Stereo
Tuner Sound Muting Yes

Deflection 90 degree
Magnetic Field BV/BH + 0.45 G / 0.18 G

Position Front
Size 1.8 x 3.9 Inch
Impedance 8 ohm

10%(Typical) 1.5W + 1.5W

Loading System Front
Motor 3

NTSC SP/SLP(EP)

with Cassette T-120

Motor 2 Motors

DVD 2-Layer 245min (8.5GB)
CD 74min
Video CD -

Actual 2-45 times (DVD,VIDEO CD)

Rew 2-15 times / 4 step (DVD,VIDEO CD)

Actual 2-45 times (DVD,VIDEO CD)

Actual -

Rew -

Actual -

Tuning System F-Synth
Input Impedance VHF/UHF 75 ohm

CH Coverage

FP-FS 4.5MHz

2-20 times / 4 step (CD)

4-40 times (CD)

2-20 times / 4 step (CD)

4-40 times (CD)

2~69, 4A,A-5~A-1, A~I,

W+1~W+84

No

A3-1

GENERAL SPECIFICATIONS

G-5 Signal Video Signal Input Level 1 V p-p/75 ohm

Output Level 1 V p-p/75 ohm
S/N Ratio (Weighted) at DVD Mode 65dB
S/N Ratio (Weighted) at VCR Mode 50dB
Horizontal Resolution at DVD Mode 400 Lines

Horizontal Resolution at VCR(SP)Mode 220 Lines
RGB Signal Output Level ­Audio Signal Input Level -8.0dBm/50k ohm

VCR Output Level(0dB=0.775Vrms) -8.0dBm/1k ohm
DVD Output Level(-20dBFs 0dBFs=2.0Vrms) -12.0dBm/1k ohm

Digital Output Level 0.5 V p-p/75 ohm(DVD)

S/N Ratio at DVD (Weighted) 90 dB

S/N Ratio at VCR (SP)(CCIR Filter:ON) 38 dB

Harmonic Distortion at DVD Mode 0.06% (1kHz)

Harmonic Distortion at VCR(SP) Mode 1.5% (1kHz) Typical

Frequency Response :

DVD Mode at DVD 4Hz - 22kHz

at Video CD 4Hz - 20kHz

at CD 4Hz - 20kHz

VCR Mode at SP 100Hz - 10kHz

at LP -

at SLP 100Hz - 4kHz

Hi-Fi Audio Signal Dynamic Range : More than 90 dB

Frequency Response : 20Hz - 20kHz

Wow And Flutter : Less than 0.01 %Wrms

Channel Separation : More than 60 dB

Harmonic Distortion : Less than 1.0 %

G-6 Power Power Source AC 120V,60Hz

DC ­Power Consumption at AC 110 W at 120 V 60 Hz

at DC ­Stand by (at AC) 4 W at 120 V 60 Hz
Per Year -

Protector Power Fuse Yes

Dew Sensor

G-7 Regulation Safety UL

Radiation FCC
X-Radiation DHHS
Laser DHHS

G-8 Temperature Operation +5oC ~ +40oC

Storage -20oC ~ +60oC

G-9 Operating Humidity Less than 80% RH

No

A3-2

GENERAL SPECIFICATIONS

G-10 On Screen Menu Yes

Display Menu Type Character
(TV/VCR) Timer Rec Set Yes

G-CODE(or SHOWVIEW or PLUSCODE)No. Entry
TV/VCR Yes
DVD Yes
Clock / Date Yes
CH/AV(LINE)/DVD Yes
Tape Counter(Linear Counter) Yes
Tape Speed Yes
Sleep Time Yes
Stereo/Audio Output Yes

Control Volume Yes
Level Brightness/Contrast/Sharpness/Color Yes

Play/Stop/FF/Rew/Rec/OTR/T-Rec/Pause/Eject/Tape In (Symbol Mark)
Auto Tracking/Manual Tracking Yes
Caption / Text Yes
Index
Mute Yes
Hi-Fi Yes
Repeat Yes
Zero Return Yes
DEW

Channel Setup Yes

TV/CATV Yes
Auto CH Memory Yes
Add/ Delete Yes
Guide CH Set

TV Setup Yes

V-chip Set Yes
On/Off Timer Set Yes
Picture Yes
Audio Yes
Surround Yes
Stable Sound Yes

Sap On/Off Yes
Auto Repeat On/Off Yes
System Setup Yes

Clock Set Yes (Calendar 12h)

Language Yes

Auto Clock On/Off Yes

Standard Time Yes

Daylight Saving Time Yes

Bilingual

SAP Yes

Tint Yes
Bass/Treble/Balance Yes
Manual Tracking Yes

Yes

No

No

No

No

No

A3-3

GENERAL SPECIFICATIONS

G-11 On Screen Menu Yes

G-12 OSD Language TV/VCR English French Spanish

G-13 Clock,Timer Calendar 1990/1/1 ~ 2081/12/31

Display Menu Type Character
(DVD) Language Yes

Picture Yes

Sound Yes

Parental Yes

Open Yes
Close Yes
No disc Yes
Reading Yes
Play Yes
Still/Pause Yes
Stop Yes
Prohibit Mark Yes
Step Yes
Skip(>>|) Yes
Skip(|<<) Yes
Random Yes (CD)
Repeat Yes
Slow+ ## Yes
Slow- ## No
Search+ ## Yes
Search- ## Yes
Jump Yes
Resume Yes
Title No. Yes
Chapter No. Yes
Track No. Yes
Time Yes
Sub Title No. Yes
Angle No. Yes
Vocal On/Off No
Audio No. Yes
Audio Stereo L/R Yes (Video CD)
Zoom Yes
Marker No. No
Program Play Back Yes (CD)
Surround On/Off No
Screen Saver No
MP3 Folder Name No

DVD English French Spanish

and Timer Timer Events 8 Program/ 1 Month
Back-up One Touch Recording Max Time 6 Hours

OTPB Valid Time ­Sleep Timer Max Time 120

On/Off Timer Program(On Timer / Off Timer) 1
Auto Shut Off No Signal 15

Timer Back-up (at Power Off Mode) 5

OSD Language Yes

Menu Yes

SubTitle Yes

Audio Yes

TV Screen Size Yes

OSD Display On/Off Yes

DRC (Dynamic Range Control) Yes

dts Decode No

Output(5.1ch/ 2ch) No

Surround On/Off No

Center On/Off No

Sub Woofer On/Off No

Password Lock/ Un Lock Yes

Rating Level Yes

File Name No

File No No

Time No

Track No No

Step 10

No Operation -

Min
Min
Program
Min
Min
Sec

A3-4

GENERAL SPECIFICATIONS

G-14 Remote Unit(for TOSHIBA) RC-FG

Control Glow in Dark Remocon Yes
Unit Format NEC

Custom Code 40-BFh,44-BBh
Power Source Voltage(D.C) 3V

UM size x pcs UM-4 x 2 pcs

Total Keys 48 Key
Keys

TV/VCR

DVD

Power

1

2

3

4

5

6

7

8

9

0

Channel-

Channel+

Volume-

Volume+

Display

Sleep

Audio Select

Mute

Channel Return / Skip-

Closed Caption / Skip+

T-REC

Rec(T-Rec/OTR)

Rec/OTR

Slow+

Play

Stop

Rew

F. Fwd

Pause / Still

CM Skip / Jump

SP/SLP / Return

Counter Reset / Angle

Zero Return / Subtitle

Input Select / Zoom

Menu /Set Up

Program / Repeat A-B

D.Tracking / Top Menu

Tracking+ / DVD Menu

Tracking- / Play Mode

Cancel/Clear

3D Surround

Cursor Up

Cursor Down

Cursor Left

Cursor Right

Enter

VCR Plus+ No

Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

Yes
Yes
Yes
Yes
Yes

One More Search No

Remain/Counter No

Eject No

Index- No

Index+ No

No

A3-5

GENERAL SPECIFICATIONS

G-15 Features Auto Head Cleaning Yes

G-16 Accessories Owner's Manual Language English

Auto Tracking Yes
HQ (VHS Standard High Quality) Yes
Auto Power On, Auto Play, Auto Rewind, Auto Eject Yes
VIDEO PLUS+(SHOWVIEW,G-CODE)
Auto Clock Yes
Forward / Reverse Picture Search Yes
Auto CH Memory Yes
Surround Yes
Stable Sound Yes
Closed Caption Yes
TV Auto Shut off Function Yes
End Call
Index Search
SQPB
CATV Yes
CM Skip(30sec x 6 Times) Yes
Comb Filter (2Lines) Yes
VM Circuit
TV Monitor
Program Extend
Choke Coil
Energy Star Yes
Protect of FBT Leak Circuit Yes
Zero Return Yes
Power On Memory
Dirty Head
V-chip USA V-chip Yes

Parental Lock (DVD Only) Yes
Tray Lock Yes
Auto Stop (Pause, and Resume Stop after 5min.) Yes
Video CD Playback Yes
MP3 Playback
Digital Out (Dolby Digital) Yes

Down Mix Out (Dolby Digital) Yes

TruSurround
Screen Saver

Audio DAC 192kHz / 24bit

Remote Control Unit Yes
Battery Yes

Rod Antenna

Loop Antenna

U/V Mixer
300 ohm to 75 ohm Antenna Adapter Yes
Antenna Change Plug
DC Car Cord (Center+)
AC Plug Adapter
AC Cord
AV Cord (2Pin-1Pin)
Guarantee Card
Registration Card Yes
ESP Card
Warning Sheet
Dew/AHC Caution Sheet
Quick Set-up Sheet
Circuit Diagram
Service Facility List
Important Safeguard
Sheet Information (Return) Yes[From '03 JUN O/R]

CANADA V-chip

(MPEG) Yes

(PCM) Yes

(DTS) Yes

(DTS)

w/Guarantee Card Yes

Buyer Model No. MW20FN1R

UM size x pcs UM-4 x 2 pcs

OEM Brand

Poles -

Terminal -

Terminal -

No

No
No
No

No
No
No
No

No
No

No

No

No
No
No

No
No

No

No

No
No
No
No
No
No

No
No
No
No
No
No
No

A3-6

GENERAL SPECIFICATIONS

G-17 Interface Switch Front Power (Tact) Yes

Indicator Power Yes(Red)

Terminals Front Video Input RCA x 1

Rear Video Input RCA x 1

G-18 Set Size Approx. W x D x H (mm) 573 x 482 x 517
G-19 Weight Net (Approx.) 27.0kg (59.5lbs)

G-20 Carton Master Carton

Gift Box Yes

Drop Test Natural Dropping At

Container Stuffing(40' container) 216

G-21 Material Cabinet Front PS 94V0 DECABROM

PCB Non-Halogen Demand No

G-22 Environment Pb Free Lead-free Solder No

Cd Free No

Channel Up Yes

Channel Down Yes

Volume Up Yes

Volume Down Yes

Play (VCR) Yes

Stop / Eject (VCR) Yes

F.FWD/Cue (VCR) Yes

Rew/Rev (VCR) Yes

REC/OTR (VCR) Yes

Play (DVD) Yes

Stop (DVD) Yes

Skip+ /Search+ (DVD) Yes

Skip- /Search- (DVD) Yes

Open/Close (DVD) Yes

Input Select No

Main Power SW No

REC/OTR Yes(Red)

T-REC Yes(Red)

TV/VCR No

DVD No

Audio Input RCA x 2(Stereo)

Other Terminal HeadPhone (Stereo & Mono, 3.5mm)

Audio Input RCA x 2(Stereo)

Video Output RCA x1

Audio Output RCA x 2(Stereo)

Digital Audio Output Coaxial (DVD Only)

VHF/UHF Antenna Input F Type

AC Inlet No

Gross (Approx.) 30.5kg (67.3lbs)

No
Content ­Material ­Dimensions W x D x H(mm) ­Description of Origin -

Material Double/White
Dimensions W x D x H(mm) 658 x 575 x 625
Design As per Buyer's
Description of Origin Yes

1 Corner / 3 Edges / 6 Surfaces

Height (cm) 31

Sets

Rear PS 94V0 DECABROM
Jack Panel -

Eyelet Demand Yes

Other No

A3-7

DISASSEMBLY INSTRUCTIONS

1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS

1-1: BACK CABINET (Refer to Fig. 1-1)

1.

Remove the 6 screws 1.

2.

Remove the 2 screws 2.

3.

Remove the Back Cabinet in the direction of arrow.

Front Cabinet

1

1

1

2

1-2: CRT PCB (Refer to Fig. 1-2)
CAUTION: BEFORE REMOVING THE ANODE CAP,

DISCHARGE ELECTRICITY BECAUSE IT
CONTAINS HIGH VOLTAGE.
BEFORE ATTEMPTING TO REMOVE OR
REPAIR ANY PCB, UNPLUG THE POWER
CORD FROM THE AC SOURCE.

1.

Remove the Anode Cap.
(Refer to REMOVAL OF ANODE CAP)

2.

Disconnect the following connectors:
(CP603B, CP803 and CP805).

3.

Remove the CRT PCB in the direction of arrow.

Front Cabinet

1

1

2

1

Back Cabinet

Fig. 1-1

CRT PCB

1-3: TV/DVD/VCR BLOCK (Refer to Fig. 1-3)

1.

Remove the 2 screws 1.

2.

Disconnect the following connectors:
(CP303, CP404 and CP1704).

3.

Remove the TV/DVD/VCR Block in the direction of arrow.

Front Cabinet

1

1

TV/DVD/VCR Block

Fig. 1-3

1-4: VCR DECK (Refer to Fig. 1-4)
NOTE

Do not remove the cable at the FE Head section. The FE
Head may be damaged if you remove the cable by force.

1.

Remove the 2 screws 1.

2.

Remove the VCR Top.

3.

Remove the 2 screws 2.

4.

Remove the VCR Holder.

5.

Move the Cassette Holder Ass'y to the back side.

6.

Remove the 3 screws 3.

7.

Remove the 2 screws 4.

8.

Remove the Deck Shield Cover.

9.

Remove the screw 5.

10.

Remove the FE Head.

11.

Disconnect the following connectors:
(CP101, CP4501 and CP4502).

12.

Remove the VCR Deck in the direction of arrow.

3

4

Deck Shield Cover

5

FE Head

3

4

3

Fig. 1-2

B1-1

VCR Deck

1

VCR Top

1

2

2

VCR Holder

Bottom Plate

Fig. 1-4

DISASSEMBLY INSTRUCTIONS

1-5: VCR PCB (Refer to Fig. 1-5)

1.

Remove the 6 screws 1.

2.

Remove the screw 2.

3.

Remove the AV Jack Shield.

4.

Disconnect the following connectors:
(CP001, CP604, CP602B, CP2201, CP8001 and CP8002).

5.

Remove the VCR PCB in the direction of arrow.

1

1

1

AV Jack Shield

VCR PCB

1

1

1

Bottom Plate

2

Fig. 1-5

1-7: DVD PCB/DVD DECK (Refer to Fig. 1-7)

1.

Make the short circuit on the position as shown Fig. 1-7
using a soldering. If you remove the DVD Deck with no
soldering, the Laser may be damaged.

2.

Remove the 3 screws 1.

3.

Remove the DVD Top in the direction of arrow (A).

4.

Disconnect the following connectors:
(CP2001, CP2301 and CP2302).

5.

Remove the 4 screws 2.

6.

Remove the DVD Deck in the direction of arrow (B).

7.

Remove the 4 screws 3.

8.

Remove the DVD PCB in the direction of arrow (C).

NOTE

When the installation of the DVD Deck, remove all the
soldering on the short circuit position after the connection of
Pick Up PCB and DVD PCB connector.

1

DVD Top

DVD Deck

1

1

(A)

2

2

2

Pick Up PCB

1-6: VCR DECK (Refer to Fig. 1-6)

1.

Remove the 2 screws 1.

2.

Remove the DVD Shield.

3.

Remove the 4 screws 2.

4.

Remove the DVD Block in the direction of arrow (A).

5.

Remove the 2 screws 3.

6.

Remove the Operation PCB in the direction of arrow (B).

2

2

2

DVD Block

3

Operation PCB

2

(A)

3

(B)

DVD Shield

1

1

Bottom Plate

Fig. 1-6

2

Angle Deck

DVD PCB

3

(B)

(C)

3

3

Make the short circuit
using a soldering.

3

1-8: DEFLECTION PCB (Refer to Fig. 1-8)

1.

Remove the 2 screws 1.

2.

Remove the 3 screws 2.

3.

Remove the Deflection PCB in the direction of arrow.

1

2

1

2

2

Deflection PCB

Fig. 1-7

B1-2

Bottom Plate

Fig. 1-8

DISASSEMBLY INSTRUCTIONS

2. REMOVAL OF VCR DECK PARTS

2-1: TOP BRACKET (Refer to Fig. 2-1)

Extend the 2 supports 1.

1.

Slide the 2 supports 2 and remove the Top Bracket.

2.

NOTE

After the installation of the Top Bracket, bend the support

1.

1 so that the Top Bracket is fixed.

Top Bracket

1

Top Bracket

2

Main Chassis

2

Main Chassis

2-2: CASSETTE HOLDER ASS'Y (Refer to Fig. 2-2)

1.

Move the Cassette Holder Ass'y to the front side.

2.

Push the Locker R to remove the Cassette Side R.

3.

Remove the Cassette Side L.

Cassette Side R

Main Chassis

1

Locker R

Fig. 2-1

NOTE

In case of the Locker R installation, check if the one

1.
position of Fig. 2-3-B are correctly locked.
When you install the Cassette Side R, be sure to move

2.
the Locker R after installing.

Locker R

Check if this position

Cassette Side R

is locked.

2-4: LINK UNIT (Refer to Fig. 2-4)

1.

Set the Link Unit to the Eject position.

2.

Unlock the support 1.

3.

Remove the (A) side of the Link Unit first, then remove
the (B) side.

Main Chassis

Link Unit

Fig. 2-3-B

Link Unit

Cassette Side L

Main Chassis

2-3: CASSETTE SIDE L/R (Refer to Fig. 2-3-A)

1.

Remove the Locker Spring.

2.

Unlock the 4 supports 1 and then remove the Cassette
Side L/R.

3.

Unlock the support 2 and then remove the Locker R.

Locker Spring

1

1

2

Cassette Side R

Cassette Holder

Locker R

1

1

Cassette Side L

Fig. 2-2

(A)

(B)

Link Unit

Main Chassis

2-5: LINK LEVER/FLAP LEVER (Refer to Fig. 2-5)

1.

Extend the support 1.

2.

Remove the Link Lever.

3.

Remove the Flap Lever.

1

Flap Lever

Link Lever

Fig. 2-4

Fig. 2-5

Fig. 2-3-A

B2-1

DISASSEMBLY INSTRUCTIONS

2-6: LOADING MOTOR/WORM (Refer to Fig. 2-6-A)

1.

Remove the screw 1.

2.

Remove the Loading Motor.

3.

Remove the Worm.

Loading Motor

Worm

Main Chassis

• Screw Torque: 3 ± 0.5kgf•cm

1

Fig. 2-6-A

NOTE

1.

In case of the Worm installation, check if the value of the
Fig. 2-6-B is correct.

2.

In case of the Loading Motor installation, slacken the wire
as shown Fig. 2-6-C.

3.

When installing the wires between Capstan DD Unit and
Loading Motor, connect them correctly as shown Fig. 2-6-D.

19.2 ± 0.1mm

2-7: TENSION ASS’Y (Refer to Fig. 2-7-B)

1.

Turn the Pinch Roller Cam clockwise so that the Tension
Holder hook is set to the position of Fig. 2-7-A to move
the Tension Arm Ass’y.

2.

Remove the Tension Spring.

3.

Unlock the 2 supports 1 and remove the Tension Band.

4.

Unlock the support 2 and remove the Tension Arm Ass’y.

5.

Unlock the support 3 and remove the Tension Connect.

6.

Float the hook 4 and turn it clockwise then remove the
Tension Holder.

Tension Arm Ass’y

Fig. 2-7-A

1

Tension Connect

Tension Spring

2

4

1

3

Tension Holder

Tension Band

Tension Arm Ass’y

Loading Motor

Loading Motor

-

+

Safety surface for pressing
of the insert.

Slacken the wire.

Pink

White

Fig. 2-6-B

Fig. 2-6-C

Capstan DD Unit

L2

L1

Fig. 2-6-D

B2-2

Fig. 2-7-B

NOTE

1.

In case of the Tension Band installation, note the direc­tion of the installation. (Refer to Fig. 2-7-C)

2.

In case of the Tension Band installation, install correctly
as Fig. 2-7-D.

3.

In case of the Tension Connect installation, install as the
circled section of Fig. 2-7-E.

Tension Connect

Tension Band

Fig. 2-7-C

[OK]

[NG]

Tension Connect

Tension Connect

Tension Connect

DISASSEMBLY INSTRUCTIONS

NOTE

1.

Take care not to damage the gears of the S Reel and T

Tension Band

Tension Band

Fig. 2-7-D

Reel.

2.

The Polyslider Washer may be remained on the back of
the reel.

3.

Take care not to damage the shaft.

4.

Do not touch the section “A” of S Reel and T Reel. (Use
gloves.) (Refer to Fig. 2-9-A) Do not adhere the stains
on it.

5.

When you install the reel, clean the shaft and grease it.
(If you do not grease, noise may be heard in FF/REW
mode.)

6.

After installing the reel, adjust the height of the reel.

(Refer to MECHANICAL ADJUSTMENT)

Main Chassis

Fig. 2-7-E

2-8: T BRAKE ARM/T BRAKE BAND (Refer to Fig. 2-8-A)

Remove the T Brake Spring.

1.
Turn the T Brake Arm clockwise and bend the hook

2.
section to remove it.
Unlock the 2 supports 1 and remove the T Brake Band.

3.

T Brake Band

Hook section

1

1

T Brake Arm

T Brake Spring

Fig. 2-8-A

NOTE

1. In case of the T Brake Band installation, install correctly
as Fig. 2-8-B.

Idler Gear

Idler Arm Ass’y

S Reel

(A)

(B)

T Reel

1

(A)

1

Fig. 2-9-A

NOTE

1.2.In case of the S Reel and T Reel installation, check if the
correct parts are installed. (Refer to Fig. 2-9-B)
In case of the Idler Arm Ass’y installation, install correctly
as Fig. 2-9-C. And also set it so that the section “B” of
Fig. 2-9-A is placed under the Main Chassis tab.

[OK]

T Brake Band

[NG]

T Brake Band

T Brake Arm

T Brake Arm

2-9: S REEL/T REEL/IDLER ARM ASS’Y/IDLER GEAR

(Refer to Fig. 2-9-A)

1.

Remove the S Reel and T Reel.

2.

Remove the 2 Polyslider Washers 1.

3.

Remove the Idler Arm Ass’y and Idler Gear.

Fig. 2-8-B

B2-3

[OK]

[NG]

Clutch Gear

Clutch Gear

Big Hole
(S Reel)

Small Hole
(T Reel)

Fig. 2-9-B

Idler Arm Ass’y

Idler Arm Ass’y

Fig. 2-9-C

DISASSEMBLY INSTRUCTIONS

2-10: CASSETTE OPENER/PINCH ROLLER BLOCK/P5

ARM ASS’Y (Refer to Fig. 2-10-A)

1.2.Unlock the support 1 and remove the Cassette Opener.
Remove the Pinch Roller Block and P5 Arm Ass’y.

1

Cassette Opener

Pinch Roller Block

P5 Arm Ass’y

Main Chassis

Fig. 2-10-A

NOTE

1.2.Do not touch the Pinch Roller. (Use gloves.)
In case of the Pinch Roller Block and the Pinch Roller
Cam installation, install correctly as Fig. 2-10-B.

Pinch Roller Block

P5 Arm Ass’y

Can be seen the hole of the
Main Cam.

Can be seen the hole of
the Pinch Roller Cam.

Fig. 2-10-B

2-11: A/C HEAD (Refer to Fig. 2-11-A)

1.

Remove the screw 1.

2.

Remove the A/C Head Base.

3.

Remove the 3 screws 2.

4.

Remove the A/C Head and A/C Head Spring.

NOTE

1.

Do not touch the A/C Head. (Use gloves.)

2.

When you install the A/C Head Spring, install as shown in
Fig. 2-11-B.

3.

When you install the A/C Head, tighten the screw (1) first,
then tighten the screw (2), finally tighten the screw (3).

(3)

(1)

2

2

(2)

2

A/C Head

Spring Position

Fig. 2-11-B

2-12: FE HEAD (RECORDER ONLY) (Refer to Fig. 2-12)

1.2.Remove the screw 1.
Remove the FE Head.

1

FE Head

• Screw Torque: 5 ± 0.5kgf•cm

• The FE Head is not installed on the Video Cassette Player.

Fig. 2-12

2-13: AHC ASS'Y/CYLINDER UNIT ASS'Y

(Refer to Fig. 2-13)

Unlock the support 1 and remove the AHC Ass'y.

1.
Disconnect the following connector: (CD2001)

2.
Remove the 3 screws 2.

3.
Remove the Cylinder Unit Ass'y.

4.

NOTE

When you install the Cylinder Unit Ass'y, tighten the

1.
screws from (1) to (3) in order while pulling the Ass'y
toward the left front direction.

Cylinder Unit Ass'y

AHC Ass'y

1

A/C Head Spring

1

A/C Head Base

• Screw Torque: 5 ± 0.5kgf•cm (Screw 1)

Fig. 2-11-A

B2-4

(1)

• Screw Torque: 3 ± 0.5kgf•cm

(3)

(2)

2

2

2

Fig. 2-13

DISASSEMBLY INSTRUCTIONS

2-14: CAPSTAN DD UNIT (Refer to Fig. 2-14-A)

1.

Remove the Capstan Belt.

2.

Remove the 3 screws 1.

3.

Remove the Capstan DD Unit.

Capstan Belt

Capstan DD Unit

1

1

1

• Screw Torque: 4 ± 0.5kgf•cm

Fig. 2-14-A

NOTE

1. In case of the Capstan DD Unit installation, apply the
silicon bond (TSE3843-W) on the position Fig. 2-14-B
correctly. (If no silicon bond applied, abnormal noise will
be heard on the deck operation.)

(Refer to Fig. 2-14-B, C)

Applied position of
silicon bond

2-15: MAIN CAM/PINCH ROLLER CAM/JOINT GEAR

(Refer to Fig. 2-15-A)

1.2.Remove the E-Ring 1, then remove the Main Cam.
Remove the E-Ring 2, then remove the Pinch Roller
Cam and Joint Gear.

1

Main Cam

2

Pinch Roller Cam

Joint Gear

Fig. 2-15-A

NOTE

1. In case of the Pinch Roller Cam and Main Cam installa­tion, install them as the circled section of Fig. 2-15-B so
that the each markers are met. (Refer to Fig. 2-15-B)
And also can be seen the Main Chassis hole through the
Main Cam maker hole.

Pinch Roller Cam

Marker

Main Cam

Be careful not to apply the silicon
bond to the Pinch Roller.

Silicon Bond

Capstan DD Unit

Main Chassis

Fig. 2-14-B

Fig. 2-14-C

2-16: LOADING GEAR S/T UNIT (Refer to Fig. 2-16-A)

1.2.Remove the E-Ring 1 and remove the Main Loading
Gear.
Remove the Main Rod, Tension Lever, Loading Arm S
Unit and Loading Arm T Unit.

1

Main Rod

Tension Lever

Main Loading Gear

Loading Arm S Unit

B2-5

Fig. 2-15-B

Loading Arm T Unit

Fig. 2-16-A

DISASSEMBLY INSTRUCTIONS

NOTE

1. When you install the Loading Arm S Unit, Loading Arm T
Unit and Main Loading Gear, align each marker. (Refer

to Fig. 2-16-B)

Marker

Main Loading Gear

Marker

Loading Arm T Unit Loading Arm S Unit

Fig. 2-16-B

2-17: CLUTCH ASS’Y/RING SPRING/CLUTCH LEVER/

CLUTCH GEAR (Refer to Fig. 2-17-A)

1.

Remove the Polyslider Washer 1.

2.

Remove the Clutch Ass’y and Ring Spring.

3.

Remove the Clutch Lever.

4.

Remove the Coupling Gear, Coupling Spring and Clutch
Gear.

1

Clutch Ass’y

Ring Spring

Coupling Gear

Coupling Spring

Clutch Gear

Clutch Lever

2-18: CASSETTE GUIDE POST/INCLINED BASE S/T

UNIT/P4 CAP (Refer to Fig. 2-18-A)

1.

Remove the P4 Cap.

2.

Unlock the support 1 and remove the Cassette Guide
Post.

3.

Remove the Inclined Base S/T Unit.

4.

Remove the screw 2.

5.

Remove the LED Reflector.

Cassette Guide Post

Inclined Base T
Unit

P4 Cap

2

Fig. 2-18-A

Inclined Base S
Unit

LED Reflector

• Screw Torque: 5 ± 0.5kgf•cm

1

NOTE

1.

Do not touch the roller of Guide Roller.

2.

In case of the P4 Cap installation, install it with parallel
for “A” and “B” of Fig. 2-18-B.

3.

In case of the Cassette Guide Post installation, install
correctly as the circled section of Fig. 2-18-C.

“A”

“B”

NOTE

1. In case of the Clutch Ass’y installation, install it with
inserting the spring of the Clutch Ass’y into the dent of the
Coupling Gear. (Refer to Fig. 2-17-B)

Coupling Gear

Clutch Ass’y

Fig. 2-17-A

Fig. 2-17-B

B2-6

P4 Cap

[OK]

Cassette Guide Post

[NG]

Cassette Guide Post

Cassette Opener

Fig. 2-18-B

Fig. 2-18-C

DISASSEMBLY INSTRUCTIONS

3. REMOVAL OF DVD DECK PARTS

NOTE

1. Do not disassemble the DVD DECK PARTS except listed
parts here. Minute adjustments are needed if the disas­semble is done. If the repair is needed except listed parts,
replace the DVD MECHA ASS’Y.

3-1: TRAY (Refer to Fig. 3-1-A)

1.2.Set the Tray opened. (Refer to the DISC REMOVAL
METHOD AT NO POWER SUPPLY)

Unlock the support 1 and remove the Tray.

Tray

NOTE

1. In case of the Tray installation, install them as the circled
section of Fig. 3-1-B so that the each markers are met.

1

Main Frame Ass’y

Fig. 3-1-A

Tray

Main Chassis Ass’y

Rack Loading

Move it to the direction
of the arrow.

1

Main Frame Ass’y

2

3

5

6

4

6

Check Lock

4

Fig. 3-2-B

3-3: RACK LOADING/MAIN GEAR/ RACK LOADING

SPRING/ RACK L SPRING (Refer to Fig. 3-3)

1.

Remove the Rack L Spring.

2.

Press down the catcher 1 and slide the Rack Loading.

3.

Remove the Rack Loading, Rack Loading Spring and
Main Gear.

Rack Loading

Rack Loading Spring

Rack L Spring

Main Gear

5

Main Frame Ass’y

Fig. 3-1-B

3-2: MAIN CHASSIS ASS’Y (Refer to Fig. 3-2-A)

1.

Remove the Main Chassis Ass’y from the Insulator (R).

2.

Unlock the support 1.

3.

Remove the Main Chassis Ass’y.

Insulator (R)
(Green)

Main Frame Ass’y

Main Chassis Ass’y

1

Fig. 3-2-A

NOTE

1. In case of the Main Chassis Ass’y, install it from (1) to (6)
in order. (Refer to Fig. 3-2-B)

1

3-4: CLAMPER ASS’Y/INSULATOR(R)/LEVER SWITCH

(Refer to Fig. 3-4-A)

1.

Remove the screw 1.

2.

Remove the Lever Switch.

3.

Remove the 2 Insulator (R).

4.

Press the Clamper and rotate the Clamper Plate clockwise,
then unlock the 3 supports 2.

5.

Remove the Clamper Plate, Clamper Magnet and Clamper.

Insulator (R)

Clamper Plate

Clamper Magnet

Lever Switch

(Green)

2

1

2

2

Insulator (R)
(Green)

Clamper

B3-1

Main Frame Ass’y

Fig. 3-3

Main Frame

Fig. 3-4-A

DISASSEMBLY INSTRUCTIONS

NOTE

1.

When installing the Clamper Magnet, install it with the
green face up.

2.

When installing the wire of the Lever Switch, install it
correctly as Fig. 3-4-B.

3.

When installing the Lever Switch, install it correctly as
Fig. 3-4-C.

4.

In case of the Lever Switch installation, hook the wire on
the Main Frame as shown Fig. 3-4-D.

Lever Switch

Red

White

Blue

From DVD PCB

Fig. 3-4-B

The Lever should be position
between A and B.

Rack Loading

A

B

Fig. 3-4-C

Main Chassis Ass'y

Traverse Holder

Fig. 3-5-B

3-6: SWITCH PCB ASS'Y (Refer to Fig. 3-6-A)

Remove the screw 1.

1.
Remove the Switch PCB Ass'y.

2.

1

Switch PCB Ass'y

Main Chassis Ass'y

• Screw Torque: 4 ± 0.5kgf•cm

Fig. 3-6-A

NOTE

1.2.When installing the wire of the Switch PCB, install it
correctly as Fig. 3-6-B.
When installing the wire of the Switch PCB, while
pressing it in the direction of the arrow as shown Fig. 3-6­B, then instal it.

Lever Switch

Fig. 3-4-D

3-5: TRAVERSE HOLDER/INSULATOR (F)

(Refer to Fig. 3-5-A)

1.2.Remove the Traverse Holder.
Remove the 2 Insulator (F).

Main Chassis Ass’y

Insulator (F)
(Black)

Traverse Holder

Insulator (F)
(Black)

Fig. 3-5-A

NOTE

1. After the installing of the Traverse Holder, check if the
wire is like Fig. 3-5-B.

Switch PCB Ass'y

Main Chassis Ass'y

3-7: RACK FEED ASS'Y (Refer to Fig. 3-7-A)

Remove the screw 1.

1.
Remove the Rack Feed 1/2 Spring, Rack Feed 1/2 and

2.
Rack Feed Lever.

1

Rack Feed 1 Spring

Rack Feed 2 Spring

Rack Feed Lever

Rack Feed 1

• Screw Torque: 3.5 ± 0.5kgf•cm

B3-2

Black

From Relay PCB

White

Rack Feed 2

Main Chassis Ass'y

Fig. 3-6-B

Fig. 3-7-A

DISASSEMBLY INSTRUCTIONS

NOTE

1.2.After the assembly of the Rack Feed, check if the Rack
Feed 1/2 is moving smoothly. (Refer to Fig. 3-7-B)
In case of the Rack Feed Ass’y installation, install cor­rectly as Fig. 3-7-C.

Moving smoothly

Moving smoothly

Check the position of
the Rack Feed Lever.

Should not be engaged.

Fig. 3-7-B

Fig. 3-7-C

3-8: RELAY PCB ASS’Y (Refer to Fig. 3-8-A)

1.2.Remove the screw 1.
Remove the Relay PCB Ass’y.

3-9: GEAR (Refer to Fig. 3-9-A)

1.2.Unlock the support 1.
Remove the Middle Gear 1/2/3, Idler Gear and Feed Gear.

Middle Gear 2

Middle Gear 1

Middle Gear 3

Idler Gear

Main Chassis Ass’y

Feed Gear

Fig. 3-9-A

NOTE

1.2.In case of the Idler Gear installation, install correctly as
Fig. 3-9-B.
When installing the Middle Gear 2, check if the Middle
Gear 2 is locked correctly as Fig. 3-9-C.

[OK]

Idler Gear

[NG]

Idler Gear

Main Chassis Ass’y

Relay PCB Ass’y

• Screw Torque: 4 ± 0.5kgf•cm 1

Fig. 3-8-A

NOTE

1. When installing the wire of the Relay PCB, install it
correctly as Fig. 3-8-B.

Idler Arm

Check Lock

Middle Gear 2

Idler Arm

3-10: IDLER ARM (Refer to Fig. 3-10-A)

1.

Remove the Idler Arm Spring.

2.

Remove the Chassis Spring.

3.

Remove the Idler Arm.

Idler Arm Spring

Idler Arm

Fig. 3-9-B

Fig. 3-9-C

Fig. 3-8-B

Main Chassis Ass’y

Chassis Spring

Fig. 3-10-A

B3-3

DISASSEMBLY INSTRUCTIONS

NOTE

1.

In case of the Idler Arm installation, install as the circled
section of Fig. 3-10-B.

2.

In case of the Idler Arm Spring installation, install as the
circled section of Fig. 3-10-C.

3.

In case of the Chassis Spring installation, install as the
circled section of Fig. 3-10-D.

Idler Arm

Main Chassis Ass’y

Fig. 3-10-B

Idler Arm Spring

11

Main Chassis Ass’y

Motor Gear

Feed Motor

• Screw Torque: 1 ± 0.5kgf•cm

Fig. 3-11-A

NOTE

1.2.In case of the Motor Gear installation, check if the value
of the Fig. 3-11-B is correct.
When installing the Feed Motor, check if the cable is
positioned as Fig. 3-11-C.

Motor Gear

Feed Motor

6.1 ± 0.1mm

Main Chassis Ass’y

Main Chassis Ass’y

3-11: FEED MOTOR (Refer to Fig. 3-11-A)

1.

Remove the 2 screws 1.

2.

Remove the Feed Motor.

3.

Remove the Motor Gear.

Fig. 3-10-C

Chassis Spring

Fig. 3-10-D

Safety surface for pressing
of the insert.

Main Chassis Ass’y

Pass the cable
between 2 pins.

Fig. 3-11-B

Feed Motor

Fig. 3-11-C

B3-4

DISASSEMBLY INSTRUCTIONS

4. REMOVAL OF ANODE CAP

Read the following NOTED items before starting work.

After turning the power off there might still be a potential

*

voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.

*

Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.

REMOVAL

1. Follow the steps as follows to discharge the Anode Cap.

(Refer to Fig. 4-1.)

Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.

GND on the CRT

3. After one side is removed, pull in the opposite direction to
remove the other.

NOTE

Take care not to damage the Rubber Cap.

INSTALLATION

1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 4-3.)

NOTE

Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.

Location of Anode Cap

Fig. 4-3

Screwdriver

Alligator Clip

GND on the CRT

Flip up the sides of the Rubber Cap in the direction of the

2.
arrow and remove one side of the support.

(Refer to Fig. 4-2.)

Rubber Cap

Support

CRT

Fig. 4-1

2.3.Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 4-4.)

Fig. 4-4

4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 4-5.

CRT

Support

Fig. 4-2

Support

CRT

5.6.Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.

B4-1

Fig. 4-5

DISASSEMBLY INSTRUCTIONS

5.

REMOVAL AND INSTALLATION OF FLAT
PACKAGE IC

REMOVAL

Put the Masking Tape (cotton tape) around the Flat

1.
Package IC to protect other parts from any damage.

(Refer to Fig. 5-1.)
NOTE

Masking is carried out on all the parts located within 10
mm distance from IC leads.

When IC starts moving back and forth easily after

3.
desoldering completely, pickup the corner of the IC using a
tweezers and remove the IC by moving with the IC
desoldering machine. (Refer to Fig. 5-3.)

NOTE

Some ICs on the PCB are affixed with glue, so be
careful not to break or damage the foil of each IC leads
or solder lands under the IC when removing it.

Blower type IC
desoldering
machine

Masking Tape
(Cotton Tape)

Heat the IC leads using a blower type IC desoldering

2.

IC

machine. (Refer to Fig. 5-2.)

NOTE

Do not add the rotating and the back and forth
directions force on the IC, until IC can move back and
forth easily after desoldering the IC leads completely.

Blower type IC
desoldering machine

Fig. 5-1

Tweezers

IC

Peel off the Masking Tape.4.
Absorb the solder left on the pattern using the Braided

5.
Shield Wire. (Refer to Fig. 5-4.)

NOTE

Do not move the Braided Shield Wire in the vertical
direction towards the IC pattern.

Fig. 5-3

IC

Fig. 5-2

B5-1

Braided Shield Wire

IC pattern

Soldering Iron

Fig. 5-4

DISASSEMBLY INSTRUCTIONS

INSTALLATION

Take care of the polarity of new IC and then install the new

1.
IC fitting on the printed circuit pattern. Then solder each
lead on the diagonal positions of IC temporarily.

(Refer to Fig. 5-5.)

Soldering Iron

Solder temporarily

Supply the solder from the upper position of IC leads

2.
sliding to the lower position of the IC leads.
(Refer to Fig. 5-6.)

Solder temporarily

Fig. 5-5

When bridge-soldering between terminals and/or the

4.
soldering amount are not enough, resolder using a Thin-tip
Soldering Iron. (Refer to Fig. 5-8.)

Thin-tip Soldering Iron

IC

Fig. 5-8

Finally, confirm the soldering status on four sides of the IC

5.
using a magnifying glass.
Confirm that no abnormality is found on the soldering
position and installation position of the parts around the IC.
If some abnormality is found, correct by resoldering.

NOTE

When the IC leads are bent during soldering and/or
repairing, do not repair the bending of leads. If the
bending of leads are repaired, the pattern may be
damaged. So, be always sure to replace the IC in this
case.

Soldering IronSolder

IC

Supply soldering
from upper position
to lower position

Fig. 5-6

Absorb the solder left on the lead using the Braided Shield

3.
Wire. (Refer to Fig. 5-7.)

NOTE

Do not absorb the solder to excess.

Soldering Iron

IC

Braided Shield Wire

Fig. 5-7

B5-2

A

A/C
ACC
AE
AFC
AFT
AFT DET
AGC
AMP
ANT
A.PB
APC
ASS'Y
AT
AUTO
A/V

B

BGP
BOT
BPF
BRAKE SOL
BUFF
B/W

C

C
CASE
CAP
CARR
CH
CLK
CLOCK (SY-SE)
COMB
CONV
CPM
CTL
CYL
CYL-M
CYL SENS

D

DATA (SY-CE)
dB
DC
DD Unit
DEMOD
DET
DEV

E

E
EF
EMPH
ENC
ENV
EOT
EQ
EXT

F

F
FBC
FE
FF
FG
FL SW
FM
FSC
FWD

G

GEN
GND

KEY TO ABBREVIATIONS

:

Audio/Control

:

Automatic Color Control

:

Audio Erase

:

Automatic Frequency Control

:

Automatic Fine Tuning

:

Automatic Fine Tuning Detect

:

Automatic Gain Control

:

Amplifier

:

Antenna

:

Audio Playback

:

Automatic Phase Control

:

Assembly

:

All Time

:

Automatic

:

Audio/Video

:

Burst Gate Pulse

:

Beginning of Tape

:

Bandpass Filter

:

Brake Solenoid

:

Buffer

:

Black and White

:

Capacitance, Collector

:

Cassette

:

Capstan

:

Carrier

:

Channel

:

Clock

:

Clock (Syscon to Servo)

:

Combination, Comb Filter

:

Converter

:

Capstan Motor

:

Control

:

Cylinder

:

Cylinder-Motor

:

Cylinder-Sensor

:

Data (Syscon to Servo)

:

Decibel

:

Direct Current

:

Direct Drive Motor Unit

:

Demodulator

:

Detector

:

Deviation

:

Emitter

:

Emitter Follower

:

Emphasis

:

Encoder

:

Envelope

:

End of Tape

:

Equalizer

:

External

:

Fuse

:

Feed Back Clamp

:

Full Erase

:

Fast Forward, Flip-flop

:

Frequency Generator

:

Front Loading Switch

:

Frequency Modulation

:

Frequency Sub Carrier

:

Forward

:

Generator

:

Ground

H

H.P.F
H.SW
Hz

I

IC
IF
IND
INV

K

KIL

L

L
LED
LIMIT AMP
LM, LDM
LP
L.P.F
LUMI.

M

M
MAX
MINI
MIX
MM
MOD
MPX
MS SW

N

NC
NR

O

OSC
OPE

P

PB
PB CTL
PB-C
PB-Y
PCB
P. CON
PD
PG
P-P

R

R
REC
REC-C
REC-Y
REEL BRK
REEL S
REF
REG
REW
REV, RVS
RF
RMC
RY

S

S. CLK
S. COM
S. DATA
SEG
SEL
SENS
SER
SI
SIF
SO
SOL
SP

:

High Pass Filter

:

Head Switch

:

Hertz

:

Integrated Circuit

:

Intermediate Frequency

:

Indicator

:

Inverter

:

Killer

:

Left

:

Light Emitting Diode

:

Limiter Amplifier

:

Loading Motor

:

Long Play

:

Low Pass Filter

:

Luminance

:

Motor

:

Maximum

:

Minimum

:

Mixer, mixing

:

Monostable Multivibrator

:

Modulator, Modulation

:

Multiplexer, Multiplex

:

Mecha State Switch

:

Non Connection

:

Noise Reduction

:

Oscillator

:

Operation

:

Playback

:

Playback Control

:

Playback-Chrominance

:

Playback-Luminance

:

Printed Circuit Board

:

Power Control

:

Phase Detector

:

Pulse Generator

:

Peak-to Peak

:

Right

:

Recording

:

Recording-Chrominance

:

Recording-Luminance

:

Reel Brake

:

Reel Sensor

:

Reference

:

Regulated, Regulator

:

Rewind

:

Reverse

:

Radio Frequency

:

Remote Control

:

Relay

:

Serial Clock

:

Sensor Common

:

Serial Data

:

Segment

:

Select, Selector

:

Sensor

:

Search Mode

:

Serial Input

:

Sound Intermediate Frequency

:

Serial Output

:

Solenoid

:

Standard Play

C1-1

S

STB
SW
SYNC
SYNC SEP

T

TR
TRAC
TRICK PB
TP

U

UNREG

V

V
VCO
VIF
VP
V.PB
VR
V.REC
VSF
VSR
VSS
V-SYNC
VT

X

X'TAL

Y

Y/C

KEY TO ABBREVIATIONS

:

Serial Strobe

:

Switch

:

Synchronization

:

Sync Separator, Separation

:

Transistor

:

Tracking

:

Trick Playback

:

Test Point

:

Unregulated

:

Volt

:

Voltage Controlled Oscillator

:

Video Intermediate Frequency

:

Vertical Pulse, Voltage Display

:

Video Playback

:

Variable Resistor

:

Video Recording

:

Visual Search Fast Forward

:

Visual Search Rewind

:

Voltage Super Source

:

Vertical-Synchronization

:

Voltage Tuning

:

Crystal

:

Luminance/Chrominance

C1-2

SERVICE MODE LIST

This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter SERVICE MODE, unplug AC cord till lost actual clock time. Then press and hold Vol (-) button of main unit and remocon
key simultaneously.
The both pressing of set key and remote control key will not be possible if clock has been set. To reset clock, either unplug AC
cord and allow at least 5 seconds before Power On.

Set Key Remocon Key Operations

VOL. (-) MIN

VOL. (-) MIN 1

VOL. (-) MIN 2

VOL. (-) MIN

VOL. (-) MIN 4

VOL. (-) MIN

VOL. (-) MIN 6

0

3

5

Standard Time

(seconds)

2

2

2

2

2

2

2

Releasing of V-CHIP PASSWORD.
Initialization of the factory.

NOTE:

Horizontal position adjustment of OSD.
NOTE: Also can be adjusted by using the Adjustment MENU.
Refer to the "ELECTRICAL ADJUSTMENT" (OSD HORIZONTAL).

Adjust the PG SHIFTER automatically.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).

Adjust the PG SHIFTER manually.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).

Adjusting of the Tracking to the center position.
POWER ON total hours and PLAY/REC total hours are displayed on the

screen.
Refer to the "PREVENTIVE CHECKS AND SERVICE INTERVALS"
(CONFIRMATION OF HOURS USED).

Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".

Do not use this for the normal servicing.
If you set a factory initialization, the memories are reset such as the
clock setting, the channel setting, the POWER ON total hours, and
PLAY/REC total hours.

VOL. (-) MIN 9

REC/OTR 4 2

STOP (DVD) 7 3

STOP (DVD) 9 3

Set Key Set Key Operations

VOL. (-) MIN FF 2

2

Standard Time

(seconds)

Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).

Initialization of the factory on DVD.
NOTE:

Do not use this for the normal servicing.
The function will only work without the setting of DVD disc at DVD
mode.
While pressing the Remocon Key for more than the Standard Time,
press the Set Key simultaneously.

Releasing of PARENTAL LOCK.
Refer to the “PARENTAL CONTROL - RATING LEVEL”.
NOTE:

The function will only work without the setting of DVD disc at DVD
mode.

Tray cannot be opened.
Refer to the “TRAY LOCK”.
NOTE: No indications on the screen when the Tray Lock is setting.

The BOT, EOT, and the Reel Sensor do not work and the VCR deck can
be operated without a cassette tape.
Refer to the "PREPARATION FOR SERVICING"

C2-1

PREVENTIVE CHECKS AND SERVICE INTERVALS

The following standard table depends on environmental conditions and usage.
Parts replacing time does not mean the life span for individual parts.
Also, long term storage or misuse may cause transformation and aging of rubber parts.
The following list means standard hours, so the checking hours depends on the conditions.

Time

Parts Name

Audio Control Head

Full Erase Head

(Recorder only)

Capstan Belt

Pinch Roller

Capstan DD Unit

Loading Motor

Tension Band
T Brake Band

Clutch Ass’y

Idler Arm Ass’y

Capstan Shaft

Tape Running
Guide Post

Cylinder Unit

: Clean
: Check it and if necessary, replace it.

500

hours

1,000
hours

1,500
hours

2,000
hours

2,500
hours

Notes

Clean those parts in
contact with the tape.

Clean the rubber, and parts
which the rubber touches.

Replace when rolling
becomes abnormal.

Clean the Head

CONFIRMATION OF HOURS USED

POWER ON total hours and PLAY/REC total hours can be checked on the screen.
Total hours are displayed in 16 system of notation.

NOTE: If you set a factory initialization, the total hours is reset to "0".

The confirmation of using hours will not be possible if clock has been set. To reset clock, either unplug AC cord
and allow at least 5 seconds before Power On.

1.

Set the VOLUME to minimum.

2.

Press both VOL. DOWN button on the set and the Channel button (6) on the remote control for more than 2 seconds.

3.

After the confirmation of using hours, turn off the power.

INIT 00 0D

POWER ON 0010

PLAY/REC 0003

(16 x 16 x 16 x thousands digit value) + (16 x 16 x hundreds digit value) + (16 x tens digit value) + (ones digit value)

Initial setting content of MEMORY IC.

POWER ON total hours.
PLAY/REC total hours.

C3-1

PREVENTIVE CHECKS AND SERVICE INTERVALS

CLEANING

NOTE

After cleaning the heads with isopropyl alcohol, do not
run a tape until the heads dry completely. If the heads
are not completely dry and alcohol gets on the tape,
damage may occur.

1. AUDIO CONTROL HEAD

Clean the Audio Control Head with the cotton stick
soaked by alcohol. Clean the full erase head in the
same manner. (Refer to the figure below.)

2. TAPE RUNNING SYSTEM

When cleaning the tape transport system, use the
gauze moistened with isopropyl alcohol.

3. CYLINDER

Wrap a piece of chamois around your finger. Dip it in
isopropyl alcohol. Hold it to the cylinder head softly.
Turn the cylinder head counterclockwise to clean it (in
the direction of the arrow). (Refer to the figure below.)

NOTE

Do not exert force against the cylinder head. Do not move
the chamois upward or downward on the head.
Use the chamois one by one.

Audio Control Head

Cylinder Head

C3-2

WHEN REPLACING EEPROM (MEMORY) IC

If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.

NOTE: Initial Data setting will not be possible if clock has been set. To reset clock, either unplug AC cord and allow at

least 5 seconds before Power On.
No need setting for the position of the mark @ due to the adjustment value.
No need setting for after INI 3F due to the adjustment value..

+0 +1 +2 +3 +4 +5 +6 +7 +8 +9

0D 40 34 02 C3 DD 47 22 86 44

0F

40 E3 52 03 87 00 48 00 FF

10
20

9A 97 8C A5 B7 A1 91 B6 1A 0B

30 FF FF FF FF FF FF

01 31 19 40 00 @ @ 00 00 23

+A

+B +C +D +E +FINI

D0 08 A6 A0 86 3500

15 4B 1C 54 83 B2

3D 00 36 16 25 30

Table 1

Enter DATA SET mode by setting VOLUME to minimum.

1.

Press both VOL. DOWN button on the set and the Channel button (6) on the remote control for more than 2 seconds.

2.

ADDRESS and DATA should appear as FIG 1.

ADDRESS DATA

INIT 00 0D

POWER ON 0010

PLAY/REC 0003

Fig. 1

3.

ADDRESS is now selected and should "blink". Using the UP or DOWN button on the remote, step through the ADDRESS until
required ADDRESS to be changed is reached.

4.

Press ENTER to select DATA. When DATA is selected, it will "blink".

5.

Again, step through the DATA using UP or DOWN button until required DATA value has been selected.

6.

Pressing ENTER will take you back to ADDRESS for further selection if necessary.

7.

Repeat steps 3 to 6 until all data has been checked.

8.

When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.

After the data input, set to the initializing of shipping.

9.

Turn POWER on.

10.

Press both VOL. DOWN button on the set and the Channel button (1) on the remote control for more than 2 seconds.

11.

After the finishing of the initializing of shipping, the unit will turn off automatically.

The unit will now have the correct DATA for the new MEMORY IC.

C4-1

SERVICING FIXTURES AND TOOLS

Alignment Tape

Back tension cassette gauge

Torque cassette gauge

Taper nut driver

(KT-300NR)

ST-N5
ST-NF

70909103

70909199

70909228

VTR cleaning kit VTR lubrication kit Grease JG002B

JG002E
JG002F

JG022 Master Plane JG024A Reel Disk Height

Adjustment Jig

JG153 X Value Adjustment

Screwdriver

Tentelometer

Adapter
Dial Torque Gauge
(10~90gf•cm)
(60~600gf•cm)

Part No.Ref. No. Parts Name

JG002B
JG002E
JG002F

JG024A APJG024A00 Reel Disk Height Adjustment Jig Reel Disk Height Adjustment

JG153 APJG153000 X Value Adjustment Screwdriver X Value Adjustment

APJG002B00
APJG002E00

APJG002F00
APJG022000JG022 Master Plane Reel Disk Height Adjustment

Adapter
Dial Torque Gauge (10~90gf•cm)
Dial Torque Gauge (60~600gf•cm)

VSR Torque, Brake Torque (S Reel/T Reel Ass'y)
Brake Torque (T Reel Ass'y)
VSR Torque, Brake Torque (S Reel)

Remarks

PREPARATION FOR SERVICING

NOTE:

1.

2.

3.

The both pressing of set key and remote control key will not be possible if clock has been set. To reset clock,
either unplug AC cord and allow at least 5 seconds before Power On.

Set the VOLUME to minimum.
Press both VOL. DOWN button on the set and the FF button on the set for more than 2 seconds.
(The BOT, EOT, and the Reel Sensor do not work and the VCR deck can be operated without a cassette tape.)
In case of using a cassette tape, press the STOP/EJECT button to insert or eject a cassette tape.
Turn on the power and re-check the cable before checking the trouble points.

D1-1

MECHANICAL ADJUSTMENTS

1. CONFIRMATION AND ADJUSTMENT

Read the following NOTES before starting work.

• Place an object which weighs between 450g~500g on the

Cassette Tape to keep it steady when you want to make
the tape run without the Cassette Holder. (Do not place an
object which weighs over 500g.)

CONFIRMATION AND ADJUSTMENT OF REEL

1-1:

DISK HEIGHT

1.

Turn on the power and set to the STOP mode.

2.

Set the master plane (JG022) and reel disk height
adjustment jig (JG024A) on the mechanism framework,
taking care not to scratch the drum, as shown in Fig. 1-1-
A.

3.

While turning the reel and confirm the following points.
Check if the surface "A" of reel disk is lower than the
surface "B" of reel disk height adjustment jig (JG024A)
and is higher than the surface "C". If it is not passed,
place the height adjustment washers and adjust to 10(+2,

-0)mm.

4.

Adjust the other reel in the same way.

Master Plane (JG022)

Reel Disk Height Adjustment Jig
(JG024A)

1-2: CONFIRMATION AND ADJUSTMENT OF TENSION

POST POSITION

1.

Set to the PLAY mode.

2.

Adjust the adjusting section for the Tension Arm position
so that the Tension Arm top is within the standard line of
Main Chassis.

3.

While turning the S Reel clockwise, confirm that the edge
of the Tension Arm is located in the position described
above.

Standard line of Main Chassis

Tension Arm

0.5mm (Adjusting range)

Adjusting section for the
Tension Arm position

Tension Band

Fig. 1-2-A

Master Plane (JG022)

10(+0.2, -0)mm

Reel Disk

Height Adjustment
Washer

2.6x4.7xT0.13

2.6X4.7xT0.25

Reel Disk Height
Adjustment Jig
(JG024A)

(B)

(A)

Fig. 1-1-A

(C)

Fig. 1-1-B

The Tension Arm top will
move to the inside direction
of the Main Chassis.

Bend

The Tension Arm top will
move to the outside direction
of the Main Chassis.

Fig. 1-2-B

1-3: CONFIRMATION OF PLAYBACK TORQUE AND

BACK TENSION TORQUE DURING PLAYBACK

Load a video tape (T-120) recorded in standard speed

1.
mode. Set the unit to the PLAY mode.
Install the tentelometer as shown in Fig. 1-3. Confirm that

2.
the meter indicates 20 ± 2gf in the beginning of playback.

• USING A CASSETTE TYPE TORQUE TAPE (KT-300NR)

1.

After confirmation and adjustment of Tension Post
position (Refer to item 1-2), load the cassette type torque
tape (KT-300NR) and set to the PLAY mode.

2.

Confirm that the right meter of the torque tape indicates
50~90gf•cm during playback in SP mode.

3.

Confirm that the left meter of the torque tape indicates
25~40gf•cm during playback in SP mode.

Tentelometer

Video Tape

D2-1

P1 Post

Guide Roller

Fig. 1-3

MECHANICAL ADJUSTMENTS

1-4: CONFIRMATION OF VSR TORQUE

Install the Torque Gauge (JG002F) and Adapter (JG002B)

1.
on the S Reel. Set to the Picture Search (Rewind) mode.

(Refer to Fig.1-4-B)

Then, confirm that it indicates 120~180gf•cm.

2.

NOTE

Install the Torque Gauge on the reel disk firmly. Press the
REW button to turn the reel disk.

1-5: CONFIRMATION OF REEL BRAKE TORQUE

(S Reel Brake) (Refer to Fig. 1-4-B)

Once set to the Fast Forward mode then set to the Stop

1.
mode. While, unplug the AC cord when the Pinch Roller
Block is on the position of Fig. 1-4-A.
Move the Idler Ass'y from the S Reel.

2.
Install the Torque Gauge (JG002F) and Adapter

3.

(JG002B) on the S Reel. Turn the Torque Gauge
(JG002F) clockwise.

Then, confirm that it indicates 60~100gf•cm.

4.

(T Reel Brake) (Refer to Fig. 1-4-B)

Once set to the Fast Forward mode then set to the Stop

1.
mode. While, unplug the AC cord when the Pinch Roller
Block is on the position of Fig. 1-4-A.
Move the Idler Ass'y from the T Reel.

2.
Install the Torque Gauge (JG002E) and Adapter

3.

(JG002B) on the T reel. Turn the Torque Gauge
(JG002E) counterclockwise.

Then, confirm that it indicates 30~50gf•cm.

4.

The position at FF mode.

Pinch Roller Block

Stop at this position.

Cassette

The position at
STOP mode.

Capstan DD Unit

Cassette Holder Ass'y

Opener

Fig. 1-4-A

NOTE

If the torque is out of the range, replace the following parts.

Check item

1-4
1-5

S Reel side:

Replacement Part

Idler Ass'y/Clutch Ass'y

S Reel/Tension Band/Tension
Connect/Tension Arm Ass'y

T Reel side:

T Reel/T Brake Band//T Brake
Spring/T Brake Arm

2. CONFIRMATION AND ADJUSTMENT
OF TAPE RUNNING MECHANISM

Tape Running Mechanism is adjusted precisely at the
factory. Adjustment is not necessary as usual. When you
replace the parts of the tape running mechanism because of
long term usage or failure, the confirmation and adjustment
are necessary.

2-1: GUIDE ROLLER

Playback the VHS Alignment Tape.

1.

Connect CH-1 of the oscilloscope to TP4501 (Envelope)

2.

and CH-2 to TP102 (SW Pulse).
Press both VOL. DOWN button on the set and the

3.

Channel button (5) on the remote control for more than 2
seconds to set tracking to center.
Trigger with SW Pulse and observe the envelope. (Refer

4.

to Fig. 2-1-A)

When observing the envelope, adjust the Taper Nut Driver

5.

slightly until the envelope will be flat.
Even if you press the Tracking Button, adjust so that
flatness is not moved so much.
Adjust so that the A : B ratio is better than 3 : 2 as shown

6.

in Fig. 2-1-B, even if you press the Tracking Button to
move the envelope (The envelope waveform will begin to
decrease when you press the Tracking Button).
Adjust the PG shifter during playback.

7.

(Refer to the ELECTRICAL ADJUSTMENTS)

NOTE

After adjustment, confirm and adjust A/C head.

(Refer to item 2-2)

Torque Gauge/Adapter
(JG002F/JG002B)

Torque Gauge/Adapter
(JG002E/JG002B)

S Reel

T Reel

Fig. 1-4-B

D2-2

CH-1
Envelope
(TP4501)

CH-2
SW Pulse (TP102)

Entrance

Max

A

CH-1
Track

B

A : B ≥ 3 : 2

CH-2
Track

Fig. 2-1-A

Exit

Max

Fig. 2-1-B

MECHANICAL ADJUSTMENTS

CONFIRMATION AND ADJUSTMENT OF AUDIO/
CONTROL HEAD

When the Tape Running Mechanism does not work well,
adjust the following items.

1.

Playback the VHS Alignment Tape.

2.

Confirm that the reflected picture of stamp mark is
appeared on the tape prior to P4 Cap as shown in Fig. 2-
2-A.

When the reflected picture is distorted, turn the screw

a)

1 clockwise until the distortion is disappeared.
When the reflected picture is not distorted, turn the

b)

screw 1 counterclockwise until little distortion is
appeared, then adjust the a).

3.

Turn the screw 2 to set the audio level to maximum.

4.

Confirm that the bottom of the Audio/ Control Head and
the bottom of the tape is shown in Fig. 2-2-C.

When the height is not correct, turn the screw 3 to

c)

adjust the height. Then, adjust the 1~3 again.

Audio/Control Head

Reflected picture of
Stamp Mark

P4 Cap

TAPE RUNNING ADJUSTMENT

2-3:2-2:

(X VALUE ADJUSTMENT)

Confirm and adjust the height of the Reel Disk.

1.

(Refer to item 1-1)

Confirm and adjust the position of the Tension Post.

2.

(Refer to item 1-2)

Adjust the Guide Roller. (Refer to item 2-1)

3.

Confirm and adjust the Audio/Control Head.

4.

(Refer to item 2-2)

Connect CH-1 of the oscilloscope to TP102, CH-2 to

5.

TP4501 and CH-3 to HOT side of Audio Out Jack.
Playback the VHS Alignment Tape.

6.

Press both VOL. DOWN button on the set and the

7.

Channel button (5) on the remote control for more than 2
seconds to set tracking to center.
Set the X Value adjustment driver (JG153) to the 4 of

8.

Fig. 2-2-B. Adjust X value so that the envelope waveform
output becomes maximum. Check if the relation between
Audio and Envelope waveform becomes (1) or (2) of Fig.
2-3.

Envelope

Audio/Control Head

3

2

Audio/Control Head

Tape

Stamp Mark

(1)
CH-3
Audio

(2)

Fig. 2-3

Fig. 2-2-A

1

4

Fig. 2-2-B

0.25±0.05mm

Fig. 2-2-C

D2-3

MECHANICAL ADJUSTMENTS

3. MECHANISM ADJUSTMENT PARTS LOCATION GUIDE

3

4

5

6

2

1

8910

1. Tension Connect

2. Tension Arm

3. Guide Roller

4. Audio/Control Head

5. X value adjustment driver hole

6.

P4 Post

7.

T Brake Spring

8.

T Reel

9.

S Reel

10.

Adjusting section for the Tension Arm position

7

D2-4

ELECTRICAL ADJUSTMENTS

1.

BEFORE MAKING ELECTRICAL
ADJUSTMENTS

Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.

CAUTION

•

Use an isolation transformer when performing any service
on this chassis.

•

Before removing the anode cap, discharge electricity
because it contains high voltage.

•

When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.

•

When you exchange IC and Transistor for a heat sink,
apply the silicon grease on the contact section of the heat
sink. Before applying new silicon grease, remove all the old
silicon grease. (Old grease may cause damages to the IC
and Transistor).

Prepare the following measurement tools for electrical
adjustments.

1. Oscilloscope

2. Digital Voltmeter

3. Multi-sound Generator

4. Pattern Generator

On-Screen Display Adjustment

Unplug the AC plug for more than 5 seconds to set the

1.
clock to the non-setting state. Then, set the volume level
to minimum.
Press the VOL. DOWN button on the set and the

2.
Channel button (9) on the remote control for more than 2
seconds to appear the adjustment mode on the screen as
shown in Fig. 1-1.

TV

00 OSD 9

Fig. 1-1

FUNCTION

NO.

00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19

OSD H
OSD C
CUT OFF
H.POSI
H.BLK L
H.BLK R
V.SIZE
V.POSI
V.LIN
VS.CORR
V.COMP
R.BIAS
G.BIAS
B.BIAS
R.DRV
G.DRV
B.DRV
BRI CENT
BRI MAX
BRI MIN

NO.

20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
88

FUNCTION

CONT CENT
CONT MAX
CONT MIN
COL CENT
COL MAX
COL MIN
TINT
SHARP
SUB BIAS
H.SIZE
PARABOLA
TRAPEZIUM
COR TOP
COR BTM
H.COMP
T.STE
X-RAY
H.STOP
H.FREQ
READ DATA

Fig. 1-2

2. BASIC ADJUSTMENTS
(VCR SECTION)

2-1: PG SHIFTER

1.

Connect CH-1 on the oscilloscope to TP102 and CH-2 to
TP4201.

2.

Playback the alignment tape.

3.

Press both VOL. DOWN button on the set and the
Channel button (5) on the remote control for more than 2
seconds to set tracking to center.

4.

Press the VOL. DOWN button on the set and the channel
button (3) on the remote control for more than 2 seconds
until the indicator REC disappears. If the indicator REC
disappears, adjustment is completed.

(If the above adjustments doesn't work well:)

5.6.Press the VOL. DOWN button on the set and the channel
button (3) on the remote control for more than 2 seconds
until the indicator REC disappears.
When the REC indicator is blinking, press both VOL.
DOWN button on the set and the channel button (4) on
the remote control for more than 2 seconds and adjust
the Tracking +/- button until the arising to the down of
Head Switching Pulse becomes 6.5 ± 0.5H.

(Refer to Fig. 2-1-A, B)

Use the Channel UP/DOWN button or Channel button (0-

3.

9) on the remote control to select the options shown in
Fig. 1-2.

Press the MENU button on the remote control to end the

4.
adjustments.

CH-2

6.5H
CH-1

Fig. 2-1-A

CH-2

CH-1

6.5H

Fig. 2-1-B

D3-1

ELECTRICAL ADJUSTMENTS

(TV SECTION)

2-2: CONSTANT VOLTAGE

1.

Set condition is AV MODE without signal.

2.

Using the remote control, set the brightness and contrast
to normal position.

3.

Connect the digital voltmeter to TP401.

4.

Adjust the VR1701 until the digital voltmeter is 114 ± 0.5V.

2-3: CUT OFF

1.

Adjust the unit to the following settings.
R.BIAS=127, G.BIAS=127, B.BIAS=127, R.DRV=63,
G.DRV=07, B.DRV=63,

2.

Place the set with Aging Test for more than 15 minutes.

3.

Set condition is AV MODE without signal.

4.

Using the remote control, set the brightness and contrast
to normal position.

5.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (02) on the remote control to
select "CUT OFF".

6.

Adjust the Screen Volume until a dim raster is obtained.

2-4: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.

1.

Place the set with Aging Test for more than 15 minutes.

2.

Receive the gray scale pattern from the Pattern
Generator.

3.

Using the remote control, set the brightness and contrast
to normal position.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (11) on the remote control to
select "R.BIAS".

5.

Press the CH. UP/DOWN button on the remote control to
select the "R.BIAS", "G.BIAS", "B.BIAS", "R.DRV",
"B.DRV" or "G.DRV".

6.

Adjust the VOL. UP/DOWN button on the remote control
to whiten the R.BIAS, G.BIAS, B.BIAS, R.DRV, B.DRV,
and G.DRV at each step tone sections equally.

7.

Perform the above adjustments 5 and 6 until the white
color is looked like a white.

2-5: FOCUS

1.

Receive the monoscope pattern.

2.

Turn the Focus Volume fully counterclockwise once.

3.

Adjust the Focus Volume until picture is distinct.

2-7: VERTICAL POSITION

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and contrast
to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (07) on the remote control to
select "V.POSI".

4.

Check if the step No. V.POSI is "02".

5.

Adjust the VR404 until the horizontal line becomes fit to
the notch of the shadow mask.

2-8: VERTICAL SIZE

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and contrast
to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (06) on the remote control to
select "V.SIZE".

4.

Press the VOL. UP/DOWN button on the remote control
until the Up/Down OVER SCAN Quantity becomes equal
to the Right/Left OVER SCAN Quantity.

2-9: VERTICAL LINEARITY
NOTE: Adjust after performing adjustments in section 2-8.

After the adjustment of Vertical Linearity, reconfirm
the Vertical Position and Vertical Size adjustments.

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and contrast
to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (08) on the remote control to
select "V.LIN".

4.

Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on upside
and downside becomes minimum.

2-10: OSD HORIZONTAL

Activate the adjustment mode display of Fig. 1-1.

1.
Press the VOL. UP/DOWN button on the remote control

2.
until the difference of A and B becomes minimum. (Refer

to Fig. 2-2)

TV

2-6: HORIZONTAL POSITION

1.

Receive the monoscope pattern.

2.

Using the remote control, set the brightness and contrast
to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (03) on the remote control to
select "H.POSI".

4.

Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on right and
left becomes minimum.

D3-2

00 OSD 9

A

B

Fig. 2-2

ELECTRICAL ADJUSTMENTS

2-11: SUB BRIGHT CENTER

1.

Receive the monoscope pattern. (RF Input)

2.

Using the remote control, set the brightness and contrast
to normal position.

3.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (17) on the remote control to
select "BRI CENT".

4.

Press the VOL. UP/DOWN button on the remote control
until the white 10% is starting to be visible

5.

Receive the monoscope pattern. (Audio Video Input)

6.

Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~4.

7.

Press the DVD button on the remote control to set to the
DVD mode.

8.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (17) on the remote control to
select "BRI CENT".

9.

Press the VOL. UP/DOWN button on the remote control
to set the same step numbers as the AV mode.

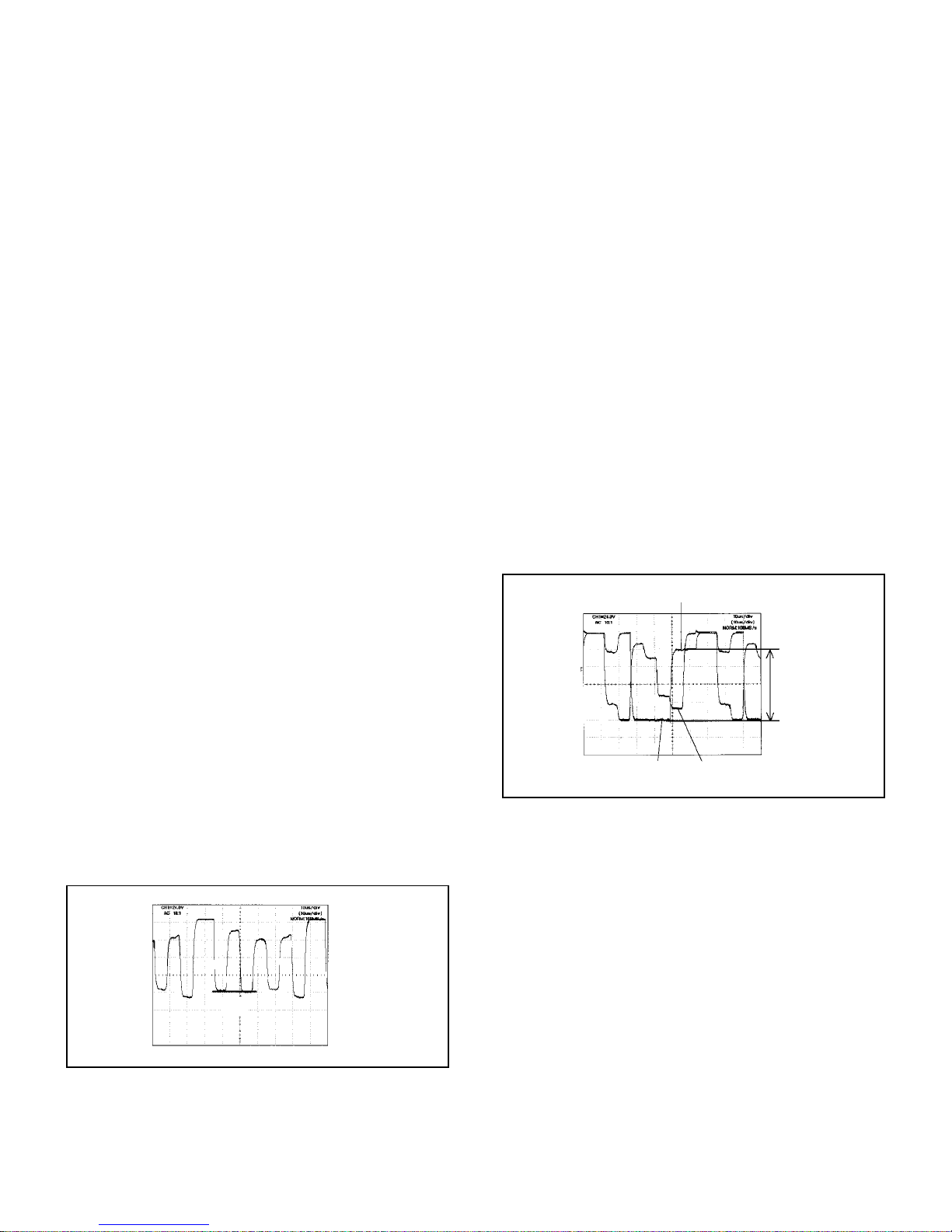

2-12: SUB TINT CENTER

1.

Receive the color bar pattern. (RF Input)

2.

Using the remote control, set the brightness, contrast,
color and tint to normal position.

3.

Connect the oscilloscope to TP803.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (26) on the remote control to
select "TNT".

5.

Press the VOL. UP/DOWN button on the remote control
until the section "A" becomes a straight line
(Refer to Fig. 2-3).

6.

Receive the color bar pattern. (Audio Video Input)

7.

Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~5.

8.

Press the DVD button on the remote control to set to the
DVD mode.

9.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (26) on the remote control to
select "TNT".

10.

Press the VOL. UP/DOWN button on the remote control
to set the same step numbers as the AV mode.

2-13: SUB COLOR CENTER

1.

Receive the color bar pattern. (RF Input)

2.

Using the remote control, set the brightness, contrast,
color and tint to normal position.

3.

Connect the oscilloscope to TP802.

4.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (23) on the remote control to
select "COL CENT".

5.

Adjust the VOLTS RANGE VARIABLE knob of the
oscilloscope until the range between white 100% and 0%
is set to 4 scales on the screen of the oscilloscope.

6.

Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 85 ± 5% of the
white level. (Refer to Fig. 2-4)

7.

Receive the color bar pattern. (Audio Video Input)

8.

Press the INPUT SELECT button on the remote control
to set to the AV mode. Then perform the above
adjustments 2~6.

9.

Press the DVD button on the remote control to set to the
DVD mode.

10.

Activate the adjustment mode display of Fig. 1-1 and
press the channel button (23) on the remote control to
select "COL CENT".

11.

Press the VOL. UP/DOWN button on the remote control
to set the same step numbers as the AV mode.

White 0%

100%

White 100%

Red Level

Fig. 2-4

"A"

Fig. 2-3

D3-3

ELECTRICAL ADJUSTMENTS

2-14: SUB CONTRAST MAX

Activate the adjustment mode display of Fig. 1-1 and

1.
press the channel button (21) on the remote control to
select "CONT MAX".
Press the VOL. UP/DOWN button on the remote control

2.
until the contrast step No. becomes "91".
Receive a broadcast and check if the picture is normal.

3.
Press the INPUT SELECT button on the remote control

4.
to set to the AV mode.
Activate the adjustment mode display of Fig. 1-1 and

5.
press the channel button (21) on the remote control to
select "CONT MAX".
Press the VOL. UP/DOWN button on the remote control

6.
until the contrast step No. becomes "91".
Receive a broadcast and check if the picture is normal.

7.
Press the DVD button on the remote control to set to the

8.
DVD mode.
Activate the adjustment mode display of Fig. 1-1 and

9.
press the channel button (21) on the remote control to
select "CONT MAX".
Press the VOL. UP/DOWN button on the remote control

10.
to set the same step numbers as the AV mode.

2-15: Confirmation of Fixed Value (step No.)

Please check if the fixed values of the each adjustment
items are set correctly referring below.

NO.

FUNCTION

01

OSD C

04

H.BLK L

05

H.BLK R

09

VS.CORR

10

V.COMP

15

G.DRV

18

BRI MAX

19

BRI MIN

20

CONT CENT

22

CONT MIN

24

COL MAX

25

COL MIN

27

SHARP

28

SUB BIAS

29

H.SIZE

30

PARABOLA

31

TRAPEZIUM

32

COR TOP

33

COR BTM

34

H.COMP

35

T.STE

38

H.FREQ

RF

03
02
02
07
03
07

100

25
50
15

127

00
30
30
00
00
00
00
00
00
00
63

AV

03
02
02
07
03
07

100

25
50
15

127

00
30
30
00
00
00
00
00
00
00
63

DVD

03
02
02
07
03
07

100

25
50
15

127

00
15
30
00
00
00
00
00
00
00
63

D3-4

ELECTRICAL ADJUSTMENTS

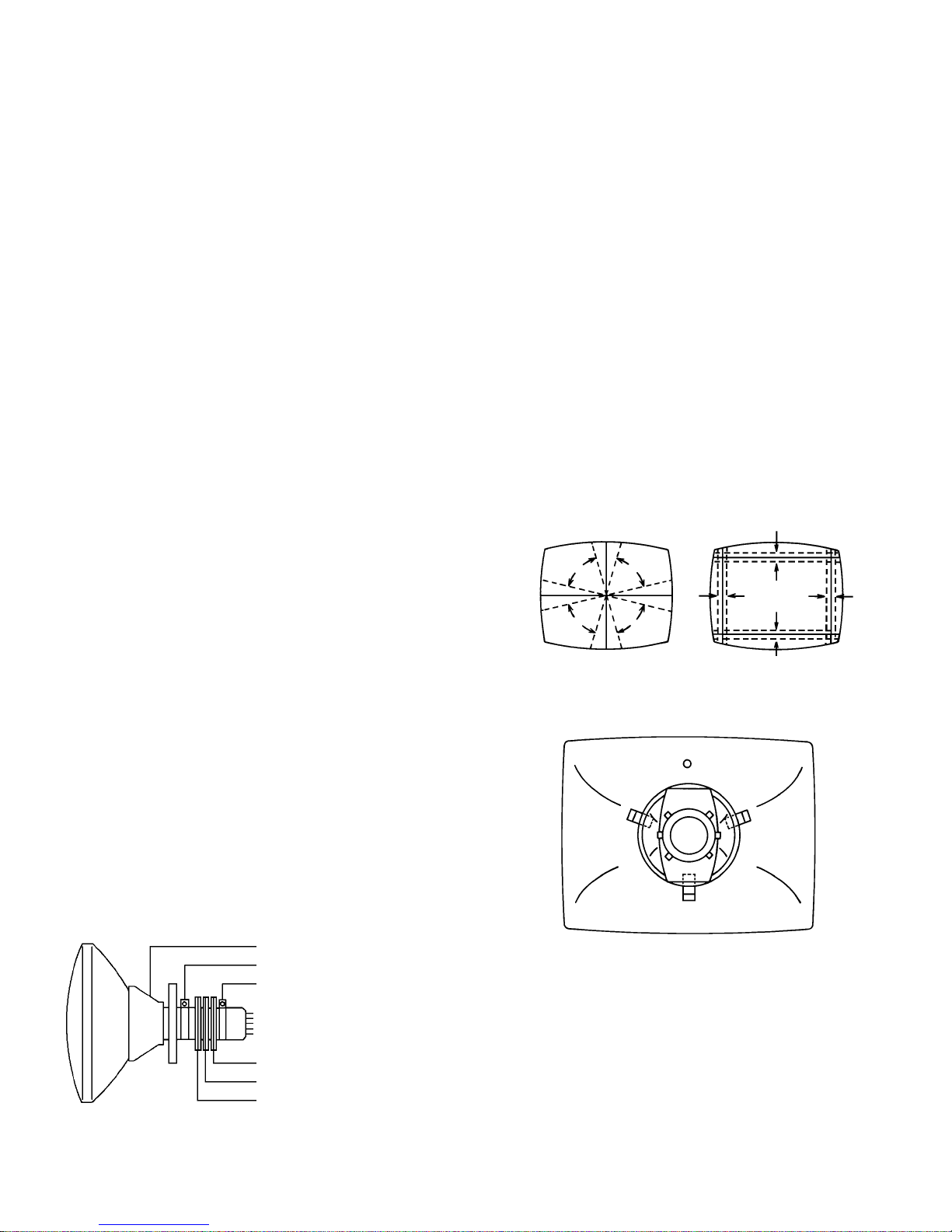

3.

PURITY AND CONVERGENCE
ADJUSTMENTS

NOTE

Turn the unit on and let it warm up for at least 30

1.

minutes before performing the following adjustments.
Place the CRT surface facing east or west to reduce the

2.

terrestrial magnetism.
Turn ON the unit and demagnetize with a Degauss Coil.

3.

3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)

1.

Tighten the screw for the magnet. Refer to the adjusted
CRT for the position. (Refer to Fig. 3-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.

2.

Receive the green raster pattern from the color bar
generator.

3.

Slide the deflection yoke until it touches the funnel
side of the CRT.

4.

Adjust center of screen to green, with red and blue on the
sides, using the pair of purity magnets.

5.

Switch the color bar generator from the green raster
pattern to the crosshatch pattern.

6.

Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of
4 pole magnets.

7.

Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.

8.

Adjust the crosshatch pattern to change to white
by repeating steps 6 and 7.

3-2: PURITY
NOTE

Adjust after performing adjustments in section 3-1.

3-3: STATIC CONVERGENCE
NOTE

Adjust after performing adjustments in section 3-2.

1.

Receive the crosshatch pattern from the color bar
generator.

2.

Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of
4 pole magnets.

3.

Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.

3-4: DYNAMIC CONVERGENCE

NOTE

Adjust after performing adjustments in section 3-3.

1.2.Adjust the differences around the screen by moving
the deflection yoke upward/downward and right/left.

(Refer to Fig. 3-2-a)

Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.

(Refer to Fig. 3-2-b)

R G B

R
G
B

UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT

R
G
B

Fig. 3-2-a

R G B

1.

Receive the green raster pattern from color bar
generator.

2.

Adjust the pair of purity magnets to center the
color on the screen.
Adjust the pair of purity magnets so the color at the
ends are equally wide.

3.

Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole
screen is green.

4.

Confirm red and blue colors.

5.

Adjust the slant of the deflection yoke while watching the
screen, then tighten the fixing screw.

DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW

6 POLE MAGNETS
4 POLE MAGNETS

PURITY MAGNETS

Fig. 3-1

D3-5

WEDGE

WEDGE

WEDGE

WEDGE POSITION

Fig. 3-2-b

ELECTRICAL ADJUSTMENTS

4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)

CD303

SPEAKER

CP303

CP4503

FE HEAD

TP4501

TP102

J2201

J2202

CRT

J2203

CP1704

J2204

CD1702

AC IN

CP1702

CP4502

AC HEAD

J4201

TP4201

CD4501

J4202

CP8001

J8007

CP603

OS2201

CD002

TU001

CD604

CP2201

CP601

CP602

CP8002

DVD DECK

CD602

CD603

CD8501

VCR DECK

DVD DECK

TP401

CP604

CP001

CD2251

CP602B

CP802B

CP603B

DEFLECTION PCB

CP802A

VR404

CP404

CD802

CRT

CRT PCB

TP803

TP802

CRT

FB401

CRT

CD805

CP805

J801

CP803
CD803

VCR PCB

DVD DECK

CD8505

OPERATION PCB

CP8502

CD8505

DVD PCB

CD2301

CD2001
CD2302

CP2001

CP2302

CP2301

D3-6

RF AMP/DSP

IC2002

STM6316

DVD ST SOLUTION BLOCK DIAGRAM

E-1 E-2

Pick

Open/
Close
Sensor

Spindle
Motor
Feed
Motor

MECHA

VR-DVD/CD
LD-DVD/CD
LMD1/2, VR-CD

SLD+/­SPI+/–

CLS_SW
OPN_SW

MPEG

IC4002

STM5589

MOTOR DRIVE

IC2301

LA6560

64M SDRAM

IC4007

IS42S16400-7T

16M FLASH

IC4012

M29W160ET90N6

AUDIO DAC

IC8502

PCM1742KE/2K

1.8V REG

IC8504

PQ070XZ01ZP

1.8V REG

IC2001

PQ070XZ01ZP

OP AMP

IC2303

BA10358F-E2

OP AMP

IC2304

BA10358F-E2

SPD

SLD

TD

FD

E E

A C

DMUTE

BB_V4/IRQ0

AFEC_EVALID/AFEC_SCTST

XPCLK/XBCLK/XDATA/XERROR

SLIDER_OUT/SLIDER_IN

FE_RESET

SCL/SDA

C

C

B

C

PCM_DATA0/PCM_LRCLK

PCM_MCLK/PCM_SCLK

MDI/MC/ML

C

D

Y

AUDIO R

DVD RESET

CVBS

C

C

AUDIO L

TV BLOCK

ZERO

E

TR+/–, FO+/–
REFE

A, B, C, D, E, F

B

A

TXD

SPDIF

RXD

A --- A1.8V
B --- D1.8V
C --- 3.3V
D --- 5V
E --- 9V

Y/C/AUDIO/CCD/HEAD AMP BLOCK DIAGRAM

30

2

22

32

10

21

67

65

7

9

36

6

8

34

55
54
53

57

4

3

5 78 76

H.AMP
SW

REC AMP

CP4502

6
5
4

AUDIO REC
AUDIO PB

CTL+

HEAD

AUDIO

CONTROL

3
2
1

AE HEAD(+)
AE HEAD(-)

CTL-

CTL+
CTL-

Y/C/AUDIO/CCD/HEAD AMP IC
IC4501
LA71205M-MPB

39

Q4509

BUFFER

TIMMING CCD

OUT

DRIVER

CLAMP

37

58

60

59

24

66

H.SW

72

73

74

H.SW

H

L

H

L

H

L

PB.EE

P

R

WC
DC

NL
EMPHA

REC
FM-EQ

FM
MOD

P

R

AGC
AMP

KIL

FM
AGC

DELAY

PB
FM-EQ

PB
PHASE-EQ

P

R

C-LPF

GCA

B-UP
AMP

ACC
AMP

Main
CONV

3.58M
BPF2

AUTO BIAS

P

R

KIL
B.D.

PB
AMP

3.58M
BPF1

DOUBLE
LIM

FM
DEM

SUB
LPF

V/I
CONV

P
R

Y-LPF

YNR/
COMB

N.L.
DEEM

NC1

Y/C MIX

SYNC
SEP

VCA

CLAMP

1/2

FBC

Chara
INS.

6dB

P

R

P

R

V-AGC

L4502

CLAMP

EQ
AMP

LINE
AMP

MUTE

ALC

Y/C_CS
Y/C_DATA

Y/C_CLK

H. AMP_SW1
C. ROTARY
H. SW

ENV. DET

COMP
DUMMY_V. SYNC

AUX_V[F/R]
TUNER_VIDEO

NORMAL_A
Y/C_AUDIO

6

2

3

1

5

Q4505

BIAS CTL

11

4

H.AMP SW/

AUDIO
MUTE

C ROT

RF SW IN

ENV DET

CONP

OUT

Q4504

BIAS OSC

Q4503

SW

Q4501, Q4502

AUDIO PB SW

HF1

HF2

HI-FI/DEMODU

LATOR

HF_COM

COIL, BIAS OSC

X4501

3.578545M Hz

VX01

50

49

PULL

41

Q4507

BUFFER

COMB FILTER

MICON

HI-FI/DEMODU
LATOR

80

SERIAL

DECODER

VCR_A_MUTE

V.REC_ST_H

LPF

ALC
DET

P

R

MICON

MICON

VIDEO OUT

EP/LP-CH1 (R)

EP/LP-CH2 (L)

CP4501

6

5

4

SP-CH1 (R)

SP_COM

SP-CH2 (L)

CYL

3

2

1

EP/LP_COM

HF2 (L)
HF_COM
HF1 (R)

7
8

9

FE HEAD (HOT)
FE HEAD (GND)

FE HEAD

2

1

CP4503

DETAL
ENH

28

DVD_VIDEO

FSC

26

Y/C_VIDEO

Q4511

BUFFER

DVD IN/OUT

E-3 E-4

23

52 774468

P. CON + 5V_AREGULATOR

Q4506

AMP

Y/C_VIDEO

V SYNC

CHROMA/IF

P.CON+8V

REGULATOR

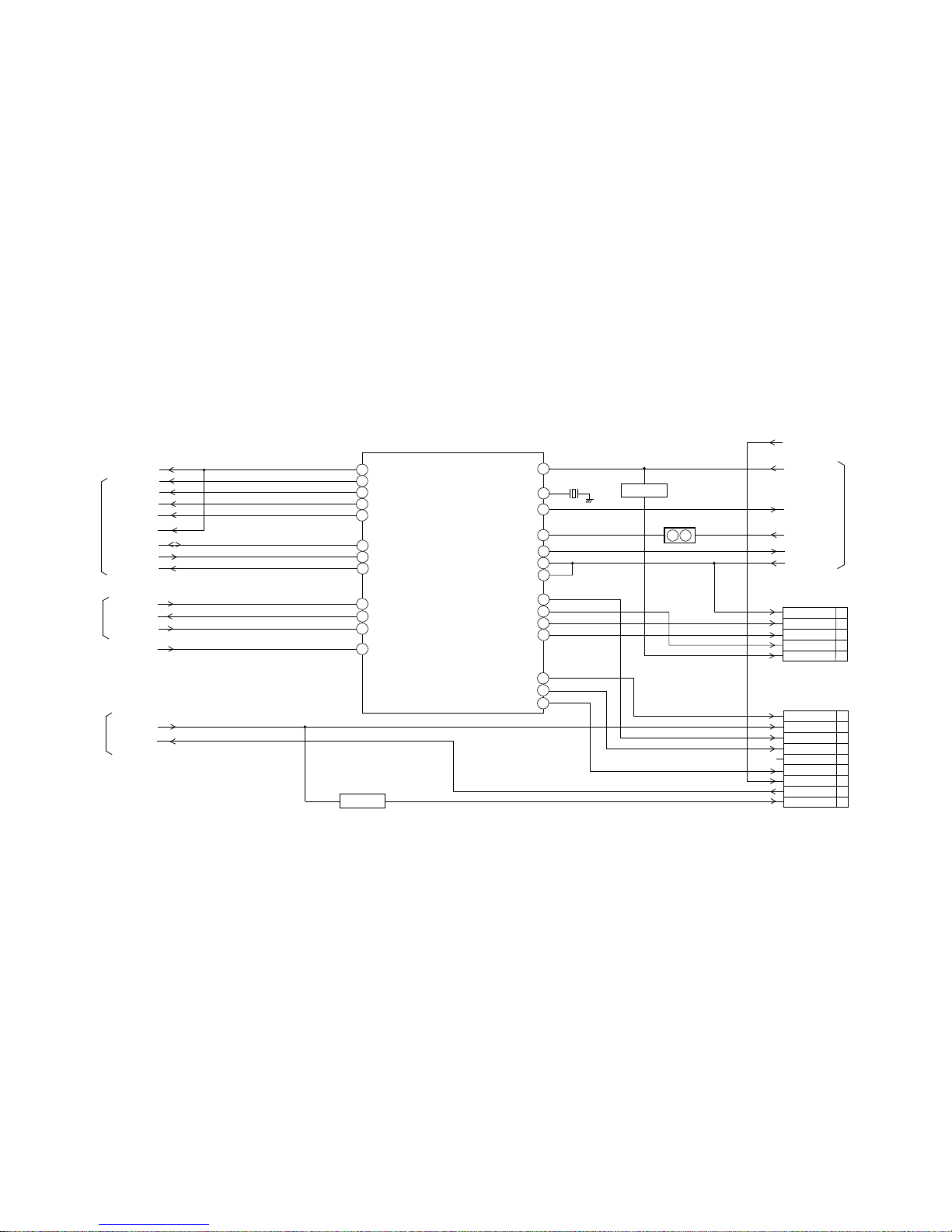

SYSCON/TIMER/SERVO
IC101 OEC8074A

Y/C/AUDIO/
CCD/HEAD AMP

DRUM PWM

MS SEN-B

POWER FAIL

Y/C CS

KEY-B
KEY-A

DUMMY.V.SYNC

C_ROTARY

34

82

1

98

23

24

KEY-A

IN/OUT

POWER_FAIL

H.SW

CYL SPEED UP

58

CYL_FG/PG

65

VCR.A.MUTE

54

12

CHROM/IF

LD M CTL

78

REM IN

BOT
EOT

84

REEL-T3

REEL-S

4

REEL SENS
Q107

AT 5V

BOT SENSOR
Q101

EOT SENSOR
Q103

REEL SENS
Q108

P.CON+5V_C

11 CYL FG/PG
12 CYL DRIVE

CAP PWM

33

CAP LIMIT

21

CAP FULL

32

FGF

67

CAP_F/R

64

5
9

I LIMIT
CAP CTL

1

CAP FG

4

CAP.M F/R

2 1

4 3

MS SEN-A

83

2 1

4 3

MS_SEN A
Q105

MS_SEN B
Q104

2

3

4

12

34

1

CAPSTAN

DD UNIT

P.CON +5V_C

H.AMP SW1

99

Y/C_CS

DUMMY_V.SYNC

C.ROTARY

H.SW

VCR_A_MUTE
H.AMP_SW1

ENV.DET

V.REC START-H

93
89

ENV.DET

V.REC_ST-H

CTL(+)

74

CTL(-)

75

AFT

85

DEGAUSS_H

60

SDA

CLK

18
17

DEGAUSS_H

SDA

SCL

KEY-B

REMOCON_IN

AFT

CTL+
CTL-

TAB SW

97

TAB SW

RESET

1

2
3

IC103
R3111N311A/C

AT+5V

SYSTEM

RESET

5

6

EEPROM
IC199
S-24C04BDP-LA

Y/C DATA

13

Y/C CLK

11

Y/C_DATA
Y/C_CLK

CVN2

50

Y/C VIDEO

SCL
SDA

COMP

100

COMP

REC/OTR LED
EXT_A_MUTE

91

9

EXIT_MUTE

6

REC_LED

EXT_A_MUTE

EXT_MUTE

ST SELECT

87

HIFI H.SW

26

HIFI ENV

88

ST_SELECT

HIFI_H.SW

HIFI_ENV

SDA

SCL

VCR_A_MUTE

V.REC_ST_H

HI-FI/
DEMODULATOR

VCR_POWER_ON-H

92

VCR_POWER_H

EMERGENCY

86

EMERGENCY

MICON BLOCK DIAGRAM

RX15

TX

X101

32.768KHz

X0
XI

40

41

TX16

DVD RESET95

DVD RESET

T-REC LED

90

T-REC_LED

RX

DVD IN/OUT

79

X102

14.31818MHz

OSC0

OSCI

38

37

TV_POWER_H

CENT_LED_CTL

29

Q102

CENT LED SW

CENT LED
D101

10

LDM CTL

CP101

CHROMA/IF

HSYNC

G

BLK 59

63

62

B8

VSYNC

45

46

H.SYNC

OSD_G

OSD_Y

OSD_B

V.SYNC

TV_POWER_H

TV_A_MUTE

20

SCL

TV_A_MUTE

R

OSD_R

SDA

61

2 CAP VCO
8

LD/CY_VCO

6

GND[M]

MOTOR_GND

AT+12V

REGULATOR

REGULATOR

REGULATOR

REGULATOR

DVD_H

DVD_H

AV_SW17

AV_SW1

81
80

5

27

25

E-5 E-6

VDD2

51

Q114

BUFFER

AV_SW2

35

AV_SW1

Q116

AV_SW

AV_SW2

COMB FILTER

CVIN

49

TV_POWER_ON-H

56

TV_POWER_H
VCR_A_MUTE

VIDEO OUT

VDD 36

SOUND AMP

IN/OUT

Q110

HD SW

Q115

VD SW

PROTECT

94

PROTECT

TV

COMB FILTER

TV

TV

P.CON+5V_A

REGULATOR

SCL

SDA

PLAY

CH.DOWN

REC/OTR

CH.UP

STOP/EJECT

OS2201

1

MICON

REC/OTR

LED D2205

REC LED SW

Q2201

Q4212

MUTE SW

Q4202

Q4201

Q4203

Q4211

BUFFER

SW_AUDIO_OUT_R

EXT_A_MUTE

SOUND_R+

IN/OUT BLOCK DIAGRAM

E-7 E-8

FF

REW

VOL UP

PLAY

STOP

SKIP

VOL DOWN

SKIP

OPEN/CLOSE

POWER

T-REC

LED D2206

T-REC LED

SW

Q2203

POWER

LED D2207

POWER LED

SW

Q2202

KEY_A

KEY_B

REMOCON_IN

TV_POWER_H

T-REC_LED

REC_LED

VCR_A_MUTE

MUTE SW

MUTE SW

MUTE SW

REAR OUT JACK

J4202

HEADPHONE JACK

J2201

SOUND_L+
SP_OUT_R
SP_OUT_L

Q4210

MUTE SW

EXT_MUTE

JACK_OUT

REAR IN JACK

J4201

FRONT_V_IN

REAR_A_IN_L
REAR_A_IN_R

REAR_V_IN

FRONT VIDEO JACK

J2202

FRONT_A_IN_L

FRONT AUDIO L JACK

J2203

FRONT_A_IN_R

FRONT AUDIO R JACK

J2204

MICON

SOUND AMP

COMB FILTER

HI-FI/DEMODULATOR

2

ZERO SW

Q4204

D AUDIO

DRIVER

Q8002

COAXIAL

J8007

ZERO

SPDIF_134

DVD IN/OUT

AT+5V

P.CON+5V

P.CON+8V

REGULATOR

2
3
5

3

4
2

6

5
7

2

2

2

6

4
3

2

2

SW_AUDIO_OUT_L

I/F/CHROMA IC
IC601
LA76319M-MPB-E

19

23

6

10

14

57
56

60

MOTOR+12V

8.5V REG

REGULATOR

CHROMA/IF BLOCK DIAGRM

E-9 E-10

35

AT+5.7V REG

X601

3.579545MHz

51

54

55

59

50

40

MICON

32

7

30

25

P.CON+8V

16

15

36

P.CON+5V

11

5

13
21

IC602 KIA78L10F-RTF
10V REG.

3

1

OSD_Y

OSD_

R

OSD_B

OSD_G

SCL

V_SYNC

SDA

H.SYNC

SW_C

COMB FSC

Y/C_VIDEO_Y

DVD_Y/C_Y

V_SYNC

COMB

FILTER

DVD IN/OUT

Q602

PROTECT

G.OUT

CUT OFF

FROM TO CRT
CP603

6

5

4

CLAMP OFF

B.OUT

3

1

R.OUT

ACL

V.OUT

FROM TO DEFLECTION
CP602

6

5

4

P.CON+5V

H.OUT

EW.OUT

3

2

1

AFC

TV_POWER_H

EMERGENCY

7
8
9

+B DOWN

TV_POWER_H

EMERGENCY

MICON

Q606

SW

PROTECT

MICON

Y/C/AUDIO/

CCD/HEAD AMP

IN/OUT

2

35

968

SOUND AMP IC
IC352 AN7522N

SOUND_L+

SOUND_R+

1012 4

SP_OUT_R

SP_OUT_L

SOUND AMP BLOCK DIAGRAM

E-11 E-12

SPEAKER

SP352

SPEAKER

SP351

SOUND+B

TV_POWER_H

SCL

TV_A_MUTE

SDA

P.CON+8V

30

18

17

31

DIGTAL SOUND CONTROL

IC302

AN5891SA-EIV

19

3

16

SW_AUDIO_OUT_R

SW_AUDIO_OUT_L

SW_AUDIO_OUT_R

SW_AUDIO_OUT_L

MICON

REGULATOR

IN/OUT

DVD IN/OUT

1

SOUND GND

TV

HI-FI AUDIO/H.AMP/DEM IC
IC5501
AN3663FBP

57

14

53

27

42

9

29

30

59

36

48

56

43

28

24

21

22

45
62
61

HIFI_H.SW

TUNER_AUDIO

VCR_A_MUTE

V. REC_ST-H

HIFI_ENV

SCL
SDA

ST_SELECT

REAR_A_IN_L

REAR_A_IN_R

HF2

HF_COM

FSC

HF1

Y/C_AUDIO

NORMAL_A

IN/OUT

MICON

Y/C/AUDIO/CCD

/HEAD AMP

51
58

40

P.CON+12V

P.CON+5V_A

INPUT SW

AMP

AMP

RFC

OUTPUT

SW

PNR

BPF

FM LIM

DEM

BLOCK

AMP

AMP

AGC

LOGIC

VCO-FO

ADJ

LOGIC

25

DBX

NOISE

REDUCTION

L/R

MIX

REC
LPF

VCO

4

2

Hi-Fi/DEMODULATOR BLOCK DIAGRM

1

3

SW_AUDIO_OUT_L

SW_AUDIO_OUT_R

DVD IN/OUT

REGURATOR

E-13 E-14

15

10

FRONT_A_IN_R
FRONT_A_IN_L

AUDIO_OUT_L

AUDIO_OUT_R

NC

COMB FILTER

MICON

Y/C_VIDEO_Y
SW_C

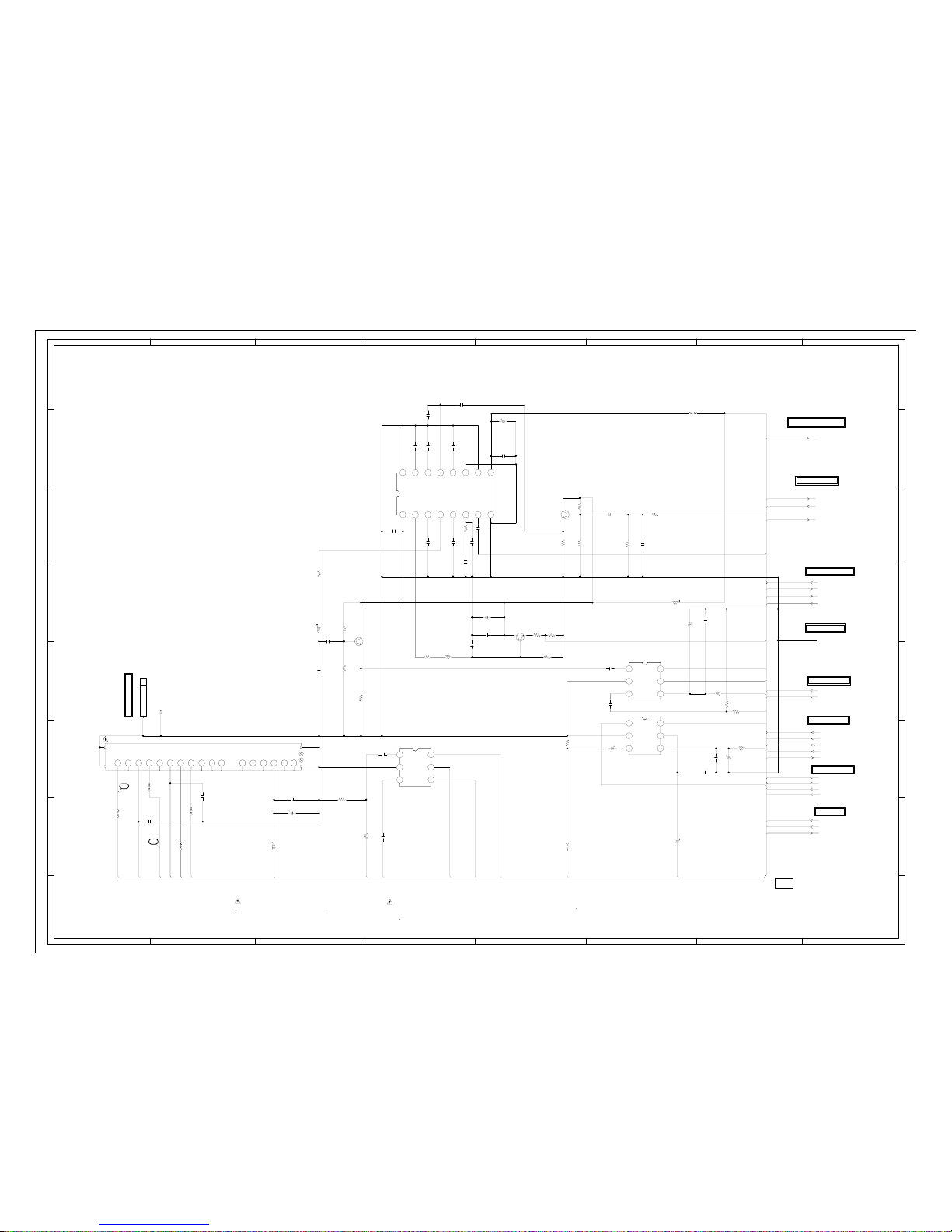

COMB FILTER BLOCK DIAGRAM

E-15 E-16

AV_SW1

AV_SW2

DVD_Y/C-C

DVD_VIDEO

JACK_OUT

AUX_V[F/R]

Y/C_VIDEO

REAR_V_IN
FRONT_V_IN

REGULATOR

CHROMA/IF

DIGITAL COMB FILTER

IC1501

TC90A45F

13

15

16

8

4

10

C SW

IC1502 MM1501

2

6

1

4

3

AV SW

IC1504

MM1501

2

6

1

4

3

VIDEO OUT SW
IC1505 MM1504

2

6

1

4

3

BUFFER

Q1501

COMB_FSC

BUFFER

Q1503

P.CON+5V

P.CON+12V

BUFFER

Q1502

DVD IN/OUT

Y/C/AUDIO/
CCD/HEAD AMP

IN/OUT

P.CON+8V

3

10 11

TU001
115-V-K015AR

12 141517

SCL
SDA

TUNER_AUDIO

HI-FI/
DEMODULATOR

TUNER VIDEO

AFT

AT+30V

Y/C/AUDIO/
CCD/HEAD AMP

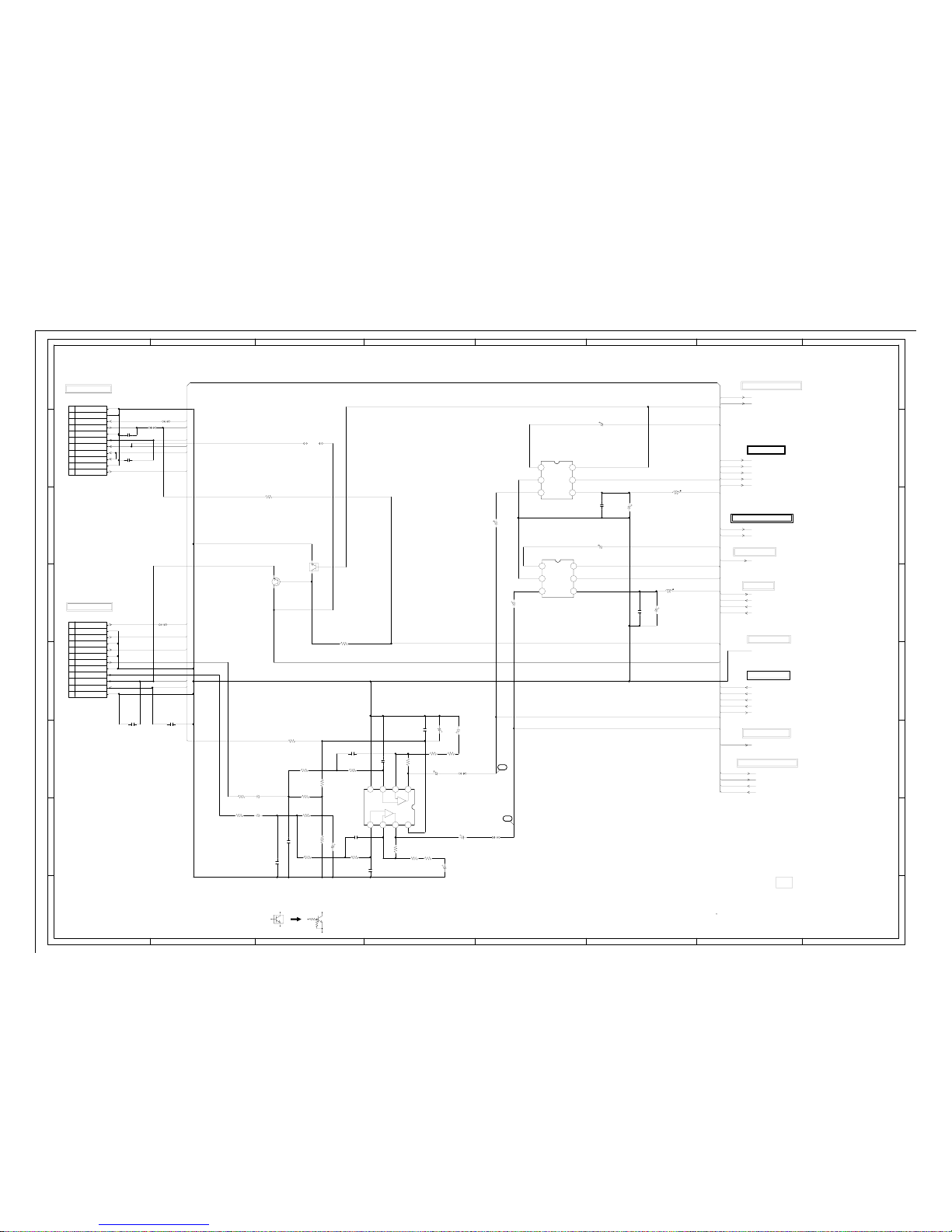

DVD IN/OUT BLOCK DIAGRAM

E-17 E-18

6

1

4

AUDIO SW
IC8001 MM1501

TX

MICON

REGULATOR

CP8001

1
2
3
4

5

6
7
8

9
10
11

GND
GND

TX
RX

GND

P.CON+9V
P.CON+D5V
P.CON+3.3V
P.CON+3.3V

GND

SPDIF-134

CP8002

1
2
3
4

5

6
7
8

9
10
11

GND

DVD_RESET

ZERO

AUDIO-R

GND

AUDIO-L

GND

Y

GND

C (CVBS)

GND

12

CVBS

RX

P.CON+9V_D
P.CON+5V_D
P.CON+3.3V

SPDIF-134

DVD_RESET

2

3

5

3

MIXER
IC8004 NJM4580M

7

11

6

1

4

AUDIO SW
IC8002 MM1501

2

3

Q8006, Q8007

ZERO MUTE

SW

IN/OUT

AUDIO_OUR_L
AUDIO_OUR_R
SW_AUDIO_OUR_L
SW_AUDIO_OUR_R

P.CON+12V

AT+5V

DVD_Y/C_Y
DVD_VIDEO

DVD_Y/C_C

DVD_VIDEO

CHROMA/IF

COMB FILTER

Y/C/AUDIO/CCD/
HEAD AMP

ZERO

HI-FI/DEMODU
LATOR

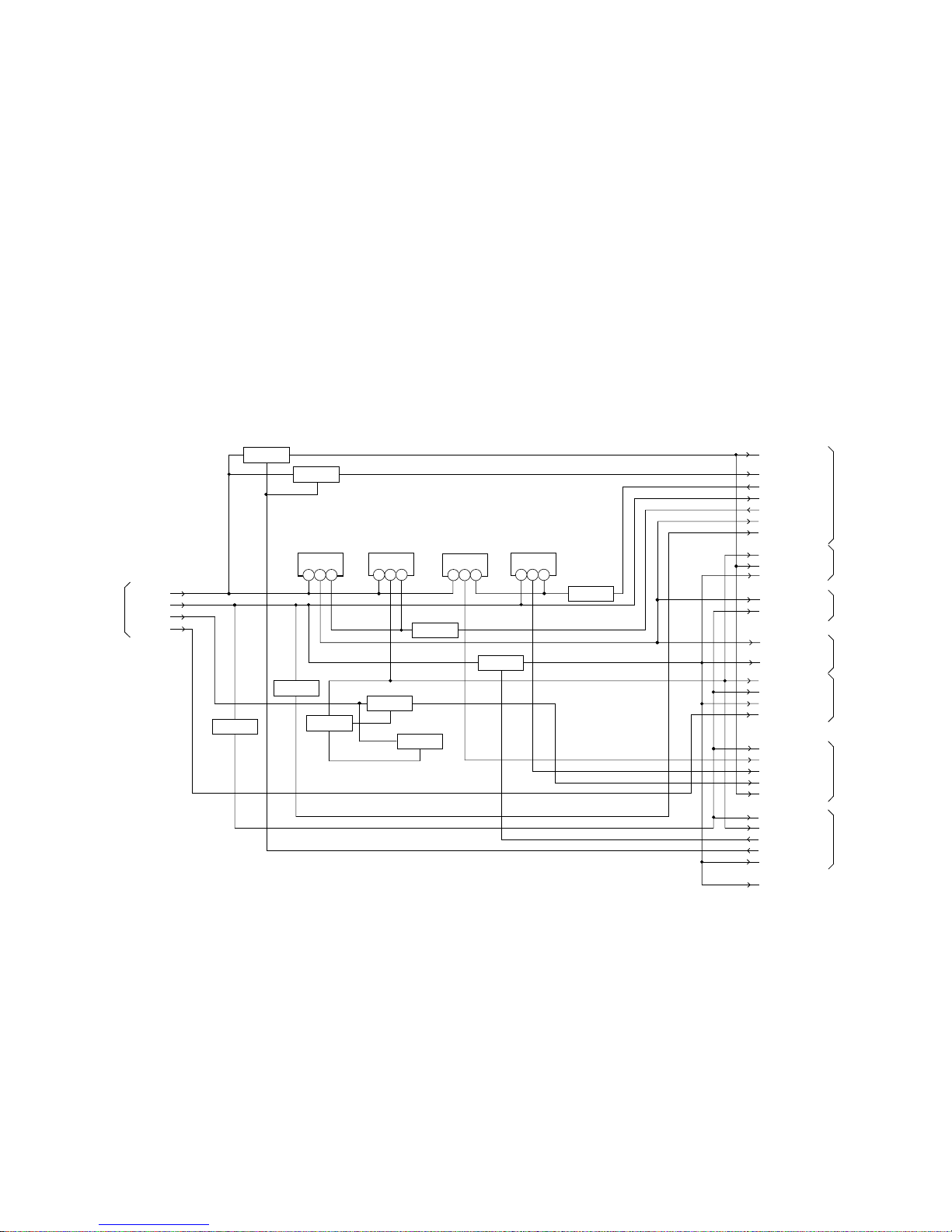

REGULATOR BLOCK DIAGRAM

E-19 E-20

UNREG+8V

TV

Q3003

AT+5V OUT

AT+5V

P.CON+5V

P.CON+5V_A
P.CON+12V

P.CON+8V

P.CON+5V_A

UNREG+5V

P.CON+8V

P.CON+5V_C

MICON

21 4

P.CON+5V OUT
IC3004
KIA278R05PI

21 4

P.CON+SV_A OUT
IC3003
KIA278R05PI

21 4

P.CON+5V_D OUT
IC3001
KIA278R05PI

21 4

P.CON+9V_D OUT
IC3002
KIA278R059I

Q3014

BACKUP+5V

Q8015

P.CON SW

Q3001

P.CON SW

Q3002

P.CON8V SW

MOTOR+12V

Q3010

P.CON5V_C

SW

AT+12V

VCR_POWER_H

P.CON+5V_A

DVD_H

BACKUP+5V

AT+5V

P.CON+12V

P.CON+8V

IN/OUT

HI-FI/DEMODULATOR

+B

Q3005

3.3V OUT

Q3004

3.3V CTL
Q3004

3.3V CTL

Q3007

P.CON12V

SW

+30V

COMB FILTER

P.CON+12V
P.CON+5V_D
P.CON+9V_D

P.CON+3.3V

AT+5V

P.CON+5V

P.CON+8V

8.5V REG
AT5.7V REG

DVD IN/OUT

CHROMA/IF

SOUND AMP

P.CON+5V

P.CON+12V

P.CON+8V

Y/C/AUDIO/
CCD/HEAD AMP

T1701

TRANSFORMER
SWITCHING

13

14

12

6

AC IN

L1703

DEGAUSS COIL

DEGAUSS RELAY
RY1701

4

1

2

1

3

FEED BACK

IC1701

PS2561L1_1_V

VR1701

+B ADJ.

CURRENT

DET

Q1707

TV BLOCK DIAGRAM

MOTOR+12V

SOUND GND

SOUND +B

Q1702

D1705, D1706
D1710, D1711

7

2

3

DEGAUSS_H

Q1705

SWITCHING

HV

F
S

DY

FBT

1

V801
CRT

3

FB401

V.OUTPUT
IC401 LA78040

1

5 2

2

Q401

H.DRIVE

2

T401

5

3

Q403

FL OUT

RED AMP

Q802, Q803

GREEN AMP

Q804, Q805

BLUE AMP

Q806, Q807

J801

11

8

6

F

7

MICON

SOUND AMP

CD1702

E-21 E-22

REGLATOR

RELAY
DRIVER

F1701

P.CON+5V

V.OUT

CP602B

4

3

2

ACL

AFC

TV_POWER_H

7

6

1

H.OUT

EW OUT
EMERGENCY
+B DOWN

5
8
9

SW

7

9

7

Q407

H_VOLT_SW

Q409

H_VOLT_SW

+B

G.OUT

CUT OFF

CP603B

6

5

CLAMP OFF

B.OUT

4

3

1

R.OUT

FEED BACK

SWITCHING

IC1702

KIA431A_AT

1

3

10

17

18

UNREG+8V
UNREG+5V

Q408

B4002

B4004

B8502

B8503

C8535

C2301

C2308

C2314

C4003

C4004

C4008

C4009

C4010

C4012

C4015

C4016

C4017

C4018

C4019

C4020

C4021

C4023

C4024

C4025

C4027

C4028

C4036

C4052

C4053

C4056

C4057

C4059

C4060

C4061

C8518

C8519

C8548

R2301

R2302

R2303

R2305

R2311

R2329

R4003

R4062

R4066

R4070

R4071

R4073

R4074

R4075

R4076

R4077

R4118

R4119

R4120

R4121

R4122

R4123

R4124

R4179

R8503

R8506

R4146

R4138

R4139

R4140

R4141

R4142

R4135
R4131
R4129

R4148

D8506

D8505

D8501

R2350

R2351

R2315

R4012

C8530

D8503

D8504

B8501

R4016

C8550

C8531

R4017

W859

W801

W827

D8502

B2002

R2007

R2004

C2004

C2005

C2003

C2006

B2004

C2008

C2035

C2033

R2031

C2037

C2036

C2012

B2005

C2040

C2056

C2045

C2062

C2034

C2015

C2016

C2014

R2029

C4039

R2318

R2317

R2323

R2321

Q2305

R2319

R2328

C2305

R2310

R2314

C2001

C2057

C2058

C2063

C2064

B2301

C8551

B2003

C2039

R2077

R2088

R2087

R4049

D8510 Q8505

R8536

C8529

R4006

C4007

C4006

C4005

R4043

R4046

B2001

C2067

C2325

C2326

W825

W837

W838

R2041

PRINTED CIRCUIT BOARDS

DVD (TOP SIDE)

DVD (BOTTOM SIDE)

F-1 F-2

1

53

105

157

1

26 51

76

CP2302

CP8502

R4147

IC8501

IC4012

IC4002

IC2301

IC2303 IC2304

IC4003

X4001

IC4007

IC8502

C2009

C2018

C2315

C2316

C4011

C4013

C4014

C4022

C8507_1

C8512

C8513_1

C8517_1

C8523

L4001

L4002

L4003

L4004

L8507

L8509

C2306

C2310

C2319

C2321

C4026

C4038

D2001

D2002

W831

W835

W836

W847

W870

W871

Q2004

Q2005

Q2001

Q2003

Q2006

Q2007

Q2008

Q2301

Q2302

Q2303

Q2304

Q4003

Q8502

R2001

R2002

R2005

R2006

R8511

R2010

R8517

R2015

R2016

R2018

R2023

R2024

R2025

R2026

R2028

R2304

R2306

R2307

R2308

R2309

R2312

R2313

R2320

R2322

R2324

R2334

R2335

R2336

R2338

R2339

R2340

R2341

R2342

R2344

R2345

R2346

R2348

R4054

R4056

R4061

R4063

R4064

R4065

R4067

R4068

R4069

R4117

R4125

R4127

R4128

R8501

R4145

C4001

Q4001

Q4002

R4136

R4137

R4143

R4144

R4013

R4015

R4014

W818

W834

W833

CD8505

C8525_1

C2307_1

L8501

D8508

D8507

C2322

R8502

R8507

R8514 R8515

R8513

C8520

L8502

CP2301

R4106

IC8504

R2048

R2049

C8532_1

C8534_1

C4037_1

C4062_1

C8549_1

C8502

W844 R8524

R8520

C8522

C8515

L8503

C8509

C8516

R8522

Q8503

C8510

R8528W848

C8524

C8508

R8508W839

C8501

Q8501
R8505

C8504

W841

W845

W849

C8521

C8547_1

C8533

L2001

L2002

W819

B8505

C2324

R2090

Q8506

R8509

Q8507

IC2001

X2001

R2011

R2009

L2004

C2031

Q2002

R2008

R2065

R2043

R2069

R2064

R2034

R2062

R2044
C2055

R2047

W813

R2046
R2056

C2048

C2049

R2057

R2058

C2051

C2052

R2059

C2050

R2060
R2061

C2032

R2017

R2020

C2021

C2017

C2019

R2050

R2051

C2044

C2043

C2038

C2020

C2042

R8521

R8518

C2061

C2060

R2078

R2079

R2067

W855

W832

W816

W817

W820

W821

R2013
R2014

W822

CP2001

R2027

C2054

C2053

R2356

R2081

R2080

R2075

R2086

HS2301

C2024_1

R4011

R4010

W854

R4008

C8528

R8533

R8535

W877

R4005
R4007

W878

R4059

R4134

R4132

R4133

R4058

W876

W879

Q8508

C2065_1

C2011

C2013

C2041

C2046

C2047

R4018

C2059_1

C2066

W880

R8530

W872

W873

R2037

TO DVD DECK

RISK OF FIRE

- REPLACE

AS MARKED.

J4202

J4201

J8007

R1702

D1702

Q1702

D1723

C1720

R1703

D1730

VR1701

D1722

C1733

R1725

TU001

C4206

C4212

W013

L001

W026

C8094

R4205

C4211

TP4201

R4239

D4201

C4220

R4209

L4205

Q3007

Q3003

Q3005

R3003

R3002

D3001

R3004

R310

R309

C326

C323

L301

C311

C309

C305

C329

C327

C308

C306

C350

R356

HS351

W005

D1724

D1704

D1707

C1728_1

IC352

C3006

C3023

L8002

C3007

C3011

L5502_1

C5545_1

C5508

C5502

C5507

C5512

C5514

C5515

C5519

C5543

C5536

C5554

C5523

C5551

C5542

C5544

W272

D2207D2206

W145

L5503

C5528

C5540

W246

L5504

C5564

C5555_1

SW2207

SW2206

SW2205

SW2204

Q107

Q

103

SW2203

SW2202

SW2201

D2205

R5511

R5516

C

P

10

1

Q

101

Q104

Q

105

IC199

X102

X101

C139

C102

Q108

R125

W302

R2226

R2225

C4540

C4508

W153

C4545

C4543

C4550

C4547

C4558

C4565

C4574

C4570

C4566

C4567

C4564

R4559

C4568

L4502

C4523

Q4504

Q4505

C4544

C4539

C4532

L4505

W251

L4506

C4572

C4511

C4571

C4529

CP4501

W143

C4506_1

L4504

W144

W151

CP4502

X4501

W149

W150

R4537

C5559

R5501

C1534

C1520

W245

R122

C8023

C8102

C8005

C8065

C8022

C8002

R8022

C8004

R8024

R8025

C8003

R2227

R2223

R2224

W295

R2211
R2212

R4522

B2201

C5505_1

W146

W249

J2201

D105

C5525

C5520

C5524

C146 R128

W241

W242

W243

W244

W208

C8001

C8006

C8013

L8001

W260

W262

W273

C8015

W268

L8003

C8007

C8009

CP2201

C2206

W159

W261

W148

W250

W224

C5526

D5501

L5501

C4518

R173

L4509

W223

C4581

C2208

C332

C320

C141

W155

W154

C2212

W269

W270

C2210

W813

TP5501

TP4501

TP102

C4576

R1519

W137

C4548

W062

J2202

J2203

J2204

SW101

W337

W323

D101

R4557

L1506W336

W329

W331

W332

W333

W304

W305

W307

W309

W318

W319

W316

W314

W312

W313

W330

W320

W306

W308

W310

R144

W217

R4528

W303

R153

W257

W211

W327

W247

W248

W253

W254

W255

W218

W322

W854

W222

W228

W229

W230

W315

W194

W235

CP8001

C103

W237

W239

C122

C119

C113

W225

W182

W258

W252

W256

W207

R4562

R4563

D5502

W234

D4204

W184

W152

W139

W099

W202

W183

OS2201

C632

W162

W206

R114

R131

X601

W282

W104

W190

W116

W136

W856

R4512

C4527

C5530

C5531

W092

CP8002

W212

W193

W196

W187

W186

W201

W084

W195

W827

W164

W103

W165

W117

C1521

W166

W097

W098

W281

W301

W311

W321

W296

W299

W297

W279

W280

W284

W290

W291

W191

W176

W106

CP1704

CP1708

TH1701

R1721

D1715

R1724

C1715

IC1701

D1718

R1717

C1713_1

C1712

D1717

R1714

Q1706

R1722

R1731

D1709

HS1701

C

17

07

W031

R1720

R
1718

D1710

D1705

D1706

D1711

L1701

RY1701

FH1702

C1701

R1701

CD1703

CD1704

F1701

FH1701

T1701

W094

R1712

D1727

R5512

W030

W081

D2201

W020

R3001

Q3002

R3006

W018

L3002

CP602

W065

W286

W287

W044

W045

W039

W088

W090

W071

W072

W115

W161

C609

R613

W119

W174

W171

W175

W042

W043

W110

W111

W109

W035

C3025

B8001

C3022

W192

W041

W114

W169

W179

W178

W189

W185

W124

W001

C4205

C4204

D4205

W034

D4207

W049

W050

W108

W060

W059

R359

C1516

W102

W129

C612

W121

W118

L601

W096

W040

R623

W199

W054

R632

W294

W293

W289

W056

W047

W080

W077

W123

W141

W188

W238

W232

W227

R616

R627

W046

W105

W048

W173

L1505

C126

C104

C324

C313

D106

W859

R353

R622

C603

CP1707

W806

W138

W142

W113

W120

R605

W007

W328

W220

W277

C1528

C315

W037

W036

Q1705

C310

W078

R4238

W004

W197

W209

W213

W214

W019

W864

W285

D102

CP303

CP601

CP4503

W157

W198

W130

W205

D601

D602

D603

W200

W158

IC3001

IC3002

R3009

C3012

HS3001

W089

IC3003

D3004

W002

IC3004

Q3014

D3005

W027

R3008

R3015

W010

W833

W278

W163

W170

W288

W180

W292

CP1702

W172

W075

W055

W057

W033

W135

W038

W122

W133

W028

D1703

D1716

D1726

R1710

W017

W325

W326

W221

W127

W128

W126

W076

C1716

W021

W025

W074

W008

C3013

W085

W086

W083

W058

R635

W848

W003

L602

IC1702

W082

D1733

W029

C128

C1708

C1710

D1721

W009

W132

W870

C3008

R3010

W014

W011

W016

C5533

W820

W338

R311

C3028

D1728

D1720

W340

W342

W343

C3005

C3002

L3001

C1717

W063

R113

W350

W051

L1504

W339

R5524

W877

W112

D605

D103

D3003

C1714

CP603

D108

W300

W352

W203

R1706

W215

Q3010

R3021

D3007

C1536

W264

W263

W271

W275

W276

W265

W266

R3020

C3016

D3002

L1501

W357

C1732

R1727

W358

W341

W344

R602

W359

W069

B1703

W233

R1516

W181

W226

W219

W236

C624

W053

W821

W073

W052

R8012

S801Y

S801X

C1718

C1727

W843

D1732

W006

C357

R1726

R308

C321

D1713

D1719

D1734

W345

D1712

C3009

C1711

D3008

D3011

W362

W335

C005

W897

S808Y

S808X

W888

W874

W891

W845

W846

W842

W841

W819

W810

W838

W892

W809

W834

W844
W816

W850

CD1702

W259

W893

L1502_1

C1729

C1518

C3004

C3010

C328

C331

W880

C1705

W894

W898

C1724

W167

CD002

S810

PRINTED CIRCUIT BOARDS

VCR (INSERTED PARTS)

SOLDER SIDE

F-3 F-4

17

33

49

1

1

21

41

61

1

26

51

76

17

33

49

1

R1705

R1708

R1713

R1719

C1703

R1709

C1702

R1707

C4209

C4210

C8010

C004

C001

C4213

C4214

C4203

R8003

R8004

Q8002

R8005

R8013

C8095

R4217

R4207

R4203

R4231

Q4203

Q4211

R4213

Q4210

Q4212

R4232

C4202

C3027

R302

R305

C318

C317

C307

C325

C319

C316

C314

C312

R306

C304

IC302

R307

R357

Q350

C302

R8006

W837

C5527

C5521

R5518

R5509

R5510

C5504

R5519

R5503

C5501

C5562

C5556

R5515

R5513

R5507

R5506

R5508

C5503

R5502

C5522

C5506

R5504

C5511

C5510

C5513

C5509

C5518

C5563

R5514

C5549

C5557

C5553

C5552

C5560

C5558

C5529

C5550

IC5501

C107

Q102

R103

C101

C154

R132

C135

C132

R129

C131

C130

R117

C124

C115

R109

IC103

C151

R143

R140

C148

C145

C136

R137

C140

R112

C116

C114

R118

C123

C125

R135

C133

C144

R141

R139

C127

R111

R2208

R2206

R2204 R2203 R2201 R2205C2201

R2202

R4511

R4503

R4502

R4501

IC4501

C4522_1

C4521

R4513

C4535

C4538

R4544C4561

Q4507

C4556

R4541

C4546

R4534

C4549

R4539

R4545

C4555

Q4509

C4569

R4553

Q4511

C4573

R4546

C4557

C4552

C4551

R4540
R4536

C4517

C4512

C4513

R4508

C4536

R4526

R4533

C4541

C4542

R4532

R4529

R4527

C4537

R4531

C4524

R4505

C4505

R4520

C4533

Q4506

R4509

R4521

R4519

C4534

C4559

Q4503

R4524

R4550

R4525

C4553

R4510

C1535

R4530

R8049

R8023

C8070

C8081

R8051

C8064

R8056

R8054

C8090

IC8004

C8079

R8048

C8077

R8050

R8052

R8053

R8027

R8047

R8026C8025

R8020

R8021

Q2202

Q2201 Q2203

C2202

R105

C2205

C2203

R5522

R4560

Q116

R171

C8012

C8014

C121

C2207

C4579

C2209

R5523

R4506

C2213

C1532

C156

R177

C167

W863

IC101

C4514_1

R4523

IC8002

IC1504

Q106

C120

IC601

R124

R4504

Q4502

Q4501

R4507

C117

C111

C616

C631

C629

C630

C627

C625

R148

R149

R150

R159

R160

R164

C628

R625

R626

C626

R624

C622

C621

R619

R617

C617

R607

C606

R609

R610

R608

C608

C5517

C5534

C5535

C5538

C5541

C614

R1505

R1501

R1503

R1504

C1510

C1513

C1512

R1506

C1519

R1511

C1506

C1509

C1504

C1505

C1507

C1508

Q1503

R1510

R1507

C1523

R1512

R1513

R1508

C1514

R1502

C1502

C1501

R1509

C1511

IC1501

R152

R4204

R116

R115

Q1501

C1722

R1715

C1709

R3005

Q3011

R3016

C8017

R165

Q114

R166

C618

C619

R615

C613

IC1502

C1525

C138

R134

C137

R110

C118

C3024

C634

C601

C1515

Q4202
R4214

Q4201

C4208

R4212

R303

R304

R4215

Q1502

R104

Q601_1

Q8006

R147

IC1505

C1537

C1538

R1515

C164

C1530

C8019

R101

C143

C109

C8044

R136

R176

C106

R133

R8007

R106

C110

R108

R628

R123

W858

Q110

R119

IC8001

R611

C5565

C5566

R3011

Q3001

R3019

Q3004

R3025

R3026

Q3006

R3013

R3012

R3027

C3003

R3017

R3023

Q3015

R3024

Q606

R618

R612

R633

R634

Q602

W831

C4580

R3007

Q3009

Q3008

R8001

R603

C611

C8020

C1517

C4501

C604

IC602

C3001

W346
W347

W349

C1531

W351

R1716

R4218

C006

R630

W353

R4216

C607

C112

W886

W887

R620

W360

W361

R1518

R1517

R1520

R636

C4503

R4219

C358

R301

C3014

Q4204

Q8007

Q605

W815

W804

W835

W883

W811

W829

W872

W881

W851

PRINTED CIRCUIT BOARDS

VCR (CHIP MOUNTED PARTS)

SOLDER SIDE

F-5 F-6

0

TO DVD DECK

TO VCR DECK

HS401

HS402

L402

R454

C449

C402

L403

R414

CP404

C408_1

T401_1

C407

C405

R407

Q401

R423

Q406

R425

R431

IC401

R424

R421_1

R432

R428

C427

R443

C429

R450

R453

R444

R447

R415

R406

R

4

4

5

C445

R452

R427

R417

R401

R403

R405

C403

R438

C430

C434

R430

D415

C446

R440

C432

D419

CP602B

R429

W006

R418

R412

W009

VR404

C426

W014

W012

FB401_1

Q403

W011

C414

CP802A

R441

W020

W821

W013

CD2251

R2251

R2252

R2253

R2254

R2255

R2256

R2257

SW2258

SW2257

SW2256

SW2255

SW2254 SW2253 SW2252

SW2251

J801

R814

R815

Q806

Q802

Q804

S801

D803

D802

D801

Q807

Q803

Q805

R809

R819

C816

R808

D804

R805

R810

R817

C815

R806

TP801

TP802

D806

TP803

R818

R807

D805

C817

CP802B

CP803

CP805

C819

W007

W822

C421

C438

Q408

D418

D417

D413

D414

D412

D410

D408

C443

C436

D416

D402

C818

C412

C423

W003

W004

Q409

Q407

R413

R442

W002

D411

W015

R439

R437

W008

W017

C418

CP604

D404

W023

D403

W812

C406_1

TP401

R816

C820

R821

W022

R820

R822

W018

W021

CP603B

CP001

W830

W807

W852

W831

W834

W833

W832

W806

S804

R419

L804

R449

S803

B403

B401

B402

C404

C801

R825

R824

R826

CC801

PRINTED CIRCUIT BOARDS

CP1

SW2

S1005Y

S1004Y

S1002X

S1003X

S1005X

S1004X

S1001X

RELAY/SW (INSERTED PARS)

SOLDER SIDE

RELAY/SW (CHIP MOUNTED PARS)

SOLDER SIDE

DEFLECTION/CRT/OPERATION

SOLDER SIDE

F-7

F-8

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

B2004

FCM2012H-102T04

B2005

FCM2012H-102T04

B2003

FCM2012H-102T04

B2002

FCM2012H-102T04

B2001

FCM2012H-102T04

R2078

4.7K

R2079

4.7K

R2037

10K

R2077

10K

R2009

2.7K +-1%

R2011

10K+-1%

R2017

10K+-1%

R2020

10K+-1%

R2027 10K

R2029 10K

R2034

10K

R2023

3.3K

R2024

10K

R2005

220

R2006

270

R2013 1K +-1%

R2014 1K +-1%

R2008

2.2

R20431MR2065

1M

R20641MR2069

1M

R2062 10K

R2059 150

R2060 56

R2046 56

R2061 56

R2058 56

R2057 56

R2056 56

R2044 10K

R2047 22K

R2067

10K

R2081

10K

R2080

10K

R2075

10K

R2051 10K

R2050 10K

R2086 10K
R2087 10K
R2088 10K

R2090

22

R2010

6.8K

R200118R2002

18

R2049

91

R2048

91

R2026

270

R2025

220

R2028

6.8K

R2015 18

R2018

18

R2004

150

R2007

1K

R2041

4.7K

R2016

4.7K

R2031

1M

C2011 476.3V KA

C2013 476.3V KA

C2047 476.3V KA

C2046 476.3V KA

C2018

1016V KA

C2009

1016V KA

C2024_1

100

6.3V KA
C2041 476.3V KA

L2001

10uH NLV32

L2002

10uH

NLV32

L2004

2.7uH
0305

C2061

0.001 B

C2042 0.1 B

C2063

0.0039 B

C2064

0.0039 B

C2008 0.01 B

C2015

0.01 B

C2012 0.01 B

C2031

0.01 B

C2033

0.01 B

C2044

0.01 B

C2038 0.1 B

C2043 0.1 B

C2032

0.01 B

C2020 0.01 B

C2019 0.01 B

C2017 0.01 B

C2016 0.01 B

C2014 0.1 B

C2021

0.01 B

C2057

0.1 B

C2062 0.01 B

C2056 0.01 B

C2049 15P CH

C2054 15P CH

C2052 15P CH

C2053 15P CH

C2048 15P CH

C2051 15P CH

C2050 15P CH

C2055

0.01 B

C2034 0.01 B

C2039 0.01 B

C2001

0.1 B

C2067

0.1 B

C2045

0.01 B

C2060

0.001 B

C2006

820PCH

C2005

18PCH

C2003

56PCH

C2004

7PCH

C2058

0.1 B

C2066

0.01 B

C2035

0.01 B

C2037

15P CH

C2036

15P CH

C2040 0.01 B

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

W821

W820

W817

W816

W832

W813

W822

W855

W827
W819

W801

W831

Q2007
KTC3875S_Y_RTK

DPD_TE_CTL

Q2003

KTC3875S_Y_RTK

LCD_CTL Q2008

KTC3875S_Y_RTK

LD_CTL

Q2001

2SA1036K

DVD_LD CTL

Q2006

2SA1036K

CD_LD_CTL

Q2002

2SA1037AK

BUFFER

CD2001

DVD_LOADER_FFC

FFC(P=0.5mm)

C2059_1

1006.3V KA

C2065_1

476.3V KA

JG2005

JG2006

TP2005

TP2004

TP2003

JG2001 JG2002

TP2001

TP2002

JG2041

JG2039

JG2038

JG2040

JG2042

JG2010
JG2011
JG2012
JG2003

JG2009

TP2006

JG2004

X2001
20MHz

100BT02003

D2002

KDS120RTK

123

D2001
KDS121RTK

123

S

D

G

Q2005

2SK3018

CD_CTL

S

D

G

Q2004

2SK3018

DVD_CTL

CP2001

IMSA-9631S-24Y901

1

10

11

12

13

14

15

16

17

18

19

2

20

21

22

23

24

3

4

5

6

7

8

9

IC2001

STM6316ATXXZ

RF AMP/DSP IC

110

100

111213141516171819 2202122232425

26 27 28 29330 31 32 33 34 35 36 37 38 39440 41 42 43 44 45 46 47 48 49550

51 52 53 54

55

56 57 58 59

6

60 61 62 63 64 65 66 67 68 69

7

70 71 72 73 74 75

76777879880818283848586878889990919293949596979899

TP2007

LMD2

LMD1

TWSEL

FE_RESET

PG0

SCL

PG1

SDA

D_GND

IRQ0

+3.3VD

PG0

PG1

BB_V4

TR+

FE_RESET

AFEC_EVALID

TR-

XDATA

FO+

XBCLK

FO-

XPCLK

LMD1

AFEC_SCTST
XERROR

VR-DVD

BOOT0

LD-DVD

BOOT1

LD-CD
VR-CD

LMD2

IRQ0

A

C

SDA

B

B SCL

A

PE4

D
F

PE5

BB_V4

E

AFEC_SCTST

D XDATA

REFD

XPCLK

C

XBCLK

AFEC_EVALID

XERROR

VR-CD

F
E

VR-DVD

P.CON+A5V

OPN_SW

+3.3VA

CLS_SW

PD6

PD5

P.CON+A1.8V

+1.8VA

DMUTE

PC0I

SPD_FG

P.CON+3.3V

+3.3VD

TD

+1.8VD

FD
REFDAC
SLD
SPD
TR­TR+
FO­FO+
LSW
P.CON+M5V

GND

D_GND

REFDAC

CLS_SW

OPN_SW

CD-DVD

SPD

SLD

DMUTE

CD-DVD

PC2I

LSW

FD

TD

PC0I

FROM/TO MOTOR DRV

FROM/TO MPEG

G-2

G-1

VMC297

PCB130

RF_AMP/DSP SCHEMATIC DIAGRAM

(DVD PCB)

FROM/TO LOADER

FO ERR

TR ERR

MON(DVD)

NC(SW)
VOL(DVD)
GND(DVD)
LD(DVD)

LD(CD)
VOL(CD)
GND(CD)
MON(COM)
GND(NC)

RF

C
B
A
D
F

E
VCC
Vref

GND(PDIC)

F­F+

T­T+

NC

NC

NC

NC

SPINDLE

SLEDGE

VCC18ADC

VSHIELDIS

FREIN

VCC18PLL

TST_PM

TST_ADC

TST_SLICE

GNDL

LMD2

LMD1

TWSEL

VCCA33

LD2

LD1

PD(3)
PD(4)
PD(5)
PD(6)

52
51
50
49

74

75

76

77

PF(1)

PF(0)

VSS(ESD5)

VDD18

GNDDAC

VCC33DAC

VSHIELDADC

GNDADC

27

26

25

24

GNDAI

IREF

VBGFILT

RFSACD

2

1

100

99

FREOUT

PLLOFF

GNDPLL

VDD18ADAC

VSSDAC

RESET_N

TEST

PG(0)

PG(1)

VDD33

VSS(ESD5)

PE(0)
PE(1)
PE(2)
PE(3)
PE(4)

PE(5)
OUT_SYNC
OUT_DATA

OUT_DVALID

VDD18

OUT_CLK

VSS(ESD5)

OUT_EVALID

PD(0)

PD(1)

PD(2)

VSS(COMP)

VDD33

OUT_ERR

VDD18

VSS(ESD5)

PD(7)

PC(7)

PC(6)

PC(5)

VDD33

VSS(ESD5)

PC(4)

PC(3)

PC(2)

PC(1)

PC(0)

VCC18DAC

TACT

FACT

REFDAC

REFGND

REFEXT

E

F

GNDSD

VCC18SD

VCC33SD

GNDAIS

VCC33IS

C

VCC18IS

D

VCC18MN

REFD

VCC33MN

B

GNDMN

A

VCCA18

RFOUT

RFIN

ICD

0

0

0

0

0

0
0

1.2

0.6

0.7

1.8

2.1

2.1

3.2

2.1

1.8

2.1

1.8

2.1

3.2

3.2

1.8

2.1

2.1

1.8

3.2

3.2

0

2.6

2.7

1.302.7

2.7

2.7

1.8

1.5

3.2

2.0

2.0

0

0

3.3

1.7

3.3

3.3

3.301.9

3.3

1.6

0.8

2.8

0

0

0

3.3

0

0

0

1.5

1.9

0.7

0.4

0

3.2

3.2

3.2

3.2

3.1

3.3

0

3.3

0

2.8

0.1

0

1.9

0.1

0.103.301.800

0.9

0.9

1.8

2.0

0.1

3.3

1.0

0.2

0.200.9

0.9

0.6

1.3

3.8

1.3

2.0

4.9

0.2 0

0.2

0

DVD

VCC5

4.7

0.1

0

CD

1.3

0

0.7

FROM REGULATOR2

0

02.0

0

0

0

0.2

0.6

0.1

0.1

2.4

3.8

4.4

4.7

4.9

0.1

1

2

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

IC2304 BA10358F-E2

OPE AMP

1234

5678

IC2303 BA10358F-E2

OPE AMP

1234

5678

CAUTION: DIGITAL TRANSISTOR

Q2304

KRC102SRTK

DMVTE_CTL

IC2301 LA6560

MOTOR DRIVE IC

1101112131415161718

19

2

20 21 22 23 24 25 26 27

28 29

3

30 31 32 33 34 35 36

37

38

456789

CP2302

A2001WR2-3P

1
2
3

CP2301
IMSA-9615S-08C-PP

1

2

3

4

5

6

7

8

HS2301
763WSA0023

B2301

FCM2012H-102T04

R2338

100K+-1%

R2339

560 +-1%

R2345

560 +-1%

R2311

100

R2315
100

R2310

22K +-1%

R2303

4.7K

R2301

4.7K

R2302

1K

R2306

10K

R2307

10K

R2308

1M

R2313

10K

R2305

15K

R2304

22K

R2309

4.7K

R2346

560+-1%

R2334

100K

+-1%

R2322

100K +-1%

R2320

100K +-1%

R2351

100

R2350

10K

R2314

10K

R2317

27K

R2318

27K

R2323

10K

R2321

10K

R23241KR2329

1K

R2328

10K

R2312

1K

R2356

560

+-1%

R2348

560 +-1%

R2319

12K

R2336

100K +-1%

R2335

100K

+-1%

R2341

100K+-1%

R2340

100K

+-1%

R2344

100K

+-1%

R2342
100K

+-1%

C2315

1016V KA

C2316

1016V KA

C2322

1016V KA

C2308

0.1 B

C2314

0.1 F

C2306

0.0022 B

C2310

100P CH

C2321

0.1 F

C2319

0.1 F

C2305

0.1 B

C2301

0.1 B

C2324

0.1 B

C2325 0.1 B

C2326

0.1 B

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

W835

W836

Q2301

KTC3875S_Y_RTK

SPDFG.CTL

Q2303

2SA1037AK

DMVTE_CTL

Q2302
KTA1504S_Y_RTK

SPDFG CTL

Q2305
KTA1504S_Y_RTK

5VREG.

CD2301

DVD_LOADER_FFC

FFC(1.0mm)

C2307_1

10016V KA

P.CON+A5V

D_GND

OPN_SW
CLS_SW
DMUTE
SPD_FG
TD

DMUTE

FD
REFDAC
SLD
SPD
TR­TR+

TR-

FO­FO+

TR+

LSW

FO-

P.CON+M5V

FO+

P.CON+A5V

P.CON+3.3V
P.CON+9V
M_GND
D_GND
GND

REFDAC

M_GND

DMUTE

SPD_FG

CLS_SW
OPN_SW

FROM REGULATOR2

FROM/TO RF_AMP/DSP

G-4

G-3

MOTOR DRIVE SCHEMATIC DIAGRAM

(DVD PCB)

PCB130
VMC297

FROM/TO LOADER

FROM/TO LOADER

GND(D)

3.3

2.5

2.5

0

0

0

4.0

0

0

S-GND
VCONT

MUTE
VIN4
VIN4­VIN4+

VREF-IN
VIN1-SW
VREF-OUT

REG-OUT

REG-IN

VIN3+
VIN3­VIN3

VIN2

VIN2+
VIN2-

VIN1+B

VIN1+A
VIN1-B

VIN1-A

VIN1

VCC1

VD1-

VD1+

VD2-

VD2+

VD3-

VD3+

VD4-

VD4+

VLD+

VCC2
VLD-

REV

FWD

0

4.9

4.2

5.0

0

0

+

-

+

-

VCC

GND

TD

FD

NC
NC

CLOSE

OPEN

SP1-

SP1+

SLD+
SLD-

LIMIT SW

SP_FG

+5V

GND

8.9

0.1

0.1

3.9

4.0

4.2

2.7

5.4

4.0

4.0

8.9

2.4

2.4

2.4

2.4

0

4.9

2.4

2.4

8.2

4.9

2.4

2.4

2.4

2.4

2.4

1.8

2.4

4.9

1.7

0

0.4

1.5

8.9

8.2

+

-

+

-

VCC

GND

SPD

SLD

8.8 2.4

2.8 0

8.8 2.4

0

3.1

3.4

3.4

2.6 2.6

2.62.0

2.6 2.6

2.5 2.6 2.6

NC

3

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

IC4002

STM5589AVA

MPEG IC

101102103 104

105106107108109110111112113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156

157158159160161162163164165166167168169170171172173174175176177178179180181182183184185186187188189190191192193194195196197198199200201202203204205206207208

110

100

11 1213 14 1516 17 18 192202122 2324

25 2627 28 29330 3132 33 3435 36 3738 39440 4142 43 4445 46 4748 49550

51 52

53 54

55

56 5758 59

6

60 6162 63 6465 66 6768 69

7

70 7172 73 7475 76 7778 79

8

80 8182 83 8485 86 8788 89

9

90 9192 93 9495 96 9798 99

IC4003 SN74AHCU04PWR

CLOCK GENERATOR

1

10 11 12 13 14

2345

67

89

L4003
22uH

0305

L4004

22uH

0305

L4001

22uH

0305

L4002

22uH

0305

R4136

56

R4137

10K

R4143

4.7K

R4144

4.7K

R4142 47

R4138 47

R4141 47

R4140 47

R4139 47

R4017

10

R4016

47

R4129 10K

R4106

100

R4148

10K

R4131 10K

R4135 10K

R4145 470

R4146 47

R4077

10K

R4076 10K

R4075 10K

R4074 10K

R4117

100

R4073 47

R4061

10K

R4003 10K

R4064

10K

R4179

47K

R4120 47K

R4121 47K

R4122 47K

R4123 47K

R4124 47K

R4118 47K

R4119 47K

R4125

1M

R4006

2.7K

R4068 10K

R4066

10K

R4054

10K

R4056 10K

R4005

2.7K

R4010

75

R4007

2.7K

R4070 10K

+-1%

R4071 10K

+-1%

R4063 47

R4043 4.7K

R4008

10K

R4011 47

R4049 10K

R4015 270

R4014 270

R4013 270

R4046 4.7K

R4058 47

R4132 47

R4133 47

R4134 47

R4059 47

R4147

100

R4012 47

R4069 47

R4065 47

R4067 47

R4062 47

C4022

1016V KA

C4013

1016V KA

C4011

1016V KA

C4001

0.1 F

C4021

0.01 B

C4012

0.01 B

C4039

0.1 F

C4018

0.1 B

C4003

0.1 B

C4004

0.1 B

C4027

15PCH

C4028

12PCH

C4026

0.1 F

C4024

0.1 B

C4023 0.1 B

C4025 0.1 B

C4006 0.1 B

C4005 0.1 B

C4019 0.1 B

C4017 0.1 B

C4007 0.1 B

C4009 0.1 B

C4015

0.01 B

C4016

0.01 B

C4020

0.1 B

C4010

0.1 B

C4008

0.1 B

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

W880

W876

W879

W878

W877

W854

Q4001
KTC3875S_Y_RTK

RESET SW

Q4002
KTC3875S_Y_RTK

RESET SW

C4014

1016V KA

JG4050

JG4056

JG4055

JG4054

JG4053

JG4052

JG4051

JG4011

JG4027JG4028

JG4042

JG4041

JG4040

JG4039

JG4038

JG4012

JG4007

JG4018

JG4033

JG4034

JG4010

JG4013

JG4015
JG4016

JG4014

JG4023

JG4006

JG4025

JG4022

JG4008

JG4024

JG4043

JG4001

JG4019

JG4009

JG4021

JG2008

JG4045 JG4046

JG4044

JG4035

JG4036
JG4037

JG4026
JG4020

JG4029
JG4030

JG4031
JG4032

JG4003
JG4004
JG4005

X4001

27MHz

100BT02701

TCK

TDI

TDO

TMS

TRST

TRST

F_OE

DATA13

DATA12

DATA11

DATA10

F_CE

DQM1

IRQ0_B

DATA9

DATA8

DATA7

DATA6

DATA5

DATA4

DATA3

DATA2

DATA1

DATA0

CPU_RESET

SD_CS0

SD_CAS

SD_RAS

CLK_27MHZ

CLK_27MHZ

RDNOTWR

F_WE/DQM0

TMS
TDO
TDI

AT_CE

F_CE

TCK

F_WE/DQM0
F_OE
DATA0
DATA1
DATA2

LINK/ROM

DATA3
DATA4

K_MCLK

DATA5

K_DATA

DATA6

CPU_RESET

DATA7
DATA8

DATA14 K_LRCLK

DATA9

DATA15 K_SCLK

DATA10

DQ15

DATA11

DQ14

DATA12
DATA13

ADDR1 DQ13

DATA14

ADDR2 DQ12

DATA15

ADDR3 DQ11

ADDR1

ADDR4 DQ10

ADDR2
ADDR3

ADDR5

ADDR4

ADDR6

ADDR5

ADDR7

ADDR6

ADDR8 DQ9

ADDR7
ADDR8

ADDR9 DQ8

ADDR9

ADDR10 DQ7

ADDR10

DQ6

ADDR11

DQ5

ADDR12
ADDR13

ADDR11 DQ4

ADDR14

ADDR12 DQ3

ADDR15

ADDR13 DQ2

ADDR16

ADDR14 DQ1

ADDR17
ADDR18

ADDR15 DQ0

ADDR19

ADDR16

ADDR20

D_RTS

ADDR17 SMI_CLK

D_CTS

DQ15

ADDR18

D_RXD

DQ14

ADDR19 SMI_DQMU

DQ13

ADDR20 SMI_DQML

DQ12

SMI_WE

DQ11
DQ10

SMI_CAS

BB_V4

BB_V4_B

DQ9

SMI_RAS

DQ8

AFEC_EVALID

AFEC_EVALID_B

SMI_CS1

DQ7

AFEC_SCTST

AFEC_SCTST_B

XERROR_B SMI_CS0

DQ6
DQ5

XPCLK

XPCLK_B AT_WR AD13

DQ4

VFD_CLK AD12

XBCLK

XBCLK_B

DQ3

VFD_DOUT AD11

DQ2

XDATA

XDATA_B

VFD_DIN AD10

DQ1
DQ0

VFD_STB AD0

SMI_CLK

XERROR

XERROR_B

KB AD1

SMI_DQMU

SCL

SCL_B SDA_B AD2

SMI_DQML

SCL_B AD3

SMI_WE

SDA

SDA_B

SMI_CAS

FE_RESET_B

IRQ0

IRQ0_B

SMI_RAS

TXD

SMI_CS0

FE_RESET

FE_RESET_B

AD9

AD13

AD8

AD12
AD11

RXD AD7

AD10

AD6

AD0

TRIGIN AD5

AD1

TRIGOUT AD4

AD2
AD3

SC_DATA

AD9

SLIDER_OUT_B PCM_LRCLK

AD8

PCM_MCLK

AD7

D_RTS

AD6
AD5

D_CTS

AD4

D_RXD

ON/STBY

MDO

AFEC_EVALID_B

AFEC_SCTST_B

SC_SW

BB_V4_B

SC_PWR

XDATA_B

XBCLK_B

XPCLK_B

CVBS_VIDEO

PCM_DATA0

PCM_SCLK

TXD

Y_VIDEO

C_VIDEO

MDI

Y_VIDEO

RXD

ML

MC

C_VIDEO
CVBS_VIDEO
PCM_MCLK

GND PCM_SCLK

PCM_LRCLK

D_GND

PCM_DATA0

SC_OVL

P.CON+1.8V

CPU_RESET

P.CON+3.3V ML

MC

SPDIF

RGB-H

MDI

FROM/TO AUDIO/VIDEO

FROM/TO MEMORY

FROM/TO REGULATOR2

FROM/TO RF_AMP/DSP

G-6

G-5

VMC297

PCB130

(DVD PCB)

NC

NC

NC

NC4Y

4A

5Y

5A

6Y

6A

3Y

3A

2Y

2A

1Y

1A

S_DATA

PIO1B5

PIO1B4

VSS

PIO1B3

PIO1B2

PIO1B1

PIO1B0

PIO0B7

PIO0B6

PIO0B5

PIO0B4

PIO0B3

PIO0B2

PIO0B1

PIO0B0

VSS

VDD_3V3

ADDR21

ADDR20

ADDR19

ADDR18

ADDR17

ADDR16

ADDR15

ADDR14

ADDR13

ADDR12

ADDR11

VSS

ADDR10

ADDR9

ADDR8

ADDR7

ADDR6

ADDR5

ADDR4

ADDR3

ADDR2

VSS

VDD_3V3

DATA15

DATA14

DATA13

ADDR1

160

159

158

157

156

PIO2B1
PIO2B2
PIO2B3
PIO2B4

205
206
207

PIO2B5

208

1

DATA12

DATA11

DATA10

DATA9

DATA8

VSS

DATA7

DATA6

DATA5

DATA4

DATA3

DATA2

DATA1

DATA0

CPU_CAAS1

CPU_CAS0

CPU_RAS1

CPU_RAS0

CPU_CE1

CPU_CE2

CPU_CE3

CPU_WAIT

CPU_RW

VDD_3V3

VSS

CPU_BE1

CPU_BE0

IRQ0

IRQ1

IRQ2

RESET

VSS_PLL

VDD_PLL

VSS

PIXCLK

CPU_SDRAMCLK

CPU_OE

PWM0

PWM1

PWM2

TCK

TDI

TDO

TMS

TRST

VSS

VDD_3V3

ADC_PCMCLK

100

SMI_D13

101

SMI_D14

105
104
103
102

ADC_DATA

ADC_LRCLK

ADC_SCLK

SMI_D15

SMI_D12
SMI_D11
SMI_D10

LRCLK

PCMCLK
PCMDATA2
PCMDATA1
PCMDATA0

56
55
54
53
52

VSS

SMI_CLKOUT

SMI_D9
SMI_D8
SMI_D7
SMI_D6
SMI_D5
SMI_D4
SMI_D3
SMI_D2
SMI_D1
SMI_D0

VSS

SMI_CLKIN

VDD_3V3
SMI_DQMU
SMI_DQML

SMI_WE
SMI_CAS
SMI_RAS
SMI_CS1
SMI_CS0
SMI_A13
SMI_A12
SMI_A11
SMI_A10

SMI_A0

SMI_A1

SMI_A2

SMI_A3

VSS

SMI_A9

SMI_A8

SMI_A7

SMI_A6

SMI_A5

SMI_A4

SPDIF

TRIGGER_IN
TRIGGER_OUT
PIO2B0

PIO2B6

PIO2B7

SCLK

VSS

VSS_PCM

VDD_PCM

VDD_3V3

PIO4B7

PIO4B6

PIO4B5

PIO4B4

PIO4B3

PIO4B2

PIO4B1

PIO4B0

VSS

IREF_YC

VREF_YC

CVBSCY

VSS_YCC

VDD_YCC

IREF_RGB

VREF_RGBRGBVSS_RGB

VDD_RGB

NRSS_OUT

NRSS_IN

NRSS_CLK

S_SYNC

S_VALID

S_BCLK

VSS

PIO3B7

PIO3B6

PIO3B5

PIO3B4

PIO3B3

PIO3B2

PIO3B1

PIO3B0

VSS

VDD_3V3

GND

VCC

NC

NC

VDD_1V8

VDD_1V8

VDD_1V8

VDD_1V8

VDD_1V8

VDD_1V8

VDD_1V8

VDD_1V8

MPEG SCHEMATIC DIAGRAM

0

0.4

3.2

3.2

0.4
0

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

1.5

3.2

0
0
0
0

2.5
0
0
0

0

0

2.4
0

0
0

1.5

0

0

0
0

NC

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

2.2

3.2

2.4

0.6

1.5

1.3

1.8

2.4

0.5

0.3

0.6

2.4

1.3

0.3

0.6

0.4

1.3

2.4

3.2

2.4

1.6

1.6

0

00000

0

0

0

0

0

000

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.3

1.4

1.4

2.5

0

3.2

3.2

3.203.2

3.2

3.2

1.3

1.3

3.1

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

1.5

2.5

1.902.403.2

3.1

3.200

3.2

1.4

3.2

3.200

0

1.4

1.8

1.6

1.6

1.6

0

1.7

0.7

0.7

0.7

0.1

0.1

2.4

0

0.6

0.6

0.2

0.2

1.9

0.2

0.7

0.3

2.5

2.8

2.9

2.0

2.8

0

0

3.2

1.4

0

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

0.7

1.6

1.6

1.6

1.6

1.6

1.6

2.4

1.5

0

1.8

1.8

NC NC NC NC

NC

NC

NCNC

0.9

1.9

0.9

1.9

0

3.2

0

3.1

1.4

0.9

0

3.1

0

3.1

4

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

IC4012
M29W160ET90N6

FLASH IC

110111213141516171819 22021222324

25 26 27 28 29

3

30 31 32 33 34 35 36 37 38 39

4

40 41 42 43 44 45 46 47 48

56789

IC4007

IS42S16400-7T

64M SDRAM IC

110111213141516171819 22021222324252627

28 29

3

30 31 32 33 34 35

36 37 38 39

4

40 41 42 43 44 45 46 47 48 49

5

50 51 52 53 54

6789

B4002

FCM2012H-102T04

B4004

FCM2012H-102T04

R4127

1K

R4018

22

R4128

47K

C4062_1

476.3V KA

C4037_1

476.3V KA

C4036

0.1 F

C4053

0.1 F

C4052

0.1 F

C4056

0.1 F

C4061

0.1 F

C4057

0.1 F

C4059

0.1 F

C4060

0.1 F

C4038

0.1 F

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

Q4003
KTA1504S_Y_RTK

RESET SW

ADDR17 ADDR16

DQ15 DQ0

ADDR15

ADDR14

DQ14 DQ1

F_CE
F_WE/DQM0

DATA15 ADDR13

F_OE

DQ13 DQ2

DATA0
DATA1

DATA7 ADDR12

DATA2
DATA3

DATA14 ADDR11

DQ12 DQ3

DATA4
DATA5
DATA6

DATA6 ADDR10

DQ11 DQ4

DATA7
DATA8

DATA13 ADDR9

DATA9
DATA10

DATA5 ADDR20

DATA11

DQ10 DQ5

DATA12
DATA13

DATA12

DQ9 DQ6

DATA14
DATA15

DATA4 F_WE/DQM0

ADDR1
ADDR2
ADDR3

F_RESET

DQ8 DQ7

ADDR4
ADDR5

DATA11

ADDR6
ADDR7

DATA3

ADDR8

SMI_DQML

ADDR9
ADDR10

DATA10

SMI_DQMU SMI_WE

ADDR11
ADDR12

DATA2 ADDR19

SMI_CLK SMI_CAS

ADDR13
ADDR14
ADDR15

DATA9 ADDR18

SMI_RAS

ADDR16
ADDR17

DATA1 ADDR8

SMI_CS0

ADDR18
ADDR19

DATA8 ADDR7

ADDR20

AD11 AD12

DATA0 ADDR6

AD9 AD13

DQ15

F_OE ADDR5

DQ14

AD8 AD10

DQ13
DQ12

ADDR4

DQ11

AD7 AD0

DQ10
DQ9

F_CE ADDR3

DQ8

AD6 AD1

DQ7
DQ6

ADDR1 ADDR2

DQ5

AD5 AD2

DQ4
DQ3
DQ2

AD4 AD3

DQ1
DQ0
SMI_CLK
SMI_DQMU
SMI_DQML
SMI_WE
SMI_CAS
SMI_RAS
SMI_CS0
AD13
AD12
AD11

P.CON+3.3V

AD10
AD0
AD1
AD2

F_RESET

AD3
AD9
AD8
AD7
AD6
AD5
AD4

D_GND

FROM/TO MPEG

G-8G-7

VMC297

PCB130

(DVD PCB)

MEMORY SCHEMATIC DIAGRAM

NC

FROM REGULATOR2

A15

A14

A13

A12

A11

A10

A9

A8

NC

NC

0.6

0.5

0.4

0.5

0.5

0.5

0

0

2.9

0.5

NC

A17

A7

A6

A5

A4

A3

A18

RY/BY

NC

RP

WE

CE

OE

VCC

DQ15/A-1

BYTE

DQ4

NC

A2

A1A0

VSS

DQ0

DQ8

DQ1

DQ9

DQ2

DQ10

DQ3

DQ11

DQ12

DQ5

DQ13

DQ6

DQ14

DQ7

VSS

A16

3.2

0.6

0.6

0.6

0.7

1.5

3.2

1.1

1.1

1.1

1.3

1.3

1.4

1.5

1.1

0

1.6 1.2

1.2

2.4

0.4

2.8

2.8

2.8

0.3

0

0

0

0

0

3.2

NC

NC

NC

0

0.6

0.9

2.0

1.6

0

0.6

NC

NC

VSS

DQ15

VSSQ

DQ14

DQ13

VDDQ

DQ12

DQ11

VSSQ

DQ10 DQ5

VDDQ

DQ4

DQ3

VSSQ

DQ2

DQ1

VDDQ

DQ0

VDD

DQ9

VDDQ

DQ8

VSS

NC

UDQM

CLK

CKE

A11

A9

A8

A7

A6

A5

A4

VSS VDD

A3

A2

A1

A0

A10/AP

BA1

BA0

CS

RAS

CAS

WE

LDQM

VDD

DQ7

VSSQ

DQ6

3.1

3.1
0

3.1

1.0

0.2

0.2

0.2

0.6

1.4

0

0

0

0.9

3.1

0.9

0.9

0

0.9

0.9

3.1

1.2

1.2

0

1.2

0

0.6

0.6

0.6

03.1

0.6

0.6

0.2

0.2

1.9

0.3

0.7

3.1

2.8

2.0

2.8

1.4

0

1.3

0

1.3

1.2

3.1

1.3

1.3

0

1.2

0.8

3.1

1.0

3.1

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

IC8502 PCM1742KE/2K

STEREO DAC IC

1

10 11

12 13 14 15 16

2345678

9

D8502

MCL4148

D8501

MCL4148

D8503

MCL4148

D8504

MCL4148

D8506

MCL4148

D8505

MCL4148

CP8502
IMSA-9604S-12Z13

1

10
11
12

2
3
4
5
6
7
8
9

CAUTION: DIGITAL TRANSISTOR

B8503

FCM2012H-102T04

B8502

FCM2012H-102T04

B8501

FCM2012H-102T04

R8502

180 +-1%

R8501

3.3K

R8514

180 +-1%

R8507

3.3K

R8513

3.3K

R8515

180 +-1%

R8522

68

R8528

1.5K

R8520

68

R8524

1.5K

R8505

68

R8508

1.5K

R8530 47

R8503

100K

R8506

100K

C8525_1

10016V KA

C8517_1

1016V KA

C8523

226.3V KA

C8512

226.3V KA

L8503

2.2uH
0305

L8502

2.2uH
0305

L8501

2.2uH
0305

C8509

0.1 F

C8501

0.1 F

C8510

0.1 F

C8516

22P CH

C8524

56PCH

C8521

22PCH

C8522

56PCH

C8520

22PCH

C8515

22P CH

C8508

56PCH

C8502

22PCH

C8504

22PCH

C8519

0.1 F

C8518

0.1 F

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

W861

W849

W844

W845

W848

W839

W841

W818

W833

W834

W847

W837

W838

Q8502
KTA1504S_Y_RTK

BUFFER

Q8503
KTA1504S_Y_RTK

BUFFER

Q8501
KTA1504S_Y_RTK

BUFFER

CD8501

2H0C2203

FFC(1.25P)

C8507_1

4.750V KA

C8513_1

4.750V KA

D_GND

GND

VCC+9V

P.CON+5V

P.CON+3.3V

Y_V_OUT

Y_VIDEO

C_V_OUT

C_VIDEO

Y_VIDEO
C_VIDEO

CVBS_VIDEO

PCM_MCLK
PCM_SCLK

CVBS_V_OUT
PCM_LRCLK
PCM_DATA0
CPU_RESET

CVBS_VIDEO

ML
MC

MDI

P.CON+5V

P.CON+3.3V

CVBS_V_OUT

JACK_A_OUT_L

C_V_OUT

JACK_A_OUT_R

Y_V_OUT

JACK_A_OUT_L

JACK_A_OUT_R

ZERO
CPU_RESET

PCM_DATA0

PCM_LRCLK

PCM_MCLK

PCM_SCLK

ZERO

MDI

MC

ML

GND

FROM/TO REGULATOR1

(CP8002)

FROM/TO MPEG

FROM REGULATOR2

G-10

G-9

VMC297

PCB130

(DVD PCB)

AUDIO/VIDEO SCHEMATIC DIAGRAM

NC

3.1

02.6

AGND

2.62.6

VOUTR

MDI

2.9 3.0 3.0 3.0 2.9

ML

MC

ZEROL/NA

ZEROR/ZEROA

VCOM

3.1

3.13.103.25.2

SCK

VOUTL

VCC

VDD

DGND

LRCK

DATA

BCK

GND

GND

CVBS

C(CVBS)

Y(G)
GND

AUDIO-L

AUDIO-R

ZERO

DVD RESET

GND

GND

1.3

0.7
0

1.1

0.4
0

1.1

0.5
0

9

8

5

6

7

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

IC8504 PQ070XZ01ZP

REG+1.8V IC

12345

6

IC8501 PQ070XZ01ZP

REG+1.8V IC

12345

6

CD8505
CU2B3301

200/330mm

1

10
11

2
3
4
5
6
7
8
9

L8504

W5T29X7.5X19

D8510 MCL4148

B8505

W4BRH3.5X6X1.0X2

R8533

4.7K

R8521 1K +-1%

R8518

510+-1%

R8535

4.7K

R8536

47K

R8517 1K+-1%

R8511

510 +-1%

L8507

2.2uH 0305

L8509

2.2uH

0305

C8535

0.1 F

C8551

0.1 F

C8530

0.0047 B

C8548

0.1 F

C8529

47PCH

C8528

10PCH

C8531

82P CH

C8550

1F

C8533

0.1 F

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

W873

W872

W825

W859

W871
W870

Q8505
KTC3875S_Y_RTK

LEVEL CONVERT

C8549_1

1006.3V KA

C8547_1

1006.3V KA

C8532_1

1006.3V KA
C8534_1

1006.3V KA

RXD
TXD

GND

M_GND

P.CON+9V

P.CON+A5V

D_GND

SPDIF

P.CON+3.3V

P.CON+5V

P.CON+A5V

P.CON+3.3V

GND

D_GND

P.CON+5V

P.CON+3.3V

VCC+9V

GND

D_GND

P.CON+A1.8V

P.CON+A5V

P.CON+3.3V

GND

D_GND

P.CON+1.8V

SPDIF

RXD
TXD

P.CON+3.3V

P.CON+A1.8V

P.CON+3.3V

D_GND

FROM/TO REGULATOR1

(CP8001)

FROM/TO MEMORY

FROM/TO RF_AMP/DSP

FROM/TO AUDIO/VIDEO

FROM/TO MOTOR DRV

G-12

G-11

VMC297

PCB130

FROM/TO MPEG

RX

TX

SPDIF

GND

GND

GND(M)
P.CON+9V
P.CON+5V

P.CON+3.3V
P.CON+3.3V

GND

V_IN V_C V_OUT V_ADJ

GND

V_OUT

V_C

V_IN NC

GND

3.2

03.2 3.2

3.3 1.9

1.9

1.3 03.3

1.3

5.2

3.0

10

(DVD PCB)

REGULATOR2 SCHEMATIC DIAGRAM

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

Q4501

KTC3875S_Y_RTK

AUDIO PB SW

Q4502

KTC3875S_Y_RTK

AUDIO PB SW

Q4506

2SC2412K

AMP

Q4507

2SC2412K

BUFFER

Q4504

KTC3203_Y

BIAS OSC

Q4509

2SA1037AK

BUFFER

Q4505

KTA1266

BIAS CTL

Q4511

2SA1037AK

BUFFER

X4501

100CT3R502

3.579545MHz

C4544

4.725V KA

C4529

4706.3V YK

C4532

336.3V KA

C4523

226.3V KA

C4540

3.350V KA

C4518

2206.3V KA

C4511

2206.3V YK

C4571

2206.3V KA

C4568

0.3350V KA

C4548

0.3350V KA

C4508

476.3V KA

C4506_1

0.022100V MMTS

C4514_1

0.047 B

C4522_1

0.047 B

C4569

0.1 B

C4538

0.1 B

C4546

0.022 B

C4535

0.1 B

C4521

0.068 B

C4541

0.0022 B

C4559

0.1 B

C4561

0.01 B

C4555

0.1 B

C4542

820P CH

C4513

0.015 B

C4512

0.01 B

C4524

0.1 B

C4517

0.1 B

C4537

0.01 B

C4551
390PCH

C4552

0.1 B

C4557

150P

CH

C4534

470P CH

C4553

39PCH

C4573

0.1 B

C4549

0.022 B

C4536

0.1 B

C4533

0.01 B

C4556

0.01 B

C4580

0.1 B

C4579

0.1 B

C4505

0.33 B

C4501

0.0047 B

C4503

22PCH

R4507

1M

R4532

22K

R4533

820

R4534

8.2K

R4523

22K

R4528

22K1/4W

R4530

12K

R4524

47K

R4544

680K

R4501

560

R4503

10K

R4502

10K

R4508

3.3K

R4540

100

R4536

10K

R4541

1.8K

R4537

1.8K
1/4W

R4505

8.2K

R4531

180

R4527

330K

R4546

2.7K

R4513

1.2K

+-1%

R4545

1K

R4510

2.2

R4562

1801/4W

R4506 3.3K

R4539

1.5K

R4526

6.8K

R4529

10K

R4520

1K

R4511

22K

R4519

5.6K

R4521

10M

R4522

220K1/4W

R4509

680

R4504

12K

R4563

180 1/4W

R4525

12K

R4550

2.2M

R4557

82K1/4W

R4560

100K

R4559

2.2K 1/4W

R4553

100

R4512

101/4W

C4581

10016V KA

C4545

476.3V KA

C4543

150V KA

C4558

476.3V KA

C4550

150V KA

C4574

150V KA

C4576

150V KA

C4566

150V KA

C4565

1016V KA

C4539

1016V KA

C4572

150V KA

C4547

150V KA

C4527

476.3V KA

C4564

336.3V KA

C4567

0.2250V KA

C4570

4.750V KA

W864

W870

W874

W804

W877

W846

W891

TP4501

V.ENV

W854

W856

W880

L4506

47uH

0305

L4505

47uH

0305

L4509

100uH 0607

L4504
100uH 0305

CP4503
B2013H02-2P

1

2

CP4501
TOC-C09X-A1

1

2

3

4

5

6

7

8

9

L4502

1626009

COIL,BIAS OSC

1
2345

6

CP4502
IMSA-9604S-06Z14

1

2

3

4

5

6

Q4503

DTA124EKA

SW

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

IC4501

LA71205M-MPB

Y/C/AUDIO/HEAD AMP IC

1 10111213141516

17 18 192 20

21 22 23 24 25 26 27 28 29

3

30 31 32 33 34 35 36 37 38 39

4

40

414243444546474849550515253545556575859660

616263646566676869

7

70717273747576777879

8809

CAUTION: DIGITAL TRANSISTOR

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

S808X S808Y

FSC

COMP

H.SW

Y/C_CS

ENV_DET

C_ROTARY

Y/C_CLK

P.CON+5V_A

H.AMP_SW1

Y/C_DATA

P.CON+5V_A

VCR_A_MUTE

P.CON+8V

P.CON+5V_A

NORMAL_A

Y/C_AUDIO

FSC
HF2 Y/C_CLK

HF_COM Y/C_DATA

HF1 Y/C_CS

H.SW
VIDEO_OUT
ENV_DET
VCR_A_MUTE
CTL+
CTL­C_ROTARY
DUMMY_V.SYNC
V.REC_ST_H
H.AMP_SW1
COMP
Y/C_VIDEO

P.CON+5V_A

TUNER_VIDEO

V.SYNC

AUX_V[F/R]

DVD_VIDEO

Y/C_VIDEO
AUX_V[F/R]

DUMMY_V.SYNC

TUNER_VIDEO

P.CON+5V_A

P.CON+8V_B

Y/C_VIDEO

VIDEO_OUT

NORMAL_A

GND

P.CON+5V_A

P.CON+8V

V.REC_ST_H

CTL+ P.CON+8V_B
CTL-

Y/C_AUDIO

GND
HOT

V.SYNC

G-14G-13

TO FULL ERASE HEAD

FROM/TO HEAD AUDIO CONTROL

FROM/TO CYL

FROM/TO HI-FI/DEMODULATOR

FROM REGULATOR1

FROM/TO DVD I/O

FROM/TO CHROMA/IF

NC

NC

NC

+

Vref

2.3V

SP,LP

EQ

AMP

ALC

ALC

A-VCC

1
2
3

A-GND

HA

PRE GND

R

P

P

R

P

P

H
L

H
L

REC:LP<EP
PB:EP

DET

PB,EE

PB,EE

VREF

REC
AMP

MUTE

AUTO
BIAS

LINE

AMP

REC

FM-EQ

FM

AGC

VHS

SOPB

P

R

PB

FM EQ

P

R

S-EQ

MAIN
DE-EM

LIM

DOUBBLE

FM

DEM

SUB
LPF

B

S

DET

EMPHA

FIL

MAIN

4.7K

Y-VCC

V.SYNC

SEP

SEP

6DB

QV/QH

AGC
TC2

BAL
TC1

REG

4V

1
2
3

VDD 4Fsc

CLOCK

PLL

TIMMING OUT

DRIVER

AUTO-BIAS

CLAMP

CCD

VSS

OUT

IN

VCA

VCA

CLAMP

VCP

ALWAYS

5V

B

VX01

320FH

VCO

SLD

PHASE

EQ

fo-ADJ

PHASE

EQ

Q-ADJ

FM

AGC

FIL

Y-GND

R
P

FBC

1/2

VIDEO

AGC

Y/C
MIX

NC1

N.L.
DEEM

Y-LPF

CLAMP

DETAIL

ENH

NL

EMPHA

NL

EMPHA

FM

MOD

NORMAL

R-EQ
TEST

YNR/COMB

3.58M
BPF1

B.D

P

PB
AMP

CNC

BGA

BGA

BGA

R
P

AFTER

BEFORE

3.58M
BPF2

B-UP

AMP

Main
CONV

ACC
AMP

DET

ACC

C-LPF

4.21M
BPF

Sub

CONV

R

RPPP

LPF

RP

REC
AFC

PB
APC

REC
APC

P

R

R
P

R

P

C-VCC

SERAIL
DECODER

C-GND

C-ROT
RF-SW

IN

AUDIO

MUTE

HA SW

ENV
DET

ACC
DET

HA VCC

COMP

OUT

KILL
DET

DET

CHROMA

GND

HA

R

R

P

P

R

PB-C

PB-C

R

R

P

P

VSS

SYNC

2.2

0

1.8

4.0

0.7

0.7

0.7

5.0

1.7

1.8

0

2.0

2.0

2.0

0

2.2

4.9

2.3

0

2.0

2.2 2.2 2.3 2.2 2.2 2.5 2.3 2.2 2.3 2.4 5.0 1.0 1.0 1.7 1.4 0 1.5 0.1 2.2

1.8

2.8

4.9

0

3.6

2.9

1.6

2.3

2.3

2.0

4.0

2.0

2.6

3.1

3.1

2.8

3.0

0

1.7

0

0.82.205.05.0

2.3

3.33.34.02.61.95.04.84.84.80002.80.5

0.7

0

0

0.7

0

0

0

0

0

0

0

4.8

4.0

3.4

1.7

0

2.3

NC

PCB010

SP-CH1 (R)

SP-CH2 (L)

EP/LP-CH1 (R)

EP/LP-CH2 (L)

HF1 (R)
HF COM

HF2 (L)

SP COM

EP/LP COM

5.3

5.2

0

NC

0

4.9

4.9

5.0

5.0

0

5.0

VMC293

0

FROM/TO TV POWER

15

11

12

14

13

FE HEAD(GND)
FE HEAD(HOT)

CTL+

CTL­AE HEAD(+)
AE HEAD(-)

AUDIO REC
AUDIO PB

FROM/TO DIGITAL COMB FILTER

(VCR PCB)

Y/C/AUDIO/HEAD AMP SCHEMATIC DIAGRAM

FROM/TO MICON

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

D106

MTZJ15B

D103

MTZJ5.6B

D105

1SS133

D108

1SS133

D102

1SS133

Q102

DTC124EKA

CENT LED SW

Q110
DTC114EKA

SW

Q106

DTC124EKA

SW

CAUTION: DIGITAL TRANSISTOR

Q103

ST-304L

EOT SENSOR

Q101

ST-304L

BOT SENSOR

Q108
RPI-303

REEL SENSOR

1

2

34

Q107

RPI-303

REEL SENSOR

1

2

34

Q104

RPI-352C40N

MS_SEN B

1234

Q105

RPI-352C40N

MS_SEN A

1234

D101

LTE-3271T-012A-O

IC199 S-24C04BDP-LA

EEP ROM IC

1234

5678

CP101
TMC-J12P-B2

1

10
11
12

2
3
4
5
6
7
8
9

SW101

LSA-1144EAU

TAB SW

IC103PST3231NR

SYSTEM RESET

123

45

IC101

OEC8074A

SYSCON/TIMER/SERVO

1 10

100

11 12 13 14 15 16 17 18 192 20 21 22 23 24 25

26272829330313233343536373839440414243444546474849550

51525354

55
56575859

6

60616263646566676869

7

707172737475

76 77 78 79880 81 82 83 84 85 86 87 88 89990 91 92 93 94 95 96 97 98 99

Q116

2SC2412K

AV_SW

Q114

2SA1037AK

BUFFER

X102

100CT01403

14.31818MHz

X101

100DA32R01

32.768KHz

C139

4725V YK

C141

4706.3V YK

C104

226.3V KA

C107

0.001 B

C101

0.001 B

C125

0.1 B

C127

1B

C121

560P CH

C167

47PCH

C156

1B

C117

0.01 B

C111

0.1 B

C132

10P CH

C124

100P CH

C115

100P CH

C143

22PCH

C130

15P CH

C133

0.1 B

C138

0.022 B

C137

0.18 B

C135 10P CH

C110

0.0047 B

C109

0.0039 B

C106

0.022 B

C118

0.001 B

C154

0.001B

C148

68PCH

C151

0.1 F

C145

68P CH

C116

0.0022 B

C114

0.01 B

C123

1F

C136

0.1 B

C140

0.1 F

C164

1B

C144

0.1 B

C112

0.1 B

C131

15P CH

C120

0.027 B

R101

270K

R103

270

R105

270K

R111

4.7K

R177

2.2K

R114

2.2M 1/4W

R115
560

R123

47K

R122

120 1/4W

R109

33K

R113

100 1/4W

R117

33K

R124

10K

R1604.7K

R129
1M

R135

10K

R132

56K

R134

10K

R131

5.6K 1/4W

R152

22K

R149

2.7K

R108

1K

R125

47K 1/4W

R104

3.3K

R133
27K

R116
560

R110

10K

R106

1K

R150

2.7K

R141

47K

R171

1K

R128

10K 1/4W

R176

330K

R147

47K

R153

1K 1/4W

R144

1K 1/4W

R143

4.7K

R140

4.7K

R139

10K

R112
100

R118

2.2K

R137

4.7K

R148

2.7K

R1594.7K

R119

2.2K

R136

6.8K

R1644.7K

R166

10K

R165

4.7K

R173

1K 1/2W

C102

1006.3V KA

C126

10010V KA

C119

1016V KA

C113

1016V KA

C103

4716V YK

C122

336.3V KA

C146

2206.3V YK

C128

22016V YK

W883

W859

W845

W842

W841

W806

TP102

H.SW

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

BACKUP+5V

SCL

BACKUP+5V

SDA

AT+5V

AT+5V

H.SYNC

V.SYNC

AV_SW2

VIDEO_OUT

DVD_H

Y/C_VIDEO

CYL_DRIVE

HIFI_H.SW

CONTROL_IN

CENT_LED_CTL

DVD_H

P.CON+5V_A

VCR_POWER_H

AT+12V
P.CON+5V_C
P.CON+5V_A

Y/C_VIDEO

TX

Y/C_CLK

RX

Y/C_DATA

RESET

Y/C_CS DVD_RESET

DUMMY_V.SYNC

H.SW

AV_SW1

VIDEO_OUT

H.SW

ENV_DET

VCR_A_MUTE IIC_OFF

VCR_A_MUTE

KEY_B

CTL+

CAP_LIMIT

CTL- KEY_A

TV_POWER_H TV_A_MUTE

C_ROTARY

REC_LED

DUMMY_V.SYNC

T-REC_LED

V.REC_ST_H

REMOCON_IN

CYL_DRIVE SCL

H.AMP_SW1

EXT_A_MUTE

COMP

OSD_Y SDA

VCR_A_MUTE

DEGAUSS_H TX

EXT_MUTE
TV_POWER_H

OSDR RX
OSDG
OSDB Y/C_DATA

OSD_R

CAP_F/R Y/C_CS

OSD_G

CYL_FG/PG Y/C_CLK

OSD_B

H_CONTROL

OSD_Y
TV_POWER_H

EXT_A_MUTE

V.SYNC

EOT

H_CONTROL

BOT

H.SYNC

AV_SW1

SDA

EXT_MUTE

SCL

REMOCON_IN

VCR_POWER_H

REEL-S

PROTECT
IIC_OFF

REEL-T

EMERGENCY

CTL+

CENT_LED_CTL

TAB_SW

CTL-

V.REC_ST_H
HIFI_ENV

AT+5V

HIFI_H.SW
VCR_A_MUTE
SDA

POWER_FAIL

SCL
ST_SELECT

VCR_POWER_H

V.REC_ST_H

ST_SELECT

MS_SEN-B

MS_SEN-A

EMERGENCY

HIFI_ENV

ENV_DET

T-REC_LED

REC_LED

PROTECT

DVD_RESET

C_ROTARY

H.AMP_SW1

LDM_CTL

EOT

KEY_A

KEY_B

TAB_SW

AFT

COMP

BOT

TV_POWER_H
TV_A_MUTE

CAP_F/R

OSDB

OSDG

OSDR

BACKUP+5V OSD_R

SCL

CAP_LIMIT

RESET

SDA

REEL-S

REEL-T

MOTOR_GND

MS_SEN-B

MS_SEN-A

TV_POWER_H

OSD_G

AT+5V

CONTROL_IN

AV_SW1

LDM_CTL OSD_B

AV_SW2

CYL_FG/PG

SDA
SCL

CYL_DRIVE

AFT

DEGAUSS_H
POWER_FAIL
MOTOR_GND
GND

FROM/TO TV POWER

FROM/TO DIGITAL COMB FILTER

FROM/TO SOUND AMP/SURROUND

FROM/TO HI-FI/DEMODULATOR

FROM/TO CHROMA/IF

FROM/TO I/O

FROM/TO DVD I/O

FROM/TO CAPSTAN DD UNIT

FROM/TO Y/C/A/H.AMP

FROM/TO REGULATOR1

G-16G-15

NC

5.0

0

5.0

0

0.2

4.9

0

NC

NC

NC

0

5.1

0.9 1.4

5.1

GNDIN

NC NC

OUT

PCB010

VSS

A2A1A0

SDA

SCL

TEST

VCC

0000

4.8 4.8 0 5.0

2.5 0 2.6 0.1 5.1 5.1 4.9 4.9 0 2.6 2.4 0 3.4 3.6 0 0 5.0 0 0.1 0 0 4.9 03.50

5.0

0

2.4

2.4

5.0

0.4

0

4.9
0

5.1

0

0

0

5.0

0.1

5.0

0

0

0

4.8

4.8

0

0

3.6

5.0

3.5

5.0

3.505.05.0002.7

NC NC

3.6 3.64.95.00001.03.35.0004.94.7001.62.2

5.1

2.5

2.6
0
0

5.0
0

1.3
0
0
0
0
0
0

1.9
0

3.3
0

2.5

2.5
0

2.5

5.0

2.4

2.4

NC

HSYNC

VSYNC

OSCO

H.SW

POWER_FAIL

REC/OTR_LED

CTL(+)
CTL(-)

CAP_F/R

BLK

VSS2

CYL_SPEED_UP

LDM_CTL

BOT

KEY_B

KEY_A

REEL-S
REEL-T

DEGAUSS

H_CTL

TV_POWER_ON-H

VDD251:

VCR.A.MUTE

ENV.DET

T-REC_LED

SCL

SDA

TV_MUTE

CAP_LIMIT

IIC_OFF

FSCLPF

AFCLPF

52: AFCC

VRO
VRI

MSSEN_B

MSSEN_A

EOT

REMOCON IN

CAP_PWM

DRUM_PWM

CENT_LED_CTL

VDD

OSCI

VSS

XI

XO

SXI

CVIN

CVIN2

R
G
B

CYL_FG/PG

FGF

AVSS
CTLA
AVDD

V.REC.START-H

76:CO

25:RESET
24:DUMMY.V.SYNC

77:

AV_SW2

AFT

ST_SELECT

HIFI_ENV

EXT_A_MUTE

AV_SW1

RENT_H

EXT_MUTE

RX

TX

PROTECT

DVD_RESET

EMERGENCY

NC

FF/REW_L

NC

CAP_FULL

Y/C_CLK

Y/C_CS

Y/C_DATA

TV/DVD_LED

98:C_ROTARY
99:H.AMP.SW1

100:COMP

NC

TUNER_H

NC

NCNCNC

NC

NC

NC

NC

VCR_POWER_ON-H

CHROMA_POWER_ON_H

TAB_SW

DVD_H

VMC293

VM_OSD_SW

5.1

5.1 4.4

0.1

NC

NC NC

00

5.2 5.1

0

5.0

0

0

28

17

16

CAP CTL
LDM CTL

CAP VCO

VCC

CAP.M F/R

MOTOR GND

GND

CYL FG/PG
CYL CTL

CAP FG

I LIMIT

LD/CY VCO

1.2

05.1

2.4 1.2

0

5.1

0.9 5.1

0.5 1.4

(VCR PCB)

MICON SCHEMATIC DIAGRAM

0

0

4.9

27

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

L8002

100uH

B2201

W4BRH3.5X6X1.0

B8001

W4BRH3.5X6X1.0X2

D4204

1SS133

SW2201

EVQ21505R

REW

SW2203

EVQ21505R

PLAY

SW2204

EVQ21505R

FF

SW2205

EVQ21505R

REC/OTR

SW2206

EVQ21505R

CH.DOWN

SW2207

EVQ21505R

CH.UP

SW2202

EVQ21505R

STOP/EJECT

EE

H1NCH1H2

J4201

MSP-213V2-432_PBSN

REAR IN JACK

1

23456

HNC

E

J2204HTJ-032-05AR

FRONT AUDIO R JACK

1

23

HNC

E

J2202

HTJ-032-05AY

FRONT VIDEO JACK

1

2

3

HNC

E

J2203

HTJ-032-05AW

FRONT AUDIO L JACK

1

2

3

H

E

J8007

MSP-251V-05PBSN

COAXIAL

1

2

J2201

MSJ-2000

HEADPHONE_JACK

12345

6

7

D2207

LTL-1CHEE-002A

POWER

D2206

LTL-1CHEE-002A

T-REC

D2205

LTL-1CHEE-002A

REC/OTR

:SINCE THESE PARTS MARKED BY

CAUTION

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARE

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

:LES PIECES REPAREES PAR UN ETANT

ATTENTION

H1EH1H2

E

J4202

MSP-213V1-432_PBSN

REAR OUT JACK

1234

5

Vout

B+

GND

OS2201

RPM7138-SH10

1
2
3

D4201

MTZJ5.6B

D2201

MTZJ6.8B

D4207

1SS133

D4205

1SS133

Q2203
DTC114EKA

T-REC LED SW

Q2201
DTC114EKA

REC LED SW

Q2202

DTC114EKA

POWER_LED_SW

Q4204
DTC124EKA

ZERO_SW

CAUTION: DIGITAL TRANSISTOR

Q8002
2SC2412K

D AUDIO DRIVER

Q4203

2SC2412K

MUTE SW

Q4201
2SC2412K

MUTE SW

Q4211

2SC2412K

CH MUTE

Q4210

2SA1037AK

MUTE SW

Q4212

2SA1037AK

BUFFER

C4211

47016V

YK

C4220

10016V YK

C8094

1006.3V YK

C2212

10016V YK

C2210

10016V YK

C2206

10016V YK

C4203

100PCH

C4214

470PCH

C4202

33PCH

C2201

0.01 B

C4213

470PCH

C4209

470PCH

C4210

470PCH

C2207

100PCH

C2213

470PCH

C2203

470PCH

C80100.1 F

C4208

0.022 B

C2209

470P CH

C2208

470PB

C8095

0.022 B

C2202

470PCH

C2205

100PCH

R4216

680

R4205
330 1/4W

R4231

5.6K

R4203

5.6K

R4215

4.7K

R4213

75

R4232

10K

R4238

220 1/4W

R4204

1K

R2225

150 1/2W

R2226

150 1/2W

R2211

4.7K
1/4W

R2212

4.7K
1/4W

R2208

560

R2206

820

R2204

1.2K

R2203

1.8K

R2201

3.9K

R2205

4.7K

R4214

1K

R4217
470

R4207

470

R2202

75

R4212

4.7K

R8005

220

R8007

2.2K

R8004

68

R4239

220 1/2W

R8003

100K

R8006

3.3K

R8013

1.5K

R4218

220

R4219

1K

R2227

270 1/4W

R2224

270 1/4W

R2223

270 1/4W

R4209

330 1/4W

C4206

1016V KA

C4212

1016V KA

C4205

1016V KA

C4204

1016V KA

TP4201

W813

W838

W886

W894

(W093)

L4205

100uH

0305

CP2201

A2001WV2-2P

1

2

Q4202
DTA124EKA

MUTE SW

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

CAUTION: DIGITAL TRANSISTOR

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

KEY_B

SOUND_R+
SOUND_L+
SP_OUT_R
SP_OUT_L

REC_LED

T-REC_LED
TV_POWER_H

AT+5V
P.CON+5V
P.CON+8V

KEY_B

KEY_A

REC_LED

T-REC_LED
REMOCON_IN
EXT_A_MUTE
VCR_A_MUTE

EXT_MUTE

TV_POWER_H

ZERO

REAR_V_IN
FRONT_V_IN

REMOCON_IN

AT+5V

P.CON+5V

SPDIF-134

JACK_OUT

KEY_A

KEY_B

P.CON+5V_E

AT+5V

P.CON+8V

EXT_MUTE

JACK_OUT

SP_OUT_L

SOUND_L+

SOUND_R+

SP_OUT_R

SOUND_GND

EXT_A_MUTE

FRONT_A_IN_R

FRONT_V_IN

REAR_V_IN

REAR_A_IN_R

FRONT_A_IN_L

FRONT_A_IN_R

REAR_A_IN_L

FRONT_A_IN_L

VCR_A_MUTE
REAR_A_IN_R
REAR_A_IN_L

SW_AUDIO_OUT_R
SW_AUDIO_OUT_L

P.CON+5V_E

ZERO

SPDIF-134

SOUND_GND

GND

FROM/TO DVD I/O

FROM/TO TV POWER

FROM/TO HI-FI/DEMODULATOR

FROM/TO DIGITAL COMB FILTER

FROM/TO MICON

FROM/TO REGULATOR1

FROM/TO SOUND AMP/SURROUND

FROM/TO CRT

(CD2251)

G-18G-17

(VCR PCB)

IN/OUT SCHEMATIC DIAGRAM

NC

5.2

5.2

0

PCB010

8.8

8.9

8.1

1.5

1.7

0

3.9

0

03.9

0

00

4.7

0

0

0

0

0

GND

YELLOW REDWHITE

0

0.1

5.2

0

1.7

5.1

1.9

2.5

0

NC NC

VMC293

5.0

KEY-B

0

0

0

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

CP601
A2001WR2-4P

1
2
3
4

IC601

LA76319M-MPB-E

CHROMA/IF_IC

1101112 13 14 15 16

17 18 19

2

20 21 22 23 24 25 26 27 28 29

3

30 31 32

33343536373839

4

4041424344

45464748

49

5

50515253545556575859

6

6061626364

7 89

CD602

CU291701

CD603

CU284501

IS NON POLAR ONE.

THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP

THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:

L603
W5T29X7.5X19

CP603
B2013H02-8P

1
2
3
4
5
6
7
8

IC602

KIA78L10F-RTF

10V_REG IC

123

D603

MTZJ12B

D602

MTZJ12B

D601

MTZJ12B

D605

MTZJ12B

Q601_1

DTC114EK

BUFFER

CAUTION: DIGITAL TRANSISTOR

Q606
2SC2412K

SW

Q602
2SC2412K

PROTECT

X601

100CT3R532

3.579545MHz

C627

0.047 B

C626

1B

C634

1B

C617

0.33 B

C608

0.1 B

C614

0.33 B

C618

0.015 B

C625

0.1 B

C631

0.1 B

C632

0.1 F

C616

0.1 B

C629

8P CH

C630

8P CH

C611

0.47 B

C607

0.1

B

C604

1B

C606

1B

C619

1B

C622

1B

C621

0.1

B

C613

0.1 B

C601

0.01 B

C628

0.47 B

R612

1K

R625

22K

R624

680K

R628

10K

R603

100

R607

27K

R605

27K 1/4W

R608

4.7K

R609 100

R610 100

R611 100

R615

4.7K

R616

330 1/4W

R618

220

R626

22K

R630

1K

R613

100 1/2W

R619

4.7K +-1%

R627

330 1/4W

R617

2.2K

R632

4.7K 1/4W

R623

3.3K1/4W

R622

390 1/4W

R634

1K

R633

10K

R602

1K1/4W

R620

4.7M

R636

5.6K

R635

1K 1/4W

C624

2206.3V KA

C603

10016V KA

C609

10016V KA

C612

10016V KA

W819

W810

W893

(W101)

W892

W833

W827

L601

100uH0305

L602

100uH

0607

CP602

B2013H02-9P

1
2
3
4
5
6
7
8
9

Q605

DTA114EKA

SW

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

CAUTION: DIGITAL TRANSISTOR

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

SW_C

P.CON+5V_C

COMB_FSC

P.CON+5V

VCR_POWER_H

P.CON+5V

P.CON+5V_B

P.CON+8V

AT5.7VREG

8.5VREG

P.CON+5V_C

Y/C_VIDEO-Y

COMB_FSC

SW_C

DVD_Y/C-Y

V.SYNC

SCL

V.OUT

SDA DVD_Y/C-Y

TV_POWER_H

AFC
ACL

H.OUT

OSD_Y

P.CON+5V

EMERGENCY

OSD_B

OSD_G AFC

H.OUT

OSD_R

H.SYNC

V.SYNC P.CON+8V

VCR_POWER_H

SCL

TV_POWER_H

H_CONTROL

SDA

IIC_OFF

MOTOR+12V
MOTOR_GND

GND

V.OUT

P.CON+5V_B

P.CON+8V

8.5VREG

PROTECT

EMERGENCY

ACL

P.CON+5V_B

V.SYNC

Y/C_VIDEO-Y

H.SYNC

MOTOR+12V

VCR_POWER_H

AT5.7VREG

IIC_OFF

OSD_Y
OSD_B
OSD_G
OSD_R

SDA
SCL

H_CONTROL

TV_POWER_H

FROM/TO CRT

FROM/TO MICON

FROM/TO TV POWER

FROM/TO DEFLECTION

FROM/TO Y/C/A/H.AMP

FROM/TO DVD I/O

FROM/TO DIGITAL COMB FILTER

FROM/TO REGULATOR1

G-20G-19

NC NC

NC NC NC

NC

5.0

9.0

0

5.0

4.4

NC

NC

NC

NC

NC

VIDEO

SW

LPF

ATT

REG-SW

CLMP

V/Y

SW

CL

SHARPBSSG

COLOP
CLAMP

MATRIX

RGB

OSD

CONTRAST

OSD

SW

CEMO

BPF

YC SN ACC

TINT

VXD

CLMP

CLMP

FSC

VER
RAMP

VER
C/D

VER
SEP

APC1

HOR
VCC

HOR
OUT

PHASE

SHIFTER

AFC2

AFC1

AF
SW

X-RAY

HOR
VCO

HOR
C/D

1/256

BUS

ORIVE/OUT-OFF

RST

5V/8V-REG

AUDIO

SW

ABL/ACL

FBP

REG
SW

DC REST

CONTRAST

BRIGHT

SYNC

SEP

TRAP

NC

NC

NC

CHROMA/IF SCHEMATIC DIAGRAM

+B_DOWN

EMERGENCY

P.CON+5V

AFC

ACL

H.OUT

TV_POWER_H

V.OUT

NC

PCB010
VMC293

CLAMP_OFF

B.OUT

G.OUT

R.OUT

GND

CUT_OFF

8.6 2.5 2.5 4.3 8.5 2.6 7.8 3.4 3.4

0

5.0

5.0

0

5.0

5.0

3.3

3.3

3.3

0

5.0

5.0

0

2.53

3.3

0

2.20 0 5.2 5.84 3.4 3.5

3.9

0

2.7

2.5

0

0

1.7

5.1

NC

0

1.5

2.6

5.2

2.4

3.1

3.1

0

2.73.53.15.0

NCNC

2.6NC3.63.94.32.52.64.80NC4.97000

0

0

5.0

5.0

0

0

10.0 0 12.0

35

36 37

38

39

40

33

34

25

4.4

(VCR PCB)

(CP603B)

SCL

GND

SDA

IIC_OFF

NC NC NC NC

(CP602B)

OUT GND IN

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

HS351

763WAA0255

SPEAKER

SP352

SG04H02BRA

8 OHM

SPEAKER

SP351

SG04H02BRA

8 OHM

4

3

2

1

CD303

CU149001

IC352 AN7522N

SOUND AMP IC

1 10111223456789

IC302 AN5891SA-E1V

SURROUND_IC

1101112 13 14 15 16

171819

2

202122232425262728293303132

4 56789

CP303

A2502WV2-4P

1
2
3
4

:SINCE THESE PARTS MARKED BY

CAUTION

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARE

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

:LES PIECES REPAREES PAR UN ETANT

ATTENTION

Q350

2SC2412K

MUTE SW

C358

0.0056 B

C302

0.0056 B

C318

0.01 B

C307

0.01 B

C319

0.01 B

C316

0.033 B

C320
470PB

C313
470PB

C332
470PB

C317

0.33 B

C325

0.33 B

C324
470PB

C304

0.033 B

C312

0.015 B

C314

0.033
B

R311

2.2K1/4W

R310

100 1/4W

R302

2.7K

R353

56K 1/4W

R359

47K1/4W

R356

100K1/4W

R357

1K

R309

100 1/4W

R304

2.2K

R306

220K

R303

2.2K

R305

2.7K

R308

2.2K1/4W

R307

1.8K

R301

1.8K

C309_1

1016V KA

C308_1

1016V KA

C350

2250V YK

C321

220025V YK

C311

1016V KA

C305

1016V KA

C326

1016V KA

C323

1016V KA

C310

22016V YK

C306

1016V KA

C315

150V KA

C328

1016V KA

C331

1016V KA

C329

1016V KA

C327

1016V KA

C357

2250V YK

W881 W858

W843

L301

100uH 0607

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

SOUND_R+
SOUND_L+
SP_OUT_R

SOUND+B

SP_OUT_L

SOUND_GND

GND

TV_POWER_H

TV_A_MUTE

SDA
SCL

SW_AUDIO_OUT_L
SW_AUDIO_OUT_R

P.CON+8V

(VCR PCB)

SOUND AMP/SURROUND SCHEMATIC DIAGRAM

VMC293

FROM/TO I/O

FROM/TO REGULATOR1

FROM/TO DVD I/O

FROM/TO MICON

FROM/TO TV POWER

G-22G-21

LR

-+-+

SOUND R+

SOUND L+

SOUND L-

SOUND R-

PCB010

control

MODE

R IN VrefVCC

PF1 AGC L IN

SURRAGC

+

L ONTVDBDLBLT

GNDPF4

PF3PF2

NCNC

SCLSDAR OUT

NC NC

NC

TDBLD

Balance

/MUTE

Control

Volume

2.2K
+

+

RTRBBB

NCNC

Tone

Control

NC

0

6.3 0

6.6 3.5 0 3.5 1.33.9 0 1.3 6.6 3.5 0 3.5

NC NC

NC NC NC

NC

4.2 1.9 4.6 0 0 4.1 4.2 4.2 0 4.4 4.0 0 0NC2.3 4.0 4.5

2.5 7.8 4.6 3.9 NC0 0 3.9 4.0 4.2 3.4 2.3 0 0 4.5 5.02 5.02

18

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

IC5501

AN3663FBP

HI-FI/AUDIO/HEAD AMP/DEM IC

1 10111213141516

17 18 19

2

20 21 22 23 24 25 26 27 28 29

3

30 31 32

333435363738394404142434445464748

49

5

50515253545556575859

6

6061626364

789

L5501
100uH

D5502

1SS133

D5501

11EQS04N

C5559

476.3V KA

C5543

150V YK

C5508

1050V YK

C5507

0.2250V YK

C5515

2235V YK

C5564

476.3V KA

C5512

2.2

50V YK

C5505_1 4716V KA

C5514

22

35V YK

C5565

82P CH

C5566

82P CH

C5501

0.1 B

C5506

0.1 B

C5563

0.1 B

C5562

0.001 B

C5513

0.1 B

C5557 0.1 B

C5549 0.1 F

C5511

0.1 B

C5556 0.01 B

C5550 0.015 B

C5503

0.047 B

C5522

1F

C5518

0.022 B

C5527

680PCH

C5521

680PCH

C5509

0.1 F

C5504

0.1 B

C5529

0.1 B

C5560

0.01 F

C5553 0.015 B

C5552 0.1 B

C5510

0.1 B

C5517

0.1 B

C5534

1B

C5535

1B

C5538

1B

C5541

1B

C5558 0.01 F

R5510

8.2K

R5502

330

R5518

8.2K

R5514

27K

R5501

1.2K1/4W

R5504

3.3K

R5519

22K

R5506

390

R5507

390

R5522

1K

R5503

3.9M

R5509

3.3K

R5512

56K

1/4W

R5508

3.3K

R5516

56K1/4W

R5511

56K1/4W

R5515

8.2K

R5513

8.2K

R5523

1M

R5524

56K1/4W

C5555_1 1016V KA

C5545_1

336.3V KA

C5502

4716V YK

C5540

336.3V KA

C5551

0.2250V YK

C5544

1050V YK

C5542

1050V YK

C5520

1016V KA

C5526

1016V KA

C5525

1016V KA

C5524

1016V KA

C5523

4.750V YK

C5528

4.750V KA

C5533

1050V KA

C5531

4.750V KA

C5519

3.350V YK

C5530

1050V KA

C5536

4.750V YK

C5554 1050V YK

W872

W834

TP5501

HIFI ENV.

L5502_1 22uH

0305

L5504

22uH

0305

L5503
22uH

0305

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

FSC

SDA

SCL

VCR_A_MUTE

TUNER_AUDIO

P.CON+5V_A

FRONT_A_IN_R
FRONT_A_IN_L
REAR_A_IN_R
REAR_A_IN_L

TUNER_AUDIO

P.CON+5V_A

V.REC_ST_H

AUDIO_OUT_R HIFI_ENV

HIFI_H.SW

ST_SELECT P.CON+5V_A

AUDIO_OUT_L

HF2

P.CON+12V

HF1

HF_COM
FSC

NORMAL_A

Y/C_AUDIO
NORMAL_A

Y/C_AUDIO

P.CON+5V_A
P.CON+12V

V.REC_ST_H
HIFI_ENV
HIFI_H.SW
VCR_A_MUTE
SCL
SDA
ST_SELECT

DVD_A_OUT_L
DVD_A_OUT_R
AUDIO_OUT_L
AUDIO_OUT_R

GND

DVD_A_OUT_R

DVD_A_OUT_L

FRONT_A_IN_R

FRONT_A_IN_L

REAR_A_IN_R

REAR_A_IN_L

FROM/TO TV POWER

FROM/TO DVD I/O

FROM/TO MICON

FROM/TO REGULATOR1

FROM/TO Y/C/A/H.AMP

FROM/TO DIGITAL COMB FILTER

FROM/TO I/O

G-24G-23

NC

NC

NC

0.7

2.4

2.4

0

0

0.7

0

0.6

4.9

2.5

1.8

1.8

1.8

2.1

2.4

2.41.604.94.72.30

3.4

2.7

4.9

2.5

4.2

2.3

0

1.2

4.3

11.0

1.0

2.3

2.2

0.6

0

2.40.7

4.5M
TRAP

CUE
BPFAMDEMOD

95HMz

BPF

SUB
BPF

SUB
DET

3.5M
VCO

LOGIC

DEM_BLK

FM

DEMOD

OUTPUT SW

SUB DEEN

MATRIX

RFC

DET

LOG
AMP

AMP

INPUT_SW(R)

INPUT_SW(L)

VREF1

MAIN
DEEN

LOGIC

MUTE VCO-F0

ADJ

LOGIC

ZZ-PROM

CTL

AMP

COMP

PNR RCH

SW NOISE

PC

LCH BPF

RCH BPF

PC PB LPF

PB LPF

AUDIO
LIMIT

AUDIO
LIMIT

AMP

PNR LCH

FM UM

SW NOISE

RCH
VCO

REC LPF

LCH VCO

MIX

REC LPF

DET

HPF

NOISE

DET

SW15

SW11

H

L

SW13

SW14

SW10

SW4

SW2

L

R

LR

SW17

SW19

MUTE

MUTE

R

L

L

L

SW18

NORMAL

MIX

HIFI

BS

BS

SW22 L

MIX

R

LINER

SW

HOLD

TIMING

S/N

S/N

RECPB

SW12

SW9

SW21

HA1HA2

AMP

CURR

FROM 1PIN

FROM 3PIN

R

R

SW16

MIX
HIFI

AGC

+

-

-

AN3672FBP

J

PCB010
VMC293

4.3
NC

2.4

02.3

02.3

2.2

2.4 2.1

0.5

000

2.0

2.2 0 0

2.4

0

0

0

4.7

2.13.5

2.2

20

(VCR PCB)

Hi-Fi/DEMODULATOR SCHEMATIC DIAGRAM

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

C1521

3.350V

KANP

IC1501 TC90A45F

DIGITAL COMB FILTER

1

10111213141516

2345678

9

CD002

CU011902

1

TU001 115-V-K015AR_B

1

101112

13

141516

17

18

19

2

20

21

345

6

7

8

9

IC1505 MM1504XNRE

VIDEO OUT SW

123

456

IC1502 MM1501XNRE

AV SW

123

456

IC1504 MM1501XNRE

AV SW

123

456

L1502_1

15uH

L1505
100uH

L1506
100uH

:SINCE THESE PARTS MARKED BY

CAUTION

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARE

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

:LES PIECES REPAREES PAR UN ETANT

ATTENTION

Q1501
2SC2412K

BUFFER

Q1502

KTC3875S_Y_RTK

BUFFER

Q1503

KTC3875S_Y_RTK

BUFFER

C1516

4716V KA

C1520

150V KA

C006

0.001 B

C001

0.1 F

C004

0.1 F

C1537

1B

C1504

0.01 B

C1519

0.1 B

C1515

100PCH

C1513

180PCH

C1510

0.01 B

C1508

0.01 B

C1502

0.1 B

C1501

56P CH

C1517

0.01 B

C1506

27P CH

C1505

0.01 B

C1507

0.01 B

C1509

0.01 B

C1511

0.47 B

C1523

39PCH

C1514

120PCH

C1531

1B

C1525

1B

C1530

0.1 B

C1532

47PCH

C1535

0.1 B

C1538

1B

C1512

0.01 B

R1515

1K

R1516

1K 1/4W

R1506

820

R1501

180

R1502

6.8K

R1503

3.3K

R1513

1K

R1505

100

R15071KR1511

24K

R1510

27K

R1512

560

R1508

1.2K

R1519

390

1/4W

R1504

1K

R1509

1K

R15172.7K

R1518

1K

R1520

120

C005

10006.3V YK

C1518

4706.3V YK

C1528

22016V YK

C1534

1016V KA

C1536

10016V YK

W829

W811

W815

W820

W863

W837

L001

100uH

L1504

150uH

L1501

10uH 0305

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

S810

P.CON+5V

TUNER_AUDIO

SW_C
COMB_FSC

Y/C_VIDEO

Y/C_VIDEO-Y

COMB_FSC

Y/C_VIDEO
AUX_V[F/R]
TUNER_VIDEO
P.CON+8V_B

GND

Y/C_VIDEO-Y

AV_SW1

SW_C

DVD_Y/C-C

P.CON+8V

DVD_VIDEO

DVD_Y/C-C

AV_SW2

AV_SW1
AV_SW2
SDA

P.CON+12V

SCL
AFT

AT+30V
P.CON+5V

FRONT_V_IN

P.CON+12V

P.CON+8V

REAR_V_IN
FRONT_V_IN
JACK_OUT

P.CON+8V_B

Y/C_VIDEO

AUX_V[F/R]

TUNER_VIDEO

TUNER_AUDIO

DVD_VIDEO

JACK_OUT

AV_SW1

REAR_V_IN

AT+30V

P.CON+5V

SCL

AFT

SDA

FROM/TO I/O

FROM/TO REGULATOR1

FROM/TO MICON

FROM/TO DVD I/O

FROM/TO TV POWER

FROM/TO Y/C/A/H.AMP

FROM/TO CHROMA/IF

FROM/TO HI-FI/DEMODULATOR

(VCR PCB)

DIGITAL COMB FILTER SCHEMATIC DIAGRAM

G-26G-25

32

OUT

OUT

VIDEO

AUDIO

NC

NC

NC

NC

NCNCNC

NC

NC

+B

CLOCK

DATA

AFT OUT

SIF OUT

BT

NC

VRB

VRT

ADIN

BIAS2

BIAS3

VFIL

CKIN

AV

SS

DD

DV

AV

Y

C

DV

DD

OUT

OUT

SS

BIAS1

TEST

KILLER

2.4 3.0 2.6 2.6

2.2 2.5

1.7

1.1

5.0

4.4

2.4

1.9 2.5

5.4

PCB010

NCNCNCNCNCNC

SW1

V OUT

VccVin2

GND

Vin1

6dB

SW1

V OUT

VccVin2

GND

Vin1

SW1

V OUT

VccVin2

GND

Vin1

VMC293

NCNC NC

5.4 3.8 1.4

4.2

3.6 0

5.500

0

1.0

1.8

0

4.4

2.1

7.8

4.7

0

4.9

4.4

4.2

7.8

5.0

7.3

12.5

8.0

0

8.0

31

2.1

GND

TO DVD DECK

FROM/TO DEFLECTION

(CP001)

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

CP8001
A2001WV2-11P

1

10
11

2
3
4
5
6
7
8
9

C8023

2.250V

NA

C8022

2.250V

NA

IC8002 MM1501XNRE

AUDIO SW

123

456

IC8001 MM1501XNRE

AUDIO SW

123

456

IS NON POLAR ONE.

THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP

THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:

Q8007

DTC124EKA

ZERO MUTE SW

CAUTION: DIGITAL TRANSISTOR

IC8004 NJM4580MMIXER

1234

5678

CP8002

IMSA-9604S-12Z14

1

10

11

12

2

3

4

5

6

7

8

9

Q8006

2SC2412K

ZERO MUTE SW

C8015

10016V

KA

C8013

10016V YK

C8017

0.01 B

C8070

820PCH

C8081

100PCH

C8079

100PCH

C8025

820P CH

C8064

820PCH

C8090

0.1 F

C8077

820PCH

C8014

0.1 B

C8044

0.1 B

C8012

0.1 B

C8019
56P CH

C8020

100PCH

R8001

4.7K

R8012

4.7K1/4W

R8051

12K

R8020

4.7K

R8047

1K

R8021

4.7K

R8023

10K

R8024

100K1/4W

R8025

100K1/4W

R8026

10K

R8022

10

1/4W

R8054

8.2K

R8056

3.9K

R8050

12K

R8052

8.2K

R8053

3.9K

R8048

10K

R8049

10K

R8027

1K

C8003

2216V KA

C8001

1016V KA

C8009

1016V KA

C8004

2216V KA

C8002

22016V YK

C8005

2.250V KA

C8102

2.250V KA

C8065

3310V KA

C8006

1016V KA

C8007

1016V KA

W844

W816

W851

W850

W887

L8003

100uH 0305

L8001

100uH 0305

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

S801YS801X

SW_AUDIO_OUT_L
SW_AUDIO_OUT_R

AV_SW1

TX

AUDIO_OUT_L

RX

P.CON+9V_DH

P.CON+5V_D
P.CON+3.3V

SW_AUDIO_OUT_L
SW_AUDIO_OUT_R

SPDIF-134

ZERO
SPDIF-134

SW_AUDIO_OUT_L

P.CON+5V_E

P.CON+12V

DVD_Y/C-C
DVD_VIDEO

AUDIO_OUT_R

DVD_Y/C-Y

AV_SW1

SW_AUDIO_OUT_R

P.CON+12V

TX
RX
DVD_RESET
AV_SW1

DVD_VIDEO

DVD_Y/C-C

AT+5V

DVD_Y/C-Y

GND

P.CON+5V_E

ZERO

DVD_RESET

P.CON+3.3V
P.CON+5V_D
P.CON+12V
P.CON+9V_DH
AT+5V

DVD_A_OUT_L

DVD_A_OUT_R

P.CON+12V

DVD_VIDEO

DVD_A_OUT_L
DVD_A_OUT_R
AUDIO_OUT_L
AUDIO_OUT_R

FROM/TO HI-FI/DEMODULATOR

FROM/TO Y/C/A/H.AMP

FROM/TO REGULATOR1

FROM/TO TV POWER

FROM/TO MICON

FROM/TO CHROMA/IF

FROM/TO DIGITAL COMB FILTER

FROM/TO I/O

FROM/TO SOUND AMP/SURROUND

FROM/TO AUDIO/VIDEO

(CP8502)

FROM/TO REGULATOR2

(CD8505)

G-28G-27

0

0.7

0.7

0

0

0

GND

0 6.1 6.1 6.1

6.1

6.1 6.1 12.3

GND

PCB010

P.CON+D5V

SPDIF-134

GND
GND

TX
RX

GND

P.CON+3.3V

P.CON+9V

P.CON+3.3V

GND

GND

C(CVBS)

CVBS

Y

AUDIO-L

GND

AUDIO-R

ZERO

DVD RESET

Vin2

GND

Vin1

GND

+

-

VCC

A_GND

-

+

VMC293

7.8

0

9.3

4.4

8.6

12.4

7.8

0

9.3

4.37

8.6

12.35

30

29

(VCR PCB)

DVD IN/OUT SCHEMATIC DIAGRAM

Vin2

GND

Vin1

Vcc

V OUT

SW1

SW1

V OUT

Vcc

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

R3010

18 1W

R3021

22 1W

D3001

MTZJ33B

L3001

10uHTSL0808

L3002

10uHTSL0808

IC3003

KIA278R05PI

P.CON+5V_A OUT IC

1234

IC3001 KIA278R05PI

P.CON+5V_D OUT IC

1234

IC3002 KIA278R09PI

P.CON+9V_D OUT IC

1234

IC3004

KIA278R05PI

P.CON+5V OUT IC

1234

HS3001

763WAA0184

:SINCE THESE PARTS MARKED BY

CAUTION

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARE

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

:LES PIECES REPAREES PAR UN ETANT

ATTENTION

D3003

MTZJ4.7B

D3002

MTZJ5.6B

D3005

11EQS04N

D3004

SB140-EIC

D3008

21DQ09N

D3011

21DQ09N

D3007

11E1-EIC

Q3009

DTC114EKA

SW

CAUTION: DIGITAL TRANSISTOR

Q3003

KTC3209_Y

AT+5V OUT

Q3014

KTC3209_Y

BACKUP+5V

Q3015

2SC2412K

BUFFER

Q3001
2SC2412K

BUFFER

Q3004
2SC2412K

3.3V CTL

Q3006

2SC2412K

3.3V CTL

Q3002
KTC3209_Y

P.CON+8V SW

Q3011

2SC2412K

SW

Q3010

KTC3209_Y

P.CON+5V_C SW

Q3005 KTB1366

3.3V OUT

Q3007

KTA1281_Y

P.CON+12V SW

C3010

22006.3V YK

C3022

47010V

YK

C3011

4.750V KA

C3003

100PCH

C3024

0.1 B
C3027

0.1

B

C3001

0.1 B

C3014

0.1 B

R3002

56K1/2W

R3003

56K1/2W

R3001

1001/4W

R3015

180

1/4W

R3023

10

R3024

1K

R3013

560+-1%

R3027

100

R3012

68 +-1%

R3011

10

R3009

330 1/4W

R3017

10

R3008
220

1/4W

R3006

100 1/4W

R3019

1K

R3026

220

R3025

330

R3007

15K

R3005

4.7K

R3004

10K 1/4W

R3016

10K

R3020

100 1/4W

C3002

1006.3V YK

C3004

1016V KA

C3009

10006.3V YK

C3023

4706.3V YK

C3012

2235V YK

C3025

4706.3V YK

C3028

47016V

YK

C3008

1050V YK

C3005

4706.3V YK

C3013

1

50V

KA

C3007

150V KA

C3006

22016V YK

C3016

150V KA

W835

W809

W897

(W015)

Q3008

DTA143EKA

SW

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

CAUTION: DIGITAL TRANSISTOR

DURING PLAYBACK.

MEASURED WITH THE DIGITAL TESTER

NOTE:THE DC VOLTAGE EACH PART WAS

P.CON+12V
MOTOR+12V
UNREG+8V
UNREG+5V
+B

AT5.7VREG

GND

P.CON+5V
P.CON+12V
P.CON+8V

VCR_POWER_H

AT+30V

P.CON+5V_A

AT+12V

P.CON+8V

P.CON+5V_A

UNREG+5V

BACKUP+5V

AT+5V

P.CON+8V

VCR_POWER_H

8.5VREG
AT+12V
P.CON+5V_C
DVD_H
AT+5V
BACKUP+5V
P.CON+5V_A

AT+5V
P.CON+5V
P.CON+8V

P.CON+9V_DH

P.CON+5V_D

P.CON+8V

P.CON+5V

P.CON+3.3V

8.5VREG
AT5.7VREG

P.CON+8V

DVD_H

P.CON+5V
P.CON+5V_C

P.CON+5V

P.CON+5V_A
P.CON+12V

VCR_POWER_H

+B

AT+5V
P.CON+12V
P.CON+3.3V
P.CON+5V_D
P.CON+9V_DH

P.CON+5V_C

P.CON+12V
AT+30V

FROM/TO DVD I/O

FROM/TO HI-FI/DEMODULATOR

FROM/TO CHROMA/IF

FROM/TO SOUND AMP/SURROUND

FROM/TO I/O

FROM/TO MICON

FROM/TO Y/C/A/H.AMP

FROM/TO DIGITAL COMB FILTER

FROM/TO TV POWER

G-30G-29

REGULATOR1 SCHEMATIC DIAGRAM

PCB010
VMC293

8.0

5.0

5.7

IN OUT GND SW

IN OUT GND SW

IN OUT GND SW

5.0

5.0

5.0

8.0 5.0 0 5.0

8.0 5.0 0 5.0 12.0 9.005.0

7.5 5.0 0 5.0

5.0

5.0

5.6

5.0

7.0

8.5

12.0

7.8

5.0

0

12.0

5.0

0

0

5.0

3.3

4.0

4.0

3.6

3.8

5.0

3.8

3.6

5.0

10.0

5.6

5.0 5.0
0

0

0

5.0

(VCR PCB)

12.0

GND SWIN OUT

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

R1720

0.22 1W

CP1707

003P-2100

1

CP1708

003P-2100

1

CP1704

A1561WV2-2P
1
2

CD1704

CD1703

TH1701

ZPB45BL3R0A

IC1701

PS2561L1-1-V(W)

FEED BACK

1

2

34

R1718

1.2 7W

F1701

6.3A125V

6.3V125V

FH1702

EYF-52BC

FH1701

EYF-52BC

RY1701

ALKS321

12

3

4

21

L1703

8R200024

DEGAUSS COIL

L1701

2R2A752F28

COIL,LINE FILTER

12

34

IS THE LIVE CONNECTIONCAUTION:

6.3A 125V

6.3A 125V

VR1701

10K

+B ADJ

METAL

S

D

G

Q1705

2SK3326(2)

SWITCHING

BLACK

WHITE

BLADE

WIDE

CD1702

0R415906

AC120V_60Hz

T1701
8142065S

1

10

11

12

13

14

15

16

17

18

2

3

4

6

7

8

CAUTION

N’UTOLISER QUE DES FUSIBLE DE MEME TYPE

REPLACE ONLY WITH THE SAME TYPE FUSE

:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

:POUR UNE PROTECTION CONTINUE LES RISQUES D’INCEIE

ATTENTION

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

R1717

330 2W

R1714

0.15 1W

HS1701

763WAA0238

CD604

CU282401

IS NON POLAR ONE.

THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP

THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:

L1704
HF70T22*10*14

CP1702
B2013H02-8P

1
2
3
4
5
6
7
8

IC1702 KIA431A-AT

FEED BACK
SWITCHING

123

B1703

W4BRH3.5X6X1.0

:SINCE THESE PARTS MARKED BY

CAUTION

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARE

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

:LES PIECES REPAREES PAR UN ETANT

ATTENTION

D1727

MTZJ6.8B

D1715

MTZJ18B

D1717

MTZJ18B

D1703

MTZJ2.7B

D1712

MTZJ2.2B

D1732

MTZJ12B

D1733

1SS133

D1709

1SS133

D1716

1N4937

D1718

1N4937

D1713

21DQ09N

D1734
21DQ09N

D1726

1SS133

D1721

1SS133

D1719

SB340L-6737

D1730

FE201-6L49

D1702

1SS133

D1706

RM11C-EIC

D1711

RM11C-EIC

D1704

RGP15J

D1707

RGP15J

D1720

1SS133

D1723

FE201-6L49

D1728

1SS133

D1722

1N4937

D1710

RM11C-EIC

D1724

1SS133

D1705

RM11C-EIC

Q1706

KTC3203_Y

SWITCHING

Q1702

KTC3198

RELAY DRIVE

C1715

1025V KA

C1728_1

220010V YK

C1716

220025V YK

C1720

220160V YXF

C1714

680200V USR

C1727

0.0033500V B

C1724

0.001

500V

B

C1712

0.0027 B

C1713_1

0.047100V MMTS

C1707

820P2KV R

C1709

0.0047

B

C1722

0.022 B

C1701

0.22275V ECQUL

C1703

0.0056 B

C1708

0.00222KV B

C1710

0.00222KV B

C1711

0.0047250V KX

C1718

0.0033 B

C1702

0.01 B

C1705

560P
2KV R

C1729

560P2KV R

R1719

100

R1715

150

R1724

100

1/4W

R1721

4.7K 1/4W

R1701

1.5M 1/2W

R1702

2.7M1/2W +-10%

R1708

10K

R1705

10K

R1713

470

R1710

56K 1/4W

R1709

2.2K

R1731

680 1/4W

R1703

100 1/2W

R1706

2.7K 1/4W

R1707

10K

R1722

2.2M1/2W

R1712

100 1/4W

R1716

3.3K

R1727

1K1/4W

R1725

56K 1/2W

R1726

1K

1/4W

C1732

100025V YK

C1733

4.750V YK

C1717

100035V MHE

W898

W821

W848

W831

W888

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

POWER_FAIL
DEGAUSS_H
MOTOR_GND

GND

SOUND+B
SOUND_GND

GND

MOTOR+12V
MOTOR_GND

GND

SOUND_GND
GND

GND

GND

+B
UNREG+5V

MOTOR+12V
UNREG+8V
P.CON+12V
GND

GND

GND

GND1

PCB070
VMC293

(CP604)

FROM/TO DEFLECTION

FROM/TO Y/C/A/H.AMP

FROM/TO DVD I/O

FROM/TO REGULATOR1

FROM/TO DIGITAL COMB FILTER

FROM/TO HI-FI/DEMODULATOR

FROM/TO I/O

FROM/TO CHROMA/IF

FROM/TO SOUND AMP/SURROUND

FROM/TO MICON

G-32G-31

TV POWER SCHEMATIC DIAGRAM

(VCR PCB)

CATHOOLE

ANODE

REFERENCE

GND

NC

0

10.3

10.3

165.8

0.2

10.2

WHITE

BLACK

0

0

10.9

10.7 9.7

16.3

1.5

P1

P2

6.3A 125V

6.3A 125V

(F1701)

(F1701)

2.5 0 4.0

16.0

0

16.0

168

168

168

168 6.5

12.0

0

0

115

0

8.0

10.0

(S811)

4.0

+B
+B

NCNC

GND

P.CON+12V

GND

H VOLT

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

W822

W807

W830

W852

W821

TP401

W812

D411

MTZJ5.6B

D417

MTZJ6.8B

D418

MTZJ33B

D413

MTZJ30B

D414

MTZJ30B

D408

MTZJ5.6B

R407

470 1/2W

R431

2.2K 1/4W

R421_1

10K1/4W

R449

560 1/2W

R444

560 1/2W

R447

560 1/2W

R419

15K

1/2W

R427

120K

1/2W

R452

68K 1/2W

R429

1 1/2W

R432

47K 1/4W

R428

820

1/4W

R418

2.7K 1/4W

R415

560 1/2W

R443

1.5K 1/4W

R438

12K 1/2W

R413

8.2K 1/4W

R450

680 1/2W

R453

1.2K 1/2W

R437

680 1/2W

R439

1.2K1/2W

R441

10K

1/4W

R442

15K

1/4W

R425

47K1/4W

R414

100 1/4W

C438

1006.3V YK

C404

47160V BXA

C429

10035V YK

C446

22250V MHE

C426

2.2100V YK

C434

100035V MHE

C402

1250V

MHE

C427

10035V YK

C405_1

0.01100V MMTS

C443

0.22100V MKT

C436

0.0022500V B

C418

0.00681.25KV MPP
C408_1

0.00561.25KV

MPP

C445

0.1100V MKT

C449

0.0012KV R

C432

1F

C423

22P500V SL

C414

0.022 B

C412

0.39250V PMS

C407

2250V MHE

C403

22100V YK

C430

220025V MHE

C421

0.4750V YK

Q401

KTC3227_Y

H.DRIVE

Q403

2SD2499(LBOEC1)

FL OUT

Q408
KTC3207

SW

D416

1N4005-EIC

D402

AU02A-EIC

D412

AU02A-EIC

D415

AU02A-EIC

D419

1SS133

D403
1SS133

D410

11E1-EIC

D404

1SS133

R445

2.72W

R412

68 1/2W

R454
1K 1W

R423

0.47 2W

R406

180 2W

R417

180 2W

B403

W5RH3.5X5X1.0

B401

W5RH3.5X5X1.0

B402

W5RH3.5X5X1.0

HS402

763WAA0181

HS401

763WAA0212

VR404

2.2K METAL

Q406

2SA1624

CURRENT

DET.

Q409
2SA1624

H.VOLT_SW

L402

ELH5L4113

IC401 LA78040

V.OUTPUT

1234567

B

G

R

11

6

8

10

9

175

V801

A51AKL13X04

T401_1

ETH14Y47AY

12

3

45

R401

5.6K +-1%

R403

15K+-1%

R405

15K +-1%

R424

27K+-1%

CP001 003P-2100

1

GND

ABL

GND

GND

8

E8

TER

HEA

E27

E12

B+

E180

S

F

AFC

COL

HV

FB401_1 FJN20A003

1

10

11

2

3

4

5

6

7

8

9

CP404

A1561WV2-A5P

1

2

3

4

5

C406_1

2.250V

KANP

L403

4.7mH 0909

CP602B

A2001WV2-9P

1
2
3
4
5
6
7
8
9

CP802A
B2013H02-5P

1
2
3
4
5

CD805

CU823001

CD803
CU823001

R430

2.7 10WC
1

2

34

R440

3.3K 10W
C

1

2

34

Q407

KRC102MAT

H.VOLT_SW

CP604

A2001WV2-8P

1
2
3
4
5
6
7
8

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

:SINCE THESE PARTS MARKED BY

CAUTION

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARE

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

:LES PIECES REPAREES PAR UN ETANT

ATTENTION

S804

S803

CAUTION: DIGITAL TRANSISTOR

+B

GND

V.OUT

AFC
ACL

H.OUT
P.CON+5V

180V

GND

HEATER

FROM/TO CRT

(CD002)

FROM/TO DIGITAL COMB FILTER

(CP1702)

(CP602)

FROM/TO CHROMA/IF

FROM/TO TV POWER

(DEFLECTION PCB)

DEFLECTION SCHEMATIC DIAGRAM

G-34G-33

P.CON+12V

23

NC

17.3

0.4
0

24

NC

NC

NC

0.1

0

2.0

0

0

8.1

0

22

NC

NC

0

0

4.9

TO CRT

2.8

13.1

108.0

105.0

2.8

0

0.1

ANORD

TO CRT

180V

GND

HEATER

NC

(CP802B)

THERMAL PROTECTION

VCC GND

PUMP UP

AMP

+

-

25.0

0

115.0

115.0

1122

NC

NC

P.CON+5V
EMERGENCY
+B_DOWN

TV_POWER_H

V.OUT

AFC
ACL

GND

TO DVD DECK

TO VCR DECK

19

21

26

GND

H.VOLT

+B
+B

GND

GND

H.OUT

12.0 12.0

0

(CP805)

TMC564

PCB080

FROM/TO DY

NC

4.0 2.0 0 12.025.0 4.0

(CP803)

SCREEN

FORCUS

114.0
0

0

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

TP803

TP801

TP802

S801

L804

100uH0607

CD2251
CU220701

1

2

CP805

A2361WV2-2P

1

2

CP803

A2361WV2-2P

1

2

SW2254

EVQ21505R

SKIP

SW2255

EVQ21505R

STOP

SW2256

EVQ21505R

PLAY

SW2257

EVQ21505R

SKIP

SW2253

EVQ21505R

VOL UP

SW2252

EVQ21505R

VOL DOWN

SW2251

EVQ21505R

OPEN/CLOSE

SW2258

EVQ21505R

POWER

F

J801

ISHS62S

CRT SOCKET

1

10

11

124

5

6

789

CC801

8990TPA002

BT001

R03(AB)E_2P_G

BT002

R03(AB)E_2P_G

TM101

ORV201N36010

BL001
HPN-01

W806

W834

W833

W832

W831

R826

56 1/4W

R2254

1.8K 1/4W

R2255

1K 1/4W

R2256

820 1/4W

R2257

560 1/4W

R2253

3.3K 1/4W

R2252

4.7K 1/4W

R2251

15K 1/4W

R819

220

1/4W

R808

1.8K 1/4W

R810

220 1/4W

R820

2.7K 1/4W

R809

220 1/4W

R824

56 1/4W

R805

220 1/4W

R817

220

1/4W

R806

1.8K 1/4W

R818

220

1/4W

R825

56 1/4W

R807

1.8K 1/4W

R822

2.7K 1/4W

R821

2.7K 1/4W

C819

1250V YK

C816

560P CH

C818

100P B

C817

560P CH

C815

680P CH

C801
100PCH

C820

0.0012KV B

Q802

KTC4217

RED AMP

Q803

KTC3199_Y

RED AMP

Q807

KTC3199_Y

BLUE AMP

Q804

KTC4217

GREEN AMP

Q806
KTC4217

BLUE AMP

Q805

KTC3199_Y

GREEN AMP

D803

1SS133

D801

1SS133

D802

1SS133

D806

1SS133

D804

1SS133

D805

1SS133

R814

15K 2W

R815

15K 2W

R816

15K 2W

CP802B
B2013H02-5P

1

2

3

4

5

CP603B

A2001WV2-8P

1
2
3
4
5
6
7
8

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

:SINCE THESE PARTS MARKED BY

CAUTION

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARE

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

:LES PIECES REPAREES PAR UN ETANT

ATTENTION

HEATER
GND

180V

(CRT PCB)

CRT/OPERATION SCHEMATIC DIAGRAM

G-36G-35

NC

FROM/TO I/O

GND

KEY-B

PCB270

(CP2201)

7.3

123.5

7.8

2.5

7.3

2.4

CRT BLOCK

119.7

7.8

7.3

3.1

7.3

3.0

7.8

7.3

FOCUS

HEATER

GND

FROM DEFLECTION

180V

0

NC

0

117.0

121.0
0

6.2

119.0

0

0

(CD805)

TECB10

43

ACCESSORY

PCB110
TCC426

GND

GND

42

41

(CP802A)

(OPERATION PCB)

123.9

7.3

3.0

2.4

NC

(CD803)

GND

GND

FROM DEFLECTION

FROM/TO CROMA/IF

B.OUT

G.OUT

R.OUT

CLAMP_OFF

CUT OFF

GND

NC

NC
NC

(CP603)

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

M

M2002

BCD3B02

M

M2001

JCL9B61

D1

SG-107F6

12

34

R2

82K

R1

560

S1002X

S1001X

S1004X

S1003X

S1005X

S1002Y

S1001Y

S1004Y

S1003Y

S1005Y

SW2

SW1AB-271-10A

CP1

IMSA-9615S-08C-PP

1

2

3

4

5

6

7

8

G-38G-37

RELAY/SW/FG SCHEMATIC DIAGRAM

(RELAY PCB)

(SW PCB)

AWD28

S1002

S1003

S1001

S1004

S1005

VCC

FG

GND

L.SW

SP.MTR(+)

SLD.MTR(-)
SLD.MTR(+)
SP.MTR(-)

VEBA17

PCB640

VEBA12

PCB68A

ABC D E F GH

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

EE

H1 NC H1 H2

J4201

REAR IN JACK

1

23 456

H

E

J8007

COAXIAL

1

2

TU001

1

10

11

12

13

14

15

16

17

18

19

2

20

21

3

4

5

6

7

8

9

BLACK

WHITE

BLADE

WIDE

CD1702

AC120V60Hz

4

3

2

1

CD303

54321

CP802B

54321

CP802A

H1EH1 H2

E

J4202

REAR OUT JACK

1

2 345

432

1

CP303

2

1

CP805

2

1

CP803

2

1

CP2201

2

1

CD2251

2

1

CP1704

2

1

CP4503

Vout

B+

GND

OS2201

1
2
3

12

11

10

9

8

7

6

5

4

3

2

1

12

11

10

9

8

7

6

5

4

3

2

1

7654321

6
5
4
3
2
1

6
5
4
3
2
1

987645321

CP602B

9

8

7

6

4
5

3

2

1

CP602

9
8
7
6

4

5

3
2
1

CP4501

CP404

12345

11

10

9

8

7

6

5

4

3

2

1

11

10

9

8

7

6

5

4

3

2

1

12
11
10
9
8
7
6
5
4
3
2
1

12

11

10

9

8

7

6

5

4

3

2

1

3

2

1

CP2302

21

L1703

DEGAUSS COIL

SPEAKER

SP352

8 OHM

SPEAKER

SP351

8 OHM

CD1704

CD1703

J2201

HEADPHONE_JACK

1234567

24
23
22
21
20
19

2
1

18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3

CP2001

8
7
6
5
4
3
2
1

CP603

8

7

6

5

4

3

2

1

CP604

8

7

6

5

4

3

2

1

CP1702

8
7
6
5
4
3
2
1

CP603B

8

7

6

5

4

3

2

1

CP2301

HNC

E

J2204

FRONT AUDIO JACK

1

23

HNC

E

J2203

FRONT AUDIO JACK

1

23

HNC

E

J2202

FRONT VIDEO JACK

1

23

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

:LES PIECES REPAREES PAR UN ETANT

ATTENTION

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

THE TIMETHIS INTERCONNECTION DIAGRAM IS THE LATEST ATNOTE:

:SINCE THESE PARTS MARKED BY

CAUTION

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARE

INTERCONNECTION DIAGRAM

G-40G-39

CD805

CD803

GND

GND

GND

GND

OUT

OUT

VIDEO

AUDIO

NC

NC

NC

NC

NC

NC

NC

NC

NC

+B

CLOCK

DATA

AFT OUT

SIF OUT

BT

S801

SCREEN

FOCUS

VMC297

TCC426

180V

TMC564

PCB080

DEFLECTION PCB

CP001

CP101

CP4502

TECB10

GND

KEY-B

GND

KEY-B

OPERATION PCB

PCB270

SOUND R+

SOUND L+

SOUND L-

SOUND R-

DEGAUSS COIL
DEGAUSS COIL

CLAMP_OFF

B.OUT
G.OUT
R.OUT

GND

CUT OFF

GND
GND

+B
+B

NC

P.CON+12V

GND

H.VOLT

GND

GND

+B
+B
NC

P.CON+12V

GND

H.VOLT

GND

CD002

GND 1

AFC

P.CON+5V

EMERGENCY

+B_DOWN

TV_POWER_H

V.OUT

ACL

H.OUT

ANODE

V801

CRT

H.V

VMC293

GND

HEATER

CLAMP_OFF

B.OUT
G.OUT
R.OUT
GND

CUT OFF

12

11

10

9

8

7

6

5

4

CRT PCB
PCB110

F

1

J801

CRT SOCKET

180V

GND

HEATER

FB401

FBT

FOCUS SCREEN

+B_DOWN

EMERGENCY

P.CON+5V

AFC

ACL

H.OUT

TV_POWER_H

V.OUT

2

1 FE HEAD (HOT)

FE HEAD (GND)

FULL ERASE HEAD ASS’Y

H5002

FE HEAD(HOT)

FE HEAD(GND)

COMMAND TRANSMITTER

TM601

PCB010

CP8001

CP8002

GND

C(CVBS)

Y(G)

GND

GND

DVD RESET

ZERO

AUDIO-R

AUDIO-L

GND

C(CVBS)

CVBS

GND

GND

DVD RESET

ZERO

AUDIO-R

AUDIO-L

GND

GND

Y(G)

CVBS

GND

GND

9

12
11
10

6
5
4
3
2
1

8
7

9

12

11

10

6

5

4

3

2

1

8

7

CD8501

CP8502

FFC

CD8505

GND

P.CON+3.3V

P.CON+3.3V

P.CON+5V

P.CON+9V

GND(M)

GND

GND

SPDIF

TX

RX

GND

P.CON+3.3V

P.CON+3.3V

P.CON+5V

P.CON+9V

GND(M)

GND

GND

SPDIF

TX

RX

PCB130

DVD PCB

RED YELLOW

WHITE

FG SENSER

SPINDLE MOTOR

SLED,LOADING MOTOR

DM-2

24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

8

7

6

5

4

3

2

1

GND(D)

CLOSE

OPEN

GND(D)

CLOSE

OPEN

SP1­SP1+

SLD+

SLD-

LIMIT SW

SP_FG

+5V

GND

SP1­SP1+

SLD+

SLD-

LIMIT SW

SP_FG

+5V

GND

CD2001

VREF

MON(DVD)

NC(SW)

VOL(DVD)

GND(DVD)

LD(DVD)

LD(CD)
VOL(CD)
GND(CD)

MON(COM)

GND(NC)

RF

C
B
A
D
F
E

VCC

GND(PDIC)

F­F+

T­T+

VREF

MON(DVD)

NC(SW)

VOL(DVD)

GND(DVD)
LD(DVD)

LD(CD)
VOL(CD)
GND(CD)
MON(COM)
GND(NC)

RF
C
B
A
D
F
E

VCC

GND(PDIC)

F­F+

T­T+

CD2301

FFC

8

7

6

5

4

3

2

1

DRIVE

DVD

OPTICAL PICK-UP

CTL+

CTL­AE HEAD(+)
AE HEAD(-)

AUDIO_PB

AUDIO_REC

VCR PCB

LD/CY VCO

3
2
1

5
4

6

9
8
7

7654321

FFC

7654321

3
2
1

5
4

6

9
8
7

FPC

3
2
1

5
4

6

3
2
1

5
4

6

FFC

AE

AE HEAD(+)

AE HEAD(-)

CTL-

CTL+

AUDIO REC

AUDIO PB

H5001

HEAD AUDIO CONTROL ASS’Y

AUDIO

CONTROL

CYLINDER UNIT

WHITERED

M101

LOADING MOTOR

LM

D-U OUT

D-V OUT

D-W OUT

D-COM

M-GND

D-PG OUT

D-PG GND

EP/LP HEAD

SP HEAD

HI-FI HEAD

EP/LP COM

SP COM

HF2 (L)

HF1 (R)

HF COM

SP-CH2 (L)

SP-CH1 (R)

UN4001

EP/LP-CH2 (L)

EP/LP-CH1 (R)

CAPSTAN DD UNIT

M2001

CYL CTL

CAP FG
CAP VCO

VCC

CAP CTL

CYL FG/PG

LDM CTL

GND

MOTOR GND

I LIMIT

CAP.M/F/R

OGVCC

MR

FG SENSOR

ROTOR

MAGNETCOIL

MAIN

LOGIC

SWITCH

OUT

HALL

SENSOR

IN

HALL

VCC

HALL

RF_AMP/DSP

WAVEFORMS

Y/C/AUDIO/HEAD AMP

100ns
100mV

1

20ns
200mV

2

MOTOTR DRIVE

2ms

1.0V

10µs
100mV

10µs
200mV

500µs
500mV

20µs

1.0V
REC/PB

6

7

11

2µs

1.0V
REC/PB

12

1ms

1.0V
PB

3

MPEG

20ns
500mV

4

AUDIO/VIDEO

10µs
200mV

5

8

500µs
500mV

9

REGULATOR 2

100ns
500mV

10

13

5ms

2.0V
REC/PB

14

20µs
20V
REC

15

The following waveforms were measured at the point of the corresponding

NOTE:

balloon number in the schematic diagram.

H-1

20ms

2.0V
PB

MICON

10ms
10V
POWER ON

WAVEFORMS

DEFLECTION

DEFLECTION

20µs
200V
POWER ON

16

1ms

2.0V
PB

17

1ms
200mV
POWER ON

18

SOUND AMP/ SURROUND

21

10ms
10V
POWER ON

22

50µs
10V
POWER ON

23

26

50µs

2.0V
POWER ON

27

10ms

2.0V
POWER ON

28

MICON

DEFLECTION

10ms

0.5V
POWER ON

19

50µs

5.0V
POWER ON

Hi-Fi/DEMODULATOR

1ms

1.0V
PB

20

20µs

0.5V
POWER ON

24

CHROMA/IF

25

NOTE:

DVD IN/OUT

1ms

2.0V
DVD PLAY

29

1ms

2.0V
DVD PLAY

30

The following waveforms were measured at the point of the corresponding
balloon number in the schematic diagram.

H-2

DIGITAL COMB FILTER

WAVEFORMS

CRT

20µs

0.5V
POWER ON

31

0.5ms

0.5V
POWER ON

32

CHROMA/IF

20µs

0.5V
POWER ON

20µs

1.0V
POWER ON

36

20µs

1.0V
POWER ON

37

10ms

1.0V
POWER ON

20µs
50V
POWER ON

41

20µs
50V
POWER ON

42

20µs
50V
POWER ON

33

0.5µs
100mV
POWER ON

34

20µs

1.0V
POWER ON

35

38

50µs

0.5V
POWER ON

39

50µs

2.0V
POWER ON

40

43

The following waveforms were measured at the point of the corresponding

NOTE:

balloon number in the schematic diagram.

H-3

MECHANICAL EXPLODED VIEW

202

202

135

123

116

118

201

201

110

123

116

202

201

102B

125

102

PCB110
(CRT PCB ASS'Y)

102A

102B

202

208

202

202

102B

123

101I

101E

101B

101F

101C

101A

123

101H

101D

101I

201

212

212

212

212

136

212

115

212

101G

A

101

I1-1

MECHANICAL EXPLODED VIEW

213

140

132

121

213

108

208

204

103

204

106

128

104

119

205

204

208

PCB010
(VCR PCB ASS'Y)

103

105

208

210

213

133

138

134

208

208

139

122

208

208

208

208

214

139

121

120

208

137

208

208

208

141

130

208

208

208

208

129

PCB270
(OPERATION PCB ASS'Y)

114

207

107

207

208

205

108

112

203

208

207

127

208

214

208
141

124

131

A

208

206

208

211

208
141

113

111

206

206

206

PCB130
(DVD PCB ASS'Y)

126

208

141

209

208

210

205

207

203

PCB080
(DEFLECTION PCB ASS'Y)

139

117

209

208

207

109

I1-2

CHASSIS EXPLODED VIEW (TOP VIEW)

341

331

349

334

314

323

508

333

315

AA

M2003

501

H5002

322

336

508

505

324

AA

335

342

503

332

CD1501

UN4001

504

312

305

300

H5001

306

302

347

301

AA

313

AA

AA

AA

AA

318

AA

325

317

CLASS

GREASE

309

321

AA

MARK

AA

AA

319

AA

NOTE:

AA

AA

307

AA

AA

320

507

316

348

510

AA

Applying positions AA for the grease are
displayed for this section.
Check if the correct grease is applied for
each position.

CD1502

M101

304

506

345

346

AA

AA

I2-1

CHASSIS EXPLODED VIEW (BOTTOM VIEW)

308

327

509

344

343

AA

338

502

AA

337

M2001

AA

AA

502

AA

CD1502

340

CD1501

AA

AA

AA

502

AA

303

329

AA

311

339

310

AA

300

AA

328

326

CLASS

GREASE

MARK

AA

AA

NOTE:

AA

505

330

Applying positions AA for the grease are
displayed for this section.
Check if the correct grease is applied for
each position.

I2-2

DVD DECK EXPLODED VIEW

AA

615

600

AA

AA

626

AA

613

618

610

CD2302

AA

AA

609

701

705

AA

612

619

603

606

AA

SW1

606

614

AA

616

AA

617

CLASS

GREASE

604

SW2

PCB640
(SW PCB ASS'Y)

605

605

MARK

AA

703

601

608

607

702

NOTE:

602

Do not replace the parts. Because,

704

CD2001

minute adjustments are needed if
this condition is disassembled
further more.
If the repair is needed, replace the
DVD MECHA ASS'Y.

625

AA

AA

622

AA

621

M2002

CP1

PCB68A
(RELAY PCB ASS'Y)

623

624

620

611

AA

CD2301

Applying positions AA for the grease are
displayed for this section.
Check if the correct grease is applied for each
position.

AA

I3-1

MECHANICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

101 AE000697 A5I502A720 CABINET,FRONT ASSY
101A AE000149 701WPJ1213 CABINET,FRONT
101B AE000150 712WPJ0827 FLAP
101C BZ710665 713WPA0160 GUIDE,REMOCON
101D BZ710666 713WPA0195 GLASS,LED
101E AE000155 7235490021 BADGE,BRAND
101F BZ710667 735WPB0216 BUTTON,FRAME1
101G BZ710668 735WPB0217 BUTTON,FRAME2
101H BZ710010 743WKA0032 SPRING,FLAP
101I AE000003 800WQ00045 FELT SHEET

102 AE000698 A5I502A740 CABINET,BACK ASSY
102A AE000224 702WPA1000 CABINET,BACK
102B AE000166 800WQ00041 FELT SHEET

103 BZ710658 701WPA0751 HOLDER,DECK
104 BZ710466 752WSA0230 SHIELD,CASE HEAD AMP
105 BZ710659 752WSA0290 SHIELD,COMPO
106 BZ710331 753WUAA006 SPRING,EARTH HEAD AMP
107 AD301956 752WSA0308 SHIELD,COVER HEAD AMP
108 BZ710498 85OP700038 HOLDER,END SENSOR
109 BZ710459 761WPA0223 HOLDER,FBT

110 AD300759 741WUA0021 SPRING,EARTH
111 AD302398 7232020746 SHEET,IC
112 AD301957 755WPA0035 COVER,PCB
113 AD301958 761WSA0099 ANGLE,DECK
114 BZ710577 701WPA0686 HOLDER,DECK
115 BZ710677 752WSA0287 ANGLE,FRONT
116 BZ710259 762WPA0011 HOLDER,CRT WIRE
117 BZ710260 899HV3T000 HOLDER,ANODE WIRE
118 BZ710258 741WUA0001 SPRING,EARTH
119 AD301966 752WSA0327 SHIELD,COVER FPC

120 AD301907 7260000342 SHEET,CAUTION
121 BZ710039 8995034000 CORD CLIP UL CO.
122 AE000156 7235630001 SHEET,DVD
123 AD300135 769WSA0011 WASHER CRT T=0.5
124 AE000164 774WPA0005 HOLDER,WIRE-2
125 AE000159 7260000346 SHEET,CRT NO.
126 AE000733 7230007691 SHEET,JACK
127 AE000157 724WNA0009 SHEET,PVC
128 AE000160 752WSA0331 SHIELD,COVER DECK
129 BZ710671 752WSA0292 SHIELD,AV JACK

130 AD301962 752WSA0323 DVD,TOP
131 AE001233 752WSA0360 PLATE,BOTTOM
132 AD301964 752WSA0324 VCR,TOP
133 BZ710694 774WPA0002 HOLDER,WIRE
134 AD301965 712WPB0136 PLATE,TRAY-FRONT
135 AE000687 7225490128 SHEET,RATING
136 AD300007 7230006755 SHEET,CAUTION
137 AE000161 752WSA0337 SHIELD,DVD
138 AE000162 752WSA0343 HOLDER,VCR
139 AD301574 744WUA0013 SPRING,EARTH

140 BZ710618 755WPAA012 PLATE,COVER LIGHT (L)
141 AD300758 899EFBA001 WIRING CLIP

201 AD302054 8141J50C54 SCREW,TAP TITE(P) GW22 5x35
202 BZ710035 8117540A64 SCREW,TAPPING(B0) TRUSS 4x16
203 BZ710320 8117540804 SCREW,TAPPING(B0) TRUSS 4x8
204 BZ710582 8109130B94 SCREW,TAP TITE(B) R PAN 3x29
205 BZ710239 8109I30A04 SCREW,TAP TITE(B) WH7 3x10
206 BZ710562 8109I30804 SCREW,TAP TITE(B) WH7 3x8
207 BZ710019 8109630802 SCREW,TAP TITE(B) BRAZIER 3x8
208 BZ710678 8109230804 SCREW,TAP TITE(B) BIND 3x8
209 BZ710409 8107630B04 SCREW,TAP TITE(S) BRAZIER 3x20

J1-1

MECHANICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

210 BZ710018 8107630804 SCREW,TAP TITE(S) BRAZIER 3x8
211 AD301968 8107230404 SCREW,TAP TITE(S) BIND 3x4
212 BZ710030 8110630804 SCREW,TAP TITE(P) BRAZIER 3x8
213 BZ710240 8107230804 SCREW,TAP TITE(S) BIND 3x8
214 BZ710337 8107930604 SCREW,CUP(S) 3x6

--- AE000688 7230007710 SHEET,BAR CODE

--- AE000010 791WHA0085 LAMIFILM,BAG

--- BZ710679 792WHA0352 PACKAGE,TOP

--- AE000524 792WHA0473 PACKAGE,BOTTOM

--- AE000228 793WCD1492 GIFT BOX

--- AD301971 A5F101H975 INSTRUCTION BOOK KIT

--- AD302404 J5500817 REGISTRATION CARD

--- AE000701 J5F10101C INSTRUCTION BOOK

--- AD302406 JB5UD200 POLYBAG,INSTRUCTION(RED CAUTION)

J1-2

CHASSIS REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

300 AE000689 A5I501A420A DECK ASS'Y A5I501A420A
301 BZ710564 85OA400234 PINCH ROLLER BLOCK
302 BZ710682 85OA500026 AHC ASS'Y
303 BZ710193 85OP200290 BELT,CAPSTAN (S)
304 BZ710515 85OP600581 WORM
305 BZ710094 85OP500083 BASE,AC HEAD
306 BZ710112 85OP800324 SPRING,AC HEAD
307 BZ710516 85OA000459 MAIN CHASSIS ASS'Y
308 BZ710517 85OA200089 CLUTCH ASS'Y
309 BZ710518 85OA200090 ARM IDLER ASS'Y

310 BZ710519 85OA300065 LOADING ARM S UNIT
311 BZ710520 85OA300066 LOADING ARM T UNIT
312 BZ710521 85OA400223 INCLINED BASE T UINT 3S
313 BZ710522 85OA400232 P5 ARM ASS'Y 2
314 BZ710650 85OA400235 TENSION ARM ASS'Y 2
315 BZ710524 85OA400231 INCLINED BASE S UNIT
316 AE000442 85OP800367 SPRING,LOCKER
317 BZ710526 85OP900736 CASS,HOLDER
318 BZ710527 85OP900748 CASS,SIDE L
319 BZ710528 85OP900749 CASS,SIDE R

320 BZ710529 85OP900739 LOCKER,R
321 BZ710530 85OA900228 LINK UNIT
322 BZ710531 85OP000496 POST,CASS GUIDE
323 BZ710532 85OP200316 REEL,S (S)
324 BZ710533 85OP200317 REEL,T (S)
325 BZ710534 85OP200308 GEAR,IDLER
326 BZ710535 85OP200311 GEAR,CLUTCH
327 BZ710536 85OP200312 GEAR,COUPLING
328 BZ710537 85OP200313 LEVER,CLUTCH
329 BZ710538 85OP300194 GEAR,MAIN LOADING

330 BZ710092 85OP400490 LEVER,TENSION
331 BZ710093 85OP400492 HOLDER,TENSION
332 BZ710366 85OP400520 CAP.P4
333 BZ710762 85OP400542 BAND,TENSION
334 BZ710540 85OP400533 CONNECT,TENSION
335 BZ710541 85OP600573 ARM,BRAKE T
336 BZ710763 85OP600584 BAND,BRAKE T
337 BZ710543 85OP600577 CAM,PINCH ROLLER
338 BZ710544 85OP600578 CAM,MAIN
339 BZ710545 85OP600579 ROD,MAIN

340 BZ710546 85OP600582 GEAR,JOINT
341 BZ710110 85OP800322 SPRING,TENSION
342 BZ710547 85OP800360 SPRING,BRAKE T
343 BZ710548 85OP800355 SPRING,COUPLING
344 BZ710549 85OP800356 SPRING,RING
345 BZ710565 85OP900750 LEVER,LINK 2
346 BZ710551 85OP900744 LEVER,FLAP
347 BZ710552 85OP900745 CASS,OPENER
348 BZ710106 85OP700035 REFLECTOR,LED
349 BZ710514 85OP900746 BRACKET,TOP 3V

501 BZ710049 8107226804 SCREW,TAP TITE(S) BIND 2.6x8
502 BZ710058 83ETW30000 E-RING 3.0
503 BZ710371 8107226404 SCREW,TAP TITE(S) BIND 2.6x4
504 BZ710046 8102120604 SCREW,PAN M2x6
505 BZ710050 8109126604 SCREW,TAP TITE(B) PAN 2.6x6
506 BZ710553 810A130404 SCREW/WASHER(A) M3x4
507 BZ710219 810A126504 SCREW/WASHER(A) M2.6x5
508 BZ710056 82Q264713N POLYSLIDER WASHER 2.6x4.7xT0.13
509 BZ710054 82P184505N POLYSLIDER WASHER(CUT) 1.8x4.5xT0.5

510 BZ710017 8107226604 SCREW,TAP TITE(S) BIND 2.6x6

CD1501 BZ614292 122H071704 CORD JUMPER 2H071704
CD1502 AD301953 122Y021002 CORD JUMPER 2Y021002
H5001 AD301675 1523Q91003 HEAD (AUDIO CONTROL) VTR-1X2RPE22-756

H5002 AD301676 1543Q02014 HEAD (FULL ERASE) VTR-1X2ERS11-154
! M101 BZ710566 1596P98001 MOTOR (LOADING) MXN13FB12K3
! M2001 AD301677 1510S98038 CAPSTAN DD UNIT F2QVB33

M2003 BZ710657 1589S11017 MICRO MOTOR I2OAL05
! UN4001 AE000690 A5I501G500 CYLINDER UNIT ASS'Y A5I501G500

J2-1

DVD DECK REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

600 AE000167 A5F101H650 DVD MECHA ASS'Y A5F101H650
601 AD301822 92P100022A TRAVERSE HOLDER
602 AD301823 92P100032A RACK,FEED 1
603 AD301824 92P100033A RACK,FEED 2
604 AD301825 92P100035A LEVER,RACK FEED
605 AD301826 92P200006A INSULATOR(F)
606 AD301827 92P200007A INSULATOR(R)
607 AD301850 92P300008A SPRING,CHASSIS
608 AD301849 92P300005A SPRING,ARM IDLER
609 AD301830 92P300006A SPRING,RACK FEED 2

610 AD301831 92P300007A SPRING,RACK FEED 1
611 AD301848 92P100031A ARM,IDLER
612 AD301833 92P000001A CLAMPER PLATE
613 AD301834 92P100019A RACK,LOADING
614 AD301835 92P100020A MAIN FRAME M
615 AD301836 92P100021A TRAY
616 AD301837 92P100023A GEAR,MAIN
617 AD301838 92P100024A CLAMPER
618 AD301839 92P300002A SPRING,RACK LOADING
619 AD301840 92P400002A MAGNET,CLAMPER

620 AD301847 92P100030A GEAR,IDLER
621 AD301842 92P100025A GEAR,MOTOR
622 AD301843 92P100026A GEAR,MIDDLE 1
623 AD301844 92P100027A GEAR,MIDDLE 2
624 AD301845 92P100028A GEAR,MIDDLE 3
625 AD301846 92P100029A GEAR,FEED
626 AE001179 92P300009A SPRING,RACK L

701 BZ710187 8110226804 SCREW,TAP TITE(P) BIND 2.6x8
702 AD301851 8110120604 SCREW,TAP TITE(P) PAN 2x6
703 AD301852 8107220504 SCREW,TAP TITE(S) BIND 2x5
704 AD301853 8140117254 SCREW,PAN M1.7x2.5 P3
705 AD301913 8110220804 SCREW,TAP TITE(P) BIND 2x8

CD2001 AD301855 122H0O1901 CORD JUMPER 2H0O1901
CD2301 AD301856 122H080701 CORD JUMPER 2H080701
CD2302 AE000148 06CH232101 CORD CONNECTOR CH232101
CP1 AD301858 069JV80180 CONNECTOR PCB SIDE IMSA-9615S-08C-PP

! M2002 AD301861 1515S98001 FEED MOTOR BCD3B81

PCB640 AD301862 A5E601V640 PCB ASS'Y VEBA17A
PCB68A AD301863 A5E601V680 PCB ASS'Y VEBA12A
SW1 AD301866 0515S32001 SWITCH SSS-23-6
SW2 AD301867 0500S01032 PUSH LEVER SWITCH SW1AB-271-10A

J3-1

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

RESISTORS

! R401 AD300036 R4X5T6562F R,METAL 5.6K OHM 1/6W
! R403 AD300037 R4X5T6153F R,METAL 15K OHM 1/6W
! R405 AD300037 R4X5T6153F R,METAL 15K OHM 1/6W
! R406 AD302023 R3X28A181J R,METAL 180 OHM 2W
! R412 BZ210021 R65582680J R,FUSE 68 OHM 1/2W
! R417 AD302023 R3X28A181J R,METAL 180 OHM 2W
! R423 BZ210051 R3X18AR47J R,METAL OXIDE 0.47 OHM 2W
! R429 BZ210150 R002T2010J RC 1 OHM 1/2W
! R430 AD301920 R5X34F2R7J R,CEMENT 0 2.7 OHM 10W
! R440 AD301921 R5X34F332J R,CEMENT 0 3.3K OHM 10W
! R445 BZ210104 R6558A2R7J R,FUSE 2.7 OHM 2W

R449 AE000145 R002T2561J RC 560 OHM 1/2W
! R454 AE000676 R3K181102J R,METAL 1K OHM 1W
! R814 BZ210026 R3X18A153J R,METAL OXIDE 15K OHM 2W
! R815 BZ210026 R3X18A153J R,METAL OXIDE 15K OHM 2W
! R816 BZ210026 R3X18A153J R,METAL OXIDE 15K OHM 2W
! R1701 BZ210206 R002T2155J RC 1.5M OHM 1/2W
! R1702 BZ210080 R0G3K2275K RC 2.7M OHM 1/2W
! R1706 AD300651 R002T4272J RC 2.7K OHM 1/4W
! R1714 AD301017 R3X181R15J R,METAL OXIDE 0.15 OHM 1W
! R1717 AD301016 R3X28A331J R,METAL OXIDE 330 OHM 2W
! R1718 BZ210250 R5Y2CE1R2J R,CEMENT 1.2 OHM 7W
! R1720 BZ210190 R63581R22J R,FUSE 0.22 OHM 1W

R3010 AD302206 R3X181180J R,METAL OXIDE 18 OHM 1W

R3021 AE000147 R3X181220J R,METAL OXIDE 22 OHM 1W

CAPACITORS

C005 AD300413 E02LT0102M CE 1000 UF 6.3V

C321 BZ210176 E02LF3222M CE 2200 UF 25V
! C403 BZ110195 E02LU8220M CE 22 UF 100V

C404 BZ110023 E62DFB470M CE 47 UF 160V
! C408 BZ210157 P4N8FJ562H CMPP 0.0056UF 1.25KV

C412 BZ110136 P4J7F3394J CMPP 0.39 UF 250V PMS
! C418 BZ210161 P4N8FJ682H CMPP 0.0068UF 1.25KV
! C429 AD301434 E02LU4101M CE 100 UF 35V
! C430 BZ110101 E5EZF3222M CE 2200 UF 25V
! C434 BZ110055 E5EZF4102M CE 1000 UF 35V
! C446 AD300061 E5EZFD220M CE 22 UF 250V

C449 BZ110202 C0PLRR713K CC 0.001 UF 2KV R or

C801 BZ110166 CQGTCH412J CC 100 PF 50V CH

C820 AD300078 C0JBB0713K CC 0.001 UF 2KV B
! C1701 BZ110025 P2122B224M CMP 0.22 UF 275V ECQUL

C1705 AE000699 C0PLRR7S2K CC 560 PF 2KV R

C1707 BZ110203 C0PLRR7W2K CC 820 PF 2KV R or

! C1708 BZ110226 C0JBB07H3K CC 0.0022UF 2KV B
! C1710 BZ110226 C0JBB07H3K CC 0.0022UF 2KV B
! C1711 AD301391 CD39E0MQ3M CC 0.0047UF 250V
! C1714 AE000700 E52DHC681M CE 680 UF 200V or

! C1716 BZ110010 E02L03222M CE 2200 UF 25V
! C1717 BZ110055 E5EZF4102M CE 1000 UF 35V
! C1720 AD301025 E62NFB221M CE 220 UF 160V
! C1728 AD300785 E02LT1222M CE 2200 UF 10V

C1729 AE000699 C0PLRR7S2K CC 560 PF 2KV R
! C1732 BZ110078 E02L03102M CE 1000 UF 25V

C3009 AD300413 E02LT0102M CE 1000 UF 6.3V

BZ110182 C03L0R713K CC 0.001 UF 2KV R

BZ110183 C03L0R7W2K CC 820 PF 2KV R

AE000142 E52DHC681S CE 680 UF 200V

DIODES

D101 AD301638 0010E00330 INFRARED LED LTE-3271T-012A-O

D102 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D103 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77

D105 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D106 AD300670 D97U01501B DIODE,ZENER MTZJ15B T-77

D108 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D402 BZ410063 D2WTAU02A0 DIODE,SILICON AU02A-EIC

D403 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D404 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D408 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77

D410 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC

D411 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77
! D412 BZ410063 D2WTAU02A0 DIODE,SILICON AU02A-EIC

D413 BZ410019 D97U03001B DIODE,ZENER MTZJ30B T-77

J4-1

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

DIODES

D414 BZ410019 D97U03001B DIODE,ZENER MTZJ30B T-77
! D415 BZ410063 D2WTAU02A0 DIODE,SILICON AU02A-EIC

D416 BZ410085 D2WXN40050 DIODE,SILICON 1N4005-EIC

D417 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77

D418 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77

D419 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D601 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77

D602 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77

D603 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77

D605 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77

D801 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D802 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D803 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D804 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D805 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D806 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D1702 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D1703 AE000141 D97U02R71B DIODE,ZENER MTZJ2.7B T-77
! D1704 BZ410007 D23TGP15J0 DIODE,SILICON RGP15J-G23
! D1705 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC
! D1706 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC
! D1707 BZ410007 D23TGP15J0 DIODE,SILICON RGP15J-G23

D1709 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D1710 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC
! D1711 BZ410062 D2WTRM11C0 DIODE,SILICON RM11C-EIC

D1712 BZ410067 D97U02R21B DIODE,ZENER MTZJ2.2B T-77
! D1713 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1

D1715 AD300671 D97U01801B DIODE,ZENER MTZJ18B T-77

D1716 AD300731 D2WXN49370 DIODE,SILICON 1N4937

D1717 AD300671 D97U01801B DIODE,ZENER MTZJ18B T-77
! D1718 AD300731 D2WXN49370 DIODE,SILICON 1N4937
! D1719 BZ410115 D2LKB340L0 DIODE,SCHOTTKY SB340L-6737

D1720 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D1721 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D1722 AD300731 D2WXN49370 DIODE,SILICON 1N4937
! D1723 AD301980 D2CF2016L0 DIODE,SILICON FE201-6L49

D1724 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D1726 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D1727 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77

D1728 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D1730 AD301980 D2CF2016L0 DIODE,SILICON FE201-6L49

D1732 AD300070 D97U01201B DIODE,ZENER MTZJ12B T-77

D1733 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77
! D1734 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1

D2001 BZ410120 DDARDS1210 DIODE,SILICON KDS121RTK

D2002 BZ410121 DDARDS1200 DIODE,SILICON KDS120RTK

D2201 BZ410022 D97U06R81B DIODE,ZENER MTZJ6.8B T-77

D2205 BZ410087 0021E2Q140 LED LTL-1CHEE-002A

D2206 BZ410087 0021E2Q140 LED LTL-1CHEE-002A

D2207 BZ410087 0021E2Q140 LED LTL-1CHEE-002A

D3001 BZ410037 D97U03301B DIODE,ZENER MTZJ33B T-77

D3002 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77

D3003 BZ410090 D97U04R71B DIODE,ZENER MTZJ4.7B T-77

D3004 BZ410077 D2WXSB1400 DIODE,SCHOTTKY SB140-EIC

D3005 BZ410012 D28TQS04N0 DIODE,SCHOTTKY 11EQS04N-TA1B2

D3007 BZ410043 D2WT011E10 DIODE,SILICON 11E1-EIC

D3008 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1

D3011 BZ410010 D28T21DQN9 DIODE,SCHOTTKY 21DQ09N-TA2B1

D4201 BZ410021 D97U05R61B DIODE,ZENER MTZJ5.6B T-77

D4204 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D4205 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D4207 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D5501 BZ410012 D28TQS04N0 DIODE,SCHOTTKY 11EQS04N-TA1B2

D5502 BZ410006 D1VT001330 DIODE,SILICON 1SS133T-77

D8501 BZ410119 DDDRL41480 DIODE,SILICON MCL4148

D8502 BZ410119 DDDRL41480 DIODE,SILICON MCL4148

D8503 BZ410119 DDDRL41480 DIODE,SILICON MCL4148

D8504 BZ410119 DDDRL41480 DIODE,SILICON MCL4148

D8505 BZ410119 DDDRL41480 DIODE,SILICON MCL4148

D8506 BZ410119 DDDRL41480 DIODE,SILICON MCL4148

D8510 BZ410119 DDDRL41480 DIODE,SILICON MCL4148

J4-2

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

ICS

IC101 AD301923 I51F58074A IC OEC8074A

IC103 AD301641 I9UF032310 IC PST3231NR

IC199 AE000692 A5I502A015 IC S-24C04BDP-LA

IC302 AD301983 I01FF58910 IC AN5891SA-E1V
! IC352 AD302184 I0FSP7522N IC AN7522N
! IC401 BZ611025 I03TD80400 IC LA78040

IC601 AD301765 I03FC63190 IC LA76319M-MPB-E

IC602 AE000143 I1KF98L100 IC KIA78L10F-RTF

IC1501 AD300609 I05FE90A45 IC TC90A45F

IC1502 AD301988 I0UF015010 IC MM1501XNRE

IC1504 AD301988 I0UF015010 IC MM1501XNRE

IC1505 AD301927 I0UF015040 IC MM1504XNRE
! IC1701 AD301771 000220001W PHOTO COUPLER PS2561L1-1-V(W)
! IC1702 AD302211 I1KJ9A431A IC KIA431A-AT

IC2001 AD302391 I5PKL63160 IC STM6316ATXXZ

IC2301 BZ611126 I03F065600 IC LA6560

IC2303 AD301770 I07E00358F IC BA10358F-E2

IC2304 AD301770 I07E00358F IC BA10358F-E2
! IC3001 AD301931 I1KA78R050 IC KIA278R05PI
! IC3002 AD301929 I1KA78R090 IC KIA278R09PI
! IC3003 AD301931 I1KA78R050 IC KIA278R05PI

IC3004 AD301931 I1KA78R050 IC KIA278R05PI

IC4002 AD302392 I5PK055890 IC STM5589AVA

IC4003 AD301774 I5CF0CU040 IC SN74AHCU04PWR

IC4007 AE000526 IF8J064007 IC IS42S16400-7T

IC4012 AE000527 I5PJ060ET9 IC M29W160ET90N6

IC4501 BZ611095 I03F3205M0 IC LA71205M-MPB

IC5501 BZ611114 I01F63FBP0 IC AN3663FBP

IC8001 AD301988 I0UF015010 IC MM1501XNRE

IC8002 AD301988 I0UF015010 IC MM1501XNRE

IC8004 BZ611074 I0QF045800 IC NJM4580M or

IC8501 BZ611130 I0GF9XZ010 IC PQ070XZ01ZP

IC8502 AD301777 I17F0742K0 IC PCM1742KE/2K

IC8504 BZ611130 I0GF9XZ010 IC PQ070XZ01ZP

AE001295 I0QJ045800 IC NJM4580M(TE1)

TRANSISTORS

Q101 BZ410097 0000M00390 PHOTO TRANSISTOR ST-304L

Q102 BZ510021 TNYJC05001 COMPOUND TRANSISTOR DTC124EKAT146 or

Q103 BZ410097 0000M00390 PHOTO TRANSISTOR ST-304L

Q104 BZ410106 0002700680 PHOTO COUPLER RPI-352C40N

Q105 BZ410106 0002700680 PHOTO COUPLER RPI-352C40N

Q106 BZ510021 TNYJC05001 COMPOUND TRANSISTOR DTC124EKAT146 or

Q107 BZ410107 0002700690 PHOTO COUPLER RPI-303

Q108 BZ410107 0002700690 PHOTO COUPLER RPI-303

Q110 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146 or

Q114 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q116 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q350 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
! Q401 BZ510097 TCAT03227Y TRANSISTOR,SILICON KTC3227_Y-AT
! Q403 BZ510040 TDUU024990 TRANSISTOR,SILICON 2SD2499(LB0EC1)
! Q406 BZ510004 TA3T016240 TRANSISTOR,SILICON 2SA1624-AA

Q407 BZ510096 TNATB03005 COMPOUND TRANSISTOR KRC102MAT

Q408 AD300674 TCAT032070 TRANSISTOR,SILICON KTC3207-AT

Q409 BZ510004 TA3T016240 TRANSISTOR,SILICON 2SA1624-AA

Q601 BZ510039 TNYTB05001 COMPOUND TRANSISTOR DTC114EKT147

Q602 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q605 BZ510025 TPYJB05001 COMPOUND TRANSISTOR DTA114EKAT146 or

Q606 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
! Q802 BZ510091 TCA0042170 TRANSISTOR,SILICON KTC4217(O,Y)
! Q803 AD301032 TCATC3199Y TRANSISTOR,SILICON KTC3199_Y-AT
! Q804 BZ510091 TCA0042170 TRANSISTOR,SILICON KTC4217(O,Y)
! Q805 AD301032 TCATC3199Y TRANSISTOR,SILICON KTC3199_Y-AT
! Q806 BZ510091 TCA0042170 TRANSISTOR,SILICON KTC4217(O,Y)
! Q807 AD301032 TCATC3199Y TRANSISTOR,SILICON KTC3199_Y-AT

Q1501 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q1502 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q1503 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q1702 BZ510069 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)

BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK

BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK

BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK

BZ510090 TPAAB05001 COMPOUND TRANSISTOR KRA102SRTK

J4-3

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

TRANSISTORS

! Q1705 BZ510098 T220033260 FET 2SK3326(2)
! Q1706 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT

Q2001 BZ510112 T67J1036K0 TRANSISTOR,SILICON 2SA1036KT146

Q2002 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q2003 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q2004 BZ510113 T27T030180 FET 2SK3018

Q2005 BZ510113 T27T030180 FET 2SK3018

Q2006 BZ510112 T67J1036K0 TRANSISTOR,SILICON 2SA1036KT146

Q2007 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q2008 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q2201 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146 or

Q2202 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146 or

Q2203 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146 or

Q2301 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q2302 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK

Q2303 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q2304 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146 or

Q2305 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK

Q3001 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
! Q3002 BZ510105 TCAT03209Y TRANSISTOR,SILICON KTC3209_Y-AT
! Q3003 BZ510105 TCAT03209Y TRANSISTOR,SILICON KTC3209_Y-AT

Q3004 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
! Q3005 AD301934 TBA0013660 TRANSISTOR,SILICON KTB1366(O,Y)
! Q3006 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
! Q3007 BZ510057 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y

Q3008 BZ510081 TPYJA05001 COMPOUND TRANSISTOR DTA143EKAT146 or

Q3009 BZ510020 TNYJB05001 COMPOUND TRANSISTOR DTC114EKAT146 or

Q3010 BZ510105 TCAT03209Y TRANSISTOR,SILICON KTC3209_Y-AT

Q3011 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S
! Q3014 BZ510105 TCAT03209Y TRANSISTOR,SILICON KTC3209_Y-AT

Q3015 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4001 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q4002 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q4003 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK

Q4201 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4202 BZ510026 TPYJC05001 COMPOUND TRANSISTOR DTA124EKAT146 or

Q4203 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4204 BZ510021 TNYJC05001 COMPOUND TRANSISTOR DTC124EKAT146 or

Q4210 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q4211 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4212 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q4501 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q4502 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

Q4503 BZ510026 TPYJC05001 COMPOUND TRANSISTOR DTA124EKAT146 or

Q4504 BZ510070 TCAT032034 TRANSISTOR,SILICON KTC3203_Y-AT

Q4505 BZ510073 TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR)

Q4506 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4507 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q4509 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q4511 BZ510001 T6YJ1037K0 TRANSISTOR,SILICON 2SA1037AKT146R,S

Q8002 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q8006 BZ510002 T8YJ2412K0 TRANSISTOR,SILICON 2SC2412KT146 R,S

Q8007 BZ510021 TNYJC05001 COMPOUND TRANSISTOR DTC124EKAT146 or

Q8501 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK

Q8502 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK

Q8503 BZ510108 TAAA1504SY TRANSISTOR,SILICON KTA1504S_Y_RTK

Q8505 BZ510109 TCAA3875SY TRANSISTOR,SILICON KTC3875S_Y_RTK

BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK

BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK

BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK

BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK

BZ510107 TPAAA05001 COMPOUND TRANSISTOR KRA101SRTK

BZ510071 TNAAB05003 COMPOUND TRANSISTOR KRC102SRTK

BZ510072 TPAAC05002 COMPOUND TRANSISTOR KRA103SRTK

BZ510067 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK

BZ510072 TPAAC05002 COMPOUND TRANSISTOR KRA103SRTK

BZ510067 TNAAC05002 COMPOUND TRANSISTOR

COILS &TRANSFORMERS

L001 BZ310001 021673101J COIL 100 UH

L301 BZ310005 02167D101K COIL 100 UH

L402 BZ310063 022100027A COIL,LINEARITY ELH5L4113

L403 BZ310004 021679472K COIL 4.7 MH

J4-4

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

COILS &TRANSFORMERS

L601 BZ310041 02167F101J COIL 100 UH

L602 BZ310005 02167D101K COIL 100 UH

L603 BZ310118 02AHB9A972 CORE,FERRITE W5T29X7.5X19

L804 BZ310005 02167D101K COIL 100 UH

L1501 AD300612 02167F100J COIL 10 UH

L1502 BZ310161 0216A6150K COIL 15 UH

L1504 AD300123 021673151K COIL 150 UH

L1505 BZ310201 0216A6101K COIL 100 UH

L1506 BZ310201 0216A6101K COIL 100 UH
! L1701 BZ310180 029T000105 COIL,LINE FILTER 2R2A752F28
! L1703 BZ310066 028R200024 COIL,DEGAUSS 8R200024

L1704 BZ310181 02A6B2E0A1 CORE,FERRITE HF70T22*10*14

L2001 AE000529 0216S4100J COIL 10 UH

L2002 AE000529 0216S4100J COIL 10 UH

L2004 AE000095 02167F2R7J COIL 2.7 UH

L3001 AD301785 02167E100K COIL 10 UH

L3002 AD301785 02167E100K COIL 10 UH

L4001 BZ310039 02167F220J COIL 22 UH

L4002 BZ310039 02167F220J COIL 22 UH

L4003 BZ310039 02167F220J COIL 22 UH

L4004 BZ310039 02167F220J COIL 22 UH

L4205 BZ310041 02167F101J COIL 100 UH

L4502 BZ310114 031626009R COIL,BIAS OSC 1626009

L4504 BZ310041 02167F101J COIL 100 UH

L4505 BZ310040 02167F470J COIL 47 UH

L4506 BZ310040 02167F470J COIL 47 UH

L4509 BZ310005 02167D101K COIL 100 UH

L5501 BZ310201 0216A6101K COIL 100 UH

L5502 BZ310039 02167F220J COIL 22 UH

L5503 BZ310039 02167F220J COIL 22 UH

L5504 BZ310039 02167F220J COIL 22 UH

L8001 BZ310041 02167F101J COIL 100 UH

L8002 BZ310201 0216A6101K COIL 100 UH

L8003 BZ310041 02167F101J COIL 100 UH

L8501 BZ310191 02167F2R2J COIL 2.2 UH

L8502 BZ310191 02167F2R2J COIL 2.2 UH

L8503 BZ310191 02167F2R2J COIL 2.2 UH

L8504 BZ310118 02AHB9A972 CORE,FERRITE W5T29X7.5X19

L8507 BZ310191 02167F2R2J COIL 2.2 UH

L8509 BZ310191 02167F2R2J COIL 2.2 UH

T401 BZ310172 045013003J TRANS,HORIZONTAL DRIVE ETH14Y47AY
! T1701 AD301935 048142065S TRANSFORMER,SWITCHING 8142065S

JACKS

! J801 AD301936 066F130021 SOCKET,CATHODE RAY,TUBE ISHS62S
! J2201 BZ614361 060J131015 HEADPHONE JACK MSJ-2000

J2202 BZ614146 060G421016 RCA JACK HTJ-032-05AY

J2203 BZ614147 060G421017 RCA JACK HTJ-032-05AW

J2204 BZ614280 060G421020 RCA JACK HTJ-032-05AR

J4201 AD301038 060J431019 RCA JACK MSP-213V2-432 PBSN

J4202 BZ614399 060J411018 RCA JACK MSP-213V1-432 PBSN

J8007 BZ614400 060J401082 RCA JACK MSP-251V-05PBSN

SWITCHES

SW101 BZ612016 0508S11001 SWITCH (LEAF) LSA-1144EAU

SW2201 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2202 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2203 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2204 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2205 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2206 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2207 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2251 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2252 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2253 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2254 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2255 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2256 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2257 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

SW2258 BZ612010 0504101T34 SWITCH,TACT EVQ21505R

VARIABLE RESISTORS

VR404 BZ210218 V1K63H3BTE VOLUME,SEMI FIXED NVG6TLTAB222
! VR1701 AD301937 V1K6314BTE VOLUME,SEMI FIXED NVG6TLTAB103

J4-5

ELECTRICAL REPLACEMENT PARTS LIST

Location No. TSB P/N Reference No. Description

P.C.BOARD ASSEMBLIES

PCB010 AE000691 A5I502A010 PCB ASS'Y VMC293B

PCB080 AE000693 A5I502A080 PCB ASS'Y TMC564B

PCB110 AE000694 A5I502A110 PCB ASS'Y TCC426B

PCB130 AE000695 A5I502A130 PCB ASS'Y VMC297A

PCB270 AE000696 A5I502A270 PCB ASS'Y TECB10B

MISCELLANEOUS

B401 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0

B402 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0

B403 BZ310121 024HT03553 CORE,BEADS W5RH3.5X5X1.0

B1703 BZ310129 024HT03564 CORE,BEADS W4BRH3.5X6X1.0

B2001 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B2002 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B2003 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B2004 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B2005 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B2201 BZ310129 024HT03564 CORE,BEADS W4BRH3.5X6X1.0

B2301 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B4002 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B4004 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B8001 BZ310122 024HT03563 CORE,BEADS W4BRH3.5X6X1.0X2

B8501 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B8502 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B8503 BZ310186 024HC31022 CORE,BEADS FCM2012H-102T04

B8505 BZ310122 024HT03563 CORE,BEADS W4BRH3.5X6X1.0X2

BL001 BZ310014 023C00022A COIL,BALUN HPN-01

BT001 AE000012 1412004008 BATTERY,MANGAN R03(AB)E_2P_G

BT002 AE000012 1412004008 BATTERY,MANGAN R03(AB)E_2P_G

CD002 BZ614411 06CU011902 CORD,CONNECTOR CU011902

CD303 BZ614424 06CU149001 CORD,CONNECTOR CU149001

CD602 AD302218 06CU291701 CORD,CONNECTOR CU291701

CD603 AE000133 06CU284501 CORD,CONNECTOR CU284501

CD604 AE000132 06CU282401 CORD,CONNECTOR CU282401

CD802 BZ614310 WCL6844038 FLAT CABLE AWM2468 AWG26 5C GRAY 440MM

CD803 BZ614378 06CU823001 CORD,CONNECTOR CU823001

CD805 BZ614378 06CU823001 CORD,CONNECTOR CU823001

CP001 BZ614016 069W01001A CONNECTOR PCB SIDE 003P-2100

CP101 BZ614289 06972C0010 CONNECTOR PCB SIDE TMC-J12P-B2

CP303 AD301045 069S140419 CONNECTOR PCB SIDE A2502WV2-4P
! CP404 BZ614303 069S450089 CONNECTOR PCB SIDE A1561WV2-A5P

CP601 AD301943 069S240639 CONNECTOR PCB SIDE A2001WR2-4P

CP602 BZ614462 067U009039 WIRE HOLDER B2013H02-9P

CP603 AD301944 067U008029 WIRE HOLDER B2013H02-8P

CP604 AD301796 069S280629 CONNECTOR PCB SIDE A2001WV2-8P

CP803 BZ614269 069S320010 CONNECTOR PCB SIDE A2361WV2-2P

CP805 BZ614269 069S320010 CONNECTOR PCB SIDE A2361WV2-2P
! CD1702 BZ614407 120R415906 CORD,AC BUSH 0R415906

CD2251 BZ614408 06CU220701 CORD,CONNECTOR CU220701

CD4501 BZ614373 122F061502 CORD,JUMPER 2F061502

CD8501 AE000134 122H0C2204 CORD,JUMPER 2H0C2204

CD8505 AD301946 06CU2B3301 CORD,CONNECTOR CU2B3301

CP1702 AD301944 067U008029 WIRE HOLDER B2013H02-8P
! CP1704 AD300687 069S420110 CONNECTOR PCB SIDE A1561WV2-2P

CP1707 BZ614444 069D01001A CONNECTOR PCB SIDE 003P-2100

CP1708 BZ614444 069D01001A CONNECTOR PCB SIDE 003P-2100

CP2001 AD302396 069JYOT099 CONNECTOR PCB SIDE IMSA-9631S-24Y901

CP2201 BZ614416 069S220629 CONNECTOR PCB SIDE A2001WV2-2P

CP2301 AD301858 069JV80180 CONNECTOR PCB SIDE IMSA-9615S-08C-PP

CP2302 AD301795 069S230639 CONNECTOR PCB SIDE A2001WR2-3P

CP4501 BZ614011 0697290620 CONNECTOR PCB SIDE TOC-C09X-A1

CP4502 BZ614050 069J760029 CONNECTOR PCB SIDE IMSA-9604S-06Z14

CP4503 AD301649 067U002019 WIRE HOLDER B2013H02-2P

CP602B BZ614458 069S290629 CONNECTOR PCB SIDE A2001WV2-9P

CP603B AD301796 069S280629 CONNECTOR PCB SIDE A2001WV2-8P

CP8001 BZ614214 069S2B0629 CONNECTOR PCB SIDE A2001WV2-11P

CP8002 AD301797 069J7C0029 CONNECTOR PCB SIDE IMSA-9604S-12Z14

CP802A BZ614276 067U005049 WIRE HOLDER B2013H02-5P

CP802B BZ614276 067U005049 WIRE HOLDER B2013H02-5P

CP8502 AD301798 069J7C0019 CONNECTOR PCB SIDE IMSA-9604S-12Z13

CUS011 BZ710148 800WFAA007 CUSHION B

EL001 BZ614044 124120301A EYE LET XRY20X30BD

EL002 BZ614043 124116281A EYE LET XRY16X28BD

EL003 BZ614044 124120301A EYE LET XRY20X30BD

J4-6
