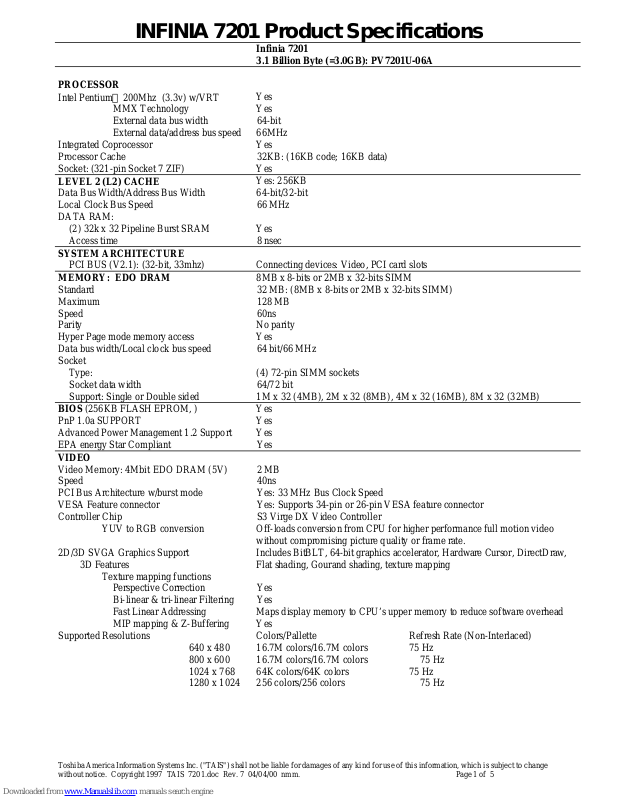

INFINIA 7201 Product Specifications
Infinia 7201
3.1 Billion Byte (=3.0GB): PV7201U-06A
PROCESSOR
Intel Pentium 200Mhz (3.3v) w/VRT
MMX Technology Yes
External data bus width 64-bit
External data/address bus speed 66MHz
Integrated Coprocessor Yes
Processor Cache 32KB: (16KB code; 16KB data)
Socket: (321-pin Socket 7 ZIF) Yes
LEVEL 2 (L2) CACHE
Data Bus Width/Address Bus Width 64-bit/32-bit
Local Clock Bus Speed 66 MHz
DATA RAM:
(2) 32k x 32 Pipeline Burst SRAM Yes
Access time 8 nsec
SYSTEM ARCHITECTURE
PCI BUS (V2.1): (32-bit, 33mhz) Connecting devices: Video, PCI card slots
MEMORY: EDO DRAM
Standard 32 MB: (8MB x 8-bits or 2MB x 32-bits SIMM)
Maximum 128 MB
Speed 60ns
Parity No parity
Hyper Page mode memory access Yes
Data bus width/Local clock bus speed 64 bit/66 MHz
Socket
Type: (4) 72-pin SIMM sockets
Socket data width 64/72 bit
Support: Single or Double sided 1M x 32 (4MB), 2M x 32 (8MB), 4M x 32 (16MB), 8M x 32 (32MB)
BIOS (256KB FLASH EPROM, )
PnP 1.0a SUPPORT Yes
Advanced Power Management 1.2 Support Yes
EPA energy Star Compliant Yes
VIDEO
Video Memory: 4Mbit EDO DRAM (5V) 2 MB
Speed 40ns
PCI Bus Architecture w/burst mode Yes: 33 MHz Bus Clock Speed
VESA Feature connector Yes: Supports 34-pin or 26-pin VESA feature connector
Controller Chip S3 Virge DX Video Controller
YUV to RGB conversion Off-loads conversio n from CPU for higher performance full motion video
2D/3D SVGA Graphics Support Includes BitBLT, 64-bit graphics accelerator, Hardware Cursor, DirectDraw,
3D Features Flat shading, Gourand shading, text ure mapping
Texture mapping functions
Perspective Correction Yes
Bi-linear & tri-linear Filtering Yes
Fast Linear Addressing Maps display memory to CPU’s upper memory to reduce software overhead
MIP mapping & Z-Buffering Yes
Supported Resolutions Colors/Pallette Refresh Rate (Non-Interlaced)
640 x 480 16.7M colors/16.7M colors 75 Hz
800 x 600 16.7M colors/16.7M colors 75 Hz
1024 x 768 64K colors/64K colors 75 Hz
1280 x 1024 256 colors/256 colors 75 Hz
Yes
Yes: 256KB
8MB x 8-bits or 2MB x 32-bits SIMM
Yes
without compromising picture quality or frame rate.
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 7201.doc Rev. 7 04/04/00 nmm. Page 1 of 5
Page 2
INFINIA 7201 Product Specifications
Infinia 7201
3.1 Billion Byte (=3.0GB): PV7201U-06A
STORAGE
HDD ( 3.5”Enhanced IDE) 3.1 Billion Byte (=3.0 GB)
Access Time 15 msec read/17 msec write
FDD 3.5” Floppy Disk Drive
CD-ROM: Toshiba XM-5702B 12X- speed
Interface ATAPI ( Enhanced IDE ) w/256KB Buffer
Random Access Time 120 ms
Sustained Transfer Rate 1800 KB/sec
Supported Disk Formats CD-DA, CD-ROM, CD-ROM XA, CD-Bridge (Photo-CD, Video-CD),
CD-I, CD-I Ready, CD-G, Multisession (Photo-CD, CD-Plus)
SOUND SYSTEM
Chipsets: Yamaha OPL4-ML & OPL3-SA3 FM Synthesizer
Wave Table Synthesis Yes: Yamaha OPL4-ML chipset
16 bit stereo audio playback/record Yes: 48kHz Maximum sampling rate
Full duplex function Yes: Supports simultaneous playback and capture, digital and analog mixing
SRS 3D Surround Sound Chip Yes: Yamaha OPL3-SA3 chipset
Sound formats supported:
Digital audio and analog mixing function Yes
Speakers Integrated with Monitor ( See monitor page for details )
SoundBlaster Pro, .WAV, MIDI, CD-ROM audio
INTERNAL MODEM
Data support
Protocols supported V.34, V.32bis, V.32, V.22bis, V.22, V.21, Bell 212A,103 and Bell 202 Rec.
Error correction V.42 and MNP 2-4
Data compression V.42bis and MNP 5
Fax support
Protocols supported ITU-T V.17, V.29, V.27ter.,V.21
Fax class Class 1 and 2 fax interface 14,400 to 2400 bit/sed
Supported Functions Speaker phone, Telephony Answering Machine, Ring Wake-up Resume
EXPANSION SLOTS
Number of ISA Slots ( Available/Total ) 2/3
Number of PCI Slots ( Available/Total ) 2/3
EXPANSION BAY
Internal Bay One open - One occupied with HDD
External 5.25” Bay Two open - One occupied with 12X CD-ROM
EXTERNAL INTERFACES All Ports are color coded for easy installation
One RJ-11 port for internal modem (supplied) Yes
One 9-Pin Serial (16550 UART compliant) Yes
Two Universal Serial Bus ports
One 25-Pin Parallel (IEEEP1284 compliant) Yes: EPP compliant
One 15-Pin RGB (SVGA video) Yes
One (PS/2) Mouse Port Yes
One (PS/2) 101 Keyboard Yes
Joystick/MIDI Port (15 pin D-sub) Yes
Microphone (3.5mm mini jack, monaural) Yes
Speaker-out (3.5mm mini jack, stereo) Yes
Line-in (3.5mm mini jack, stereo, 2V rms) Yes
AC IN (Standard 3 prong ) Yes
1. Both ports operate from a single controller allowing 128 devices total, not per port. The In-Touch Module should remain
on its own port. Throughput for the Universal Serial Bus (UBS) is 12Mbits/sec.
1
33.6 /14.4 Kbps Voice/Data/Fax modem
Incoming Call Discrimination, Caller ID
One open - One occupied with Toshiba In-Touch Module 4
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 7201.doc Rev. 7 04/04/00 nmm. Page 2 of 5
Page 3
INFINIA 7201 Product Specifications
3
Infinia 7201
3.1 Billion Byte (=3.0GB): PV7201U-06A
TOSHIBA IN-TOUCH MODULE 4: Centr alized Control to various de vi ces
Standard Functions Speakerphone, Digital answering machine, CD-ROM
Sleep mode
Digital answering machine functions See coded references below
Previous message
Delete message
Play message
Next message
Quit
Message indicator
Speakerphone mode
Digital answering machine mode
CD-ROM mode
FM mode
TV mode
Volume Control
IR Remote Ready Feature
Multifunction LCD readout
TV/FM Capture Card Sta ndard: Includes Remote
PCI 2.0 plug-and-play complaint Yes: Includes PCI BUS board (Dimensions: 9” x 4.2”)
TV Section:
Video Quality Live video: 4:2:2 YUV resolution
Video Processor & PCI BUS Video decoding using Brooktree Bt848 chipset
TV tuner Cable Ready, NTSC compatible
Stereo TV (Chipset: Phillips TEA5582) Phase-locked loop stereo decoder for BTSC system
FM Radio (Chipset: Phillips OM5606) Automatically decodes stereo and mono broadcasts
Video Input: Support 1 internal and 1 external video source
Internal: Yes: Composite video from on-board tuner
External: Yes: Composite NTSC/PAL video from VCR/LD player
Audio In: Supports 4 internal and 1 external audio source
1
2
3
4
5
6
7
8
9
10
11
(Standard unit is FM ready) Actives FM tuner
12
(Standard unit is TV ready) Activates TV tuner
13
14
Internal: Line-in level for CD-ROM player
External: Standard line in source
Activates/deactivates phone answering machine
15
Replays last message (Refers to track, station or channel in other modes)
Stop/Deletes current message
Play messages (Refers to track, station or channel in other modes)
Forward to next message (Refers to track, station or channel in other modes)
Deactivates digital answering machine or corresponding mode
Active when message present
Activates speakerphone
Activates CD-ROM mode
Controls monitor speaker volume
Requires optional remote (DT-1002)
Indicates messages number, track, station, or channel according to Mode
TV audio from TV stereo decoder
FM radio from radio receiver module
Mono line-out telephony audio from system board
TOSHIBA IN-TOUCH MODULE 4
Sleep
Sleep
TRK
1
<<
<<
15
2
4
8
ANS
7
MSG
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 7201.doc Rev. 7 04/04/00 nmm. Page 3 of 5
!!!!
!
TEL
>
>
CD
4
10
3
9
>>
>>
FM
5
11
Quit
OFF
12
TV
6
Volume
IR
1
14
Receiver
Page 4
INFINIA 7201 Product Specifications
Infinia 7201
3.1 Billion Byte (=3.0GB): PV7201U-06A
KEYBOARD
104-key keyboard with the Windows 95 keys Yes
3.8mm Travel Yes
12 dedicated function keys Yes
Numeric keypad Yes
POINTING DEVICE
Microsoft for Toshiba PS/2 Mouse Yes
POWER SUPPLY( 200Watts )
Input (Voltage/Frequency) 100-240V; 50-60Hz, Switch Selectable
Output Connectors Five AMP 1480426-0 type ( HDD, CD-ROM....)
One AMP 171822-4 type ( FDD )
One Motherboard
Safety UL recognized, CSA Certified, TUV approved
UL/CSA listed AC Cable(115V)
VDE/IEC Approved Type(220V/240V)
DIMENSIONS
WEIGHT
BUNDLED SOFTWARE:
Maxis Sim City 2000 Ver.1.1; Diagsoft QA Plus 5.41; Prodigy 1.12; AT&T Worldnet; Compuserve; America Online 3.0;
Rand Mcnally Tripmaker SE 1997 v.1.2 (upon registration); Investor Insight (Intuit) 1.0; Intel INDEO Video 4.1;
Netscape Navigator Personal Edition; Mediamatics Arcade Pak 2.0; Mediascape CD player; Prodigy Internet, MSN
Microsoft Internet Explorer, Synchro Multimedia Home Connect 2.0; InTouch Video Phone (Receive Only)
CD’s included:
Windows 95; MS Works 4.0A; MS Plus Pack 1.0 CD; MS Golf 2.0 CD; MS Encarta Encyclopedia 1997 CD;
Virgin-Charlie Brown -Get Ready for Sc hool 1.0 CD; Virgin Johnny Quest 1.0 CD; IVI-Mayo Clinic 2.0 CD;
Activision Mech Warrior 2 Ver.17 CD; Creative Wonders Family Album Creator 2.0 CD;
Intuit Quicken SE 6.0 CD; Activision Shanghai Great Moments CD
WARRANTY: 1 Yr. Parts & Labor (First 90 Days On-site); 7 x 24 phone support free during warranty period
ENVIRONMENTAL SPECIFICATIONS
Temperature: Operating
Non-operating
Relative Humidity: Operating
Non-operating
Shock: Operating 10G; 1.5G
Non-operating 60G; 10G
Vibration: Operating 0.3G
Non-operating 0.6G
Acoustic Noise Impulsive 55dB
Non-Impulsive 45dB
8.11” x 16.22” x 19.29”
29.04 LBS
50°F (10°C) to 95°F (35 °C)
-4°F (-20°C) to 149° (65°C)
30% to 80% non-condensing
10% to 90% non-condensing
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 7201.doc Rev. 7 04/04/00 nmm. Page 4 of 5
Page 5
INFINIA 7201 Product Specifications
INFINIA OPTIONS AND PRICING
PART NUMBER
DT7130U Infinia 7130 w/133 Mhz Pentium & 1.5GB HDD $1,299
DT7160U Infinia 7160 w/166 Mhz Pentium & 1.9GB HDD $1,599
DT7200U Infinia 7200 w/200 Mhz Pentium & 3.0GB HDD $2,199
PV7161U-06A Infinia 7161 w/166 Mhz Pentium w/MMX, 2.38GB HDD, & 12X CD-ROM $1,899
PV7201U-06A Infinia 7201 w/200 Mhz Pentium w/MMX, 3.0GB HDD & 12X CD-ROM $2,199
PV1021U-06A Infinia 7220 w/200 Mhz Pentium w/MMX, 3.73GB HDD & 8X DVD player $TBD
DA-1566M-01 15-inch autoscan monitor $449
DA-1766M-01 17-inch autoscan monitor w/sub-woofer $749
DT1001 TV/FM Radio Capture Card (with In-Touch Remote) -DT1002 In-Touch Remote -DT1003 LCD In-Touch Module 4 -- Standard on Infinia 72xx models $169
DTVIDEOPHONE
♦ Requires TV/Radio Capture Card..
Toshiba InTouch Video Phone with Intel Proshare Technology♦
Standard on Infinia 72xx models
DESCRIPTION PRICE
Standard on 72xx models
$199
$299
$29
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change
without notice. Copyright 1997 TAIS 7201.doc Rev. 7 04/04/00 nmm. Page 5 of 5
