32DL933B 32DL934B

DIGITAL Series

"Register your TV online at: www.toshiba.co.uk/registration”

OWNER’S MANUAL

User Manual

DIGITAL Series

English

“Register your TV online at: www.toshiba.co.uk/registration”

English - 1 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 101_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1 05.05.2012 18:30:2905.05.2012 18:30:29

English

8IFOEPFTTXJUDIPWFSIBQQFO



$PQFMBOETXJUDIFTPO0DUPCFS

5IFFYBDUEBUFZPV TXJUDIEFQFOETPOUIF USBOTNJUUFSZPVBSF TFSWFECZ5PDIFDL XIFOZPVTXJUDI HPUP%JHJUBM6, µT QPTUDPEFDIFDLFSPO XXXEJHJUBMVLDPVL

$IFDLZPVS*57OFXT TFSWJDFPSMPPLBU5FMFUFYU QBHFUPTFFXIBU57 SFHJPOZPVµSFJO

Digital Switchover

,FFQUIJTJNQPSUBOU JOGPSNBUJPOBCPVU IPXUPSFUVOF ZPVS57EVSJOHUIF

EJHJUBM57TXJUDIPWFS

Television in the UK is going digital, bringing us all more choice and new services. Starting in late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

Please see above to ﬁ nd out when your area switches to digital. Digital UK is the independent, non-proﬁ t organisation leading the process of digital TV switchover in the UK.

Digital UK provides impartial information on what people need to do to prepare for the move to digital, and when they need to do it.

How the switchover affects your TV equipment:

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply plugging it into your aerial socket (check if you can get digital TV through your aerial now, or whether you’ll have to wait until switchover, at www.digitaluk. co.uk).

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels, and also to pick up new ones, Digital UK, the body leading the digital TV switchover, will advise you when you need to re-tune during the switchover.

If you choose to connect your TV to satellite or cable with a digital box then it will not be affected by

English - 2 -

switchover, and you won’t need to re-tune. Keep this important information about how to re-tune your TV during the digitalTV switchover

How to re-tune:

As new services are broadcast it will be necessary to re-tune the television in order to view them. Auto tuning will completely retune the television and can be used to update the channel list.

Press • MENU button on the remote control unit.

Select • Install and Retune option and then select Automatic channel scan (Retune).

A screen will appear warning that previous digital • programmes and settings will be deleted.

You must allow the television to complete the • search...

When the search is complete the Auto tuning screen • will display the total number of service found.

NOTE: Further detailed instructions on Auto tuning can be found in the TV owners manual.

If you are missing channels, it may be that they are not available in your area, or that your aerial needs upgrading.

If you have any further questions, please contact your equipment supplier or call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 201_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2 05.05.2012 18:30:3305.05.2012 18:30:33

Re-tuning: TOSHIBA Freeview Products

Toshiba Digital TV

This guide can be used to help you re-tune the following product with the remote control below.

Make sure your TV is on and press 80 for the BBC News channel

1 ) Press MENU and press ◄ or ► to select Install and Retune and press OK. Press ▲ or ▼ to select Automatic channel scan (Retune) to start the process.

2 ) Select the desired search mode using ► and press OK button.

3 ) Whenever you select an automatic search type and press OK button, a conﬁ rmation screen will appear on the screen. To start installation process, select Yes by using ◄ or ► and OK button.

English

4 ) After auto channel scan type is set and selected and conﬁ rmed, installation process will start and progress bar will move along. The television will start to search for all available stations. You must allow the television to complete the search.

* This process may affect any saved information stored on your product. Please consult your instruction manual or contact the manufacturer using the details above.

TOSHIBA Customer Helpline: 0844 856 0730 TOSHIBA Online Support: www.toshiba.co.uk/tv-dvd-support

English - 3 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 301_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3 05.05.2012 18:30:3705.05.2012 18:30:37

Manual Re-tuning

English

If your Freeview TV or box picks up a different regional service to your preferred service (e.g. BBC England instead of BBC Scotland, or ITV Central instead of ITV Anglia), you can use this manual re-tune If you are missing some services you may ﬁ nd they have moved to channel 800 or above, this guide will help you put them in your preferred position. If you ﬁ nd manual re-tuning too difﬁ cult, contact your local electrical retailer or installer. This is a guide only, Freeview models operate slightly differently. Some early models do not oer a manual re-tune facility – check your instruction book. Please note: Every time you re-tune, you will need to go through this process.

1 ) Go to the Postcode Checker at digitaluk.co.uk Enter your postcode on the right hand side of the web page. Remember to include your house number or name. If you do not have internet access, contact the Digital UK helpline on 08456 50 50 50* and ask for manual re-tune guide support.

2 ) Once you have entered your address details, the next page gives you an indication of which TV services you should receive, based on your most likely transmitter. You may be able to receive television services from more than one transmitter and you can check alternatives, where available. On the results page click on the pink button to see your full reception forecast and channel information for switchover.

3 ) Click on the How do I re-tune? pink banner. Scroll down to the manual re-tune table where you will see the relevant “RF Channel” numbers for the digital services that can be received at your home.**

*Calls are free for BT customers within inclusive calling plans. Call charges from other providers may vary. The standard business hours for Digital UK’s contact centre are 9am to 7pm Monday to Friday and 10am to 4pm on a Saturday. Opening hours will be extended during switchover in each area. Digital UK, PO Box 26833, Kirkcaldy,KY2 9AG . **Please note that the Freeview channel line-up is subject to change.

English - 4 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 401_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4 05.05.2012 18:30:3805.05.2012 18:30:38

4 ) Write down the “RF Channel” numbers for your transmitter using the Group boxes here:

5 ) Press MENU and use ◄ or ► to select Install and Retune.

6 ) Select Manual Channel Scan from the Installation menu and press OK.

7 ) Select Search Type as Digital by using ◄ or ►.

8 ) Select Channel and use ◄ or ► to change the channel number.

English

9 ) Press OK to start search.

10 ) Press MENU button. You should ﬁ nd that you now have your preferred service installed.

English - 5 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 501_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 5 05.05.2012 18:30:3905.05.2012 18:30:39

Contents

English

Digital Switchover ................................................... 2

Re-tuning: TOSHIBA Freeview Products ................ 3

Manual Re-tuning ................................................... 4

Safety Precautions ................................................. 8

Air Circulation ..................................................... 8

Heat Damage...................................................... 8

Mains Supply ...................................................... 8

Warning ............................................................. 8

Do ....................................................................... 8

Do not ................................................................. 8

Installation and Important Information .................... 9

EXCLUSION CLAUSE........................................ 9

Important safety information ................................ 10

Removing the pedestal stand ........................... 12

The Remote Control ............................................. 13

Inserting Batteries and Effective Range of the

Remote Control................................................. 13

Connecting External Equipment ........................... 14

Connecting an HDMI

Input...................................................................... 15

To Connect an HDMI Device ............................ 15

To Connect a DVI Device.................................. 15

Connecting a Computer........................................ 16

To Connect a Computer .................................... 16

Connecting a DVD Player..................................... 16

Connecting to a DVD Player via YPbPr ............ 16

Connecting a USB Memory .................................. 17

Connect a USB Memory ................................... 17

USB Memory Connection ................................. 17

Power Save Mode ................................................ 18

Environmental Information ............................... 18

Controlling the TV ................................................. 19

Switching on ..................................................... 19

Using the Remote Control ................................ 19

Using the Controls and Connections on the TV ... 19

Initial Installation .................................................. 20

Auto Tuning....................................................... 21

Auto Tuning .......................................................... 21

Manual Tuning, Analogue Fine Tuning ................. 22

Digital Aerial Manual Search............................. 22

Digital Cable Manual Search ............................ 22

Analogue Manual Search ................................. 22

Analogue Fine Tune.......................................... 22

General Operation ................................................ 23

Stereo and Bilingual Transmissions.................. 23

Displaying Subtitles .......................................... 23

Viewing Main Menu .......................................... 23

Controlling Volume and Muting Sound ............. 23

Selecting Programme Positions........................ 23

Standby Notiﬁ cations ........................................ 23

Channel List, Sorting Programmes, Programme

Locking ................................................................. 24

Viewing Channel List ........................................ 24

or DVI Device to the HDMI

Moving a Channel ............................................. 24

Deleting a Channel ........................................... 24

Renaming a Channel ........................................ 24

Locking a Channel ............................................ 24

Viewing Info Banner, Electronic Programme

Guide .................................................................... 25

Viewing Info Banner .......................................... 25

Electronic Programme Guide............................ 25

Language Selection .............................................. 26

Language Settings ............................................ 26

Preferred ....................................................... 26

Current .......................................................... 26

Digital Settings - Parental Control, Menu Lock, Set

PIN........................................................................ 27

Viewing Parental Control Menu ........................ 27

Menu Lock ........................................................ 27

Child Lock ......................................................... 27

Set PIN ............................................................. 27

Conﬁ guring Picture Settings ................................. 28

Conﬁ guring Picture Settings ............................. 28

Picture Mode..................................................... 28

Contrast ............................................................ 28

Brightness ......................................................... 28

Sharpness......................................................... 28

Colour ............................................................... 28

Power Save Mode ............................................ 28

Backlight (optional) ........................................... 28

Noise Reduction ............................................... 28

Advanced Settings ........................................ 28

Reset ................................................................ 29

Changing Picture Format...................................... 30

Conﬁ guring PC Picture Settings ........................... 31

PC Picture Settings (*) ...................................... 31

PC Position ....................................................... 31

Autoposition ...................................................... 31

H Position ......................................................... 31

V Position.......................................................... 31

Dot Clock .......................................................... 31

Phase................................................................ 31

Conﬁ guring Sound Settings .................................. 32

Conﬁ guring Sound Settings .............................. 32

Operating Sound Settings Menu Items ............. 32

Volume .............................................................. 32

Equalizer (Only for speaker) ............................. 32

Balance (Only for speaker) ............................... 32

Headphone ....................................................... 32

Sound Mode ..................................................... 32

AVL ................................................................... 32

Dynamic Bass ................................................... 32

Digital Out ......................................................... 32

Settings Menu Operation, Conditional Access ..... 33

Conﬁ guring Your TV’s Settings ......................... 33

Viewing Settings Menu ..................................... 33

Conditional Access ........................................... 33

Language .......................................................... 33

English - 6 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 601_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 6 05.05.2012 18:30:4005.05.2012 18:30:40

Parental ............................................................ 33

Timers ............................................................... 33

Date/Time Settings ........................................... 33

Sources............................................................. 33

Other Settings ................................................... 33

Using a Conditional Access Module ................. 33

Setting Timers, Setting Date/Time ........................ 34

Timers ............................................................... 34

Setting Sleep Timer .......................................... 34

Setting Programme Timers ............................... 34

Conﬁ guring Date/Time Settings ........................ 34

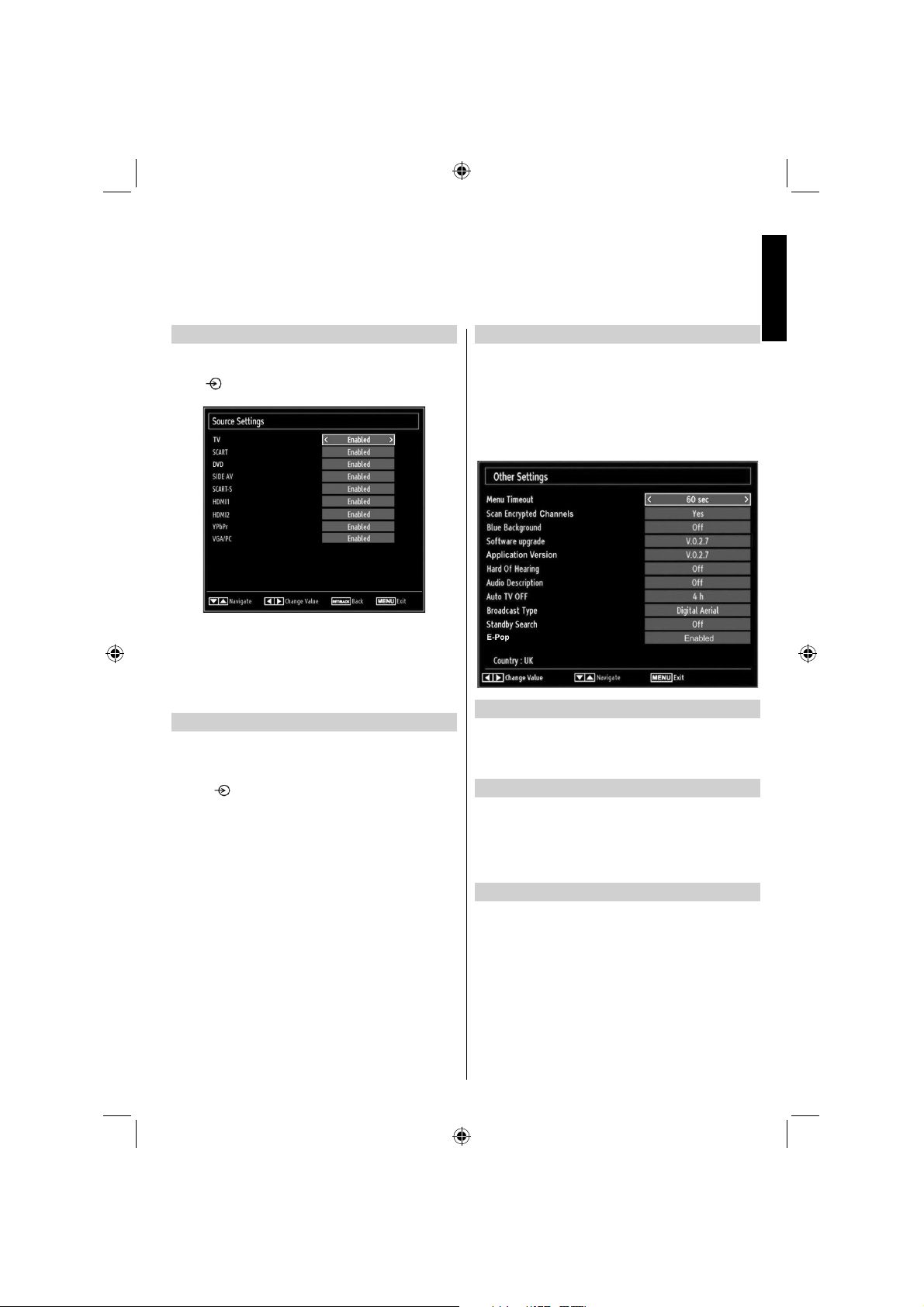

Source Settings, Other Controls ........................... 35

Conﬁ guring Source Settings ............................. 35

Input Selection .................................................. 35

Conﬁ guring Other Settings - General ............... 35

Operation .......................................................... 35

Menu Timeout ................................................... 35

Scan Encrypted Channels ............................... 35

Blue Background .............................................. 36

Software Upgrade ............................................. 36

Application Version ........................................... 36

Hard of Hearing ................................................ 36

Audio Description.............................................. 36

Auto TV Off ....................................................... 36

Broadcast Type ................................................. 36

Standby Search (*) .......................................... 36

E-Pop ................................................................ 36

Teletext language.............................................. 36

Manual Start ..................................................... 37

Auto Start .......................................................... 37

USB Media Browser ............................................. 37

Playing MP3 Files ............................................. 38

Viewing JPEG Files .......................................... 38

Slideshow Feature ............................................ 39

Video Playback ................................................. 39

Media Browser Settings .................................... 40

To Close the Media Player ................................ 40

Analogue Text Services ........................................ 41

Analogue Text Services .................................... 41

Using Text Button -TEXT .................................. 41

Acessing Sub-Pages ........................................ 41

Revealing Concealed Text ................................ 41

Holding a Page ................................................. 41

To display an initial page................................... 41

Appendix A: PC Input Typical Display Modes ....... 42

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 43

Appendix C: Supported File Formats for USB

Mode..................................................................... 44

Appendix D: PIN Information ............................... 44

Speciﬁ cations and Accessories ............................ 45

License Information .............................................. 46

Questions and Answers ........................................ 47

English

English - 7 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 701_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 7 05.05.2012 18:30:4005.05.2012 18:30:40

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equip-

English

ment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased.

Air Circulation

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity, or locations where the temperature is likely to fall below 5°C (41°F).

Mains Supply

The set should be operated only from a 220-240 V AC 50 Hz outlet. DO ensure that the television is not standing on the mains lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference

Filter, the removal of which will impair its performance.

In the UK, the fuse ﬁ tted in this plug is approved by ASTA or BSI to BS1362. It should only be replaced by a

correctly rated and approved type and the fuse cover must be reﬁ tted. IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

Warning

To prevent the spread of ﬁ re, keep candles or other open

ﬂ ames away from this product at all times.

DO read the operating instructions before you attempt to

use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and inter connections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.

Do not

DON’T remove any ﬁ xed cover as this may expose danger- ous voltages.

DON’T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DON’T allow electrical equipment to be exposed to dripping or splashing or objects ﬁ lled with liquids, such as vases, to be placed on the equipment.

DON’T place hot objects or naked ﬂ ame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to ﬁ res.

DON’T use makeshift stands and NEVER ﬁ x legs with wood screws. To ensure complete safety, always ﬁ t the manufactur- ers’ approved stand, bracket or legs with the ﬁ xings provided according to the instructions.

DON’T leave equipment switched on when it is unattended, unless it is speciﬁ cally stated that it is designed for unat- tended operation or has a standby mode. Switch off by withdrawing the plug, make sure your family know how to do this. Special arrangements may need to be made for people with disabilities.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way switch off, withdraw the mains plug and consult your dealer.

WARNING - excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

NEVER guess or take chances with electrical equipment of any kind - it is better to be safe than sorry.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Note : Interactive video games that involve shooting a “gun” type of joystick at the on-screen target may not work with this TV.

English - 8 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 801_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 8 05.05.2012 18:30:4005.05.2012 18:30:40

Installation and Important Information

“P” Clip position on TV is dependent on model.

Where to install

Sturdy tie

(as short

as possible)

P Clip

“P” Clip position on TV is dependent on model.

Locate the television away from direct sunlight and strong lights. Soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen. Place the TV on a stable, level surface that can support the weight of the TV. In order to maintain stability and prevent it falling over, secure the TV to a wall using a sturdy tie to the clip on TV.

Install the P Clip under the stand as shown in the above illustration. The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case.

Avoid using chemicals (such as air refreshers, cleaning agents, etc.) on or near the TV pedestal. Studies indicate that plastics may weaken and crack over time

from the combination effects of chemical agents and mechanical stress (such as weight of TV). Failure to follow these instructions could result in serious injury and/or permanent damage to TV and TV pedestal. Cleaning the screen and cabinet… Turn off the power, and clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Please take note

The digital reception function of this television is only effective in the countries listed in the “Country” section during the ﬁ rst time installation menu. Depending on country/area, some of this television’s functions may not be available. Reception of future additional or modiﬁ ed services can not be guaranteed with this television.

If stationary images generated by 4:3 broadcasts, text services, channel identiﬁ cation logos, computer displays, video games, on screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. It is always advisable to reduce both the brightness and contrast settings.

Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer’s warranty. Regular use of other size modes will prevent permanent retention.

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) ﬁ re;

ii) earthquake;

iii) accidental damage;

iv) intentional misuse of the product;

v) use of the product in improper conditions;

vi) loss and/or damage caused to the product whilst in the possession of a third party;

vii) any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the

owner’s manual;

viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with

associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of proﬁ t, interruption of business, the loss of recorded data whether caused during normal opera- tion or misuse of the product.

English - 9 -

* Button and stand style is dependent on model.

English

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 901_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 9 05.05.2012 18:30:4005.05.2012 18:30:40

Important safety information

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

English

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

Headphone Warning

Loud music can damage your hearing irreversibly. Do not set the volume to a high level when listening through headphones, particularly for extended listening periods.

Information for the DVB-T function

• Any function relative to the digital television (with the DVB logo) is available only within the country or area where such signals are transmitted. Verify with the salesperson if it is possible to receive a DVB-T signal in the zone where you live.

• Even if the television conforms to the DVB-T speciﬁ cations, the compatibility to future digital DVB-T transmissions is not guaranteed.

• Some digital television functions may not be available in some countries.

• The DVB-T system present in this device is FTA (Free to air).

• DVB is a registered trademark of the DVB Project. This logo indicates that the product is compliant with European Digital Broadcasting.

Possible Adverse Effects on LCD Screen

If a ﬁ xed (non-moving) pattern remains on the LCD screen for long periods of time, the image can become permanently retained on the LCD TV panel and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your TV on for long periods of time while it is displaying the following formats or images:

• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.

• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (Black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (Black bars on left and right sides of screen).

IMPORTANT INFORMATION

TV Installation

If a television is not positioned in a sufﬁ ciently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Only using furniture that can safely support the television.

• Ensuring the television is not overhanging the edge of the supporting furniture.

• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.

• Not standing the television on cloth or other materials placed between the television and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television or its controls.

Place the TV on a stable, level surface that can support the weight of the TV. In order to maintain stability and prevent it from falling over, secure the TV to a wall using a sturdy tie to the clip on the back of the table top stand.

This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers related to such use.

• Although this unit has been carefully manufactured and rigorously checked prior to leaving the factory as with all electrical appliances, it is possible for problems to develop. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the mains power socket immediately.

• Ensure that the unit is sufﬁ ciently ventilated! Never place it next to or underneath curtains!

• This set should only be connected to a 220-240V AC 50Hz mains power supply. Do not attempt to connect it to any other type of supply.

• The socket outlet must be installed near the equipment and is easily accessible.

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1001_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 10 05.05.2012 18:30:4205.05.2012 18:30:42

English - 10 -

Important safety information (continued)

• Do not open this unit. An attempt to repair the unit by a non-expert could be dangerous and potentially cause a ﬁ re hazard. All repairs must be carried out by qualiﬁ ed service personnel only.

• Keep away from rodents. Rodents (and also cockatiels) enjoy biting electric ﬂ exes. They can cause a short circuit (ﬁ re hazard!) and receive a fatal electric shock.

• Always hold the plug when disconnecting the unit from the socket outlet. Do not pull on ﬂ ex. The ﬂ ex can become overloaded and cause a short circuit.

• Use a soft, dry cloth to clean the unit.

• Set up unit so that no one will trip over the ﬂ ex.

• This unit is recommended to be installed on shock-free benches in order to avoid any danger from falling.

• Take note that toddlers can pull the unit down from a table or cupboard by means of its ﬂ ex. Children can hurt themselves when doing this.

• Do not use the unit near heat sources. The casing and ﬂ ex could be damaged by the intensity of the heat.

• The screen is made of glass and can break if damage is done to it. Be careful when collecting sharp edged glass splitters.

• If you intend to wall mount the unit, contact the shop where you purchased the unit for advice, and leave the installation work to professionals. Improper installation can cause damage and/or injuries.

• When installing the set on a wall, allow at least 10 cm clearance between the rear of the set and the wall. Clearance of less than 10 cm will obstruct the vents and cause overheating to the interior of the set, resulting in faults or damage to the set.

• Taking fall-prevention measures

- If these measures are not taken, the unit can fall and cause damage and/or injuries.

- Contact the shop where you purchased the unit to obtain full details of the measures.

• When a TV stand is used,

- Ensure the unit is fully on the stand and placed in the centre.

- Do not leave the stand doors open. You could be hurt as a result of the unit falling or breaking, or your ﬁ ngers being caught or jammed. Take extra precautions if you have children.

• Avoid placing the unit on any surfaces that may be subject to vibrations or shocks.

• To protect the unit during a thunder storm, unplug the AC power cord and disconnect the aerial.

Caution: Do not touch the aerial connector.

• When you leave your home for a long period of time, unplug the AC power cord for safety.

• The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to prevent overheating.

The ventilation holes should not be blocked. Do not set up near radiators. Do not place in direct sunshine.

• When placing on a shelf, allow at least 10 cm clearance space around the whole unit.

English - 11 -

• The unit shall not be exposed to dripping or splashing, and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

• Liquids spilled into the unit can cause serious damage. Switch the set off and disconnect the mains power supply, then consult a qualiﬁ ed service person before attempting to use the unit again.

• Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day and drops of water form on the outside of the glass. In the same way, moisture may condense on this unit’s internal optical pick-up lens, one of the most crucial internal parts of the unit.

• Moisture condensation occurs in the following situations:

- When you move the unit from a cold place to a warm place.

- When you use the unit in a room where the heater was just turned on.

- When you use the unit in an area where cold air from an air conditioner directly hits the unit.

- When you use the unit in a humid place.

• Never use the unit when moisture condensation may occur.

• Using the unit when moisture condensation exists may damage its own internal parts and discs. Connect the power cord of the unit to the wall outlet, turn on the unit, remove the disc, and leave it for two or three hours. After two or three hours, the unit will warm up and moisture will be evaporated. Leaving the TV connected to the wall outlet will help prevent moisture condensation in the unit.

• Never place hot objects or open ﬂ ame sources, such as lighted candles or night lights, on or close to the TV. High temperatures can melt plastic and lead to ﬁ res.

English

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1101_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 11 05.05.2012 18:30:4205.05.2012 18:30:42

Removing the pedestal stand

When using a Wall Bracket

English

Please use a wall bracket appropriate for the size and weight of the LCD TV.

Two people are required for installation.•

To install a wall-mount from another manufacturer.• (1) Unplug and remove any cables and/or other component connectors from the rear of the TV. (2) Carefully lay the front of the unit face down on a ﬂ at, cushioned surface such as a quilt or blanket. (3) Follow the instructions provided with your wall bracket. Before proceeding, make sure the appropriate

bracket(s) are attached to the wall and the back of the TV as described in the instructions provided with the wall bracket.

(4) Always use the screws supplied or recommended by the wall mount manufacturer.

Note :

The bracket shown above is a sample image. The bracket and ﬁ xings are not supplied with the TV. •

A brick wall should not be used.•

Removing the pedestal stand

(1) Carefully lay the front of the unit face down on a ﬂ at, cushioned surface with the stand hanging over the edge.

(2) Remove the screws. (3) After the screws are removed, hold the pedestal stand in place,then remove the pedestal stand and the

plastic moulding from the TV by removing away from the TV. NOTE: Extreme care should always be used when removing the pedestal stand to avoid damage to the LCD

panel.

For 32DL933 and 32DL934 models

Note: Follow wall bracket instructions to ﬁ t TV to bracket. It is recommended to use screws provided.

English - 12 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1201_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 12 05.05.2012 19:15:0305.05.2012 19:15:03

The Remote Control

Simple at-a-glance reference of your remote control.

English

Standby/ On mode

Freeze Picture

Mono-Stereo / Dual I-II

To select TV

programme number

Audio description

Programme guide

Quick Settings

Navigation Buttons

Exit

To change channels

Hold Page (in TXT mode)

Teletext Controls

Operation LED Switch to TV or DVD mode

Subtitle on/off Teletext

Analogue/Digital broadcasts

AV / Source

MENU On/Off

OK / Confirm

Return to previous menu

Info

To alter the volume

Reveal (in TXT mode)

To mute the sound

Note: Buttons that are not indicated on the remote control illustration are not functional in TV mode.

Inserting Batteries and Effective Range of the Remote Control

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in a designated disposal area.

Warning: Batteries must not be exposed to excessive heat such as sunshine, ﬁ re or the like.

The performance of the remote control will deteriorate beyond a distance of ﬁ ve metres or outside an angle of 30 degrees from the IR receiver. If the operating range becomes reduced the batteries may need replacing.

English - 13 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1301_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 13 05.05.2012 18:30:5805.05.2012 18:30:58

English

Connecting External Equipment

Before connecting any external equipment, remove the mains plug from the wall socket.

Side View

COMMON INTERFACE

The Common Interface is

for a Conditional Access Module (CAM).

DIGITAL AUDIO

Socket

SCART

* a decoder could be Digital Satellite, Free to Air or any other compatible decoder.

decoder*

Socket

Aerial cable:...........................................................

Connect the aerial to the ANT. socket on the rear of the TV.

SCART lead:..........................................................

If you use a decoder* or a media recorder, it is essential that the scart cable is connected to the TV.

Before running ﬁ rst time installation, any connected devices need to be set to standby mode.

The DIGITAL AUDIO socket enables the connection of a suitable surround sound system.

HDMI

(High-Deﬁ nition Multimedia Interface) is for using

with a DVD decoder or other equipment with digital audio and video output. It is designed for best performance with 1080i and 1080p high-deﬁ nition video signals but will also accept and display VGA, 480i, 480p, 576i, 576p and 720p signals. PC format signals will also be displayed.

NOTE: Although this TV is able to connect to HDMI equipment, it is possible that some equipment may not operate correctly.

HDMI Input Sockets

RGB/PC Input

Aerial/Cable Input

5Vdc

Max:500mA

MODE

USB Input

YPbPr Input

YPbPr

SIDE AV Input

SIDE AV

Headphone

Menu Wheel

A wide variety of external equipment can be connected to the TV; therefore, the relevant owner’s manuals for all additional equipment must be referred to for exact instructions.

If the TV automatically switches over to monitor external equipment, return to normal TV by pressing the desired programme position button. To recall external equipment, press

button repeatedly to switch between sources.

Regardless of source’s property, audio output from the DIGITAL AUDIO socket cannot be copied.

English - 14 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1401_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 14 05.05.2012 18:31:0005.05.2012 18:31:00

Connecting an HDMI® or DVI Device to the HDMI Input

English

The HDMI inputs on your TV receive digital audio and

uncompressed digital video from an HDMI source device

or uncompressed digital video from a DVI (Digital Visual

Interface) source device.

These inputs are designed to accept HDCP (High-Bandwidth

Digital-Content Protection) programme material in digital form

from EIA/CEA-861-D–compliant [1] consumer electronic

devices (such as a set-top box or DVD player with HDMI

or DVI output).

NOTE:

• Some early HDMI equipment may not work properly with your latest HDMI TV.

• Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz.

To Connect an HDMI Device

Connect an HDMI cable (type A connector) to the HDMI terminal. For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo ( ).

• If your HDMI connection is capable of 1080p and/or your TV is capable of refresh rates greater than 50Hz, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this mode.

• HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration).

• To view the HDMI device video, press HDMI1 or HDMI2.

button to select

To Connect a DVI Device

Connect an HDMI-to-DVI adaptor cable (HDMI type A connector) to the HDMI input socket and audio cables to the RED and WHITE SIDE AV AUDIO inputs (see illustration).

• The recommended HDMI-to-DVI adaptor cable length is

6.6 ft (2m). An HDMI-to-DVI adaptor cable transfers video only. • Separate analogue audio cables are required.

SIDE AV Input

SIDE AV

Side Audio/Video

Connection Cable

(Supplied)

HDMI Input

Sockets

Audio Cable

(Not supplied)

HDMI to DVI

Adapter Cable

(not supplied)

NOTE:

To ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these procedures:

HDMI Input Socket (Back)

• When turning on your electronic components, turn on the TV ﬁ rst, and then the HDMI or DVI device.

• When turning off your electronic components, turn off the HDMI or DVI device ﬁ rst, and then the TV.

HDMI device

English - 15 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1501_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 15 05.05.2012 18:31:0405.05.2012 18:31:04

Connecting a Computer

English

Connecting a DVD Player

To Connect a Computer

With either an RGB/PC or an HDMI connection, you can watch your computer’s display on the TV and hear the sound from the TV’s speakers.

When connecting a PC to the RGB/PC input on TV, use an analogue RGB (15-pin) computer cable and use the SIDE AV socket with a PC audio cable (not supplied) for audio connection, using the supplied Side AV connection cable’s RED and WHITE inputs (see illustration).

PC VGA Cable (not supplied)

RGB/PC Input

(back)

SIDE AV Input

SIDE AV

Side Audio/Video

Connection Cable

(supplied)

PC Audio Cable

(not supplied)

To use a PC, set the monitor output resolution on the PC before connecting it to the TV. To display the optimum picture, use the PC setting feature.

NOTE:

Some PC models cannot be connected to this TV. • An adaptor is not needed for computers with a compatible mini D-sub15-pin terminal.

Depending on the DVD’s title and the speciﬁ cations • of the PC on which you are playing the DVD-Video, some scenes may be skipped or you may not be able to pause during multiangle scenes.

Connecting to a DVD Player via YPbPr

Some DVD players are connected through COMPONENT SOCKETS (YPbPr). In this case, you must use the supplied Component YPbPr video connection cable for enabling connection. First, plug the single jack of the cable to the TV’s YPbPr socket (side). Afterwards, insert your YPbPr cable’s (not supplied) connectors into the plural part of the supplied YPbPr video connection cable (see illustration below). Colours of the connected jacks should match.

To enable audio connection, use the supplied Side AV connection cable. First, plug single jack of the cable to the Side AV Input of the TV. Afterwards, insert your DVD player’s audio cable’s connectors into the plural part of the supplied Side AV connection cable (see illustration below). Colours of the connected jacks should match.

Video Connection

YPbPr Veo id Cable

oli

(N t supp ed)

To RED & WHITE inputs

Audio Cable

(Not supplied)

DVD Player

Audio Connection

V A e d i S

Side AV Input

YP Pr b

C nnection o

Cable

(s pplied u)

Side AV

Connection cable

(supplied)

English - 16 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1601_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 16 05.05.2012 18:31:1005.05.2012 18:31:10

Connecting a USB Memory

Connect a USB Memory

You can connect a USB memory to your TV by using • the USB input of the TV. This feature allows you to display/play music, photo or video ﬁ les stored in a USB memory.

It is possible that certain types of USB devices (e.g. • MP3 Players) may not be compatible with this TV.

You may back up your ﬁ les before making any • connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any ﬁ le damage or data loss.

Do not pull out USB memory while playing a ﬁ le.•

CAUTION: Quickly plugging and unplugging USB devices, is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player

and especially the USB device itself.

USB Memory Connection

• Plug your USB memory to the USB input of the • TV.

SIDE VIEW

USB

English

USB memory

NOTE: The USB socket has limited functionality, and Toshiba can take no responsibility for damage to other connected equipment.

English - 17 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1701_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 17 05.05.2012 18:31:1205.05.2012 18:31:12

Power Save Mode

English

Environmental Information

This television is designed to consume less energy to save environment. •

You not only help to save the environment but also can save money by reducing electricity bills, thanks to the energy efﬁ ciency feature of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located on page 28. If you set Power Save Mode as On, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time.•

Note that annually, using the TV set in Power Save Mode has more power efﬁ ciency than disconnecting the TV from the mains plug instead of keeping stand-by mode. Therefore it is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. And also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

Please helps us to save environment by following these steps.•

This television is designed to consume less energy.•

Harmful substances and contents that are dangerous to health, are eliminated in its design.•

This product is designed to endure longer and it is subject to recycling at the end of its service life.•

When the TV reaches the end of its service life, dispose the product in accordance with the proper recycling process as explained on page 46.

Repair Information

Please refer all servicing to qualiﬁ ed personnel. Only qualiﬁ ed personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

English - 18 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1801_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 18 05.05.2012 18:31:1205.05.2012 18:31:12

Controlling the TV

A wide variety of external equipment can be connected via the sockets located on the side and back of the

TV. Whilst all the necessary adjustments and controls for the TV are made using the remote control, the

button on the left side of the TV may be used for some functions.

5Vdc

Max:500mA

MODE

YPbPr

SIDE AV

IR receiver

Standby LED

Up Direction

Programme / Volume /

AV / Standby On selection switch

Down Direction

English

Switching on

If the standby LED is unlit, check that the mains plug is con-

nected to the power and press the middle of the

button on the left side of the TV to switch the television on. Then the LED lights up in green. If the picture does not appear, press button on the remote control; it may take a few moments.

To put the television into Standby, press remote control. To view the television, press

button on the

button again.

The picture may take a few seconds to appear.

Note: The active Standby LED may appear for a few moments when the TV is switched off.

For energy saving:

Turning the TV off at its mains supply, or un-plugging it, will cut energy use to nearly zero for all TV’s. This is recommended when the TV is not being used for a long time, e.g. when on holiday.

Reducing the brightness of the screen will reduce energy use. Energy efﬁ ciency cuts energy consumption and thus saves money by reducing electricity bills.

NOTE: Putting the TV into standby mode, will reduce energy consumption, but will still draw some power.

Using the Remote Control

Press the MENU button on the remote control to see the menus.

The main menu appears as a group of icons each for a menu option. Press the Left or Right button to select a topic.

In sub menu screen mode the menu appears as a list. Press the Up or Down button to select a topic.

To use the options press the Up and Down buttons on the remote control to move up and down through them and OK button, Left or Right buttons to select the required choice. Follow the on screen instructions. The functions of each menu are described in detail throughout the manual.

Using the Controls and Connections on the TV

Using the menu wheel on the side of the TV: To change volume: Press the middle button until the

volume level OSD appears. Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle button until the

channel information banner appears. Scroll through the stored channels by pushing the button up or down

To change source: Press the middle button until the

source list appears. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down

and hold it down for a few seconds, the TV will turn into standby mode.

Please always refer to the owner’s manual of the equipment to be connected for full details.

English - 19 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 1901_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 19 05.05.2012 18:31:1205.05.2012 18:31:12

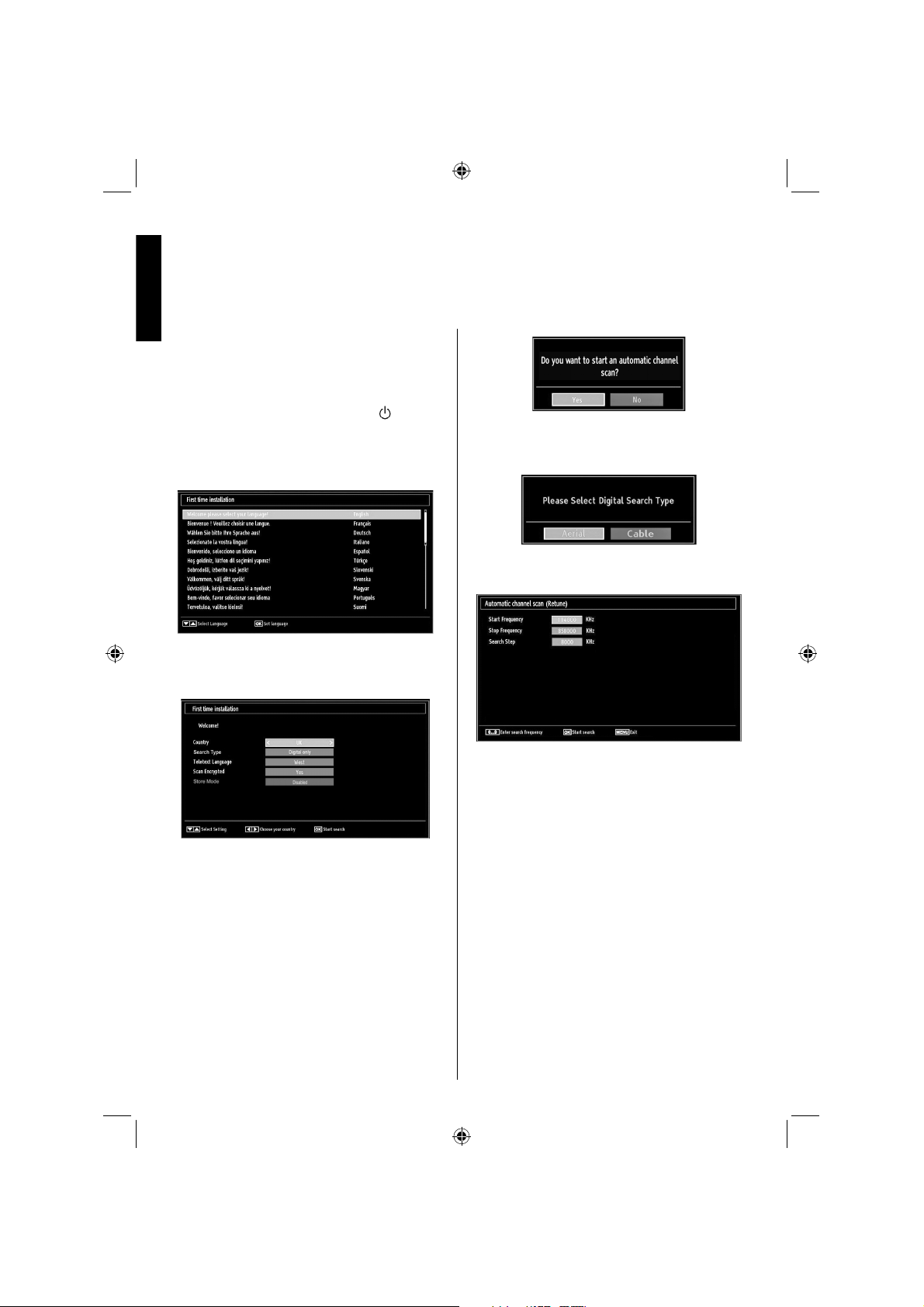

Initial Installation

English

Before switching on the TV, put your decoder and media recorder to Standby if they are connected and

ensure the aerial is connected to your TV. To set up the TV, use the buttons on the remote control as

IMPORTANT: Ensure that the aerial is connected and a Common Interface module is not inserted before switching on the TV for the ﬁ rst time installation.

Connect the mains plug and switch the TV to on 1. using the side control switch. If the TV does not switch on, press any numbered or the remote control, then the language selection menu will be displayed. This screen will appear the ﬁ rst time that the TV is switched on and each time the TV is reset.

By pressing 2. Up or Down button, highlight the language you want to set and press OK button. The following message will be displayed next:

detailed on page 13.

button on

Select 6. Yes button by using Left or Right button and press OK button to continue. Afterwards, the following OSD will be displayed on the screen:

If you select 7. Cable option, the following screen will be displayed:

You can select frequency ranges from this 8. screen. For highlighting lines you see, use Up or Down button. You can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote

By pressing 3. Left or Right button, select the country you want to set and press Down button to highlight the Search Type option. Use Left or Right to set the desired search type. Available search types are digital only, analog TV only and full.

When set, 4. Down buton to select Teletext Language. Use Left or Right button to select desired Teletext Language.

Press 5. OK button on the remote control to continue and the following message will be displayed on the screen:

English - 20 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2001_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 20 05.05.2012 18:31:1305.05.2012 18:31:13

control. After this operation, you can set Search Step as 8000 kHz or 1000 kHz. If you select 1000 kHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. When ﬁ nished, press OK button to start automatic search.

If you select 9. Aerial option from the Search Type screen, the television will search for broadcasts.

The Auto tuning screen will appear and the 10. television will start to search for available stations. The progress bar will move along the line. You must allow the television to complete the search. The following OSD will be displayed on the screen and the television will search for the selected broadcasts:

Note: You can press MENU button to cancel.

After the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN, please select Yes and then press OK button (if available).

Press • OK button to quit channel list and watch TV.

Note:

Do not turn off the TV while initializing ﬁ rst time installation.

Keep the menu of Store Mode Disabled and do not change it, when using at home.

Auto TuningInitial Installation - continued

English

Auto Tuning

As new services are broadcast, it will be necessary to retune the television in order to view them.

Auto Tuning will completely retune the television • and can be used to update the channel list. It is recommended that Auto Tuning is run periodically to ensure that all new services are added. All current channels and settings, i.e. locked channels, will be lost.

Press • MENU button on the remote control and select Install and Retune by using Left or Right button. Press OK button and the following menu screen will be displayed.

Select • Automatic Channel Scan (Retune) by using Up or Down button and press OK button. Automatic Channel Scan options will be displayed. You can select options by using Up or Down and OK buttons.

Auto Channel Scan Menu Operation

Digital: Searches and stores aerial DVB stations.

Analogue: Searches and stores analogue stations.

Full: Searches and stores both analogue and aerial

DVB stationsres both analogue and cable DVB stations.

Whenever you select an automatic search type and • press OK button, a conﬁ rmation screen will appear on the screen. To start installation process, select Yes, to cancel select No by using Left or Right and OK button.

After auto channel scan type is set and selected • and conﬁ rmed, installation process will start and progress bar will move along. Press MENU button to cancel process. In such a case, located channels are not stored. The television will start to search for all available stations. You must allow the television to complete the search.

English - 21 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2101_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 21 05.05.2012 18:31:1405.05.2012 18:31:14

English

Manual Tuning, Analogue Fine Tuning

The television can be tuned-in manually using Manual Search feature.

Digital Aerial Manual Search

The feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.

Select • Manual channel scan from the Install and Retune menu and press OK.

After selecting search type as Digital Aerial, you

can enter the multiplex or frequency number using

the numeric buttons and press OK button to search.

Enter the multiplex number using the numeric • buttons. The television will automatically search for that multiplex. When the multiplex is found any channels not currently on the programme list will be added and the programme information at the top of the screen will be updated.

Repeat as necessary.•

Digital Cable Manual Search

In cable manual scan, you can enter frequency, • modulation, symbol rate and network channel scan options. After selecting search type as Digital Cable, you can set the desired options and press OK button to search.

Analogue Manual Search

The television can be tuned-in manually. For example: if the television cannot be connected to a media recorder/decoder with a SCART lead or to tune-in a station on another System.

To allocate a programme position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded ﬁ lm into the media recorder and press PLAY, then manually tune.

After selecting search type as Analogue, you can use Up or Down button to highlight an item and then press Left or Right button to set an option.

Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.

Analogue Fine Tune

Select • Analogue Fine Tune from the Install and Retune menu by using Up or Down and OK

buttons. Analogue ﬁ ne tune screen will be displayed. Analogue Fine Tune feature will not be available if there are no analogue channels, only digital

channels and external sources stored.

Use • Left or Right button to set Fine Tune. When

ﬁ nished, press OK button.

English - 22 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2201_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 22 05.05.2012 18:31:1405.05.2012 18:31:14

General Operation

English

Stereo and Bilingual Transmissions

If stereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time positions are changed, disappearing after a few seconds. If the broadcast is not in stereo, the word Mono will appear.

Stereo… Press

Bilingual… Bilingual transmissions are rare. If they are

transmitted, the word Dual will be displayed. Choose the required programme number, and if the word Dual appears, press

For DTV broadcasts

To view current language and for changing to an alternative language (if available), press AD Available options will be listed.

. to select Dual 1, Dual 2 or Mono.

. to select Stereo or Mono.

. button.

Displaying Subtitles

In digital broadcasts, this feature will show subtitles on the screen in the selected language provided they are being broadcast.

Press SUBTITLE button to activate available subtitles. Press SUBTITLE button again to turn off subtitles.

Viewing Main Menu

• Press MENU button on the remote control to view main menu.

Controlling Volume and Muting Sound

Volume

Press or button on the remote control to adjust the volume. Move the menu wheel on the TV up or down to change the volume.

Sound Mute

Press “ ” button once to turn the sound off and again to cancel.

Selecting Programme Positions

To select a programme position use the numeric buttons on the remote control. To change the channels using the menu wheel on the TV, ﬁ rst press the middle of the menu wheel and the channel info bar appears. Now move the menu wheel up or down to scroll between the stored channels. Programme positions can also be selected using P+ or P- button. Press button to display the on-screen information i.e. programme position, stereo/mono signal and picture format.

Standby Notiﬁ cations

If the TV switches off while in No Signal mode, the following on-screen message will be displayed on the next switch-on:

If the TV switches off owing to the auto power down feature, the following on-screen message will be displayed on the next switch-on:

English - 23 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2301_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 23 05.05.2012 18:31:1505.05.2012 18:31:15

Channel List, Sorting Programmes, Programme Locking

English

You can view stored channels and sort them by using the Channel List feature.

Viewing Channel List

The channel order may be changed to suit your personal preference.

Select • Channel List from the main menu and press OK button. The following menu will be displayed:

Select • Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List.

Press • Up or Down button for selecting a channel. You can press

page down.

To watch a speciﬁ c channel, highlight it by using • Up or Down button. Afterwards press OK button.

Press • BLUE button to view ﬁ ltering options.

Press • MENU button to exit.

Note: The channels listed are mixed at the channel list. Channel types can be differentiated by the icons next to them: DTV (digital tv), HD (HD TV) , ATV (Analogue TV) ,TV (TV), RD (Radio), encrypted, lock, and at the favourite list. Listed channels can also be sorted by using the active channel list ﬁ lter.

or button to move page up or

Moving a Channel

Highlight the desired channel by using • Up or Down button.

Select Move option in the channel list and press • OK button.

Edit Number screen will be displayed. Enter the • desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen

will be displayed. Select Yes if you want to move the channel and press OK.

Selected channel is now moved.•

Deleting a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel.

Select the channel that you want to delete and select • Delete option. Press OK button to continue.

A warning screen will appear. Select • Yes to delete, select No to cancel. Press OK button to continue.

Renaming a Channel

Select the channel that you want to rename and • select Edit Name option. Press OK button to

continue.

Pressing • Left or Right button moves to the previous/ next character. Pressing Up or Down button changes the current character. Pressing the numeric buttons ‘0...9’ replaces the highlighted character with the characters printed above the button one by one as the button is pressed.

When ﬁnished, press • OK button to save. Press

MENU to cancel.

Locking a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel.

Select the channel that you want to lock by using • Up or Down button.

Select • Lock option by using Left or Right button. Press OK button to continue.

You will be asked to enter parental control PIN. Enter • the PIN number.

Note: Default PIN is set to 0000.

Press • OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel.

English - 24 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2401_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 24 05.05.2012 18:31:1505.05.2012 18:31:15

Viewing Info Banner, Electronic Programme Guide

English

Viewing Info Banner

• Press • button. The information screen will appear giving details of the channel and programme currently being viewed.

• Whenever you change channel, the TV displays the • broadcast picture along with an information banner at the bottom of the screen (available only in DTV mode). This will remain on the screen for a few seconds.

• If the selected channel is locked, you must enter the • correct four numeric code to view the channel. “Enter PIN” will be displayed on the screen in such a case:

• Enter the 4-digit PIN number to continue.•

Note: Factory set default PIN code is 0000. It is not available for France country setting.

Electronic Programme Guide

• Select the on-screen guide by pressing • GUIDE button, the guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

• To set the timer for a selected programme, press • OK button to select Timers menu.

• Press • YELLOW button to switch to timeline view.

• Press • GREEN button to list the schedule.

• Press • BLUE button to display ﬁ ltering options.

Note: There are alternative views of EPG screen. Button functions will be displayed at the bottom of the menu screen.

• For information on a highlighted programme, press • button.

• For details of other programmes currently available, •

press navigation buttons to scroll up and down or scroll left/right through the list. As channels are selected, details of the programme currently being broadcast will appear.

English - 25 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2501_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 25 05.05.2012 18:31:1505.05.2012 18:31:15

Language Selection

English

Language Settings

Using this menu you can adjust the preferred language settings.

Press • MENU button and select Settings by using Left or Right button.

Select Language from setup menu and press • OK to view this menu. Press the RETURN button on the remote control to exit.

Preferred

These settings will be used if available. Otherwise the current settings will be used.

Audio: by pressing Left or Right button change the audio language.

Subtitle: alter the subtitle language with Left or Right button. The chosen language will be seen in

subtitles.

Teletext: changes the preferred teletext language.

Guide: By pressing Left or Right button change the

guide language.

Current

Audio: if audio language is supported, change the audio language by pressing Left or Right button.

Subtitle: if subtitle is backed up, alter the subtitle

language with Left or Right button. The chosen language will be seen in subtitles.

English - 26 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2601_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 26 05.05.2012 18:31:1605.05.2012 18:31:16

Digital Settings - Parental Control, Menu Lock, Set PIN

You can view or set parental preferences of your TV.

English

Viewing Parental Control Menu

Press MENU button and select the Settings by using Left or Right button. Press OK button to view Settings

menu. Use Up or Down button to highlight Parental and press OK to continue:

A dialogue box asking for the lock key will be • displayed. The default key is set to 0000. Enter the PIN.

If it is incorrect, “• Wrong PIN” OSD will be displayed. If it is correct, the Parental Control menu will be

displayed:

Menu Lock

In Menu lock you can set locking for All menus, or the Installation menu to restrict access to these menus. If the menu lock is disabled, there will be free access to the menu system.

Use • Up or Down buttons to go to Menu Lock option. Use Left or Right buttons to choose Menu Lock Mode.

OFF : All menus are unlocked.

ALL MENUS : All Menus are accessible only with

the correct lock key. So the user cannot add, delete, rename, channels, cannot set timers.

INSTALLATION MENU: Installation menu is locked. So the user can’t add channels.

Note: Factory set default PIN code is 0000. It is not available for France country setting.

Child Lock

Press MENU button and select settings by using Left or Right button. Press OK to continue. Use Up or Down to select parental and then press OK to continue. Enter the pin number. Child Lock disables the menu wheel on the television. All buttons on the remote control can still be used.

Set PIN

Use • Up or Down buttons to select Set PIN option. Press OK to display the Set PIN window.

Use numeric buttons to enter new pin number. You • will need to input your new pin a second time for veriﬁ cation purposes.

After typing correct PIN numbers, PIN number will • be changed.

Note: The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

English - 27 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2701_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 27 05.05.2012 18:31:1605.05.2012 18:31:16

English

Conﬁ guring Picture Settings

You can conﬁ gure picture settings of your TV by using Picture Settings menu.

Conﬁ guring Picture Settings

You can use different picture settings in detail. You can customize current picture mode settings as desired. For example, you can change items such as, Brightness, Contrast, Colour, Sharpness and Hue.

Press MENU button and select Picture by using Left or Right button. Press OK button to view Picture Settings menu.

Operating Picture Settings Menu Items

Press • Up or Down button to highlight a menu item.

Use • Left or Right button to set an item.

Press • MENU button to exit.

Picture Mode

This TV offers the choice of personalising the picture style. Cinema, Game, Dynamic and Natural are preset options and affect settings within the TV. Press MENU button and select Picture by using Left or Right button. Press Up or Down button to select Mode.

• In the Picture Settings menu, press Up or Down button to select Mode. Press Left or Right button to select the picture mode you prefer.

Contrast

Sets the lightness and darkness values of the screen. Press MENU button and select Picture by using Left or Right button. Press Up or Down button to select

Contrast.

Brightness

Sets the brightness value for the screen. Press

MENU button and select Picture by using Left or Right button. Press Up or Down button to select Brightness.

Sharpness

Sets the sharpness value for the objects displayed on the screen. Press MENU button and select Picture by using Left or Right button. Press Up or Down button to select Sharpness.

Colour

Sets the colour value, adjusting the colours. Press

MENU button and select Picture by using Left or Right button. Press Up or Down button to select Colour.

Power Save Mode

Enables or disables the power save mode. Use Up or Down button to select Power Save Mode. Press Left or Right button to set Power Save Mode as On or Off. See the section, Environmental Information in this manual for further information on Power Save Mode.

Note: The backlight function will be inactive if Power Save Mode is set to on.

Backlight (optional)

This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Medium.

Note: Backlight can not be activated in VGA or Media Browser mode or while picture mode is set as Game.

Noise Reduction

Sometimes some words or picture elements may become distorted or pixelated. Using the Noise Reduction feature reduces this effect by smoothing out the edges. Press MENU button and select Picture by using Left or Right button. Press Up or Down button to select Noise Reduction.

Advanced Settings

Some additional controls in the picture menu are grouped under the title Advanced Settings. To view or change, first press Up or Down button to select Advance Settings. Press OK button to view. Advanced Settings menu controls are as the following:

English - 28 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2801_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 28 05.05.2012 18:31:1605.05.2012 18:31:16

Conﬁ guring Picture Settings - continued

Colour Temp: Colour Temperature increases the

‘warmth’ or ‘coolness’ of the picture by increasing the red or blue tint.

Picture Zoom: Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.

Press MENU button and select Picture by using Left or Right button. Press Up or Down button to select

Picture Zoom.

Full Mode (optional): If you connect a device via

HDMI or YPbPr connectors and set 1080i/1080p resolutions, Full Mode item will be visible.

HDMI True Black (optional): While watching from HDMI source, this feature will be visible in the Picture Settings menu.

You can use this feature to enhance blackness in the picture. You can set this feature as “On” for activating HDMI True Black mode.

Note: HDMI True Black On/Off feature functions only when the HDMI device output is set to RGB.

Film Mode (optional): Films are recorded at a different number of frames per second to normal television programmes.Press “ select Film mode. Press “ ” or “ ” buttons to set this feature Auto or Off. Turn this feature to Auto when you are watching ﬁ lms to see the fast motion scenes clearly.

Colour Shift: Adjust the desired colour tone. Press MENU button and select Picture by using Left or Right button. Press Up or Down button to select Colour Shift.

Reset

This feature allows you to reset the current Picture Settings to the default values. Press MENU button and select Picture by using Left or Right button. Press Up or Down button to select Reset and press OK button.

Note: The reset function does not reset the settings for Mode, Colour Temp, Noise Reduction, Picture Zoom and HDMI True Black.

” or “ ” buttons to

English

English - 29 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 2901_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 29 05.05.2012 18:31:1705.05.2012 18:31:17

Changing Picture Format

Press QUICK button repeatedly to open Settings menu, press “ ” button to select Picture Zoom menu then

English

press “ ” / “ ” buttons to select between Auto(*), 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.

Note: Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

Note: You can shift to screen up or down by pressing “ Panaromic, 14:9 Zoom, Cinema or Subtitle.

(*) When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source (if available). The format being displayed in AUTO mode is completely independent of WSS information which could be included in the broadcast signal or the signal from an external device.

Note: Auto mode will only be available in HDMI, YPbPr and DTV.

Use this setting when watching a

widescreen DVD, widescreen video

16:9

Subtitle

14:9

tape or a 16:9 broadcast (when

available). Due to the range of widescreen formats (16:9, 14:9 etc.) black bars may be visible on the top

and bottom of the screen.

When subtitles are included on a

letterbox format broadcast, this

setting will raise the picture to ensure

that all the text is displayed.

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen

”/“ ” buttons while picture zoom is selected as

14:9 Zoom

4:3

Panoramic

Cinema

This option zooms to the 14:9 picture.

Use this setting to view a true 4:3

This stretches the left and right sides

of a normal picture (4:3 aspect ratio)

to fill the screen, without making the

picture appear unnatural.

The top and bottom of the picture are

This zooms up the wide picture

(16:9 aspect ratio) to the full

broadcast

slightly cut off.

screen.

Note: Picture Zoom feature is not available for Radio channel and teletext screen.

English - 30 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3001_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 30 05.05.2012 18:31:1705.05.2012 18:31:17

Conﬁ guring PC Picture Settings

English

PC Picture Settings (*)

(*) While in VGA/PC mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in VGA/ PC mode.

PC Picture controls

Contrast, Brightness and Colour Temperature adjustments in this menu are identical to adjustments deﬁ ned in TV picture menu.

Select Reset and press OK button to reset the adjustments.

Note:

For switching to VGA/PC source, press your remote control and select VGA/PC input.

Note that VGA/PC mode menu settings are available only while the TV is in PC source.

button on

PC Position

Select this to display PC position menu items.

V Position

V (Vertical) Position shifts the image vertically towards the top or bottom of the screen.

In the PC Position menu press the Down button until V Position is highlighted.

Press the Left or Right button to adjust the value.

Dot Clock

Dot Clock adjustment corrects the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

In the • PC Position menu press the Down button until Dot Clock is highlighted.

Press the • Left or Right button to adjust the value.

Phase

Depending on the resolution and scan frequency that you input to the TV Set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

In the • PC Position menu press the Down button until Phase is highlighted.

Press the • Left or Right button to adjust the value.

Autoposition

If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically.

Select the • PC Position option from the main menu. Press OK to display the PC Position submenu.

Press the • Down button to highlight Autoposition and then press the OK button.

H Position

H (Horizontal) Position shifts the image horizontally to right hand side or left hand side of the screen.

In the • PC Position menu press the Down button until H Position is highlighted.

Press the • Left or Right button to adjust the value.

English - 31 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3101_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 31 05.05.2012 18:31:1805.05.2012 18:31:18

English

Conﬁ guring Sound Settings

You can conﬁ gure sound settings of your TV by using Sound Settings menu.

Conﬁ guring Sound Settings

Sound settings can be conﬁ gured according to your personal preferences.

Press MENU button and select Sound by using Left or Right button. Press OK button to view Sound Settings menu.

Operating Sound Settings Menu Items

Press • Up or Down button to highlight a menu item.

Use • Left or Right button to set an item.

Press • MENU button to exit.

Volume

Press MENU button and select Sound by using Left or Right button. Press OK button to continue.

Select Volume using Up or Down button and then use

Left or Right button to set volume level.

Equalizer (Only for speaker)

You can customize current sound mode settings. Select the appropriate mode in accordance with the installation location of the TV and adjust the equalizer on-screen as desired. Press OK button to view equalizer submenu.

English - 32 -

In equalizer menu, the preset can be changed to Music,

Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu.

Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.

Balance (Only for speaker)

This setting is used for emphasizing left or right speaker balance.

Press • Left or Right button to change the level of the balance. Balance level can be adjusted between -31 and +31.

Headphone

This setting is used to set the sound output when headphones are connected.

Press • Up or Down button to select Headphone.

Press • Left or Right button to select Volume. Press Right button to increase headphone volume level. Press Left button to decrease headphone volume level. Headphone volume level can be adjusted between 0 and 63.

Sound Mode

This setting is used to set the sound mode. Higlight Sound Mode by using Up or Down button. Press Left or Right button to set.

You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.

AVL

Sometimes there can be large changes in volume when switching from a DTV 5.1ch to a DTV 2ch, an ATV channel, or an external input. Using the AVL feature reduces these volume differences.

In the • Sound menu, press Up or Down to highlight AV L. Press Left or Right button to set AVL as On or Off.

Dynamic Bass

Dynamic Bass is used to increase bass effect of the TV set.Press MENU button and select Sound by using Left or Right button.

Press OK button to continue. Select Dynamic Bass using Up or Down buttons and press Left or Right button to set.

Digital Out

This setting enables you to set Digital Out preference as Compressed or PCM. You should set this feature in accordance with the received broadcast’s content. Press MENU button and select Sound by using Left or Right button. Press OK button to continue.

Select Digital Out using Up or Down button and then use Left or Right button.

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3201_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 32 05.05.2012 18:31:1805.05.2012 18:31:18

Settings Menu Operation, Conditional Access

English

Conﬁ guring Your TV’s Settings

Detailed settings can be configured to suit your personal preferences.

Viewing Settings Menu

Press MENU button and select Settings by using Left or Right button. Press OK button to view Settings menu.

Operating Settings Menu Items

Press • Up or Down button to highlight a menu item.

Press • OK button to select an item.

Press • MENU button to exit.

Conditional Access

This setting controls conditional access modules when available. Select Settings from the main menu by using Left or Right button and press OK button. Afterwards, use Up or Down button to set Conditional

Access. Press OK button to continue.

Language

Conﬁ gures language settings. See page 26.

Parental

Conﬁ gures parental settings. See page 27.

Timers

Sets timers for selected programmes. See page 34.

Date/Time Settings

You can conﬁ gure date/time preferences by using this menu screen. See page 34.

Sources

Enables or disables selected source options. See page 35.

Other Settings

Displays other setting options of the TV set.

Using a Conditional Access Module

The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For more information, see a service provider.

IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF.

In order to watch certain digital channels, a • conditional access module (CAM) is necessary. This module must be inserted in the CI slot of your TV.

Obtain the Conditional Access Module (CAM) and • the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.

Insert the CAM and then the viewing card to the • slot that is located in the terminal cover at the rear side of the TV.

The CAM should be correctly inserted, it is • impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

When no module is inserted, “• No Common Interface module detected” message appears on the screen.

Refer to the module instruction manual for details • of the settings.

Viewing Conditional Access Menu (*)

(*) These menu settings may change depending on the service provider.

Press MENU button and select Settings by using Left or Right button. Press OK button to view Settings menu. Use Up or Down button to highlight Conditional Access and press OK to view menu

items.

English - 33 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3301_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 33 05.05.2012 18:31:1805.05.2012 18:31:18

English

Setting Timers, Setting Date/Time

Timers

To view Timers menu, press MENU button and select Settings by using Left or Right button. Press OK

button to view Settings menu. Use Up or Down button to highlight Timers and press OK to continue:

Setting Sleep Timer

The television can be set to turn itself Off after a certain length of time.

Highlight • Sleep Timer by using Up or Down button.

Use • Left or Right button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.

Setting Programme Timers

This feature will set the television to go to a speciﬁ c channel at a certain time. It can be used to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series of programmes.

Press Down button to set timers on an event. Programme timer function buttons will be displayed on the screen.

Note: That this feature will be available only when a timer has been programmed.

Adding a Timer

Press • YELLOW button on the remote control to add a timer. The following menu appears on the screen:

Channel: Changes channel by using Left or Right.

Timer/Record Type: This feature is unavailable to

be set.

Date: Enter a date using the numeric buttons.

Start: Enter a starting time using the numeric

buttons.

End: Enter an ending time using the numeric buttons.

Duration: Displays duration between the starting and ending time.

Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use Left or Right button to select an option.

Change/Delete: Controls parental settings on timers.

Press • GREEN button to save the timer. Press RED button to cancel.

English - 34 -

Editing a Timer

Select the timer you want to edit by pressing • Up or Down button.

When ﬁ nished with editing, press • GREEN button to save. You can press MENU button to cancel.

Deleting a Timer

Select the timer you want to delete by pressing • Up or Down button.

Press • RED button.

Select • Yes by using Left or Right button to delete the timer. Select No to cancel.

Conﬁ guring Date/Time Settings

You can conﬁ gure date/time preferences by using

Select • Date/Time in the Settings menu to conﬁ gure Date/Time settings. Press OK button.

Use or button to highlight the Time Settings Mode. Time Settings Mode is set using or button. It can be set to AUTO or MANUAL.

When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:

• By pressing

or button to change the Time Zone between

Use GMT-12 or GMT+13. Date/Time on the top of the menu list will then change according to the selected Time Zone.

Note: For countries without Digital channels, only the Date and Time option will be displayed.

this menu screen.

or button select Time Zone.

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3401_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 34 05.05.2012 18:31:1905.05.2012 18:31:19

Source Settings, Other Controls

English

Conﬁ guring Source Settings

You can enables or disable selected source options. The TV will not switch to the disabled source options when button is pressed.

Select • Sources in the Settings menu and press OK button.

Press • Up or Down buttons to select a source.

Use • Left or Right button to enable or disable the selected source. Changes are automatically stored.

Input Selection

Use the Input Selection window if the television does not switch over to a connected source automatically.

• Press changing sources. Use the Up or Down button to highlight an input and press Right button to select.

button on your remote control for directly

Conﬁ guring Other Settings - General

You can conﬁ gure the settings of your TV. Select Settings from main menu and press OK to view the Settings menu. Press the MENU button on the remote control to exit.

To view general conﬁ guration preferences, select Other Settings in the Settings menu and press OK button.

Operation

Press • Up or Down button to select an item.

Use • Left or Right button to set an option.

Press• OK button to view a sub-menu.

Menu Timeout

To set a speciﬁ c display timeout for menu screens, set a value for this option.

In the Other Settings menu, select Menu Timeout and choose 15 sec, 30 sec or 60 sec using Left or

Right button.

Scan Encrypted Channels

When this setting is on, search process will locate the encrypted channels as well. If it is set as OFF manually, encrypted channels will not be located while in automatic search or manual search. Scan Encrypted Channel feature will always be ON after performing ﬁrst time installation.

In the • Other Settings menu, use Up or Down button to select Scan Encrypted.

Press • Left or Right button to set this function as

Yes or No.

English - 35 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3501_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 35 05.05.2012 18:31:1905.05.2012 18:31:19

English

Other Controls - continued

Blue Background

If the signal is weak or absent, the TV will automatically change to a blue screen. To enable this, set Blue Background to On.

In the • Other Settings menu, select Blue Background and choose On or Off using Left or Right button.

Software Upgrade

This feature helps to keep your TV updated. It works automatically and searches for new information when available. Note that this setting is inactive to be modiﬁ ed.

To ensure that your TV always has the most updated information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.

You can enable or disable automatic upgrade by setting Automatic Scanning option.

You can manually search for new software by selecting Scan for upgrade.

Application Version

Displays the current application version.

Hard of Hearing

If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

Use • Up or Down button to select Hard of Hearing and then press Left or Right button to set this setting as On or Off.

Audio Description

Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track.

English - 36 -

Highlight • Audio Description by pressing Up or Down button. Press • OK button to enter Audio Description submenu. Use • Up or Down button to select Audio Description setup and then press Left or Right button to set this setting.

Auto TV Off

You can set the timeout value of auto off feature. After the timeout value is reached and the TV is not operated for selected time, the TV will go off. Press

MENU button and select Settings by using Left or Right button. Press OK button to continue. Use Up

or Down button to select Other Settings and then press OK button. Select Auto TV Off using Up or

Down button.

Broadcast Type

Press MENU button and select Settings by using Left or Right button. Press OK button to continue. Use Up or Down button to select Other Settings and then press OK button. Select Broadcast Type using Up or Down button and use Left or Right button to set.

When you set the desired broadcast type by using Left or Right button, the TV will display the selected broadcast type.

Standby Search (*)

(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

If the Standby Search is set to On and the TV is in standby mode, the TV will look for any changes in the saved channels. Press MENU button and select Settings by using Left or Right button. Press OK button to continue. Use Up or Down button to select

Other Settings and then press OK button. Select Standby Search using Up or Down button and use Left or Right button to set.

E-Pop

If you set E-Pop to “enabled”, your TV’s features will be illustrated on the top of the screen.

To deactivate this feature, please set to “disabled”.

Teletext language

Use this setting to set a preferred Teletext language. Press MENU button and select Settings by using Left or Right button. Press OK button to continue. Use Up or Down button to select Language and then press

OK button. Select Teletext language using Up or Down button and use Left or Right button to set.

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3601_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 36 05.05.2012 18:31:2005.05.2012 18:31:20

USB Media Browser

This TV allows you to enjoy photo, music or video ﬁ les stored on a USB memory

English

Manual Start

To display Media Browser window, you can press •

MENU button on the remote control and then select Media Browser by pressing Left or Right button.

You can also select Media Browser from the Quick • button menu.

Press • OK button to continue. Media Browser menu contents (depending on the contents of your USB

memory) will be displayed.

Auto Start

When you plug a USB memory, the following menu • will be displayed.

You can play music, picture and video ﬁ les from a USB memory.

To display All ﬁ les in a list, select Settings tab and • change View Style to Folder. Then go back to main media browser screen and you will see that now All tab will be available. Select All tab and press OK button.

Note:

Some USB compliant devices may not be supported.

If the USB memory is not recognized after power off/ on or First Time Installation, plug the USB memory out and power off/on the TV set. Then plug the USB memory in again.

Do not use a USB Hub.•

You must obtain any required permission from • copyright owners to use copyright content.

Toshiba cannot and does not grant such permission.

Depending on the ﬁ le size and amount in your USB • memory, it may take some time for loading to view. A message will display on-screen when loading ﬁ les from the USB memory.

Only limited types of U3 USB device are supported. • Therefore, it is suggested not to use U3 USB for playing Media Player.

Non-supported characters will be replaced with a • square (□).

English - 37 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3701_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 37 05.05.2012 18:31:2005.05.2012 18:31:20

English

USB Media Browser - continued

This TV allows you to enjoy photo, music or video ﬁ les stored on a USB memory

Playing MP3 Files

To play mp3 ﬁ les from a USB memory, you can use this menu screen.

• / : Navigate menu

button): Starts the playback.

Play (•

Stop (•

Pause (•

playback.

RED button:• Sorts ﬁ les by Title, Artist or Album.

Loop/Shuffle (GREEN button)• : Press once to

disable Loop. Press again to disable both Loop and Shufﬂ e. Press once more to enable only Shufﬂ e. Press again to enable all. You can follow the disabled functions with the change of the icons.

0..9 (Numeric buttons):• The TV will jump to the ﬁ le starting with the letter you input via the numeric buttons on your remote control.

Play This (OK button)• : Plays the selected ﬁ le.

Previous/Next (Left/Right buttons)• : Jumps to

previous or next ﬁ le to play.

Yellow button:• Change viewing style

BLUE button:• Changes media options.

Note: If the Viewing Style is set to Folder in Media Browser Settings, Music folder will be displayed as sorted and there is no need to sort ﬁ les again by pressing RED button.

button) : Stops playback.

button) : Pauses the selected

Viewing JPEG Files

To view photo ﬁ les from a USB Memory, you can use this menu screen. When you select Photos from the main options, available image ﬁ les will be ﬁ ltered and listed on this screen.

If you select a subtitle ﬁ le and press OK button, you can select or deselect that subtitle ﬁ le. The following menu will be displayed while playing a video ﬁ le:

Jump (Numeric buttons)• : Jump to selected ﬁ le using the numeric buttons.

OK• : Views the selected picture in full screen.

• / : Navigate menu

Slideshow (•

all images.

GREEN button• : Views images in thumbnails.

RED button• : Sorts ﬁ les by date.

YELLOW button• : Change viewing style

BLUE button• : Changes media options.

button): Starts the slideshow using

English - 38 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3801_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 38 05.05.2012 18:31:2005.05.2012 18:31:20

USB Media Browser - continued

This TV allows you to enjoy photo, music or video ﬁ les stored on a USB memory

English

Slideshow Feature

You can use this feature to display photos on your TV.

Pause (• button) : Pauses the slideshow.

Continue (•

Loop/Shuffle (GREEN button)• : Press once to

disable Loop. Press again to disable both Loop and Shufﬂ e. Press once more to enable only Shufﬂ e. Press again to enable all. You can follow the disabled functions with the change of the icons.

Previous/Next (Left/Right buttons)• : Jumps to previous or next ﬁ le on slideshow.

Rotate (Up/Down buttons)• : Rotates the image using up/down buttons.

RETURN (Exit):• Back to ﬁ le list.

• button: Displays help screen.

button) : Continues the slideshow.

Video Playback

When you select Videos from Media Browser, available video ﬁ les will be ﬁ ltered and listed on this screen. You can use Up or Down button to select a video ﬁ le and press OK button to play a video.

Note: If you set View Style from Media Browser Settings menu as ‘Folder’, media browser main

selection screen will include All tab as well.

AD (Play Preview): Displays selected ﬁ le in a small preview screen.

RED: Sorts ﬁ les by name. Play (

button) : Plays all media ﬁ les starting with

the selected one.

YELLOW Button: Change viewing style Loop/Shufﬂ e (GREEN button): Press once to disable

Loop. Press again to disable both Loop and Shufﬂ e. Press once more to enable only Shufﬂ e. Press again to enable all. You can follow the disabled functions with the change of the icons.

BLUE: Changes media options.

Play ( button): Starts the video playback.

button): Stops the video playback.

Stop (

Pause (

Rewind (

Forward (

Subtitle/Audio (AD button): Sets subtitle/Audio.

Yellow: Opens subtitle time correction menu.

Ret/Back: Back to previous menu.

button): Pause the video playback.

button): Goes backward.

button): Goes forward.

Press OK to conﬁ m

Press BLUE button for clear

Press button to switch back to previous menu.

Note:

You can set subtitles by using OK button before starting the playback or by using AD button during

If you select a subtitle ﬁ le and press OK button, you can select or deselect that subtitle ﬁ le.

Jump (Numeric buttons):The TV will jump to the ﬁ le starting with the letter you input via the numeric buttons on your remote control.

Play This (OK button) : Plays the selected ﬁ le.

/ : Navigate menu

English - 39 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 3901_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 39 05.05.2012 18:31:2105.05.2012 18:31:21

the playback. Selected subtitles may not be displayed correctly in some cases.

In order to display movie subtitles correctly, you should set a “Movie Subtitle” language. See the section, “Movie Subtitle” in “Language Settings” for selecting Movie Subtitle language.

Press RETURN button to switch back to previous menu.

USB Media Browser - continued

English

You can set your Media Browser preferences by using the Settings dialogue. Press Up or Down button to highlight an item and use Left or Right button to set.

View Style: Sets default browsing mode.

Slideshow Interval: Sets slide show interval time.

Show Subtitle: Sets subtitle enabling preference.

Subtitle Language: Sets supported subtitle

language.

Subtitle Position: Sets subtitle position as up or down.

Subtitle Font Size: Sets subtitle font size (max. 54pt).

Press • MENU button on the remote control.

This TV allows you to enjoy photo, music or video ﬁ les stored on a USB memory

Media Browser Settings

To Close the Media Player

English - 40 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4001_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 40 05.05.2012 18:31:2105.05.2012 18:31:21

Analogue Text Services

This television has a multi-page text memory, which takes a few moments to load.

English

Analogue Text Services

Before using the text services, the required language region must be chosen.

Select • Language from the Settings menu.

Press the • Left or Right button to choose the required language region.

After the Teletext language is selected, press • MENU button to exit.

Using Text Button -TEXT

To view text services press • TEXT. Press TEXT again to superimpose text over a normal broadcast picture.

TEXT again to return to normal viewing.

Press •

Programmes cannot be changed until text is • cancelled.

The ﬁ rst text page shown will be the initial page.•

Any text page can be accessed by entering the 3 • digit page number using the numbered buttons, pressing the coloured buttons or pressing to advance to the next page and to go back to the previous page.

Four coloured titles will appear at the base of the • screen. To access one of the four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text • system(s), see the broadcast text index page or, consult your local Toshiba dealer.

Below is a guide to the functions of the remote control text buttons.

Acessing Sub-Pages

If a text page has sub-pages, press and enter the subpage numbers 01,02,03 etc. which can be selected using Left/ Right buttons at the bottom of the text page under the coloured links.

Revealing Concealed Text

To discover the solutions on quiz and joke pages press the button.

Holding a Page

At times it is convenient to hold a page of text. Press OK and HOLD will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

To display an initial page

Press RETURN to access an initial page. The one displayed is dependant on the broadcaster.

English - 41 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4101_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 41 05.05.2012 18:31:2205.05.2012 18:31:22

Appendix A: PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Some, due to the display

English

native resolution, are scaled automatically to enable correct image to be displayed.

Your TV may not support different resolutions. Supported resolution modes are listed below.

If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Index Resolution Frequency

640x350 85 Hz

640x400 70 Hz

640x480

800x600

832x624 75 Hz

1024x768

1152x864

1280x768 60 HzA

1280x768 60 HzB

1280x768 75Hz-85Hz

1280x960

1280x1024

1360x768 60 Hz

1400x1050 60 HzA

1400x1050 60 HzB

1400x1050

1400x900

1600x1200 60 Hz

1680x1050 60 Hz

1920x1080 60 HzA

1920x1080 60 HzB

1920x1200 60HzA

1920x1200 60Hz

60Hz-66Hz-72Hz

-75Hz-85Hz

56Hz-60Hz-70Hz-72Hz

-75Hz-85Hz

60Hz-66Hz-70Hz-72Hz

-75Hz

60Hz-70Hz-75Hz

-85 Hz

60Hz-75Hz-85Hz

75Hz-85Hz

65Hz-75Hz

English - 42 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4201_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 42 05.05.2012 18:31:2205.05.2012 18:31:22

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

Source Supported Signals

PAL 50/60

EXT

(SCART)

Side AV

YPbPr

HDMI1

HDMI2

NTSC 60

RGB 50

RGB 60

PAL 50/60

NTSC 60

480i 60Hz

480p 60Hz

576i 50Hz

576p 50Hz

720p 50Hz

720p 60Hz

1080i 50Hz

1080i 60Hz

1080p 50Hz

1080p 60Hz

480i 60Hz

480p 60Hz

576i 50Hz

576p 50Hz

720p 50Hz

720p 60Hz

1080i 50Hz

1080i 60Hz

1080p 24Hz

1080p 25Hz

1080p 30Hz

1080p 50Hz

1080p 60Hz

English

Note: In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

English - 43 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4301_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 43 05.05.2012 18:31:2205.05.2012 18:31:22

Appendix C: Supported File Formats for USB Mode

English

Media

File

Extension

.mpg, .mpeg MPEG1, 2 MPEG Layer 1/2/3

.dat MPEG1, 2

.vob MPEG2

.mkv H.264, MPEG1,2,4 EAC3 / AC3

Video Audio

Format

(Maximum resolution/Bit rate etc.)

MPEG2

max 1920x1080 @ 30

Remarks

p 20Mbit/sec

Movie

Music .mp3 -


Subtitle

.mp4 MPEG4, H.264 PCM/MP3

MPEG2, MPEG4 PCM/MP3

.avi

.jpg .jpeg

.bmp - max WxH = 9600x6400 3840000bytes

.sub

.srt

H.264 PCM

MPEG 1 Layer 1 / 2

(MP3)

Baseline JPEG max WxH = 15360x8640 4147200bytes

Progressive JPEG max WxH = 1024x768 6291456bytes

max 1920x1080 @ 30p 20Mbit/sec

32kbps ~ 320kbps(Bit rate)

32kHz ~ 48kHz(Sampling rate)

Appendix D: PIN Information

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

Signal information for Mini D-sub 15 pin connector

Pin No. Signal name Pin No. Signal name Pin No. Signal name

1 R 6 Ground 11 NC

2 G 7 Ground 12 NC

3 B 8 Ground 13 H-sync

4 NC* 9 NC 14 V-sync

5 NC 10 Ground 15 NC

* NC = not connected

English - 44 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4401_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 44 05.05.2012 18:31:2205.05.2012 18:31:22

Speciﬁ cations and Accessories

Broadcast Systems/Channels

DVB-T, MPEG2, DVB-T, MPEG4 DVB-C, MPEG2, DVB-C, MPEG4 Video Input PAL, SECAM, NTSC 4.43 Stereo Nicam

External Connections 1-SCART 1 Input 21-pin SCART RGB, A/V 2-SCART-S (via SCART 1) Input 21-pin SCART S-Video 3-YPbPr (via VGA) Input Mini D-Sub 15-Pin Analogue 4-SIDE AV Input Side AV Cable input Video + Audio L + R 5-HDMI 1/2 Input Type A 6-PC Input Mini D-Sub 15-Pin Analogue RGB Signal 7-Digital Audio Output S/PDIF (Coaxial) 8-YPbPr Input YPbPr Connection Jack USB Port Media Browser Interface version: USB 2.0

USB Class: Mass storage File System: FAT32

Headphone Socket 3.5mm stereo Operating Conditions Temperature 5°C - 35°C (41°F - 94°F)

Humidity 20 - 80% (non-condensing) Supplied Accessories Remote control 2 batteries (AAA,IEC R03 1.5V) 8 screws Side AV connection cable YPbPr connection cable Stand ﬁ xing cover P Clip

Energy Efﬁ ciency Class

Visible Screen Size (approx.)

On Mode Power Consumption (approx.) (*)

Annual Power Consumption (approx.) (**)

Standby Power Consumption (approx.)

Screen Resolution (pixels)

Display

Sound Output (at 10% distortion)

Power Consumption Model (approx.)

Weight TV with stand

Gross weight 14 kg

TV without stand

(*) Tested in accordance with IEC 62087-BD Ed. 2.0:2008 in default settings.

(**) Energy consumption 58 kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

Unit Dimensions (Approximate)

32”

80cm / 32”

40W

58 kWh

< 0.50 W

1366 x 768

16:9

2 x 6

65W

10 kg

8.8 kg

English

VESA Compliant for Simple Optional Wall Mounting

32DL933B 32DL934B

A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)

769.6 483 179 63.9 528 200 100

English - 45 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4501_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 45 05.05.2012 18:31:2205.05.2012 18:31:22

License Information

HDMI, the HDMI logo, and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of •

English

HDMI Licensing LLC in the United States and other countries.

DVB is a registered trademark of the DVB Project.•

[1] EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwidth • digital content protection, which is being standardized for reception of high-deﬁ nition video signals. Because this is an evolving technology, it is possible that some devices may not operate properly with the television.

MP3 licence letter

MPEG Layer-3 audio coding technology licensed from Fraunhofer LLS and Thomson.

AVC licence letter

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFORIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (I)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (II)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA,L.L.C. SEE HTTP//WWW.MPEGLA.COM

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Cleaning the screen and cabinet... Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this maycause damage.

Disposal...

The following information is only for EU-member states:

Disposal of products

crossed out wheeIed dust bin symbol indicates that products must be collected and disposed of separately from

The household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators The crossed out wheeled dust bin symboI indicates that batteries and/or accumulators must be collected and disposed of separately from household waste. If the battery or accumulator contains more than the specified cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol. By participating in separate collection of batteries, you will help to assure the proper batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the coIIection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

August 13, 2005.

country, please

values of lead (Pb), mercury (Hg), and/or

disposal of products and

Hg Cd Pb

In conformity with the EEE Regulation.

English - 46 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4601_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 46 05.05.2012 18:31:2305.05.2012 18:31:23

Questions and Answers

You can select via the Channel List

Checkthecorrect

put has beenchose

Check the correct

input

has been chosen

them

forg

Questions and Answers

English

Why is there no sound or picture?

Check the TV is not in standby mode. Check the mains plug and all mains connections.

Why is there a picture but no sound?

Check the volume has not been turned down or that sound mute has not been selected.

What can cause a poor picture?

Interference or a weak signal. Try a different TV station.

Why doesn't the video/DVD being played show

on screen?

Make sure the VCR or DVD player is connected to the TV as illustrated in the beginning chapters, then

select the correct input by pressing .

Why is the VCR/DVD picture in black and white?

Why is there a good video picture but no sound?

Check the SCART lead connection.

Why doesn't the remote control work?

Check the batteries aren't dead or inserted incorrectly.

Why doesn't the TV OSD settings saved?

Ensure to turn off the power first before attempting to unplug the AC cord. Otherwise, the settings may

not be saved.

Why don't the controls of the TV work?

Check that CHILD LOCK is not selected.

Why is the sound only coming from one speaker

when stereo sound is selected?

Check that the balance in the SOUND menu hasn't been set to one side.

Why are there problems with analogue text

service?

Good performance of the analogue text depends on a good strong broadcast signal. This normally

requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the analogue text service and look for the User Guide.

What is DVB-T?

Digital Video Broadcast via an aerial/antenna.

How are radio channels selected?

You can select them via the Channel List.

What can be done if the PIN number has been

otten?

Incase of password is forgotten, Please press 1,2,7,6 or 4,7,2,5 buttons from remote control respectively in order to enter parental setting menu. Define a new pin number in Set PIN section. You will need to enter your new PIN a second time for verification purposes.

Why are there horizontal stripes and/or blurred images on the screen when in PC mode?

The Phase may need adjustment. Select PC Settings and highlight Phase and adjust until the picture is clear.

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4701_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 47 05.05.2012 18:31:2305.05.2012 18:31:23

English - 47 -

English

Questions and Answers

Why doesn't the Media Browser feature operate?

Make sure that USB memory is connected correctly. Incorrect behaviour may occur with a USB Hub

connection.

Why is the digital channel locked?

Parental control is activated. Check parental settings.

Why are some encrypted digital channels unavailable?

Your subscription needs upgrading. Contact your service provider.

Why when digital subtitles have been selected

are they not showing on screen?

Subtitles are not currently being transmitted by the broadcaster.

Why is the soundtrack in English when a

different audio language has been selected?

The programme is currently being broadcast with an English soundtrack only.

Why does the active standby LED sometimes

take longer to go out?

When put into standby, the TV's active standby will automatically search all available

channels for downloads, provided Automatic Download is enabled. The time taken to do this may vary.

EU Conformity Statement

“This product is marked with “CE” and complies therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC and the EMC Directive 2004/108/EC.”

Responsible for CE-marking is TOSHIBA EUROPE GMBH Hammfelddamm 8, D-41460 Neuss, Germany

English - 48 -

01_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 4801_MB62_[GB]_(01-TV)_IDTV_(IB_INTERNET)_(32155LED_1911UK)_NICKEL17_10078001_10078719.indd 48 05.05.2012 18:31:2405.05.2012 18:31:24

Contents

Features ............................................................... 49

General Properties............................................ 49

Safety Information ................................................ 50

Notes on Discs ..................................................... 50

On handling discs ............................................. 50

On cleaning....................................................... 50

Notes on moisture condensation .......................... 51

Licence Notiﬁ cation .............................................. 51

How to Watch a DVD ............................................ 51

DVD Control Panel Buttons .................................. 51

Overview of the Remote Control .......................... 52

General Operation ................................................ 53

General Playback ................................................. 54

Basic Play ......................................................... 54

For your reference ........................................ 54

Notes on Playback ............................................ 54

Setup Menu Items ................................................ 54

Video Setup Page ............................................. 54

Tv Type ......................................................... 54

VOD .................................................... 54

DivX

Language Setup Page ...................................... 54

Osd Lang ...................................................... 54

Audio ............................................................. 54

Disc Menu ..................................................... 54

Subtitle .......................................................... 54

Preference Setup Page .................................... 55

Default .......................................................... 55

Downmix ....................................................... 55

Parental (Parental Level) .............................. 55

Password (Change Password) ..................... 55

Spdif Output .................................................. 55

Troubleshooting .................................................... 55

The picture quality is poor (DVD)...................... 55

Disc does not play ............................................ 55

Wrong OSD language ....................................... 55

The language for the sound or subtitles on a DVD

cannot be changed ........................................... 55

Some functions (Angle, Zoom, etc.) do not

work .................................................................. 56

No picture ......................................................... 56

No sound .......................................................... 56

Distorted sound................................................. 56

No response from remote control ..................... 56

If nothing works................................................. 56

Deﬁ nition of Terms ................................................ 56

Disc Types Compatible with This Unit .................. 57

Supported File Formats ........................................ 58

Speciﬁ cations ....................................................... 58

Features

General Properties

• DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG / DivX® playback.

• NTSC/PAL playback (according to disc content)

• LPCM audio via coaxial digital audio output. (optional)

• Multi-Audio (up to 8) support (According to disc content)

• Multi-Subtitle (up to 32) support (According to disc content)

• Multi-Angle (up to 9) support (According to disc content)

• 8 level parental control

• Fast forward and rewind in 5 different speeds. (2x, 4x, 8x, 16x, 32x)

• Slow motion playback in 4 different speeds. (1/2x, 1/4x, 1/8x, 1/16x forward)

• Frame by frame forward playback.

• Search Mode

• Repeat

• Coaxial audio output (optional)

• Copied discs may be incompatible.

Note

• This product may not support some MP3 recordings due to differences in recording formats or disc type.

• Please read the owner’s manual about MP3 playback.

• CD-R/CD-RW discs recorded by CD-DA method can be played. Some CD-R/CD-RW discs may be incompatible due to laser pick-up and disc design.

• DVD-R/RW discs recorded by DVD-Video method can be played. Some DVD-R/RW discs may be incompatible due to laser pick-up and disc design.

• Some discs may be incompatible with JPEG Viewer function due to different recording format or condition of the discs.

• For proper operation, only 12 cm discs must be used.

English

English - 49 -

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 4902_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 49 05.05.2012 18:32:3305.05.2012 18:32:33

Safety Information

CAUTION

English

DVD Player is a class 1 laser product. However this product uses a visible laser beam which could cause hazardous radiation exposure. Be sure to operate the player correctly as instructed.

CLASS 1

LASER PRODUCT

RISK OF ELECTRIC SHOCK

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁ cient magnitude to constitute a risk of electric shock to people.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Notes on Discs

On handling discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• If the disc is contaminated with any substance like glue remove before using it.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature can rise quickly and damage the disc.

• After playing, store the disc in its case.

On cleaning

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

English - 50 -

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 5002_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 50 05.05.2012 18:32:3405.05.2012 18:32:34

Notes on moisture condensation

Moisture condensation damages the DVD video player. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD video player.

Moisture condensation occurs during the following cases:

• When you bring the unit directly from a cold place to a warm place.

• When you use the unit in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.

• In summer, when you use the unit in a hot and humid place just after you move the unit from an air conditioned room.

• When you use the unit in a humid place.

Do not use the unit when moisture condensation may occur.

If you use the unit in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the unit to the wall outlet, turn on the unit, and leave it for two or three hours. After two or three hours, the unit will have warmed up and evaporated any moisture. Keep the unit connected to the wall outlet and moisture condensation will seldom occur.

Licence Notiﬁ cation

DivX®, DivX Certiﬁed® and associated logos are trademarks of DivX®, Inc. and are used under license.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

How to Watch a DVD

When placing a disc into the loader, labelled side of the disc should be on the front:

When TV set is turned on, ﬁ rst switch to DVD source by using the button on the remote control. Press

on the remote control, or directly press button at the side panel. If there is no disc inside the loader, place a DVD ﬁ rst and then press .

DVD Control Panel Buttons

A. Disc loader

Plays/pauses the disc. When DVD menu (root menu) is active, this button functions as “button select” (selects the highlighted item in menu) if this is not prohibited by the disc.

C. /

Stops playing disc / Ejects the disc.

Note:

• While playing a ﬁ le, you should press

three times to eject.

/ button

English

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX®, Inc. This is an ofﬁcial DivX Certiﬁed® device that plays DivX® video. Visit divx.com for more information and software tools to convert your ﬁles into DivX® video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁed device must be registered in order to play purchased DivX® Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX® VOD sec-tion in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 5102_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 51 05.05.2012 18:32:3505.05.2012 18:32:35

English - 51 -

Overview of the Remote Control

English

Standby/ On mode

Title Menu

Root Menu

(if available)

Audio language

of the disc

Numeric Buttons

Quick Settings

Operation LED

Switch to TV or DVD mode

Eject

Subtitle

Angle

AV / Source

MENU On/Off

Navigation Buttons

Exit menu

Setup menu

Pause

Rapid Reverse

Play

Zoom

Repeat

Note: Buttons that are not indicated on the remote control illustration are not functional in DVD mode.

OK / Confirm

Return to Root menu

Jump

Info

To alter the volume

To mute the sound

Skip Next / Skip Previous

Rapid Advance

Stop

Title Menu

Root Menu

English - 52 -

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 5202_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 52 05.05.2012 18:32:3605.05.2012 18:32:36

General Operation





/ 

e/f

/

/

You can operate DVD, movie CD, music or picture CD’s content by using the proper buttons on your remote control. Below are main functions of commonly used remote control buttons.

English

Buttons on the

Remote Control



Rapid reverse / Rapid advance X

ANGLE

SETUP

MENU Displays main menu.

OK Enter / View / Play

REPEAT Displays repeat options. RETURN Returns back to the previous menu (if available).

ROOT Goes back to the root folder (if available). X

JUMP (*) Direct selection of scenes, time or file (track) number.

SUBTITLE

TITLE Displays disc menu (if available). X X

ZOOM Zooms picture. Press repeatedly to switch between zoom options. X

 +  [ + ] +  [ + ]

 +   +   +   + 

(*) You can switch to title by pressing numeric keys directly. You need to press 0 and then digit key to switch one digit titles (example: to select 5, press 0 and 5).

DVD

Playback

Play Play Play Play

Pause Pause Pause Pause

Stop Stop Stop Stop

Skip

backward/forward

Shifts the zoomed picture left or right (if available).

Highlights a menu item. / Shifts the zoomed picture up or down (if available).

Views the scene from

different angles

(if available).

Displays disc information / Displays DVD

setup menu during stop mode.

Displays disc information. X Displays disc information.

Audio language X X X

Subtitle on-off. Press repeatedly to switch

between subtitle options (if available).

Other Functions – Button Combinations

Movie

Playback

Skip

backward/forward

Highlights a menu item. /

X X X

(During playback)

Slow forward. Sets slow forward speed.

Sets slow reverse. Sets rapid advance speed. Sets rapid reverse speed. Confirms stop command. Press  repeatedly to advance manually.

Picture Playback Music Playback

Previous / Next Previous / Next

Rapid reverse / Rapid

advance

X X

Displays disc information / Displays DVD setup menu

during stop mode.

English - 53 -

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 5302_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 53 05.05.2012 18:32:3805.05.2012 18:32:38

General Playback

Basic Play

English

Press the 1. button.

Insert a disc to the loader.2.

The disc will be automatically loaded and play commences if the disc does not have any menus recorded on it.

A menu may appear on the TV screen after a few moments or the ﬁ lm may start immediately after the introduction of the Film Company. This behaviour depends on the disc content and may change.

Note: Steps 3 and 4 are available only when a menu is recorded on the disc.

Press navigation buttons or the numeric 3. button(s) to select the preferred title.

Press 4. OK button.

Play of the selected items now starts.The played item may be a motion picture, a still picture or another submenu depending on the disc.

For your reference:

If an action corresponding to a button is prohibited, the “

Notes on Playback

” symbol will appear.

No sound will be heard during Rapid advance 1. or Rapid reverse.

No sound will be heard during Slow motion play.2.

In some cases, the subtitle language is not 3. changed immediately to the selected one.

When the preferred language is not selected even 4. after pressing the button several times, it means that the language is not available on the disc.

When the player is restarted or the disc is 5. changed, the subtitle selection is automatically changed back to the initial settings.

If a language is selected, not supported by the 6. disc, the subtitle language will automatically be set to the disc’s priority language.

Usually a circulation will happen while switching 7. to another language, that is you can cancel the subtitle by pressing SUBTITLE button a number of times until “Subtitle Off” appears on the screen.

When the power is turned on or the disc is 8. removed, the language heard is the one selected at the initial settings. If this language is not recorded on the disc, only the available language on the disc will be heard.

Some DVDs may not contain root and/or title 9. menus.

Reverse stepping is not available.10.

If you attempt to enter a number greater than the total time of the current title, the time search box disappears and “ corner of screen.

Setup Menu Items

Video Setup Page

Tv Type

TV Type is only available as ‘PAL’. The TV set also supports NTSC signal; however, the signal will be converted to PAL when it appears on the screen.

DivX® VOD

DivX® VOD provides the convenience of streaming video in terms of quality and performance.

Language Setup Page

Osd Lang

You can select the default OSD language of the player menus.

Audio

You can select the default audio language if supported by the DVD disc.

Disc Menu

You can select the DVD’s disc menu language among these languages. Disc menu appears in the selected language, if supported by the DVD disc.

Subtitle

You can select the default subtitle language if supported by the DVD disc.

English - 54 -

For your convenience:11.

Input Invalid” message appears on up-left

Slide Show is disabled when the ZOOM mode 12. is on.

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 5402_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 54 05.05.2012 18:32:3805.05.2012 18:32:38

Preference Setup Page

Spdif Output

English

Default

If you choose Reset and press OK button, the factory-presets are loaded. Parental level and parental password does not change.

Downmix

This mode can be selected when the DIGITAL AUDIO socket of the TV is used.

Surround: Surround sound output.

Stereo: Two channels stereo.

Parental (Parental Level)

Playing some DVDs can be limited depending on the age of users. The “Parental Control” function allows playback limitation level to be set by the parent.

Parental Level can be adjusted to one of the eight levels. Level “8 Adult” adjustment let you watch all of the DVD titles ignoring the DVD disc’s parental level. You can watch the DVD discs, which has the same or lower parental level than the player’s level only.

Password (Change Password):

Using this item you can change the current password.

To change the password you will be prompted to enter your old password. After you have entered your old password, you can now enter the new 4-digit password. Conﬁ rm password operation.

Note: Factory preset of the password is “0000”. You have to enter XXXX digital password every time you want to change the parental level. If you forget your password please contact technical service.

English - 55 -

You can set Spdif Output as RAW or PCM. If you select PCM from Spdif Output in DVD menu and play DVD with Dolby audio, you can get audio output with two channels via the speakers and the DIGITAL AUDIO socket. If you select RAW from Spdif Output in DVD menu and play DVD with Dolby audio, speakers will be muted and you can get 5+1 Dolby audio via the DIGITAL AUDIO socket.

Troubleshooting

The picture quality is poor (DVD)

• Make sure the DVD disc surface is not damaged.

(Scratch, ﬁ ngerprint, etc.)

• Clean the DVD disc and try again.

See instructions described in “Notes on Discs” to clean your disc properly.

• Ensure that the DVD disc is in the loader with the

label facing front.

• A damp DVD disc or condensation may effect the

equipment. Wait for 1 to 2 hours in Standby to dry the equipment.

Disc does not play

• No disc in the machine.

Place a disc into the loader.

• Disc incorrectly loaded.

Ensure that the DVD disc is in the loader with the label facing front.

• Wrong type of disc. The machine cannot play CD-

ROMS etc.

• The region code of the DVD must match the

player.

Wrong OSD language

• Select the language in the set-up menu.

The language for the sound or subtitles on a DVD cannot be changed

• Multilingual sound and/or subtitles not recorded on

the DVD.

• Try to change the sound or subtitles using DVD’s title

menu. Some DVD’s do not allow the user to change these settings without using the disc’s menu.

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 5502_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 55 05.05.2012 18:32:3905.05.2012 18:32:39

Some functions (Angle, Zoom, etc.) do not work

English

• These functions are not available on the DVD.

• Angle can only be changed when the angle symbol is displayed.

No picture

• Have you pressed the correct buttons on the remote control? Try once more.

No sound

• Check the volume is set to an audible level.

• Make sure you have not switched the sound off accidentally.

Distorted sound

• Check that the appropriate listening mode setting is correct.

No response from remote control

• Make sure the remote control is in the correct mode.

• Check batteries are ﬁ tted correctly.

• Change the batteries.

If nothing works

If you have tried the above solutions and none seem to work, try switching your TV off and on again. If this does not work, contact your supplier or TV repair technician. Never attempt to repair a defective TV yourself.

Deﬁ nition of Terms

Angle

Recorded onto some DVD discs are scenes, which have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left side, from the right side, etc.). With such discs, the ANGLE button can be used to view the scene from different angles.

Chapter Number

These numbers are recorded on DVD discs. A title is subdivided into many sections, each of which are numbered, and speciﬁ c parts of video presentations can be searched quickly using these numbers.

DVD

This refers to a high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG2) and high-density recording technology. DVD enables aesthetically pleasing full-motion video to be recorded over long periods of time (for instance, a whole movie can be recorded).

DVD has a structure consisting of two 0.6-mm thin discs, which are adhered to each other. Since the thinner the disc, the higher the density at which the information can be recorded, a DVD disc has a greater capacity than a single 1.2 mm thick disc. Since the two thin discs are adhered to each other, there is the potential to achieve double-sided play sometime in the future for even longer duration play.

Subtitles

These are printed lines appearing at the bottom of the screen, which translate or transcribe the dialogue. They are recorded on the DVD discs.

Time Number

This indicates the playtime, which has elapsed from the start of a disc or a title. It can be used to ﬁ nd a speciﬁ c scene quickly. (Not all discs permit the time search feature to be used. Availability is determined by the disc’s manufacturer.)

Title Number

These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as title 1, title 2, etc.

Track Number

These numbers are assigned to the tracks, which are recorded on Audio CDs. They enable speciﬁ c tracks to be located quickly.

LPCM

LPCM stands for Linear Pulse Code Modulation and is digital audio.

MPEG

Short for Moving Picture Experts Group. This is an international standard for compression of moving images. On some DVDs digital audio has been compressed and recorded in this format.

DivX

DivX® is a digital video compression technology based on MPEG4 and developed by DivX, Inc.

English - 56 -

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 5602_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 56 05.05.2012 18:32:3905.05.2012 18:32:39

Disc Types Compatible with This Unit

English

Disc Types

(L o g o s )

DVD

AUDIO-CD

DIGITAL AUDIO

MP3-CD

READABLE

PICTURE-CD

JPEG

READABLE

Recording

Typ e s

Audio

Video

Audio

(xxxx.mp 3)

Video

(still picture)

Disc S ize Characteristics

DVD contains excellent sound and video

•

due to Dolby Digital and MPEG2 System

12 cm

Various screen and audio functions can be

•

easily selected through the on screen menu.

An LP is recorded as an analog signal with

•

more distortion. CD is recorded as a Digital Signal with better audio quality, less distortion and

less deterioration of audio quality

overtime.

Mp3 is recorded as a Digital Signal with

•

better audio quality, less distortion and less deterioration of audio quality over time.

JPEG is recorded as a Digital Signal with

•

better picture quality over time.

DivX

Audio

Video

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 5702_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 57 05.05.2012 18:32:3905.05.2012 18:32:39

12 cm

English - 57 -

Video & Audio with MPEG4 Compression

•

technology.

Supported File Formats

English

Media

Movie

(optional)

Music


External

Subtitles

(optional)

File

Extension

.mpg/ .dat/

.vob

.avi

.divx

- - PCM Sample Rate: 8k ~ 48kHz

.mp3 -

.jpg

.srt

.smi

.sub

.ssa

.ass

Format

Video Audio

MPEG1

MPEG2 MPEG2

MPEG4 PCM/MP3

MS ISO MPEG4

MS ISO

MPEG4

Baseline JPEG

Progressive JPEG

MPEG Layer

1/2/3

PCM/MP3 Support SP and ASP

PCM/MP3 DivX 3.11, 4.x, 5.x, 6.0

MPEG 1/2

Layer 1/2/3

(MP3)

(Maximum resolution/Bitrate etc.)

Remarks

Sample Rate: 8k ~ 48kHz,

Bitrate: 64k~320kbps

WxH = 8902x8902 up to 77Mega-pixel

Support format: 444/ 440/ 422/ 420/ Grayscale

Up to 4 Mega-pixel

Support format: 444/ 440/ 422/ 420/ Grayscale

Support Text File Format, but do not support

Picture File Format

This unit can only display a maximum of 14

Subtitles.

Note: It is not guaranteed that all DivX® formats are supported.

Speciﬁ cations

DVD: SS/SL 12cm (DVD-5)

Types of Discs

Supported

SS/DL 12cm (DVD-9)

DS/SL 12cm (DVD-10)

DS/DL 12cm (DVD-18)

MPEG2 Video Standard Decoding (MPEG1 supported)

Full-Screen Video Display of 720 x 576 (PAL) & 720 x 480 (NTSC) pixels

Video Type

50 and 60 Hz frame refresh rates (PAL & NTSC)

Digital bitstream processing rate up to 108Mbits/sec

Line resolution more than 500 lines

Audio Type

Audio Output

MPEG Multichannel Decoding

LPCM

Analogue Outputs:

24 bit /48, 44.1kHz down-sampling DAC

English - 58 -

02_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 5802_MB62_[GB]_(02-DVD)_(IB_INTERNET)_(1911UK_WDIVX)_10078001_10078719.indd 58 05.05.2012 18:32:3905.05.2012 18:32:39

CD-DA

CD-R

CD-RW

MP3/JPEG

If you wish to view the advanced functions but do not have access to a computer or the internet then please contact your nearest owner's manual Helpline number from the numbers shown below.

Country name locally Contact Number

Österreich 0810 - 144 122 (7,3 ct/min aus dem Festnetz

der Telekom Austria, Mobil ggf. abweichend)

Belgique / Belgie 02 391 01 01 България 0294 21141 Hrvatska 01 653 9737 Κύπρος 22 872 111 Česká republika 323 204191 Danmark 80 88 93 38 Eesti Vabariik 69 97 800 Suomen tasavalta 0800 77 35 03 France 09 69 32 64 84 Deutschland 0431 24 89 45 50

(Ortstarif, abweichender Mobilfunktarif moglich)

Gibralter 200 76334 Ελληνική 210 9554298 Magyar Köztársaság 23 428 870 Ísland 00 45 80 88 93 38 Yisrā'el 03 953 5900 Italia 039 609 9301 Latvijas 00 372 69 97 800 Lietuvos 00 372 69 97 800 Luxembourg 00 32 2 391 01 01 Moldova 00380 443 511 317 Nederlanden 00 32 2 391 01 01 Norge 800 573 57 Polska 0 71 796 95 05 Portugal 707 265 265 Republic of Ireland 01 246 7780 România 021 3169 393 Россия 8 800 100 05 05 Slovensko 0042 323 204191 España 902 33 22 34 Sverige 0201 70 16 00 Schweiz / Suisse 0900 57 58 58 (CHF 1.49 / Min.) Türkiye 0 212 340 6080 U.K. 0844 856 0730 Україна 8(044) 351 13 17

Please note the telephone number only applies to advanced owner's manual enquiries and not general operation of the TV.

"Printed on Recycled Paper" "100% Chlorine free"

Toshiba DL933-32 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
