Toshiba CTX 100-670 User Guide

726+,%$ Telecommunication Systems Division
Digital Business Telephone Systems
CTX100 and CTX670
General Description
June 2003
Strata CTX100 and CTX670 General End User Information
The Strata CTX100 or CTX670 Digital Business Telephone System is registered in accordance with the provisions of Part 68 of the Federal Communications Commission’s Rules and Regulations.
FCC Requirements
Means of Connection: The Federal Communications Commission (FCC) has established rules which permit the Strata CTX100 or CTX670 system to be connected directly to the telephone network. Connection points are provided by the telephone company—connections for this type of customer-provided equipment will not be provided on coin lines. Connections to party lines are subject to stat e tari ffs.
Incidence of Harm: If the system is malfunctioning, it may also be disrupting the telephone network. The system should be disconnected until the problem can be determined and repaired. If this is not done, the telephone company may temporarily disconnect service. If possible, they will notify you in advance, but, if advance notice is not practical, you will be notified as soon as possible. You will be informed of your right to file a complaint with the FCC.
Service or Repair: For service or repair, contact your local Toshiba telecommunications distributor. To obtain the nearest Toshiba telecommunications distributor in your area, log onto www.toshiba.com/taistsd/locator.htm or call (800) 222-5805 and ask for a Toshiba Telecom Dealer.
Telephone Network Compatibility: The telephone company may make changes in its facilities, equipment, operations, and procedures. If such changes affect the compatibility or use of the Strata CTX100 or CTX670 system, the telephone company will notify you in advance to give you an opportunity to maintain uninterrupted service.
Notification of Telephone Company: Before connecting a Strata CTX100 or CTX670 system to the telephone network, the telephone company may request the following:
1. Y our telephone number.
2. FCC registration number:
Strata CTX100 or CTX670 may be configured as a Key, Hybrid or PBX
telephone system. The appropriate configuration for your system is dependent upon your operation of the system.
If the operation of your system is only manual selection of outgoing lines, it may
be registered as a Key telephone system.
If your operation requires automatic selection of outgoing lines, such as dial
access, Least Cost Routing, Pooled Line Buttons, etc., the system must be registered as a Hybrid telephone system. In addition to the above, certain features (tie Lines, Off-premises Stations, etc.) may also require Hybrid telephone system registration in some areas.
If you are unsure of your type of operation and/or the appropriate FCC
registration number, contact your local Toshiba telecommunications distributor for assistance. CTX100 Registration Numbers PBX: CJ6MUL-35931 -PF-E, fully-protected PB X s Hybrid: CJ6MUL-35930-MF-E, fully-protected multifunction systems Key: CJ6MUL-35929-KF-E, fully-protected telephone key systems
CTX670 Registration Numbers
PBX: CJ6MUL-35934 -PF-E, fully-protected PB X s Hybrid: CJ6MUL-35933-MF-E, fully-protected multifunction systems Key: CJ6MUL-35932-KF-E, fully-protected telephone key systems
Ringer equivalence number: 0.3B. The ringer equivalence number (REN) is
useful to determine the quantity of devices which you may connect to your telephone line and still have all of those devices ring when your number is called. In most areas, but not all, t he sum of the RENs of all devices connected to one line should not exceed five (5.0B). To be certain of the number of devices you may connect to your line, as determined by the REN, you should contact your local telephone company to ascertain the maximum REN for your calling area.
3. Network connection information USOC jack required: RJ11/14C, RJ21/2E/2F/2G/2HX/RJ49C (see Network Requirements in this document). Items 2, 3 and 4 are also indicated on the equipment label.
4. Authorized Network Parts: 02LS2/GS2, 02RV2-T/O, OL13C/B, T11/12/31/32M, 04DU9-BN/DN/1SN, 02IS5, 04DU9-BN/DN/1SN1ZN
Radio Frequency Interference
Warning: This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case, the user, at his/her own expense, will be required to take whatever measures may be required to correc t the interference.
This system is listed with Underwriters Laboratory. UL Requirement: If wiring from any telephone exits the building or is
subject to lightning or other electrical surges, then secondary protection is required. Secondary protection is also required on DID, OPS, and Tie lines. (Additional information is provided in this manua l.)
U
L
®
Important Notice — Music-On-Hold
In accordance with U.S. Copyright Law, a license may be required from the American Society of Composers, Authors and Publishers, or other similar organization, if radio or TV broadcasts are transmitted through the music-on-hold feature of this telecommunication system. Toshi ba America Information Systems, Inc ., hereby disclaims any liability arising out of the failure to obtain such a license.
CP01, Issue 8, Part I Section 14.1 Notice: The Industry Canada label identifies certified eq uipme nt. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the Equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure tha t it is perm iss ible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
CAUTION! Users should not attempt to make such connections themselves, but
CP01, Issue 8, Part I Section 14.2 Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The terminal on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the Devices does not exceed 5.
should contact the appropriate electric inspection authority, or electrician, as appropriate.

Publication Information

Toshiba America Information Systems, Inc., Telecommunication Systems Division, reserves the right, without prior notice, to revise this information publication for any reason, including, but not limited to, utilization of new advances in the state of technical arts or to simply change the design of this document.
Further, Toshiba America Information Systems, Inc., Telecommunication Systems Division, also reserves the right, without prior notice, to make such chan ges in equipment design or components as engineering or manufacturing methods may warrant.
CTX-GD-GNDES-VD 4010465
Version D, June 2003
© Copyright 2003
Toshiba America Information Systems, Inc. Telecommunication Systems Division
All rights reserved. No part of this manual, covered by the copyrights hereon, may be reproduced in any form or by any means—graphic, electronic, or mechanical, including recording, taping, photocopying, or information retrieval systems—without express written permission of the publisher of this material.
Strata and SmartMedia are registered trademarks of Toshiba Corporation. Stratagy is a registered trademark of Toshiba America Information Systems, Inc. Trademarks, registered trademarks, and service marks are the property of their
respective owners.
TOSHIBA AMERICA INFORMATION SYSTEMS, INC. (TAIS)
A
A
w
A
Telecommunication Systems Division License Agreement
IMPORTANT: THIS LICENSE AGREEMENT (“AGREEMENT”) IS A LEGAL AGREEMENT BETWEEN YOU (“YOU”) AND TAIS. CAREFULLY READ THIS LICENSE AGREEMENT. USE OF ANY SOFTWARE OR ANY RELATED INFORMATION (COLLECTIVELY, “SOFTWARE”) INSTALLED ON OR SHIPPED WITH A TAIS TELECOMMUNICATION SYSTEM PRODUCT OR OTHERWISE MADE
VAILABLE TO YOU BY TAIS IN WHATEVER FORM OR MEDIA, WILL CONSTITUTE YOUR ACCEPTANCE OF THESE TERMS, UNLESS SEPARATE TERMS ARE PROVIDED BY THE SOFTWARE SUPPLIER. IF YOU DO NOT AGREE WITH THE TERMS OF THIS LICENSE AGREEMENT, DO NOT INSTALL, COPY OR USE THE SOFTWARE AND PROMPTLY RETURN IT TO THE LOCATION FROM WHICH YOU OBTAINED IT IN ACCORDANCE WITH APPLICABLE RETURN POLICIES. EXCEPT AS OTHERWISE AUTHORIZED IN WRITING BY TAIS, THIS SOFTWARE IS LICENSED FOR DISTRIBUTION ONLY TO END-USERS PURSUANT TO THIS LICENSE AGREEMENT.
1. License Grant. The Software is not sold; it is licensed upon payment of applicable charges. TAIS grants to you a personal, non-transferable and non-exclusive right to use the copy of the Software provided under this License Agreement. You agree you will not copy the Software except as necessary to use it on one TAIS system at a time at one location. Modifying, translating, renting, copying, distributing, transferring or assigning all or part of the Software, or any rights granted hereunder, to any other persons and removing any proprietary notices, labels or marks from the Software is strictly prohibited; You agree violation of such restrictions will cause irreparable harm to TAIS and provide grounds for injunctive relief, without notice, against You or any other person in possession of the Software. You and any other person whose possession of the software violates this License Agreement shall promptly surrender possession of the Software to TAIS, upon demand. Furthermore, you hereby agree not to create derivative works based on the Software. TAIS reserves the right to terminate this license and to immediately repossess the software in the event that You or any other person violates this License
greement.
2. Intellectual Property. You acknowledge that no title to the intellectual property in the Software is transferred to you. You further acknowledge that title and full ownership rights to the Software will remain the exclusive property of TAIS and/or its suppliers, and you will not acquire any rights to the Software, except the license expressly set forth above. You will not remove or change any proprietary notices contained in or on the Software. The Software is protected under US patent, copyright, trade secret, and/or other proprietary laws, as well as international treaties. Any transfer, use, or copying of the software in violation of the License Agreement constitutes copyright infringement. You are hereby on notice that any transfer, use, or copying of the Software in violation of this License Agreement constitutes a willful infringement of copyright.
3. No Reverse Engineering. You agree that you will not attempt, and if you employ employees or engage contractors, you will use your best efforts to prevent your employees and contractors from attempting to reverse compile, reverse engineer, modify, translate or disassemble the Software in whole or in part. Any failure to comply with the above or any other terms and conditions contained herein will result in the automatic termination of this license and the reversion of the rights granted hereunder back to TAIS.
4. Limited Warranty. THE SOFTWARE IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, TAIS AND ITS SUPPLIERS DISCLAIM ALL WARRANTIES WITH REGARD TO THE SOFTWARE, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE WARRANTY OF NON-INFRINGEMENT OF THIRD PARTY RIGHTS, THE WARRANTY OF YEAR 2000 COMPLIANCE, AND THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE SOFTWARE IS WITH YOU. NEITHER TAIS NOR ITS SUPPLIERS WARRANT THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE WILL MEET YOUR REQUIREMENTS OR THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE. HOWEVER, TAIS WARRANTS THAT ANY MEDIA ON WHICH THE SOFTWARE IS FURNISHED IS FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USE FOR A PERIOD OF NINETY (90) DAYS FROM THE DATE OF DELIVERY TO YOU.
5. Limitation Of Liability. TAIS’ ENTIRE LIABILITY AND YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LICENSE AGREEMENT SHALL BE AT TAIS’ OPTION REPLACEMENT OF THE MEDIA OR REFUND OF THE PRICE PAID. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL TAIS OR ITS SUPPLIERS BE LIABLE TO YOU FOR ANY CONSEQUENTIAL, SPECIAL, INCIDENTAL OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION/DATA, OR ANY OTHER PECUNIARY LOSS OF ANY KIND ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE, EVEN IF TAIS OR ITS SUPPLIER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL TAIS OR ITS SUPPLIERS BE LIABLE FOR ANY CLAIM BY A THIRD PARTY.
6. State/Jurisdiction Laws. SOME STATES/JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO SUCH LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE/JURISDICTION TO STATE/JURISDICTION.
7. Export Laws. This License Agreement involves products and/or technical data that may be controlled under the United States Export Administration Regulations and may be subject to the approval of the United States Department of Commerce prior to export. Any export, directly or indirectly, in contravention of the United States Export Administration Regulations, or any other applicable law, regulation or order, is prohibited.
8. Governing Law. This License Agreement will be governed by the laws of the State of California, United States of America, excluding its conflict of law provisions.
9. United States Government Restricted Rights. The Software is provided with Restricted Rights. Use, duplication, or disclosure by the United States Government, its agencies and/or instrumentalities is subject to restrictions as set forth in subparagraph (c)(1)(ii) of The Rights in Technical Data and Computer Software Clause at DFARS 252.227-7013 (October 1988) or subparagraphs (c)(1) and (2) of the Commercial Computer Software - Restricted Rights at 48 CFR 52.227-19, as applicable.
10. Severability. If any provision of this License Agreement shall be held to be invalid, illegal or unenforceable, the validity, legality and enforceability of the remaining provisions hereof shall not in any way be affected or impaired.
11. No Waiver. No waiver of any breach of any provision of this License Agreement shall constitute a waiver of any prior, concurrent or subsequent breach of the same or any other provisions hereof, and no
aiver shall be effective unless made in writing and signed by an authorized representative of the waiving party.
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS LICENSE AGREEMENT AND THAT YOU UNDERSTAND ITS PROVISIONS. YOU AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT THIS LICENSE AGREEMENT CONTAINS THE COMPLETE AND EXCLUSIVE AGREEMENT BETWEEN YOU AND TAIS AND SUPERSEDES ANY PROPOSAL OR PRIOR
GREEMENT, ORAL OR WRITTEN, OR ANY OTHER COMMUNICATION RELATING TO THE SUBJECT MATTER OF THIS LICENSE AGREEMENT.
Toshiba America Information Systems, Inc. Telecommunication Systems Division
9740 Irvine Boulevard Irvine, California 92618-1697 United States of America
TSD 081601
5932
Toshiba America Information Systems, Inc.
Telecommunication Systems Divi sion
Limited Warranty
Toshiba America Information Systems, Inc., (“TAIS”) warrants that this telephone equipment (except for fuses, lamps, and other consumables) will, upon delivery by TAIS or an authorized TAIS dealer to a retail customer in new condition, be free from defects in material and workmanship for twenty-four (24) months after delivery. This warranty is void (a) if the equipment is used under other than normal use and maintenance conditions, (b) if the equipment is modified or altered, unless the modification or alteration is expressly authorized by TAIS, (c) if the equipment is subject to abuse, neglect, lightning, electrical fault, or accident, (d) if the equipment is repaired by someone other than TAIS or an authorized TAIS dealer, (e) if the equipment’s serial number is defaced or missing, or (f) if the equipment is installed or used in combination or in assembly with products not supplied by TAIS and which are not compatible or are of inferior quality, design, or performance.
The sole obligation of TAIS or Toshiba Corporation under this warranty, or under any other legal obligation with respect to the equipment, is the repair or replacement by TAIS or its authorized dealer of such defective or missing parts as are causing the malfunction with new or refurbished parts (at their option). If TAIS or one of its authorized dealers does not replace or repair such parts, the retail customer’s sole remedy will be a refund of the price charged by TAIS to its dealers for such parts as are proven to be defective, and which are returned to TAIS through one of its authorized dealers within the warranty period and no later than thirty (30) days after such malfunction, whichever first occurs.
Under no circumstances will the retail customer or any user or dealer or other person be entitled to any direct, special, indirect, consequential, or exemplary damages, for breach of contract, tort, or other wise. Under no circumstances will any such person be entitled to any sum greater than the purchase price paid for the item of equipment that is malfunctioning.
To obtain service under this warranty, the retail customer must bring the malfunction of the machine to the attention of one of TAIS’ authorized dealers within the twenty-four (24) month period and no later than thirty (30) days after such malfunction, whichever first occurs. Failure to bring the malfunction to the attention of an authorized TAIS dealer within the prescribed time results in the customer being not entitled to warranty service.
THERE ARE NO OTHER WARRANTIES FROM EITHER TOSHIBA AMERICA INFORMATION SYSTEMS, INC., OR TOSHIBA CORPORATION WHICH EXTEND BEYOND THE FACE OF THIS WARRANTY. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND FITNESS FOR USE, ARE EXCLUDED.
No TAIS dealer and no person other than an officer of TAIS may extend or modify this warranty. No such modification or extension is effective unless it is in writing and signed by the vice president and general manager, Telecommunication Systems Division.

Contents

Introduction
Organization .........................................................................................................................................vii
Conventions .........................................................................................................................................viii
Related Documents/Media ....................................................................................................................ix
Installation and Programming ........................................................................................................ix
User Guides ....................................................................................................................................ix
Quick Reference Guide ................................ ......... ......... ................................................................ix
CD-ROMs .......................................................................................................................................ix
Chapter 1 – Strata CTX100 Overview
CTX100 Processor .................................................................................................................................2
CPU/Memory ...................................................................................................................................2
Large Scale Integrated (LSI) Circuits ..............................................................................................2
Memory Protection Battery .............................................................................................................2
Relay Control Interface ...................................................................................................................2
External Page Interface ....................................................................................................................2
Music-on-hold/Background Music Interface ...................................................................................2
SmartMedia Memory ......................................................................................................................3
CTX100 Processor Optional Subassemblies ...................................................................................3
CTX100 Cabinet Slots ...........................................................................................................................3
Base Cabinet ....................................................................................................................................3
Expansion Cabinets .........................................................................................................................3
CTX100 License Control .......................................................................................................................4
Licensed Software Options ..............................................................................................................4
Chapter 2 – Strata CTX670 Overview
CTX670 Processor PCBs .......................................................................................................................6
CPU/Memory ...................................................................................................................................6
Large-scale Integrated (LSI) circuits ...............................................................................................6
Memory Protection Battery .............................................................................................................6
Music-on-hold/Background Music Interface ...................................................................................6
SmartMedia Memory .......................................................................................................................6
Network Interface ............................................................................................................................7
Maintenance Modem .......................................................................................................................7
CTX670 Processor PCB Subassemblies ..........................................................................................7
CTX670 License Control .......................................................................................................................7
Licensed Software Options ..............................................................................................................8
CTX670 Cabinet Slots ...........................................................................................................................8
Base Cabinet ....................................................................................................................................8
Expansion Cabinets .........................................................................................................................9
CTX670 Remote Expansion Cabinet .....................................................................................................9
Strata CTX General Description 06/03 i
Contents
Chapter 3 – Capacities
Chapter 3 – Capacitie s
System Capacities ................................................................................................................................11
CTX100 Maximum Capacity Configuration Examples .......................................................................16
Chapter 4 – Universal Slot PCBs
Station, Line and Option PCBs ............................................................................................................19
Functional Block Diagrams ..................................................................................................................23
Chapter 5 – Telephones and Peripherals
DKT3000-series and IP Telephones ....................................................................................................28
Liquid Crystal Display (LCD) Models ..........................................................................................30
Speakerphones ...............................................................................................................................30
IP Telephone ........................................................................................................................................31
DKT3001 ..............................................................................................................................................31
Tilt Stands ......................................................................................................................................32
Telephone Upgrade Options ................................................................................................................33
Digital Add-on Modules (DADM3120, DADM3020) ..................................................................33
Direct Station Selection (DSS) Console ........................................................................................33
Integrated PC Interface (BPCI) .....................................................................................................34
Headset/Ringer Interface (BHEU) .................................................................................................34
Speaker Off-hook Call Announce (BVSU) ...................................................................................34
Cordless Digital Telephones ................................................................................................................35
DKT2204-CT .................................................................................................................................36
DKT2304-CT .................................................................................................................................36
CTX Attendant Console .......................................................................................................................37
Peripherals ............................................................................................................................................39
MCK Office Extender and PBX Gateway .....................................................................................39
Door Phone (MDFB) .....................................................................................................................39
Door Phone/Lock Control Unit (DDCB) .......................................................................................40
External Speaker (HESB) ..............................................................................................................40
Toshiba Stratagy and Stratagy DK Voice Processing ...................................................................40
Cabling and Connectors .......................................................................................................................40
Chapter 6 – Features
Account Codes .....................................................................................................................................41
Add-on Module (DADM) ....................................................................................................................41
Advisory Messages .................. ............................................................... .............................................41
Alternate Answer Point ........................................................................................................................41
Automatic Busy Redial ........................................................................................................................42
Automatic Call Distribution (ACD) Server .........................................................................................42
Basic ACD Features ......................................................................................................................42
Enhanced ACD Features ...............................................................................................................43
Automatic Callback (ACB) ..................................................................................................................43
Automatic Line Selection .....................................................................................................................43
Automatic Release ...............................................................................................................................44
Automatic Release from Hold .......................................................................................................44
Automatic Release of Incoming Calls ...........................................................................................44
Station Automatic Release .............................................................................................................44
ii Strata CTX General Description 06/03
Contents
Chapter 6 – F eatures
Background Music (BGM) ..................................................................................................................44
Call Completion ...................................................................................................................................44
Call Forward .........................................................................................................................................4 5
Station Call Forward ......................................................................................................................45
System Call Forward .....................................................................................................................45
Call Forward Conditions ...............................................................................................................46
Call Forward Destination ...............................................................................................................46
Call Forward – Call Types .............................................................................................................46
Call Forward Remote .....................................................................................................................46
Call History ..........................................................................................................................................46
Call Park ...............................................................................................................................................47
Call Park Orbits .............................................................................................................................47
Park and Page .................... ............................................................... .............................................47
Call Pickup ...........................................................................................................................................47
Call Waiting .........................................................................................................................................47
Caller Identification ......................................................................................... ......... ...........................48
ISDN Calling ID Name and Number ............................................................................................48
Camp on Busy ..................................................... ......... ........................................................................48
Automatic Camp On ......................................................................................................................48
Off-hook Camp On ........................................................................................................................49
Cancel Button .......................................................................................................................................49
Centrex/PBX Compatible .....................................................................................................................49
Centrex Ringing Repeat .......................................................................................................................49
Classes of Service (COS) .....................................................................................................................50
Computer Telephony Integration (CTI) ...............................................................................................50
Digital Telephone Integrated PC Interface ....................................................................................50
Conference Calls ..................................................................................................................................50
Conference On-Hold ......................................................................................................................50
Join Button .....................................................................................................................................50
Releasing from Tandem CO Line Connections .............................................................................51
Voice Mail Conference ..................................................................................................................51
Continuous DTMF Tone ......................................................................................................................51
Credit Card Calling ..............................................................................................................................51
CTX WinAdmin ...................................................................................................................................51
Data Privacy .........................................................................................................................................51
Day/Night Mode – Auto Schedule .......................................................................................................52
Delayed Ringing ...................................................................................................................................52
Destination (Toll) Restriction ..............................................................................................................53
Through Dialing ............................................................................................................................53
Direct Inward Dialing (DID) ................................................................................................................53
Dialed Number Identification Service (DNIS) ....................................................................................53
Digital Pad ............................................................................................................................................54
Direct Inward System Access (DISA) .................................................................................................54
Directory Numbers ...............................................................................................................................55
Primary [DN] Buttons ...................................................................................................................55
Phantom [DN] Buttons ..................................................................................................................55
Pilot [DN] ......................................................................................................................................55
Distinctive LED Indicator ....................................................................................................................56
Distinctive Ringing ..............................................................................................................................56
Do Not Disturb (DND) .........................................................................................................................56
Strata CTX General Description 06/03 iii
Contents
Chapter 6 – Features
Direct Station Selection (DSS) Buttons ............................................................................. ..................56
[DSS] Button Status Display .........................................................................................................57
DTMF Receivers ..................................................................................................................................57
DTMF Back Tone ..........................................................................................................................57
DTMF and Dial Pulse CO Line Compatibility ..............................................................................57
DTMF Signal Time .......................................................................................................................57
Emergency Call ....................................................................................................................................57
Feature Prompting with Soft Keys .......................................................................................................58
Enhanced E911 .....................................................................................................................................58
External Amplified Speaker .................................................................................................................58
Flash Button .........................................................................................................................................59
Flexible Line Ringing ..........................................................................................................................59
Flexible Numbering .............................................................................................................................59
Handsfree Answerback ........................................................................................................................59
Headset .................................................................................................................................................59
Hearing Aid Compatible ......................................................................................................................59
High Call Volume Buttons ...................................................................................................................59
Hold ......................................................................................................................................................60
Automatic Hold .............................................................................................................................60
Analog Hold ..................................................................................................................................60
Call Hold ........................................................................................................................................60
Consultation Hold ..........................................................................................................................60
Exclusive Hold ..............................................................................................................................6 0
Hold Recall ....................................................................................................................................60
Hot Dialing ...........................................................................................................................................60
Hotline Service .....................................................................................................................................60
IP Telephony ........................................................................................................................................61
Data Network Assessment for Voice Traffic ................................................................................61
Overview .......................................................................................................................................61
IP Telephone ..................................................................................................................................61
CTX IP Protocol ............................................................................................................................61
IP Telephone Features ...................................................................................................................62
IP Add-on Module .........................................................................................................................63
IP Interface Unit ............................................................................................................................63
IPT Anywhere ................................................................................................................................64
Quality of Service (QoS) ...............................................................................................................65
Power Over LAN ...........................................................................................................................66
Toshiba IP Soft Phone ...................................................................................................................67
Private Networking Over Internet Protocol .........................................................................................69
Integrated Services Digital Network (ISDN) .......................................................................................70
Least Cost Routing (LCR) ...................................................................................................................70
Line Buttons ................................................................................... ......... .............................................70
CO Line Buttons ............................................................................................................................70
Pooled CO Line Button .................................................................................................................71
Group CO Line Button ..................................................................................................................71
Live System Programming ...................................................................................................................71
Lost Call Treatment ...................................................... ......... ...............................................................71
Message Waiting ..................................................................................................................................71
LED Indication ..............................................................................................................................71
Stutter Dial Tone ...........................................................................................................................71
iv Strata CTX General Description 06/03
Contents
Chapter 6 – F eatures
Microphone (External Unit) .................................................................................................................72
Music-on-hold ......................................................................................................................................72
Multiple Call/Delayed Ringing ............................................................................................................72
Off-Hook Call Announce (OCA) .........................................................................................................72
Off-Premise Stations ............................................................................................................................73
Override ................................................................................................................................................73
Call Forward Override ...................................................................................................................73
Class Of Service Override .............................................................................................................73
Do Not Disturb (DND) Override ...................................................................................................73
Executive Override ........................................................................................................................73
Privacy Override ............................................................................................................................74
Paging ...................................................................................................................................................74
Telephone Group Paging ...............................................................................................................74
External Speaker Page Zones ........................................................................................................74
Emergency Page ............................................................................................................................74
Night Ringing Over Selected Page Zones .....................................................................................74
Power Failure Protection ......................................................................................................................75
Power Failure Transfer ..................................................................................................................75
Reserve Power Battery Backup .....................................................................................................75
Privacy ..................................................................................................................................................75
Repeat Last Number Dialed ...................................................................................... ...........................75
Ringing .................................................................................................................................................76
Ring Over Busy .............................................................................................................................76
Ringing Cadence ............................................................................................................................76
Delayed Ringing ............................................................................................................................76
Distinctive Ringing ........................................................................................................................76
Speed Dial ........................................................... ......... ........................................................................76
One Touch Buttons ........................................................................................................................77
Station Hunting ....................................................................................................................................77
Serial Hunting ................................................................................................................................77
Circular Hunting ............................................................................................................................77
Distributed Hunting .......................................................................................................................77
Camp on to Hunt Groups ...............................................................................................................78
Station Message Detail Recording (SMDR) ........................................................................................78
Strata Net Multi-system Networking ...................................................................................................78
Coordinated Numbering Plan ........................................................................................................78
QSIG Basic Call Control ...............................................................................................................79
Alternate Routing ..........................................................................................................................79
Centralized Attendant ....................................................................................................................79
Telephone DSS Buttons .................................................................................................................79
Centralized Voice Mail ..................................................................................................................79
Network SMDR .............................................................................................................................79
System Fault Finding and Diagnostics .................................................................................................80
Alarm Indication of System Faults ................................................................................................80
SmartMedia Card ...........................................................................................................................80
Fault Detection and Error Logs .....................................................................................................80
Event and System Administration Logs ........................................................................................80
Automatic Fault Recovery .............................................................................................................80
System Trace .................................................................................................................................80
Manual Test ...................................................................................................................................80
Strata CTX General Description 06/03 v
Contents
Appendix – Specifications
Backup/Restore ..............................................................................................................................81
Maintenance and Administration ...................................................................................................81
Software Upgrade ..........................................................................................................................81
Transfer ................................................................................................................................................81
Transfer with Camp On .................................................................................................................81
Transfer Immediate ........................................................................................................................81
Transfer Privacy ............................................................................................................................81
Transfer (Screened) .......................................................................................................................81
Transfer (Unscreened) ...................................................................................................................82
Transfer to Voice Mail ..................................................................................................................82
Music or Ringing Option ...............................................................................................................82
User Programming Mode .....................................................................................................................82
Voice or Tone Signaling ......................................................................................................................83
Voice Mail Integration .........................................................................................................................83
DTMF Integration ..........................................................................................................................83
Simplified Message Desk Interface (SMDI) .................................................................................83
Toshiba Proprietary Integration .....................................................................................................84
Direct Transfer to Voice Mailbox ...................................................................... ......... ..................84
Volume Control ....................................................................................................................................84
Appendix – Specifications
Environmental Characteristics .............................................................................................................85
CTX100 Power Considerations ............................................................................................................86
CTX670 Power Considerations ............................................................................................................86
Reserve Power ......................................................................................................................................87
Hardware Compatibility .......................................................................................................................88
Public Network Requirements .............................................................................................................90
Station Loop Lengths ...........................................................................................................................91
Standard Telephone Ringer Specifications ..........................................................................................92
3000-series Telephone Option PCBs ...................................................................................................92
Station Dimensions ..............................................................................................................................93
System Tones .......................................................................................................................................94
IPT Voice Quality Considerations .......................................................................................................96
Index..........................................................................................................................................................97
vi Strata CTX General Description 06/03

Introduction

This General Description provides an overview of the Strata CTX100 and CTX670 digital
business telephone systems, associated hardware and features.

Organization

This document is divided into the following major topics:
Chapter 1 – Strata CTX100 Overview describes the system, its basi c capacities and system
expansion.
Chapter 2 – Strata CTX670 Overview describes the system, its basic capacities, system
expansion, and remote maintenance.
Chapter 3 – Capacities includes Strata CTX100 and CTX670 capacities for stations and
peripherals, Central Office (CO) lines, station buttons and system features.
Chapter 4 – Universal Slot PCBs provides information about Printed Circuit Boards (PCBs)
that can be installed in the universal slots of the Strata CTX systems.
Chapter 5 – Telephones and Peripherals describes the most recent Toshiba-proprietary
stations and peripherals, customer-supplied peripherals, as well as cabling and connectors.
Chapter 6 – Features describes the features which are available system-wide, as well as
stations features.
Appendix – Specifications includes detailed information on environmental characteristics,
power considerations, hardware compatibility, network requirements, and station specifications.
Strata CTX General Description 06/03 vii
Introduction

Conventions

Conventions
Conventions Description
Elaborates specific items or references other information. Within
Note
some tables, general notes apply to the entire table and numbered notes apply to specific items.
Important!
Calls attention to important instructions or information.
Courier Shows a computer keyboard entry or screen display.
“Type” Indicates entry of a string of text.
“Press”
Indicates entry of a single key. For example: Type prog then press Enter.
Shows a multiple PC keyboard or phone button entry. Entries
Plus (+)
without spaces between them show a simultaneous entry. Example: Esc+Enter. Entries with spaces between them show a sequential entry. Example:
# + 5.
Tilde (~) Means “through.” Example: 350 ~ 640 Hz frequency range.
Denotes the step in a one-step procedure. Denotes a procedure.
Start > Settings > Printers Denotes a progression of buttons and/or menu options on the
screen you should select. Grey words within the printed text denote cross-references. In the
See Figure 10
electronic version of this document (Library CD-ROM or FYI Internet download), cross-references appear in blue hypertext.
viii Strata CTX General Description 06/03

Related Documents/Media

Installation and Programming

Strata CTX Installation & Maintenance Manual
Strata CTX Programming Manual

User Guides

Strata CTX DKT/IPT Telephone
Strata CTX DKT3001/2001 Digital Single Line Telephone
Strata CTX Standard Telephone
Strata CTX DKT2204-CT/DKT2304-CT Cordless Telephones

Quick Reference Guide

Strata CTX DKT/IPT Telephone
Introduction
Related Documents/M edi a

CD-ROMs

Strata CTX WinAdmin Application Software and CTX/DK/Partner Products Documentation Library
Strata CTX Quote
Strata CTX Call Center Solutions Application Software and CTX Documentation Library (includes Strata CTX ACD software and documentation, Net Server software and documentation, and Voice Assistant software and documentation)
OAISYS (includes software and documentation for OAISYS Chat, Call Router, and Net Phone)
For authorized users, Internet site FYI (http://fyi.tsd.toshiba.com) contains all current Strata CTX documentation and enables you to view, print and download current publications.
Strata CTX General Description 06/03 ix
Introduction
Related Documents/Media
x Strata CTX General Description 06/03
Strata CTX100 Overview 1
The Strata CTX100 is a compact system that provides large system features (see
Figure 1).
It is designed for wall mounting and
Base Expansion
occupies very little space. The CTX100 basic pro cessor can be configured
with a one or two cabinet system. A single (Base) cabinet system supports a combination of up to 64 Central Office (CO) lines and stations, while a two (Base and Expansion) cabinet system can support up to 112 CO lines and stations.
System line and st ation capac ity is expa nded by adding CO line and station Printed Circuit Boards (PCBs) into its universal slot architecture.
The CTX100 easily connects to outside public and private telephone lines. All of the telephones (stations) tied to the system can have direct access to each other, as well as to
Figure 1 CTX100 Base/Expansion
Cabinets
5976
the public and private network. Each CTX100 system has a Base Cabine t with one opt ional Expansi on Cabi net. All line s, sta tions ,
and options are tied together through the cabinets. The overall weight and dimensions of the CTX100 cabinets are shown in Table 1.
Table 1 CTX100 Cabinet Specifications
Cabinet
Base Cabinet (CHSUB112) 19.4 lbs. 14.6 in. 11.9 in. 10.2 in. Base + Expansion Cabinet
(CHSUE112)
1. Weight includes the processor PCB in the Base Cabinet and four universal PCBs in each cabinet.
Strata CTX General Description 06/03 1
1
Weight
34.6 lbs. 14.6 in. 19.9 in. 10.2 in.
Height Width Depth
Strata CTX100 Overview

CTX100 Processor

CTX100 Processor
The system operates with one processor circuit board (ACTU2) that installs in a dedicated slot of the Base Cabinet. The ACTU2 processor has built-in receivers and other interfaces than the earlier ACTU1 model. The ACTU2 processor incorporates the following hardware features:

CPU/Memory

The CTX100 uses a high-speed, 32-bit, RISC processor, Dynamic Random Access Memory (DRAM) working memory, Static Random Access Memory (SRAM) wi th lithium battery for memory back-up, and flash program memory.

Large Scale Integrated (LSI) Circuits

The processor has LSI circuits that support the following:
The ACTU2 provides a built-in 10/100 Base-T Ethernet LAN interface. The Ethernet LAN Interface provides one 10baseT Ethernet circuit with an RJ45 connector for CTI Open Architecture applications, CTX Attendant Console, ACD Server, Toshiba Proprietary Voice Mail integration and system administration connection (including local and remote CTX WinAdmin).
16 DTMF receiver hardware circuits are built in to the ACTU2 . Five or more D TMF receivers requires appropriate licenses. See “CTX100 License Control” on page 4.
16 Busy Tone (BT) detector circuits for Auto Busy Redial (ABR) are built into the ACTU2.
64 built-in conference circuits (see Table 7 on page 14 for more information).
Built-in, adjustable, digital volume PAD technology enables audio volume to be adjusted in eight steps to compensate for conference and/or CO line network losses.

Memory Protection Battery

If commercial AC power is lost or if a system is moved or stored without power, the processor has an on-board battery th at protec ts data an d the custome r’s programme d configura tion fro m memory loss. This in formation will be mainta ined in a powerless system for at least six years.

Relay Control Interface

An on-board terminal strip provides an interface to a normally open relay contact which can be programmed to control a Night Bell, door lock or to mute BGM during an external page.

External Page Interface

A 600 ohm RCA jack is built into the processor to interface with a Toshiba External Amplified Speaker (HESB) or a customer-supplied page amplifier and speaker(s) for external paging, night ring over external page, and external BGM applications.

Music-on-hold/Background Music Interface

A 600-ohm RCA jack and volume controls are built into the processor to interface with Music-on­hold and/or Background Music (BGM) sources (one of the jacks is for future use). With the CTX100, you can have up to 15 MOH/BGM source interfaces by adding:
Up to two BIOU PCBs, each provides three MOH/BGM input sources
An RSTU PCB that provides up to eight MOH/BGM input sources
2 Strata CTX General Description 06/03

SmartMedia Memory

The processor has an on-board SmartMediaTM memory card slot. A SmartMedia flash memory card can be inserted into the slot to backup and restore customer program data. It also makes it easy to upload operating system data for software upgrades and is used for maintenance functions (see “System Fault Finding and Diagnostics” on page 80 for more details).

CTX100 Processo r Optional Subassemblies

Optional subassemblies can be atta ched to the ACTU pr ocesso r to provid e addition al features . The subassemblies are:
AMDS (Modem) – Provides a 33.6Kbps/V.34 modem for point-to-point local or remote connection to the CTX WinAdmin administration PC.
BSIS (Serial Port In ter fac e) – Provides up to two RS -23 2 interface ports fo r S MDR i nte rf ace to Call Accounting devices, SMDI or Toshiba Proprietary interface to Voice Mail devices, and two future applications.

CTX100 Cabinet Slots

Strata CTX100 Overview
CTX100 Cabinet Slots

Base Cabinet

The Base Cabinet has one dedicated slot used for the system processor PCB and four universal slots (S101~S104), that can accommodate station, line or option PCBs. It also houses a power supply that is packaged with the cabinet.

Expansion Cabinets

One expansion cabinet provides four universal PCB slots (S105~S108) that can accommodate station, line or option PCBs. It also houses a power supply that is packaged with the cabinet.
DC POWER
DC
AC
DC POWER
DC
AC
TOSHIBA
AMAUE1A
S101 S102 S103 S104 S105 S106 S107 S108
T
O
S
H
D
I
G
I
T A
L
B
M
O D
E L
C
Strata CTX100
T
O
S
H
IBA
C
B
IA
U
S I
N
E
S
S
T
E
L
E
P
H
S
U
B
1
1
2 A
V
1
I
N
P
ORP
ORAT
I
ON
49L7
H
O
N
E
S
Y
S
CUS
T
E
M
E88891
A
. N
O
R
10062
TIM
U
T
:
1
2 0
V
a
c
6
0
H
z
1
.
8
A
MA
D
E
I
N
MAL
AY
S
I
A
Z
CP
T
O
S
H
D
I
G
I
T A
L
B
M
O D
E L
C
Strata CTX100
T O
S
H
IBA
C
B
IA
U
S
IN
E
S
S
T
E
L
E
P
H
O
N
E
S
Y
S
T
E
M
H
S
U
B
1
1
2
A
V
1
A
. N
O
R
100
39
I
N
P
U
T
:
1
2
0 V
a
c
6
0
H
z
1
.
8
A
ORP
ORAT
I
ON
MA
D
E
I
N
MAL
AY
S
I
A
Z
CP
6576
Figure 2 Base and Expansion Cabinet Interior
Strata CTX General Description 06/03 3
Strata CTX100 Overview

CTX100 License Control

CTX100 License Control
The system size and feature capability is controlled using a software License Key Code. This key code is obtained from Toshiba Internet FYI during the ordering process and is installed onto the system processor via Strata CTX WinAdmin. Processor license codes activate system hardware capacities in the follow ing increments.
The first 32 line/station ports do not require a license. Each additional set of four line/station ports requires one LIC100-4 PORTS license (maximum of 112 ports).
The ACTU2 processor provides 16 DTMF built-in receiver hardware circuits and 16 ABR circuits. The first four DTMF circuits and all ABR circuits do not require a license. Each additional set of four DT MF receiver cir cuits req uires one LIC100 -4 DTMF license (maximum of 16 DTMF circuits).
Note DTMF tone receiver circuits are required for standard telephones, Voice Mail DTMF
integration, Tie, DID and DNIS line service.
The optional RS-232 serial port interface (BSIS) provides two circuits to interface with SMDI or Toshiba Proprietary Voice Mail integration, Call Accounting SMDR, and t wo for future applications. The first circuit does not require a license, but circuits two through four each require one LIC100-SER PORT license.

Licensed Software Options

Some software options are activated with license codes. The following software options require a license:
Each CTX system (node) in a Strata Net QSIG Network (ISDN or IP) requires one LIC100­QSIG NET license. A maximum of four serial network nodes are allowed in any one serial chain in the network topology.
The built-i n LAN interface for all CTI Open Architecture applications. Ea ch individual CTI Open Architecture application requires one LIC100-CSTA AP license (maximum nine).
4 Strata CTX General Description 06/03
Strata CTX670 Overview 2
The Strata CTX670 system provides sophisticated telecommunication features in a modular system designed for growth. Its universal slot architecture enables you to select the combination of Central Office (CO) lines, stations, and per i pher al options that best suit your needs.
The CTX670 basic processor can be configured for smaller sy stems as a one or two cabi net system w i th a capacity of up to 192 CO lines an d st ati ons combined. It can expand to support up to seven cabinets with a capacity of up to 672 CO lines and stations combined (see Figure 3).
System line and station capacity is expanded by adding processor expansion Printed Circuit Boards (PCBs), cabinets and line/station PCBs.
The CTX670 easily connects to outside public and private telephone lines. All of the telephones (stations) tied to the system can have direc t acces s to eac h other as well as to the public and private network.
The Base Cabinet and optional Expansion Cabinets are the building blocks of the system. Each system has a Base Cabinet, and can have from one to six Expansion Cabinets. All lines , statio ns, and option s are tied together through the cabinets.
Figure 3 CTX 670 Base/
Expansion Cabinets
The overall weight and dimensions of the CTX670 cabinets are shown in Table 2.
Table 2 CTX670 Cabinet Specifications
Cabinet Weight Height Width Depth
Base Cabinet (CHSUB672) 31 lbs. 11.625 in. 26.5 in. 10.3 in. Expansion Cabinet (CH SU E67 2) 29 lbs. 9.75 in. 26.5 in. 10.3 in.
5398
Strata CTX General Description 06/03 5
Strata CTX670 Overview

CTX670 Processor PCBs

CTX670 Processor PCBs
The system operates with one set of processor PCBs (BECU/BBCU) that inst al l in dedicated slots of the Base Cabinet. The BECU/BBCU processor incorporates the following on-board hardware features:

CPU/Memory

The CTX670 uses a high-speed, 32-bit, Reduced Instruction Set Computing (RISC) processor, Dynamic Random Access Memory (DRAM) working memory, Static Random Access Memory (SRAM) with lithium battery for back-up memory, and flash prog ram memory.

Large-scale Integrated (LSI) circuits

The processor has LSI circuits that support the following:
16 built-in DTMF receivers; 32 available using the BEXS. For five or more DTMF receivers, appropriate licenses are required. See “CTX670 License Control” on page 7.
16 built-in Busy Tone (BT) detectors for Auto Busy Redial (ABR); 32 available using the BEXS
64 built-in conference cir cuit s; up to 96 confer ence circui ts are ava ilabl e using the BEXS. (See
Table 7 on page 14 for more information).
Built-in, adjustable, digital volume PAD technology enables audio volume to be adjusted in eight steps to compensate for conference and/or CO line network losses.

Memory Protection Battery

If commercial AC power is lost or if a system is moved or stored without power, the processor has an internal battery that protects data and the customer’s programmed configuration from memory loss. This in formation will be mainta ined in a powerless system for at least six years.

Music-on-hold/Background Music Interface

An RCA jack and volume control are built into the processor to interface with a Music-on-hold and/or Background Music source. With the CTX670, you can have up to 15 MOH/BGM sources by adding:
Up to two BIOU PCBs, each provides three MOH/BGM input sources
An RSTU PCB that provides up to eight MOH/BGM input sources

SmartMedia Memory

The processor has an on-board SmartMedia card slot. A SmartMedia flash memory card can be inserted to backup and restore customer program data. It also makes it easy to upload operating system data for software upgrades and is used for maintenance functions (see “System Fault
Finding and Diagnostics” on page 80 for more details).
6 Strata CTX General Description 06/03
Strata CTX670 Overview

CTX670 License Control

Network Interface

The processor has an on-board Ethernet 10Base-T Ethernet circuit for connection to Open Architecture Computer Telephony Interface (CTI) applications. This provides extensive call control and telephone support for CTI applications. The Ethernet Network Interface Card (NIC) port also enables connection to the following:
CTX Attendant Console
ACD server
Local and Remote CTX WinAdmin PC
Soft Key Control of Voice Mail features

Maintenance Modem

A built-in maintenance modem (33.6Kbps/V.34) on the processor can provide poi nt -t o-point local or remote connection to the CTX WinAdmin administration software.

CTX670 Processor P CB Subassemblies

Subassemblies can be added to the processor PCBs to enable system expansion and provide additional features. The subassemblies are:
BEXS and BBMS expansion PCBs mount onto the processor PCBs to provide increased port capacity, from Basic (192 ports) to Expanded (672 ports). The BEXS provides switching capacity, and the BBMS provides memory capacity. For Basic and Expanded capacities of stations, lines and features, see Tables 3~7. To expand the system, both subassemblies must be installed.
BSIS interface PCB which attaches to the BECU to provide up to four RS-232 interface ports for SMDR Call Accounting and SMDI or Toshiba Proprietary Voice Mail interface.
See Table 3 on page 11 for the number of cabinets and universal PCB slots for the Basic and Expanded systems.
CTX670 License Control
The system size and feature capability is controlled using a software License Key Code. This key code is obtained from the Toshiba Internet FYI site during the ordering process and is installed onto the system processor via Strata CTX WinAdmin. Processor license codes activate system hardware capacities in the following increments.
The first 64 line/station ports do not require a license. Each additional set of four line/station ports requires one LIC670-4 PORTS license (maximum of 672 ports).
The on-board DTMF receiver circuit provides up to 32 DTMF receiver hardware circuits. The first four DTMF circuits do not require a license. Each additional set of four DTMF receiver circuits requires one LIC670-4 DTMF license (max. total of 32 DTMF circuits).
Note DTMF tone receiver circuits are required for standard telephones, Voice Mail DTMF
integration, Tie, DID and DNIS line service.
The optional RS-232 serial port interface (BSIS) provides two circuits to interface with Voice Mail, SMDI or Toshiba Proprietary Voice Mail integration, Call Accounting SMDR, and two for future applica tions . The first circu it does not requir e a lice nse , but circ uits t wo thr ough four each require one LIC670-SER PORT license.
Strata CTX General Description 06/03 7
Strata CTX670 Overview

CTX670 Cabinet Slots

Licensed Software Options

Some software options are activated with license codes. The following software options require a license:
Each CTX system (node) in a Strata Net QSIG Network (ISDN or IP) requires one LIC670­QSIG NET license. A maximum of four serial network nodes are allowed in any one serial chain in the network topology.
Each individual CTI Open Architecture application requires one LIC670-CSTA AP license (maximum nine).
CTX670 Cabinet Slots

Base Cabinet

The Base Cabinet has two dedicated slots used for the system processor PCBs and eight universal slots, labeled “S101~S108 ,” that can acco mmodate stati on, CO line or opti on PCBs (see Fi gure 4). It also hous es a power supply.
B101 B102 S101 S102 S103
S104 S105 S106 S107
S108
B101 B102 S101 S102 S103 S104 S105 S106 S107 S108
Figure 4 Base Cabinet Interior
DC OUT
-24V1
-24V2 BATT
+
-24V3
-
-24V4
POW
+5V
AC IN
-5V
P.F.
POWER
RESET
ON
EXP
BASE
OFF
FG
5002
5466
8 Strata CTX General Description 06/03
Strata CTX670 Overview

CTX670 Remote Expansion Cabinet

Expansion Cabinets

One to six Expansion Cabinets can be added to increase the system station and CO line capacity. Each expansion cabinet provides 10 slots (S_01~S_10). Figure 5 shows an Expansion Cabinet.
Refer to the following section for cabinet slot and station/line capacities. Tables 4 and 5 show the number of stations and CO lines allowed when additional cabinets and PCBs are used.
DC OUT
CABINET NO.
2
34567
S_01 S_02 S_03 S_04 S_05
S_06 S_07 S_08 S_09 S_10
S_01 S_02 S_03 S_04 S_05 S_06 S_07 S_08 S_09 S_10
DC OUT
-27V1
-27V1
-27V2
-27V2
AC IN
BATT
+
-27V3
+
-27V3
-
-
-27V4
-27V4
POW
POW
+5V
AC IN
+5V
AC IN
-5V
-5V P.F.
P.F.
POWER
RESET
POWER
RESET
ON
ON
EXP
EXP
BASE
BASE
OFF
OFF
FG
FG
5002
5002
Figure 5 Expansion Cabinet Interior
CTX670 Remote Expansion Cabinet
A CTX670 Expansion Cabinet can be located up to three kilometers (1.86 miles) from its Base Cabinet. Remote Expansion Cabinets are enabled by the RRCU PCB. One RRCU connects to up to two ribbon-type Data Cables and applies the inter-cabinet signal to a multi-mode fiber-optic pair. One fiber pair can support one or two Expansion Cabinets in one remote location using one RRCU in the Base Cabinet and another in the Remote Expansion Cabinet.
The CTX670 Base Cabinet supports up to six Remote Expansion Cabinets (at least one RRCU PCB is required for each rem ote location).
Remote Cabinets support the BIOU for external Page Zones, Night Bell, etc., and all CO line and trunk interface PCBs. Network clock synchronization can only be derived from digital trunks installed in the Base Cabinet (Maste r) location.
A Remote Cabinet can support all PCBs that can be installed in a local Expansion Cabinet, including digital trunk cards. However, the system cannot derive network clock synchronization from a digital trunk installed in a Remote Cabinet. This requires a digital trunk installed in the Base Cabinet or in a local Expansion Cabinet connected to the Base by a standard ribbon cable. For each Remote Cabinet location, local trunks may be required for correct 911 service.
5003
Strata CTX General Description 06/03 9
Strata CTX670 Overview
CTX670 Remote Expansion Cabinet
10 Strata CTX General Description 06/03
Capacities 3
This chapter contains Strata CTX100 and CTX670 capacities for stations and peripherals, CO lines, station buttons and system features. All tables apply to both systems unless otherwise noted.

System Capacities

Important! The maximum capacities listed for the CTX100 in Tables 3~7 are based on an
expanded CTX100 (Base + Expansion Cabinet).
Table 3 Cabinet and Slot Capacities
Cabinets/Slots/Ports CTX100
Cabinets 1 or 2 1 to 2 1 to 7 Universal slots 4 or 8 8 or 18 8 to 68 Maximum capacity of ports
(lines + stations)
112 192 672
CTX670
Basic Processor
BBCU + BECU
CTX670
Expanded Processor
BBCU + BECU
+ BEXS + BBMS
Table 4 Station/Peripherals System Capacities
Stations
Add-on modules (DADM3 12 0, DADM3020) per Base Cabinet
Add-on modules (DADM3020) per Expansion Cabinet
CTX Attendant consoles 224
DKT3000- and 2000-series DKTs
IPT telephones
IPT telephones with DADM3120
1
1
1
2
CTX100
Base & Expansion
30 DKTs with 1 ADM
23 DKTs with 2 ADMs
31 DKTs with 1 ADM
24 DKTs with 2 ADMs
72/system
(40 Base Cabinet)
(40/Expan. Cab.)
64 per cabinet 72 per system
26 per cabinet 26 per system
CTX670
Basic Processor
BBCU + BECU
55 DKTs with 1 ADM
43 DKTs with 2 ADMs
57 DKTs with 1 ADM
45 DKTs with 2 ADMs
152/system
(72 Base Cabinet)
(80/Expan. Cab.)
128 Base
96 Expansion
160 System
58 per cabinet 58 per system
CTX670
Expanded Processor
BBCU + BECU +
BEXS + BBMS
55 DKTs with 1 ADM
43 DKTs with 2 ADMs
57 DKTs with 1 ADM
45 DKTs with 2 ADMs
552/system
(72 Base Cabinet)
(80/Expan. Cab.)
128 Base
96 Expansion
560 System
200 per cabine t
200 per system
Strata CTX General Description 06/03 11
Capacities
System Capacities
Table 4 Station/Peripherals System Capacities (continued)
CTX670
Expanded Processor
BBCU + BECU +
BEXS + BBMS
Stations
DKT2204-CT or DKT2304-CT Cordless Telephone
1
CTX100
Base & Expansion
72 152 552
CTX670
Basic Processor
BBCU + BECU
Door locks 4510 Door phone control boxes (DDCB) 238 Door phones 6924 DSS consoles (DDSS) 3516 ISDN BRI station circuits TE-1 and TA
(2B+D per circuit)
12 28 96
Off-premise stations 64 144 544 BPCI used for TAPI only: per cabinet Total Stations (Digital/Analog/ISDN BRI B
channel combined)
1
35 66 66 72 160 560
Standard stations 64 144 544 Calls existing at the same time 56 96 366
1. Limit is based on cabinet Power Factor (PF).
2. Based on the maximum allowed flexible buttons.
Table 5 Line Capacities and Universal PCB Slots
CTX670
Expanded
Processor
BBCU + BECU +
BEXS + BBMS
Lines
CO lines – loop start (analog - 8 li nes/slot)
CO lines – ground start (analog - 4 li nes/slot)
CTX100
Base & Expansion
64 96 264
32 72 264
CTX670
Basic
Processor
BBCU + BECU
DID lines (analog - 4 lines/slot) 32 72 264 Tie lines (analog - 4 lines/slot) 32 72 264 VoIP lines (4 lines/slot) T1 lines (DS-1) ISDN BRI B channel lines ISDN PRI B channel lines IP QSIG Channels Total lines (Analog, T1, ISDN BRI and PRI
B channels combined)
1
2
3 4
5
82020 64 96 264 64 96 256 48 96 264 48 96 264
64 96 264
Channel Groups 32 48 128 Number of groups w/ GC O Lin e buttons 32 50 128
1. Capacity is limited by FCC, Part 15, ElectroMagnetic Compatibility (EMC) restrictions.
2. T1 lines can be loop start, ground start, Tie or DID (maximum 24 lines per unit, any type or combination).
3. BRI lines provide CO line services, including Caller ID, DID and Direct Inward Lines (DIL).
4. PRI lines provide CO line services, including QSIG Networking, Calling Party Number/Name, DID, Tie, POTS, FX and DIT.
5. QSIG over IP channels provides Strata Net functionality.
12 Strata CTX General Description 06/03
Table 6 Station Buttons
Capacities
System Capacities
CTX670 Expanded
Processor
BBCU + BECU
+ BEXS + BBMS
Station Buttons per Syste m
CTX100 Base &
Expansion
CTX670
Basic Processor
BBCU + BECU
Call Forward, Personal CF But tons 72 160 560 CO Line Buttons 64 96 264 Group CO Line Bu ttons 64 96 264 Pooled CO Line Buttons 32 50 128 CO Group and Pooled Line Buttons 64 96 264 Station Loop Buttons 81550 Door Unlock Buttons 4816 Flexible Telephone Buttons 1600 3500 12000 Line Buttons in use at the sa m e tim e 1440 3200 3200 Message Waiting Registration (DNs with MW) 130 230 800 Multiple Appearances of DNs on Telephones 2000 4000 12000 Night Transfer Buttons 24 8 One Touch Buttons 800 1750 6000 Primary Dire ctory Numbers [PD Ns ] per system 72 160 560 Phantom Directory Numbers [PhDNs] per system 288 640 2240 [PhDNs] with Message Waiting Indication LED 18 38 128
ISDN DNs
96
(8 DNs/station)
224
(8 DNs/station)
768
(8 DNs/station)
Strata CTX General Description 06/03 13
Capacities
System Capacities
Table 7 System Feature Capacities
CTX670 Expanded
Processor
BBCU + BECU + BEXS + BBMS
Features
CTX100 Base &
Expansion
CTX670
Basic Processor
BBCU + BECU
Pilot DNs 100 200 256 Advisory LCD Messages (Set on a Telephone) 1 1 1 Advisory LCD Messages Lists (per System) 10 10 10 Attendant Groups 1 1 1 Call Accounting SMDR Interface
1
1 1 1 Call Forward, System CF Patterns 4 10 32 Call Park Orbits (General) 14 32 64 Call Park Orbits (Individual) 56 96 336
Caller ID/ANI/CNIS Numbers stored (Call History records)
Up to 100/station Up to 100/station Up to 100/station
Up to 660/system Up to 1000/system Up to 2000/ sy st em CO Line Groups - Incoming Line Groups (ILG) 32 50 128 CO Line Groups - Outgoing Line Groups (OLG) 32 50 128 Outgoing Line Groups (O LG) Members per system
(Trunks + ISDN Line Service Index) Conference Circuits Conferencing (three-parties simultaneously) Conferencing (eight -p ar ties simultaneously)
2
2
Conference Party types (up to 8 total lines + stations)
Two-CO Line Conferencing – simultaneously2 (Two party only, no telephone or VM port)
Conference/Line Volume Adjustment (PAD) Groups DID Numbers for Calling Number ID/system DNIS/DID Network Routing Numbers DNIS/DID Numbers DTMF Receivers
3
E911 Groups Emergency Call Groups Hunt Groups (Serial/Circular/Distributed combined) Hunt Group Size (DNs per group) Hunt Group Stations (per system) ISDN DNs ISDN Line Service Indexe s Multiple Call Ring Group Night Bell Control Relay Night Transfer Control Relay
4
4
Off-hook Call Announce Ha ndsets (simultaneous) Off-hook Call Announce to Telephone Speakers Page Mute External BGM Control Relay
4
5
96 144 392 64 64 96
20 21 21
8 8 12
6 lines max.
8 stations max.
6 lines max.
8 stations max.
32 48 132
6 10 32 225 500 1000 200 400 1000 450 1000 2000
16 16 32
8 8 8
8 8 8
90 200 640 72 160 560
360 800 2800
96 224 768 32 48 128 16 32 64
1 1 1
1 1 1
20 21 31 72 112 352
1 1 1
6 lines max.
8 stations max.
14 Strata CTX General Description 06/03
Table 7 System Feature Capacities (continued)
Capacities
System Capacities
Features
Page Zone Relays
4
Page Groups (Phones with or without External Zones)
Paging – (Group Page – simultaneous stations paged)
Pickup Groups Ring Tones (External Call Rin g Tones for DKTs) Ring Tones (Internal Call Ring Tones for DKTs) Speed Dial - Station SD numbe rs per system
6
Speed Dial - System SD numbe rs per sys te m Stratagy DK Voice Mail Systems per system Tenants Destination Restriction Level (DRL) Classes Verified Account Codes Voice Mail SMDI Interface
1. SMDI and SMDR require BSIS serial port interface.
2. Conference circuits are used dynamically, so the maximum number of simultaneous conferences is affected by the number of conference members in each conference. The total number of members in simultaneous conferences cannot exceed the total number of conference circuits. Each conference can have up to eight members.
3. DTMF receivers are required for standard touch tone telephones, voice mail integration, Tie, DID and DISA lines.
4. An option BIOU is required for up to four zone page relays and four control relays on the CTX100 and CTX670. One control relay is provided on board the CTX100 processor.
5. Speaker OCA capacity is determined by 2B channel slot availability and power supply. Requires BVSU option in telephone. Speaker OCA is not available on IPT1020-SD telephones.
6. Up to 100 Station SD numbers, allocated in increments of 10, can be programmed per station.
1
CTX100 Base &
Expansion
8 8 8 4 8 16
72 120 120
5 10 32 4 4 4 1 1 1
1080 2400 5600
800 800 800
1 1 1 1 1 1
16 16 16
135 300 1000
1 1 1
CTX670
Basic Processor
BBCU + BECU
CTX670 Expanded
Processor
BBCU + BECU + BEXS + BBMS
Strata CTX General Description 06/03 15
Capacities

CTX100 Maximum Capacity Configuration Examples

CTX100 Maximum Capacity Configuration Examples
Table 8 CTX100 Base Cabinet with Digital Telephones and Loop Start Line With or Without Caller ID
4 Universal Slots
40 Stations (Max.)
24 CO lines (Max.)
44 Stations + Analog loop start lines combined (Max.)
Stations Analog loop start lines
40 4 (none can have Caller ID) 32 8 (all can have Caller ID) 32 16 (none can have Caller ID) 16 16 (8 can have Caller ID)
1
24
1. Using ADKU.
Table 9 CTX100 Base and Expansion Cabinet with Analog Loop Start Lines
8 (none can have Caller ID)
8 Universal Slots 72 Stations (Max.) 56 CO lines (Max.)
92 Stations + Analog Loop Start Lines combined (Max.)
Stations Analog loop start lines
72 20 (none can have Caller ID) 72 16 (8 can have Caller ID) 64 32 (none can have Caller ID) 64 24 (8 can have Caller ID) 64 16 (all can have Caller ID) 48 40 (none can have Caller ID) 48 32 (8 can have Caller ID) 48 24 (16 can have Caller ID) 32 48 (none can have Caller ID) 32 40 (8 can have Caller ID) 32 32(16 can have Caller ID) 32 24 (24 can have Caller ID) 16 32 (24 can have Caller ID)
Table 10 CTX100 Base Only: Digital Telephones and T1 and/or PRI lines
4 Universal Slots 40 Stations (Max.)
48 lines (Max.)
64 Stations + T1 and/or PRI lines combined (Max.)
Stations T1 and/or PRI lines
40 24/23 32 40/40 16 48/46
16 Strata CTX General Description 06/03
CTX100 Maximum Capacity Configuration Examples
Table 11 CTX100 Base and Expansion Digital Telephones and with T1 and/or PRI lines
8 Universal Slots 72 Stations (Max.)
64 lines (Max.)
112 Stations + T1 and/or PRI lines
combined (Max.)
Stations
T1 and/or PRI lines1
72 40/40 64 48/48 56 56/48 48 64/48
1. PRI lines are limited to 48B channels.
Table 12 CTX100 Base Cabinet Only with Analog Tie, DID and /or Ground Start Lines
4 Universal Slots 40 Stations (Max.) 16 CO lines (Max.)
40 Stations + Analog Tie, DID, Ground Start Lines
combined (Max.)
Stations Analog Tie, DID, and/or Ground Start Lines
40 4 line (Ground Start only) 32 8 lines (4 Tie/DID max.). 24 8 line any type 16 12 line any type
0 16 line any type
Capacities
Table 13 CTX100 Base and Expansion Cabinet with Analog Tie, DID and/or Ground Start Lines
8 Universal Slots 72 Stations (Max.) 32 CO lines (Max.)
80 Stations + Analog Tie, DID and/ or Grou nd Sta rt Lines
combined (Max.)
Stations Analog Tie, DID, and/or Ground Start Lines
72 12 lines (4 Tie/DID max.) 64 16 lines (8 Tie/DID max.) 56 16 lines (12 Tie/DID max.) 48 16 lines any type 48 20 lines (16 Tie/DID max.) 32 24 lines any type 16 28 lines any type
Strata CTX General Description 06/03 17
Capacities
CTX100 Maximum Capacity Configuration Examples
18 Strata CTX General Description 06/03
Universal Slot PCBs 4
Universal Printed Circuit Boards (P CBs) install ed in the Strata C TX100 or CTX670 cabine ts provide interfaces for stations, lines, and peripherals. Each PCB measures 7.5 x 5.5 inches (190 x 140 mm) and mounts in the slot with a 44-pin backplane connector. PCB external connections to station equipment are made to the Main Distribution Frame (MDF) using industry-standard connectors.

Station, Line and Option PCBs

The PCBs are categorized as station, CO line or option PCBs (see Tables 14~16). Feature subassemblies that plug onto a universal slot PCB, such as the Standard Telephone Interface Subassembly (RSTS), are listed below the associated PCB. For further details, refer to the Strata CTX I&M Manual.
Table 14 Station PCBs
Digital Telephone Interface Unit (ADKU) (CTX100 only)
Provides eight circuits for 3000 and/or 2000-series digital telephones.
Standard Telephone Interface Unit (ASTU) (CTX100 only)
Provides two standard telephone circuits. Maximum number of r ingers per circuit is three
Digital Telephone Interface Unit (BDKU)
Provides eight circuits for 3000 and/or 2000-series digital telephones (BDKU) + eight more with BDKS (optional).
Digital Telephone Interface Subassembly (BDKS) Interface Options: Same as BDKU. Not compatible Provides eight additio nal ci rcuits for 3000 and/or 2 000-
series digital telephones. Attaches to BDKU. One per BDKU. Do not use BDKS for Speaker OCA telephones, except in slot 103 of the CTX100.
Interface Options: Provides the same interfac e optio ns as the BDKU (see below), but does not support BDKS. Compatible only with CTX100.
Interface Options:
Standard telephones (no message waiting) Other single-line devices Alternate BGM source Fax machines Voice ma il d evices
Interface Options: Digital telephones (with or without BHEU, BPCI, BVSU, DADMs, or digital cordless telephone). Supports BDKS.
Stand-alone digital cordless telephone DDSS console BATI DDCB Supports large LCD (DKT3014) features.
with ADKU or PDKU.
Strata CTX General Description 06/03 19
Universal Slot PCBs
Station, Line and Option PCBs
Table 14 Station PCBs (continued)
Digital Telephone Interface Unit (PDKU2)
Provides eight digital telephone circuits. (2000-series phones only. Do not use the PDKU for 3000-series digital telephones. With 3000-series DKTs, the LCD display is only 16 characters wide and the button will not work.
Internet Protocol Telephone (IPT) Interface Unit (BIPU-M1A, BIPU-M2A)
Provides 16 IPT telephone circuits One 100Base-TX RJ45 port Built-in Digital Signal Processor (DSP) (BIPS1A-16) One RS-232 maintenance port Network Address Translation (NAT) co mpatible for
remote IP telephones (BIPU-M2A) Enhanced version of MEGACO+ for Voice over IP MEGACO+ mobility for Mobility Communi cat ion s
System (MCS) Roaming (BIPU-M2A)
Digital/Standard Telephone Interface Unit (RDSU)
Without RSTS, provides: Two standard telephone/ Four digital telephone circuits (2000-series phones only).
With RSTS, provides: Four standard telephone/ Four digital telephone circuits (2000-series phones only).
Standard Telephone Interface Unit (RSTU3)
Provides eight standar d telep hone ci rcuits . Stutter d ial tone is provided for Message Waiting audible indication.
Standard Telephone Subassembly (RSTS)
Attaches to RDSU. Provides two additional standard telephone circuits. One maximum per RDSU.
-48 Volt Supply Internal Option (R48S)
Attaches to RSTU and RDSU 48VDC circuit for up to eight standard telephone
circuits.
Stratagy DK
Provides two, four, six, or eight VM ports. All of the above Stratagy DK sy stems use eight stati on
ports of Strata CTX capacity.
6SGLDO
Interface Options: Digital telephones (with or without BHEU or HHEU, DVSU, DADMs, or digital cordless telephone)
Stand-alone digital cordless telephone DDSS console DDCB Does not support DKT3014-SDL features.
Interface Options: LAN, Virtual Private Network (VPN) Internet, VPN WAN, Intranet.
Interface Options: Digital – same as PDKU. Standard – same as RSTU (standard Message Waiting not available)
Interface Options: Standard telephones Voice ma il p orts Off-premises stations Other similar devices Alternate BGM source Auto Attendant digital announcer Message Waiting lamp Fax machines ACD announcer
Interface Options: Same as RSTU, excep t no Messag e Waiting lamp.
Interface Options: Optionally interfaces to the RSTU and RDSU to extend loop length of stan dard tel ephone s from 600 ohms to 1200 ohms. Required for OPS operation.
20 Strata CTX General Description 06/03
Table 15 CO Line PCBs
Strata Net Over VoIP Interface Unit (BIPU-Q1A)
Provides 16 IP QSIG channels One 100Base-TX RJ45 port
Interface Options: LAN, Virtual Private Network (VPN) Internet, VPN WAN, Intranet.
One RS-232 maintenance port QSIG over IP standard protocol (ECMA-336) Voice coding G.711/G.729A Built-in Digital Signal Processor (DSP) (BIPS1A-16) NAT compatible
Internet Protocol (IP) Interface Unit (BVPU)
Provides four VoIP Circuits as E&M Tie lines
Interface Options: LAN, Internet, WAN. One 10Base-T port One RS-232 maintenance port H.323 standard for Voice over Internet Protocol (VoIP)
Caller ID Interface Unit (RCIU2)
Provides four Caller ID circuits. With RCIS: eight circuits.
Interface Options:
Provides Caller ID LCD disp lay for analo g loop or groun d
start lines with Caller ID. Requires: RCOU, RCOS,
RGLU2, RGLU3 or PCOU. Not compatible with T1.
Caller ID Interface Subassembly (RCIS)
Same as RCIU2. Attaches to the RCIU2.
Direct Inward Dialing Interface Unit (RDDU)
Provides four DID circuits. Interface Options:
DID analog lines.
Enhanced 911 CAMA Trunk Interface Unit (RMCU/RCMS)
E911 CAMA circuits. Provides up to four CAMA trunk
E911 analog CAMA trunks. circuits. The RMCU/RCMS eliminates the need for connection of adjunct terminal adapter equipment to E911 CAMA trunks.
Requires one or two RCMS PCBs for two or four CAMA lines respectively.
CAMA Trunk Subassembly (RCMS)
Same as RMCU. RCMS attaches to RMCU. Provides two E911 CAMA
circuits. Up to two RCMSs per RMCU for four CAMA lines max.
(One RCMS comes packaged with the RMCU.)
Ground/Loop Start Interface CO Line Interface Unit (RGLU2, RGLU3)
Provides four ground or loop start line circuits. Each can be individually set for ground or loop start
Interface Options:
Analog loop or ground start analog lines. operation.
ISDN S/T-type Basic Rate Interface Unit (RBSU)
Two ISDN BRI S/T point circuits (NT or TE). Each
Interface Options: Netw ork and /or sta tio n side . circuit is 2B+1D. (Host for the RBSS.)
Basic Rate Interface Subassembly (RBSS)
Interface Options: Station side only.
Attaches to RBSU. One RBSS subassembly per RBSU.
Two ISDN BRI, S point circuits (2B+D each).
Universal Slot PCBs
Station, Line and Option PCBs
Strata CTX General Description 06/03 21
Universal Slot PCBs
Station, Line and Option PCBs
Table 15 CO Line PCBs (continued)
ISDN U-type Basic Rate Interface Unit (RBUU)
Provides two ISDN BRI, U point circuits (2B+D each). Host for the RBUS.
Basic Rate Interface Subassembly (RBUS)
Attaches to RBUU. One RBUS subassembly per RBUU.
Two ISDN BRI, U point circuits (2B+D each) subassembly for the RBUU.
ISDN Primary Rate Interface Unit (RPTU)
Provides (1~8B + D), (1~16B + D), or (1~23B + D) channels (lines), depends on system programming.
RPTU2 is required for QSIG Networking.
Loop Start CO Line Interface Unit (RCOU)
Provides four CO analog loop start line circuits. With RCOS, provides eight CO analog loop start line
circuits.
Loop Start CO Line Interface Subassembly (RCOS)
Provides four additional Loop Start CO lines. One RCOS subassembly per RCOU.
T1/DS-1 Interface Unit (RDTU)
Provides T1 (DS1) Interface: 1~8, 1~16, or 1~24 channels (lines), depends on system programming.
Remote Expansion Cabinet Unit (RRCU)
Supports two CTX670 Remote Cabinets. 62.5 mµ, multi-mode fiber.
Tie Line Unit (REMU2) Provides four analog Tie line circuits. Interface Options:
Interface Options: Network and/or station side . Network
side requires a dealer-supplied NT1 interface.
Interface Options: Netw ork and /or sta tio n side .
Interface Options:
ISDN PRI
POTS
FX
Tie (senderized)
Tie (cut through)
OUTWATS (intra-LATA)
OUTWATS (inter-LATA)
InWATS
QSIG
Interface Options:
CO analog loop start lines
Same as RCOU.
Interface Options:
T1
Loop start lines
Ground start lines
Tie lines (wink or immediate)
DID/DOD lines (wink or immediate)
Remote Cabinet not supported by main system reserve
power.
E&M Tie lines
Two- or four-wire transmission
Type I signaling
Type II signaling
Immediate start
Wink start
Table 16 Option PCBs
Option Interface Unit (BIOU) Interface Options: Provides Paging output (600 ohm
and three-watt amp), four zone paging relays, three
MOH interfaces and four control relays (Night Transfer
and BGM mute).
22 Strata CTX General Description 06/03

Functional Block Diagrams

The Functional Block Diagrams show the PCBs and interface connectors used for connecting the stations and peripherals (see Figures 6~9).
SMDR Call Accounting
Stratagy ES Voice Mail
For iES32/IVP8 VM port connection, see Figure 9.
Remote CTX WinAdmin PC
ACD (CSTA)
Local CTX WinAdmin
Amplified Page Output (3 Watts)
Music Source: External Zone Page Background Music
Door Lock Control Relay
Night Bell Control Relay
External Zone Page Relays (4 Zones)
SMDI or Toshiba Proprietary Integration
Toshiba Proprietary Soft Key LCD Link
Internet
MOH/BGM Jack +Volume Control
25 Pair
Hub
or
LAN
MOH/BGM RCA Jacks
Up to Four Programmable Serial (RS-232) Port Modular Jacks Available
ACTU
(Optional)
RJ45
Ethernet Interface
Relay Contact (Programmable)
RCA Jack (600 ohm Page Output)
Processor PCB
1
BSIS
1
AMDS
Remote Maintenance Modem
DTMF/ABR Receivers
License
Interface PCB
BIOU
(one or two per system)
Relay Contacts
MOH/BGM Volume Controls
1
Functional Block Diagrams
Conference SW with PAD
Smart Media Maintenance and Customer
2
Database
ASTU
Virtual slot 09
For ASTU port connection, see Figure 9.
Universal Slot PCBs
Data and Speech Highway
External Page Amplifier (600 ohm Output)
BGM Mute Control Relay
Night Control Relay
Main Distribution Frame (MDF)
APSU112
Cabinet Power Supply
1
ABCS Battery Charger
12V Battery
12V Battery
(2 or 4 Batteries)
ABTC - 3m Cable
1
Notes
Music Source 1: Background Music and/or Music-on-hold
Music Source 2: Background Music and/or Music-on-hold
Music Source 3: Background Music and/or Music-on-hold
1. Optional.
2. License Control. On this page, all equipment, except Stratagy ES,
connected to the system processor PCBs and BIOU PCB is customer-supplied.
6752
Figure 6 CTX100 System Processor and Option Interface PCBs
Strata CTX General Description 06/03 23
Universal Slot PCBs
Functional Block Diagrams
SMDR Call Accounting
Up to Four Programmable Serial (RS-232) Port Modular Jacks Available
BECU
Processor PCB
Stratagy ES Voice Mail
For iES32/IVP8 VM port connection, see Figure 9.
Remote CTX WinAdmin PC
ACD (CSTA)
Attendant Console (see
Figure 9 for
BATI connection)
Amplified Page Output (3 Watts)
Music Source: External Zone Page Background Music
Door Lock Control Relay
Night Bell Control Relay
SMDI and Stratagy ES Integration
Toshiba Proprietary Soft Key LCD Link
Internet
Local CTX WinAdmin
MOH/BGM Jack +Volume Control
25 Pair
Hub
or
LAN
MOH/BGM RCA Jacks
BSIS
(Optional)
Remote Maintenance Modem (Built-In)
DTMF/ABR Receivers( Built-In )
BBCU
RJ45
Ethernet Interface
DTMF/ABR Receivers ( Built-In )
Interface PCB
BIOU
Relay Contacts, Page Output
MOH/BGM Volume Controls
BPSU672
Battery Charger
Processor PCB
License
3
Cabinet Power Supply
Conference SW with PAD
BEXS
Expansion Module
BBMS
Expansion Memory
Smart Media Maintenance and Customer
2
Database
12V Battery
12V Battery
(2 or 4 Batteries)
1
1
Data and Speech Highway
External Zone Page Relays (4 Zones)
External Page Amplifier (600 ohm Output)
BGM Mute Control Relay
Notes
1. Not required for one to two cabinets. Required for three or more cabinets.
Night Control Relay
Music Source 1: Background Music and/or Music-on-hold
Music Source 2: Background Music and/or Music-on-hold
Music Source 3: Background Music and/or Music-on-hold
Main Distribution Frame (MDF)
2. Optional. See description of License Control earlier in this chapter.
3. Optional one or two per system.
On this page, all equipment, except Stratagy ES, connected to the system processor PCBs and
BIOU PCB is customer-supplied.
Figure 7 CTX670 System Processor and Optional Interface PCBs
5413
24 Strata CTX General Description 06/03
Universal Slot PCBs
p
Functional Block Diagrams
Remote Location(s)
Page ScrollMode Feature
Msg
Spdial
Vol
Mic Redial
Cnf/Trn
Spkr
Hold
IP Telephone
Remote
Location(s)
Digital
Telephone
CTX / DK
BVPU
Page ScrollMode Feature
Msg
Spdial
Vol
Mic Redial
Cnf/Trn
Spkr
Hold
Central Office Centrex PBX Common Carrier Other Telephone System E911 Public Safety Answer Point (PSAP) Priviate Networking Lines
With or without
VPN Router
or Server
Remote Node(s)
MCK
EXTender
Remote Location(s)
Network
Demarcation
Point
4
CTX
BIPU-Q1A
IP Network
MDF
Secondary Protectors
Cabinets
Optical Fiber Cable
3 km/(1.86 mi.)
IP Network
With or without
VPN Router
IP Network
10Base-T
IP Network
(Two 4-Wire Modular Jacks)
(Two 4-Wire Modular Jacks)
(Two 4-Wire Modular Jacks)
(Two 4-Wire Modular Jacks)
1
(Two 4-Wire Modular Jacks)
(Two 4-Wire Modular Jacks)
2
(REMU, Four 8-Wire Modular Jacks)
or Server
100Base-TX
MCK
Gateway
RRCU
Remote Cabinet Interface Card
BIPU-M2A
BIPU-Q2A
Strata Net QSIG Over IP Unit
BVPU
Voice Over IP Unit (4 Circuits)
BDKU/BDKS or PDKU
(CTX100 & CTX670) or
(CTX100 only)
ADKU
4 Caller ID Circuits
RCIU2
4 Caller ID Circuits
RCIS
RCOU3
4 Loop Start Co Lines (Analog)
RCOS
(Optional PCB on RCOU Only):
4 Loop Start CO Lines (Analog)
RGLU2, RGLU3
4 Loop or Ground Start CO Lines (Analog)
4 DID CO Lines (Analog)
RDDU
REMU
4 E&M Tie Lines (Analog)
Data and Speech Highway
25-pair Amphenol
TOSHIBA NDTU Cable
DB15
Channel Service Unit (CSU)
CAMA Line (2-wire Modular Jacks)
CAMA Line (2-wire Modular Jacks)
2
RDTU2 or RDTU3
• 2T1 / DS1(24 Channels / Lines)
• Loop Start, Ground Start, Tie, DID
• Digital Voice Lines
PLL Synchronization Circuits
RMCU
RCMS 2 Trunk Circuits
RCMS 2 Trunk Circuits
Toshiba RPRI-CBL-KIT
BPTU1 or RPTU1 or 2
RBSU
RBUU
RBUS
2 Circuits (NT-1) Voice/Data (2B+D)
1. RCIU2/RCIS tip/ring cross connected to RCOU, RCOS, or RGLU tip/ring at MDF.
2. Customer-supplied equipment.
3. U, S, T, R, are ISDN reference model termination points.
4. RPTU2 is required for QSIG Networking.
NT1 per circuit
3
U
3
U
3
U
Channel Service Unit (CSU)
2
3
T
2
8-wire Modular Jacks
8-wire Modular Jacks
8-wire Modular Jacks
8-wire Modular Jacks
Figure 8 CTX100 and CTX670 CO Line Side Functional Block Diagram
Trunk Circuits for E911
ISDN PRI (23B+1D channels) Digital Voice/Data QSIG networks (RPTU2)
ISDN BRI (S/T) 2 Circuits (TE) Voice/Data (2B+D)
ISDN BRI (U) 2 Circuits (NT-1 ) Voice/Data (2B+D)
ISDN BRI (U)
4
6739
Strata CTX General Description 06/03 25
Universal Slot PCBs
Functional Block Diagrams
BDKU
8 Digital Telephone Circuits and
BDKU/BDKS
16 Digital Telephone Circuits
ADKU
8 Digital Telephone Circuits (max).
(CTX100 only)
PDKU2
8 Digital Telephone Circuits
RDSU
4 Digital Telephone Circuits 2 Standard Telephone Circuits
RSTS
(Option PCB) 2 Standard Telephone Circuits
iES32
4~32 Voice Mail Circuits (Programmable)
IVP8
Data and Speech Highway
2~8 Voice Mail Circuits (Programmable)
ASTU (CTX100 only)
2 Standard Telephone Circuits
RSTU3/BSTU
8 Standard Telephone Circuits
RBSU
2B+1D/Circuit (2-NT Circuits)
RBUU
2B+1D/Circuit (2-LT Circuits)
Digital Telephone (DKT) and Add-on Module
BATI
Digital Telephone with BPCI-DI
4
1 Pair Modular Cord
4
Transformer
4
R48S
(Option PCB, RDSU/RSTU3 Only) -48 Volt Loop Supply
VM Ports
Msg
Spdial
Mic Redial
Cnf/Trn
Spkr
Connects audio path to Attd Console Handset
Page ScrollMode Feature
Msg
Spdial
Vol
Mic Redial
Cnf/Trn
Spkr
Hold
Music on-hold source (up to 8)
Stratagy ES Voice Mail
RS-232 Cables
Page ScrollMode Feature
Vol
Hold
4
RS-232 Cable
Cordless DKT
1
TAPI PC
Page ScrollMode Feature
Msg
Spdial
Vol
Mic Redial
Cnf/Trn
Spkr
Hold
Page ScrollMode Feature
Digital Telephone
Msg
Spdial
Vol
Mic Redial
Cnf/Trn
Spkr
Hold
Standard Telephone
Digital Single Line Telephone (DKT)
DDCB
MDFB
Door Phones and Lock Controls
Digital Telephone with DSS Console
1
PC
Modem
Auto Attendant
(Dealer supplied)
1
1-pair Modular Cords
2
R48S
(Option PCB, RDSU/RSTU3 Only) -48 Volt Loop Supply
RBSS
2B+1D/Circuit (2-NT Circuits)
RBUS
2B+1D/Circuit (2-LT Circuits)
DPFT
Power Failure Transfer Unit
Secondary Protector
3
S
3
S
3
U
3
U
TA
Fax
Power Failure Standard Telephone (8 max.)
Off-premises Station
3
R
ISDN Telephone (TE-1, S-Type)
ISDN Telephone (TE-1, U-Type)
COM Port
1
1
1
1
PC
PC with Video Card (TE-1, U-Type)
6743
1. Customer-supplied equipment.
2. RSTU2 or above is required for standard telephone message waiting lamp.
Modular Jacks
Main Distribution Frame (MDF)
3. U, S, T, R are ISDN reference model termination points.
4. PDKU and RDSU should only be used for 2000-series digital telephones. They do not support all of the 3000-series digital telephone features, including LCD. The PDKU also does not support BPCI, BATI and the CTX Attendant Console.
Figure 9 CTX100 and CTX670 Station Side Functional Block Diagram
26 Strata CTX General Description 06/03
Telephones and Peripherals 5
This chapter covers the Toshiba 3000-series digital telephones, Internet Protocol Telephones (IPTs), and peripherals that are compatible with Strata CTX BDKU telephone interface circuit card. The IPT1020-SD and the 3000-series telephones have a number of enhanced features, including:
Fixed Speed Dial (6SGLDO) button
Four Soft Keys, located below the LCD to respond to the Strata CTX feature prompts
Wide 24-character x two-line 10- and 20-button LCD on the two-line LCD models
24-character x eight-line large LCD model, which offers an adjustable tilt-screen for easy viewing. Comes with 16 Soft Keys located on the sides of the large LCD to respond to the Strata CTX feature prompts
Additional feature adjustments, such as setting button beeps, room noise sensitivity and handset busy override tone
Optional t ilt stand to adjust the angle of the telephone on the desktop
The Strata CTX also supports the DKT2000- and DKT1000-series telephones; however, these earlier models do not support all of the features that are available to the 3000-series telephones. The Strata CTX does not support electronic telephones.
For more information on station and peripheral specifications, refer to the Appendix.
Strata CTX General Description 06/03 27
Telephones and Peripherals

DKT3000-series and IP Telephones

DKT3000-series and IP Telephones
The Strata CTX supports the Toshiba 3000-series digital telephones and IPT1020-SD IP telephones, which of fer station users a numbe r of usefu l features t hat are e asy to a ccess (se e Figure
10 and photos on the next page).
LCD Display
Handset
Red/Green LED Indicators
Dial Pad
6753
Page ScrollMode Feature
Q
Msg
Spdial
Cnf/Trn
Vol
Hold
Mic Redial
Spkr
Fixed Buttons
LCD Control Buttons/ Soft Keys
"StrataIP" appears on IP telephones
Z
Flexible Buttons (also known as Programmable Buttons - PB)
Microphone Location
Msg
Mic
Spkr
Spdial
Redial
Cnf/Trn
Vol
Hold
Calls the station or voice mail device that left the message. Message LED flashes when the station has a message in Voice Mail or from another station. Also functions as a toggle switch to talk back to a handset OCA caller.
Turns off the microphone during speakerphone operation for private office conversations. Also used to talk back to a handset OCA caller.
Turns speaker on and mutes handset microphone for group listening. Also disconnects on-hook dialing calls and is used to toggle the telephone between handset and speakerphone operation.
Used to Dial Speed Dial numbers.
Redials last number dialed from the station.
Set up Conferences or Transfers calls.
Controls handset, speaker, and ring volumes.
Places internal [DN] and outside calls on hold or Exclusive Hold.
Figure 10 3000-Series Digital Telephone and IPT1020-SD Buttons and Features
28 Strata CTX General Description 06/03
Telephones and Peripherals
DKT3000-series and IP Telephones
The 3000-series telephon es pr ovide a number of useful features including:
Four or 12 Soft Keys for responding to extensive feature prompts.
Flexible buttons – customized for each telephone to provide Directory Number, line and feature buttons.
Hot Dialing – as soon as any dial pad button is pressed, a CO line or PDN is automatically selected to originate a call.
Adjustable button beeps, room noise sensitivity and the ability to turn handset call waiting tone On or Off.
The 3000-series digital telephones are available in charcoal g ray or ash white. Five 3000-series mode ls are s hown bel ow. The DKT3001 is shown on page 31.
DKT3010-SD
10-Button Digital LCD Speakerphone
DKT3014-SDL
14-Button Digital Large LCD Speakerphone
DKT3020-SD
20-Button Digital LCD Speakerphone
DKT3010-S
10-Button Digital Speakerphone
Strata CTX General Description 06/03 29
DKT3020-S
20-button Digital Speakerphone
Telephones and Peripherals
DKT3000-series and IP Telephones

Liquid Crystal Display (LCD) Models

The DKT3010-SD and DKT3020-SD models display up to 24 characters x two lines of information and provide four Soft Keys.
The DKT3014-SDL has 12 Soft Keys and a 24-character by eight-line LCD that can be tilted to various levels for optimum viewing. From the idle screen (see Figure 11), you can access telephone directories and speed dial lists of names or departments, internal or external to the telephone system. You can page forward or backward, or search by name or letter within a list.
Feature
Scroll
Direct Station Selection
Scrolling Directories
Search by Initials
Figure 11 DKT3014-SDL LCD Screen
System Speed Dial
Personal Speed Dial
Direct Station Selection System Speed Dial
Soft Keys
Mode
FRED S NO. 3371
Page
FEB 19 MONDAY 12:00
DIRECT SS
SYSTEM SD
PERSONAL SD
EXTERNAL DIR
INTERNAL DIR
All LCD telephone models can provide:
Advisory Messages
Automatic N umber Identification (ANI)
Caller ID, Name and Number with call history
Contrast adjustment (16 levels)
Date/Time of Day
Dialed Number Identif i cation Serv ice (DNIS Name and Numb er)
5860
Feature Prompting Soft Keys that are used as an alternative to access codes or feature buttons. Station users can access features by responding to LCD prompts.

Speakerphones

All DKT3000-series phones, except the DKT3001, are speakerphones which provide the following:
Handsfree Call Origination – Enables users to place calls , li st en a nd talk back without lifti ng the handset.
Handsfree An swerback – Enables users to answer in ternal calls without lift ing the handset.
Speaker OCA – Enables users to receive a call over the telephone speaker when busy on an existing handset call. This feature is not available on the IPT1020-SD.
The DKT2020-FDSP (Full-duplex speakerphone) enables handsfree speakerphone use with the option to switch between “full-duplex” (concurrent speech) and “voice switch” (alternating conversation between telephones). It also works with an optional, external, super-directional microphone (RFDM) for enhanced full duplex performance.
30 Strata CTX General Description 06/03

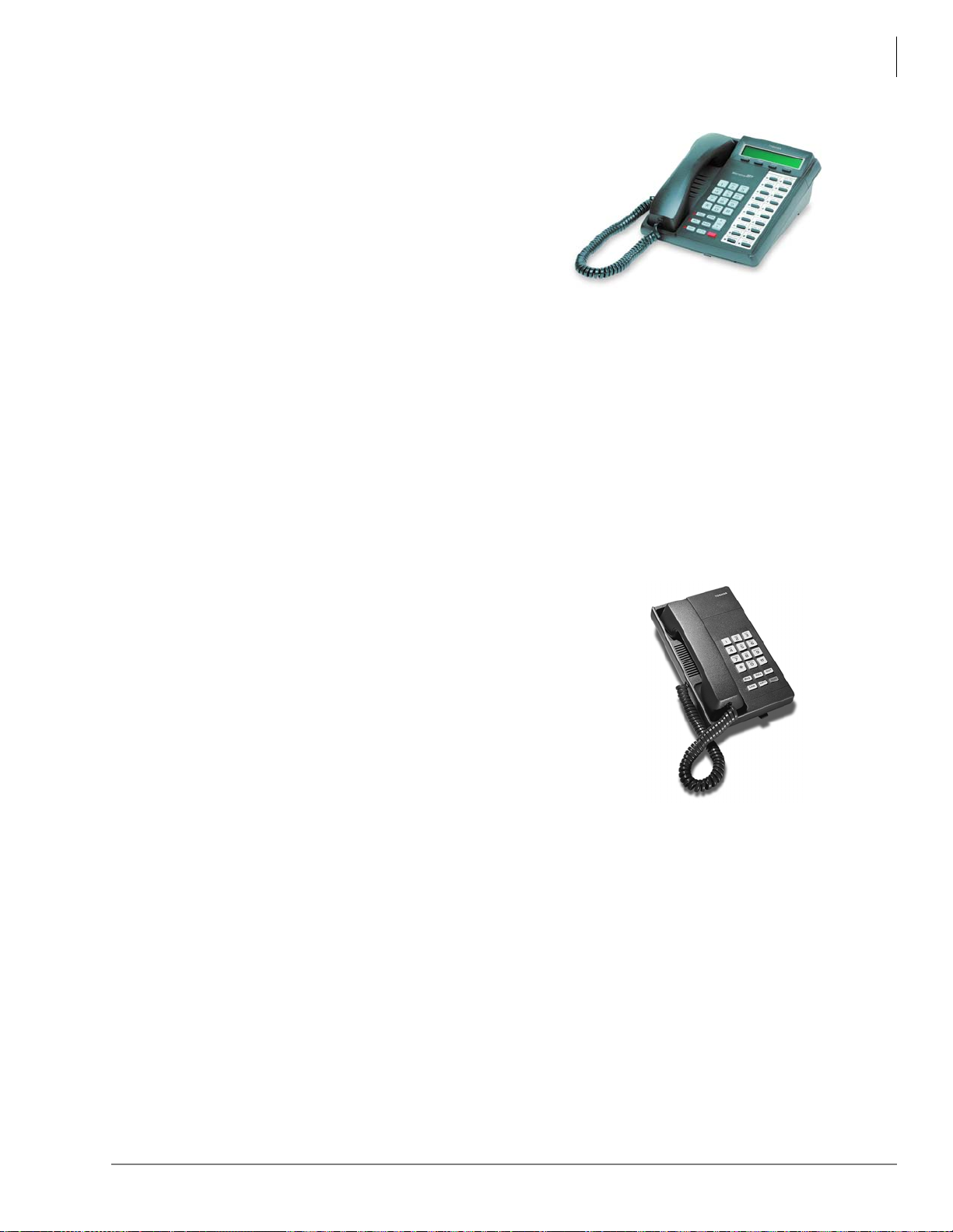

IP Telephone

Toshiba offers an Internet Protocol (IP) Telephone model, the IPT1020-SD (shown right). The BIPU-M2A PCB IP telephone interface must be installed in the Strata CTX100 or CTX670 (for more details, see “IP
Telephone Features” on page 62).
The IPT1020-SD is a 20-button speakerphone model equipped with an LCD that displays two rows of 24­characters. The speaker phone enables users to make and receive outside and internal calls without lifting the handset. A full-duplex speakerphone is not supported.
The IPT has the following features:
Full DKT feature set (except Speaker OCA), but supports OCA through the handset
IPT Anywhere
Automatic Confi guration
Terminal Authentication (secu rity)
Telephones and Peripherals
IP Telephone
6742
Supports Digital Add-on Modules (DADM3120)
Built-in headset interface for headsets and external speaker connection (HESB)

DKT3001

The DKT3001 is a Digital Single Line Telephone (shown right). It looks similar to the other 300 0-s eri es telephone, but it has a smaller footprint. It is narrower because there are no flexible buttons and no LCD.
DKT3001 is not a speakerphone and does not have a 0LF button, so it does not support handsfree answerback or call origination.
The DKT3001 connects to same digital station port as other 3000-series digital telephones. Th is makes it compatible wi th all Strata CTX and Strata DK sy stems.
Features
The DKT3001 supports many features of the other 3000-series digital telephones, including:
On-hook dialing
Headset/Loud Ringer Interface (BHEU)
Line button with a red LED. The Line button for the DKT3001 is the [PDN] on this telephone.
+ROG button
&QI7UQ (conference/transfer) button
)OH[ button (used for Redial or can be programmed as a Flexible button)
0VJ button (used for retrieving messages or can be programmed as a Flexible button)
Message Waiting LED
Volume Up/Volume Down button
3532
Strata CTX General Description 06/03 31
Telephones and Peripherals
DKT3001
Handset Off-hook Call Announce (OCA)
Most DKT features through dialed feature access codes
The DKT3001 has many additional feature advantages over standard, analog telephones:
Automatic Line Selection
Background Music with station control
Off-hook Call Announce over handset
Exclusive Hold
The DKT3001 does not support Handsfree Answerback, Speaker OCA, Add-on module (DADM3020) or PC Interf ace Unit (BPCI).

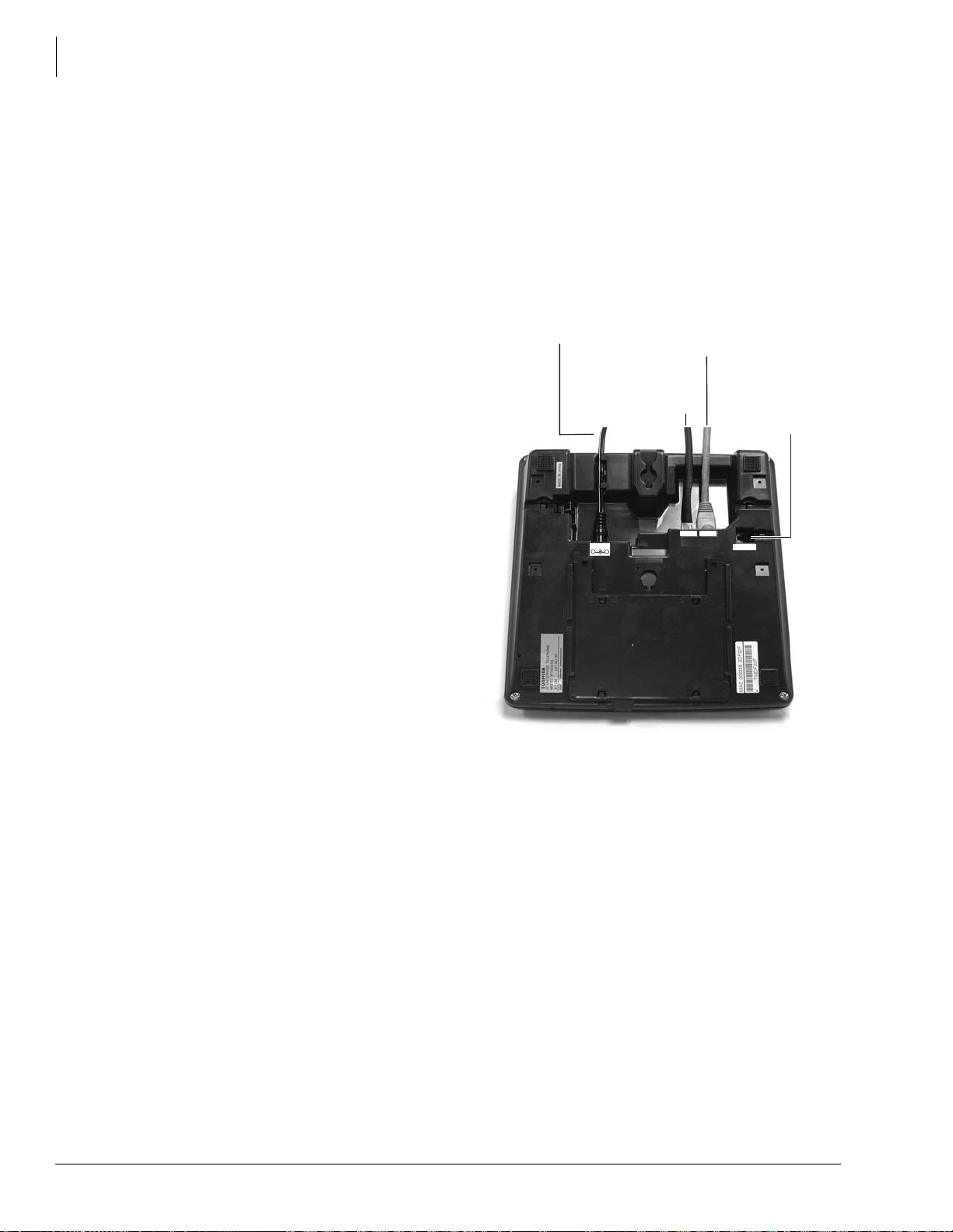

Tilt Stands

Two models of desktop telephone tilt stands are available. The BTSD telephone tilt stand attaches to the base of any 3000-
or 2000-series telephone, IPT1020-SD or DSS console. The BST A tilt stands support 3000 -series di gital teleph ones and
IP T tel ephone s with o ne or t wo Add-on modules. Bo th types o f tilt stands can adjust to four different angles.
5864
32 Strata CTX General Description 06/03

Telephone Upgrade Options

Upgrade options for the Toshiba 3000-series digital telephones and IP telephones are described below.

Digital Add-on Modules (DADM3120, DADM302 0)

The DADM3120 adds 20 feature buttons to the IPT1020-SD or the DKT3000-series telephones.
The DADM3020 (shown right) adds 20 feature buttons to DKT3000-series telephones only.
Both the DADM3120 and the DADM3020 provide the same functions, but they are not interchangeable.
Both the DADM3120 and the DADM3020 have 20 flexible feature buttons that can be assigned as CO line, Directory Number, DSS, One Touch Speed Dial or any other flexible feature.
Telephones and Peripherals
Telephone Upgrade Options
Add-on modules connect directly to the telephones and do not require an additional interface circuit (port).
Up to two DADMs can be attached to a telephone to provide 40 buttons to supplement the telephone’s 10 or 20 buttons.
The CTX supports a limited number of DADMs per cabinet (see Table 4 on page 11 for the capacities of different common control units).
Telephones with Add-on modules cannot support the Integrated PC Interface (BPCI).

Direct Station Selection (D SS) Console

The DDSS3060 console (shown right) is for system attendants.
The DDSS3060 operates alongside a digital telephone and have 60 flexible feature buttons. These flexible feature buttons can be ass igned as CO line, Di rectory Numbe r , DSS, One Touch Speed Dial or any other flexible feature. The DDSS3060 is not compatible with the IPT1020-SD.
Up to eight consoles can operate with one digital telephone; 16 consoles max. per system.
The DDSS3060 console uses LEDs to indicate call and feature status; the DDSS has dual red and green LEDs to help further define status, s uch as sta tion in DND stat us. The DDSS3060 console connects to a digital station port on the ADKU, BDKU, BDKS or PDKU card.
5843
5842
Strata CTX General Description 06/03 33
Telephones and Peripherals
Telephone Upgrade Options

Integrated PC Interface (BPCI)

An optional BPCI can be installed inside any 3000-series telephone to provide a USB connection to a PC with Micr osoft applications.
Information such as ANI, DNIS, and Caller ID data is sent from the digital telephone/BPCI to a computer to provide information for “pop-up” screens. The Telephone Service Provider Interface (TSPI) PC software is included with each BPCI.
The BPCI also enables simultaneous Computer Telephone Integration (CTI) and voice features, without the need of a modem or an extra outgoing line.
The PC Interface (BPCI) c annot b e inst alle d in digit al pho nes sha red wit h the Cor dless DKT-2004­CT telephone, DKT3001 single line telephones, or telephones that have Speaker OCA Interface (BVSU) or Add-on modules.
®
Windows® Telephony Application Programming Interface (TAPI)

Headset/Ringer Interface (BHEU)

The BHEU provides interfaces for both a headset and a loud ringing speaker for DKT3000-series telephones. The optionally used amplifier in the BHEU enables users to adjust the headset volume with the volume button on their telephone.
With the loud amplified speaker feature, the speaker amplifies the ringing or voice announcement of an incoming call. The HESB speaker box is required for the loud ringing speaker and is normally mounted on a wall near the telephone.
BHEU can be installed in the same telephone that has BPCI or BVSU modules installed. The BHEU is not required on the IPT1020-SD telephone which has a built-in headset interface.

Speaker Off-hook Call Announce (BVSU)

BVSU-equipped digital telephones can receive Speaker OCA which enables stations to receive internal calls over their speaker while on another call using the handset. The BVSU is not required in a telephone to origina te OCA cal ls or in a digital telephone th at rece ives OCA calls through the handset or headset.
Speaker OCA Interface ( BVSU) cannot be installed in DKT30 01 t el eph ones or in telephones wit h a PC Interface (BPCI). The BVSU cannot be installed in the IPT1020-SD telephones. IPT1020­SDs do not support Speaker OCA, but they do support Handset OCA.
34 Strata CTX General Description 06/03

Cordless Digital Telephones

Toshiba offers two cordless digital telephone models, the DKT2204-CT and the DKT2304-CT (see photos in this section). These compact cordless digital telephones bring mobility and productivity to office telephones. Greater call access cuts down on leaving messages and playing “telephone tag.”
The DKT2204-CT and DKT2304-CT telephones operate from the same digital station port as the DKT3000-series digital telephone. They cannot receive Group Pages or All Call Pages. They can be attached to a Toshiba DKT3000- or 2000-series corded digital telephone or used as a stand­alone. If a cordless telephone is attached to a DKT3000, the DKT3000 must be put into 2000­mode.
Some of the features for both cordless models include:
Liquid Crystal Display (LCD) that wraps using two lines, total of 32 characters
Ringer and handset volume control
Single button access to: Conference, Hold, Redial, Message and Transfer features
Four programmable function buttons
Charging stand
AutoStandby
AutoTalk
Vibrate ringer alert
Out-of-range protection
Low-battery protection system
Head set jack (2.5mm)
Stand-alone or DKT operation
High quality ultra-secure conversation with 32Kbps Adaptive Differential Pulse Code
Modulation (ADPCM) voice code combination.
Three ring tones
Telephones and Peripherals
Cordless Digital Telephones
Note The handset and base unit of each cordless telephone is equipped with the same security
code. In order for a handset to operate, it must be installed with the matching base unit.
A feature comparison of the DKT2204-CT and DKT2304-CT is provided in Table 17.
Table 17 DKT2204-CT and CTX DKT2304-CT Feature Comparison
Feature DKT2304-CT DKT2204-CT
Transmission 900 MHz Digi tal Narrow Band 900 MHz Digital Spread Spectrum Number of Channels 30 Channels 10 Channels
Talk Time 7 Hours 6 Hours Stand By Time 120 Hours 96 Hours Battery T ype NiMH Battery Ni-Cd Battery
Strata CTX General Description 06/03 35
Telephones and Peripherals
Cordless Digital Telephones

DKT2204-CT

The DKT2204-CT uses 900MHz Digital Spread Spectrum Technology, which offers unparalleled range and the best channel separation in the industry. It’s the best defense against unwanted interference and it provides superior voice communication security.
The DKT2204-CT provides:
Unsurpas sed range, two to three times greater than conventional analog cordless telephones.
Clarity that is so good, it is ind is ti ngui shable from corded telephones in most environments.
Maximum security for up to 10 cordles s digital t elephones that is almost impossible to scan.
A wall-mountable separate base and charging unit are provided with the telephone.
Handset measurements in inches: 2.2 wide x 1.66 deep x 8.66 tall. For base and charger measurements, see Table 31 on page 93.
Note The DKT2204-CT works with Strata CTX and Strata DK telephone systems (except Strata
DK24/56/96, Release 3).

DKT2304-CT

The CTX DKT2304-CT uses 900 MHz Digi ta l Narrow Band technology that provides:
Unsurpas sed range, two to three times greater than conventional analog cordless telephones.
Clarity that is so good, it is ind is ti ngui shable from corded telephones in most environments.
Maximum security for up to 30 cordles s digital t elephones that is almost impossible to scan.
This DKT2304-CT handset is much smaller than previous models. Measurement in inches: 2.0 wide x 1.25 deep x 5.5 tall. For base and charger measurements, see Table 31 on
page 93.
6828
6829
36 Strata CTX General Description 06/03

CTX Attendant Console

The Strata CTX Attendant Console runs on a PC with Microsoft® Windows® XP or 2000 operating systems. The Strata CTX Attendant Console PC requirements include:
Pentium III running at 500 mHz or better
256M RAM (Windows XP) or 128M RAM (Windows 2000)
500MB hard disk space
NIC interface for 10/100 B ase T
It connects to the Strata CTX processor via the LAN as a Customer Supported Telephony Application (CSTA). It also connects to a digital station port for the speech path. The console consists of the following items:
CTX Attendant Console software application (may be supplied on CD-ROM only or pre­installed, both options are available)
Keyboard
Special Attendant Keyboard stickers (CTX-KL-ATCON-VA).
Mouse
Telephones and Peripherals
CTX Attendant Console
Color VGA monitor (600x800 pixels) or better
Attendant Console Interface Unit (BATI), which connects to the BDKU or PDKU station interface on the Strata CTX. Plus, a handset and cradle (BATHC). A headset can be ordered
...or a DKT3001 can be used as the station interface. If a headset is used, it connects to the BHEU
installed in the DKT3001.
Important!
If a DKT telephone is connected to the CTX Attendant Console PC, the keyboard must be used for all Attendant operations when the console is running. (When the console is in Position Busy, it is still running.)
When the Attendant Console software is not running, the DKT3001 telephone can be used for regular calling. Calls intended for an Attendant (Dial “0”) when the software is not running will follow the Alternate Destination programmed in Strata CTX. Only calls directed to the DKT’s primary extension number will ring the phone.
If the handset interferes with the headset, you can unplug the handset while using the headset.
The Strata CTX670 system supports up to four, and the CTX100 supports up to two Attendant Consoles. Multiple consoles automatically share the incoming call load on a call-by-call rotation basis. Features such as Overflow, Position Busy, and Interposition Call Transfer add to the efficiency of single or multiple console applications.
Strata CTX General Description 06/03 37
Telephones and Peripherals
CTX Attendant Console
The CTX Attendant Console is designed to handle all call activity within a single Call Monitor screen, shown below. All calls will appear in a single list.
Menu Bar
View Pane Icons
Call Monitor Tabs
Call Status icons
Toolbar Icons
Call Attributes (See Appendix
for definitions)
Directory
Info Bar
Call List
Notes
Status Bar
6594
Calls are mar ked with icons to show the current status. Features such as Paging, Call Pickup, Call Park offer many alternatives. The Administration
window enables which option is the primary operation for that Attendant. For example, if two zones are used for paging, as well as the All Call, then an option pull down arrow is next to the icon. Click i ng the icon st arts the All C all Page, the n the Attendant can select one of two page zones.
All other v iews available for the At tendant are for administrative and management use. They do not control any type of call handling except how chosen options affect the overall operation.
The CTX Attendant Console also e nables an atte ndant t o manage con sole se ttin gs, main tain a user directory, and view call statistics. The Console provides a Name/Number search that works with automatic or manual call handling. Other features include Queuing, DSS, signaling, Emergency Call ID, keyboard or mouse operation, and headset or handset operation with volume control.
38 Strata CTX General Description 06/03

Peripherals

The Strata CTX supports several types of stations and customer-supplied peripheral devices, such as door phones for visitor screening, a music source interface for MOH and ACD queues, a speaker fo r amplified ringer, Toshiba Voice Processing systems for voice mail/auto attendan t applications, and more.
Toshiba Telecommunication Systems Division (TSD) does not provide ISDN or IP station equipment, such as ISDN IP telephones, fax machines, and computer interface devices for high speed Internet ac ces s or video conferencing. Toshiba does provide the in te rf ace circuit boards that support all of the above ISDN station equipment.

MCK Office Extender and PBX Gateway

The MCK Office Extender enables groups of remote workers to have cost-effective, digital line extensions off the main location’s Strata CTX system and voice mail system, without the cost or administrative difficulty of installing a separate system. The Extender offers the following:
Supports up to one, eight or 12 or 24 users per stackable unit.
Fully-featured Toshiba digital telephones with Strata CTX system features and ACD.
Choice of network protocol support and compression rates minimizes communications cost.
Telephones and Peripherals
Peripherals
Corporate or remote management tools provide flexible administration.
Dual Wide Area Network (WAN) interfaces allow multiple network options like T1, Frame, Digital Data Systems (D DS), Integrated Services D igital Network (ISDN), Di gital Subsc riber Line (DSL), cable, etc.

Door Phone (MDFB)

Door phones can be assigned to ring telephones when the button on the door phone is pressed. The Door Phone location displays on the called telephone’s LCD. When the telephone answers, a two-way talk path exists between the telephone and door phone.
Door phones can also be used as sound monitors. Station users can call the door phone (it will not ring) and listen to sounds from the surrounding area. Door phones also can operate as a “hot line.” For example, a door phone can be used for calls between an office and a warehouse. Door Phones are often used with a door l ock to screen build ing visitors. The door lock can be opened for a predetermined amount of time by pressing a button on a telephone.
1873
Strata CTX General Description 06/03 39
Telephones and Peripherals

Cabling and Connectors

Door Phone/Lock Control Unit (DDCB)

The DDCB can support as many as three door phone s (MDFBs) or two door phones (MDFBs) and one door lock control relay. Using the door lock control, digital station users can unlock a customer-supplied electronic door lock at the touch of a button programmed on their digital telephone or by dialing a feature access code from any type of telephone. Each DDCB requires one digital station circuit.
Each door lock can be programmed to remain open between three~30 seconds. The Door Lock but ton LED remains On while the lock is open. LCD telephones display “DOOR UNLOCKED” until the telephone releases or times out.

External Speaker (HESB)

The HESB is a multi-function al, externa l, six-inch spe aker unit with a bui lt-in three-wat t amplifier. It can be used as a paging speaker, an amplified talkback speaker, or a telephone’s Loud Ringer.

Toshiba Stratagy and Stratag y DK Voice Processing

1874
The Strata CTX can operate with Toshiba Stratagy and Stratagy DK voice processing systems, which provide a number of helpful features. The Strata CTX supports in-band DTMF voice mail integration for all of the above voice mail systems and requires DTMF receivers. It also supports standard SMDI and Toshiba Proprietary voice mail integration. Refer to the appropriate Stratagy literature for details.
Cabling and Connectors
The Strata CTX uses indus try s tandar d cabl ing an d co nnectors to interfa ce wit h line s, sta tions , and peripherals. Stations use standard twisted-pair cabling to connect to the system via the MDF. Digital and standard telephones require just one pair-cabling. Two pairs may be required to achieve full distance when optional DKT subassemblies are used.
Digital telephones connected to BDKS require an external power supply to reach maximum distance from KSU when the telephone has a DADM, BPCI or BVSU.
Station PCBs connec t to stations an d periphera ls with a 25-pa ir Amphenol connect or via the MDF. Analog CO, DID, and Tie line circuits interface with the public telephone network via modular connectors. T1 and ISDN use industry-standard Amphenol and modular connectors (for details, see Table 28 on page 91).
Peripheral devices such as CTX WinAdmin maintenance PCs, etc., connect to a hub or LAN, which connects to the processor’s Ethernet LAN interface via an RJ45 connector and Category 5 wiring. Call Accounting and Voice Mail SMDI require RS-232 modular adapters and cords to connect to the processor BSIS interface.
40 Strata CTX General Description 06/03
Features 6
This chapter con tains the S t rata CTX100 and CTX670 feat ures. They ar e p resented in alpha betic al order to make it easy to locate each feature.

Account Codes

Account Codes are often used for cost allocation of the call or the time the caller was involved on a phone call. The codes are printed on a S tation Mess age Detail Recor ding (SMDR) print out along with other call details so that the customer can identify all calls associated with a specific account code.
Account codes may be forced (required after dialing all or specific phone numbers) or voluntary (optionally entered anytime during calls). Codes can be as long as 15 digits and can be verified or non-verified by the system. An account code button can be programmed on a digital telephone to make voluntary account code entry convenient and easy.

Add-on Module (DADM)

One to two DADM3020s or DADM3120s can be attached to a DKT3000-series digital telephone to provide an additional 20 or 40 flexible buttons. DADM3020 and DADM3120 buttons can be programmed with outside line or Directory Number buttons, Direct Station Selection, One Touch Speed Dial or any other flexible feature button. For more information, see “Digital Add-on
Modules (DADM3120, DADM3020)” on page 33.

Advisory Messages

Any telephone user can set a message on his or her telephone. Whenever another station with a display calls a station with a message set, the information in the message displays on the calling station’s LCD. This feature allows users to define their current status and make that status available to others attempting to call that person. This st atus is also s ent to Attendant Conso le positions.

Alternate Answer Point

Users can answer a transferred internal or outside line call from any station that has a Directory Number button appearance of the “transferred to” Directory Number.
Strata CTX General Description 06/03 41
Features

Automatic Busy Redial

Automatic Busy Redial
Automatic Busy Redial (ABR) enables a digital or standard telephone user to automatically redial a busy outside number multiple times at programmed intervals. Strata CTX supports a maximum of 16 or 32 simulta neous r egist rati ons of ABR (l imited by the n umber of busy ton e det ectors i n the system). Each station may only have at most one call registered with ABR at any time.

Automatic Call Distribution (ACD) Server

An external ACD software option with the Strata CTX provided by connection of an external PC­based CTI application server. The CTI server will run both the ACD call processing application and the separate Management Infor mati on Syste m (MIS) applic ation su ch as Insig ht CTX, as well as other CTI applications.
The ACD application will be avai la ble in Bas ic and Enhan ced fea ture functi onali ty, along with the number of groups and active agent size increments to provide cost-effective pricing levels according to the user’s needs. Enhanced ACD includes all basic capabilities plus multiple group login, skills-based routing, priority queuing, time scheduled ACD queues, agent and call priority escalation handling, and balanced call count agent search. For more information, refer to the Strata
ACD General Description, or the Strat a ACD Application So ftwar e and Doc umentation Library or OAISYS CD-ROMs.

Basic ACD Features

Advanced Call Routing
The optional Call Router enables calls to be routed based upon parameters such as Caller ID, Account Numbers, private lists, time-of-day, day-of-week, day-of-year, and user entered data (account code, etc.). This is an optional feature that can be added to the ACD application.
Intelligent Announcements
The holding caller can be informed of call status, such as their place in queue or estimated time before an agent answers. The intelligent announcement function can also offer alternative options to continuing to hold, such as going to voice mail.
IVR Voice Assistant Open Database Connectivity (ODBC) Access
There are two options that can be used with customized services: Interactive Voice Response (IVR) Voice Assistant (VA) application can be used as a stand-alone product and/or as an IVR service to the ACD application. For example, an IVR port could be used to do an external page to alert agents to return and login to an ACD queue when it gets too overloaded with calls.
Other useful functions include gather and va lidat e user i nput, pla y menus and ac t on resp onse, and trigger other events. The IVR VA can also be used to provide low cost text to speech capabilities. The IVR VA is an optional feature that can be added to the ACD application.
42 Strata CTX General Description 06/03

Automatic Callback (ACB)

Enhanced ACD Features

Agent Priority Routing
The Agent pool can be expanded when traffic gets heavy based upon agent priority levels. When all agents are busy at one level, calls automatically get distributed to agents at the next level. Calls can be distributed by agent priority, preferred agent treatment, or balanced call count.
Multiple Group Agent Login
ACD agents can be logged into mul tipl e ACD groups, e nabli ng agents to ans wer calls f or multi ple groups. This is very useful for back up coverage between groups. It is also the foundation for skills-based routing and agent priority routing, enabling many advanced call center applications.
Skills-based Routing
Based on the caller’s input, the system can route the call to the agent best suited to handle the call. Calls can be routed to certain agents, based upon agent capabilities, in addition to Dialed Number Identifica tion Service (DNIS), CO li ne, or Auto At tendant rout ing into differen t groups. With the capability for agents to log into mul tiple groups, cal ls can be r outed to di f fere nt agent s based upon skills needed for each specific call.
Priority Que u in g
ACD calls can optionally be tagged with a priority number before they are placed into the ACD group queue. The priority number ass igned to the call dete rmines where the call is placed in queue. This feature enables h i gh priority calls to be answered sooner than low-priority calls. The escalation parameter ensures that no call is lost by higher priority calls.
Features
Automatic Callback (ACB)
When a station user dials a busy station [DN] or outside line access code and receives busy tone, ACB can be activated by pressing an ACB feature Soft Key or by dialing or outside line becomes ava ilable, the sta tion will be automatic ally called back and be connected to and ring the originally called station or receive dial tone from an outgoing line.
When ACB is activated, the calling station receives success tone followed by busy tone. Once ACB is activated, the caller can hang up. ACB can be canceled any time using an access code. It will also cancel automatically after a predetermined time.

Automatic Line Sele c tion

This feature automatica lly connects a t elephone to a speci fic line or ext ension button when the user lifts the handset of f-hook, pr esses t he Dialing). This feature is necessary to make telephone operation consistent for the user because a telephone can have up to 20 line and extension buttons. Each telephone can be assigned in system programming with various options that determi ne wh at t ype of line or extension but ton is selected when the user takes the handset off-hook to make or answer calls.
When answering calls, this option can be set to answer the call or not when a call rings the telephone and the user takes the handset off-hook. If the option is set to not answer automatically, the user can press the ringing button on the telephone to answer manually. With Automatic line selection, if more than one type of call is ringing simultaneously on the telephone, this option selects which type of call will be answered as a priority, then the longest ringing call in that call type will be answered first.
6SNU (speaker) button, or p resses a digit on the di al pad (H ot
. When the busy [DN]
Automatic line selection options are set independently for each telephone, for originating new calls and answer ing ringing calls. Th is fe at ure can also be disa ble d on all or selecte d t el ephones to allow users to manually press a button to originate or answer calls.
Strata CTX General Description 06/03 43
Features

Automatic Release

Automatic Release
The system will automatically release line connections under certain conditions.

Automatic Release from Hold

When a line is on hold and the held party hangs up, the line is automatically released. Individual loop start CO lines can be programmed to detect disconnect supervision signals from the CO and to respond by releasing the line. If t he CO does not provide Di sc onne ct Supervision, the use r mu st manually retrieve the held line and then hang up.

Automatic Releas e of Incoming Calls

An outside caller may be placed in a queue waiting for an external application to handle the call such as an Auto Attendant, IVR, ACD or other device. If the CO line for that call does not offer “disconnect supervision,” that call may remain in a holding position until forced to release the connection.
This feature provides full use of all CO lines at all times. A C O line is not tied up if the call goes unanswered and no alternative call handling is provided. This is very useful for disconnect supervision in voice mail and built-in auto attendant applications, but availability and reliability of the signaling from the CO must be confirmed.

Station Automatic Release

When the distant party disconnects from a call, the remaining digital telephone is automatically made idle, busy tone is not sent to the speakerphone or handset, and the digital telephone is automatically released. A digital telephone is released and returned to id le state. A sta ndard telephone is simply released and retu rned to standard dial tone. The programming choice for this feature is system wide.

Background Music (BGM)

Background music audio can be played through the speakers of digital telephones and external paging equipment. The Strata CTX supports up to 15 BGM audio input interfaces. Selection of which BGM source is played can be done individually by each telephone user and for each external page zone through the System Administrator’s telephone.

Call Completion

When calls are not c omplete d b ecause the stat ion d oes not answer, is busy, or i s in Do Not Dis turb. A series of options are available to the user when encountering these conditions. They include changing the calling signal from Voice Announce to Ringing or vice versa, setting Automatic Callback, setting the Message Waiting light, Camp on Busy, Overriding the condition with Privacy/DND/Executive Overrides, or using Off-Hook Call Announce.
These options are easily activated by dialing a single digit code or pressing a soft key when the condition is recognized . These opti ons are indiv idually set for each tel ephone to be able t o activate the call completion feat ure and separ ately to permit the feature to be activated when called.
44 Strata CTX General Description 06/03

Call Forward

Call Forward diverts internal and external calls intended for a Directory Number [DN] to a destination specifi ed fo r tha t [DN] , under call i ng conditions specified for that [DN]. Cal l For ward may be activated from the station that owns the [DN] or remotely from another station or from outside the system from a DISA line. Call Forward may be applied to any [DN] ([PDN], [PhDN], or Pilot [DN]).
There are two types of Ca ll Forw ard option s: System Call Forward and S tat ion Call For ward. Each type may be activated independently or simultaneously for each telephone. If Station CF is activated, it will override System Call Forward on some or all calls.

Station Call Forward

Station users can set their individual call forwarding conditions and destinations as they choose (see “Call Forward Conditions” and “Call Forward Destination” in this section). Station forwarding has priority over System Call Forwarding, if set.
Station Call For ward provides two types of Call For w ar d ( Any Cal l and Incoming line call s on ly) . One type directs any type of a cal l to a desi gnated des tinati on; the oth er type dir ects onl y private o r DID lines to a designated destination. Both types can be set on a telephone simultaneously with each type having a unique destination.
Features
Call Forward
This allows the user to forward inco ming calls on private or DID lines to a different destination than internal or transferred calls. If private an d DID line cal ls are set to forward independently to an alternate destination, then inte rnal and transferred calls will forward to another destination per Station Call Forward (any call) or System Call Forward.

System Call Forward

A system option is available to forward unanswered calls to voice mail or some other pre­determined destination. This option is set up for each station by the System Administrator using CTX WinAdmin. This feature is applied to station users that do not have any type of Station Call Forward set on their telephone. This ensures efficient call handling and better service to callers even when station users do not have Station Call Forward set at their telephone. Call Forwarding can also be set up by department with a special mailbox or destination with the use of Phantom Directory Numbers [PhDNs].
There are 32 different System Call Forward patterns that can flexibly forward calls with unique call type, condition and destination settings. Each pattern can be set up and assigned to individual stations by a System Administrator using CTX WinAdmin. Any pattern can be applied independently to each station’s [PDN] or [PhDN]. System Call Forward patterns applied to stations can be changed automatically per Day/Night CO assignments.
Although System Call Forward is set up and assigned to individual telephones by a System Administrator, each telephone user can turn the feature On/Off from their telephone using a One Touch button or access code. Station Call Forwarding always overrides System Call Forward.
With Release 1.3 and higher, you can enable/disable System Call Forward Cascade, which means that a call th at forwards to a destination that is al so forwarde d will follow the destinat ion’s call forward.
Strata CTX General Description 06/03 45
Features

Call History

Call Forward Conditions

Call Forward (CF) conditions refer to the status of the [DN] that causes a call to forward. Whether using Station or System Call Forward, the CF conditions include: Busy, No Answer, Busy-No Answer, and All Calls (station CF only). Call Forward No Answer times are set individually for each station in Station Call Forward and system wide for all System Call Forward Patterns.
Note OCA and Voice First Calls will not Call Forward-No Answer unless the caller presses to
switch the call to tone ringing.

Call Forward Destination

Whether using Station or System Call Forward, the CF destination can be an internal Directory Number, a Hunt or ACD Group, Voice Mail, or a public or private network telephone number.
In the last case, the forwarded call will access an outside line or line group and dial an external telephone number. Both the line access code and th e te lephone number are set in the Cal l Fo rwar d destination during the Call Forward setup operation.
Station Call Forward allows one destination per each type of Station Call Forward (Any Call or Incoming Line Calls) set on a telephone. System Call Forward allows two destinations per Call Forward pattern: the Primary Destination and an alternate, in case a call cannot forward to the Primary Destination (e.g., the Primary Destination has been unplugged or malfunctions).

Call Forward – Call Types

In each System Call Forward pattern, the Call Forward conditions and destinations can be set independently.
For Station Call Forward, the destination and condition for each station can be different for incoming C O line calls, and internal and transferred calls.

Call Forward Remote

A station’s personal call forwarding destination can be cancelled or changed to another outside number or an internal voice mailbox either remotely via DISA or from another user’s telephone. Changing Call Forward remotely is password protected. System Call Forward can be changed locally or remotely using CTX WinAdmin.
Call Forward Override
See “Call Forward Override” on page 73.
Call History
Incoming calls with Cal ler ID or ANI info rmation ma y be optional ly recorde d into a roll ing list f or the station where the call is ringing. The call is placed in the list along with the number, name (if provided), time and date of the call, and status of the call (answered, abandoned, or redirected). This list is accessible by the user from the telephone LCD and any call may be selected and redialed using the flexible
&DOOHU,' button.
When calls ring a button (/LQH or [DN]) that appears on multiple stat ions, t he numb er is st ored on the telephone that is designated as the owner of the answers th e call. If an incoming call is directed to a telephone, but the call is not answered by th at telephone because it hunts or forwards to anot her destination, the cal l r ec ord will still be stored on
/LQH or [DN] and on the telephone that
46 Strata CTX General Description 06/03
that telephone as “r edi re ct ed” and on the telephone tha t a nswer s t he call as “answered.” If a ca ll i s not answered, it is stored on the line or [DN] owner’s telephone as “abandoned.”
To store call records, a telephone must be allocated Call History memory by the System Administrator. The number of call records allowed p er s ta ti on an d the total number of call rec or ds per system is provided in Table 7 on page 14.

Call Park

Call Park gives any station, regardless of type, a method for holding calls. By parking a call, you are free to make other calls and retrieve the call at a later time or use the paging system to announce a call to be picked up by someone else on the system. Any call can be parked. Parkin g a call to your phone is known as Local Park, parking a call on someone else’s phone is known as Remote Park, and if a general orbit is used, it called Auto Park.

Call Park Orbits

The Call Park feature enables a station user to place a call temporarily in an orbit so that the call can be retrieved by any us er, either from the same station or from a dif f erent stat ion. Per son al Park Orbits are availabl e to any t ype of t elepho ne, incl uding s tandar d tele phones. I f a cal l is pa rked, bu t not retrieved within a preprogrammed time period, it will recall the parking telephone. The Park recall time is set individually for each station.
Features
Call Park
Refer to Table 7 on page 14 for the num ber of General Park and Personal Park Orbits, de pending on the system processor.

Park and Page

This featur e enables station users to pa rk a call (in a Gen eral or Personal Park Orbit), enter a Page Zone or Group access code, and then announce the orbit number of the waiting call to the Paged party. A pre-programmed One Touch button can be assigned to telephones to automatically connect to a predesignated External Paging circuit, a Telephone Paging group or both.

Call Pickup

Call Pickup enables station users to pick up all types of ringing or held calls including internal, [PDN] or [PhDN] calls ringi ng or on hol d at oth er sta tions . St ation users c an also pick up CO/DI D/ Tie line calls ringing or on hold at other stations, CO lines ringing during Night Mode to External Page or night bell, tandem CO line connections and Door Phone calls. Call pickup can be performed through programmable buttons (Directed Pickup, Group Pickup), or with an access code.

Call Waiting

When a station is busy with a call and another call is directed to that station’s busy /LQH or [DN] button, two short beeps are issued to alert the telephone user of the pending call. To answer the Call Waiting, the user mus t transfer or disconnect the existing call.
Call Waiting works for calls originatin g from within or outside the system. T he length of th e Call Waiting beeps is different for internal and external Call Waiting. The different beeps di stinguish which type of call is waiting.
Strata CTX General Description 06/03 47
Features

Caller Identification

Caller ID DNIS or ANI information appears on LCD telephones for 10 seconds. If Caller ID information is not available, the device name, such as the CO line or DNIS name or number is shown.
Digital telephones can be adjusted to receive or not receive Call Waiting tone over the handset or headset receiver, as well as the speaker. Standard telephones will receive Call Waiting tone twice from the handset receiver. Call Waiting tones can also be turned off on each station by a System Administrator.
When a station is busy with a call and another call is being received, a tone alerts the caller of a pending call. On LCD telephones, the Caller ID information displays for 10 seconds. The combined effect of the Call Waiting alert to ne with the d isplayed information enables users to identify whether or not they want to interrupt their current call for the waiting call.
To answer the Call Waiting, the current call must be put on hold, terminated or transferred. Multiple calls ca n be queued to a single stat io n, al l waiting for that sta ti on t o bec o me f ree ; the call at the head of the queue provides the Call Waiting signal and LCD indication.
This feature works with both digital and analog single-line telephones. The tone (two beeps) signaling Call Waiting tone is provided through the speaker of the digital phone. For standard analog telephones, th e ton e is i nserted into the speech path. Call er ID display is not available with standard telephones.
Caller Identification
Caller Identification (Caller ID) is the general term for the information provided identifying the originating party of a public network call. The name and telephone number of the calling party displays on the ringing telephone’s LCD. Incoming calls with Caller ID or Automatic Number Identification (ANI) information may be optionally recorded into a rolling list for individual stations. Station users w ith LCD dis plays can access this list to select a nd redial these calls (se e Call History). Caller ID serv ice from the carr ier must be subs cribe d on anal og CO lines or T1 ANI in order to receive calling number and name into the Strata CTX system.
Caller ID lists can include the number, name (if provided), time and date of the call, and status of the call (answered, abandoned, or redirected). Digital stations are assigned memory for creating the Call History. See Table 7 on page 14 for the number of call records per station and system.

ISDN Calling ID Name and Number

Both Caller ID name, if available from service provider, and number are supported for incoming calls using either ISDN NI-1 or NI-2 BRI or PRI lines. Caller ID names can be accepted by the Strata CTX from a CO with NI-1 or NI-2. NI-2 is the only way a 5ESS CO delivers Caller ID names on PRI and BRI. Nortel DMS CO with NI-2 installed also uses NI-2 to deliver Caller ID names. Only a Nortel DMS CO can provide Calling Names for NI-1.

Camp on Busy

Automatic Camp On

When a call comes in to a busy station from an outside line and that station does not have an idle button for the call to ring in on, and Station Hunting or Call Forward is not applied, the call automatically camps on to the busy station. This permits incoming calls to be accepted even if the station is busy. The outside caller will receive ring-back-tone immediately and the called station will receive two bursts of Call Waiting tone.
48 Strata CTX General Description 06/03
If the callin g line has Call er ID, ANI, or DNIS information, it will be displayed on the called station’s LCD for 10 seconds. Auto Camp On also applies to incoming line calls directed to Hunt Groups, Voice Mail systems, etc.
Various types of internal calls from one station to a busy station, voice mail system or hunt group can also Camp On automatically with system programming options. For details on these types of calls see the Camp On-Busy and Station Hunting descriptions.

Off-hook Camp On

A station caller who dials a busy station or line access code can remain off-hook to be automatically connected when the station or line becomes idle. After dialing a busy [DN] and receiving busy tone, the caller can just remain off-hook and Camp On will be initiated automatically after a predetermined time or the user can dial a Camp On immediately. When camp-on is activated, the caller will receive success tone followed by Ring Back Tone. The station that is the object of a camped-on call will receive two bursts of call waiting tone (see Ca ll Waiting).
Even if Voice First is set at the called [DN], the station will be called by tone ringing when it is connected by Camp On. Internal and external stations can be the object of a Camp On. Calls may be camped on to the pilot number of Station Hunting groups and will be delivered to the first station in the group to become idle. ACD pilot numbers cannot be the object of a Camp On.
and remain off-hook to initiate
Features

Cancel Button

Incoming calls from outside lines t o busy DNs camp-on auto matically (see “Autom atic Camp
On,” previous section). When a station dials the access code for an outside line and receives busy
tone because all line s are bu sy, the user can remain off- hook and di al group. When a line becomes available, the station will connect to the line and receive dial tone.
When more than one party is camped on (queued) to a destination, the party with the highest Queuing Priority Level (QPL) will be connected first when the destination becomes available. If the parties have the sam e QPL, the longest waiting call will be connected first.
Calls will camp on to hunt gr oups when a ll member s of the group are busy (see “ Station Hunting”
on page 77 for more details).
Cancel Button
The &DQFHO button voids the last entry or step in a procedure. This enables the station user to correct an error and then continue without having to starting over.
It is important to consider the consequences of this button in regards to the overall task. For example, during a conference call,
&DQFHO will disconnect the last party added to the conference.

Centrex/PBX Compatible

All system features are compa tibl e with Cent rex/PBX ope rati on, inclu ding rep eat of Cent rex/P BX ringing cadence, one-but ton access to Centrex/PBX feat ures, a two- to five -digit stati on numbering plan, and Delayed Ringing to selected stations.
to camp on to the busy line

Centrex Ringing Repeat

The system can mimic CO/Centrex/PBX ringing cadences received from outside lines when it rings a called station.
Strata CTX General Description 06/03 49
Features

Classes of Service (COS)

Classes of Service (COS)
Classes of Service are the mechanisms for assigning features and services to lines and stations within the system. The Class of Service for a given device, such as a station, is defined using 38 parameters. There are 32 Class of Service patterns available, each pattern can be set up to allow a unique combination of features. Each station and line group can be assigned independently to one of the 32 COS patterns.

Computer Telephony Integration (CTI)

CTI combin es the capabilities of the Strata CTX di gital business telephon e system wit h custom functionality pr ovided by computer applica tions. T his can be provi ded thr ough the optional Digita l Telephone Integrated PC Interface or a system connection using the LAN connection.

Digital Telephone Integrated PC Interface

For CTI applications, digital telephones interface to a PC that runs the application software using the Microsoft Telephone Application Programming Interface (TAPI), to provide customized functionality. The PC must run Microsoft Windows software.
Any TAPI-enabled PC software is co mpatible with Strata CTX systems. Th e most common types of application are database look-up and pop-up screens that provide information on the calling party. From a Strata CTX system, Caller ID, ANI, DNIS and call processing information can be passed from the digital telephone to the application computer.
The 3000-series digita l telephone u ses an integra ted PC Interface Unit (BPCI) for TAPI and data switching simultaneous voice/data applications. The 3000-series digital telephone must be connected to the system through a BDKU digital station card. The BPCI provides a highly functional interface for fast, positive call control via a USB port and supports media streaming with TAPI 2.0 functionality.

Conference Calls

Conference calling en abl es other people to join your conversation. These add itional people can be inside or outside the St rata CTX syst em. Any stat ion can set up a confer ence wit h other st atio ns or outside lines. A c onf ere nce is defined as any time three or more par ti es join into one c onve rs ati on. A maximum of eight parties are allowed into a conference with up to six from outside lines or standard stations. The originator of the first conference is the “master” and controls adding and deleting confere nce parties . The conf erence “mas ter” can d rop of f the la st added pa rty by usin g the
&DQFHO button .

Conference On-Hold

A conference call ma y be pu t on Hold so tha t al l the remai ning co nfe rees remain connec ted and no Music-on-hold is appl ied. The perso n putti ng the confe rence o n ho ld may r ejoin the con feren ce by pressing the another station by pressing the the Hold state becomes Conference Master. This enables one person to establish a conference call for others.
/LQH button on his phone. The Hold state of the conference can be released from
/LQH button of that station. At this time, the station that released

Join Button

Join allows an attendant or digital station user to connect two established calls to each other.
50 Strata CTX General Description 06/03

Continuous DTMF Tone

Releasing from Tandem CO Line Connections

This feature enables unattended line-to-line connection s for the Strata CTX, freeing the conferencing analog station or voice mail port for other calls and important tasks. When a tandem connection is set up with a [DN] button, the [DN] button will go idle after releasing from the connection. The [DN] can then be used to make or receive calls from the originating digital telephone.
Standard te lephones a nd/or VM devi ces can establis h tandem an alog CO li ne connect ions and t hen release from them without disconnecting the tandem connection in the Strata CTX. After releasing from a tandem call, reconnecting to the call can be accomplished by dialing an access code. This reconnect feature does not work if one or both of the CO lines are digital.
Whether or not tandem line buttons appear on a telephone, the telephone user can enter the connection and release the line that was connected to the original line or release both lines by pressing the
&DQFHO button.

Voice Mail Conference

Voice Mail ports may be included in conference calls. This enables all members of the conference to listen to and play voice mail messages.
Features
Continuous DTMF Tone
Dual-Tone Multi-Frequency (DTMF) dial signal is transmitted to the CO line or voice mail/Auto Attendant device for as long as the telephone user presses a button on the dial pad. This feature may be selected f or ea ch dig ital tele phone. S t and ard t elephon es al ways pr ovide contin uous DTMF tone operation.

Credit Card Calling

Callers can make “0+” telephone credit card calls from selected toll restricted stations. When dialing fro m toll restricted stations, if the caller does not enter a credit card number after dialing “0,” the call will be disconnected. Calls are billed to the credit card ins tead of the Strata CTX CO line. The “0+” credit card calling feature can be enabled, selectively, or assigned to stations and CO lines capable of supporting this service.

CTX WinAdmin

CTX WinAdmin is the Strata CTX administration software application for programming and maintaining the system. It operates with Microsoft Windows 2000 Professional® and Windows XP Professional, with Windows Explorer 6.0 or higher. It has a user-friendly GUI and provides access levels for technicians and end-user administrators.
Strata CTX WinAdmin connects to the system processor’s network jack or maintenance modem (33.6Kpbs/V.34) modem. Direct wire connection, LAN connection or remote connection over the Internet or PSTN is also available.

Data Privacy

This option blocks calls to data devices that are in use. This prevents override calls and warning tones from interfering with data de vices such as modems and ISDN data terminals.
Strata CTX General Description 06/03 51
Features

Day/Night Mode – Auto Schedule

Day/Night Mode – Auto Schedule
The system has three operating modes that are based on the time-of-day, day-of-the-week, and up to 128 holiday schedu le s. Th e ope rating modes are Day, Day2, and Night. Each mode controls the routing of incoming line calls and settings for station and line Class Of Service restrictions. The system can be programmed to use all three modes, Day/Night mode only, or just the Day mode. The system switches automatically from one mode to the next based on the system’s time-of-day clock.
Example Day/Night Mode Applications:
Incoming Calls – Incoming line call routing of individual DID and DNIS numbers or ground/ loop start lines, change their ringing destinations automatically according to the date and the time of day.
For example: On workdays, calls are routed to the attendant, individual telephones, ACD groups, etc., until 5:00 p.m. After 5:00 p.m., ca lls ar e rout ed of f-p rimes to ano ther office, to the Night Bell, or to night announcements and voice mail message boxes. On holidays and weekends, calls are routed independently to the appropriate holiday announcements or voice mail message boxes.
Class Of Service – Station, lines, and DID numbers are assigned 38 options in Class of Service. These include Toll Restriction, Override privileges, allowed tandem connection, security code administration, etc. Any of these options can be changed independently for each telephone, line and DID number when the system switches from one operating mode to another.
For example: When the system changes from the Day to Night mode, selected stations can be automatically restricted from dialing outside or long distance calls. Note that outgoing route selections set in LCR are switched using a route selection schedule that is independent of the Day/Night mode schedule.
System Call Forward – The System Call Forward settings for stations can be changed automatically when the system changes from the Day to Night mode. For example: During the day , a t elepho ne ca n forwar d to a pe rson’s car or cell phone, and at night aut omatica lly fo rward to the person’s voice mailbox.
The system also enables users to manually change the Day/Night operating mode, even if the system is using the Auto Schedule fea ture. A manually switching at any time from one mode to another. The button’s LED flash rate indicates the system’s operating mode.
If used with the System Auto Schedule operation, the 1LJKW7UDQVIHU button overrides the current Auto Schedule mode. However, when it is time for the system to switch to an other mode per the Auto Schedule timer, the system will switch to the mode set by the Auto Schedule.
Example: If the system is switched from Day to Night at 2 p.m. manually with the Night Transfer button (Auto Schedule is set to switch from Day to Night at 6 p.m.), the system will still automatically switch b ack to the Day mode at 8 a.m. the next morning per the Auto Schedule.

Delayed Ringing

If an incoming CO, DID or Tie line or internal [DN] call rings a station [DN] and is unanswered, alternate DKTs can be programmed to ring at a later time. A separate delayed ring time can be set for each CO line group. The stations that were ringing initially will continue to ring after the Delayed Ringing begins. This feature is assigned for each line or [DN] button independently for each DKT.
1LJKW7UDQVIHU button can be set on telephones for
52 Strata CTX General Description 06/03
With Strata CTX Release 1.3 and higher, you can assign Delayed Ringing to voice mail and auto attendants. This fe ature ca n also be used to ring mu ltiple (25 max.) t elephones immediately o r with a delay to voice mail, auto attendant and/or standard telephones by dialing a group pilot number. Each group member can have I mmedia te, Delayed Ring 1 or Delayed Rin g 2. Delayed Ring times are adjustable (1~180 seconds) for each Multiple Call Group.

Destination (Toll) Restriction

Strata CTX offers D estination Restriction as a major expansion of traditional Toll Restrict ion. Historically, Toll Restr iction was used to pre vent the unauthor ized use of toll prefixes to the PSTN: long distance (1), operator assistance (0) or international (011).
Strata CTX has expanded this to include restriction based on any string of dialed digits. A true, international business telephone system, Strata CTX can restrict any string of up to 11 dialed digits, including numbers in remote Area Codes. Restriction of codes from the CO, such as Camp On and Call Forwarding.
A stations’s Destination Restriction level can be changed automatically with Day/Night mode Auto Scheduling. One use of this feature is to allow a telephone to make outside calls during the day, but to restrict them at night.
and . Eleven-digit screening allows control of access to individual telephone
and controls users’ access to vertical service
Features
Destination (Toll) Restriction

Through Dialing

A telephone user or an attendant can connect a destination-restricted station to a trunk enabling temporary access to an outside line. The connected station can then use external dial tone to complete the call, and revert back to destination-restricted status after the call is completed. This maintains the integrity of toll restriction, while still extending outgoi ng calling privileges when necessary.

Direct Inward Dialing (DID)

This feature allows e xtern al callers to dial di rectly t o individ ual extens ions o r groups of telephone s without intervention by an operator, IVR or auto attendant. Each incoming DID number, which is sent to the CTX on a DID line from the CO, can be routed individually to an extension, pooled or group line button, ACD group, maintenance modem, external page, night bell, voice mail box, or back out over the public or private telephone network. DID routing assignments can change automatically when the system switches betw een the Day an d Night Modes.
DID numbers can vary between 1~7 digits in length for each DID line group. Each DID number can be assigned to 1 of 15 possible music-on-hold sources.
DID service is provided by DID analog, T1, or ISDN line interfaces.

Dialed Number Identification Service (DNIS)

DNIS lines receive 800- and 900-type telephone calls that provide the number the caller dialed to reach the Strata CTX. The Strata CTX translates the DNIS number into a name that displays on the telephone’s LCD. This allows the user to identify where the call is coming f rom and the pur pose of the call before the call is answered.
The DNIS Name/Number routes calls to specific telephones, departments or ACD groups. When the call is ringing and after it is answered, the DNIS Name/Number displays on the telephone’s LCD. The name and number display can also be sent to an agent computer to be used by a CTI application.
Strata CTX General Description 06/03 53
Features

Digital Pad

Applications include sending DNIS calls to a group of agents that take orders for a number of different companies and products. The agents know how to answer the calls from the DNIS display. Using DNIS capabilities allows one group of lines to be used to serve multiple applications. DNIS service is provided by DID analog, T1 or ISDN line interf aces and provides the same call routing options and destinations as DID calls.
Digital Pad
The Strata CTX digital pad (decibel loss) is activated for the receiving path of the terminal, external lin e or resource.
The system adjusts for differing transmission leve ls betwe en internal and external devices. This is very useful for conference calls when external parties have difficulty hearing due to public network loss. The Strata CTX can be programmed to insert the appropriate digital pad for each terminal and call type when establishing speech paths between telephones, external lines, and resources such as conference circuits, external paging devices, and external sound sources. This minimizes volume loss in conference calls.
The system recognizes these devices:
Standard analog telephone (Type 500, Type 2500 and the equivalent)
Toshiba digital telephone, cordless, wireless, door phone
Analog trunk
T1 trunk
ISDN extension terminal (Audio and Speech)
ISDN trunk/Tie line (Audio and Speech)
Conferenc e circuit
Holding music source
External paging device

Direct Inward System Access (DISA)

Direct Inward System Access (DISA) allows outside callers to connect to the Strata CTX and make station or trunk calls as if they were stations within the system. An incoming call may be directed to DISA by Direct Inward Dialing lines, ground/loop start lines or Automated Attendant.
Note DISA lines require DTMF receivers.
DISA security code is changeable from a specific station. The station to change the security code needs to be allowed by Class of Service. This security code can also be changed using the Strata CTX WinAdmin administration console.
DISA provides acces s to the features listed below:
Station Calls
Station Calls over Private Network
Attendant Access
Account Codes
54 Strata CTX General Description 06/03
DISA also provides access to these features, which require a security code:
•LCR
Direct line access
Outgoing line group access
•Emergency Call
Call Forward Remote Control

Directory Numbers

A Directory Number [DN], sometimes cal led an “exte nsion number,” is the number someone must call to reach a destination within the system. Each [DN] is assigned to a flexible button on a digital telephone or as the main directory number of a standard telephone. To maximize call coverage flexibility. Any [DN] can appear on multiple telephones. Also, individual telephones can have multiple [DN] buttons with different Directory Numbers.
The system provides Primary and Phantom [DN] buttons on telephones. All [DN] buttons can be used to originate and answer calls. If you press a [DN] while on a call, it releases the existing call and provides dial tone to make another call.
Features
Directory Numbers

Primary [DN] Buttons

Primary Directory Number buttons [PDNs] are needed to make calls and receive calls. It is a telephone’ s main extension number . Each telephone is assigned only one [PDN] and that telephone is designated as the owner of th e [PDN]. Thi s [PDN] butt on ca n be made to ap pea r mu lt ipl e ti mes on the owner telephone and on other telephones (see Phantom [DN] Buttons). Features, Class of Service, etc., are associated only with the stat ion ass ign ed as the owner of the [PDN]. [PDNs] tha t appear on telephones other than the owner telephone are referred to as Secondary DNs [SDNs].

Phantom [DN] Buttons

Phantom [DN] buttons [PhDNs] are additional directory numbers appearing on telephones as extension buttons. [PhDNs] can be used as independent extensions on the phone or can appear on multiple phones to be used to allow call handling for departments or groups of telephones.
[PhDNs] can be used to make a telephone appe ar to have multi ple [PDN] extens ion buttons . When assigning a [PhDN] for use as another appearance of the [PDN], the display properties are set the same as the [PDN] and a hunting sequence is set up to roll the calls from the [PDN] over to the other [PhDN ]s associated with the [PD N]. With this arrangement, Call Forward will send calls to the [PDN]’s destinations and Voice Mailbox.

Pilot [DN]

A Pilot [DN] is a pseudo-location that is assigned a [DN] where calls may be directed. Unlike [PDNs] and [PhDNs], a Pilot [DN] is device where calls can ring and be held while an external application using the Computer Telephony Interface (CTI) can control the call. To ensure calls do not get lost in the Strata C TX, a time-out and overflow service is provided to redirect the call when the link is down. Calls being held on the Pilot [DN] usi ng th e CTI l in k can specify any of the 15 on-hold music sources that are possible on the Strata CTX.
not a button on any telephone. A Pilot [DN] is used as a
Pilot DNs are also assigned to Station Hunt Groups (for details, refer to Station Hunting).
Strata CTX General Description 06/03 55
Features

Distinctive LED Indicator

Distinctive LED Indicator
Each feature button on a di gita l te lephon e has a Lig ht Emitt ing Diode (LED) ind icato r. Distinctive LED indicators provid e a meth od for quickly identifying the status of a line or featur e but to n. The LED color or flash pattern can identify the call you are currently on, as well as other calls you are controlling, versus other calls that may appear on your telephone. Each telephone uses dual-color LEDs: green for lines you are using; red for lines used by someone else.

Distinctive Ringing

Users sometimes need to distinguish the ringing of one button on their phone from another button and sometimes stations in cl ose proxi mit y to one anot her need to dis ti nguish the calls on one desk from another. Typically, multiple sounds are used to provide this distinction. Distinctive ringing can be assigned to each
With Strata CTX Release 1.3 and highe r, you can set up t o ten differ ent incomin g ringing ton es for internal, as well as external calls. Previously, distinctive ring was not provided for internal calls.
/LQH or [DN] button on each telephone.

Do Not Disturb (DND)

Station users with digital telephones can activate DND to prevent any calls from ringing their telephone. Callers will hear a fast busy tone when calling stations in the DND mode. Stations in DND mode can originate calls normally; however, they receive DND stutter dial tone (optional) when originating calls. With Release 1.3 and higher, users can disable DND stutter dial tone (1/2 sec. burst of busy tone before dial tone) in programming.
Call Forward-Busy will forward calls directed to a telephone with DND set, even if the telephone has idle [DNs]. Telephones with DND Override cap abi li ty ca n ring DND telephones (see “Do Not
Disturb (DND) Override” on page 73).

Direct Station Selection (DSS) Buttons

[DSS] buttons can be placed on digital telephones, add-on modules and DSS consoles. When placed on one of these devices, these buttons serve two functions: to make direct calls or transfer calls to other stations; and to display the status of other stations and [PDNs].
The [DSS] button is numbered with a station’s [PDN] and when pressed, calls that [PDN]. [DSS] buttons are not [DN] buttons, so they do not provide dial tone when pressed. The [DSS] button LED shows the status of the station and [PDN] it represents (idle, busy, DND or ringing). The [DSS] LED will turn on steady or flash at a unique rate, depending on the status (see “[DSS] Button Status Display.”
The [DSS] LED displays the telephone’s status for any type of call on any button, including [PhDN] and the [PDN] appears as a Secondary DN [SDN] on multiple telephones, the DSS status will display Busy if any telephone is using the [SDN].
/LQH buttons. The [DSS] LED also indica tes the st atus of the sta tion’s [PDN] itself. If
56 Strata CTX General Description 06/03

[DSS] Button Status Display

Red, steady: Busy on a call not connected to your telephone Green, steady: Busy on a call connected to your telephone Red, quick flash rate: Ringing Red, slow flash rate: Do Not Disturb

DTMF Receivers

DTMF receivers are used when receiving incoming DNIS DID, Tie or DISA line calls and when originating calls with standard tone-dial telephones. Voice mail systems also require DTMF receivers for a number of VM features, even if using SMDI or Toshiba Proprietary VM integration. Four circuits are automatically active with the in itial basic processor. Activation of more than fo ur receivers requires the purchase of a DTMF software license, in four-circuit increments.
DTMF receivers require an optional ARCS subassembly on the CTX100 processor and are built into the CTX 670 process or. For the number of re ceiver circuits, refer to Table 7 on page 14.
Features
DTMF Receivers

DTMF Back Tone

The system can be programmed to allow or prevent Dual-tone Multi-frequency (DTMF) tones from being returned to digital telephones when a user dials on outside lines or sends DTMF digits to a voice mail device.

DTMF and Dial Pulse CO Line Compatibility

When making outside calls, signals generated by pressing the dial pad buttons of a digital telephone are neither DTMF nor rotary dial signals – they are digital signals. The system can be programmed to translate these signals to either DTMF or rotary dial signals as required by the serving CO. Once the connection has been made, any further digits sent will always be sent as DTMF or rotary to allow the operation of devices at the other end of the connection.

DTMF Signal Time

DTMF tones that are sent via Speed Dial to lines and via automatic dialing to voice mail devices can be set to 80 or 160 milliseconds, or continuously. The time can be set system wide independently for line out-dialing and for voice mail automatic dialing.

Emergency Call

An Emergency Call access code can be established in the Strata CTX to route calls to specified emergency dest inati ons and t o prior iti ze thei r deli very t o those desti nation s. Up to four e mer gen cy destinations can be programmed for each mode of operation: Day, Day2 and Night. This is particularly useful in applications where employees, patients or guests are not expected to know where to cal l for help at different times of the day.
Strata CTX General Description 06/03 57
Features

Feature Prompting with Soft Keys

Feature Prompting with Soft Keys
As an alternative to dialing access codes and using feature buttons, station users with LCD digital telephones use Soft Keys (shown on their LCD) to access features. Abbreviated feature names appear during a call (when the telephone is in the ring or talk state) on the LCD above fixed keys. Users can select a feature by pressing the associated key. The LCD feature selections change according to the call state to provide the most logical options.

Enhanced E911

Enhanced 911 calling means the routing of a call to the appropriate Public Safety Answering Position (PSAP) accompanied by Caller Emergency Services Identifier (CESID). The CESID identifies the location to which emergency services are to be sent. The Strata CTX can use two types of trunks to deliver E911 calls: ISDN Primary Rate Interface and CAMA (Centralized Automatic Message Accounting) trunks. Each 911 call generates an SMDR record at the beginning of the call to enable the business to initiate its own emergency response. Internal emergency destinat ions can also be au tomatical ly in cluded in an emergency call . E911 call s can be routed across a Strata Net network for connection to the public network.

External Amplified Speaker

The External Amplifie d Speaker (HESB) is a six-inch, thre e-watt speaker with a three-watt amplifier built into a wooden speaker box. The amplified ringer can be used to:
Amplify the ringing on a digital telephone.
Provide a paging amplifier/speaker.
Create an amplified ta lk- ba ck spe aker arrangement in an area where a telephone is not needed. The HESB is installed as a speaker and connected to a door phone unit that is used as the talk­back microphone.
Amplified ringing can improve call handling in noisy areas where non-amplified ringing on a phone may not be heard.
A paging speaker ensures that paging announcements can be clearly heard throughout an area. In an area where a DKT is not nee ded, a talk-back speaker pr ovides a cost-effec ti ve communications solution.
The number of HESBs th at ca n be installed per sy st em depends on the funct ion of t he HESB. Any number of HESBs can provide loud r ingers for digital te lephone s. Only one HESB can be installed if it is used as a paging or an amplified talk-back speaker.
Note A BHEU interface and an HESC-65A cable are required for each digital phone that has a
loud ringing bell. IP telephones require HESC-65A, but not BHEU to support External Amplified Speaker. A 3000- or 2000-series digital telephone that has been upgraded with a data interface unit can be upgraded with the BHEU options, but older telephone models cannot.
58 Strata CTX General Description 06/03

Flash Button

This is an optional button that can be assigned on digital telephones. It can be used either to disconnect a line and regain CO dial tone, or to gain access to Cent rex features. The ti ming choice is set system wide through system programming. Standard telephones can dial an access code to flash Centrex lines.

Flexible Line Ringing

CO line ringing can be assigned to ring a specified [DN] on a station, a [DN] appearing on multiple stations, a Pilot [DN], a direct appearance of the CO line, a Pooled appearance of CO lines, or Group CO line appearance. These assignments direct the ringing of the incoming call based upon the three Day/Night Modes of operation and offer immediate and two delayed ringing parameters. The delay parameters are assigned for each incoming Line Group.

Flexible Numbering

The Strata CTX allows the sy stem-numbering plan to be customized for the user’s needs. Directory numbers, line and feature access codes, and Network Coordinated Numbering can be established uniquely in each system.
Features
Flash Button

Handsfree Answerba ck

When a voice-announced internal [DN] call comes in to a digital telephone, users can answer without lifting the handset. Cordle ss and single line digit al telephones and s ta ndar d tel ephones are not compatible with this feature.

Headset

3000-series digital telephones may be optionally equipped with a modular headset jack by installing a BHEU PCB.

Hearing Aid Compatible

All Toshiba digital telephones are hearing aid compatible.

High Call Volume Buttons

5HOHDVH, 5HOHDVH$QVZHU, and &DQFHO buttons can be assigned to digital telephones. They
enable a busy user to handle calls quickly and efficiently in high call volume situations. With one touch of the 5HOHDVH button, a user can disconnect f rom a cal l. This is es pecial ly use ful
in headset applications. The and answers the next. The or external parties from conference or tandem calls.
5HOHDVH$QVZHU button disconnects or transfers the current call,
&DQFHO button voids the last operation, such as disconnecting internal
Strata CTX General Description 06/03 59
Features

Hold

Hold
There are several variations of Hold:

Automatic Hold

This option enables a user to p lace a CO Lin e or [DN] ca ll on Hold by pressi ng another CO Line or [DN] button. The user can then alternate between the new and the old call by pressing the desired
/LQH or [DN]. If this feature is not a ctivated, users must press +ROG before accessing another line
and switching between calls.

Analog Hold

This option enables a user to pla ce a CO Li ne or [DN] call on Hol d and t he Lin e LED will fla sh on other DKT telephones when the call is parked. This enables the call to be picked up from other telephones. This feature must be set in programming.

Call Hold

This is the most commonly used. Call Hold temporarily suspends a call, allowing the station user to do other things , incl uding using the pho ne. Cal lers on hol d can r ecei ve music or a nnounceme nts as described in the Music-on-hold feature.

Consultation Hold

This is used when invoking other call features, such as Call Transfer or Conference.

Exclusive Hold

A call can be placed on Exclusive Hold to ensure the privacy of the connection and that the call can only be retrieved by you, even if the held call appears on buttons on other telephones.

Hold Recall

After placing a call on hold, it will recall the holding telephone after a predetermined time to remind the user of the held call. The hold recall time is set independently for each telephone (from 0~255 secs.). Hold recall time can also be disabled.

Hot Dialing

Hot dialing enables the digital telephon e user to begin on-hook dia li ng wi th out pressing a /LQH or [DN] button. The stati on can be p rogrammed to automat ically select a the dial pad is pressed while the station is idle. This saves a keystroke by not requiring the station user to press a [DN] or requiring the station user to lift the handset to begin dialing.

Hotline Service

/LQH or [PDN] button whe n
/LQH button to begin on-hook dialing. On-hook dialing saves time by not
If a station remains off hook for a programmable period, it can automatically be directed (immediately or with a delay) to a pre-programmed destination. The station may have partially dialed a number or have dialed no digits at all.
Each station is programmed with its specific ring down destination. This is particularly useful in applications wher e employees, pa tients or gues ts are not expected to know where to call for he lp at different times of the day. This feature is compatible with standard and digital telephones.
60 Strata CTX General Description 06/03

IP Telephony

Data Network Assessmen t fo r Voice Traffi c

Important! Voice over Internet Protocol (VoIP) can be affected by numerous factors related to
network structure and design. To prevent delays, jitter and voice data packet loss, and achieve optimum VoIP traffic performance, your network must be designed or redesigned for voice traffic with priority over data.
Toshiba highly recommends that the installing dealer assess the existing network for proper handling of voice traffic and make sure it provides the required bandwidth per the number of deployed VoIP instruments. Toshiba is not responsible for: network assessment for voice traffic, network design/redesign or network support outside the topology it provides. Nor is Toshiba responsible for diminis hed Qual i ty of Servi ce ( QoS ) cau sed by networ ks not capa bl e of providing necessary VoIP bandwidth.
Expected voice QoS as it relates to network parameters is shown in Table 35 on page 96.

Overview

The CTX supports Toshiba proprietary IP telephones, enhancing the CTX VoIP capabilities, and providing powerful IP telephony add-on solutions for remote users. The Toshiba IPT1020-SD IP telephone is compatibl e with both St rata CTX100 and CTX670 systems wit h Release 2.0 or higher software.
Features
IP Telephony
The Toshiba IP telephony strategy is based upon a t ra nsitional approach. For most e n t erp ri ses , t he migration path to IP telephony will be a gradual process rather than an event in time. Instead of acquiring IP technology benefits through complete system replacement at higher cost and higher risk, most enterprises prefer to integrate voice and data IP traffic into the i r existing telephone systems as the need arises. This protects their investment in existing voice and data networks and represents a low ri sk migra tion p ath. Tos hiba ha s tra nsfor med Stra ta CTX syste ms into IP-ena bled communication systems to achieve this very important objective.

IP Telephone

The Toshiba IPT1020-SD IP telephone supports almost all the same Strata CTX features as 3000­series digital telephones, extending the functionality of the Strata CTX to any location supported over an IP network. The only feature the IPT1020-SD telephone does not support is Speaker Off­hook Call Announce, but it does support Off-hook Call Announce over telephone handset. (For a photo, see “IP Telephone” on page 31).

CTX IP Protocol

CTX IP uses an industry standard IP communication protocol, RFC3015 Media Gateway Control (MEGACO+). Toshiba chose the MEGACO+ protocol for call control because it provides better stimulus response that make s the telepho ne work ef ficient ly over the IP net work local ar ea or wide area network (LAN or WAN). In fact, Toshiba uses an enhanced version of MEGACO+ that enables the Strata CTX to provide all the feature functionality of DKT3000-series telephone to IP telephone users much better than could be done using other protocols.
Strata CTX General Description 06/03 61
Features
IP Telephony
This represents a very powerful feature set, as compared to many competitors’ IP telephones which don’t support important telephone features such as:
Busy Lamp Field (BLF) display of station status
Background Music through telephone speakers
Paging over telephone speakers
Off-hook Call Announce over telephone handset

IP Telephone Features

The Toshiba IPT1020-SD IP telephone is a 20-button speaker phone with a two-l ine by 24-character display. It looks and functions just lik e a DKT3020-SD di gital telephone; however, it has different built­in connectors (shown right):
The AC adapter (model BADP120­1A supplied with the IPT1020-SD) powers the telephone if PowerDsine’s Power Over LAN
TM
is not used (see
“Power Over LAN” on page 66 for
details). IPT1020-SDs do not use the CTX power supply, so there is no power restriction to limit the number of IP telephones that ca n connect to an individual Strata CTX cabinet.
The RJ45 LAN jack connects the telephone to the networ k via the 10Base-T/100Base-TX cabl e supplied with the IPT1020-SD. The IP T1020­SD operates on the network at 10/100 Mbps and can be connected to a fast switch hub, router, LAN, WAN, etc.
AC Adapter
Connects
to LAN Switch,
Router
Power
Over LAN
DC12V
_
+
Connects to PC
Built in Headset or HESB Interface
LAN PC
HEADSET
6682
The RJ45 PC jack can connect the IPT1020-SD to the user’s PC. The IPT1020-SD can operate like a switch, as opposed to a hub, so the telephone can be connected directly to the LAN or Cable/DSL modem, and then a PC can be conn ect ed t o the tel eph one PC jack t o connect to the LAN through the telephone.
The built-in headset jack enables headsets to be connected to the telephone. No optional headset interface is required. The same carbon or ECM headsets used on Toshiba digital telephones can be used on IP telephones.
The IPT1020-SD also has the following attributes and capabilities:
The IPT1020-SD contains two types of codecs (coder/decoder): G.711 and G.729A. The codec determines the IP telephone voice quality and network bandwidth requirements. The G.711 requires the most bandwidth and provides the best voice quality. The G.729A requires less bandwidth, but it does not provide the best voice quality. The desired codec is selectable for each IP telephone in IP station administration using CTX WinAdmin.
The external ringer interface connector is mounted inside the telephone base. This enables connection of an HESB external speaker device to provide a loud ringer for the IP telephone.
62 Strata CTX General Description 06/03
Features
IP Telephony
Existing tilt stands (B TSD and BTS A) are compa tible with then IPT1020-SD to adjust the angle of the telephone as desired.
There is no limit to the number of I P telep hones th at c an be conf igured on St rata CTX systems. All telephones in the s ystem ca n be IP te lephone s up to the s ystem’s maximum station capacity (see Table 4 on page 11).
Terminal Authentication is an option that allows a particular IP telephone to keep a reserved directory number on a CTX system. This prevents IP telephones from logging in with another telephone’s directory number if the other telephone has been disconnected to be taken to another location. This feature uses the unique Media Access Control (MAC) address that is permanently coded into each telephone network interface circuit. The unique MAC address of the telephone is assigned to a particular directory number in system programming.
IPT firmware can be updated locally or remotely using CTX WinAdmin. This enables service personnel to update IP equipment with new features and enhancements as they become available. Updates require a brief interruption of IP telephone operation (a few minutes).
IP telephones have a discovery retry timer to prevent network congestion when many IP telephones request services simultaneously. If network congestion is detected, the telephone will pause and then retry for service.
IP telephones hav e l oop back and ping capabi li ti es for maintenance and fa ul t f in d in g pu rposes.
IP telephones support Dynamic Host Conf iguration Protocol (DHCP) or static IP addressing.
For a photo of the IPT1020-SD, see “IP Telephone” on page 31.

IP Add-on Module

A 20-button Add-on Modul e (DADM3120) is av ailable f or use with the IPT1020-SD IP telephone. It looks and functions just like a DADM3020 digital Add-on Module. The DADM3120s can connect to the IPT1020-SD IP or DKT3000-series telephones to provide 20 or 40 additional feature or DSS/BLF buttons.

IP Interface Unit

The IP interface unit (BIPU-M2A) is a 16-port PCB that installs in a slot in the Strata CTX. The BIPU-M2A h as the following attributes and capabilities:
The BIPU-M2A can be programmed in software to activate 16 channels to i nterface with IPT1020-SD telephones.
The BIPU-M2A supports both G.711 and G.729A standard codec compressions si multaneously. The type of compression used is set independently for each telephone in system programming (see the “IP Telephone” section.)
The BIPU-M2A operates on t he network at 10/100 Mbps a nd c an be connected to a fas t swi tch router, LAN, WAN, etc. When connecting remote IP telephones to the BIPU-M2A over the Internet a VPN router is not needed to circumvent Network Address Tr anslation (NAT) and firewall issues by tunneling.
BIPU-M2A provides MEGACO+ mobility to enable roaming with Toshiba Mobility Communications System (MCS) applications (available with Toshiba MCS R1.0). The BIPU-M2 enables remote IP telephones to be connected over VPN and non-VPN IP networks.
BIPU-M2A firmware can be updated locally or remotely using CTX WinAdmin. This enables service personnel t o upd ate IP equipment with new fe at ure s and enhancements as they become available. Updates require a brief interruption of IP telephone operation (a few minutes).
Strata CTX General Description 06/03 63
Features
IP Telephony

IPT Anywhere

IP T Anywhere enables you to connect IP te lephones remotely through the Int ernet and use all Stra ta CTX telephone feature s (except Spe aker OCA). IPT remote connections can be set with or withou t the use of Virtual Private Network (VPN). VPN connections provide increased security and are recommended for permane nt type IPT remot e connections. When moving IP T telephones frequent ly to different locations (hotels, conferences, etc.), non-VPN connections are more practical.
When using home type xDSL or cable connections, only one or two IPTs may be connected because of xDSL and cable bandwi dth limitations . High speed T1, fibe r , or Asynchronous T rans fer Mode
(ATM)-type connections are required when installing more than two IPTs at a remote site.
An Internet configuration could use the following connections:
No VPN, and thus, no security
Third party VPN software residing on DHCP gateway server. To conn ect IP Ts over the Internet,
using third party or Microso ft VPN soft ware res iding on a DHCP gateway s erver , see Figur e 12.
ATM (IP over ATM virtualization by VC/VP)
Broadband Ethernet virtualization by Virtual LAN (VLAN)
IP-VPN (IP-VPN based on Multi-protocol Label Switching (MPLS)
Private line connection
For an access line to link t he user’ s locati on with the acces s point of the carr ier or provi der , using a private line, broadband line (xDSL, CATV), or fiber optics is recommended.
The IPT Anywhere feature enables remote IP telephone users working in branch offices or home offices to mak e f ull u se of the ex tensi on fea tures of t he S t rata CTX. The di agram below s hows IPT Anywhere connections using the optional VPN conection.
Main Office
IPT
IPT
IPT
Strata CTX
Router/
LAN Switch
VPN Router/
LAN Switch
or Server
LAN
Call Center
Contact Center
Private
Line
*
*
VPN Router/
LAN Switch
LAN
IPT
IP Network
(Internet, Intranet, WAN)
xDSL, Cable,
*
T1, Fiber, etc.
Router/
LAN Switch
VPN
Tunneling
IPT
LAN
Satellite
Office
*
VPN Router/
LAN Switch
*
Cable/
DSL Modem
VPN Router/
LAN Switch
Satellite
Office
LAN
Home Office
IPT Anywhere
IPT
IPT
IPT
IPT
IPT
6831
Figure 12 IPT Anywhere Example
64 Strata CTX General Description 06/03

Quality of Service (QoS)

In any telephone syst em, depl oying man y IP te lephon es on a data LAN c an have some une xpecte d pitfalls if the network does not ha ve the bandw idth and speed required to handle VoIP traffic. To prevent delay, jitter, and data loss for VoIP traffic and retain the performance of your other business-critical network application s a Net work Voice Readiness Assessment must be compl et ed before installing VoIP. Toshiba is not responsible for Network Voice Readiness Assessments.
More information about Voice Readiness Assessment can be found at http://www.netiq.com/
products/vm/whitepapers.asp.
CTX IP provides a number of adjustable tuning parameters dealing with sharing of network resources, collec ti vel y referred to as Quality of Ser vic e (QoS). Expected voice QoS as it re lat es to network parameters is shown in Table 35 on page 96.
Some CTX IP voice quality adjustable parameters are listed below:
System Wide Parameters
Software selectable G.711 or G.729A codecs with variable interval timing
Type of Service (TOS) precedence, delay, throughput and reliability types can be individually selected
Differentiated Services (Diffserv) can be enabled
Features
IP Telephony
IP Telephone Group Parameters (256 groups)
Voice Packet Transmission Interval
Jitter buffer type
Jitter buffer length
Maximum acceptable delay
Packet loss threshold
IEEE802.1p
Priority Con t r o l
Priority Control can be enabled system wide. It provides a framework in which voice traffic flowing on an IP network is given priority for processing. The CTX supports IEEE802.1p and Differentiated Services “Diffserv” priority control protocols- selectable. In order to have priority control processing work accurately, network equipment (router, switch, etc.) must support this function and appropriate service must be ordered from the ISP provider or carrier.
QoS Measurement
CTX WinAdmin can measure the IPT QoS parameters listed b elow:
Packets (sent/received)
Delay (msec.)
Jitter (msec.)
•Loss (%)
Strata CTX General Description 06/03 65
Features
IP Telephony
CTX Analog CO Line Interface Compatibility
To provide optimum voice quality of IP telephones on Strata CTX systems, there are some compatibility requirements that must be followed when using analog CO line cards in the system.
Toshiba highly recommends only using RCOU3A, RCOS3A, REMU2A (two-wire/four-wire), REMU1A (four-wire), RDDU2A, and RGLU3A analog CO line interfaces in IP telephone applications. These PCBs provide optimum speech quality for IPT1020-SD IP telephone connections.
Do not use RCOU1A, RCOS1A, REMU1A (two-wire), RDDU1A, RGLU1A, or RGLU2A analog CO line interfaces in IP telephone applications. These PCBs will work, but will cause IP telephone users to experience unacceptable voice quality and echo return loss.

Power Over LAN

The IPT1020-SD IP telephone requires local power for operation unless connected to a LAN that has been equipped with special equipment to provide telephone power over the LAN. The AC adapter (model BADP120-1A) supplied with the IPT1020-SD powers the telephone and is included in the price.
If the customer prefers not to use local power in favor of powering the telephones over the LAN, certain PowerDsine PD-6000 Power Over LAN
TM
products, with software revision 6805 or later, are compatible with IPT1020-SD usage on a LAN. These products are purchased from PowerDsine, Ltd., http://www.powerdsine.com, and are not available from Toshiba.
The PowerDsine PD-6000 Power Over LAN products shown in Table 18, with software revision 6805 or later, are compatible with the Toshiba IPT1020-SD. AC and AC/DC mod els are available.
Table 18 Power Over LAN Specifications
Ports, appearance Model Name Input Output
24 port type
PD-PH-6024/ACDC/48
PD-PH-6024/AC/48
12 port type
PD-PH-6012/ACDC/48
PD-PH-6012/AC/48
6 port type
PD-PH-6006/ACDC/48
AC input Voltage: 88 – 264 VAC AC Frequency: 47 – 63 Hz DC input Current: 10A at 48 VDC
AC input Voltage: 88 – 264 VAC AC Frequency: 47 – 63 Hz
AC input Voltage: 88 – 264 VAC AC Frequency: 47 – 63 Hz DC input Current: 10A at 48 VDC
AC input Voltage: 88 – 264 VAC AC Frequency: 47 – 63 Hz
AC input Voltage: 88 – 264 VAC AC Frequency: 47 – 63 Hz DC input Current: 10A at 48 VDC
Output Voltage: ­48VDC
User Port Power: 16.8W (Max.)
Data Rates: 10/100 Mbps
PD-PH-6006/AC/48
AC input Voltage: 88 – 264 VAC AC Frequency: 47 – 63 Hz
Important! Whenever ordering PowerDsine PD-6000 “Power Over LAN” products, be sure to
specify they have software revision 6805 or later, and they are for use with the Toshiba IPT1020-SD IP telephone. You can tell the software version by looking at the serial number of the PowerDsi ne unit. The fou r -digit soft war e ver sion number is imbedded in the middle of the 15-digit serial number.
66 Strata CTX General Description 06/03

Toshiba IP Soft Phone

The T o shiba IP So ft Phon e will be ava ilabl e in a futur e rel ease. T he Toshiba IP Soft Phone is an I P telephony client that works with a wired or wireless (Wi-Fi) desktop or laptop PC or Pocket PC. The Toshiba IP Soft Phone integrates the power of a PC with all of the features available on a DKT3000-series telephone, except background music.
With the Toshiba IP Soft Phone installed on a Wi-Fi Pocket PC or laptop PC, users can have true mobility with access t o voi ce mail, programmable feature but to ns, a nd a directory that works wit h Microsoft® Outlook® 2002. Users can access the Internet on the same Pocket or laptop PC that has the Toshiba IP Soft Phone.
IP Soft Phone operation requires a wired or wireless connection over the IP network (Internet, WAN, LAN, etc.) to the CTX BIPU-M2A IP interface. The voice communications uses the MEGACO+ protocol for call control signaling and RTP for voice transmission.
The Toshiba Soft Phone works on the following:
Desktop or laptop PC with Windows XP, or higher,
operating software (OS)
Toshiba Pocket PC e750 series with Windows Pocket PC
2003
Features
IP Telephony
The Toshiba IP Soft Phone operates much the same as a T oshiba Digital 3000-ser ies tel ephone ( see Figures 13 and 14).
A mouse or stylus is used to click or select the buttons. The
&DOO button operates the same as the DKT3000-series
telephone
6SNU button. Additionally, there are six feature
buttons that can be customized from telephone programming mode.
Live call progress display
Soft Keys
Volume Control
DON-IPT: APR 17 THURSDAY
NO.2752
Figure 13 Toshiba
6835
Pocket PC
04:38
Press to see more buttons or directory
Turns microphone speaker On/Off
Up to six flexible buttons are programmed from the Strata CTX
6821
Figure 14 Toshiba IP Soft Phone Sample Screen
Strata CTX General Description 06/03 67
Features
IP Telephony
With Outlook 2002, you can create a directory for the IP Soft Phone. Once a directory is created, the user can click on a name in the directory to automatically dial their number (see Figure 15).
Click on a name and the Strata CTX dials the number
Use Outlook to add names to the
Name
Hugh Leon Jessica Kai Kenny Voldrich Tony Garaldi Tony Bell Bob Rogers Shayla Morgan
Ext
3202 4011 3249 4201 4100 3237 3200
Directory
6823
Figure 15 Example of IP Soft Phone Directory
The IP Soft Phone can be connected to the CTX several different ways:
Intranet – A wired or wireless PC can connect to the office LAN that connects to an IP
telephone that connects to a BIPU-M2A in the Strata CT X.
Internet – A wired or wireless PC at a remot e s it e c an conn ect t o a Cable or DSL modem, to an
Internet Servic e P rov ider (ISP), to a rout er, to the BIPU-M2A in the CTX (see Figure 16). (For additional connection examples, refer to the Strata CTX Installation and Maintenance manual
– IPT Chapter.)
Wireless – The wireless PCs, such as the Toshiba Pocket PC or Toshiba Ta blet PC need a Wi-Fi
system that uses the 802.11b standard. The IP Soft Phone wireless units can operat e withi n 300 feet of an access point. Toshiba does not provide or recommend access point equipment.
PC with
Soft Phone
(Wi-Fi)
Pocket PC with
Soft Phone
(Wi-Fi)
Internet Service
Provider
Strata CTX
BIPU
6875
PC with Soft Phone
LAN LAN
Access Point
802.11b
Router
Figure 16 IP Soft Phone Internet Connection
Licensing
The CTX has to be optioned for I P Soft Pho ne Lice nsing i n order for the IP Soft Phone to f uncti on with the BIPU interface.
Router
PC with Soft Phone
Access Point
802.11b
Cable or DSL Modem
Home
PC with
Soft Phone
(Wi-Fi)
Pocket PC with
Soft Phone
(Wi-Fi)
68 Strata CTX General Description 06/03

Private Networking Over Internet Protocol

Private Networking Over Internet Protocol
Strata Net CTX multi-system networking can be implemented over an IP network using Strata CTX systems with BIPU-Q1A IP interface PCBs. The BIPU-Q1A requires CTX Release 2.1 software. This feature offers the same connection service as ISDN dedicated lines with QSIG protocol on the public network (see “Strata Net Multi-system Networking” on page 78 for more information). QSIG over IP does not support data calls (modem signal and G3 FAX).
The BIPU-Q1A can be configured for 16 channels in system programming. The BIPU-Q1A supports the same functions of call control as the dedicated ISDN QSIG interface and the two interface types can be mixed in on a Strata Net network. However, the BIPU-Q1A only interfaces with the BIPU-Q1A, not with the BPTU or RPTU interfaces and vice versa.
CTX private networking QSIG over IP can support up to 128 separate nodes. BIPU-Q1A interface parameters include:
100Base-TX: Automatic recognition and switch
Transmission: TCP/IP, UDP/IP
Protocol: I P QSIG (ECMA-336), NAT compatibl e
Protocol: RTP/RTCP for voice transport
Features
Voice coding: G.711, G.729A, selectable
Priority process: Dif fse rv /IEEE802.1p An example of Strata Net QSIG over IP networking is shown below.
Strata CTX
Router
BIPU-Q1A
Strata CTX Strata CTX
BIPU-Q1A
or Server with or without VPN
QSIG
over
IP
Router or Server with or without VPN
IP Network
QSIG over IP
QSIG
over
IP
Router
or Server with
or without VPN
BIPU-Q1A
6755
Figure 17 QSIG Over IP Example
Strata CTX General Description 06/03 69
Features

Integrated Services Digital Network (ISDN)

Integrated Services Digital Network (ISDN)
ISDN is a set of integrated telecommunications services, available over the public telecommunications networks. ISDN makes it possible to send, receive and modify information using telephone lines in ways that were not previously possible, such as:
Dynamic use of indivi dual or g roups of stan dard (POTS), DI D, T ie, FX, WA TS, 800 li nes on an as-needed basis
Much faster call setup and data transfer up to 128Kbps
Multi-purpose line use, including sharing lines for voice, data, fax, and video
DID functionality based on the number dialed; without needing to reserve a block of numbers
ISDN servic e comes in two forms:
Primary Rate Interface (PRI) supports simultaneous voice or data connections (eight, 16 or
23). PRI is similar to digital T1 service and uses two pairs of wires from your phone company. The RPTU PCB supports PRI on th e Strata CTX.
Basic Rate Interface (BRI) supports up to two simultaneous connection s using a si ngle pair of wires. The Strata CTX BRI cards support both station side and trunk side connections. Strata CTX systems also support BRI interface from the public network as a CO line service. There are two types of ISDN BRI interfaces: S/T type (via RBSU/RBSS) and the U-type (via RBUU/RBUS).

Least Cost Routing (LCR)

Least Cost Routing chooses the most appropriate route over which to connect an outgoing call based on the following:
Dialed Digits
•Time of Day
Type of Day (Business, Weekend, Holiday)
LCR group of the caller
The combination of routing tables, indices, route definitions and time-of-day qualifiers can produce up to 75 million combinations. Routing changes automatically for each type of day, according to the time of day. This schedule is independen t of the Day/ Nigh t mode schedule which applies to ringing and CO assignments.

Line Buttons

Telephone buttons that are used for making and receiving outside calls are referred to as /LQH (or
&2/LQH) buttons. (For information on various [DN] buttons, refer to “Directory Numbers” on
page 55.) The Strata CTX supports the following types of line buttons:

CO Line Buttons

Smaller systems have t r aditionally provided the direct ap pearance of the CO lines on the telephones where ma ximum vis ibil ity of the line stat us, fl exibl e rin ging as signmen ts, and i nformal call transfers associated with key telephone systems may be implemented.
70 Strata CTX General Description 06/03

Pooled CO Line Button

Pooled Line Group buttons enable a group of CO lines to “appear” under one button. Pooled and single appearing line buttons are designed for use with loop and ground start lines, not Tie, DID, DNIS or AN I lines.

Group CO Line Button

Group CO line buttons are like individual CO line buttons except these buttons represent all the lines for a p articular ISDN Channel Group. This enables ISDN channels to operate simi lar to analog CO lines on a key telephone system. These buttons may have appearances on multiple telephones providing call coverage across several telephones. Multiple appearances of the same Group CO line button is possi ble on ea ch phone to allo w multiple call han dling for that gr oup from each station.

Live System Programming

Programming the Strata CTX from an on-site or off-site location does not interrupt the operation of the system in most cases. It is interrupted for hardware upgrades.

Lost Call Treatment

Features
Live System Programming
Lost Call Treatment provides the CTX a mechanism for terminating calls that cannot be terminated with the usual calling patterns. One scenario would be a call that is recalled to a station, the station user is no longer there to answer the recall and no forwarding pattern is programmed. The call will ring at the recalled station until the Lost Call Timer has expired after which the system will d irect the call to the Lost Call Destination.

Message Waiting

Any station and most voice mail devices can turn on a message waiting indicator for a designated digital or standard telephone station.

LED Indication

Message waiting lights can be activated when a voice mail message has been left, or they can be turned on by a calling station. The station u ser can retri eve messa ges by press ing the butt on next to the message waiting light or by dialing an access code from a standard telephone.
The telephone main 0VJ light indicates a message is waiting for the telephone [PDN]. Up to four [PhDNs] per telephone can also have individual MW LEDs assigned to flexible buttons.

Stutter Dial Tone

Stutter dial tone is also used to indicate a message is waiting or your telephone is in the DND mode. When a station user goes off-hook, two different available stuttered dial tones indicate whether a Message Waiting (MW) or DND condition exists. The MW-stutter dial tone indicates a message is waiting for the s tatio n. DND-stu tter dial t one in dicat es DND is s et at the st ation . (DND provides a fast busy tone burst as stutter dial tone.) If both conditions exist simultaneously, the MW-stutter dial tone has priority. This is very v aluable to station users that do not ha ve a MW Light Emitting Diode ( LED) or details of each type of stutter dial tone.) With Release 1.3 and higher, users can disable (in programming) stutter dial t one for mess age waiti ng and whe n in the DND mode. If stutter di al tone is disabled, they will hear normal dial tone when you go off hook.
'1' button LED on their telephone. (See Table 32 on page 94 for
Strata CTX General Description 06/03 71
Features

Microphone (External Unit)

Microphone (External Unit)
An external microphone (RFDM) can be connected to the DKT2020-FDSP digital telephone enhancing “full-duplex” operation by virtue of the “superdirectional” characteristic of the microphone. When this option is on, the internal microphone is disabled on all but Voice First Handsfree Answerbac k cal ls an d OCA cal ls. Th e ext ernal microp hone i s power ed by the DKT and does not need to be turned off when not in use.

Music-on-hold

Music-on-hold can be derived from a customer-supplied radio, tape player, tuner, CD player or other device to provide music or announcements to par ti es on hol d on CO lines or on [DNs]. With the Strata CTX, you can have up to 15 MOH/BGM sources. Each CO line group and each DID/ DNIS number may be assigned a specific MOH source. Stations and network Tie lines can also share a unique MOH source.

Multiple Call/Delayed Ringing

With Strata CTX Release 1.3 and higher, you can assign Delayed Ringing to voice mail and auto attendants. This fe ature ca n also be used to ring mu ltiple (25 max.) t elephones immediately o r with a delay by dialing a gr oup pil ot numbe r. Each group member can have Immediate, Delayed Ring 1 or Delayed Ring 2. Delayed Ring times are adjustable (1~180 seconds) for each Multiple Call Group. Multiple calls to dig ital tel ephone is suppor ted; however, delayed ring to digital telephones is not supported as of this printing.

Off-Hook Call Announce (OCA)

Station users may announce a call when the station they call is busy talking with the handset off­hook. The announcement is only audible to the telephone user receiving the OCA call, not to the other party in the original conversation.
Two different methods of operation are provided – handset or speaker OCA. With handset OCA, the OCA caller’s announcement comes in on the telephone handset. With speaker OCA, the announcement comes in on the speaker. Handset or speaker OCA can be set individually for each telephone that must receiv e OCA calls . Speaker OCA requir es a BVSU opt ion PCB i nstalled in the telephone that receives the OCA call. Handset OCA has no optional hardware requirement.
When a busy telephone receiv es a handset OCA call, reply ing confid entiall y to the OCA caller c an be accomplished by pressing the down the to the OCA caller. To reply to a speaker OCA call, the user covers the handset mouth piece and talks back through the telephone microphone.
Any type of telepho ne can be enabl ed t o ori ginat e OCA when call ing a busy dig ital t elepho ne. The feature is activated automatically (optional setting) or manually (Call Completion code – digit 5). Stations receiving OCA must be proprietary digital telephones assigned with OCA-receiving capability in system programming. Standard single-line telephones cannot receive OCA.
Any type of stati on can make an OCA call, as long a s t he station has this option enabled in s yst em programming. OCA to DND telephones is all owed onl y if DND Overri de i s all owed on the ca ll ed and calling telephones.
0LF button to make a short reply. In either case, the original call er will not hea r the reply
0VJ button (toggle) to place the original call on hold or holding
72 Strata CTX General Description 06/03

Off-Premise Stations

Off-premise stations are supported using either standard analog telephones or Toshiba digital telephones. This can accommodate both individual telephones and branch office connections. Off­site standard analog telephones can be part of the system, having access to many of the features offered by the Strata CTX. Eac h off-site station requires a special OPX line from the CO.
Off-site digital telephones can be part of the Strata CTX system using MCK Branch Office EXTenders. This is ideal for organizations with geographically dispersed locations, extending the power of the main location’s Strata CTX to small branch offices over your existing data network. This enables groups of remote workers to use Toshiba digital telephones to have seamless access to the main location’s telephone system and voice mail syste m.
Remote employees have transparent access to all the same capabilities as if they were locally connected to the S trat a CTX system. They have can the same ability transmi tt ing voice traffic and digital telephone signaling over the customer’s existing Local Area Network (LAN) Wide Area Network (WAN) private IP packet network or the public Internet.

Override

Features
Off-Premise Stations

Call Forward Override

Stations with this feature will not forward when they call stations that have System or Station Call Forward activated. This appl ie s when using the telephone dial pad o r [DSS] button to make a call. It also applies to [DSS] buttons on DSS consoles or add-on modules associated with the Call Forward Overriding telephone.

Class Of Service Override

By dialing a Class of Se rvice Ov erride ( COS) code, a us er can chan ge a st ation’s class of service to one associated with the override code. When the call is terminated and another is attempted from the same station, the original Class of Service is applied. This allows selected users to override toll restriction or other restrictions that are placed on any telephone in the system.

Do Not Disturb (DND) Override

A privileged caller may invoke the DND Override feature after dialing an internal station and receiving a DND indication. If that privilege is granted to the calling station and the called station permits its DND to be overridden, the call will ring on that phone.

Executive Override

Stations with this feature allowed by COS can enter any conversation in the system by dialing a or pressing a Feature Prompting Soft Key after dialing a busy station. An optional warning tone notifies the parties that another party is about to conference into their conversation. Executive Override can be blocked selectively to any station in system. Executive Override must be allowed in system programming for the called and calling station.
The Do Not Disturb feature can also be used to block Executive Override; however, stations that are allowed DND Override can use Executive Override on stations in the DND mode. The
3ULYDF\ button does not block Executive Override.
Strata CTX General Description 06/03 73
Features

Paging

Paging

Privacy Overrid e

Privacy override controls the ability of multiple station users with a shared (common) /LQH or [DN] button appearance to join in each other’s conversation by pressing the busy button appearance. A station must be programmed with Privacy Override to permit the intrusion on a shared
In the case where Privacy Override is normally allowed, a telephone can have a “Privacy” button to block Privacy Override (intrusion) to the call. The Do Not Disturb feature does not block Privacy Override. In the case where Privacy Override is not normally allowed, a telephone can have a “Privacy Releas e” b utton to all ow intr usion to the call by any s tati on with the sha red but to n appearance. (See “Pr i vacy” for more information.)
The Strata CTX has a paging interface that supports a Toshiba External Speaker (HESB) or a customer-supplied amplifiers and speakers for Paging, Night Ringing over Page, and BGM applications. Users can access any of the Paging options by dialing access codes or by using a programmed One Touch button.
/LQH or on [DN] buttons.

Telephone Group Paging

Paging is activated from an extension by specifying a Paging Group. Paging can be broadcast through digital telephone speakers and external paging devices simultaneously. The system supports up to 16 telephone page groups with up to 32 telephones per group. Standard telephones cannot be members of a page group.

External Speaker Page Zones

The Strata CTX supports eight different paging zones for external speakers. Users can access zones by dialing an access code plus the zone or pressing a One Touch button. The zones are composed of customer-supplied speaker(s) and amplifier(s). One BIOU supports up to four page zone interfaces, a second BIOU is required for 5~8 zones.

Emergency Pa ge

Designated stations can be permitted to place an Emergency Page to ensure they can reach all concerned with an important announcement. An Emergency Page is one that will supersede any current page to allow thi s pr ivi leged station to take over the pagi ng apparatus. Like other forms of paging, an Emergency Page can be an All Page or directed to a specific Page Group and External Page Zones.
Each of the 16 Paging Groups supports up to 32 devices. Emergency Page groups follow the regular Group Paging. The list for Emergency All Call Paging is a separately defined list from regular paging. An emergency page may be answered in the same manner as a regular page.

Night Ringing Over Selected Page Zones

Lines can be programmed to night ring over eight selected Page zones via customer-supplied paging equipment. Up to two BIOU PCBs can be installed to connect external paging or night ringing equipment. Each BIOU supports up to four page zones.
74 Strata CTX General Description 06/03

Power Failure Protection

The Strata CTX has important optional capabilities that keep the system operating when commercial AC power is interrupte d.

Power Failure Transfer

The Strata CTX can immediately switch loop start analog CO lines directly to dedicated standard telephones (custome r -prov ided 2 500- or 500-ty pe) f or i ncoming and ou tgoing ca lls in t he ca se of a commercial AC power failure. The transfer is a utomatic with no manual transfer procedure required. During normal oper at ion with AC power, the Power Failure telephones function with al l Strata CTX featu res available to a normal stand ard telephone. Th is feature re quires an exter nal unit called the Power Failure Transfer Unit (DPFT).
Each DPFT provides interface for eight power failure telephones. A Standard Station Interface (RSTU) circuit card is required to supply the DPFT with a -24VDC control power and ground connections. The number of Power Fai lur e t el eph ones available depends on sys tem c onf igu rat i on. The system maximum is 264.

Reserve Power Ba ttery Backup

Features
Power Failure Protection
Two or four 12-volt gel-cell, maintenance-free batteries can be connected to the CTX system power supplies for system battery backup (80 amps./hours max.). The CTX670 system power supply is standard-equi pped with a battery charger and the batteries continuously trickle charge to capacity while elec tric al power is pr esent . The CTX100 power su pplies must be equipp ed with th e optional ABCS battery charger to charge reserve power batteries.
If the AC power fails, the Strata system automatically switches over to battery power without any interruption in operation. Calls in progr ess are not interrup te d. Bat te ry oper ation duration depend s upon the condition and ampere hour rating of the batteries and the system load. However, the minimum battery operation time would be several hours. Connection of reserve power batteries must be made when commercial AC power is available.

Privacy

Privacy prevents intrusion on calls that appear on shared (common) [DN] or line buttons. If a telephone has a c all o n a [DN] or li ne button that appear s o n other tel ephones , th e othe r tel ephones cannot intrude on the call by pressing the shared button unless the intruding telephone has the Privacy Override feature or the telephone with the call activates the

Repeat Last Number Dialed

This feature enables a digital station to automatically redial the last number dialed from their station by selecting an outgoing line and pressing the Digital key telephones have a fixed dialed.
5HGLDO button for automatic redialing of the last number
3ULYDF\5HOHDVH button.
5HGLDO button or by dialing an access code.
Strata CTX General Description 06/03 75
Features

Ringing

Ringing

Ring Over Busy

When a digital telephone is busy on a call and then receives an internal or external call on an idle [DN] or line button, the button will automatically flash and ring with Ring Over Busy tone. The tone burst can either be sent two times (three seconds apart) or repeated continuously every three seconds or not se nt as a s tation op tion. To answer a Ring Over Busy call, the user can hold, tra nsfer or disconnect the existing call.
On Voice First calls to a busy telephone that has an idle [DN], the caller will get busy tone. The caller can then dial the digit
to cause the idle [DN] to Ring Over Busy.

Ringing Cadence

With Release 1.3 and higher, you can choose between two different ringing cadences for standard telephone circuits i n prog ramming. Thi s opti on is nece ssa ry to acc ommodate so me voice mail and / or auto attendant devices. This is a system wide option that allows external calls to ring with the traditional one sec. on./three sec. off cadence or optionally with a faster cadence of .4 sec. on./.2 sec. off. This option does not apply to digital telephones. If ringing cadence is used, Centrex ring repeat must not be used.

Delayed Ringing

See “Delayed Ringing” on page 52.

Distinctive Ringing

See “Distinctive Ringing” on page 56.

Speed Dial

This feature, sometimes known as automatic dialing or one-touch dialing, enables the customer to assign dialing code s to tel ephone numbe rs that are fre quently c alled. S trat a CTX of fers t hree for ms of Speed Dial: System Speed Dial (up to 800 max. per system), Station Speed Dial (100 max. per station), and One Touch buttons. Station Speed Dial numbers and One Touch buttons are unique for each station and cannot be used by other stations. System Speed Dial numbers can be used by any station in the system.
To dial System and Station Speed Dial numbe rs, the user presses t he 6SGLDO but ton and then dials the appropriate thr ee -di gi t code for the telephone number to be dialed. To dial a telephone number assigned to a One Touch button, the user simply presses the One Touch button. Users can program Station Speed Dial and One Touch buttons from their telephones.
CTX WinAdmin is required to program System Speed Dial numbers and can also be used to program Station Speed Dial numbers, but not One Touch button numbers. Each Station and System Speed Dial number can be assigned a nine-character name using CTX WinAdmin.This name appears in the DKT3014 large LCD screen System Speed Dial and Personal Speed Dial directories.
76 Strata CTX General Description 06/03

One Touch Buttons

One touch buttons enable users to stor e speed dial and custom feat ure access sequences on a s ingle button. When this button is pressed, the stored number is dialed or the feature is accessed.
You can store frequently dial ed numbers, such as thre e- dig it Sys te m Spe ed Dial codes, onto a One Touch button. This eliminates the need to enter the three-digit code to dial a System Speed Dial number. Complete telephone numbers up to 32 digits can also be stored on a One Touch button.
These buttons make it eas y t o access features that usu al ly r equire pressing multi ple but tons and/or dialing special access codes. For example, a user may have to dial an access code ( zone number ( “Page Warehouse.” Another button can be set to page a particular group of telephones.
The One Touch button also has a “stop” function that can be entered between two numbers, such as a telephone number and sec uri ty code. When the One Touch button is pres sed , it ca n spe ed di al a telephone number, then pause (LED flashes). When the call is answered, it prompts for a security code. The user can then press the flashing button and enter the security code. Any number of “stops” can be set to enable dialing multiple numbers.
Multiple feature buttons such a &QI?7UQ, [DN], CO line, etc., can be set on One Touch buttons to allow multiple butt on pr ess es to be sto red under one button. This enables tandem line connections and other call setup sequences to be dialed easily by pressing one button.
) to page the warehouse. This sequence can be set on a One Touch button labeled
) plus a
Features

Station Hunting

Station Hunting
A series of Directory Numbers (DNs) can be organized in groups in such a way that if a called [DN] is busy the call will try to ring another [DN] in the group. If that [DN] is busy it will hunt to a third [DN], etc. Telephones in the same department, voice mail ports and boss/secretary call coverage situations are typical applications for hunt groups. Hunt group members can remove themselves from the group by placing their station into the Do Not Disturb mode. The system supports three types of station hunting:

Serial Hunting

In this type of hunt group, calls hunt [ DNs] in a series from first to last in a specific order. When any [DN] in the series is called, the system will ring the first idle [DN] in the series, starting with the called [DN], hunting to the last [DN] in the series. As an option, this type of hunt group can have a unique Pilot [DN] assigned to it. When callers dial the Pilot [DN] to reach a telephone in the group, calls will hunt all [DNs] from first to last.

Circular Hunting

In this type of hunt group, ca lls h unt [DNs] in a seri es in a s pecific order; h owever , t he serie s forms a loop, which enables the last [DN] to hunt to the fi rst [DN]. Wh en any [DN] in th e series i s called, the system will ring the first idle [DN] in the series, starting with the called [DN], hunting to all [DNs] in the series. As an optio n, this ty pe of hunt group can hav e a unique Pilot [DN] assigne d to it. When callers dial the Pilot [DN] to reach a telephone in the group, calls will hunt all [DNs] from first to last.

Distributed Huntin g

This type of hunt gr oup always has a uni que Pilot [DN] assi gned to i t. Calle rs dial t he pilot [DN] to reach a telephone in the group. Calls hunt in such a wa y so a s to distribute the calls even ly to each [DN] in the group. Hunting rotat ion alway s start s in sequ ence wit h the [DN] tha t foll ows th e [DN] that receiv ed the last call – even if all other [DNs] are idle.
Strata CTX General Description 06/03 77
Features

Station Message Detail Recording (SMDR)

Camp on to Hunt Groups

On incoming CO line calls to busy hunt groups, the caller automatically camps on to the called [DN] or Pilot [DN] and the caller receives ring-back-tone.
On internal calls to busy hunt groups, the caller may get bu sy to ne. The caller can then dial a digit to initiate Camp On-Busy to the called, busy [DN] or the Pilot [DN], if used. As an option, for each hunt group that uses a Pilot [DN], calls will automatically camp on to the called Pilot [DN].
With the Automatic C amp On option, the caller does not get busy tone, i nstead the caller receives confirmation tone followed by ring-back-tone. When using hunt group Pilot [DNs], camped on calls queue onto all [DNs] in the group and will connect to any [DN] in the group that becomes available. When not using Pilot DNs, Camp On is only app lied to the called [DN].
When more than one party is camped on (queued) to a hunt group, the party with the highest Queuing Priority Level (QPL) will be connected first when the destination becomes available. If the parties have the sam e QPL, the longest waiting call will be connected first.
Station Message Detail Recording (SMDR)
For each incoming, outgoing or tandem call, the Strata CTX can generate a record that includes details of the call, including the originating station or trunk, the start time of the call, its duration, authorization codes, etc. If a station user dials “911,” the Strata CTX will also generate a record at the beginning of the call as part of its internal notification that an emergency call is in progress. SMDR requires an optional BSIS interface PCB and a connected Call Accounting system.

Strata Net Multi-sy stem Networking

Strata Net is a private networking application based on QSIG, an international standard for the interconnection of PBX. Strata Net delivers a rich set of calling features across multiple Strata CTX systems distributed throughout the enterprise. Users benefit from transparent dialing and simple feature operation.
Advanced networking features include Centralized Voice Mail, Centralized Attendant and Station DSS button appearances across all nodes. Network Station Message Detail Reporting (SMDR). Alternate Routing provides for toll bypass configurations and automatic recovery from network disruptions.
Strata CTX systems are interconnected with DS1 (T1) circuits to provide ISDN-type inter­connectivity. DS1 circuits may be leased from public carriers, derived from Frame Relay or IP networks, or connected across twisted-pair cabling or fiber optics.
QSIG over IP also provides full Strata Net connectivity and capabilities over an IP network (VPN WAN, Internet or intranet).
Up to 128 nodes can be accommodated within the Strata Net numbering plan. Up to four nodes connected in tandem can give satisfactory performance with regard to latency. As with any network design, transport, delay speech volume and other issues must be carefully considered.

Coordinated Numbering Plan

Strata Net can be configured to allow users to call each other across network nodes with simple network directory numbers. This eliminates the user’s need for access codes and network maps. Calls that encounter a busy or unanswered destination can be forwarded to any node in the network, including a centralized voice mail system or attendant.
78 Strata CTX General Description 06/03
Strata Net Multi-system Networking

QSIG Basic Call Control

The Strata CTX conforms to the QSIG standard for Basic Call Control. This is the ba sis for all Strata Net connectivity and interoperability with PBXs from other manufacturers. Basic Call Control provides for connection, dialing, identification of calling and called parties’ names and numbers and message waiting indications among other features.
Important! Toshiba does not guarantee interoperability with other manufacturer’s products:
only conformance to the standard.

Alternate Routing

Each Strata CTX can be programmed for thousands of routing patterns for Strata Net alone. This allows the creation of networks in which calls can be automatically re-routed around network disruptions. Centralized facilities and features can continue to work and users will be unaware of problems while they are being repaired.
Alternate Routing also pe rmits Toll Bypass in which Strat a Net can be used to deli ver a publ ic call from a point in the network where toll charges are minimized. Such a scheme is known as “Hop Off” for the ability of the private network to determine the point at which the call will hop off to the public network.
Features

Centralize d Attendant

One attendant can serve an entire Strata Net (requires Strata CTX R1.3 and higher, as well as CTX Attendant Console application R1.3 and higher). Station users only need to dial “0” to reach the centralized attendant regardless of the node in which they reside. The attendant can reach any station in the network using its Network Directory Number. Trunks attached to any network node can be programmed to terminate to the centralized attendant and their source and calling party information will be delivered to the attendant’s display. The BLF appearances of all stations from all nodes can appear on the centralized Attendant Console.

Telephone DSS Buttons

With Release 1.3 and higher, telephone DSS buttons can appear across the QSIG network. This enables a user’s DSS button to function in all nodes in a CTX network. The DSS function works within or across a network.

Centralized Voice Mail

Requires Stratagy ES or iES Release 4 or higher. A voice mail system attached to any Strata Net network node can serve us ers throu ghout the ent erprise. Unan swered call s will be fo rwarded to t he voice mail, the sou rce an d ca lling condit io ns ide ntifi ed and the app rop riat e voice mai lbox gr eetin g will be played. The voice mail system can control message waiting indications throughout the network as messages are left a nd retri eved. A singl e network can even s upport mu ltiple centralize d voice mail systems with each station being programmed for the appropriate system. Record to voice mail and voice mail soft keys are available across all network nodes from a single Stratagy R4 ES or iES voice mail system.

Network SMDR

An external Strata Net call will generate a call record at the terminating node for that call. Transit nodes will not gen erate reco rds. The re cords can be store d in c ust omer -su pplied exter nal b uf fe rs at each node. Polling cal l a cco unt ing software can gather and organize the data from mul ti ple node s. Local buffering provides survivability in the event of network disruption.
Strata CTX General Description 06/03 79
Features

System Fault Finding and Diagnostics

System Fault Finding and Diagnostics
The Strata CTX can detect problems in the system. These conditions can be detected, alerted, logged, and traced. Strata CTX includes many useful diagnostic tools.

Alarm Indication of System Faults

Visual Alarms are presented to CTX WinAdmin and attendant consoles.

SmartMedia Card

This is a small memory card that is commercially available in retail stores. It is the sam e as SmartMedia cards used in digital cameras, MP3 players, etc.
The Strata CTX uses the SmartMedia card to store all error, trace logs and a backup copy of the system operating software and the customer database. The SmartMedia card is inserted into a socket on the CTX processor. The CTX processor creates directories and files onto the card for maintenance functions. Using CTX WinAdmin enables moving, copying, or deleting these files without having to remove the SmartMedia card from the CTX processor. With CTX WinAdmin, this works locally or remotely. SmartMedia files c an also be managed by removing the SmartMedia card from the CTX processor and inserting it into a PC SmartMedia card read/write adapter.

Fault Detection and Error Logs

The Strata CTX detects and logs abnormalities that it encounters during operation. All error and trace logs are stored on the SmartMedia card on the system processor and are monitored by CTX WinAdmin. Examples are trunk failure detection and auto busy-out, digital telephone port failure detection and auto busy-out plus error log, Expansion Cabinet power supply failure alarm and error log, etc.

Event and System Administration Logs

Events such as station buttons pushed or lines accessed are stored in an Event Log. All actions made by the System Administration user are logged. Both logs may be called up at a later time.

Automatic Fault Recovery

The system can automatically correct certain conditions detected during operation. This enables the system to continue operating normally without requiring correction.

System Trace

The system records telephone key strokes and other high level events and presents the data in a format understandable and useful to the field technici an fo r tr oubl eshooting purposes. The system also records more detailed data useful to a software support engineer.

Manual Test

The maintenance technicia n can perform certa in test functi ons using CTX W inAdmin to deter mine proper operation of the system.
80 Strata CTX General Description 06/03

Backup/Restore

The customer database can be backed up and restored using the SmartMedia card. The customer database is a file that can be stored on the SmartMedia card, transferred to the PC hard drive, e-mailed, etc.

Maintenance and Administr ation

The CTX WinAdmin terminal can be connected directly to the Strata CTX or via the customer’s LAN as well as remotely over the Internet and via modem over the public network. The Strata CTX processor comes standard with a network interface port and a built-in modem.

Software Upgrade

The Strata CTX operating software can be upgraded using the SmartMedia card or by downloading it from a remote location. The operating software is a file that can be stored on the SmartMedia card, transferred to the PC hard drive, e-mailed, etc.

Transfer

Features
Transfer
Transfer is the ability to redirect a connected call to new destination. The Strata C TX provides three means of transferring a call and three means of terminating transferred calls, depending on the calling state of the destination. The transferring features and the terminating features may be used in combination to serve most needs that arise.

Transfer with Camp On

This feature ena bles t he tr ansfer of a call to a busy d estin ation. The trans ferr ed part y au tomati call y camps on to the busy destination when the transferring party releases the call.

Transfer Immediate

Call Transfer Immediate simplifies the transfer of calls for users of digital display telephones. With a conversation in progres s, the displa y phone user presse s the destination. The calling party is placed on Consultation Hold, the call immediately transfers and the transferring phone returns to idle. This feature does not apply to network calls.
TRNS Soft Key and dials the t ransfer

Transfer Priva cy

An outside call that has been transferred can only be answered at the station to which the call has been transferred. Another station cannot pick up the transferred call using a common CO line button unless it is another station using the Directed Call Pickup feature or a station that has a [DN] appearance of the “transferred to” [DN]. A flashing red LED indicates the call is transferred. Privacy for transferred calls can be disabled in programming.

Transfer (Screened)

The transferring part y ca n tal k privately with the receivi ng pa rt y before connecting the party t o be transferred. While that conversation is going on, the transferred party is on Consultation Hold listening to Music-on-hold. When the receiving party agrees to accept the call, the transferring party can use the switc h hook o r fea ture button to in clu de the origi nal p arty i n the conv ersati on. At this point, the transferring party can hang up and the other two parties remain connected.
Strata CTX General Description 06/03 81
Features

User Programming Mode

Transfer (Unscreened)

Unscreened Transfer allows the transferring party to exit the con nection befo re the transfer destination answers. After the destination answers the call, the system treats it as a regular call. If the destination does not answer the call within the predetermined time of period, the transferring party is recalled.

Transfer to Voice Mail

See “Direct Transfer to Voice Mailbox ” on page 84.

Music or Ringing Option

This feature enables ringing or music to be heard by the caller when their call is transferred, depending on system programming.
User Programming Mode
Digital telephone users can use the programming mode for customizing their Toshiba telephones without the aid of an Administrator or Service Technician. The User Programming mode is accessed with a Programming enables users to customize these features:
3URJUDP button assigned to a flexible button or through an access code. User
Flexible Buttons – T oshiba te lephones have 10, 14 , or 20 f lexible butto ns to whic h the use r can assign any one of approximately 50 different features (DND, ACB, Release, etc.). Once assigned to a button, the feature is accessed by pressing that button. Some buttons have parameter s that users can set. Thes e include:
Call Forward – Users can set the Call Forward (CF) destinat i on and CF-No Answer T imer
for the CF buttons.
One Touch – Users can set speed dial and custom feature access code sequences for
One Touch buttons.
Background Music – Users c an sele ct th e music s ource (u p to 15 sour ces) t hat will play on
their telephone’s speaker when they activate the
Ring tones/LQH and [DN] button ringing tones can be changed to one of four different
tones. These tones apply to direct or transferred incoming calls from outside lines, not internal calls.
Note Directory number and external line buttons cannot be added or deleted, but their ring tones
can be individually changed.
In addition to the Progra mming Mode , an advanced programming function en abl es a dmi ni st ra tor s to individually turn On/Off the telephone’s beep tone, handset call waiting tone, and microphone background noise ca ncell ation opt ion . This mode enabl es LCD cont rast adjust ment an d test ing th e DKT3014 large LCD screen.
%*0 button.
82 Strata CTX General Description 06/03

Voice or Tone Signaling

Each [DN] button can be programmed for either Voice or Tone Signaling as the standard method of internal incoming call signaling. Tone Signaling rings the telephone when a call comes in and ensures better privacy. With Tone Signaling, the called telephone receives a one-second ring tone every three seconds. The pitch and sound of internal tone signaling is always the same. Incoming CO line ringing is uniquely different, with up to four optional ring tone sounds.
With Voice Signaling, station users will hear a tone burst followed by the caller’s voice over their telephone speaker when called by another station user locally or over the private network. Voice Signaling allows han dsf re e talkback from the c al le d t el epho ne on internal and pr iv at e network Tie line calls.
After calling a directory number that has Voice Signaling, the caller can switch to Tone Signaling by dialing
. Whether a call is initiated with Tone or Voice Signaling, it can always be switched back and
forth by dialing
Note A call to a Voice Signaling [DN] will not Call Forward No Answer unless the signaling is
. The signaling method can also be switched from Tone to Voice Signaling by dialing
or .
switched from Voice to Tone Signaling.
Features
Voice or Tone Signaling

Voice Mail Integration

The CTX670 supports Dual-tone Multi-frequency (DTMF) integration, Simplified Message Desk Interface (S MDI) integration, and Toshiba Proprietary integration.

DTMF Integration

DTMF integration uses DTMF string s to pass and interpret information between the Stra ta CTX and a voice mail system. DTMF integrat ion can be used wit h any compat ible vo ice mail syste m. It does not require optional hardware interface.

Simplified Message Desk Interface (SMDI)

SMDI is an industry standard method of integrating a telephone system with voice mail or other peripheral systems. This interconnection is made via an RS-232 data connection. SMDI requires the BSIS interface in the Strata CTX. SMDI integration can be used with any compatible voice mail system.
Strata CTX General Description 06/03 83
Features

Vol ume Control

Toshiba Proprietary Integration

Call Record to Voice Mail
Toshiba proprietary integration provides the highest functionality between the Strata CTX and a Stratagy voice processing system. Toshiba proprietary integration requires the BSIS interface for control signaling between Stratagy and Strata CTX. Toshiba proprietary integration is required to use Stratagy voice processing syst em’ s support the features of Call Record to Voice Mail and Voice Mail Soft Keys.
While on an active call, a station user can record the conversation and sto re it in a Stratagy ES voice mailbox by pressing
5HFRUG again. Station users can also stop and start recording by pressing 365(6.
5HFRUG on the digital telephone. To end the recording, they can press
Users can replay recorde d messages by calli ng the voi ce mailb ox th at has th e store d recor ding and play it back as any other message. The “r ecord to” mail box can be any mailbo x number and can be accessed automatically when
5HFRUG is pressed or dialed after 5HFRUG is pressed.
Recording to Voice Mail (VM) is available on two-party and multi-party conference calls.
Voice Mail Soft Keys (Stratagy ES/iES32 Only)
Voice Mail Soft Keys provide LCD telephone users with an active set of Soft Keys that prompt the user with available commands to play Voice Mail messages and to manage their mail boxes (shown right).
The LCD shows the number of New and Saved messages in the user’s mailbox.
The number of New/Saved messages displays on the LCD when the telephone is i dle and has at leas t one new message.
Mode
Page
Soft Keys
Voice Mail Soft Keys
FROM: 3700
MSG LENGTH:01:37
NEXT
SAVE
DELETE
REPLY
BACKUP
PAUSE PLAY
GO FORWARD
REPLAY
PREVIOUS
FORWARD
SPCL FUNCT
PREV MENU
Soft Keys requires the Toshiba Proprietary VM integration and connection to the Strata CTX LAN.

Direct Transfer to Voice Mailbox

The transferring party can transfer a call directly to a person’s voice mailbox without waiting for the call to forward from the called party’s telephone. The voice mailbox does not need to be associated with an active telephone in the Strata CTX. Direct transfer to voice mail (VM) can be performed to a centralized VM system connected to a network node other than the user’s node.
The transf erring party presses 'LUHFW7UDQVIHUWR90 and dials the mailbox number, and the call transfers immediately on receipt of the last digit. The transferred party hears the greeting associated with the specified mailbox and can then leave a message.
Feature
Scroll
5935
Direct Tr ans fe r to Voice Mailbox simplifies getting a call for a busy or absent employee to his/her mailbox. It eliminates the need for the caller to en ter the desired mailbox nu mber after being connected to the voice mail system. This feature is available using standard DTMF or SMDI VM integration and does not require Toshiba proprietary VM integration.
Volume Control
Digital Telephone users can independently adjust their handset hearing volume, speaker hearing volume including BGM, speaker incoming tone volume and beep tone volume.
84 Strata CTX General Description 06/03

Appendix – Specifications

This appendix includes detailed information on the items listed below. The sections in this appendix apply to both the Strata CTX100 and CTX670, unless otherwise stated.
Environmental Characteristics
CTX100 Power Considerations
CTX670 Power Considerations
Reserve Power
Hardware Compatibility
Public Network Requirements
Station Loop Lengths
Standard Telephone Ringer Specifications
3000-series Telephone Option PCBs
Station Dimensions
System Tones
For further details, refer to the Strata CTX I&M Manual.

Environmental Characteristics

The environmental requirements for either system are shown in Table 19.
Table 19 Environmental Characteristics for the CTX100 and CTX670
Environmental Specifications
Operating temperature Operating humidity Storage te mperature
BTU Rating
ACTU (1) or BECU/BBCU (1 installed) BDKU (5 installed) RCOU/RCOS (1 installed) Digital Telephones (40 installed)
32~104° F (0~40° C) 20~80% relative humidity without condensation
-4~140° F (-20~60° C)
CTX100: 105 BTUs (31 watt hours) per cabinet. CTX670: 190 BTUs (56 watt hours) per cabinet.
Strata CTX General Description 06/03 85
Appendix – Specifications

CTX100 Power Considerations

CTX100 Power Considerations
The power supply in each CTX100 Base and Expansion Cabinet furnishes power to all of the stations and some of the interface peripherals (see Table 20). The primary AC power for each cabinet is 120VAC.
Table 20 CTX100 Electrical Characteristics
CTX100 Primary AC Power Voltage
Input AC AC Frequency Watts per cabinet (maximum)
CTX100 Primary Power Current Consumption (Rating in Amperes)
120VAC 1 cabinet
2 cabinets
Power Supply Unit (APSU112A)
DC voltage output specific ati on
1.8 amps
3.6 amps
120VAC 60 Hz, Single-phase (48Hz~62Hz)
100 watts (maximum)
-24VDC (-26.3~-27.8VDC, 3.2 DC amps) +5VDC (+4.5~5.5VDC, 2.0 DC amps)
-5VDC (-4.5~-5.5VDC, 0.2 DC amps) +3.3VDC (+3.0~3.6VDC, 0.5 DC amps

CTX670 Power Considerations

The power supply in each CTX670 Base and Expansion Cabinet furnishes power to all of the stations and some of the interface peripherals (see Table 21). The primary AC power can be 120VAC, 208VAC or 240VAC. Systems containing six or seven cabinets require 208VAC or 240VAC.
T abl e 21 CTX670 Electrical Characteristics
CTX670 Primary AC Power Voltage
Input AC AC Frequency Watts per cabin et (con tinu ou s) Watts for five cabinet system
CTX670 Primary Power Current Consumption (Rating in Amperes)
Number of Cabinets: 120VAC 208VAC 240VAC 1
2 3 4 5 6 7
Power Supply Unit (BPSU672)
DC voltage output specification
3.2 amps
6.4 amps
9.6 amps
12.8 amps
16.0 amps N/A N/A
115±10VAC or 208±20VAC or 240±20VAC 50/60 Hz, Single-phase (48~62Hz) 180 900
2.2 amps
4.4 amps
6.6 amps
8.8 amps
11.0 amps
13.2 amps
15.4 amps
-24VDC (-26.3~-27.8VDC, 6.0 DC amps) +5VDC (+4.5~5.5VDC, 4.0 DC amps)
-5VDC (-4.5~-5.5VDC, 0.8 DC amps)
2.0 amps
4.0 amps
6.0 amps
8.0 amps
10.0 amps
12.0 amps
14.0 amps
86 Strata CTX General Description 06/03
