ADJUSTABLE SPEED DRIVES
H7 Series
AVAILABLE
ETHERNET IP
NOW
WITH
MODULE
POWERFUL...
TOSHIBA H7
POWERFUL... VERSATILE... SIMPLE...
POWERFUL
Industrially Hardened
The H7 Adjustable Speed Drive is ready for continuous, troublefree operation in the most demanding manufacturing environments.
It has an interrupting current rating of 200 KAIC. In addition, it is
designed for an operating environment of -10 to 40° C at elevations
of -1000 to 1000 meters.
Speed Regulation
The capabilities of adjustable speed drives keep getting better.
Toshibaʼs proprietary vector control algorithm offers speed regulation
of 0.1% sensorless and 0.01% with motor feedback. Furthermore,
costly gear transmissions can be eliminated by using H7 ASDs that
can be digitally locked together for precise control requirements.
Transistor Package
Torque: When and How You Want It
Toshibaʼs patented TRUE TORQUE CONTROL2 algorithm provides improved torque control in both
sensorless and feedback vector control modes. The H7 is capable of producing 200% torque at speeds
as low as 0.4 Hz and torque ripple as low as 2%. Toshiba gives you total control over your processes.
You can even decide when and how you apply torque to your mechanical systems with an analog input
signal.
Dynamic Mode Switching
The H7ʼs dynamic mode switching allows you to change between speed and torque control or position
control modes on-the-fly for seamless operation. Toshiba can show you how to maximize the efficiency
and performance of your process control.
Superior Design
The H7 is designed to operate with or without the use of DC link reactors. The robust capacitor bank
ensures efficient operation. Oversized power semiconductors provide higher tolerances and longer life.
In addition, standard phase-to-phase metal oxide varistors result in extra front-end protection from utility
power surges.
VERSATILE...
VERSATILE
Built-In
Communications
In todayʼs fast-paced manufacturing
world, coordinated systems require
communications from drive-to-drive or
drive-to-control systems. Toshibaʼs H7
comes standard with RS232/485 and
TTL communications ports. In addition
to the standard communications
features, Toshiba offers a number
of popular industrial communication
protocol options including: Modbus RTU, Modbus Plus, Ethernet
TCP/IP, Ethernet IP, Profibus DP, DeviceNet and Johnson
Controls Metasys N2.
Process Control
The built-in Proportional/Integral/Derivative (PID) control loop
provides regulation of many processes without the need for
external devices. Deviation limits, online switching and delay
filtering functions are included to enhance the flexibility and the
reliability of PID process control. The torque control and drooping
control functions of the H7 allow precise matching of motor torque
for load sharing applications.

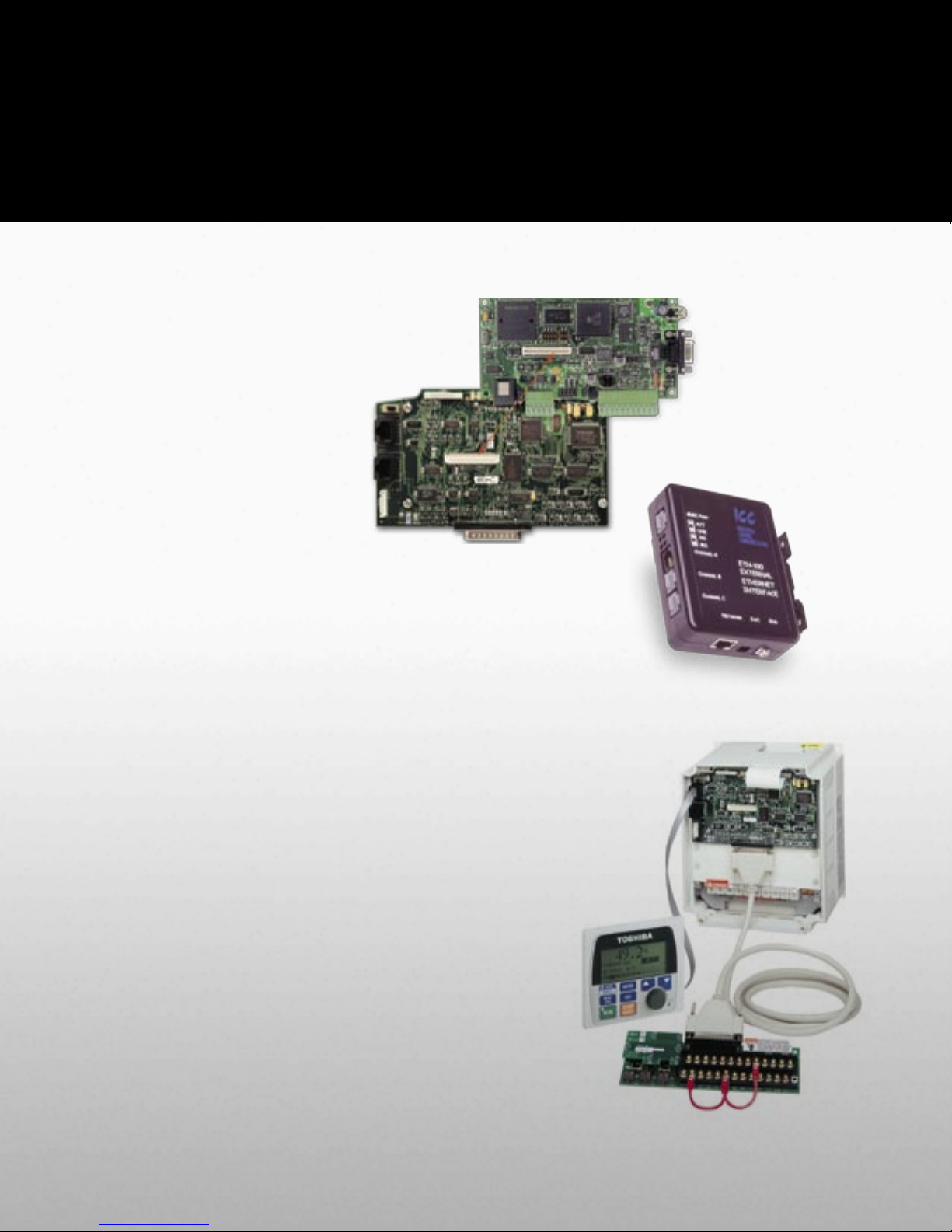

(left) H7 Control
Board with
Internal Stackable
Communication
Card
(below)
Ethernet TCP/IP
Communications
Module
Adaptability
The H7ʼs programmable discrete inputs may be configured to
any of 68 different functions and are independently selectable for
normally open or normally closed operation.
The H7ʼs four multi-function analog inputs have independently
adjustable bias and gain. From common potentiometers for
speed control to analog summing for trim and process control,
the configurability of the H7ʼs analog inputs are adaptable to your
processes.
The removable control terminal strip is available in dry contact,
TTL or 120 VAC configurations and may be optionally DIN Rail
mounted. The operator interface can be easily mounted remotely
and configured for NEMA4/NEMA12 environments.
Remote--Mount Interface and Terminal Strip
SIMPLE...
SIMPLE
Advanced Electronic Operator Interface (EOI)
The H7ʼs Electronic Operator Interface (EOI) features a multi-line, graphics capable, plain English, backlit LCD. The EOI is so intuitive that the manual is usually not needed to make drive setting adjustments.
The H7 has menu driven programming as well as direct access to the parameters. A high-reliability rotary
encoder makes programming easy.
Start-up Wizard
The Startup Wizard helps facilitate initial programming.
The wizard leads you from beginning to end by asking
a few simple questions about your application. Based
on the answers provided, the wizard sets features and
parameters suitable for your process. The H7 literally
programs itself!
Configurable
ß Easy to remote-mount the
display (up to 1000 feet)
ß Real-Time Clock option
ß Graphics capable LCD
to aid in diagnostics
ß Flash Upgradeable EOI Software
ß Toshiba can help develop your custom
application-specific wizards.
Toshiba Understands Motors
As a world leader in motor and drive manufacturing, Toshiba has a unique perspective into why and how
motors perform and react to the ever-changing conditions encountered in modern manufacturing. Toshiba
has married the extensive knowledge gained from being an integrated manufacturer of both motors and
drives. With a true knowledge of how these products interact, Toshiba has developed the most powerful
variable frequency drive available. H7 Series drives, along with a variety of other Toshiba drives and
motors, are manufactured at our ISO 9001 manufacturing facility in Houston, Texas.
The Industry’s Most
User- Friendly Operator Interface
TOSHIBA H7
Turn Key Solutions
Toshibaʼs H7 assembly units simplify installation by allowing
you to order turnkey drive packages that combine commonly
requested items such as bypass, line filters and common
control schemes in preconfigured assemblies.
Full Time Online Automatic Tuning
The H7 drive has an online automatic tuning function that
corrects the motor constants when operating in the vector
control modes. This allows the H7 to accurately control motor
stability and torque without being affected by motor temperature,
load or process variations.
Integrated Toshiba Motor/Drive Packages
Bidirectional Speed Search
(Flying Restart)
Speed search detects the direction and rotational speed of
a free-wheeling motor. By matching the ASD output to the
direction and speed of the motor, the H7 smoothly restarts the
motor and accelerates to the commanded speed. This feature
allows for power source switching between commercial power
and drive operation without the added expense of brakes,
timers or other methods of stopping the motor.
H7 Assembly Unit
Windows Software

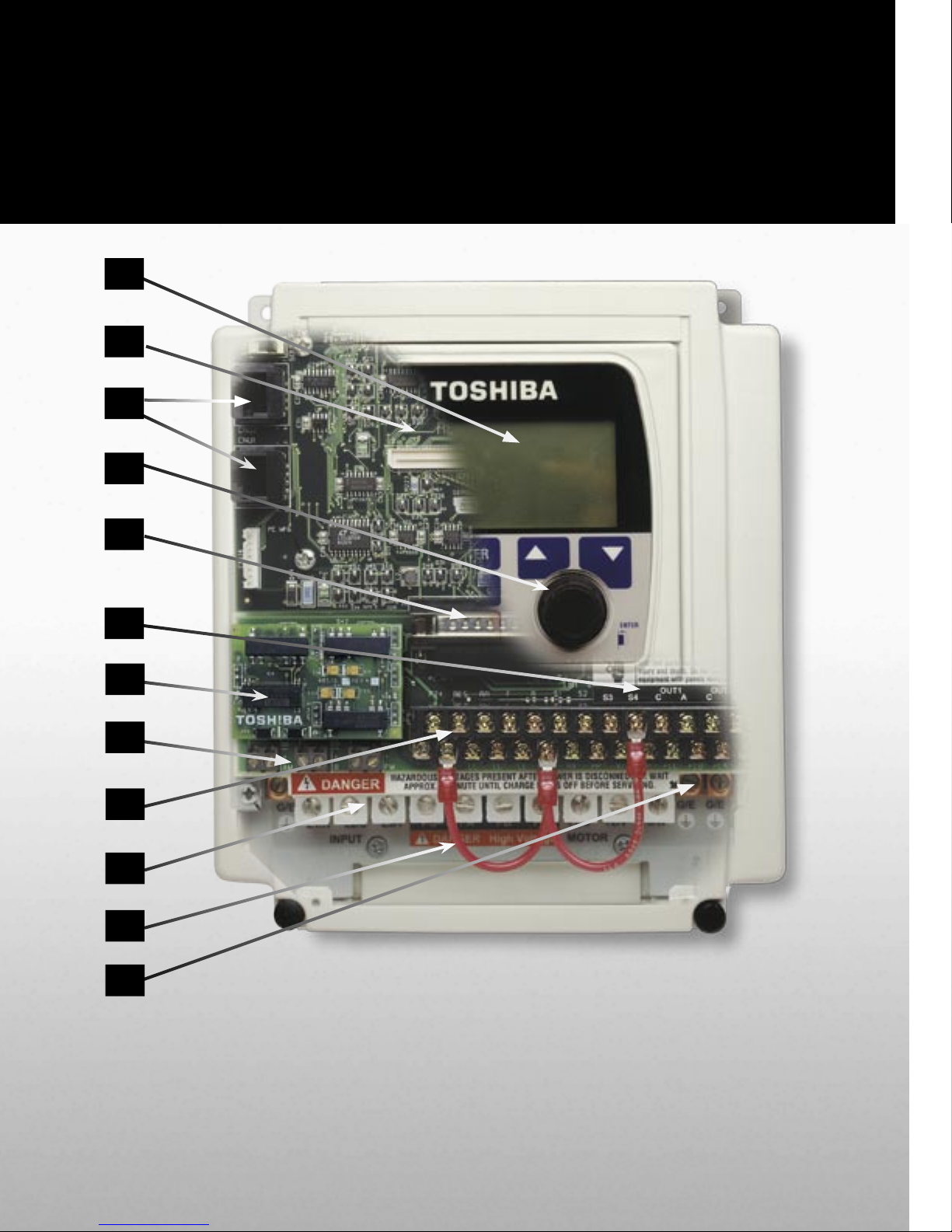

H7 SIMPLY POWERFUL
1
2
3
4
5
6
7
8
9
10
11
12
1. Graphics Capable LCD
2. High Speed OptiBus Option Card Port
3. RS 232/485 & TTL Ports
4. Rotary Encoder
5. Remote-Mountable Terminal Strip
6. Three Programmable Output Contacts
7. Signal Isolator Daughter Board (Option)
8. 0-1 mA/4-20 mA Programmable
Analog Outputs
9. Eight Discrete Programmable Input Terminals
10. Power Terminal Strip
11. Fail Safe Emergency Interlock
12. Three Easy-Access Ground Lugs
H7 Series
H7 ASD Standard Specifications
Model Range
3 - 150 HP
5 - 400 HP
3 - 15 HP
20 - 350 HP
Voltage Rating
200 - 240 V
380 - 480 V
520 - 600 V
520 - 600 V
Input Voltage Tolerance
�10%
�10%
+5% / -10%
�10%
Voltage Regulation
Main Circuit Voltage feedback control (automatic regulation, 'fixed' and 'control off' selections)
PWM Carrier Frequency
Adjustable between 0.5 – 15 kHz (ASD specific, consult factory)
Control System
Sine Wave PWM System- Flux Field Current Vector Control
V/f Pattern
Open Loop Vector, Closed Loop Vector, Constant Torque, Variable Torque, Auto Torque Boost, Manual Torque Boost, 5-point V/f
custom curve setting
Overload Current Rating
100% continuous or 120% for one minute
Frequency Setting
Rotary Encoder integrated into the EOI, 0 - 10 V, ±10 V, 4 - 20 mA, Binary Input, Motorized Potentiometer Input
Frequency Precision
Analog Input ±0.2% of the maximum output frequency, Digital Input ±0.01% of the maximum output frequency
Frequency Command Resolution
0.01 Hz Operation Panel, 0.1 Hz Analog Input. 10 to 12-bit A-D Converter
Output Frequency Range
0 - 299 Hz
Speed Regulation
Closed Loop (0.01%, 1000:1 speed range), Open Loop (up to 0.1%, 60:1 speed range)
Torque Regulation
Closed Loop (5%, ripple < 2%, �100% range), Open Loop (10%, ripple < 3%, 50% to 100% range)
Discrete Input Terminals
Eight Discrete Input Terminals programmable to 68 functions. The number of terminals may be increased using optional hardware.
Analog Inputs
One 4 - 20 mA, one ±10 V and two 0 - 10 V (one of which is commonly used with a potentiometer)
Discrete Output Contacts
Three Discrete Output Contacts programmable to 60 functions
Analog Outputs
Two 4 - 20 mA / 0 - 1 mA outputs programmable to 33 functions
Signal Isolation
Optional Three-Channel Signal Isolation for 4 - 20 mA input and the AM and FM outputs rated at 750 V
Control Board Communications
Ports
RS232/485 and TTL Ports standard
Power Terminals
Input (L1, L2, L3), Output (T1, T2, T3), DCL (PO, PA), DBR (PA, PB), DC BUS (PA, PC)
Set Point Control (PID)
Proportional Gain, Integral Gain, Feedback Settings Upper / Lower Deviation Limits, Feedback Source Delay Filter, Feedback
Settings Differential Gain
Control Power
DC Bus Control-Power allows control power ride-through during momentary power loss (Except 600 V 100 HP and larger)
Protective Functions
Fault input and outputs are fail-safe configured. Fault codes include: Overcurrent, Overvoltage, Heatsink Overheat, Load-side Short
Circuit, Load Side Ground Fault, ASD Overload, Overcurrent During Start-up, EEPROM Error, RAM Error, ROM Error,
Communications Error, Armature Short, Auto-Tuning Error, Dynamic Braking Overcurrent, Dynamic Braking Resistor Overload,
Emergency Stop, Undervoltage, Overtorque, Open Output Phase, Motor Overload, Loss of Feedback
Retry
ASD can clear fault upon trip automatically.
Programmable to 10 times with wait time up to 10 seconds between retries
Restart
ASD will catch a freewheeling motor smoothly.
Ambient
Temperature: -10 to + 40� C, 14 to 104� F, Humidity: 95% non-condensing
Installation
NEMA 1
Electronic Operator Interface (EOI)
LCD EOI (Liquid Crystal Display/
Electronic Operator Interface)
240 x 64 graphics capable, back-lit LCD can display multiple parameters simultaneously. Keypad may be operated from an external
power source. Software is flash upgradeable.
LED Indications
Run (Red) / Stop (Green), Local / Remote (Green), DC Bus Charge Indication (Red)
Keys
Local / Remote, Monitor / Program, Run, Enter, ESC, Stop / Reset, Up, Down
Rotary Encoder
Encoder with integrated Enter Key for Frequency and Parameter adjustments
Monitoring
Main Display shows two monitored items or can display up to 45 user-selected scrolling items including: Terminal Input / Output
Status, Forward / Reverse, Frequency Setting Value, Output Frequency, Output Current, Output Voltage, Input Power, Output Power,
Torque Current, Past Faults, Excitation Current, DBR Overload Ratio, ASD Overload Ratio, Motor Overload Ratio,
PID Feedback Value, DC Voltage
Selectable Display Units
Completely configurable along with Scaling Factor Multiplier, Current Display selectable between Amps or �, Voltage Display
selectable between Volts or �
EOI Communications Ports
RS232/485 and TTL Ports standard
Remote-Mount Display
Remote mountable up to 1000' away from the ASD
H7B Dimensions H x W x D (inches)
230 V
3 - 7.5 HP
10 - 25 HP
30 HP
40 - 50 HP
60 HP
75 - 100 HP
125 - 150 HP
460 V
5 - 10 HP
15 - 50 HP
60 - 100 HP
125 HP
150 - 200 HP
250 - 350 HP
400 HP
600 V
3 - 15 HP
20 - 60 HP
75 - 100 HP
125 - 200 HP
200 - 350 HP
HEIGHT
8.47
14.22
15.72
24.63
26.47
38.63
50.00
73.00
WIDTH
7.28
12.16
12.16
17.50
17.50
17.50
24.15
24.00
DEPTH
7.33
11.23
11.23
12.81
12.81
13.78
20.00
20.00
*All dimensions are for "B" units.
North America Headquarters & Manufacturing Facilities (Houston, TX)
TOSHIBA - Quality by Design
Our company culture and history is strongly rooted in quality. Our designs are
technologically innovative and our products are manufactured from start to
end using only the highest quality foreign and domestic parts.
Product Warranty
Toshiba offers a comprehensive warranty program on its full line of industrial
products. Consult your salesperson or the factory for specific information.
Medium Voltage Motor
G7 Drive
Need to Know More?
Be sure to visit our website located at www.tic.toshiba.com for the latest
information on Toshiba products.
Customer Support Services
Toshiba offers 24 hour service nationwide. For assistance of any type,
call: 1-800-231-1412
ADJUSTABLE SPEED DRIVES MOTORS CONTROLS UPS INSTRUMENTATION PLC
INDUSTRIAL DIVISION
13131 West Little York Road, Houston, Texas 77041
Tel 713/466-0277 Fax 713/466-8773
US 800/231-1412 Canada 800/872-2192 Mexico 01/800/527-1204
www.tic.toshiba.com
Copyright 4/2005
Available Through:
*ASDh7brocct050221*
Loading...
