Satellite® A20/A25 Series User’s Guide

If you need assistance:

InTouch Calling within the United States (800) 457-7777 Calling from outside the United States (949) 859-4273

For more information, see “If Something Goes Wrong” on

page 206 in this guide.

Center

TOSHIBA

C6651-0503M1

Model: Satellite® A20/A25 Series

ReWritable CD/DVD Drives

The computer system you purchased may include a ReWritable CD and/or DVD drive(s), among the most advanced data storage technologies available. As with any new technology, you must read and follow all set-up and usage instructions in the applicable user guides and/or manuals enclosed. If you fail to do so, this product may not function properly and you may lose data or suffer other damage. TOSHIBA AMERICA

INFORMATION SYSTEMS (“TOSHIBA”), ITS AFFILIATES AND SUPPLIERS DO NOT WARRANT THAT OPERATION OF THE PRODUCT WILL BE UNINTERRUPTED OR ERROR FREE. YOU AGREE THAT TOSHIBA, ITS AFFILIATES AND SUPPLIERS SHALL HAVE NO RESPONSIBILITY FOR DAMAGE TO OR LOSS OF ANY BUSINESS, PROFITS, PROGRAMS, DATA OR REMOVABLE STORAGE MEDIA ARISING OUT OF OR RESULTING FROM THE USE OF THE PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY THEREOF.

Protection of Stored Data

For your important data, please make periodic back-up copies of all the data stored on the hard disk or other storage devices as a precaution against possible failures, alteration, or loss of the data. IF YOUR DATA IS

ALTERED OR LOST DUE TO ANY TROUBLE, FAILURE OR MALFUNCTION OF THE HARD DISK DRIVE OR OTHER STORAGE DEVICES AND THE DATA CANNOT BE RECOVERED, TOSHIBA SHALL NOT BE LIABLE FOR ANY DAMAGE OR LOSS OF DATA, OR ANY OTHER DAMAGE RESULTING THEREFROM. WHEN COPYING OR TRANSFERRING YOUR DATA, PLEASE BE SURE TO CONFIRM WHETHER THE DATA HAS BEEN SUCCESSFULLY COPIED OR TRANSFERRED. TOSHIBA DISCLAIMS ANY LIABILITY FOR THE FAILURE TO COPY OR TRANSFER THE DATA CORRECTLY.

Critical Applications

The computer you have purchased is not designed for any “critical applications.” “Critical applications” means life support systems, medical applications, connections to implanted medical devices, commercial transportation, nuclear facilities or systems or any other applications where product failure could lead to injury to persons or loss of life or catastrophic property damage. ACCORDINGLY, TOSHIBA, ITS AFFILIATES

AND SUPPLIERS DISCLAIM ANY AND ALL LIABILITY

ARISING OUT OF THE USE OF THE COMPUTER PRODUCTS IN ANY CRITICAL APPLICATIONS. IF YOU USE THE COMPUTER PRODUCTS IN A CRITICAL APPLICATION, YOU, AND NOT TOSHIBA, ASSUME FULL RESPONSIBILITY FOR SUCH USE.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

❖ Reorient or relocate the receiving antenna.

❖ Increase the separation between the equipment and receiver.

❖ Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

❖ Consult the dealer or an experienced radio/TV technician for help.

Only Peripherals complying with the FCC Class B limits may be attached to this equipment. Operation with noncompliant peripherals or peripherals not recommended by Toshiba is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer's or expansion unit's serial port, parallel port, monitor port, USB port, PS/2 port modifications made to this equipment not expressly approved by Toshiba or parties authorized by Toshiba could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

, i.LINK® port and microphone jack. Changes or

❖ This device may not cause harmful interference.

❖ This device must accept any interference received, including

interference that may cause undesired operation.

Contact:

Toshiba America Information Systems, Inc.

9740 Irvine Blvd. Irvine, CA 92618-1697 (949) 583-3000

Industry Canada Requirement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conformé à la norme NMB-003 du Canada.

FCC Requirements

The following information is pursuant to FCC CFR 47, Part 68 and refers to internal modems.

Installation

When you are ready to install or use the modem, call your local telephone company and give them the following information:

❖ The telephone number of the line to which you will connect the

modem.

❖ The FCC registration number of the modem.

❖ The ringer equivalence number (REN) of the modem, which is 0.6B.

The modem connects to the telephone line by means of a standard jack called the USOC RJ11C.

Type of Service

Your modem is designed to be used on standard-device telephone lines. Connection to telephone company-provided coin service (central office implemented systems) is prohibited. Connection to party lines service is subject to State tariffs. If you have any questions about your telephone line, such as how many pieces of equipment you can connect to it, the telephone company will provide this information upon request.

Telephone Company Procedures

The goal of the telephone company is to provide you with the best service it can. In order to do this, it may occasionally be necessary for them to make changes in their equipment, operations or procedures. If these changes might affect your service or the operation of your equipment, the telephone

company will give you notice, in writing, to allow you to make any changes necessary to maintain uninterrupted service.

If Problems Arise

If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network. If the telephone company notes a problem, they may temporarily discontinue service. When practical, they will notify you in advance of this disconnection. If advance notice is not feasible, you will be notified as soon as possible. When you are notified, you will be given the opportunity to correct the problem and informed of your right to file a complaint with the FCC. In the event repairs are ever needed on your modem, they should be performed by Toshiba Corporation, Toshiba America Information Systems, Inc. or an authorized representative of Toshi ba .

Disconnection

If you should ever decide to permanently disconnect your modem from its present line, please call the telephone company and let them know of this change.

Fax Branding

The Telephone Consumer Protection Act of 1991 makes it unlawful to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business, other entity or individual sending the message and the telephone number of the sending machine or such business, other entity or individual.

In order to program this information into your fax modem, you should complete the setup for your fax software before sending a message.

Instructions for IC CS-03 certified equipment

1 NOTICE: The Industry Canada label identifies certified equipment.

This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be

aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

2 The user manual of analog equipment must contain the equipment’s

Ringer Equivalence Number (REN) and an explanation notice similar to the following:

The Ringer Equivalence Number (REN) of this device can be found on the label affixed to your computer.

NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

3 The standard connecting arrangement (telephone jack type) for this

equipment is jack type(s): USOC RJ11C.

Wireless Interoperability

The TOSHIBA Wireless LAN Mini PCI Card products are designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS) radio technology, and is compliant to:

❖ The IEEE 802.11 Standard on Wireless LANs (Revision A/B), as

defined and approved by the Institute of Electrical and Electronics Engineers.

❖ The Wireless Fidelity (WiFi) certification as defined by the WECA

Wireless Ethernet Compatibility Alliance.

Caution

Bluetooth™ and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use

Bluetooth™ and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.

If you should experience any such problem, immediately turn off either one of your Bluetooth™ or Wireless LAN.

Please contact Toshiba PC product support on web site http://www.toshiba-

europe.com/computers/tnt/bluetooth.htm in Europe or

http://www.pcsupport.global.toshiba.com in the United States for more information.

Caution

This device is restricted to indoor use due to its operation in the 5.15 to

5.85 GHz frequency range.

Wireless LAN and your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:

❖ Using the Wireless LAN equipment on board of airplanes, or

❖ In any other environment where the risk of interference to other

devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment.

Regulatory Information

The TOSHIBA Wireless LAN Mini PCI Card must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards.

Canada – Industry Canada (IC)

This device complies with RSS 210 of Industry Canada.

The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb. The RF device shall not be co-located with any other transmitter that has not been tested with this device.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

L ‘utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Pour empecher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit etre utilize a l'interieur et devrait etre place loin des fenetres afin de Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d'emission) est installe a l'exterieur, il doit faire l'objet d'une licence.

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC with essential test suites as per standards:

❖ EN 60950 Safety of Information Technology equipment

❖ ETS 300 328 Technical requirements for radio equipment

❖ ETS 300 826 General EMC requirements for radio equipment.

België/ Belgique:

Deutschland: License required for outdoor installations. Check with reseller for pro-

For outdoor usage only channel 10 (2457 MHz) and 11 (2462 MHz) is allowed.

For private usage outside buildings across public grounds over less than 300m no special registration with IBPT/BIPT is required. Registration to IBPT/BIPT is required for private usage outside buildings across public grounds over more than 300m. An IBPT/BIPT license is required for public usage outside building. For registration and license please contact IBPT/BIPT.

Gebruik buiten gebouw alleen op kanalen 10 (2457 MHz) en 11 (2462 MHz). Voor privé-gebruik buiten gebouw over publieke groud over afstand kleiner dan 300m geen registratie bij BIPT/IBPT nodig; voor gebruik over afstand groter dan 300m is wel registratie bij BIPT/IBPT nodig. Voor publiek gebruik buiten gebouwen is licentie van BIPT/ IBPT verplicht. Voor registratie of licentie kunt u contact opnemen met BIPT.

L’utilisation en extérieur est autorisé sur le canal 10 (2457 MHz) et 11 (2462 MHz). Dans le cas d’une utilisation privée, a l’extérieur d’un bâtiment, audessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprés de I’IBPT est requise. Pour une utilisation publique à I’extérieur de bâtiments, une licence de I’IBPT est requise. Pour les enregistrements et licences, veuillez contacter I’IBPT.

cedure to follow.

Anmeldung im Outdoor-Bereich notwendig, aber nicht genehmigungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.

France: Restricted frequency band: only channels 10 and 11 (2457 MHz and

2462 MHz respectively) may be used in France. License required for every installation, indoor and outdoor installations. Please contact ART for procedure to follow.

Bande de fréquence restreinte : seuls les canaux 10 à 11 (2457 et 2462 MHz respectivement) doivent être utilisés en France. Toute utilisation, qu’elle soit intérieure ou extérieure, est soumise à autorisation. Vous pouvez contacter I’Autorité de Régulation des Télécommuniations (http://www.art-telecom.fr) pour la procédure à suivre.

Italia: License required for indoor use. Use with outdoor installations not

allowed.

E’necessaria la concessione ministeriale anche per l’uso interno. Verificare con i rivenditori la procedura da seguire. L’uso per installazione in esterni non e’ permessa.

Nederland: License required for outdoor installations. Check with reseller for pro-

cedure to follow.

Licentie verplicht voor gebruik met buitenantennes. Neem contact op met verkoper voor juiste procedure.

USA-Federal Communications Commission (FCC)

This device complies with Part 15 of FCC Rules. Operation of the devices in a Wireless LAN System is subject to the following two conditions:

❖ This device may not cause harmful interference.

❖ This device must accept any interference that may cause undesired

operation.

TOSHIBA is not responsible for any radio or television interference caused by unauthorized modification of the devices included with this TOSHIBA Wireless LAN Mini PCI Card, or the substitution or attachment of connecting cables and equipment other than specified by TOSHIBA.

The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

Caution: Exposure to Radio Frequency Radiation

The Toshiba Wireless LAN Mini PCI Card will be installed with one of two types of antennas. The both of antenna types, when installed are located at the upper edge of the LCD screen.

For both antennas, the radiated output power of the TOSHIBA Wireless LAN Mini PCI Card is far below the FCC radio frequency exposure limits. Nevertheless, the TOSHIBA Wireless LAN Mini PCI Card shall be used in such a manner that the potential for human contact during normal operation is minimized. In normal operating configuration, the LCD in the upright position, the distance between the antenna and the user should not be less than 20cm. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Antenna(s) used in 5.15-5.25GHz frequency band must be integral antenna which provide no access to the end user.

Refer to the Regulatory Statements as identified in the documentation that comes with those products for additional information.

Caution: Radio Frequency Interference Requirements

This device is restricted to indoor use due to its operation in the 5.15 to

5.25 GHz frequency range. FCC requires this product to be used indoors for frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device.

Taiwan

Article 14 Unless approved, for any model accredited low power radio frequency

electric machinery, any company, trader or user shall not change the frequency, increase the power or change the features and functions of the original design.

Article 17 Any use of low power radio frequency electric machinery shall not

affect the aviation safety and interfere with legal communications. In event that any interference is found, the use of such electric machinery shall be stopped immediately, and reusing of such products can be resumed until no interference occurs after improvement.

The legal communications mentioned in the above item refer to radio communications operated in accordance with telecommunication laws and regulations.

Low power radio frequency electric machinery shall resist against interference from legal communications or from industrial, scientific and medical radio emission electric machinery.

Using this equipment in Japan

In Japan, the frequency bandwidth of 2,400-2,483.5 MHz for second generation low-power data communication systems such as this equipment overlaps that of mobile object identification systems (premises radio station and specified low-power radio station).

1. Sticker

Please put the following sticker on devices incorporating this product.

2. Indication

The indication shown below appears on this equipment.

1 2.4 this equipment uses a frequency of 2.4 GHz.

2 DS. This equipment uses DS-SS modulation.

3 The interference range of this equipment is less than 40m.

4 This equipment uses a frequency bandwidth from 2,400 MHz to

2,483.5 MHz.

It is possible to avoid the band of mobile object identification systems.

3. TOSHIBA Direct PC

Monday – Friday: 10:00 – 17:00

Toll Free Tel: 0120-13-1100

Direct Dial: 03-3457-5916

Fax: 03-5444-9450

Device Authorization

This device obtains the Technical Regulation Conformity Certification and the Technical Conditions Compliance Approval, and it belongs to the device class of radio equipment of low-power data communication system radio station stipulated in the Radio Law and the Telecommunications Business Law of Japan.

The Name of the radio equipment: MPC13A-20/R

JAPAN APPROVALS INSTITUTE FOR TELECOMMUNICATIONS EQUIPMENT

Approval Number: D01-1128JP

TELECOM ENGINEERING CENTER Approval Number: 03NY.A0018, 03GZDA0017

The following restrictions apply:

❖ Do not disassemble or modify the device.

❖ Do not install the embedded wireless module into other device.

Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

❖ Reorient or relocate the receiving antenna.

❖ Increase the distance between the equipment and the receiver.

❖ Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

❖ Consult the dealer or an experienced radio/TV technician for help.

Toshiba is not responsible for any radio or television interference caused by unauthorized modification of the devices included with this Toshiba Wireless LAN Mini PCI Card, or the substitution or attachment of connecting cables and equipment other than specified by Toshiba.

The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

Approved Countries/Regions for use for the Atheros AR5001X Mini PCI Wireless network adapter

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

This device works on passive scan only.

A peer-to-peer mode is not available in 802.11a and Turbo Mode.

802.11b (2.4GHz)

Australia Austria Belgium

Canada Denmark Finland

France Germany Greece

Ireland Italy Liechtenstein

Luxembourg Netherlands New Zealand

Norway Portugal Sweden

Switzerland UK USA

802.11a (5GHz)

Australia Austria Belgium

Canada Denmark Finland

France Germany Greece

Ireland Italy Liechtenstein

Luxembourg Netherlands New Zealand

Norway Portugal Sweden

Switzerland UK USA

Turbo Mode (5GHz)

Canada USA

Approved Countries/Regions for use for the Intel® PRO/ Wireless LAN 2100 3B Mini PCI Adapter

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

Argentina Australia Austria

Belgium Brazil Canada

Chilli Denmark Finland

France Germany Greece

Iceland Ireland Italy

Japan Liechtenstein Luxembourg

Mexico Netherlands New Zealand

Norway Peru Portugal

Singapore Spain Sweden

Switzerland UK Uruguay

USA Venezuela

Approved Countries/Regions for use for the Toshiba Mini PCI Wireless LAN Card

This equipment is approved to the radio standard by the countries/regions in the following table.

Do not use this equipment except in the countries/regions in the following table.

Australia Austria Belgium

Canada Denmark Finland

France Germany Greece

Hong Kong Iceland Ireland

Italy Japan Liechtenstein

Luxembourg Malaysia Netherlands

New Zealand Norway Philippines

Portugal Singapore Spain

Sweden Switzerland Thailand

UK USA

Bluetooth wireless technology Interoperability

Bluetooth™ Cards from TOSHIBA are designed to be interoperable with any product with Bluetooth wireless technology that is based on Frequency Hopping Spread Spectrum (FHSS) radio technology, and is compliant to:

❖ Bluetooth Specification Ver.1.1, as defined and approved by The

Bluetooth Special Interest Group.

❖ Logo certification with Bluetooth wireless technology as defined by

The Bluetooth Special interest Group.

Bluetooth wireless technology is a new innovative technology, and TOSHIBA has not confirmed compatibility of its Bluetooth™ products with all PCs and/ or equipment using Bluetooth wireless technology other than TOSHIBA portable computers.

Always use Bluetooth™ cards from TOSHIBA in order to enable wireless networks over two or more (up to a total of seven) TOSHIBA portable computers using these cards. Please contact TOSHIBA PC product support on Web site http://www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or http://www.pcsupport.global.toshiba.com in the United States for more information.

When you use Bluetooth™ cards from TOSHIBA close to 2.4 GHz Wireless LAN devices, Bluetooth transmissions might slow down or cause errors. If you detect certain interference while you use Bluetooth™ cards from TOSHIBA, always change the frequency, move your PC to the area outside of the interference range of 2.4 GHz Wireless LAN devices (40 meters/43.74 yards or more) or stop transmitting from your PC. Please contact TOSHIBA PC product support on Web site http://www.toshiba-europe.com/computers/

tnt/bluetooth.htm in Europe or http://www.pcsupport.global.toshiba.com in

the United States for more information.

Bluetooth™ and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth™ and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection. If you should experience any such problem, immediately turn off either one of your Bluetooth™ or

Wireless LAN. Please contact Toshiba PC product support on web site http://

www.toshiba-europe.com/computers/tnt/bluetooth.htm in Europe or http://

www.pcsupport.global.toshiba.com in the United States for more information.

Bluetooth wireless technology and your Health

The products with Bluetooth wireless technology, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by devices with Bluetooth wireless technology however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because products with Bluetooth wireless technology operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Bluetooth wireless technology is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Bluetooth wireless technology may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:

❖ Using the equipment with Bluetooth wireless technology on board of

airplanes, or

❖ In any other environment where the risk of interference to other

devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use the device with Bluetooth wireless technology prior to turning on the equipment.

Regulatory statements

This product complies with any mandatory product specification in any country/ region where the product is sold. In addition, the product complies with the following:

Canada-Industry Canada (IC)

This device complies with RSS 210 of Industry Canada.

L ‘ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prét à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met.

Caution: FCC Interference Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

❖ This device may not cause harmful interference, and

❖ This device must accept any interference received, including

interference that may cause undesired operation.

Note that any changes or modifications to this equipment not expressly approved by the manufacturer may void the authorization to operate this equipment.

Caution: Exposure to Radio Frequency Radiation

The radiated output power of the Bluetooth™ Card from TOSHIBA is far below the FCC radio frequency exposure limits. Nevertheless, the Bluetooth™ Card from TOSHIBA shall be used in such a manner that the potential for human contact during normal operation is minimized.

In order to comply with FCC radio-frequency radiation exposure guidelines for an uncontrolled environment, the Bluetooth™ Card from TOSHIBA has to be operated while maintaining a minimum body to antenna which are located on top of LCD distance of 20 cm.

Refer to the Regulatory Statements as identified in the documentation that comes with those products for additional information.

The Bluetooth™ Card from TOSHIBA is far below the FCC radio frequency exposure limits.

Nevertheless, it is advised to use the Bluetooth™ Card from TOSHIBA in such a manner that human contact during normal operation is minimized.

Changes or modifications made to this equipment not expressly approved by TOSHIBA or parties authorized by TOSHIBA could void the user’s authority to operate the equipment.

Taiwan

Article 14 Unless approved, for any model accredited low power radio frequency

electric machinery, any company, trader or user shall not change the frequency, increase the power or change the features and functions of the original design.

Article 17 Any use of low power radio frequency electric machinery shall not

The legal communications mentioned in the above item refer to radio communications operated in accordance with telecommunication laws and regulations.

Low power radio frequency electric machinery shall resist against interference from legal communications or from industrial, scientific and medical radio emission electric machinery.

Using this equipment in Japan

1. Sticker

Please put the following sticker on devices incorporating this product.

2. Indication

The indication shown below appears on this equipment.

1 2.4: this equipment uses a frequency of 2.4 GHz.

2 FH: This equipment uses FH-SS modulation.

3 The interference range of this equipment is less than 10m.

4 This equipment uses a frequency bandwidth from 2,400 MHz to

2,483.5 MHz. It is impossible to avoid the band of mobile object identification systems.

3. TOSHIBA Direct PC

Monday – Friday: 10:00 – 17:00

Toll Free Tel: 0120-13-1100

Direct Dial: 03-3457-5916

Fax: 03-5444-9450

2.4FH1

Device Authorization

This device obtains the Technical Regulation Conformity Certification, and it belongs to the device class of radio equipment of low-power data communication system radio station stipulated in the Radio Law of Japan.

The Name of the radio equipment: EYXF2CS

TELECOM ENGINEERING CENTER

Approval Number: 01NYDA1305

The following restrictions apply:

❖ Do not disassemble or modify the device.

❖ Do not install the embedded wireless module into other device.

CD-ROM, DVD-ROM, Multi-function Drive Safety Instructions

CD-ROM, DVD-ROM and multi-function drives employ a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.

Use of controls, adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure.

To prevent direct exposure to the laser beam, do not try to open the enclosure.

Location of the required label

(Sample shown below. Location of the label and manufacturing information may vary.)

This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read the instruction manual carefully and keep it for your future reference. In case of any trouble with this model, please

contact your nearest “AUTHORIZED service station.” To prevent direct exposure to the laser beam, do not try to open the enclosure.

Use of controls or adjustments or performance of procedures other than those specified in the owner’s manual may result in hazardous radiation exposure.

This guide is copyrighted by Toshiba America Information Systems, Inc. with all rights reserved. Under the copyright laws, this guide cannot be reproduced in any form without the prior written permission of Toshiba. No patent liability is assumed, however, with respect to the use of the information contained herein.

Export Administration Regulation

This document contains technical data that may be controlled under the U.S. Export Administration Regulations, and may be subject to the approval of the U.S. Department of Commerce prior to export. Any export, directly or indirectly, in contravention of the U.S. Export Administration Regulations is prohibited.

Notice

The information contained in this manual, including but not limited to any product specifications, is subject to change without notice.

TOSHIBA CORPORATION AND TOSHIBA AMERICA INFORMATION SYSTEMS, INC. (TOSHIBA) PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL OR ANY OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO ANY OF THE FOREGOING. TOSHIBA ASSUMES NO LIABILITY FOR ANY DAMAGES INCURRED DIRECTLY OR INDIRECTLY FROM ANY TECHNICAL OR TYPOGRAPHICAL ERRORS OR OMISSIONS CONTAINED HEREIN OR FOR DISCREPANCIES BETWEEN THE PRODUCT AND THE MANUAL. IN NO EVENT SHALL TOSHIBA BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR EXEMPLARY DAMAGES, WHETHER BASED ON TORT, CONTRACT OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL OR ANY OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.

Trademarks

Satellite, InTouch and Noteworthy are registered trademarks, SelectServ is a trademark of Toshiba America Information Systems, Inc. and/or Toshiba Corporation.

Microsoft, Windows, DirectX, Active Desktop, and DirectShow are registered trademarks, and Windows Media is a trademark of Microsoft Corporation.

i.LINK is a registered trademark of Sony Corporation.

LapLink is a registered trademark of Traveling Software, Inc.

TouchPad is a trademark of Synaptics, Inc.

Bluetooth is a trademark owned by its proprietor and used by Toshiba under license.

PS/2 is a registered trademark of IBM, Inc.

All other brand and product names are trademarks or registered trademarks of their respective companies.

Computer Disposal Information

This product contains mercury. Disposal of this material may be regulated due to environmental considerations. For disposal, reuse or recycling information, please contact your local government or the Electronic Industries Alliance at

www.eiae.org.

Introduction ..............................................................33

This guide .............................................................. 33

Safety icons ........................................................... 34

Other icons used.............................................. 35

Other documentation ............................................. 35

Service options ...................................................... 36

Chapter 1: Finding Your Way Around ........................ 37

Making sure you have everything .......................... 37

Front with the display closed ................................. 38

Back....................................................................... 39

Right side............................................................... 40

Left side ................................................................. 41

Front with the display open.................................... 42

Keyboard indicator lights ................................. 44

System indicator panel .................................... 45

CD/DVD control buttons .................................. 46

Underside .............................................................. 47

Contents

Chapter 2: Getting Started......................................... 49

Selecting a place to work ....................................... 49

Creating a computer-friendly environment....... 49

Keeping yourself comfortable .......................... 50

Precautions...................................................... 53

Setting up your computer ...................................... 55

Setting up your software.................................. 55

Registering your computer with Toshiba ......... 56

Adding external devices ................................... 56

Connecting an optional

external USB diskette drive ............................. 57

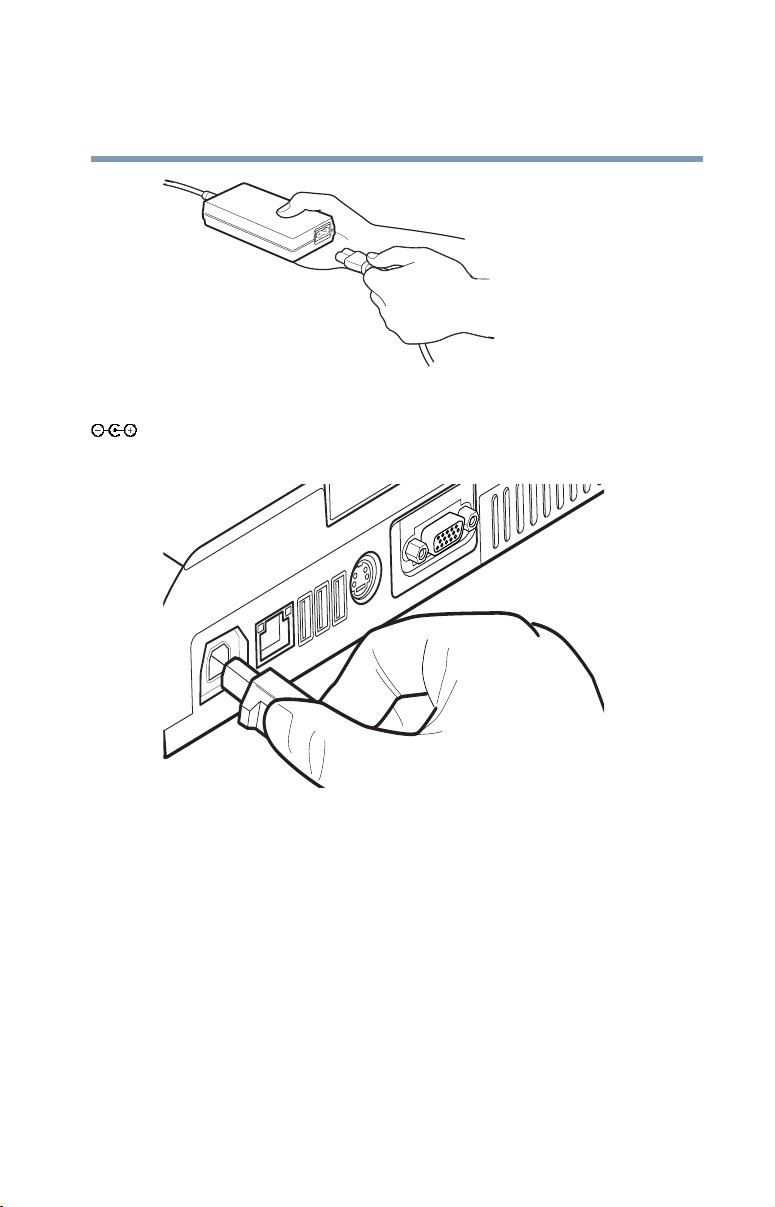

Connecting to a power source ............................... 57

Charging the main battery...................................... 60

Using the computer for the first time..................... 61

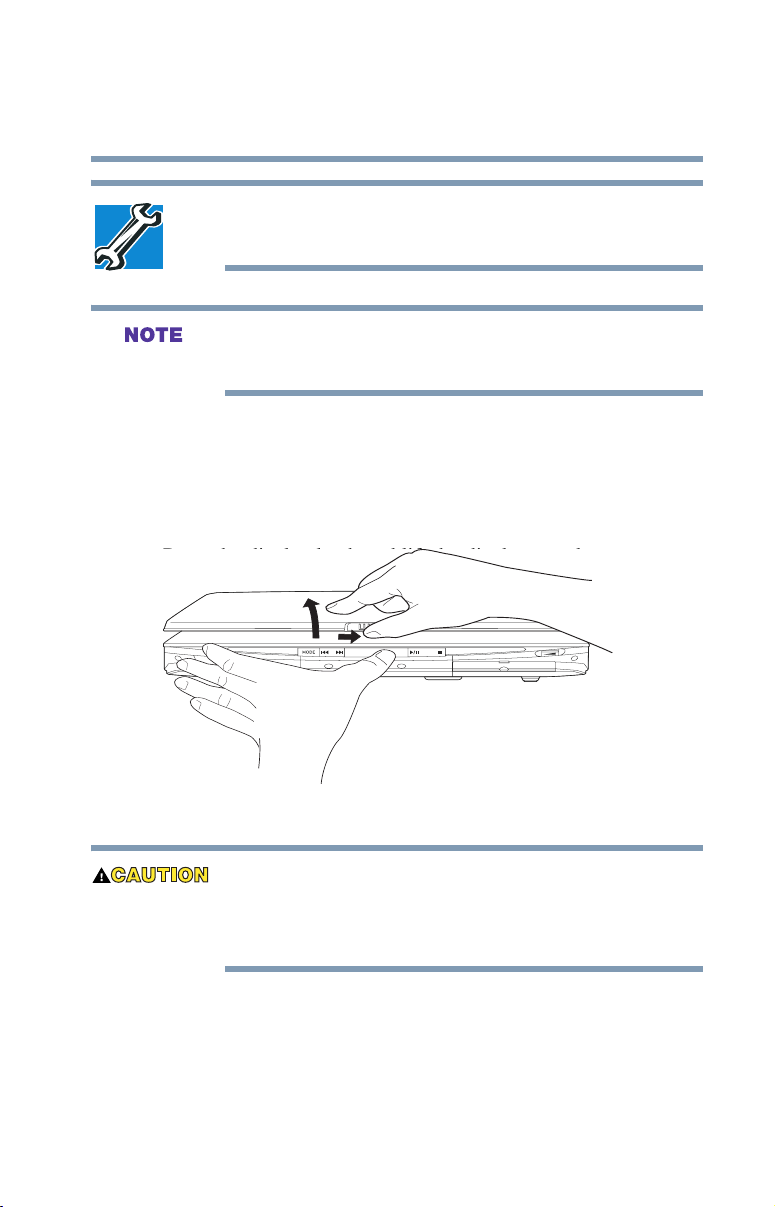

Opening the display panel................................ 61

Turning on the power....................................... 62

Activating the power-on password................... 62

Using the TouchPadTM...................................... 63

Installing additional memory (optional) ................. 65

Removing a memory module........................... 72

Connecting a mouse .............................................. 75

Connecting a printer .............................................. 75

Connecting a USB printer................................. 75

Connecting a parallel printer ............................ 76

Setting up a printer ................................................ 76

Using the Add Printer Wizard........................... 76

Powering off the computer .................................... 79

Caring for your computer...................................... 80

Cleaning the computer..................................... 80

Moving the computer....................................... 80

Using a computer lock ..................................... 81

Contents

Chapter 3: Learning the Basics ................................. 82

Computing tips ...................................................... 82

Using the keyboard ................................................ 83

Character keys ................................................. 84

Ctrl, Fn, and Alt keys ........................................ 84

Function keys................................................... 84

Windows® special keys ................................... 85

Overlay keys..................................................... 85

Emulating a full-size keyboard ............................... 87

TOSHIBA Console .................................................. 87

Starting a program................................................. 87

Saving your work................................................... 88

Printing your work ................................................. 89

Using diskettes ...................................................... 89

Inserting and removing diskettes..................... 90

Caring for diskettes.......................................... 90

Backing up your files ............................................. 91

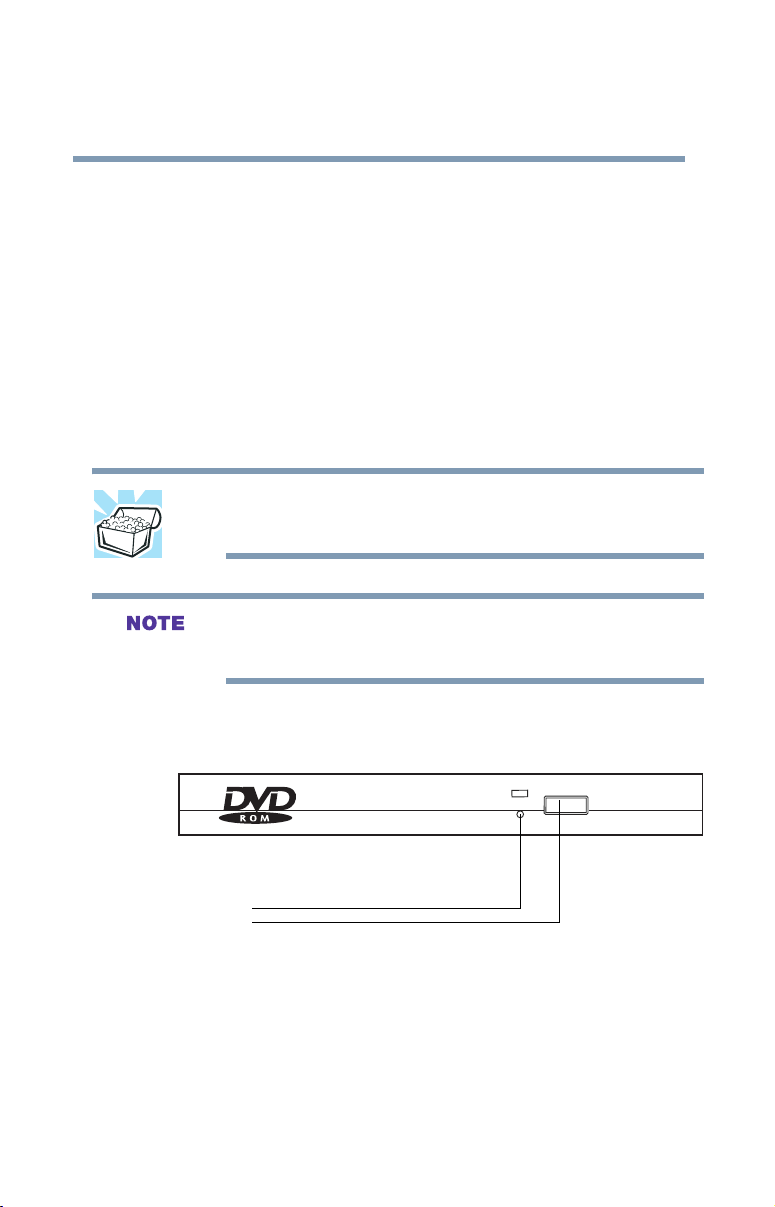

Playing a CD or DVD .............................................. 92

Components .................................................... 92

CD/DVD and digital audio modes..................... 94

Inserting a disc ................................................ 95

Playing an audio CD......................................... 97

Viewing the contents of a CD or DVD............... 98

Removing a disc with the computer on............ 99

Removing a disc with the computer off ........... 99

Caring for CDs and DVDs............................... 100

Using the DVD-ROM or multi-function drive........ 100

Setting up for communications............................ 101

Connecting the modem to a phone line.......... 101

Connecting your computer to a network........ 101

Powering down the computer.............................. 102

Turn Off or Shut down command................... 103

Restart command .......................................... 103

Hibernation command ................................... 103

Contents

Standby command......................................... 104

Using Turn Off or Shut down ............................... 105

Turning off or shutting down more quickly .... 106

Starting again after Turn Off or Shut down .... 109

Using Hibernation ................................................ 109

Enabling the Hibernation command ............... 110

Going into Hibernation mode ......................... 111

Going into Hibernation mode more quickly.... 112

Starting again from Hibernation..................... 115

Using Standby ..................................................... 116

Going into Standby mode more quickly ......... 117

Starting again from Standby .......................... 120

Chapter 4: Mobile Computing ................................. 121

Toshiba’s energy-saver design ............................. 121

Running the computer on battery power ............. 121

Battery Notice ................................................ 122

Power management ....................................... 122

Charging the battery ............................................ 123

Charging the RTC battery............................... 124

Monitoring battery power .................................... 125

Determining remaining battery power............ 126

Conserving battery power .............................. 127

What to do when the battery runs low ........... 127

Setting battery alarms.................................... 128

Changing the main battery ................................... 129

Removing the battery from the computer ...... 129

Installing the battery ...................................... 131

Taking care of your battery................................... 131

Safety precautions ......................................... 131

Maximizing battery life................................... 132

Disposing of used batteries safely ....................... 133

Traveling tips........................................................ 134

Contents

Chapter 5: Getting to Know the Windows® XP

Operating System.............................. 135

Lesson 1: Exploring the desktop.......................... 136

Finding your way around the desktop ............ 136

Windows® XP file system .............................. 138

Lesson 2: Using the TouchPad

and control buttons together ....................... 139

Lesson 3: Learning about the Internet ................. 142

Lesson 4: Creating a new document .................... 143

Lesson 5: Creating a new folder........................... 144

Lesson 6: Starting programs ............................... 145

Lesson 7: Resizing, repositioning,

and hiding windows...................................... 147

Using the taskbar........................................... 148

Minimizing and maximizing windows ............ 148

Resizing and moving windows....................... 149

Lesson 8: Closing programs ............................... 150

Lesson 9: Creating shortcuts ............................... 151

Creating a shortcut to the Calculator.............. 151

Creating a shortcut to the Character Map ...... 152

Lesson 10: Changing the screen saver................. 154

Lesson 11: Setting the date and time................... 156

Lesson 12: Removing objects from the desktop.. 157

Lesson 13: Using System Restore ....................... 159

Lesson 14: If I am lost, what do I do? ................. 160

Windows

Using the online tours and tutorials ............... 162

Lesson 15: Turning off your computer................. 163

XP Help and Support Center ........ 160

Chapter 6: Exploring Your Options.......................... 164

Windows® XP special features............................. 164

Personalizing your desktop.................................. 165

Customizing the taskbar ................................ 165

Bringing the world to your desktop................ 166

Contents

Changing desktop and browsing style ........... 167

Personalizing individual windows .................. 168

Customizing window toolbars........................ 169

Displaying information about each folder ...... 170

Using your computer at the office........................ 171

Setting up for communications...................... 172

Connecting the modem to a telephone line .... 173

Setting up a dial-up connection ..................... 173

Exchanging data with another computer.............. 174

Transferring files

using a parallel port connection.............. 174

Getting help transferring files......................... 175

Setting up a wireless connection ................... 175

Accessing the wireless modules

using your system tray ........................... 175

Connecting to the Internet ................................... 176

An overview of using the Internet ........................ 177

The Internet ................................................... 177

The World Wide Web ..................................... 177

Internet Service Providers.............................. 178

Signing up with an Internet Service Provider 178

Surfing the Internet........................................ 178

Internet features............................................. 179

Uploading and downloading files

on the Internet ........................................ 179

Toshiba’s online resources................................... 180

Exploring video features ...................................... 180

Connecting a TV to your computer ................ 180

Display settings hot key ................................ 181

Exploring audio features ...................................... 181

Recording sounds.......................................... 181

Using a microphone....................................... 182

Adjusting recording settings .......................... 182

Using external speakers or headphones......... 183

Contents

Connecting a monitor, keyboard and mouse........ 183

Changing the display properties setting............... 184

Directing the display output

when you turn on the computer.............. 185

Enabling different video refresh rates............. 186

Adjusting the quality of the external display... 186

Display limitations ......................................... 187

Using PC Cards.................................................... 188

PC Card supporting software ......................... 188

Inserting a PC Card........................................ 188

Removing a PC Card...................................... 189

Hot swapping a PC Card ................................ 190

Using SD cards .................................................... 191

Inserting an SD card ...................................... 191

Removing an SD card .................................... 192

Chapter 7: Toshiba Utilities ..................................... 193

TOSHIBA Accessibility ......................................... 193

Fn-esse ................................................................ 195

Starting Fn-esse............................................. 195

Assigning a key to a program or document ... 196

Viewing existing key assignments.................. 198

Changing or removing

existing key assignments........................ 198

Hotkey utility........................................................ 199

TOSHIBA Console ................................................ 199

Customize Your Computer ............................. 200

Security.......................................................... 201

Power Management ....................................... 201

Toshiba Hardware Setup ................................ 204

Chapter 8: If Something Goes Wrong ..................... 206

Problems that are easy to fix ............................... 206

Problems when you turn on the computer........... 208

Contents

The Windows® operating system is not working. 209

Using Startup options to fix problems ........... 210

Internet problems .......................................... 211

The Windows

can help you ........................................... 211

Resolving a hardware conflict.............................. 212

A plan of action.............................................. 212

Resolving hardware conflicts on your own .... 213

Fixing a problem with Device Manager .......... 215

Memory module problems............................. 217

Power and the batteries ................................. 218

Keyboard problems........................................ 219

Display problems ........................................... 220

Disk drive problems....................................... 222

DVD-ROM or multi-function drive problems.. 224

Sound system problems ................................ 225

PC Card problems.......................................... 226

Printer problems............................................ 229

Modem problems........................................... 230

Develop good computing habits .......................... 230

If you need further assistance.............................. 231

Before you call ............................................... 232

Contacting Toshiba ........................................ 232

Other Toshiba Internet Web sites ........................ 233

Toshiba’s worldwide offices ................................. 234

Appendix A: Hot Keys.............................................. 237

Volume Mute........................................................ 237

Instant password security.................................... 237

Power usage mode .............................................. 238

Standby mode...................................................... 239

Hibernation mode ................................................ 240

Display modes ..................................................... 241

Display brightness ............................................... 242

Enabling a wireless device ................................... 242

XP operating system

Contents

Disabling or enabling the TouchPad..................... 242

Keyboard hot keys .............................................. 242

Appendix B: Power Cable Connectors..................... 243

Glossary ................................................................. 244

Index ....................................................................... 260

Introduction

Welcome to the world of powerful and portable multimedia computers! With your new Toshiba notebook computer, your access to information can accompany you wherever you go.

You will find your operating system, Microsoft already installed on your computer. Your operating system offers exciting features and easy Internet access.

This guide contains information about your operating system and how it functions with your Toshiba computer. For specific information on the software, see the Microsoft booklet that shipped with your computer.

This guide

This guide introduces the computer’s features. You can:

❖ Read the entire guide from beginning to end.

❖ Skim through and stop when a topic interests you.

❖ Use the table of contents and the index to find specific

information.

Windows® XP

Introduction

Safety icons

If you are new to computers, or have not used a notebook computer before, read through the first couple of chapters to familiarize yourself with the components of the computer and how to turn it on. After that, seek out whatever interests you most.

Safety icons

This manual contains safety instructions that must be observed in order to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classified according to the seriousness of the risk, and the icons highlight these instructions as follows:

DANGE

Danger indicates a hazardous situation, which will result in death, serious if the safety instruction is ignored.

Warning indicates a hazardous situation, which can result in death, serious if the safety instruction is ignored.

Caution indicates a hazardous situation, which will or can cause minor instruction is ignored.

Provides you with important but not hazard-related information.

personal injury, or substantial property damage

personal injury or property damage if the safety

Other icons used

Additional icons highlight other helpful or educational information:

TECHNICAL NOTE: This icon highlights technical information about the computer.

HINT: This icon denotes helpful hints and tips.

DEFINITION: This icon indicates the definition of a term used in the text.

Introduction

Service options

Toshiba offers a full line of service options built around its SelectServ Toshiba’s Web site at

If you have a problem or need to contact Toshiba, see “If

Something Goes Wrong” on page 206.

warranty programs. For more information, visit

toshiba.com.

Chapter 1

Finding Your Way Around

This chapter presents a “grand tour” of your notebook computer. It serves as a reference when you need to locate specific parts of the computer.

Making sure you have everything

Before doing anything else, consult the Quick Start card provided with your system to make sure you received everything. If any items are missing or damaged, notify your dealer immediately. For additional help, see “If you need

further assistance” on page 231.

Finding Your Way Around

Front with the display closed

Display latch

System

CD/DVD control

indicator

panel

buttons

The CD/DVD control buttons allow you to play audio CDs when the computer is turned off. You can also use them to play CDs and DVDs with the computer turned on. For a description of these controls, see “CD/DVD control buttons”

on page 46.

The display latch keeps the display panel closed and locked. To open the display panel, slide the display latch and raise the panel.

The system indicator panel is a series of lights that glow when certain functions are being performed by the system. For more information, see “System indicator panel” on

page 45.

The volume control dial lets you adjust how loud the sound is on your computer. To turn the volume up, turn the dial to the right. To turn the volume down, turn the dial to the left.

CD/DVD control buttons

Volume control dial

Back

LAN active indicator

port

Network Link indicator

Finding Your Way Around

Back

Ether

DC-IN

USB

ports

S-video port

RGB (monitor) port

Cooling vents

Parallel port

The DC-IN is where you plug in the AC adapter for either operating the computer on external power or charging the battery.

The LAN active indicator glows orange when data is being exchanged between the computer and the LAN (local area network).

The Network port (RJ45 jack) provides access to a LAN via

Ether

a standard Ethernet

network cable.

The Link indicator glows green when the computer is connected to a LAN and the LAN is functioning properly.

The USB (Universal Serial Bus) ports allow you to connect USB peripherals to your computer.

DEFINITION: USB is a peripheral expansion standard. USB peripherals have a single standard for cabling and connectors. The USB standard allows hot swapping of peripherals.

The S-video port allows you to play DVD audio and video on a projector or TV that accepts audio/video inputs. For more information, see “Connecting a TV to your computer”

on page 180.

Finding Your Way Around

Right side

The RGB (monitor) port allows you to connect an external monitor.

The cooling vents prevent the computer’s central processing unit (CPU) from overheating so that it can continue to perform at its maximum speed.

The parallel port lets you connect a parallel printer or other parallel device, including ECP-compatible devices.

Right side

To prevent possible overheating of the CPU, make sure you do not block the cooling vents.

Microphone jack

Headphone

jack

The 3.5 mm headphone jack lets you connect stereo headphones or other audio-output devices, such as external speakers. Connecting other devices automatically disables the internal speakers.

The 3.5 mm microphone jack lets you connect an external monaural microphone or other audio input device.

The line-in jack allows you to connect an audio device to and hear it play on your computer.

The SD (Secure Digital) card slot holds a stamp-size flash memory card with various capacities of memory. The card can be used with a variety of digital I/O (input/output)

Line-in jack

SD card slot

SD card

LED

Modem

port

DVD-ROM or multifunction sample drive shown

products: digital music players, cellular phones, PDAs, digital cameras, digital video camcorders, etc.

The SD card LED glows when the SD card is in use.

The modem port lets you use a standard RJ11 telephone cable to connect the modem directly to a standard telephone line. For more information, see “Connecting the modem to a

phone line” on page 101.

Left side

Finding Your Way Around

Left side

Wireless antenna LED

Wireless antenna on-off switch

Cooling vents

Security lock

PC Card slot

PC Card ejection tab

The cooling vents prevent the computer’s central processing unit (CPU) from overheating so that it can continue to perform at its maximum speed.

To prevent possible overheating of the CPU, make sure you do not block the cooling vents.

The security lock slot allows you to attach an optional PORT- Noteworthy

computer lock cable to your computer to

secure it to a large, heavy object such as your desk.

The PC Card slot supports a Type II PC Card. See “Using

PC Cards” on page 188 for more information.

Finding Your Way Around

Front with the display open

The PC Card ejection tab releases the PC Card from the PC Card slot.

The wireless antenna on-off switch turns the computer’s wireless antenna on or off.

The wireless antenna LED glows to indicate the wireless device is currently enabled.

Front with the display open

Screen

Power button

Speaker

Function keys

Keyboard

TouchPad

Primary control button

The computer’s screen is a liquid crystal display (LCD) that provides clear, sharp images.

The power button turns the computer on and off.

CD/DVD control buttons

System indicator panel

Keyboard indicator lights

Speaker

Palm rest

Secondary control

button

Volume

control dial

Finding Your Way Around

Front with the display open

The stereo speakers let you hear sounds, such as system alarms associated with your software, and music from DVDROMs and audio CDs.

The function keys, when used with the several different system functions. For more information, see

“Hot Keys” on page 237.

The 85-key keyboard provides all the functionality of a fullsize keyboard. For more information, see “Using the

keyboard” on page 83.

The TouchPad stroke of a finger. For more instruction on the TouchPad, see

“Using the TouchPadTM” on page 63.

The primary control button, located below the TouchPad, acts like the primary button on a mouse.

on page 46.

The system indicator panel is a series of lights that glow when certain functions are being performed by the system. For more information, see “System indicator panel” on

page 45.

The volume control dial lets you adjust the loudness of the system speakers.

enables you to move the cursor with the

Fn key, activate

The secondary control button, located below the TouchPad, acts like the secondary button on a mouse.

The front panel provides a palm rest to assist you in maintaining proper posture while using the computer.

The keyboard indicator lights provide information about various keyboard functions. For details, see “Keyboard

indicator lights” on page 44.

Finding Your Way Around

Front with the display open

Keyboard indicator lights

The cursor control mode light glows green when the cursor control overlay is on. When this light is on, pressing an overlay key moves the cursor in the direction of the arrow printed on the front of the key instead of typing the letter printed on the top of the key.

The numeric mode light glows green when the numeric overlay is on. When this light is on, pressing an overlay key types the number printed on the front of the key instead of typing the letter printed on the top of the key.

The caps lock light glows when the caps lock function is on.

For more information, see “Overlay keys” on page 85.

System indicator panel

The CD/DVD indicator light glows green when a CD or DVD is playing.

Finding Your Way Around

Front with the display open

If you have set a password for logging onto your system, your computer will start up and you will need to log on before being able to play a CD or DVD.

The audio digital light glows green when audio digital files are playing.

The AC power li ght glows green when the computer is connected to an external power source.

The on/off light glows green when the computer is on. The light flashes amber when the computer is in Standby mode.

The battery light indicates the main battery’s current charge. It glows green when the battery is fully charged. It glows amber while the battery is being charged. It does not glow if the external power source is disconnected or if the battery is completely discharged. For more information on determining remaining battery power, see “Monitoring battery power” on

page 125.

Finding Your Way Around

Front with the display open

The disk activity light glows green when the hard disk drive is being accessed.

Never turn off the computer while any drive is in use. Doing so may damage the media in use and result in loss of data.

CD/DVD control buttons

The control buttons on the front of the computer are for playing CDs, DVDs and digital audio files. You can play audio CDs while the computer is turned off.

Mode button

track

Next track

Play/ pause

Stop/eject

The mode button acts like a CD switch. When this button is in digital mode, pressing the play button launches Windows

Media

Player. When this button is in analog mode, pressing the play button starts the sound system. When pressing the mode button, hold it down for several seconds until the CD/ DVD indicator light goes on. For more information, see

“CD/DVD and digital audio modes” on page 94.

The previous track button returns the disc player to the preceding track on the disc.

The next track button causes the disc player to skip to the following track on the disc.

The play/pause button starts the disc player, or makes the disc player pause if it is currently playing.

The stop/eject button stops a disc that is currently playing. Press the button again to eject the disc.

Underside

Hard disk drive

Finding Your Way Around

Underside

If you have set a password for logging onto your system, your computer will start up and you will need to log on before being able to play a CD or DVD.

CPU cooling fan

Battery pack

Battery release latch

The hard disk drive is the computer’s permanent data storage device.

Finding Your Way Around

Underside

The CPU cooling fan keeps the central processing unit at a temperature suitable for optimum performance by drawing outside air into the computer.

To prevent possible overheating of the CPU, make sure the cooling fan's air intake is not blocked. The fan draws in air by creating a vacuum. If the fan is blocked, it could cause the CPU to run at a lower performance level or cause the computer to shut down. Loose items such as notebook and tissue paper, plastic wrappers, or other similar materials can block the air intake, preventing air from reaching the CPU. Do not use the computer on surfaces with objects that can be drawn in by the cooling fan.

The battery pack contains the battery. For information about replacing the battery, see “Changing the main battery” on

page 129.

The battery release latch secures the battery to the computer, preventing the battery from dislodging from the computer case.

Chapter 2

Getting Started

This chapter provides tips for working comfortably, describes how to connect components, and explains what to do the first time you use your notebook computer.

Selecting a place to work

Your computer is portable and designed to be used in a variety of circumstances and locations.

Creating a computer-friendly environment

Place the computer on a flat surface which is large enough for the computer and any other items you need to use, such as a printer. Leave enough space around the computer and other equipment to provide adequate ventilation and prevent overheating.

To keep your computer in prime operating condition, protect your work area from:

❖ Dust, moisture, and direct sunlight.

Getting Started

Selecting a place to work

❖ Equipment that generates a strong electromagnetic field,

such as stereo speakers (other than speakers that are connected to the computer) or speakerphones.

❖ Rapid changes in temperature or humidity and sources of

temperature change such as air conditioner vents or heaters.

❖ Extreme heat, cold, or humidity.

❖ Liquids and corrosive chemicals.

If you spill liquid into the computer, turn it off, unplug it from the AC power source, and let it dry out completely before turning it on again.

If the computer does not operate correctly after you turn it back on, contact your network administrator. If the computer still does not operate, refer to “If you need further assistance” on

page 231 for additional technical assistance.

Keeping yourself comfortable

Strain and stress injuries are becoming more common as people spend more time using their computers. With a little care and proper use of the equipment, you can work comfortably throughout the day.

This section provides hints on avoiding strain and stress injuries. For more information, consult books on ergonomics, repetitive-strain injury, and repetitive-stress syndrome.

Placement of the computer

Proper placement of the computer and external devices is important to avoid stress-related injuries.

❖ Place the computer on a flat surface at a comfortable

height and distance. You should be able to type without

Getting Started

Selecting a place to work

twisting your torso or neck, and look at the screen without slouching.

❖ If you are using an external monitor, the top of the

display should be no higher than eye level.

❖ If you use a paper holder, set it at about the same height

and distance as the screen.

Seating and posture

When using your computer, maintain good posture with your body relaxed and your weight distributed evenly. Proper seating is a primary factor in reducing work strain. Some people find a backless chair more comfortable than a conventional chair.

Below eye level

Approximately 90-degree angles

Footrest

Correct posture and positioning of the computer

Whichever type you choose, use the following guidelines to adjust your chair for maximum computing comfort.

❖ Position your chair so that the keyboard is at or slightly

below the level of your elbow. You should be able to type comfortably with your shoulders relaxed and your forearms parallel to the floor.

Getting Started

Selecting a place to work

If you are using a conventional chair:

❖ Your knees should be slightly higher than your hips. If

necessary, use a footrest to raise the level of your knees and ease the pressure on the back of your thighs.

❖ Adjust the back of your chair so that it supports the lower

curve of your spine. If necessary, use a cushion to provide extra back support. Lower-back-support cushions are available at many office supply stores.

❖ Sit with your back straight so that your knees, hips, and

elbows form approximately 90-degree angles when you work. Do not slump forward or lean back too far.

Lighting

Proper lighting can improve the visibility of the display and reduce eyestrain.

❖ Position the display panel or external monitor so that

sunlight or bright indoor lighting does not reflect off the screen. Use tinted windows or shades to reduce glare.

❖ Avoid placing your computer in front of a bright light that

could shine directly in your eyes.

❖ If possible, use soft, indirect lighting in your computer

work area.

Arms and wrists

❖ Avoid bending, arching, or twisting your wrists. Keep

them in a relaxed, neutral position while typing.

Getting Started

Selecting a place to work

❖ Exercise your hands, wrists, and arms to improve

circulation.

Using the computer keyboard incorrectly may result in discomfort and possible injury. If your hands, wrists, and/or arms bother you while typing, stop using the computer and rest. If the discomfort persists, consult a physician.

Work habits

The key to avoiding discomfort or injury from strain is to vary your activities. If possible, schedule a variety of tasks into your working day. Finding ways to break up the routine can reduce stress and improve your efficiency.

❖ Take frequent breaks to change position, stretch your

muscles, and relieve your eyes. A break of two or three minutes every half hour is more effective than a long break after several hours.

❖ Avoid performing repetitive activities for long periods.

❖ Focusing your eyes on your computer screen for long

Precautions

Your notebook computer is designed to provide optimum safety and ease of use, and to withstand the rigors of travel. You should observe certain precautions to further reduce the risk of personal injury or damage to the computer.

❖ Avoid prolonged physical contact with the underside of

Intersperse such activities with other tasks.

periods can cause eyestrain. Look away from the computer frequently and focus your eyes on a distant object for at least 30 seconds.

the computer.

If the computer is used for long periods, its case can become very warm. While the temperature may not feel

Getting Started

Selecting a place to work

too hot to the touch, if you maintain physical contact with the computer for a long time (if you rest the computer on your lap, for example), your skin might suffer low-heat injury.

❖ Never apply heavy pressure to the computer or subject it

to sharp impacts. Excessive pressure or impact can damage computer components or otherwise cause your computer to malfunction.

❖ Some PC Cards can become hot with prolonged use. If

two cards are installed, both can become hot even if only one is being used. Overheating of a PC Card can result in errors or instability in its operation.

Be careful when you remove a PC Card that has been used for a long period.

❖ Avoid spilling liquids into the computer’s keyboard.

If you do spill a liquid that gets into the keyboard, turn off the computer immediately. Leave the computer turned off overnight to let it dry out before you use it again.

❖ Never turn off the computer if a drive light indicates a

drive is active.

Turning off the computer while it is reading from or writing to a disk may damage the disk, the drive, or both.

❖ Keep the computer and disks away from objects that

generate strong magnetic fields, such as large stereo speakers.

Information on disks is stored magnetically. Placing a magnet too close to a disk can erase important files.

❖ Scan all new files for viruses.

This precaution is especially important for files you receive via diskette, email, or download from the Internet. Occasionally, even new programs you buy from a supplier may contain a computer virus. You’ll need a special program to check for viruses. Ask your dealer to help you.

Setting up your computer

Your computer contains a rechargeable high-capacity battery that needs to be charged before you can use it.

To use external power or to charge the battery, you must attach the AC adapter. See “Connecting to a power source”

on page 57.

Setting up your software

The names of windows displayed and the order in which windows appear may vary depending on your software setup choices.

The first time you turn on your computer, the Setup Wizard guides you through steps to set up your software.

1 From the welcome screen, click Next to enter the Setup

Wizard.

Getting Started

2 Confirm acceptance of Microsoft’s End User License

Agreement and click Next.

3 Follow the on-screen instructions to enter the information

about your computer.

If you click No, you may register with Toshiba by clicking the Register with Toshiba icon on the desktop.

To register online, your computer’s modem must be connected to a voice-grade telephone line.

A window will display the message, “Thank you.”

Getting Started

Setting up your computer

4 Click Finish to continue.

Your computer restarts automatically.

Registering your computer with Toshiba

Registering your computer lets Toshiba keep you up-to-date with information about new products and upgrades, and also extends your Toshiba limited warranty worldwide at no charge to you. You can register your computer with Toshiba by double-clicking the icon on your desktop.

To register online, your computer’s modem must be connected to a voice-grade telephone line.

Adding external devices

Before adding external devices, Toshiba recommends setting up your software first. See “Setting up your software” on

page 55.

Before starting to use your computer, you may also want to:

❖ Add more memory (see “Installing additional memory

(optional)” on page 65)

❖ Connect a mouse (see “Connecting a mouse” on page 75)

❖ Connect a full-size keyboard (see “Connecting a monitor,

keyboard and mouse” on page 183)

❖ Connect an external monitor (see “Connecting a monitor,

keyboard and mouse” on page 183)

❖ Connect a local printer (see “Connecting a printer” on

page 75)

Getting Started

Connecting an optional external USB diskette drive

❖ Install PC Cards (see “Using PC Cards” on page 188)

❖ Install SD cards (see “Using SD cards” on page 191)

Connecting an optional external USB diskette drive

You can attach an optional external USB diskette drive to use diskettes with your computer. These drives hold 3.5-inch diskettes.

Sample external USB diskette drive

To connect an external USB diskette drive, connect the drive’s cable to one of the computer’s USB ports.

For more information about diskettes, see “Using diskettes”

on page 89.

Connecting to a power source

Your computer requires power to operate. Use the power cable and AC adapter to connect the computer to a live electrical outlet, or to charge the computer’s battery.

Getting Started

Connecting to a power source

Power cable

Power cable and AC adapter

Use only the AC adapter supplied with your computer or an equivalent adapter that is compatible. Use of any incompatible adapter could damage your computer. Toshiba assumes no liability for any damage caused by use of an incompatible adapter.

When you connect the AC adapter to the computer, always follow the steps in the exact order as described in the User's Manual. Connecting the power cable to a live electrical outlet should be the last step otherwise the adapter DC output plug could hold an electrical charge and cause an electrical shock or minor bodily injury when touched. As a general safety precaution, avoid touching any metal parts.

DANGE

Hold the power cable by its plug when you connect/disconnect it. Do NOT pull the cable itself. Doing so may damage the power cable and result in a short circuit or electric shock.

AC adapter

To connect AC power to the computer:

1 Connect the power cable to the AC adapter.

Getting Started

Connecting to a power source

Connecting the power cable to the AC adapter

2 Plug the AC adapter into the DC-IN on the back of the

computer.

Connecting the AC adapter to the computer

Getting Started

Charging the main battery

3 Connect the power cable to a live electrical outlet.

If the electrical outlet is live, the system indicator panel’s AC power light ( ) glows green.

DANGE

Damaged power cables can cause fire or electric shock. Never modify, forcibly bend, place heavy objects on top of, or apply heat to the power cable.

If the power cable becomes damaged or the plug overheats, discontinue use. There is a risk of electric shock.

Never remove the power plug from the outlet with wet hands. Doing so may cause an electric shock.

Charging the main battery

To charge the main battery, plug the computer into a live wall outlet. It takes several hours to charge the battery with the computer off. It takes much longer to charge the battery while the computer is on. For more information on battery use, see

“Running the computer on battery power” on page 121.

Once the battery is charged for the first time, avoid leaving the computer plugged in and turned off for more than a few hours at a time. Continuing to charge a fully charged battery can damage the battery.

Getting Started

Using the computer for the first time

TECHNICAL NOTE: The battery does not charge while the computer is consuming full power.

Battery life and charge time may vary depending on the applications, power management settings, and features used.

Using the computer for the first time

Opening the display panel

Press the display latch and lift the display panel.

Opening the display panel

To avoid damaging the display panel, do not force it beyond the point where it moves easily.

Never lift or move the computer using the display panel.

Getting Started

Using the computer for the first time

Turning on the power

1 Make sure there are no media (i.e. CD-ROMs, DVD-

ROMs, diskettes) in your computer’s drives.

Never turn off the computer while any drive is in use.

2 Turn on the computer by pressing and releasing the

power button located on the top of the keyboard. For an illustration to help you locate this button, see “Front with

the display open” on page 42.

When you turn on the computer for the first time, do not turn off the power again until the operating system has loaded completely.

Activating the power-on password

When you first turn on your computer, no password is required. But you can set up your computer so that a password is required to complete the powering up process in the future.

To activate the power-on password:

1 Click Start, then click All Programs.

2 Point to TOSHIBA Console, then click the resulting

TOSHIBA Console selection.

The TOSHIBA Console window appears.

3 Click Security.

4 Click User password.

Getting Started

Using the computer for the first time

5 Follow the on-screen instructions.

The password requirement becomes active the next time you turn on your computer.

When the feature is active, you must enter the password during the power-on process. After typing your password, press the

If the password is correct, the power-on process continues. If the password is incorrect, you will be prompted to try again.

After the third incorrect password submission, the system automatically shuts down.

Enter key.

If you forget your power-on password and therefore cannot turn on your computer, take your computer to a Toshiba authorized service center for help.

Using the TouchPad

The TouchPad, the small, smooth square cutout located in front of the keyboard, is sensitive to touch and enables you to move the cursor with the stroke of a finger. Simply move your finger on the TouchPad in the direction you’d like to move the cursor:

❖ To move the cursor to the top of the page, push your

finger forward on the TouchPad.

❖ To move the cursor to the bottom of the page, drag your

finger toward yourself.

❖ To move the cursor to the right side of the page, slide

your finger across the TouchPad from left to right.

Getting Started

Using the computer for the first time

❖ To move it to the left side, slide your finger from right to

left.

Because the TouchPad is much smaller than the display screen, moving your cursor across the screen often means having to move your finger several times across the TouchPad in the preferred direction.

Once you have positioned your cursor, you can either click it into place by double-tapping the TouchPad or clicking the control buttons. For more on the TouchPad, see “Lesson 2:

Using the TouchPad and control buttons together” on page 139.

Control buttons

When a step instructs you to click or choose an item, move the cursor to the item, then press and release the primary (left-hand) button. To double-click, press the primary button twice in rapid succession. The primary button usually corresponds to the left mouse button.

The function of the secondary (right-hand) button depends on the program you are using. It usually corresponds to the right mouse button. Check your program’s documentation to find whether it uses the right mouse button.

Disabling or enabling the TouchPad

The TouchPad is enabled by default. To change the enable/ disable TouchPad setting by using the

“Disabling or enabling the TouchPad” on page 242.

You may also change the enable/disable setting as follows:

1 Click Start, Control Panel.

The Control Panel window appears.

2 Click Printers and Other Hardware.

Fn + F9 keys, see

Getting Started

Installing additional memory (optional)

3 Click Mouse Properties.

The Mouse Properties window appears.

4 Click the TouchPAD ON/OFF tab.

The TouchPAD ON/OFF tab view window appears.

5 Select Disable or Enable, whichever is appropriate.

6 Click Apply.

7 Click OK.

The Mouse Properties window closes.

8 Close the Printers and Other Hardware window.

9 Close the Control Panel window.

Installing additional memory (optional)

Before you install or remove a memory module, turn off the computer using the Start menu. If you install or remove a memory module while the computer is in Standby or Hibernation mode, data will be lost.

A memory module must be installed in slot A. Do not try to operate the computer with a memory module in slot B only.

Your computer is equipped with two memory slots which can provide for various memory configurations. When additional memory is added, or original memory replaced, it is recommended that you use only compatible memory. In the event original memory is replaced with invalid memory, the system will beep and will not start up beyond the BIOS memory check. A message will display. If this occurs, contact Toshiba’s support center. See “Toshiba voice contact” on

page 233.

Getting Started

Installing additional memory (optional)

HINT: To purchase additional memory modules, visit the Toshiba Web site at toshiba.com.

Your computer comes with enough memory to run most of today’s popular applications. You may want to increase the computer’s memory if you use complex software or process large amounts of data.

There are two memory slots. Your system may have both slots occupied.

If you use the computer for a long time, the memory modules will become hot. If this happens, let the modules cool to room temperature before you replace them.

Do not try to install a memory module under the following conditions. You can damage the computer and the module.

1. The computer is turned on.

2. The computer was shut down using Standby mode.

3. Power to the DVD-ROM or multi-function drive has been turned on.

Do not install or remove a memory module while the DVDROM or multi-function drive power is on.

Getting Started

Installing additional memory (optional)

You will need a standard Phillips No.1 screwdriver and a small flat-head screwdriver to install a memory module.

To avoid damaging the computer’s screws, use a standard Phillips screwdriver that is in good condition.

1 If the computer is on, turn it off.

See “Turn Off or Shut down command” on page 103.

2 Unplug and remove any cables connected to the

computer.

3 Open the display panel and remove the panel above the

keyboard that contains the power button.

When removing the computer’s power button panel to install additional memory, be careful not to damage the display or circuit board.

Using a flat-head screwdriver to pry off the panel

You can pry the panel out of its position by using a flathead screwdriver. Starting at the left or right side, carefully wedge the flat-head screwdriver between the

Getting Started

Installing additional memory (optional)

panel and the surrounding housing. Grasp the end of the panel and lift up until the panel comes free.

4 Remove the three screws that hold the keyboard in place,

and remove the keyboard retaining brace.

Removing the left keyboard screw

The two-inch-long, propeller-shaped brace sits in the center of the area exposed when the panel is removed.

Observe how the propeller-shaped keyboard retaining brace is positioned before you remove it.

Store the brace with the screws for safekeeping.

Getting Started

Installing additional memory (optional)

Removing the right keyboard screw

5 Lift the keyboard and gently place it face down on the

palm rest of the computer.

Lifting the keyboard

Removing the keyboard exposes the two memory slots, which are covered by a plastic sheet.

Getting Started

Installing additional memory (optional)

Covered memory slots

Locating the covered memory module slots

6 Lift (but do not detach) the plastic sheet to expose the

memory slots.

Lifting the plastic covering the memory slots

Getting Started

Installing additional memory (optional)

7 Remove the new memory module from its antistatic

packaging.

Static electricity can damage the memory module. Before you handle the module, touch a grounded metal surface to discharge any static electricity you may have built up.

To avoid damaging the memory module, be careful not to touch its pin connector (on the side you insert into the computer).

Avoid touching the connectors on the memory module or on the computer. Grease or dust on the connectors may cause memory access problems.

8 Insert the memory module in a slot and gently press it

down into place.

Inserting the memory module

The clips on either side of the module will click to secure the module.

9 Cover the slots with the plastic sheet.

Getting Started

Installing additional memory (optional)

10 Replace the keyboard.

To secure the keyboard, fit the tabs at the bottom of the keyboard into the corresponding slots at the top of the computer’s palm rest.

11 Fasten the keyboard with the keyboard retaining brace

and screws.

12 Replace the panel above the keyboard by doing the

following:

❖ Fit the tabs at the bottom of the panel into

corresponding slots at the top of the keyboard.

❖ Fit the tabs at the top of the panel into corresponding

slots at the base of the display and gently push down.

When the panel is properly positioned, it will snap down into place.

13 Reconnect any cables you removed.

14 Turn on the computer.

To verify that the computer correctly recognizes the memory, see “Checking total memory” on page 74.

15 If the computer does not recognize the memory, shut

down the computer, remove the keyboard and make sure the memory module is seated properly, as described in step 8, above.

Removing a memory module

If you use the computer for a long time, the memory modules will become hot. If this happens, let the modules cool to room temperature before you replace them.

Getting Started

Installing additional memory (optional)

Do not try to remove a memory module with the computer turned on. You can damage the computer and the device.

Do not remove the memory module while the computer is in Standby mode. The computer could hang up the next time you turn it on and data in memory will be lost. In either of the above cases, the Standby configuration will not be saved.

The following message appears when you turn on the power:

Warning: Resume Failure Press Any Key To Continue

If the computer hangs up when you turn it on, perform the following: Press the power button and hold it down for five seconds, then turn the power on again.

1 Follow steps 1 through 6 in “Installing additional

memory (optional)” on page 65.

2 Pull the clips away from the memory module.

The memory module pops partially out of the slot.

Pulling the clips away from the memory module

Getting Started

Installing additional memory (optional)

3 Carefully remove the module from the slot.

Static electricity can damage the memory module. Before you handle the module, touch a grounded metal surface to discharge any static electricity you may have built up.

To avoid damaging the memory module, be careful not to touch its pin connector (on the side you insert into the computer).

Avoid touching the connectors on the memory module or on the computer. Grease or dust on the connectors may cause memory access problems.

Removing the memory module

4 Complete the procedure by following steps 9 through 14

in “Installing additional memory (optional)” on page 65.

Checking total memory

When you add or remove memory, you can check that the computer has recognized the change. To do this:

1 Click Start, Control Panel

2 Click Performance and Maintenance.

3 Click System.

4 The General tab view automatically appears and shows

the recognized memory.

5 If the computer does not recognize the memory

configuration, turn off the computer, remove the keyboard and make sure the memory module is seated properly, as described in “Installing additional memory

(optional)” on page 65.

Connecting a mouse

You may want to use a mouse instead of the TouchPad, the computer’s built-in pointing device.

To connect a USB mouse, plug the mouse cable into one of the USB ports.

Connecting a printer

Getting Started

Connecting a mouse

You can connect a USB-compatible printer to your computer through a USB port.

Alternatively, you can connect a parallel printer to the computer’s parallel port.

Connecting a USB printer

To achieve the connection, you need a suitable USB cable, which may come with your printer. Otherwise, you can purchase one from a computer or electronics store.

Follow the manufacturer’s instructions for connecting a USB printer to your computer.

Getting Started

Setting up a printer

Connecting a parallel printer

To achieve the connection, you need a suitable cable, which may come with your parallel printer. Otherwise, you can purchase one from a computer or electronics store.

Connect a parallel printer before you turn on the computer.

Follow the manufacturer’s instructions for connecting a parallel printer to your computer.

Setting up a printer

If you started your computer with a printer connected and turned on, it may have been detected automatically (Plug and Play). If this is not the case, then you must install the printer driver for the model of printer that is connected to your computer. You install the printer driver either by following the instructions indicated in your printer manual, or by using the operating system Add Printer Wizard.

If you plan to set up a printer later, click Cancel.

Using the Add Printer Wizard

To set up a printer with the Add Printer Wizard:

1 Click Start, Control Panel, then Printers and Other

Hardware.

2 Select Printers and Faxes.

The Printers and Faxes window appears.

Setting up a printer

Sample Printers and Faxes window

3 Click Add Printer.

The Add Printer Wizard starts.

Getting Started

Sample Add Printer Wizard

Getting Started

Setting up a printer

4 Click Next.

The Add Printer Wizard asks you to select your printer.

TECHNICAL NOTE: If your printer is Plug and Play, the operating system recognizes it automatically. You can ignore the remainder of this section. See your printer manual.

5 If the printer you are setting up:

❖ Is not connected to a network, select Local printer

attached to this computer.

If you select Local printer, check “Automatically detect and install my Plug and Play printer.”

❖ Is connected to a network, select Network printer,

or a printer attached to another computer.

6 Click Next.

The Add Printer Wizard prompts you to select your printer.

7 From the list of manufacturers and printers, select your

printer, then click Next.

8 Select the port settings according to the instructions in

your printer’s documentation and the port to which your printer is connected, then click Next.

The Add Printer Wizard prompts you to enter a printer name.

9 Enter a name for your printer.

HINT: If you are using more than one printer, make sure the name is descriptive enough to help you tell the difference.

10 To set up the printer to be the default printer for the

operating system, click Ye s .

Powering off the computer

11 Click Next.

The operating system prompts you to print a test page.

12 If your printer is connected and turned on, click Next.

To complete the setup procedure without printing a test page, click No, then click Next.

13 Click Finish.

You are now ready to print.

Depending on your program, you may see various messages indicating the status of your print job.

Powering off the computer

It is a good idea to power off your computer when you are not using it for a while.

If you are using the computer for the first time, leave the computer plugged into a power source (even though the computer is off) to fully charge the main battery. When the main battery light glows green, the battery is fully charged.

Getting Started

Guidelines for powering off the computer:

❖ If you have work in progress and if you are not connected

to a network, use the Hibernate command to save your system settings to the hard disk so that, when you turn on the computer again, you automatically return to where you left off.

❖ To leave the computer off for a longer period, power

down the computer. The Windows uses the Shut down command to power down the computer if you are connected to a Windows server (domain server) or the Turn Off command if you are not.

❖ When the disk drive light on the system indicator panel is

on, do not turn off the power. Doing so may damage your hard disk.

XP operating system

network

Getting Started

Caring for your computer

For more information, see “Powering down the computer” on

page 102.

Caring for your computer

This section gives tips on cleaning and moving your computer, and explains how to fit an antitheft lock. For information about taking care of your computer’s battery, see

“Running the computer on battery power” on page 121.

Cleaning the computer

To keep your computer clean, gently wipe the display panel and exterior case with a lightly dampened cloth. Ask your Toshiba dealer for suggestions for appropriate cleaning products.

Keep liquid, including cleaning fluid, out of the computer’s keyboard, speaker grille, and other openings. Never spray cleaner directly onto the computer. Never use harsh or caustic chemical products to clean the computer.

Moving the computer

Before moving your computer, even across the room, make sure all disk activity has ended (the disk activity lights stop glowing) and all external peripheral cables are disconnected.

Never pick up the computer by its display panel or by the back (where the ports are located).

Although your notebook computer is built to withstand reasonable shock and vibration, transport it in a carrying case for long trips. You can purchase a carrying case from your Toshiba dealer or visit Toshiba’s Web site at

toshiba.com.

Using a computer lock

You may want to secure your computer to a heavy object such as your desk. The easiest way to do this is to purchase an optional PORT-Noteworthy

PORT-Noteworthy

To secure the computer:

1 Loop the cable through or around some part of a heavy

object.

Make sure there is no way for a potential thief to slip the cable off the object.

2 Pass the locking end through the loop.

Getting Started

Caring for your computer

computer lock cable.

computer lock cable

3 Insert the cable’s locking end into the security lock slot,

then rotate the key a quarter turn and remove it.

The computer is now securely locked to deter computer theft.

Locking the computer

Chapter 3

Learning the Basics

This chapter lists some computing tips and provides important information about basic features.

Computing tips

❖ Save your work frequently.

Your work temporarily stays in the computer’s memory until you save it to the disk. You will lose all unsaved work, if, for example, a system error occurs and you must restart your computer, or your battery runs out of charge while you are working. Your computer can be configured to warn you when the battery is running low. See “Power

management” on page 122.

HINT: Some programs have an automatic save feature which you can turn on. This feature saves your file to the hard disk at preset intervals. See your software documentation for details.

Learning the Basics

Using the keyboard

❖ Back up your files to diskettes (or other removable

storage media) on a regular basis. Label the backup copies clearly and store them in a safe place.

If your hard disk suddenly fails, you may lose all the data on it unless you have a separate backup copy.

❖ Use Error-Checking and Disk Defragmenter regularly to

conserve disk space and help your computer perform at its optimal level. Consult your Windows

XP operating system documentation for more information on these and other utilities.

❖ Always use the proper procedure to turn off the

computer. (See “Powering down the computer” on

page 102.)

The operating system records information, such as your desktop setup, during its shut down procedure. If you do not let the operating system shut down normally, details such as new icon positions may be lost.

Using the keyboard

Function keys

Fn keys

Alt (Alternate) key Fn key Ctrl (Control) key

Parts of the keyboard

Home

End PgDn

PgUp

Ins

Character keys

∗

Del

Windows® keys

Learning the Basics

Using the keyboard

Character keys

Typing with the character keys is very much like typing on a typewriter, except that:

❖ The spacebar creates a space character instead of just

passing over an area of the page.

❖ The lowercase l (el) and the number 1 are not

interchangeable.

❖ The uppercase letter O and the number 0 are not

interchangeable.

❖ The Caps Lock key changes only the alphabet keys to upper

case — the number and symbol keys are not affected.

Ctrl, Fn, and Alt keys

Alt

Ctrl

Ctrl, Fn and Alt keys

Ctrl, Fn, and Alt keys do different things depending on the

The program you are using. For more information, see your program documentation.

Function keys

The function keys (not to be confused with the Fn key) are the 12 keys at the top of the keyboard.

Function keys

F1 through F12 are called function keys because they run

programmed functions when you press them. Used in combination with the run specific functions on the computer.

Fn key, function keys marked with icons

Windows® special keys

The keyboard provides two keys that have special functions in the operating system:

❖ The Windows

❖ The Application key has the same function as the

secondary (or right mouse) control button.

Overlay keys

790

Home PgUp

78 9

UI OP

Learning the Basics

Using the keyboard

Application key

Windows® logo key

logo key opens the Start menu.

()&

∗

456

JKL

End PgDn

12 3

Ins Del

∗

: ;

Sample keyboard overlay keys

The keys with numbers and symbols on the front of them form the numeric and cursor overlay. This overlay lets you enter numeric data or control the cursor as you would using the ten-key keypad on a desktop computer’s keyboard.

Learning the Basics

Using the keyboard

Using the numeric keypad overlay

To turn on the numeric keypad overlay, press Fn and F11 simultaneously. The numeric mode keyboard indicator light glows when the numeric overlay is on.

You can still use the overlay keys to type alphabetic characters while the numeric overlay is on. To do so:

❖ For lowercase letters, hold down Fn while you type the

letters.

❖ For uppercase letters, hold down both Fn and Shift while

you type the letters.

To use the cursor control overlay when the numeric overlay is on, press and hold down keys. To return to the numeric overlay, release

Shift while you use the cursor control

Shift.

To turn off the numeric keypad overlay, hold down the and press

F11 again. The numeric mode light goes out.

Fn key

Using the cursor control overlay

To turn on the cursor control overlay, press Fn and F10 simultaneously. The cursor control mode keyboard indicator light glows when the cursor control overlay is on.

To type alphabetic characters while the overlay is on:

❖ For lowercase letters, hold down Fn while you type the

letters.

❖ For uppercase letters, hold down both Fn and Shift while

you type the letters.

To use the numeric keypad overlay when the cursor control overlay is on, hold down overlay keys. To return to the cursor control overlay, release

Shift.

To turn off the cursor control overlay, hold down the and press

F10 again. The cursor control mode light goes out.

Shift while you use the numeric

Fn key

Learning the Basics

Emulating a full-size keyboard

Although the computer’s keyboard layout is compatible with a standard full-size keyboard, it has fewer keys.

Pressing the of the specially marked keys allows you to emulate a full-size keyboard. For further information and instructions, see

“Assigning a key to a program or document” on page 196.

Fn key simultaneously in combination with one

The Fn emulation key is not supported when using a USB keyboard.

TOSHIBA Console

The TOSHIBA Console provides quick access to some common functions. For more information, see “TOSHIBA

Console” on page 199.

Starting a program

The easiest way to start a program is to double-click the name of the file that contains the information you want to work on. To find the file, use My Computer or Windows Explorer.

If you prefer to open the program first, you have four options:

❖ Double-click the icon for the program on your desktop

❖ Use the Start menu

❖ Use Windows Explorer to locate the program file

❖ Use the Run dialog box

The Windows step-by-step instructions for starting a program from the Start menu. See “Lesson 6: Starting programs” on page 145.

XP operating system tutorial chapter gives

Learning the Basics

Saving your work

Before you turn off the computer, save your work to a hard disk drive or a diskette.

Always save your data even when you are using the Standby command. If your battery fully discharges, your information will be lost. Your computer can be configured to warn you when the battery is running low, see “Power Management” on

page 201.

Many programs offer a feature that saves documents at regular intervals, such as every 15 minutes. Check your programs’ documentation to see whether they have an automatic save feature.

To save :

❖ A file you are updating, open the program’s File menu

and click Save.

❖ A new file, choose Save As from the File menu, type a

name for the file, and click OK.

HINT: To make another copy of the file you are currently working with, choose Save As from the File menu and give the new file a different name.

For information on how to name a file, see “Windows

file system” on page 138.

Printing your work

Verify that the Windows® XP operating system is set up for your printer as described in “Setting up a printer” on page 76.

TECHNICAL NOTE: You only need to set up the printer the first time you connect it. If you use more than one printer or are changing printers, you will need to set up the operating system to run with the additional printer(s).

To print a file:

1 If your printer is not on, turn it on now.

2 In the File menu of your program, click Print.

The program displays a Print dialog box.

3 Click OK to print.

Learning the Basics

Printing your work

Using diskettes

For those systems with an optional external USB diskette drive, the 3.5-inch diskette drive, lets you use either doubledensity (720 KB) or high-density (1.44 MB) diskettes for data transfer and storage.

Sample diskette drive

The disc/disk activity indicator flashes when the diskette drive is in use. See “System indicator panel” on page 45 for more information on the location of system indicators.

Eject button

Learning the Basics

Using diskettes

Inserting and removing diskettes

1 Hold the diskette so that the arrow on its upper surface

points toward the drive.

2 Push the diskette gently into the drive slot. When the

diskette is in place, the eject button pops out.

To release a diskette from the drive, push the eject button.

Never press the eject button or turn off the computer while the light is glowing. Doing so could destroy data and damage the diskette or the drive.

Caring for diskettes

❖ Store your diskettes properly to protect them and keep

them clean.

❖ If a diskette is dirty, clean it with a soft cloth moistened

in water. Do not use cleaning fluids.

❖ Never slide back the protective metal cover.

❖ Never touch the magnetic surface of a diskette.

Fingerprints can prevent the drive from reading the data stored on a diskette.

❖ Never twist or bend a diskette.

❖ Keep diskettes at room temperature and avoid exposing

them to direct sunlight. Otherwise data may be lost.

❖ Never place heavy objects on your diskettes.

❖ Never eat, smoke, or use erasers near your diskettes.

Foreign particles can damage the diskette’s surface.

❖ Keep your diskettes away from sources of magnetism,

such as speakers and radios, since these can destroy data.

Backing up your files

Backing up your files means copying individual files to a diskette or copying entire sections of your hard disk to another device, such as a tape drive.

For those systems with a floppy disk drive, you may back up file to a floppy disk as follows:

1 Insert a diskette into the diskette drive.

2 Click Start, then click My Computer.

3 Click the drive that contains the file you want to copy.

4 Double-click the folder that contains the file, then click

the file you want to copy.

HINT: You can use the Ctrl or Shift keys to select more than one file. To select multiple consecutive files, hold down the

Shift key and click the first and then the last file (all files within

that range will be highlighted). To select non-consecutive files, hold down the to select.

Ctrl key and click the individual files you want

Learning the Basics

Backing up your files

5 Click File, then click Send To.

6 Click the icon for the diskette drive (3 1/2 floppy [A:]).

HINT: You can also back up a file to a diskette by clicking the file (or files) you want to backup with the secondary button, then pointing to Send To and clicking 3 1/2 Floppy (A:).

Learning the Basics

Playing a CD or DVD

Optical storage has become the preferred medium for software, music, and video. Digital versatile discs (DVDs) provide a significant increase in data storage and support features that are not available on any other video platform. These features include wide-screen movies, multiple language tracks, digital surround sound, multiple camera angles, and interactive menus.

For these reasons, your computer may come with a DVD-ROM or multi-function drive.

HINT: Your DVD-ROM or multi-function drive is designed to play region 1 (North America) DVD-ROMs.

For optimum DVD performance, it is recommended that you play DVDs while running on AC power.

Components

Manual eject hole

Eject button

Sample DVD-ROM or multi-function drive

Learning the Basics

Playing a CD or DVD

Use the eject button to open the disc tray. This button requires power to operate.

Never press the eject button or turn off the computer while the disk/disc activity light is flashing. Doing so could damage the disc or the drive.

The manual eject button allows you to manually open the disc tray when power to the computer and the drive is off.

Never use a pencil to press the manual eject button. Pencil lead can break off inside the computer and damage it. Instead, use a slim object such as a straightened paper clip.

HINT: When the computer is off and the DVD-ROM or multi-function drive is on, press the stop/eject control button to eject a disc.

For information on using the CD/DVD control buttons, see“CD/DVD control buttons” on page 46.

Learning the Basics

Playing a CD or DVD

CD/DVD and digital audio modes

The following chart describes CD/DVD mode and digital audio mode.

CD /DVD mode Digital audio mode

Power is off and you press Play/Pause

While in CD/DVD mode, you press the mode button

Operating system is running and you press Play/Pause

If a CD is in the drive, the system enters CD player mode and operates as a standalone CD player.

If a DVD movie is in the drive, the operating system starts and the DVD begins to play.

DVD-ROM drive power turns off.

If a CD is in the drive, the Media Player starts and the digital audio file begins to play.

The operating system starts, the Media Player starts and the digital audio file begins to play.

Media Player starts and the digital audio file begins to play.

If a DVD movie is in the drive, the DVD begins to play.

Do not install or remove a memory module while the DVDROM or multi-function drive power is on.

Inserting a disc

Before playing an audio CD, turn the volume down. Playing the compact disc at maximum volume could damage your ears. To turn the volume down, use the Volume Control switch or access the Volume Control program (click Start, All

Programs, Accessories, Entertainment, Volume Control).

1 If the computer is turned on, press the eject button on the

DVD-ROM or multi-function drive.

The disc tray partially opens.

To avoid damaging a disc or losing data, check that the disc activity light is off before opening the disc tray.

Learning the Basics

Playing a CD or DVD

2 Grasp the disc tray and pull it fully open.

3 Hold the disc by its edges and check that it is clean and

free of dust.

Handle discs carefully. Avoid touching the surface of the disc. Grasp it by its center hole and edge. If you handle the disc incorrectly, you could lose data.

4 Carefully place the disc in the empty tray with its label

facing up.

Learning the Basics

Playing a CD or DVD

Inserting a disc

Be careful not to touch the drive’s lens (located underneath the drive’s spindle) or the area around it. Doing so could cause the drive to malfunction.

5 Gently press the center of the disc onto the spindle until it

locks into place.

Spindle

Disc

Positioning the disc on the spindle

Make sure the disc is properly positioned on the spindle. If you position the disc incorrectly, it can jam the disc tray.

6 Close the disc tray by pressing gently on the center of the

tray until it clicks indicating that it is locked.

Correct position

Incorrect position

Playing an audio CD

Insert an audio CD and close the disc tray.

The computer automatically detects a disc in the drive and opens the Audio CD window. To play an audio CD select the Play Audio CD using Windows Media Player option and click OK.

Learning the Basics

Playing a CD or DVD

Sample Audio CD window

The Windows Media Player window appears.

Learning the Basics

Playing a CD or DVD

Rewind Play

Stop Previous track

Next track Mute

Fast forward

Volume control

Sample Windows MediaTM Player screen

The Windows Media

Player control panel works much like

an ordinary compact disc player:

❖ To play the CD, click the Play button on the CD Player

control panel.

❖ To stop the CD, click the Stop button.

Viewing the contents of a CD or DVD

CDs and DVDs contain files just like diskettes and the hard disk. CDs are often used to install software or store files that require lots of space, such as photographs and large

Learning the Basics

Playing a CD or DVD

presentation files. You can use Explorer or My Computer to view the contents of any CD or DVD.

Removing a disc with the computer on

Never press the eject button while the computer is accessing the drive. Wait for the disk/disc activity light on the system indicator panel to turn off before opening the disc tray.

1 Locate and press the eject button.

The disc tray partially opens.

2 Grasp the sides of the disc tray and pull it fully open.

3 Remove the disc from the disc tray and place it in its

protective cover.

If the disc is spinning when you open the disc tray, wait for the disc to stop before removing it.

4 Close the disc tray by pressing gently on the center of the

tray until it clicks indicating that it is locked.

Removing a disc with the computer off

1 Insert a slender object, such as a straightened paper clip,

into the manual eject button access hole.

Never use a pencil to press the manual eject button. Pencil lead can break off inside the computer and damage it.

2 Pull the tray fully open, remove the disc and place it in its

protective cover.

Learning the Basics

100

Using the DVD-ROM or multi-function drive

3 Close the disc tray by pressing gently on the center of the

tray until it clicks indicating that it is locked.

Caring for CDs and DVDs

❖ Store your discs in their original containers to protect

them from scratches and keep them clean.

❖ Never bend a disc or place heavy objects on top of it.

❖ Hold a disc by its outside edge. Fingerprints on the

surface of a compact disc can prevent the drive from reading the data properly.

❖ Avoid exposing discs to direct sunlight or extreme heat or

cold.

❖ To clean a disc, wipe it from the center outwards (not in a

circle) with a clean, dry cloth. If necessary, moisten the cloth with water or a neutral cleaner (not benzine or rubbing alcohol). Let the disc dry completely before inserting it in the drive.

Using the DVD-ROM or multi-function drive

Your computer may come with a DVD-ROM or multifunction drive that allows you to:

❖ Play prerecorded DVDs

(DVD-ROM, multi-function drives)

❖ Play prerecorded CDs

❖ Read and write files (including music) to a CD-

Recordable (CD-R) or CD-ReWritable (CD-RW) disc.

Check the disk/disc activity light when you use the DVD-ROM or multi-function drive. Do not press the eject button, disconnect a drive or turn off the computer while the light is flashing. Doing so could damage the CD, DVD or drive.
