SERVICE MANUAL
LCD Color Television
32W153xDx
32L153xDx
40L153xDx
32W154xDx
32L154xDx
40L154xDx
(System Information)
FILE NO. 050-2015003
CONTENTS
1. IMPORTANT NOTICE
2. GREEN PRODUCT PROCUREMENT
3. LEAD-FREE SOLDER
4. SAFETY INSTRUCTION
5. FIRMWARE UPDATING
6. HOTEL MODE / HOTEL CLONE
7. BLOCK DIAGRAM

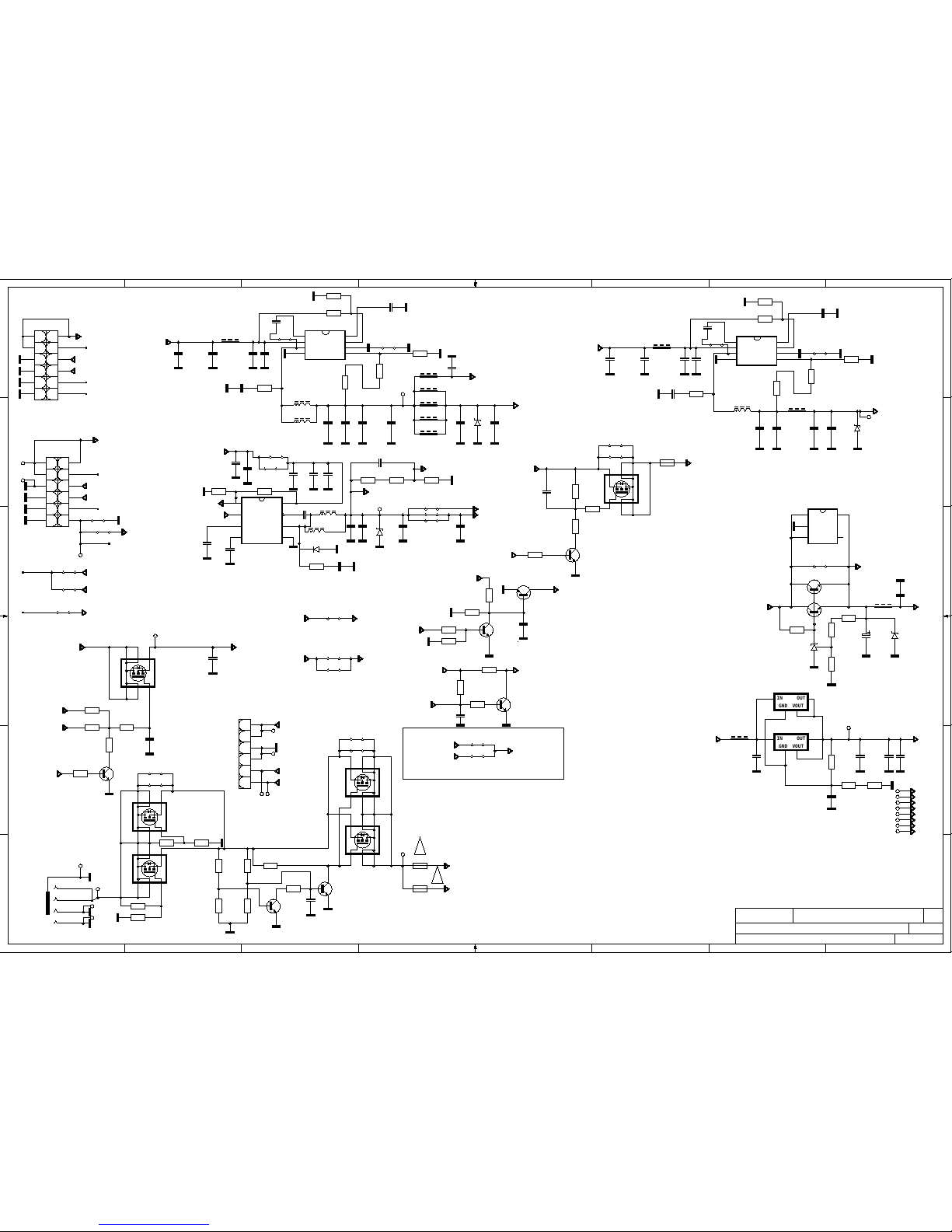

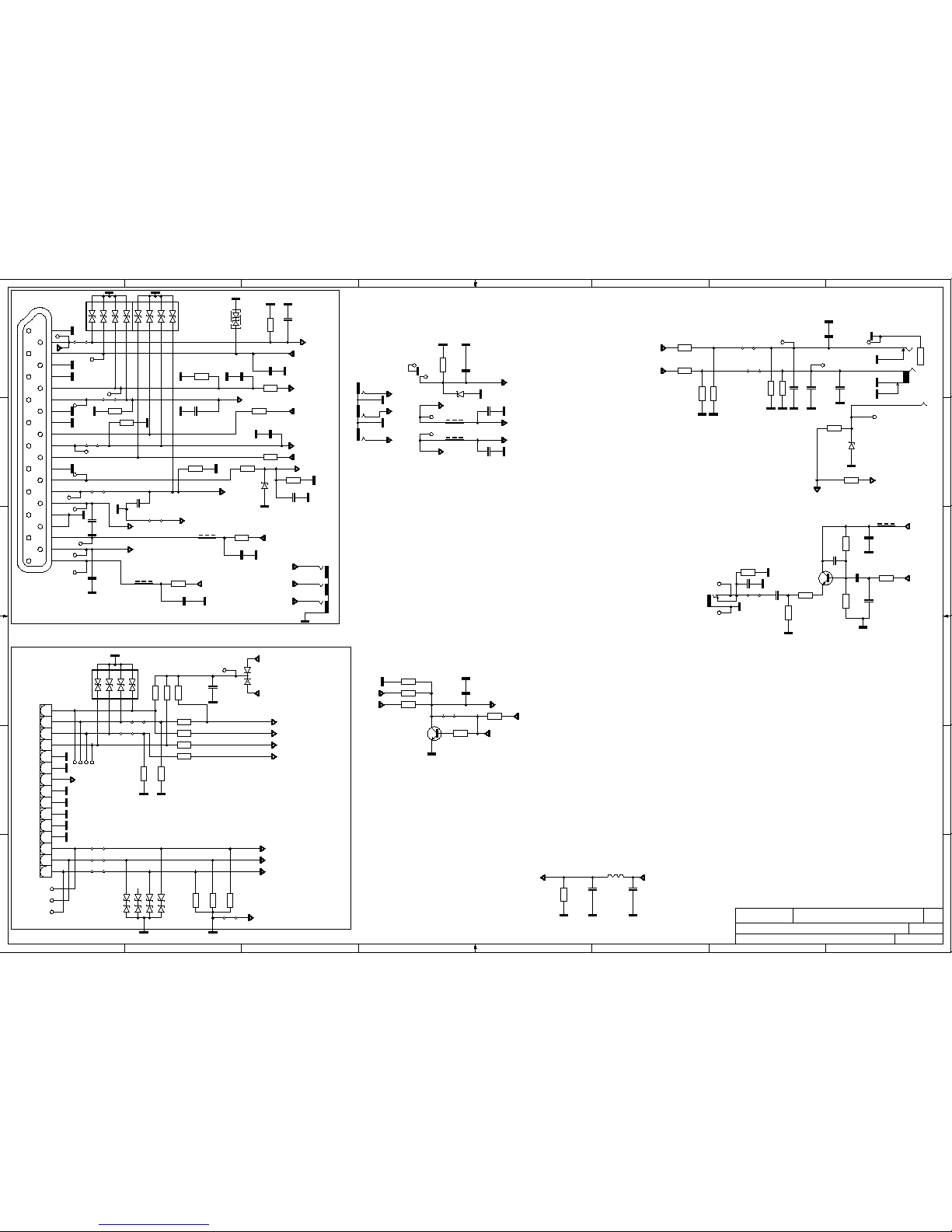

8. SCHEMATIC DIAGRAM
9. TROUBLESHOOTING
1
IMPORTANT NOTICE
WARNING:
You are requested that you shall not modify or alter the information or data provided
herein without prior written consent by Toshiba. Toshiba shall not be liable to
anybody for any damages, losses, expenses or costs, if any, incurred in connection
with or as a result of such modification or alteration.
THE INFORMATION OR DATA HEREIN SHALL BE PROVIDED "AS IS" WITHOUT ANY
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Toshiba shall not be liable for any damages, losses, expenses or costs, if any,
incurred in connection with or as a result of use of any information or data provided
herein.
GREEN PRODUCT PROCUREMENT
The EC is actively promoting the WEEE & RoHS Directives that define standards for
recycling and reuse of Waste Electrical and Electronic Equipment and for the Restriction of
the use of certain Hazardous Substances. From July 1, 2006, the RoHS Directive will
prohibit any marketing of new products containing the restricted substances.
Increasing attention is given to issues related to the global environmental. Toshiba
Corporation recognizes environmental protection as a key management tasks, and is doing
its utmost to enhance and improve the quality and scope of its environmental activities. In
line with this, Toshiba proactively promotes Green Procurement, and seeks to purchase
and use products, parts and materials that have low environmental impacts.
Green procurement of parts is not only confined to manufacture. The same green parts
used in manufacture must also be used as replacement parts.
LEAD-FREE SOLDER
This product is manufactured using lead-free solder as a part of a movement within the
consumer products industry at large to be environmentally responsible. Lead-free solder
must be used in the servicing and repair of this product.
WARNING: This product is manufactured using lead free solder.
DO NOT USE LEAD BASED SOLDER TO REPAIR THIS PRODUCT!
The melting temperature of lead-free solder is higher than that of leaded solder by 30ºC to
40ºC (54ºF to 72ºF). Use of a soldering iron designed for lead-based solders to repair
product made with lead-free solder may result in damage to the component and or PCB
being soldered. Great care should be made to ensure high-quality soldering when servicing
this product especially when soldering large components, through-hole pins, and on PCBs
as the level of heat required to melt lead-free solder is high.
(1 / 3)
SAFETY INSTRUCTION
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "SAFETY PRECAUTION" AND "PRODUCT
SAFETY NOTICE" INSTRUCTIONS BELOW.
Safety Precaution
WARNING: SERVICING SHOULD NOT BE ATTEMPTED BY ANYONE UNFAMILIAR WITH THE
NECESSARY PRECAUTIONS ON THIS RECEIVER. THE FOLLOWING ARE THE NECESSARY
PRECAUTIONS TO BE OBSERVED BEFORE SERVICING THIS CHASSIS.
1. An isolation transformer should be connected in the power line between the receiver
and the AC line before any service is performed on the receiver.
2. Always disconnect the power plug before any disassembling of the product. It may
result in electrical shock.
3. When replacing a chassis in the cabinet, always be certain that all the protective
devices are put back in place, such as nonmetallic control knobs, insulating covers,
shields, isolation resistor-capacitor network, etc.
4. Always keep tools, components of the product, etc away from the children, These
items may cause injury to children.
5. Depending on the model, use an isolation transformer or wear suitable gloves when
servicing with the power on, and disconnect the power plug to avoid electrical shock
when replacing parts. In some cases, alternating current is also impressed in the
chassis, so electrical shock is possible if the chassis is contacted with the power on.
6. Always use the replacement parts specified for the particular model when making
repairs. The parts used in products require special safety characteristics such as
inflammability, voltage resistance, etc. therefore, use only replacement parts that have
these same characteristics. Use only the specified parts when the mark is indicated
in the circuit diagram or parts list.
7. Parts mounting and routing dressing of wirings should be the same as that used
originally. For safety purposes, insulating materials such as isolation tube or tape are
sometimes used and printed circuit boards are sometimes mounted floating. Also
make sure that wirings is routed and clamped to avoid parts that generate heat and
which use high voltage. Always follow the manufactured wiring routes / dressings.
(2 / 3)
8. Always ensure that all internal wirings are in accordance before re-assembling the
external casing after a repairing completed. Do not allow internal wiring to be pinched
by cabinets, panels, etc. Any error in reassembly or wiring can result in electrical
leakage, flame, etc., and may be hazardous.
9. NEVER remodel the product in any way. Remodeling can result in improper operation,
malfunction, or electrical leakage and flame, which may be hazardous.
10. Touch current check. (After completing the work, measure touch current to prevent an
electric shock.)
Plug the AC cord directly into the AC outlet. Do NOT use an isolation transformer for
this check.
Connect a measuring network for touch currents between each exposed metallic part
on the set and a good earth ground such as a water pipe.
Annex D
(normative)
Measuring network for TOUCH CURRENTS
Resistance values in orms (Ω).
V: Voltmeter or oscilloscope
(r.m.s. or peak reading)
Input resistance : 1 MΩ
Input capacitance : 200 pF
Frequency range : 15 Hz to 1 MHz and d.c. respectively
Note: Appropriate measures should be taken to obtain the correct value in case of non
(3 / 3)
sinusoidal waveforms.
The measuring instrument is calibrated by comparing the frequency factor of with
the solid line in figure F.2 of IEC 60990 at various frequencies. A calibration curve is
constructed showing the deviation of from the ideal curve as a function of
frequency.
TOUCH CURRENT = / 500 (peak value).
The potential at any point (TOUCH CURRENT) expressed as voltage and does
not exceed the following value:
The part or contact of a TERMINAL is not HAZARDOUS LIVE if:
a) The open-circuit voltage should not exceed 35 V (peak) a.c. or 60 V d.c. or, if a) is
not met.
b) The measurement of the TOUCH CURRENT shall be carried out in accordance
with IEC 60990, with the measuring network described in Annex D of this standard.
The TOUCH CURRENT expressed as voltages and , does not exceed the
following values:
- for a.c. : = 35 V (peak) and = 0.35 V (peak);
- for d.c. : = 1.0 V
Note: The limit values of = 0.35 V (peak) for a.c. and = 1.0 V for d.c. correspond
to the values 0.7 mA (peak) a.c. and 2.0 mA d.c.
FIRMWARE UPDATING PROCEDURE
SW update via USB
17MB8X Core Software Update
1. Please copy the file to USB device. There is no need to use any specific folder.
• upgrade_loader.pkg
2. Turn power to OFF by mechanical switch or removing AC plug and plug the USB to TV.
3. Keep pressing and holding “OK” key from Toshiba remote controller and at the same time turn power to
ON by mechanical SW and hold OK pressed until the standby led blinks very rapidly.
4. SW update starts automatically when the led starts blinking.
5. SW update is completed after led blink is done.
* After core update, user/profile settings and panel files do not change.
* After Core update, bootloader/mboot version will be updated.
* SW version can be controlled from other settings or service menu.
HOTEL MODE/HOTEL CLONE
HOTEL TV MENU:
To enter hotel menu, please open main menu by pressing MENU(M) button. When you code following
password “7935”, hidden hotel TV menu appears.
Figure 1 Hotel TV Menu
Hotel Mode
Setting “Hotel Mode” item 'On' activates hotel mode. In other words user can do only what he/she is
allowed to do. Restriction level can be determined by using other items on menu namely Volume Limit,
Panel Button, OSD Disable. In hotel mode, users can not reach channel table and install menu so they
could not change any program information.
Last Status
Setting “Last Status” item to 'On' enable TV open with the closing status. Otherwise, if “Last
Status” item is set 'Off' TV opens with standby status.
Panel Lock
Enables (Panel Lock = Off) or prohibits (Panel Lock = On) the use of front panel buttons.
RCU Inhibit
If OFF is selected TV will go on normal operation. If It is ON RCU will not function in
anymenu(including nomenu) except this menu. To turn this option OFF later, “hotel tv menu shortcut”
(MENU(M)-7-9-3-5) can be used to pop up this menu. RCU will function in Stand-By mode regardless
of the state of this option.
Startup Position
Specifies the starting channel when TV is switched ON. May take one of following values:
AUTO
o TV is opened using standby key or digit keys: Last channel or last external source when
TV is turned off
TV
o TV is opened using standby key or digits keys: TV channel number that is specified on
field Startup Channel
Other external sources (EXT1, HDMI2, PC, FAV, SVHS etc.)
o TV is opened using standby key or digit keys: Specified external source
Startup Channel
Specifies the starting TV channel’s ID which will be tuned when startup position is TV.
Volume Limit
Sets the maximum value the volume can have. “Volume Limit” can take values between 0-63.
Fixed Volume Enable
Enables (Fixed Volume Enable = On) or prohibits (Fixed Volume Enable = Off) the use of fixed volume
value which is set by menu item “Fixed Volume Value”. If Fixed Volume Enable is ON, volume cannot
be set to a value other than the Fixed Volume Value.
Fixed Volume Value
Sets the fixed value the volume can have. If Fixed Volume Limit is ON, volume is set with the value
here.
Headphone Direct Volume
Enables the remote controller volume +/- buttons to change the headphone volume directly. When this
feauters is active, volume +/- buttons changes only headphone value,and to change the tv main sound
it can be control from sound osd dialog only.
Figure 2 Headphone volume slider dialog
OSD Disable
Disables either only INSTALL menu or all menus, both in analog and digital (IDTV) mode.
All Menus : All menus (MAIN, SOUND, PICTURE, SETTINGS, INSTALLATION) are invisible.
OSD Disable = Disable Setup Menus : Only SETUP menus are invisible.
Invisible Setup Menus are:
Main menu: Installation, Channel list
Settings menu: Parental, Sources, Other settings
Teletext
Enables (Teletext = On) or prohibits (Teletext = Off) the use of teletext (or MHEG if available)
WakeUp Time Channel
Wakeup time alarm is activated if the time of last played service is same to selected time but if this
entry is chosen an available service then only that service’s time information will be used. If default
behaviour (first one) is requested then keep the value as “0”.
Wakeup Time Volume
To modify the volume of tv wake up volume ( It cant be set higher volume than volume limit).
Copy To USB
There are two steps and both are independent from each other.
For welcome image downloading to USB, there should be DownloadWelcomeScreen.mb82 file in USB
ROOT.
Copy the updated welcome image to USB in directory “welcome_image” as “hotel_wel.png”
Copy NVRAM data (service list, preferences, etc.) to USB device. On Phonix platform, all nvram data
is stored in 8x32KB Flash files named as “nvblock_ ... .bin”. When Copy to USB is called, those files
are copied from TV to USB. Then they can be used for various purposes testing on another TV or
testing/debugging on observatory etc. Note that USB should be plugged before this operation.
A new folder will be created in the USB with every operation of “Copy To USB”. Folder names will
automatically increase like CLONE00001, CLONE00002, etc. (up to 99999)
Copy From USB
Firstly, you will see the directory list of your USB if it is connected. All operations will start after you
select one of this folders. The selected folder could also be the root folder. For Copy-From-USB
operation, there are two steps and both are independent from each other.
If there is file named “hotel_wel.png” in the folder “welcome_image” in the USB directory you selected,
it is copied to tv to use as welcome image. The selected directory can be the root or the one created
by user in the USB.
Copy from USB device data to NVRAM: Just the reverse operation done by copy to USB call.
Previously copied nvram files (“nvblock_ ... .bin”) are copied into TV. If there is no flash file or some of
them are available on USB, the available ones are copied. If no USB is connected, nothing happens.
The files could be in a folder in the USB or it could be just in the root.
TV will autamtically reset after the files are copied from USB to TV. It is required because of existing
power-off requirement.
•
Note : For Clone function USB stick (Copy to USB – Copy from USB) must be formatted to
FAT32. If USB is not formatted to FAT32 the other TVs will not accept cloned data and
performance issues will result
USB Option
If this option is set as “ON”, TV will go on normal operation.
If it is set as “5V”, TV can not use USB and MediaBrowser but USB port will have a voltage of 5 Volts
and any device plugged can be charged. HOTEL MODE should be enabled for “5V” feature.
It is set as “OFF”, then USB ports will be disabled and power will be cut on USB ports. To be able to
use this feature,
-
“USBPowerOff” option has to be set as enabled from profile (hwprofile >
USBPorts/USBPowerOff).
OR
-
HOTEL MODE should be enabled.
Fixed Pic. Mode
If OFF is selected TV will go on normal operation. If It is ON Main menu/Picture quick menu/mode and
quick menu/picture zoom will be inaccessible.
Digital Tuner
If ON is selected TV will go on normal operation. If It is OFF TV will display “no signal” message
when tuned to digital channels existing in active channel list, and digital channels will not be detected
in auto or manual searches.
Multiple RC Support
If OFF is selected TV will go on normal operation. If It is ON RCU type (system code) that is chosen in
“RCU program menu” will be used. “RCU program menu” can be opened by RETURN-1-2-3-4
shortcut. The multiple RC support works on RC5 type of remote controllers. To active this feature, the
hotel mode should be active and from the hotel mode configuration menu, Multiple RC support should
be set as ON. A stand by cycle is necessary after programming the RCU, in order for this feature to
work correctly.
RC key
System Code
1
1
2
0
3 2 4
3
Welcome message
Welcome message option is only visible at the hotel configuration menu when it is enabled from
the
profile option. If this option is unactivated, no welcome message does do occurs at the tv-
power on
term.
When the welcome message option is visible, it provides disables or enables the message screen
according to customer desire.
As default behaviour a welcome message image will be displayed (if hotel mode is enabled). The
image will stay on screen until user presses a key.
On the bottom side of image there is an message (osd message) displaying “press any
key”.This
message is only visible when the customer sets via profile manager as Toshiba or
Sharp, or if the
softwares which uses Toshiba UI. For the other customers and ui options that
warning is invisble.
Welcome image can be changed through USB (described in “copy from USB” section). A default
welcome image is available.
Welcome images must be PNG files with 960x540 resolution and 16 bit color depth.
Welcome image file sizes must not exceed 150KB (153600 Bytes) for 8+2MB TVs
Welcome image file sizes must not exceed 1000 KB (1024000 Bytes) for 8+4MB TVs. If 1000 KB limit
is wanted to be active, then profile option EnhancedLogo should be enabled or Satellite should be
enabled.
Copy service list to USB
This button is only visible at the hotel configuration menu if it was enabled from the profile option.
When this button is pressed all the services tuning informations (program number, name,
frequency...)
are written to an xml file. Then this file (service_list.xml) is copied to root of usb.
Meanwhile a “Please
wait” dialog is displayed. The file cen be edited by supplied
“AutoChannelConfigurator” tool.
Copy service list from USB
This button is only visible at the hotel configuration menu if it was enabled from the profile option.
When this button is pressed the TV will look for a service_list.xml file in the to root of usb. If the file is
available the services in the file will be added. Meanwhile a “Please wait” dialog is displayed.
P.S. Help about “AutoChannelConfigurator” tool is available in it.
Signal Lost (no signal) message
As default behaviour, if there is no signal the same welcome image is displayed. This time osd
message is “no signal”.
Internal Clock
If hotel mode is active a new function (add wake up timer) will be available in Settings/Timers menu.
That function will open a new menu to set wake up time. After timer is saved tv can wake up
automatically on desired time.
If alarm option was selected as “on” after wake up tv will show welcome image and an alarm will be
heared. Then any key will stop alarm and welcome image.
If alarm option was selected as “off” after wake up tv will not show welcome image and the alarm will
not be activated.
There is a “wakeup time channel” option in hotel mode menu, Its used to set the channel, whose time
information to be used for wakeup timer. If this option is “0” time information of the channel which is
being watched when timer menu is opened, will be used. Otherwise a “please wait” message will be
displayed before the menu is open and during “please wait” time information of the channel will be get.
(This can take up to 30s). The “wakeup time channel” should be a digital service.
Pin8
If ON is selected Pin8 will go on normal operation , and it is going to switch between sources
automatically. If It is OFF ,Pin8 ignored , and the automatic source switching would be enabled. This
functions DISABLED/ENABLED value does not effect the profile Pin8Standby option (which can be
disabled or enabled via profile manager).
Attention: It has no connection by the profile Pin8Standby option whose function is automatic standby
waking up. Also profile Pin8 DISABLED/ENABLED value does not effect this option.
EPG Enable/Disable
If hotel mode is active and this item is set as “Enabled” EPG button will work to access EPG menus. If
it is set to “Disabled”, EPG menus will not be accessible.
NIT Update
This option enables or disables NIT update mechanism of the TV if Hotel Mode is enabled in the Hotel
Menu Dialog.
Furthermore, if TerrestrialCableCombinedSearch is selected as ENABLED and CustomChannelList is
selected as Single List in the profile, then the user will be able to see the following selection before
starting auto search:
Aerial & Cable Search
If the user performs an auto search with Aerial & Cable Search selection, then TV will not update NIT.
If the user performs an auto search with other selections, then TV will update NIT just like a regular
DVB TV.
GeneralBlockDiagram
R2002
1
2
3456
7
8
22R
R2
R3
R1
R4
22R
R2001
8
7
6543
2
1
R2
R3
R1
R4
R2003
22R
1
2
3456
7
8
R2
R3
R1
R4
22R
R2004
1
2
3456
7
8
R2
R3
R1
R4
R2005
22R
1
2
3456
7
8
R2
R3
R1
R4
R2008
680R
4k7
R2010
21
16V
C712
100n
680R
R2009
U40
TPS2553-1
4
5
6
3
2
1
IN
GND
EN
OUT
ILIM
FAULT
TP200
1
50V
100p
C713
ACT_ANT
C714
10u
16V
1k
F189
TP122
TP121
TP120
TP119
CN18
54321
LBS
LBS
MXL601_SCL
MXL601_SDA
10k
R2101
21
5135_IF_P
5135_IF_N
C1116
10V
100n
10V
100n
C107
560R
R2069
5V_VCC
F186
60R
AZ099-04S
U45
6
5
43
2
1
IO1
GND
IO2 IO3
VDD
IO4
TPS2553-1
U44
4
5
6
3
2
1
IN
GND
EN
OUT
ILIM
FAULT
S311
R2129
33R
S2_TS_CLK
5V_VCC
USB1_VCC
09-04-2014_15:22
DEMOD
9
<YOUR NAME HERE>
17mb82s-r4
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
5V_STBY
S17
21
330R
F96
21
3V3_AVCC
R474
220R
21
R74
10k
21
R2234
4k7
5135_DV10
Q5
BC848B
3
2
1
10k
R73
21
10k
R72
21
BC848B
Q4
3
2
1
R71
10k
21
27p
C1
50V
21
560R
R2070
F60
1k
220R
R473
21
Q40
BC858B
3
2
1
10k
R70
21
Q39
BC858B
3
2
1
R472
220R
21
100n
C118
10V
USB1_VCC
R2118
10k
TP209
513x_pin39
513x_pin82
S327
513x_pin21
513x_pin21
S328
5135_DV33
U15
MT5136
123456789
1011121314151617181920212223242526272829303132
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
96959493929190898887868584838281807978777675747372717069686766
65
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
A15
A24
A12
A25
A7
VS2_
A6
PCMCIA_RESET
A5
WAIT_
A4
A3
GPIO1
DVDD33_6
REG_
GPIO2
DVDD11_7
A2
BVD2
A1
BVD1
A0
D8
D0
D9
D1
D10
D2
CD2_
CI_INT
EFUSE
DVDD33_7
D13D6D14D7D15
CE1_
DVDD33_3
DVDD11_4
A10
VS1_
OE_
IORD_
A11
IOWR_
A9
A17
A8
DVDD33_4
DVDD11_5
A18
A13
A19
A14
A20
DVDD33_5
DVDD11_6
WE_
A21
READY
A22
A16
A23
D5
D12
D4
D11
D3
CD1_
CHIP_CTRL
S2_TS_DATA7
S2_TS_DATA6
S2_TS_DATA5
S2_TS_DATA4
S2_TS_DATA3
S2_TS_DATA2
S2_TS_DATA1
DVDD33_2
DVDD11_3
S2_TS_DATA0
S2_TS_VAL
S2_TS_SYNC
S2_TS_CLK
RF_AGC
IF_AGC
TUNER_CLK
TUNER_DATA
DVDD11_2
DVDD33_1
AVDD33_IFPGA
AVDD12_DEMOD
IFPGA_INP
IFPGA_INN
AVSS12_DEMOD
EXT_CLKSEL
AVDD33_XTAL
XTALO
AVSS33_XTAL
XTALI
AVSS33_DEMOD
AVDD33_DEMOD
TPTNAVSS33_RSSI
ADIN0
AVDD33_RSSI
NC
DVDD11_1
MT5135_RST_B
DEMOD_TS_CLK
DEMOD_TS_VAL
DEMOD_TS_SYNC
DEMOD_TS_DATA0
DVDD33
DVDD11
CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC
CI_TS_DATA0
PVR_TS_CLK
PVR_TS_VAL
PVR_TS_SYNC
PVR_TS_DATA0
PVR_TS_DATA1
SPI_CLK
SPI_DATA
SPI_CLE
S326
5135_DV10
27MHz
X5
2413
1V2_513x
1V2_513x
1V2_513x
1V2_513x
1V2_513x
S329
513x_pin39
C179
27p
21
513x_pin82
5135_DV33
S330
S331
5V_VCC
S332
513x_pin109
S333
513x_pin112
S2_TS_SYNC
513x_pin109
513x_pin112
S2_TS_ VAL
S2_TS_DATA_0
R2199
33R
8
7
6543
2
1
R4
R3
R2
R1
CI_PWR_EN
220R
R471
21
TP107
CN6
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
10V
C120
100n 100n
C121
10V
C122
100n
10V
100n
C123
10V
47k
R2259
TP110
TP210
R2260
47k
3V3_VCC
5135_DV33
12V_VCC
100n
C1434
10V
2
1
33k
R2257
33k
R2258
Q226
BC848B
BSH103
Q227
D8
C5V6
21
IF_AGC
5135_DV10
16V
47n
C358
R2243
47R
R2244
12k
22k
R2245
10V
C1395
10u
10u
C1396
10V
10V
C1397
10u
3V3_VCC
10V
10u
C1398
R2241
4k7
2 1
33R
R2130
3V3_VCC
AVDD33_1
S335
2 1
APL5910
U65
8
7
6
54
3
2
1
POK
EN
VIN
VCNTL NC
VOUT
FB
GND
4k7
R2242
2 1
S336
R2246
1k
100n
C1399
C180
27p
21
C1163
10u
6V3
C108
100n
10V
PVR_TS_DATA0
CN28
4
3
2
1
5V_VCC
10k
R208
R2201
47R
CLK_5135
DEMOD_RST PVR_TS_DATA0
S313
R209
10k
10R
R643
2 1
R644
10R
21
USB1_DP
USB1_DM
3V3_VCC 4k7
R426
21
USB1_VCC
5V_VCC
4k7
R428
2 1
R2140
10k
USB1_VCC
10u
16V
C623
5135_AV12
330R
F11
21
1k
F2
5V_VCC
1V2_AVCC
C12
50V10p
USB_ENABLE
VCC_PCMCIA
1V2_MT5820
10u
6V3
C582
AVDD33_4
5135_DV33
R26
33R
8
7
6543
2
1
R4
R3
R2
R1
R49
47R
10p 50V
C488
R737
1M
1k
F82
C577
10u
6V3
10V
100n
C119
1k
F83
F85
1k
LED2
LED1
IR_IN
F84
1k
F86
1k
C578
10u
6V3
S2_TS_DATA_3
10u
C579
6V3
10u
6V3
C580
10V
100n
C1207
S2_TS_DATA_2
S2_TS_DATA_1
S2_TS_DATA_0
Q222
BC848B
3
2
1
10k
R2096
21
S2_TS_DATA_6
S2_TS_DATA_5
C124
10V
100n
C125
10V
100n
C126
10V
100n
100n
C127
10V
AVDD33_1
AVDD33_2
AVDD33_3
AVDD33_4
AVDD33_1
AVDD33_2
AVDD33_3
5135_DV33
5135_DV10
6V3
C583
10u
C128
10V
100n
R758
4k7
5135_DV33
C129
10V
100n
R759
4k7
5135_DV33
5135_DV33
5135_DV33
47R
R51
S325
S2_TS_DATA_4
S2_TS_DATA_7
S2_TS_ VAL
S2_TS_SYNC
S2_TS_CLK
TP198
TP199
R2094
33R
8
7
6543
2
1
R4
R3
R2
R1
R50
47R
10p
C489
50V
10p
50V
C490
R201
10k
10k
R202
10k
R203
100n
10V
C130
10V
100n
C131
R204
10k
5135_DV33
R196
10k
10k
R197
10k
R198
100n
C132
10V
5135_AV12
5135_DV10
5135_AV12
5135_DV10
5135_DV10
5135_DV10
VCC_PCMCIA
VCC_PCMCIA
1V2_AVCC
VCC_PCMCIA
5135_AV12
10V
C133
100n
10p
C491
50V
50V
C492
10p
10V
100n
C134
10k
R199
10k
R200
10k
R205
10k
R206
VCC_PCMCIA
R207
10k
3V3_AVCC
1k
F81
3V3_AVCC
F87
1k
M_CI_OUTDATA5
M_CI_OUTDATA5
M_CI_INVALID
M_CI_INVALID
CI_IREQ#
CI_IREQ#
CI_IREQ#
M_CI_INDATA3
M_CI_INDATA3
M_CI_INDATA4
M_CI_INDATA4
CI_WE#
CI_WE#
CI_WE#
M_CI_INDATA2
M_CI_INDATA2
CI_A14
CI_A14
M_CI_INDATA1
M_CI_INDATA1
CI_A13
CI_A13
M_CI_INDATA0
M_CI_INDATA0
CI_A8
CI_A8
M_CI_INSYNC
M_CI_INSYNC
CI_A9
CI_A9
CI_IOWR#
CI_IOWR#
CI_IOWR#
CI_A11
CI_A11
CI_IORD#
CI_IORD#
CI_IORD#
CI_OE#
CI_OE#
CI_OE#
CI_A10
CI_A10
M_CI_OUTDATA7
M_CI_OUTDATA7
CI_D7
CI_D7
M_CI_OUTDATA6
M_CI_OUTDATA6
CI_D6
CI_D6
M_CI_INDATA5
M_CI_INDATA5
M_CI_INDATA6
M_CI_INDATA6
CI_A12
CI_A12
M_CI_INDATA7
M_CI_INDATA7
CI_A7
CI_A7
M_CI_OUTCLK
M_CI_OUTCLK
CI_A6
CI_A6
CI_RESET
CI_RESET
CI_A5
CI_A5
CI_WAIT#
CI_WAIT#
CI_WAIT#
CI_A4
CI_A4
CI_A3
CI_A3
CI_REG#CI_REG# CI_A2
CI_A2
M_CI_OUTVALID
M_CI_OUTVALID
CI_A1
CI_A1
M_CI_OUTSYNC
M_CI_OUTSYNC
CI_A0
CI_A0
M_CI_OUTDATA0
M_CI_OUTDATA0
CI_D0
CI_D0
M_CI_OUTDATA1
M_CI_OUTDATA1
M_CI_INCLK
M_CI_INCLK
M_CI_OUTDATA4
M_CI_OUTDATA4
CI_D4
CI_D4
M_CI_OUTDATA3
M_CI_OUTDATA3
CI_D3
CI_D3
CI_D5
CI_D5
DEMOD_TSVAL
DEMOD_TSVAL
DEMOD_TSSYNC
DEMOD_TSDATA0
DEMOD_TSCLK
RF_AGC_5135 CI_D2
CI_D2
CI_D1
CI_D1
CI_INT
M_CI_OUTDATA2
M_CI_OUTDATA2
CI_INVALID
CI_INVALID
CI_INSYNC
CI_INSYNC
CI_INDATA0
CI_INDATA0
CI_INDATA1
CI_INDATA1
CI_INDATA2
CI_INDATA2
CI_INDATA3
CI_INDATA3
CI_INDATA4
CI_INDATA4
CI_INDATA5
CI_INDATA5
CI_INDATA6
CI_INDATA6
CI_INDATA7
CI_INDATA7
CI_INCLK
CI_INCLK
CI_OUTCLK
CI_OUTCLK
CI_OUTCLK
CI_OUTVALID
CI_OUTVALID
CI_OUTSYNC
CI_OUTSYNC
CI_OUTDATA0
CI_OUTDATA0
CI_OUTDATA1
CI_OUTDATA1
CI_OUTDATA2
CI_OUTDATA2
CI_OUTDATA3
CI_OUTDATA3
CI_OUTDATA4
CI_OUTDATA4
CI_OUTDATA5
CI_OUTDATA5
CI_OUTDATA6
CI_OUTDATA6
CI_OUTDATA7
CI_OUTDATA7
CI_VS1#
CI_VS1#
CI_VS1#
CI_CE1#
CI_CE1#
XTALI
XTALI
XTALI
CI_CE2#
CI_CE2#
CI_CD2#
CI_CD2#
CI_CD2#
CI_CD1#
CI_CD1#
CI_CD1#
DEMOD_RST
SPI_CLK
SPI_DATA
SPI_CLE
USB1_VCC
LBS
XTALO
XTALO
XTALO
CI_PWR_EN
LED&VFD
sat bypass option
ANTENNA INPUT
ACTIVE ANTENNA
CI INTERFACE
FC OPT.
TI OPT.
FC pin5 NC, pin6 current limit, R from VCC to pin6 NC
TI pin5 current limit, pin4 fault, R from pin4 to GND NC
NC
5135
close to mt5135
TI OPT.
0: Single End
close to pcmcia
1: Differential
5136
5135
CI girisi ust-altta konacak
5136-->NC
5135
5136
5136
5135
5135
5135
DVB-T2
nc
nc
nc
NC
USB1_DM
10k
R41
3V3_VCC
DVD_WAKEUP
AOLRCK
AOBCK
AOSDATA0
C17
22p
50V
5820_IF_P
OPCTRL1
C18
22p
50V
5820_IF_N
SAV_CVBS
1u
C69
C71
1u
1u
C72
3V3_STBY
D180
C12V
C73
1u
1u
C74
PROTECT
TP58
1
R127
33R
SAV_AUD_L_IN
33R
R2171
SAV_AUD_R_IN
SCART_AUD_L_IN
30k
R147
R153
100R
R2097
39R
R2123
100R
R2172
33R
R155
100R
MT_BACKLIGHT_ON/OFF
DVD_CVBS_IN
R156
100R
47n
C110
SC_CVBS-IN
VGA_G
SAT_SCL
R170
22k
SAT_SDA
3V3_VCC
SC_DAC_L
3V3_VCC
DDRV
DDRV
DDRV
R439
4k7
21
mainreset
3V3_VCC
6V3
C1157
1u
SYS_SCL
C1158
6V3
1u
SYS_SCL
SYS_SDA
HDMI1_HPDIN
DDRV
DDRV
DDRV
1V2_MT5820
1V2_MT5820
DDRV
SYS_SDA
1V2_MT5820
1V2_MT5820
4k7
R102
2 1
R103
4k7
2 1
1V2_MT5820
1V2_MT5820
SYS_SCL
1V2_MT5820
1V2_MT5820
1V2_MT5820
SYS_SDA
HDMI_0_SCL
3V3_STBY
HDMI_0_SDA
3V3_AVCC
HDMI0_HPDIN
HDMI_1_SCL
HDMI_1_SDA
LED2
F24
1k
HDMI0_RX2N
HDMI0_RX1P
HDMI0_RX1N
HDMI0_RX0P
HDMI0_CLKN
HDMI0_RX0N
HDMI0_CLKP
HDMI0_RX2P
HDMI1_RX2P
3V3_STBY
HDMI1_CLKN
AOMCLK
HDMI1_RX2N
AMP_MUTE
3V3_AVCC
F187
1k
3V3_STBY
10k
R176
27MHz
X4
2413
MT_DIMMING
MT_DIMMING
HDMI1_RX1P
IR_IN
HDMI1_RX1N
50V
C375
22p
HP_DETECT
PROTECT
R134
33R
R157
100R
R158
100R
R159
100R
10n
C199
R160
100R
S4
21
1n5
C233
10n
C200
R161
100R
6V3
1u
C1180
33R
R129
10n
C201
10n
C202
10n
C203
10n
C204
100R
R162
SC_B
COM_SC
CVBS0_OUT
3V3_STBY
10n
C206
DVD_IR_ON/OFF
3V3_VCC
R163
100R
C5V6
D6
2 1
10n
C207
6V3
C1183
1u
VGA_HSNC
VGA_VSNC
DVD_SENSE
PC_SCL
SC_G
PC_SDA
VGA_G_COM
VGA_B
DVD_SENSE
5820_TX_A_3_P
5820_TX_A_3_N
PANEL_VCC_ON/OFF
5820_TX_A_2_P
5820_TX_A_2_N
HP_AMP_MUTE
5820_TX_A_1_P
5820_TX_A_1_N
R46
10k
21
SC_R
5820_TX_A_0_P
5820_TX_A_0_N
KEYBOARD
5820_TX_B_3_P
27p
C171
21
VGA_G
5820_TX_B_3_N
HDMI1_RX0P
3V3_STBY
5820_TX_B_CLK_P
C172
27p
21
75R
R123
5820_TX_B_CLK_N
5820_TX_B_2_P
5820_TX_B_2_N
5820_TX_B_1_P
MT_BACKLIGHT_ON/OFF
5820_TX_B_1_N
PANEL_VCC_ON/OFF
C142
100n
10V
2
1
5820_TX_B_0_P
47R
R271
21
3V3_STBY
SC_FB
VGA_R
DVD_WAKEUP
5820_TX_B_0_N
DVD_SPDIF
F198
1k
CLK_5135
C1277
22p
50V
3V3_STBY
5820_TX_A_4_N
R440
4k7
21
OPCTRL1
5820_TX_A_4_P
BC848B
Q30
R154
62R
5820_TX_B_4_N
USB1_DP
BACKLIGHT_DIM
3V3_STBY_1
R282
33R
SPDIF_OUT
TP202
BACKLIGHT_ON/OFF
TP201
TP118
TP117
UART-RX
UART-TX
5820_TX_B_4_P
HDMI1_RX0N
HDMI1_CLKP
5820_TX_A_CLK_N
USB1_DP
USB1_DM
C194
16V
100n
2 1
C1327
4u7
6V3
C331
1p
5820_TX_A_CLK_P
TP115
S312
OPWRSB
100n
C1173
USB_ENABLE
47n
C111
TP189
C112
47n
R2134
33R
R2133
100R
30k
R148
30k
R149
30k
R150
30k
R151
SC_DAC_R
MAIN_DAC_R
MAIN_DAC_L
COM_SC
30k
R152
SCART_AUD_R_IN
DVD_L_AUD
DVD_R_AUD
33R
R130
R131
33R
33R
R132
33R
R133
AOSDATA0
AOMCLK
R278
20k
20k
R279
R280
20k
R281
20k
AOLRCK
MXL601_SDA
MXL601_SCL
AOBCK
TP59
1
TP60
1
TP75
1
R283
4k7
R43
10k
R44
10k
S30
CN11
65432
1
KEYBOARD_ONBOARD
10k
R45
S31
TP196
1k
R263
1k
R264
16V
C23
100n
6V3
1u
C1181
3V3_VCC
2k
R742
R731
470R
R76
10k
C255
16V
1u
100n
C24
DDRV
100R
R2135
R2136
100R
R2137
100R
100R
R2138
C25
100n
100n
C26
C27
100n
C256
100n
100n
C28
C32
100n
C80
10V
4u7
SW1
43CT2
1
E2
G4G3G2
G1
E1
100R
R2139
C208
10n
16V
TP205
TP204
C35
100n
100n
C36
C37
100n
100n
C38
S294
100n
C39
100n
C40
C41
100n
100n
C42
C257
1u
16V
C43
100n
33R
R62
C81
4u7
10V
HP_AMP_MUTE
1V2_MT5820
KEYBOARD
TP203F25
1k
R30
47R
21
10V
C31
100n
2
1
16V
10n
C209
1k
F59
3V3_STBY
S6
KEYBOARD_ONBOARD
4u7
10V
C1103
100n
C1102
10V
100n
C1104
2
1
3V3_AVCC
C44
100n
10V
C285
10u
R128
10k
R2087
18k
3V3_STBY
BC848B
Q16
3
2
1
mainreset
OPCTRL1
10k
R472110k
R48
21
U14
MT5820L
123456789
101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
216
215
214
213
212
211
210
209
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
RDQ6
RDQ2
VCC2IO1
RDQ0
RDQ11
RDQ9
RDQ13
VCC2IO2
RDQ15
RDQM1
VCCK6
RVREF
RDQS0
RDQS0_
VCC2IO3
RCLK0_
RCLK0
RDQM0
RDQS1
RDQS1_
VCC2IO4
RDQ12
RDQ14
RDQ10
RDQ8
RDQ1
VCC2IO5
RDQ3
RDQ7
RDQ5
VCCK7
REXT
AVDD33_USB
USB_DM
USB_DP
VCCK8
AVDD33_HDMI_1_RX
HDMI_0_RX_CB
HDMI_0_RX_C
HDMI_0_RX_0B
HDMI_0_RX_0
HDMI_0_RX_1B
HDMI_0_RX_1
HDMI_0_RX_2B
HDMI_0_RX_2
HDMI_1_RX_CB
HDMI_1_RX_C
HDMI_1_RX_0B
HDMI_1_RX_0
HDMI_1_RX_1B
HDMI_1_RX_1
HDMI_1_RX_2B
HDMI_1_RX_2
AVDD12_HDMI_1_RX
AE4P
AE4N
AE3P
AE3N
AECKP
AECKN
AE2P
AE2N
AE1P
AE1N
AE0P
AE0N
AVDD33_LVDSA
AO4P
AO4N
AO3P
AO3N
AOCKP
AOCKN
AO2P
AO2N
AO1P
AO1N
AO0P
AO0N
VCCK4
VCCK5
AVDD33_MEMPLL
RCKE
RA10
RBA1
RA4
RA1
RA6
RA8
RA11
RA12
RRAS_
RCAS_
VCC2IO0
RWE_
RA0
RA13
RA9
RRESET_
RA7
RA2
RA5
RA3
RBA2
RBA0
RCS_
RODT
RDQ4
AVDD12_LVDSA
GPIO2
GPIO1
GPIO0
VCC3IO1
POWE_
PAALE
PACLE
POCE0_
POOE_
PARB_
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0
POCE1_
GPIO3
VCCK3
FSRC_WR
DEMOD_TSDATA0
DEMOD_TSSYNC
DEMOD_TSVAL
DEMOD_TSCLK
SCL_SYSTEM
SDA_SYSTEM
VCC3IO0
DEMOD_RST
RF_AGC
IF_AGC
AOSDATA0
AOBCK
AOLRCK
AOMCLK
ASPDIFO0
VCCK2
AR1_ADAC
AR0_ADAC
AL1_ADAC
AL0_ADAC
AVDD33_DAC
AVSS33_DAC
AIN2_L_AADC
AIN2_R_AADC
AIN1_L_AADC
AIN0_L_AADC
AIN1_R_AADC
AIN0_R_AADC
AVDD33_AADC
VMID_AADC
AVDD33_XTAL_STB
XTALO
XTALI
AVSS33_DEMOD
AVDD33_DEMOD
ADCINN_DEMOD
ADCINP_DEMOD
AVSS12_DEMOD
AVDD12_DEMOD
CVBS0PSYSC
AVDD33_CVBS
AVSS33_CVBS
AVDD33_PLLGP
VCCK1
VDACX_OUT
AVDD33_VDAC
AVSS12_RGB
AVDD12_RGB
PRP
PBP
COM1YPSOYRPCOM0GPSOGBPHSYNC
VSYNC
AVDD33_VGA_STB
AVDD10_LDO
ORESET_
ADIN0_SRV
ADIN1_SRV
VCCK0
OPWRSB
OIRI
U0TX
U0RX
VGA_SDA
VGA_SCL
OPCTRL2
OPCTRL1
OPCTRL0
VCC3IO_STB
HDMI_0_HPD
HDMI_0_SDA
HDMI_0_SCL
HDMI_1_HPD
HDMI_1_SDA
HDMI_1_SCL
GPIO4
1V2_AVCC
S7
100n
C45
C1105
100n
10V
2
1
10V
100n
C1106
2
1
C1107
100n
10V
2
1
10V
C352
10u
R2090
10k
OPWRSB
10k
R2091
BC848B
Q221
3
2
1
LED2
LED1
10k
R2092
10k
R2093
3V3_STBY
3V3_STBY
LED1
AMP_MUTE
R2095
1k
100n
C1109
R807
12k
07-04-2014_11:30
MAIN
9
<YOUR NAME HERE>
17mb82s-r4
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
1V2_AVCC
S8
C46
100n
100n
C47
S9
10V
4u7
C82
3V3_AVCC
S10
C48
100n
100n
C49
S12
3V3_AVCC
3V3_AVCC
S13
100n
C50
100n
C51
R1984
10k
3V3_STBY
S14
3V3_AVCC
1V2_AVCC
C52
100n
S15
100n
C53
TP47
S16
3V3_AVCC
SC_PIN8
16V
C258
1u
C54
100n
100n
C56
S18
3V3_AVCC
S19
S23
3V3_STBY
100n
C57
3V3_AVCC
STBY_ON/OFF
1V2_AVCC
AMP_RST
D62
C12V
C12V
D63
C68
1u
TP188
UART-TX
UART-RX
R190
4k7
4k7
R191
UART-RX
UART-TX
R192
4k7
21
10V
C33
100n
C55
100n
10V
5V_VCC
GND1
PDD6
PDD7
POCE1_
POOE_
RBA2
RBA0
RCS_
RCAS_
RODT
RWE_
RRESET_
RCLK0
RDQM1
RDQM0
RDQS0
RDQS1
RA10
DEMOD_TSVAL
DEMOD_TSSYNC
DEMOD_TSDATA0
DEMOD_TSCLK
CI_INT
BACKLIGHT_ON/OFF
AVDD33_DEMOD
AVDD33_DEMOD
AVDD12_DEMOD
AVDD12_DEMOD
DEMOD_RST
DEMOD_RST
VMID_AADC
VMID_AADC
FSRC_WR
FSRC_WR
POCE0_
AVDD12_LVDSA
AVDD12_LVDSA
RRAS_
SC_FB
SPI_CLK
SPI_DATA
SPI_CLE
RDQS0_
RCLK0_
RDQS1_
RA13
RA12
RA11
RA9
RA8
RA7
RA6
RA5
RA3
RA2
RA1
RA0
RDQ15
RDQ14
RDQ12
RDQ10
RDQ8
RDQ6
RDQ4
RDQ1
AVDD33_PLLGP
AVDD33_PLLGP
AVDD33_LVDSA
AVDD33_LVDSA
AVDD33_HDMI_1_RX
AVDD33_HDMI_1_RX
AVDD12_HDMI_1_RX
AVDD12_HDMI_1_RX
AVDD33_MEMPLL
AVDD33_MEMPLL
RVREF
RVREF
AVDD33_CVBS
AVDD33_CVBS
AVDD12_RGB
AVDD12_RGB
AVDD33_AADC
AVDD33_AADC
AVDD33_DAC
AVDD33_DAC
AVDD33_XTAL_STB
AVDD33_XTAL_STB
RA4
RDQ13
RDQ11
RDQ9
RDQ5
RDQ0
RBA1
REXT
REXT
RDQ7
RDQ3
RDQ2
RCKE
internal gpio21
30067087
close to 5820
CLOSE TO MTK IC
SOURCE
nc
nc
-
+
keyboard
NC
30062301-->DP
CLOSE TO MT5820
STRAPPING
NC
Close to MT5820
near IC
C1144
220n
25V
R2126
3R3
C1146
3n3
50V
10u
C1148
10V
100n
16V
C20
21
L35
1u2
S64
10k
R39
21
S301
U1
TL431SAMF2
S302
10k
R2175
21
S315
10n
16V
C1371
2
1
R2232
1k8
Q1 BC848B
321
1V2_MT5820
S5
7A/32VDC
FS2
S305
S211
5V_STBY
5V_VCC
MOSFET_CONTROL
3R3
R2127
S306
C1147
3n3
50V
TPS54329E
U63
5
6
7
8
4
3
2
1
VBST
VIN
SW
GND
SS
EN
VREG5
VFB
C1152
100n
16V
3V3_VCC
STBY_ON/OFF
STBY_ON/OFF_NOT
3V3_VCC
S212
VDD_AUDIO
R2176
10k
21
10k
R217721R2178
10k
21
C1305
10u
6V3
3V3_VCC
R2173
100R
100R
R2174
08-04-2014_17:33
POWER
9
<YOUR NAME HERE>
17mb82s-r4
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
C1303
10u
6V3
S273
16V
C1278
100n
LM1117
U57
4
3 2
1
GND
OUTIN
VOUT
60R
F199
1V5_VCC
6V3
10u
C1304
TP223
1
TP225
CN4
6
5
4
3
2
1
U58
LM1117
4
3 2
1
GND
OUTIN
VOUT
12V_INV
DIMMING
BACKLIGHT_ON/OFF
TP226
TP227
C1179
2u2
6V3
SK24
D168
S299
R2233
4k7
6V3
470n
C1375
R2219
10k
21
10V
C1345
10u
C1346
10V
10u
10u
C1376
16V
C5V6
D181
C1355
100n
10V
21
Q225
NTGS3446
2
6543
1
5V_STBY
12V_VCC
100n
C1153
16V
12V_STBY
F190
1k
STBY_ON/OFF
STBY_ON/OFF_NOT
3V3_STBY_1
10k
R60
21
BC848B
Q2
3
2
1
C1149
10V
10u
16V
C1435
100n
100R
R2261
3V3_STBY_1
Q59
FDC642P
2
6543
1
12V_VCC
TLV0033
U59
5
43
2
1
IN
GND
EN N/C
OUT
10k
R61
21
R2124
33k
2 1
TP22
Q12
BC848B
JK7
5
4
3
2
1
C1110
10u
10V
1V3_SAT_VCC
S214
L36
10u
R2238
10R
220n
C1342
25V
F200
60R
21
R2220
10k
21
12V_VCC
10u L27
S215
1k
F206
3V3_AVCC
TP15
1
1V5_VCC
TP21
1
F207
1k
1k
F208
1V2_AVCC
F204
330R
S314
C1377
16V
10u
16V
C1205
100n
FDC642P
Q219
2
6543
1
Q220
FDC642P
2
6543
1
F201
60R
C1349
10u
10V
BC848B
Q11
TP224
C1347
10u
10V
L34
10u
TP222
1
100n
C1206
16V
R461
22k
FDC642P
Q60
2
6543
1
R465
1k2
10k
R122
21
1k
R340
21
22k
R462
FS4
7A/32VDC
12V_STBY
12V_INV
TP25
10V
C1170
10u
R468
2k2
C1178
16V
10u
12V_VCC
10u
C1172
10V
TP73
TP74
24V_VCC_AU
DIMMING
TP228
1
BACKLIGHT_ON/OFF
12V_STBY
DIMMING
TP229
1
BACKLIGHT_ON/OFF
C1190
33p
S2
5V_STBY
S316
TP230
1
S303
S300
5V_CTRL
5V_VCC 10k
R23
2 1
BC848B
Q6
R24
10k
2 1
Q13
BC848B
10k
R37
2 1
10k
R42
2 1
TPS_CNTRL
TPS_CNTRL
10u
C3
10V
S27
S28
S29
10u
C1348
10V
C1344
3n3
50V
R2222
3R3
C1343
220n
25V
F205
1k
R319
470R
R315
12k1
12V_STBY
S304
CN32
12 11
10 9
8 7
6 5
4 3
2 1
CN33
12 11
10 9
8 7
6 5
4 3
2 1
12V_VCC
R34
10k
21
5V_STBY
12V_STBY
U46
TPS54528
5
6
7
8
4
3
2
1
EN
VFB
VREG5
VSS
VIN
VBST
SSW
GND
C804
22u 6V3
10u
10V
C808
16V
1u
C807
VFB
100n
C1151
16V
R2066
4k7
R2073
22k
100n
C803
16V
C811
8n2
50V
10k
R2064
21
VFB
10k
R2065
2 1
R2074
120k
S262
C809
10u
16V
16V
10u
C810
S138
F1
60R
21
220n
C353
25V
TP1
1
10n
16V
C197
2
1
L18
10u
5V_STBY
C136
100n
10V
21
C5V6
D3
10u
C215
16V
C689
10V
10u
10V
C216
10u
R35
10k
21
6V3
470n
C357
22k
R165
TPS54329E
U17
5
6
7
8
4
3
2
1
VBST
VIN
SW
GND
SS
EN
VREG5
VFB
R99
4k7
2 1
75K
R320
R169
22k
R321
2k7
3V3_STBY
S63
Q3 BC848B
321
C5V6
D5
C362
16V
47u
16V
C1150
100n
220n
10V
C805
S1
STBY_ON/OFF_NOT
STBY_ON/OFF
10k
R118
2 1
5V_VCC
TP12
1
TP13
1
TP18
1
TP24
1
VDD_Lineout
TP72
D2
C5V6
3V3_AVCC
TP2
1
3V3_STBY
5V_STBY
TP3
1
TP4
1
12V_VCC
MOSFET_CONTROL
Q61
FDC642P
2
6543
1
R287
33k
2 1
12V_STBY
BC848B
Q24
47R
R108
21
C148
25V
220n
21
33k
R288
2 1
FS3
7A/32VDC
TP29
10k
R119
2 1
5V_VCC
1k
R338
STBY_ON/OFF_NOT
Q46
BC848B
47R
R109
21
33k
R296
2 1
3V3_VCC
1V2_MT5820
power_pin1
power_pin1
power_pin3
power_pin3
power_pin3
power_pin9
power_pin9
power_pin9
nc
NC
NC
COMMON
nc
COMMON
CCFL INVERTER SOCKET
30049469 1.13k
W_ADAPTER
!
!
NC
W/B2B
ADAPTER SOCKET
COMMON
1V2_MT5820
N.C.
W/B2CABLE
0R
1V5_AVCC
3V3_VCC
COMMON
BOARD VOLTAGES
5V_VCC
COMMON
PW03_PW04_PW07
PW06_IPS19
PW05_IPS60_IPS70_Adaptor
12V_STBY
PW06_IPS19
PW05_IPS60_IPS70_Adaptor
COMMON
PW03_PW04_PW07
PW06_IPS19
PW05_IPS60_IPS70_Adaptor
STP1
STP2
5V_STBY
4u7 6x6 olacak ÜA
NC
SW1
4A
SW2
3V3_AVCC
AMP_EN
AOSDATA0
AOLRCK
HP_NEG_RIGHT
16V
C1286
10u
R2215
18R
C283
1u
6V3
MAIN_R
5V_VCC
S93
AMP_RST
R2213
100R
100n
C1154
16V
1V2_MT5820
3V3_AMP
R2223
4k7
TP192
1
HP_NEG_LEFT
MAIN_L
03-04-2014_10:27
AUDIO AMP
9
<YOUR NAME HERE>
17mb82s-r4
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
MAIN_R
MAIN_DAC_R
MAIN_L
AOSDATA0
AOLRCK
F7
60R
33p
C190
10V
220u
C795
R219
27k
1u
C252
MAIN_DAC_L
270p
C238
R182
100k
SC_AUD_R_OUT
SC_AUD_L_OUT
1k
F191
R500
33k
21
Q7
BC848B
3
2
1
HP_AMP_EN
C280
10u
R255
56k
68k
R259
C293
150p
50V
VDD_AUDIO/2
100k
R183
SC_DAC_L
16V
C99
10u
SC_DAC_R
HP_AMP_EN
HP_AMP_MUTE
33k
R489
100n
C1334
MAIN_R
C1329
12p
50V
12V_VCC
S116
TP207
1
220n
50V
C1338
18R
R2216
100n
C1336
R78
10k
21
AOBCK
12V_VCC
R2098
47R
MAIN_L
AOMCLK
R2119
10k
21
4k7
R68
R64
100R
R647
10k
10k
R2120
21
R2121
10k
21
16V
C1195
10u 10u
C1196
16V
10k
R2122
21
R79
10k
21
AMP_EN
HP_NEG_RIGHT
3V3_AMP
HP_NEG_LEFT
R243
33k
2 1
R244
33k
21
VDD_AUDIO/2
100R
R2209
R2210
100R
AOBCK
3V3_VCC
R322
100R
3V3_VCC
5V_VCC
R494
10k
BC848B
Q10
321
24V_VCC_AU
10k
R92
21
AOMCLK
16V
C1328
100n
3V3_AMP
3k9
R86
D39
BAW56
3
21
10k
R82
21
R83
10k
21
Q9
BC848B
3
2
1
BC858B
Q42
3
2
1
10k
R84
21
3V3_STBY_1
R490
33k
2 1
L4
10u
BAW56
D40
3
21
R85
10k
2 1
D41
BAW56
3
21
VDD_AUDIO/2
33k
R245
21
C34
100n
10V
2
1
PROTECT
R246
33k
21
C139
100n
10V
TP26
1
TL062
U8
8
7
6
54
3
2
1
OUT1
IN1-
IN1+
VSS IN2+
IN2-
OUT2
VDD
VDD_Lineout
6V3
1u
C281
C1335
100n
C1339
50V
220n
C1337
100n
18R
R2217
3k3
R464
100n
C1330
VDD_AUDIO
C1331
100n
100n
C1332
1k5
R467
C1333
100n
R381
47k
33k
R308
21
10u
10V
C674
C253
1u
TP193
1
10u
C420
220n
50V
C1340
C533
1u
C1341
50V
220n
DRV632
U2
8
9
10
11
12
13
14
7
6
5
4
3
2
1
INR_P
INR_N
OUTR
GND
MUTE
VSS
CN
INL_P
INL_N
OUTL
UVP
GND1
VDD
CP
R93
10k
21
R692
100k
21
Q8
BC848B
3
2
1
R80
10k
21
16V
C620
100u
2 1
12V_VCC
S21
2 1
R691
100k
21
16V
C146
100n
VDD_AUDIO
S22
2 1
10k
R1983
21
4k7
R824
AMP_MUTE
3V3_AMP
BC858B
Q41
321
A_OUT2B
A_OUT2A
A_OUT1B
A_OUT1A
4k7
R65
100n
C152
10V
2
1
R2218
18R
AMP_EN
220RF23
VDD_AUDIO
PT2333U23
A1A2A3B1B2B3C1C2C3
OUTP
SDB
INN
GNDB
VDD1
VDDA
OUTN
GNDA
INP
AMP_EN
VDD_AUDIO
R66
4k7
10V
100n
C29
2
1
C143
100u
35V
PT2333U7
A1A2A3B1B2B3C1C2C3
OUTP
SDB
INN
GNDB
VDD1
VDDA
OUTN
GNDA
INP
10V
C306
220n
R67
4k7
10V
C205
220n
220n
10V
C193
220n
C191
10V
100n
10V
C140
TP11
1
100R
R1
C1176
10u
25V
24V_VCC_AU
C141
10V
100n
R40
10k
21
BC848B
Q14
3
2
1
100n
C21
16V
Q17
BC848B
3
2
1
R100
4k7
3V3_AMP
33k
R247
100k
R188
50V
150p
C294
68k
R260
56k
R258
50V
12p
C265
C268
12p
50V
10u
C284
C250
1u
R237
47k
33p
C196
27k
R224
C242
270p
R189
100k
1u
C251
47k
R238
12V_VCC
VDD_Lineout
6V3
1u
C534
3V3_AMP
3V3_VCC
A_OUT2B
A_OUT2A
100n
16V
C1350
AD82587D
U62
13
14
15
16
17
18
19
20
21
22
23
24
12
11
10
9
8
7
6
5
4
3
2
1
PD
ERROR
SDATA
LRCIN
SDA
SCL
RESET
DGND
DVDD
SA0
MCLK
BCLK
VDDLA
N.C.2
LA
GNDL
LB
VDDLB
VDDRB
RB
GNDR
RA
N.C.1
VDDRA
100R
R2211
R2212
100R
R2214
4k7
3V3_AMP
SYS_SDA
SYS_SCL
VDD_AUDIO
VDD_AUDIO
VDD_AUDIO
VDD_AUDIO
A_OUT1A
L_OUT_N
L_OUT_P
R_OUT_N
R_OUT_P
A_OUT1A
A_OUT1B
L_OUT_P
L_OUT_N
L5
10u
L2
10u
220n
C307
50V
R_OUT_P
50V
220n
C311
R_OUT_N
10u
L3
220n
50V
C312
A_OUT2A
A_OUT2B
CN13
4
3
2
1
C313
220n
50V
S141
A_OUT1B
C287
50V
1u
1u
50V
C286
1u
C288
50V
1u
C302
50V
50R
F172
S200
F22 220R
100n
16V
C245
10u
10V
C675
C698
50V
220n
C699
50V
220n
16V
10u
C704
TP194
1
TP195
1
F18 220R
220RF9
24V_VCC_AU
VDD_AUDIO
R804
6k8
R88
10k
2 1
3V3_VCC
R81
5k1
R657
47k
Q43
BC858B
3
2
1
GND1
GND1
3V3_AMP
A_OUT2B
A_OUT2A
A_OUT1B
A_OUT1A
AOMCLK
NC
2w5 30069845
HEADPHONE AMP
NC
RIGHT
LEFT
NC
NC
NC
SHORT CCT PROTECTION
NC
NC
AUDIO AMP for 16" to 24"
8W 30067972
15u
30068742
30068742
15u
15u
15u
100R
R33
SAV_CVBS
R2185
5k1
SAV_L
SAV_R
SAV_L
SAV_R
4k7
R101
21
S75
21
SAV_CVBS
SAV_AUD_L_IN
50V
C266
3n3
JK4
3
2
1
JK6
7
6
5
4
3
2
1
SAV_AUD_R_IN
C335
50V
220p
21
D7
C5V6
50V
C267
3n3
TP56
R317
75R
21
C5V6
D12
TP65
TP66
TP67
100n
C676
10V
F77
1k
F76
1k
3D_EN
CN17
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Q31
BC848B
1k
F80
22p
50V
C442
100n
10V
C88
220R
R482
10V
C87
100n
4k7
R442
2 1
4k7
R441
2 1
22p
C441
50V
R363
100R
C440
50V
22p
220R
R481
TP98
1
TP97
1
5V_VCC
S117
SPDIF_OUT
R167
10k
21
S76
21
S77
21
VGA_G_COM
S78
21
TP68
1
C1184
220p
50V
21
3V3_TUNER
SC_CVBS-IN_pin20
R349
100R
21
R350
100R
21
R351
100R
21
TP185
VGA_VSNC
S79
21
S80
21
SC1
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SCART LT1
JK13
4
5
3
1
2
YEL
WHT
RED
TP31
TP32
R144
10k
S81
S82
S83
S84
75R
R300
2 1
R301
75R
2 1
R302
75R
21
75R
R303
2 1
JK5
4
3
2
1
RED
WHT
YEL
33p
50V
C451
50V
C519
4n7
4n7 50V
C520
TP186
C452
33p
50V
47R
R126
SC_AUD_R_OUT
UART-RX
SC_AUD_L_OUT
TP30
SC_CVBS_OUT
33p
C453
50V
SC_PIN8
R305
75R
2 1
50V
C454
33p
47R
R38
2 1
SC_G
SC_R
33p
C455
50V
SC_B
50V
330p
C261
330p
50V
C262
SC_FB
AZ5125-01J
D170
21
1k
F72
UART-TX
33p
50V
C456
C78
100n
10V
2 1
R352
100R
21
21
R353
100R
C15V
D17
21
F73
1k
SC_CVBS-IN_pin20
SCART_AUD_R_IN
SCART_AUD_L_IN
SCART_AUD_L_IN
SCART_AUD_R_IN
COM_SC
S86
50V
33p
C457
50V
33p
C458
L1
1u8
CVBS0_OUT
TP33
R496
33k
SC_CVBS_OUT
3V3_VCC
MAIN_R
16V
10n
C90
10k
R168
21
C91
10n
16V
CDA4C16GTH
D33
876
54
321
CDA4C16GTH
D34
876
54
321
R1149
4k7
1
S139
TP70
R448
4k7
2 1
HP_DETECT
R261
47R
R125
47R
47R
R262
TP71
TP79
TP80
TP81
TP82
TP83
TP84
TP85
TP86
4k7
R447
2 1
R446
4k7
21
3V3_VCC
3D_ENABLE
16V
100n
C239
4k7
R445
2 1
MAIN_L
5V_VCC
Q32
BC848B
3
2
1
50V
220p
C1185
21
TP187
TP69
R304
75R
75R
R306
S230
S231
220R
R1986
SC_CVBS-IN
PC_SDA
PC_SCL
R293
75R
2 1
R294
75R
2 1
75R
R295
2 1
VGA_HSNC
TP61
1
D32
NUP4004M5
54321
VGA_DDC_5V
D60
BAV70
3
21
2k2
R798
2 1
D35
876
54
321
R141
10k2110k
R142
21
03-04-2014_10:27
PERIPHERAL
9
<YOUR NAME HERE>
17mb82s-r4
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
TP621TP631TP64
1
VGA_DDC_5V
10V
C77
100n
2
1
R799
2k2
2 1
VGA_B
VGA_R
VGA_G
10k
R143
21
R348
100R
21
5V_VCC
SAV_L
SAV_R
SAV Slim INPUT
SPDIF OUT
3V6 lik zener kullanilmali
jumper
NCNC
SLIM HEADPHONE OUTPUT
INDIA OPTION
nc
nc
VGA INPUT
VGA CONNECTOR
30071260 kullanilacak
C1115
1u
6V3
09-04-2014_15:43
MEMORY/HDMI
9
<YOUR NAME HERE>
17mb82s-r4
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
C58
16V
100n
16V
C59
100n
DDRV
50V
C1160
220p
DDRV
1k
R265
F219
90R
4321
FR1
FR2
90R
F218
4321
FR1
FR2
F221
90R
4321
FR2
FR1
SH2
2
1
R266
1k
DVD_R_AUD
R267
1k
R268
1k
50V
C339
220p
DVD_IR
C13
50V
27p
21
R276
240R
DDRV
C62
16V
100n
3V3_VCC4k7
R420
2 1
1k
R2132
4k7
R419
2 1
DVD_IR_ON/OFF
DVD_IR
S54
21
TP206
TP93
Q19
BC848B
321
TP92
TP91
47k
R679
21
C76
10V
100n
21
R344
100R
21
25V
10u
C567
R418
4k7
2 1
C15V
D54
21
CN20
109
87
65
43
21
DVD_L_AUD
5V_STBY
4A/24VDC
FS1
21
D53
C18V
S53
21
C11
50V
27p
21
TP90
TP78
TP76
R2072
180R
DVD_CVBS_IN
DVD_SENSE
DVD_SPDIF
DVD_WAKEUP
R2068
4k7
21
R2067
4k7
21
R2071
180R
100R
R3
TP57
1
IR_IN
12V_VCC
DVD_Power
4k7
R104
TP77
1
DVD_Power
TP87
1
U10
MX25L512
8
7
6
54
3
2
1
CS#
SO
WP#
GND SI
SCLK
HOLD#
VCC
TP881TP89
1
TP95
1
Flash_WP
Flash_WP R4
100R
21
F220
90R
4321
FR2
FR1
R105
4k7
R5
100R
21
R6
100R
2
100R
R7
2
3V3_VCC
3V3_VCC
100R
R8
2
25V
10u
C1423
100R
R9
2
100R
R10
21
3V3_VCC
100n
C145
10V
2
1
4k7
R1357
R11
100R
21
Flash_WP
4k7
R106
S26
21
4k7
R107
TP96
1
TP991TP1001TP101
1
MX25L512
U12
8
7
6
54
3
2
1
CS#
SO
WP#
GND SI
SCLK
HOLD#
VCC
TP102
1
100n
10V
C147
2
1
R110
4k7
3V3_VCC
1N5819
D165
100n
10V
C1108
2
1
R290
100R
2
100R
R291
2
100R
R292
2
D166
876
5 4
321
D167
876
5 4
321
S268
21
C63
16V
100n 330p
50V
C320
100n
C64
16V
50V
C321
330p
C291
10V
10u
100R
R2
21
S24
S25
DDRV
H5TQ2G63BFR-PB
U16
A9B3E1G8J2J8M1M9P1P9T1T9B1B9D1D8E2E8F9G1G9
K1
D3
E7
C7
B7
G3
F3
A3
B8
A2
A7
C2
C8
C3
D7
H7
G2
H8
H3
F8
F2
F7
E3
M8
H1
B2D9G7K2K8N1N9R1R9A1A8C1C9D2E9F1H2
H9
L8
T2
L3
K3
J3
L2
K9
K7
J7
M3
N8
M2
J9
T7
L9
M7
L1
J1
T3
N7
R7
L7
R3
T8
R2
R8
P2
P8
N2
P3
P7
N3
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13
NC1
NC2
NC3
NC4
NC5
NC6
BA0
BA1
BA2
CK_0
CK_1
CKE
CS
RAS
CAS
WE
RESET
ZQ
VDDQ_9
VDDQ_8
VDDQ_7
VDDQ_6
VDDQ_5
VDDQ_4
VDDQ_3
VDDQ_2
VDDQ_1
VDD_9
VDD_8
VDD_7
VDD_6
VDD_5
VDD_4
VDD_3
VDD_2
VDD_1
VREF_DQ
VREF_CA
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
DQSL_0
DQSL_1
DQSU_1
DQSU_0
DML
DMU
ODT
VSSQ_9
VSSQ_8
VSSQ_7
VSSQ_6
VSSQ_5
VSSQ_4
VSSQ_3
VSSQ_2
VSSQ_1
VSS_12
VSS_11
VSS_10
VSS_9
VSS_8
VSS_7
VSS_6
VSS_5
VSS_4
VSS_3
VSS_2
VSS_1
16V
C395
100n
R298
33R
8
7
6
5 4
3
2
1
R4
R3
R2
R1
R299
33R
8
7
6
5 4
3
2
1
R4
R3
R2
R1
33R
R309
8
7
6
5 4
3
2
1
R4
R3
R2
R1
33R
R310
8
7
6
5 4
3
2
1
R4
R3
R2
R1
33R
R311
8
7
6543
2
1
R4
R3
R2
R1
R312
33R
8
7
6
5 4
3
2
1
R4
R3
R2
R1
PL1
PL2
PL3
PL4
C289
10V
10u
1V5_VCC DDRV
F10
60R
10V
10u
C290
CN8
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
HDMI1_CLKP
HDMI1_CLKN
HDMI1_RX0P
HDMI1_RX0N
HDMI1_RX1P
HDMI1_RX1N
HDMI1_RX2P
HDMI1_RX2N
HDMI_1_SCL
HDMI_1_SDA
HDMI1_HPDIN
CEC
47k
R23921R240
47k
21
HDMI0_HPDIN
Q27
BC848B
100k
R193
R201k47k
R241
21
CEC
1k
R21
Q28
BC848B
Q29
BC848B
CN12
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Q35
BC848B
R52
10k
5V_STBY
47k
R242
21
R53
10k
HDMI0_RX2N
HDMI0_RX1P
HDMI0_RX1N
HDMI0_RX0P
100k
R194
HDMI0_RX0N
HDMI0_CLKN
HDMI0_CLKP
HDMI0_RX2P
HDMI_0_SDA
HDMI_0_SCL
10k
R54
10k
R55
R289
100R
2
R324
22R
R325
22R
3V3_VCC
PDD6
PDD6
PDD7
PDD7
POCE1_
POOE_
POOE_
POOE_
RBA2
RBA0
RCS_
RCAS_
RODT
RWE_
RRESET_
RCLK0
RDQM1
RDQM0
RDQS0
RDQS1
RA10
B_RA1
B_RA1
B_RA2
B_RA2
B_RA3
B_RA3
B_RA4
B_RA4
B_RA5
B_RA5
B_RA6
B_RA6
B_RA7
B_RA7
B_RA8
B_RA8
B_RA9
B_RA9
B_RA10
B_RA10
B_RA11
B_RA11
B_RA12
B_RA12
B_RA13
B_RA13
B_RBA0
B_RBA0
B_RBA1
B_RBA1
B_RBA2
B_RBA2
B_RWE_
B_RWE_
B_RODT
B_RODT
B_RCAS_
B_RCAS_
B_RCS_
B_RCS_
B_RAS_
B_RAS_
B_RCKE
B_RCKE CLK0
CLK0
CLK#0
CLK#0
DDRV
B_RESET
B_RESET
B_RA0
B_RA0
POCE0_
RRAS_
RDQS0_
RCLK0_
RDQS1_
RA13
RA12
RA11
RA9
RA8
RA7
RA6
RA5
RA3
RA2
RA1
RA0
RDQ15
RDQ14
RDQ12
RDQ10
RDQ8
RDQ6
RDQ4
RDQ1
Flash_WP
RA4
RDQ13
RDQ11
RDQ9
RDQ5
RDQ0
RBA1
RDQ7
RDQ3
RDQ2
RCKE
Near to pin 165 of MT5820
DVD CONNECTION
N.C.
!
SERIAL FLASH
SERIAL FLASH
NC
Close to FS1
HDMI1
HDMI0
CLOSE DRAMCLOSE MT
UA 100R OLMALI
100R
R172
8
7
6
5 4
3
2
1
R2
R3
R1
R4
TP231
PANEL_VCC
OP_PIN46
OP_PIN46
R2239
10k
21
OP_PIN26
OP_PIN26
R2240
10k
21
R2147
33k
2 1
R2146
10k
2 1
FDC642P
Q48
2
6543
1
S20
BACKLIGHT_ON/OFF
60R
F5
F6
60R
BC848B
Q21
TP16
TP17
TP27
TP28
TP34
TP35
TP36
TP37
TP38
TP39
TP40
TP41
TP43
TP44
TP45
TP46
TP48
TP49
TP50
TP51
TP52
TP53
TP54
TP55
OP_PIN6
PANEL_VCC
CN15
302928272625242322212019181716151413121110
987654321
S185
2 1
CN16
302928272625242322212019181716151413121110
987654321
5820_TX_A_CLK_N
5820_TX_A_CLK_P
TX_1_3_P
5820_TX_A_3_N
5820_TX_A_3_P
5820_TX_A_4_N
5820_TX_A_4_P
5820_TX_A_2_P
5820_TX_A_2_N
5820_TX_A_1_P
5820_TX_A_1_N
TX_1_3_N
100u
16V
C94
TX_1_CLK_P
TX_1_CLK_N
TX_1_2_P
5820_TX_A_0_P
TX_1_2_N
OP_PIN9
TX_2_CLK_P
PANEL_VCC
5820_TX_A_0_N
TX_1_1_P
5820_TX_B_0_P
TX_2_CLK_N
OP_PIN7
0R
R232
4
3 2
1
R2
R1
TX_2_2_P
TX_2_2_N
TX_1_1_N
TX_2_1_N
TX_2_1_P
TX_2_0_P
OP_PIN11
TX_2_0_N
PANEL_VCC
TX_2_3_N
TX_2_3_P
TX_1_0_N
TX_1_0_P
TX_1_1_N
TX_1_1_P
TX_1_2_N
TX_1_2_P
TX_1_CLK_N
TX_1_CLK_P
TX_1_3_N
PANEL_VCC
TX_1_3_P
R1962
33k
OP_PIN11
5820_TX_B_1_N
5820_TX_B_1_P
5820_TX_B_2_N
TX_1_0_P
5820_TX_B_2_P
5820_TX_B_CLK_N
5820_TX_B_CLK_P
5820_TX_B_3_N
5820_TX_B_3_P
5820_TX_B_4_N
5820_TX_B_4_P
5820_TX_B_0_N
R124
33k
R90
10k
21
R235
0R
4
3 2
1
R2
R1
3V3_VCC
TX_1_0_N
MEGA_DCR_OUT
PANEL_VCC
07-04-2014_09:47
LVDS CON
9
<YOUR NAME HERE>
17mb82s-r4
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
F4
60R
5V_VCC
0R
R534
1
2 3
4
R2
R1
0R
R569
4
3 2
1
R2
R1
TX_1_0_N
TX_1_0_P
TX_1_1_N
TX_2_4_P
TX_2_4_N
TX_2_3_P
TX_2_3_N
TX_2_CLK_P
TX_2_CLK_N
TX_2_2_P
OP_PIN27
OP_PIN7
OP_PIN8
OP_PIN9
TX_2_2_N
PANEL_VCC
TX_2_1_P
TX_2_1_N
TX_2_0_P
TX_2_0_N
TX_1_4_P
TX_1_4_N
BACKLIGHT_ON/OFF
TX_1_0_N
OP_PIN11
R1961
10k
21
OP_PIN43
12V_VCC
S71
21
12V_VCC
S123
21
TX_1_3_P
TX_1_3_N
OP_PIN10
TX_1_CLK_P
TX_1_0_P
TX_1_1_N
TX_1_CLK_N
TX_1_2_P
OP_PIN27
TX_1_1_P
TX_1_2_N
TX_1_2_P
TX_1_CLK_N
TX_1_CLK_P
TX_2_3_P
TX_1_2_N
TX_2_3_N
TX_2_CLK_P
TX_1_1_P
TX_1_1_N
TX_1_0_P
TX_1_0_N
TX_2_CLK_N
TX_2_2_P
TX_2_2_N
TX_2_1_P
TX_2_1_N
TX_2_0_P
TX_2_0_N
TX_1_3_N
TX_1_3_P
TX_1_4_N
TX_1_4_P
TX_2_4_N
TX_2_4_P
TP42
CN10
LVDS
5150494847464544434241403938373635343332313029282726252423222120191817161514131211
10
987654321
LVDS
CN9
5150494847464544434241403938373635343332313029282726252423222120191817161514131211
10
987654321
TX_1_1_P
TX_1_2_N
TX_1_2_P
TX_1_CLK_N
TX_1_CLK_P
TX_1_3_N
TX_1_3_P
TX_1_4_N
TX_1_4_P
TX_2_0_N
TX_2_0_P
TX_2_1_N
TX_2_1_P
90R
F26
1234
FR1
FR2
TX_2_2_N
TX_2_2_P
TX_2_CLK_N
TX_2_CLK_P
TX_2_3_N
TX_2_3_P
TX_2_4_N
TX_2_4_P
F27
90R
1234
FR1
FR2
90R
F28
1234
FR1
FR2
F29
90R
1234
FR1
FR2
5820_TX_B_0_N
5820_TX_B_4_P
5820_TX_B_4_N
5820_TX_B_3_P
5820_TX_B_3_N
5820_TX_B_CLK_P
5820_TX_B_CLK_N
5820_TX_B_2_P
5820_TX_B_2_N
5820_TX_B_1_P
5820_TX_B_1_N
5820_TX_B_0_P
5820_TX_A_0_N
5820_TX_A_0_P
5820_TX_A_1_N
5820_TX_A_1_P
5820_TX_A_2_N
5820_TX_A_2_P
5820_TX_A_4_P
5820_TX_A_4_N
5820_TX_A_3_P
5820_TX_A_3_N
5820_TX_A_CLK_P
5820_TX_A_CLK_N
DIMMING
S142
21
OP_PIN45
S122
21
12V_VCC
OP_PIN40
OP_PIN41
R457
0R
4
3 2
1
R2
R1
0R
R456
4
3 2
1
R2
R1
OP_PIN43
OP_PIN40
OP_PIN41
OP_PIN44
S164
21
OP_PIN44
0R
R568
4
3 2
1
R2
R1
R567
0R
4
3 2
1
R2
R1
R564
0R
4
3 2
1
R2
R1
0R
R563
4
3 2
1
R2
R1
R535
0R
4
3 2
1
R2
R1
90R
F30
1234
FR1
FR2
R453
4k7
21
BACKLIGHT_DIM
0R
R520
4
3 2
1
R2
R1
BC848B
Q26
DIMMING
3V3_VCC
220p
50V
C343
21
R454
4k7
21
1k
R714
21
R455
4k7
21
220p 50V
C345
21
S167
MEGA_DCR_IN
S168
MEGA_DCR_OUT
S169
F3
60R
BC848B
Q22
12V_VCC
5V_VCC
R222
10k
2 1
OP_PIN45
90R
F31
1234
FR1
FR2
Q38
BC858B
33k
R511
2 1
33k
R512
21
C605
220n
25V
21
R58
47R
21
PANEL_VCC
100n
16V
C248
PANEL_VCC_ON/OFF
10k
R223
2 1
C616
1n
50V
TX_1_4_P
TX_1_4_N
TX_2_4_P
TX_2_4_N
S232
2
1
S233
2
1
S234
21
S235
21
90R
F38
1234
FR1
FR2
OP_PIN10
33k
R519
OP_PIN8
F39
90R
1234
FR1
FR2
PANEL_VCC
F40
90R
4
3 2
1
FR1
FR2
90R
F41
1234
FR1
FR2
90R
F42
1234
FR1
FR2
R225
10k
21
R514
33k
90R
F43
1234
FR1
FR2
OP_PIN27
16V
10u
C625
CN14
302928272625242322212019181716151413121110
987654321
TX_1_3_P
OP_PIN5
OP_PIN6
OP_PIN5PANEL_VCC
R226
10k
21
3D_EN
R513
33k
S183
2 1
R515
33k
PANEL_VCC
10k
R227
21
OP_PIN6
PANEL_VCC
10k
R231
21
OP_PIN10
OP_PIN9
OP_PIN7
10k
R228
21
PANEL_VCC
R516
33k
OP_PIN8
33k
R517
PANEL_VCC
R229
10k
21
OP_PIN9
R230
10k
21
PANEL_VCC
OP_PIN5
R518
33k
OP_PIN9
MEGA_DCR_IN
TX_1_3_N
TX_1_CLK_P
TX_1_CLK_N
TX_1_2_P
TX_1_2_N
TX_1_1_P
TX_1_1_N
TX_1_0_P
TX_1_0_N
TX_1_4_P
TX_2_3_P
TX_2_3_N
TX_2_4_P
TX_2_4_N
TX_1_4_N
TX_2_0_N
TX_2_0_P
TX_2_1_P
TX_2_1_N
TX_2_2_N
TX_2_2_P
TX_2_CLK_N
TX_2_CLK_P
S186
21
OP_PIN42
OP_PIN42
R521
33k
PANEL_VCC
R233
10k
21
OP_PIN42
3D_EN
S188
2 1
R234
10k
21
R522
33k
OP_PIN43PANEL_VCC
PANEL_VCC
19" TO 22" DOUBLE LVDS FFC OPTIONS
LG BASED 30070519
FHD 50Hz 3D FFC
OPTIONS TABLE
DIMMINGFERRITE
SAM BASED 30070519
PANEL SUPPLY SWITCH
LG
SAM
WXGA FFC
JUMPER
10_BIT PANEL
15.6"
IF_AGC
ESD0P8RFL
D1
4 3
21
U4
MXL601
12345
6
7
8
9
10
11
12
1817161514
13
24
23
22
21
20
19
XTAL_N
XTAL_P
GND_XTAL
VDD_1P8_2
RESET_N
AS
VDD_1P2
GND_DIG
VDD_IO
SCL
SDA
CLK_OUT
VDD_1P8_1
VDD_3P3_1
IF_OUTN_1
IF_OUTP_1
IF_OUTN_2
IF_OUTP_2
AGC_1
AGC_2
VDD_1P8_0
LNA_INN
LNA_INP
VDD_3P3_0
12n
L6
X3
27MHz
2413
C1113
27p
50V
JK12
C269
100n
16V
C105
2n2
50V
C109
50V
180p
C264
1u
C135
82p
50V
S41
C1159
1u
6V3
DIGITAL_IF_N
5820_IF_P
3D_ENABLE
S32
Flash_WP
3V3_TUNER
1u
C263
1u
C259
VDD_1V8
C75
1u
6V3
C79
1u
6V3
VDD_1V8
F32
1k
C260
1u
VDD_1V8
C85
100n
16V
C104
2n2
50V
DEMOD_RST
C86
16V
100n
22R
R784
3V3_TUNER
R785
22R
D_IF_AGC
R12
100R
D_IF_AGC
5820_IF_N
10k
R22
390n
L10
RF_IN_P
RF_IN_N
220n
L9
12p
C270
MXL601_SDA
MXL601_SCL
1k
R2099
12p
C271
R13
100R
C92
16V
100n
3V3_TUNER
R269
1M
R57
10k
10V
C150
100n
C316
47p
50V
50V
22p
C1161
47p
50V
C1186
3V3_TUNER
R59
10k
50V
C1162
22p
MXL601_SCL
MXL601_SDA
R2128
10k
6V3
10u
C1164
6V3
1u
C1194
03-04-2014_10:27
TUNER
9
<YOUR NAME HERE>
17mb82s-r4
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
C317
50V
47p
MXL601_SDA
MXL601_SCL
L13
3n9
S318
C323
1n
50V
F188
1k
RF_IN_P
C324
50V
1n
1k
F33
S319
RF_IN_N
100n
10V
C153
ACT_ANT
270n
L20
ANALOG_IF_P
DIGITAL_IF_P
C1174
10u
6V3
DIGITAL_IF_N
ANALOG_IF_N
4k7
R111
21
4k7
R112
21
5135_IF_P
5135_IF_N
F34
1k
C318
50V
47p
C89
47n
16V
C319
50V
47p
C1187
50V
47p
100R
R15
R16
100R
F35
1k
12n
L38
C1401
100p
50V
ANALOG_IF_P
ANALOG_IF_N
DIGITAL_IF_P
10k
R56
D171
AZ5425-01F
21
180R
F47
1
2 3
4
47p
50V
C1188
C1189
50V
47p
3V3_VCC
3V3_AVCC
R135
33R
C322
50V
1n
S317
R14
360R
R173
360R
3V3_TUNER
16V
100n
C1112
GS5
GND1
CI_INT
5820_IF_P
5820_IF_N
NC
NC
ONLY ANALOG
NC NC
1.8nF
10nF
IF FILTERS
CLOSE TO DEMOD
CLOSE TO DEMOD
CI ALTINA
390nH
220nH
0.7pF
NC
560nH
NC
R2255
4k7
2 1
4k7
R2256
2 1
3V3_VCC
CN34
657498
3 2
1
U67
TPS65233
123
4
5
6
7
8
121110
9
16
15
14
13
VLNB
VCP
BOOST
PGND
SCL/VADJ
SDA
VCTRL
EXTM
FAULT
EN/ADDR
ISEL
TCAP
AGND
VCC
VIN
LX
12V_VCC
S339
C1424
10u
25V
10u
L39
12V_VCC
C1421
10u
16V
1k
F215
C1422
10u
16V
100n
16V
C1416
10V
C1417
100n
C1433
1u
16V
D188
1N5819
1N5819
D189
C1420
2u2
25V
25V
10u
C1425
C1426
10u
25V
25V
10u
C1427
D190
1N5819
C1432
50V
220n
1N5819
D191
1N5819
D192
S340
C22V
D193
25V
10u
C1428
F216
1k
F217
1k
25V
10u
C1429
25V
10u
C1430
C1431
10u
25V
LNB_OUT
10V
C1418
100n
100k
R2254
SAT_SDA
SAT_SCL
R2251
100R
R2252
100R
DISEQC_OUT
10V
100n
C1419
10k
R2253
100n
C1368
10V
100n
C1369
10V
100n
C1370
10V
33R
R2231
3V3_VCC10k
R2221
S2DEMOD_RESET
PVR_TS_DATA0
07-04-2014_09:46
SAT_1
9
<YOUR NAME HERE>
17mb82s-r4
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
S324
3V3_SAT_VDD
3V3_VCC
50V
3p3
C1392
1n
50V
C1379
LNB_OUT
1n
50V
C1380
50V
1n
C1381
1n
50V
C1382
50V
1n
C1383
S320
2 1
50V
0p5 C1393
100p
C1351
50V
U64
M88RS6000
1
2
3
4
5
6
7
8
9
10
11
12
1314151617181920212223
24
36
35
34
33
32
31
30
29
28
27
26
25
4847464544434241403938
37
VSEL
OLF
LNB_EN
ADDR_SEL1
IT_LOCK
VCC5
GNDD5
TEST3
TEST2
VDDA3
VDDA4
VDDA5
M_DATA6
M_DATA7
VCC3
GNDD3
M_VALID
M_SYNC
M_CLK
M_ERR
GNDD4
VCC4
DISEQC
DISEQC_IN
M_DATA5
M_DATA4
M_DATA3
M_DATA2
M_DATA1
M_DATA0
TEST1
VDDD
VCC2
GNDD2
SCL
SDA
RESETN
VCC1
GNDD1
VDDA2
CLK_OUT
XTAL_IN
XTAL_OUT
VDDA1
CAP
TEST0
LNA_IN
LNA_IP
50V
100p
C1352
C1384
1n 50V
F202
60R
3V3_SAT_VDDA
3V3_VCC
10u
C1372
6V3
3V3_SAT_VDDA
100n
C1356
10V
X6
27MHz
2
41
3
C1353
27p
50V
C1354
27p
50V
10V
C1357
100n
3V3_SAT_VDDA
1V3_SAT_VCC
1V3_SAT_VCC
10V
C1358
100n
S2DEMOD_RESET
C1359
10V
100n
SAT_SDA
SAT_SCL
R2226
33R
33R
R2227
50V
10p
C1389
C1390
10p
50V
1V3_SAT_VCC
10V
C1360
100n
3V3_SAT_VDD
10V
C1361
100n
3V3_SAT_VDD
R2224
4k7
21
4k7
R2225
21
S2_TS_DATA_3
S2_TS_DATA_2
S2_TS_DATA_1
S2_TS_DATA_0
R2236
33R
876
5 4
321
R4R3R2
R1
R2237
33R
876
5 4
321
R4R3R2
R1
S2_TS_DATA_4
S2_TS_DATA_5
S2_TS_DATA_6
S2_TS_DATA_7
10V
C1362
100n
1V3_SAT_VCC
S2_TS_ VAL
S2_TS_SYNC
33R
R2228
33R
R2229
S2_TS_CLK
C1391
10p
R2230
33R
1V3_SAT_VCC
100n
C1363
10V
DISEQC_OUT
S323
2 1
1V3_SAT_VCC
100n
C1364
10V
3V3_SAT_VDDA
100n
C1365
10V
100n
C1366
10V
100n
C1367
10V
GND1
GND1
LNB_OUT
LNB_OUT
NC
NC
2p2F
2pF
10nF
20pF 20pF
100nF
22nF
130k
NC
NC
100pF
17ips71-r3
<YOUR NAME HERE>
2
1
16-05-2014_11:20
87654321
A
B
C
D
E
F
AXM
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A
3
PROJECT NAME :
SCH NAME :
D
RAWN BY :
T. SHT:
C6V8
D2
BC337
Q1
+12VCC
D3
BA159
D9
SF10L60U
PL2
BA159
D4
C3
100n
275V
C7
56n
275V
100n
C4
275V
275V
56n
C5
V_5
V_6
C11
1n
4kV
R1
4M7
D20
RS1008FL
D14
UF5402
PL3
PL4
S1
PIN_912V_DC
HER207D16
UF5402
D15
39u
450V
C21
100k
R2
4n7
630V
C25
S2
C31
1m5
35V
35V
560u
C26
R302
100k
1N4148
D19
C305
275V
56n
4kV
1n
C304
K10104
U4
4
3 2
1
1k
R27
R28
1k
10V
C28
10u 10u
C29
10V
+5V_STBY
24V_AC
PIN_9
S301
450V
39u
C20
HS1
C306
2kV
47p
HS3
D17HER207
D6 BA159
HS2
PIN_4
S16
PIN_3
35V
560u
C32
PIN_1
50V
1u
C302
39K
R80
BA159
D7
SP1
1k
R303
+24VCC_SW
S28
ST_BY
12V_AC
BL_ON-OFF
10R
R49
10R
R50
R301
10R
10R
R51
10R
R52
BA159
D8
PWM_DIM
+5V_STBY
10R
R47
S17
BL_ON-OFF
+12VCC
+12VCC
R29
1k
C35
1n
50V
+12VCC
47p 2kV C37
R32
10R
RL207
D32
PIN_3
140R
F16
UF5402
D30
1n
4kV
C9
C17
1n
4kV
RL207
D33
C12
1n
4kV
C13
1n
4kV
C6
275V
56n
R4
1k
C14
1n
4kV
P1
4kV
1n
C18
PIN_1
P2
S29
+12VCC
P3
+12VCC
S30
P4
SP2
SP3 SP4
D31
RL207
1N4148
D18
+12VCC
+5V_STBY
PWM_DIM
BL_ON-OFF
CN4
1211
109
87
65
43
21
SP5
ST_BY
PL1
R309
10R
R297
10R
50V
1u
C296
275V
100n
C308
16V
1m
C314
10R
R53
10R
R54
VCC
GATE
+400V
R33
10R 10R
R34
4kV
1n
C303
50V
1u
C312
C299
10p
50V
D26
SB5100
C18V
D298
D22
SB5100
CS
FB C225
1n
50V
L3
10u
D10
SF10L60U
C36
1n
50V
140R
F15
R31
1k
S41
10R
R55
C5V1
D301
FDS4685
Q5
5
6
4
7
81
3
2
D40
UF5402
D41
UF5402
UF5402
D42
S14
S15
S22
S23
V_2
S40
+24VCC_SW
AUDIO_REG
AUDIO_REG
12V_AC
BC848B
Q2
R5
1k
R6
1k
R7
1k
D35
C12V
C12V
D3616V
C68
22u
F9
26R
450V
39u
C19
R253
10R
35V
2m2
C27
AUX
S24
S25
V_3
C41
275V
100n
V_4
V_1
12V_DC
+12VCC
C69
16V
22u
F10
26R
F11
26R
R8
1k
BC848B
Q3
R9
1k
Q4
BC848B
R12
1k
1n
C55
50V
C56
50V
1n R13
1k
C57
50V
1n
1k
R14
D300
C5V1
1k
R15ST_BY
C43
56n
275V
1k
R20
+12VCC
TR1
10
7
11
12
1
16
6
5
2
15
N5
N6
N2
N3
N4
N1
S26
PIN_9 12V_AC
S42
24V_DC
Q8
BC848B
BC848B
Q9
Q10
BC848B
ST_BY
U202
5
6
7
8
4
3
2
1
DET
FB
CS
GND
HV
NC
VDD
GATE
FAN6300
L4
1u
SBR10U150
D39
R79
33k
200k
R81
56k
R83
24V_AC
12V_AC
UF5402
D13
C313
1u
50V
LF3
4
32
1
R281
10k
UF5402
D11
UF5402
D12
SB5100
D23
SB5100
D24
SB5100
D25
+400V
10k
R280
R304
1k
R306
1k
V_5 V_1
V_2
10R
R289
35V
560u
C70
CN3
201
9
1817
1615
1413
1211
109
87
65
43
21
V_6
PIN_4
V_5
V_6
R290
10R10R
R291
+400V
24V_DC
16V
1m
C33
L5
1u
+24VCC
70R
F17
70R
F18
F19
70R
70R
F20
DRAIN
800R
F21
10R
R56
1k
R305
C63
50V
1n
50V
1n
C64
1n 50V
C34
1k
R21 C59
50V
1n
1k
R22
+12VCC
1k
R23
1k
R24
1k
R25
1n
50V
C60
ST_BY
Q7
BC848B
D1
C6V8
TL431SAMF2
U1
1k
R26
+12VCC
FB
50V
1n
C61
VCC
D37
C12V
TCET1102G
U2
4
3 2
1
C73
47u
50V
F1
50R
100k
R91
100k
R92
100k
R93
100k
R94
100k
R95
100k
R96
100k
R97
100k
R98
R99
100k
100k
R100
2kV
47p
C38
D5 BA159
CS
C62
1n
50V
R75
10R
GATE
BC858B
Q13
R76
10R
R85
10k
R77
10R
R101
120R
R82
56k
47p
2kV
C39
Q15
FQPF8N60C
+400V
TR2
87
2
13
14
1 6
9
5
10
N1 N2
N3 N4
4kV
1n
C307
12V_AC
AUX
R300
1k
F12
26R
D34
RL207
S33
AUX
LF2
4
3 2
1
S4
C71
560u
35V
510V
V1
SBR10U150
D38
+400V
DRAIN
V_4V_3
1M
R114
1M
R115R116
1M
R117
1M
R118
1M
1M
R119
S3
F2550R
+400V
PIN_9
24V_AC
12V_AC
10R
R44
S5
10R
R45
R46
10R
50V
1u
C52
S6
S7
800R
F13
F14
800R
S8
TH1
10R
10R
TH2
10R
TH3
10R
TH4
V_2
V_1
56n
275V
C8
1n
C15
4kV
C85
470n
275V
C86
220n
275V
100n
275V
C1
C2
100n
275V
LF1
4
3 2
1
V_2
V_1
35V
1m5
C30
S9
FS1
3.15A/250V
3.15A/250V
FS2
S10
S11
CN2
2
1
S12
S13
1n
4kV
C10
C16
1n
4kV
CN1
2
1
10R
R310
50R F26
16V
1m
C315
C316
1m
16V275V
56n
C309 C310
56n
275V
V_1
R307
10R
V_2
10R
R308
4kV
1n
C311
140R
F23
140R
F22
800R
F24
V_10
V_10
V_50
V_50
C317
275V
56n
V_50
V_10
2X6 PINLI MB SOKET OPS.
2X10 PINLI MB SOKET OPS.
TRANSFORMATOR OPTION
OUTPUT DIODES HEATSINKS
SMPS MOSFET HEATSINK
SOFT_START
24V RCD SNUBBER OPTION
12V RCD SNUBBER OPTION
ROCKER SWITCH
XCAPS
WITHDRAWAL RESISTORS
SMPS CONVERTER BLOCK
FEEDBACK BLOCK
12V to 5V LDO OPTION
PRIMARY to SECONDARY Ycap
OUTPUT SELECTION
+12Vdc OUTPUT
+24Vdc OUTPUT
DUMMY LOAD CIRCIUT
LINE FILTER OPTION
PINGOOD OPTIONS
13u
L1
CON_AC
R88
10R
+24
2
2
03-04-2014_11:17
17ips71-r3
<YOUR NAME HERE>
87654321
A
B
C
D
E
F
AXM
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A
3
PROJECT NAME :
SCH NAME :
D
RAWN BY :
T. SHT:
FQD7N10L
Q19
+24
10u
16V
C300
10u
16V
C23
C24
16V
10u
Vp
Vp
Vp
R298
10k
V_LED+
D29
SB5100
CON_AC
S46
3 4
2 1
L8
17u
S19
10R
R71
R72
10R
+24VCC_SW
10R
R73
R74
10R
F2
50R
50R
F3 50R
F4
25V
1u
C50 V_LED+
2kV
C4447p
V_SW
S21
13u
L2
C88
35V
2m2
S20
+24VCC
LED2_S
S43
S18
S44
LED3_S LED4_S
S45
R299
100R
VCC_LED
LED4
LED4_S
OVP_LED
C301
10u
16V
Q18
FQD7N10L
LED2_S
LED2
VCC_LED
R110
100R
R87
10k
200V
47u
C90
25V
C74
470n
LED3
U3
MP3394
9
10
11
12
13
14
15
16
8
7
6
5
4
3
2
1
COMP
EN
DBRT
GND
OSC
ISET
BOSC
LED4
VCC
VIN
GATE
ISENSE
OVP
LED1
LED2
LED3
C75
25V 470n
270R
R89
330n 16V
C76
270R
R90
PWM_DIM
330n
C77
16V
R111
330k
S54
R113
6k8
100k
R3
VCC_LED
LED4
S55
LED2
LED1
C78
10V
2u2
OVP_LED
CS_LED
C79
2u2
10V
GATE_LED
50V
10u
C83C84
10u
50V
C80 10V
2u2
R112
330k
BL_ON-OFF
25V
1u
C51
50V
47u
C22
VCC_LED
V_SW
+12VCC
LED1_S LED2_S
S47
S48
S49
S50
S51
S52
S53
LED3
LED2
LED4
LED3
LED2
LED1
LED4
LED1
LED3
LED2
LED1_S
LED2_S
LED4_S
LED3_S
LED4_S
LED3_S
LED2_S
LED1_S
V_LED+
V_LED+
CN6
1
2
3
4
5
6
7
R104
100R
50V
1n
C65
100R
R105
R106
100R 100R
R107
10R
R58
R59
10R
R60
10R
10R
R61
R62
10R
10R
R63
10R
R64
V_LED+
10R
R65
10R
R66R67
10R
R68
10R
10R
R69
10R
R70
F5
50R
50R
F6 F7
50R
F8
50R
25V
1u
C49
+24
FQD7N10L
Q17
1N4148
D21
10R
R78
D27
SB5100
10k
R86
150u
L6
BC858B
Q14
GATE_LED
35V
2m2
C87
SB5100
D28
BL_ON-OFF
+24
CN7
8
7
6
5
4
3
2
1
PWM_DIM
47p
2kV
C45
CS_LED
Q20
FQPF9N50C
S302
Vp
V_SW
Tapped Coil Option
LED DRIVER
BOOST INPUT VOLTAGE
LED DRIVER VCC CONNECTION
BOOSTED OUTPUT
CHANNEL OPTIONS
POWER BOARD to LED BARS CONNECTION
OUTPUT DIODE RC SNUBBER CIRCUIT
LED DRIVER SINK MOSFET OPTION
11-11-2014_10:33
1
1
<YOUR NAME HERE>
17ld171-r6
87654321
A
B
C
D
E
F
AX M
1 2 3 4 5 6 7 8
A
B
C
D
E
F
A3
SCH NAME :
DRAWN BY :
T. SHT:
C6
100n
50V
50V
100n
C4
R3
220R
R1
100R
C2
1u
50V
50V
1u
C3
C5
50V
100n
IR1
1
2
3
VS
GND
OUT
R2
22R
CN1
5
4
3
2
1
50V
1u
C1
VBC30034
D1
xx335 LED BMS TOSHIBA
1/10
TROUBLESHOOTING (17MB82S)
1. NoBacklightProblem
Problem: If TV is working, led is normal and there is no picture and backlight on the panel.
Possible couses
: Backlight pin, dimming pin, backlight supply, stby on/off pin
Backlight pin should be high in open position. If it is low, please check Q30 and panel
cables.
2/10
Dimming pin should be high or square wave in open position. If it is low, please check S16
for Mstar side and panel or power cables, connectors.
Backlight power supply should be in panel specs. Please check CN4 for MB82, related
connectors for power supply cards.
3/10
STBY_ON/OFF should be low for standby on condition, please check R2090.
2.CIModuleProblem
Problem: CI is not working when CI module inserted.
Possible couses: Supply, suply control pin, detect pins, mechanical positions of pins
CI supply shoul be 5V when CI module inserted. If it is not 5V please check
CI_POWER_CTRL, this pin should be low.
4/10
Please check mechanical positions of CI module.
Detect ports should be low. If it is not low please check CI connector pins, CI module pins
and 3V3_VCC on MB82.
5/10
3. Led Blinking Problem
Problem: LED blinking, no other operation
This problem indicates a short on Vcc voltages. Protect pin should be logic high while
normal operation. When there is a short circuit protect pin will be logic low. If you detect
logic low on protect pin, unplug the TV set and control voltage points with a multimeter to
find the shorted voltage to ground.
6/10
4. IR Problem
Problem: LED or IR not working
Check LED card supply on MB82 chasis.
7/10
5. Keypad Touchpad Problems
Problem: Keypad or Touchpad is not working
Check keypad supply and KEYBOARD pin on MB82
6. USB Problems
Problem: USB is not working or no USB Detection.
Check USB Supply, It should be nearly 5V.
8/10
7. No Sound Problem
Problem: No audio at main TV speaker outputs.
Check supply voltages of VDD_AUDIO, 5V_VCC or 12V_VCC with a voltage-meter.
There may be a problem in headphone connector or headphone detect circuit (when
headphone is connected, speakers are automatically muted). Measure voltage at
HP_DETECT pin, it should be 3.3v.
9/10
8. No Sound Problem at Headphone
Problem: No audio at headphone output.
Check HP detect pin, when headphone is. Check 5V_VCC and 3V3_VCC with a voltagemeter.
9. Standby On/Off Problem
Problem:
Device cannot boot, TV hangs in standby mode.
There may be a problem about power supply. Check 12V_VCC, 5V_VCC and 3V3_VCC
with a voltage-meter. Also there may be a problem about SW. Try to update TV with latest
SW. Additionally it is goood to check SW printouts via hyper-terminal (or Teraterm). These
printouts may give a clue about the problem.
10/10
10. No Signal Problem
Problem: No signal in TV mode.
Check tuner supply voltage; 3V3_TUN. Check tuner options are correctly set in Service
menu. Check AGC voltage at IF_AGC pin of tuner.
REV. 00
Feb/18/2015
TOSHIBA LIFESTYLE PRODUCTS & SERVICES CORPORATION
2-9, Suehiro-Cho, Ome-Shi, Tokyo 198-8710, Japan
Loading...
