/WNERS¬-ANUAL
Integrated High Definition
LCD Television
HIGH-T TV
32E200U
32E20U
37E200U
37E20U
40E200U
40E20U
For an overview of steps for setting up your new TV, see page 10.
Note: To display a High Definition picture, the TV must be receiving
a High Definition signal (such as an over-the-air High Definition
TV broadcast, a High Definition digital cable program, or a High
Definition digital satellite program). For details, please contact
your TV antenna installer, cable provider, or satellite provider.
¥¬¬4/3()"!¬#/20/2!4)/.¬
!LL¬2IGHTS¬2ESERVED
/WNERS¬2ECORD¬
The model number and serial number are on the back
of your TV Record these numbers in the spaces below
Refer to these numbers whenever you communicate
with your Toshiba dealer about this TV
Model number:
Serial number:
HDA51C3701I
Dear Customer,
Thank you for purchasing this Toshiba LCD TV. This
manual will help you use the many exciting features
of your new LCD TV. Before operating your LCD TV,
please read this manual completely, and keep it
nearby for future reference.
Safety Precautions
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
WARNING
RISK OF ELECTRIC
SHOCK DO NOT OPEN.
WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING
To prevent injury, this apparatus must be securely
attached to the floor/wall in accordance with the
installation instructions. See item 25 on page 4.
WARNING:
If you decide to wall mount this
television, always use a UL Listed wall bracket
appropriate for the size and weight of this television.
The use of any wall bracket other than a UL Listed
wall bracket appropriate for the size and weight of this
television for wall mounting this television could result
in serious bodily injury and/or property damage. See
“Removing the Pedestal Stand” (page 6).
NOTE TO CATV INSTALLERS
This is a reminder to call the CATV system installer’s
attention to Article 820-40 of the U.S. NEC, which
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical. For
additional antenna grounding information, see items
32 and 33 on page 4.
CHILD SAFETY:
It Makes A Difference How and Where You Use Your Flat
Panel Display
Congratulations on your purchase! As you enjoy your
new product, please keep these safety tips in mind:
The Issue
2%#**($*(*$#$*.&($)(%-$*($
$"(("*&$")&"/)(&%&+"(&+())%-,(
"*&$")&"/)($%*"-/))+&&%(*%$*&(%&()*$)
%($)*""%($*%*#$+*+(()(%##$*%$)
2"*&$")&"/)**(
$&&(%&(*"/)*+*%$())()
%%!)))",))!)
)&!())*)%((*)#/""
%,($+)$ +(/
TOSHIBA Cares!
2%$)+#("*(%$)$+)*(/
)%##***%#!$%#
$*(*$#$*$ %/"$)
Tune Into Safety
2
$)0%)*""%""%-*#$+*+(()(%##$*%$)
%(*)$)*""*%$$+)%/%+("*&$")&"/
2(+""/($+$()*$""$"%)$)*(+*%$)%(
&(%&(+)%*)&(%+*
2%$*""%-"($*%"#%$%(&"/-*+($*+($
*",)%$)*)
2%$*&""*&$")&"/)%$
+($*+(**$)"/+))
)*&))+))*%(-()
2##(**"($$
%#.*-"-*$
&(%(#)&""/%$1"((
*$"3"*&$")&"/(
)%+"*!$*%&"%($)*""
*)&"/-(*$$%*
&+)&+""%,(%(!$%!%-$
2()%+"*!$*%(%+*""%()$
")%$$**%*"*&$")&"/)%***/$$%*
&+""%((/+(%+)"($
Wall Mounting: If you decide to wall mount your
flat panel display, always:
2)#%+$***)$(%##$/*)&"/
#$+*+(($%(")*/$$&$$*"%(*%(/)+
)
2%""%-""$)*(+*%$))+&&"/*)&"/$-""#%+$*
#$+*+(()
2/%+,$/%+*)%+*/%+("*/*%)"/$)*""/%+(
"*&$")&"/%$**/%+((*"(%+*&(%))%$"
$)*""*%$
2!)+(***-""-(/%+(#%+$*$*)&"/)
&&(%&(*%#-""#%+$*)($%*)$*%#%+$*
*%-"")-*)*")*+)%(%"$("%!%$)*(+*%$/%+
(+$)+(%$**&(%))%$"
$)*""(
2#$#+#%*-%&%&"(
('+(%($)*""*%$"*&$"
)&"/)$,/
2
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
any broken glass or liquid from the damaged
television. The LCD panel inside the TV contains
glass and a toxic liquid. If the liquid comes in
contact with your mouth or eyes, or your skin
is cut by broken glass, rinse the affected area
thoroughly with water and consult your doctor.
ALWAYS contact a service technician to inspect the
s
TV any time it has been damaged or dropped.
6) Clean only with dry cloth.
Do not block any ventilation openings. Install in
7)
accordance with the manufacturer’s instructions.
8)
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized
or grounding type plug. A polarized
plug has two blades with one wider
than the other. A grounding type
plug has two blades and a third
grounding prong. The wide blade or
the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on
or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with
he apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms
or when unused for long periods of time.
14) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.
Wide blade
Additional Safety Precautions
14a) CAUTION: If the TV is dropped and the cabinet or
enclosure surface has been damaged or the TV does
not operate normally, take the following precautions:
ALWAYS turn off the TV and unplug the power
s
cord to avoid possible electric shock or fire.
NEVER allow your body to come in contact with
s
15) CAUTION:
To reduce the risk of electric shock, do not
s
use the polarized plug with an extension cord,
receptacle, or other outlet unless the blades can
be inserted completely to prevent blade exposure.
To prevent electric shock, match wide blade of plug
s
to wide slot; fully insert.
16) CAUTION:
Do not let children swallow the product or play with
the plastic bag. Keep the product and the plastic bag
out of the reach of children.
17) CAUTION
Do not let water or other liquids come into contact
with the product, as it may result in damage.
18
) WARNING
To prevent the spread of fire, keep candles or other
s
open flames away from this product at all times.
Keep the product away from direct sunlight, fire or
s
a heat source such as a heater. This may reduce the
product lifetime or result in fire.
:
:
Installation, Care, and Service
Installation
Follow these recommendations and precautions and
heed all warnings when installing your TV:
19)
WARNING: NEVER expose batteries
to excessive heat such as sunshine,
fire or the like.
20) ALWAYS plug the product into an outlet that is
located in such a manner that it can be easily
unplugged in case the product requires service.
21) NEVER route the product’s power cord inside a wall
or similar enclosed area.
Never modify this equipment. Changes or
22)
modifications may void: a) the warranty, and b) the
user’s authority to operate this equipment under the
rules of the Federal Communications Commission.
23) DANGER: RISK OF SERIOUS PERSONAL
INJURY, DEATH, OR EQUIPMENT
DAMAGE!
Never place the TV on an unstable
cart, stand, or table. The TV may fall,
causing serious personal injury,
death, or serious damage to the TV.
(continued)
3
24) To avoid damage to this product, never place or store
the TV in direct sunlight; hot, humid areas; or areas
subject to excessive dust or vibration.
25) Always place the TV on the floor or a sturdy, level,
stable surface that can support the weight of the unit.
To secure the TV, use a sturdy strap from the hook(s)
on the rear of the TV to a wall stud, pillar, or other
immovable structure. Make sure the strap is tight,
secure, and parallel to the floor.
Sturdy strap (as short as possible)
4"
min.
Hook
pot VTedis VT
33)
Use extreme care to make sure you are never in
s
DANGER: RISK OF SERIOUS
PERSONAL INJURY OR DEATH!
a position where your body (or any item you are
in contact with, such as a ladder or screwdriver)
can accidentally touch overhead power lines.
Never locate the antenna near overhead power
lines or other electrical circuits.
Never attempt to install any of the following
s
during lightning activity: a) an antenna system;
or b) cables, wires, or any home theater
component connected to an antenna or phone
system.
26) The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such
as vases, shall be placed on the apparatus.
27) Never block or cover the slots or openings in the TV
cabinet back, bottom, and sides. Never place the TV:
on a bed, sofa, rug, or
s
similar surface;
too close to drapes,
s
curtains, or walls; or
in a confined space such
s
as a bookcase, built-in
cabinet, or any other place with poor ventilation.
The slots and openings are provided to protect the
TV from overheating and to help maintain reliable
operation of the TV. Leave a space of at least 4 (four)
inches around the TV.
28) Always place the back of the television at least four
(4) inches away from any vertical surface (such as a
wall) to allow proper ventilation.
29) Never allow anything to rest on or roll over the power
cord, and never place the TV where the power cord is
subject to wear or abuse.
30) Never overload wall outlets and extension cords.
31) Always operate this equipment from a 120 VAC, 60
Hz power source only.
32) Always make sure the antenna system is properly
grounded to provide adequate protection against
voltage surges and built-up static charges (see
Section 810 of the National Electric Code).
Antenna lead-in wire
Antenna discharge unit
Ground clamp
Electric service
equipment
Ground clamps
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
Power service grounding
electrode system
(NEC Art 250 Part-H)
Care
For better performance and safer operation of your TOSHIBA
TV, follow these recommendations and precautions:
34) If you use the TV in a room whose temperature is
32 °F (0 °C) or below, the picture brightness may
vary until the LCD warms up. This is not a sign of
malfunction.
35) Always unplug the TV before cleaning. Gently wipe
the display panel surface (the TV screen) using a dry,
soft cloth only (cotton, flannel, etc.). A hard cloth may
damage the surface of the
panel. Avoid contact with
alcohol, thinner, benzene,
acidic or alkaline solvent
cleaners, abrasive cleaners,
or chemical cloths, which
may damage the surface. Never spray volatile
compounds such as insecticide on the cabinet. Such
products may damage or discolor the cabinet.
36)
RISK OF ELECTRIC SHOCK!
Never spill liquids or push objects of any kind into
the TV cabinet slots.
37) While it is thundering, do not touch the
connecting cables or apparatus.
38) For added protection of your TV from lightning
and power surges, always unplug the power
cord and disconnect the antenna from the TV if
you leave the TV unattended or unused for long
periods of time.
39) ALWAYS unplug the TV to completely disconnect
from mains power. When the TV is turned off using
the on/off switch, it is not completely disconnected
from power and a minute amount of current is still
consumed.
WARNING:
(continued)
4
40) During normal use, the TV may make occasional
snapping or popping sounds. This is normal,
especially when the unit is being turned on or off. If
these sounds become frequent or continuous, unplug
the power cord and contact a Toshiba Authorized
Service Center.
41)
Never strike the screen
with a sharp or heavy
object.
42) s4HE,#$SCREENOFTHISPRODUCTCANBEDAMAGED
Never touch, press, or place anything on the LCD
s
screen. These actions will damage the LCD screen.
If you need to clean the LCD screen, follow the
instructions in item 35 on page 4.
DANGER: RISK OF SERIOUS
PERSONAL INJURY OR DEATH!
by ultraviolet radiation from the sun. When
selecting a location for the television, avoid
locations where the screen may be exposed to
direct sunlight, such as in front of a window.
Service
43)
RISK OF ELECTRIC SHOCK!
Never attempt to service the TV yourself. Opening
and removing the covers may expose you to
dangerous voltage or other hazards. Failure to follow
this WARNING may result in death or serious injury.
Refer all servicing not specified in this manual to a
Toshiba Authorized Service Center.
44) If you have the TV serviced:
Ask the service technician to use only replacement
s
parts specified by the manufacturer.
Upon completion of service, ask the service technician
s
to perform routine safety checks to determine that the
TV is in safe operating condition.
45)
The cold cathode fluorescent lamp in the LCD panel
contains a small amount of mercury.
When the TV reaches the end of its useful life,
dispose of the used TV by the approved method for
your area, or ask a qualified service technician to
properly dispose of the TV.
environmental considerations. For disposal
or recycling information, contact your local
authorities or the Electronics Industries
Alliance (www.eiae.org).
WARNING:
Note: The lamp(s) inside this
product contain mercury. Disposal
may be regulated due to
Choosing a location for your LCD TV
To Display your LCD TV on the included
Pedestal Stand:
Observe the following safety precautions:
1) Read and Follow the pedestal assembly instructions
included with the pedestal.
CAUTION: Before beginning pedestal assembly,
carefully lay the front of the LCD Panel face down on a
flat, cushioned surface such as a quilt or blanket. Leave
the bottom of the unit protruding over the edge of the
surface and assemble the pedestal as indicated below.
Note: Extreme care should always be used
when attaching the pedestal stand to avoid
damage to the LCD panel.
2)
Place the TV on a sturdy, level surface that can
support the weight of the TV.
3) Be sure to secure the TV to a wall, pillar, surface, or
other immovable structure. ( item 25, page 4).
To Display your LCD TV using a Wall
Bracket:
If you decide to wall mount your LCD TV, always use
a UL listed wall bracket appropriate for the size and
weight of the LCD TV ( page 2):
1) CAUTION:
2) Unplug and remove any cables and/or other
component connectors from the rear of the TV.
3) Remove the screws of the VESA Mounting Pattern
show in the next page.
4) Always use the screws supplied or recommended
by the wall mount manufacturer.
5) Follow the instructions provided with your wall
bracket. Before proceeding, make sure the
appropriate bracket(s) are attached to the wall and
the back of the TV as described in the instructions
provided with the wall bracket.
6) After attaching the appropriate bracket(s) to the
wall and the back of the TV, remove the pedestal
stand from the TV as described below.
7) VESA Mounting Pattern
TV Size Hole Pattern(HxV) Screw Size
32” 200x200 mm M6
37” 200x200 mm M6
40” 200x200 mm M6
Two people are required for installation.
(unit in mm)
(continued)
5
Removing the Pedestal Stand
1) Carefully lay the front of the unit face down on a
flat, cushioned surface such as a quilt or blanket.
Leave the stand protruding over the edge of the
surface.
Note: Extreme care should always be used
when removing the pedestal stand to avoid
damage to the LCD panel.
2) Remove the four screws shown in the right
diagram. This will allow removal of the pedestal
stand.
3) Once you have removed all four screws, holding
the pedestal stand in place, remove the pedestal
stand from the TV.
40” TV
Four screws
VESA Mounting Pattern
Hook
Sturdy strap
(as short as possible)
32” TV
37” TV
Four screws
VESA Moun ing Pattern
Hook
Sturdy strap
(as short as possible)
VESA Moun ing Pattern
CAUTION: Always place the TV on the floor or a sturdy,
level, stable surface that can support the weight of
the unit. To secure the TV, use a sturdy strap from
the hook(s) on the rear of the TV to a wall stud, pillar,
or other immovable structure. Make sure the strap is
tight, secure, and parallel to the floor.
Four screws
6
Hook
Sturdy strap
(as short as possible)
FCC Declaration of Conformity
Important notes about your
Compliance Statement (Part 15):
The
Toshiba 32E200U, 32E20U, 37E200U, 37E20U,
40E200U, and 40E20U Televisions
15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
The party responsible for compliance to these rules is:
Toshiba America Consumer Products, L.L.C.
82 Totowa Rd. Wayne, NJ 07470.
Ph: 1-800-631-3811
Note: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by removing
and applying power to the equipment, the user is
encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
s
Increase the separation between the equipment and
s
the receiver.
Connect the equipment into an outlet on a circuit
s
different from that to which the receiv er is connected.
Consult the dealer or an experienced radio/TV
s
technician for help.
Caution: Changes or modifications to this
equipment not expressly approved by Toshiba
could void the user’s authority to operate this
equipment.
comply with Part
LCD TV
The following symptoms are technical limitations
of LCD Display technology and are not an
indication of malfunction; therefore, Toshiba is
not responsible for perceived issues resulting from
these symptoms.
1) An afterimage (ghost) may appear on the screen if
a fixed, nonmoving image is displayed for a long
period of time. The afterimage is not permanent
and will disappear in a short period of time.
2) The LCD panel contained in this TV is
manufactured using an extremely high level
of precision technology; however, there may
be an occasional pixel (dot of light) that does
not operate properly (does not light, remains
constantly lit, etc.). This is a structural property of
LCD technology, is not a sign of malfunction, and
is not covered under your warranty. Such pixels
are not visible when the picture is viewed from a
normal viewing distance.
Note: Interactive video games that involve
shooting a “gun” type of joystick at an onscreen target may not work with this TV.
Trademark Information
QSound and [
UÊ
QSound Labs, Inc.
Manufactured under license from Dolby
UÊ
Laboratories.
Dolby and the double-D symbol are trademarks
of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition
UÊ
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in
the United States and other countries.
INSTAPORT™ and INSTAPORT logo are
UÊ
trademarks of Silicon Image, Inc. in the United
States and other countries.
MPEG Layer-3 audio coding technology
UÊ
licensed from Fraunhofer IIS and Thomson.
] symbol are trademarks of
7
Contents
Important Safety Instructions ............................... 3
Installation, Care, and Service ............................. 3
Chapter 1: Introduction ...................................... 9
Features of your new TV.............................................................9
Overview of steps for installing, setting up,
and using your new TV......................................................10
TV front and side panel controls and connections....................11
TV back panel connections........................................................12
Chapter 2: Connecting your TV ............................13
Overview of cable types.............................................................13
About the connection illustrations.............................................13
Connecting a VCR and antenna, Cable TV or Camcorder.......14
Connecting a DVD player with ColorStream
(component video), a VCR, and a satellite recei v er..........15
Connecting an HDMI
REGZA-LINK
®
or DVI device to the HDMI input.......16
®
connection.......................................................17
®
Connecting a digital audio system.............................................18
Connecting a personal computer (PC).......................................18
Chapter 3: Using the remote control ......................20
Installing the remote control batteries.......................................20
Remote control effective range..................................................20
Learning about the remote control.............................................21
Chapter 4: Menu layout and navigation ..................22
Main menu layout......................................................................22
Setup/Installation menu layout..................................................23
Navigating the menu system......................................................23
Chapter 5: Setting up your TV ..............................24
Initial Setup................................................................................24
Selecting the menu language.....................................................24
TOSHIBA Logo LED................................................................24
Configuring the antenna input source for the ANT/CABLE
terminal...............................................................................24
Programming channels into the TV’ s channel memory............25
Programming channels automatically ...................................25
Setting channel skip ...............................................................25
Labeling channels ......................................................................26
Setting the HDMI
®
audio mode.................................................27
Viewing the digital signal meter................................................27
Setting the time zone..................................................................27
Viewing the system status..........................................................28
Chapter 6: Using the TV’s features ........................29
Selecting the video input source to view...................................29
Labeling the video input sources...............................................29
Tuning channels.........................................................................30
Tuning channels using the Channel Browser™....................30
Setting the Channel Tuning Mode.........................................32
Tuning to the next programmed channel...............................33
Tuning to a specific channel (programmed or unprogrammed).33
Switching between two channels using SurfLock™..................33

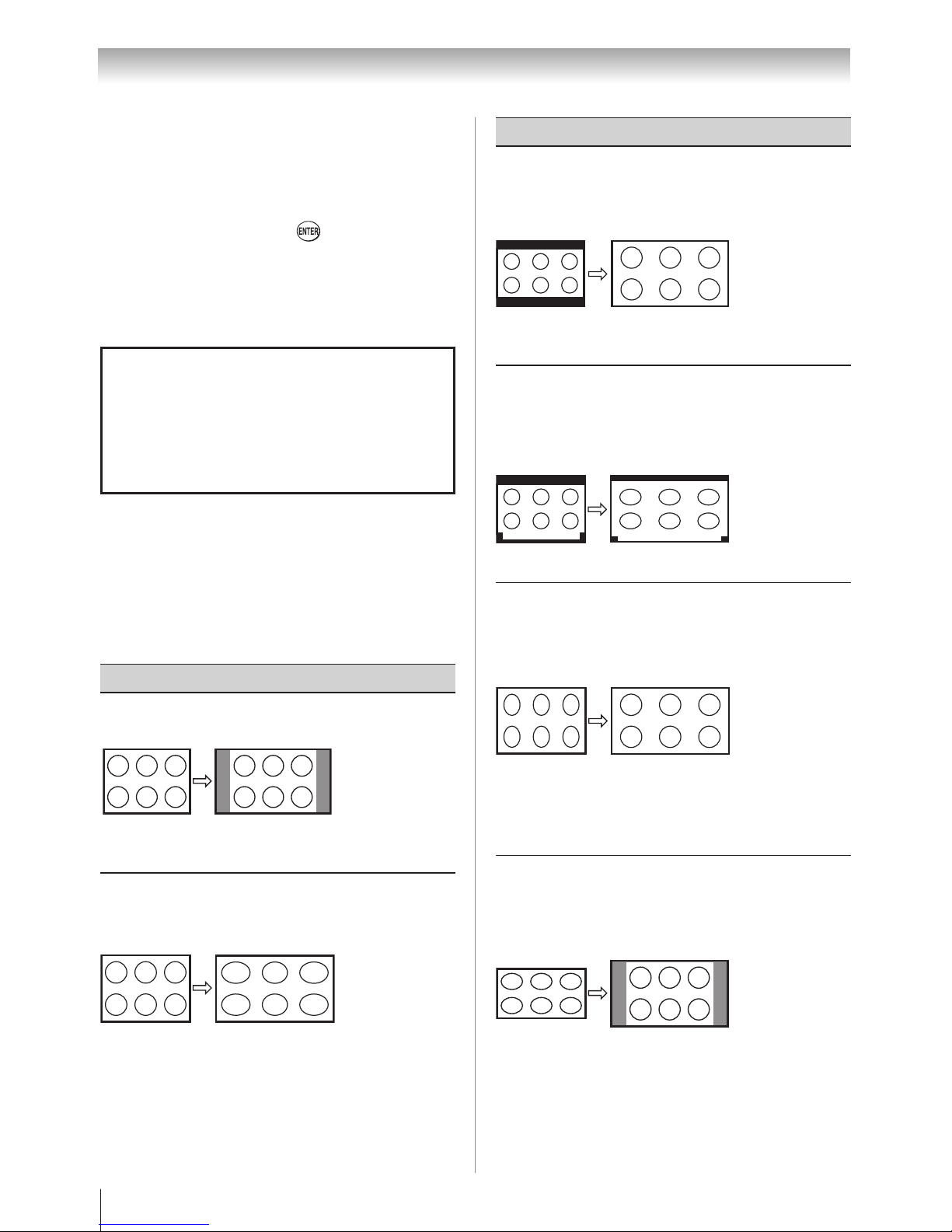

Selecting the picture size...................................................................33
Scrolling the TheaterWide
®
picture (TheaterWide 2 and 3 only)..35
Using the auto aspect ratio feature ............................................35
Selecting the cinema mode .......................................................36
Using the FREEZE feature........................................................36
Adjusting the picture..................................................................36
Selecting the picture mode.....................................................36
Adjusting the picture quality..................................................37
Using the closed caption mode..................................................37
Base closed captions ..............................................................37
Digital CC Settings ...............................................................38
CC Selector.............................................................................38
Adjusting the audio
....................................................................38
Muting the sound....................................................................38
Using the digital audio selector..............................................38
Selecting stereo/SAP broadcasts............................................39
Adjusting the audio quality....................................................39
Selecting the optical audio output format..............................39
Using the Dolby
®
Digital Dynamic Range Control feature..40
Using the Locks menu...............................................................40
Entering the PIN code............................................................40
If you cannot remember your PIN code ................................40
Changing your PIN code........................................................40
Blocking TV programs and movies
by rating (V-Chip)
.......................................................40
Downloading an additional rating system for blocking TV
programs and movies
..................................................41
Locking channels ...................................................................42
Unlocking programs temporarily...........................................43
Using the input lock feature...................................................43
Using the GameTimer
®
..........................................................43
Using the control panel lock feature......................................43
Using the PC settings feature.....................................................44
Setting the PC Audio..................................................................44
Using the Media Player..............................................................45
Using the Media Player with USB.........................................45
T o select the Auto Start function............................................45
T o open the Media Player .....................................................45
Viewing photo files ...............................................................46
Single Vie w.............................................................................46
Slideshow ...............................................................................46
Playing music files.................................................................46
During playback.....................................................................47
Viewing photo files with playing music files at same time...47
Setting the sleep timer................................................................48
Using REGZA-LINK
REGZA-LINK
REGZA-LINK
VOLUME and MUTE controls of Audio Receiver...............49
Other REGZA-LINK
®
...............................................................48
®
playback device (DVD player, etc.) control 48
®
input source selection.................................49
®
functions...........................................49
Displaying TV status information.............................................50
Understanding the auto power off feature.................................50
Understanding the last mode memory feature ..........................50
Chapter 7: Using the TV’s advanced features ...........51
Using the advanced picture settings features.............................51
Using Dynamic Contrast........................................................51
Using the static gamma feature..............................................51
Selecting the color temperature .............................................51
Using CableClear
®
digital noise reduction............................52
Using MPEG noise reduction................................................52
Using 1080p PC Mode...........................................................52
Using the Game Mode feature...............................................52
Using the advanced audio settings features...............................53
Using the QSound
®
sound feature .........................................53
Chapter 8: Troubleshooting ................................54
General troubleshooting.............................................................54
Chapter 9: Appendix .........................................56
Specifications.............................................................................56
Acceptable signal formats for PC IN and HDMI terminals......57
Limited United States Warranty for LCD Televisions..............58
Limited Canadian Warranty for Toshiba Brand Flat Panel
Televisions ..........................................................................59
8
Chapter 1: Introduction
Features of your new TV
The following are just a few of the many exciting
features of your new Toshiba widescreen, integrated
HD, LCD TV:
Integrated digital tuning (8VSB ATSC and
s
QAM) eliminates the need for a separate digital
converter set-top box (in most cases).
1080p output resolution.
s
Four HDMI
s
interfaces 1080p input support (page 16).
HDMI new capability
s
INSTAPORT™ technology reduces lag time
when switching HDMI sources.
One set of ColorStream
s
component video inputs (page 15).
QSound
s
Digital Audio Out optical audio connection with
s
Dolby
CableClear
s
page 52).
PC IN (Analog RGB) computer terminal (page
s
18-19).
Channel Labeling allows you to put the Call
s
Letters (e.g. ABC, HBO, etc.) on the screen along
with the station numbers, so you always know
what you’re watching (page 26).
REGZA-LINK allows control of external devices
s
from the TV remote via HDMI connection (
page 49).
Media Player allows you to view photo files and
s
to play music files.( page 45).
®
digital, high-definition multimedia
®
HD high-resolution
®
audio technologies (page 53).
®
Digital optical output format (page 39).
®
digital picture noise reduction (
9
Chapter 1: Introduction
Overview of steps for installing,
setting up, and using your new TV
Follow these steps to set up your TV and begin using
its many exciting features.
Carefully read the important safety, installation,
1
care, and service information. Keep this manual
for future reference.
Observe the following when choosing a location
2
for the TV:
Read “Important notes about your LCD TV”
s
(page 7).
Place the TV on the floor or a sturdy, level,
s
stable surface that can support the weight of the
unit. Secure the TV to a wall, pillar, or other
immovable structure ( page 4).
Place the TV in a location where light does not
s
reflect on the screen.
Place the TV far enough from walls and other
s
objects to allow proper ventilation. Inadequate
ventilation may cause overheating, which will
damage the TV. THIS TYPE OF D AMAGE
IS NOT COVERED UNDER THE TOSHIBA
WARRANTY.
Do not plug in any power cords until AFTER you
3
have connected all cables and devices to your TV.
10 Program channels into the TV’s channel memory
(page 25).
11 For details on using the TV’s features, see
Chapters 6 and 7.
12 For help, refer to the Troubleshooting Guide,
Chapter 8.
13 For technical specifications and warranty
information, see Chapter 9.
14 Enjoy your new TV!
4
BEFORE connecting cables or devices to the TV,
learn the functions of the TV’s connections and
controls (pages 11–12).
5
Connect your other electronic device(s) to the TV
(pages 13–19).
6
Install the batteries in the remote control (page
20).
7
See “Learning about the remote control” (page
21) for an overview of the buttons on the remote
control.
8
AFTER connecting all cables and devices, plug
in the power cords for your TV and other devices.
Then press POWER on the TV control panel or
remote control to turn on the TV. If the TV stops
responding to the controls on the remote control
or TV control panel and you cannot turn the TV
off or on, please unplug the power cords few
seconds then re-plug to try again.
9
See “Menu layout and navigation” for a quick
overview of navigating the TV’s menu system
(page 22).
10
Chapter 1: Introduction
TV front and side panel controls and connections
Model 32E200U is used in this manual for illustration purposes.
Left side panel
3
7
4
8
5
6
9
10
11
12
Control panel
1 Green LED and TOSHIBA Logo LED
Power LED(Green) = Power indicator
TOSHIBA Logo LED= On or Off ( page 24).
TV front
TV top
12
— When no menu is on-screen,
7 CHANNEL
ST
these buttons change the channel (programmed
channels only; page 25).
2 Remote sensor
— Point the remote control
toward this remote sensor ( “Remote control
effective range” on page 20).
3 POWER
— Press to turn the TV on and off.
If the TV stops responding to the controls on
the remote control or TV control panel and you
cannot turn off the TV, please unplug the power
cord few seconds then re-plug to try again.
4 ARROWS
STWX
— When a menu is onscreen, these buttons function as up/down/left/
right menu navigation buttons.
5 MENU (ENTER)
— Press to access the menu
system (pages 22–23). When a menu is onscreen, the
panel functions as the
6 EXIT
— Press to instantly close an on-screen
button on the TV’s control
MENU
button.
ENTER
menu.
— These buttons adjust the
8 VOLUME
WX
volume level.
9 INPUT
— Repeatedly press to change the source
you are viewing (
ANT/CABLE, VIDEO 1, VIDEO
2, ColorStream HD, HDMI 1, HDMI 2, HDMI 3,
HDMI 4, PC
10 HDMI
).
®
— High-Definition Multimedia
IN
Interface input receives digital audio and
uncompressed digital video from an HDMI
device or uncompressed digital video from a DVI
device. HDMI connection is necessary to receive
1080p signals.
11 VIDEO-2 IN
are referred to as “
— The side panel A/V connections
VIDEO 2
” and include standard
A/V connections.
12 USB port
— To access photo or music files.
11
Chapter 1: Introduction
TV back panel connections
For an explanation of cable types and connections, see pages 13–19.
TV back
Power Cord
1 PC IN
2 HDMI
3 PC/HDMI-1 (AUDIO) IN
4 ANT/CABLE
— For use when connecting a personal
computer.
®
— High-Definition Multimedia
IN
Interface input receives digital audio and
uncompressed digital video from an HDMI
device or uncompressed digital video from a
DVI device. HDMI connection is necessary to
receive 1080p signals.
— PC audio input
terminals are shared with HDMI-1 analog audio
input terminals, and their use can be configured
in the
Audio Setup
menu (page 44).
— Antenna input that supports
analog (NTSC) and digital (ATSC) off-air
antenna signals and analog and digital Cable TV
(QAM) signals.
1
2
3
4
75
6
6 VIDEO-1 IN
— Standard (composite) video and
standard audio inputs plus for connecting devices
with composite video.
Note: Standard (composite) video cable
carry only video information; separate
audio cables are required for a complete
connection.
7 ColorStream
®
— ColorStream
HD
®
highdefinition component video input (with standard
stereo audio inputs) for connecting devices with
component video output, such as a Toshiba DVD
player with ColorStream
®
.
Note: Component video cables carry only
video information; separate audio cables
are required for a complete connection.
5 Digital Audio OUT
— Optical audio output in
Dolby Digital or PCM (pulse-code modulation)
format for connecting an external Dolby Digital
decoder, amplifier, A/V receiver, or home theater
system with optical audio input.
12
Chapter 2: Connecting your TV
Overview of cable types
Cables can be purchased from most stores that sell audio/
video devices. Before purchasing any cables, be sure of
connector types required by your devices and the length
of each cable.
Coaxial (F-type) cable
Coaxial (F-type) cable is used for connecting your
antenna, cable TV service, and/or cable converter box
to the ANT/CABLE input on your TV.
Standard A/V cables (red/white/yellow)
Standard A/V cables (composite video) usually come
in sets of three, and are for use with video devices with
analog audio and composite video output. These cables
(and the related inputs on your TV) are typically colorcoded according to use: yellow for video, red for stereo
right audio, and white for stereo left (or mono) audio.
Optical audio cable
Optical audio cable is for connecting receivers with
Dolby Digital or PCM (pulse-code modulation) optical
audio input to the TV’s DIGITAL AUDIO OUT terminal
(page 18).
Analog RGB (15-pin) computer cable
Analog RGB (15-pin) computer cable is for connecting
a PC to the TV’s PC IN terminal (page 18).
About the connection illustrations
You can connect different types and brands of devices to
your TV in several dif ferent conf igurations. The connection
illustrations in this manual are representative of typical
device connections only. The input/output terminals on
your devices may differ from those illustrated herein. F or
details on connecting and using your specific devices, refer
to each device’ s owner’s manual.
Component video cables (red/green/blue)
Component video cables come in sets of three and are
for use with video devices with component video output.
(ColorStream
These cables are typically color-coded red, green, and
blue. Separate audio cables are required for a complete
connection.
Note: Component video cables provide better
picture performance than a standard (composite)
video.
®
is Toshiba’s brand of component video.)
HDMI® cable
(with HDMI Logo “
HDMI (High-Definition Multimedia Interface) cable
is for use with devices with an HDMI output. An
HDMI cable delivers digital audio and video in its
native format. This cable carries both video and audio
information; therefore, separate audio cables are not
required for a complete HDMI device connection (
page 16 and page 19).
”)
Note: HDMI cable provides better picture
performance than a standard (composite) video.
13
Chapter 2: Connecting your TV
Connecting a VCR and antenna, Cable TV or Camcorder
Camcorder
VIDEO
AUD O
OUT
L
R
TV back panel
VIDEO 2 inputs
on TV right side panel
You will need:
coaxial cables
s
standard A/V cables
s
If you have a mono VCR, connect L/MONO
−
on the TV to your VCR’s audio out terminal
using the white audio cable only.
standard audio cables (If you have a mono VCR)
s
Note: When you use a Cable box, you may not
be able to use the remote control to program or
access certain features on the TV.
To view the antenna or Cable signal:
Select the ANT/CABLE video input source on the TV.*
From Cable TV or
antenna
From Cable TV
Cable box
IN
CH 3
CH
OUT
Stereo VCR
VIDEO AUD O
LR
L
IN
fom
IN
CH 3
ANT
CH 4
OUT
OU
to
TV
To view the VCR:
Turn ON the VCR. Select the VIDEO 1 video input
source on the TV.*
To view the camcorder video:
Select the VIDEO 2 video input source on the TV.*
To select the video input source, press INPUT on the
*
remote control ( page 21).
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs,
and other materials is prohibited under the Copyright
Laws of the United States and other countries, and may
subject you to civil and criminal liability.
To view basic and premium Cable channels:
Turn OFF the VCR. Select the ANT/CABLE video
input source on the TV.* Tune the TV to channel 3 or
4 (whichever channel the Cable box output is set to).
Use the Cable box controls to change channels.
14
Chapter 2: Connecting your TV
Connecting a DVD player with ColorStream® (component video), a VCR,
and a satellite receiver
From satellite dish
AUDIO
OUT
OUT
R
Satell te
IN
Y
PB
COMPONENT VIDEO
PR
V DEO
S-V DEO
OUT
Satellite receiver with component video or
DVD player with component video
You will need:
coaxial cables
s
standard A/V cables
s
If you have a mono VCR, connect L/MONO
−
on the TV to your VCR’s audio out terminal
using the white audio cable only.
standard audio cables
s
component video cables
s
You can connect the component video cables
−
(plus audio cables) from the DVD player or
satellite receiver to the ColorStream terminal
on the TV. The ColorStream HD terminal
can be used with Progressive (480p, 720p)
and Interlaced (480i, 1080i) scan systems.
A 1080i signal will provide the best picture
performance (1080p is not supported).
If your DVD player or satellite receiver does
−
not have component video, connect a
standard A/V cable to VIDEO 2 on the side
panel. If your DVD player has HDMI video,
see page 16.
TV back panel
From antenna
Stereo VCR
VIDEO AUD O
IN
IN om AN
CH 3
CH 4
OU
OU o V
To view antenna or Cable channels:
Select the ANT/CABLE video input source on the TV.*
To view the DVD player:
Turn ON the DVD player. Select the ColorStream HD
video input source on the TV.*
To view satellite programs using the
component video connections:
Turn on the satellite receiver. Select the ColorStream
HD video input source on the TV.*
To view the VCR or view and record
antenna channels:
Turn ON the VCR. Tune the VCR to the channel you want
to watch. Select the VIDEO 1 video input source on the TV.*
To record a TV program while watching a DVD:
Turn ON the VCR. Tune the VCR to the channel to
record. Select the ColorStream HD video input source
on the TV* to view the DVD.
To select the video input source, press INPUT on the
*
remote control (page 21).
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs,
and other materials is prohibited under the Copyright
Laws of the United States and other countries, and may
subject you to civil and criminal liability.
15
Chapter 2: Connecting your TV
Connecting an HDMI® or DVI
device to the HDMI input
The HDMI input on your TV receives digital audio
and uncompressed digital video from an HDMI
source device, or uncompressed digital video from a
DVI (Digital Visual Interface) source device.
This input is designed to accept HDCP (HighBandwidth Digital-Content Protection) program
material in digital form from EIA/CEA-861-D–
compliant
a set-top box or DVD player with HDMI or DVI
output).
The HDMI input can accept and display VGA,
SVGA, XGA, WXGA, SXGA, 480i (60Hz), 480p
(60Hz), 720p (60Hz), 1080i (60Hz) and 1080p
(24Hz/60Hz) signal formats. For detailed signal
specifications, see page 57.
Supported Audio format: Linear PCM, sampling rate
32/44.1/ 48 kHz
Note: To connect a PC to the HDMI input, see page 19.
To connect an HDMI device, you will need:
s
To view the HDMI device video:
Select the HDMI 1, HDMI 2, HDMI 3 or HDMI 4
video input source on the TV.
To select the video input source, press INPUT on the
*
remote control (page 21).
[1]
consumer electronic devices (such as
one HDMI cable (type A connector) per HDMI device
For proper operation, it is recommended that
−
you use an HDMI cable with the HDMI Logo (
).
To display an 1080i/60Hz signal format, you
−
will need a Category 2 cable. Conventional
HDMI/DVI cable may not work properly.
HDMI cable transfers both video and audio.
−
Separate analog audio cables are not
required (see illustration).
See “Setting the HDMI
−
®
audio mode”
( page 27).
TV back panel
Control panel
HDMI device
*
To connect a DVI device, you will need:
one HDMI-to-DVI adapter cable (HDMI type A
s
connector) per DVI device
For proper operation, the length of an HDMI-
−
to-DVI adapter cable should not exceed 9.8 ft
(3m). The recommended length is 6.6 ft (2m).
one pair of standard analog audio cables per DVI
s
device
An HDMI-to-DVI adapter cable transfers
−
video only. Separate analog audio cables
are required (see illustration).
See “Setting the HDMI
−
( page 27).
TV back panel
DVI device
VIDEO AUD O
N
OU
R
L
Note: To ensure that the HDMI or DVI device is reset
properly, it is recommended that you follow these
procedures:
When turning on your electronic components,
U
turn on the TV first, and then the HDMI or
DVI device.
When turning off your electronic components,
U
turn off the HDMI or DVI device first, and
then the TV.
[1] EIA/CEA-861-D compliance covers the
transmission of uncompressed digital video
with high-bandwidth digital content protection,
which is being standardized for reception of
high-definition video signals. Because this is
an evolving technology, it is possible that some
devices may not operate properly with the TV.
®
audio mode”
V
T
16
Chapter 2: Connecting your TV
REGZA-LINK® connection
You can control the basic functions of connected audio/video devices using the TV’s remote control if you
connect a REGZA-LINK compatible audio receiver or playback device. For an explanation of setup and
operations, see page 49.
TV back panel
Playback device
Audio receiver
(REGZA-LINK DVD player,etc.)
Playback device
(REGZA-LINK DVD player,etc.)
To connect an Audio Receiver and Playback
Devices, you will need:
HDMI cables (page 13)
s
Note:
If several devices are connected, REGZA-LINK
s
feature may not operate properly.
For proper operation, it is recommended that you
s
use HDMI cables with the HDMI Logo
(
).
Before controlling the device(s):
After completing the above connections, set the
s
REGZA-LINK Setup menu as you desire ( page
49).
The connected devices must also be set. For
s
details, see the operation manual for each device.
The REGZA-LINK feature uses the CEC
s
technology as regulated by the HDMI standard.
This feature is limited to models incorporating
s
Toshiba’s REGZA-LINK. However, Toshiba is not
liable for those operations. Refer to the individual
instruction manuals for compatibility information.
Note: This feature may not work properly
depending on the devices that are connected.
17
Chapter 2: Connecting your TV
Connecting a digital audio system
The TV’s DIGITAL AUDIO OUT terminal outputs a
*Dolby
(pulse-code modulation) signal for use with an
external Dolby
audio system with optical audio input.
You will need:
s
To control the audio:
®
Digital or 2-channel down-mixed PCM
®
Digital decoder or other external
optical audio cable (Use an optical audio cable
that has the larger “TosLink” connector and not
the smaller “mini-optical” connector.)
Dolby Digital decoder or
other digital audio system
TV back panel
Note:
Some audio systems may not be compatible
U
with Dolby Digital bitstream signals. Older
audio systems that are not compatible with
standard optical out signals may not work
properly, creating a high noise level that
may damage speakers or headphones.
THIS DAMAGE IS NOT COVERED BY YOUR
WARRANTY.
The DIGITAL AUDIO OUT terminal may not
U
output some digital audio sources because
of copy restrictions.
Manufactured under license from Dolby
*
Laboratories. Dolby, and the double-D symbol are
trademarks of Dolby Laboratories.
Connecting a personal computer (PC)
With either the PC IN or HDMI connection, you can watch
your computer’s display on the TV and hear the sound
from the TV’s speakers.
To connect a PC to the PC IN terminal on the TV:
When connecting a PC to the PC IN terminal on the TV, use
an analog RGB (15-pin) computer cable and a PC audio cable.
TV back panel
Turn on the TV and the digital audio device.
1
Press on the TV’s remote control and open the
2
Sound menu.
Highlight Audio Setup and press .
3
In the Optical Output Format field, select either
4
Dolby Digital or PCM, depending on your device
(“Selecting the optical audio output format” on
page 39).
PC audio
cable
Computer
To use a PC, set the monitor output resolution on the
s
PC before connecting it to the TV. The PC IN terminal
can accept and display VGA, SVGA, XGA, WXGA and
SXGA signal formats. For detailed signal specifications
( page 57).
Other formats or non-standard signals will not be
displayed correctly.
To display the optimum picture, use the PC setting
s
feature ( “Using the PC settings feature” on page 44).
PC audio
output
Conversion adapter
(if necessary)
(continued)
18
Chapter 2: Connecting your TV
Note:
The PC audio input terminals on the TV are shared
U
with the HDMI-1 analog audio input terminals (
page 44).
Some PC models cannot be connected to this TV.
U
An adapter is not needed for computers with a
U
compatible mini D-sub15-pin terminal.
Depending on the DVD’s title and the
U
specifications of the PC on which you are playing
the DVD-Video, some scenes may be skipped or
you may not be able to pause during multi-angle
scenes.
Signal names for mini D-sub 15-pin connector
s
Pin
No.
Signal
name
Pin
No.
Signal
name
Pin
No.
Signal
name
1 R 6 Ground 11 Reserved
2 G 7 Ground 12 SDA
3 B 8 Ground 13 H-sync
4 Reserved 9 5V 14 V-sync
5 Reserved 10 Ground 15 SCL
Note:
The edges of the images may be hidden.
U
If receiving a 480i (HDMI), 480p (HDMI), 720p,
U
1080i, or 1080p signal program, Native mode
scales the video to display the entire picture within
the borders of the screen (i.e. no overscanning).
To connect a PC to the HDMI terminal on the TV:
When connecting a PC to the HDMI terminal on the
TV, use an HDMI-to DVI adapter cable and analog
audio cables.
If connecting a PC with an HDMI terminal, use an
HDMI cable (type A connector). Separate analog
cables are not necessary ( page 16).
TV back panel
PC audio
cable
Computer
PC audio
output
The HDMI input can accept and display VGA, SVGA,
XGA, WXGA, SXGA, 480i (60Hz), 480p (60Hz), 720p
(60Hz), 1080i (60Hz), and 1080p (24Hz/60Hz) signal
formats. For detailed signal specifications, see page 57.
19
Chapter 3: Using the remote control
Installing the remote control
batteries
Remove the battery cover from the back of
1
the remote control.
Squeeze tab
and lift cover.
Install two “AAA” size batteries, making
2
sure to match the + and – signs on the
batteries to the signs on the battery
compartment.
Reinsert the battery cover in the remote
3
control until the tab snaps.
Caution: Batteries must not be exposed
to excessive heat such as sunshine, fire or
the like.
Remote control effective range
For optimum performance, aim the remote control
directly at the TV and make sure there is no
obstruction between the remote control and the TV.
Point remote control toward
remote sensor on front of TV.
16.4 ft (5m)
Note:
Be sure to use AAA size batteries.
U
Dispose of batteries in a designated disposal
U
area.
Batteries should always be disposed of with
U
the environment in mind. Always dispose of
batteries in accordance with applicable laws
and regulations.
If the remote control does not operate
U
correctly, or if the operating range becomes
reduced, replace batteries with new ones.
When necessary to replace batteries in the
U
remote control, always replace both batteries
with new ones. Never mix battery types or use
new and used batteries in combination.
Always remove batteries from the remote
U
control if they are dead or if the remote
control is not to be used for an extended
period of time. This will prevent battery acid
from leaking into the battery compartment.
20
Chapter 3: Using the remote control
Learning about the remote control
The buttons used for operating the TV only are
described here.
Note: The error message “NOT AVAILABLE”
may appear if you press a key for a function
that is not available.
1
POWER
on, the green LED indicator on the TV front will be
illuminated.
2
PIC SIZE
TheaterWide 1/2/3,Full,4:3 HD,Native
( page 34).
3
PIC MODE
4
INPUT
5
SLEEP
6
FREEZE
moving picture (page 36).
turns the TV on and off. When the TV is
cycles through the picture sizes:
and
selects the picture mode ( page 36).
selects the video input source ( page 29).
accesses the sleep timer ( page 48).
freezes the picture. Press again to restore the
,
Natural
Dot by Dot
7
Channel Numbers (0–9, –/100)
The
button is used to tune digital channels (
33) or to edit the Favorites List ( page 30).
8
FAV BROWSER
Channel Brower™ ( page 30).
9
RECALL
10
ST
CH
menu is on-screen ( page 25).
11
C.CAPTION
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
reduces or turns off the sound ( page 38).
MUTE
VOL + –
displays TV status information as well as program
INFO
details, when available ( page 50).
closes on-screen menus.
EXIT
activates highlighted items in the main menu
ENTER
system.
CH RTN
( page 33).
Arrow buttons (
these buttons select or adjust programming menus.
(Also see W / X .)
/ X While watching TV, these b uttons open the
W
Channel Browser™ and tune to the previous/ne xt
channel in the channel history ( page 31).
(Also see “Arrow buttons.”)
accesses the main TV menu system
MENU
( pages 22 and 23).
Stops the tape or DVD.
STOP
Begins playback of a tape or DVD.
PLAY
SKIP
Fast-forwards the tape or DVD.(Press during play
FF
mode to view the picture moving rapidly forward.)
Eject the tape or DVD.
EJECT
PAUSE
picture ; press again to restart.
SKIP
chapter, or locates previous chapters.
Rewinds/reverses the tpae or DVD. (Press
REW
during play mode to view the picture moving rapidly
backward.)
accesses the Favorites List in the
displays TV status information ( page 50).
cycles through programmed channels when no
accesses the closed caption ( page 38).
adjusts the volume level.
returns to the last viewed channel or source
STWX
Skips forward to locate later DVD chapters.
Press during play or record mode to pause the
Skips back to beginning of current DVD
directly tune channels.
When a menu is on-screen,
)
page
21
Chapter 4: Menu layout and navigation
Main menu layout
The tables below and on the next page provide a quick overview of your TV’s menu system.
To open the main menus (illustrated below), press
Icon Item Option
Sound
Mode
Picture Settings
Noise Reduction
Game Mode
Theater Settings
Digital Audio Selector
Audio Settings
Advanced Audio Settings
on the remote control or TV control panel.
Sports / Standard / Movie / PC / Preference
p
[Opens the Picture Settings menu]
p
[Opens the Noise Reduction menu]
p
Off / On
p
[Opens the Theater Settings menu]
p
[Launches the temporary Audio Selector]
p
[Opens the Audio Settings menu]
p
[Opens the Advanced Audio Settings menu]
p
Preferences
Locks
Setup
Audio Setup
CC Selector
Base CC Mode
Digital CC Settings
Input Labeling
Channel Labeling
Menu Language
Channel Browser Setup
REGZA-LINK Player Control
Enable Rating Blocking
Edit Rating Limits
Input Lock
Control Panel Lock
GameTimer
New PIN Code
Installation
REGZA-LINK Setup
Sleep Timer
PC Settings
Logo LED
Media Player
[Opens the Audio Setup menu]
p
p [Launches the temporary CC Selector]
Off / CC1 / CC2 / CC3 / CC4 / T1 / T2 / T3 / T4
p
[Opens the Digital CC Setup menu]
p
[Opens the Input Labeling menu]
p
[Opens the Channel Labeling menu]
p
English / Français / Español
p
[Opens the Channel Browser Setup menu]
p
[Opens the REGZA-LINK Player Control]
p
p Off / On
[Opens the Edit Rating Limits menu]
p
Off / Video / Video+
p
Off / On
p
Off / 30 min / 60 min / 90 min / 120 min
p
[Opens the New PIN Code entry screen]
p
p [Opens the Installation menu (page 23)]
Enable REGZA-LINK / TV Auto Input Switch
p
/ TV Auto Power / Device Auto Standby / Speaker
Preference
[Opens the Sleep Timer menu]
p
[Opens the PC Settings menu]
p
Off / On
p
[Opens the Media Player menu]
p
22
Chapter 4: Menu layout and navigation
Setup/Installation menu layout
The Installation menu contains the Terrestrial and System Status menus.
To open the Installation menu (illustrated below), press
Setup menu, select Installation, and press
.
Icon Item Option
Terrestrial
System Status
Input Configuration
Channel Program
Channel Options
Channel Tuning Mode
Time Zone
Signal Meter
System Information
[Opens the Input Configuration menu]
p
[Start] p [Scans for new channels on ANT/CABLE]
p
[Opens the Skip / Lock Channel menu]
p
Standard / Auto / Digital
p
p
Eastern / Newfoundland / Atlantic / Hawaii / Alaska /
Pacific / Mountain / Central
[Opens the Signal Meter menu]
p
[Opens the System Information screen]
p
Navigating the menu system
You can use the buttons on the remote control or TV
control panel to access and navigate your TV’s onscreen menu system.
Press to open the menu system.
s
on the remote control or TV control panel, open the
Note:
The menu background may sometimes appear
black, depending on the signal the TV is
receiving. This is not a sign of malfunction.
When a menu is open, use the up/down/left/right
s
arrow buttons (STWX) on the remote control
or TV control panel to move in the corresponding
direction in the menu.
Press to save your menu settings or select
s
a highlighted item. (A highlighted menu item
appears in a different color in the menu.)
All menus close automatically if you do not make
s
a selection within 60 seconds, except the signal
meter menu, which closes automatically after
about 5 minutes.
To close a menu instantly, press .
s
23
Chapter 5: Setting up your TV
Initial Setup
When you first turn on or reset the TV, the Initial
Setup window will appear.
In the Menu Language field, press W or X to
1
select your preferred language.
Press W or X to select Time Zone and set your
2
desired time zone with W or X and press
Next, the Location setting window will appear.For
3
normal home use, press W or X to select Home
and press
Next, ANT/CABLE In setup window will appear.
4
Press W or X to select the input source (Cable or
Antenna) for the ANT/CABLE input on the TV.
If you select Antenna, the Channel Tuning Mode
5
setup window will appear. To tune only digital
channels, select Digital. To tune digital channels
preferentially over analog when entering channel
number directly, select Auto. For normal tuning,
select Standard. Press
Tuning.
Press to select Start Scan and continue with
6
the Auto Tuning.
.
to continue to Auto
TOSHIBA Logo LED
You can select TOSHIBA Logo LED either On or Off.
Press and open the Setup menu, highlight
1
Logo LED.
Press W or X to select either On or Off and press .
2
.
Configuring the antenna input
source for the ANT/CABLE terminal
To configure the ANT/CABLE input source:
Press and open the Setup menu.
1
Highlight Installation and press .
2
You can stop the Initial Setup with
you do not finish the entire Initial Setup process, the
Initial Setup window will appear every time you turn
on the TV.
. However if
Selecting the menu language
You can choose from three different languages
(English, French and Spanish) for the on-screen
display of menus and messages.
To select the menu language:
Press and open the Preferences menu,
1
highlight Menu Language.
Press W or X to select your preferred menu
2
language.
(A new set of Installation menu icons will appear,
3
as shown below.) Open the Terrestrial menu,
highlight Input Configuration, and press
Press W or X to select the input source (Cable or
4
Antenna) for the ANT/CABLE input on the TV.
.
Press to close the Preferences menu.
3
24
T o sa ve your ne w settings, highlight Done and press
5
. To revert to your original settings, highlight
Cancel and press
.
(continued)
Chapter 5: Setting up your TV
Programming channels into the
TV’s channel memory
When you press or on the remote control
or TV control panel, your TV will stop only on the
channels you programmed into the TV’s channel
memory.
Follow the steps below to program channels into the
TV’s channel memory.
Programming channels automatically
Your TV can automatically detect all active channels
in your area and store them in its memory. After the
channels are programmed automatically, you can
manually add or erase individual channels in the
channel memory.
Note:
You must configure the ANT/CABLE input
U
source before programming channels
( page 24).
The automatic channel programming process
U
will erase channels that were previously
programmed into the TV’s memory.
To tune the TV to a channel not programmed
U
in the channel memory, you must use the
Channel Number buttons on the remote
control.
Programming channels when the ANT/
U
CABLE input is configured for Cable will take
substantially longer than when the antenna
input is configured for Antenna. This is
normal; however, once channel programming
is finished, you should not have to repeat
the programming process again unless your
Cable TV service lineup changes significantly.
To program channels automatically:
(A new set of Installation menu icons will appear ,
4
as shown below.) Open the Terrestrial menu,
highlight Channel Program to bring up the Start,
and press
The TV will automatically cycle through all the
antenna channels, and store all active channels in the
channel memory . While the TV is c ycling through
the channels, the message “Scanning channels,
please wait” appears (as shown abov e).
T o cancel channel programming, press on the
5
remote control (or highlight Cancel in the on-screen
display and press
When channel programming is finished, press
to view the programmed channels.
again to begin channel programming.
).
Setting channel skip
To prevent certain channels from being viewed,
channel positions can be skipped.
From the Setup menu, highlight Installation and
1
press
Press S or T to select
2
.
Channel Options
. The list of channels will appear.
and press
or
Configure the antenna input source, if you have
1
not already done so (page 24).
Press and open the Setup menu.
2
Highlight Installation and press .
3
Press S or T to select a channel position to be
3
skipped and press
box. To remove the tick, press
. A tick will appear in the
again.
(continued)
25
Chapter 5: Setting up your TV
To add a channel to the channel memory:
Highlight the checked box next to the channel number
you want to add, and then press
To manually add digital subchannels on a
physical channel:
Use the Channel Numbers and the Dash ( ) on
the remote control to enter the channel number (for
example, 56–1).
If the channel is found, the number will be added to
the list and the box will be unchecked.
If the channel is not found, a message will appear.
Note: Skipped channels cannot be selected with
or ; however, they can still be accessed
using the number keys on the remote control.
to remove the tick.
Labeling channels
A list of common channel labels (logos) for various
channels (ABC, CBS, etc.) will be programmed into
the TV. You will be able to view and assign these
logos from the Channel Labeling window. If the
desired channel label is not provided in the list, you
will be able to manually enter/edit labels using the
software keyboard.
To remove channel labels:
Open the Channel Labeling window.
1
Press or to select the channel for which
2
you want to remove the label.
Press STWX to highlight No Label and press .
3
Repeat steps 2 and 3 for other channels.
4
To save your settings, highlight Done and press .
5
If the desired channel label is not available from the
list of presets, you can create a custom label.
To create and assign a custom label:
Open the Channel Labeling window.
1
Press or to select a channel you want to
2
label.
Press STX to highlight Custom and press .
3
The software keyboard will appear.
To assign channel labels:
Press and open the Preferences menu.
1
Highlight Channel Labeling and press .
2
The Channel Labeling window opens.
Press or to select the channel you want to
3
label.
Press STWX to highlight the desired channel
4
label and press
Repeat steps 3 and 4 for other channels.
5
To save your settings, highlight Done and press .
6
The maximum number of labels that can be stored
is 128.
.
Repeatedly press the corresponding key on the
4
remote control to highlight the desired character
on the on-screen software keyboard.
The highlighted character is entered after you
5
either press a different key, press X key, or after a
two-second pause.
Repeat steps 4 and 5 until you have entered all
6
desired text.
When finished, press .
7
New labels will be added to the list in alphabetical
8
order and marked with an icon
they are custom. Highlight the new custom label
and press
Assigned channel labels will be displayed in the
banner,
To delete the custom label:
Open the Channel Labeling window.
1
Highlight the label to be deleted and press
2
Highlight Yes from the deletion confirmation
3
window and press
to assign.
Channel Options, and Channel BrowserTM.
.
to indicate that
26
(continued)
Chapter 5: Setting up your TV
Highlight Done and press to save changes,
4
and go back to the Channel Labeling window.
Setting the HDMI® audio mode
To set the HDMI audio mode:
Press and open the Sound menu.
1
Highlight Audio Setup and press .
2
Press S or T to select HDMI 1 Audio and
3
then press W or X to select the HDMI 1 audio
mode (Auto, Digital, or Analog). (Auto is the
recommended mode.) See “Connecting an HDMI
or DVI device to the HDMI input” (page 16).
setting is set to “Digital” and is grayed out in
the menu. (Also see item 3 on page 12 and
“Setting the PC Audio” on page 44.)
Viewing the digital signal meter
You can view the digital signal meter in the ANT/
CABLE digital TV input source only.
To view the digital signal meter:
Press and open the Setup menu.
1
Highlight Installation and press .
2
A new set of Installation menu icons will appear.
3
Open the Terrestrial menu, highlight Signal
Meter, and press
Press STWX to select the antenna input and
4
digital channel whose signal you want to check.
Note:
The physical digital channel number listed in
s
the Signal Meter screen may not correspond
to a virtual TV channel number. Contact your
local broadcasters to obtain the RF channel
numbers for your local digital stations.
The signal strength does not change between
s
virtual channels on the same physical
channel.
To close the screen and return to the
Terrestrial menu:
.
Mode Description
When viewing the HDMI 1 input, if digital
audio from the HDMI input is available,
Auto
Digital
Analog
To save your settings, highlight Done and press .
4
Note: Because the PC and HDMI-1 inputs
share the same set of analog audio inputs, the
PC Audio menu setting influences the HDMI 1
Audio menu setting. If PC Audio is set to “No,”
the HDMI 1 Audio setting changes to “Auto.”
If PC Audio is set to “Yes ,” the HDMI 1 Audio
it will be output. If not, the TV will
automatically detect and output analog
audio from the PC Audio input.
When viewing the HDMI 1 input, digital
audio from the HDMI input will be output.
When viewing the HDMI 1 input, analog
audio from the PC Audio input will be
output.
Highlight Done and press .
To return to normal viewing:
Press .
Setting the time zone
The Time Zone setup will allow you to specify the
correct time zone for your region. This feature will
allow the TV status information to show the correct
time zone information ( page 50).
To set the time zone:
From the Setup menu, highlight Installation and
1
press
will appear.
Highlight Time Zone, and press .
2
Press W or X to select the region, highlight Done,
3
and then press
After the time zone has been set, you will be asked to
set the current Daylight Saving Time status.
. A new set of Installation menu icons
.
(continued)
27
Chapter 5: Setting up your TV
To set the Daylight Saving Time status:
Press W or X to select Yes or No, highlight Done,
1
and then press
.
Viewing the system status
To view the system status:
Press and open the Setup menu.
1
Highlight Installation and press .
2
A new set of Installation menu icons will appear.
3
Open the System Status menu, highlight System
Information, and press
Press WX to scroll through the menu bar to select
4
the Factory Defaults or Support Information and
view the related information.
To close the screen and return to the
Installation menu:
.
Highlight DONE and press .
To return to normal viewing:
Press .
Reset Factory Defaults
To reset all settings and channels to their
factory default values:
Press and open the Setup menu.
1
Highlight Installation and press . A new set of
2
Installation menu icons will appear.
Open the System Status menu, highlight System
3
Information, and press
Press WX to scroll through the menu bar to select
4
Factory Defaults.
Highlight Yes and press .
5
(If PIN code has been set, enter your PIN code.
6
Press Wor X to select Done and press
The TV will turn off automatically after a few
seconds. After the TV turns off, unplug the TV
power cord and then plug it in again to complete
the reset process.
.
.)
To cancel the reset:
Select No and press in step 5 above.
28
Chapter 6: Using the TV’s features
Selecting the video input source
to view
To select the video input source to view:
Press on the remote control or TV control
1
panel.
And then either:
2
a) Press 0–8; or
b) Repeatedly press ST on the remote control
and then press
c) Repeatedly press
or TV control panel to change the input.
The current signal source displays in the top right
corner of the Input Selection screen.
Note:
You can label the video input sources
U
according to the specific devices you have
connected to the TV ( “Labeling the video
input sources” at right).
Sources can be “hidden” ( “Labeling the
U
video input sources” at right).
“No Video Signal” will appear randomly on the
U
screen if no signal is received in video input
mode.
If CEC device is connected to a HDMI input,
U
the REGZA-LINK icon will appear.
to change the input; or
on the remote control
If a REGZA-LINK device with HDMI
switching capability (e.g. Audio Receiver) is
connected to the HDMI input:
Press on the remote or TV control panel
repeatedly to highlight HDMI 1, HDMI 2, HDMI 3 or
HDMI 4.
If the connected CEC device has any connected
devices, a separate device selection popup window
will appear.
Press repeatedly to highlight the desired input
source, and then press
Note:
When selecting REGZA-LINK input sources from
U
the popup window using
LINK devices may automatically turn on.
When selecting input sources using ST,
U
you will have to press
particular device from the popup window.
.
, some REGZA-
to actually select a
Labeling the video input sources
You can label each video input source according to
the type of device you connected to each source,
from the following preset list of labels:
– – (default label)
s
Audio Receiver
s
Cable
s
Compact Disc
s
DTV
s
DVD
s
Game Console
s
HDMI Switch (HDMI inputs only)
s
Laser Disc
s
Satellite/DSS
s
VCR
s
Video Recorder
s
Hide (to hide an unused input in the Input Selection
s
screen and in the Channel Browser™ Inputs list)
Note: If you select PC in the Input Selection
screen, you can choose only “– –”, “Game
Console”, or “Hide” as the label.
To label the video input sources:
Press and open the Preferences menu.
1
Highlight Input Labeling and press .
2
(continued)
29
Chapter 6: Using the TV’s features
Press S or T to highlight the video source you
3
want to label.
Press W or X to select the desired label for that
4
input source. If a particular input is not used, you
can select Hide as the label, which will cause that
input to be “grayed out” in the Input Selection
screen and skipped over when you press
the remote control.
To save the new input labels, highlight Done and
5
press
To revert to the factory default labels, highlight
Reset and press
.
.
Input labeling example:
The screen below left shows the default Input Selection
screen (with none of the inputs labeled as a specific
device). The screen below right is an example of how
you could label the inputs if you connected a VCR to
VIDEO 1, Cable TV to VIDEO 2, a video recorder to
ColorStream HD, a DTV set-top box to HDMI 1, and
a satellite/DSS set-top box to HDMI 2, and a DVD
player to HDMI 3.
on
Tuning channels
Tuning channels using the
Channel Browser
The Channel Browser™ provides an easy navigation
interface for all your channels and inputs. This
feature allows you to:
Navigate the contents of all of your inputs.
s
Keep a list of your favorite channels (see
s
“Favorites Browser,” below).
Keep a history of the last 32 channels or inputs
s
viewed.
Quickly surf and tune your recently viewed
s
channels/inputs from the Channel Browser™
History List (illustrated on the next page).
Surf via Browse mode (to immediately tune
s
channels as you highlight them in the Channel
Browser™) or Select mode (to surf over channels
in the Channel Browser™ before you select one
to tune).
Quickly change inputs from the Inputs List.
s
Quickly select REGZA-LINK devices from the
s
REGZA-LINK List.
Favorites Browser
The Favorites Bro wser allo ws you to quickly set up a
favorite channels/inputs list that is inte grated into the
Channel Browser™.
To add a favorite channel/input:
Tune to the channel or input.
1
Press and hold for 3 seconds.
2
Note: Additions are added to the beginning of
the Favorites list on the left side of the Channel
Browser™.
™
Input Selection screen
with no inputs labeled.
Input Selection screen
with all inputs labeled
except input 4, which
has been hidden.
To clear the input labels:
Press and open the Preferences menu.
1
Highlight Input Labeling and press .
2
Highlight Reset and press .
3
30
To delete a favorite channel/input:
Press to open the Favorites browser list.
1
Highlight the channel or input to delete by
2
pressing
Press and hold for 3 seconds. The channel/
3
input will be removed from the Favorites list.
W or X.
To set up the Channel Browser™:
From the Preferences menu, highlight Channel
1
Browser Setup and press
Press S to highlight Navigation, and then press
2
W or X to select either Browse Mode or Select
Mode.
.
(continued)
Chapter 6: Using the TV’s features
Press T to highlight History List, and then press W
3
or X to select the setting you prefer: either On, or
Off.
Note: History List will be cleared every time
the TV is powered off.
Press T to highlight ANT/CABLE List, and then
4
press W or X to select On or Off.
Press T to highlight Inputs List, and then press
5
W or X to select On or Off.
Press T to highlight Favorites List, then press W
6
or X to select On or Off.
Press T to highlight REGZA-LINK List, and then
7
press W or X to select On or Off.
Note: REGZA-LINK List will be automatically
grayed out and set to Off when Enable
REGZA-LINK is switched to Off. (See “To
set the REGZA-LINK Setup” on page 49 for
more information.)
To save your entries, highlight Done and press
8
. To return to factory defaults, highlight Reset
and press
To open the Channel Browser™:
Press W or X on the remote control.
s
Press W to surf backward through the previously
s
tuned 32 channels in the History list, the channels
in the ANT/ CABLE channel list, the inputs in
the Inputs list, the REGZA-LINK devices in the
REGZA-LINK list, or the favorite channels/inputs
in the Favorites list.
Press X to surf forward through the channel
s
History, the ANT/CABLE channel list, the
Inputs list, the REGZA-LINK list, or the favorite
channels/inputs in the Favorites list.
.
Elements of the ChannelBrowser™
Current list (History, ANT/CABLE, Inputs,
1
Favorites, or REGZA-LINK)
Input type
2
Channel or input currently being viewed
3
Channel or input that is currently
4
highlighted in the browser
Channels stored in the History List
5
Channel labels
6
To toggle among the available lists:
After opening the Channel Browser™, press S or
T to toggle among History, ANT/CABLE, Inputs,
Favorites, and REGZA-LINK.
Note:
The Channel Browser™ opens in History
U
List by default. Once another list has been
selected, the Channel Browser™ will open in
the last selected list.
If all lists are turned off, pressing
U
will not display the Channel Browser™.
or
If Favorites List is turned off,
effect.
Pressing
U
Favorites list regardless of the last selected list in
the Channel Browser™.
will bring up the Channel Browser™
To tune to a channel or input in Browse
mode:
While watching TV, press W or X to
1
open the Channel Browser™ and surf back to a
previous item or surf forward to the next item in
the list.
In Browse mode, when you stop on an item in the
Channel Browser™, it will be highlighted and
the TV will automatically tune to the channel or
input.
W, X,
will have no
Press to close the Channel Browser™.
2
(continued)
31
Chapter 6: Using the TV’s features
To tune to a channel or input in Select mode:
While watching TV, press W or X to open the
1
Channel Browser™ and surf back to a previous item
or forward to the next item in the list.
In Select mode, when you stop on an item in the
Channel Browser™, it will be highlighted but you
must press
item.
Press to tune the TV to the highlighted item.
2
Press to close the Channel Browser™.
3
to tune the TV to the highlighted
Adding and clearing channels and inputs
in the History List
Adding channels and inputs to the History
List:
As a channel or input is tuned, the Channel Browser™
adds it to the History List and displays it on the “right
side” of the Channel Browser™. Previously tuned
channels/inputs are “shifted” to the left, eventually
moving off the left side. Press
through the previously tuned channels/inputs. Any
channel or input that is tuned repeatedly will not be
repeated in the History List, but instead is moved to
the end of the list on the right side of the Channel
Browser™.
The Channel Browser™ will store the following
channels:
All channels that are tuned using the numeric buttons
s
on the remote control.
All channels that are tuned using or on the
s
remote control.
Note: Whenever an item is selected that cannot
be tuned (for various reasons), the TV will
automatically tune to the previously viewed
channel or input.
Clearing channels from the History List:
Reconfiguring the ANT/CABLE input will clear the
s
History List.
Note: See page 24 for details on configuring
the antenna input.
Once 32 channels or inputs are stored in the History
s
List, the oldest item will be removed from the list
when a new channel or input is tuned.
Turning off the TV will clear the History List.
s
W to surf backward
Setting the Channel Tuning Mode
This feature allows you to choose how tuning will be
handled for analog and digital channels when the TV
is in Antenna mode.
Note: To use this feature, the Input Configuration
must be set to Antenna ( page 24 ).
The channel tuning mode has three options.
Mode Description
Standard
Auto
(default)
Digital Only digital channels can be tuned
Note: Digital mode will be most useful after
analog channels are shut down by the
government in 2009.
To set the Channel Tuning Mode:
From the Setup menu, highlight Installation and
1
press
will appear.
Open the Terrestrial menu, highlight Channel
2
Tuning Mode, and then press X to select your
desired mode.
Note:
The Channel Options windows as well as
U
the Channel Browser ANT/CABLE list will be
updated automatically when you change the
mode. Also, the History List will be cleared, but
the Favorites List will be saved.
Even if the Channel Tuning Mode is set to
U
Digital, analog channel 3 will still be the
default channel to prevent the initial case
where no digital channels have been found in
prior channel scans. (Channel Options will not
have anything listed until a scan is done.)
Both analog and digital channels can
be tuned normally
Digital channels will have priority when
manually entering a channel number
using the Channel Number (0-9) on the
remote control, analog channels can
still be tuned by
. A new set of Installation menu icons
/
, if available
32
Chapter 6: Using the TV’s features
Tuning to the next programmed
channel
To tune to the next programmed channel:
Press or on the remote control or TV control
panel.
Note: This feature will not work unless you
program channels into the TV’s channel memory
( page 25).
Tuning to a specific channel
(programmed or unprogrammed)
Tuning analog channels:
Press the Channel Number (0–9) on the remote
control. For example, to select channel 125, press 1, 2,
5, then
.
Tuning digital channels:
Press the Channel Number (0–9) on the remote
control, followed by the dash (
the sub-channel number. For example, to select digital
channel 125-1, press 1, 2, 5, –, 1, then
Note: If a digital channel is not programmed—
either through the automatic channel scan (
page 25) or the Channel add function ( page
26)—you will have to tune the RF channel using
the Channel Number and dash (
remote control.
) button and then
.
) on the
Switching between two channels
using Channel Return
The Channel Return feature allows you to switch
between two channels without entering an actual
channel number each time.
Select the first channel you want to view.
1
Select a second channel using the Channel
2
Number buttons (and the dash (
selecting a digital channel).
) button if
Switching between two channels
using SurfLock™
The SurfLock™ feature temporarily “memorizes” one
channel to the
channel quickly from any other channel by pressing
. To memorize a channel to the button:
Tune the TV to the channel you want to program
1
into the
Press and hold for about 2 seconds until
2
the message “Memorized” appears on-screen.
The channel has been programmed to the
button.
You can then change channels repeatedly, and
3
when you press
will be tuned.
The TV will return to the memorized channel one
time only. Once you press
channels again, the CH RTN memory will be cleared
and the button will function as Channel Return,
by switching back and forth between the last two
channels that are tuned.This feature also works for
external inputs.
button, so you can return to that
button.
, the memorized channel
and then change
Selecting the picture size
You can view many program formats in a variety of
picture sizes—Natural, TheaterWide 1, TheaterWide
2, TheaterWide 3, Full, 4:3 HD, Native, and Dot by Dot
(available in PC Mode Only).
Note: The “picture size” illustrations are
examples only. The format of the image (in any
of the picture sizes) will vary depending on the
format of the signal you are currently watching.
Select the picture size that displays the current
program the way that looks best to you.
You can save separate picture size preferences for
each input on your TV.
To select the picture size using the remote
control:
Press on the remote control. The previous
3
channel will display. Each time you press
TV will switch back and forth between the last two
channels that were tuned.
Note: If you press from a non-antenna
input, the TV will return to the last-viewed
input.
, the
Press on the remote control.
1
While the Picture Size screen is open, you can do
2
one of the following to select the desired picture
size:
Repeatedly press .
s
Press the corresponding Number button (0–6)
s
while the Picture Size screen is open.
Press S or T while the Picture Size screen is
s
open.
(continued)
33
Chapter 6: Using the TV’s features
To select the picture size using the menus:
Select Picture Size in the Theater Settings menu.
1
Press W or X to select the desired picture size
2
setting.
Highlight Done and press .
3
Note: Some of the picture sizes may not be
available depending on the receiving signal
format (those will be “grayed out” in the Picture
Size screen).
Using these functions to change the picture
size (i.e., changing the height/ width ratio)
for any purpose other than your private
viewing may be prohibited under the
Copyright Laws of the United States and
other countries, and may subject you to civil
and criminal liability.
®
Note: If you select one of the TheaterWide
picture sizes, the top and bottom edges of the
picture (including subtitles or captions) may be
hidden. To view the hidden edges, either scroll
the picture (TheaterWide 2 and 3 only) or try
viewing the program in Full or Natural picture
size.
Picture Size
TheaterWide 2
(for letter box programs)
The top and bottom edges of the picture may be
hidden*.
TheaterWide 3
(for letter box programs with
subtitles)
A B C D E F G - - - - - - - - - - - - - - - -
The top and bottom edges are hidden*.
A B C D E F G - - - - - - - - - - - - - - - - - - - - - - - - - -
Full
(for 16:9 [480i, 480p] source
Picture Size
Natural
Some program formats will display with sidebars
and/or bars at the top and bottom.
TheaterWide 1
(for 4:3 format programs)
The center of the picture remains close to its original
proportion, but the left and right edges are stretched
wider to fill the screen.
programs only)
If receiving a squeezed 4:3 format program, the
s
picture is stretched wider to fill the width of the
screen, but not stretched taller.
None of the picture is hidden.
s
4:3 HD
(for 720p, 1080i, and 1080p program
sources only)
Picture is not distorted from original size.
34
(continued)
Chapter 6: Using the TV’s features
Picture Size
Native
(for 480i (HDMI), 480p (HDMI), 720p,
1080i, and 1080p signal programs)
If receiving a 480i (HDMI), 480p (HDMI), 720p,
s
1080i, or 1080p signal program, Native mode scales
the video to display the entire picture within the
borders of the screen (i.e. no overscanning).
This is especially useful for external HD sources
s
such as DVHS movies, or PC graphics.
Note:
This mode is supported only for HDMI
U
(1080p,1080i, 720p, 480p, and 480i), ColorStream
(1080i and 720p), and ANT/ CABLE (digital)
inputs (1080p,1080i, and 720p).
Depending on the input signals, the border of
U
the picture may be hidden, displayed in black,
or noisy.
To set the scroll settings:
Press and open the Picture menu.
1
Highlight Theater Settings and press .
2
In the Picture Size field, select either TheaterWide
3
2 or TheaterWide 3 (you cannot scroll in any other
mode).
Press T to highlight the Picture Scroll field.
4
Press W or X to scroll the picture up and down as
5
needed.
To save the new settings, highlight Done and
6
press
highlight Reset and press
Note: When receiving a signal at 480i
resolution, the picture scroll function may have
limited adjustment range.
. To revert to the factory defaults,
.
Dot by Dot
(for VGA, SVGA, XGA, WXGA, and
SXGA sources only)
The “Dot by Dot” picture is non-scaling display.
Depending on the input signal formats, picture is
displayed with sidebars and/or bars at the top and
bottom. (Example: VGA input source)
To view the hidden areas (such as subtitles or
*
captions), see below “Scrolling the TheaterWide
picture”.
®
Scrolling the TheaterWide® picture
(TheaterWide 2 and 3 only)
You can set separate scroll settings for the TheaterWide 2
and TheaterWide 3 modes for each input.
Using the auto aspect ratio feature
When the auto aspect ratio feature is set to On, the
TV will automatically select the picture size when
one of the following input sources is received:
A 480i, 480p, 720p, 1080i digital signal from the
s
ANT/CABLE input
A 480i signal from the VIDEO 1 or VIDEO 2 input
s
A 480i signal from the ColorStream HD
s
A 480i, 480p, 720p, 1080i, 1080p, or V GA (60Hz)
s
signal from the HDMI 1/2/3/4 input
Aspect ratio of
signal source
4:3 normal Natural (with sidebars)
4:3 letter box TheaterWide 2
16:9 full Full
Not defined (no
ID-1 data or
HDMI aspect data)
Note:
applicable to PC input.
The auto aspect ratio feature is not
Automatic aspect size
(automatically selected when
Auto Aspect is On)
The current picture size you
set under “Selecting the
picture size” on page 33.
input
(continued)
35
Chapter 6: Using the TV’s features
To turn on the auto aspect ratio feature:
Press and open the Picture menu.
1
Highlight Theater Settings and press .
2
In the Auto Aspect Ratio field, select On.
3
To save the new settings, highlight Done and press
4
. To revert to the factory defaults, highlight
Reset and press
.
To turn off the auto aspect ratio feature:
Select Off in step 3 above.
Selecting the cinema mode
When you view a D VD (3:2 pulldown processed)
from a DVD player connected to the VIDEO 1, VIDEO 2,
ColorStream HD (component video), or HDMI inputs
on the TV, smoother motion can be obtained by setting
the Cinema Mode to Film.
To set the Cinema Mode to Film:
(available for 480i and 1080i signals)
Adjusting the picture
Selecting the picture mode
You can select your desired picture settings from four
different modes, as described below.
Mode Picture Quality
Sports
Standard
Movie
PC
Preference Your personal preferences
Note: PC mode is available for HDMI and PC
inputs only (grayed out for other input sour
Bright and dynamic picture (factory
setting)
Standard picture settings (factory
setting)
Lower contrast for darkened room
(factory setting)
Designed for viewing of PC tables
and documents
ces).
Press and open the Picture menu.
1
Highlight Theater Settings and press .
2
In the Cinema Mode field, select Film.
3
To save the new settings, highlight Done and press
4
. To revert to the factory defaults, highlight
Reset and press
.
To set the Cinema Mode to Video:
Select Video in step 3 above.
Using the FREEZE feature
To use the FREEZE feature:
When viewing the TV, press to make the
1
picture a still picture.
To return to the moving picture, press
2
again (or any other button).
Note: If the TV is left in FREEZE mode for
more than 15 minutes, the FREEZE mode
will automatically be released and the TV will
return to moving picture.
To select the picture mode using the menu
system:
Press and open the Picture menu.
1
Highlight Mode and press .
2
Press S or T to select the picture mode you
3
prefer and press
.
Using the FREEZE function for any purpose
other than your private viewing may be
prohibited under the Copyright Laws of the
United States and other countries, and may
subject you to civil and criminal liability.
36
Note: The picture mode you select affects
the current input only. You can select a
different picture mode for each input.
(continued)
Chapter 6: Using the TV’s features
Adjusting the picture quality
You can adjust the picture quality (Contrast,
Backlight, DynaLight™, Brightness, Color, Tint, and
Sharpness) to your personal preferences.
Selection Pressing W Pressing X
Contrast lower higher
Backlight* darker lighter
DynaLight** On/Off On/Off
Brightness darker lighter
Color paler deeper
Tint reddish greenish
Sharpness softer sharper
Backlight
*
This feature adjusts the brightness of the
entire screen. When in video mode and no
signal is input, this will automatically be set to
0. (Settings are stored in memory.)
** DynaLight
This function automatically strengthens the
black coloring of dark areas in the video
according to the level of darkness.
Using the closed caption mode
Base closed captions
The closed caption mode has two options:
Captions—An on-screen display of the dialogue,
s
narration, and sound effects of TV programs and
videos that are closed captioned (usually marked
“CC” in program guides).
Text—An on-screen display of information not
s
related to the current program, such as weather or
stock data (when provided by individual stations).
To view captions or text:
Press and open the Preferences menu,
1
highlight Base CC Mode.
Press W or X to select the desired closed caption
2
mode and press
To view captions:
s
Highlight CC1, CC2, CC3, or CC4. (CC1 displays
translation of the primary language in your area.)
.
To adjust the picture quality:
Press and open the Picture menu.
1
Highlight Picture Settings and press .
2
Press S or T to select the picture quality you
3
want to adjust (Contrast, Backlight, DynaLight,
Brightness, Color, Tint, or Sharpness), and then
press W or X to adjust the setting, as described in
the table above.
To save the new settings, highlight Done and
4
press
( “Selecting the picture mode”) as a starting
point for adjusting the picture settings.
To revert back to the base mode that you began
adjusting the picture settings from, highlight
Reset and press
The picture qualities you adjusted are automatically
saved in the Preference mode ( “Selecting the
picture mode”) until Reset is selected.
. You can use any of the picture modes
.
Note: If the program or video you selected
is not closed captioned, no captions will
display on-screen.
To view text:
s
Highlight T1, T2, T3, or T4.
Note: If text is not available in your area, a
black rectangle may appear on screen. If this
happens, set the Base CC Mode to Off.
To turn off the closed caption mode:
s
Select Off in step 2 above.
Note: A closed caption signal may not display
in the following situations:
When a videotape has been dubbed
U
When the signal reception is weak
U
When the signal reception is non-standard
U
(continued)
37
Chapter 6: Using the TV’s features
Digital CC Settings
You can customize the closed caption display
characteristics by changing the background color,
opacity, text size, type, edge, and color.
Note:
This feature is available for digital channels
U
only.
You cannot set the Caption Text and
U
Background as the same color.
To customize the closed captions:
Press and open the Preferences menu.
1
Highlight Digital CC Settings and press .
2
Press S or T to highlight the characteristic you
3
want to change, and then press W or X to select
the format for that characteristic (see table below).
To save the new settings, highlight Done and press
4
. To revert to the factory defaults, highlight
Reset and press
Caption Size Auto, Small, Standard, Large
Caption T e xt
Type
Caption T e xt
Edge
Caption T e xt
Color
Text Foreground
Opacity
Background
Color
Text Background
Opacity
Caption T e xt
Edge Color
.
Auto, Default, Mono w. Serif,
Prop. w. Serif, Mono w/o
Serif, Prop. w/o Serif, Casual,
Cursive, Small Capitals
Auto, None, Raised,
Depressed, Uniform, Left
Drop Shadow, Right Drop
shadow
Auto, Black, White, Red,
Green, Blue, Yellow, Magenta,
Cyan
Auto, Transparent,
Translucent, Flashing, Solid
Auto, Black, White, Red,
Green, Blue, Yellow, Magenta,
Cyan
Auto, Transparent,
Translucent, Flashing, Solid
Auto, Black, White, Red,
Green, Blue, Yellow, Magenta,
Cyan
CC Selector
You can use the CC Selector to temporarily override
the default analog caption mode (set in Base CC
Mode) for a particular channel. However, once you
change to another analog channel, the closed caption
setting will automatically change back to the current
Base CC Mode setting.
You can also use the CC Selector to select digital
closed caption services (if available). When such
services are not available, the CC Selector presents a
default list of services. If the selected service is not
available, the next best service will be used instead.
To select closed captions:
Press and open the Preferences menu.
1
Highlight CC Selector and press .
2
Press S or T to select Closed Caption, and then
3
press W or X to select the desired service.
Press .
4
Adjusting the audio
Muting the sound
Press on the remote control to partially reduce
(1/2 MUTE) or turn off (MUTE) the sound. Each time
you press
following order:
1/2 Mute Mute Volume
If the closed caption mode is set to Off when you
select “MUTE” mode, the closed caption feature is
automatically activated if the TV program is Closed
Captioned. To mute the audio without automatically
activating the closed caption feature, use
set the volume to 0. See “Using the closed caption
mode” ( page 37) for more information on closed
caption modes.
Using the digital audio selector
You can use the Digital Audio Selector to
conveniently switch between audio tracks on a digital
channel (for those channels that have multiple audio
tracks). This temporarily overrides the audio track
chosen by the language option under Audio Setup (
“Selecting stereo/SAP broadcasts” on page 39).
To use the digital audio selector:
Press and open the Sound menu.
1
Highlight Digital Audio Selector and press .
2
, the mute mode will change in the
to
(continued)
38
Chapter 6: Using the TV’s features
Press S or T to select Audio, and then press W
3
or X to select the desired service.
second audio program. If you have SAP on, you
will see the current program on the screen but
hear the other language instead of the program’s
normal audio.
If you have SAP on and the station you are
U
watching is not broadcasting a second audio
program, the station’s normal audio will be
output. However, occasionally there is no sound
at all in SAP mode. If this happens, set the MTS
feature to Stereo mode.
Press .
4
Selecting stereo/SAP broadcasts
The multi-channel TV sound (MTS) feature allows
you to output high-fidelity stereo sound. MTS
also can transmit a second audio program (SAP)
containing a second language, music, or other audio
information (when provided by individual stations).
When the TV receives a stereo or SAP broadcast, the
word “STEREO” or “SAP” appears on-screen when
is pressed.The MTS feature is only available
for analog signals on the ANT/CABLE input.
To listen to stereo sound:
Press and open the Sound menu.
1
Highlight Audio Setup and press .
2
In the MTS field, select Stereo.
3
To save the new settings, highlight Done and
4
press
To reset the settings to the factory defaults,
highlight Reset and press
Note:
You can typically leave the TV in Stereo
U
mode because it will automatically output
the type of sound being broadcast (stereo
or monaural).
If the stereo sound is noisy, select Mono to
U
reduce the noise.
To listen to an alternate language on an
ATSC digital station (if available):
.
.
Adjusting the audio quality
You can adjust the audio quality by adjusting the
bass, treble, and balance.
To adjust the audio quality:
Press and open the Sound menu.
1
Highlight Audio Settings and press .
2
Press T or S to highlight the item you want to
3
adjust (Bass, Treble, or Balance).
Press W or X to adjust the level.
4
W makes the bass or treble weaker or
U
increases the balance in the left channel
(depending on the item selected).
X makes the bass or treble stronger or
U
increases the balance in the right channel
(depending on the item selected).
To save the new settings, highlight Done and press
5
. To reset the settings to the factory defaults,
highlight Reset and press
.
Selecting the optical audio output
format
You can use this feature to select the optical audio
output format when you connect a Dolby Digital
decoder or other digital audio system to the Optical
Audio Out terminal on the TV (see “Connecting a
digital audio system” on page 18).
To select the optical audio output format:
Highlight the Language field in step 3 above, and
then press W or X to select the language you prefer.
To listen to a second audio program on an
analog station (if available):
Select SAP in step 3 above.
Note:
A second audio program (SAP) can be heard only
U
on those TV stations that offer it. For example, a
station might broadcast another language as a
Press and open the Sound menu.
1
Highlight Audio Setup and press .
2
In the Optical Output Format field, select either
3
Dolby Digital or PCM, depending on your device.
To save the new settings, highlight Done and press
4
. To revert to the factory defaults, highlight
Reset and press
.
(continued)
39
Chapter 6: Using the TV’s features
Using the Dolby® Digital Dynamic
Range Control feature
This dynamic range control feature causes the ATSC
dynamic range to be further compressed, allowing
you to switch from ATSC to analog broadcasts at the
same dynamic range.
To use the Dolby Digital Dynamic Range
Control:
Press and open the Sound menu.
1
Highlight Audio Setup and press .
2
In the Dolby Digital Dynamic Range Control field,
3
select Compressed. When Standard is selected,
the audio is output with minimal compression.
To save the new settings, highlight Done and
4
press
To revert to the factory defaults, highlight Reset
and press
Note:
This item will be grayed out for NTSC signals,
U
Video, ColorStream, and PC inputs.
The Dolby Digital Dynamic Range Control will
U
function in relation to Optical Output Format
(PCM mode).
.
.
Using the Locks menu
The Locks menu includes the Enable Rating
Blocking, Edit Rating Limits, Input Lock, Front
(Control) Panel Lock, GameTimer, and New PIN
Code features. You can use these features after
entering the correct PIN code.
Entering the PIN code
Press and highlight the Locks menu icon.
1
enter the code a second time to confirm, and
press
The Locks/Active screen appears if the PIN code
s
is already stored. Use the Number buttons to
enter your four-digit code and press
If the wrong PIN code is entered, the message
“Incorrect PIN code, please try again!” appears.
Highlight Retry and press
and press
When the correct PIN code is entered, the Locks menu
opens.
Note:
PIN code cannot be set to “0000”.
.
.
. Enter the code again
.
If you cannot remember your PIN code
While the PIN code entering screen is displayed, press
four times within five seconds. The PIN code will
be cleared and you can enter a new PIN code.
Changing your PIN code
Press and highlight the Locks menu icon.
1
Press T to display the PIN code entering screen.
2
Enter your four-digit PIN code and press .
3
Press T to highlight New PIN Code and press .
4
Press the Number buttons to enter a new four-
5
digit code. Reenter the PIN code to confirm it.
Press . The new PIN code is now active.
6
Note:
PIN code cannot be set to “0000”.
Press T, which displays the PIN code entry
2
screen.
The Lock System screen (below) appears if a
s
PIN code has not been stored. Press the Channel
Number buttons to enter a new four-digit code,
40
Blocking TV programs and movies
by rating (V-Chip)
Some TV programs and movies include signals that
classify the content of the program (violence, sex,
dialog, language). The V-Chip feature in this TV
detects the signals and blocks the programs according
to the ratings you select. (For rating descriptions, see
the tables on the next page.)
(continued)
Chapter 6: Using the TV’s features
To block and unblock TV programs and
movies:
Press and highlight the Locks menu icon.
1
Press T to display the PIN code entering screen.
2
Enter your four-digit PIN code and press .
3
Press T to highlight Enable Rating Blocking.
4
Press X to select On, and then press .
5
PressT to highlight Edit Rating Limits and press
6
. The Edit Rating Limits screen appears.
Press STW X and then press to select the
7
level of blocking you prefer. A box with an “
is a rating that will be blocked. As you highlight
a rating, a definition for the rating appears at the
bottom of the screen.
When done selecting the ratings you want to
8
block, highlight Done and press
Note: Above selection of blocking level is for
U.S V-Chip system. For Canada rating, you can
highlight the “Canada RS” then press
“Canadian Rating Menu” screen will appear.
.
, another
To download the additional rating system
(if available):
Press and highlight the Locks menu icon.
1
Press T to display the PIN code entering screen.
2
Enter your four-digit PIN code and press .
3
Press T to highlight Enable Rating Blocking.
4
Press X to select On, and press .
5
Press T to highlight Edit Rating Limits and press
6
. The Edit Rating Limits screen appears.
Highlight Alt RS and press . The Edit Alternate
7
Ratings screen will appear.
Note:
The Alt RS button will only be available
U
if an additional rating system is currently
available.
It may take several minutes for the TV to
U
download the additional rating system.
The information displayed in the Alternate
”
U
Ratings screen will depend on the
configuration of the additional rating
system available at the time of download.
Press STW X and then press to select the
8
level of blocking you prefer. A box with an “
is a rating that will be blocked.
When you are finished selecting the ratings you
9
want to block, highlight Done and press
In the Edit Rating Limits screen, highlight Done
10
and press
.
”
.
Downloading an additional rating
system for blocking TV programs and
movies
In the future, an additional rating system may become
available for use in selectively blocking programs.
Note: The currently tuned station must be
receiving a digital signal before an additional
rating system can be downloaded.
Note:
The additional rating system can only be
U
downloaded one time. You will not be able to
download any updates to the rating system
should such updates become available.
The additional rating system is not designed,
U
transmitted, or controlled by the TV or
Toshiba, nor is the availability of an additional
rating system determined or controlled by
Toshiba. Similarly, the rating of programs in
an additional rating system is not determined,
transmitted, or controlled by the TV or Toshiba.
The additional rating system is an evolving
U
technology; therefore, availability, content, and
format may vary.
(continued)
41
Chapter 6: Using the TV’s features
Independent rating system for broadcasters
Ratings Description and Content themes
Mature Audience Only (This
program is specifically designed
to be viewed by adults and
TV-MA
TV-14
TV-PG
TV-G
TV-Y7,
TVY7FV
TV-Y
therefore may be unsuitable for
children under 17.)
L) Crude or indecent language S)
Explicit sexual activity V) Graphic
violence
Parents Strongly Cautioned (This
program contains some material
that many parents would find
unsuitable for children under 14
years of age.)
D) Intensely suggestive dialog
L) Strong, coarse language
S) Intense sexual situations V)
Intense violence
Parental Guidance Suggested
(This program contains material
parents may find unsuitable for
younger children.)
D) Some suggestive dialog L)
Infrequent coarse language
S) Some sexual situations V)
Moderate violence
General Audience (Most parents
would find this program suitable
for all ages.)
Directed to Older Children (This
program is designed for children
age 7 and above. Note: Programs
in which fantasy violence may be
more intense or more combative
than other programs in this
category are designated TV-Y7FV.)
All Children (This program is
designed to be appropriate for all
children.)
Parental Guidance Suggested
PG
G
Note:
If you place an “
U
‘None’ Rated,” programs rated “None” will
be blocked; however, programs that do not
provide any rating information will not be
blocked.
To display the rating of the program you are
U
watching, press
it is rated “None,” the word “NONE” appears
in the RECALL screen (as shown below right).
If rating information is not provided, no rating
will appear in the RECALL screen.
(Some material may not be
suitable for children)
General Audience (Appropriate
for all ages)
” in the box next to “
on the remote control. If
Locking channels
With the Lock feature, you can lock specific
channels. The locked channels can only be accessed
by entering the PIN.
To lock channels:
From the Setup menu, highlight Installation and
1
press
Press S or T to select Channel Options and
2
press
.
. The list of channels will appear.
Independent rating system for movies
Ratings Description and Content themes
X
NC-17
R
PG-13
42
X-rated (For adults only)
Not intended for anyone 17 and
under
Restricted (Under 17 requires
accompanying parent or adult)
Parents Strongly Cautioned (Some
material may be inappropriate for
children under 13)
Press X and then S or T to select a channel in
3
the lock column.
PIN code entry will be re uired to set a locked
4
channel.
Note: If the PIN code has not been set yet, a
warning message will appear.
A tick will appear in the box.
5
To remove the tick, press
again.
(continued)
Chapter 6: Using the TV’s features
Unlocking programs temporarily
If you try to tune the TV to a program that exceeds
the rating limits you set, the TV will enter program
lock mode and the following message will appear onscreen
This program exceeds the rating limit you set.
Push 'MUTE' to enter PIN.
You can either temporarily unlock the program or
select an unlocked program to watch.
To temporarily unlock the program:
Press
1
Enter your four-digit PIN code and press . If
2
the correct code is entered, the program lock mode
is released and the normal picture appears. All
locking is disabled until the TV is turned off, and
will be enabled when the TV is turned on again.
Using the input lock feature
You can use the Input Lock feature to lock the video
inputs (VIDEO 1, VIDEO 2, ColorStream HD, HDMI 1,
HDMI 2, HDMI 3, HDMI 4, and PC) and channels and
. You will not be able to view the input sources or
channels until you unlock the inputs.
To lock/unlock the video inputs:
From the Locks menu, Press T to display the PIN
1
code entering screen.
Enter your four-digit PIN code and press .
2
Press T to highlight Input Lock and press X to
3
select the level of video input locking you prefer,
as described below.
Mode Description
Using the GameTimer
You can use the GameTimer to set a time limit for
playing a video game ( minutes). When the
GameTimer expires, the TV enters Input Lock mode
and locks out the input source for the video game
device.
®
To set the GameTimer®:
From the Locks menu, press T to display the PIN
1
code entering screen.
Enter your four-digit PIN code and press .
2
Press T to highlight GameTimer and press X to
3
select the length of time until the Input Lock is
activated ( , , , or minutes).
To cancel the GameTimer®:
Select Off in step above.
To deactivate the Input Lock once the
GameTimer
Set the Input Lock to Off ( “Using the input lock
feature” as described).
Note:
A message will appear when 10 minutes,
U
3 minutes, and 1 minute remain on the
GameTimer.
If the TV loses power with time remaining on the
U
GameTimer, when power is restored the TV will
enter Input Lock mode (as if the GameTimer
had been activated) and you will have to
deactivate the Input Lock (as described
before).
®
has activated it:
Locks VI E , VI E ,
Video
Video
ff
Press .
4
ColorStream H , H I , H I ,
H I , H I , and PC.
Locks VI E , VI E , ColorStream
H , H I , H I , H I , H I
, PC and channels and .
Select Video+ if you play video tapes
s
via an ANT CABLE input.
Unlocks all video inputs and channels
and .
Using the control panel lock feature
You can lock the control panel to prevent your
settings from being changed accidentally (by
children, for example). When the control panel lock
is On, none of the controls on the TV control panel
will operate except POWER.
To lock the control panel:
Press and highlight the Locks menu icon.
1
Press T to display the PIN code entering screen.
2
Enter your four-digit PIN code and press .
3
Press T to highlight Control Panel Lock.
4
(continued)
43
Chapter 6: Using the TV’s features
Press X to select On. When the control panel
5
is locked and any button on the control panel
(except POWER) is pressed, the message “N T
AVAILABLE” appears.
Note: The screen is disrupted momentarily
when adjusting the PC settings. This is not a
sign of malfunction.
Mode Description
To unlock the control panel:
Select Off in step 5 above, or press and hold the
VOLUME – button on the TV control panel for about
10 seconds until the volume icon appears.
Using the PC settings feature
You can view an image from a PC on the TV screen.
When a PC is connected to the TV's PC IN
terminal, you can use the PC Settings feature to
make adjustments to the image. If the edges of the
picture are cut off, readjust the Horizontal Position
and Vertical Position. If the picture is affected by
interference, readjust the Clock Phase and Sampling
Clock.
To adjust the PC settings:
Repeatedly press to select PC input mode
1
( “Selecting the video input source to view”
page 29).
Press and open the Setup menu.
2
Horizontal
Position
Vertical
Position
Clock
Phase
Sampling
Clock
Auto
Adjust
The default settings may vary depending on
*
the input signal format.
Moves the picture left/right.
The adjustment range is within ±50 from
center.*
Moves the picture up/down.
The adjustment range is within ±10 from
center.*
Helps to reduce noise and sharpen the
picture.
The adjustment range is within ±16 from
center.*
Helps to reduce noise and minimize
periodic vertical stripes on the screen.
The adjustment range is within ±10 from
center.*
Highlight this item then press
to get an optimum adjustment
automatically.
Setting the PC Audio
Highlight PC Settings and press .
3
Note: If a PC is not connected or there is no
pc input signal, this feature will be grayed
out in the Setup menu.
Press S or T to highlight the item you want to
4
adjust.
Press W or X to make the appropriate
5
adjustments.
44
This function allows you to output or mute the sound
from your PC when connecting using the PC IN
terminal and an analog RGB cable. ( page 18)
To set the PC Audio:
Press and open the Sound menu.
1
Highlight Audio Setup and press .
2
Press S or T to select PC Audio and then press
3
W or X to select No or Yes.
Yes: When vie wing the PC input, the audio from the PC
Audio input can be heard.
No: When viewing the PC input, there will be no audio.
Note: Because the PC and HDMI-1 inputs
share the same set of analog audio inputs,
the PC Audio menu setting influences the
HDMI 1 Audio menu setting. If PC Audio
(continued)
Chapter 6: Using the TV’s features
is set to “No,” the HDMI 1 Audio setting
changes to “Auto.” If PC Audio is set to
“Yes,” the HDMI 1 Audio setting is set to
“Digital” and is grayed out in the menu.
(Also see item 3 on page 12 and “Setting the
®
HDMI
Audio mode” on page 27.)
Using the Media Player
Using the Media Player with USB
You can enjoy photos or music contents stored on a
USB storage device.
Photo Viewer specifications:
Data type: JPEG Exif ver2.1
File format: JPEG
Maximum photo size: 6 MB
Maximum number of files: 500 / folder
Maximum photo resolution: 4096 x 4096 pixels
Best photo resolution: 1920 x 1080 pixels
Music Player specifications:
File format: MP3
Sampling frequency: 16 kHz, 22.05 kHz, 24 kHz,
32 kHz, 44.1 kHz, 48 kHz
Bit rate: from 8 to 320 kbps
Maximum number of files: 500 / folder
To select the Auto Start function
Press and W or X to select the Setup menu.
1
Press T to select Media Player, and then press .
2
Select
USB
3
Press S or T to select Auto Start.
4
Press W or X to select On or Off.
5
, and then press .
To open the Media Player
There are two kinds of methods to open the Media
Player.
Automatically open:
Gently insert a supported USB storage device to
1
the USB port on the side of the TV. A prompt will
appear.
Note: If you repeatedly insert and remove
the USB connector, the prompt may not
appear.
Press W or X to select Yes, and then press .
2
When the Auto Start function is On, the Media
Player menu will appear. When you select No,
nothing happens.
Supported file system:
FAT16 and FAT32
Note:
Gently insert the USB device into the port and
U
do not remove while viewing Media Player.
USB device: USB Mass Storage Class device
U
(MSC)
Connectivity is not guaranteed for all devices.
U
Connect the USB device to the TV directly.
U
Do not use a USB Hub.
U
You must obtain any required permission from
U
copyright owners to use copyright content.
Toshiba cannot and does not grant such
permission.
Depending on the file size and amount in your
U
USB storage device, it may take some time
for loading to view. A message will display
on-screen when loading files from the USB
storage device.
Note: The prompt will disappear after about
6 sec.
Manually open:
Press and W or X to select the Setup menu.
1
Press T to select Media Player, and then press
2
.
Select USB, and then press .
3
Press S or T to select Photo or Music then press
4
.
Note:
The viewer will also open even if there are no
U
photo or music files.
While the Media Player is active, the main
U
menus cannot be displayed.
(continued)
45
Chapter 6: Using the TV’s features
Viewing photo files
There are three types of view modes.
Multi View:
This view allows you to search for photos in a grid
format. These pictures are displayed using thumbnail
data in each image file.
Press STWX to move the highlight in one
1
window. If all of the photos will not fit in one
screen, when pressing W at the top left thumbnail,
the screen will move to the previous page.
Conversely, when pressing X at the bottom right
thumbnail, the screen will move to the next page.
/ buttons can be used to page up/down the
photo list when there are more photos than will fit
onto one screen.
To start slideshow, press in the Single View
1
mode.
Press W / X to view the previous/next photo.
2
To set Interval Time and Repeat settings:
Press to open the Quick Menu.
1
Press S or T to select either Interval Time or
2
Repeat.
Press W or X to adjust the setting and press .
3
To close the Photo Viewer
Press . The television will return to the last
1
viewed channel or external input.
Playing music files
You can listen to music from a list of available files.
When you select a folder, press to move to
2
the next layer. Press
previous layer.
Press to view the selected photo in Single
3
View mode.
to move back to the
Single View
In this view mode, only files located in the selected
directory shall be displayed. This view allows you to
change the photo content manually. When moving
from Multi View to the Single View, the currently
selected photo shall be displayed.
Press X to view the next photo. Press W to view
1
the previous photo.
Press S to rotate the image 90° clockwise. Press
2
T to rotate the image 90° counterclockwise.
Slideshow
This view allows you to watch a slideshow of the
photos. In this mode, only files located in the selected
directory will be played.
Press ST to select a file or folder. /
1
buttons can be used to page up/down the music
list when there are more files than will fit onto
one screen.
When you select a folder, press to move to
2
the next layer. Press
previous layer.
With the desired file selected, press or to
3
start playback.
Press to stop playback.
4
Note:
If playback finishes before
U
next file will automatically start to play from the
beginning.
Depending on the file size, it may take some
U
time for playback to begin.
to move back to the
is pressed, the
(continued)
46
Chapter 6: Using the TV’s features
During playback
Press to pause.
s
To resume normal playback, press .
s
To locate a specific file, press or
s
repeatedly.
To adjust volume , press
s
Note:
During playback, you can adjust the SOUND
menu functions from the QUICK menu.
/
To set the repeat mode:
Press to open the Quick Menu.
1
Press W or X to select Off, All or 1.
2
Press .
3
To close the Music Player
Press .
1
Viewing photo files with playing
music files at same time
While viewing photo files, this allow you listen to
music from a list of available files.
Viewing photo files as previous steps. ( refer to
1
Viewing photo files)
Contents Description Description
Photo list (Multi view)
Sorting
See page 46.
To sort the folders and files
Press to open the Quick Menu
1
from Multi View mode.
Press S or T to select Sort.
2
Press W or X to select Title, New
3
or Old to set the sorting rule.
Title--File sorting rules:
1 Unicode priority
2 (0, 1, ..., 9), capital alphabet
(A, B, ..., Z), small alphabet
(a, b, ..., z), Chinese
3 Increasing order
New--From new to old according to
the date and time when the
picture was taken.
Old--From old to new according to
the date and time when the
picture was taken.
Single view mode
Slide Show mode
Skip to previous/next photo
See page 46
See page 46
See page 46
Press and S or T to select Background
2
Music.
Playing music files as previous steps. (refer to
3
Playing music files)
Slideshow Repeat play
Slideshow Interval Time
selection
See page 46
See page 46
(continued)
47
Chapter 6: Using the TV’s features
Contents Description Description
Music
Music list (Multi view)
Sorting
See page 46.
To sort the folders and files
Press to open the Quick Menu.
1
Press S or T to select Sort.
2
Press W or X to select Title, New
3
or Old to set the sorting rule.
Playback
Pause
Stop
Skip
Repeat play
SOUND Settings
Note: Sorting, Total Time display may not be
available in all cases.
See page 46
See page 46
See page 46
See page 47
See page 47
See page 39
Setting the sleep timer
To cancel the sleep timer:
Repeatedly press until it is set to 0 minute.
Using REGZA-LINK
This is a new feature that uses CEC technology
and allows you to control Toshiba REGZA-LINK
compatible devices from the TV remote via HDMI
connection ( page 17).
When the Enable REGZA-LINK in the REGZALINK setup menu is set to On, the following
REGZA-LINK functions will be enabled.
®
REGZA-LINK® playback device (DVD
player, etc.) control
With your TV’s remote control, or using the REGZALINK Player Control menu, you can control the
connected REGZA-LINK playback device you are
watching.
Available remote control key functions:
Before using the following key functions, first set the
MODE SELECT switch on the remote control to TV.
Button Description
You can set the sleep timer to turn off the TV after a
set length of time (maximum of 180 minutes).
To set the sleep timer using the remote control:
Press on the remote control to set the length of
time until the TV turns off. Repeatedly press
increase the time in 10-minute increments, or press
S or T to increase or decrease the time in 10-minute
increments, to a maximum of 180 minutes.
to
To set the sleep timer using the on-screen
menus:
Press and open the Setup menu.
1
Highlight Sleep Timer and press .
2
Press the Number buttons to enter the length of
3
time in 10-minute increments.
Highlight Done and press .
4
Note: When a power failure occurs, the
sleep timer setting may be cleared.
To display the remaining sleep time:
Press .
Note: A message will display on-screen when
there is one minute remaining on the sleep timer.
Begins playback.
Stops playback.
Pauses the picture during play or record
mode.
Skips forward.
Skips backward.
Fast-forwards.
Rewinds/reverses.
STWX
Note: These functions depend on the devices
connected.
Navigate contents menu, etc.
Enters contents menu, etc.
Returns to the previous menu.
REGZA-LINK® Player Control menu
functions:
Press and open the Preferences menu.
1
Highlight REGZA-LINK Player Control and press .
2
(continued)
48
Chapter 6: Using the TV’s features
Press S or T to select the item you want to
3
control and press
Item Description
Power Turns the select device on and off.
Root
Menu
Contents
Menu
Setup
Menu
Top Menu Accesses the top menu of a DVD.
Menu Accesses the menu of a DVD.
Note:
These functions depend on the devices that are
s
connected.
The REGZA-LINK Player Control item will be
s
grayed out in the following conditions:
A non-HDMI input is currently selected.
−
The Enable REGZA-LINK item is set to Off.
−
The connected CEC device is not a
−
playback or recording device
Accesses the top menu of the selected
device.
Accesses the contents list when you press
. At this time, the REGZA-LINK Player
Control menu will disappear.
Accesses the setup menu of a DVD
player.
.
.
REGZA-LINK® input source selection
If a REGZA-LINK device with HDMI switching
capability (e.g. Audio Receiver) is connected to
the HDMI input, you can select another REGZALINK device that is connected to the master HDMI
device using the TV’s INPUT button. See page 29 for
details.
VOLUME and MUTE controls of Audio
Receiver
With your TV’s remote control, you can adjust or
mute the sound volume of the Audio Receiver.
s
s
adjust the volume level.
turns off the sound.
Note:
To use this function:
U
Set Speaker Preference to Audio Receiver in
−
the REGZA-LINK Setup menu.
Confirm that a connected REGZA-LINK device
−
(such as DVD player, etc) is selected for the
Audio Receiver input source.
You can also use this function when the audio
U
receiver is connected to the TV’s DIGITAL
AUDIO OUT terminal (not HDMI connection).
In this case, select a digital audio input mode
on the Audio Receiver.
These functions depend on the device
U
connected.
Other REGZA-LINK® functions
When the Enable REGZA-LINK and each item in the
REGZA-LINK Setup menu are set to On, the following
functions will be enabled.
Item Description
If a connected HDMI device starts
TV Auto
Input Switch
TV Auto
Power
Device Auto
Standby
Speaker
Preference
Note: When you turn on the Audio Receiver,
change its input source, or adjust the sound
volume, the sound will be output from the audio
receiver’s speakers even if TV Speakers has
been selected. Turn the TV off and on again to
output the sound from the TV speakers.
To set the REGZA-LINK® Setup:
From the Setup menu, highlight REGZA-LINK
1
Setup and press
Press S or T to highlight Enable REGZA-LINK.
2
Press W or X to select On.
3
playing video or audio, the TV will
automatically switch to the appropriate
HDMI input.
If a REGZA-LINK device is turned on,
the TV turns on automatically .
If the TV is turned off the TV will send
a message to turn off all of the REGZA-
LINK devices connected to the TV.
From this item, you can set your audio
output preference to the TV speakers
or the audio receiver speakers. When
this item is set to Audio Receiver,
the TV remote can be used to adjust
or mute the volume of the audio.
This item will be grayed out unless
a REGZA-LINK compatible audio
receiver is connected.
.
(continued)
49
Chapter 6: Using the TV’s features
Note: If you select Enable REGZA-LINK Off, the
other items will be grayed out.
Press S or T to highlight the REGZA-LINK Setup
4
item you want to use, and press W or X to select
On or desired mode.
TV Auto Input Switch: On/Off
s
TV Auto Power: On/Off
s
Device Auto Standby: On/Off
s
Speaker Preference: TV Speakers/Audio Receiver
s
To save the new settings, highlight Done and press
5
. To revert to the factory defaults, highlight
Reset and press
.
Displaying TV status information
To display TV status information using
RECALL:
Press on the remote control.
The following information will display (if applicable):
Current input (ANT/CABLE, VIDEO 1, etc.)
s
If ANT/CABLE is the current input, either “CABLE”
s
(for cable TV) or “ANT” (for over-the-air broadcasts).
Channel number (if in ANT/CABLE mode)
s
Channel label (if set)
s
Digital signal strength indicator (bar graph in lower
s
right corner of box; for ATSC signal only)
Stereo, Mono or SAP audio status (when HDMI input
s
mode, Dolby Digital or PCM)
Video resolution
s
Aspect ratio of incoming video signal (4:3 or 16:9)
s
V-Chip rating status
s
Game Timer (if set)
s
Note:
to the top or bottom of the screen by pressing S
or T while the RECALL or INFO display is onscreen.
The location of the banner can be moved
Understanding the auto power off
feature
The TV will automatically turn itself off after
approximately 15 minutes if it is tuned to a vacant
channel or a station that completes its broadcast for the
day . This feature functions in ANT/CABLE mode only .
Understanding the last mode
memory feature
If the power is cut off while you are viewing the
TV, the Last Mode Memory feature automatically
turns on the TV when the power is resupplied.
Note: If it’s possible, and you will be away
from the TV for an extended period of time you
should unplug the power cord.
To close the RECALL screen:
Press again.
To display TV status information using INFO:
Press on the remote control.
The following additional information will display for
off air digital channels (if applicable):
Title
s
Duration
s
Detailed description
s
50
Chapter 7: Using the TV’s advanced features
Using the advanced picture
settings features
Using Dynamic Contrast
Dynamic Contrast detects changes in picture quality
that affect the appearance of your contrast settings
and then automatically adjusts the video.
To select Dynamic Contrast preference:
From the the Picture menu, highlight Picture
1
Settings and press .
Highlight Advanced Picture Settings and press .
2
Press S or T to select
3
Press W or X to select
4
Using the static gamma feature
The static gamma feature allows you to adjust the
levels of black in the picture.
To adjust the static gamma settings:
Press and open the Picture menu.
1
Highlight Picture Settings and press .
2
Highlight Advanced Picture Settings and press .
3
In the Static Gamma field, press W or X to
s
adjust the static gamma.
The adjustment range is within ±5 from center.
If the setting is moved in the minus direction,
s
the detail of black colors will be decreased.
If the setting is moved in the plus direction, the
s
detail of black colors will be increased.
To save the new settings, highlight Done and
4
press
To revert the factory defaults, highlight Reset
and press
Note: If you select one of the factory-set
picture modes (Sports, Standard, Movie
or PC) and then change the static gamma
setting, the picture mode automatically
changes to Preference.
.
.
Dynamic Contrast
High
, Middle
, Low and Off.
.
Selecting the color temperature
You can change the quality of the picture by selecting
from three preset color temperatures (Cool, Medium,
and Warm), as described below.
Mode Picture Quality
Cool blueish
Medium neutral
Warm reddish
To select the color temperature:
Press and open the Picture menu.
1
Highlight Picture Settings and press .
2
Highlight Advanced Picture Settings and press .
3
Highlight Color Temperature and press .
4
In the Color Temperature field, press W or X to select
5
the mode you prefer (Cool, Medium, or Warm).
Press S or T to select either B Drive or G Drive,
6
and then press W or X to adjust the settings.
B Drive: X makes the picture blueish.
s
G Drive: X makes the picture greenish.
s
Note: The B Drive and G Drive settings
are connected to the Color Temperature
settings and will change based on which
setting is selected in step 5 above.
To save the new settings, highlight Done and press .
7
To revert to the factory defaults, highlight Reset and
press
Note: If you select one of the factory-set
picture modes (Sports, Standard, Movie, or
PC) and then change the color temperature
mode, the picture mode automatically
changes to Preference.
.
(continued)
51
Chapter 7: Using the TV’s advanced features
Using CableClear
®
digital noise
reduction
The CableClear® digital noise reduction feature
allows you to reduce visible interference in your
TV picture. This may be useful when receiving a
broadcast with a weak signal (especially a Cable
channel) or playing a noisy video cassette or disc.
To change the CableClear settings:
Press and open the Picture menu, highlight
1
Noise Reduction and press
In the CableClear field, select your desired setting.
2
Note:
If the current input is ANT/CABLE, VIDEO
U
1, or VIDEO 2, the menu will display the text
“CableClear.” The available selections are Off,
Low, Middle, and High.
If the current input is ColorStream HD, HDMI
U
1, HDMI 2, HDMI 3 or HDMI 4, the menu will
display the text “DNR.” The available selections
are Off, Low, Middle, and High. Low, Middle,
and High will reduce the noise in varying
degrees, from lowest to highest, respectively.
To save the new settings, highlight Done and
3
press
To revert to the factory defaults, highlight Reset
and press
.
.
.
Using MPEG noise reduction
Using 1080p PC Mode
You can use this function to output clear word image
on the TV screen, when a PC is connected to the HDMI
terminal.
Note: This function is available only for 1080p HDMI
input signal.
To turn on 1080p PC mode:
Press and open the Picture menu.
1
Highlight Noise Reduction and press .
2
Press S or T to highlight the 1080p PC Mode
3
and then press W or X to select On and press
.
To turn off 1080p PC mode:
Select Off in step 3 above.
Using the Game Mode feature
You can use the Game Mode feature for shorter frame
delays when playing a video game requiring split-second
timing between the on-screen display and input from the
controller (such as music creation and high-action games).
This feature is more effectiv e for 480i and 1080i input
signals.
Note: To use the Game Mode feature, the current
video input must be Video 1, Video 2, ColorStream
HD, HDMI 1, HDMI 2, HDMI 3 or HDMI 4. The Game
Mode cannot be turned on when any other video
input is selected.
The MPEG noise reduction feature allows you to reduce
visible interference caused by MPEG compression.
Choices for MPEG noise reduction are Off, Low,
Middle, and High. Off is automatically selected when
this feature is disabled (“grayed out”).
To select the MPEG noise reduction level:
Press and open the Picture menu.
1
Highlight Noise Reduction and press .
2
Press S or T to highlight the MPEG Noise
3
Reduction field, and then press W or X to select
either Off, Low, Middle or High.
To save the new settings, highlight Done and
4
press
To revert to the factory defaults, highlight Reset
and press
.
.
To turn on Game Mode:
Press and open the Picture menu, highlight
1
the Game Mode.
Press W or X to select On.
2
To turn off Game Mode:
Select Off in step 2 above, change the video input, or
turn the TV off and then on again.
Note: You can change the video input by
pressing
( page 29).
on the remote control
52
Chapter 7: Using the TV’s advanced features
Using the advanced audio
settings features
Using the QSound® sound feature
QSound
dimensional (3D) sound processing algorithm from
QSound Labs that creates 3D audio effects from
multiple monophonic sources and sums the outputs
to two channels for presentation over regular stereo
speakers.
To adjust the QSound® settings:
1
2
3
®
is the original name for a positional three-
Put the TV in STEREO mode ( “Selecting
stereo/SAP broadcasts” on page 39).
Press and open the Sound menu.
Highlight Advanced Audio Settings and press .
Press T or S to highlight the QSound feature,
4
and then press W or X to turn the QSound effect
On or Off.
To save the new settings, highlight Done and
5
press
To revert to the factory defaults, highlight Reset
and press
Note: If the broadcast is monaural, the
QSound effect will not work.
.
.
53
Chapter 8: Troubleshooting
General troubleshooting
Before calling a service technician, please check this
chapter for a possible cause of the problem and some
solutions you can try.
Black box on-screen
The closed caption feature is set to one of the Text
s
modes (T1, T2, T3, or T4). Set the closed caption
feature to Off ( page 37).
TV stops responding to controls
If the TV stops responding to the controls on
s
the remote control or TV control panel and
you cannot turn off the TV, please unplug the
powercord few seconds then re-plug to try again.
Other problems
If your TV’s problem is not addressed in this
s
Troubleshooting section or the recommended
solution has not worked, use the Restore Factory
Defaults procedure ( page 28).
TV will not turn on
Make sure the power cord is plugged in, and then
s
press
The remote control batteries may be dead.
s
Replace the batteries or try the control panel
buttons.
Picture problems
General picture problems
Check the antenna/cable connections ( Chapter 2).
s
Press on the remote control or TV and
s
select a valid video input source ( page 29).
If no device is connected to a particular input
on the TV, no picture will display when you
select that particular input source. For device
connection details, see Chapter 2.
Antenna reception may be poor. Use a highly
s
directional outdoor antenna (if applicable).
The station may have broadcast difficulties. Try
s
another channel.
Adjust the picture qualities ( page 37).
s
.
Noisy picture
If you are watching an analog channel (off-
s
air broadcast or Cable TV), you can set the
CableClear
in the TV picture ( page 52).
®
feature to reduce visible interference
Video Input Selection problems
If the Input Selection window does not appear
s
when you press
or TV, press
change to the next video input source and display
the Input Selection window.
on the remote control
a second time, which will
Cannot view external signals or channel
3 or 4
If you cannot view signals from external devices
s
connected to VIDEO 1, VIDEO 2, ColorStream
HDMI 1, HDMI 2, HDMI 3, HDMI 4, PC or from
channels 3 or 4, make sure the Input Lock is set
to Off ( page 43).
®
Poor color or no color
The station may have broadcast difficulties. Try
s
another channel.
Adjust the Tint and/or Color ( page 37).
s
Poor composite picture
If the TV is connected to an external A/V device
s
(e.g., DVD player, video game system, set-top
box, etc.) try using a ColorStream or HDMI video
connection instead.
Picture and sound are out of sync
As with all products that contain a digital display ,
s
in rare instances, when viewing certain content
(e.g.. television broadcasts, video games, DVDs),
you may notice that the sound and picture are
slightly out of sync. This phenomenon can be
caused by various factors including, without
limitation, video processing within the TV, video
processing in an attached gaming system, and
video processing or different compression rates
used by broadcasters in their programming. You
may want to try one or more of the following
suggestions, which may help to reduce the effect
of this phenomenon:
If the TV is connected to an A/V receiver that
–
has a programmable audio delay feature, use
this feature to help synchronize the sound to
the picture.
If you notice this phenomenon only on
–
certain TV channels, please contact your
local broadcast, cable, or satellite provider to
inform them of this issue.
54
Chapter 8: Troubleshooting
Sound problems
Check the antenna/cable connections ( Chapter 2).
s
The station may have broadcast difficulties. Try
s
another channel.
The sound may be muted. Press VOLUME.
s
If you hear no sound, try setting the MTS feature
s
to Stereo mode ( page 39).
If you are not receiving a second audio program
s
from a known SAP source, make sure the MTS
feature is set to SAP mode ( page 39).
If you hear audio that seems “incorrect” for the
s
program you are watching (such as music or a
foreign language), the SAP mode may be on. Set
the MTS feature to Stereo mode ( page 39).
Remote control problems
Remove all obstructions between the remote
s
control and the TV.
The remote control batteries may be dead.
s
Replace the batteries ( page 20).
If the TV still does not act as expected, use the
s
Reset Factory Defaults procedure ( page 28).
Channel tuning problems
The channel may have been erased from the
s
channel memory by the Programming channels
automatically feature. Add the channel to the
channel memory ( page 25).
The channel may be blocked by the LOCK
s
feature. Unblock the channel ( page 42).
If you are unable to tune digital channels, check
s
the antenna configuration ( page 24). If you
are still unable to tune digital channels, clear all
channels from the channel list and reprogram
channels into the channel memory ( page 25).
If you are still unable to tune digital channels,
use the Reset Factory Defaults procedure (
page 28). Also see “TV stops responding to
controls” and “Other problems”
( page 54).
Closed caption problems
If the program or video you selected is not
s
closed-captioned, no captions will display (
page 37).
If text is not available, a black rectangle may
s
appear. If this happens, turn off the closed
caption feature ( page 37).
A closed-caption signal may not display
s
correctly in the following situations: a) when
a videotape has been dubbed; b) when the
signal reception is weak; or c) when the signal
reception is nonstandard ( page 37).
Rating blocking (V-Chip) problems
If you forget your PIN code: While the PIN
s
code entering screen is displayed, press
four times within 5 seconds. The PIN code you
previously stored will be cleared ( page 40).
No REGZA-LINK operation
The REGZA-LINK feature is available for
s
Toshiba REGZA-LINK compatible devices.
Make sure the HDMI cables with the HDMI
s
Logo (
When the connected REGZA-LINK device does
s
not work correctly after you have changed settings
of the device, turn off your TV and unplug the
power cord, then plug and turn on again.
If several devices are connected, REGZA-LINK
s
feature may not operate properly.
Read the instruction manual furnished with the
s
connected REGZA-LINK device.
) are used.
HDMI problems
For HDMI cables
Make sure to use cables with the HDMI Logo
s
(
) ( page 13).
Media Player problems
Make sure that devices are connected correctly.
s
Incorrect behavior may occur with a USB HUB
s
connection.
Photo files that was processed and edited by using
s
the PC’s application softw are may not be able to be
viewed.
The TV may select one format automatically and
s
play it when contents that support two or more
formats are played.
Confirm contents of the USB storage device are
s
formats that correspond with this TV ( page 45).
55
Chapter 9: Appendix
Specifications
Note:
This model complies with the
U
specifications listed below.
Designs and specifications are subject to
U
change without notice.
This model may not be compatible with
U
features and/or specifications that may be
added in the future.
Television System
NTSC standard
ATSC standard (8VSB)
Digital Cable (64 QAM, 256 QAM; in-the-clear,
unencrypted)
Channel Coverage
VHF: 2 through 13
UHF: 14 through 69
Cable TV :
Mid band (A-8 through A-1, A through I)
Super band (J through W)
Hyper band (AA through ZZ, AAA, BBB)
Ultra band (65 through 94, 100 through 135)
Power Source: 120 V AC, 60 Hz
Power Maximum Current
32E200U/32E20U: 1.55 A
37E200U/37E20U: 1.75 A
40E200U/40E20U: 2.20 A
Power Consumption
32E200U/32E20U: 0.6 W in standby mode
37E200U/37E20U: 0.6 W in standby mode
40E200U/40E20U: 0.6 W in standby mode
Audio Power:
32E200U/32E20U: 10 W + 10 W
37E200U/37E20U: 10 W + 10 W
40E200U/40E20U: 10 W + 10 W
Speaker Type: Two 1-5/8 × 6 inches (4 × 15.2 cm)
Video/Audio Terminals
VIDEO/AUDIO INPUT:
VIDEO: 1 V(p-p), 75 ohm, negative sync.
AUDIO: 150 mV(rms) (30% modulation
equivalent, 22 k ohm or greater)
ColorStream
VIDEO: Y: 1V(p-p), 75 ohm
AUDIO: 150 mV(rms), 22 k ohm or greater
®
(component video) HD INPUT:
PR: 0.7 V(p-p), 75 ohm
PB: 0.7 V(p-p), 75 ohm
Suggested formats: 1080i, 720p,
480p, 480i
®
HDMI
DIGITAL AUDIO OUTPUT:
PC INPUT:
Dimensions
32E200U/32E20U:
37E200U/37E20U:
40E200U/40E20U:
Mass (Weight)
32E200U/32E20U: 24.3 lbs (11.0 kg)
37E200U/37E20U: 29.8 lbs (13.5 kg)
40E200U/40E20U: 32.0 lbs (14.5 kg)
Operating conditions
Temperature: 32ºF - 95ºF (0ºC - 35ºC)
Humidity: 20 - 80% (no moisture condensation)
Supplied Accessories
s
s
INPUT:
HDMI compliant (type A connector)
HDCP compliant
Suggested formats: See table on the next page.
HDMI Audio: 2-channel Linear-PCM;
32/44.1/48 kHz
sampling frequency; 16/20/24
bits per sample
Optical type
15-Pin D-sub Analog RGB
Width: 2’7-1/2 inches (801.68mm)
Height: 1’10-3/4 inches (577.05mm)
Depth: 9-5/8 inches (245mm)
Width: 3’-3/8 inches (924.5mm)
Height: 2’2 inches (660.3mm)
Depth: 11-5/8 inches (295mm)
Width: 3’3-1/8 inches (993.7mm)
Height: 2’3-3/8 inches (694.8mm)
Depth: 11-5/8 inches (295mm)
Remote control with two size “AAA” batteries
Owner’s manual (this book)
56
Chapter 9: Appendix
Acceptable signal formats for PC IN and HDMI terminals
PC IN signal formats
Note: Depending on the connected PC, the following status may occur; incorrect display, false format
detection, picture position failure, blur, or judder. But this is not a malfunction of your TV.
Format Resolution V. Frequency H. Frequency Pixel Clock Frequency
VGA 640 × 480 59.940Hz 31.469kHz 25.175MHz
SVGA 800 × 600 60.317Hz 37.879kHz 40.000MHz
XGA 1024 × 768 60.004Hz 48.363kHz 65.000MHz
WXGA 1280 × 768 59.870Hz 47.776kHz 79.500MHz
1360 × 768 60.015Hz 47.712kHz 85.500MHz
SXGA 1280 × 1024 60.020Hz 63.981kHz 108.000MHz
HDMI signal formats
Format Resolution V. Frequency H. Frequency Pixel Clock Frequency
VGA 640 × 480 59.940Hz 31.469kHz 25.175MHz
SVGA 800 × 600 60.317Hz 37.879kHz 40.000MHz
XGA 1024 × 768 60.004Hz 48.363kHz 65.000MHz
WXGA 1280 × 768 59.870Hz 47.776kHz 79.500MHz
1360 × 768 60.015Hz 47.712kHz 85.500MHz
SXGA 1280 × 1024 60.020Hz 63.981kHz 108.000MHz
480i 720 × 480i 59.940Hz 15.734kHz 27.000MHz
480p 720 × 480p 59.940Hz 31.469kHz 27.000MHz
720p 1280 × 720p 60.000Hz 45.000kHz 74.250MHz
1080i 1920 × 1080i 60.000Hz 33.750kHz 74.250MHz
1080p 1920 × 1080p 24.000Hz 27.000kHz 74.250MHz
1080p 1920 × 1080p 60.000Hz 67.500kHz 148.500MHz
57
Chapter 9: Appendix
Limited United States Warranty
for LCD Televisions
Toshiba America Consumer Products, L.L.C. (“TACP”)
makes the following limited warranties to original
consumers in the United States.
THESE LIMITED WARRANTIES EXTEND TO THE
ORIGINAL CONSUMER PURCHASER OR ANY
PERSON RECEIVING THIS LCD TELEVISION
AS A GIFT FROM THE ORIGINAL CONSUMER
PURCHASER AND TO NO OTHER PURCHASER OR
TRANSFEREE. LCD TELEVISIONS PURCHASED IN
THE U.S A. AND USED ANYWHERE OUTSIDE OF THE
U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA
AND MEXICO, ARE NOT COVERED BY THESE
WARRANTIES. LCD TELEVISIONS PURCHASED
ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING,
WITHOUT LIMITATION, CANADA AND MEXICO, AND
USED IN THE U.S.A., ARE NOT COVERED BY THESE
WARRANTIES.
Limited One (1) Year Warranty on Parts and Labor
TACP WARRANTS THIS LCD TELEVISION AND
ITS PARTS AGAINST DEFECTS IN MATERIALS
OR WORKMANSHIP FOR A PERIOD OF ONE (1)
YEAR FROM THE DATE OF ORIGINAL RETAIL
PURCHASE. DURING THIS PERIOD, TACP WILL, AT
TACP’S SOLE DESCRETION, REPAIR OR REPLACE
A DEFECTIVE PART/PRODUCT WITH A NEW OR
REFURBISHED PART/PRODUCT WITHOUT CHARGE
TO YOU FOR PARTS OR LABOR. ANY PART OR
PRODUCT REPLACED UNDER THIS LIMITED
WARRANTY BECOMES THE PROPERTY OF TACP.
IN SOME CASES, YOU MAY BE RESPONSIBLE FOR
DELIVERING THE PRODUCT TO A SERVICE CENTER.
Rental Units
Warranty period begins on the date of the first rental or
thirty (30) days after the date of shipment to the rental
firm, whichever comes first.
Limited Warranty for Commercial Units
TACP warrants parts and labor for LCD Televisions
that are sold and used for commercial purposes for
a period of ninety (90) days after the date of original
retail purchase. This warranty is void if the product is
exposed to excessive temperature (heat/cold), moisture
as outlined in the product’s specification listed in the
Owner’s manual as well as exposure to excessive
smoke, dust, or other airborne contaminants. All
exclusions outlined in paragraph (4) and (5) under the
“Your Responsibilities” section apply to commercial use.
Your Responsibility
Read the owner’s manual thoroughly before operating
this LCD Television.
Complete and mail the enclosed product registration
card or register your LCD Television online at
toshiba.com/service. Registration of your LCD Television
will enable TACP to contact you in the unlikely event a
safety notification is required under the U.S. Consumer
Product Safety Act.
Failure to complete and return
the product registration card does not diminish your
warranty rights.
www.tacp.
THE ABOVE WARRANTIES ARE SUBJECT TO THE
FOLLOWING CONDITIONS:
This Limited Warranty is extended only to the original
purchaser and only covers product purchased as new.
(1) A purchase receipt or other proof of the original
purchase date is required for Warranty service.
(2) All warranty servicing of this LCD Television must be
performed by an Authorized TACP Service Station.
(3) The warranties from TACP are effective only if this
LCD Television is purchased and operated in the
U.S.A. or Puerto Rico.
(4) Removal and reinstallation of product that is
mounted in such a manner as to impede normal
service is not covered under these warranties. This
includes wall mounts, custom cabinets and other
installation methods that do not provide for direct
and immediate access to the product for service
purposes. Labor service charges for set installation,
setup, adjustment of customer controls, and
installation or repair of antenna, satellite or cable
systems are not covered by this warranty. Reception
problems caused by inadequate antenna systems,
misaligned satellite dishes or improperly installed
cable drops are your responsibility.
(5) Warranties extend only to defects in materials
or workmanship as limited above, and do not
extend to any LCD Television or parts that have
been lost or discarded by you or to damage to the
LCD Television or parts caused by fires, misuse,
abuse, accident, Acts of God (such as lightning or
fluctuations in electric power), improper installation,
improper maintenance, or use in violation of
instructions furnished by TACP; use or malfunction
through simultaneous use of this LCD Television and
connected equipment; or to units that have been
modified or had the serial number removed, altered,
defaced, or rendered illegible.
(6) Products purchased “AS-IS” or “With known faults,
defects or problems” are not covered by this limited
warranty. Product previously owned or registered by
a consumer and resold is not covered by this limited
warranty.
(7) Product that is refurbished and resold is not covered
under this warranty.
How to Obtain Warranty Service
If, after following all of the operating instructions in this
manual, review the section entitled “Concierge” located
on our Customer Support Web site “www.tacp.toshiba.
com/customersupport“.
If you find that service is needed, follow the instructions
provided on the web site or please contact TACP’s
Consumer Solution Center toll free at 1-800-631-3811.
You must present upon request your original bill of sale or
other proof of purchase including the serial number for in
warranty service.
ALL WARRANTIES IMPLIED BY THE LAW OF ANY
STATE OF THE U.S.A., INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE
EXPRESSLY LIMITED TO THE DURATION OF THE
LIMITED WARRANTIES SET FORTH ABOVE. WITH
THE EXCEPTION OF ANY WARRANTIES IMPLIED
BY THE LAW OF ANY STATE OF THE U.S.A. AS
HEREBY LIMITED, THE FOREGOING WARRANTY
IS EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES, GUARANTEES, AGREEMENTS, AND
SIMILAR OBLIGATIONS OF TACP WITH RESPECT
58
Chapter 9: Appendix
TO THE REPAIR OR REPLACEMENT OF ANY
PARTS. IN NO EVENT SHALL TACP BE LIABLE FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, LOST PROFITS,
BUSINESS INTERRUPTION, OR MODIFICATION OR
ERASURE OF RECORDED DATA CAUSED BY USE,
MISUSE OR INABILITY TO USE THIS LCD TELEVISION).
No person, agent, distributor, dealer or company is
authorized to change, modify or extend the terms of
these warranties in any manner whatsoever. The time
within which an action must be commenced to enforce
any obligation of TACP arising under the warranty or
under any statute, or law of the United States or any
state thereof, is hereby limited to ninety (90) days from
the date you discover or should have discovered,
the defect. This limitation does not apply to implied
warranties arising under the law of any state of the U.S.A.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH MAY VARY FROM STATE TO STATE IN THE
U.S.A. SOME STATES OF THE U.S.A. DO NOT ALLOW
LIMITATIONS ON THE DURATION OF AN IMPLIED
WARRANTY, WHEN AN ACTION MAY BE BROUGHT,
OR THE EXCLUSION OR L MITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES. THEREFORE,
THE ABOVE PROVISIONS MAY NOT APPLY TO YOU
UNDER SUCH CIRCUMSTANCES.
Limited Canadian Warranty for
Toshiba Brand Flat Panel Televisions
Toshiba of Canada Limited (“TCL”) makes the following
limited warranties to original consumers in Canada.
THESE LIMITED WARRANTIES EXTEND TO THE
ORIGINAL CONSUMER PURCHASER OR ANY
PERSON RECEIVING THIS TOSHIBA BRAND
FLAT PANEL TELEVISION (the “TELEVISION(S)” or
“Television(s)”) AS A GIFT FROM THE ORIGINAL
CONSUMER PURCHASER AND TO NO OTHER
PURCHASER OR TRANSFEREE.
TELEVISIONS PURCHASED IN CANADA, AND USED
ANYWHERE OUTSIDE OF CANADA INCLUDING,
WITHOUT LIMITATION, THE UNITED STATES
AND MEXICO, ARE NOT COVERED BY THESE
WARRANTIES.
TELEVISIONS PURCHASED ANYWHERE OUTSIDE
OF CANADA, INCLUDING, WITHOUT LIMITATION,
THE UNITED STATES AND MEXICO, AND USED
IN CANADA, ARE NOT COVERED BY THESE
WARRANTIES.
Limited One (1) Year Warranty on Parts and Labour
TCL warrants the Television and its parts against
material defects in materials or workmanship that result
in the Television failing for a period of one (1) year after
the date of original retail purchase. DURING THIS
PERIOD, TCL WILL, AT TCL’S OPTION, REPAIR OR
REPLACE A DEFECTIVE PART WITH A NEW OR
RECERTIFIED PART WITHOUT CHARGE TO YOU
FOR PARTS OR LABOUR.
Rental Units
The warranty for Television rental units begins with the
date of first rental or thirty (30) days from the date of
shipment to the rental firm, whichever comes first.
Your Responsibility
Read the owner’s manual thoroughly before operating
this LCD Television. Complete and mail he enclosed
product registration card or register your LCD Television
online at http://support.toshiba.ca/warranty/. Registration
of your LCD Television will enable TCL to contact you in
the unlikely event of a product safety notice. Failure to
complete the product registration does not diminish your
warranty rights.
THE ABOVE WARRANTIES ARE SUBJECT TO THE
FOLLOWING CONDITIONS:
(1) You must provide your bill of sale or other proof of
purchase.
(2) All warranty servicing of this Television must
be performed by a Toshiba Authorized Service
Provider (ASP).
(3) The warranties from TCL are effective only if the
Television is (i) purchased as new and unopened
from TCL or from TCL’s authorized distributors,
dealers or resellers (“ADR’s”) and (ii) located/
operated in Canada.
(4) Removal and reinstallation of product that is
mounted in such a manner as to impede normal
service is not covered under these warranties. This
includes wall mounts, custom cabinets and other
installation methods that do not provide for direct
and immediate access to the product for service
purposes. Labour charges for set installation,
setup, adjustment of customer controls, and
installation or repair of antenna systems are not
covered by these warranties. Reception problems
caused by inadequate antenna systems are your
responsibility.
(5) Warranties extend only to material defects in
materials or workmanship as limited above, and do
not extend to:
a. Service, repairs or replacement made
necessary by accident, misuse, abuse,
moisture, liquids, dust, dirt, neglect, accident,
damage, 24/7 applications, improper
installation, improper operation, improper
cleaning, improper maintenance, normal
wear and tear, screen burn or image retention
caused by prolonged display of static images
and/or phosphor aging, or any other external
cause or event, act or omission outside
the control of TCL, including fire, theft, acts
of God, alteration, power failures, power
surges or power shortages, lightning, other
electrical faults, or repairs, modifications or
replacements by persons other than those
authorized by TCL to service the Television;
b. Replacement of missing, discarded or lost
parts, the provision of retrofits, or preventive
maintenance;
c. Repair of damage that is cosmetic only or
does not affect the Television functionality,
such as wear and tear, scratches and dents;
d. Service on Toshiba-branded accessory items
(such accessory items may be covered by
their own warranty);
e. Service on third party products or service
made necessary by use of incompatible third
party products;
f. Service made necessary by the simultaneous
use of this Television and connected
equipment;
g. Modifications to the Television not approved in
writing by TCL, and service made necessary
by the use or installation of non-Toshiba
modifications to the Television;
59
Chapter 9: Appendix
h. Service of a Television on which the TOSHIBA
label or logo, rating label or serial number
have been defaced or removed;
i. Damage to the Television caused by failure
to follow the specifications, User manuals or
guides as to usage and/or storage.
j. Firmware updates that are posted to the
Toshiba Support website and can be
performed by the end user via a USB stick or
SD card type media.
Disclaimer and Limitation of Remedy
TO THE EXTENT NOT PRECLUDED BY LAW, ALL
OTHER EXPRESS AND IMPLIED WARRANTIES,
CONDITIONS AND REPRESENTATIONS
FOR THIS TELEVISION, INCLUDING THE
IMPLIED WARRANTIES, CONDITIONS AND
REPRESENTATIONS OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
ARE HEREBY DISCLA MED AND EXCLUDED.
IF THE APPLICABLE LAW, STATUTORY OR
OTHERWISE, PRECLUDES THE EXCLUSION
OF ANY IMPLIED WARRANTIES, CONDITIONS
AND REPRESENTATIONS THEN SUCH
IMPLIED WARRANTIES, CONDITIONS AND
REPRESENTATIONS ARE OTHERWISE LIMITED
IN DURATION TO THE TERM OF THIS EXPRESS
WRITTEN LIMITED WARRANTY. TO THE EXTENT
NOT PRECLUDED BY LAW, STATUTORY OR
OTHERWISE, THIS WRITTEN WARRANTY
SUPERCEDES AND SPECIFICALLY DISCLA MS
ANY OTHER WARRANTY, CONDITION OR
REPRESENTATION NOT STATED IN THIS WARRANTY,
WHETHER MADE BY TCL, TOSHIBA CORPORATION,
THEIR AFFILIATES, ADRs AND ASPs AND WHETHER
MADE ORALLY OR IN WRITING (INCLUDING ANY
STATEMENT IN ANY BROCHURE, PRESS RELEASE,
ANNOUNCEMENT, ADVERTISEMENT, POINT OF
SALE DISPLAY, ETC ).
YOU MUST READ AND FOLLOW ALL SET-UP AND
USAGE INSTRUCTIONS IN THE APPLICABLE USER
GUIDES AND/OR MANUALS. IF YOU FAIL TO DO SO,
THIS TELEVISION MAY NOT FUNCTION PROPERLY
AND YOU MAY SUFFER DAMAGE. THIS WARRANTY
WILL NOT COVER ANY SERVICE THAT IS REQUIRED,
IN PART OR IN WHOLE, AS A RESULT OF ANY
FAILURE TO FOLLOW THE SET-UP AND USAGE
INSTRUCTIONS. THIS WARRANTY DOES NOT APPLY
AND SHALL BE VOID AND UNENFORCEABLE IF THE
TELEVISION IS OPENED, SERVICED, OR REPAIRED
BY PERSONS OTHER THAN THOSE AUTHORIZED BY
TCL TO SERVICE OR REPAIR THE TELEVISION.
IF THE TELEVISION FAILS TO WORK AS WARRANTED
ABOVE, YOUR SOLE AND EXCLUSIVE REMEDY
SHALL BE REPAIR OR REPLACEMENT OF THE
DEFECTIVE PART. IN NO EVENT WILL TCL, TOSHIBA
CORPORATION, THEIR AFFILIATES, ADRs OR ASPs
(THE “RELATED PARTIES”) BE LIABLE TO YOU OR
ANY THIRD PARTY FOR ANY DAMAGES, MONEY,
REIMBURSEMENT, COSTS OR EXPENSES. THIS
LIMITATION APPLIES TO DAMAGES, MONEY,
REIMBURSEMENT, COSTS OR EXPENSES OF ANY
KIND WHATSOEVER INCLUDING ANY DIRECT OR
INDIRECT DAMAGES, DAMAGE TO PROPERTY
OR PERSON, LOST PROFITS, LOST SAVINGS,
INCONVENIENCE OR OTHER SPECIAL, INCIDENTAL,
EXEMPLARY OR CONSEQUENTIAL DAMAGES,
WHETHER FOR BREACH OF WARRANTY, BREACH
OF CONTRACT, TORT (INCLUDING NEGLIGENCE),
UNDER A STATUTE OR UNDER ANY OTHER LAW OR
FORM OR ACTION, OR WHETHER ARISING OUT OF
THE USE OF OR INABILITY TO USE THE TELEVISION,
EVEN IF ANY OF THE RELATED PARTIES HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
OR OF ANY CLAIM BY ANY OTHER PARTY.
No person, agent, distributor, dealer or company is
authorized to change, modify or extend the terms of
these warranties in any manner whatsoever.
Arbitration and Dispute Resolution
To the extent not precluded by law, any claim, dispute,
controversy or disagreement (whether for breach of
warranty, breach of contract, tort (including negligence),
under a statute or under any other law or form of action)
against any of the Related Parties arising out of, or
otherwise relating to: (i) this warranty; (ii) the Television;
(iii) any oral or written representations, statements,
brochures, press releases, advertising, announcement,
point of sale display, or promotional material relating to
the Television; (iv) the relationships that result from this
warranty, (the foregoing claims, disputes controversies
and disagreements are collectively referred to as the
“Dispute”), shall be referred to and resolved by final
and binding arbitration (to the exclusion of the courts).
To the extent not precluded by law, you agree to waive
any right that you may have to commence or participate
in any representative or class proceeding against the
Related Parties relating to any Dispute. If and where
applicable and to the extent not precluded by law, you
further agree to opt out of any such representative or
class proceedings. Arbitration of any Dispute will be
conducted in the forum and in the manner as agreed
to between you and TCL. Failing such agreement, the
arbitration will be conducted by one arbitrator pursuant
to the laws and rules relating to arbitration generally in
force in the jurisdiction in which you reside at the time
that the Dispute arises. To the extent not precluded by
law, no claim, dispute, controversy or disagreement of
any other person may be joined or combined with any
Dispute by you, without the prior written consent of TCL.
Critical Applications
The Television you have purchased is not designed
for any “critical applications.” “Critical applications”
means life support systems, medical applications,
connections to implanted medical devices, commercial
transportation, nuclear facilities or systems or any other
applications where Television failure could lead to
injury to persons or loss of life or catastrophic property
damage.
IF THE CUSTOMER USES THE TELEVISION IN ANY
CRITICAL APPLICATION, THE CUSTOMER – AND
NOT TCL, ITS AFFILIATES, ADRs OR ASPs – ASSUME
SOLE AND FULL RESPONSIBILITY FOR SUCH USE.
TCL RESERVES THE RIGHT TO REFUSE TO SERVICE
ANY TELEVISION USED IN A CRITICAL APPLICATION.
TCL, ITS AFFILIATES, ADRs AND ASPs HEREBY
DISCLAIM ANY AND ALL LIABILITY, DAMAGES AND
CONSEQUENCES ARISING OUT OF THE SERVICE
OR REFUSAL TO SERVICE SUCH TELEVISION
AND FURTHER DISCLAIM ANY AND ALL LIABILITY,
CONSEQUENCES AND DAMAGES THAT MAY ARISE
OR RESULT FROM THE USE OF THE TELEVISION IN
ANY CRITICAL APPLICATIONS.
General Provisions
If and to the extent that any provision of this limited
warranty should generally be found to be unenforceable,
the unenforceable provision shall be severed from
the warranty and deemed not to form part of the
warranty. The remaining provisions of this warranty
60
Chapter 9: Appendix
shall be and remain valid and enforceable. If and to
the extent that any provision of this limited warranty as
it relates to any of the Related Parties is found to be
invalid or unenforceable in respect of that party (the
“Excluded Party”), the Excluded Party shall be deemed
to be severed or excluded from the provision, and the
provision shall remain valid, enforceable and applicable
in respect of the other or remaining Related Parties.
To the extent permitted by law, this limited warranty
shall be governed and construed in accordance with
the laws of Ontario.
If there is any inconsistency between this limited
warranty, on the one hand, and any statement in the
packaging of the Television or in any other document
enclosed with, or used in the context of the promotion or
sale of, the Television, on the other hand, the provisions
of this limited warranty shall prevail.
How to Obtain Warranty Services
If, after following all of the operating instructions in
this manual, checked the “Troubleshooting” section,
and have visited www.toshiba.ca/support for additional
information, you find that service is needed, please
contact TCL Customer Support toll free at 1 800 268-
3404.
A copy of the GPL source code in this product
may be obtained by contacting Toshiba Consumer
Solutions at (800)631-3811. There will be a charge to
cover the costs of providing the source code.
61
TOSHIBA AMERICA CONSUMER
PRODUCTS, L.L.C.
Corporate Headquarters: 82 TOTOWA ROAD, WAYNE, NJ 07470, U.S.A.
NATIONAL SERVICE DIVISION: 1420-B TOSHIBA DRIVE, LEBANON, TN 37087, U.S.A.
TOSHIBA OF CANADA LTD.
HEAD OFFICE: 191 McNABB STREET, MARKHAM, ONTARIO, L3R 8H2, CANADA
– TEL: (905) 470-5400
SERVICE CENTERS:
TORONTO: 191 McNABB STREET, MARKHAM, ONTARIO L3R 8H2, CANADA
– TEL: (905) 470- 5400
MONTREAL: 18050 TRANS CANADA, KIRKLAND, QUEBEC, H9J 4A1, CANADA
– TEL: (514) 390-7766
VANCOUVER: 6932 GREENWOOD STREET, BURNABY, B.C., V5A 1X8, CANADA
– TEL: (604) 303-2500
CableClear, ColorStream, GameTimer, and TheaterWide are registered trademarks of Toshiba
America Consumer Products, L.L.C.
Channel Browser, DynaLight, and SurfLock are trademarks of Toshiba America Consumer
Products, L.L.C.
REGZA-LINK is a registered trademark of Toshiba Corporation.
PRINTED IN CHINA
xl
Note:
Securely insert the bothof2 hooks on the stand into the two holes
of
on the bottom
Remarque
en-dessous du televiseur. Assurez-vous qu'ils soient correctement fixes.
the TV.
: Inserez les deux crochets du support dans les orifices situes
x4
WARNING:
power cord from being pinched when attaching the pedestal
stand.
CAUTION:
lay the front of the LCD Panel face down on a flat, cushioned
surface such as a quilt or blanket. Leave the bottom of the
unit protruding over the edge of the surface and assemble
pedestal
Note:
the pedestal stand to avoid damage to the LCD panel.
1111111111111111111111111111111111111111111111111111111I1II111111
To
prevent possible electric shock, protect the
Before beginning pedestal assembly, carefully
as
indicated below.
Extreme care should always be used when attaching
HF6TC370011
AVERTISSEMENT
empecher
piedestal.
Ie
ATTENTION
table, placer avec soin I'avant
une surface plane, matelassee, comme sur une courtepointe
couverture. Laisser depasser
et monter
Remarque
support de table pour eviter d'endommagerIepanneau ACL.
Ie
support de table
:Toujours faire tres attention quand vous attachez
:Pour eviter tout risque de choc electrique,
cordon electrique d'etre coince en fixant
:Avant de commencer
I'
assemblagedusupport de
du
panneau
Ie
bas de I'unitedureborddela surface
tel
qu'indique ci-dessous.
ACL,
face versIebas,
Ie
ou
sur
une
Ie
HDTV
Quick
Set-Up
Guide
(For
US
customers)
Congratulationsonthe
purchaseofyour
newToshiba High-DefinitionTelevision.
You
must
haveanHD Signaltowatch
an HD Picture!
Getting HDTViseasyas1,2,3.
There are 3 basic
waystoreceiveanHDTV
Signal
on your new High-Definition
TV:
Over-The-
Air
(Antenna)
Connect
a high quality
outside
antenna
(not
supplied) directly
to
the
antenna
inputonthe
TV.
(reception
cannotbeguaranteed
andisbasedonproximitytothe
local signal)
2
CableorPhone Company
HDTV
Service
CableorPhone
Company
HDTV
Service
Customers
will
need
to
subscribetoHigh-Definition
Service from
your
local provider.
(Additional monthly subscription
cost
may apply)
3
SATELLITE
Satellite
Customers
will
need
a
High-Definition satellite receiver
and
appropriate
dish hardware.
(Additional monthly subscription
cost
may apply)
Additional
HDTV
Antenna Reference Information
canbeobtained from
www.antennaweb.org
Digital Cable
or
Digital Satelliteisnot
HDTY. The picture qualityissuperiortostandard analog cable,
butitis
not
HDTV!
See
the difference
HD
Programming makes!
4 Component Video Input
ColorStream®HDComponent
may also be used
to
receive H
DTV.
Useifno
HDMI'"orDVI
Jackisavailable.
There
are
3 jacks
color-coded
with Red-Green-Blue
on
the
back
ofthe
TV andHDCable BoxorHD
Satellite
Receiver.
This
connection
will require a
separate
analog audio
connection. (use
the
red and
white
audio
connections)
DVI
to
HDMI~
YourHDCable BoxorHD Satellite Receiver may have
a
DVI
connection. This
willbeconnectedtothe
HDMI'"
jackontheTVusing an
HDMI'"
cable and an
HDMI'"
to
DVI
converter.
DVI
carries digital video only.
Therefore,
this will require
a
separate
analog audio
connection
as well. (use
the
red
and
white
audio connections)
3
HDMI'"isthe
best
connection
for
HDTV.
This
is
a digital
connection
that
carries
both
digital video and
digital audio.
To
connect
directly from an
antennaorbasic cable.
Connect
the
cable directly
to
the
antenna
inputonthe
backofthe
TV.
I Antenna Input
Once
you have a High-Definition Signal you
needtoconnectitto
a High-Definition
Inputonyour
TV.
If
you are connecting directly fromanantennaorbasic
cable.
!
If
y.u
are
usinganHD Cable BoxorHD Satellite
Box.
there
are 3 standard connections
that
can be usedtoreceiveanHD signal.
2
HDMI~
to
HDMI®
INPUT
TV
AUDIO
R L Y
PaPR
OUTPUT
Cable
boxISatellite
box
AUDIO
R L Y
PaPR
•
INPUT
TV
Hi:Jml
AUDIO
OUTPUT
Cable
boxISatellite
box
DVI
R AUDIO L
B::mm:-m
•
INPUT
TV
Hi:Jml
OUTPUT
Cable
boxISatellite
box
Hi:Jml
INPUT
TV
Now
that
you
haveHDProgramming and are connectedtoanHDInput, TunetoanHDChannel (Remember
not
all
channels are
currently
broadcastinHD)
Sit back, relax
and
enjoy the superior qualityofHigh-Definition.
Note:
Standard
analogTVchannels
andHDchannels,
evenonthe same
network,
broadcastondifferent
channels.
Example:
ABC
analog
maybeon
channel4,while
ABC-HD
maybeon
channel
104.
If
you
are
experiencing
problems
please
call Toshiba
Customer
Serviceat1-800-631-38 J I
All
cables and Adapters are sold separately.
For additional Toshiba Product Information visit www.tacp.com. Please remember to complete your product registration. Failure to register your product does not disminish your warranty rights.
TOSHIBA
leading
Innovation
»
If you are experiencing a technical problem or have questions regarding operation, authorized service centers, warranty or
parts, please contact our Customer Service Department at:
1-(800) 631-3811 (For US Customers)
1-(800) 268-3404 (For Canadian Customers)
Many questions regarding parts, service, and warranties can be answered by visiting the Customer Support Section of our
website: www.tacp.com (For US Customers)
www.toshiba.ca (For Canadian Customers)
THANK
YOU
Si
vous eprouvez des difficultes techniques ousivous avez des questions concernantIefonctionnement du produit, les
centres de service autorises, la garantie ou les pieces, veuillez appeler notre departement du service
ala clientele au:
1-(800) 631-3811 (Etats-Unis seulement)
1-(800) 268-3404 (Canada seulement)
Vous trouverez egalement des reponses ade nombreuses questions sur les pieces,
Ie
service et les garantiesenvisitant
la section Soutien ala clientele de notre site Web:
www.tacp.com (Etats-Unis seulement)
www.toshiba.ca (Canada seulement)
MERCI
**PLEASE SEE OPPOSITE SIDE OF THIS PAPER FOR QUICK SETUP DIRECTIONS**
.;>
Please send products and other correspondence to:
Toshiba America Consumer Products, L.L.C.
82 Totowa Road
Wayne,
NJ
07470
First Class
Postage
Required
Post Office will
not deliver without
proper postage.
Toshiba America Consumer Products, L.L.C.
P.O.
Box
174007
Denver,
CO
80217-4007
IMPORTANT!
TOSHIBA
ImageisEverything
™
PRODUCT
REGISTRATION
CARD
Complete
and
return
this
Product
Registration
Card
within10daystoreceive
valuable
Toshiba
information.
Failuretocomplete
and
return
this
card
does
not
diminish
your
warranty
rights.
See details
inside
...
If you have comments or suggestions about our product, please write to:
Toshiba America Consumer Products, L.L.C.
» 82 Totowa Road » Wayne,
NJ
07470
Copyright
© 2004 All Rights Reserved Please seal with tape.
Do
not staple.
Congratulations for choosing Toshiba, a leaderindeveloping tomorrow's technology today. Toshiba is committedtoproducing high-quality, reliable and innovative products.Touphold
our commitment
Please complete the following Product Registration Card. The information we are asking from you below will help us bring you new products specifically designed
needs. By registering your product you will automatically
1.
PRODUCT SAFETY NOTIFICATION: Registering our product will allow ustocontact you in the unlikely event a product safety notificationisrequired.
2. CONFIRMATION OF OWNERSHIP: We will keep the model number, serial number, and other information on this card in our files for up to ten years. In the event of fire, flood or
theft, your registration will serve as your proof of purchase for insurance purposes.
3.
WARRANTY SERVICE: Filling out this card will help us contact you in case thereisa problem with this product.
1. 0
to
excellence, we need to understand our customers' needs.
be
enrolled in our Consumer Information Program, which provides you with the following benefits:
IMPORTANT: Please
Mr.
0 Mrs. 0 Ms. 0 Miss Email address I I
register
your
product
within10daysbymailorregister
online@www.tacp.toshiba.com/register
Apt.
No.
to
meet your
Ll.J....L.LJ
Date of
Purchase
Area Code Area Code Month Day Year
ensure
your
fMPORTANT! To
enrollmentinToshiba's
Consumer
Information
Program,
write
the
complete
model
numberofthe
UJUJUJ
product
you
purchasedinthe
3. Model Number 4. Serial Number
5.
Price paid (excluding tax) $
6.
Have you purchased a service contract or extended warranty for this product? 7.
1. §
2. No, but contract was offered by my retail dealer
3.
a.
1.
2.
b.
1.
Yes,
from my retail dealer
No, contract was not offered
