FILE NO. 060-200210
SERVICE MANUAL
COLOUR TELEVISION
S2ES Chassis
29VZ6DE, 29VZ6DA
29VZ6SH
Sep., 2002
CHAPTER 1 GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS ........................................................................................................................................ 3
SET-UP ADJUSTMENT ............................................................................................................................................ 4
SERVICE MODE ...................................................................................................................................................... 6
DESIGN MODE ........................................................................................................................................................ 9
ELECTRICAL ADJUSTMENTS .............................................................................................................................. 10
CIRCUIT CHECK .................................................................................................................................................... 13
GENERAL ADJUSTMENTS
CHAPTER 2 SPECIFIC INFORMATIONS
SETTING & ADJUSTING DATA .............................................................................................................................. 14
LOCATION OF CONTROLS ................................................................................................................................... 15
PROGRAMMING CHANNEL MEMORY................................................................................................................. 17
CHASSIS AND CABINET REPLACEMENT PARTS LIST ......................................................................................18
PC BOARDS BOTTOM VIEW................................................................................................................................. 27
TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 32
CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 34
TABLE OF CONTENTS
SPECIFICATIONS .............................................................................................................................................. END
APPENDIX:

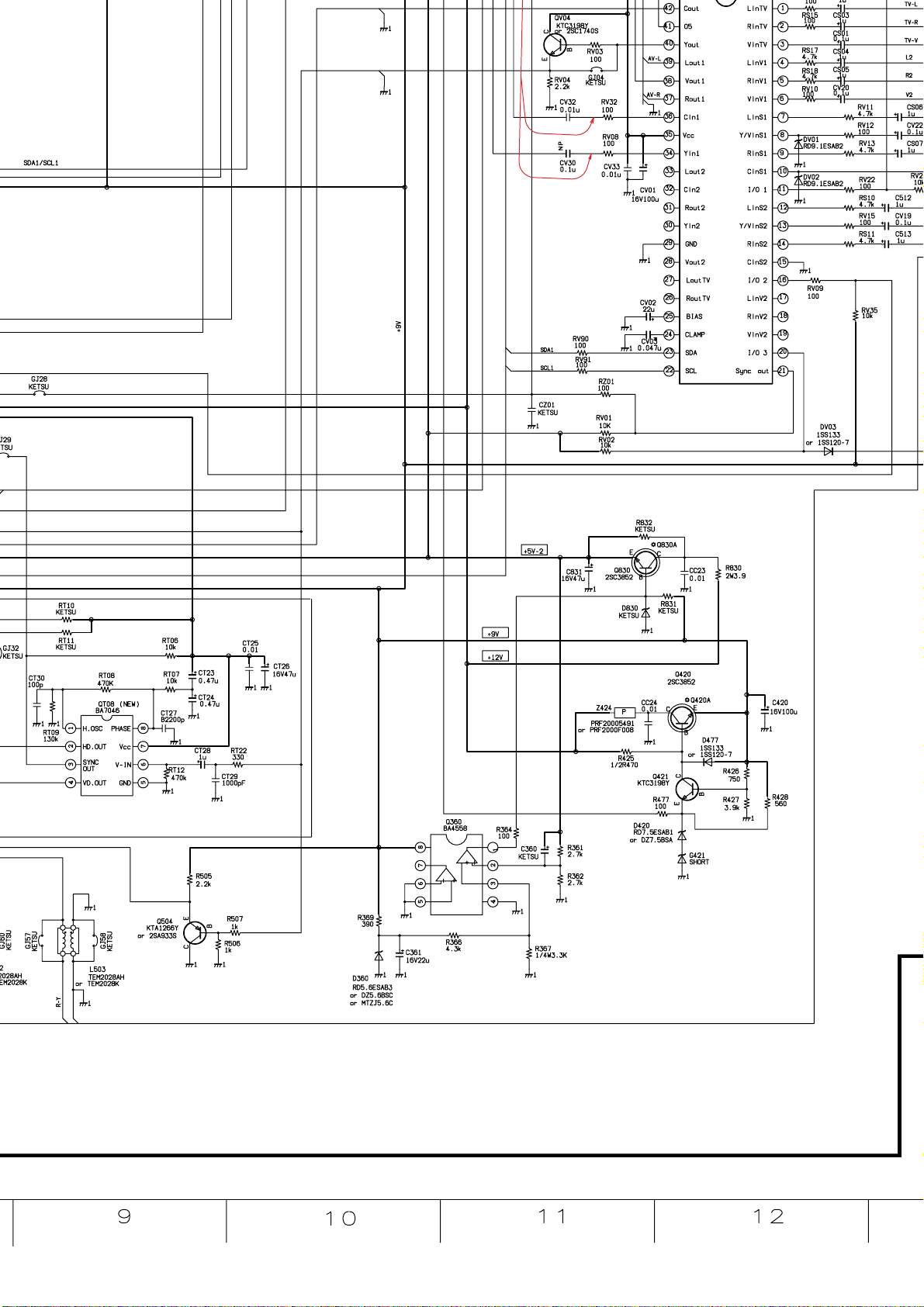

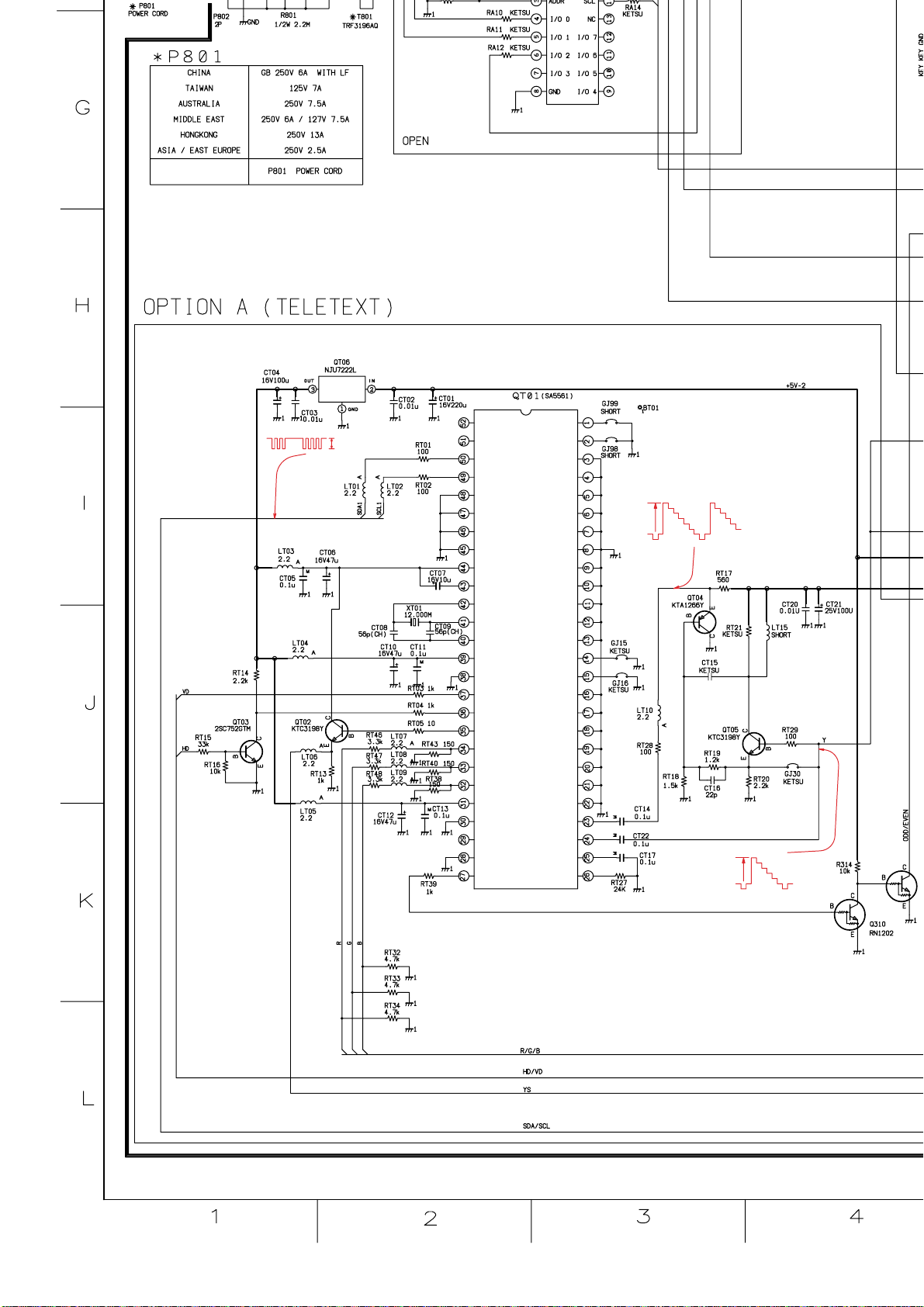

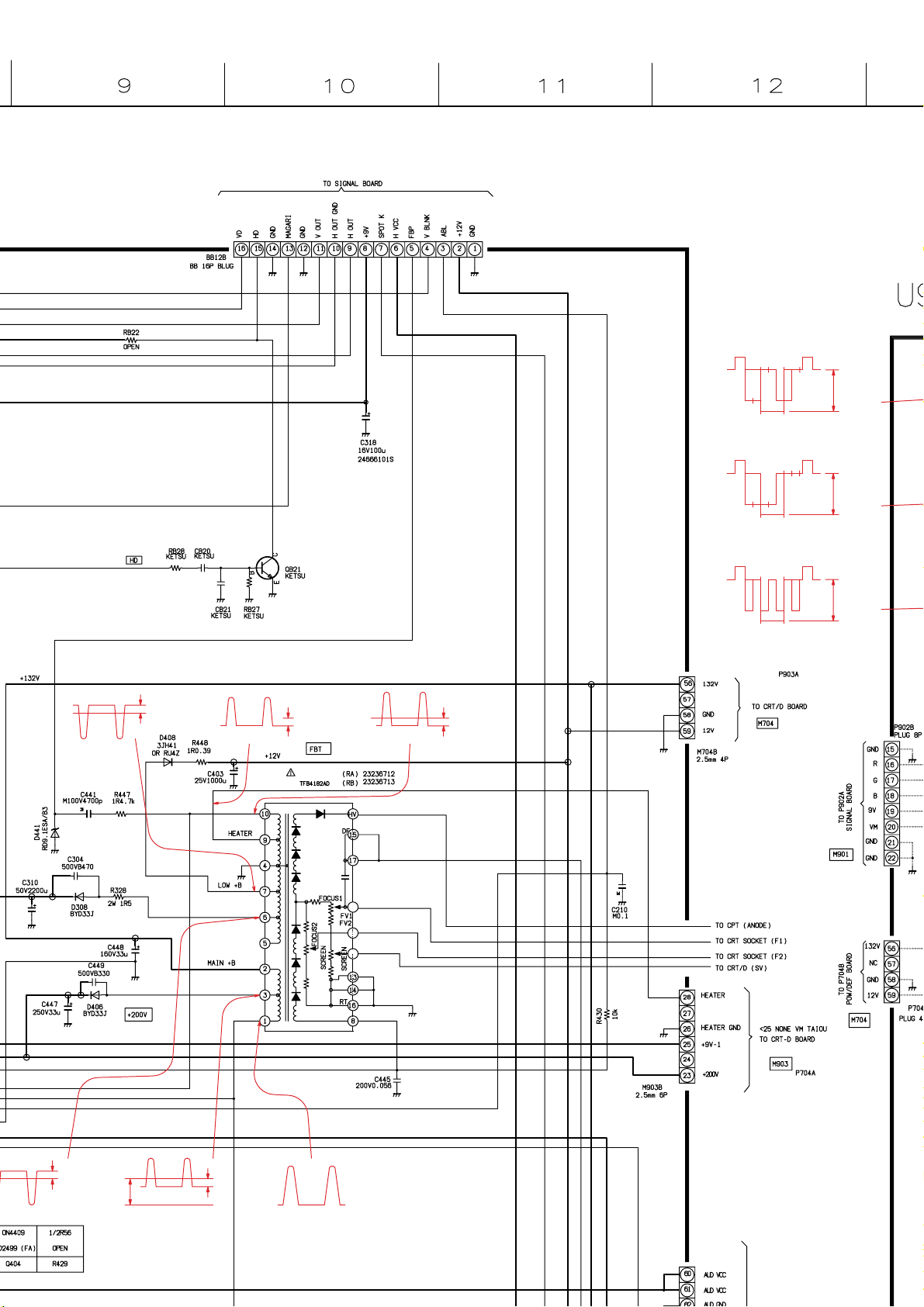

CIRCUIT DIAGRAM
– 2 –
CHAPTER 1 GENERAL ADJUSTMENTS
SAFETY INSTRUCTIONS
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-
TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.
X-RAY RADIATION PRECAUTION
1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high
voltage must not be above the specified limit. The nominal
value of the high voltage of this receiver is (A) kV at zero
beam current (minimum brightness) under a (C) V AC power
source. The high voltage must not, under any circumstances, exceed (B) kV.
Refer to table-1 for high voltage (A), (B) & AC voltage (C).
(See SETTING & ADJUSTING DATA on page 13)
Each time a receiver requires servicing, the high voltage
should be checked following the HIGH VOLTAGE CHECK
procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service
record. It is important to use an accurate and reliable high
voltage meter.
SAFETY PRECAUTION
WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following
are the necessary precautions to be observed before servicing this chassis.
1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is
performed on the receiver.
2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube
is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube
away from the unprotected body while handling.
3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; nonmetallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.
2. The only source of X-RAY RADIATION in this TV receiver
is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same
type tube as specified in the parts list.
3. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only
after referring to the PRODUCT SAFETY NOTICE below.
GENERAL ADJUSTMENTS
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are
often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using
replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by
the international hazard symbols on the schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement
parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray
radiation or other hazards.
– 3 –
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-
TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.
SET-UP ADJUSTMENT
■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed.
Perform the adjustments in order as follows :
1. Color Purity
2. Convergence
3. White Balance
Note: 1.The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.
Refer to figure 1.
GENERAL ADJUSTMENTS
*
COLOR PURITY ADJUSTMENT
NOTE : Before attempting any purity adjustments, the receiver
1. Demagnetize the picture tube and cabinet using a degauss-
2. Set the brightness and contrast to maximum.
3. Use a green raster from among the built-in test signals.
4. Loosen the clamp screw holding the yoke and slide the
2.Mounting position of the purity magnet assembly should fit to same position as old one because slightly difference
to the position depend on a kind of tube.
There are no adjustment of purity and convergence in some picture tube (Unified with purity magnet)
5. Remove the Rubber Wedges.
should be operated for at least fifteen minutes.
ing coil.
yoke backward or forward to provide vertical green belt
(zone) in the picture screen.
6. Rotate and spread the tabs of the purity magnet (See figure 2.) around the neck of the picture tube until the green
belt is in the center of the screen. At the same time, enter
the raster vertically.
7. Slowly move the yoke forward or backward until a uniform
green screen is obtained. Tighten the clamp screw of the
yoke temporarily.
8. Check the purity of the red and blue raster.
GLASS CLOTH
TAPES
DEFLECTION
YOKE
29.1mm(28", 29")
25mm(25")
19mm(19", 20", 21")
14mm(13", 14")
PURITY/
CONVERGENCE
MAGNET ASS'Y
Figure 1.
TEMPORARY
MOUNTING
RUBBER WEDGE
ADHESIVE
DEFLECTION
YOKE
– 4 –
CONVERGENCE ADJUSTMENTS
NOTE: Before attempting any convergence adjustments, the
receiver should be operated for at least fifteen minutes.
■ CENTER CONVERGENCE ADJUSTMENT
1. Use the cross-dot pattern from among the built-in test signals.
2. Set the brightness and contrast for well defined pattern.
3. Adjust two tabs of the 4-Pole Magnets to change the angle between them (See figure 2.) and superimpose red
and blue vertical lines in the center area of the picture
screen.
4. Turn the both tabs at the same time keeping the angle
constant to superimpose red and blue horizontal lines at
the center of the screen.
5. Adjust two tabs of 6-Pole Magnets to superimpose red/
blue line and green one. Adjusting the angle affects the
vertical lines and rotating both magnets affects the horizontal lines.
6. Repeat adjustments 3, 4, 5 keeping in mind red, green
and blue movement, because 4-Pole Magnets and 6-Pole
Magnets have mutual interaction and make dot movement
complex.
4-POLE
MAGNETS
6-POLE
MAGNETS
ADJUST THE ANGLE
(VERTICAL LINES)
■ CIRCUMFERENCE CONVERGENCE ADJUSTMENT
1. Loosen the clamping screw of deflection yoke slightly to
allow the yoke to tilt.
2. Temporarily put a wedge as shown in figure 1. (Do not
remove cover paper on adhesive part of the wedge.)
3. Tilt front of the deflection yoke up or down to obtain better
convergence in circumference. (See figure 3.) Push the
mounted wedge into the space between picture tube and
the yoke to fix the yoke temporarily.
4. Put other wedge into bottom space and remove the cover
paper to stick.
5. Tilt front of the yoke right or left to obtain better convergence in circumference. (See figure 3.)
6. Keep the yoke position and put another wedge in either
upper space. Remove cover paper and stick the wedge
on picture tube to fix the yoke.
7. Detach the temporarily mounted wedge and put it in another upper space. Stick it on picture tube to fix the yoke.
8. After fixing three wedges, recheck overall convergence.
Tighten the screw firmly to fix the yoke and check the yoke
is firm.
9. Stick three adhesive tapes on wedges as shown in figure
1.
FIXED
GENERAL ADJUSTMENTS
ROTATE TWO TABS
AT THE SAME TIME
(HORIZONTAL LINES)
PURITY
MAGNETS
CONVERGENCE MAGNET ASSEMBLY ADJUSTMENT OF MAGNETS
Figure 2.
BLU RED
BLU
RED
4-POLE MAGNETS MOVEMENT
BGR
R
G
B
RGB
RED/BLU
GRN
Center Convergence by Convergence Magnets
B
G
R
RED/BLU GRN
6-POLE MAGNETS MOVEMENT
B
G
R
BGR
RGB
R
G
B
INCLINE THE YOKE UP (OR DOWN)
Circumference Convergence by DEF Yoke
Figure 3. Dot Movement Pattern
INCLINE THE YOKE RIGHT (OR LEFT)
– 5 –
1. ENTERING TO SERVICE MODE
1) Press o button once on
Remote Control.
SERVICE MODE
2) Press o button again to
keep pressing.
3) While pressing the o button,
press MENU button on TV set.
GENERAL ADJUSTMENTS
2. DISPLAYING THE ADJUSTMENT MENU
1) Press MENU button on TV.
Service mode
S
3. KEY FUNCTION IN THE SERVICE MODE
The following key entry during display of adjustment menu provides special functions.
A single horizontal line ON/OFF: - / - - button (on Remote) or a button (on TV)
Test signal selection : a button (on Remote)
Selection of the adjustment items : Channel s/t (on TV or Remote)
Change of the data value : Volume ; +/– (on TV or Remote)
Adjustment menu mode ON/OFF : MENU button (on TV)
Initialization of the memory (QA02) : CALL + Channel button on TV (s)
Reset the count of operating protect
circuit to “00”: CALL + Channel button on TV (t)
“RCUT” selection : 1 button
“GCUT” selection : 2 button
“BCUT” selection : 3 button
“CNTX” (or “SCNT”) selection : 4 button
“COLC” selection : 5 button
“TNTC” selection : 6 button
Test audio signal ON/OFF (1kHz) : 8 button
Self diagnostic display ON/OFF : 9 button
Press
Press
Adjustment mode
Item
Data
(Service mode display)
Item
Data
Color thickness correction
note: Displayed differently as shown below, de-
pending on the setting of the receiving color
system.
COLP (PAL)
COLC (NTSC)
COLS (SECAM)
S
CAUTION : Never try to perform initialization unless you have changed the memory IC.
The key function marked with are not usable to control in the Test signal for some model.
*
– 6 –
4. SELECTING THE ADJUSTING ITEMS
1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2.
(t button for reverse order)
Refer to table-2 for preset data of adjustment mode.
(See SETTING & ADJUSTING DATA on page 13)
5. ADJUSTING THE DATA
1) Pressing of VOLUME ; +/– button will change the value of data in the range from 00H to FFH. The variable
range depends on the adjusting item.
6. EXIT FROM SERVICE MODE
1) Pressing POWER button to turn off the TV once.
■ INITIALIZATION OF MEMORY DATA OF QA02
After replacing QA02, the following initialization is required.
1. Enter the service mode, then select any register item.
2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02 has
been complated.
3. Check the picture carefully. If necessary, adjust any adjustment item above.
Perform “Auto search Memory” on the owner’s manual.
CAUTION: Never attempt to initialize the data unless QA02 has been replaced.
7. TEST SIGNAL SELECTION
1) Every pressing of a button on the Remote Control changes the built-in test patterns on screen as described below
in SERVICE MODE.
GENERAL ADJUSTMENTS
Signal off
NTSC signals (14 patterns)
PAL signals (14 patterns)
Signals Picture
• Red raster
• Green raster
• Blue raster
• All Black
• All White
• Black & White
• Black cross-bar
• White cross-bar
• Black cross-bar
on green raster
• Black cross-hatch
• White cross-hatch
• Black cross-dot
• White cross-dot
• H signal (white)
• H signal (black)
The signals marked with are not usable to display in the Test signal for some model.
*
– 7 –
8. SELF DIAGNOSTIC FUNCTION
1) Press “9” button on Remote Control during display of adjustment menu in the service mode.
The diagnosis will begin to check if interface among IC’s are executed properly.
2) During diagnosis, the following displays are shown.
Indicated color of mode now selected : Green and Red
<SELF CHECK>
23******
POWER : 00
BUS LINE : OK
BUS CONT : OK
BLOCK : UV V1 V2
QV01
Indicated color of other modes : White
Green : Normal
Red : The microcomputer operates to provide judgement
of no video signal. The red color is still indicated
though the signal is input, failure may exist in input
signal line including QV01.
QV01 : In case of indication green ---Normal
In case of indication red with input signal----
GENERAL ADJUSTMENTS
Failure may exist in output line including QV01.
Part number of microcomputer (QA01)
Operation number of protecting circuit ----“00” is nor-
mal.
When indication is other than “00”, overcurrent apts to
flow, and circuit parts may possibly be damaged.
BUS LINE CHECK ----“OK” is normal.
“SDA1-GND” ------------- SDA-GND short circuit.
“SCL1-GND” -------------- SCL-GND short circuit.
“SCL1-SDA1” ------------- SCL-SDA short circuit.
BUS CONT ----“OK” is normal.
When indication shows “Q uuu NG”, the device with
the number may possibly be damaged.
BLOCK
NOTE: Component which controls character display on
screen is QT01 (TELETEXT IC.). If this display
function fails to operate due to damage in QT01,
self diagnosis procedure is as follows.
(1) In case that power indicator is blinking with
interval of 0.5 seconds; it means protecting
circuit (Current limiter) is operating, and circuit components may possibly be damaged.
Check related components.
(2) In case that power indicator is blinking with
interval of 1 second; Protecting circuit does
not operate, but a part of Bus line does not
operate normally. Check Bus line.
UV : TV reception mode
V1 : VIDEO 1 input mode (a1)
V2 : VIDEO 2 input mode (a2)
The items marked with are not usable to display in the SELF DIAGNOSTIC FUNCTION for some model.
*
– 8 –
1. ENTERING TO DESIGN MODE
1) Select the Service mode.
DESIGN MODE
2) While pressing
Remote and press MENU button on TV.
o(or CALL) button on
3) Press MENU button on TV.
S D
(Design mode) (Adjustment mode)
When QA02 is initialized, items “OPT0” and “OPT1” of DESIGN MODE are set to the data of the representative model of this
chassis family.
Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to
reset the data of items “OPT0” and “OPT1”.
2. SELECTING THE ADJUSTING ITEMS
Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3.
(s button for reverse order)
Refer to table-3 for data of design mode.
(See SETTING & ADJUSTING DATA on page 13)
3. ADJUSTING THE DATA
Pressing of VOLUME s or t button will change the value of data.
Press
Press
ITEM
DATA
GENERAL ADJUSTMENTS
– 9 –
ELECTRICAL ADJUSTMENTS
ITEM ADJUSTMENT PROCEDURE
FOCUS VR ADJ
SUB-BRIGHTNESS
(BRTC)
GENERAL ADJUSTMENTS
Note: Constrict the picture height
until the vertical retrace line
appears adjusting the item
HIT (HEIGHT).
HORIZONTAL POSITION
ADJUSTMENT (HPOS)
VERTICAL POSITION
ADJUSTMENT (VPOS)
1. Enter the service mode, then select any register item.
2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern appears on the screen.
3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture
screen.
1. Set CONTRAST to minimum, and
BRIGHTNESS to center by adjusting user
controls.
2. Set the TV in service mode to get white
cross-bar of inside pattern.
3. Select BRTC (brightness correction), and
adjust the ; – /+ button to reduce the
value so that white portion of inside pattern slightly light.
4. Adjust ; – /+ button to increase the data
value of BRTC, and set it just before the
difference between the belt of vertical retrace and the border of black portion of
inside pattern is visible.
After that, return vertical height and contrast.
1. Set the TV in service mode, and get
black or white cross-bar signal with
VIDEO button on remote hand unit.
2. Select either HPOS (Horizontal pic-
ture phase) or VPOS (Vertical picture
phase) with CHANNEL s, t buttons,
and adjust horizontal or vertical picture position in the center of screen
with VOLUME ; – /+ buttons.
Belt of vertical retrace
VERTICAL AMPLITUDE
ADJUSTMENT (HIT)
1. Set the TV in service mode, and get
black or white cross-hatch signal with
VIDEO button on remote hand unit.
2. Select HIT (Vertical amplitude) with
CHANNEL s, t buttons, and adjust
vertical amplitude with VOLUME
; – /+ buttons so that vertical am-
plitude lacks a little.
3. Adjust vertical amplitude with VOL-
UME ; – /+ buttons so that the first
bar on cross-hatch signal touches
edge of screen.
The first
– 10 –
ITEM ADJUSTMENT PROCEDURE
WHITE BALANCE
ADJUSTMENT
CUTOFF ADJUSTMENT
•
(RCUT)
(GCUT)
(BCUT)
DRIVE ADJUSTMENT
•
(GDRV)
(BDRV)
1. Set Contrast to 40, and brightness to +20 by picture control.
2. Set the TV in service mode, and get the inside W/B adjusting signal with VIDEO
button.
3. Select RCUT, GCUT and BCUT with CHANNEL s, t buttons, to set individual
values to Initial reference data, and to set GDRV and BDRV to Initial reference
data with VOLUME ; – /+ buttons (See page 19).
4. Press -/- - button on the remote control and rotate Screen VR to get one slight
horizontal line on screen.
Note: Every pressing of -/- - button provides Horizontal line picture and Normal
picture alternately.
5. Press -/- - button to release horizontal line picture, and select the two other colors
which did not light in the above step with CHANNEL s, t buttons. Then tap VOL-
UME ; – /+ buttons so that three colors slightly light in the same level.
X To correct white balance in light area,
select GDRV and BDRV with CHANNEL
s, t buttons to adjust.
X To correct white balance in dark area,
perform fine adjustment of RCUT, GCUT
and BCUT.
Light area check
(to show white)
Dark area check
(to show black)
GENERAL ADJUSTMENTS
NOTE: It is released built-in test pattern by changing the adjustment item for some model.
In this case, select the adjustment item with channel st button first and then select the built-in test pattern
with -/- - button.
– 11 –
CIRCUIT CHECK
HIGH VOLTAGE CHECK
CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps
below.
1. Connect an accurate high voltage meter to the second anode of the picture tube.
2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST controls to minimum (zero beam current).
3. High voltage must be measured below (B) kV.
Refer to table-1 for high voltage (B).
(See SETTING & ADJUSTING DATA on page 13)
4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.
GENERAL ADJUSTMENTS
– 12 –
CHAPTER 2 SPECIFIC INFORMATIONS
SETTING & ADJUSTING DATA
SAFETY INSTRUCTIONS
HIGH VOLTAGE AT ZERO BEAM: (A) 32.8 kV
MAX HIGH VOLTAGE:
AC VOLTAGE
Table-1
SERVICE MODE
ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE:
Item Adjustment Reference data
29"
(B) 33.0 kV
(C) 110~240 V
RCUT
GCUT
BCUT
GDRV
BDRV
BRTC
COLC
TNTC
COLP
COLS
SCNT
HPOS
VPOS
HIT
VLIN
WID
PARA
TRAP
BELL
SRY
SBY
DESIGN MODE
ADJUSTING ITEMS AND DATAS IN THE DESIGN MODE:
R CUTOFF (B/W)
G CUTOFF (B/W)
B CUTOFF (B/W)
G DRIVE
B DRIVE
SUB BRIGHT CEN
SUB COLOR CEN NTSC
SUB TINT CEN
SUB COLOR CEN PAL
SUB COLOR CEN SECAM
SUB CONTRAST
50Hz H-POSITION
V-POSITION
HEIGHT
V-LINEARITY
PICTURE WIDTH
E-W PARABOLA
TRAPEZIUM
SECAM BELL FILTER
SECAM R-Y
SECAM-B-Y
Table-2
20H
20H
20H
80H
80H
80H
80H
40H
F6H
F6H
07H
12H
03H
20H
07H
2CH
2BH
0BH
01H
08H
08H
SPECIFIC INFORMATIONS
Item Name of adjustment Preset Data Data Remarks
OPT 1 OPTION 1 05H 22H
OPT 2 OPTION 2 10H 1DH
Table-3
– 13 –
Front
L/MONO R
AUDIOVIDEO
(3)
LOCATION OF CONTROLS
Behind the door
r ON-timer (green)
q Power (red) indicator
MENU
SPECIFIC INFORMATIONS
a(3) Video 3 input terminal
Back
Video input terminals
(S-VIDEO, VIDEO, AUDIO L/
MONO, AUDIO R)
) (Aerial input)
(1)
MENU
Headphone jack
(ø3.5 mm)
(1)
S-VIDEO
VIDEO
L/MONO
AUDIO
R
COMPONENT VIDEO INPUT
VIDEO/Y
a TV/VIDEO
(2) / DVD
PB/C
B
PR/C
R
– ; +
Volume down/up
(MONITOR)
VIDEO
L/MONO
AUDI O
R
Remote sensor
t c s
(Channel select)
(MONITOR)
MONITOR output terminals
(VIDEO, AUDIO L/MONO,
AUDIO R)
q POWER switch
(2) DVD
COMPONENT VIDEO INPUT terminals
(VIDEO, AUDIO L/MONO, AUDIO R, PB/CB, PR/CR)
– 14 –
Remote
on-screen on/off
CALL
Power ON/OFF
TXT/TV
Mute
213
Digit Select
CH down/up
Menu 8/9
Menu open
546
87
9
0-/–
CH
–+
CH
MENU
Direct Select
TV/VIDEO Select
Volume down/up
Menu –/+
Picture control
SPECIFIC INFORMATIONS
– 15 –
PROGRAMMING CHANNEL MEMORY
• First, use the ASM (Automatic Search Memory) function to preset all the active channels in your
area automatically.
Then, arrange the preset channels with the MANUAL SEARCH , MFT (Manual Fine Tuning)
and SKIP functions so that you can tune into only desired channels.
To preset channels (ASM)
ASM (Automatic Search Memory)
Select the head of the position number to start the
ASM with the CH 9/8
1
buttons.
Press the MENU button and press the MENU –/+
2
buttons to call up the SET UP menu on the screen.
Confirm that “COLOR” is set to “AUTO” and “SOUND”
3
SPECIFIC INFORMATIONS
is set to proper system.
If not, press the MENU t/s buttons to move the cursor
(-) to “COLOR” or “SOUND” and press the MENU
/+ buttons to select each proper system.
Select the TUNING menu page, and move the cursor
4
(-) to “ASM”.
Press the MENU + button to start the ASM. All active
5
channels will be preset automatically.
When presetting is complete, the initial position number
will reappear.
buttons or the direct select
To preset channels (Manual search) and
to skip unnecessary position numbers
Manual search
Select a desired position number with the CH 9/8
or direct select buttons.
1
Press the MENU button and press the MENU –/+
2
buttons to call up the TUNING menu on the screen.
Press the MENU
3
(-) to “SEARCH”.
–
Press the MENU –/+ buttons to start searching.
4
The
MENU –
channels; the
channels.
Repeat this process until you can get the desired channel.
When the desired channel is shown, press the MENU
5
t/s
buttons to move the cursor (-) to “MEMORY”.
Press the MENU + button to store the channel at the
6
current postion.
t/s
buttons to move the cursor
button searches for lower-numbered
MENU +
button for higher-numbered
After presetting
Check the preset channels by pressing the CH 9/8 buttons.
• If the picture or sound of a certain channel is not good, retune the channel using the ASM or MANUAL SEARCH or
MFT function.
• If the color of a certain channel is abnormal, automatic color
system selection (AUTO) may malfunction, or sound system
selection is wrong. In such a case, select another color
and/or sound system.
7
– 16 –
When you desire to store another channel at another
(-)
position, move the cursor
MENU
t/s
buttons and select a desired position
number with the
Then, press the
(-)
cursor
7, or repeat the steps 1 to 7 after display
disappears.
MENU –/+ buttons.
MENU
to “SEARCH” and repeat the steps 4 to
to “POSITION” with the
t/s
buttons to move the
• The adjustments below are not necessary under normal conditions. However, in areas of
inferior broadcast conditions where adjustment is necessary for a better picutre, adjust the
tuning with the MFT (Manual Fine Tuning). The AFT OFF status automatically keeps the
condition adjusted with the MFT function.
• The AFT (Auto Fine Tuning) function automatically corrects slight fluctuations when receiving
signals.
• When using Manual Search to preset the channel, the AFT will automatically turn ON and SKIP
to OFF.
MFT (Manual Fine Tuning) and
AFT (Auto Fine Tuning)
To skip a position number
After presetting the channels, you may skip unnecessary
position numbers so that only the channels you want to
watch are selected.
Select the position number to be skipped with the
1
CH
t/s
buttons or direct select buttons.
Press the MENU button and select SET UP munu on
2
the screen.
Press the MENU
3
to “SKIP”.
Press the MENU –/+ buttons to select “SKIP ON”.
t/s
buttons to move the cursor (S)
4
Press the CALL button to turn off the SET UP menu
display.
5
Select the position number to be skipped with the direct
select buttons. The * mark appears to the left of the
position number.
The position number will then be skipped when you
select channels with the CH
t/s
buttons.
MFT (Manual Fine Tuning)
Select the position number you want to fine-tune with
the position down
1
buttons.
Press the MENU and select theTUNING menu on the
2
screen.
Press the
3
“MFT”.
Press the MENU –/+ buttons until the best possible
picture and sound are obtained.
4
Note
When operating the MFT function, the AFT status is
automatically set to OFF.
AFT (Auto Fine Tuning)
Select the position number you want to fine-tune with
1
the position down
buttons.
t
/up s buttons or digit/direct select
t/s
buttons to move the cursor (S) to
t
/up s buttons or digit/direct select
SPECIFIC INFORMATIONS
To restore a skipped position number
1 Select the position number you want to restore with the
direct select buttons.
2 Press the MENU button and select the SET UP menu
t/s
display and press the MENU
cursor (S) to “SKIP”.
3 Press the MENU
–/+ buttons to select “SKIP OFF”.
buttons to move the
– 17 –
Press the MENU button and press the MENU –/+
buttons to call up the TUNING menu on the screen.
2
Press the
“AFT”. Press the MENU
3
“ON” indication.
Note
When position is set to AFT OFF status, the “R” mark
appears to the left of the position number.
When the channel is set to AFT ON status, the
position number is displayed without the “R” mark.
t/s
buttons to move the cursor (S) to
–/+ buttons to select the
CHASSIS AND CABINET REPLACEMENT PARTS LIST
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY
PRECAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.
CAUTION: The international hazard symbols “ ” in the schematic diagram and the parts list designate components
which have special characteristics important for safety and should be replaced only with types identical to those in the
original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.
Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the
safety of the receiver through improper servicing.
NOTICE:
•
The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model
number and Description.
•
The PC board assembly with * mark is no longer available after the end of the production.
Model : 29VZ6DE, 29VZ6DA, 29VZ6SH
Capacitors ............. CD : Ceramic Disk PF : Plastic Film EL : Electrolytic
Resistors ............... CF : Carbon Film CC : Carbon Composition MF : Metal Film
OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor
(All CD and PF capacitors are ±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)
INFORMATIONS
Location
Parts No. Description
No.
CAPACITORS
C100 24669478 ELECTROLYTIC, 50V 0.47UF M 3A
C101 24232103 CERAMIC DISC, 50V F 0.01UF Z
SPECIFIC
SPECIFIC INFORMATIONS
C102 24669229 ELECTROLYTIC, 50V 2.2UF M 3A
C103 24794221 ELECTROIYTIC, 16V 220UF M
C104 24669229 ELECTROLYTIC, 50V 2.2UF M 3A
C105 24232103 CERAMIC DISC, 50V F 0.01UF Z
C106 24669010 ELECTROLYTIC, 50V 1.0UF M 3A
C107 24232103 CERAMIC DISC, 50V F 0.01UF Z
C108 24794221 ELECTROIYTIC, 16V 220UF M
C109 24794101 ELECTROLYTIC, 16V 100UF M
C110 24232103 CERAMIC DISC, 50V F 0.01UF Z
C111 24232103 CERAMIC DISC, 50V F 0.01UF Z
C112 24794100 ELECTROLYTIC, 16V 10UF M
C113 24232103 CERAMIC DISC, 50V F 0.01UF Z
C120 24666100 ELECTROLYTIC, 10V 10UF M 3A
C121 24232103 CERAMIC DISC, 50V F 0.01UF Z
C129 24232103 CERAMIC DISC, 50V F 0.01UF Z
C131 24232103 CERAMIC DISC, 50V F 0.01UF Z
C132 24232103 CERAMIC DISC, 50V F 0.01UF Z
C135 24212222 CERAMIC DISC, 50V B 2200PF K
C136 24206228 ELECTROLYTIC, 50V 0.22UF M 7L 3A
C139 24212101 CERAMIC DISC, 50V B 100PF K
C190 24232103 CERAMIC DISC, 50V F 0.01UF Z
C191 24539474 PLASTIC FILM, 50V 0.47UF J
C201 24212103 CERAMIC DISC, 50V B 10000PF K
C202 24212103 CERAMIC DISC, 50V B 10000PF K
C210 24591104 PLASTIC FILM, 50V 0.1UF J
C213 24797010 ELECTROLYTIC, 50V 1UF M
C214 24797010 ELECTROLYTIC, 50V 1UF M
C215 24797010 ELECTROLYTIC, 50V 1UF M
C216 24797010 ELECTROLYTIC, 50V 1UF M
C221 24473100 CERAMIC, 50V 10PF J
C222 24473100 CERAMIC, 50V 10PF J
C223 24473100 CERAMIC, 50V 10PF J
C224 24794100 ELECTROLYTIC, 16V 10UF M
C226 24539104 PLASTIC FILM, 50V 0.1UF J
C227 24539104 PLASTIC FILM, 50V 0.1UF J
C241 24669010 ELECTROLYTIC, 50V 1.0UF M 3A
C242 24436181 CERAMIC DISC, 50V SL 180PF J
C243 24666330 ELECTROLYTIC, 16V 33UF M 3A
C244 24212222 CERAMIC DISC, 50V B 2200PF K
Location
Parts No. Description
No.
C245 24212472 CERAMIC DISC, 50V B 4700PF K
C304 24214471 CERAMIC DISC, 500V B 470PF K
C305 24669010 ELECTROLYTIC, 50V 1.0UF M 3A
C306 24667222 ELECTROLYTIC, 25V 2200UF M 3A
C308 24669221 ELECTROLYTIC, 50V 220UF M 3A
C309 24669010 ELECTROLYTIC, 50V 1.0UF M 3A
C310 24669222 ELECTROLYTIC, 50V 2200UF M 3A
C311 24212272 CERAMIC DISC, 50V B 2700PF K
C313 24082057 PLASTIC FILM, 100V 220000PF J
C318 24666101 ELECTROLYTIC, 16V 100UF M 3A
C320 24669101 ELECTROLYTIC, 50V 100UF M 3A
C336 24082056 PLASTIC FILM CF922 M 100V 180000PF J
C341 24797101 ELECTROLYTIC, 50V 100UF M
C342 24795100 ELECTROLYTIC CE04G 25V 10UF M
C361 24794220 ELECTROLYTIC, 16V 22UF M
C403 24591562 PLASTIC FILM, 50V 5600PF J
C403 24795102 ELECTROLYTIC, 25V 1000UF M
C404 24797010 ELECTROLYTIC, 50V 1UF M
C413 24214821 CERAMIC DISC, 500V B 820PF K
C416 24678229 ELECTROLYTIC, 200V 2.2UF M 3A
C417 24214391 CERAMIC DISC, 500V B 390PF K
C420 24794101 ELECTROLYTIC, 16V 100UF M
C420 24829223 PLASTIC FILM, 400V 0.022U J
C430 24232103 CERAMIC DISC, 50V F 0.01UF Z
C431 24763102 ELECTROLYTIC, 16V 1000UF M
C432 24353181 CERAMIC DISC, 50V CH 180PF J
C433 24539104 PLASTIC FILM, 50V 0.1UF J
C436 24793102 ELECTROLYTIC, 10V 1000UF M
C439 24232103 CERAMIC DISC, 50V F 0.01UF Z
C441 24693472 PLASTIC FILM, 100V 4700PF J
C442 24082917 PLASTIC FILM, 315V 0.3UF J
C443 24082591 PLASTIC FILM, 1500VH 0.01UF H
C444 24082952 PLASTIC FILM CF92 T 1500VH 6200PF H
C445 24828563 PLASTIC FILM, 200V 56000PF J
C446 24829753 PLASTIC FILM, 400V 75000PF J
C447 24679330 ELECTROLYTIC, 250V 33UF M 3A
C448 24640908 ELECTROLYTIC, 160V 33UF M 3A LI
C449 24214331 CERAMIC DISC, 500V B 330PF K
C463 24212222 CERAMIC DISC, 50V B 2200PF K
C464 24640872 ELECTROLYTIC, 100V 10UF M 3A
C466 24214181 CERAMIC DISC, 500V B 180PF K
C467 24820433 PLASTIC FILM, 630V 0.043UF J
–18 –
Location
* C801 24503002 PLASTIC FILM, AC275V 0.22UF M
* C802 24503002 PLASTIC FILM, AC275V 0.22UF M
* C813 24092567 CERAMIC DISC, AC250V E 1000PF M
* C814 24092567 CERAMIC DISC, AC250V E 1000PF M
Parts No. Description
No.
C470 24666470 ELECTORLYTIC, 16V 47UF M 3A
C472 24539474 PLASTIC FILM, 50V 0.47UF J
C473 24797010 ELECTROLYTIC, 50V 1UF M
C475 24820333 PLASTIC FILM, 630V 33000PF J
C478 24539103 PLASTIC FILM, 50V 0.01UF J
C479 24539104 PLASTIC FILM, 50V 0.1UF J
C498 24591472 PLASTIC FILM, 50V 4700PF J
C502 24232103 CERAMIC DISC, 50V F 0.01UF Z
C505 24232103 CERAMIC DISC, 50V F 0.01UF Z
C512 24797010 ELECTROLYTIC, 50V 1UF M
C513 24797010 ELECTROLYTIC, 50V 1UF M
C516 24232103 CERAMIC DISC, 50V F 0.01UF Z
C517 24794101 ELECTROLYTIC, 16V 100UF M
C523 24232103 CERAMIC DISC, 50V F 0.01UF Z
C524 24794101 ELECTROLYTIC, 16V 100UF M
C526 24232103 CERAMIC DISC, 50V F 0.01UF Z
C565 24232103 CERAMIC DISC, 50V F 0.01UF Z
C621 24794470 ELECTORLYTIC, 16V 47UF M
C622 24794100 ELECTROLYTIC, 16V 10UF M
C623 24794100 ELECTROLYTIC, 16V 10UF M
C661 24591102 PLASTIC FILM, 50V 1000PF J
C662 24591102 PLASTIC FILM, 50V 1000PF J
C663 24766100 ELECTROLYTIC, 50V 10UF M
C665 24797229 ELECTROLYTIC, 50V 2.2UF M
C666 24797229 ELECTROLYTIC, 50V 2.2UF M
C667 24539473 MT PLA CAP M 50V 473J MUL
C668 24539473 MT PLA CAP M 50V 473J MUL
C673 24669229 ELECTROLYTIC, 50V 2.2UF M 3A
C676 24591104 PLASTIC FILM, 50V 0.1UF J
C677 24591104 PLASTIC FILM, 50V 0.1UF J
C679 24795470 ELECTROLYTIC, 25V 47UF M
C681 24668102 ELECTROLYTIC, 35V 1000UF M 3A
C683 24668102 ELECTROLYTIC, 35V 1000UF M 3A
C684 24668101 ELECTROLYTIC, 35V 100UF M 3A
C688 24797229 ELECTROLYTIC, 50V 2.2UF M
C690 24232103 CERAMIC DISC, 50V F 0.01UF Z
C693 24667470 ELECTROLYTIC, 25V 47UF M 3A
C694 24795470 ELECTROLYTIC, 25V 47UF M
C704 24591822 PLASTIC FILM, 50V 8200PF J
C705 24232103 CERAMIC DISC, 50V F 0.01UF Z
C707 24795470 ELECTROLYTIC, 25V 47UF M
C712 24795470 ELECTROLYTIC, 25V 47UF M
C713 24790100 ELECTROLYTIC, 160V 10UF M
C714 24436101 CERAMIC DISC, 50V SL 100PF J
C715 24214472 CERAMIC DISC, 500C B 4700PF K
C716 24436101 CERAMIC DISC, 50V SL 100PF J
C717 24214472 CERAMIC DISC, 500C B 4700PF K
C718 24794470 ELECTORLYTIC, 16V 47UF M
C719 24435560 CERAMIC DISC, 500V SL 56PF J
C720 24790100 ELECTROLYTIC, 160V 10UF M
C721 24794470 ELECTORLYTIC, 16V 47UF M
C722 24436561 CERAMIC DISC, 50V SL 560PF J
C726 24212102 CERAMIC DISC, 50V B 1000PF K
C805 24092281 CERAMIC DISC, AC250V E 4700PF
C806 24092281 CERAMIC DISC, AC250V E 4700PF
C808 24795331 ELECTROLYTIC CE04G 25V 330UF M
C810 24086857 ELECTROLYTIC, 400V 560UF
C817 24092339 CERAMIC DISC, 2KV 330PF K
C818 24095931 PLASTIC FILM, 1250VH 2200PF J
C819 24676220 ELECTROLYTIC, 100V 22UF M 3A
C821 24214471 CERAMIC DISC, 500V B 470PF K
C822 24539474 PLASTIC FILM, 50V 0.47UF J
C823 24214471 CERAMIC DISC, 500V B 470PF K
Location
Parts No. Description
No.
C829 24591272 PLASTIC FILM, 50V 2700PF J
C831 24794470 ELECTORLYTIC, 16V 47UF M
C833 24797229 ELECTROLYTIC, 50V 2.2UF M
C841 24797100 ELECTROLYTIC, 50V 10UF M
C842 24794100 ELECTROLYTIC, 16V 10UF M
C843 24591104 PLASTIC FILM, 50V 0.1UF J
C846 24591224 PLASTIC FILM, 50V 0.22MF J
C884 24086916 ELECTROLYTIC, 160V 330UF M 3D
C885 24214471 CERAMIC DISC, 500V B 470PF K
C887 24214471 CERAMIC DISC, 500V B 470PF K
C889 24668222 ELECTROLYTIC, 35V 2200UF M 3A
C893 24092337 CERAMIC DISC, 2KV 220PF K
C895 24676470 ELECTROLYTIC, 100V 47UF M 3A
C897 24212272 CERAMIC DISC, 50V B 2700PF K
C898 24539224 PLASTIC FILM, 50V 0.22UF J
C902 24092345 CERAMIC DISC, 2KV 1000PF K
C903 24436121 CERAMIC DISC, 50V SL 120PF J
C904 24436331 CERAMIC DISC, 50V SL 330PF J
C905 24436391 CERAMIC DISC, 50V SL 390PF J
C906 24436121 CERAMIC DISC, 50V SL 120PF J
C907 24436471 CERAMIC DISC, 50V SL 470PF J
C908 24436121 CERAMIC DISC, 50V SL 120PF J
C909 24679220 ELECTROLYTIC, 250V 22UF M 3A
C910 24797478 ELECTROLYTIC, 50V 0.47UF M
C911 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A
C912 24794102 ELECTROLYTIC, 16V 1000UF M
C913 24794220 ELECTROLYTIC, 16V 22UF M
C914 24212103 CERAMIC DISC, 50V B 10000PF K
C930 24214101 CERAMIC DISC, 500V B 100PF K
C931 24214101 CERAMIC DISC, 500V B 100PF K
C932 24232103 CERAMIC DISC, 50V F 0.01UF Z
C933 24232103 CERAMIC DISC, 50V F 0.01UF Z
CA03 24353220 CERAMIC DISC, 50V CH 22PF J
CA04 24353220 CERAMIC DISC, 50V CH 22PF J
CA20 24212101 CERAMIC DISC, 50V B 100PF K
CA30 24353270 CERAMIC DISC, 50V CH 27PF J
CA41 24212101 CERAMIC DISC, 50V B 100PF K
CA42 24794100 ELECTROLYTIC, 16V 10UF M
CA43 24212101 CERAMIC DISC, 50V B 100PF K
CA45 24232103 CERAMIC DISC, 50V F 0.01UF Z
CA53 24539223 PLASTIC FILM, 50V 0.022UF J MUL
CA68 24794100 ELECTROLYTIC, 16V 10UF M
CA69 24232103 CERAMIC DISC, 50V F 0.01UF Z
CB02 24744470 ELECTROLYTIC, 16V 47UF M
CB20 24353101 CERAMIC DISC, 50V CH 100PF J
CB21 24353221 CERAMIC DISC, 50V CH 220PF J
CB22 24591272 PLASTIC FILM, 50V 2700PF J
CC14 24591103 PLASTIC FILM, 50V 0.01UF J
CC23 24232103 CERAMIC DISC, 50V F 0.01UF Z
CC24 24232103 CERAMIC DISC, 50V F 0.01UF Z
CS01 24073077 ELECTROLYTIC, 50V 0.1UF M 3A
CS02 24797010 ELECTROLYTIC, 50V 1UF M
CS03 24797010 ELECTROLYTIC, 50V 1UF M
CS04 24797010 ELECTROLYTIC, 50V 1UF M
CS05 24797010 ELECTROLYTIC, 50V 1UF M
CS06 24797010 ELECTROLYTIC, 50V 1UF M
CS07 24797010 ELECTROLYTIC, 50V 1UF M
CS10 24794100 ELECTROLYTIC, 16V 10UF M
CS11 24794100 ELECTROLYTIC, 16V 10UF M
CS14 24797478 ELECTROLYTIC, 50V 0.47UF M
CS29 24666220 ELECTROLYTIC, 16V 22UF M 3A
CT01 24794221 ELECTROIYTIC, 16V 220UF M
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
SPECIFIC INFORMATIONS
–19 –
Location
SPECIFIC INFORMATIONS
Parts No. Description
No.
CT02 24232103 CERAMIC DISC, 50V F 0.01UF Z
CT03 24232103 CERAMIC DISC, 50V F 0.01UF Z
CT04 24794101 ELECTROLYTIC, 16V 100UF M
CT05 24591104 PLASTIC FILM, 50V 0.1UF J
CT06 24794470 ELECTORLYTIC, 16V 47UF M
CT07 24794100 ELECTROLYTIC, 16V 10UF M
CT08 24353560 CERAMIC DISC, 50V CH 56PF J
CT09 24353560 CERAMIC DISC, 50V CH 56PF J
CT10 24794470 ELECTORLYTIC, 16V 47UF M
CT11 24591104 PLASTIC FILM, 50V 0.1UF J
CT12 24794470 ELECTORLYTIC, 16V 47UF M
CT13 24591104 PLASTIC FILM, 50V 0.1UF J
CT14 24591104 PLASTIC FILM, 50V 0.1UF J
CT16 24353220 CERAMIC DISC, 50V CH 22PF J
CT17 24591104 PLASTIC FILM, 50V 0.1UF J
CT20 24232103 CERAMIC DISC, 50V F 0.01UF Z
CT21 24795101 ELECTROLYTIC, 25V 100UF M
CT22 24591104 PLASTIC FILM, 50V 0.1UF J
CT23 24797478 ELECTROLYTIC, 50V 0.47UF M
CT24 24797478 ELECTROLYTIC, 50V 0.47UF M
CT25 24232103 CERAMIC DISC, 50V F 0.01UF Z
CT26 24794470 ELECTORLYTIC, 16V 47UF M
CT27 24212222 CERAMIC DISC, 50V B 2200PF K
CT28 24797010 ELECTROLYTIC, 50V 1UF M
CT29 24212102 CERAMIC DISC, 50V B 1000PF K
CT30 24212101 CERAMIC DISC, 50V B 100PF K
CV01 24794101 ELECTROLYTIC, 16V 100UF M
CV02 24797220 ELECTROLYTIC, 50V 22UF M
CV03 24539473 MT PLA CAP M 50V 473J MUL
CV04 24591104 PLASTIC FILM, 50V 0.1UF J
CV05 24591104 PLASTIC FILM, 50V 0.1UF J
CV06 24591104 PLASTIC FILM, 50V 0.1UF J
CV07 24591104 PLASTIC FILM, 50V 0.1UF J
CV08 24591104 PLASTIC FILM, 50V 0.1UF J
CV09 24591104 PLASTIC FILM, 50V 0.1UF J
CV10 24232103 CERAMIC DISC, 50V F 0.01UF Z
CV11 24232103 CERAMIC DISC, 50V F 0.01UF Z
CV12 24232103 CERAMIC DISC, 50V F 0.01UF Z
CV13 24794470 ELECTORLYTIC, 16V 47UF M
CV19 24073077 ELECTROLYTIC, 50V 0.1UF M 3A
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
Location
Parts No. Description
No.
CV20 24073077 ELECTROLYTIC, 50V 0.1UF M 3A
CV22 24073077 ELECTROLYTIC, 50V 0.1UF M 3A
CV30 24085982 ELECTRORYTIC, NONPOLAR, 50V 0.1UF M
CV32 24232103 CERAMIC DISC, 50V F 0.01UF Z
CV33 24232103 CERAMIC DISC, 50V F 0.01UF Z
CV34 24762471 ELECTROLYTIC, 10V 470UF M
CV36 24794221 ELECTROIYTIC, 16V 220UF M
CZ02 24794220 ELECTROLYTIC, 16V 22UF M
CZ03 24353120 CERAMIC DISC, 50V CH 12PF J
RESISTORS
R101 24366104 CARBON FILM, 1/6W 100K OHM J
R101 24382183 OXIDE METAL FILM, 1W 18K OHM J
R102 24366683 CARBON FILM, 1/6W 68K OHM J
R103 24366122 CARBON FILM, 1/6W 1.2K OHM J
R124 24366303 CARBON FILM, 1/6W 30K OHM J
R130 24366102 CARBON FILM, 1/6W 1K OHM J
R131 24366331 CARBON FILM, 1/6W 330 OHM J
R132 24366102 CARBON FILM, 1/6W 1K OHM J
R133 24366333 CARBON FILM, 1/6W 33K OHM J
R135 24366103 CARBON FILM, 1/6W 10K OHM J
R136 24366103 CARBON FILM, 1/6W 10K OHM J
R153 24552271 OXIDE METAL FILM, 1/2W 270 OHM J
R163 24366101 CARBON FILM, 1/6W 100 OHM J
R164 24366101 CARBON FILM, 1/6W 100 OHM J
R165 24366101 CARBON FILM, 1/6W 100 OHM J
R202 24366101 CARBON FILM, 1/6W 100 OHM J
R214 24366332 CARBON FILM, 1/6W 3.3K OHM J
R216 24366224 CARBON FILM, 1/6W 220K OHM J
R217 24366104 CARBON FILM, 1/6W 100K OHM J
R217 24367103 CARBON FILM, 1/6W 10K OHM G
R228 24366271 CARBON FILM, 1/6W 270 OHM J
R228 24367562 CARBON FILM, 1/6W 5.6K OHM G
R229 24366271 CARBON FILM, 1/6W 270 OHM J
R230 24366271 CARBON FILM, 1/6W 270 OHM J
R241 24366471 CARBON FILM, 1/6W 470 OHM J
R242 24366222 CARBON FILM, 1/6W 2.2K OHM J
R243 24366471 CARBON FILM, 1/6W 470 OHM J
R244 24366394 CARBON FILM, 1/6W 390K OHM J
R245 24366333 CARBON FILM, 1/6W 33K OHM J
R246 24366123 CARBON FILM, 1/6W 12K OHM J
R247 24366392 CARBON FILM, 1/6W 3.9K OHM J
R248 24366392 CARBON FILM, 1/6W 3.9K OHM J
R249 24366223 CARBON FILM, 1/6W 22K OHM J
R301 24366103 CARBON FILM, 1/6W 10K OHM J
R305 24323109 OXIDE METAL FILM, 2W 1 OHM J
R306 24366104 CARBON FILM, 1/6W 100K OHM J
R307 24366912 CARBON FILM, 1/6W 9.1K OHM J
R310 24366472 CARBON FILM, 1/6W 4.7K OHM J
R311 24366332 CARBON FILM, 1/6W 3.3K OHM J
R312 24383102 OXIDE METAL FILM, 2W 1K OHM J
R313 24366513 CARBON FILM, 1/6W 51K OHM J
R314 24366103 CARBON FILM, 1/6W 10K OHM J
R314 24366105 CARBON FILM, 1/6W 1M OHM J
R315 24366824 CARBON FILM, 1/6W 820K OHM J
R316 24366154 CARBON FILM, 1/6W 150K OHM J
R317 24366222 CARBON FILM, 1/6W 2.2K OHM J
R318 24366222 CARBON FILM, 1/6W 2.2K OHM J
R319 24366222 CARBON FILM, 1/6W 2.2K OHM J
R328 24339159 OXIDE METAL FILM, 2W 1.5 OHM J
R331 24366104 CARBON FILM, 1/6W 100K OHM J
R336 24383181 OXIDE METAL FILM, 2W 180 OHM J
R341 24366182 CARBON FILM, 1/6W 1.8K OHM J
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
–20 –
Location
Parts No. Description
No.
R342 24366562 CARBON FILM, 1/6W 5.6K OHM J
R343 24310159 OXIDE METAL FILM, 1/2W 1.5 OHM J
R344 24366392 CARBON FILM, 1/6W 3.9K OHM J
R349 24366473 CARBON FILM, 1/6W 47K OHM J
R361 24366272 CARBON FILM, 1/6W 2.7K OHM J
R362 24366272 CARBON FILM, 1/6W 2.7K OHM J
R363 24552682 OXIDE METAL FILM, 1/2W 6.8K OHM J
R364 24366101 CARBON FILM, 1/6W 100 OHM J
R366 24366432 CARBON FILM, 1/6W 4.3K OHM J
R367 24000370 METAL FILM, 1/4W 3.3K OHM F
R369 24366391 CARBON FILM, 1/6W 390 OHM J
R400 24946561 CARBON COMPOSITION, 1/2W 560 OHM K
R402 24366103 CARBON FILM, 1/6W 10K OHM J
R403 24366203 CARBON FILM, 1/6W 20K OHM J
R411 24366561 CARBON FILM, 1/6W 560 OHM J
R413 24366271 CARBON FILM, 1/6W 270 OHM J
R415 24553272 OXIDE METAL FILM, 1W 2.7K OHM J
R416 24019329 OXIDE FILM 5W 3R3K J
R420 24321229 OXIDE METAL FILM, 1/2W 2.2 OHM J
R425 24381471 OXIDE METAL FILM, 1/2W 470 OHM J
R426 24366751 CARBON FILM, 1/6W 750 OHM J
R427 24366392 CARBON FILM, 1/6W 3.9K OHM J
R428 24366561 CARBON FILM, 1/6W 560 OHM J
R429 24552560 OXIDE METAL FILM, 1/2W 56 OHM J
R430 24366103 CARBON FILM, 1/6W 10K OHM J
R431 24366103 CARBON FILM, 1/6W 10K OHM J
R432 24531560 FUSIBLE, 1/2W 56 OHM J
R433 24366681 CARBON FILM, 1/6W 680 OHM J
R435 24366561 CARBON FILM, 1/6W 560 OHM J
R436 24366241 CARBON FILM, 1/6W 240 OHM J
R437 24366122 CARBON FILM, 1/6W 1.2K OHM J
R438 24366472 CARBON FILM, 1/6W 4.7K OHM J
R439 24366102 CARBON FILM, 1/6W 1K OHM J
R440 24366473 CARBON FILM, 1/6W 47K OHM J
R441 24532102 FUSIBLE, 1W 1K OHM J
R447 24382472 OXIDE METAL FILM, 1W 4.7K OHM J
R448 24338398 OXIDE METAL FILM, 1W 0.39 OHM J
R456 24366101 CARBON FILM, 1/6W 100 OHM J
R460 24366332 CARBON FILM, 1/6W 3.3K OHM J
R461 24366561 CARBON FILM, 1/6W 560 OHM J
R462 24366392 CARBON FILM, 1/6W 3.9K OHM J
R463 24322399 OXIDE METAL FILM, 1W 3.9 OHM J
R464 24366103 CARBON FILM, 1/6W 10K OHM J
R465 24366332 CARBON FILM, 1/6W 3.3K OHM J
R466 24366103 CARBON FILM, 1/6W 10K OHM J
R467 24381393 OXIDE METAL FILM, 1/2W 39K OHM J
R470 24338568 OXIDE METAL FILM, 1W 0.56 OHM J
R471 24531271 FUSIBLE, 1/2W 270 OHM J
R476 24381333 OXIDE METAL FILM, 1/2W 33K OHM J
R477 24366101 CARBON FILM, 1/6W 100 OHM J
R479 24366101 CARBON FILM, 1/6W 100 OHM J
R480 24366561 CARBON FILM, 1/6W 560 OHM J
R481 24366154 CARBON FILM, 1/6W 150K OHM J
R482 24366223 CARBON FILM, 1/6W 22K OHM J
R483 24366154 CARBON FILM, 1/6W 150K OHM J
R484 24366183 CARBON FILM, 1/6W 18K OHM J
R485 24366561 CARBON FILM, 1/6W 560 OHM J
R486 24366102 CARBON FILM, 1/6W 1K OHM J
R487 24366563 CARBON FILM, 1/6W 56K OHM J
R488 24366561 CARBON FILM, 1/6W 560 OHM J
R490 24366471 CARBON FILM, 1/6W 470 OHM J
R491 24366102 CARBON FILM, 1/6W 1K OHM J
R492 24366102 CARBON FILM, 1/6W 1K OHM J
R497 24366154 CARBON FILM, 1/6W 150K OHM J
R498 24366563 CARBON FILM, 1/6W 56K OHM J
R501 24366332 CARBON FILM, 1/6W 3.3K OHM J
(29VZ6DE/29VZ6DA)
Location
* R801 24009954 METAL FILN, 1/2W 2.2M OHM J
* R808 24019484 THERMISTOR, PTC, AC265 4R5A
Parts No. Description
No.
R502 24366222 CARBON FILM, 1/6W 2.2K OHM J
R503 24366102 CARBON FILM, 1/6W 1K OHM J
R504 24366102 CARBON FILM, 1/6W 1K OHM J
R505 24366222 CARBON FILM, 1/6W 2.2K OHM J
R506 24366102 CARBON FILM, 1/6W 1K OHM J
R507 24366102 CARBON FILM, 1/6W 1K OHM J
R508 24366222 CARBON FILM, 1/6W 2.2K OHM J
R509 24366101 CARBON FILM, 1/6W 100 OHM J
R509 24366104 CARBON FILM, 1/6W 100K OHM J
R620 24366103 CARBON FILM, 1/6W 10K OHM J
R621 24366273 CARBON FILM, 1/6W 27K OHM J
R622 24366102 CARBON FILM, 1/6W 1K OHM J
R623 24366104 CARBON FILM, 1/6W 100K OHM J
R643 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R644 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R661 24366122 CARBON FILM, 1/6W 1.2K OHM J
R662 24366122 CARBON FILM, 1/6W 1.2K OHM J
R663 24366333 CARBON FILM, 1/6W 33K OHM J
R664 24366333 CARBON FILM, 1/6W 33K OHM J
R667 24366103 CARBON FILM, 1/6W 10K OHM J
R668 24366103 CARBON FILM, 1/6W 10K OHM J
R669 24366103 CARBON FILM, 1/6W 10K OHM J
R676 24366229 CARBON FILM, 1/6W 2.2 OHM J
R677 24366229 CARBON FILM, 1/6W 2.2 OHM J
R695 24366222 CARBON FILM, 1/6W 2.2K OHM J
R702 24366821 CARBON FILM, 1/6W 820 OHM J
R709 24366563 CARBON FILM, 1/6W 56K OHM J
R713 24366393 CARBON FILM, 1/6W 39K OHM J
R715 24366223 CARBON FILM, 1/6W 22K OHM J
R716 24366273 CARBON FILM, 1/6W 27K OHM J
R717 24366333 CARBON FILM, 1/6W 33K OHM J
R719 24366392 CARBON FILM, 1/6W 3.9K OHM J
R720 24366392 CARBON FILM, 1/6W 3.9K OHM J
R721 24366102 CARBON FILM, 1/6W 1K OHM J
R722 24552471 OXIDE METAL FILM, 1/2W 470 OHM J
R723 24366471 CARBON FILM, 1/6W 470 OHM J
R724 24366470 CARBON FILM, 1/6W 47 OHM J
R725 24366182 CARBON FILM, 1/6W 1.8K OHM J
R730 24552100 OXIDE METAL FILM, 1/2W 10 OHM J
R731 24552331 OXIDE METAL FILM, 1/2W 330 OHM J
R732 24366820 CARBON FILM, 1/6W 82 OHM J
R733 24366683 CARBON FILM, 1/6W 68K OHM J
R734 24366820 CARBON FILM, 1/6W 82 OHM J
R735 24366683 CARBON FILM, 1/6W 68K OHM J
R736 24366620 CARBON FILM, 1/6W 62 OHM J
R737 24366152 CARBON FILM, 1/6W 1.5K OHM J
R738 24366102 CARBON FILM, 1/6W 1K OHM J
R739 24366152 CARBON FILM, 1/6W 1.5K OHM J
R740 24366620 CARBON FILM, 1/6W 62 OHM J
R741 24366279 CARBON FILM, 1/6W 2.7 OHM J
R742 24366279 CARBON FILM, 1/6W 2.7 OHM J
R743 24554221 OXIDE METAL FILM, 2W 220 OHM J
R744 24366122 CARBON FILM, 1/6W 1.2K OHM J
R745 24366122 CARBON FILM, 1/6W 1.2K OHM J
R760 24366101 CARBON FILM, 1/6W 100 OHM J
R775 24366182 CARBON FILM, 1/6W 1.8K OHM J
R802 24383123 OXIDE METAL FILM, 2W 12K J
R803 24383123 OXIDE METAL FILM, 2W 12K J
R804 24366334 CARBON FILM, 1/6W 330K OHM J
R805 24366681 CARBON FILM, 1/6W 680 OHM J
R807 24366334 CARBON FILM, 1/6W 330K OHM J
R809 24366393 CARBON FILM, 1/6W 39K OHM J
R811 24366225 CARBON FILM, 1/6W 2.2M OHM J
R812 24510479 CERAMIC COVERED, 5W 4.7 OHM J
R813 24007061 CERAMIC COVERED, 2W 1.8 OHM K
SPECIFIC INFORMATIONS
–21 –
Location
* R899 24005015 METAL GLAZE, 1W 8.2M OHM J
SPECIFIC INFORMATIONS
Parts No. Description
No.
R814 24366682 CARBON FILM, 1/6W 6.8K OHM J
R815 24366332 CARBON FILM, 1/6W 3.3K OHM J
R818 24019459 METAL PLATE, 2W 0.12 OHM J
R819 24310829 OXIDE METAL FILM, 1/2W 8.2 OHM J
R820 24366101 CARBON FILM, 1/6W 100 OHM J
R822 24552103 OXIDE METAL FILM, 1/2W 10K OHM J
R823 24552392 OXIDE METAL FILM, 1/2W 3.9K OHM J
R824 24569689 CERAMIC COVERED, 10W 6.8 OHM J
R827 24366472 CARBON FILM, 1/6W 4.7K OHM J
R828 24366222 CARBON FILM, 1/6W 2.2K OHM J
R829 24321109 OXIDE METAL FILM, 1/2W 1 OHM J
R830 24548399 FUSIBLE, 2W 3.9 OHM J
R837 24366331 CARBON FILM, 1/6W 330 OHM J
R838 24366332 CARBON FILM, 1/6W 3.3K OHM J
R839 24366472 CARBON FILM, 1/6W 4.7K OHM J
R841 24531120 FUSIBLE, 1/2W 12 OHM J
R842 24552392 OXIDE METAL FILM, 1/2W 3.9K OHM J
R846 24366101 CARBON FILM, 1/6W 100 OHM J
R847 24366472 CARBON FILM, 1/6W 4.7K OHM J
R849 24366472 CARBON FILM, 1/6W 4.7K OHM J
R880 24366471 CARBON FILM, 1/6W 470 OHM J
R881 24366561 CARBON FILM, 1/6W 560 OHM J
R901 24376102 CARBON FILM, 1/2W 1K OHM J
R902 24376102 CARBON FILM, 1/2W 1K OHM J
R903 24376102 CARBON FILM, 1/2W 1K OHM J
R904 24366472 CARBON FILM, 1/6W 4.7K OHM J
R905 24366150 CARBON FILM, 1/6W 15 OHM J
R912 24366221 CARBON FILM, 1/6W 220 OHM J
R914 24366561 CARBON FILM, 1/6W 560 OHM J
R915 24366121 CARBON FILM, 1/6W 120 OHM J
R916 24366390 CARBON FILM, 1/6W 39 OHM J
R917 24366391 CARBON FILM, 1/6W 390 OHM J
R918 24366270 CARBON FILM, 1/6W 27 OHM J
R919 24366221 CARBON FILM, 1/6W 220 OHM J
R920 24000945 FUSIBLE, 2W 1.8 OHM J
R921 24366561 CARBON FILM, 1/6W 560 OHM J
R922 24366121 CARBON FILM, 1/6W 120 OHM J
R924 24366270 CARBON FILM, 1/6W 27 OHM J
R925 24366391 CARBON FILM, 1/6W 390 OHM J
R926 24366221 CARBON FILM, 1/6W 220 OHM J
R928 24366561 CARBON FILM, 1/6W 560 OHM J
R929 24366121 CARBON FILM, 1/6W 120 OHM J
R930 24366270 CARBON FILM, 1/6W 27 OHM J
R932 24366102 CARBON FILM, 1/6W 1K OHM J
R934 24366681 CARBON FILM, 1/6W 680 OHM J
R935 24366272 CARBON FILM, 1/6W 2.7K OHM J
R936 24545150 FUSIBLE, 1/4W 15 OHM J
R937 24366391 CARBON FILM, 1/6W 390 OHM J
R942 24366562 CARBON FILM, 1/6W 5.6K OHM J
R943 24366562 CARBON FILM, 1/6W 5.6K OHM J
R944 24366562 CARBON FILM, 1/6W 5.6K OHM J
R945 24366390 CARBON FILM, 1/6W 39 OHM J
R946 24366390 CARBON FILM, 1/6W 39 OHM J
R960 24383153 OXIDE METAL FILM, 2W 15K OHM J
R961 24383153 OXIDE METAL FILM, 2W 15K OHM J
R962 24383153 OXIDE METAL FILM, 2W 15K OHM J
R963 24383153 OXIDE METAL FILM, 2W 15K OHM J
R964 24383153 OXIDE METAL FILM, 2W 15K OHM J
R965 24383153 OXIDE METAL FILM, 2W 15K OHM J
R977 24366122 CARBON FILM, 1/6W 1.2K OHM J
R992 24366150 CARBON FILM, 1/6W 15 OHM J
RA20 24366331 CARBON FILM, 1/6W 330 OHM J
RA21 24366103 CARBON FILM, 1/6W 10K OHM J
RA22 24366331 CARBON FILM, 1/6W 330 OHM J
RA23 24366331 CARBON FILM, 1/6W 330 OHM J
RA24 24366102 CARBON FILM, 1/6W 1K OHM J
Location
Parts No. Description
No.
RA30 24366101 CARBON FILM, 1/6W 100 OHM J
RA31 24366101 CARBON FILM, 1/6W 100 OHM J
RA35 24366102 CARBON FILM, 1/6W 1K OHM J
RA36 24366103 CARBON FILM, 1/6W 10K OHM J
RA38 24366103 CARBON FILM, 1/6W 10K OHM J
RA39 24366103 CARBON FILM, 1/6W 10K OHM J
RA41 24366103 CARBON FILM, 1/6W 10K OHM J
RA61 24366103 CARBON FILM, 1/6W 10K OHM J
RA62 24366103 CARBON FILM, 1/6W 10K OHM J
RA71 24367163 CARBON FILM, 1/6W 16K OHM G
RA72 24367113 CARBON FILM, 1/2W 11K OHM J
RA73 24367562 CARBON FILM, 1/6W 5.6K OHM G
RA74 24367303 CARBON FILM, 1/6W 30K OHM G
RA75 24367114 CARBON FILM, 1/6W 110K OHM G
RA89 24366470 CARBON FILM, 1/6W 47 OHM J
RB09 24366470 CARBON FILM, 1/6W 47 OHM J
RB10 24366102 CARBON FILM, 1/6W 1K OHM J
RB11 24366103 CARBON FILM, 1/6W 10K OHM J
RB12 24366271 CARBON FILM, 1/6W 270 OHM J
RB13 24366221 CARBON FILM, 1/6W 220 OHM J
RB14 24366102 CARBON FILM, 1/6W 1K OHM J
RB20 24366823 CARBON FILM, 1/6W 82K OHM J
RB21 24366103 CARBON FILM, 1/6W 10K OHM J
RB22 24366103 CARBON FILM, 1/6W 10K OHM J
RB27 24366103 CARBON FILM, 1/6W 10K OHM J
RB28 24366104 CARBON FILM, 1/6W 100K OHM J
RB30 24366682 CARBON FILM, 1/6W 6.8K OHM J
RS01 24366223 CARBON FILM, 1/6W 22K OHM J
RS02 24366104 CARBON FILM, 1/6W 100K OHM J
RS03 24366223 CARBON FILM, 1/6W 22K OHM J
RS04 24366104 CARBON FILM, 1/6W 100K OHM J
RS05 24366104 CARBON FILM, 1/6W 100K OHM J
RS06 24366104 CARBON FILM, 1/6W 100K OHM J
RS07 24366104 CARBON FILM, 1/6W 100K OHM J
RS08 24366104 CARBON FILM, 1/6W 100K OHM J
RS09 24366820 CARBON FILM, 1/6W 82 OHM J
RS10 24366472 CARBON FILM, 1/6W 4.7K OHM J
RS11 24366472 CARBON FILM, 1/6W 4.7K OHM J
RS14 24366101 CARBON FILM, 1/6W 100 OHM J
RS15 24366101 CARBON FILM, 1/6W 100 OHM J
RS17 24366472 CARBON FILM, 1/6W 4.7K OHM J
RS18 24366472 CARBON FILM, 1/6W 4.7K OHM J
RS19 24366101 CARBON FILM, 1/6W 100 OHM J
RS20 24366222 CARBON FILM, 1/6W 2.2K OHM J
RS21 24366101 CARBON FILM, 1/6W 100 OHM J
RS22 24366222 CARBON FILM, 1/6W 2.2K OHM J
RS23 24366102 CARBON FILM, 1/6W 1K OHM J
RS24 24366102 CARBON FILM, 1/6W 1K OHM J
RS27 24366561 CARBON FILM, 1/6W 560 OHM J
RS28 24366103 CARBON FILM, 1/6W 10K OHM J
RS29 24366104 CARBON FILM, 1/6W 100K OHM J
RS30 24366104 CARBON FILM, 1/6W 100K OHM J
RS31 24366104 CARBON FILM, 1/6W 100K OHM J
RS38 24366101 CARBON FILM, 1/6W 100 OHM J
RS39 24366103 CARBON FILM, 1/6W 10K OHM J
RT01 24366101 CARBON FILM, 1/6W 100 OHM J
RT02 24366101 CARBON FILM, 1/6W 100 OHM J
RT03 24366102 CARBON FILM, 1/6W 1K OHM J
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
–22 –
Location
Parts No. Description
No.
RT04 24366102 CARBON FILM, 1/6W 1K OHM J
RT05 24366100 CARBON FILM, 1/6W 10 OHM J
RT06 24366103 CARBON FILM, 1/6W 10K OHM J
RT07 24366103 CARBON FILM, 1/6W 10K OHM J
RT08 24366474 CARBON FILM, 1/6W 470K OHM J
RT09 24366134 CARBON FILM, 1/6W 130K OHM J
RT12 24366474 CARBON FILM, 1/6W 470K OHM J
RT13 24366102 CARBON FILM, 1/6W 1K OHM J
RT14 24366222 CARBON FILM, 1/6W 2.2K OHM J
RT15 24366333 CARBON FILM, 1/6W 33K OHM J
RT16 24366103 CARBON FILM, 1/6W 10K OHM J
RT17 24366561 CARBON FILM, 1/6W 560 OHM J
RT18 24366152 CARBON FILM, 1/6W 1.5K OHM J
RT19 24366122 CARBON FILM, 1/6W 1.2K OHM J
RT20 24366222 CARBON FILM, 1/6W 2.2K OHM J
RT22 24366331 CARBON FILM, 1/6W 330 OHM J
RT27 24367243 CARBON FILM, 1/6W 24K OHM G
RT28 24366101 CARBON FILM, 1/6W 100 OHM J
RT29 24366101 CARBON FILM, 1/6W 100 OHM J
RT32 24366472 CARBON FILM, 1/6W 4.7K OHM J
RT33 24366472 CARBON FILM, 1/6W 4.7K OHM J
RT34 24366472 CARBON FILM, 1/6W 4.7K OHM J
RT38 24366151 CARBON FILM, 1/6W 150 OHM J
RT39 24366102 CARBON FILM, 1/6W 1K OHM J
RT40 24366151 CARBON FILM, 1/6W 150 OHM J
RT43 24366151 CARBON FILM, 1/6W 150 OHM J
RT46 24366332 CARBON FILM, 1/6W 3.3K OHM J
RT47 24366332 CARBON FILM, 1/6W 3.3K OHM J
RT48 24366332 CARBON FILM, 1/6W 3.3K OHM J
RT50 24366681 CARBON FILM, 1/6W 680 OHM J
RT51 24366222 CARBON FILM, 1/6W 2.2K OHM J
RV02 24366103 CARBON FILM, 1/6W 10K OHM J
RV03 24366101 CARBON FILM, 1/6W 100 OHM J
RV04 24366222 CARBON FILM, 1/6W 2.2K OHM J
RV05 24366223 CARBON FILM, 1/6W 22K OHM J
RV06 24366123 CARBON FILM, 1/6W 12K OHM J
RV07 24366563 CARBON FILM, 1/6W 56K OHM J
RV08 24366101 CARBON FILM, 1/6W 100 OHM J
RV09 24366101 CARBON FILM, 1/6W 100 OHM J
RV10 24366101 CARBON FILM, 1/6W 100 OHM J
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
Location
Parts No. Description
No.
RV11 24366472 CARBON FILM, 1/6W 4.7K OHM J
RV12 24366101 CARBON FILM, 1/6W 100 OHM J
RV13 24366472 CARBON FILM, 1/6W 4.7K OHM J
RV14 24366101 CARBON FILM, 1/6W 100 OHM J
RV15 24366101 CARBON FILM, 1/6W 100 OHM J
RV16 24366101 CARBON FILM, 1/6W 100 OHM J
RV17 24366820 CARBON FILM, 1/6W 82 OHM J
RV18 24366103 CARBON FILM, 1/6W 10K OHM J
RV19 24366103 CARBON FILM, 1/6W 10K OHM J
RV19 24366622 CARBON FILM, 1/6W 6.2K OHM J
RV20 24366102 CARBON FILM, 1/6W 1K OHM J
RV20 24366103 CARBON FILM, 1/6W 10K OHM J
RV21 24366151 CARBON FILM, 1/6W 150 OHM J
RV22 24366101 CARBON FILM, 1/6W 100 OHM J
RV23 24366103 CARBON FILM, 1/6W 10K OHM J
RV24 24552101 OXIDE METAL FILM, 1/2W 100 OHM J
RV25 24366750 CARBON FILM, 1/6W 75 OHM J
RV26 24366101 CARBON FILM, 1/6W 100 OHM J
RV29 24366223 CARBON FILM, 1/6W 22K OHM J
RV30 24366820 CARBON FILM, 1/6W 82 OHM J
RV31 24366820 CARBON FILM, 1/6W 82 OHM J
RV32 24366101 CARBON FILM, 1/6W 100 OHM J
RV33 24366750 CARBON FILM, 1/6W 75 OHM J
RV34 24366750 CARBON FILM, 1/6W 75 OHM J
RV35 24366103 CARBON FILM, 1/6W 10K OHM J
RV36 24366102 CARBON FILM, 1/6W 1K OHM J
RV36 24366472 CARBON FILM, 1/6W 4.7K OHM J
RV90 24366101 CARBON FILM, 1/6W 100 OHM J
RV91 24366101 CARBON FILM, 1/6W 100 OHM J
RZ03 24366821 CARBON FILM, 1/6W 820 OHM J
RZ04 24366472 CARBON FILM, 1/6W 4.7K OHM J
RZ05 24366562 CARBON FILM, 1/6W 5.6K OHM J
RZ06 24366102 CARBON FILM, 1/6W 1K OHM J
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
COILS & TRANSFORMERS
L101 23248229 COIL, CHOKE, TLN3040AC
L102 23238506 COIL, PEAKING, TRF4229AJ
L103 23238506 COIL, PEAKING, TRF4229AJ
L111 23289100 COIL, PEAKING, TRF4100AF
L112 23289100 COIL, PEAKING, TRF4100AF
L115 23289100 COIL, PEAKING, TRF4100AF
L202 23289100 COIL, PEAKING, TRF4100AF
L301 23103894 FILTER, FERRITE BEAD, TEM2011AW
L441 23233036 COIL, HOLIZ LINEARITY, TLN2083AT
L442 23248121 COIL, CHOKE, TLN3383D
L461 23248238 COIL, CHOKE, TLN3335AF
L462 23231337 COIL, DEFLECTION YOKE, TDY-8294S,
L462A 23993696 B0ARD, CORRECTION
L462B 23949616 CONVER CORRECTOR, YV TC-R, TC-R(YV)
L462C 23993081 METAL SHEET, CONV. CORRECTION,
L462D 23948535 SHEET, MAGNETIC FERRITE, TC-U(PLUS)
L462E 23948536 SHEET, MAGNETIC FERRITE, TC-V(MINUS)
L463 23103894 FILTER, FERRITE BEAD, TEM2011AW
L502 23103852 COIL, FILTER, TEM2028AH
L503 23103852 COIL, FILTER, TEM2028AH
L702 23261974 COIL, FERRITE BEAD, HC5-035
L704 23103894 FILTER, FERRITE BEAD, TEM2011AW
L705 23103894 FILTER, FERRITE BEAD, TEM2011AW
L805 23248234 COIL, CHOKE, TLN3481AC
L806 23248234 COIL, CHOKE, TLN3481AC
L811 23103894 FILTER, FERRITE BEAD, TEM2011AW
L883 23221747 COIL, CHOKE, TRF9253D
SEMCO 29PF
TCRMXH01H
SPECIFIC INFORMATIONS
–23 –
Location
* L901 23200476 COIL, DG0.40CU48T-8TYPE, TSB-2389AK
SPECIFIC INFORMATIONS
* T461 23236712 TRANSFORMER, FLYBACK, TFB4182AH
* T801 23211724 COIL, LINE FILTER, TRF3196AC
* T862 23217551 TRANSFORMER, CONVERTER,
Parts No. Description
No.
L885 23248073 COIL, CHOKE, TLN3299D
L886 23103894 FILTER, FERRITE BEAD, TEM2011AW
L889 23280016 COIL, PEAKING, TRF4100AZ
L896 23103894 FILTER, FERRITE BEAD, TEM2011AW
L902 23289221 COIL, PEAKING, TRF4221AF
L903 23289221 COIL, PEAKING, TRF4221AF
L904 23289221 COIL, PEAKING, TRF4221AF
L905 23289390 COIL, PEAKING, TRF4390AF
L906 23289390 COIL, PEAKING, TRF4390AF
L907 23289390 COIL, PEAKING, TRF4390AF
LA01 23289100 COIL, PEAKING, TRF4100AF
LT01 23238506 COIL, PEAKING, TRF4229AJ
LT02 23238506 COIL, PEAKING, TRF4229AJ
LT03 23238506 COIL, PEAKING, TRF4229AJ
LT04 23238506 COIL, PEAKING, TRF4229AJ
LT05 23238506 COIL, PEAKING, TRF4229AJ
LT06 23238506 COIL, PEAKING, TRF4229AJ
LT07 23238506 COIL, PEAKING, TRF4229AJ
LT08 23238506 COIL, PEAKING, TRF4229AJ
LT09 23238506 COIL, PEAKING, TRF4229AJ
LT10 23238506 COIL, PEAKING, TRF4229AJ
LV01 23289100 COIL, PEAKING, TRF4100AF
LZ01 23289270 COIL, PEAKING, TRF4270AF
T400 23224364 TRANSFORMER, FOCUS, TLN2168AH
T401 23224367 TRANSFORMER, HORIZ DRIVER,
T802 23211732 COIL, LINE FILTER, TRF3202AC
SEMICONDUCTORS
Q100 23009345 IC, P/N 2IN1 VCD MICRO, 8807CPBN4H08
Q241 23314965 TRANSISTOR, KTC3198 Y
Q242 23314962 TRANSISTOR, KTA1266 Y
Q243 23314965 TRANSISTOR, KTC3198 Y
Q301 23009353 IC, VERTICAL AN5523 MATSUSHITA, AN5523
Q301B 70391356 SCREW, BITTB3X10 SZN
Q310 23114462 TRANSISTOR, RN1202 (29VZ6DE/29VZ6DA)
Q311 23114460 TRANSISTOR, RN1204 (29VZ6DE/29VZ6DA)
Q317 23314962 TRANSISTOR, KTA1266 Y
Q318 23314962 TRANSISTOR, KTA1266 Y
Q319 23314962 TRANSISTOR, KTA1266 Y
Q340 23314962 TRANSISTOR, KTA1266 Y
Q360 23906596 IC, BA4558
Q402 23114755 TRANSISTOR, 2SC2482FA-1
Q404 23314969 TRANSISTOR, 2SD2499(FA)
Q404B 72471082 SCREW, 3X10MM
Q420 23314141 TRANSISTOR, 2SC3852
Q420B 70391355 SCREW, BIND HEAD TAP-TITE B,
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
TLN1098AH
TRSTPW3491AE
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
BITTB 3X8 SZN
Location
* Q826 23906937 IC, PHOTO COUPLER, ON3171-R
Parts No. Description
No.
Q421 23314965 TRANSISTOR, KTC3198 Y
Q430 23314141 TRANSISTOR, 2SC3852
Q430B 70391355 SCREW, BIND HEAD TAP-TITE B,
Q431 23314965 TRANSISTOR, KTC3198 Y
Q432 23314965 TRANSISTOR, KTC3198 Y
Q460 23314938 TRANSISTOR, 2SD2493(P)
Q460B 23037312 SCREW, BTBW3X12SZN
Q461 23314962 TRANSISTOR, KTA1266 Y
Q462 23314962 TRANSISTOR, KTA1266 Y
Q463 23314962 TRANSISTOR, KTA1266 Y
Q470 23114541 TRANSISTOR, 2SA1320
Q471 23314965 TRANSISTOR, KTC3198 Y
Q472 23314965 TRANSISTOR, KTC3198 Y
Q473 23314962 TRANSISTOR, KTA1266 Y
Q474 23314965 TRANSISTOR, KTC3198 Y
Q501 23314962 TRANSISTOR, KTA1266 Y
Q502 23314962 TRANSISTOR, KTA1266 Y
Q504 23314962 TRANSISTOR, KTA1266 Y
Q580 23314962 TRANSISTOR, KTA1266 Y
Q608 23114623 TRANSISTOR, 2SC2878-A(TEM
Q609 23114623 TRANSISTOR, 2SC2878-A(TEM
Q610 23318814 IC, TA8211AH
Q610B 70391355 SCREW, BIND HEAD TAP-TITE B,
Q621 23314962 TRANSISTOR, KTA1266 Y
Q706 23314965 TRANSISTOR, KTC3198 Y
Q707 23114437 TRANSISTOR, 2SC752GTM-Y
Q709 23314965 TRANSISTOR, KTC3198 Y
Q710 23314962 TRANSISTOR, KTA1266 Y
Q711 23314909 TRANSISTOR, 2SA1837
Q712 23314912 TRANSISTOR, 2SC4793
Q719 23314965 TRANSISTOR, KTC3198 Y
Q720 23314965 TRANSISTOR, KTC3198 Y
Q773 23314965 TRANSISTOR, KTC3198 Y
Q801 23135008 IC, STR-F6668B
Q802 23314141 TRANSISTOR, 2SC3852
Q821 23114462 TRANSISTOR, RN1202
Q827 23000352 IC, SE125N, LF4
Q830 23314141 TRANSISTOR, 2SC3852
Q830B 70391355 SCREW, BIND HEAD TAP-TITE B,
Q840 23318299 IC, L78MR05-FA
Q840B 70391355 SCREW, BIND HEAD TAP-TITE B,
Q841 23314965 TRANSISTOR, KTC3198 Y
Q842 23314965 TRANSISTOR, KTC3198 Y
Q880 23314962 TRANSISTOR, KTA1266 Y
Q901 23314780 TRANSISTOR, 2SC4544
Q902 23314965 TRANSISTOR, KTC3198 Y
Q903 23314780 TRANSISTOR, 2SC4544
Q904 23314965 TRANSISTOR, KTC3198 Y
Q905 23314780 TRANSISTOR, 2SC4544
Q906 23314965 TRANSISTOR, KTC3198 Y
Q907 23314962 TRANSISTOR, KTA1266 Y
Q908 23114429 TRANSISTOR, 2SC2120-Y(TE
QA02 23906923 IC, CAT24WC08P
QB01 23314965 TRANSISTOR, KTC3198 Y
QB02 23314962 TRANSISTOR, KTA1266 Y
QB20 23114463 TRANSISTOR, RN1201 (29VZ6DE/29VZ6DA)
QB21 23314965 TRANSISTOR, KTC3198 Y
QB30 23314965 TRANSISTOR, KTC3198 Y
QS01 23314965 TRANSISTOR, KTC3198 Y
QS02 23314965 TRANSISTOR, KTC3198 Y
QS03 23114623 TRANSISTOR, 2SC2878-A(TEM
BITTB 3X8 SZN
BITTB 3X8 SZN
BITTB 3X8 SZN
BITTB 3X8 SZN
(29VZ6DE/29VZ6DA)
–24 –
Location
Parts No. Description
No.
QS04 23114623 TRANSISTOR, 2SC2878-A(TEM
QS05 23114478 TRANSISTOR, RN2004
QT01 23009170 IC, 8BIT TV/TEXT MCU 32K,
QT02 23314965 TRANSISTOR, KTC3198 Y
QT03 23114437 TRANSISTOR, 2SC752GTM-Y
QT04 23314962 TRANSISTOR, KTA1266 Y
QT05 23314965 TRANSISTOR, KTC3198 Y
QT06 23009255 IC, +3.3V 2% REG. TO-92, NJU7222L33
QT08 23009260 IC, SYNC-SEPA WITH AFC, BA7046
QV01 23000369 IC, MM1495XD
QV02 23314965 TRANSISTOR, KTC3198 Y
QV03 23314965 TRANSISTOR, KTC3198 Y
QV04 23314965 TRANSISTOR, KTC3198 Y
QV05 23906379 IC, TA1287P (29VZ6DE/29VZ6DA)
QV06 23114437 TRANSISTOR, 2SC752GTM-Y
QV07 23314965 TRANSISTOR, KTC3198 Y
QZ02 23314965 TRANSISTOR, KTC3198 Y
QZ03 70200808 IC, PQ3RD083
D101 23115922 IC, UPC574J
D224 23357341 DIODE, 1SS133
D301 23118094 DIODE, EU2A
D303 23316794 DIODE, SC570A
D306 23357341 DIODE, 1SS133
D308 23118479 DIODE, BYD33J
D340 23118529 DIODE, ZENER, RD5.6ES B2
D360 23118528 DIODE, ZENER, RD5.6ESA B3
D406 23118479 DIODE, BYD33J
D408 23316414 DIODE, 3JH41(FALC3)
D420 23118524 DIODE, ZENER, RD7.5ES B1
D431 23118524 DIODE, ZENER, RD7.5ES B1
D441 23118516 DIODE, ZENER, RD9.1ES B3
D443 23357341 DIODE, 1SS133
D444 23316254 DIODE, ERC06-15
D461 23316582 DIODE, ERC20-06
D461B 70391355 SCREW, BIND HEAD TAP-TITE B,
D462 23357341 DIODE, 1SS133
D464 23118512 DIODE, ZENER, RD12ES B1
D467 23316472 DIODE, RGP10J
D470 23118531 DIODE, ZENER, RD5.1ESA B3
D474 23118511 DIODE, ZENER, RD12ES B2
D477 23357341 DIODE, 1SS133
D478 23357341 DIODE, 1SS133
D616 23357341 DIODE, 1SS133
D617 23357341 DIODE, 1SS133
D618 23357341 DIODE, 1SS133
D619 23357341 DIODE, 1SS133
D620 23357341 DIODE, 1SS133
D621 23357341 DIODE, 1SS133
D622 23357341 DIODE, 1SS133
D624 23357341 DIODE, 1SS133
D625 23357341 DIODE, 1SS133
D704 23357341 DIODE, 1SS133
D705 23357341 DIODE, 1SS133
D715 23357341 DIODE, 1SS133
D720 23357341 DIODE, 1SS133
D721 23357341 DIODE, 1SS133
D801 23357041 DIODE, LN6SB60-F05
D801B 72471082 SCREW, 3X10MM
D804 23118505 DIODE, ZENER, RD15ESA B2
SAA5561PS/M3/0615 (29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
(29VZ6DE/29VZ6DA)
BITTB 3X8 SZN
Location
Parts No. Description
No.
D805 23357012 DIODE, 1SS244
D806 23118094 DIODE, EU2A
D807 23118616 DIODE, ZENER, RD27ESA B2
D810 23118496 DIODE, ZENER, RD22ESA B2
D811 23357341 DIODE, 1SS133
D815 23118616 DIODE, ZENER, RD27ESA B2
D817 23357341 DIODE, 1SS133
D818 23118496 DIODE, ZENER, RD22ESA B2
D819 23118526 DIODE, ZENER, RD6.8ES B2
D821 23357341 DIODE, 1SS133
D828 23357341 DIODE, 1SS133
D831 23118506 DIODE, RD15ES B1
D832 23118519 DIODE, ZENER, RD8.2ES
D833 23118538 DIODE, ZENER, RD6.2ESA B2
D883 23316803 DIODE, FMU-G16S
D883B 70391356 SCREW, BITTB3X10 SZN
D885 23118052 DIODE, RU4Z LF-L1
D896 23118094 DIODE, EU2A
D901 23357341 DIODE, 1SS133
D903 23357341 DIODE, 1SS133
D904 23357341 DIODE, 1SS133
D905 23357341 DIODE, 1SS133
D906 23357341 DIODE, 1SS133
D907 23357341 DIODE, 1SS133
D908 23357341 DIODE, 1SS133
D909 23357341 DIODE, 1SS133
D910 23357341 DIODE, 1SS133
D911 23118479 DIODE, BYD33J
DB01 23358567 LED, LAMP RED/GREEN, L-59EGW
DB30 23357341 DIODE, 1SS133
DV01 23118517 DIODE, ZENER, RD9.1ES
DV02 23118517 DIODE, ZENER, RD9.1ES
DV03 23357341 DIODE, 1SS133
DZ01 23357341 DIODE, 1SS133
MISCELLANEOUS
B202 23037312 SCREW, BTBW3X12SZN
B243 23035312 SCREW, BTB3X12SZN
E912 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED
* F470 23144647 FUSE, CARTRIDGE 5X20, 250V 1.0A
F470A 23165433 FUSE HOLDER, 5.2 SOC
* F801 23144508 FUSE, CARTRIDGE 5.2X20, 250V 4.0A
F801A 23165433 FUSE HOLDER, 5.2 SOC
* F802 23144651 FUSE, CARTRIDGE 5X20, 250V 2.5A
F802A 23165433 FUSE HOLDER, 5.2 SOC
G303 24321109 OXIDE METAL FILM, 1/2W 1 OHM J
G402 23103894 FILTER, FERRITE BEAD, TEM2011AW
G472 24531680 FUSIBLE, 1/2W 68 OHM J
G614 23289100 COIL, PEAKING, TRF4100AF
G615 23289100 COIL, PEAKING, TRF4100AF
G714 24545220 FUSIBLE, 1/4W 22 OHM J
G810 23103894 FILTER, FERRITE BEAD, TEM2011AW
G828 23103775 COIL, FERRITE CHOKE, TEM2014
G894 23289100 COIL, PEAKING, TRF4100AF
G900 23289100 COIL, PEAKING, TRF4100AF
GJ01 24366472 CARBON FILM, 1/6W 4.7K OHM J
GJ02 24366472 CARBON FILM, 1/6W 4.7K OHM J
GL511 23289120 COIL, PEAKING, TRF4120AF
GL513 23289229 COIL, PEAKING, TRF4229AF
GL514 23289470 COIL, PEAKING, TRF4470AF
H002 23148342 MODULE, IF, MVCS45F, MULTI IF MPX APRO
KB01 23009125 IC, REMOTE PHOTO RECIEVER, RPM6938
M461A 23192964 ANODE CAP ASSY, TCC5606CT
M461B 23505089 CABLE, FOCUS
M461C 23505090 CABLE, CABLE FOCUS
M461D 23504204 CABLE, SCREEN
SPECIFIC INFORMATIONS
–25 –
Location
* P801 23372159 POWER CORD, CEE 250V 2.5A SILV 201
* P801 23372157 POWER CORD (29VZ6DA)
* P801 23372168 POWER CORD (29VZ6SH)
* S801 23344481 SWITCH, POWER, AAPY2211
SPECIFIC INFORMATIONS
* SR81 23146564 RELAY, DC12V, TV5, DG-3
* V901A 23903145 SOCKET, CRT, WFOCUS ISD35SE INCHANG
Parts No. Description
No.
N724 23965900 TAPE, GLASS-CLOTH, W/ADHESIVE
P661 23363607 JACK, HEAD PHONE, 3.5MM
P802 23368249 POWER CORD, 2P 11.88MM VH-JST
P910 23164725 CONNECTOR, PLUG 2P
PB01A 23902062 CONNECTOR, SOCKET, B-B
PB01B 23368004 CONNECTOR, PLUG B-B 5P 2.5MM JST
PB02A 23902654 CONNECTOR, SOCKET, B-B 4P
PB02B 23367723 CONNECTOR, PLUG B-B, 4P
PB11A 23368673 PLUG, 2MM 26P JST PHD-TOP, B26B-PHDSS
PB11B 23368673 PLUG, 2MM 26P JST PHD-TOP, B26B-PHDSS
PB12A 23368673 PLUG, 2MM 26P JST PHD-TOP, B26B-PHDSS
PB12B 23368673 PLUG, 2MM 26P JST PHD-TOP, B26B-PHDSS
PV01 23023050 JACK, 1S+3P JACK KUNMING ELECT.
PV02 23023049 JACK, PIN JACK 8P KUN, HSP-269S10(P)-02
PV03 23365763 JACK, PIN, 3P
SA01 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1
SA02 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1
SA03 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1
SA04 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1
SA05 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1
SA06 23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1
SR83 23146570 RELAY, DC12V, 2M OMR, G5PA-2 DC12
UZ01 23148030 MODULE, 3D-YCS COMB, MYCS01
V901B 23102959 MAGNET, RUBBER
V901M 23102492 MAGNET, PURITY CONVERGENCE,
XA01 23153752 CRYSTAL, 8.000 40PPM 50OHM
XT01 23153930 CRYSTAL, 12.000 25PPM 40OHM 7PF
Z424 23144539 PROTECTOR, 491SERIES, 125V 2A
Z889 23144542 PROTECTOR, 491SERIES, 125V 4A
W=18 T=0.18
(29VZ6DE)
KM04016GP
ISD-35S-E
MAG-1116
(29VZ6DE/29VZ6DA)
Location
Parts No. Description
No.
ACCESSORIES
K902 23306459 REMOCON HAND UNIT IR, CTVPAL,
AT03 23588765 BATTERY COVER, REMOCON, CT-90119
Y101A 23565740 OWNER’S MANUAL, ENGLISH, 29VZ6DE
Y101A 23565784 OWNER’S MANUAL, ENGLISH, 29VZ6DA
Y101A 23565785 OWNER’S MANUAL, ENGLISH/TC, 29VZ6SH
Y120 23943846 BAG, POLY
CT-90119
CABINET PARTS
A201 23530508 COVER, FRONT COVER
A262 23428130 DOOR, DOOR PROPER
A265 23445668 BUTTON, BUTTON POWER
A267 23836867 SPRING, COIL SPRING
A271 23436800 HANDLE, HANDLE
A272 23451868 PUSH CATCH
* A401 23540911 COVER, BACK COVER PROPER
A404 23845834 LEAD CLAMPER
A503 23035412 SCREW, BTB4X12SZN
A701A 23064934 CARTON, CASE TOP (29VZ6DE)
A701A 23064967 CARTON, CASE TOP (29VZ6DA)
A701A 23064968 CARTON, CASE TOP (29VZ6SH)
A701B 23064653 CARTON, CASE BOTTOM
A702A 23946280 PACKING, TOP PACKING
A702B 23946281 PACKING, BOTTOM PACKING
A710 23845450 JOINT, 43G7UXC
PC BOARD ASSEMBLIES
U901 23787974 CRT/D BOARD, PD0885
*
U902A 23787950 SIGNAL BOARD, PD0863-1 (29VZ6DE)
*
U902A 23788054 SIGNAL BOARD, PD0912-1 (29VZ6DA)
*
U902A 23788059 SIGNAL BOARD, PD0914-1 (29VZ6SH)
*
U902B 23787975 RMT BOARD, PD0863-2 (29VZ6DE)
*
U902B 23788055 RMT BOARD, PD0912-2 (29VZ6DA)
*
U902B 23788060 RMT BOARD, PD0914-2 (29VZ6SH)
*
U902C 23787976 LED BOARD, PD0863-3 (29VZ6DE)
*
U902C 23788056 LED BOARD, PD0912-3 (29VZ6DA)
*
U902C 23788061 LED BOARD, PD0914-3 (29VZ6SH)
*
U902D 23788065 AV BOARD, PD0863-4 (29VZ6DE)
*
U902D 23788057 AV BOARD, PD0912-4 (29VZ6DA)
*
U902D 23788062 AV BOARD, PD0914-4 (29VZ6SH)
*
U903 23787951 POW/DEF BOARD, PD0864 (29VZ6DE)
*
U903 23788058 POW/DEF BOARD, PD0913 (29VZ6DA)
*
U903 23788063 POW/DEF BOARD, PD0915 (29VZ6SH)
*
PICTURE TUBE
* V901 23312949 PICTURE TUBE, PSDI 29PF, A68QCP891X0
* V901 23324010 PICTURE TUBE, A68QCP891X (29VZ6DA)
(29VZ6DE/29VZ6SH)
TUNER
H001 23321428 TUNER, ASIA MLT IICPLL SANYO, ECA33LX8
–26 –
SIGNAL BOARD PD0863-1
BOTTOM (FOIL) SIDE
RMT BOARD PD0863-2
BOTTOM (FOIL) SIDE
LED BOARD PD0863-3
BOTTOM (FOIL) SIDE
– 27 – – 28 –
POWER/DEF BOARD PD0864
BOTTOM (FOIL) SIDE
– 29 – – 30 –
AV BOARD PD0863-4
BOTTOM (FOIL) SIDE
CRT-D BOARD PD0885
BOTTOM (FOIL) SIDE
– 31 –
TERMINAL VIEW OF TRANSISTORS
2SD2253
(old)
2SC5243
B
C
E
RN2203
RN2201
RN2004
RN1203
RN1204
SPECIFIC INFORMATIONS
RN2204
RN1205
RN1202
RN1201
B
C
E
2SC3852
2SD1763A
2SC1569
2SC4544
2SA1788
2SA1306
2SA1186A
B
C
E
2SD1554
2SD2253
2SD1556
2SC5143
B
C
E
2SC752GTM
2SC2482
2SC2655
2SC4721P
E
C
B
ON4409
B
C
E
2SC752
2SA562TM
2SA1015
2SC1815
2SC2878
2SC1740S
2SC2120
2SA9335
E
C
B
2SA1788
B
C
E
– 32 –
SCHEMATIC DIAGRAM
MODEL : 29VZ6DE / 29VZ6DA / 29VZ6SH
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY
PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.
CAUTION: The international hazard symbols "*" in the schematic diagram and the parts list designate components
which have special characteristics important for safety and should be replaced only with types identical to those in the
original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.
Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this
model. Do not degrade the safety of the receiver through improper servicing.
NOTE:
1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5%
tolerance carbon resistor, unless otherwise noted as the following marks.
1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt
1RF = Fuse resistor of 1 watt 10W = Cement of 10 watt
K = ±10% G = ±2% F = ±1%
2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in
?F, and the values more than 1 in pF.
All capacitors are ceramic 50V, unless otherwise noted as the following marks.
Electolytic capacitor Mylar capacitor
3. The parts indicated with " * " have special characteristics, and should be replaced with identical parts only.
4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all
controls at normal, line voltage 220 volts.
5. Waveforms are taken receiving color bar signal with enough sensitivity.
6. Voltage reading shown are nominal values and may vary ±20% except H.V.
SCHEMATIC DIAGRAM STRUCTURE:
SIGNAL / RMT / LED Circuit ..................................................................................... 1/2
POWER / DEF / CRT DRIVE VM Circuit ................................................................ 2/2
– 33 –
~
~
– +
TUNER
IF/MPX
H001 H002
QT01
QV01
QA01
QA02
Q801
Z801
Q404
Q301
Q501
Q901,Q903,Q905
Q610
Q840
L/R
VIDEO
L
/
R
AV IN
(1)
AV IN
(2)
MEMORY
REGULATOR
RESET
µ-COM
I
2
C BUS
R
G
B
HYBRID
CONVERTER TRANS.
+B VOLTAGE
C
Y
CHROMA
VIDEO
DEF.
VIDEO OUT
V. OUT
H. OUT
ERROR
AMP.
F.B.T.
H.V.
D.Y.
V
H
CRT
AUDIO OUT
L
R
*
AV SW
*
TEXT
*
*
*
*
BUS CONTROL BLOCK
SV
V
L
R
R
MONITOR
OUTPUT
V
L
R
V
L
CHASSIS BLOCK DIAGRAM
SPECIFIC INFORMATIONS
CIRCUIT BLOCK DIAGRAM
– 34 –
Rated voltage
Power consumption
(at AC 220 V, 50 Hz)
Dimensions
Mass
Picture tube (measured diagonally)
Television system
(Aerial input)
Colour system (Video input)
Sound output
Speaker
Input
Output
Accessories
Channel coverage
Special RF signal
SPECIFICATIONS
AC 110 V – 240 V, 50/60 Hz
140 W (Approx.)
Width 781.8 mm × Height 587.42 mm × Depth 488 mm
45.5 kg
TYPE 29 (73 cm) Overall picture tube measured diagonally
System
PAL B/G
PAL I
PAL D/K
NTSC M
Colour system Sound system
4.43NTSC 5.5/6.0/6.5 MHz
PAL 60Hz 5.5/6.0/6.5 MHz
PAL / SECAM / 4.43NTSC / 3.58NTSC / 60 Hz PAL / 50 Hz 3.58NTSC
VIDEO : 1V (p-p), 75 Ω, S-Video
AUDIO : 500 mV (rms) (54% modulation equivalent), more than 22 kΩ
VIDEO : 1V (p-p), 75 Ω
AUDIO : 500 mV (rms) (54% modulation), less than 2.2 kΩ
Remote Controller × 1
Battery (R6, AA) × 2
(68 cm) Viewable picture tube measured diagonally
110° deflection
Channel
CCIR
UK
CHINA
US
VHF
2 – 12
—
1 – 12
2 – 13
UHF
21 – 69
21 – 69
13 – 57
14 – 69
10 W + 10 W
60 × 120 mm 2 pcs
A–6 ~ A–1, A ~ W, AA ~ ZZ, AAA, BBB
X ~ Z+2, S1 ~ S41
Z–1 ~ Z–38
CATV
—
SPECIFIC INFORMATIONS
* Please refer to owner's manual in detail.
– 35 –
– END –
TOSHIBA CORPORATION
1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPA N
SCHEMATIC DIAGRAM
MODEL : 29VZ6DE / 29VZ6DA / 29VZ6SH
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY
PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.
CAUTION: The international hazard symbols "*" in the schematic diagram and the parts list designate components
which have special characteristics important for safety and should be replaced only with types identical to those in the
original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.
Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this
model. Do not degrade the safety of the receiver through improper servicing.
NOTE:
1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5%
tolerance carbon resistor, unless otherwise noted as the following marks.
1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt
1RF = Fuse resistor of 1 watt 10W = Cement of 10 watt
K = ±10% G = ±2% F = ±1%
2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in
?F, and the values more than 1 in pF.
All capacitors are ceramic 50V, unless otherwise noted as the following marks.
Electolytic capacitor Mylar capacitor
3. The parts indicated with " * " have special characteristics, and should be replaced with identical parts only.
4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all
controls at normal, line voltage 220 volts.
5. Waveforms are taken receiving color bar signal with enough sensitivity.
6. Voltage reading shown are nominal values and may vary ±20% except H.V.
SCHEMATIC DIAGRAM STRUCTURE:
SIGNAL / RMT / LED Circuit ..................................................................................... 1/2
POWER / DEF / CRT DRIVE VM Circuit ................................................................ 2/2
– 33 –
~
~
– +
TUNER
IF/MPX
H001 H002
QT01
QV01
QA01
QA02
Q801
Z801
Q404
Q301
Q501
Q901,Q903,Q905
Q610
Q840
L/R
VIDEO
L
/
R
AV IN
(1)
AV IN
(2)
MEMORY
REGULATOR
RESET
µ-COM
I
2
C BUS
R
G
B
HYBRID
CONVERTER TRANS.
+B VOLTAGE
C
Y
CHROMA
VIDEO
DEF.
VIDEO OUT
V. OUT
H. OUT
ERROR
AMP.
F.B.T.
H.V.
D.Y.
V
H
CRT
AUDIO OUT
L
R
*
AV SW
*
TEXT
*
*
*
*
BUS CONTROL BLOCK
SV
V
L
R
R
MONITOR
OUTPUT
V
L
R
V
L
CHASSIS BLOCK DIAGRAM
SPECIFIC INFORMATIONS
CIRCUIT BLOCK DIAGRAM
– 34 –
0
0
0
0
0
0
3.4
3.4
5.0
9.0
5.0
0
0
0
0
0
0
5.0
5.0
9.0
4.5
4.5
4.5
4.5
4.5
0
0
4.5
0
0
9.7
27.0
9.9
6.8
2.2
2.2
0
5.0
9.0
7.4
0
4.0
4.0
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
0
0
5.2
0
2.0Vp-p
4.0
3.3
3.3
3.3
3.5
5.2
5.2
9.0
3.8
9.0
3.8
4.0
4.0
4.5
3.8
3.8
5.0
0
0
4.5
4.5
5.0
0
9.0
5.0
4.5
0
4.5
0
0
9.0
4.5
4.5
5.0
32.0
9.0
0
0
0
8.9
2.9
3.6
2Vp-p
1Vp-p
0
1.6
2.3
5.0
0
5Vp-p
0
0
4.7
4.7
0
0
0
0
9
3.9
4.5
9.0
4.0
9.0
4.0
0
0
9.0
9.6
12.0
12
5
5.6
002.2
6.8
2.2
27.0
9.9
9.7
0
9.0
4.5
0
4.5
0
5.0
5.0
4.5
4.5
009.0
0
4.5
4.5
5.0
32.0
0
0
5.0
0
4.5
4.5
000
5.0
4.5
4.5
4.5
0
9.0
0
5.0
0
5.0
2.0Vp-p
0
3.8
0
4.5
5.0
0
0
000
5.0
0
9.0
3.8
4.0
4.5
4.0
3.8
9.0
3.8
9.0
5.2
4.0
5.2
0
3.5
3.3
3.3
3.3
5Vp-p
0
0
0
0
4.7
4.7
0
1Vp-p
0
12
5
2.3
1.6
0
8.9
3.6
2.9
7.4
9.0
0
5.0
0
9.0
5.6
9.0
12.0
9.6
4.0
4.0
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
0
0
9
4.5
9.0
4.0
3.4
4.0
3.9
9.0
3.4
0
0
0
0
0
0
2Vp-p
0
0
0
29VZ6DE
29VZ6DA
29VZ6SH
SIGNAL
00 9.79.727.027.09.99.96.86.8002.22.2 2.22.2
5.0
5.0
0
0
0
0
5.0
9.0
4.5
4.5
4.5
4.5
4.5
7
5.0
0
0
0
0
5.0
0
0
000
4.5
5.0
4.5
4.5
4.5
4.5
0
9.0
5.0
5.0
4.0
4.0
2.0Vp-p
3.8
0
0
9.0
9.0
2.0Vp-p
4.0
3.8
4.0
4.5
4.5
4.5
5.0
0
9.0
5.0
4.5
0
4.5
0
4.5
4.5
5.0
32.0
0
0
0
4.5
0
5.0
5.0
4.5
4.5
0
009.0
4.5
4.5
5.0
32.0
0
0
8.98.9
2.92.9
3.63.6
2Vp-p2Vp-p
1Vp-p1Vp-p
00
1.61.6
2.32.3
5.05.0
00
5Vp-p5Vp-p
00
00
4.74.7
4.74.7
00
00
00
00
9.0 5.0
0
0
5.0
0
0
0
4.5
9.0
7.4
0
4.5
0
000
5.0
0
9.0
7.4
9.0
0
0
5.0
4.0
4
.
04.0
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
0
0
5.2
0
4.0
3.3
3.3
3.3
3.5
5.2
5.2
9.0
3.8
9.0
3.8
4.0
4.0
4.5
3.8
3.83.8
9.0
0
0
0
9.0
9.6
12.0
12
5
5.6
4.0
3.8
4.0
4.5
4.0
3.8
9.0
3.8
9.0
5.2
4.0
5.2
0
3.5
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
5.2
0
0
3.3
3.3
3.3
12
5
5.6
12.0
5.0
0
9.0
9.0
9.6
0
0
0
0
0
0
0
0
0
3.4
3.4
9
9
3.9
4.5
9.0
4.0
9.0
4.0
4.5
3.9
9.0
4.0
3.4
4.0
9.0
3.4
0
0
0
0
0
0
29VZ6DE
29VZ6DA
29VZ6SH
SIGNAL
35.0
0
17
150Vp-p(H)
3
27Vp-p(H)
13
29
10
115
120Vp-p(H)
280Vp-p(H)
82Vp-p(H)
1000Vp-p(H)
23.0
-2.0
5V
-10V
-2.0
150V
0
1H
0
0.4
27.0
1H
0
-13.0
-11.0
450Vp-p
(AC=220V)
14V
40mV
1.5V
9.5
14
8.9
5.0
5.0
19
3.9
0
51
6.7
1.1
14.0
122.7
6.0
122.3
64.3
0.8
0.3
5.5
5.2
0
11.5
5.5
11.5
6.5
0.1
0.8
6.0
0.8
1.5
9.8
11.5
7.9
8.5
9.0
160
8.7
2.2
9.0
160
8.7
3.2
160
2.2
3.2
8.7
9.0
3.2
2.2
66Vp-p
66Vp-p
68Vp-p
68Vp-p
2.2
0
2.0
160
68Vp-p
68Vp-p
-13.0
-11.0
35.0
0
120Vp-p(H)
13
27Vp-p(H)
3
150Vp-p(H)
17
9.0
8.7
3.2
2.2
160
9.0
8.7
3.2
2.2
160
9.0
8.7
3.2
2.2
11.5
8.5
7.9
0.8
6.0
0.8
9.8
1.5
0.1
280Vp-p(H)
29
115
82Vp-p(H)
10
1000Vp-p(H)
2.2
2.0
0
11.5
6.5
11.5
5.5
5.5
5.2
0
122.7
122.3
6.0
64.3
0.8
0.3
450Vp-p
40mV
1.5V
0V0V14V
(AC=220V)
51
6.7
14.0
1.1
0
1H
23.0
27.0
0.4
0
-2.0
-2.0
5V
-10V
14
8.9
9.5
0
150V
1H
19
3.9
5.0
5.0
0
29VZ6DE
29VZ6DA
29VZ6SH
POWER-DEF
CRT-D VM
35.035.0 00
450Vp-p450Vp-p
H280Vp-p(H)
-13.0
-11.0
-11.0
-13.0
280Vp-p(
17
150Vp-p(H)
3
27Vp-p(H)
13
29
10
115
120Vp-p(H)
120Vp-p(H)
82Vp-p(H)
1000Vp-p(H)
66Vp-p
68Vp-p
68Vp-p
66Vp-p
68Vp-p
68Vp-p
13
27Vp-p(H)
3
150Vp-p(H)
17
0Vp-p(H)
29
115
82Vp-p(H)
10
1000Vp-p(H)
122.7
6.0
122.3
64.3
0.8
0.3
5.5
5.2
0
11.5
5.5
11.5
6.5
0.1
0.8
6.0
0.8
1.5
9.8
11.5
7.9
8.5
9.0
160
160
8.7
2.2
9.0
160
8.7
3.2
160
2.2
3.2
8.7
9.0
3.2
2.2
2.2
0
2.0
9.0
8.7
3.2
2.2
160
9.0
8.7
3.2
2.2
160
9.0
8.7
3.2
2.2
2.2
2.0
0
11.5
6.5
11.5
8.5
9.8
1.5
7.9
0.8
6.0
0.8
0.1
11.5
5.5
5.5
5.2
0
122.3
122.7
6.0
64.3
0.8
0.3
450Vp-p450Vp-p
(AC=220V)(AC=220V)
0V0V14V14V40mV40mV1.5V1.5V
5151
6.76.7
0
0
0.4
27.0
1H
0
5.0
5.0
19
3.9
0
1.1
14.0
1H
1.1
14.0
27.0
0.4
0
19
3.9
5.0
5.0
0
23.0
23.0
-2.0
5V
-10V
-2.0
150V
0
1H
9.5
14
8.9
-2.0
-2.0
0
150V
1H
5V
-10V
14
8.9
9.5
29VZ6DE
29VZ6DA
29VZ6SH
POWER-DEF
CRT-D VM
Loading...
