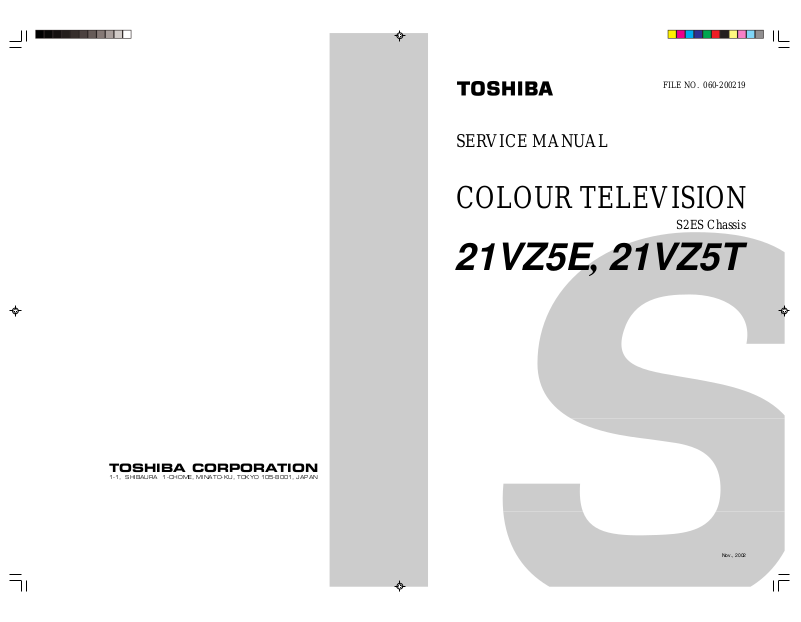

Toshiba 21VZ5E, 21VZ5T Schematic

FILE NO. 060-200219

SERVICE MANUAL

COLOUR TELEVISION

S2ES Chassis

21VZ5E, 21VZ5T

Nov., 2002

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS ........................................................................................................................................ 3

SET-UP ADJUSTMENT ............................................................................................................................................ 4

SERVICE MODE ...................................................................................................................................................... 6

DESIGN MODE ........................................................................................................................................................ 9

ELECTRICAL ADJUSTMENTS .............................................................................................................................. 10

CIRCUIT CHECK .................................................................................................................................................... 12

GENERAL ADJUSTMENTS

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .............................................................................................................................. 13

LOCATION OF CONTROLS ................................................................................................................................... 14

PROGRAMMING CHANNEL MEMORY................................................................................................................. 15

CHASSIS AND CABINET REPLACEMENT PARTS LIST ......................................................................................17

PC BOARDS BOTTOM VIEW................................................................................................................................. 23

TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 29

CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 30

TABLE OF CONTENTS

SPECIFIC INFORMATIONS

SPECIFICATIONS .............................................................................................................................................. END

APPENDIX:

CIRCUIT DIAGRAM

– 2 –

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value of the high voltage of this receiver is (A) kV at zero beam current (minimum brightness) under a (C) V AC power source. The high voltage must not, under any circumstances, exceed (B) kV.

Refer to table-1 for high voltage (A), (B) & AC voltage (C). (See SETTING & ADJUSTING DATA on page 13)

Each time a receiver requires servicing, the high voltage should be checked following the HIGH VOLTAGE CHECK procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service record. It is important to use an accurate and reliable high voltage meter.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; nonmetallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

2. The only source of X-RAY RADIATION in this TV receiver is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as specified in the parts list.

3. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only after referring to the PRODUCT SAFETY NOTICE below.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the international hazard symbols on the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.

– 3 –

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU- TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

SET-UP ADJUSTMENT

■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed.

Perform the adjustments in order as follows :

1. Color Purity

2. Convergence

3. White Balance

Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.

Refer to figure 1.

GENERAL ADJUSTMENTS

COLOR PURITY ADJUSTMENT NOTE : Before attempting any purity adjustments, the receiver

1. Demagnetize the picture tube and cabinet using a degauss-

2. Set the brightness and contrast to maximum.

3. Use a green raster from among the built-in test signals.

4. Loosen the clamp screw holding the yoke and slide the

SPECIFIC INFORMATIONS

Mounting position of the purity magnet assembly should fit to same position as old one because slightly difference to the position depend on a kind of tube.

There are no adjustment of purity and convergence in some picture tube (Unified with purity magnet)

5. Remove the Rubber Wedges.

should be operated for at least fifteen minutes.

ing coil.

yoke backward or forward to provide vertical green belt (zone) in the picture screen.

6. Rotate and spread the tabs of the purity magnet (See figure 2.) around the neck of the picture tube until the green belt is in the center of the screen. At the same time, enter the raster vertically.

7. Slowly move the yoke forward or backward until a uniform green screen is obtained. Tighten the clamp screw of the yoke temporarily.

8. Check the purity of the red and blue raster.

GLASS CLOTH TAPES

DEFLECTION YOKE

29.1mm(28", 29") 25mm(25") 19mm(19", 20", 21") 14mm(13", 14")

PURITY/ CONVERGENCE MAGNET ASS'Y

Figure 1.

TEMPORARY MOUNTING

RUBBER WEDGE

ADHESIVE

DEFLECTION YOKE

– 4 –

CONVERGENCE ADJUSTMENTS

NOTE: Before attempting any convergence adjustments, the

receiver should be operated for at least fifteen minutes.

■ CENTER CONVERGENCE ADJUSTMENT

1. Use the cross-dot pattern from among the built-in test signals.

2. Set the brightness and contrast for well defined pattern.

3. Adjust two tabs of the 4-Pole Magnets to change the angle between them (See figure 2.) and superimpose red and blue vertical lines in the center area of the picture screen.

4. Turn the both tabs at the same time keeping the angle constant to superimpose red and blue horizontal lines at the center of the screen.

5. Adjust two tabs of 6-Pole Magnets to superimpose red/ blue line and green one. Adjusting the angle affects the vertical lines and rotating both magnets affects the horizontal lines.

6. Repeat adjustments 3, 4, 5 keeping in mind red, green and blue movement, because 4-Pole Magnets and 6-Pole Magnets have mutual interaction and make dot movement complex.

6-POLE

4-POLE

MAGNETS

ADJUST THE ANGLE (VERTICAL LINES)

■ CIRCUMFERENCE CONVERGENCE ADJUSTMENT

1. Loosen the clamping screw of deflection yoke slightly to allow the yoke to tilt.

2. Temporarily put a wedge as shown in figure 1. (Do not remove cover paper on adhesive part of the wedge.)

3. Tilt front of the deflection yoke up or down to obtain better convergence in circumference. (See figure 3.) Push the mounted wedge into the space between picture tube and the yoke to fix the yoke temporarily.

4. Put other wedge into bottom space and remove the cover paper to stick.

5. Tilt front of the yoke right or left to obtain better convergence in circumference. (See figure 3.)

6. Keep the yoke position and put another wedge in either upper space. Remove cover paper and stick the wedge on picture tube to fix the yoke.

7. Detach the temporarily mounted wedge and put it in another upper space. Stick it on picture tube to fix the yoke.

8. After fixing three wedges, recheck overall convergence. Tighten the screw firmly to fix the yoke and check the yoke is firm.

9. Stick three adhesive tapes on wedges as shown in figure

FIXED

GENERAL ADJUSTMENTS

ROTATE TWO TABS AT THE SAME TIME (HORIZONTAL LINES)

PURITY MAGNETS

CONVERGENCE MAGNET ASSEMBLY ADJUSTMENT OF MAGNETS

Figure 2.

BLU RED

BLU

RED

4-POLE MAGNETS MOVEMENT

BGR

R G B

RGB

RED/BLU

GRN

Center Convergence by Convergence Magnets

B G R

RED/BLU GRN

6-POLE MAGNETS MOVEMENT

B G R

BGR

RGB

R G B

SPECIFIC INFORMATIONS

INCLINE THE YOKE UP (OR DOWN)

Circumference Convergence by DEF Yoke

Figure 3. Dot Movement Pattern

INCLINE THE YOKE RIGHT (OR LEFT)

– 5 –

1. ENTERING TO SERVICE MODE

1) Press o button once on Remote Control.

SERVICE MODE

2) Press o button again to keep pressing.

3) While pressing the o button, press MENU button on TV set.

GENERAL ADJUSTMENTS

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

SPECIFIC INFORMATIONS

A single horizontal line ON/OFF: - / - - button (on Remote) or a button (on TV) Test signal selection : a button (on Remote) Selection of the adjustment items : Channel s/t (on TV or Remote) Change of the data value : Volume ; +/– (on TV or Remote) Adjustment menu mode ON/OFF : MENU button (on TV) Initialization of the memory (QA02) : CALL + Channel button on TV (s) Reset the count of operating protect

circuit to “00”: CALL + Channel button on TV (t)

“RCUT” selection : 1 button “GCUT” selection : 2 button “BCUT” selection : 3 button “CNTX” (or “SCNT”) selection : 4 button “COLC” selection : 5 button “TNTC” selection : 6 button

Test audio signal ON/OFF (1kHz) : 8 button Self diagnostic display ON/OFF : 9 button

Press

Adjustment mode

Item

Data

(Service mode display)

Item

Data

Color thickness correction note: Displayed differently as shown below, de-

pending on the setting of the receiving color

system. COLP (PAL) COLC (NTSC) COLS (SECAM)

CAUTION : Never try to perform initialization unless you have changed the memory IC.

– 6 –

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2. (t button for reverse order)

Refer to table-2 for preset data of adjustment mode. (See SETTING & ADJUSTING DATA on page 13)

5. ADJUSTING THE DATA

1) Pressing of VOLUME ; +/– button will change the value of data in the range from 00H to FFH. The variable

range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

■ INITIALIZATION OF MEMORY DATA OF QA02

After replacing QA02, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02 has been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above. Perform “Auto search Memory” on the owner’s manual.

CAUTION: Never attempt to initialize the data unless QA02 has been replaced.

7. TEST SIGNAL SELECTION

1) Every pressing of a button on the Remote Control changes the built-in test patterns on screen as described below in SERVICE MODE.

GENERAL ADJUSTMENTS

Signal off

NTSC signals (14 patterns)

PAL signals (14 patterns)

Signals Picture

• Red raster

• Green raster

• Blue raster

• All Black

• All White

• Black & White

• Black cross-bar

• White cross-bar

• Black cross-bar

on green raster

• Black cross-hatch

• White cross-hatch

• Black cross-dot

• White cross-dot

SPECIFIC INFORMATIONS

• H signal (white)

• H signal (black)

The signals marked with are not usable to display in the Test signal for some model.

– 7 –

8. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode. The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

Indicated color of mode now selected : Green and Red



23******



POWER : 00



BUS LINE : OK



BUS CONT : OK



BLOCK : UV V

Indicated color of other modes : White

Green : Normal Red : The microprocessor operates to provide judgement

of no video signal. The red color is still indicated though the signal is input, failure may exist in input signal line including QV01.

GENERAL ADJUSTMENTS

 Part number of microcomputer (QA01)  Operation number of protecting circuit ----“00” is nor-

mal. When indication is other than “00”, overcurrent apts to flow, and circuit parts may possibly be damaged.

 BUS LINE CHECK ----“OK” is normal.

“SDA1-GND” ------------- SDA-GND short circuit. “SCL1-GND” -------------- SCL-GND short circuit. “SCL1-SDA1” ------------- SCL-SDA short circuit.

 BUS CONT ----“OK” is normal.

When indication shows “Q uuu NG”, the device with

SPECIFIC INFORMATIONS

the number may possibly be damaged.

 BLOCK

UV : TV reception mode V : VIDEO input mode (a1)

The items marked with are not usable to display in the SELF DIAGNOSTIC FUNCTION for some model.

– 8 –

1. ENTERING TO DESIGN MODE

1) Select the Service mode.

DESIGN MODE

2) While pressing o (or CALL) button on Remote and press MENU button on TV.

3) Press MENU button on TV.

S D

(Design mode) (Adjustment mode)

When QA02 is initialized, items “OPT0” and “OPT1” of DESIGN MODE are set to the data of the representative model of this chassis family. Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to reset the data of items “OPT0” and “OPT1”.

2. SELECTING THE ADJUSTING ITEMS

Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3. (s button for reverse order)

Refer to table-3 for data of design mode. (See SETTING & ADJUSTING DATA on page 13)

3. ADJUSTING THE DATA

Pressing of VOLUME s or t button will change the value of data.

Press

ITEM

DATA

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

– 9 –

ELECTRICAL ADJUSTMENTS

ITEM ADJUSTMENT PROCEDURE

FOCUS VR ADJ

SUB-BRIGHTNESS (BRTC)

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

Note: Constrict the picture height

until the vertical retrace line appears adjusting the item HIT (HEIGHT).

HORIZONTAL POSITION ADJUSTMENT (HPOS)

VERTICAL POSITION ADJUSTMENT (VPOS)

1. Enter the service mode, then select any register item.

2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern appears on the screen.

3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture screen.

1. Set CONTRAST to minimum, and BRIGHTNESS to center by adjusting user controls.

2. Set the TV in service mode to get white cross-bar of inside pattern.

3. Select BRTC (brightness correction), and adjust the ; – /+ button to reduce the value so that white portion of inside pattern slightly light.

4. Adjust ; – /+ button to increase the data value of BRTC, and set it just before the difference between the belt of vertical retrace and the border of black portion of inside pattern is visible. After that, return vertical height and contrast.

1. Set the TV in service mode, and get black or white cross-bar signal with VIDEO button on remote hand unit.

2. Select either HPOS (Horizontal picture phase) or VPOS (Vertical picture phase) with CHANNEL s, t buttons, and adjust horizontal or vertical picture position in the center of screen with VOLUME ; – /+ buttons.

Belt of vertical retrace

VERTICAL AMPLITUDE ADJUSTMENT (HIT)

1. Set the TV in service mode, and get black or white cross-hatch signal with VIDEO button on remote hand unit.

2. Select HIT (Vertical amplitude) with CHANNEL s, t buttons, and adjust vertical amplitude with VOLUME ; – /+ buttons so that vertical am- plitude lacks a little.

3. Adjust vertical amplitude with VOLUME ; – /+ buttons so that the first bar on cross-hatch signal touches edge of screen.

The first

– 10 –

ITEM ADJUSTMENT PROCEDURE

WHITE BALANCE ADJUSTMENT

CUTOFF ADJUSTMENT

•

(RCUT) (GCUT) (BCUT)

DRIVE ADJUSTMENT

•

(GDRV) (BDRV)

NOTE: It is released built-in test pattern by changing the adjustment item for some model.

In this case, select the adjustment item with channel s t buttons first and then select the built-in test pattern with

-/- - button.

1. Set Contrast to 40, and brightness to +20 by picture control.

2. Set the TV in service mode, and get the inside W/B adjusting signal with VIDEO

button.

3. Select RCUT, GCUT and BCUT with CHANNEL s, t buttons, to set individual

values to Initial reference data, and to set GDRV and BDRV to Initial reference data with VOLUME ; – /+ buttons.

4. Press -/- - button on the remote control and rotate Screen VR to get one slight

horizontal line on screen. Note: Every pressing of -/- - button provides Horizontal line picture and Normal picture alternately.

5. Press -/- - button to release horizontal line picture, and select the two other colors

which did not light in the above step with CHANNEL s, t buttons. Then tap VOL- UME ; – /+ buttons so that three colors slightly light in the same level.

X To correct white balance in light area,

select GDRV and BDRV with CHANNEL s, t buttons to adjust.

X To correct white balance in dark area,

perform fine adjustment of RCUT, GCUT and BCUT.

GENERAL ADJUSTMENTS

Light area check

(to show white)

Dark area check

(to show black)

SPECIFIC INFORMATIONS

– 11 –

CIRCUIT CHECK

HIGH VOLTAGE CHECK CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps

below.

1. Connect an accurate high voltage meter to the second anode of the picture tube.

2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST controls to minimum (zero beam current).

3. High voltage must be measured below (B) kV.

Refer to table-1 for high voltage (B). (See SETTING & ADJUSTING DATA on page 13)

4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

– 12 –

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

SAFETY INSTRUCTIONS

HIGH VOLTAGE AT ZERO BEAM: (A) 29.1 kV MAX HIGH VOLTAGE: AC VOLTAGE

Table-1

SERVICE MODE

ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE:

21"

(B) 31.3 kV (C) 110~240 V

GENERAL ADJUSTMENTS

Item Adjustment Reference data

RCUT GCUT BCUT GDRV BDRV BRTC COLC TNTC COLP COLS SCNT HPOS VPOS HIT VLIN WID PARA CNR TRAP SRY SBY

R CUTOFF (B/W) G CUTOFF (B/W) B CUTOFF (B/W) G DRIVE B DRIVE SUB BRIGHT CEN SUB COLOR CEN NTSC SUB TINT CEN SUB COLOR CEN PAL SUB COLOR CEN SECAM SUB CONTRAST 50Hz H-POSITION V-POSITION HEIGHT V-LINEARITY PICTURE WIDTH E-W PARABOLA E-W CORNER TRAPEZIUM SECAM R-Y SECAM-B-Y

0DH

1EH 0AH

0DH

Table-2

20H 20H 20H 40H 40H 40H 30H 45H 00H 30H 08H

04H

30H 15H 05H

08H 08H

Data

←

09H

←

03H 2EH

←

34H 15H

←

SPECIFIC INFORMATIONS

DESIGN MODE

ADJUSTING ITEMS AND DATAS IN THE DESIGN MODE:

Item Name of adjustment

* There are no adjusting items in the design mode.

– 13 –

Preset Data 21"

Table-3

Data

Remarks

Front

GENERAL ADJUSTMENTS

LOCATION OF CONTROLS

Video input teminal

Audio input teminal

Headphone jack

SPECIFIC INFORMATIONS

Remote sensor

Power indicator

Remote

On-screen on/off

Channel up/down Menu select

Digit select

VIDEO AUDIO

CALL

TXT/TV

213

546

0-/–

–+

Main power on/off

Channel select

Volume down/up

TV/VIDEO select

Menu open

Power ON/standby

Sound mute

Direct select

TV/VIDEO select

Volume up/down Menu adjust

Menu open

Picture control

– 14 –

PROGRAMMING CHANNEL MEMORY

• For easy Channel selection, the chosen Position should have the same number as Channel stored there. For this operation, you may use the “SEARCH” and “SKIP” functions. Example : Presetting Channel 12 to Position 12

Channel Preset

Auto search memory (ASM)

All the channels that can be received are preset automatically.

Select the starting position for ASM. Press the (0-9)

button or CH

Set the correct broadcast system for your

region. Press the MENU button to display “SET UP” menu. Set “COLOR” to “AUTO” and set “SOUND” according to the table on page 8 using CH and ; –/+ button.

Select “ASM”, then press the ; + to start the search.

When the TV screen returns to the start position, the procedure is complete.

t/s

button.

t/s

button

Manual Search and Changing the assigned position

Manual Search

Select Position 12.

Press the CH played. Or, press the -/-- button twice to display “--” on the screen then press the “1” and “2” buttons (0-9) in this order.

Press the MENU button to display "SET UP" menu.

Press the CH the ; –/+ button to search. Pressing “-” searches for channels at lower frequencies while pressing “+” searches for channels at higher frequencies.

When Channel 12 is found, press the CH

to select “MEMORY”. Press “+” the ; –/+ button to complete the presetting.

Store Position

t/s

button repeatedly until 12 is dis-

t/s

button to select “SEARCH”. Press

t/s

button

GENERAL ADJUSTMENTS

SPECIFIC INFORMATIONS

– 15 –

Select Position 12. Press the (0-9) button or the CH

position preset for Channel 12.

When Channel 12 is selected, press the MENU button

to display "SET UP" menu. Press the CH select “POSITION”. Press the ; –/+ button and set “POSITION” to P12. Pressing “-” and “+” respectively decreases and increases the Position number.

When Channel 12 is found, press the CH

to select “MEMORY”. Press “+” the ; –/+ button to complete the presetting.

t/s

button to find the

t/s

button to

button

• Under some reception conditions, fine tuning may be necessary to improve the picture quality. In such cases, adjust the manual fine tuning (MFT).

• If the signal frequency is unstable due to environmental conditions, use auto fine tuning.

Skip Function

GENERAL ADJUSTMENTS

If you set “SKIP ON” for unnecessary Position numbers, these will be skipped when selecting channels using the CH Example : Skipping Channel 13

Select Position 13 using the same

method for selecting Position 12 (above).

Press the MENU button to display "SET UP" menu.

Press the CH

SPECIFIC INFORMATIONS

Press the ; –/+ button to switch the “SKIP” setting from “OFF” to “ON”. This completes the setting for skipping Position 13.

Note:

• When “SKIP” is ON, the Position number is prefixed by “*”.

Example: *13. To confirm this, select Position 13 using the -/-- button and (0-9) buttons.

• If you want to restore a skipped position number, select it using the -/-- button and (0-9) buttons then switch the “SKIP” setting to “OFF” as in step 2 above.

t/s

button.

t/s

button to select “SKIP”.

Auto fine tuning (AFT)

Press the MENU button to display "SET UP" menu.

Press the CH

;

–/+ button to switch it to “ON”. This completes the

setting.

Note:

• When you operate MFT, AFT is switched OFF automatically. If you switch on AFT after fine tuning with MFT, MFT may be cancelled.

• AFT may be set independently for each Position.

t/s

button and select “AFT”. Press the

Manual fine tuning (MFT)

Press the MENU button to display "SET UP" menu.

Press the CH

button to start fine tuning. Pressing “-” fine tunes to a lower frequency while pressing “+” fine tunes to a higher frequency.

t/s

and select “MFT”. Press the ; –/+

– 16 –

CHASSIS AND CABINET REPLACEMENT PARTS LIST

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY

PRECAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

CAUTION: The international hazard symbols “ ” in the schematic diagram and the parts list designate com- ponents which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

•

The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model

number and Description.

•

The PC board assembly with * mark is no longer available after the end of the production.

Model : 21VZ5E/21VZ5T

Capacitors ............. CD : Ceramic Disk PF : Plastic Film EL : Electrolytic

Resistors ............... CF : Carbon Film CC : Carbon Composition MF : Metal Film

OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor

(All CD and PF capacitors are ±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)

Location

Parts No. Description

No.

CAPACITORS

C101 24794101 ELECTROLYTIC, 16V 100UF M C102 24794221 ELECTROIYTIC, 16V 220UF M C106 24796479 ELECTROLYTIC, 35V 4.7UF M C108 24539474 PLASTIC FILM, 50V 0.47UF J C109 24794100 ELECTROLYTIC, 16V 10UF M C111 24436470 CERAMIC DISC, 50V SL 47PF J (21VZ5T) C112 24436470 CERAMIC DISC, 50V SL 47PF J (21VZ5T) C116 24232103 CERAMIC DISC, 50V F 0.01UF Z C118 24474102 CERAMIC, 50V B 1000PF K C120 24794100 ELECTROLYTIC, 16V 10UF M C121 24232103 CERAMIC DISC, 50V F 0.01UF Z C123 24797010 ELECTROLYTIC, 50V 1UF M C129 24474102 CERAMIC, 50V B 1000PF K C130 24797479 ELECTROLYTIC, 50V 4.7UF M C131 24232103 CERAMIC DISC, 50V F 0.01UF Z C132 24232103 CERAMIC DISC, 50V F 0.01UF Z C133 24232103 CERAMIC DISC, 50V F 0.01UF Z C135 24212222 CERAMIC DISC, 50V B 2200PF K C136 24206228 ELECTROLYTIC, 50V 0.22UF M 7L 3A C137 24212103 CERAMIC DISC, 50V B 10000PF K C138 24794470 ELECTORLYTIC, 16V 47UF M C141 24436101 CERAMIC DISC, 50V SL 100PF J C150 24232103 CERAMIC DISC, 50V F 0.01UF Z (21VZ5E) C166 24232103 CERAMIC DISC, 50V F 0.01UF Z C167 24794101 ELECTROLYTIC, 16V 100UF M C170 24232103 CERAMIC DISC, 50V F 0.01UF Z C171 24794100 ELECTROLYTIC, 16V 10UF M (21VZ5E) C172 24794100 ELECTROLYTIC, 16V 10UF M (21VZ5E) C173 24794100 ELECTROLYTIC, 16V 10UF M (21VZ5E) C174 24436330 CERAMIC DISC, 50V SL 33PF J (21VZ5E) C175 24436330 CERAMIC DISC, 50V SL 33PF J (21VZ5E) C176 24436330 CERAMIC DISC, 50V SL 33PF J C179 24232103 CERAMIC DISC, 50V F 0.01UF Z (21VZ5T) C180 24232103 CERAMIC DISC, 50V F 0.01UF Z (21VZ5T) C187 24232103 CERAMIC DISC, 50V F 0.01UF Z C188 24797100 ELECTROLYTIC, 50V 10UF M C189 24797478 ELECTROLYTIC, 50V 0.47UF M C192 24797478 ELECTROLYTIC, 50V 0.47UF M C216 24797010 ELECTROLYTIC, 50V 1UF M C224 24794100 ELECTROLYTIC, 16V 10UF M C226 24539104 PLASTIC FILM, 50V 0.1UF J

Location

Parts No. Description

No.

C227 24539104 PLASTIC FILM, 50V 0.1UF J C231 24232103 CERAMIC DISC, 50V F 0.01UF Z C232 24232103 CERAMIC DISC, 50V F 0.01UF Z C305 24617915 ELECTROLYTIC, 50V 1UF K 3A LI C306 24794102 ELECTROLYTIC, 16V 1000UF M C307 24693473 PLASTIC FILM, 100V 0.047UF J C308 24796101 ELECTROLYTIC, 35V 100UF M C312 24796102 ELECTROLYTIC, 35V 1000UF M C313 24797478 ELECTROLYTIC, 50V 0.47UF M C313 24082057 PLASTIC FILM, 100V 220000PF J C314 24212152 CERAMIC DISC, 50V B 1500PF K C317 24214471 CERAMIC DISC, 500V B 470PF K C320 24796101 ELECTROLYTIC, 35V 100UF M C370 24794101 ELECTROLYTIC, 16V 100UF M C371 24794220 ELECTROLYTIC, 16V 22UF M C410 24082256 PLASTIC FILM, 100V 2200PF J C413 24214182 CERAMIC DISC, 500V B 1800PF K C416 24678229 ELECTROLYTIC, 200V 2.2UF M 3A C417 24214391 CERAMIC DISC, 500V B 390PF K C420 24795220 ELECTROLYTIC, 25V 22UF M C421 24666470 ELECTORLYTIC, 16V 47UF M 3A C431 24797479 ELECTROLYTIC, 50V 4.7UF M C432 24794100 ELECTROLYTIC, 16V 10UF M C433 24232103 CERAMIC DISC, 50V F 0.01UF Z C434 24232103 CERAMIC DISC, 50V F 0.01UF Z C435 24763222 ELECTROLYTIC CE04G 16V 2200UF M C436 24797478 ELECTROLYTIC, 50V 0.47UF M C437 24212822 CERAMIC DISC, 50V B 8200PF K C440 24082555 PLASTIC FILM, 1500VH 1000PF H C442 24082430 PLASTIC FILM CF92 T 250V R33UF J C443 24667102 ELECTROLYTIC, 25V 1000UF M 3A C444 24082590 PLASTIC FILM CF92 T 1500VH 9100PF H C445 24828563 PLASTIC FILM, 200V 56000PF J C447 24679100 ELECTROLYTIC, 250V 10UF M 3A C448 24640908 ELECTROLYTIC, 160V 33UF M 3A LI C463 24214222 CERAMIC DISC, 500V B 2200PF K C464 24640872 ELECTROLYTIC, 100V 10UF M 3A C466 24214181 CERAMIC DISC, 500V B 180PF K C467 24829433 PLASTIC FILM, 400V 0.043UF J C470 24794220 ELECTROLYTIC, 16V 22UF M C475 24820333 PLASTIC FILM, 630V 33000PF J C478 24539103 PLASTIC FILM, 50V 0.01UF J

SPECIFIC INFORMATIONS

– 17 –

Location

INFORMATIONS

SPECIFIC

SPECIFIC INFORMATIONS

* C801 24503002 PLASTIC FILM, AC275V 0.22UF M

* C813 24092567 CERAMIC DISC, AC250V E 1000PF M * C814 24092567 CERAMIC DISC, AC250V E 1000PF M

Parts No. Description

No.

C479 24539104 PLASTIC FILM, 50V 0.1UF J C481 24539474 PLASTIC FILM, 50V 0.47UF J C484 24539104 PLASTIC FILM, 50V 0.1UF J C485 24539104 PLASTIC FILM, 50V 0.1UF J C491 24591223 PLASTIC FILM, 50V 0.022UF J C502 24591103 PLASTIC FILM, 50V 0.01UF J C516 24232103 CERAMIC DISC, 50V F 0.01UF Z C517 24794101 ELECTROLYTIC, 16V 100UF M C523 24794100 ELECTROLYTIC, 16V 10UF M C524 24666101 ELECTROLYTIC, 16V 100UF M 3A C526 24212102 CERAMIC DISC, 50V B 1000PF K C528 24797478 ELECTROLYTIC, 50V 0.47UF M C565 24232103 CERAMIC DISC, 50V F 0.01UF Z C566 24794471 ELECTROLYTIC, 16V 470UF M C567 24232103 CERAMIC DISC, 50V F 0.01UF Z C606 24797229 ELECTROLYTIC, 50V 2.2UF M C607 24797229 ELECTROLYTIC, 50V 2.2UF M C608 24797229 ELECTROLYTIC, 50V 2.2UF M C609 24795101 ELECTROLYTIC, 25V 100UF M C610 24591473 PLASTIC FILM, 50V 0.047UF J C611 24797100 ELECTROLYTIC, 50V 10UF M C612 24794100 ELECTROLYTIC, 16V 10UF M C613 24797100 ELECTROLYTIC, 50V 10UF M C614 24591473 PLASTIC FILM, 50V 0.047UF J C615 24794470 ELECTORLYTIC, 16V 47UF M C616 24795471 ELECTROLYTIC, 25V 470UF M C629 24795102 ELECTROLYTIC, 25V 1000UF M C630 24795471 ELECTROLYTIC, 25V 470UF M C631 24797478 ELECTROLYTIC, 50V 0.47UF M C633 24591823 PLASTIC FILM, 50V 0.082UF J C634 24591563 PLASTIC FILM, 50V 0.056MF J C635 24797478 ELECTROLYTIC, 50V 0.47UF M C637 24591823 PLASTIC FILM, 50V 0.082UF J C638 24591563 PLASTIC FILM, 50V 0.056MF J

C802 24503002 PLASTIC FILM, AC275V 0.22UF M C805 24092281 CERAMIC DISC, AC250V E 4700PF C806 24092281 CERAMIC DISC, AC250V E 4700PF C808 24796101 ELECTROLYTIC, 35V 100UF M C810 24086857 ELECTROLYTIC, 400V 560UF

C817 24092338 CERAMIC DISC, 2KV R 270PF K C818 24092341 CERAMIC DISC, 2KV R 470PF K C819 24539474 PLASTIC FILM, 50V 0.47UF J C821 24214561 CERAMIC DISC, 500V B 560PF K C822 24214102 CERAMIC DISC, 500V B 1000PF K C823 24214471 CERAMIC DISC, 500V B 470PF K C829 24212102 CERAMIC DISC, 50V B 1000PF K C830 24797100 ELECTROLYTIC, 50V 10UF M C831 24794100 ELECTROLYTIC, 16V 10UF M C832 24590224 PLASTIC FILM, 50V 0.22UF J C862 24092339 CERAMIC DISC, 2KV 330PF K C883 24214561 CERAMIC DISC, 500V B 560PF K C884 24640018 ELECTROLYTIC, 160V 220UF C885 24214471 CERAMIC DISC, 500V B 470PF K C889 24667471 ELECTROLYTIC, 25V 470UF M 3A C893 24092338 CERAMIC DISC, 2KV R 270PF K C897 24092553 CERAMIC DISC, AC250V B 470PF K C898 24474101 CERAMIC, 50V B 100PF K C899 24539474 PLASTIC FILM, 50V 0.47UF J C902 24092347 CERAMIC DISC, 2KV R 1500PF K C904 24436561 CERAMIC DISC, 50V SL 560PF J C905 24436681 CERAMIC DISC, 50V SL 680PF J C907 24436821 CERAMIC DISC, 50V SL 820PF J C909 24679220 ELECTROLYTIC, 250V 22UF M 3A C910 24797100 ELECTROLYTIC, 50V 10UF M

Location

Parts No. Description

No.

C912 24794471 ELECTROLYTIC, 16V 470UF M C913 24794220 ELECTROLYTIC, 16V 22UF M C915 24794220 ELECTROLYTIC, 16V 22UF M C930 24214101 CERAMIC DISC, 500V B 100PF K C931 24214101 CERAMIC DISC, 500V B 100PF K CA02 24212101 CERAMIC DISC, 50V B 100PF K CA03 24353220 CERAMIC DISC, 50V CH 22PF J CA04 24353220 CERAMIC DISC, 50V CH 22PF J CA30 24353270 CERAMIC DISC, 50V CH 27PF J CA42 24794100 ELECTROLYTIC, 16V 10UF M CA45 24232103 CERAMIC DISC, 50V F 0.01UF Z CA51 24212272 CERAMIC DISC, 50V B 2700PF K CA52 24212152 CERAMIC DISC, 50V B 1500PF K CA53 24353181 CERAMIC DISC, 50V CH 180PF J CA54 24797330 ELECTROLYTIC, 50V 33UF M CA55 24797010 ELECTROLYTIC, 50V 1UF M CA58 24212101 CERAMIC DISC, 50V B 100PF K CA60 24797229 ELECTROLYTIC, 50V 2.2UF M CA68 24794100 ELECTROLYTIC, 16V 10UF M CA69 24232103 CERAMIC DISC, 50V F 0.01UF Z CB01 24794470 ELECTORLYTIC, 16V 47UF M CC01 24232103 CERAMIC DISC, 50V F 0.01UF Z CC02 24232103 CERAMIC DISC, 50V F 0.01UF Z CS01 24794220 ELECTROLYTIC, 16V 22UF M CS02 24794100 ELECTROLYTIC, 16V 10UF M CS08 24794220 ELECTROLYTIC, 16V 22UF M CS11 24794100 ELECTROLYTIC, 16V 10UF M CV10 24793471 ELECTROLYTIC, 10V 470UF M CV11 24794220 ELECTROLYTIC, 16V 22UF M CV12 24212102 CERAMIC DISC, 50V B 1000PF K CV13 24794220 ELECTROLYTIC, 16V 22UF M CV14 24212102 CERAMIC DISC, 50V B 1000PF K

RESISTORS

R101 24366563 CARBON FILM, 1/6W 56K OHM J R102 24366123 CARBON FILM, 1/6W 12K OHM J R103 24366101 CARBON FILM, 1/6W 100 OHM J (21VZ5T) R104 24366102 CARBON FILM, 1/6W 1K OHM J (21VZ5T) R105 24366121 CARBON FILM, 1/6W 120 OHM J R106 24366332 CARBON FILM, 1/6W 3.3K OHM J R108 24366122 CARBON FILM, 1/6W 1.2K OHM J R109 24366682 CARBON FILM, 1/6W 6.8K OHM J R110 24366681 CARBON FILM, 1/6W 680 OHM J R111 24366330 CARBON FILM, 1/6W 33 OHM J R112 24366221 CARBON FILM, 1/6W 220 OHM J R113 24366472 CARBON FILM, 1/6W 4.7K OHM J (21VZ5E) R114 24366472 CARBON FILM, 1/6W 4.7K OHM J (21VZ5E) R116 24366103 CARBON FILM, 1/6W 10K OHM J (21VZ5E) R117 24366103 CARBON FILM, 1/6W 10K OHM J (21VZ5E) R118 24366821 CARBON FILM, 1/6W 820 OHM J R120 24366684 CARBON FILM, 1/6W 680K OHM J R121 24366221 CARBON FILM, 1/6W 220 OHM J R122 24366101 CARBON FILM, 1/6W 100 OHM J R123 24366222 CARBON FILM, 1/6W 2.2K OHM J R125 24366222 CARBON FILM, 1/6W 2.2K OHM J (21VZ5T) R126 24366101 CARBON FILM, 1/6W 100 OHM J (21VZ5T) R127 24366103 CARBON FILM, 1/6W 10K OHM J (21VZ5T) R128 24366103 CARBON FILM, 1/6W 10K OHM J (21VZ5T) R129 24366102 CARBON FILM, 1/6W 1K OHM J (21VZ5T) R130 24366101 CARBON FILM, 1/6W 100 OHM J R131 24366221 CARBON FILM, 1/6W 220 OHM J R132 24366271 CARBON FILM, 1/6W 270 OHM J (21VZ5E) R133 24366271 CARBON FILM, 1/6W 270 OHM J (21VZ5E) R134 24366561 CARBON FILM, 1/6W 560 OHM J (21VZ5E) R134 24366271 CARBON FILM, 1/6W 270 OHM J (21VZ5T) R135 24366103 CARBON FILM, 1/6W 10K OHM J R136 24366103 CARBON FILM, 1/6W 10K OHM J

– 18 –

+ 41 hidden pages
