Toshiba 20RTH User Manual

20-INCH PREMIUM

TFT-LCD MONITOR

20RTH

INSTRUCTION MANUAL

Please read this manual thoroughly before use, and keep it handy for future reference.

SAFETY INSTRUCTION…………………………………………………………………….2 – 3

1. Important Safety Instructions ……………………………………………………………2 – 3

2. Safety Precautions ……………………………………………………………………….3 CAUTIONS ………………………………………..……………………………………………..4 FCC RF INTERFERENCE STATEMENT …………………………………………………….5 CONNECTING WITH EXTERNAL EQUIPMENT…………………………………………… 6 REMOTE FUNCTIONS ………………………………………………………………… …….. 7 CONTROLS AND FUNCTIONS…………………………………………………………..8 - 26 MOUNTING GUIDE …………………………………………………………….……..…….. 27 D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………….28 POWER MANAGEMENT……………………………………………………………………..29 SPECIFICATIONS………………………………………………………………………. ……30 TROUBLESHOOTING GUIDE. …………………………………………………………….. 31

……………………………………………………………………………

INSTRUCTION MANUAL

Important Safety Instructions

1). Read these instructions

2). Keep these instructions..

3). Heed all warnings.

4). Follow all instructions.

5). Do not use this apparatus near water.

6). Clean only with dry cloth.

7). Do not block any ventilation openings. Install in accordance with the maufacturer’s instructions.

8). Do not install near any heat sources such as radiators, heat registers, stoves

or other apparatus (including amplifiers) that produce heat.

9). Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the prong. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safely. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10). Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11). Only use attachments/accessories specified by the manufacturer.

12). Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avid injury from tip-over.

13). Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

INSTRUCTION MANUAL

………………………………………………………………………………

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

- Minimum distances(e.g. 10cm)around the apparatus for sufficient ventilation.

“WARNING - To reduce the risk of fire or electric shock, do not expose the

apparatus to rain or moisture.”

“The apparatus shall not be exposed to dripping or splashing and no objects filled

with liquids, such as vases, shall be placed on the apparatus.”

This symbol is intended to alert the user to the presence of uninsulated :dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute arisk of electric shock to persons.

This symbol is intended to alert the user to the

presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.

………………………………………………………………………………

INSTRUCTION MANUAL

CAUTIONk

The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible.

ATTENTIONN

Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à proximité du matériel et être facile d`accès

▶ NEVER REMOVE THE BACK COVER

Removal of the back cover should be carried out only by qualified personnel.

▶ DO NOT USE IN HOSTILE ENVIRONMENTS

To prevent shock or fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home. Do not subject the unit to vibrations, dust of corrosive gases.

▶ KEEP IN A WELL VENTILATED PLACE

Ventilation holes are provided on the cabinet to prevent the temperature from rising. Do not cover the unit or place anything on the top of unit.

▶ AVOID HEAT

Avoid placing the unit in direct sunshine or near a heating appliance.

▶ TO ELIMINATE EYE FATIGUE

Do not use the unit against a bright back ground and where sunlight or other light sources will shine directly on the monitor.

▶ BE CAREFUL OF HEAVY OBJECT

Neither the monitor itself nor any other heavy object should rest on the power cord. Damage to a power cord can cause fire or electrical shock.

INSTRUCTION MANUAL

……………………………………………………………………………

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

- Consult the dealer or an experienced radio, TV technician for help.

- Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

▶ DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications.

………………………………………………………………………………

INSTRUCTION MANUAL

A. BOTTOM PANEL CONTROL

1. DC 15V (12V) IN

2. COMPONENT Y,Pb,Pr & SOUND L,R

3. AUDIO OUT

23 4 5 6

4. PC STEREO IN

5. D-SUB IN

6. DVI IN

7. HDMI IN

B. SIDE PANEL CONTROL

1. VIDEO 1(AV1) IN

2. VIDEO 1(AV1) OUT

3. VIDEO 2(AV2) IN

4. VIDEO 2(AV2) OUT

5. S-VIDEO (Y/C) IN

6. S-VIDEO (Y/C) OUT

7. AV1, S-VIDEO AUDIO IN

8. AV1, S-VIDEO AUDIO OUT

9. AV2 AUDIO IN

10. AV2 AUDIO OUT

11. DC15V(12V) ADAPTOR

7 8

INSTRUCTION MANUAL

……………………………………………………………………………

C. REMOTE CONTROLLER

1. POWER(

)

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

2. SOURCE

Select pc or video( AV1/AV2/S-Video/DVI/PC) sources.

3. AUTO

Auto geometry adjustment in PC Source.

4. MUTE

Mute the sound.

5. MENU

Activates and exits the On Screen Display.

6. EXIT

Exit the On Screen Display.

7. VOL( )

Increases or decreases the level of audio volume.

8. UP/DOWN

Move to OSD menu.

9. ENTER

Accepts your selection or displays the current mode.

10. INFO

Input mode information Display.

11. STILL

Pause the picture.

12. PIP (Picture In Picture)

Activates PIP mode.

13. P.INPUT

Select PC or video source.

14. P.POS

Move the position of sub picture for PIP mode.

15. P.SIZE

Change the size of sub and main picture for PIP mode.

16. SWAP

Alternates between main and sub picture.

17. ARC (Aspect Ratio Control)

Select screen ratio.

18. APC (Auto Picture Control)

Select picture mode.

19. ACC (Auto Color Control)

Select Colour mode.

20. S.SET

Select Sound mode main input or sub input

21. PC

Select PC mode(PC,DVI)

22. AV

Select AV mode.(AV1,AV2,S-VIDEO)

23. COMP

Select COMPONENT mode.

……………………………………………………………………………

INSTRUCTION MANUAL

D. FRONT KEY CONTROL

1 2

5 6

7 8

1. MENU

Activates and exits the On Screen Display.

2. SOURCE

Select PC or video source. Select On Screen Display menu

3 / 4. ▼ / ▲

This button allows user to enter the sub-menu of the activated function

5 / 6. VOL ◀▶

Adjust the volume / Adjust menu settings.

7. IR Sensor

Remote controller sensor.

8. POWER LED

The power LED(next to the power switch) lights with green when the power i s turned ON.

The power is turned off by pressing the power switch again and the power LED goes Red.

9. POWER ON/OFF( )

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

INSTRUCTION MANUAL

……………………………………………………………………………

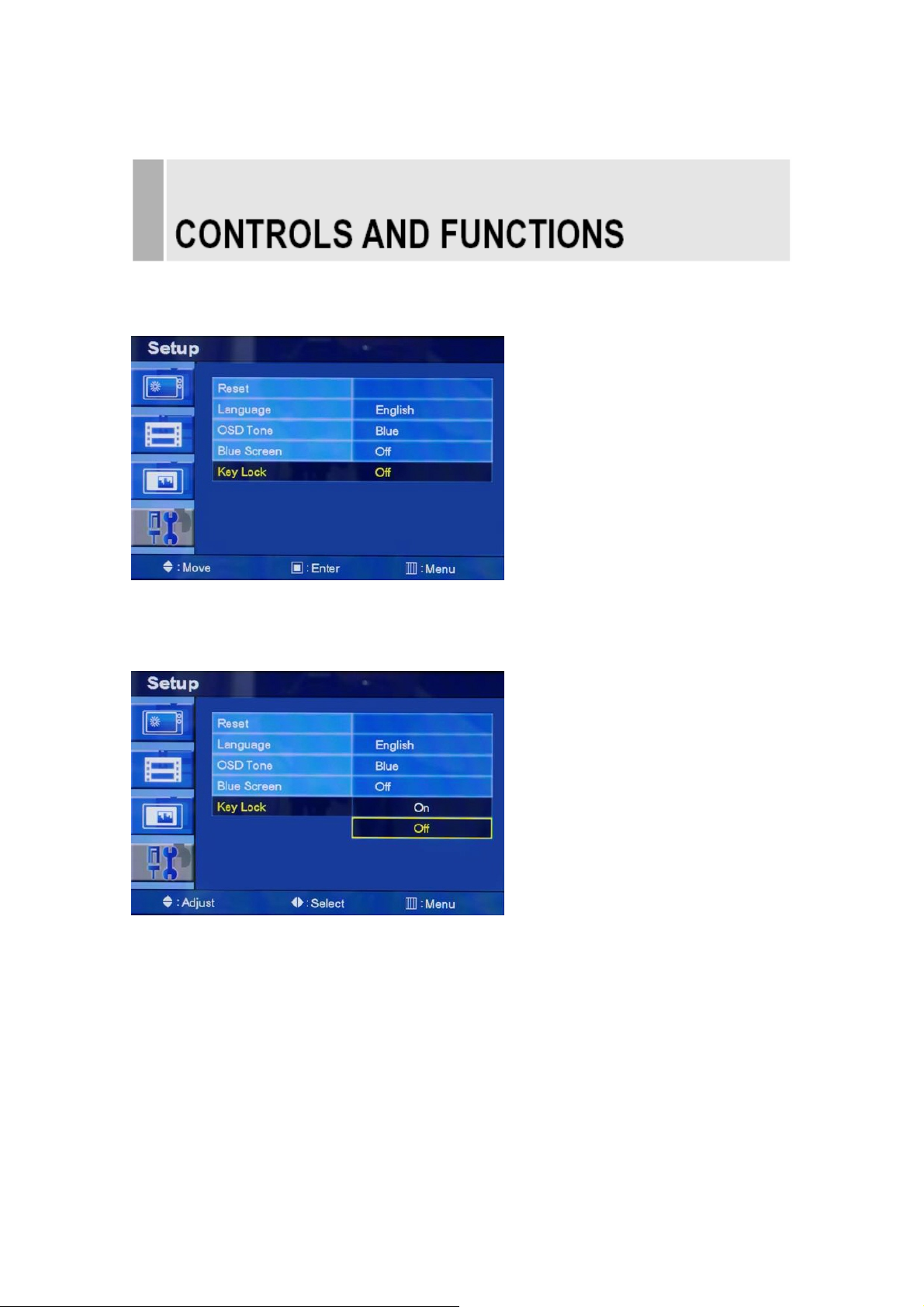

A: CUSTOM MENU (Only PC mode)

Press the MENU button and then up(▲) / down(▼) button to select the Custom menu.

Press the up(▲) / down(▼) button to select Custom sub menu. Press (◀) /right(▶) button to adjust picture setting. Press the MENU button to save.

INSTRUCTION MANUAL

……………………………………………………………………………
