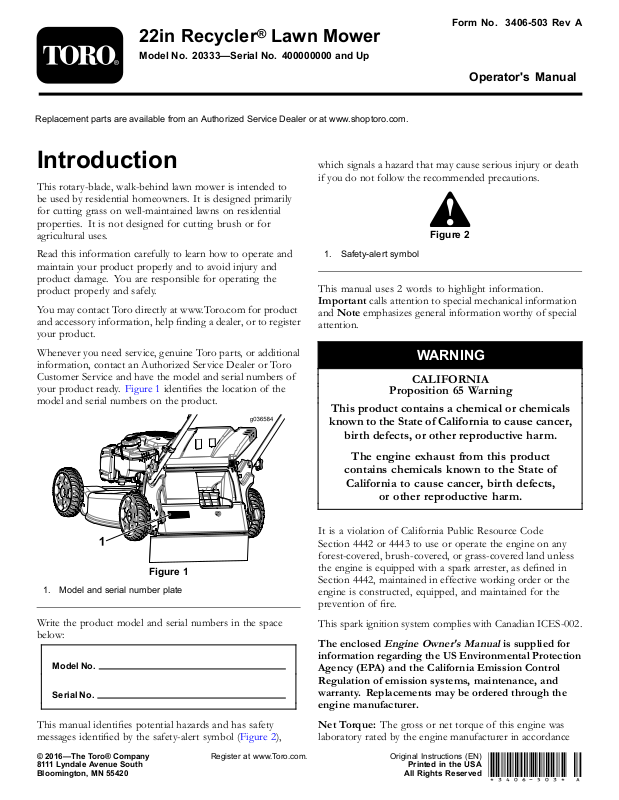

Toro 20333 Operator's Manual

22inRecycler

ModelNo.20333—SerialNo.400000000andUp

ReplacementpartsareavailablefromanAuthorizedServiceDealeroratwww.shoptoro.com.

®

LawnMower

FormNo.3406-503RevA

Operator'sManual

Introduction

Thisrotary-blade,walk-behindlawnmowerisintendedto
beusedbyresidentialhomeowners.Itisdesignedprimarily
forcuttinggrassonwell-maintainedlawnsonresidential
properties.Itisnotdesignedforcuttingbrushorfor
agriculturaluses.

Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.

YoumaycontactT orodirectlyatwww.Toro.comforproduct
andaccessoryinformation,helpndingadealer,ortoregister
yourproduct.

Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.Figure1identiesthelocationofthe
modelandserialnumbersontheproduct.

whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.

Figure2

1.Safety-alertsymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.

WARNING

CALIFORNIA

Proposition65Warning

Thisproductcontainsachemicalorchemicals

knowntotheStateofCaliforniatocausecancer,

birthdefects,orotherreproductiveharm.

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Figure1

1.Modelandserialnumberplate

Writetheproductmodelandserialnumbersinthespace
below:

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafety-alertsymbol(Figure2),

©2016—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.Toro.com.

ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineonany
forest-covered,brush-covered,orgrass-coveredlandunless
theengineisequippedwithasparkarrester,asdenedin
Section4442,maintainedineffectiveworkingorderorthe
engineisconstructed,equipped,andmaintainedforthe
preventionofre.

ThissparkignitionsystemcomplieswithCanadianICES-002.

Theenclosed
informationregardingtheUSEnvironmentalProtection
Agency(EPA)andtheCaliforniaEmissionControl
Regulationofemissionsystems,maintenance,and
warranty.Replacementsmaybeorderedthroughthe
enginemanufacturer.

NetTorque:Thegrossornettorqueofthisenginewas

laboratoryratedbytheenginemanufacturerinaccordance

Engine Owner's Man ual

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

issuppliedfor

*3406-503*A

withtheSocietyofAutomotiveEngineers(SAE)J1940.
Asconguredtomeetsafety,emission,andoperating
requirements,theactualenginetorqueonthisclassofmower
willbesignicantlylower.Gotowww.Toro.comtoview
specicationsonyourmowermodel.

Safety

ThislawnmowermeetsorexceedstheCPSCbladesafety
requirementsforwalk-behindrotarylawnmowersandthe
B71.1specicationsoftheAmericanNationalStandards
Instituteineffectatthetimeofproduction.

Contents

Introduction..................................................................1

Safety...........................................................................2

GeneralSafety.........................................................2

SafetyandInstructionalDecals.................................3

Setup............................................................................4

1InstallingtheBlade-ControlBar..............................4

2AssemblingandUnfoldingtheHandle.....................4

3InstallingtheRecoil-StarterRopeintheRope

Guide.................................................................5

4FillingtheEnginewithOil......................................6

5AssemblingtheGrassBag......................................6

ProductOverview..........................................................7

Operation.....................................................................8

BeforeOperation.......................................................8

BeforeOperationSafety...........................................8

FillingtheFuelTank................................................8

CheckingtheEngine-OilLevel..................................9

AdjustingtheHandleHeight.....................................9

AdjustingtheCuttingHeight....................................9

DuringOperation.....................................................10

DuringOperatingSafety..........................................10

StartingtheEngine.................................................10

UsingtheSelf-PropelDrive.....................................10

ShuttingOfftheEngine..........................................11

EngagingtheBlade.................................................11

DisengagingtheBlade.............................................11

CheckingtheBlade-Brake-ClutchOperation..............11

RecyclingtheClippings...........................................12

BaggingtheClippings.............................................12

Side-DischargingtheClippings.................................13

OperatingTips......................................................13

AfterOperation........................................................14

AfterOperatingSafety............................................14

FoldingtheHandle.................................................14

Maintenance.................................................................16

RecommendedMaintenanceSchedule(s)......................16

MaintenanceSafety.................................................16

PreparingforMaintenance.......................................16

ServicingtheAirFilter............................................17

ChangingtheEngineOil.........................................17

ReplacingtheBlade................................................18

CleaningtheBlade-Brake-ClutchShield.....................18

AdjustingtheSelf-PropelDrive................................19

CleaningundertheMachine.....................................19

Storage........................................................................20

PreparingtheMachineforStorage............................20

RemovetheMachinefromStorage............................20

GeneralSafety

Thisproductiscapableofamputatinghandsandfeetand
ofthrowingobjects.Alwaysfollowallsafetyinstructionsto
avoidseriouspersonalinjury.

Usingthisproductforpurposesotherthanitsintendeduse
couldprovedangeroustoyouandbystanders.

•ReadandunderstandthecontentsofthisOperator’ sManual

beforeyoustarttheengine.Ensurethateveryoneusing
thisproductknowshowtouseitandunderstandsthe
warnings.

•Donotputyourhandsorfeetnearmovingcomponents

ofthemachine.

•Donotoperatethemachinewithoutallguardsandother

safetyprotectivedevicesinplaceandworkingonthe
machine.

•Keepclearofanydischargeopening.Keepbystandersa

safedistanceawayfromthemachine.

•Keepchildrenoutoftheoperatingarea.Neverallow

childrentooperatethemachine.

•Stopthemachineandshutofftheenginebeforeservicing,

fueling,oruncloggingthemachine.

Improperlyusingormaintainingthismachinecanresult
ininjury.Toreducethepotentialforinjury,complywith
thesesafetyinstructionsandalwayspayattentiontothe
safety-alertsymbol,whichmeansCaution,Warning,or
Danger—personalsafetyinstruction.Failuretocomplywith
theseinstructionsmayresultinpersonalinjuryordeath.

Youcanndadditionalitemsofsafetyinformationintheir
respectivesectionsthroughoutthismanual.

2

SafetyandInstructionalDecals

Important:Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamageddecals.

Manufacturer'sMark

1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.

94-8072

108-8117

112-8867

1.Lock2.Unlock

117-2718

131-0894

TractionAdjustment

1.Attention;readtheOperator'sManual—1)Loosenthe
knobbyturningitcounterclockwise;2)Pullthecable(s)
awayfromtheenginetodecreasethetraction,orpush
thecable(s)towardtheenginetoincreasethetraction;3)
Tightentheknobbyturningitclockwise.

131-4514

1.Warning—readtheOperator'sManual.

2.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts;keepallguardsand
shieldsinplace.

3.Cutting/dismembermenthazardofhandorfoot,mower
blade—disconnectthespark-plugwireandreadthe
instructionsbeforeservicingorperformingmaintenance.

4.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine;shutofftheenginebeforeleavingthe
operatingposition;pickupanydebrisbeforemowing.

5.Cutting/dismembermenthazardofhandorfoot,mower
blade—donotoperateupanddownslopes;operatesideto
sideonslopes;lookbehindyouwhenbackingup.

3

Setup

Important:Removeanddiscardtheprotectiveplastic

sheetthatcoverstheengineandanyotherplasticor
wrappingonthemachine.

1

InstallingtheBlade-Control Bar

NoPartsRequired

Procedure

Installtheblade-controlbarintotheupperhandle(Figure3).

Figure3

2

AssemblingandUnfoldingthe

Figure4

1.Handleknob(2)2.Carriagebolt(2)

2.Installthehandleendsontothemowerhousingsothat
thepinattachedtoeachhandlebracketisinthelower
holeofitsrelatedhandleend(Figure5).

Figure5

1.Pin2.Handleend

Note:Thepinsdonotshowthroughtheholesinthe
handleendswhenthehandleisinthefoldedposition.

Handle

NoPartsRequired

Procedure

1.Removeandsavethe2handleknobsand2carriage
boltsfromthehandlebrackets(Figure4).

3.Unfoldthehandletotheoperatingpositionbyrotating
itrearward(Figure6).

4

3

InstallingtheRecoil-Starter RopeintheRopeGuide

NoPartsRequired

Figure6

1.Foldedposition

4.Insertthecarriagebolt(withtheboltheadtoward
theinside)throughtheupperorlowersquareholein
handlebracketandtheupperholeinthehandleend
(Figure7).

2.Operatingposition

Procedure

Important:Tostarttheenginesafelyandeasily

wheneveryouusethemachine,installtherecoil-starter
ropeintheropeguide.

Pulltherecoil-starterropethroughtheropeguideonthe
handle(Figure8).

Figure8

1.Recoil-starterrope2.Ropeguide

Figure7

1.Handleknob

5.Looselyinstallthehandleknobsontothecarriagebolts.

6.Refertosteps3through5ofAdjustingtheHandle

Height(page9).

2.Carriagebolt

5

4

g027257

1

2

3

5

FillingtheEnginewithOil

NoPartsRequired

Procedure

Note:Yourmachinedoesnotcomewithoilintheengine,

butitdoescomewithabottleofoil.

Max.ll:0.53L(18oz),type:SAE30detergentoilwithan
APIserviceclassicationofSF,SG,SH,SJ,SL,orhigher.

1.Removethedipstick(Figure9).

AssemblingtheGrassBag

NoPartsRequired

Procedure

1.SlipthegrassbagovertheframeasshowninFigure10.

Figure9

1.Dipstick

2.Slowlypouroilintotheoil-lltubeuntiltheoillevel
reachestheFulllineonthedipstick(Figure9).Donot

overll.

3.Installthedipsticksecurely.

Figure10

1.Handle

2.Frame

Note:Donotslipthebagoverthehandle(Figure10).

2.Hookthebottomchannelofthebagontothebottom
oftheframe(Figure11).

3.Grassbag

6

g027258

ProductOverview

Figure12

Figure11

3.Hookthetopandsidechannelsofthebagontothetop
andsidesoftheframe,respectively(Figure11).

1.Handle

2.Blade-controlbar

3.Adjustmentknobforthe
self-propeldrive

4.Ignitionswitch11.Bag-on-demandlever

5.Fuel-tankcap

6.Airlter

7.Cutting-heightlever(4)14.Control-barlock

8.Sparkplug

9.Side-dischargedeector

10.Oilll/dipstick

12.Handleknob(2)

13.Recoil-starthandle

Figure13

1.Grassbag2.Side-dischargechute

7

Operation

BeforeOperation

BeforeOperationSafety

FillingtheFuelTank

•Forbestresults,useonlyclean,fresh,unleadedgasoline

withanoctaneratingof87orhigher((R+M)/2rating
method).

•Oxygenatedfuelwithupto10%ethanolor15%MTBE

byvolumeisacceptable.

GeneralSafety

•Becomefamiliarwiththesafeoperationoftheequipment,

operatorcontrols,andsafetysigns.

•Checkthatallguardsandsafetydevices,suchasdeectors

and/orgrasscatcher,areinplaceandworkingproperly .

•Alwaysinspectthemachinetoensurethattheblades,

bladebolts,andcuttingassemblyarenotwornor
damaged.

•Inspecttheareawhereyouwillusethemachineand

removeallobjectsthatthemachinecouldthrow.

•Adjustingthecuttingheightmaybringyouintocontact

withthemovingblade,causingseriousinjury.

–Shutofftheengineandwaitforallmovingpartsto

stop.

–Donotputyourngersunderthehousingwhen

adjustingthecuttingheight.

FuelSafety

DANGER

Fuelisextremelyammableandhighlyexplosive.
Areorexplosionfromfuelcanburnyouand
othersandcandamageproperty.

•Topreventastaticchargefromignitingthefuel,
placethecontainerand/ormachinedirectlyon
thegroundbeforelling,notinavehicleoron
anobject.

•Fillthefueltankoutdoors,inanopenarea,when
theengineiscold.Wipeupanyfuelthatspills.

•Donothandlefuelwhensmokingoraroundan
openameorsparks.

•Storefuelinanapprovedcontainerandkeepit
outofthereachofchildren.

•Donotuseethanolblendsofgasoline,suchasE15

orE85,withmorethan10%ethanolbyvolume.
Performanceproblemsand/orenginedamagemayresult,
whichmaynotbecoveredunderwarranty.

•Donotusegasolinecontainingmethanol.

•Donotstorefueleitherinthefueltankorinfuel

containersoverthewinterunlessfuelstabilizerhasbeen
addedtothefuel.

•Donotaddoiltogasoline.

Important:Toreducestartingproblems,addfuel
stabilizertothefuelallseason,mixingitwithgasoline
lessthan30daysold.

Figure14

WARNING

Fuelisharmfulorfatalifswallowed.Long-term
exposuretovaporscancauseseriousinjuryand
illness.

•Avoidprolongedbreathingofvapors.

•Keepyourhandsandfaceawayfromthenozzle
andthefuel-tankopening.

•Keepfuelawayfromyoureyesandskin.

8

CheckingtheEngine-OilLevel

ServiceInterval:Beforeeachuseordaily

1.Movethemachinetoalevelsurface.

2.Removethedipstick(Figure15).

Figure15

1.Dipstick

Figure16

1.Loosenbothhandleknobsuntilyoucanpushthe
squareedgesofthecarriageboltsoutofthesquare
holesinthehandlebrackets.

2.Pushtheknobsuntiltheyareloose.

3.Movethehandletotheupperorlowerheightposition.

4.Pulltheknobsuntilthesquareedgesofeachcarriage
bolttsintoitsrelatedsquarehole.

5.Tightenthehandleknobsastightasyoucan.

3.Wipethedipstickcleanwithacleancloth.

4.Insertthedipstickfullyintotheoil-lltube,then
removethedipstick.

5.Readtheoillevelonthedipstick(Figure15).

•IftheoillevelisbelowtheAddmarkonthe

dipstick,slowlypourasmallamountofoilinto
theoil-lltube,wait3minutes,andrepeatsteps3
through5untiltheoillevelisattheFullmarkon
thedipstick(Figure15).

•IftheoillevelisabovetheFullmarkonthe

dipstick,draintheexcessoiluntiltheoillevelon
thedipstickisattheFullmark.RefertoChanging

theEngineOil(page17).

Important:Iftheoillevelinthecrankcaseis
toolowortoohighandyouruntheengine,
youmaydamagetheengine.

6.Installthedipsticksecurely.

AdjustingtheHandleHeight

Youcanraiseorlowerthehandlein1of2positionsthatis
morecomfortableforyou(Figure16).

AdjustingtheCuttingHeight

Adjustthecuttingheightasdesired.Setthefrontwheelsto
thesameheightastherearwheels(Figure17).

Note:Toraisethemachine,movethefrontcutting-height
leversrearwardandtherearcutting-heightleversforward.
Tolowerthemachine,movethefrontcutting-heightlevers
forwardandtherearcutting-heightleversrearward.

Figure17

1.Raisethemachine2.Lowerthemachine

9

Note:Thecutting-heightsettingsare25mm(1inch);35
mm(1-3/8inches);44mm(1-3/4inches);54mm(2-1/8
inches);64mm(2-1/2inches);73mm(2-7/8inches);83mm
(3-1/4inches);92mm(3-5/8inches);and102mm(4inches).

•Donotmowonexcessivelysteepslopes.Poorfooting

couldcauseaslip-and-fallaccident.

•Donotmowneardrop-offs,ditches,orembankments.

Youcouldloseyourfootingorbalance.

DuringOperation

DuringOperatingSafety

GeneralSafety

•Wearappropriateclothing,includingeyeprotection;

slip-resistant,substantialfootwear;andhearing
protection.Tiebacklonghair,securelooseclothing,and
donotwearjewelry.

•Donotoperatethemachinewhileill,tired,orunderthe

inuenceofalcoholordrugs.

•Thebladeissharp;contactingthebladecanresultin

seriouspersonalinjury.Shutofftheengineandwaitfor
allmovingpartstostopbeforeleavingtheoperating
position.

•Whenyoureleasetheblade-controlbar,theengineshould

shutoffandthebladeshouldstopwithin3seconds.If
not,stopusingyourmachineimmediatelyandcontactan
AuthorizedServiceDealer.

•Operatethemachineonlyingoodvisibilityand

appropriateweatherconditions.Donotoperatethe
machinewhenthereistheriskoflighting.

•Wetgrassorleavescancauseseriousinjuryifyouslipand

contacttheblade.Mowonlyindryconditions.

•Useextremecarewhenapproachingblindcorners,

shrubs,trees,orotherobjectsthatmayblockyourview.

StartingtheEngine

Note:Youcanstarttheengineeitherfromtheoperating

position(Figure18)orattheengine(withtherecoil-start
handleoutoftheropeguide).

Figure18

Pulltherecoil-starterhandlelightlyuntilyoufeelresistance,
thenpullitsharply.Allowtheropetoreturntothehandle
slowly.

Note:Ifthemachinedoesnotstartafterseveralattempts,
contactanAuthorizedServiceDealer.

•Watchforholes,ruts,bumps,rocks,orotherhidden

objects.Uneventerraincouldcauseaslip-and-fall
accident.

•Stopthemachineandinspectthebladesafterstrikingan

objectorifthereisanabnormalvibrationinthemachine.
Makeallnecessaryrepairsbeforeresumingoperation.

•Beforeleavingtheoperatingposition,shutofftheengine,

removethekey,andwaitforallmovingpartstostop.

•Iftheenginehasbeenrunningthemuferwillbehotand

canseverelyburnyou.Keepawayfromthehotmufer.

•Checkthegrasscatchercomponentsandthedischarge

guardfrequentlyandreplacethemwiththemanufacturer’s
recommendedpartswhennecessary.

•UseaccessoriesandattachmentsapprovedbytheThe

Toro®Companyonly.

SlopeSafety

•Mowacrossthefaceofslopes;neverupanddown.Use

extremecautionwhenchangingdirectiononslopes.

UsingtheSelf-PropelDrive

Tooperatetheself-propeldrive,simplywalkwithyourhands
ontheupperhandleandyourelbowsatyoursides,andthe
machinewillautomaticallykeeppacewithyou(Figure19).

Figure19

10

Note:Ifthemachinedoesnotfreelyrollbackwardafter
self-propelling,stopwalking,holdyourhandsinplace,and
allowthemachinetorollacoupleofcentimeters(inches)
forwardtodisengagethewheeldrive.Youcanalsotry
reachingjustundertheupperhandletothemetalhandleand
pushthemachineforwardacoupleofcentimeters(inches).
Ifthemachinestilldoesnotrollbackwardeasily ,contactan
AuthorizedServiceDealer.

ShuttingOfftheEngine

Toshutofftheengine,pressandholdtheignitionswitch
(Figure12)untiltheenginestops.

Important:Whenyoureleasetheblade-controlbar,
thebladeshouldstopwithin3seconds.Ifitdoesnot
stopproperly,stopusingyourmachineimmediatelyand
contactanAuthorizedServiceDealer.

EngagingtheBlade

Whenyoustartyourengine,thebladedoesnotturn.You
mustengagethebladetomow.

Figure22

DisengagingtheBlade

Releasetheblade-controlbar(Figure23).

1.Pullthecontrol-barlockback(Figure20).

Figure20

2.Pulltheblade-controlbartothehandle(Figure21).

Figure21

3.Holdtheblade-controlbaragainstthehandle(Figure

22).

Figure23

Important:Whenyoureleasetheblade-controlbar,

thebladeshouldstopwithin3seconds.Ifitdoesnot
stopproperly,stopusingyourmachineimmediatelyand
contactanAuthorizedServiceDealer.

Checkingthe Blade-Brake-ClutchOperation

Checkthecontrolbarbeforeeachusetoensurethatthe
blade-brake-clutchsystemisoperatingproperly.

UsingtheGrassBag

ServiceInterval:Beforeeachuseordaily

Youcanusethegrassbagtoperformanadditionaltestto
checktheblade-brakeclutch.

1.Installtheemptygrassbagonthemachine.

2.Starttheengine.

3.Engagetheblade.

Note:Thebagshouldbegintoinate,indicatingthat
thebladeisengagedandrotating.

4.Releasetheblade-controlbar.

Note:Ifthebagdoesnotimmediatelydeate,the
bladeisstillrotating.Theblade-brakeclutchmaybe
deterioratingand,ifignored,couldresultinanunsafe
operatingcondition.Havethemachineinspectedand
servicedbyanAuthorizedServiceDealer.

11

5.Stoptheengineandwaitforallmovingpartstostop.

BaggingtheClippings

NotUsingtheGrassBag

1.Movethemachineontoapavedsurfaceinanon-windy
area.

2.Setall4wheelstothe83mm(3-1/4inch)cutsetting.

3.Takeahalfsheetofnewspaperandcrumpleitintoa
ballsmallenoughtogounderthemachinehousing
(about76mmor3inchesindiameter).

4.Placethenewspaperballabout13cm(5inches)in
frontofthemachine.

5.Starttheengine.

6.Engagetheblade.

7.Releasetheblade-controlbar.

8.Immediatelypushthemachineoverthenewspaperball.

9.Stoptheengineandwaitforallmovingpartstostop.

10.Gotothefrontofthemachineandcheckthe
newspaperball.

Note:Ifthenewspaperballdidnotgounderthe
machine,repeatsteps4through10.

Usethegrassbagwhenyouwanttocollectgrassandleaf
clippingsfromthelawn.

Iftheside-dischargechuteisonthemachine,removeitbefore
baggingtheclippings;refertoRemovingtheSide-Discharge

Chute(page13).Ifthebag-on-demandleverisinthe

Recyclingposition,moveittotheBaggingposition;referto

OperatingtheBag-on-DemandLever(page12).

InstallingtheGrassBag

1.Raiseandholdupthereardeector(Figure24).

11.Ifthenewspaperisunravelledorshredded,theblade
didnotstopproperly ,whichcouldresultinanunsafe
operatingcondition.ContactanAuthorizedService
Dealer.

RecyclingtheClippings

Yourmachinecomesfromthefactoryreadytorecyclethe
grassandleafclippingsbackintothelawn.

Ifthegrassbagisonthemachineandthebag-on-demand
leverisintheBaggingposition,movethelevertothe
Recyclingpositionbeforerecyclingtheclippings;referto

OperatingtheBag-on-DemandLever(page12).Ifthe

side-dischargechuteisonthemachine,removeitbefore
recyclingtheclippings;refertoRemovingtheSide-Discharge

Chute(page13).

Figure24

1.Reardeector3.Grass-bagpin(2)

2.Notches

2.Installthegrassbag,ensuringthatthepinsonthebag
restinthenotchesonthehandle(Figure24).

3.Lowerthereardeector.

RemovingtheGrassBag

Toremovethebag,reversethestepsinInstallingtheGrass

Bag(page12).

OperatingtheBag-on-DemandLever

Thebag-on-demandfeatureallowsyoutoeithercollector
recyclegrassandleafclippingswhilethegrassbagisattached
tothemachine.

•Forbaggingthegrassandleafclippings,pressthebutton

onthebag-on-demandleverandmovetheleverforward
untilthebuttonontheleverpopsup(Figure25).

12

Figure25

1.Bag-on-demandlever(inbaggingposition)

•Forrecyclingthegrassandleafclippings,pressthebutton

ontheleverandmovetheleverrearwarduntilthebutton
ontheleverpopsup.

Important:Forproperoperation,removeanygrass
clippingsanddebrisfromthebag-on-demanddoorand
thesurroundingopening(Figure26)beforeyoumove
thebag-on-demandleverfrom1positiontoanother.

InstallingtheSide-DischargeChute

Liftupthesidedeectorandinstalltheside-dischargechute
(Figure27).

Figure26

1.Cleanhere

Side-Dischargingthe Clippings

Usethesidedischargeforcuttingverytallgrass.

Ifthegrassbagisonthemachineandthebag-on-demand
leverisintheBaggingposition,movethelevertothe
Recyclingposition;refertoOperatingtheBag-on-Demand

Lever(page12).

Figure27

RemovingtheSide-DischargeChute

Toremovethesidedischargechute,liftupthesidedeector,
removetheside-dischargechute,andlowertheside-discharge
deector.

OperatingTips

GeneralMowingTips

•Cleartheareaofsticks,stones,wire,branches,andother

debristhatthebladecouldhit.

•Avoidstrikingsolidobjectswiththeblade.Never

deliberatelymowoveranyobject.

•Ifthemachinestrikesanobjectorstartstovibrate,

immediatelyshutofftheengine,disconnectthewirefrom
thesparkplug,andexaminethemachinefordamage.

•Forbestperformance,installanewbladebeforethe

cuttingseasonbegins.

•ReplacethebladewhennecessarywithaToro

replacementblade.

13

CuttingGrass

•Cutonlyaboutathirdofthegrassbladeatatime.Donot

cutbelowthe54mm(2-1/8-inch)settingunlessthegrass
issparseoritislatefallwhengrassgrowthbeginstoslow
down.RefertoAdjustingtheCuttingHeight(page9).

AfterOperation

AfterOperatingSafety

•Whencuttinggrassover15cm(6inches)tall,mowatthe

highestcutting-heightsettingandwalkslower;thenmow
againatalowersettingforthebestlawnappearance.If
thegrassistoolong,themachinemayplugandcause
theenginetostall.

•Mowonlydrygrassorleaves.Wetgrassandleavestend

toclumpontheyardandcancausethemachinetoplug
ortheenginetostall.

•Beawareofapotentialrehazardinverydryconditions,

followalllocalrewarnings,andkeepthemachinefree
ofdrygrassandleafdebris.

•Alternatethemowingdirection.Thishelpsdispersethe

clippingsoverthelawnforevenfertilization.

•Ifthenishedlawnappearanceisunsatisfactory,try1

ormoreofthefollowing:

–Replacethebladeorhaveitsharpened.

–Walkataslowerpacewhilemowing.

–Raisethecuttingheightonyourmachine.

–Cutthegrassmorefrequently .

–Overlapcuttingswathsinsteadofcuttingafullswath

witheachpass.

GeneralSafety

•Cleangrassanddebrisfromthemachinetohelpprevent

res.Cleanupoilorfuelspills.

•Allowtheenginetocoolbeforestoringthemachinein

anyenclosure.

•Neverstorethemachineorfuelcontainerwherethereis

anopename,spark,orpilotlight,suchasonawater
heateroronotherappliances.

HaulingSafety

•Usecarewhenloadingorunloadingthemachineintoa

trailerortruck.

•Usefull-widthrampsforloadingthemachineintoa

trailerortruck.Donotexceeda15°anglebetweenthe
rampandthetrailerortruck.

•Tiethemachinedownsecurelyusingstraps,chains,cable,

orropes.Bothfrontandrearstrapsshouldbedirected
downandoutwardfromthemachine.

FoldingtheHandle

–Setthecuttingheightonthefrontwheelsanotch

lowerthantherearwheels.Forexample,setthefront
wheelsat54mm(2-1/8-inches)andtherearwheels
at64mm(2-1/2inches).

CuttingLeaves

•Aftercuttingthelawn,ensurethathalfofthelawnshows

throughthecutleafcover.Y oumayneedtomakemore
thanasinglepassovertheleaves.

•Iftherearemorethan13cm(5inches)ofleavesonthe

lawn,setthefrontcuttingheight1or2notcheshigher
thantherearcuttingheight.

•Slowdownyourmowingspeedifthemachinedoesnot

cuttheleavesnelyenough.

WARNING

Foldingorunfoldingthehandleimproperlycan
damagethecables,causinganunsafeoperating
condition.

•Donotdamagethecableswhenfoldingor
unfoldingthehandle.

•Ifacableisdamaged,contactanAuthorized
ServiceDealer.

1.Removeandsavethe2handleknobsand2carriage
boltsfromthehandlebrackets(Figure28).

Important:Routethecablestotheoutsideofthe
handleknobsasyoufoldthehandle.

14

1.Handleknob

Figure28

2.Carriagebolt

1.Handleknob

Figure30

2.Carriagebolt

2.Foldthehandlebyrotatingitforward(Figure29).

Figure29

1.Operatingposition

2.Foldedposition

3.Insertthecarriagebolt(withtheboltheadtowardthe
inside)throughthehandlebracketandtheupperhole
inthehandleend.Ensurethatthesquareedgesofeach
carriagebolttsintotheupperorlowersquareholein
itsrelatedhandlebracket(Figure30).

4.Looselyinstallthehandleknobsandcarriageboltson
thehandlebrackets.

5.Tounfoldthehandle,referto2Assemblingand

UnfoldingtheHandle(page4).

15

Maintenance

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Beforeeachuseordaily

Every25hours

Yearly

Yearlyorbeforestorage

Important:Refertoyourengineowner’smanualforadditionalmaintenanceprocedures.

Note:ReplacementpartsareavailablefromanAuthorizedServiceDealer(gotowww.toro.comtondthenearestdealer)

oratwww.shoptoro.com.

MaintenanceProcedure

•Checktheengine-oillevel.

•Checktheblade-brake-clutchoperation.

•Cleangrassclippingsanddirtfromunderthemachine.

•Replacetheairlter;replaceitmorefrequentlyindustyoperatingconditions.

•Cleantheblade-brake-clutchshield.

•Replacethebladeorhaveitsharpened(morefrequentlyiftheedgedullsquickly).

•Cleantheair-coolingsystem;cleanitmorefrequentlyindustyoperatingconditions.
Refertoyourengineowner’smanual.

•Refertoyourengineowner’smanualforanyadditionalyearlymaintenance
procedures.

•Emptythefueltankbeforerepairsasdirectedandbeforeyearlystorage.

MaintenanceSafety

•Disconnectthespark-plugwirefromthesparkplug

beforeperforminganymaintenanceprocedure.

•Wearglovesandeyeprotectionwhenservicingthe

machine.

•Thebladeissharp;contactingthebladecanresultin

seriouspersonalinjury.Weargloveswhenservicingthe
blade.

•Nevertamperwithsafetydevices.Checktheirproper

operationregularly.

•Tippingthemachinemaycausethefueltoleak.Fuelis

ammableandexplosive,andcancausepersonalinjury.
Runtheenginedrytoremovethefuelwithahandpump;
neversiphonthefuel.

PreparingforMaintenance

1.Shutofftheengineandwaitforallmovingpartsto
stop.

2.Disconnectthespark-plugwirefromthesparkplug
(Figure31).

Figure31

1.Spark-plugwire

3.Afterperformingthemaintenanceprocedure(s),
connectthespark-plugwiretothesparkplug.

Important:Beforetippingthemachinetochange
theoilorreplacetheblade,allowthefueltankto
rundrythroughnormalusage.Ifyoumusttip
themachinepriortorunningoutoffuel,usea
handfuelpumptoremovethefuel.Alwaystipthe
machineontoitsside,withthedipstickdown.

16

ServicingtheAirFilter

ServiceInterval:Every25hours

1.Upclipthetopoftheair-ltercover(Figure32).

Figure33

1.Dipstick

4.Tipthemachineontoitssidewiththeairlterupto
draintheusedoiloutthroughtheoil-lltube(Figure

34).

Figure32

1.Clip3.Airlter

2.Air-ltercover

2.Removetheairlter(Figure32).

3.Inspecttheairlter.

Note:Iftheairlterisexcessivelydirty,replaceitwith
anewlter.Otherwise,gentlytaptheairlterona
hardsurfacetoloosendebris.

4.Installtheairlter.

5.Usethecliptoinstalltheair-ltercover.

ChangingtheEngineOil

Changingtheengineoilisnotrequired,butifyoudesire
tochangetheoil,usethefollowingprocedure.

Note:Runtheengineafewminutesbeforechangingthe
oiltowarmit.Warmoilowsbetterandcarriesmore
contaminants.

Max.ll:0.53L(18oz),type:SAE30detergentoilwithan
APIserviceclassicationofSF,SG,SH,SJ,SL,orhigher.

1.Movethemachinetoalevelsurface.

2.RefertoPreparingforMaintenance(page16).

3.Removethedipstick(Figure33).

Figure34

5.Returnthemachinetotheoperatingposition.

6.Slowlypourabout3/4ofthecrankcasecapacityofoil
intotheoil-lltube.

7.Waitabout3minutesfortheoiltosettleinthe
crankcase.

8.Wipethedipstickcleanwithacleancloth.

9.Insertthedipstickfullyintotheoil-lltube,then
removethedipstick.

10.Readtheoillevelonthedipstick(Figure33).

•IftheoillevelisbelowtheAddmarkonthe

dipstick,slowlypourasmallamountofoilintothe
oil-lltubeandrepeatsteps8through10untilthe
oillevelisattheFullmarkonthedipstick.

•IftheoillevelisabovetheFullmarkonthe

dipstick,draintheexcessoiluntiltheoillevelon
thedipstickisattheFullmark.

17

Important:Iftheoillevelinthecrankcaseis
toolowortoohighandyouruntheengine,
youmaydamagetheengine.

Cleaningthe Blade-Brake-ClutchShield

11.Installthedipsticksecurely.

12.Recycletheusedoilproperly .

ReplacingtheBlade

ServiceInterval:Yearly

Important:Youwillneedatorquewrenchtoinstallthe
bladeproperly.Ifyoudonothaveatorquewrenchorare
uncomfortableperformingthisprocedure,contactan
AuthorizedServiceDealer.

Examinethebladewheneveryourunoutofgasoline.Ifthe
bladeisdamagedorcracked,replaceitimmediately.Ifthe
bladeedgeisdullornicked,haveitsharpenedandbalanced,
orreplaceit.

Weargloveswhenservicingtheblade.

1.Disconnectthespark-plugwirefromthesparkplug.
RefertoPreparingforMaintenance(page16).

2.Tipthemachineontoitssidewiththedipstickdown.

3.Removethe2bladenutsandthestiffener(Figure35).

ServiceInterval:Every25hours

Cleantheblade-brake-clutchshieldyearlytopreventtheblade
fromstallingwhileyoumow .

1.Disconnectthespark-plugwirefromthesparkplug.
RefertoPreparingforMaintenance(page16).

2.Tipthemachineontoitssidewiththedipstickdown.

3.Removethe2bladenutsandthestiffener(Figure36).

Figure36

Figure35

1.Bladenuts

4.Removetheblade(Figure35).

5.Installthenewblade(Figure35).

6.Installthestiffenerthatyoupreviouslyremoved.

7.Installthebladenutsandtorquethemto20to37N∙m
(15to27ft-lb).

2.Stiffener

1.Bladenuts4.Bladedriver

2.Stiffener

3.Blade6.Blade-brake-clutchshield

4.Removetheblade(Figure36).

5.Removethebladedriveranddisk(Figure36).

6.Removethebladebrake-clutchshield(Figure36).

7.Brushorblowoutdebrisfromtheinsideoftheshield
andaroundalltheparts.

8.Installtheblade-brake-clutchshieldthatyoupreviously
removed.

9.Installthebladedriveranddiskthatyoupreviously
removed.

10.Installthebladeandthestiffenerthatyoupreviously
removed(Figure36).

11.Installthebladenutsandtorquethemto20to37N∙m
(15to27ft-lb).

5.Disk

18

AdjustingtheSelf-PropelDrive

g027709

Wheneveryouinstallanewself-propelcableorifthe
self-propeldriveisoutofadjustment,adjusttheself-propel
drive.

1.Turntheadjustmentknobcounterclockwisetoloosen
thecableadjustment(Figure37).

Figure37

1.Handle(leftside)3.Self-propel-drivecable

2.Adjustmentknob

2.Adjustthetensiononthecable(Figure37)bypullingit
backorpushingitforwardandholdingthatposition.

Note:Pushthecabletowardtheenginetoincrease
thetraction;pullthecableawayfromtheengineto
decreasethetraction.

Figure38

1.Washoutport

6.Turnthewateron.

7.Starttheengineandrunituntiltherearenomore
clippingsthatcomeoutfromunderthemachine.

8.Shutofftheengine.

9.Shutoffthewateranddisconnectthegardenhose
fromthemachine.

10.Starttheengineandrunitforafewminutestodrythe
housingtopreventitfromrusting.

11.Allowtheenginetocoolbeforestoringthemachine
inanenclosedarea.

3.Turntheadjustmentknobclockwisetotightenthe
cableadjustment.

Note:Tightentheknobrmlybyhand.

CleaningundertheMachine

ServiceInterval:Beforeeachuseordaily

Forbestresults,cleanthemachinesoonafteryouhave
completedmowing.

1.Movethemachineontoaatpavedsurface.

2.Shutofftheengineandwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.

3.Lowerthemachinetoitslowestcutting-heightsetting;
refertoAdjustingtheCuttingHeight(page9).

4.Washouttheareaunderthereardeectorwherethe
clippingsgofromthehousingtothegrassbag.

Note:Washouttheareawiththebag-on-demandin
boththefullyforwardandfullyrearwardpositions.

5.Attachagardenhosethatisconnectedtoawater
supplytothewashoutport(Figure38).

19

Storage

Storethemachineinacool,clean,dryplace.

RemovetheMachinefrom Storage

1.Checkandtightenallfasteners.

PreparingtheMachinefor Storage

1.Onthelastrefuelingoftheyear,addfuelstabilizerto
thefuelasdirectedbytheenginemanufacturer.

2.Disposeofanyunusedfuelproperly.Recycleit
accordingtolocalcodes,oruseitinyourautomobile.

Note:Oldfuelinthefueltankistheleadingcauseof
hardstarting.Donotstorefuelwithoutstabilizermore
than30days,anddonotstorestabilizedfuelmorethan
90days.

3.Runthemachineuntiltheengineshutsofffrom
runningoutoffuel.

4.Starttheengineagain.

5.Allowtheenginetorununtilitshutsoff.Whenyou
cannolongerstarttheengine,itissufcientlydry.

6.Disconnectthewirefromthesparkplug.

7.Removethesparkplug,add30ml(1oz)ofoilthrough
thespark-plughole,andpullthestarterropeslowly
severaltimestodistributeoilthroughoutthecylinder
topreventcylindercorrosionduringtheoff-season.

2.Removethesparkplugandspintheenginerapidlyby
pullingtherecoil-starthandletoblowtheexcessoil
fromthecylinder.

3.Installthesparkplugandtightenitwithatorque
wrenchto20N∙m(15ft-lb).

4.Performanymaintenanceprocedures;referto

Maintenance(page16).

5.Checktheengine-oillevel;refertoCheckingthe

Engine-OilLevel(page9).

6.Fillthefueltankwithfreshgasoline;refertoFillingthe

FuelTank(page8).

7.Connectthewiretothesparkplug.

8.Looselyinstallthesparkplug.

9.Tightenallnuts,bolts,andscrews.

20

Notes:

Notes:

Notes:

TheToroWarranty

A2-Y earFullWarranty(45DayLimitedWarrantyforCommercialUse)20inMulcher/Bagger

22inRecycler

®

TheToroGTSStartingGuarantee

A3-YearFullWarranty(NotApplicableforCommercialUse)

ConditionsandProductsCovered

TheToroCompanyanditsafliate,T oroWarrantyCompany,pursuantto
anagreementbetweenthem,jointlypromisetorepairtheToroProduct
listedbelowifusedforresidentialpurposes*;ifitisdefectiveinmaterials
orworkmanshiporifitstopsfunctioningduetothefailureofacomponent;
oriftheToroGTS(GuaranteedtoStart)enginewillnotstartontherstor
secondpull,providedtheroutinemaintenancerequiredintheOperator's
Manualhavebeenperformed.

Thiswarrantycoversthecostofpartsandlabor,butyoumustpay
transportationcosts.

Thefollowingtimeperiodsapplyfromtheoriginaldateofpurchase:

ProductsWarrantyPeriod

22inRecyclerand20in
Mulcher/BaggerandAttachments

GTS(GuaranteedtoStart)3-yearfullwarranty
Engine
Battery

LimitedWarrantyforCommercialUse*

Gas-poweredT oroProductsusedforcommercial,institutional,orrental
use,arewarrantedfor45daysagainstdefectsinmaterialsorworkmanship.
Componentsfailingduetonormalweararenotcoveredbythiswarranty.

TheT oroGTS(GuaranteedtoStart)StartingGuaranteedoesnotapply
whentheproductisusedcommercially*.

InstructionsforObtainingWarrantyService

IfyouthinkthatyourToroProductcontainsadefectinmaterialsor
workmanship,orifanormal,able-bodiedadultcannolongerstartyour
product'sengineinoneortwopulls,followthisprocedure:

1.ContactanyAuthorizedToroServiceDealertoarrangeserviceat
theirdealership.Tolocateadealerconvenienttoyou,accessourweb
siteatwww.Toro.com.Youmayalsocallthenumberslistedinitem#3
tousethe24-hourT oroDealerlocatorsystem.

2.Bringtheproductandyourproofofpurchase(salesreceipt)tothe
ServiceDealer.Thedealerwilldiagnosetheproblemanddetermineif
itiscoveredunderwarranty.

3.IfforanyreasonyouaredissatisedwiththeServiceDealer’s
analysisorwiththeassistanceprovided,contactusat:

TheT oroCompany
CustomerCareDepartment,RLCDivision
811 1LyndaleAvenueSouth
Bloomington,MN55420-1196
Tollfreeat866-214-9807(U.S.customers)
Tollfreeat866-214-9808(Canadiancustomers)

OwnerResponsibilities

YoumustmaintainyourT oroProductbyfollowingthemaintenance
proceduresdescribedintheOperator'sManual.Suchroutinemaintenance,
whetherperformedbyadealerorbyyou,isatyourexpense.

2-yearfullwarranty

3-yearfullwarranty
1-yearfullwarranty

WalkPowerMowers

ItemsandConditionsNotCovered

Thereisnootherexpresswarrantyexceptforspecialemissionsystem
coverageandenginewarrantycoverageonsomeproducts.Thisexpress
warrantydoesnotcoverthefollowing:

•Costofregularmaintenanceserviceorparts,suchaslters,fuel,

lubricants,oilchanges,sparkplugs,airltersbladesharpeningorworn
blades,cable/linkageadjustments,orbrakeandclutchadjustments

•Anyproductorpartwhichhasbeenalteredormisusedorneglected

orrequiresreplacementorrepairduetoaccidentsorlackofproper
maintenance

•Pickupanddeliverycharges

•RepairsorattemptedrepairsbyanyoneotherthananAuthorizedT oro

ServiceDealer

•Repairsnecessaryduetofailuretofollowrecommendedfuel

procedure(consultOperator'sManualformoredetails)

–Removingcontaminantsfromthefuelsystemisnotcovered

–Useofoldfuel(morethanonemonthold)orfuelwhichcontains

morethan10%ethanolormorethat15%MTBE

–Failuretodrainthefuelsystempriortoanyperiodofnon-use

overonemonth

•Repairsoradjustmentstocorrectstartingdifcultiesduetothe

following:

–Failuretofollowpropermaintenanceproceduresorrecommended

fuelprocedure

–Rotarymowerbladestrikinganobject

•Specialoperationalconditionswherestartingmayrequiremorethan

twopulls:

–Firsttimestartsafterextendedperiodofnon-useoverthree

monthsorseasonalstorage

–Cooltemperaturestartssuchasthosefoundinearlyspringand

lateautumn

–Improperstartingprocedures-ifyouarehavingdifcultystarting

yourunit,pleasechecktheOperator'sManualtoensurethat
youareusingthecorrectstartingprocedures.Thiscansavean
unnecessaryvisittoanAuthorizedT oroServiceDealer.

GeneralConditions

AllrepairscoveredbythesewarrantiesmustbeperformedbyanAuthorized
ToroServiceDealerusingToro-approvedreplacementparts.Repairbyan
AuthorizedToroServiceDealerisyoursoleremedyunderthiswarranty.

NeitherTheToroCompanynorToroWarrantyCompanyisliablefor
indirect,incidental,orconsequentialdamagesinconnectionwiththe
useoftheToroProductscoveredbythesewarranties,includingany
costorexpenseofprovidingsubstituteequipmentorserviceduring
reasonableperiodsofmalfunctionornon-usependingcompletionof
repairsunderthesewarranties.

Somestatesdonotallowexclusionsofincidentalorconsequential
damages,sotheaboveexclusionsmaynotapplytoyou.

Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother
rightswhichvaryfromstatetostate.

CountriesOtherthantheUnitedStatesorCanada

ThiswarrantyisnotvalidinMexico.CustomerswhohavepurchasedT oroproductsexportedfromtheUnitedStatesorCanadashouldcontacttheirToro
Distributor(Dealer)toobtainguaranteepoliciesforyourcountry,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceor
havedifcultyobtainingguaranteeinformation,contacttheT oroimporter.Ifallotherremediesfail,youmaycontactusatT oroWarrantyCompany.

AustralianConsumerLaw:AustraliancustomerswillnddetailsrelatingtotheAustralianConsumerLaweitherinsidetheboxoratyourlocalT oro
Dealer.

*Residentialpurposesmeansuseoftheproductonthesamelotasyourhome.Useatmorethanonelocation,orinstitutionalorrentaluse,isconsidered
commercialuse,andthecommercialusewarrantywouldapply.

374-0254RevF
