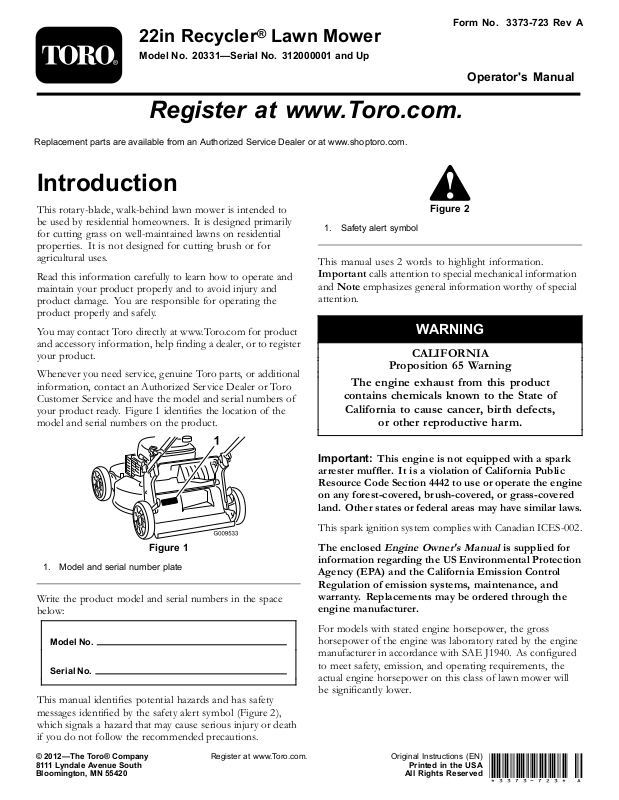

Toro 20331 Operator's Manual

22inRecycler

ModelNo.20331—SerialNo.312000001andUp

®

LawnMower

Registeratwww.Toro.com.

ReplacementpartsareavailablefromanAuthorizedServiceDealeroratwww.shoptoro.com.

Introduction

FormNo.3373-723RevA

Operator'sManual

Thisrotary-blade,walk-behindlawnmowerisintendedto
beusedbyresidentialhomeowners.Itisdesignedprimarily
forcuttinggrassonwell-maintainedlawnsonresidential
properties.Itisnotdesignedforcuttingbrushorfor
agriculturaluses.

Readthisinformationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperatingthe
productproperlyandsafely.

YoumaycontactTorodirectlyatwww .T oro.comforproduct
andaccessoryinformation,helpndingadealer,ortoregister
yourproduct.

Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourproductready.
modelandserialnumbersontheproduct.

Figure1identiesthelocationofthe

Figure2

1.Safetyalertsymbol

Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.

WARNING

CALIFORNIA

Proposition65Warning

Theengineexhaustfromthisproduct

containschemicalsknowntotheStateof

Californiatocausecancer,birthdefects,

orotherreproductiveharm.

Important:Thisengineisnotequippedwithaspark
arrestermufer.ItisaviolationofCaliforniaPublic
ResourceCodeSection4442touseoroperatetheengine
onanyforest-covered,brush-covered,orgrass-covered
land.Otherstatesorfederalareasmayhavesimilarlaws.

Figure1

1.Modelandserialnumberplate

Writetheproductmodelandserialnumbersinthespace
below:

ModelNo.

SerialNo.

Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafetyalertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.

©2012—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.Toro.com.

ThissparkignitionsystemcomplieswithCanadianICES-002.

Theenclosed
informationregardingtheUSEnvironmentalProtection
Agency(EPA)andtheCaliforniaEmissionControl
Regulationofemissionsystems,maintenance,and
warranty.Replacementsmaybeorderedthroughthe
enginemanufacturer.

Formodelswithstatedenginehorsepower,thegross
horsepoweroftheenginewaslaboratoryratedbytheengine
manufacturerinaccordancewithSAEJ1940.Ascongured
tomeetsafety,emission,andoperatingrequirements,the
actualenginehorsepoweronthisclassoflawnmowerwill
besignicantlylower.

Engine Owner's Man ual

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

issuppliedfor

*3373-723*A

Contents

Introduction..................................................................1

GeneralOperation..................................................2

SlopeOperation......................................................2

Children.................................................................3

Service...................................................................3

SafetyandInstructionalDecals.................................4

Setup............................................................................4

1InstallingtheHandle.............................................4

2FillingtheEnginewithOil......................................4

ProductOverview..........................................................5

Operation.....................................................................6

FillingtheFuelTank................................................6

CheckingtheEngineOilLevel..................................6

AdjustingtheCuttingHeight....................................6

StartingtheEngine..................................................7

UsingtheSelf-propelDrive.......................................7

StoppingtheEngine................................................8

RecyclingtheClippings............................................8

BaggingtheClippings..............................................8

Side-dischargingtheClippings...................................9

OperatingTips......................................................10

Maintenance.................................................................12

RecommendedMaintenanceSchedule(s)......................12

PreparingforMaintenance.......................................12

ReplacingtheAirFilter............................................13

ChangingtheEngineOil.........................................13

ReplacingtheBlade................................................13

AdjustingtheSelf-propelDriveCable........................14

CleaningtheMower................................................15

Storage........................................................................16

PreparingtheMowerforStorage..............................16

FoldingtheHandle.................................................16

RemovingtheMowerfromStorage...........................16

Safety

ThislawnmowermeetsorexceedstheCPSCbladesafety
requirementsforwalk-behindrotarylawnmowersandthe
B71.1specicationsoftheAmericanNationalStandards
Instituteineffectatthetimeofproduction.

Readandunderstandthecontentsofthismanualbefore
youstarttheengine.

Thesafetyalertsymbol(Figure2)isusedtoalertyouto
potentialpersonalinjuryhazards.Obeyallsafetymessages
thatfollowthissymboltoavoidpossibleinjuryordeath.
Improperlyusingormaintainingthismowercouldresultin
injuryordeath.T oreducethispotential,complywiththe
followingsafetyinstructions.

Thefollowinginstructionshavebeenadaptedfromthe
ANSI/OPEIstandardB71.1-2003.

Thiscuttingmachinecanamputatehandsandfeetand
throwobjects.Failuretoobservethefollowingsafety
instructionscouldresultinseriousinjuryordeath.

GeneralOperation

•Read,understand,andfollowallinstructionsonthe

machineandinthemanual(s)beforestarting.

•Donotputhandsorfeetnearorunderthemachine.

Keepclearofthedischargeopeningatalltimes.

•Onlyallowresponsibleadults,whoarefamiliarwiththe

instructions,tooperatethismachine.

•Cleartheareaofobjectssuchasrocks,wire,toys,etc.,

whichcouldbethrownbytheblade.Staybehindthe
handlewhentheengineisrunning.

•Besuretheareaisclearofbystandersbeforeoperating.

Stopmachineifanyoneentersthearea.

•Donotoperatemachinebarefootedorwhilewearing

sandals.Alwayswearsubstantialfootwear.

•Donotpullmachinebackwardunlessabsolutely

necessary.Alwayslookdownandbehindbeforeand
whilemovingbackward.

•Neverdirectdischargedmaterialtowardanyone.Avoid

dischargingmaterialagainstawallorobstruction.
Materialmayricochetbacktowardtheoperator.Stopthe
bladewhencrossinggravelsurfaces.

•Donotoperatemachinewithouttheentiregrasscatcher,

dischargeguard,rearguard,orothersafetyprotective
devicesinplaceandworking.

•Neverleavearunningmachineunattended.

•Stoptheengineandwaituntilthebladecomestoa

completestopbeforecleaningthemachine,removing
grasscatcher,oruncloggingthedischargeguard.

•Operatemachineonlyindaylightorgoodarticiallight.

•Donotoperatemachinewhileundertheinuenceof

alcoholordrugs.

•Neveroperatemowerinwetgrass.Alwaysbesureof

yourfooting;walk;neverrun.

•Disengagethedrivesystem,ifsoequipped,before

startingtheengine.

•Ifthemachineshouldstarttovibrateabnormally,stop

theengineandcheckforthecauseimmediately.Vibration
isgenerallyawarningoftrouble.

•Alwaysweareyeprotectionwhenoperatingmachine.

•Seemanufacturer'sinstructionsforproperoperationand

installationofaccessories.Onlyuseaccessoriesapproved
bythemanufacturer.

SlopeOperation

Slopesareamajorfactorrelatedtoslipandfallaccidents,
whichcanresultinsevereinjury.Operationonallslopes
requireextracaution.Ifyoufeeluneasyonaslope,donot
mowit.

•Mowacrossthefaceofslopes;neverupanddown.

Exerciseextremecautionwhenchangingdirectionon
slopes.

2

•Watchforholes,ruts,bumps,rocks,orotherhidden

objects.Uneventerraincouldcauseaslipandfall
accident.Tallgrasscanhideobstacles.

•Donotmowonwetgrassorexcessivelysteepslopes.

Poorfootingcouldcauseaslipandfallaccident.

•Donotmowneardrop-offs,ditches,orembankments.

Youcouldloseyourfootingorbalance.

WARNING

Exhaustcontainscarbonmonoxide,anodorless,
deadlypoisonthatcankillyou.

Donotruntheengineindoorsorinanenclosed
area.

GeneralService

Children

Tragicaccidentscanoccuriftheoperatorisnotalerttothe
presenceofchildren.Childrenareoftenattractedtothe
machineandthemowingactivity .Neverassumethatchildren
willremainwhereyoulastsawthem.

•Keepchildrenoutofthemowingareaandunderthe

watchfulcareofaresponsibleadultotherthanthe
operator.

•Bealertandturnmoweroffifachildentersthearea.

•Neverallowchildrentooperatethemachine.

•Useextracarewhenapproachingblindcorners,shrubs,

trees,orotherobjectsthatmayblockyourviewofachild.

Service

SafeHandlingofGasoline

Toavoidpersonalinjuryorpropertydamage,use
extremecareinhandlinggasoline.Gasolineisextremely
ammableandthevaporsareexplosive.

•Extinguishallcigarettes,cigars,pipes,andothersources

ofignition.

•Useonlyanapprovedgasolinecontainer.

•Neverremovegascaporaddfuelwiththeengine

running.Allowenginetocoolbeforerefueling.

•Neverrefuelthemachineindoors.

•Neverstorethemachineorfuelcontainerwherethereis

anopename,spark,orpilotlightsuchasonawater
heateroronotherappliances.

•Neverllcontainersinsideavehicleoronatruckor

trailerbedwithaplasticliner.Alwaysplacecontainerson
thegroundawayfromyourvehiclebeforelling.

•Removegas-poweredequipmentfromthetruckortrailer

andrefuelitontheground.Ifthisisnotpossible,then
refuelsuchequipmentwithaportablecontainer,rather
thanfromagasolinedispensernozzle.

•Keepthenozzleincontactwiththerimofthefueltank

orcontaineropeningatalltimesuntilfuelingiscomplete.
Donotuseanozzlelock-opendevice.

•Iffuelisspilledonclothing,changeclothingimmediately.

•Neveroverllfueltank.Replacegascapandtighten

securely.

•Neveroperatemachineinaclosedarea.

•Keepallnutsandboltstighttobesuretheequipmentis

insafeworkingcondition.

•Nevertamperwithsafetydevices.Checktheirproper

operationregularly.

•Keepmachinefreeofgrass,leaves,orotherdebris

build-up.Cleanupoilorfuelspillageandremoveany
fuel-soakeddebris.Allowmachinetocoolbeforestoring.

•Ifyoustrikeaforeignobject,stopandinspectthe

machine.Repair,ifnecessary,beforestarting.

•Nevermakeanyadjustmentsorrepairswiththeengine

running.Disconnectthesparkplugwireandground
againstenginetopreventunintendedstarting.

•Checkgrasscatchercomponentsandthedischargeguard

frequentlyandreplacewithmanufacturer'srecommended
parts,whennecessary.

•Mowerbladesaresharp.Wrapthebladeorweargloves,

anduseextracautionwhenservicingthem.

•Donotchangetheenginegovernorsettingoroverspeed

theengine.

•Maintainorreplacesafetyandinstructionlabels,as

necessary.

3

SafetyandInstructionalDecals

Important:Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamageddecals.

Setup

Important:Removeanddiscardtheprotectiveplastic

Manufacturer'sMark

1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.

sheetthatcoverstheengine.

1

InstallingtheHandle

NoPartsRequired

Procedure

WARNING

Foldingorunfoldingthehandleimproperlycan

94-8072

damagethecables,causinganunsafeoperating
condition.

112-8867

1.Lock2.Unlock

114-7982

1.Warning—readtheOperator'sManual.

2.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine.

3.Cutting/dismembermenthazardofhandorfoot,mower
blade—removetheignitionkeyandreadtheinstructions
beforeservicingorperformingmaintenance.

4.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.

5.Cutting/dismembermenthazardofhandorfoot,mower
blade—donotoperateupanddownslopes;operatesideto
sideonslopes;stoptheenginebeforeleavingtheoperating
position;andlookbehindyouwhenbackingup.

•Donotdamagethecableswhenfoldingor
unfoldingthehandle.

•Ifacableisdamaged,contactanAuthorized
ServiceDealer.

1.Removethehandleknobsfromthemowerhousing
(Figure3).

Important:Routethecablestotheoutsideofthe
handleknobsasyouinstallthehandle.

Figure3

2.Movethehandletotheoperatingposition.

3.Installandtightenthehandleknobsthatyouremoved
instep1.

4

2

FillingtheEnginewithOil

NoPartsRequired

Procedure

Important:Yourmowerdoesnotcomewithoilinthe

engine,butitdoescomewithabottleofoil.Before
startingtheengine,lltheenginewithoil.

Max.ll:20oz.(0.59l),type:SAE30detergentoilwithan
APIserviceclassicationofSF,SG,SH,SJ,SL,orhigher.

Note:Whenthecrankcaseisempty,pourabout3/4of
thecrankcasecapacityofoilinthecrankcase,thendothe
following:

1.Movethemowertoalevelsurface.

2.Removethedipstick(Figure4).

ProductOverview

Figure5

1.Cuttingheightlever(4)

2.Sparkplug

3.Airlter(notshown)9.Self-propeldrivebar

4.Fueltankcap

5.Oilll/dipstick

6.Handle

7.Recoilstarthandle

8.Bladecontrolbar

10.Handleknob(2)

11.Washoutport

Figure4

1.Dipstick

3.Slowlypouroilintotheoillltubeuntiltheoillevel
reachestheFulllineonthedipstick(Figure4).W ait
3minutesafteraddingoiltochecktheoillevelwith
thedipstick.Donotoverll.(Max.ll:20oz.(0.59
l),type:SAE30detergentoilwithanAPIservice
classicationofSF ,SG,SH,SJ,SL,orhigher.)

Important:Donotoverllthecrankcasewithoil
andruntheengine.Draintheexcessoiluntilthe
oillevelonthedipstickreadsFull.

4.Installthedipsticksecurely.

Important:

operating hour s

to(page).

Change the engine oil after the r st 5

;changeityearlythereafter.Refer

Figure6

1.Grassbag2.Sidedischargechute

5

Operation

FillingtheFuelTank

DANGER

Gasolineisextremelyammableandexplosive.A
reorexplosionfromgasolinecanburnyouand
others.

•Topreventastaticchargefromignitingthe
gasoline,placethecontainerand/ormower
directlyonthegroundbeforelling,notina
vehicleoronanobject.

•Fillthetankoutdoorswhentheengineiscold.
Wipeupspills.

•Donothandlegasolinewhensmokingoraround
anopenameorsparks.

CheckingtheEngineOilLevel

ServiceInterval:Beforeeachuseordaily

1.Removethedipstick,wipeitclean,andfullyinstallthe
dipstick(Figure8).

•Storegasolineinanapprovedfuelcontainer,out
ofthereachofchildren.

Fillthefueltankwithfreshunleadedregulargasolinefroma
majorname-brandservicestation(Figure7).

Useunleadedregulargasolinesuitableforautomotiveuse
(87pumpoctaneminimum).Leadedregulargasolinemaybe
usedifunleadedregularisnotavailable.

Note:Neverusemethanol,gasolinecontainingmethanol,or
gasolinecontainingmorethan10%ethanolbecausethefuel
systemcouldbedamaged.Donotmixoilwithgasoline.

Important:Toreducestartingproblems,addfuel
stabilizertothefuelallseason,mixingitwithgasoline
lessthan30daysold.

Figure8

1.Dipstick

2.Removethedipstickandchecktheoillevel(Figure8).
IftheoillevelisbelowtheAddmarkonthedipstick,
slowlypouroilintotheoillltubetoraisetheoil
leveltotheFullmarkonthedipstick.Wait3minutes
afteraddingoiltochecktheoilwiththedipstick.Do
notoverll.(Max.ll:20oz.(0.59l),type:SAE30
detergentoilwithanAPIserviceclassicationofSF ,
SG,SH,SJ,SL,orhigher.)

Important:Donotoverllthecrankcasewithoil
andruntheengine.Draintheexcessoiluntilthe
oillevelonthedipstickreadsFull.

3.Installthedipsticksecurely.

AdjustingtheCuttingHeight

WARNING

Adjustingthecuttingheightmaybringyouinto
contactwiththemovingblade,causingserious
injury.

•Stoptheengineandwaitforallmovingparts
tostop.

•Donotputyourngersunderthehousingwhen
adjustingthecuttingheight.

Figure7

CAUTION

Iftheenginehasbeenrunning,themuferwillbe
hotandcanseverelyburnyou.Keepawayfromthe
hotmufer.

6

Adjustthecuttingheightasdesired.Setthefrontwheelsto
thesameheightastherearwheels(Figure9).

Note:Toraisethemower,moveallthecuttingheightlevers
rearward.Tolowerthemower,moveallthecuttingheight
leversforward.

StartingtheEngine

1.Holdthebladecontrolbaragainstthehandle
(Figure10).

Figure9

1.Raisethemower2.Lowerthemower

Note:Thecuttingheightsettingsare1inch(25mm);1-3/8
inches(35mm);1-3/4inches(44mm);2-1/8inches(54mm);
2-1/2inches(64mm);2-7/8inches(73mm);3-1/4inches
(83mm);3-5/8inches(92mm);and4inches(102mm).

Figure10

1.Bladecontrolbar2.Recoilstarthandle

2.Pulltherecoilstarthandlelightlyuntilyoufeel
resistance,thenpullitsharply .Allowtheropetoreturn
tothehandleslowly(Figure10).

Note:Ifthemowerdoesnotstartafterseveral
attempts,contactanAuthorizedServiceDealer.

UsingtheSelf-propelDrive

Tooperatetheself-propeldrive,squeezetheself-propeldrive
bar(Figure11)towardthehandleandholdit.

7

Figure11

Todisengagetheself-propeldrive,releasetheself-propel
drivebar.

Note:Themaximumself-propelgroundspeedisxed.To
reducethegroundspeed,increasethespacebetweenthe
self-propeldrivebarandthehandle.

StoppingtheEngine

Tostoptheengine,releasethebladecontrolbar.

Note:Removetheignitionkeywhenyouleavethemower
(electric-startmodelsonly).

Important:Whenyoureleasethebladecontrolbar,
boththeengineandbladeshouldstopwithin3seconds.
Iftheydonotstopproperly,stopusingyourmower
immediatelyandcontactanAuthorizedServiceDealer.

RecyclingtheClippings

Yourmowercomesfromthefactoryreadytorecyclethe
grassandleafclippingsbackintothelawn.

Ifthegrassbagisonthemower,removeit(referto
RemovingtheGrassBag(page9))beforerecyclingthe
clippings.Ifthesidedischargechuteisonthemower,remove
it(refertoRemovingtheSideDischargeChute(page10))
beforerecyclingtheclippings.

BaggingtheClippings

Usethegrassbagwhenyouwanttocollectgrassandleaf
clippingsfromthelawn.

Note:Ensurethatthebagisseatedinthecorrectposition.

WARNING

Aworngrassbagcouldallowsmallstonesand
othersimilardebristobethrownintheoperator'sor
bystander'sdirectionandresultinseriouspersonal
injuryordeathtotheoperatororbystanders.

Checkthegrassbagfrequently.Ifitisdamaged,
installanewTororeplacementbag.

Ifthesidedischargechuteisonthemower,removeit(refer
toRemovingtheSideDischargeChute(page10))before
baggingtheclippings.

WARNING

Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.

Stoptheengineandwaitforallmovingpartstostop
beforeleavingtheoperatingposition.

InstallingtheGrassBag

Note:Ensurethatthebagisseatedinthecorrectposition.

1.Raiseandholdupthereardeector(

8

Figure12).

WARNING

Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.

Stoptheengineandwaitforallmovingpartstostop
beforeleavingtheoperatingposition.

Figure12

1.Notches

2.Reardeector

2.Installthegrassbag,ensuringthatthepinsonthebag
restinthenotchesonthehandle(Figure12).

3.Lowerthereardeector.

3.Grassbagpin(2)

RemovingtheGrassBag

Toremovethebag,reversethestepsabove.

Side-dischargingtheClippings

Usethesidedischargeforcuttingverytallgrass.

Ifthebagisonthemower,removeitbeforeside-discharging
theclippings.

9

InstallingtheSideDischargeChute

Liftupthesidedeectorandinstallthesidedischargechute
(Figure13).

OperatingTips

GeneralMowingTips

•Cleartheareaofsticks,stones,wire,branches,andother

debristhatthebladecouldhit.

•Avoidstrikingsolidobjectswiththeblade.Never

deliberatelymowoveranyobject.

•Ifthemowerstrikesanobjectorstartstovibrate,

immediatelystoptheengine,disconnectthewirefrom
thesparkplug,andexaminethemowerfordamage.

•Forbestperformance,installanewbladebeforethe

cuttingseasonbegins.

•ReplacethebladewhennecessarywithaToro

replacementblade.

CuttingGrass

•Cutonlyaboutathirdofthegrassbladeatatime.Donot

cutbelowthe2-1/8-inch(54mm)settingunlessthegrass
issparseoritislatefallwhengrassgrowthbeginstoslow
down.RefertoAdjustingtheCuttingHeight(page6).

•Whencuttinggrassover6inches(15cm)tall,mowatthe

highestcuttingheightsettingandwalkslower;thenmow
againatalowersettingforthebestlawnappearance.If
thegrassistoolong,themowermayplugandcausethe
enginetostall.

•Mowonlydrygrassorleaves.W etgrassandleavestend

toclumpontheyardandcancausethemowertoplug
ortheenginetostall.

Figure13

RemovingtheSideDischargeChute

Toremovethesidedischargechute,liftupthesidedeector,
removethesidedischargechute,andlowerthesidedischarge
deector.

WARNING

Wetgrassorleavescancauseseriousinjuryif
youslipandcontacttheblade.Mowonlyindry
conditions.

•Beawareofapotentialrehazardinverydryconditions,

followalllocalrewarnings,andkeepthemowerfree
ofdrygrassandleafdebris.

•Alternatethemowingdirection.Thishelpsdispersethe

clippingsoverthelawnforevenfertilization.

•Ifthenishedlawnappearanceisunsatisfactory,tryone

ormoreofthefollowing:

–Replacethebladeorhaveitsharpened.

–Walkataslowerpacewhilemowing.

–Raisethecuttingheightonyourmower.

–Cutthegrassmorefrequently .

–Overlapcuttingswathsinsteadofcuttingafullswath

witheachpass.

–Setthecuttingheightonthefrontwheelsonenotch

lowerthantherearwheels.Forexample,setthefront
wheelsat2-1/8inch(54mm)andtherearwheels
at2-1/2inches(64mm).

10

CuttingLeaves

•Aftercuttingthelawn,ensurethathalfofthelawnshows

throughthecutleafcover.Y oumayneedtomakemore
thanonepassovertheleaves.

•Iftherearemorethan5inches(13cm)ofleavesonthe

lawn,setthefrontcuttingheightoneortwonotches
higherthantherearcuttingheight.

•Slowdownyourmowingspeedifthemowerdoesnot

cuttheleavesnelyenough.

11

Maintenance

Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.

RecommendedMaintenanceSchedule(s)

MaintenanceService

Interval

Aftertherst5hours

Beforeeachuseordaily

Aftereachuse

Every25hours

Beforestorage

Yearly

Important:Refertoyourengineoperator'smanualforadditionalmaintenanceprocedures.

Note:ReplacementpartsareavailablefromanAuthorizedServiceDealer(gotowww .toro.comtondthenearestdealer)

oratwww.shoptoro.com.

PreparingforMaintenance

1.Stoptheengineandwaitforallmovingpartstostop.

MaintenanceProcedure

•Changetheengineoil.

•Checktheengineoillevel.

•Ensurethattheenginestopswithin3secondsafterreleasingthebladecontrolbar.

•Cleangrassclippingsanddirtfromunderthemower.

•Replacetheairlter;replaceitmorefrequentlyindustyoperatingconditions.

•Emptythefueltankbeforerepairsasdirectedandbeforeannualstorage.

•Changetheengineoil.

•Replacethebladeorhaveitsharpened(morefrequentlyiftheedgedullsquickly).

•Cleantheaircoolingsystem;cleanitmorefrequentlyindustyoperatingconditions.
Refertoyourengineoperator'smanual.

•Refertoyourengineoperator'smanualforanyadditionalyearlymaintenance
procedures.

pumptoremovethefuel.Alwaystipthemower
ontoitsside,withtheairlterup.

2.Disconnectthesparkplugwirefromthesparkplug
Figure14)beforeperforminganymaintenance

(
procedure.

Figure14

3.Afterperformingthemaintenanceprocedure(s),

connectthesparkplugwiretothesparkplug.

Important:Beforetippingthemowertochange
theoilorreplacetheblade,allowthefueltankto
rundrythroughnormalusage.Ifyoumusttipthe
mowerpriortorunningoutoffuel,useahandfuel

WARNING

Tippingthemowermaycausethefueltoleak.
Gasolineisammable,explosiveandcan
causepersonalinjury.

Runtheenginedryorremovethegasoline
withahandpump;neversiphon.

12

ReplacingtheAirFilter

ServiceInterval:Every25hours

1.Useascrewdrivertoopentheairltercover

(Figure15).

2.Replacetheairlter(Figure15).

3.Installthecover.

Figure16

1.Dipstick

4.Tipthemowerontoitssidewiththeairlteruptodrain
theusedoiloutthroughtheoillltube(Figure17).

Figure15

ChangingtheEngineOil

ServiceInterval:Aftertherst5hours

Yearly

Runtheengineafewminutesbeforechangingtheoiltowarm
it.Warmoilowsbetterandcarriesmorecontaminants.

1.Movethemowertoalevelsurface.

2.Referto

3.Removethedipstick(Figure16).

PreparingforMaintenance(page12).

Figure17

5.Returnthemowertotheoperatingposition.

6.Slowlypouroilintotheoillltubeuntiltheoillevel
reachestheFulllineonthedipstick(Figure16).Wait
3minutesafteraddingoiltochecktheoilwiththe
dipstick.Donotoverll.(Max.ll:20oz.(0.59
l),type:SAE30detergentoilwithanAPIservice
classicationofSF ,SG,SH,SJ,SL,orhigher.)

7.Installthedipsticksecurely.

8.Disposeoftheusedoilproperlyatalocalrecycling
center.

ReplacingtheBlade

ServiceInterval:Yearly

Important:

blade pr oper l y

areuncomfortableperformingthisprocedure,contact
anAuthorizedServiceDealer.

Examinethebladewheneveryourunoutofgasoline.Ifthe
bladeisdamagedorcracked,replaceitimmediately.Ifthe

13

Y ou will need a torque wr ench to install the

.Ifyoudonothaveatorquewrenchor

bladeedgeisdullornicked,haveitsharpenedandbalanced,
orreplaceit.

WARNING

Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.

Weargloveswhenservicingtheblade.

1.RefertoPreparingforMaintenance(page12).

2.Tipthemowerontoitssidewiththeairlterup.

3.Useablockofwoodtoholdthebladesteady
Figure18).

(

Figure19

Figure18

4.Removetheblade,savingallmountinghardware

(Figure18).

5.Installthenewbladeandallmountinghardware

(Figure19).

Important:Positionthecurvedendsoftheblade
topointtowardthemowerhousing.

6.Useatorquewrenchtotightenthebladeboltto
60ft-lb(82N-m).

Important:Abolttorquedto60ft-lb(82N-m)is
verytight.Whileholdingthebladewithablock
ofwood,putyourweightbehindtheratchetor
wrenchandtightentheboltsecurely.Thisboltis
verydifculttoovertighten.

AdjustingtheSelf-propelDrive Cable

Wheneveryouinstallanewself-propelcableorifthe
self-propeldriveisoutofadjustment,adjusttheself-propel
drivecable.

1.Loosenthecablesupportnut(Figure20).

2.Pulldownthecablejacket(towardthemower)until
thereisnoslackinthecable(Figure20).

3.Tightenthenutonthecablesupport.

14

Figure20

Thisgureissimpliedforthepurposeofclarity.

CleaningtheMower

ServiceInterval:Aftereachuse

WARNING

Themowermaydislodgematerialfromunderthe
mowerhousing.

•Weareyeprotection.

•Stayintheoperatingposition(behindthe
handle)whentheengineisrunning.

•Donotallowbystandersinthearea.

Forbestresults,cleanthemowersoonafteryouhave
completedmowing.

1.Lowerthemowertoitslowestcuttingheightsetting.
RefertoAdjustingtheCuttingHeight(page6).

2.Movethemowerontoaatpavedsurface.

3.Washouttheareaunderthereardeectorwherethe
clippingsgofromthehousingtothegrassbag.

4.Attachagardenhosethatisconnectedtoawater
supplytothewashoutportonthemowerhousing
(Figure21).

Figure21

1.Washoutport

5.Turnthewateron.

6.Starttheengineandrunituntiltherearenomore
clippingsthatcomeoutfromunderthemowerhousing.

7.Stoptheengine.

8.Shutoffthewateranddisconnectthegardenhose
fromthemower.

9.Starttheengineandrunitforafewminutestodrythe
housingtopreventitfromrusting.

10.Allowtheenginetocoolbeforestoringthemowerin
anenclosedarea.

15

Storage

Storethemowerinacool,clean,dryplace.

PreparingtheMowerfor Storage

WARNING

Gasolinevaporscanexplode.

•Donotstoregasolinemorethan30days.

•Donotstorethemowerinanenclosurenearan
opename.

2.Foldtheupperhandleforwardasshownin

Important:Routethecablestotheoutsideofthe
handleknobsasyoufoldthehandle.

Figure22.

•Allowtheenginetocoolbeforestoringit.

1.Onthelastrefuelingoftheyear,addfuelstabilizerto
thefuelasdirectedbytheenginemanufacturer.

2.Disposeofanyunusedfuelproperly.Recycleit
accordingtolocalcodes,oruseitinyourautomobile.

Note:Oldfuelinthefueltankistheleadingcauseof
hardstarting.Donotstorefuelwithoutstabilizermore
than30days,anddonotstorestabilizedfuelmorethan
90days.

3.Runthemoweruntiltheenginestopsfromrunning
outoffuel.

4.Starttheengineagain.

5.Allowtheenginetorununtilitstops.Whenyoucan
nolongerstarttheengine,itissufcientlydry.

6.Disconnectthewirefromthesparkplug.

7.Removethesparkplug,add1oz.(30ml)ofoilthrough
thesparkplughole,andpullthestarterropeslowly
severaltimestodistributeoilthroughoutthecylinder
topreventcylindercorrosionduringtheoff-season.

8.Looselyinstallthesparkplug.

Figure22

3.Tounfoldthehandle,reversethestepsabove.

RemovingtheMowerfrom Storage

1.Removethesparkplugandspintheenginerapidlyby
pullingtherecoilstarthandletoblowtheexcessoil
fromthecylinder.

2.Installthesparkplugandtightenitwithatorque
wrenchto15ft-lb(20N-m).

3.Connectthewiretothesparkplug.

9.Tightenallnuts,bolts,andscrews.

FoldingtheHandle

WARNING

Foldingorunfoldingthehandleimproperlycan
damagethecables,causinganunsafeoperating
condition.

•Donotdamagethecableswhenfoldingor
unfoldingthehandle.

•Ifacableisdamaged,contactanAuthorized
ServiceDealer.

1.Loosenthehandleknobsuntilyoucanmovetheupper
handlefreely.

16

Notes:

17

Notes:

18

Notes:

19

TheToroTotalCoverageGuarantee

A2-Y earFullWarranty(45DayLimitedWarrantyforCommercialUse)20inMulcher/Bagger

22inRecycler

®

TheToroGTSStartingGuarantee

A3-YearFullWarranty(NotApplicableforCommercialUse)

ConditionsandProductsCovered

TheToroCompanyanditsafliate,ToroWarrantyCompany ,pursuantto
anagreementbetweenthem,jointlypromisetorepairtheT oroProduct
listedbelowifusedforresidentialpurposes*;ifitisdefectiveinmaterials
orworkmanshiporifitstopsfunctioningduetothefailureofacomponent;
oriftheT oroGTS(GuaranteedtoStart)enginewillnotstartontherstor
secondpull,providedtheroutinemaintenancerequiredintheOperator's
Manualhavebeenperformed.

Thiswarrantycoversthecostofpartsandlabor,butyoumustpay
transportationcosts.

Thefollowingtimeperiodsapplyfromthedateofpurchase:

ProductsWarrantyPeriod

22inRecyclerand20in
Mulcher/BaggerandAttachments

GTS(GuaranteedtoStart)3-yearfullwarranty
Engine
Battery

LimitedWarrantyforCommercialUse*

Gas-poweredT oroProductsusedforcommercial,institutional,or
rentaluse,arewarrantedfor45daysagainstdefectsinmaterialsor
workmanship.Componentsfailingduetonormalweararenotcovered
bythiswarranty.

TheToroGTS(GuaranteedtoStart)StartingGuaranteedoesnotapply
whentheproductisusedcommercially*.

InstructionsforObtainingWarrantyService

IfyouthinkthatyourToroProductcontainsadefectinmaterialsor
workmanship,orifanormal,able-bodiedadultcannolongerstartyour
product'sengineinoneortwopulls,followthisprocedure:

1.ContactanyAuthorizedT oroServiceDealertoarrangeservice
attheirdealership.T olocateadealerconvenienttoyou,referto
theY ellowPagesofyourtelephonedirectory(lookunder“Lawn
Mowers”)oraccessourwebsiteatwww.Toro.com.Y oumayalso
callthenumberslistedinitem#3tousethe24-hourT oroDealer
locatorsystem.

2.Bringtheproductandyourproofofpurchase(salesreceipt)tothe
ServiceDealer.Thedealerwilldiagnosetheproblemanddetermine
ifitiscoveredunderwarranty .

3.IfforanyreasonyouaredissatisedwiththeServiceDealer’s
analysisorwiththeassistanceprovided,contactusat:

CustomerCareDepartment,RLCDivision
TheT oroCompany
811 1LyndaleAvenueSouth
Bloomington,MN55420-1196
Tollfreeat866-214-9807(U.S.customers)
Tollfreeat866-214-9808(Canadiancustomers)

OwnerResponsibilities

YoumustmaintainyourT oroProductbyfollowingthemaintenance
proceduresdescribedintheOperator'sManual.Suchroutine
maintenance,whetherperformedbyadealerorbyyou,isatyourexpense.

2-yearfullwarranty

3-yearfullwarranty
1-yearfullwarranty

WalkPowerMowers

ItemsandConditionsNotCovered

Thereisnootherexpresswarrantyexceptforspecialemissionsystem
coverageandenginewarrantycoverageonsomeproducts.Thisexpress
warrantydoesnotcoverthefollowing:

•Costofregularmaintenanceserviceorparts,suchaslters,fuel,

lubricants,oilchanges,sparkplugs,airltersbladesharpening
orwornblades,cable/linkageadjustments,orbrakeandclutch
adjustments

•Anyproductorpartwhichhasbeenalteredormisusedandrequires

replacementorrepairduetoaccidentsorlackofpropermaintenance

•Repairsnecessaryduetofailuretousefreshfuel(lessthanone

monthold),orfailuretoproperlypreparetheunitpriortoanyperiod
ofnon-useoveronemonth

•Pickupanddeliverycharges

•Operationalmisuse,neglect,oraccidents

•RepairsorattemptedrepairsbyanyoneotherthananAuthorized

ToroServiceDealer

•Repairsoradjustmentstocorrectstartingdifcultiesduetothe

following:

–failuretofollowpropermaintenanceprocedures

–rotarymowerbladestrikinganobject

–contaminantsinthefuelsystem

–improperfuel(consultyourOperator'sManualifindoubt)

–failuretodrainthefuelsystempriortoanyperiodofnon-use

overonemonth

•Specialoperationalconditionswherestartingmayrequiremorethan

twopulls:

–rsttimestartsafterextendedperiodofnon-useoverthree

monthsorseasonalstorage

–cooltemperaturestartssuchasthosefoundinearlyspringand

lateautumn

–improperstartingprocedures-ifyouarehavingdifcultystarting

yourunit,pleasechecktheOperator'sManualtoensurethat
youareusingthecorrectstartingprocedures.Thiscansavean
unnecessaryvisittoanAuthorizedT oroServiceDealer.

GeneralConditions

Allrepairscoveredbythesewarrantiesmustbeperformedbyan
AuthorizedToroServiceDealerusingToro-approvedreplacementparts.
RepairbyanAuthorizedT oroServiceDealerisyoursoleremedyunder
thiswarranty .

NeitherTheT oroCompanynorToroWarrantyCompanyisliablefor
indirect,incidental,orconsequentialdamagesinconnectionwiththe
useoftheToroProductscoveredbythesewarranties,includingany
costorexpenseofprovidingsubstituteequipmentorserviceduring
reasonableperiodsofmalfunctionornon-usependingcompletionof
repairsunderthesewarranties.

Somestatesdonotallowexclusionsofincidentalorconsequential
damages,sotheaboveexclusionsmaynotapplytoyou.

Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveother
rightswhichvaryfromstatetostate.

CountriesOtherthantheUnitedStatesorCanada

CustomerswhohavepurchasedT oroproductsexportedfromtheUnitedStatesorCanadashouldcontacttheirT oroDistributor(Dealer)toobtain
guaranteepoliciesforyourcountry ,province,orstate.IfforanyreasonyouaredissatisedwithyourDistributor'sserviceorhavedifcultyobtaining
guaranteeinformation,contacttheToroimporter.Ifallotherremediesfail,youmaycontactusatToroW arrantyCompany.

*Residentialpurposesmeansuseoftheproductonthesamelotasyourhome.Useatmorethanonelocation,orinstitutionalorrentaluse,isconsidered
commercialuse,andthecommercialusewarrantywouldapply.

374-0254RevC
