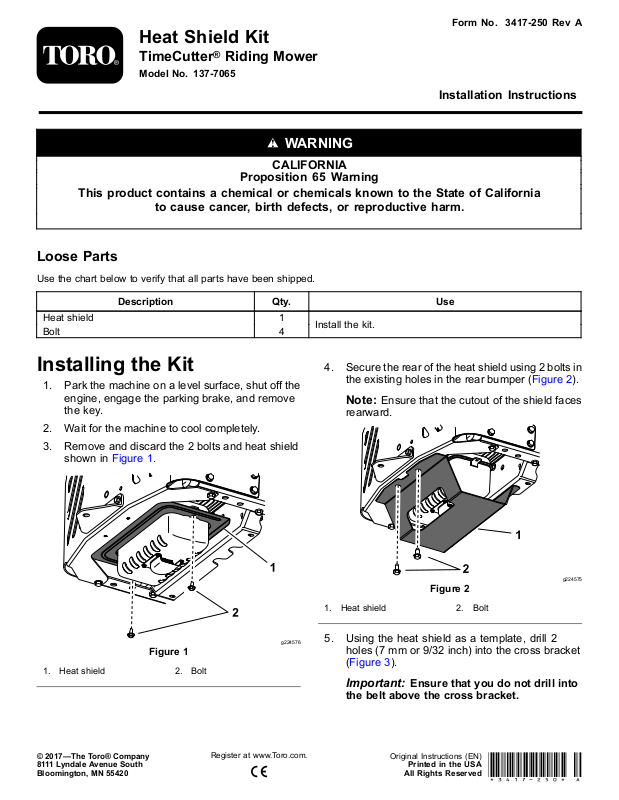

Toro 137-7065 Installation Instructions

HeatShieldKit

TimeCutter

ModelNo.137-7065

ThisproductcontainsachemicalorchemicalsknowntotheStateofCalifornia

tocausecancer,birthdefects,orreproductiveharm.

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

®

RidingMower

FormNo.3417-250RevA

InstallationInstructions

WARNING

CALIFORNIA

Proposition65Warning

Description

Heatshield1
Bolt4

InstallingtheKit

1.Parkthemachineonalevelsurface,shutoffthe
engine,engagetheparkingbrake,andremove
thekey .

2.Waitforthemachinetocoolcompletely.

3.Removeanddiscardthe2boltsandheatshield
showninFigure1.

Qty.

Use

Installthekit.

4.Securetherearoftheheatshieldusing2boltsin
theexistingholesintherearbumper(Figure2).

Note:Ensurethatthecutoutoftheshieldfaces

rearward.

g224575

Figure2

Figure1

1.Heatshield2.Bolt

©2017—TheT oro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420

Registeratwww.T oro.com.

1.Heatshield2.Bolt

g224576

5.Usingtheheatshieldasatemplate,drill2
holes(7mmor9/32inch)intothecrossbracket
(Figure3).

Important:Ensurethatyoudonotdrillinto

thebeltabovethecrossbracket.

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

*3417-250*A

Figure3

1.Drillhere.2.Bolt

6.Securethefrontoftheheatshieldusing2bolts
intheholesthatyoudrilled(Figure3).

g224592
