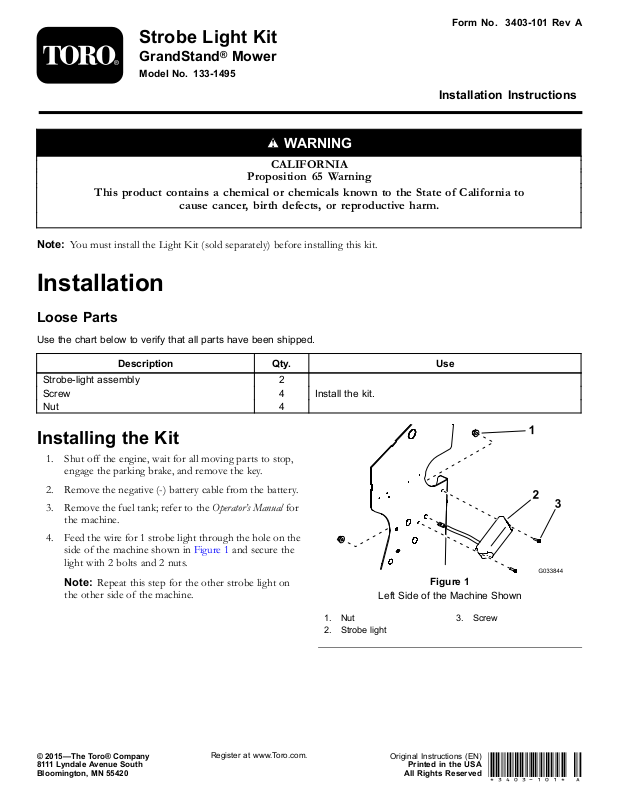

StrobeLightKit
GrandStand
ModelNo.133-1495
ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato
causecancer,birthdefects,orreproductiveharm.
Note:YoumustinstalltheLightKit(soldseparately)beforeinstallingthiskit.
®
Mower
Proposition65Warning
WARNING
CALIFORNIA
Installation
FormNo.3403-101RevA
InstallationInstructions
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
Description
Strobe-lightassembly
Screw
Nut4
InstallingtheKit
1.Shutofftheengine,waitforallmovingpartstostop,
engagetheparkingbrake,andremovethekey .
2.Removethenegative(-)batterycablefromthebattery.
3.Removethefueltank;refertotheOperator’ sManualfor
themachine.
4.Feedthewirefor1strobelightthroughtheholeonthe
sideofthemachineshowninFigure1andsecurethe
lightwith2boltsand2nuts.
Note:Repeatthisstepfortheotherstrobelighton
theothersideofthemachine.
Qty.
Use
2
4
Installthekit.
Figure1
LeftSideoftheMachineShown
©2015—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.
1.Nut
2.Strobelight
OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved
3.Screw
*3403-101*A
![](/html/dd/dd5d/dd5db66c4384a9c424a7b3bb4864a32b56d0c997f9d068e8e0a932a20397a6e5/bg2.png)
5.Installthewireconnectorsintothedesignatedjacksin
thelight-kitwireharness(Figure2).
Figure2
1.Strobe-lightwireconnector
2.Light-kitwireharness
6.Installthefueltank;refertotheOperator’sManualfor
themachine.
7.Installthenegative(-)batterycabletothebattery.
