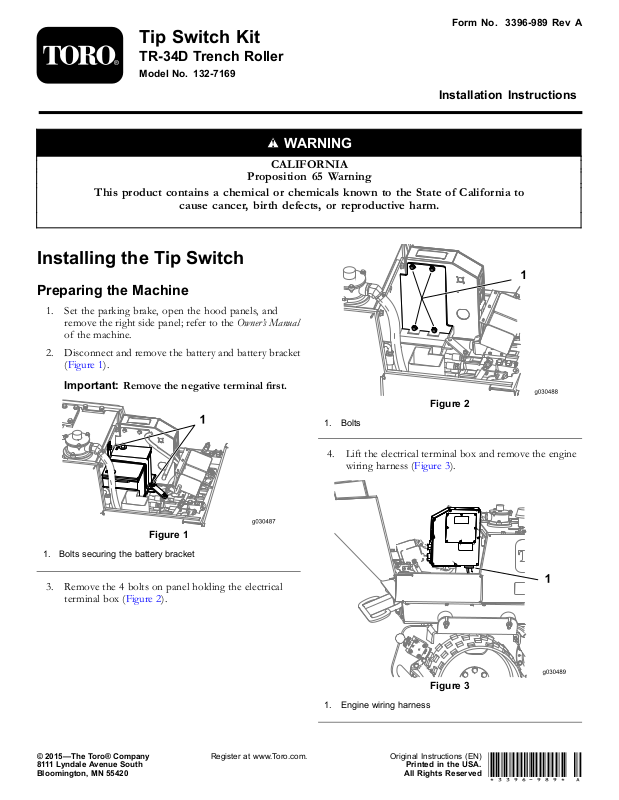

Toro 132-7169 Installation Instructions
TipSwitchKit
TR-34DTrenchRoller
ModelNo.132-7169
ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato
causecancer,birthdefects,orreproductiveharm.
InstallingtheTipSwitch
PreparingtheMachine
1.Settheparkingbrake,openthehoodpanels,and
removetherightsidepanel;refertotheOwner’ sManual
ofthemachine.
FormNo.3396-989RevA
InstallationInstructions
WARNING
CALIFORNIA
Proposition65Warning
2.Disconnectandremovethebatteryandbatterybracket
(Figure1).
Important:Removethenegativeterminalrst.
Figure1
1.Boltssecuringthebatterybracket
3.Removethe4boltsonpanelholdingtheelectrical
terminalbox(Figure2).
Figure2
1.Bolts
4.Lifttheelectricalterminalboxandremovetheengine
wiringharness(Figure3).
©2015—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.
1.Enginewiringharness
Figure3
OriginalInstructions(EN)
PrintedintheUSA.
AllRightsReserved
*3396-989*A
5.Removethe8boltsontheterminal-boxcover(Figure
4).
Figure6
Figure4
6.Removetheexistingtipswitchandbracket.
DANGER
Thetipswitchforthemachinecontains
mercury.Intheeventyouneedtoreplace
thispart,contactyourhazardouswaste
facilityforproperdisposaloftheoldpart.To
ndyourlocalhazardouswastefacilitysee
http://earth911.comontheinternet.
Note:Donotdiscardthehardware.
1.Bolt,washer,andstar
washer
2.Greenandblackwires
3.Redwire
8.Connecttheredwiretoposition15ontheterminal
strip(Figure6).
9.Connectthebatteryandenginewiringharness(Figure
3).
Important:Connectthepositiveterminalrst.
10.Securetheterminalboxtothepanel(Figure2).
11.Startthemachine.
12.SlowlytilttheswitchbyhanduntiltheTILTmessage
displaysontheLEDdisplay.
Note:Theengineshouldstopin3secondsorless
whentheTILTmessagedisplays.
Note:Iftheenginedoesnotstop,checkthewiring
schematictoensurethatthewiringiscorrect.
13.Mountthetipswitchtotheterminalboxusingthe
hardwareremovedinstep6andthewasherandstar
washerincludedinthiskit(Figure6).
Figure5
1.Existingtipswitch
7.Connectthegreenandblackwiresfromthenewswitch
tothewhiteconnector(Figure6).
14.Securetheterminalboxcovertotheterminalbox
(Figure4).
15.Installthebatterybracket(Figure1).
